Buckle - 2nd Row - RH (5 Seat) (Remove & Replace)

Correction code 20057102 0.30 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure. NOTE: See Ergonomic Precautions for safe and healthy working practices.

CAUTION
Supplemental Restraint System (SRS) components can be hazardous if not serviced and handled correctly. See
CAUTION
In the event of an airbag or seatbelt pretensioner deployment, certain components must be replaced, and other components must be inspected for damage. Refer to the Collision Repair Manual for a specific list of items that must be inspected and replaced.

Torque Specifications

Table 1. Torque Specifications: Buckle - 2nd Row - RH (5 Seat) (Remove & Replace)
Description Torque Value Recommended Tools Reuse/Replace Notes
Bolt that attaches the RH 2nd row buckle to the seat frame
40 Nm (29.5 lbs-ft)
  • Torx T50 socket
 Replace Bolt is captured in the buckle assembly

Remove

  1. Remove the 2nd row lower seat cushion. See Seat Cushion - Lower - 2nd Row (Remove and Replace).
  2. Remove the 2nd row seat back assembly. See Seat Back - 2nd Row - RH (Remove and Replace).

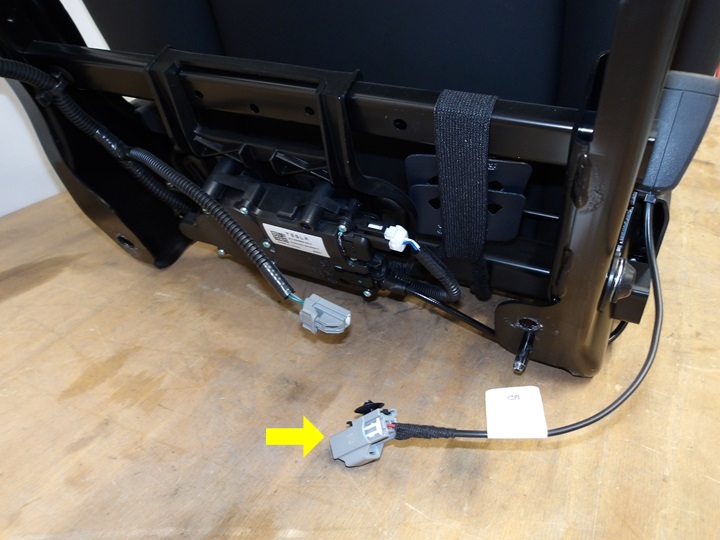

  3. Use a clip prytool to release the clip that attaches the RH 2nd row buckle connector to the seat frame.

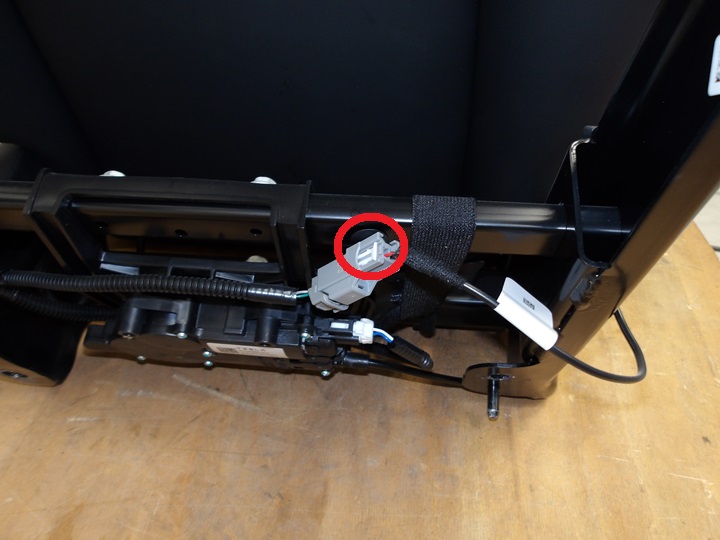

  4. Disconnect the RH 2nd row buckle electrical connector from the 40 seat frame harness.

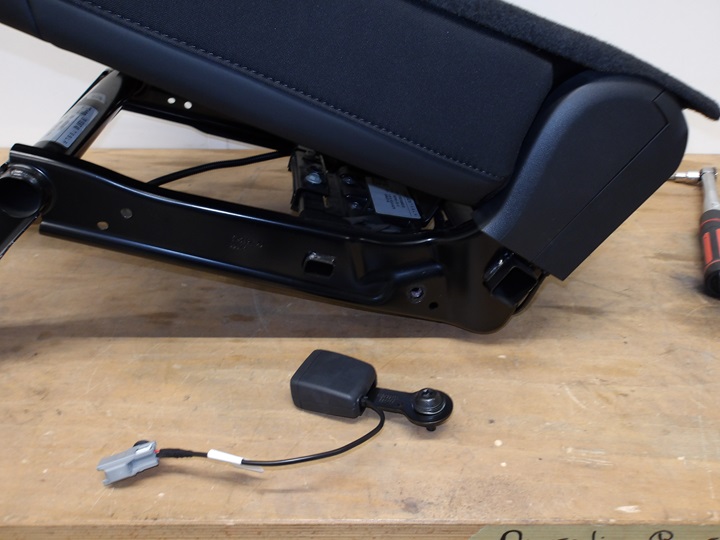

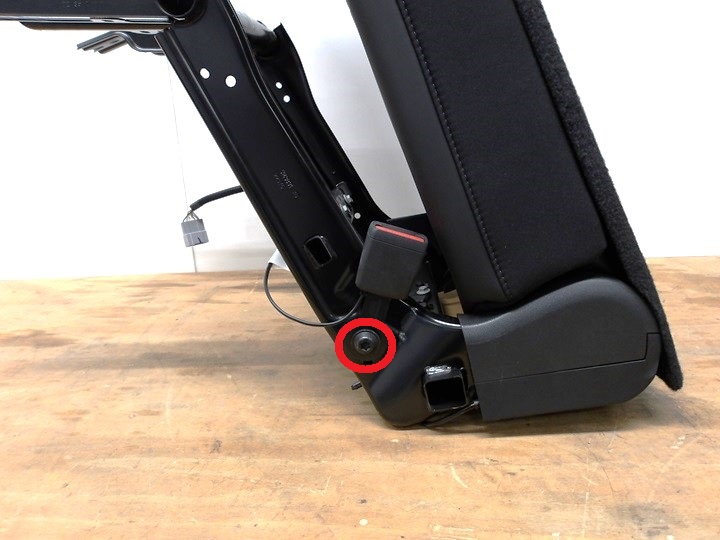

  5. Remove the bolt that attaches the RH 2nd row buckle to the seat frame.
    Tip
    Use of the following tool(s) is recommended:
    • Torx T50 socket

Install

  1. Install the bolt that attaches the RH 2nd row buckle to the seat frame.
    40 Nm (29.5 lbs-ft)
    Tip
    Use of the following tool(s) is recommended:
    • Torx T50 socket
  2. Connect the RH 2nd row buckle electrical connector to the 40 seat frame harness.
  3. Secure the clip that attaches the RH 2nd row buckle connector to the seat frame.
  4. Install the 2nd row seat back assembly. See Seat Back - 2nd Row - RH (Remove and Replace).
  5. Install the 2nd row lower seat cushion. See Seat Cushion - Lower - 2nd Row (Remove and Replace).
