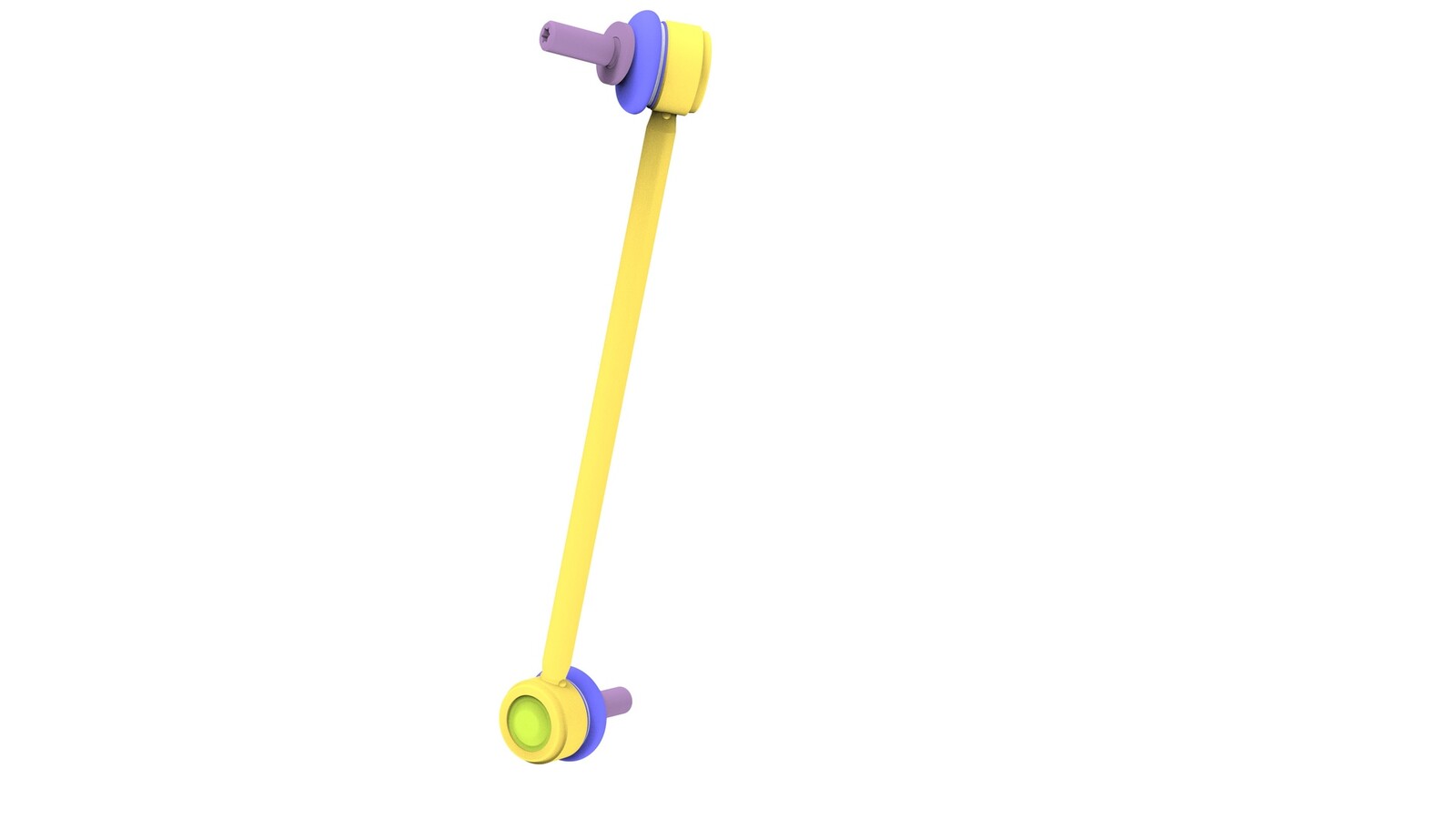

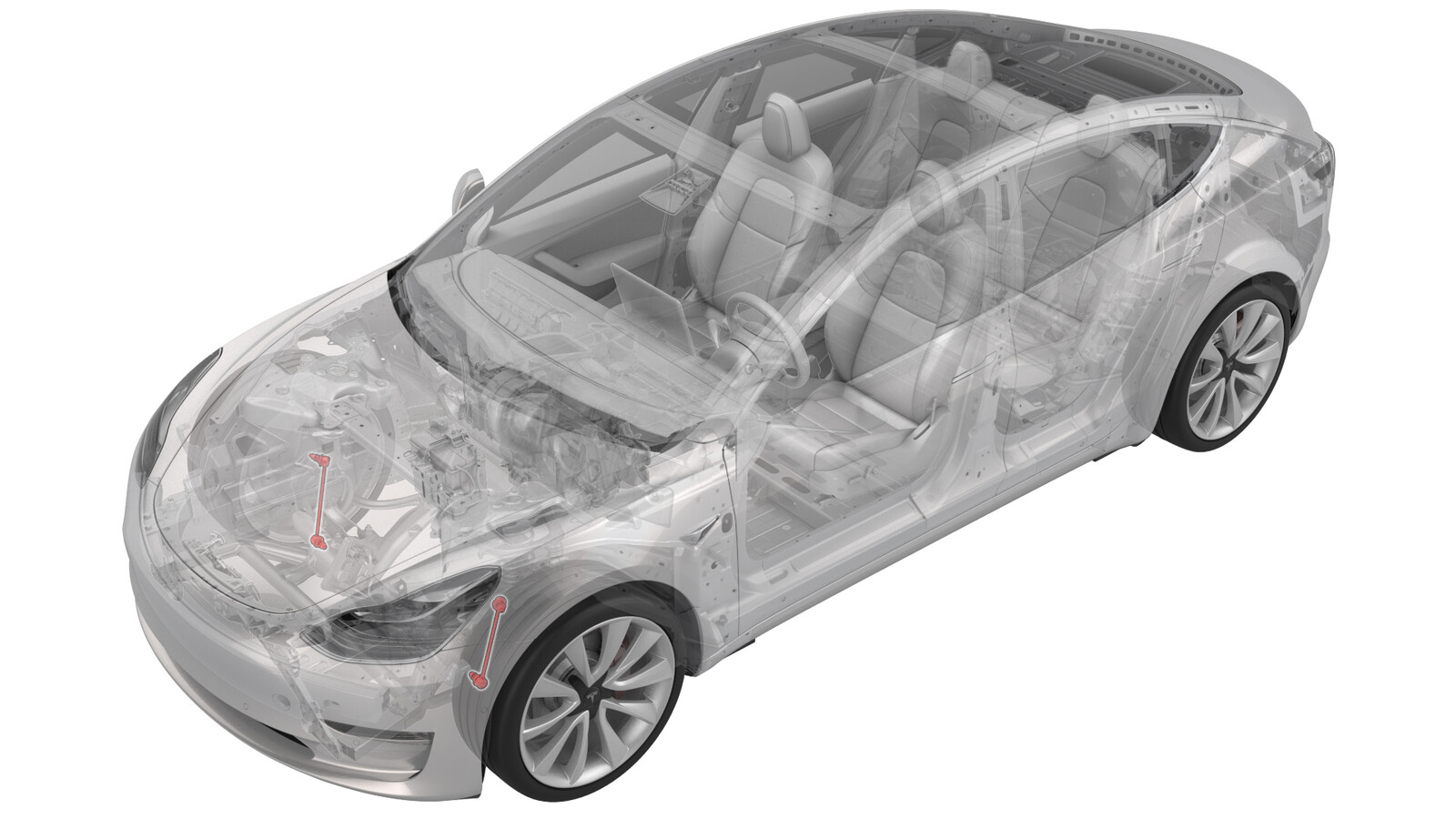

Link - Stabilizer Bar - Front - LH (Remove and Replace)
Correction code
31012002
0.18
NOTE: Unless otherwise explicitly
stated in the procedure, the above correction code and FRT reflect all of the work
required to perform this procedure, including the linked procedures. Do not stack correction codes unless
explicitly told to do so.
NOTE: See Flat Rate
Times to learn more about FRTs and how they are created.
NOTE: See Personal Protection to make sure wearing proper PPE
when performing the below procedure. See Ergonomic Precautions for safe and healthy working
practices.
Remove
- Remove the LH front wheel. See Wheel Assembly (Remove and Install).
-

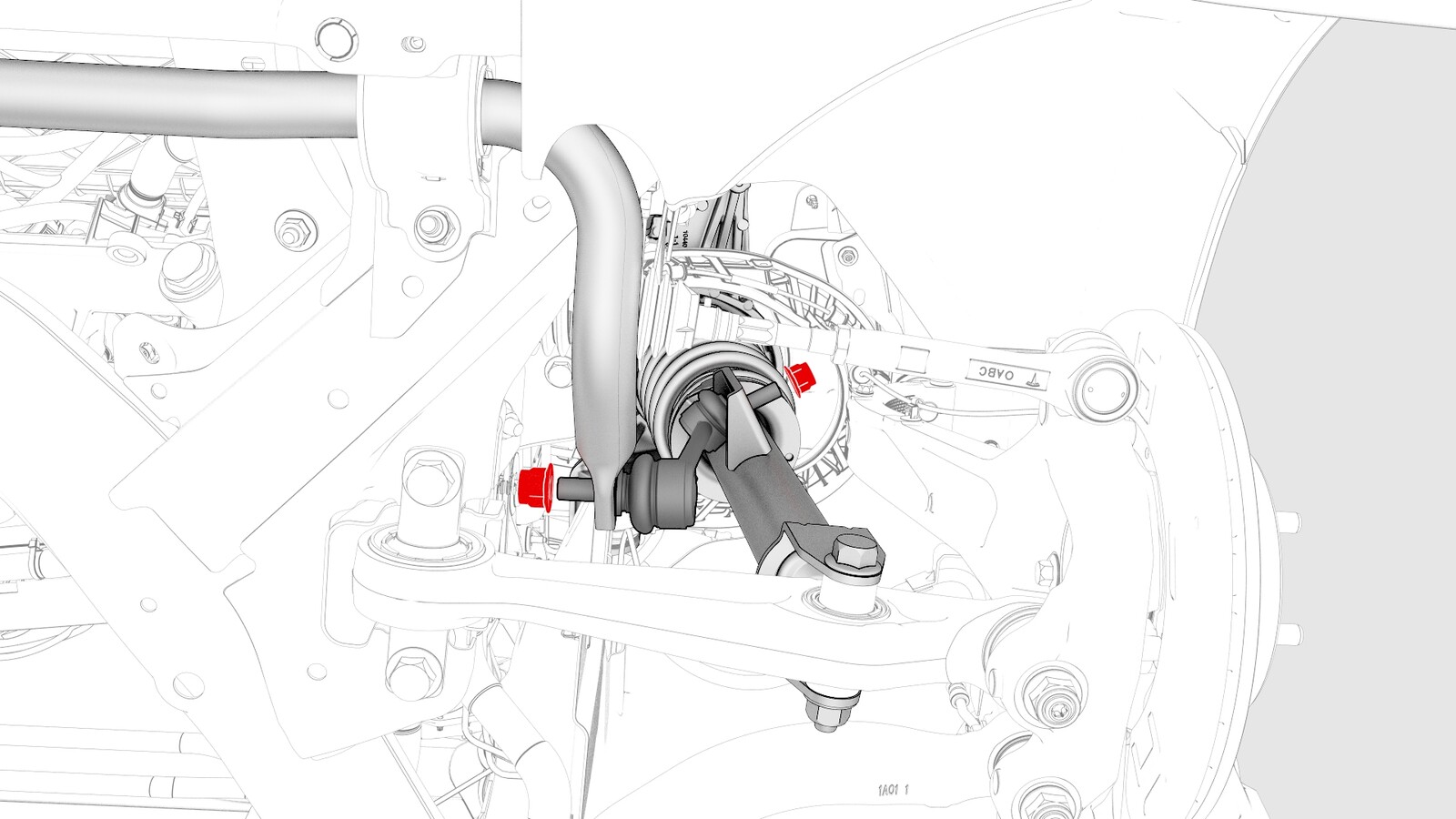

Remove and discard the nuts that attach the front LH stabilizer bar link to the stabilizer bar and damper, and then remove the link from the vehicle.
98 Nm (72.3 lbs-ft)
Install
Installation procedure is the reverse of removal, except for the following:

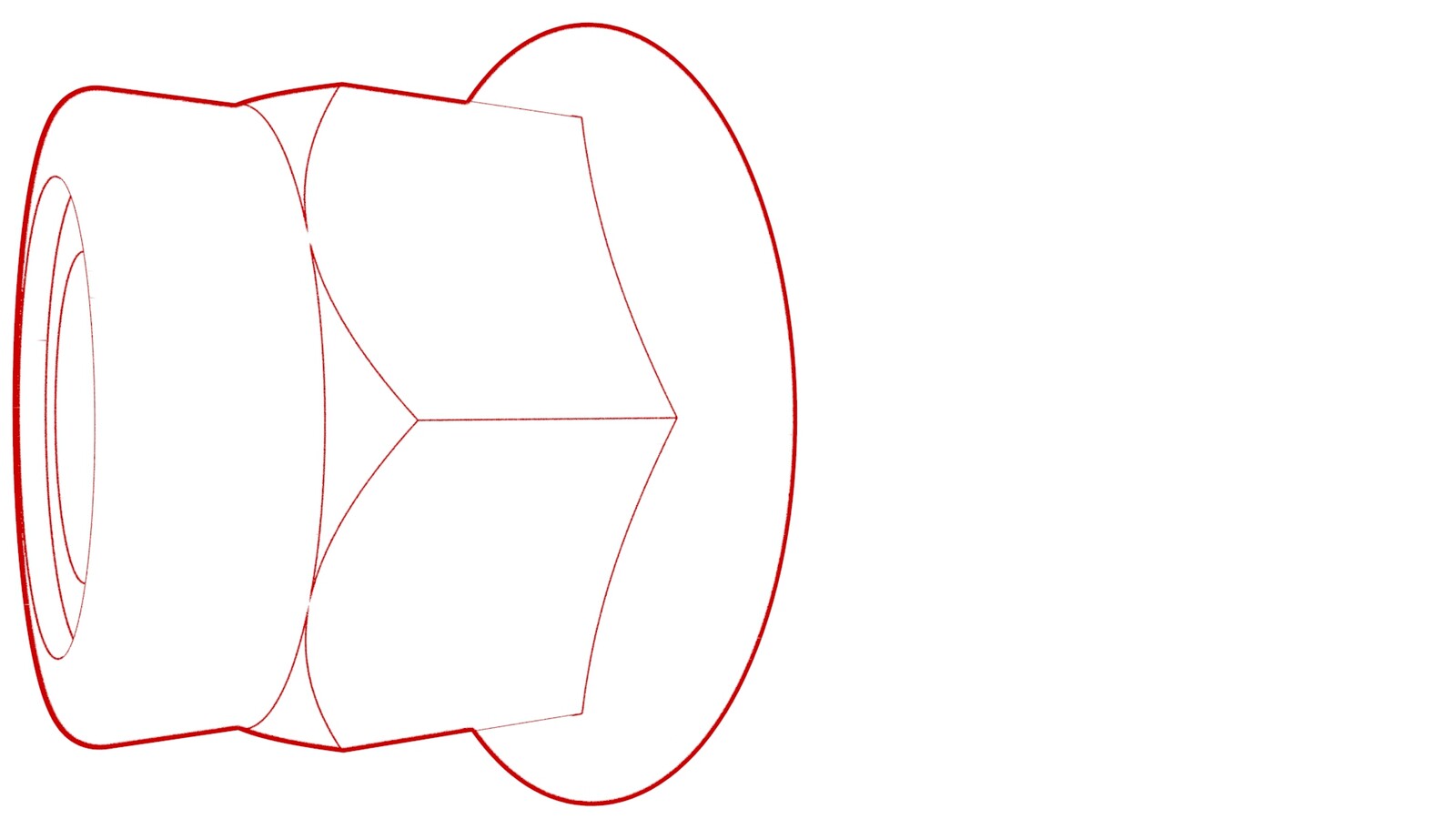

Replace all nyloc nuts.
