Hinge - Liftgate - LH (Remove and Replace)

Correction code 11335612 0.90 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure. See Ergonomic Precautions for safe and healthy working practices.

  • 2025-12-02: Updated the steps to allow the hinges to be removed without removing the liftgate.
  • 2023-12-20: Reorganized the procedure.
  • 2023-06-21: Added the Telescoping Hood Prop to the tool list.
  • 1080562-00-A Telescoping Hood Prop

Torque Specifications

Table 1. Torque Specifications: Hinge - Liftgate - LH (Remove and Replace)
Description Torque Value Recommended Tools Reuse/Replace Notes
Coat hook screw
1 Nm (.7 lbs-ft)
  • Torx T20 bit
 Reuse
LH liftgate hinge bolts (x2)
32 Nm (23.6 lbs-ft)
  • Combination Wrench 12pt 13mm
 Reuse
Bolt that attaches the liftgate hinge to the vehicle
12 Nm (8.8 lbs-ft)
  • 10 mm deep socket
 Reuse
Nuts (x2) that attach the LH liftgate hinge to the vehicle
30 Nm (22.1 lbs-ft)
  • 13 mm socket
 Reuse

Remove

  1. Open all the doors and lower all the windows.
  2. Open the liftgate.
  3. Move the front seats forward.
  4. Fold the 2nd row 60 seatback down.
  5. Push to open the LH coat hook.
  6. Release the locking tab to open the LH coat hook screw cover.
  7. Remove the LH coat hook screw.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T20 bit
  8. Remove the LH trunk pocket bracket. See Bracket - Trunk Pocket - LH (Remove and Replace).
  9. Remove the LH trunk side trim. See Trim - Side - Trunk - LH (Remove and Replace).
  10. Remove the LH upper C-pillar trim. See Trim - C-Pillar - Upper - LH (Remove and Replace).
  11. Release the clips that attach the rear edge of the rear headliner to the vehicle.
  12. Apply tape to the LH liftgate hinge location.
    Informational PurposesAn informational icon, calling your attention
    Note
    This will mark where the hinge should align when installing. Adhesive tape is also attached to the rear body of the hinge to prevent damage to the paint when removing the hinge.

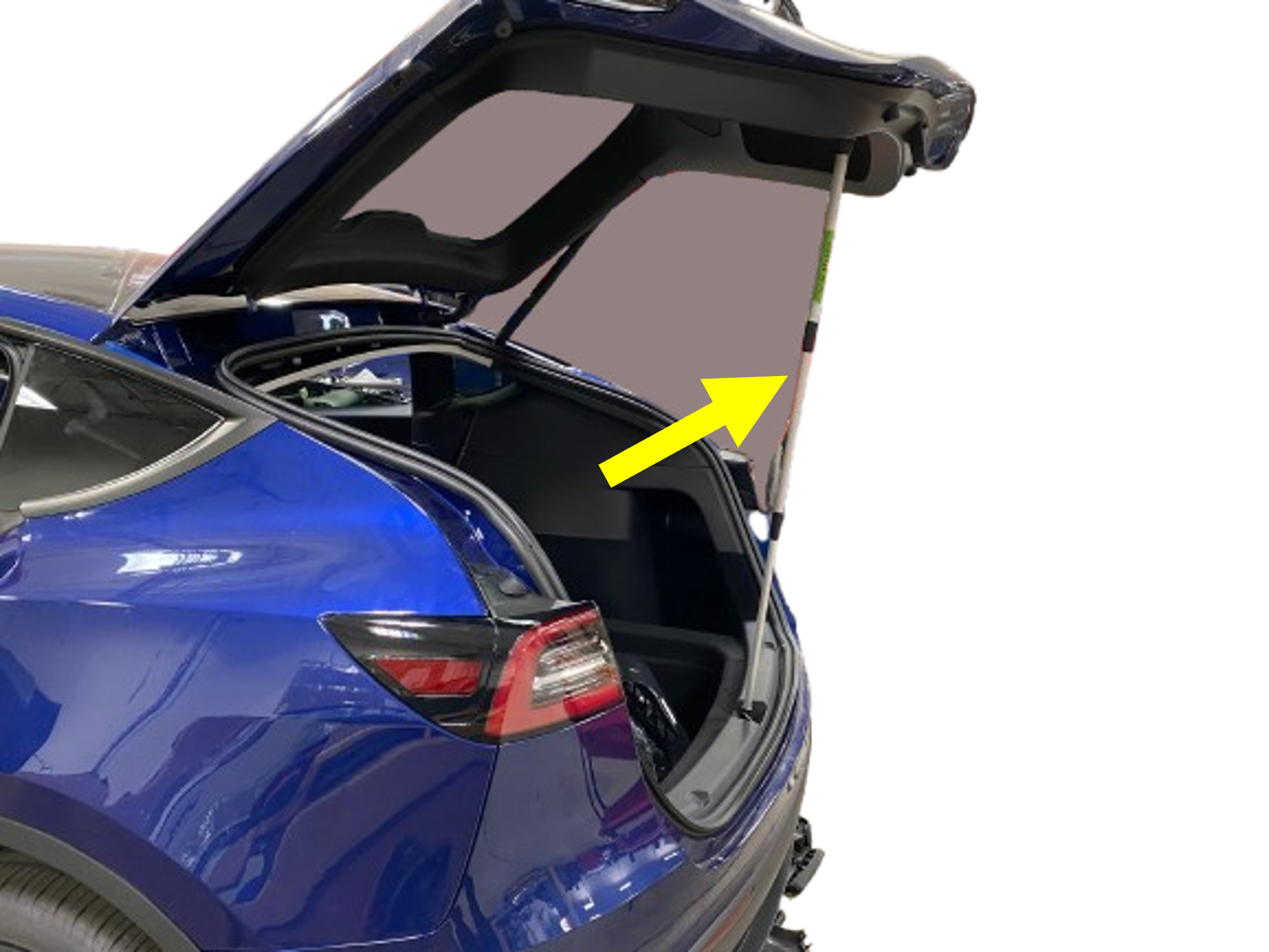

  13. Use Telescoping Hood Prop to support the liftgate.

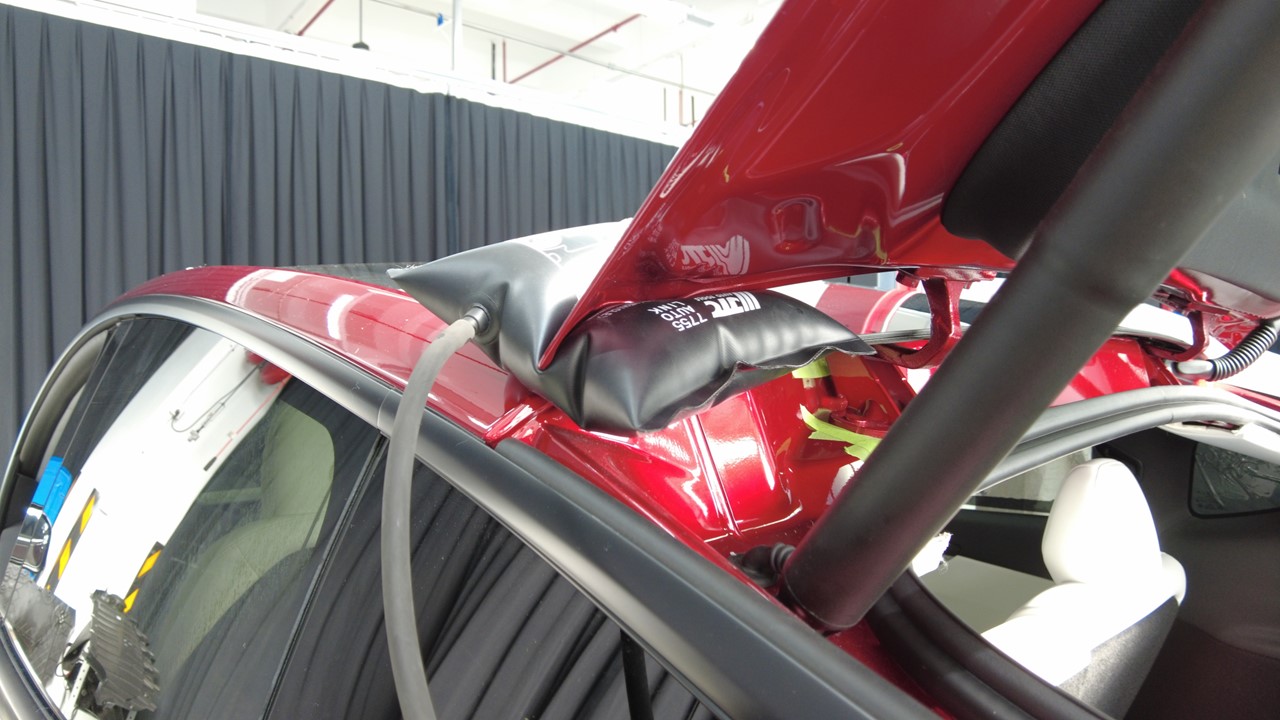

  14. Place an inflatable air bag between the liftgate and the roof glass to prevent the liftgate from directly pressing against the roof glass and causing damage.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Perform with assistance, otherwise there is a risk of damage.
  15. Place shop towel on the LH side trunk jamb.

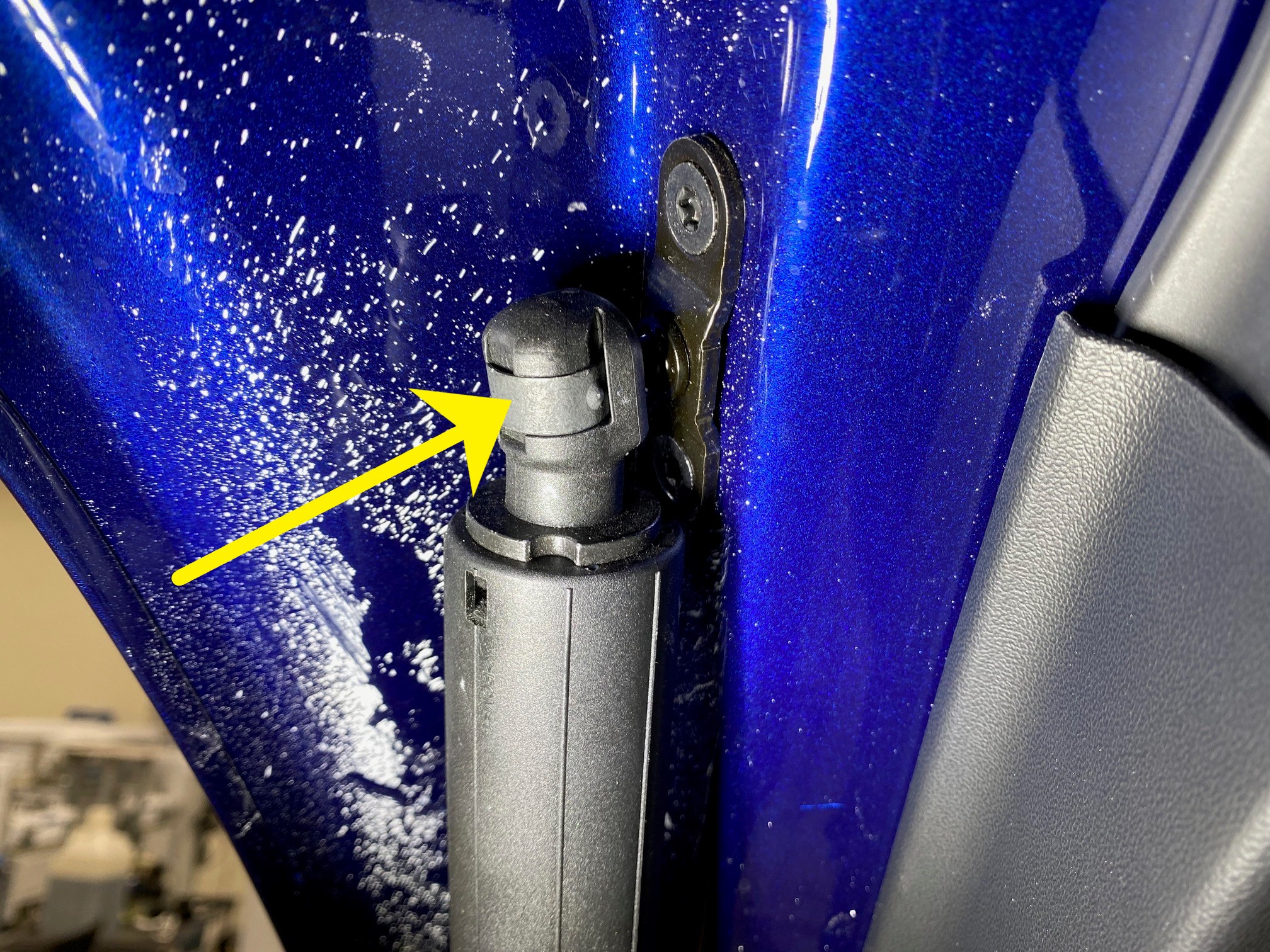

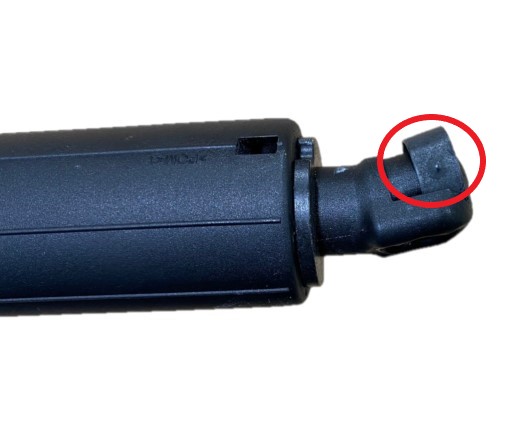

  16. Release the LH upper power strut clip from the ball stud at the liftgate.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Perform with assistance, otherwise there is a risk of damage.
    Informational PurposesAn informational icon, calling your attention
    Note

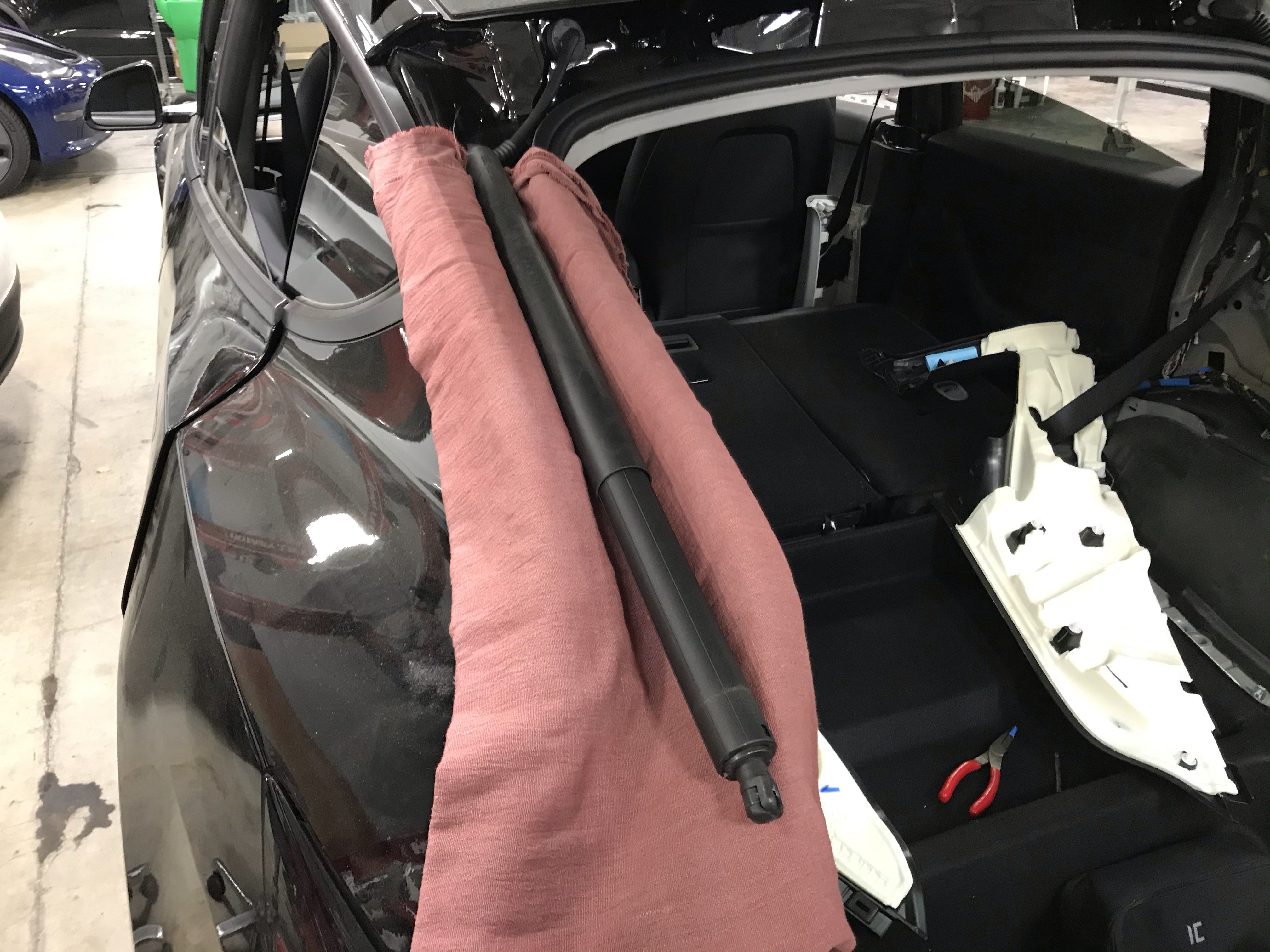

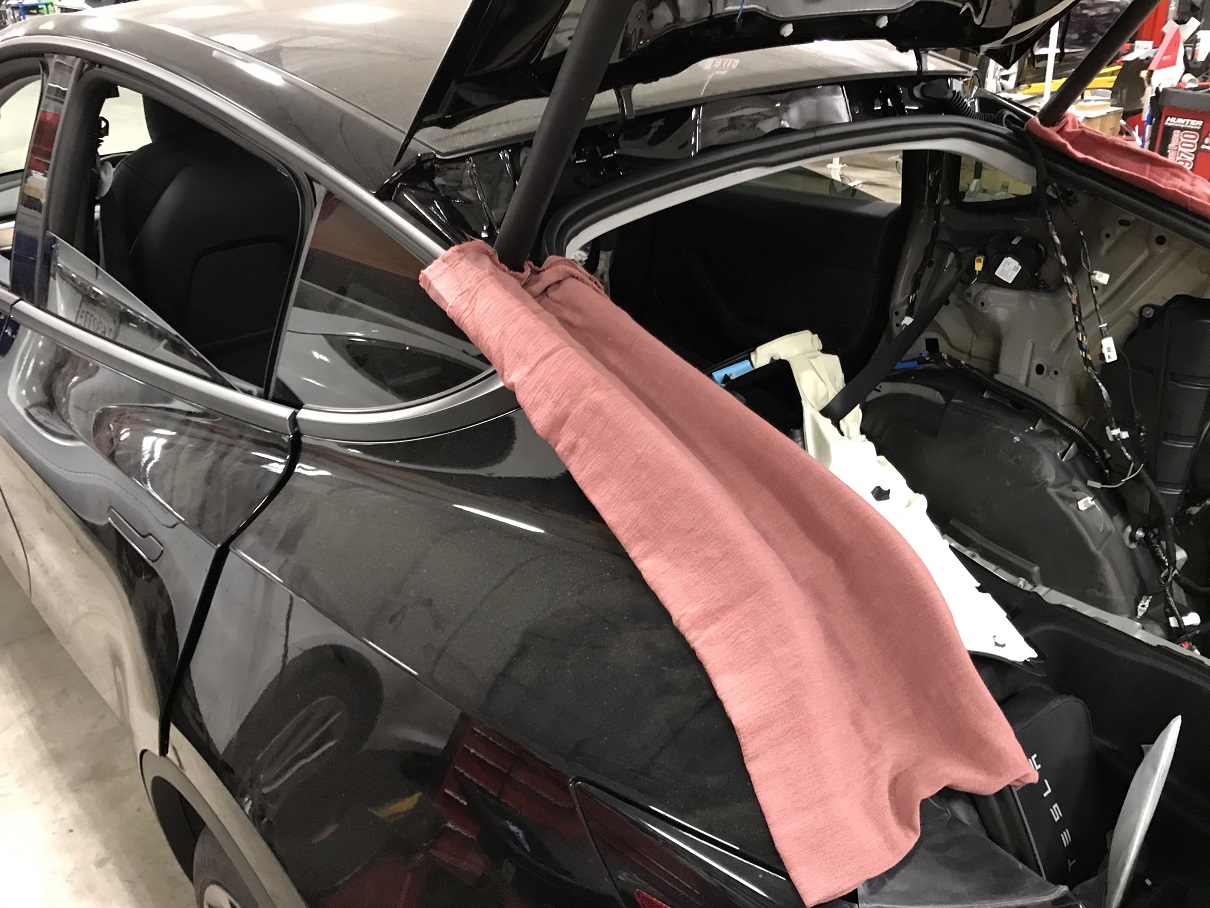

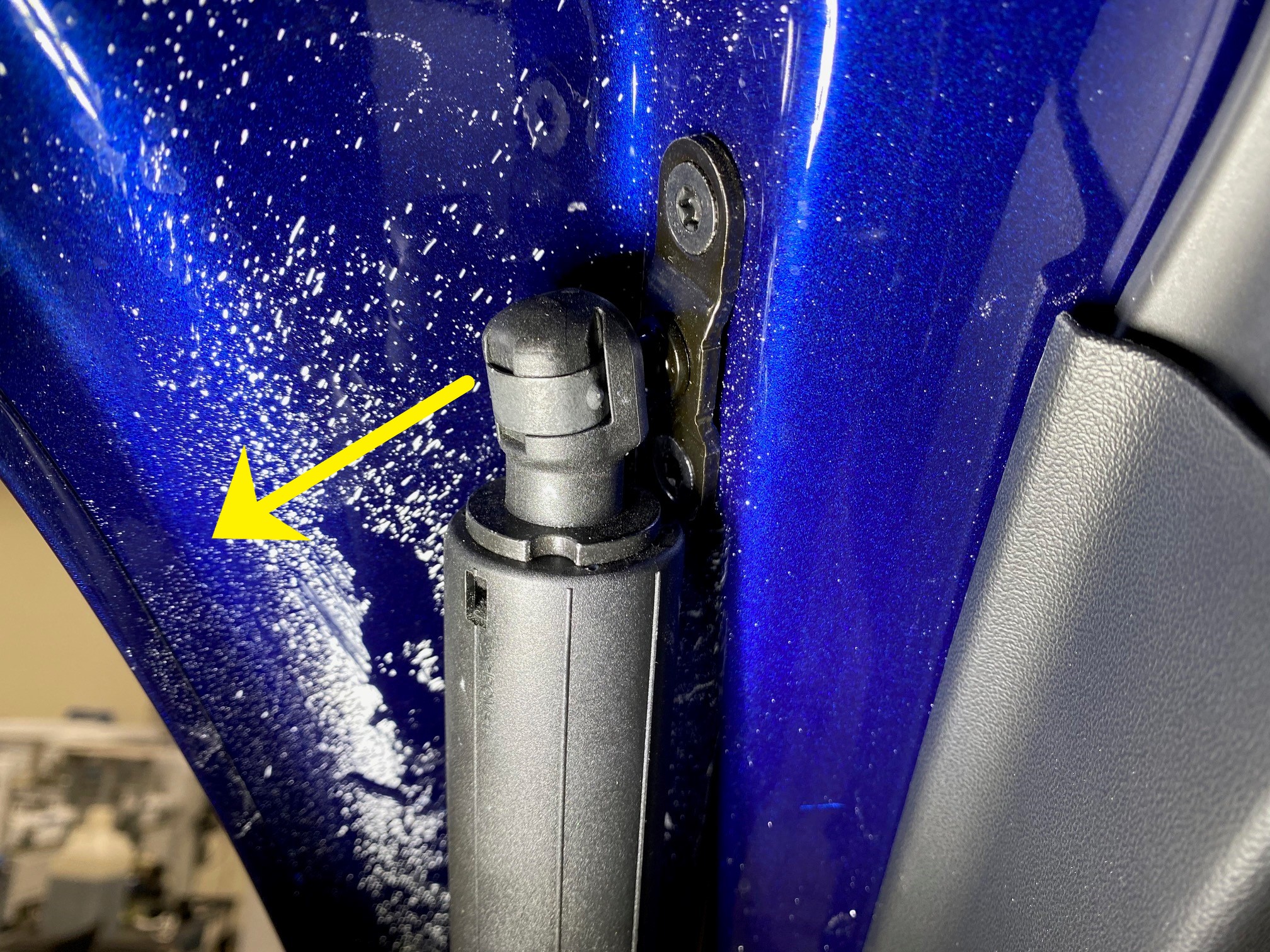

    Once released, lay the power strut down on the door jamb.

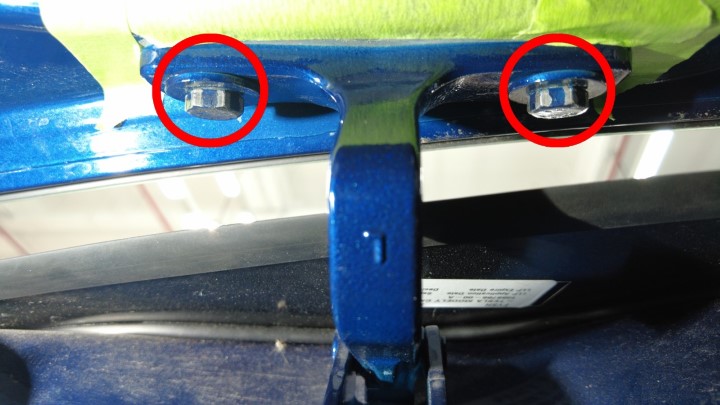

  17. With assistance, remove the LH liftgate hinge bolts (x2).
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Combination Wrench 12pt 13mm
  18. Remove the bolt that attaches the liftgate hinge to the vehicle.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm deep socket
  19. Remove the nuts (x2) that attach the LH liftgate hinge to the vehicle.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 13 mm socket
  20. Remove the LH liftgate hinge from the vehicle.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Be careful not to damage the glass roof.

Install

  1. Use scraper razer blade and IPA wipes to remove old spacers from the body.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Be careful not to damage the vehicle's painted surfaces.
  2. Position the LH liftgate hinge into the vehicle.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Be careful not to damage the glass roof.
  3. Install and hand tighten the bolt that attaches the liftgate hinge to the vehicle.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm deep socket
  4. Install and hand tighten the nuts (x2) that attach the LH liftgate hinge to the vehicle.
  5. With assistance, install and hand-tighten the LH liftgate hinge bolts (x2).
  6. With assistance, install the LH upper power strut clip to the ball stud at the liftgate.
  7. Remove the inflatable air bag.
  8. Remove the shop towel on the LH side trunk jamb.
  9. Remove the liftgate support from the vehicle.
  10. With assistance, close the liftgate to check gap/flush, and perform adjustment as necessary to the hinge bolts and the trunk striker.
    Informational PurposesAn informational icon, calling your attention
    Note
    Refer to CVIS for latest specifications.
  11. Torque the LH liftgate hinge bolts (x2).
    32 Nm (23.6 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Combination Wrench 12pt 13mm
  12. Torque the nuts (x2) that attach the LH liftgate hinge to the vehicle.
    30 Nm (22.1 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 13 mm socket
  13. Torque the bolt that attaches the liftgate hinge to the vehicle.
    12 Nm (8.8 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm deep socket
  14. Apply touch up paint to the fasteners that secure the LH liftgate hinge.
  15. Install the clips (x2) that attach the rear edge of the rear headliner to the vehicle.
  16. Install the LH upper C-pillar trim. See Trim - C-Pillar - Upper - LH (Remove and Replace).
  17. Install the LH trunk side trim. See Trim - Side - Trunk - LH (Remove and Replace).
  18. Install the LH trunk pocket bracket. See Bracket - Trunk Pocket - LH (Remove and Replace).
  19. Install the LH coat hook screw.
    1 Nm (.7 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T20 bit
  20. Close the LH coat hook screw cover.
  21. Push to close the LH coat hook.
  22. Fold the 60 seat back into original position.
  23. Remove the masking tapes used for marking the position of the LH liftgate hinge.
  24. Close the liftgate.
  25. Move both front seats to original position.
  26. Raise all windows and close all the doors.
