Speaker - Pedestrian Warning (Retrofit)

Correction code 17541006 0.30 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure. See Ergonomic Precautions for safe and healthy working practices.

Torque Specifications

Table 1. Torque Specifications: Speaker - Pedestrian Warning (Retrofit)
Description Torque Value Recommended Tools Reuse/Replace Notes
Screws (x3) that attach the pedestrian warning speaker assembly to the front fascia
1.8 Nm (1.3 lbs-ft)
  • Torx T25 socket
 Reuse

Procedure

  1. Remove the RH front wheel. See Wheel Assembly (Remove and Install).
  2. Remove the RH front fender garnish. See Garnish - Fender - Front - LH (Remove and Replace).

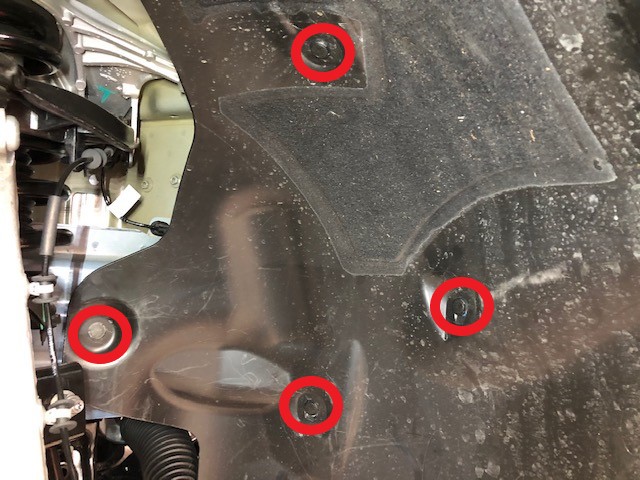

  3. Remove the clips (x8) that attach the front portion of the RH front wheel arch liners to the vehicle, and then move the wheel arch liner aside to perform the following steps.

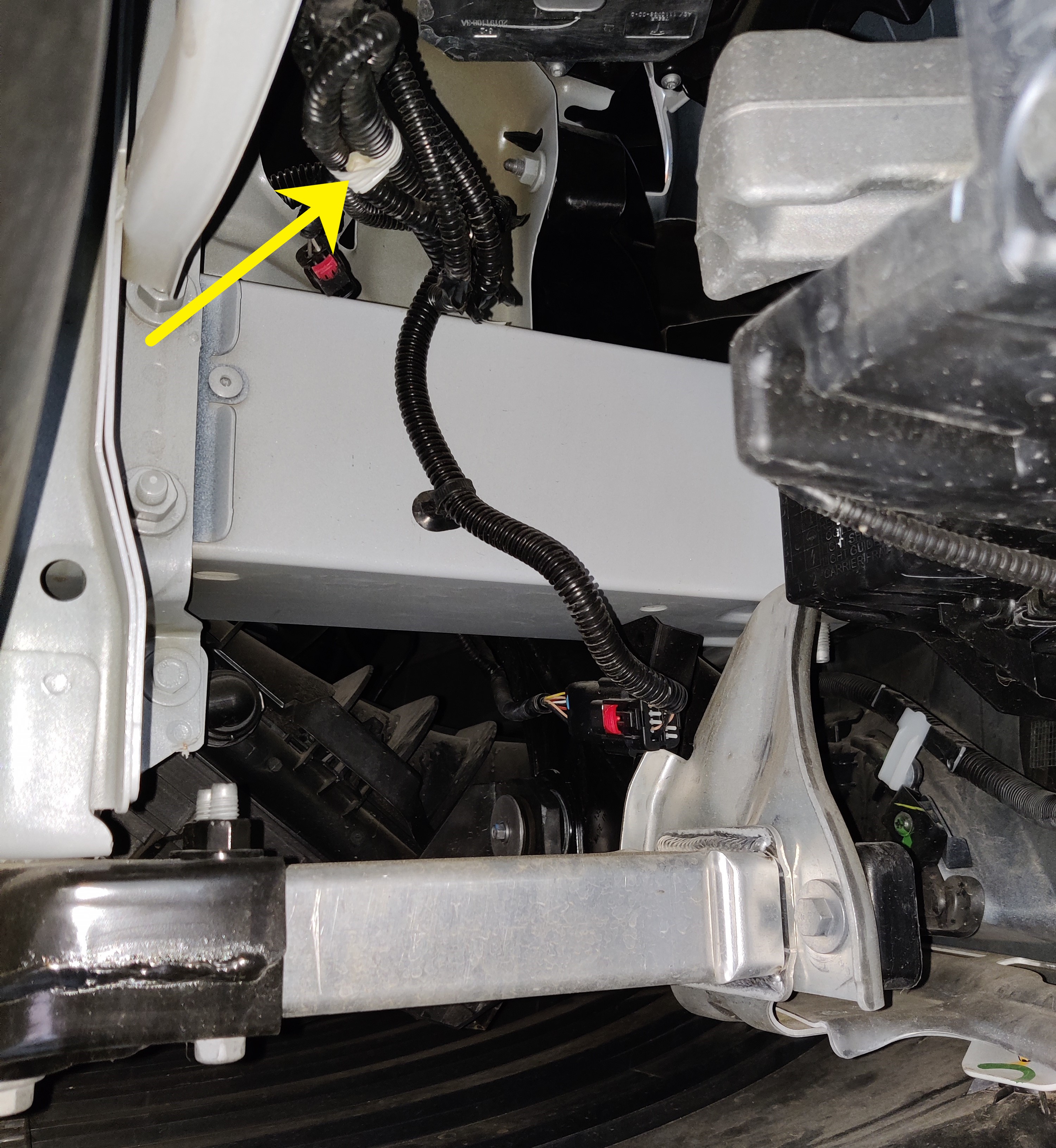

  4. Look underneath the RH front corner of the vehicle and locate the breakout harness for the pedestrian warning speaker electrical connector.
    Informational PurposesAn informational icon, calling your attention
    Note
    If the vehicle is not equipped with the pedestrian warning speaker electrical connector, then the vehicle cannot be retrofitted with the pedestrian warning speaker. Reinstall the components that were removed for access and stop this procedure.
  5. Use a retractable blade knife or similar tool to carefully remove the tape that secures the pedestrian warning speaker electrical connector to the main front harness bundle.

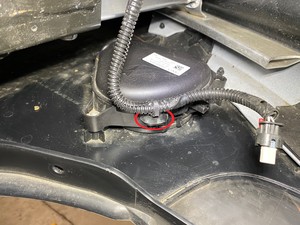

  6. Install the screws (x3) that attach the pedestrian warning speaker assembly to the front fascia.
    1.8 Nm (1.3 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T25 socket

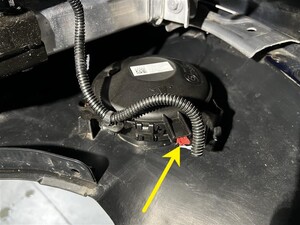

  7. Install the clip that attaches the harness to the pedestrian warning speaker assembly.

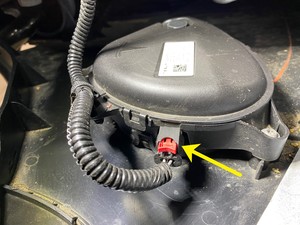

  8. Engage the locking tab to connect the pedestrian warning speaker connector.

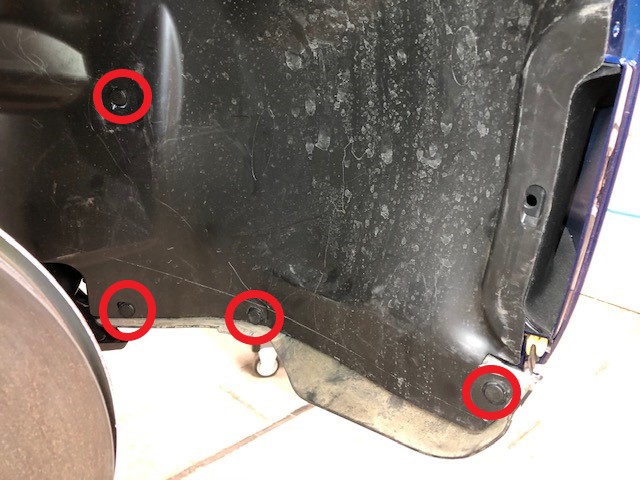

  9. Install the clips (x8) that attach the front portion of the RH front wheel arch liners to the vehicle.
  10. Install the RH front fender garnish. See Garnish - Fender - Front - LH (Remove and Replace).
  11. Install the RH front wheel. See Wheel Assembly (Remove and Install).
  12. Locally connect a laptop with Toolbox 3 to the vehicle. See Toolbox (Connect and Disconnect).
  13. On the laptop, click the Infotainment Dashboard and then find the pedestrianWariningSound parameter. Select SPEAKER from its dropping list and then click Apply Changes > Run, and close the window once the routine is complete.
  14. Disconnect the laptop.
  15. Exit Service Mode. See Service Mode.
  16. Raise the LH front window and close the LH front door.
