Knuckle - Suspension - Rear (Inspect)

Correction code 31030110 0.24 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure. See Ergonomic Precautions for safe and healthy working practices.

  • 2025-09-16: Added extra measurement information.
  • 2025-07-11: Updated measurement instructions.
  • 2025-05-15: Revised procedure.
  • 1064697-00-B - KIT, BRAKE ROTOR RUN OUT

Procedure

  1. Remove the rear wheel. See Wheel Assembly (Remove and Install).

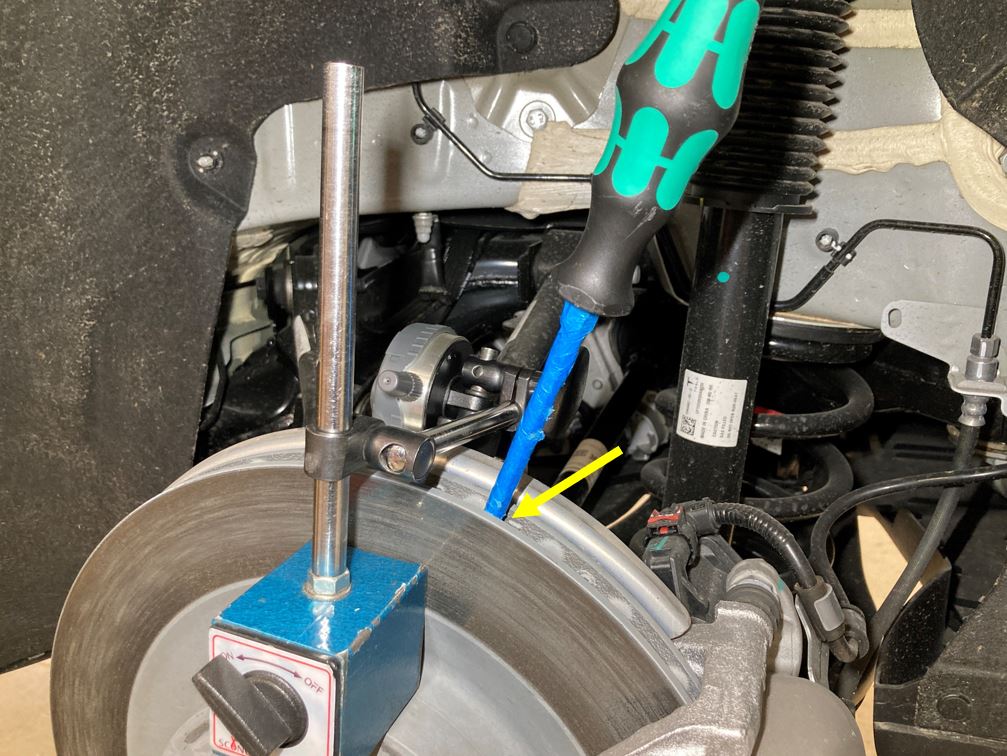

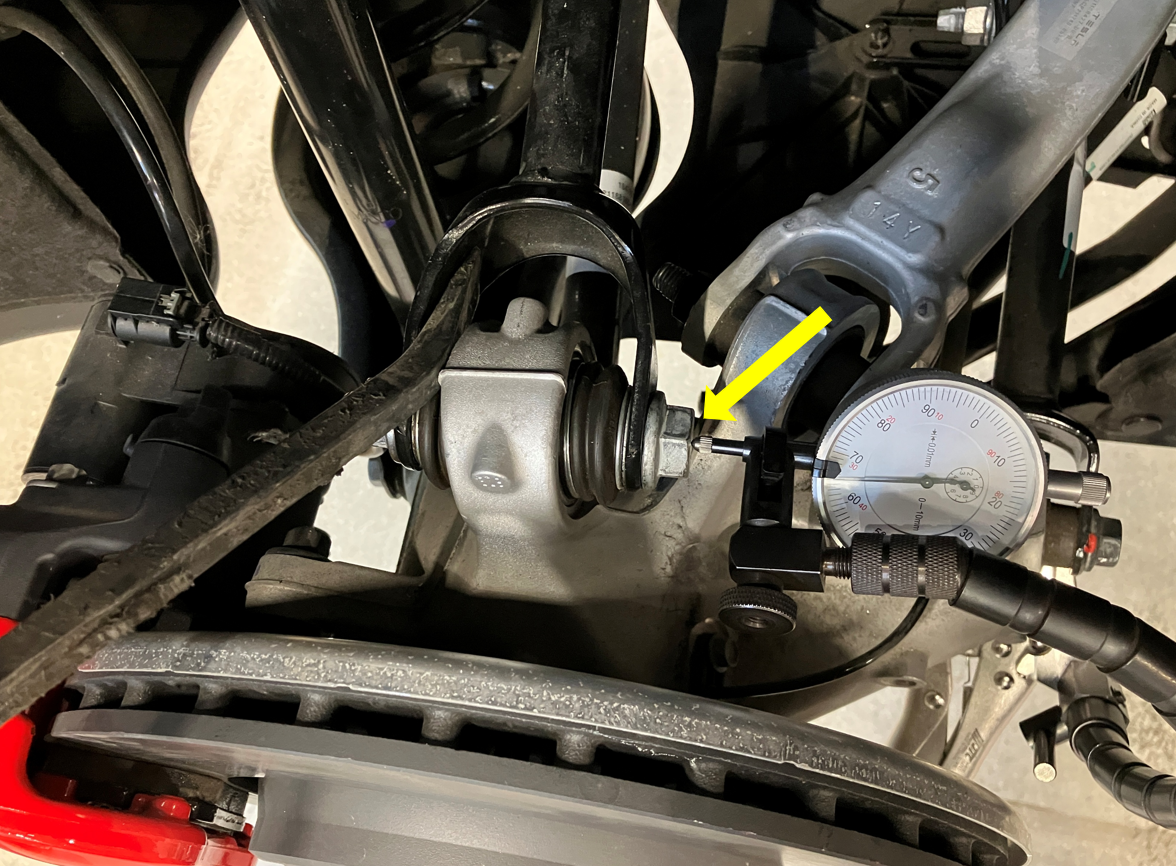

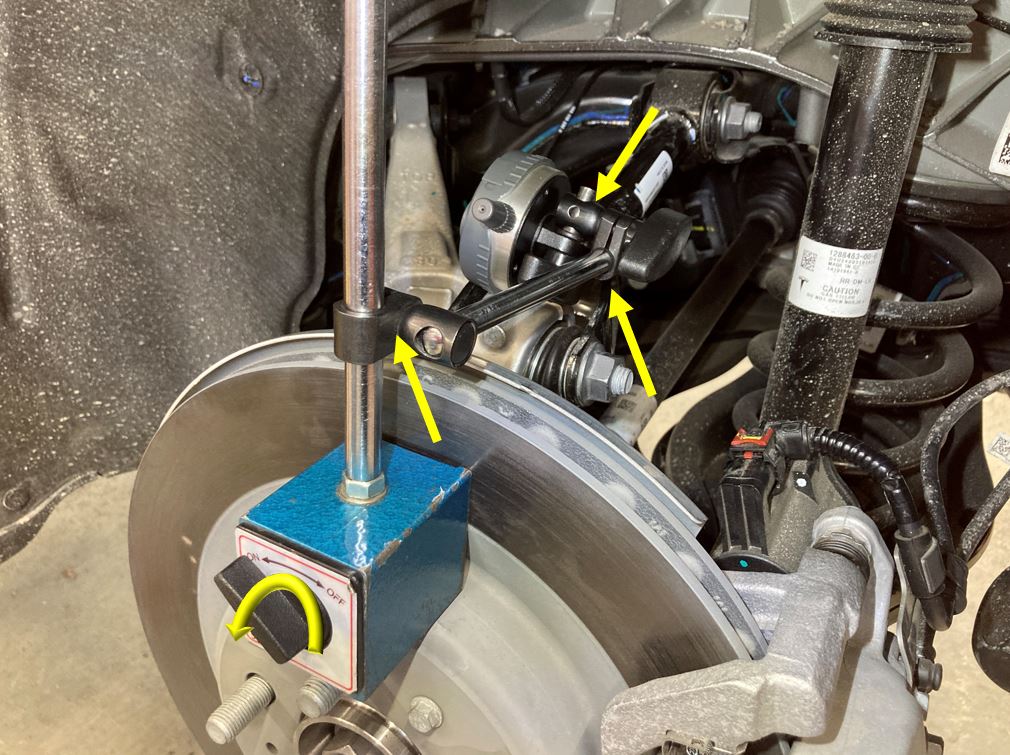

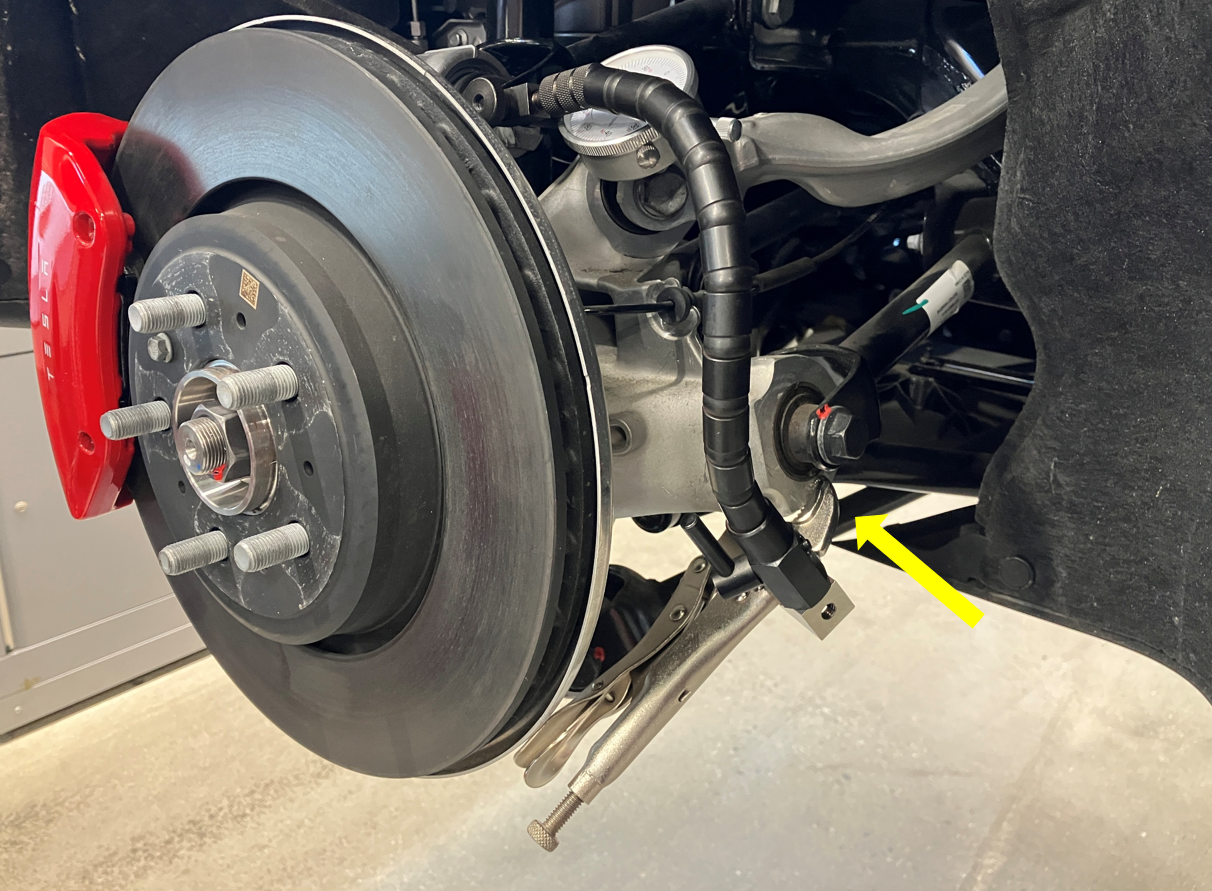

  2. Attach the brake rotor runout tool to the rear knuckle and route the flexible bar up towards the aft link.

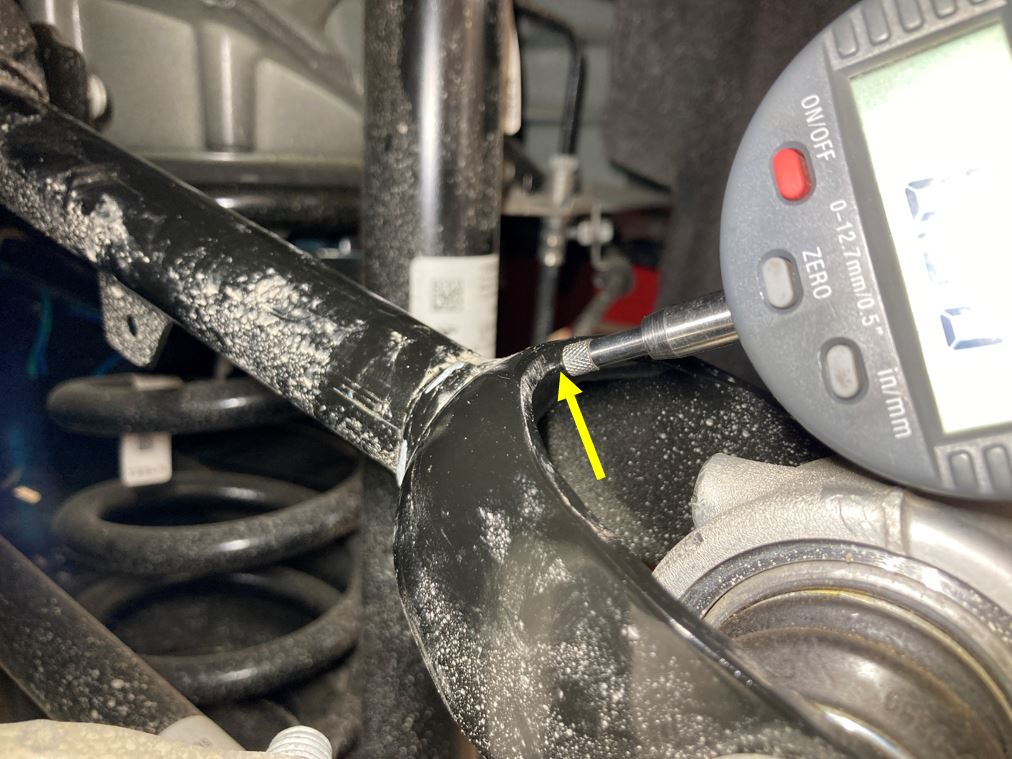

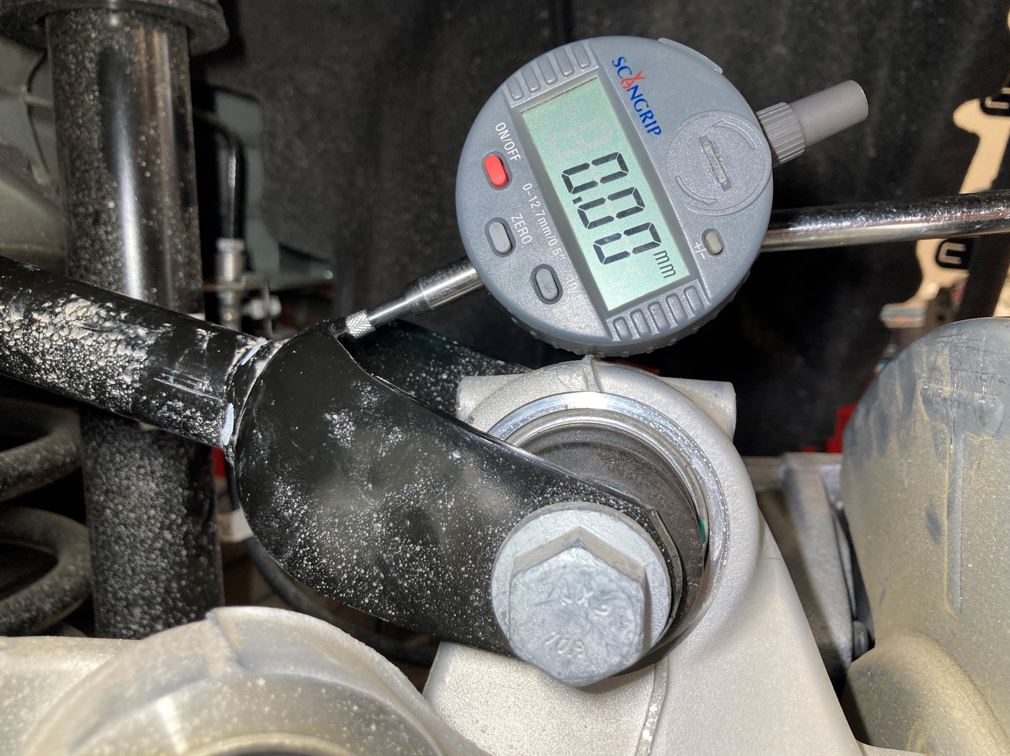

  3. Move the flexible bar so that the indicator rod of the brake rotor runout tool touches the bolt of the upper ball joint connecting the aft link to the knuckle, and then set the measurement to zero.
    Informational PurposesAn informational icon, calling your attention
    Note
    Make sure the indicator rod is properly depressed to allow travel in both directions without bottoming out.

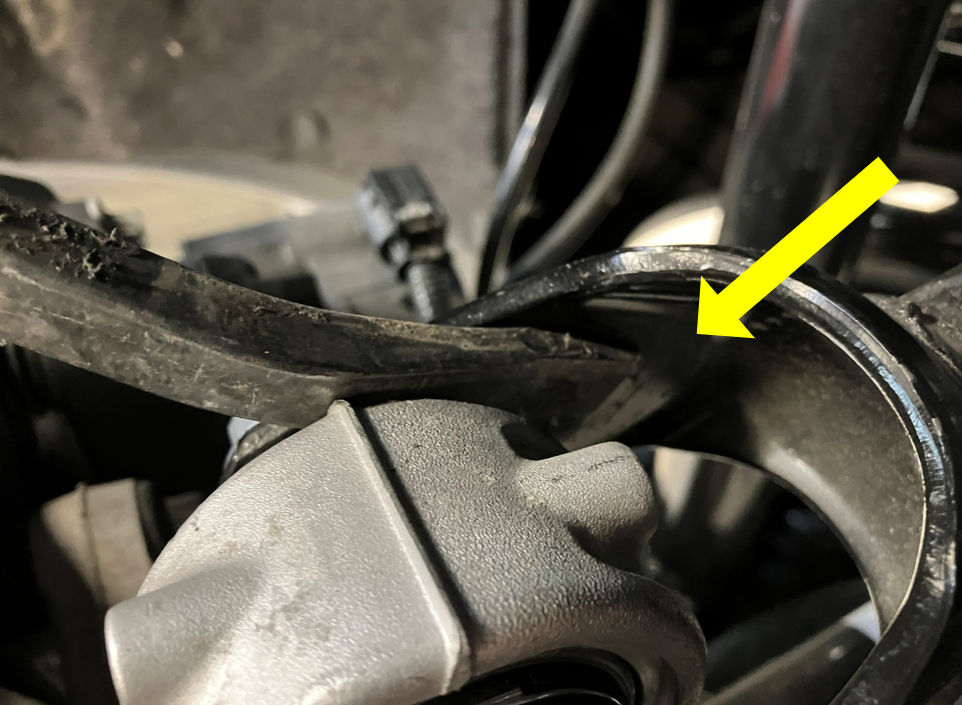

  4. Insert a medium size prybar between the aft link and the knuckle at the indicated area.
    Informational PurposesAn informational icon, calling your attention
    Note

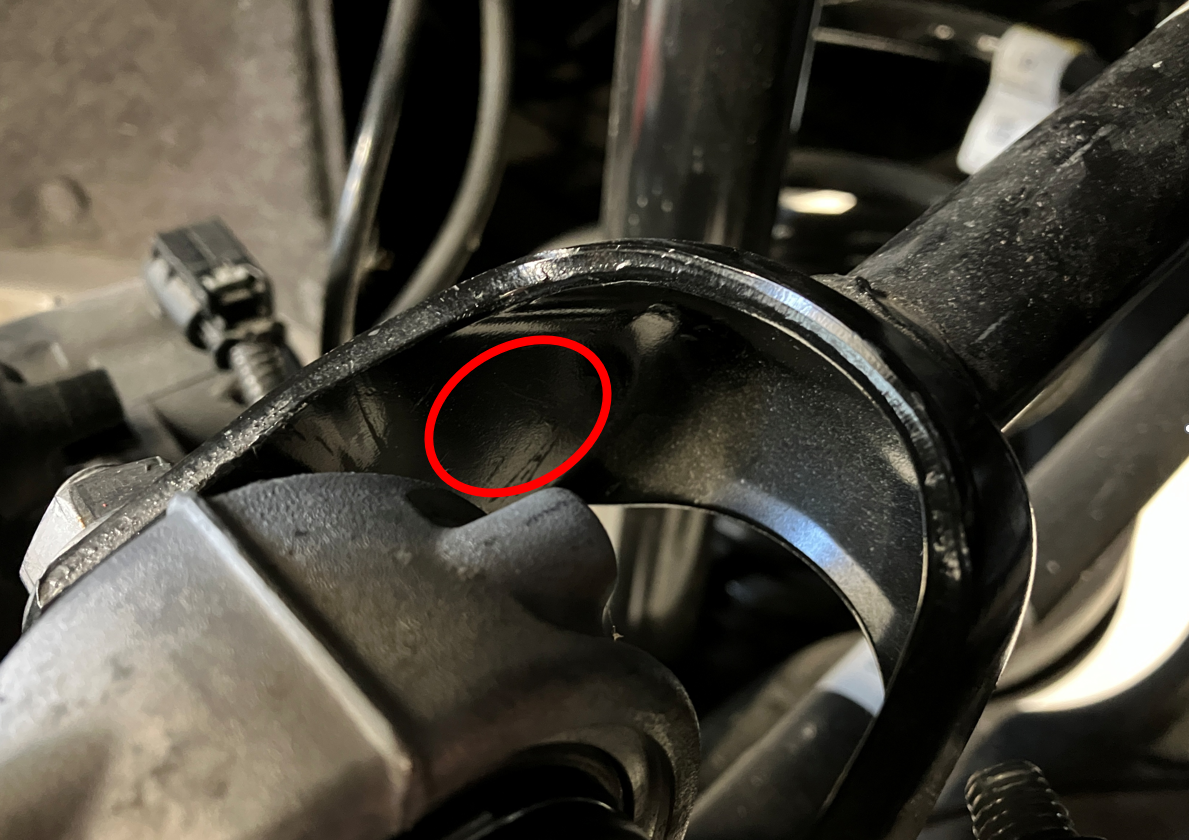

    Make sure the prybar is pushing the indicated area to avoid rotation of the aft link.

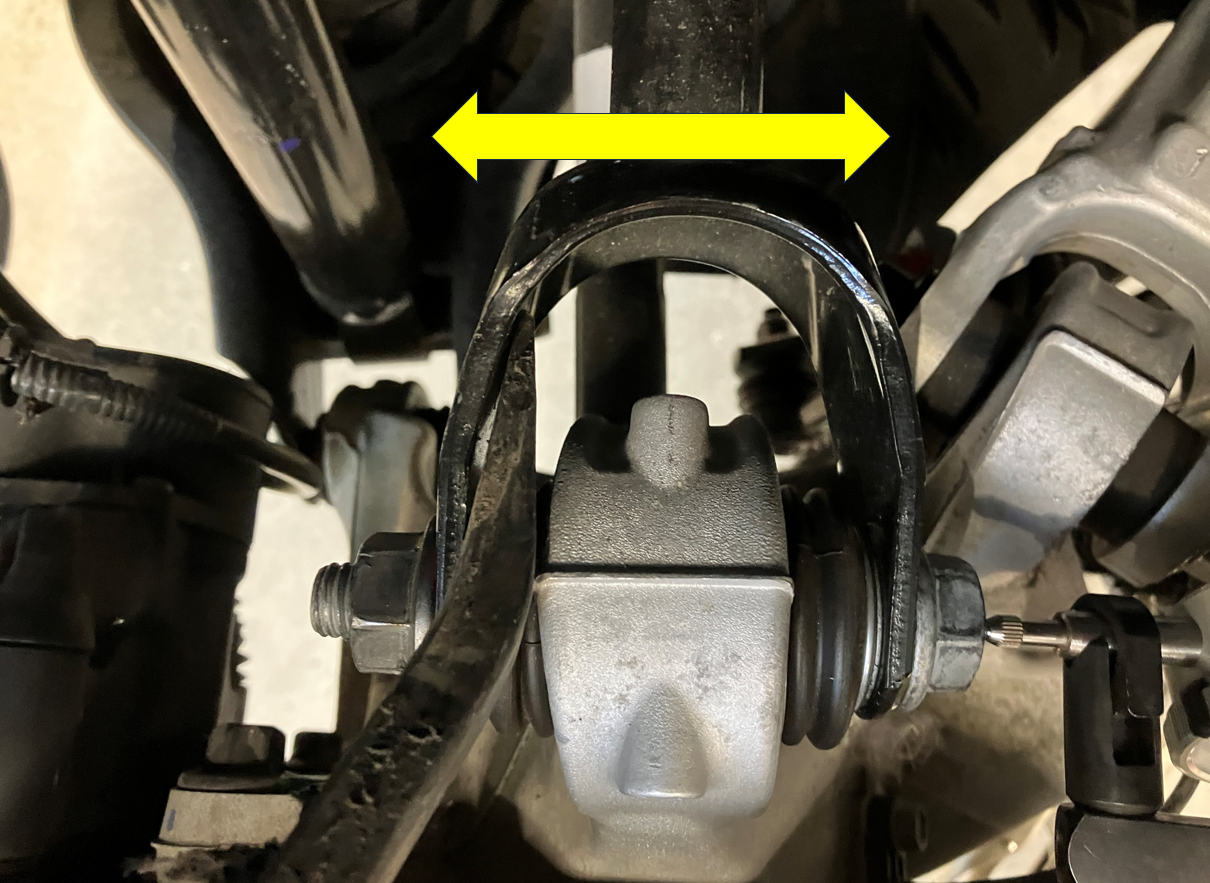

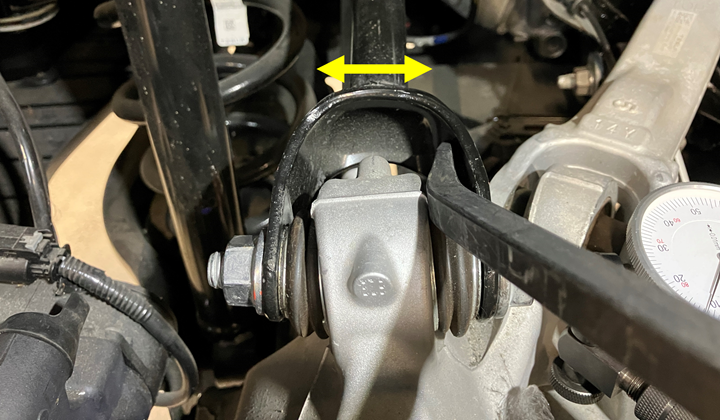

  5. Move the prybar sideways to force the rear knuckle to move, and note the values of the indicator when the knuckle assembly moves.
  6. Repeat the previous step on the other side of the rear knuckle, and note the values of the indicator when the knuckle assembly moves.
  7. Add the two values. The maximum allowed play is 1.00mm (0.039 in). If the total play is more than 1.00mm (0.039 in), replace the upper ball joint of the rear knuckle.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    Warning
    The video(s) included in this procedure are meant as an overview for supplemental purposes only. Follow all of the steps listed in the procedure to avoid damage to components and/or personal injury.
  8. Remove the brake rotor runout tool from the rear knuckle.
  9. Install the rear wheel. See Wheel Assembly (Remove and Install).
