Correction code NEW NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.

1. Raise and support vehicle
   Note

   Set air suspension to "Jack Mode"





2. Open powered front trunk
   Note

   Via exterior switch or UI





3. Open tailgate
   Note

   Press button to release



4. Power down vehicle via UI
   Note

   Verify EPBs are engaged, Select charge port icon to ensure drive state is disengaged then power down vehicle via Controls > Safety > Power Off



5. Remove rear underhood apron
   Note

   9x clips





6. Disconnect FRL connector then disconnect MV battery connector
   Note

   2x connectors, Release locking tab then disconnect FRL connector, Slide eCPA to left then lift lever to release MV battery connector, Early production trucks may have black FRL connector, Release eCPA by pushing down to unlock and slide red locking tab, Wait 2 minutes for electrical circuits to discharge before disconnecting modules







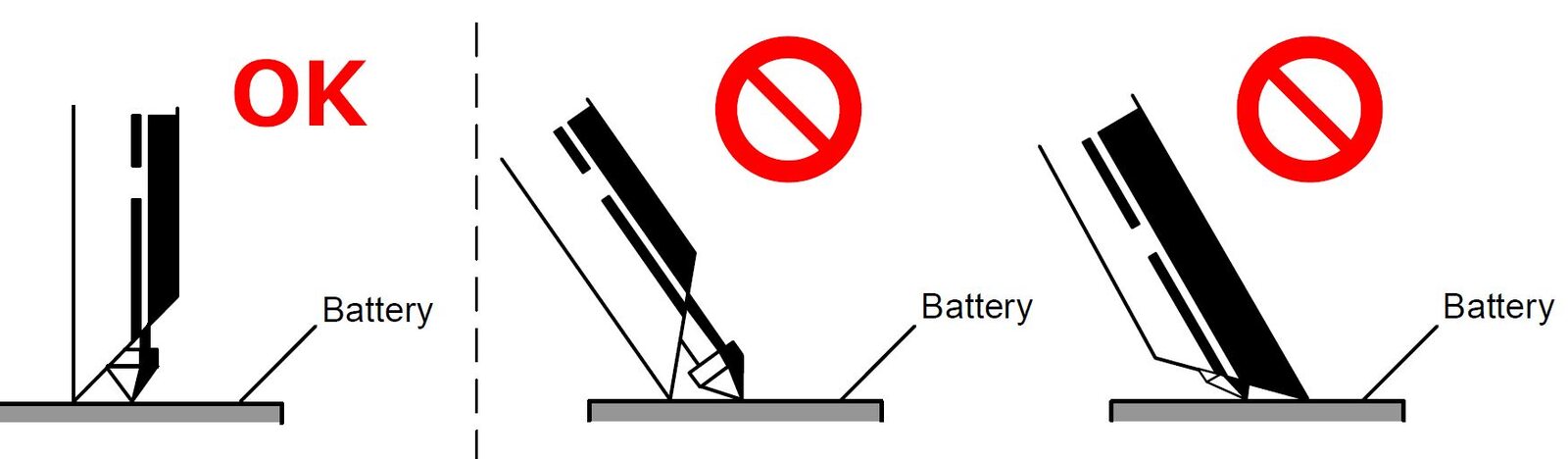

7. Verify operation of multimeter
   Note

   Set multimeter to DC voltage, Confirm multimeter is properly measuring voltage by testing MV battery, Touch lightly and do not damage terminals





8. Raise vehicle fully
   Note

   Set to a comfortable working height, Lower to locks, Ensure locks engage on both sides to prevent tilting





9. Remove rear skid plate
   Note

   6x clips, 3x bolts, 15mm, 42 Nm, 5x bolts, 13mm, 28 Nm, 2x bolts, 10mm, 6 Nm











10. Remove all items from pockets and ensure not wearing metal items



11. Inspect HV insulating gloves
    Note

    Check gloves for damage prior to use, Refer to service document TN-15-92-003, for information on inspecting HV gloves. https://service.teslamotors.com/documents?model=&keys=TN-15-92-003&vehicle_system=&sort_by=field_date_submitted&sort_order=DESC



12. Put on HV insulating gloves and leather over gloves



13. Verify no HV - Install amp clamp to RDU HV harness
    Note

    Verify meter is zeroed out before performing measurement, Measure single cable. Verify ammeter is installed in correct direction. If current > 0.5A do not proceed with disconnecting HV connector. In this case, start vehicle electrical isolation again to make sure that all was properly shut down. Escalate for assistance as requiredIf current < 0.5A, Ok to disconnect and check voltage at HV plug on the battery side.Release locking tab and rotate the release lever up to disengage the connector, Release harness clip, Do not force the release lever up, Ensure the alignment tabs on the RDU header are not damagedMake sure to wear PPE (HV gloves, safety glasses) when working on high voltage component, Measure B+ to Ground, B- to Ground, B+ to B-, If voltage is greater than 10V, Pack contactors are not open or welded, Stop work and reach out to Service Engineering













14. Secure RDU header connector to ancillary
    Note

    1x connector, Verify lever is in the upright and open position, Carefully seat connector and allow lever to engage, Fully secure lever and verify red tab is locked, Do not damage any pins





15. Remove pyro fuse access cover
    Note

    4x bolts, E-Torx 5 lobe, 10 Nm



16. Remove primary pyro fuse
    Note

    2x bolts, 13mm, 5 Nm + 60 Degrees, Support pyro fuse while removing bolts





17. Remove secondary pyro fuse
    Note

    2x bolts, 13mm, 5 Nm + 60 Degrees, Support pyro fuse while removing bolts





18. Install pyro fuse access cover
    Note

    4x bolts, E-Torx 5 lobe, 10 Nm, Ensure seal is fully seated and undamaged, If HV pack is being shipped then pyro fuses must be removed





19. Remove leather over gloves and HV insulating gloves
20. Lower vehicle until tires are touching the ground
    Note

    Raise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered





21. Remove fastener covers from bed floor assembly
    Note

    14x covers











22. Remove bed floor assembly
    Note

    10x short bolts, 15mm, 56 Nm, 2x long bolts, 15mm, 46Nm, Lift front edge with trim tool then remove panel, Recommend assistance









23. Disconnect ancillary bay MV connector
    Note

    1x connector, Double locking, Release tab then pivot lever, Release second tab to disengage connector, Wait 1 second between locking tab release to discharge and prevent arcing











24. Put on HV insulating gloves and leather over gloves



25. Remove bolt securing busbar HV connector lid
    Note

    1x bolt, EP10, 9 Nm



26. Remove bolts securing HV connector to DC FC header
    Note

    2x bolts, 10mm, 9 Nm



27. Release HV connector from DC FC header
    Note

    1x connector, Use inflatable airbag to suspend busbar assembly above ancillary assembly



28. Support HV Busbar assembly
    Note

    Suspend assembly to maintain clearance



29. Remove fast charger header doubler
    Note

    2x bolts, E10 5 Lobe Torx, 10 Nm





30. Release low voltage header
    Note

    2x bolts, EP10, 6 Nm



31. Release fasteners securing ancillary cover to HV battery
    Note

    22x bolts, E10 5-Lobe, 6 Nm, Use E10 5-Lobe socket without magnet, The fasteners are captive and will stay attached to the penthouse cover, Follow fastening order







32. Remove ancillary cover
    Note

    Use suction cup and maneuver around busbar and tonneau cage







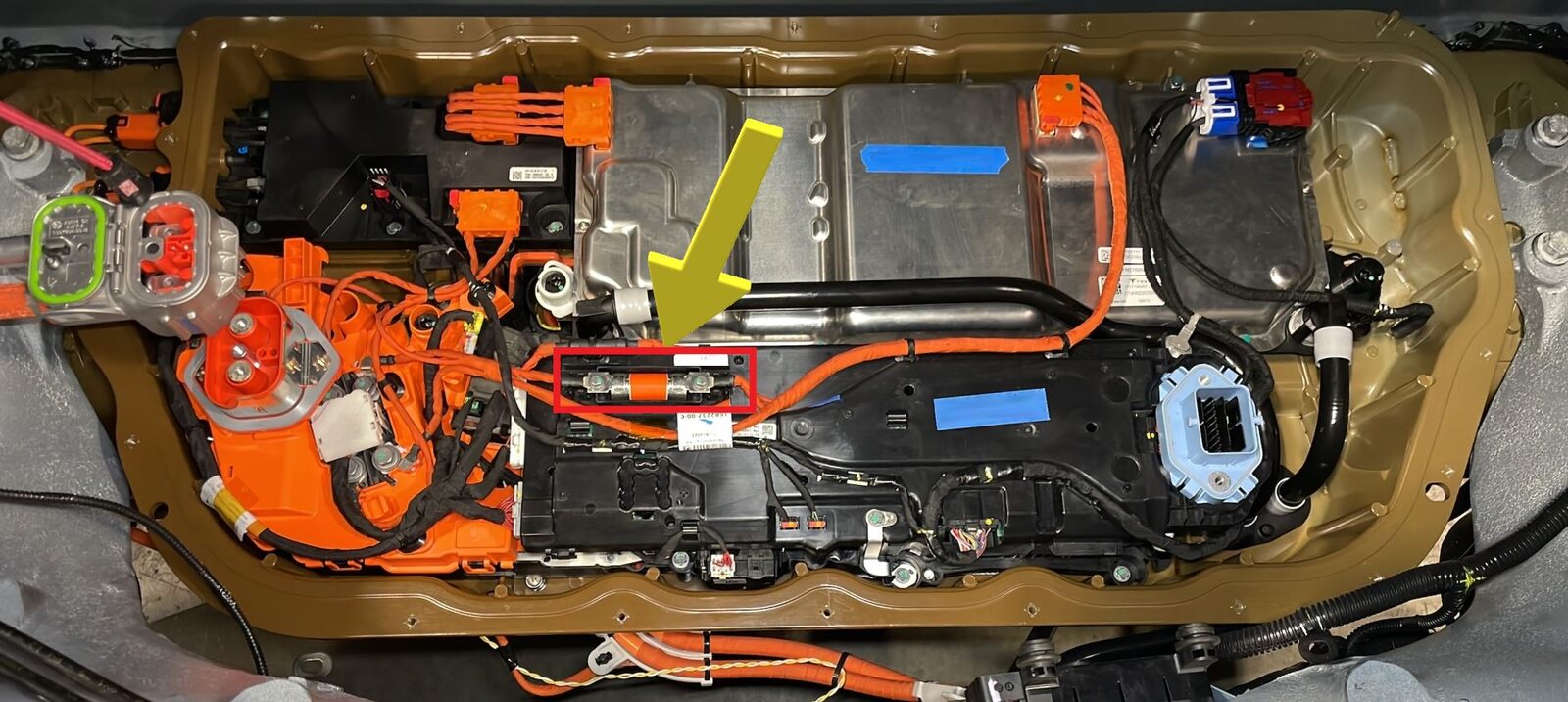

33. Remove bolts securing PCS fuse
    Note

    2x bolts, 8mm, 6 Nm





34. Remove PCS fuse





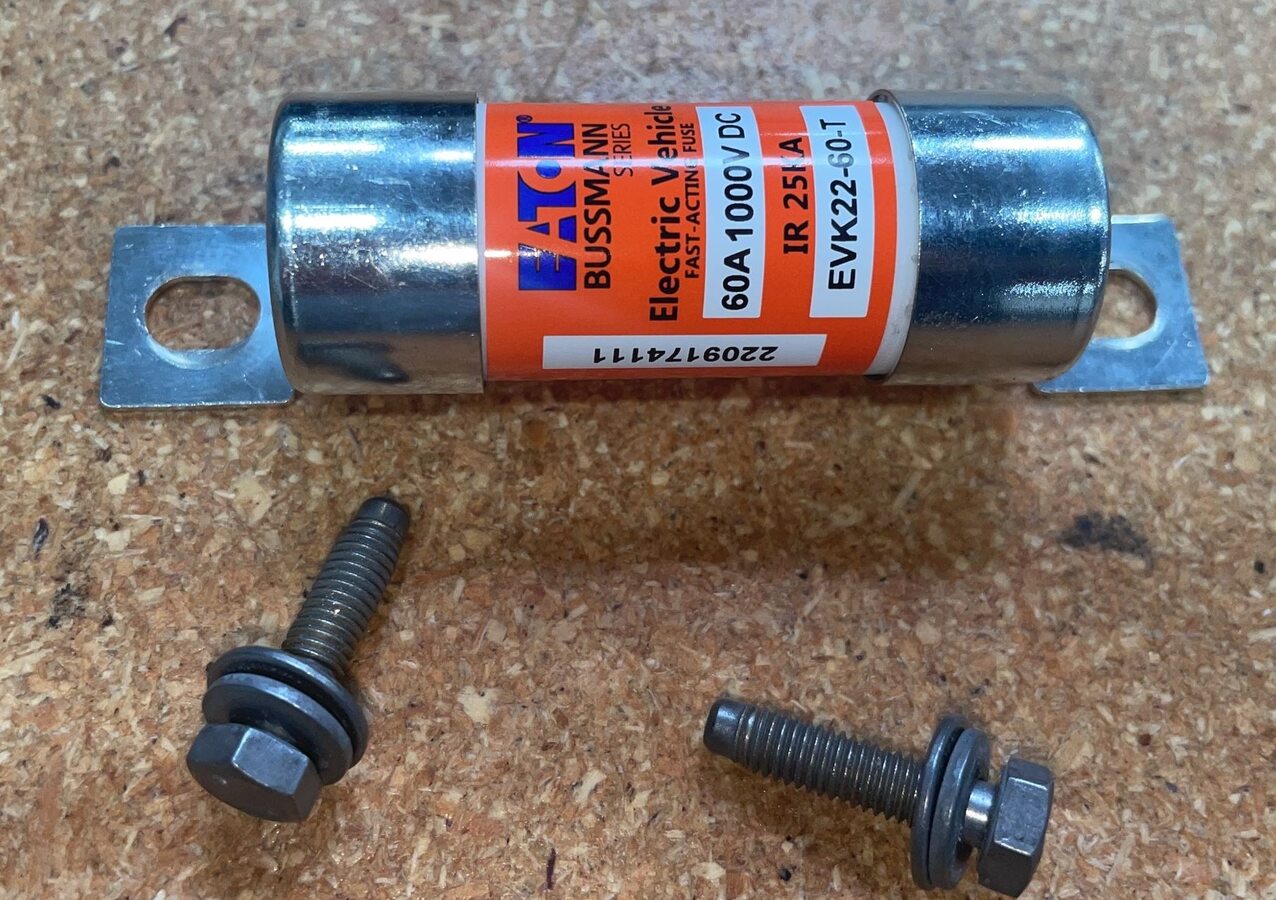

35. Install HV compressor fuse





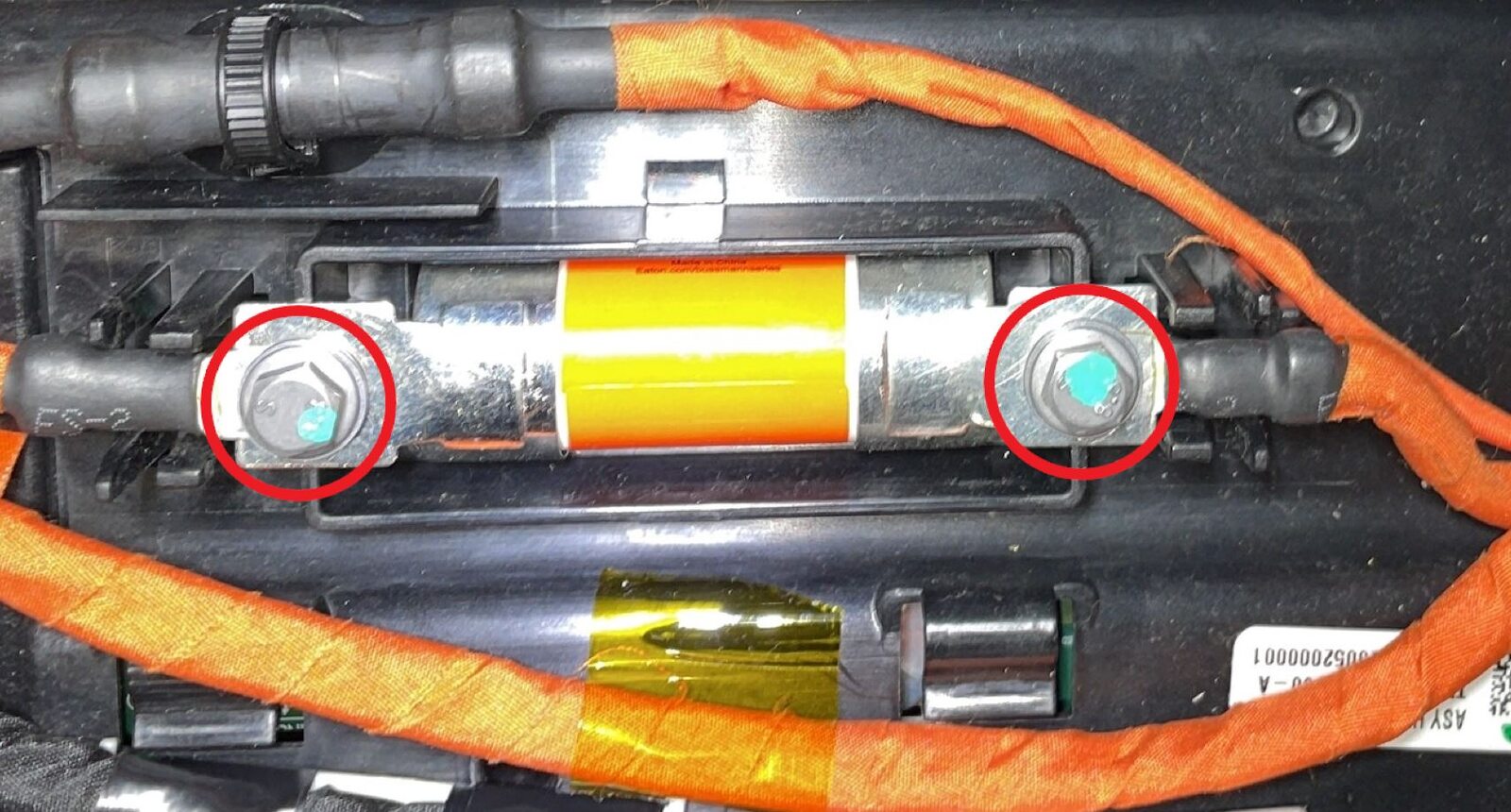

36. Install bolts securing HV compressor fuse
    Note

    2x bolts, 8mm, 6 Nm

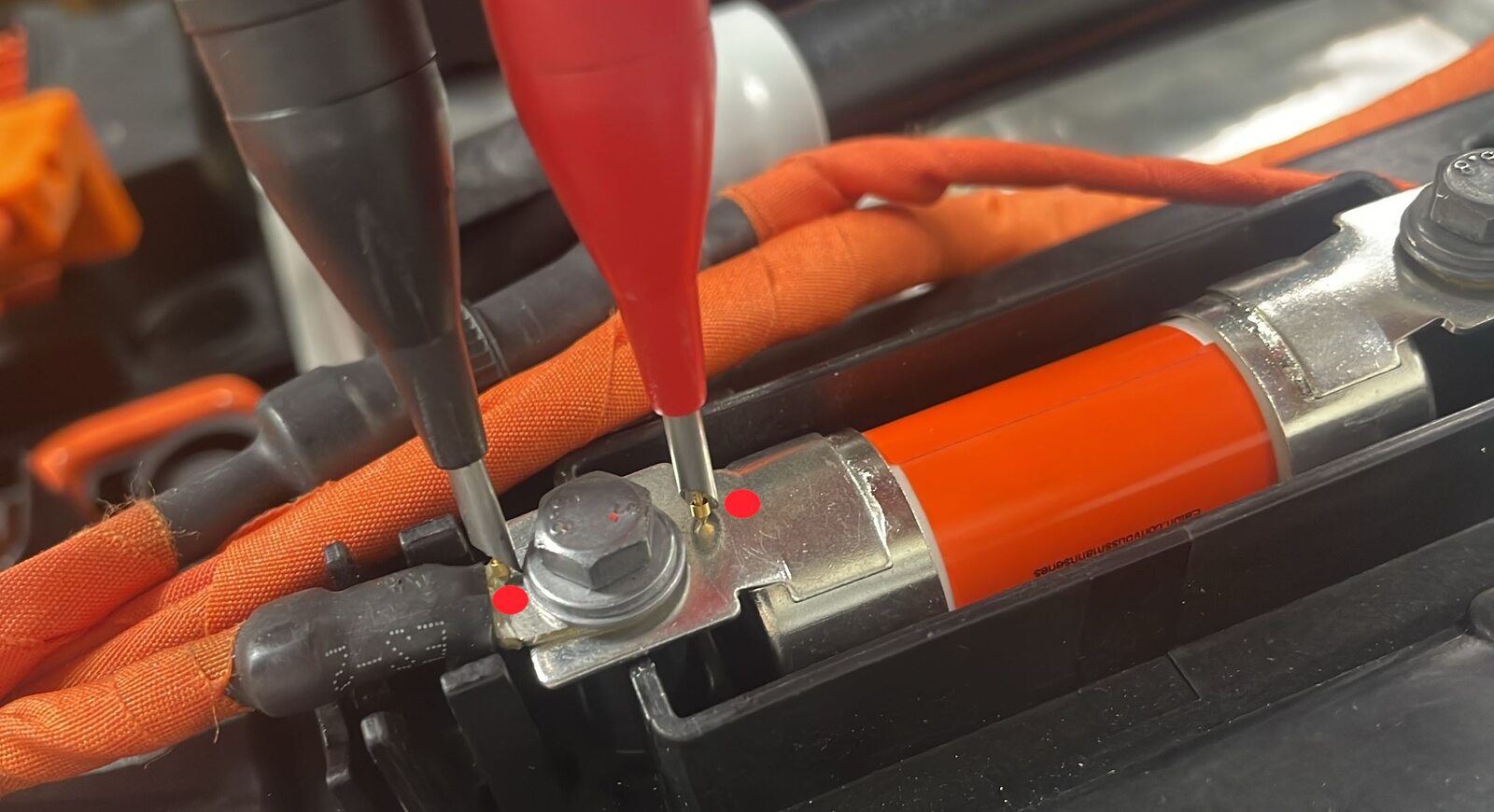

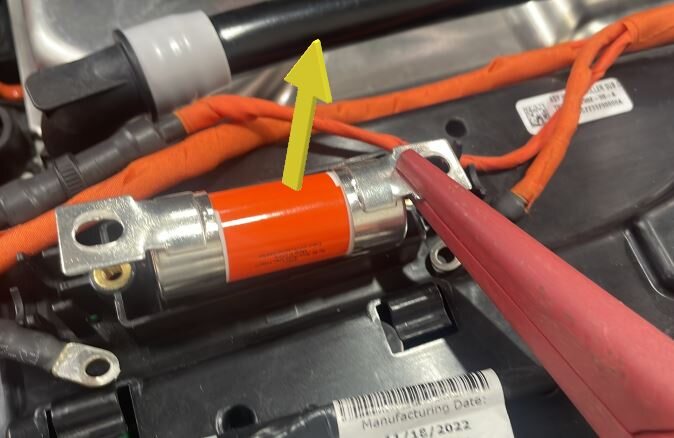

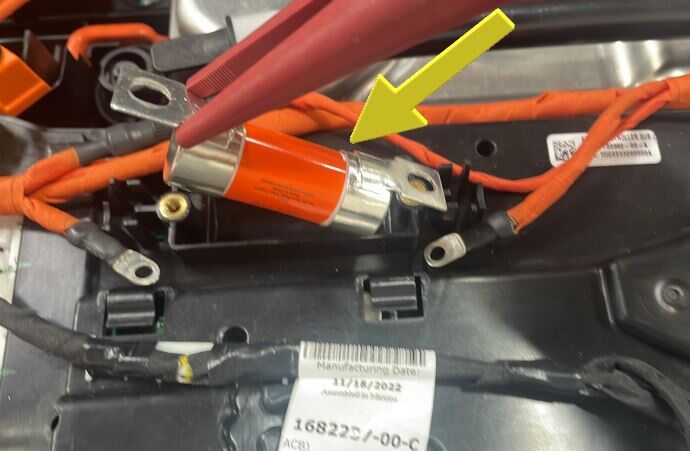

37. Perform Hioki measurement from PCS fuse joint to FCC harness terminal
    Note

    1x HV joint, 200μΩ or less, Perform zero adjust to Hioki meter prior to testing

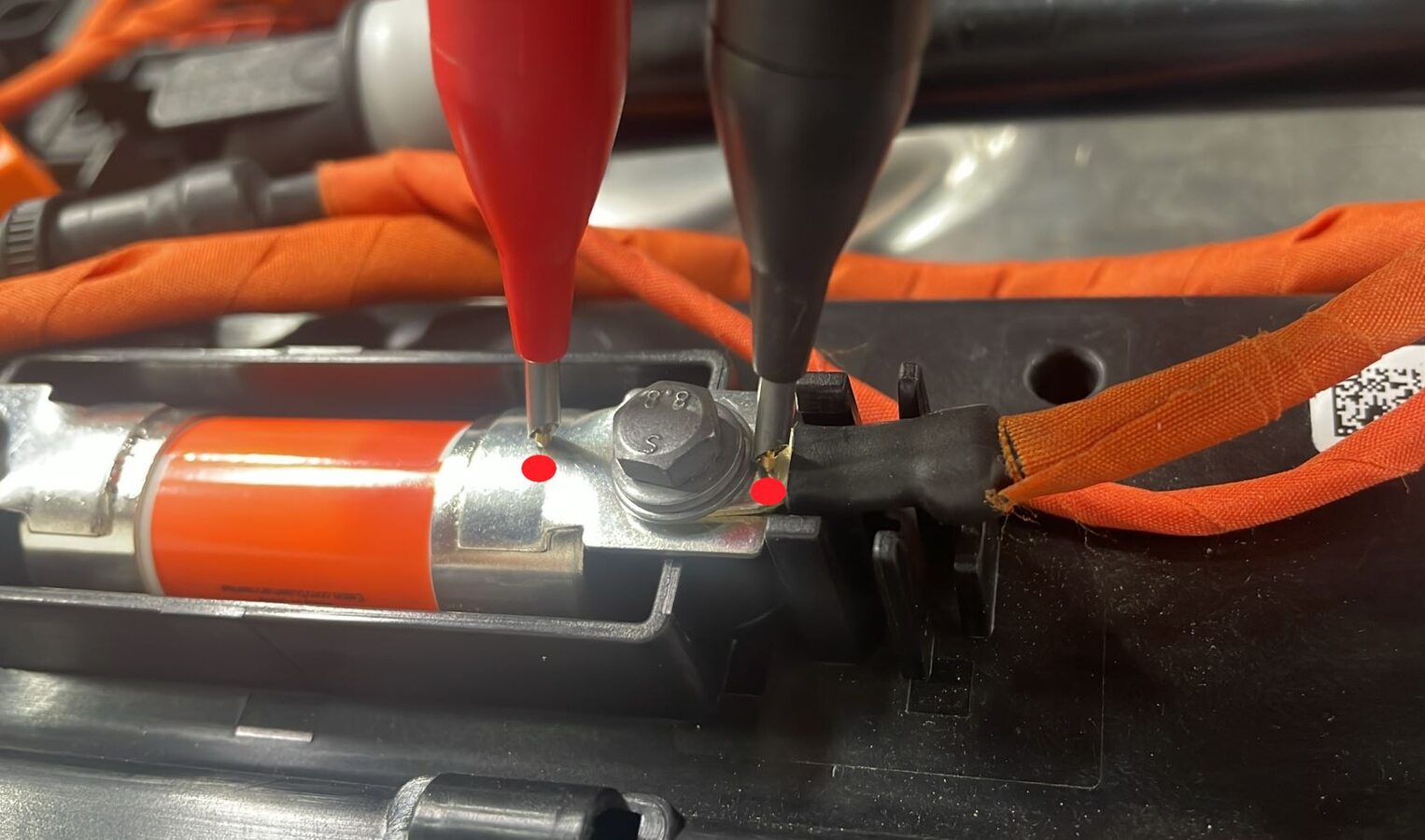

38. Perform Hioki measurement from PCS fuse joint to PCS harness terminal
    Note

    1x HV joint, 200μΩ or less, Perform zero adjust to Hioki meter prior to testing







39. Install ancillary cover
    Note

    Use suction cup and maneuver around busbar and tonneau cage









40. Secure fasteners of cover to HV battery
    Note

    22x bolts, E10 5-Lobe, 6 Nm, Use E10 5-Lobe socket without magnet, The fasteners are captive and will stay attached to the penthouse cover, Follow fastening order







41. Secure low voltage header
    Note

    2x bolts, EP10, 6 Nm



42. Secure fast charger header doubler
    Note

    2x bolts, E10 5 Lobe Torx, 10Nm





43. Clean HV connector contact surface of residual Penetrox
    Note

    Allow 1 minute dry time after removing Penetrox, New busbar comes with Penetrox applied to HV connector



44. Clean busbar HV connector contact surface of residual Penetrox
    Note

    Allow 1 minute dry time after removing Penetrox, It is necessary to clean HV connector during re-use of busbar



45. Apply Penetrox onto HV connector joints
    Note

    Apply 2 drops of Penetrox A-13 about 5mm in diameter to either side of the hole on both leads, Spread evenly to verify the contact surface is fully covered



46. Position busbar connector and lower onto HV header
    Note

    Release bungee cord



47. Install bolts securing charge port busbar kit to HV Header
    Note

    2x bolts, 10mm, 9 Nm



48. Perform Hioki resistance test at each HV joint from HV busbar lead to bolt head
    Note

    2x HV joints, When using Hioki tester, verify the meter has been properly adjusted and set prior to usageThe acceptable resistance is between 0.050 mΩ (50 μΩ) and 0.195 mΩ (195 μΩ).If the resistance is greater than 0.195 mΩ (195 μΩ), stop work and escalate the Toolbox session.If the resistance is lower than 0.050 mΩ (50 μΩ), reposition the probes and measure again.If the resistance is repeatedly between 0.00 mΩ and 0.050 mΩ (50 μΩ), hioki test passed, proceed to next step





49. Install bolt securing busbar HV connector lid
    Note

    1x bolt, EP10, 9 Nm



50. Connect Ancillary bay MV connector
    Note

    1x connector, double locking, Rotate lever into 2nd lock, Perform a pull test to ensure connector engaged correctly











51. Raise vehicle fully
    Note

    Set to a comfortable working height, Lower to locks, Ensure locks engage on both sides to prevent tilting





52. Remove pyro fuse access cover
    Note

    4x bolts, E-Torx 5 lobe, 10 Nm



53. Clean mating surface of the pyro
    Note

    Use a non-conductive plastic tool to clean the busbar side, Allow 1 minute for IPA to fully dry, Do not use any other types of cleaner









54. Install secondary pyro fuse
    Note

    2x bolts, 13mm, 5 Nm + 60 degrees, Support pyro fuse while installing bolts





55. Install primary pyro fuse
    Note

    2x bolts, 13mm, 5 Nm + 60 degrees, Support pyro fuse while installing bolts





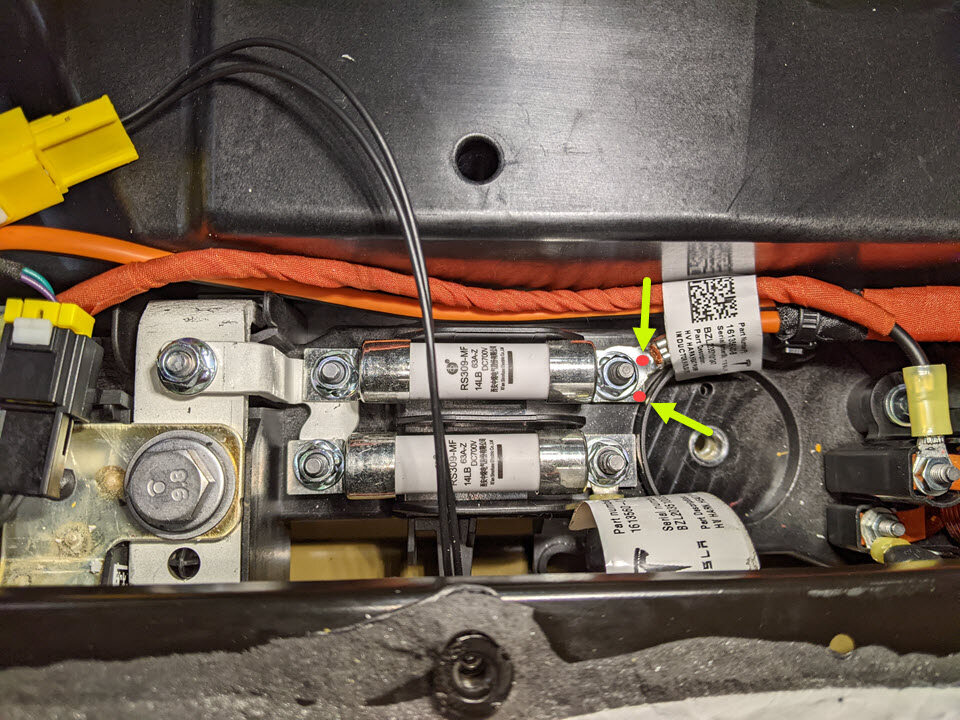

56. Perform Hioki resistance test at each HV joint from HV busbar lead to pyro fuse busbar
    Note

    4x HV joints, When using Hioki tester, verify the meter has been properly adjusted and set prior to usageThe acceptable resistance is between 0.050 mΩ (50 μΩ) and 0.195 mΩ (195 μΩ).If the resistance is greater than 0.195 mΩ (195 μΩ), stop work and escalate the Toolbox session.If the resistance is lower than 0.050 mΩ (50 μΩ), reposition the probes and measure again.If the resistance is repeatedly between 0.00 mΩ and 0.050 mΩ (50 μΩ), hioki test passed, proceed to next step





57. Install pyro fuse access cover
    Note

    4x bolts, E-Torx 5 lobe, 10 Nm, Ensure seal is fully seated and undamaged, If HV pack is being shipped then pyro fuses must be removed





58. Remove leather over gloves and HV insulating gloves
59. Install rear skid plate
    Note

    6x clips, 3x bolts, 15mm, 42 Nm, 5x bolts, 13mm, 28 Nm, 2x bolts, 10mm, 6 Nm, Apply Loctite 222 to mid aero shield bolts and install fasteners











60. Lower vehicle fully
    Note

    Raise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered





61. Connect FRL connector then connect MV battery connector
    Note

    2x connectors, Connect FRL connector then secure locking tab, Position lever to secure MV battery connector then slide eCPA to right, Early production trucks may have black FRL connector, If power cycling vehicle then ensure at least 60 seconds has passed since powering down







62. Install rear underhood apron
    Note

    9x clips, Adjust windshield seal as required





63. Close powered front trunk
    Note

    Via exterior switch or UI



64. Install bed floor assembly
    Note

    10x short bolts, 15mm, 56 Nm, 2x long bolts, 15mm, 46Nm, Recommend assistance











65. Install fastener covers onto bed floor assembly
    Note

    14x covers









66. Close tailgate



67. Remove vehicle from lift
    Note

    Lower rack arms fully and remove them from under vehicle, Remove air suspension from "Jack Mode"
