Correction code 13070102 FRT 1.20 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure. NOTE: See Ergonomic Precautions for safe and healthy working practices.

1. Open LH front door

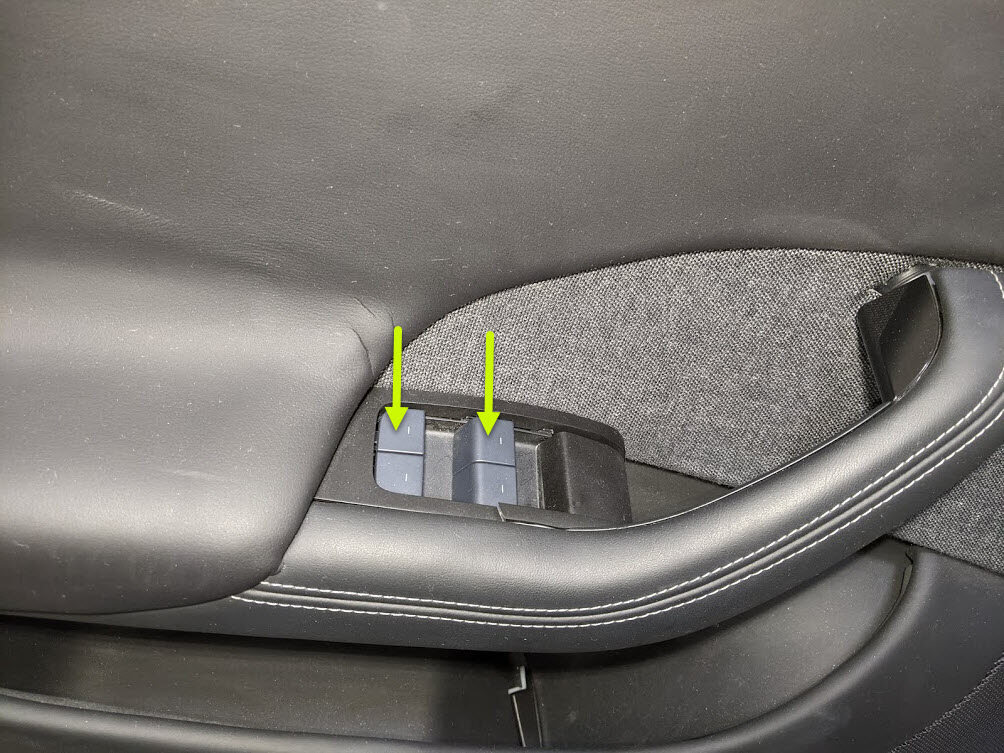

2. Lower both LH side windows

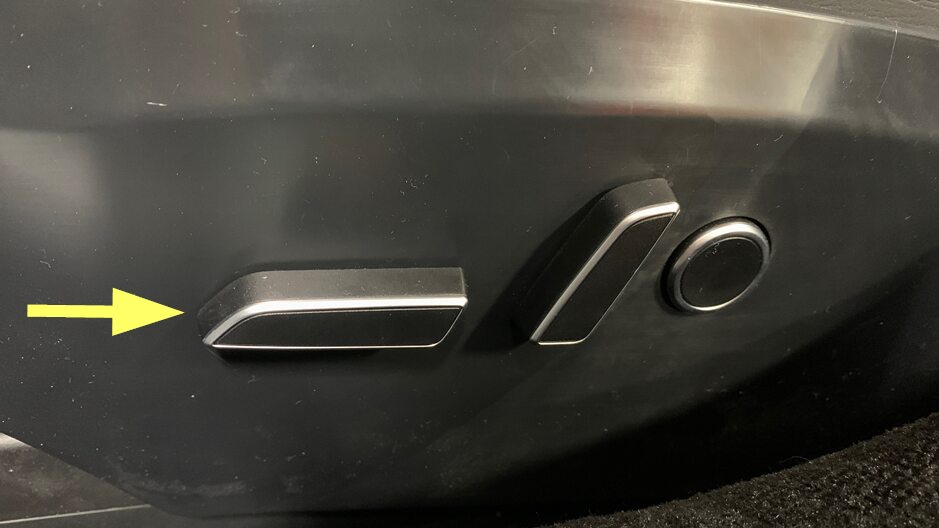

3. Move LH front seat forward



4. Open LH rear door

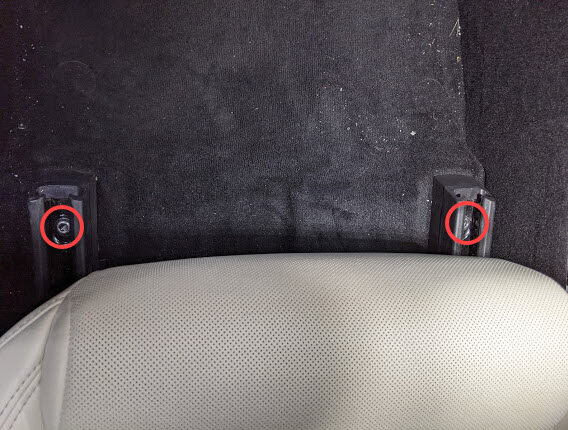

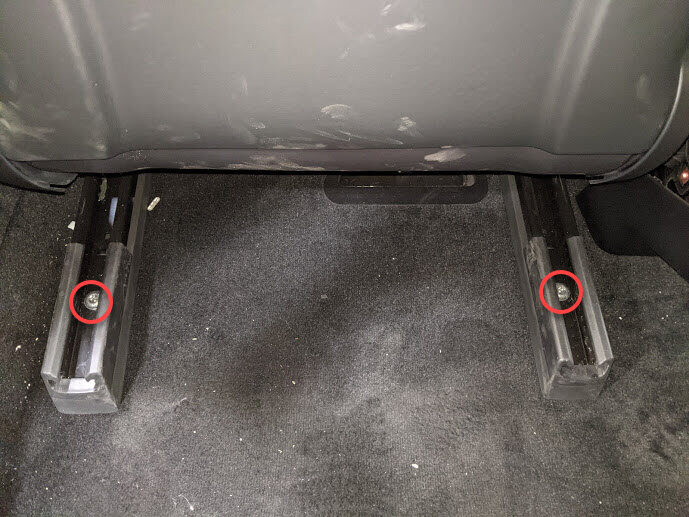

5. Remove bolts securing rear of LH front seat tracks to the floor panel
   Note

   2x patch bolts, T45P, 34 Nm, Discard after removal

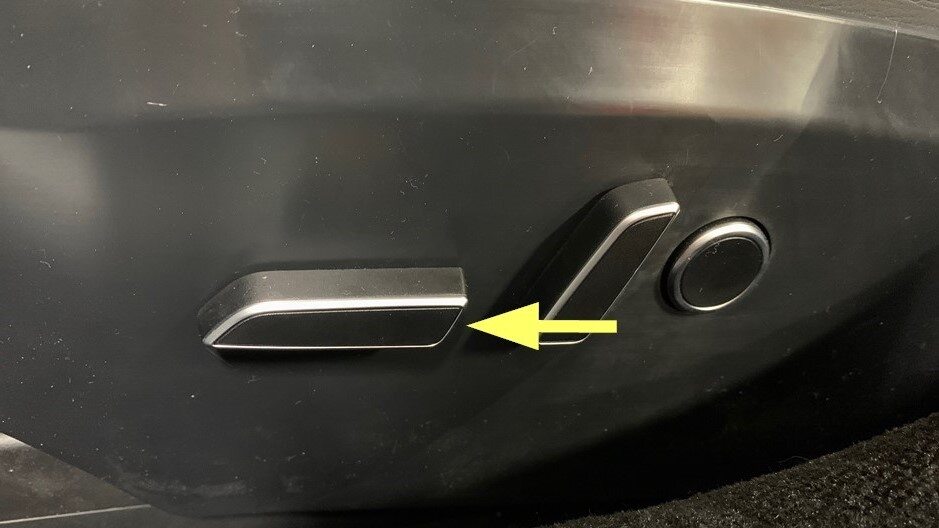

6. Move LH front seat backward



7. Remove bolts securing front of LH front seat tracks to the floor panel
   Note

   2x patch bolts, T45P, 34 Nm, Discard after removal



8. Adjust position of LH front seat for easy removal
   Note

   Move seat to middle of track at most upright position with seat fully up off floor



9. Open hood
   Note

   Select Controls > Frunk Open





10. Remove rear underhood apron
    Note

    8x clips





11. Power off vehicle from center display
    Note

    Via Controls > Safety & Security > Power Off

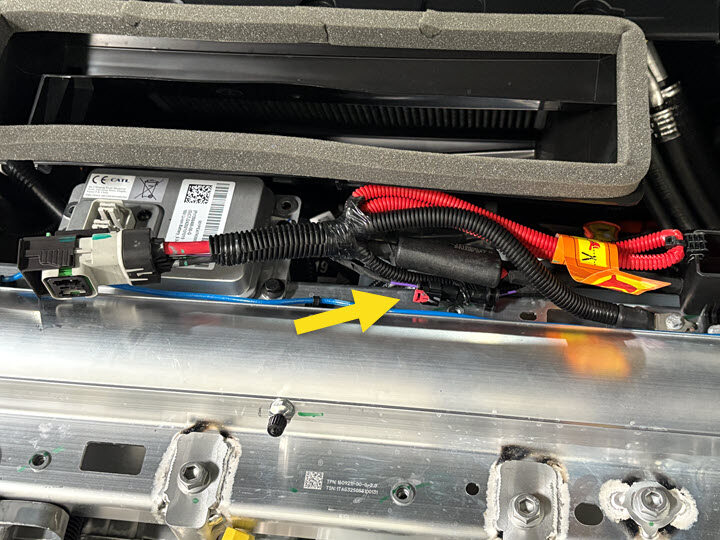

12. Disconnect LV battery connector and First Responder Loop
    Note

    2x connectors, Lift up and release green locking tab, Pull black connector lock outwards to release connection









13. Position LH seat to gain access below seat bottom and disconnect body harness from seat controller
    Note

    2x connectors, 1x clip, Release red locking tab on black connector



14. Remove LH front seat from vehicle
    Note

    Recommend assistance, Use caution to not damage other components

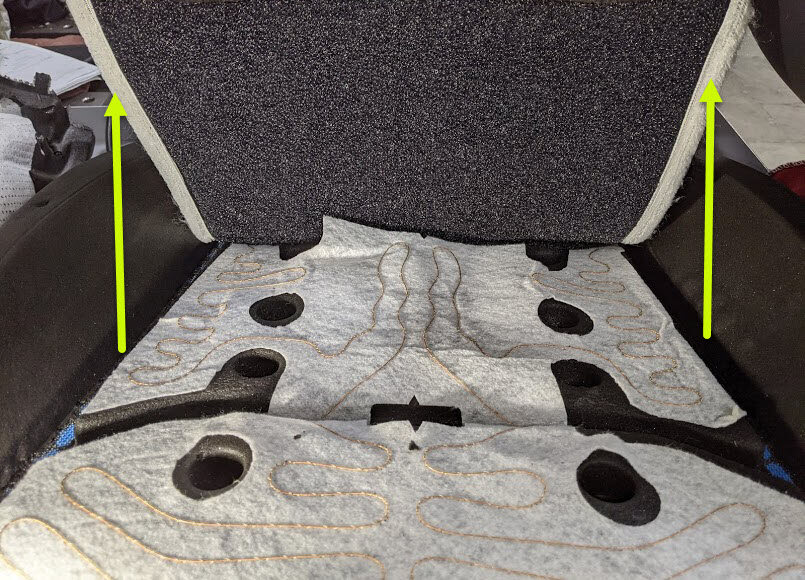

15. Place seat on a protected surface
    Note

    Recommend assistance, Place seat so the underside of the seat can be accessed

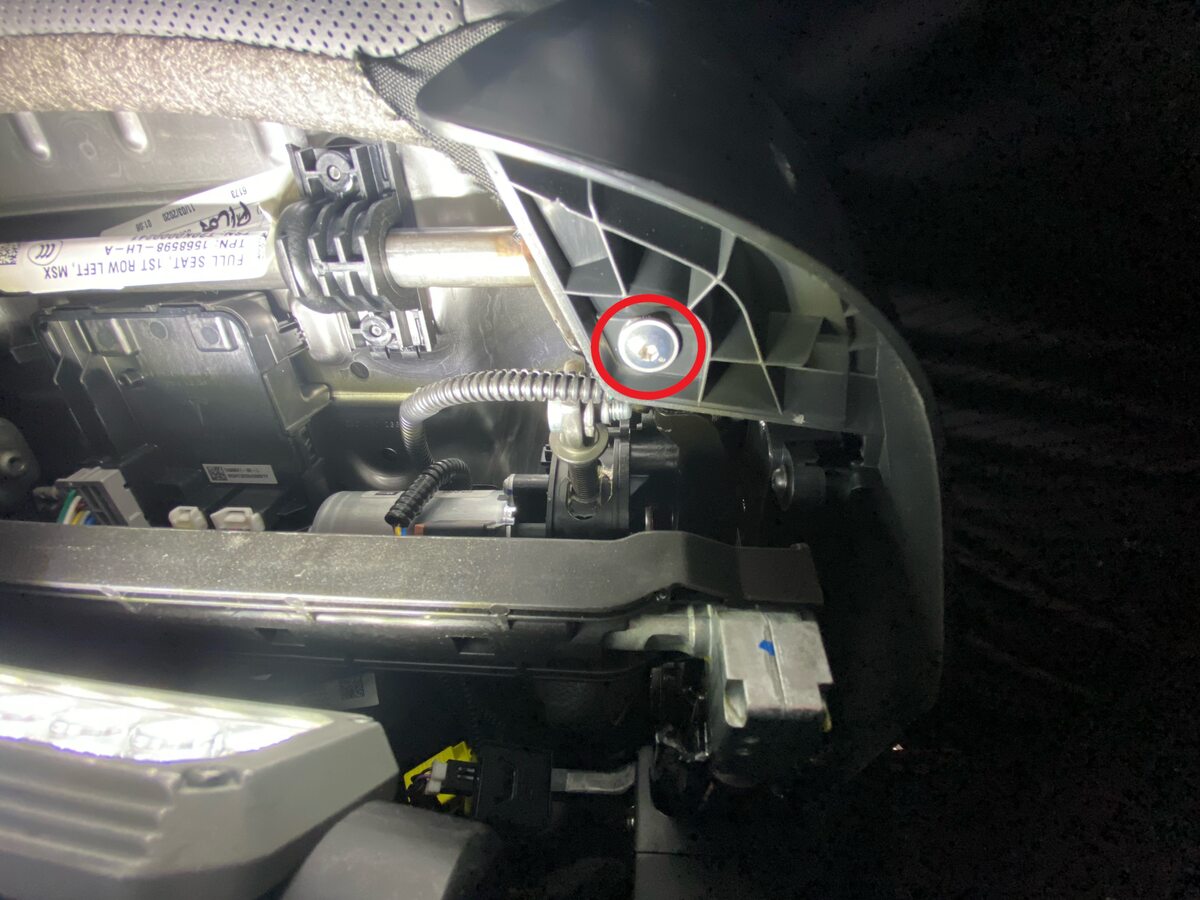

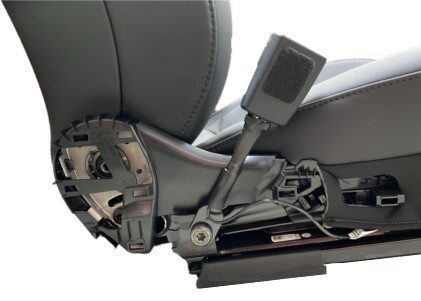

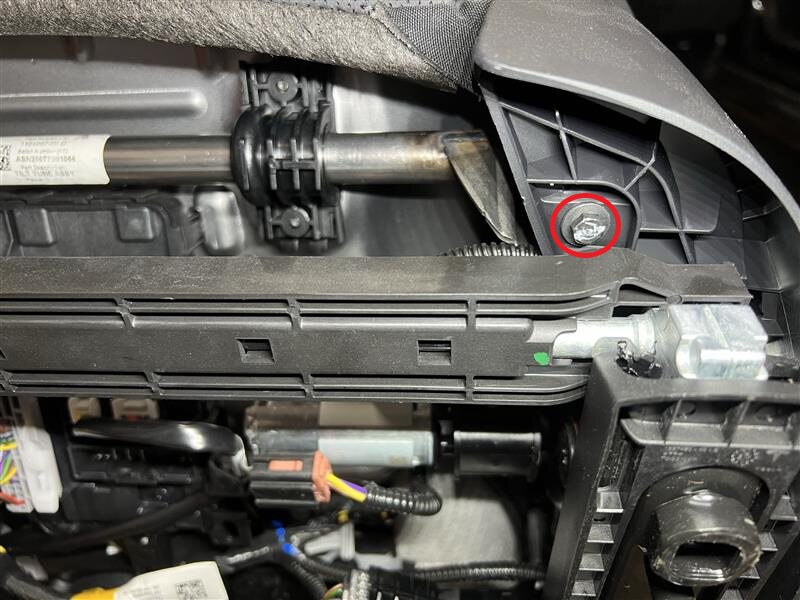

16. Remove screw securing outer side cover from LH front seat
    Note

    1x screw, T20, 4 Nm or 1x bolt, 8mm, 4 Nm, Ensure the front of the seat is high enough to access the T20 screw, Bolt may vary on build

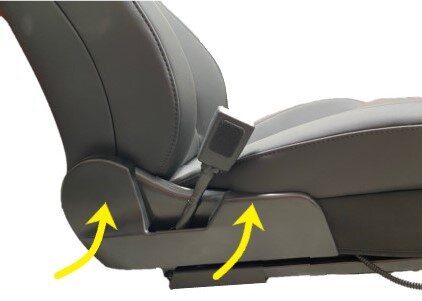

17. Release LH front seat outboard side shield
    Note

    7x clip, Carefully release outer side cover from seat, do not fully remove

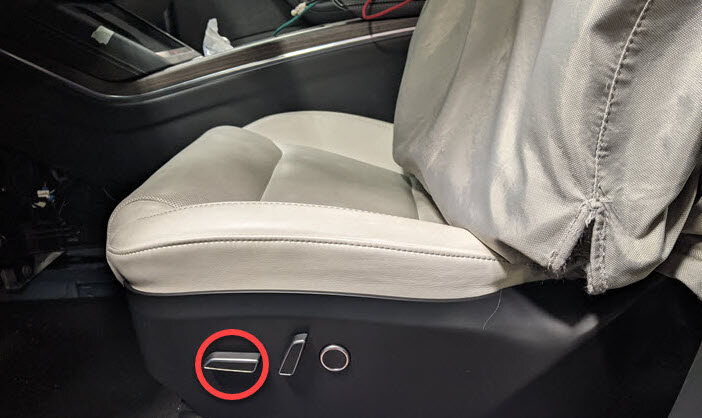

18. Disconnect LH front outboard seat switch
    Note

    1x connector

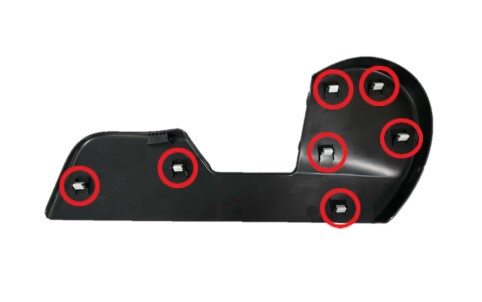

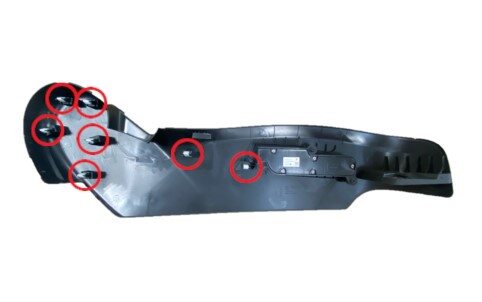

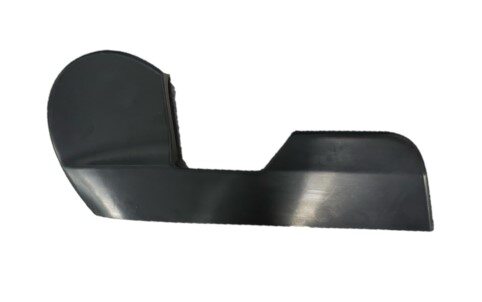

19. Remove LH front seat inboard side shield
    Note

    7x clips, Carefully release clips securing inboard side shield onto LH front seat

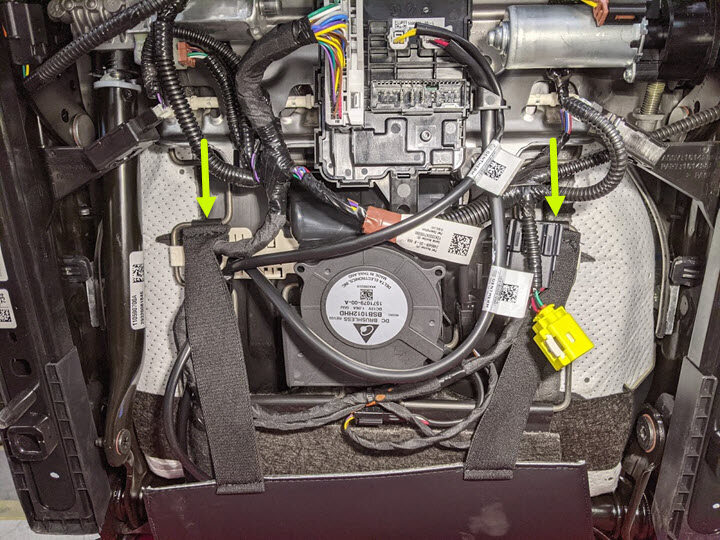

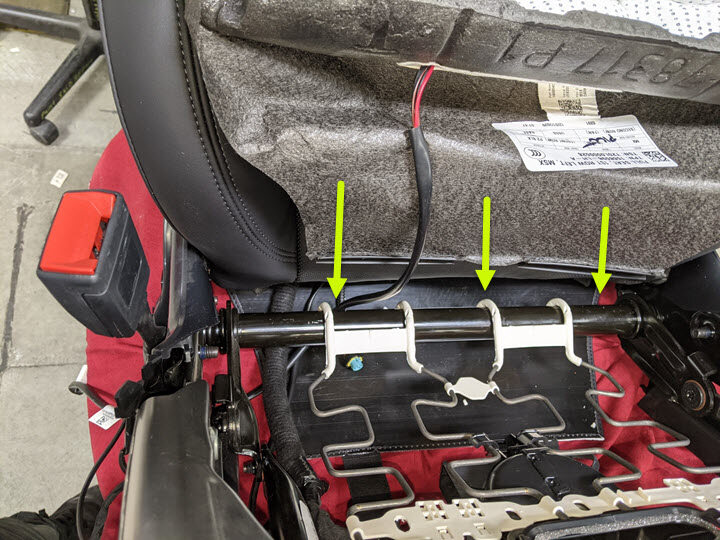

20. Release seat back elastic straps from seat frame
    Note

    2x straps

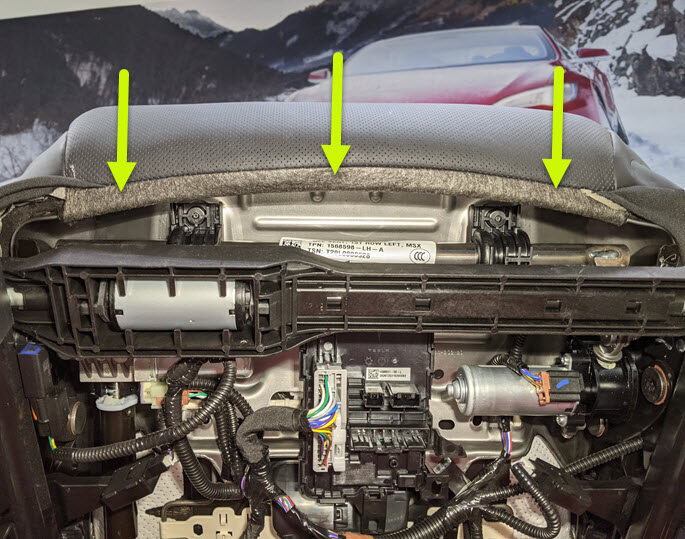

21. Release soft trim retainers from seat frame
    Note

    2x retainers

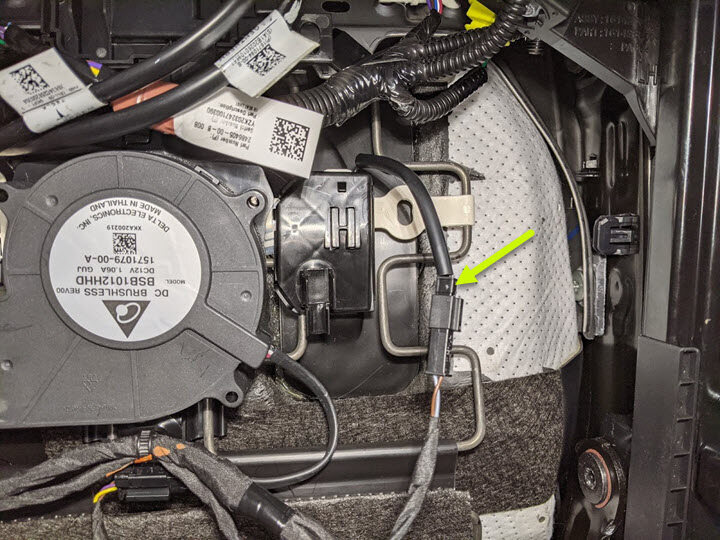

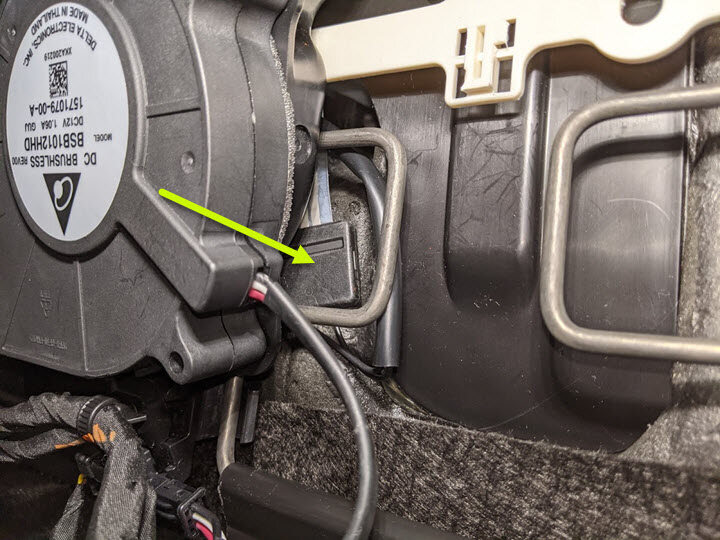

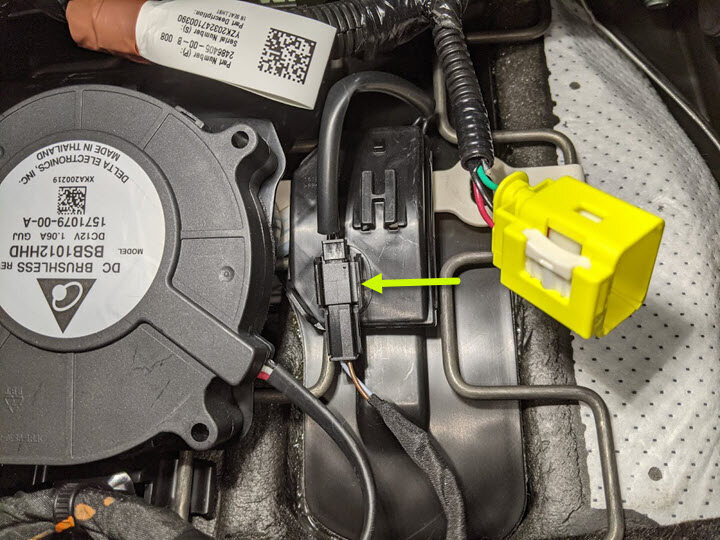

22. Disconnect FSC vent heat pad from seat controller
    Note

    1x connector

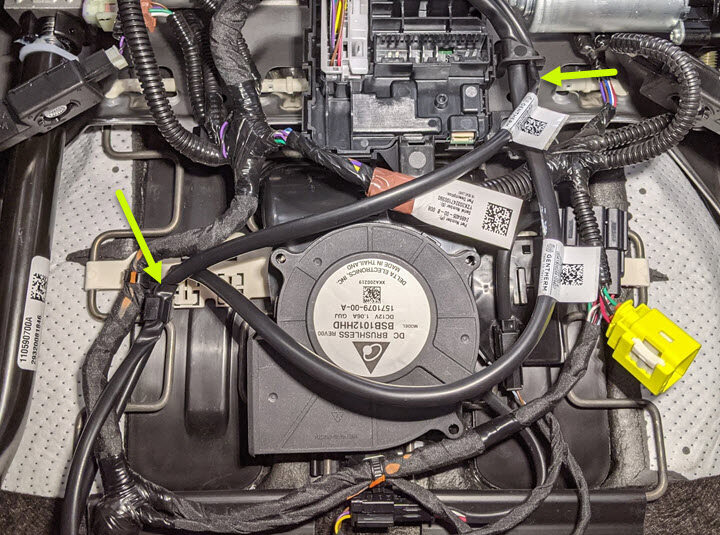

23. Remove FSC and FSB vent head pad harnesses from seat
    Note

    1x clip, 1x bracket, Note one harness is for the seat cushion and the other is for the seat back, The upper bracket aids in routing while the lower clip secures them



24. Remove LH front seat harness from seat frame bracket
    Note

    1x fir tree clip

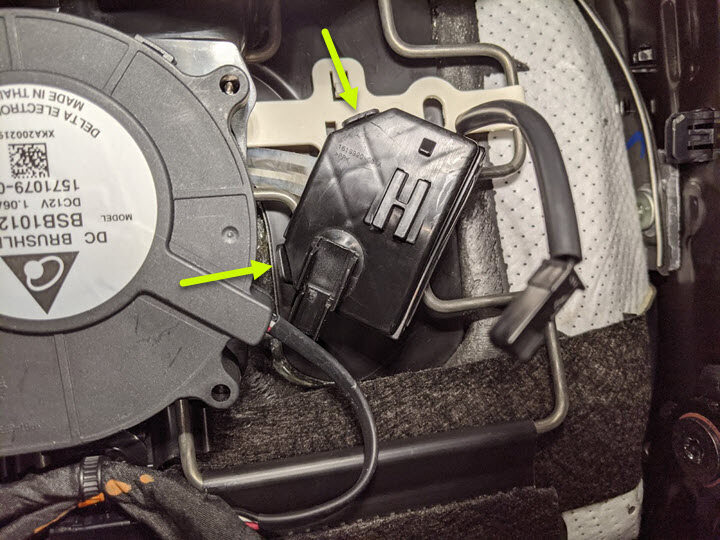

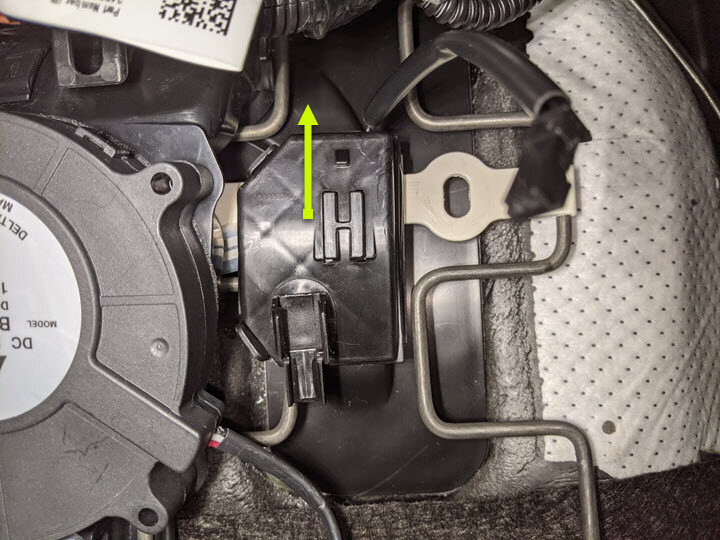

25. Remove OCS harness from SBR bracket then disconnect
    Note

    1x connector, 1x bracket, Slide connector upward to release from bracket

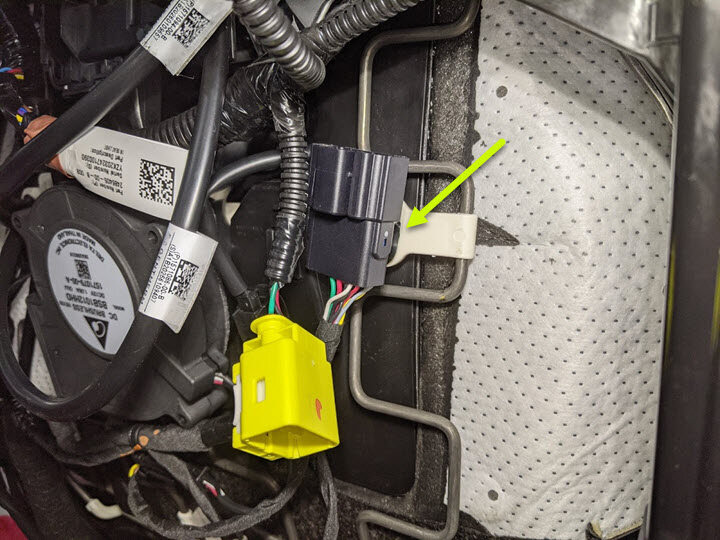

26. Slide SBR bracket upward to release from seat frame



27. Open SBR bracket containing OCS harness and route harness between cushion and frame
    Note

    2x tabs, Release tabs to open bracket, Routing harness will avoid getting snagged when seat foam is removed from frame

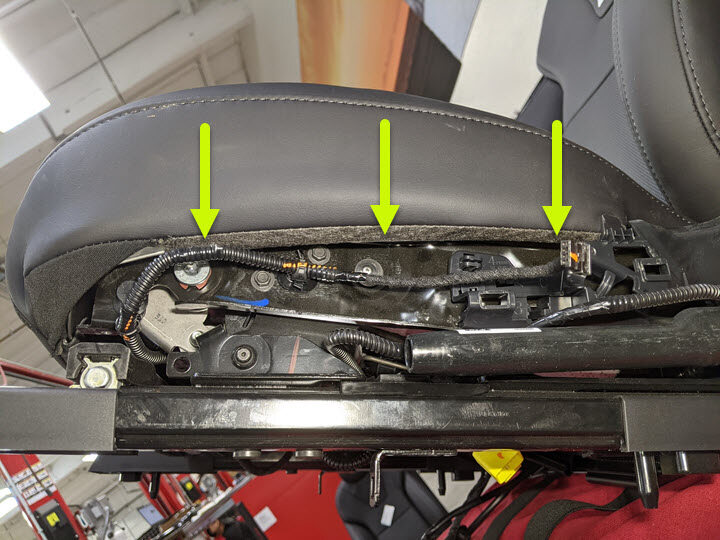

28. Release soft trim retainer from inboard side of seat frame
    Note

    1x retainer

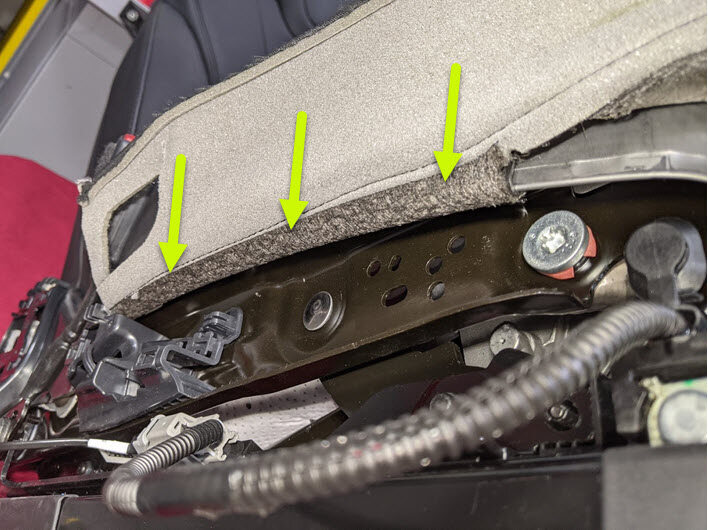

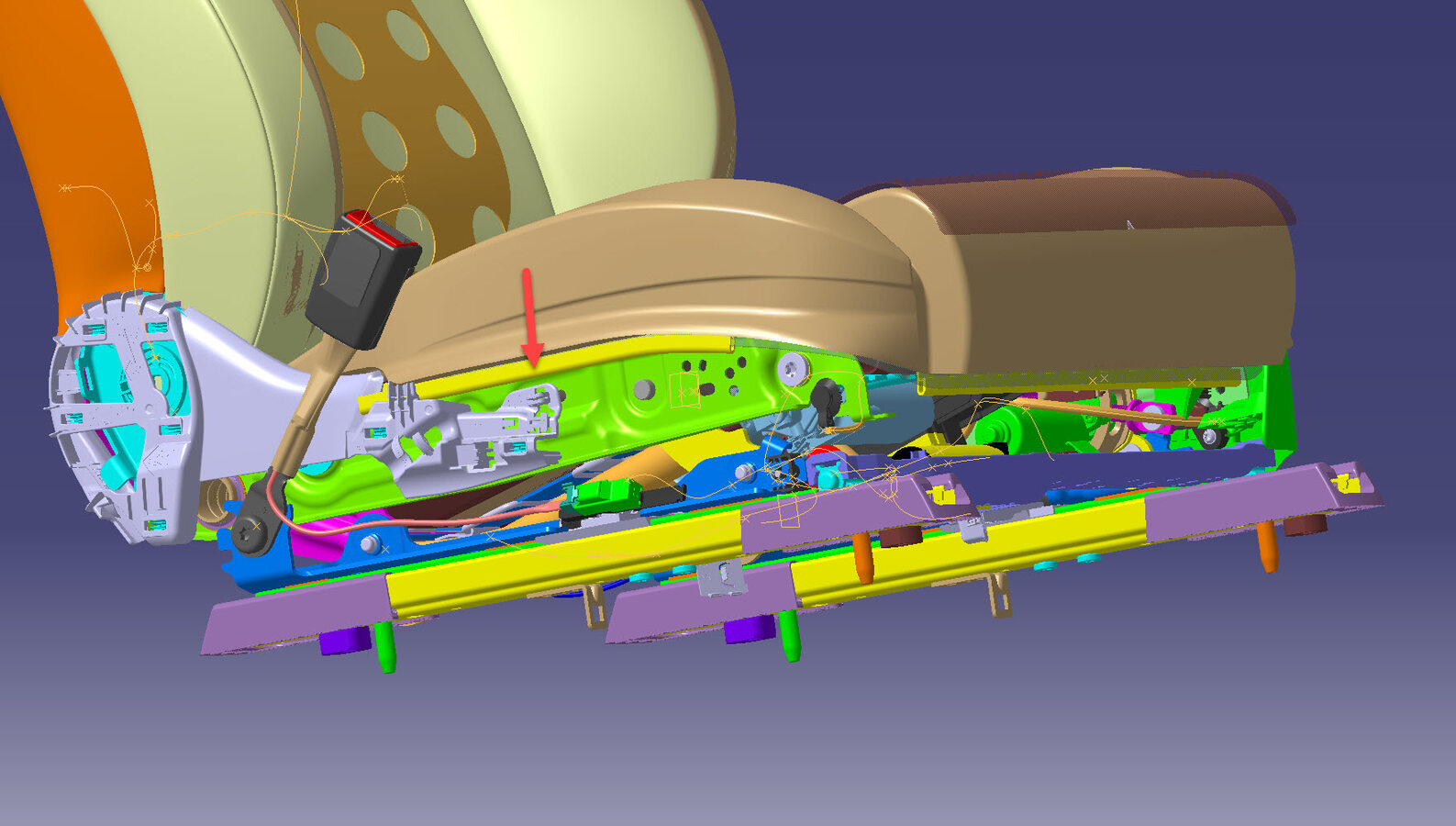

29. Release soft trim retainer from outboard side of seat frame
    Note

    1x retainer





30. Release soft trim retainer from front end of seat frame
    Note

    1x retainer



31. Position seat upright

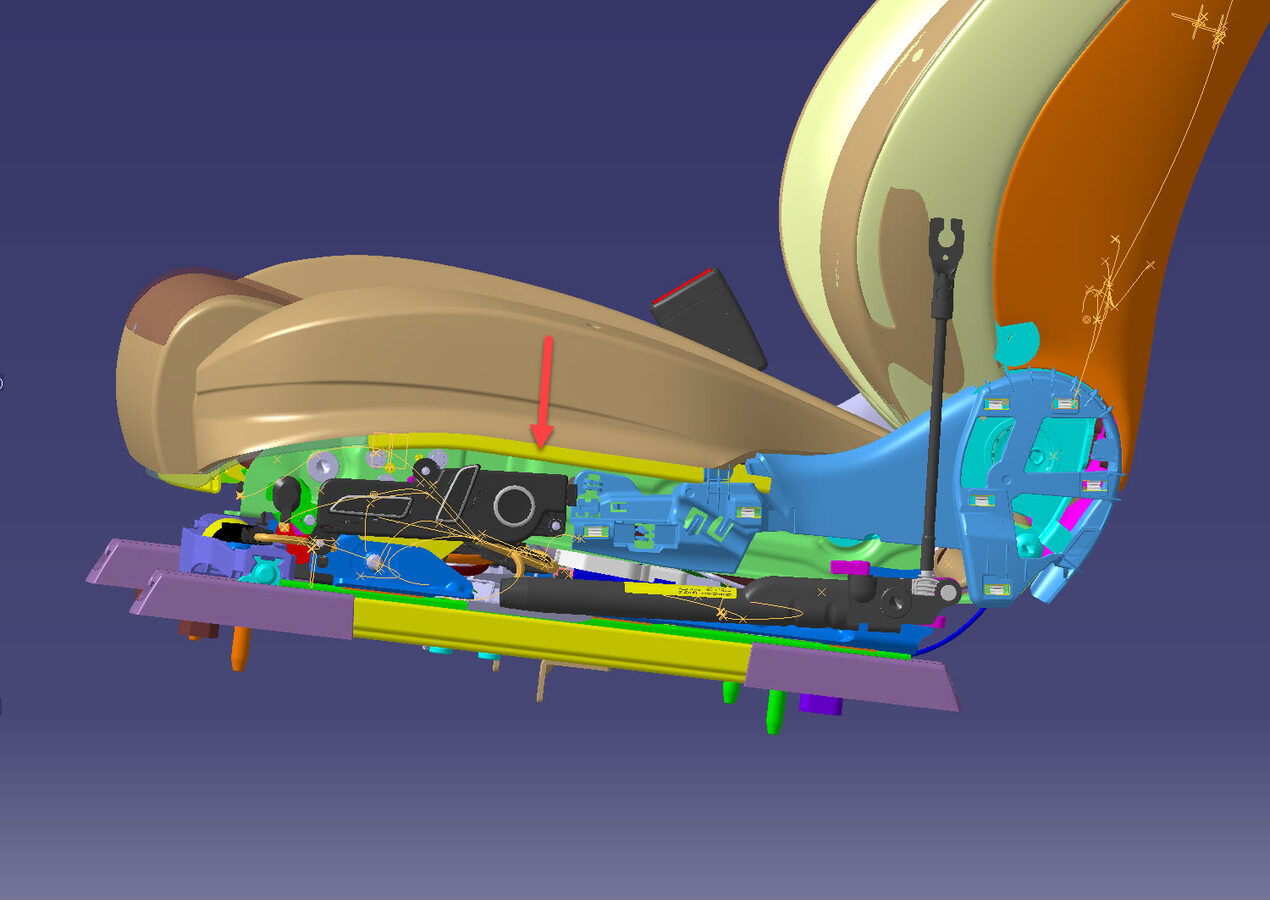

32. Remove seat cushion from frame



33. Release seat cushion trim from below seat foam
    Note

    1x strap

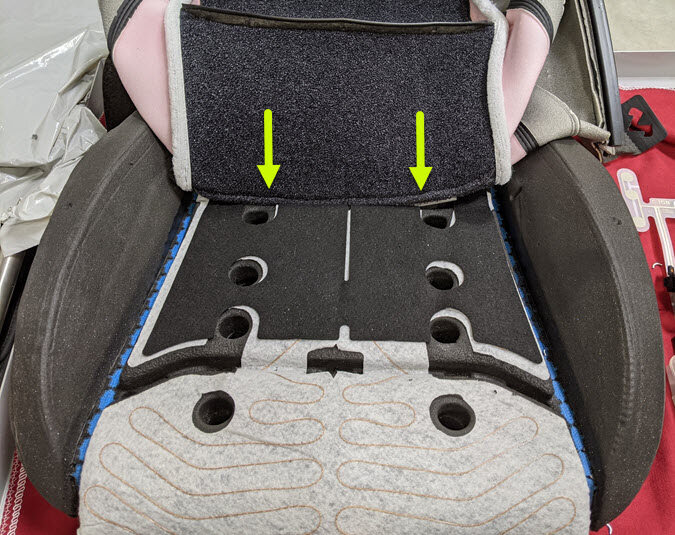

34. Release Velcro securing 40 seat cushion trim cover to foam pad
    Note

    Fold back until you reach first row of hog rings

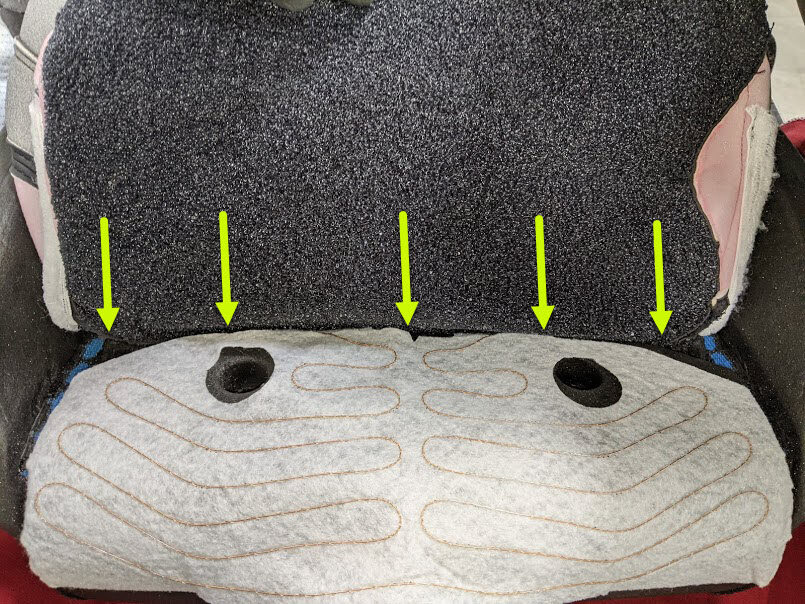

35. Remove front hog rings securing seat cushion trim cover to foam pad
    Note

    5x hog rings, Push down on foam to allow access to rings, Verify any excess pieces have been removed from foam





36. Release remaining Velcro securing seat cushion trim cover to foam pad
    Note

    Fold back until access to OCS is clear



37. Remove center hog rings securing seat cushion trim cover to foam pad
    Note

    2x hog rings



38. Remove rear hog rings securing seat cushion trim cover to foam pad
    Note

    3x hog rings

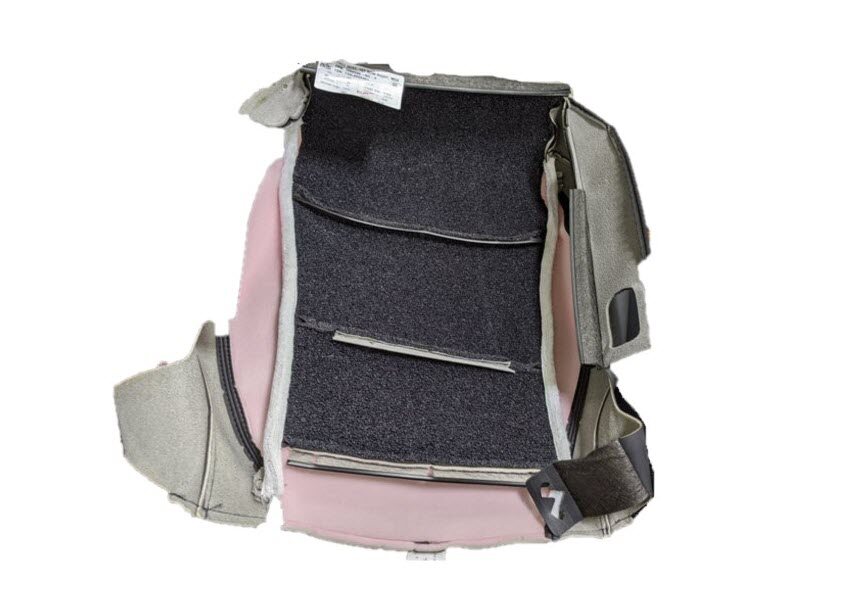

39. Remove seat cushion trim cover from foam pad





40. Position seat cushion trim cover onto foam pad for hog ring installation



41. Install rear hog rings securing seat cushion trim cover to foam pad
    Note

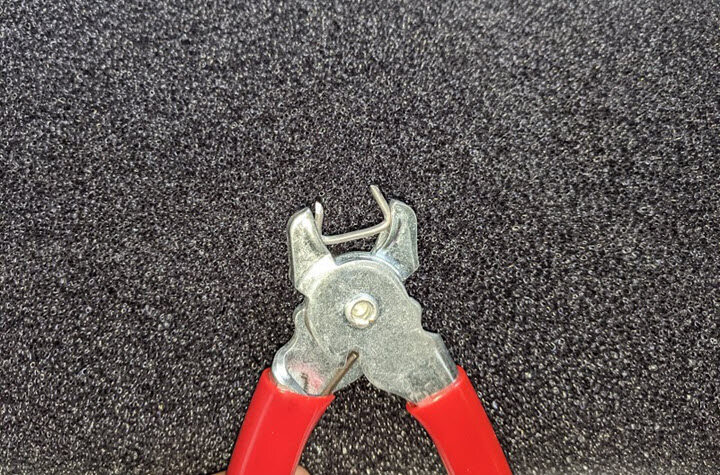

    3x hog rings, Push down on foam to allow access, Place hog ring into pliers prior to installation, Start with center ring and work your way out







42. Install center hog rings securing seat cushion trim cover to foam pad
    Note

    2x hog rings, Push down on foam to allow access





43. Secure Velcro to seat cushion bottom foam
    Note

    Secure up to the section where hog rings will be installed



44. Install hog rings securing seat cushion trim to foam
    Note

    5x hog rings, Push down on foam to allow access, Place hog ring into pliers prior to installation, Start with center ring and work your way out









45. Install remaining portion of Velcro securing cushion trim cover to foam pad
    Note

    Wrap remaining portion of trim cover over foam pad





46. Flip cushion over and secure trim strap to foam
    Note

    1x strap, Strap located on bottom side of cushion

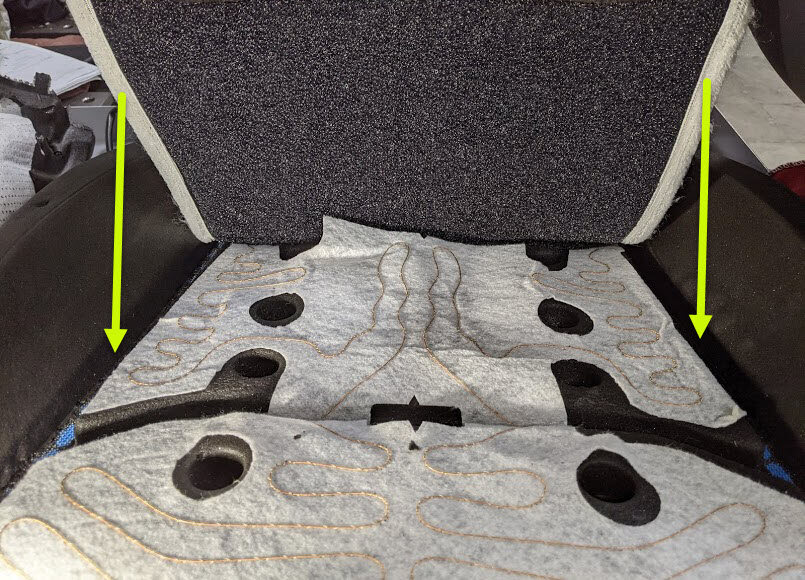

47. Install seat bottom cushion onto seat frame
    Note

    Feed trim between seat back trim and seat frame, Maneuver seat assembly as needed for access





48. Rotate seat assembly onto seat back
    Note

    Protect seat from damage



49. Install soft trim retainer onto front end of seat frame
    Note

    1x retainer



50. Install soft trim retainer from outboard side of seat frame
    Note

    1x retainer





51. Install soft trim retainer from inboard side of seat frame
    Note

    1x retainer





52. Install OCS harness into SBR bracket
    Note

    2x tabs, Once harness is positioned, Verify tabs are fully engaged





53. Slide SBR bracket downward to install onto seat frame bracket
    Note

    1x connector



54. Connect OCS harness and install onto SBR bracket
    Note

    1x connector, 1x bracket





55. Secure LH front seat harness onto seat frame bracket
    Note

    1x fir tree clip



56. Attach FSC/FSB vent heat pad harnesses into plastic brackets
    Note

    1x clip, 1x bracket, Note one harness is for the seat cushion and the other is for the seat back. The upper bracket aids in routing while the lower clip secures them



57. Connect FSC vent heat pad from LV seat controller
    Note

    1x connector



58. Install soft trim retainers onto seat frame
    Note

    2x retainers



59. Install seat back elastic straps onto seat frame
    Note

    2x straps



60. Position seat upright



61. Install inboard side shield onto LH front seat
    Note

    7x clips, fully secure inboard side shield onto LH front seat







62. Connect LH front outboard seat switch
    Note

    1x connector



63. Install LH outer side cover onto seat assembly
    Note

    7x clip, Apply pressure to the outer seat cover to fully seat trim clips, trim should sit flush against the seat cushion





64. Install screw securing outer side cover to LH front seat assembly
    Note

    1x screw, T20, 4 Nm or 1x bolt, 8mm, 4 Nm, Maneuver seat assembly as needed for access, Bolt may vary on build

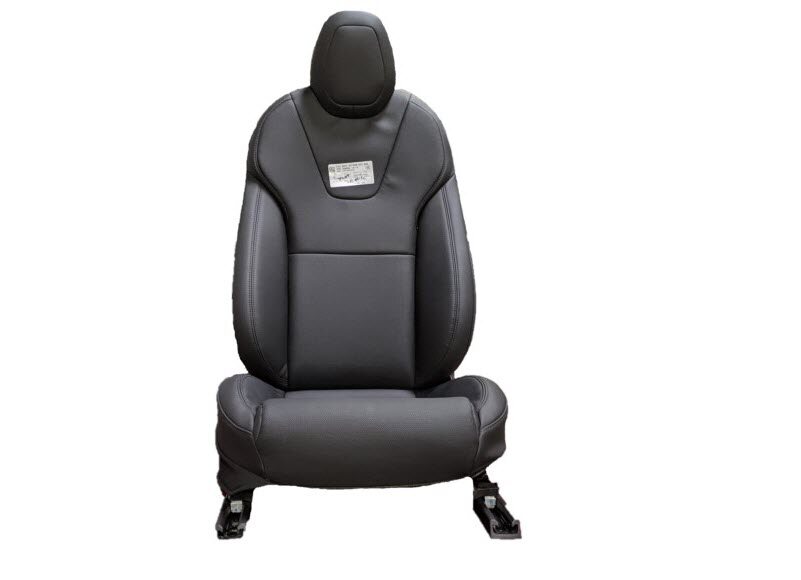

65. Install LH front seat into vehicle
    Note

    Recommend Assistance, Take care not to damage surrounding components while lifting the seat into the vehicle, Gateway configuration update for cfg_frontSeattype is needed when replacing from 4876527-82-X to 4876527-72-X or newer 1st Row LHD LH Seat Assembly with 1st Row Mini-Tilt Motor Assembly



66. Position seat to gain access below seat bottom and connect LH side body harness to seat controller
    Note

    2x connectors, 1x clip, Engage red locking tab on black connector



67. Connect First Responder Loop and LV battery connector
    Note

    2x connectors Secure FRL first, Seat LV battery connection and push black connector lock inwards to secure, Engage green locking tab when fully seated







68. Install rear underhood apron
    Note

    8x clips





69. Close hood
    Note

    Press firmly in green highlighted areas (see image), Damage may result from pressure elsewhere on hood





70. Move LH front seat forward



71. Install bolts securing LH front seat rear tracks to vehicle
    Note

    2x patch bolts, T45P, 34 Nm, Install new bolts



72. Close LH rear door



73. Move LH front seat backward



74. Install bolts securing both LH front seat front tracks to vehicle
    Note

    2x patch bolts, T45P, 34 Nm, Install new bolts



75. Move LH front seat to original position



76. Connect to vehicle using Toolbox
    Note

    Navigate to https://toolbox.teslamotors.com and establish connection to vehicle, Select connection status icon at top right corner then select connect locally, Icon will turn green when connected, Successful connection will automatically unlock vehicle gateway and place UI in Service Mode Plus, Media converter box powered by laptop USB or 12v power outlet, Ethernet connection will provide communication, If RJ45 ethernet connector present at service panel media converter box not required, Vehicles built 4/5/2024 onwards have OBDII connection integrated into drivers lower IP cover, Use OBDII connection if this applies, Some vehicles may have both RJ45 and OBDII, If vehicle has both RJ45 and OBD-II then connect via RJ45, For local connection issues with Toolbox refer to https://toolbox.teslamotors.com/articles/43695

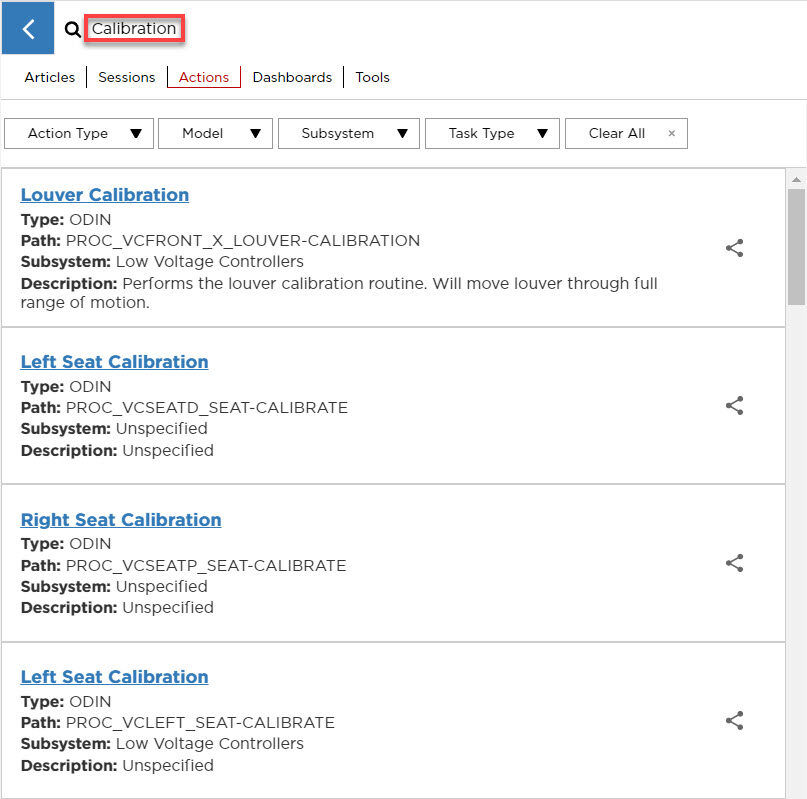

77. Select ‘Actions/Autodiag’ and search for ‘Calibration’

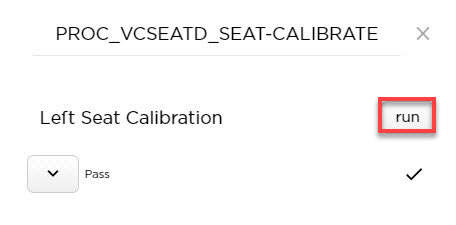

78. Select ‘PROC_VCSEATD_SEAT-CALIBRATE’, click ‘Run’, and allow routine to complete
    Note

    Verify no items on seat during this routine, Select ‘X’ at top right of window to close once complete





79. Disconnect Toolbox from vehicle and remove laptop and Diagnostics Adapter Ethernet Harness
    Note

    If RJ45 ethernet diagnostic connector present media converter box not required disconnect directly from laptop using an RJ45 Ethernet cable or OBDII connection















80. Raise both LH side windows



81. Close LH front door
    Note

    Close doors
