Cap - Wheel - Front - LH (2025+) (Remove and Replace)
Correction code TBD FRT 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.NOTE: See Ergonomic Precautionsfor safe and healthy working practices.
Remove
-

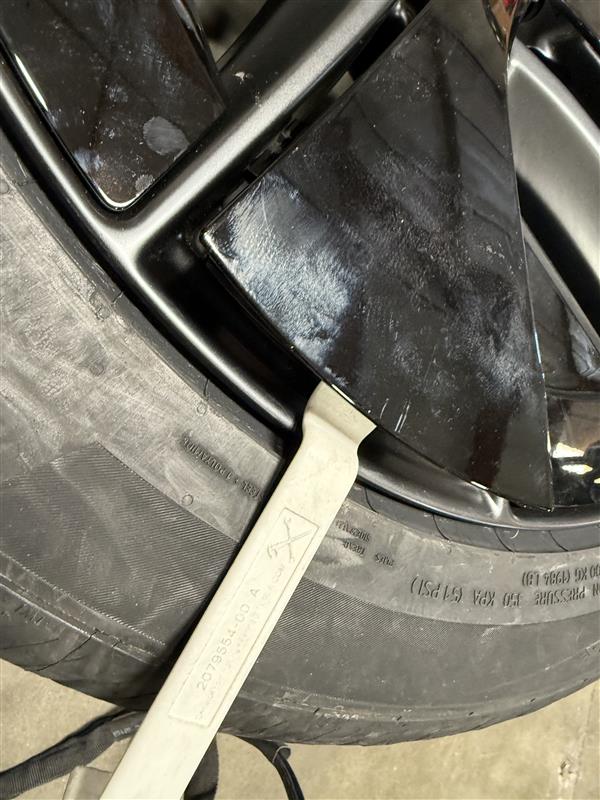

Use a plastic trim tool to carefully
release the clips (x5), and then remove the wheel cap from the LH front wheel
assembly.
Install
-
Push down on the center of the LH
front wheel cap, and then work in an outward direction to install the clips (x5).
