LV Battery - Recover

Correction code 170100080.06 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email LaborTimeFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
This procedure is a DRAFT, although it has been validated. Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near high voltage systems and components. Provide corrections and feedback to ServiceDevelopment@teslamotors.com.
  1. Remove the rear underhood apron. See Underhood Apron - Rear (Remove and Replace).
  2. Disconnect LV battery connector and keep FRL loop connected
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connectors, Release LV battery but keep FRL loop connected, Lift up and release green locking tab, Pull black connector lock outwards to release connection
  3. Connect 12V maintainer while LV battery is connected and cycle contactors on
    Informational PurposesAn informational icon, calling your attention
    Note
    Connect 12V support while LV battery is connected, Place fender cover over multi-system beam, Prevent shorting position cable to ground, Secure positive terminal to jump post, Secure negative terminal to chassis ground, Contactors will turn on and there will be an audible click
  4. Secure LV battery connector
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector, Seat LV battery connection and push black connector lock inwards to secure, Engage upper locking tab when fully seated
  5. Open LH front door
  6. Lower LH front window
  7. Place vehicle in service mode via UI
    Informational PurposesAn informational icon, calling your attention
    Note
    Via Controls > Software, Touch and hold "Model" for 2 seconds then release, Use screen keyboard to type "service" into dialog box and select OK button
  8. Remove 12V maintainer
    Informational PurposesAn informational icon, calling your attention
    Note
    Unplug maintainer first and then remove from posts, Return cap to positive post
  9. Navigate to Power Distribution
    Informational PurposesAn informational icon, calling your attention
    Note

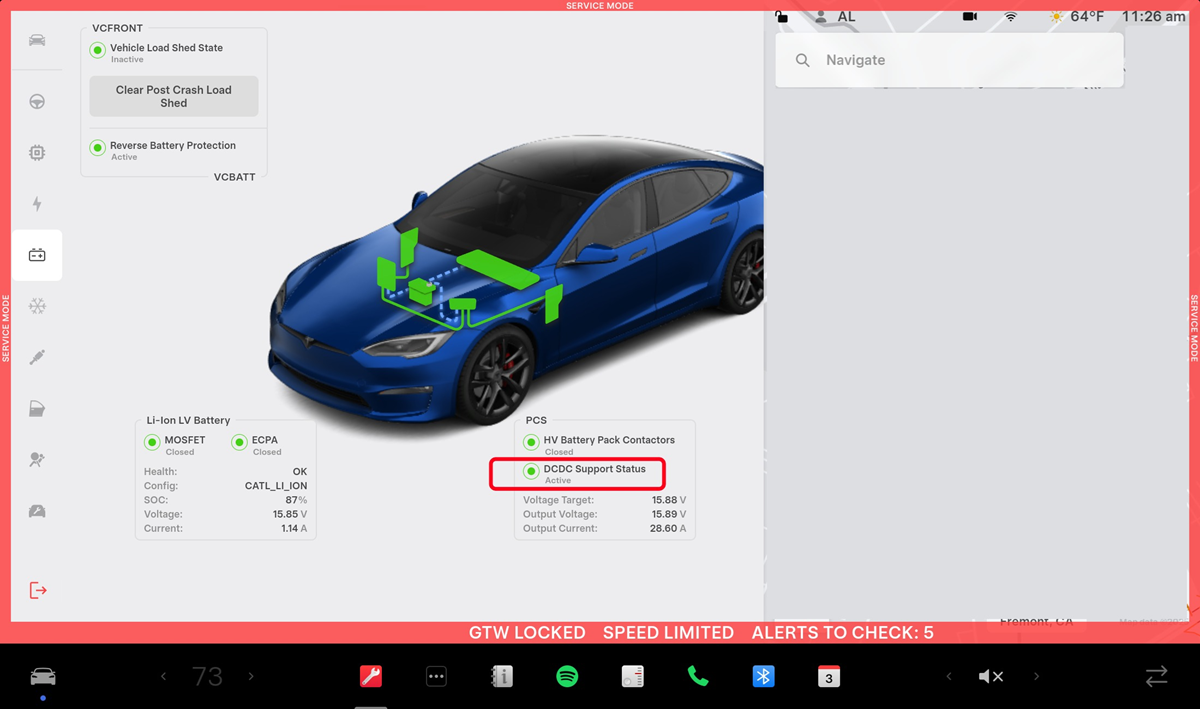

    Via Service UI select Low Voltage > Power Distribution
  10. Verify the status of the LV battery.
    Informational PurposesAn informational icon, calling your attention
    Note
    If after 2 minutes of PCS support, alerts VCLEFT_a478_LVBMS_MOSFET_Open or VCBATT_a478_LVBMS_MOSFET_Open are present, the LV battery has not auto-recovered. Auto-recovery can be manually attempted via touchscreen or Toolbox:
    • Touchscreen:Service Mode > Low Voltage > Power Distribution > Close MOSFET
    • Toolbox: Run the ActionPROC_VCFRONT_X_RECONNECT-LV-BATTERYSearch for routine in ToolboxLVBMS Reconnect LV BatteryLow Voltage / Power Distribution - Close MOSFET
    Informational PurposesAn informational icon, calling your attention
    Note
    If the steps above do not succeed in auto-recovering the LV battery, recover the battery using the Tesla Li-Ion battery charger (STILL IN DEVELOPMENT).
    • Verify that the battery is not discharging at high current and is not self-protecting.
    • Go to Service Mode > Low Voltage > Power Distribution > LV Battery and confirm that LV battery SoC is increasing.
    • Verify that the LV Battery MOSFET status is Closed.
  11. Exit Service mode
    Informational PurposesAn informational icon, calling your attention
    Note
    Press and hold the Exit Service Mode button for 3 seconds
  12. Install the rear underhood apron. See Underhood Apron - Rear (Remove and Replace).
