Ambient Bright Strip - Door Panel - Front - LH (2025+) (Remove and Install)
Correction code
New
NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so.
NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com.
NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.
Warning
This procedure is a DRAFT.
Although it has been validated, Warnings and Cautions might be missing. Follow safety
requirements and use extreme caution when working on or near High Voltage systems and
components. Provide corrections and feedback to ServiceDevelopment@teslamotors.com.
Note
This procedure describes work that is

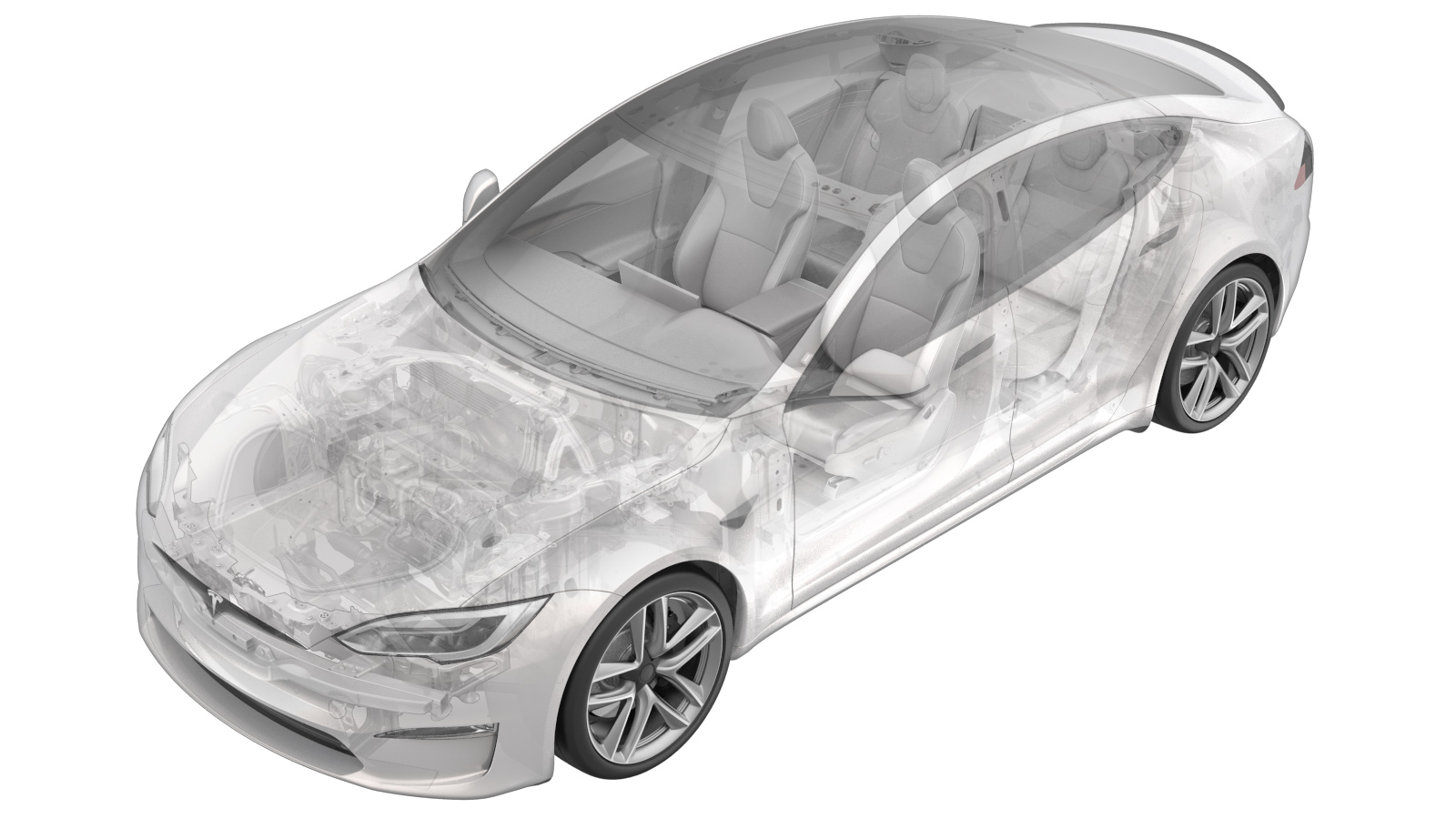

specific to 2025+ Model S.
- Open LH front door
- Lower LH front window
-
Remove LH front door trim decor
Note1x connector (if fitted), 1x hook, 7x clips, 3x datums, 2x retaining tabs, Release from front side then move rearward, Clips will be retained with door trim panel, Release connector from retaining tabs
-
Remove front LH ambient bright
Note12x tabs, Release 2x tabs at a time then slide upwards
-
Install front LH ambient bright
Note12x tabs, Verify ambient bright tabs are fully secured
-
Install LH front door decor
Note1x connector, 1x hook, 7x clips, 3x datums, 2x retaining tabs, Slide hook into trim panel then fully seat, Secure connector onto retaining tabs
- Raise LH front window
-
Close LH front door
NoteClose doors
