Cover - Knee Airbag - Front Passenger (2025+) (Remove and Replace)

Correction code New NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.

Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
This procedure is a DRAFT. Although it has been validated, Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near High Voltage systems and components. Provide corrections and feedback to ServiceDevelopment@teslamotors.com.
Informational PurposesAn informational icon, calling your attention
Note
This procedure describes work that is specific to 2025+ Model S.
  1. Open RH front door
  2. Open hood
    Informational PurposesAn informational icon, calling your attention
    Note
    Select Controls > Frunk Open
  3. Move RH front seat backward
  4. Remove rear underhood apron
    Informational PurposesAn informational icon, calling your attention
    Note
    8x clips
  5. Power off vehicle from center display
    Informational PurposesAn informational icon, calling your attention
    Note
    Via Controls > Safety & Security > Power Off
  6. Disconnect LV battery connector and First Responder Loop
    Informational PurposesAn informational icon, calling your attention
    Note
    2x connectors, Lift up and release green locking tab, Pull black connector lock outwards to release connection

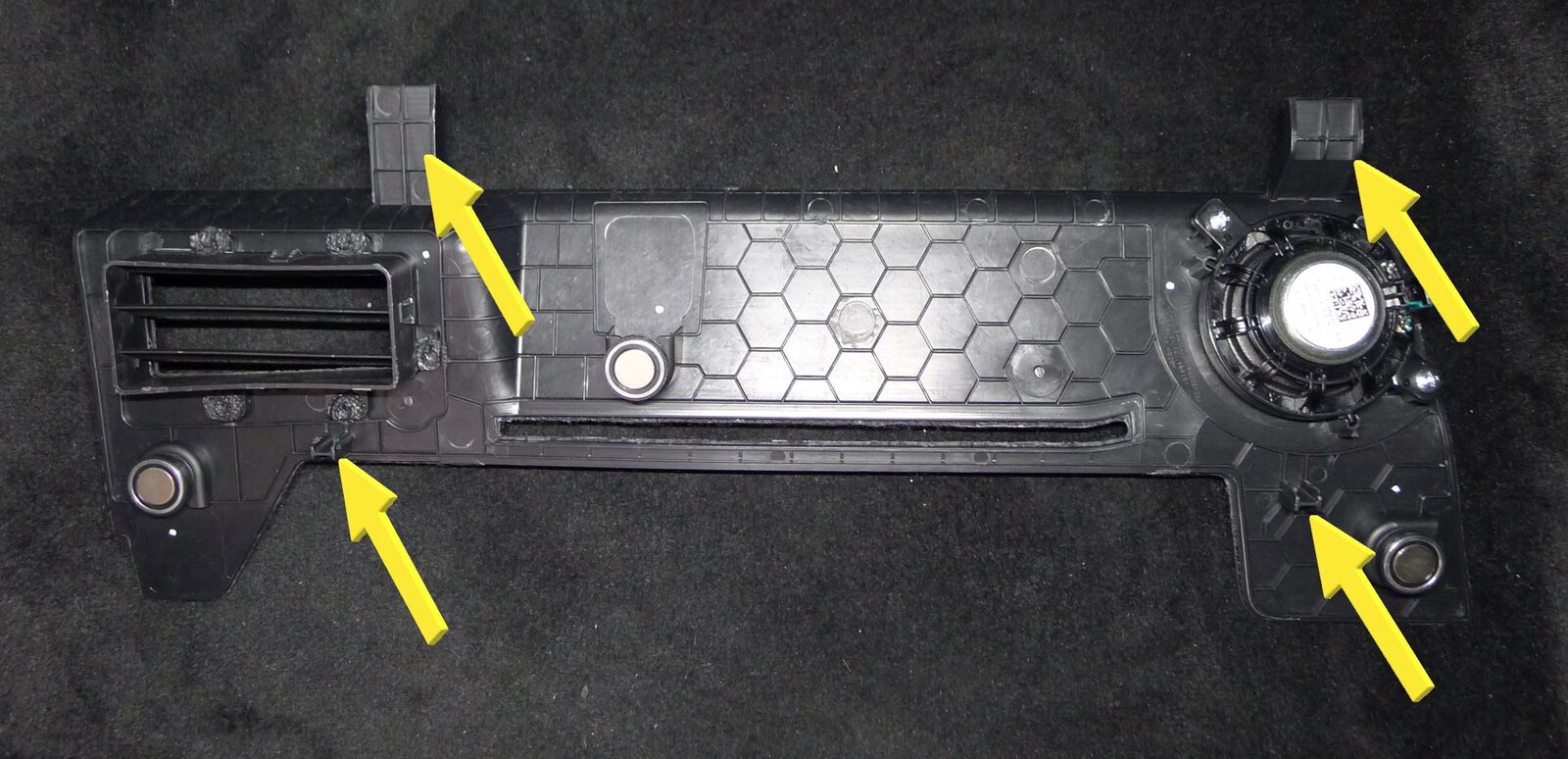

  7. Remove RH footwell cover
    Informational PurposesAn informational icon, calling your attention
    Note

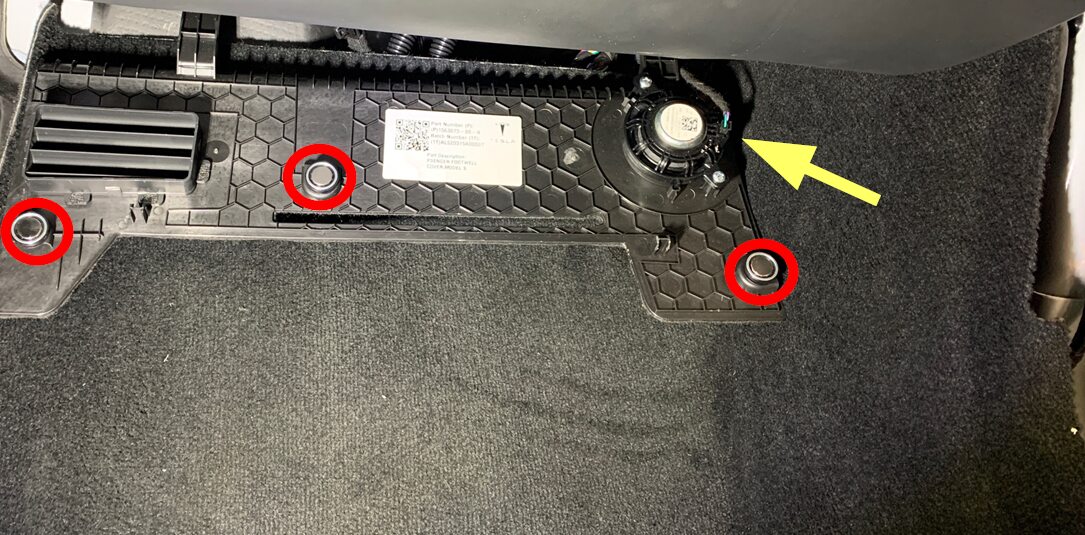

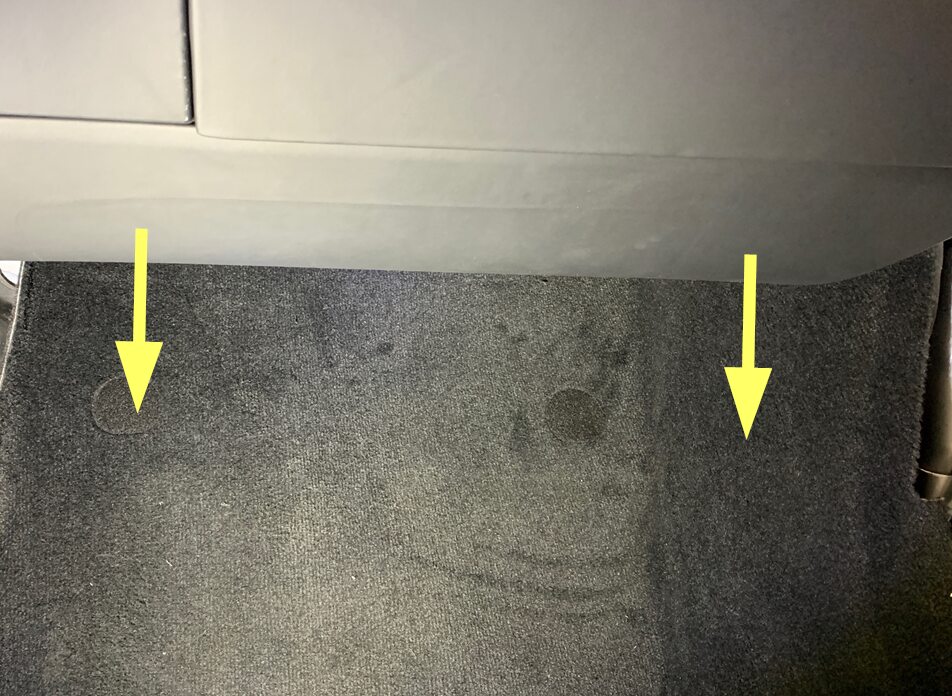

    3x magnets, 1x connector, 4x datums
  8. Remove fasteners securing RH knee air bag assembly to vehicle
    Informational PurposesAn informational icon, calling your attention
    Note

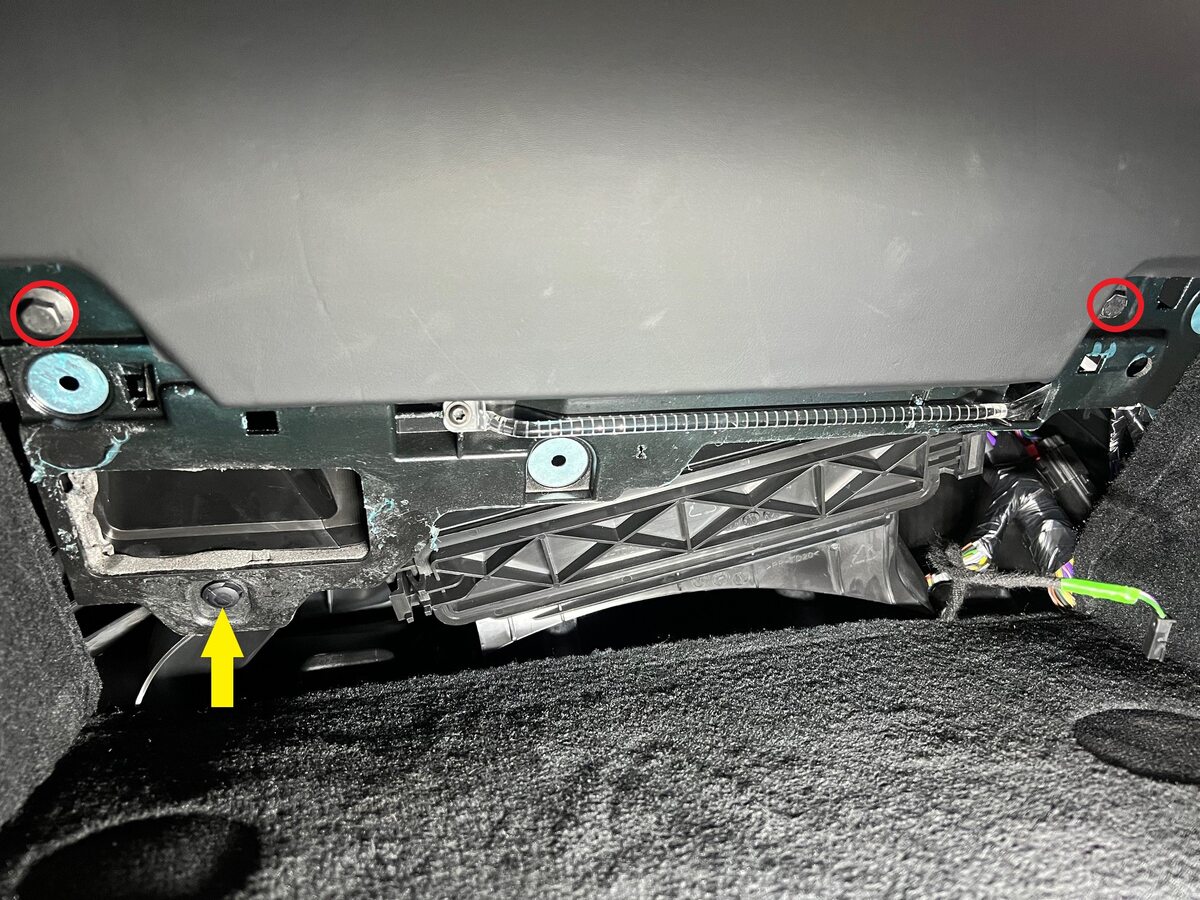

    2x bolts, 10mm, 8 Nm, 1x clip, Discard after removal

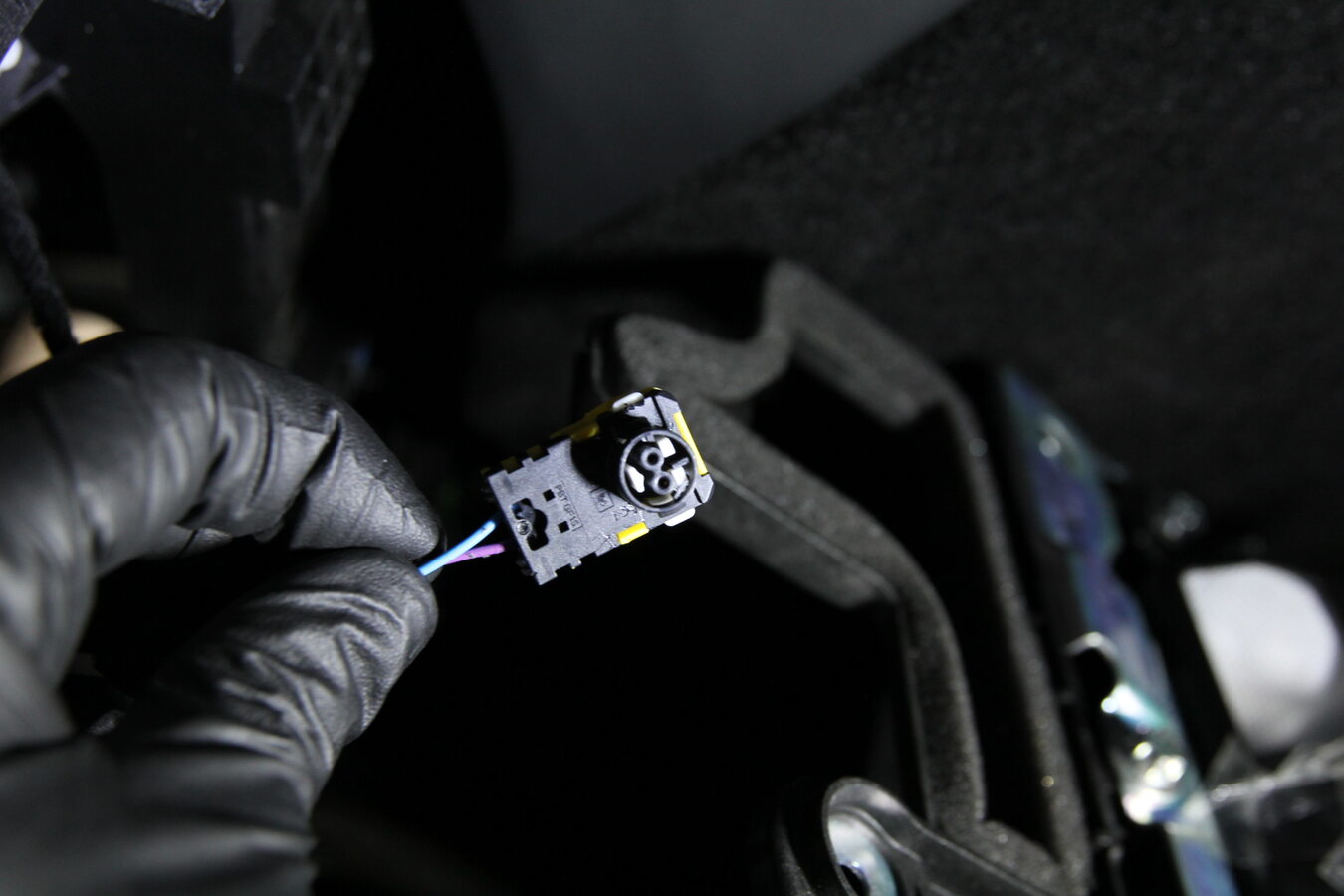

  9. Remove RH knee air bag assembly from vehicle
    Informational PurposesAn informational icon, calling your attention
    Note

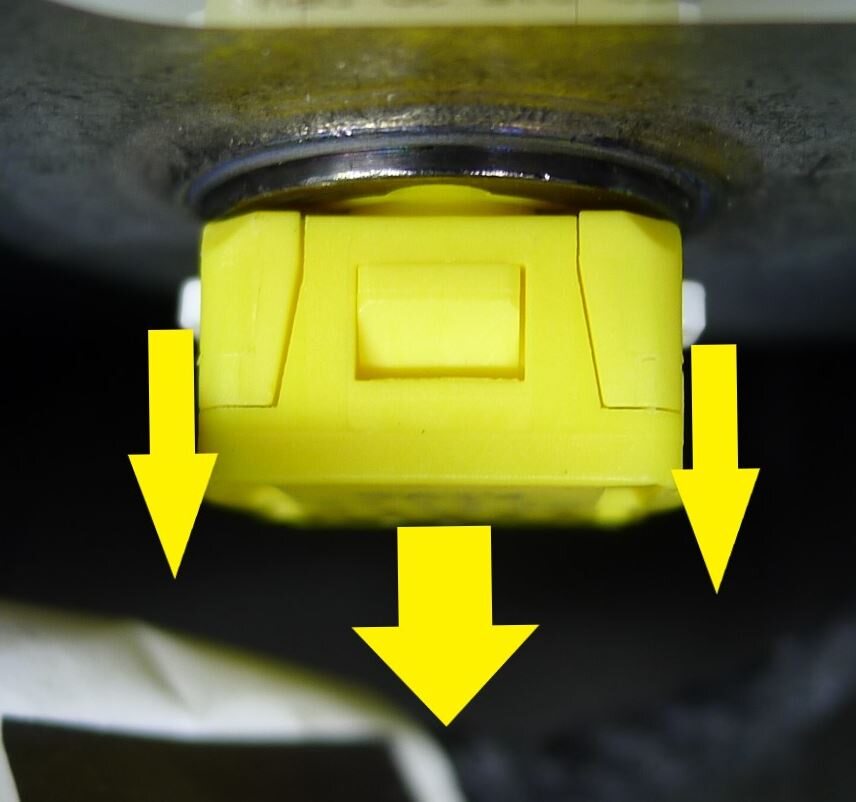

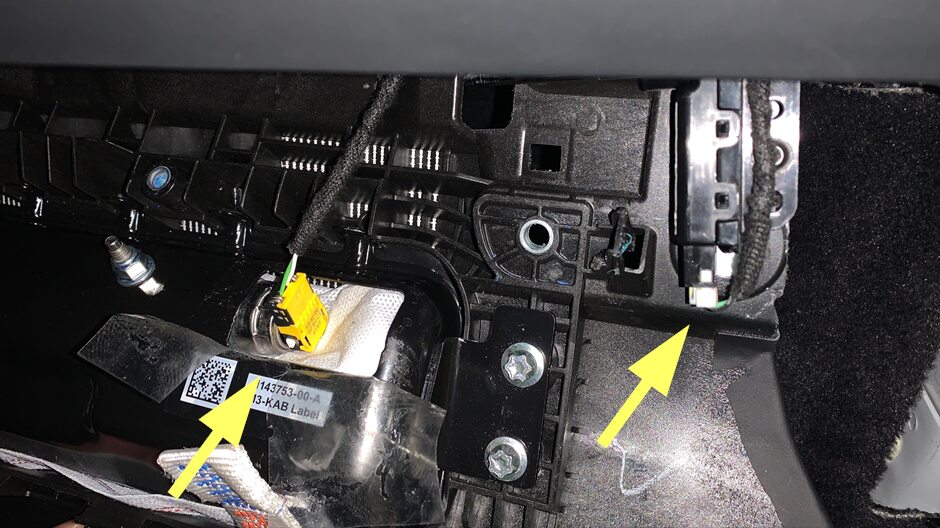

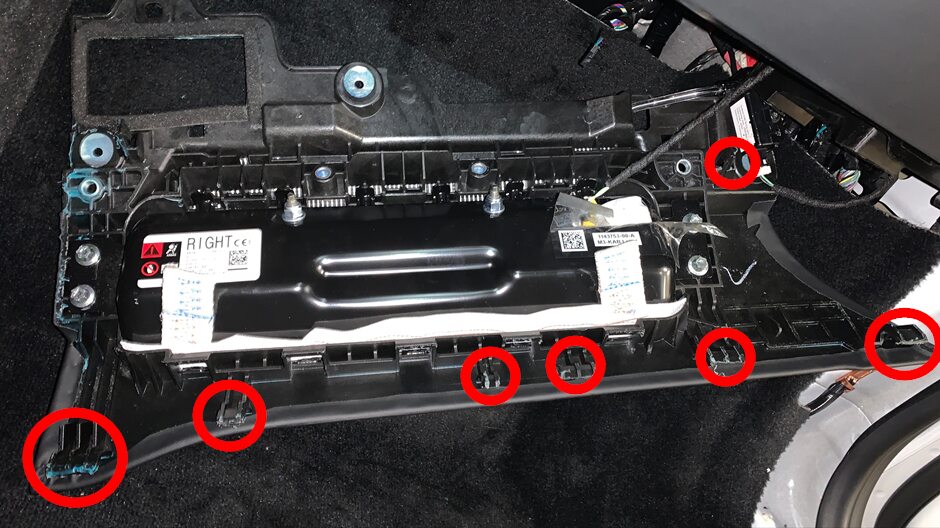

    2x connectors, 6x tabs, 1x clip, Release 2x locking tab on airbag connector

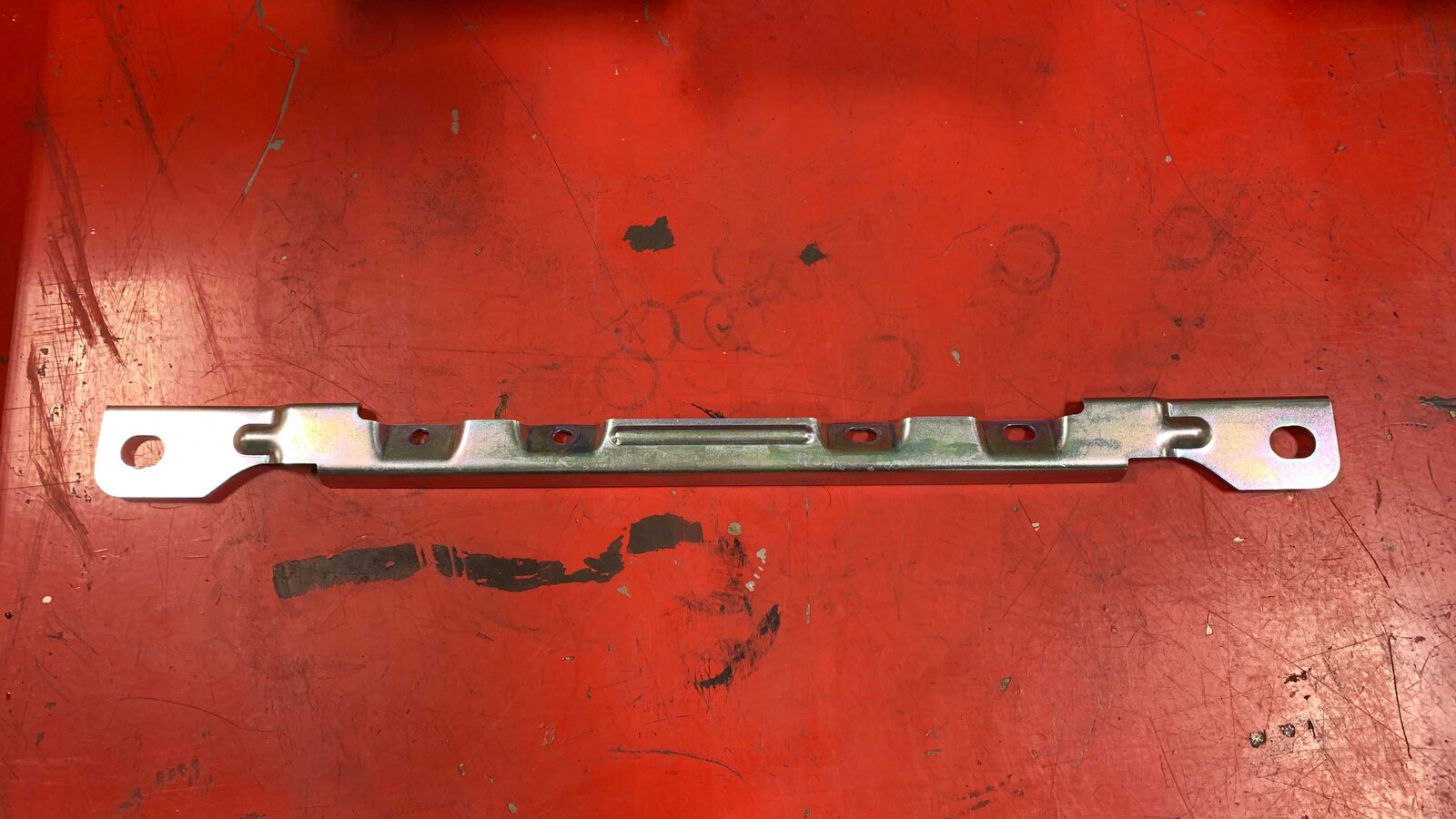

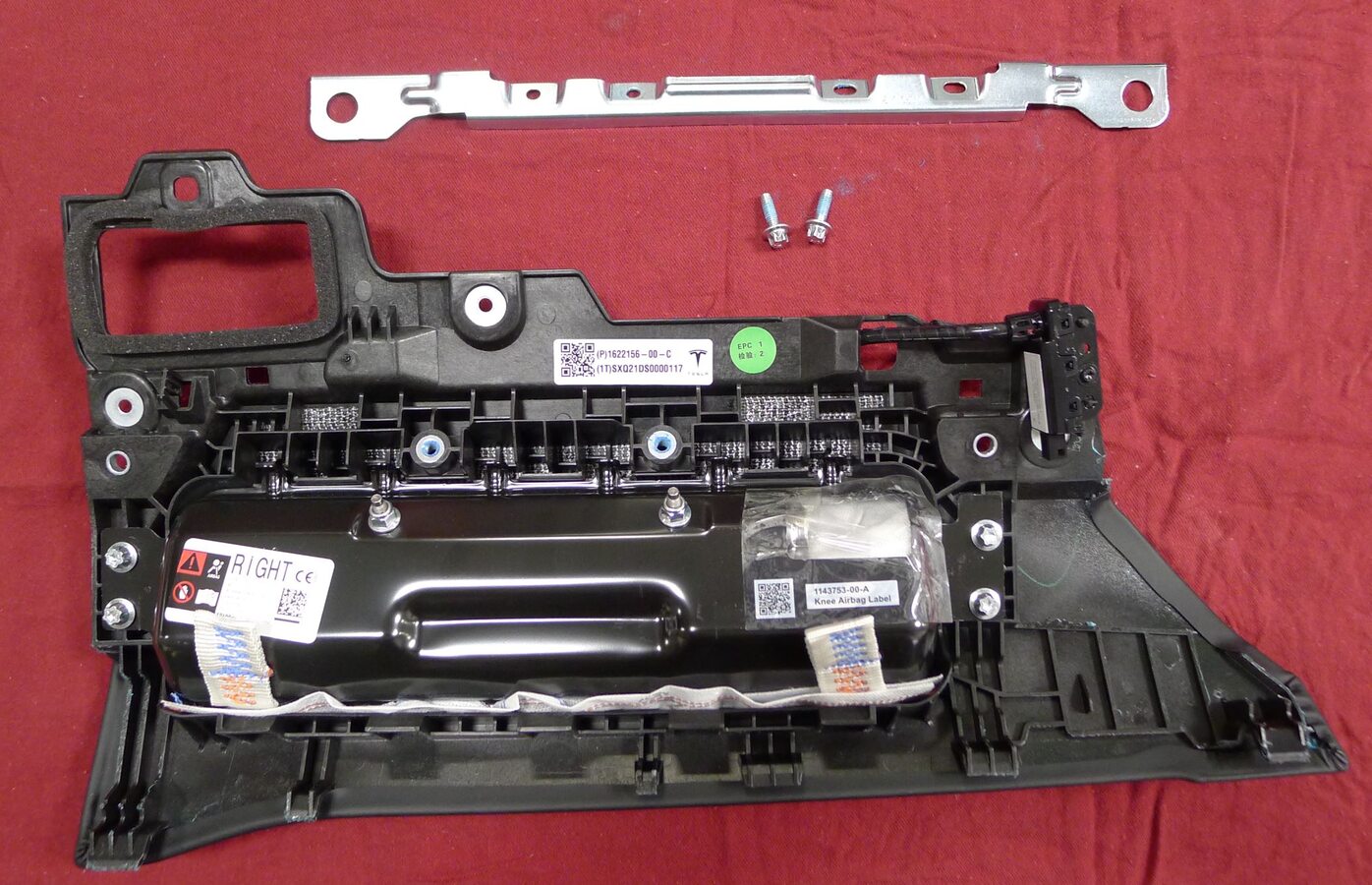

  10. Remove RH knee air bag cover brace
    Informational PurposesAn informational icon, calling your attention
    Note

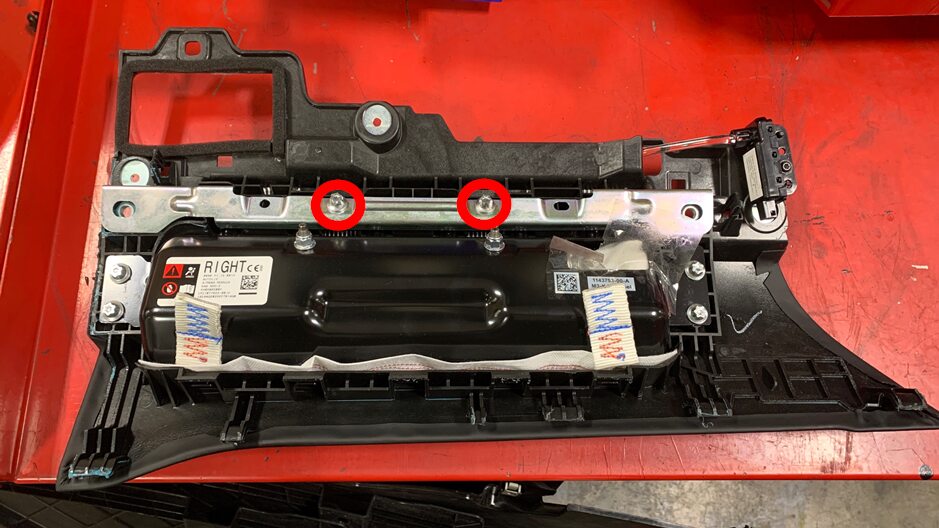

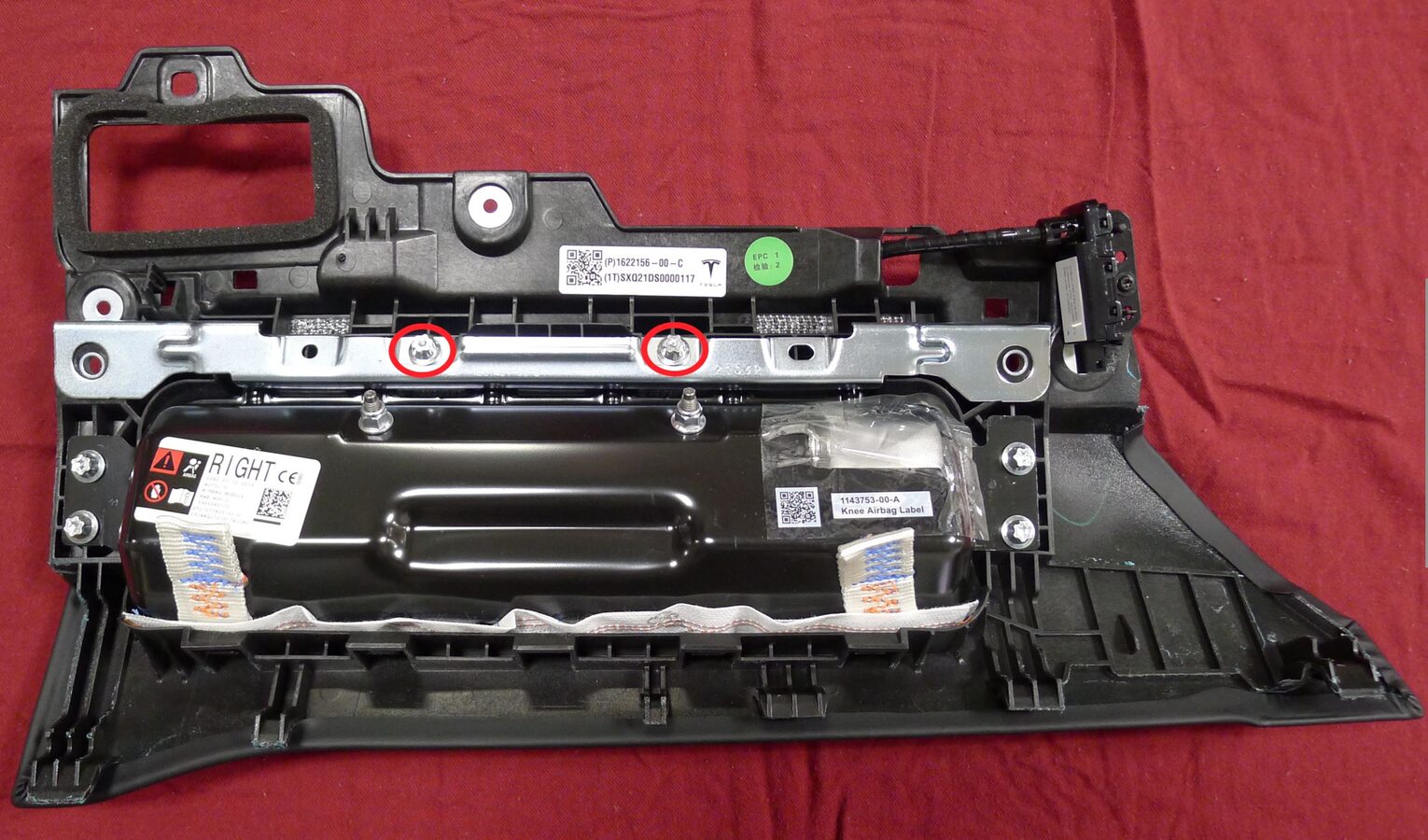

    2x patch bolts, E10, 8 Nm, Discard after removal

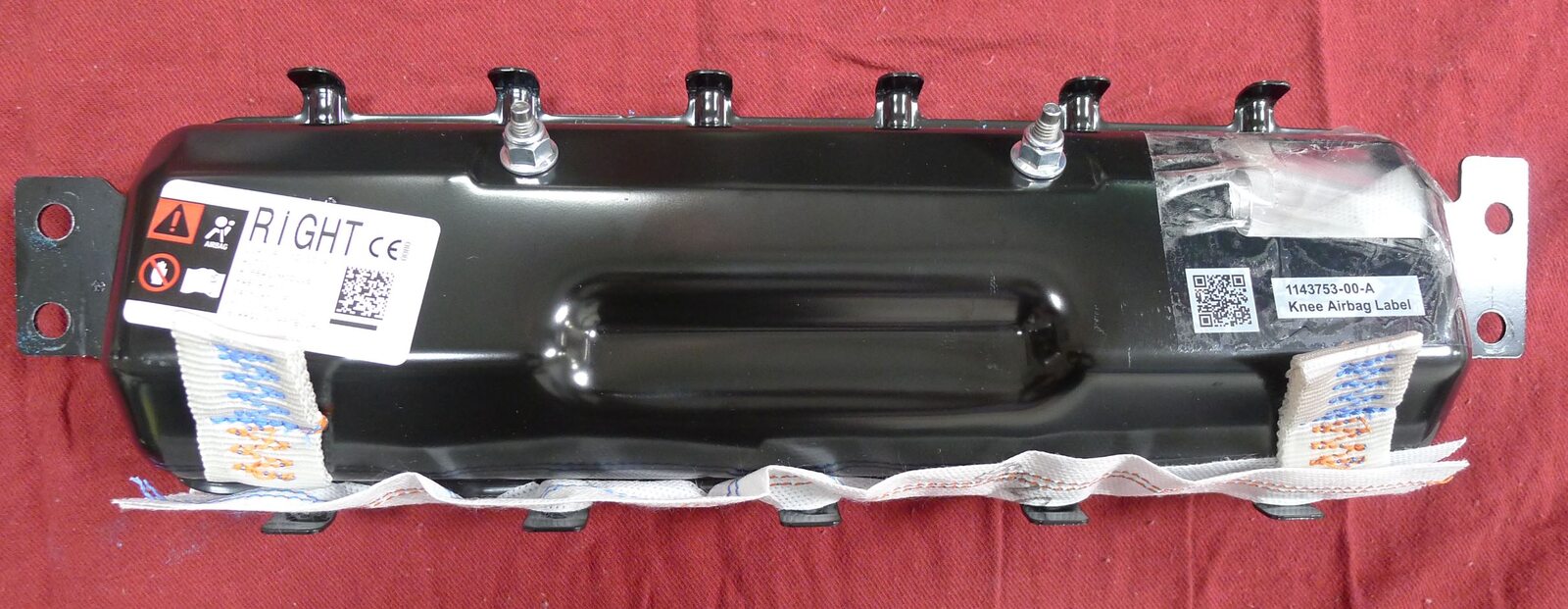

  11. Remove knee air bag from RH IP KAB cover assembly
    Informational PurposesAn informational icon, calling your attention
    Note

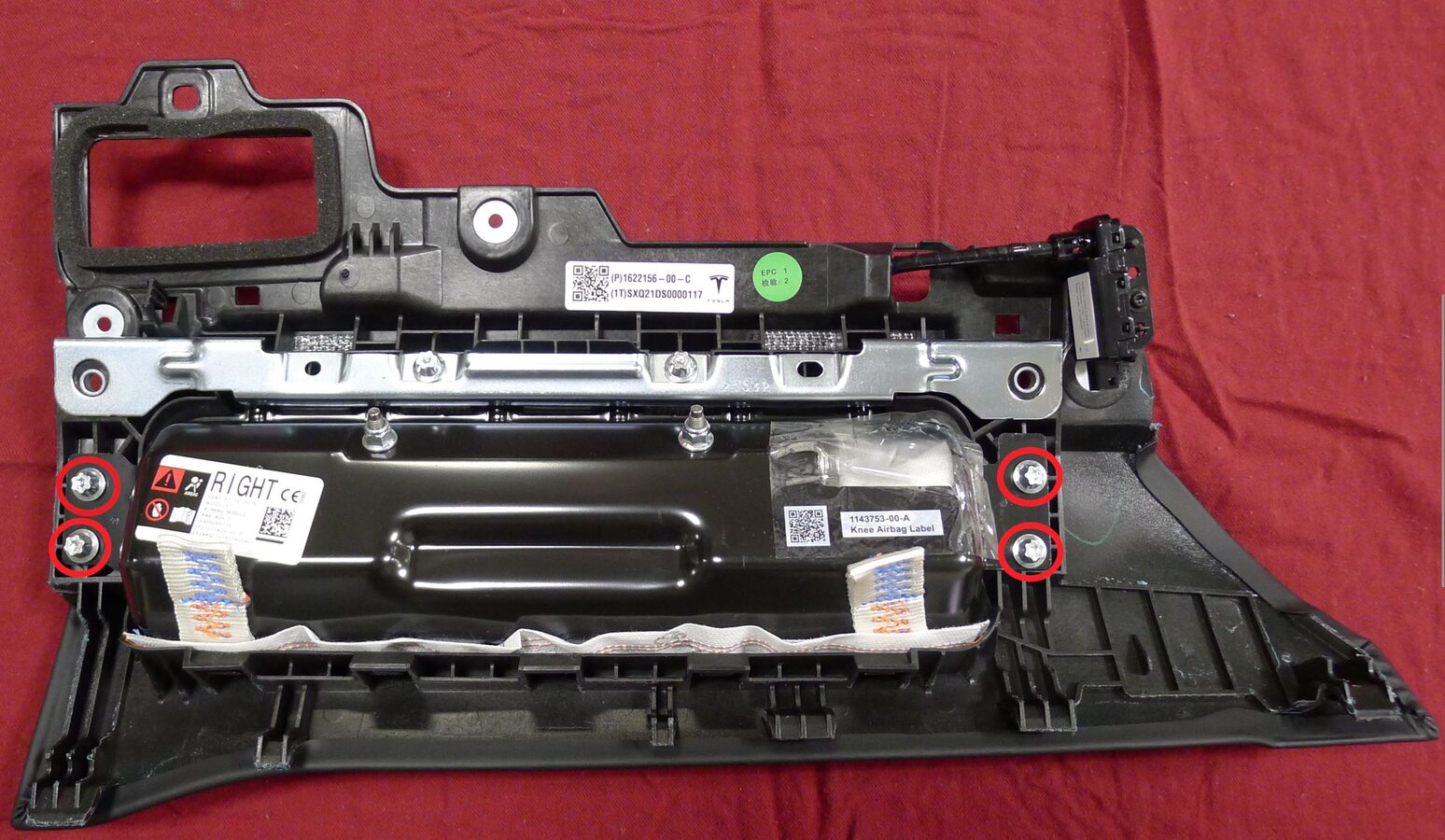

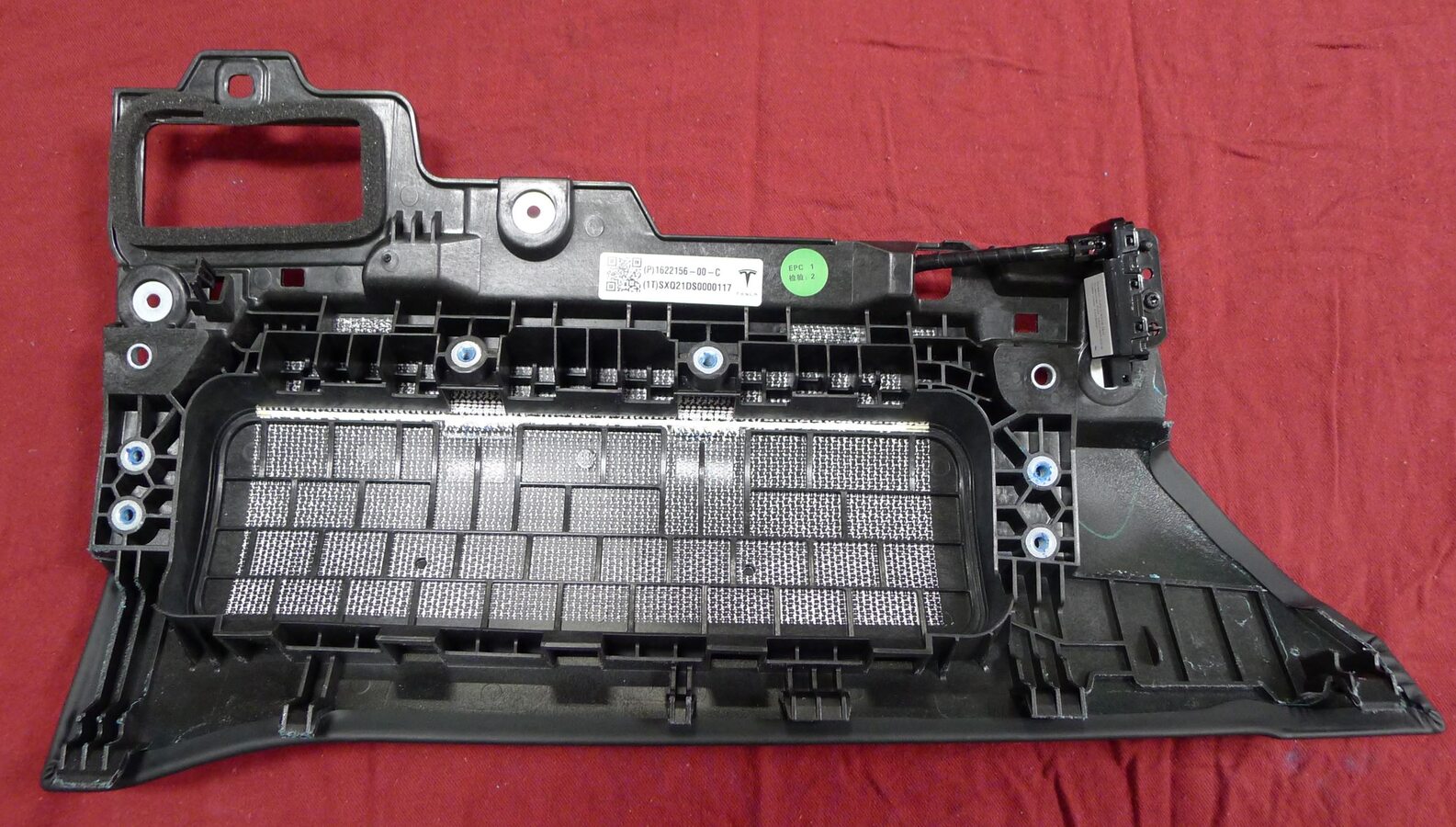

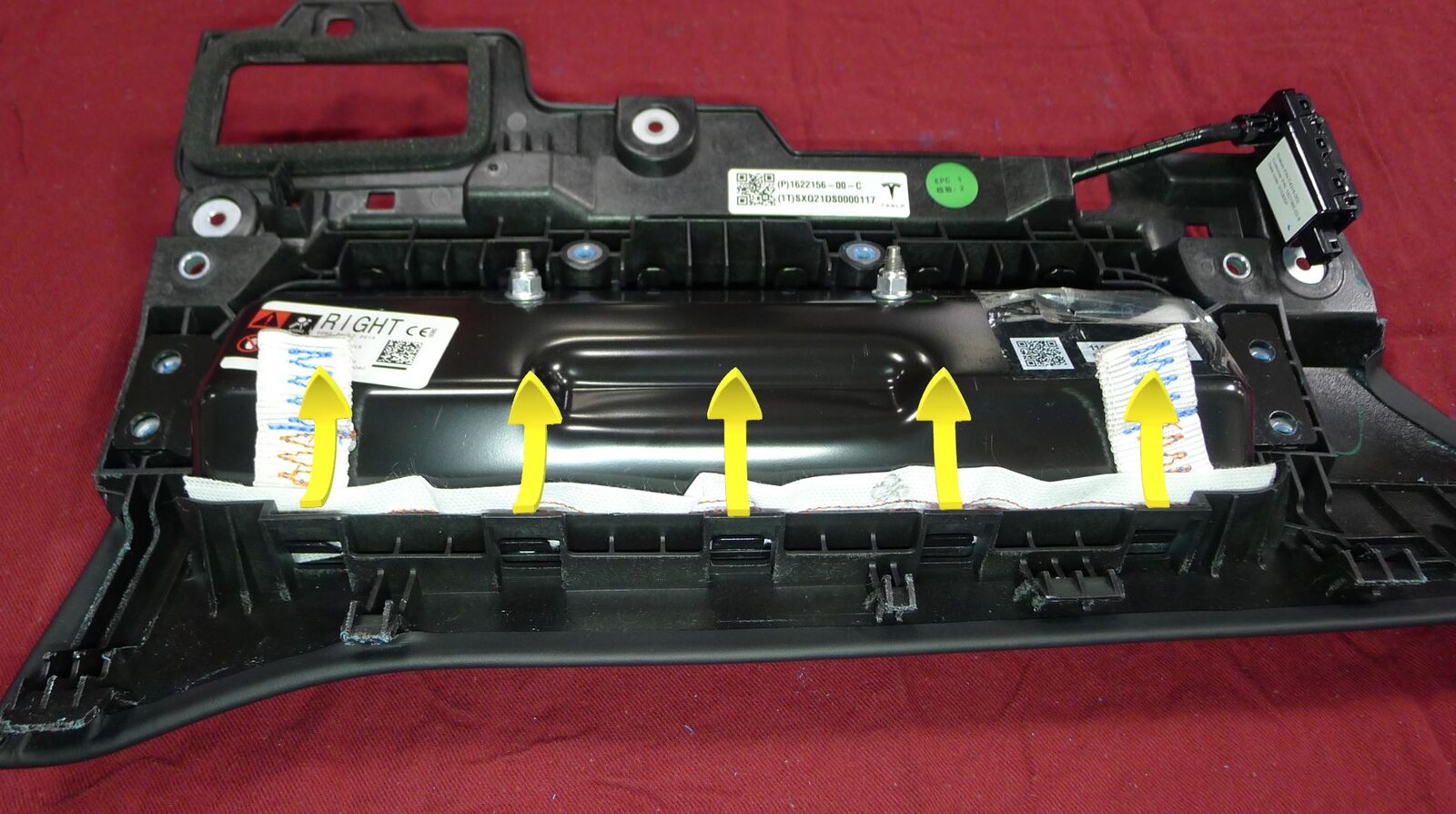

    4x patch bolts, E10, 8 Nm, 5x tabs, Discard after removal, Rotate airbag out of cover
  12. Secure knee airbag to RH IP KAB cover assemlby
    Informational PurposesAn informational icon, calling your attention
    Note

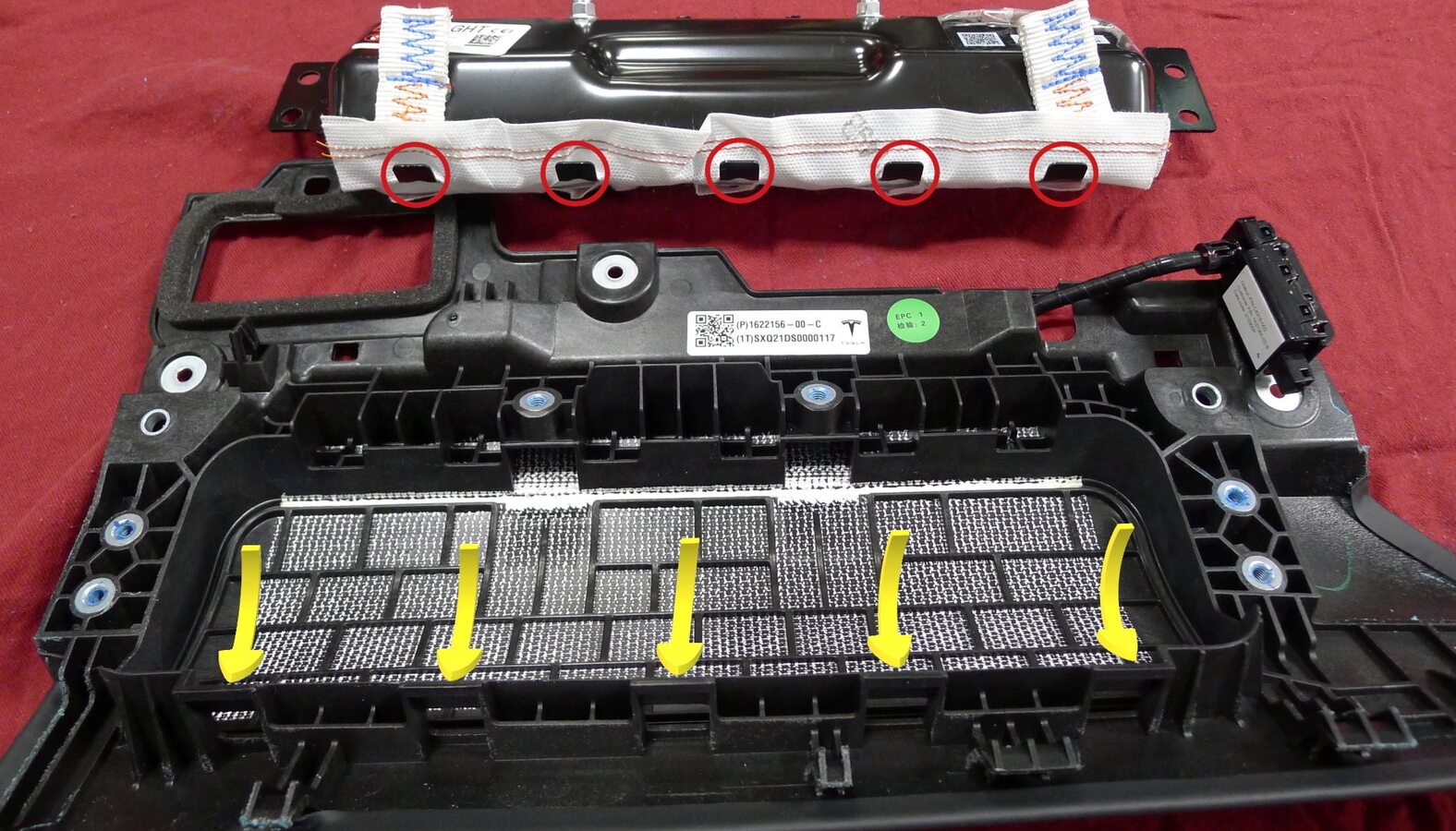

    4x patch bolts, E10, 8 Nm, 5x tabs, Install new fasteners, Rotate airbag into cover
  13. Install knee air bag cover brace
    Informational PurposesAn informational icon, calling your attention
    Note
    2x patch bolts, E10, 8 Nm, Install new fasteners
  14. Install RH knee air bag assembly into vehicle
    Informational PurposesAn informational icon, calling your attention
    Note
    2x connectors, 6x tabs, 1x clip, Hook tabs before fully seating, Use caution not to damage the connector/harness, Support the knee air bag while connecting the connector
  15. Install fasteners securing RH knee air bag assembly to vehicle
    Informational PurposesAn informational icon, calling your attention
    Note
    2x bolts, 10mm, 8 Nm, 1x clip, Install new fasteners
  16. Install RH footwell cover
    Informational PurposesAn informational icon, calling your attention
    Note
    3x magnets, 4x datums, 1x connector
  17. Connect First Responder Loop and LV battery connector
    Informational PurposesAn informational icon, calling your attention
    Note
    2x connectors Secure FRL first, Seat LV battery connection and push black connector lock inwards to secure, Engage green locking tab when fully seated
  18. Install rear underhood apron
    Informational PurposesAn informational icon, calling your attention
    Note
    8x clips
  19. Close hood
    Informational PurposesAn informational icon, calling your attention
    Note
    Press firmly in green highlighted areas (see image), Damage may result from pressure elsewhere on hood
  20. Move RH front seat to original position
  21. Close RH front door
