Bracket - License Plate - Front (2025+) (Remove and Replace)

Correction code New NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.

Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
This procedure is a DRAFT. Although it has been validated, Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near High Voltage systems and components. Provide corrections and feedback to ServiceDevelopment@teslamotors.com.
Informational PurposesAn informational icon, calling your attention
Note
This procedure describes work that is specific to 2025+ Model S.

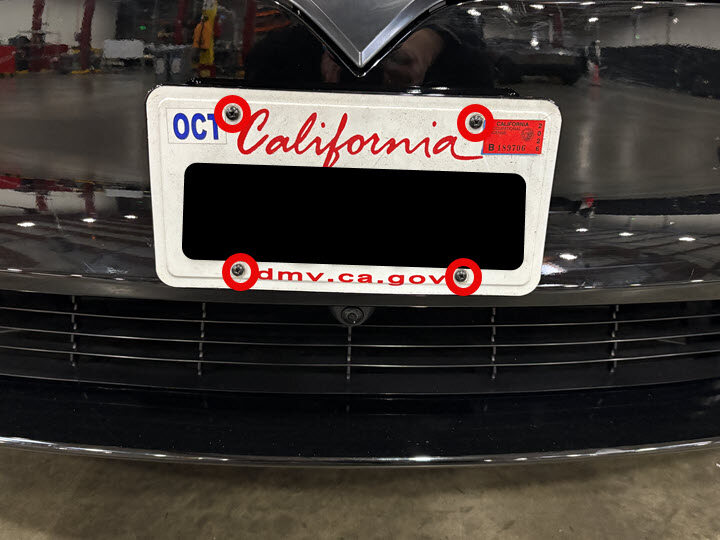

  1. Remove front license plate with frame
    Informational PurposesAn informational icon, calling your attention
    Note
    4x screws, PH2, 3 Nm

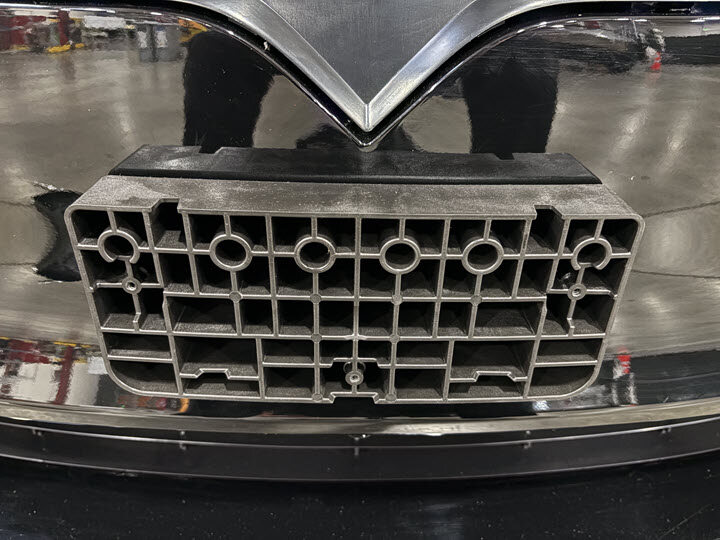

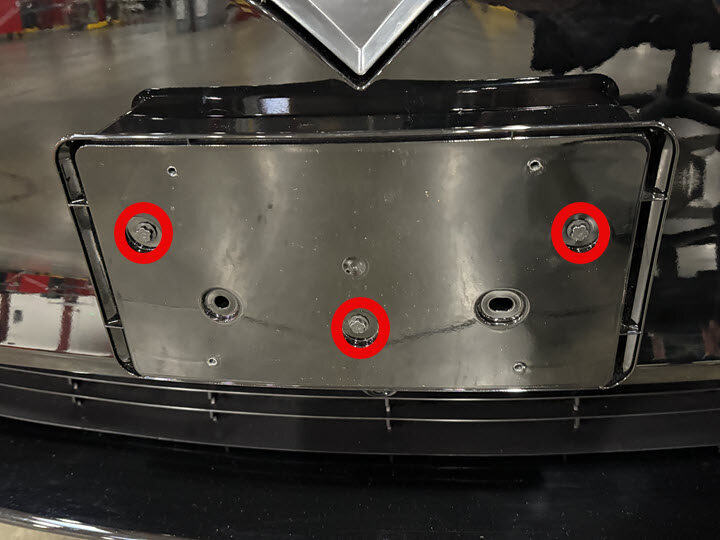

  2. Remove front license plate painted bracket from plinth bracket
    Informational PurposesAn informational icon, calling your attention
    Note
    3x bolts, E10 5-Lobe, 1 Nm

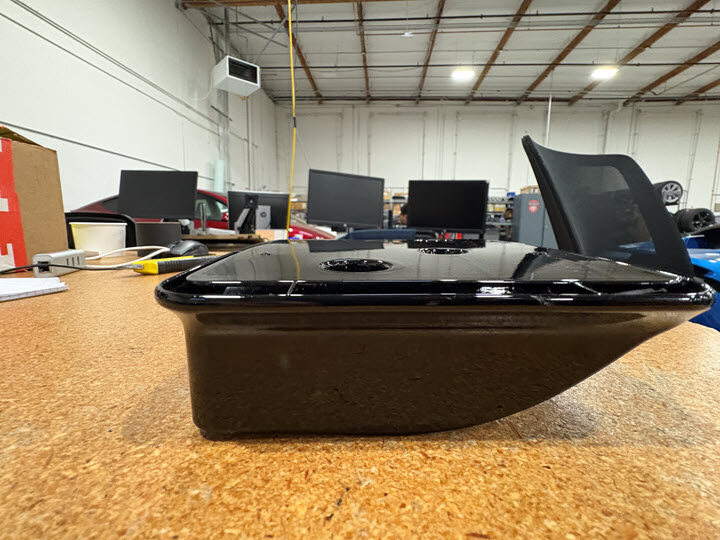

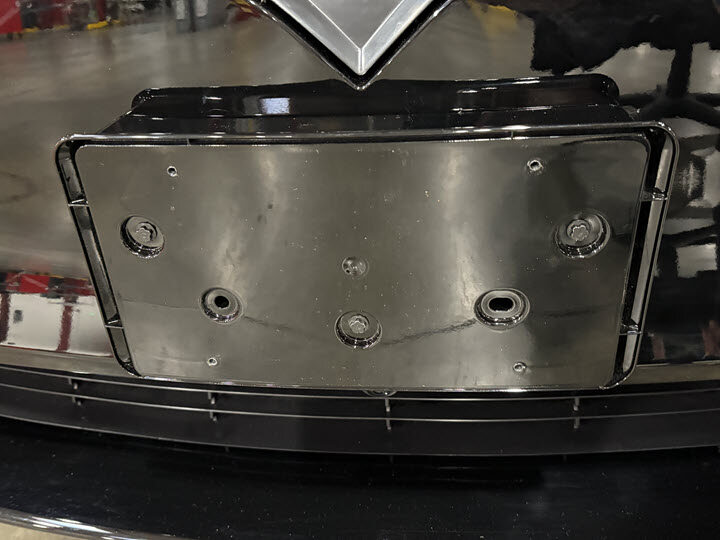

  3. Install front license plate painted bracket onto plinth bracket
    Informational PurposesAn informational icon, calling your attention
    Note
    3x bolts, E10 5-Lobe, 1 Nm, Verify part is designed for P3, Design changes have been made to molding to avoid interference with fascia camera
  4. Install front license plate with frame
    Informational PurposesAn informational icon, calling your attention
    Note
    4x screws, PH2, 3 Nm
