Correction code New NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.

1. Open LH front door
2. Lower both front windows
3. Move LH front seat backward

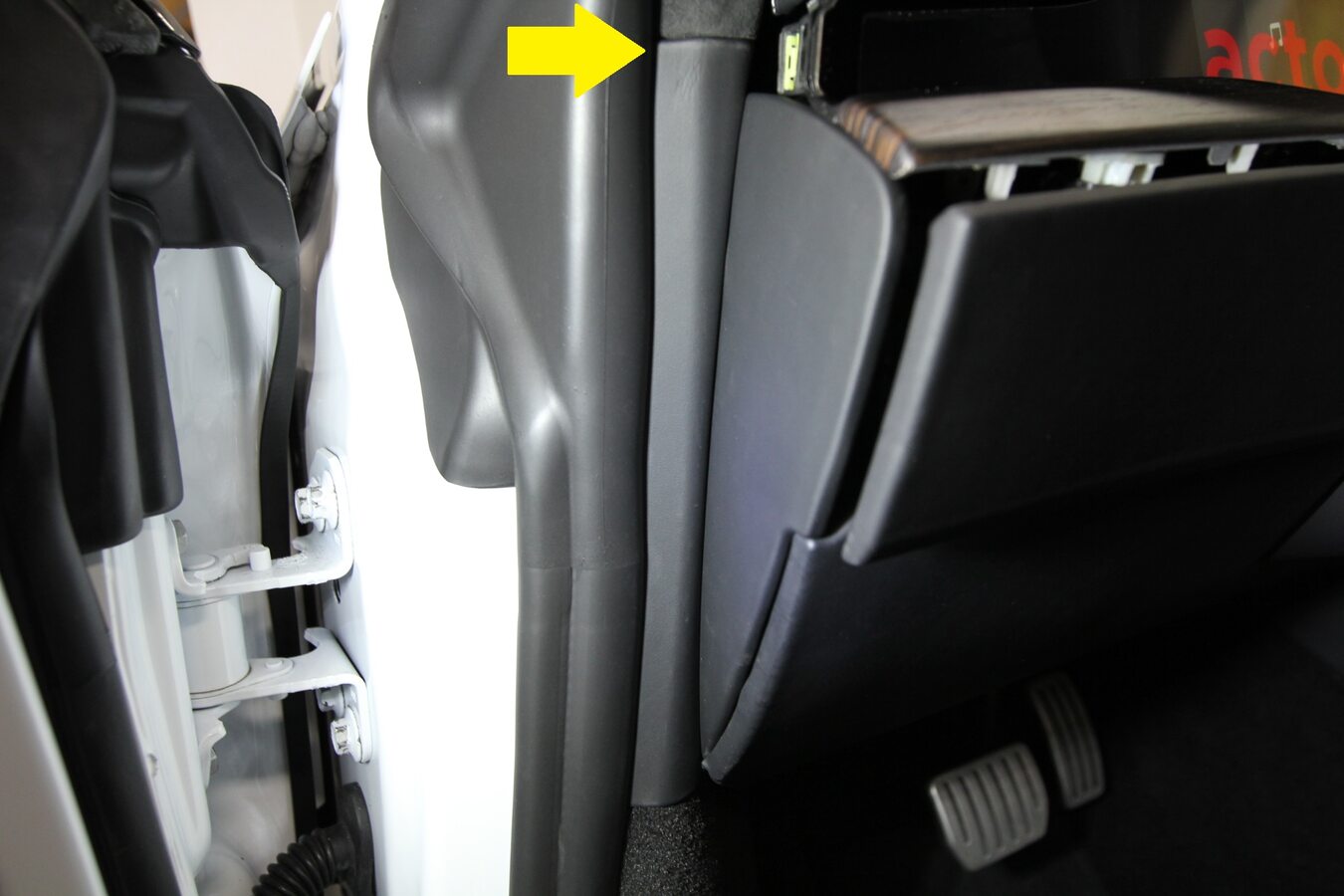

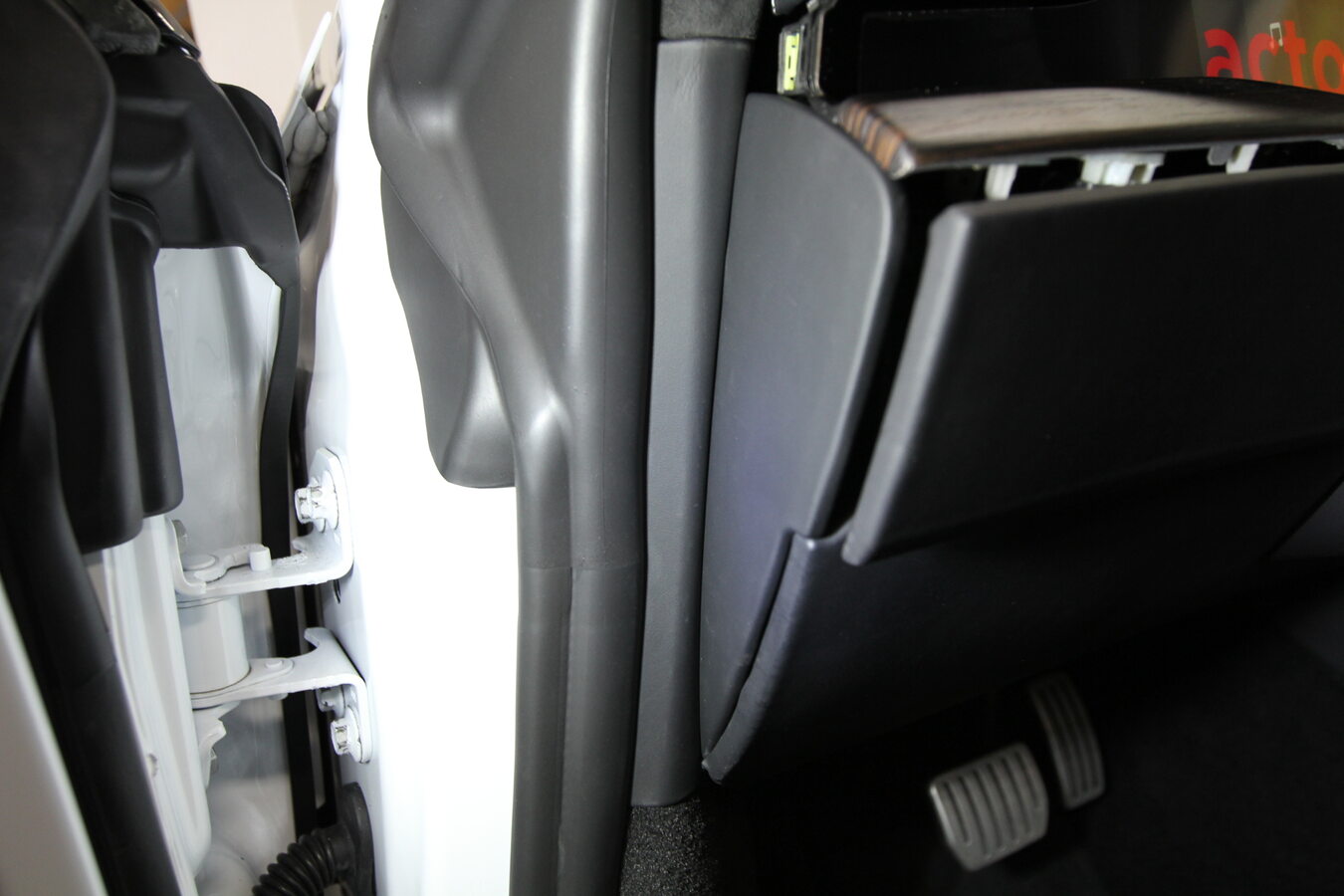

4. Remove LH mid A-pillar trim
   Note

   1x clip, 2x tabs

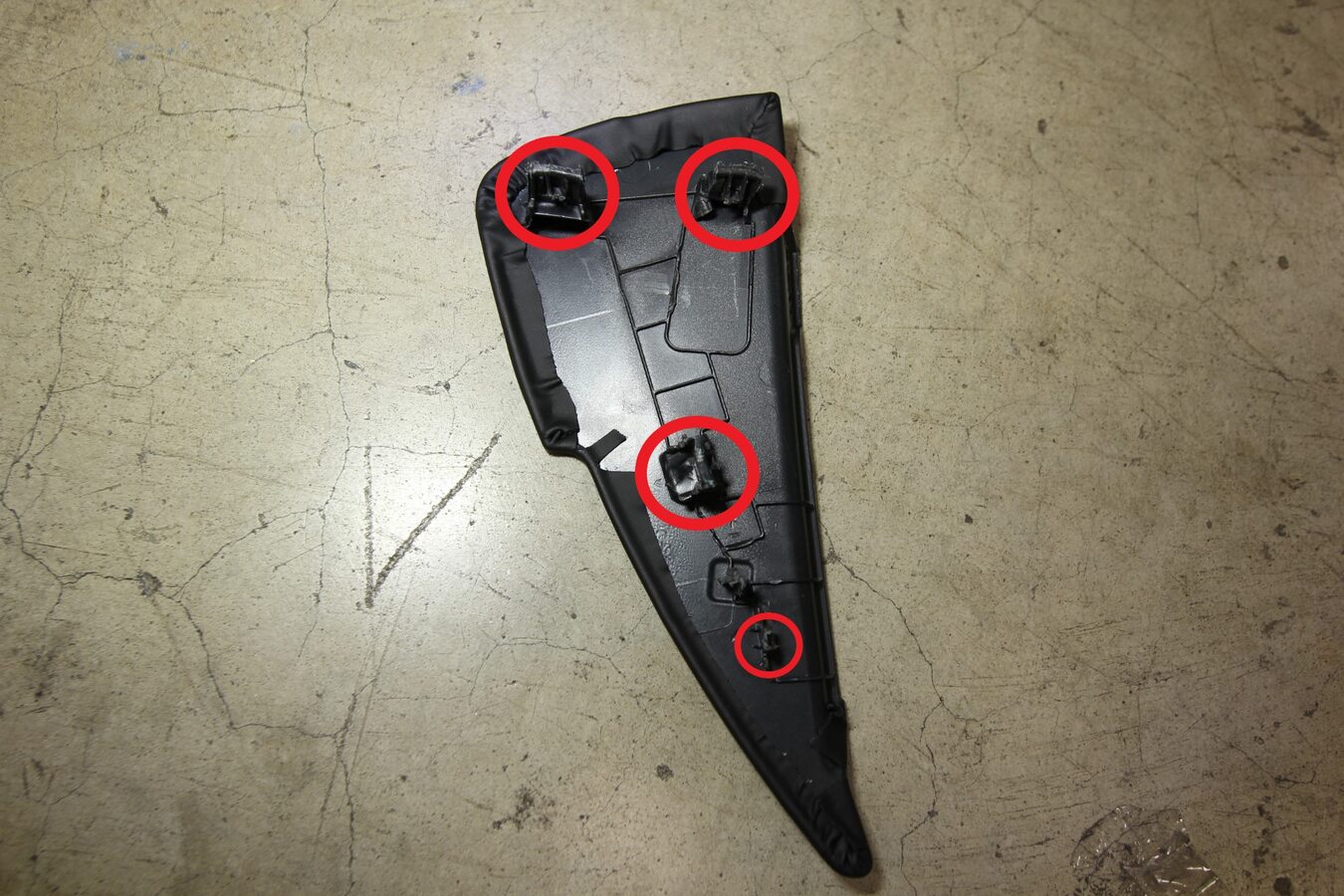

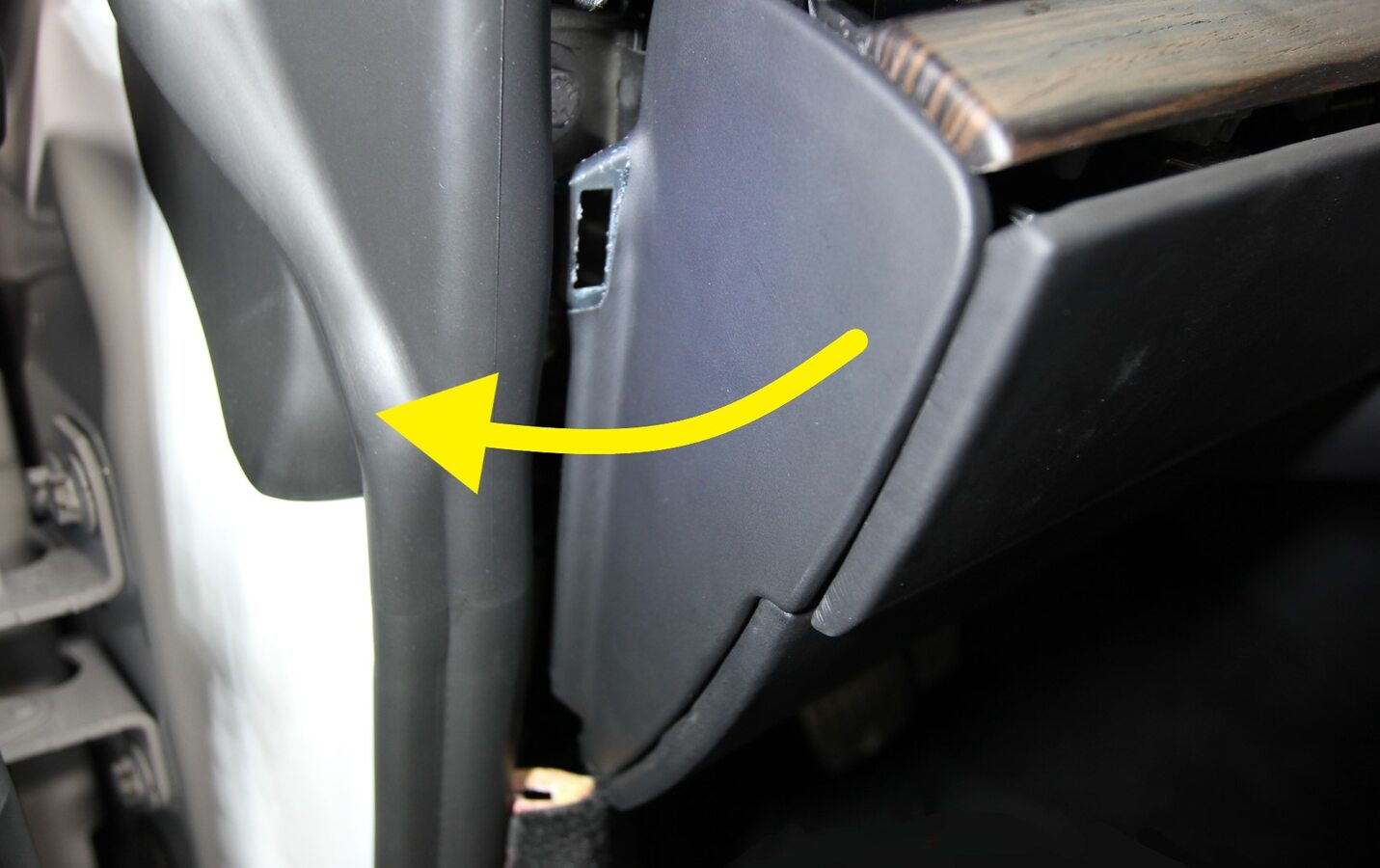

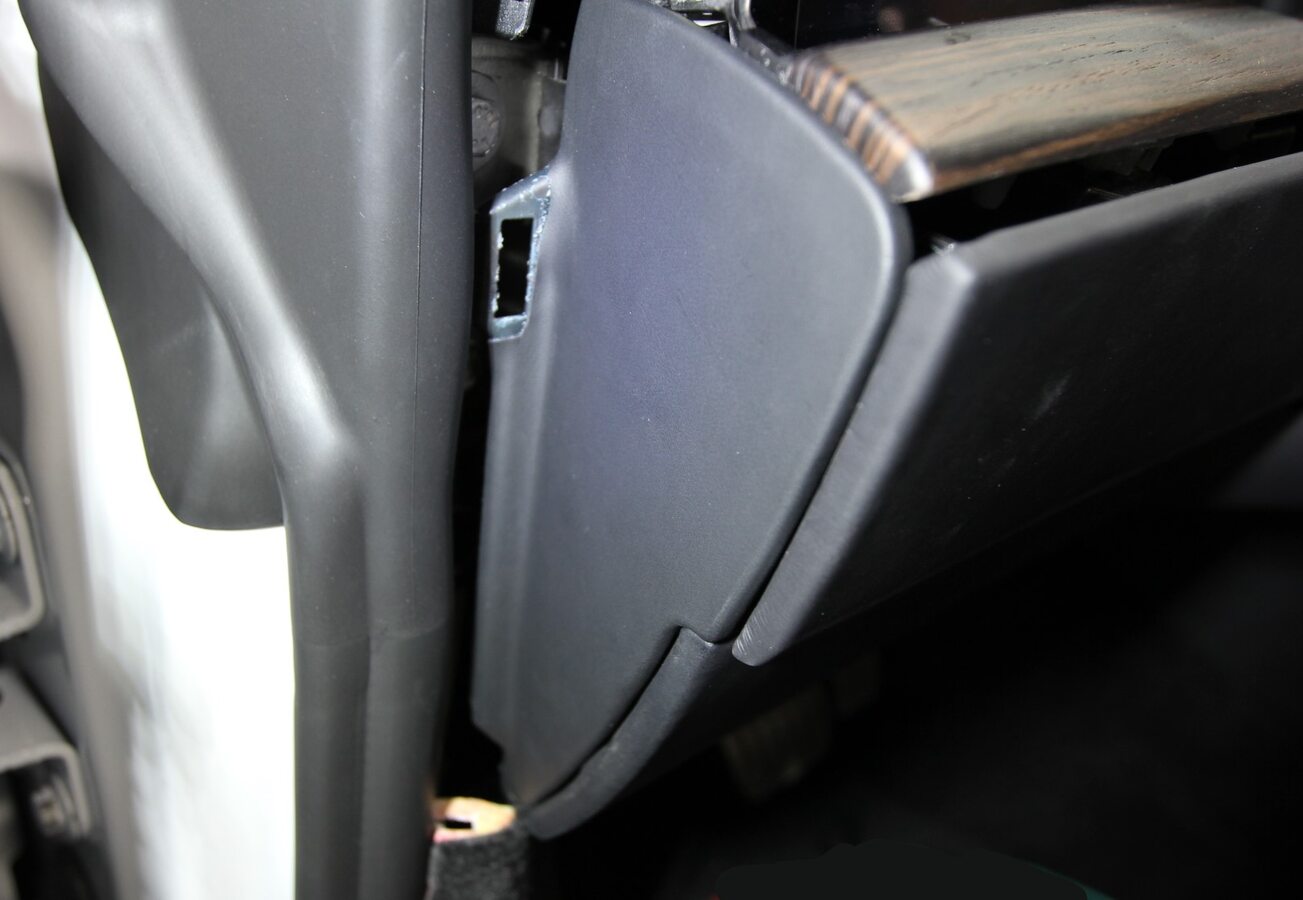

5. Remove LH IP end cap
   Note

   4x clips





6. Adjust steering column fully rearward and fully down
   Note

   Via Controls > Steering Wheel, Use left steering wheel scroll wheel to adjust steering column
7. Open RH front door
8. Move RH front seat backward
9. Remove RH mid A-pillar trim
   Note

   1x clip, 2x tabs

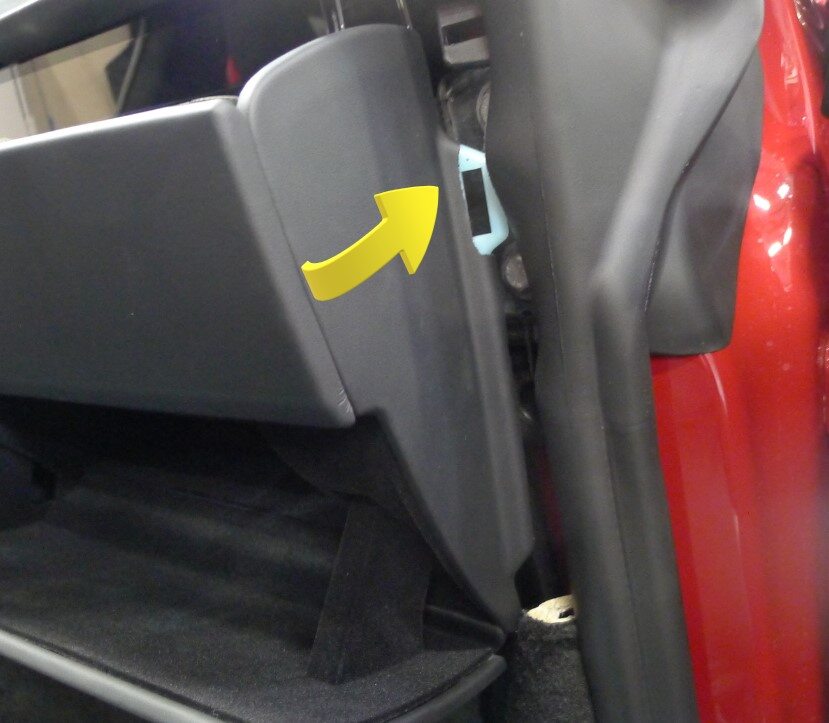

10. Remove RH IP end cap
    Note

    4x clips





11. Open hood
    Note

    Select Controls > Frunk Open
12. Open glove box through UI
    Note

    Via Controls > Glovebox
13. Power off vehicle from center display
    Note

    Via Controls > Safety & Security > Power Off



14. Remove rear underhood apron
    Note

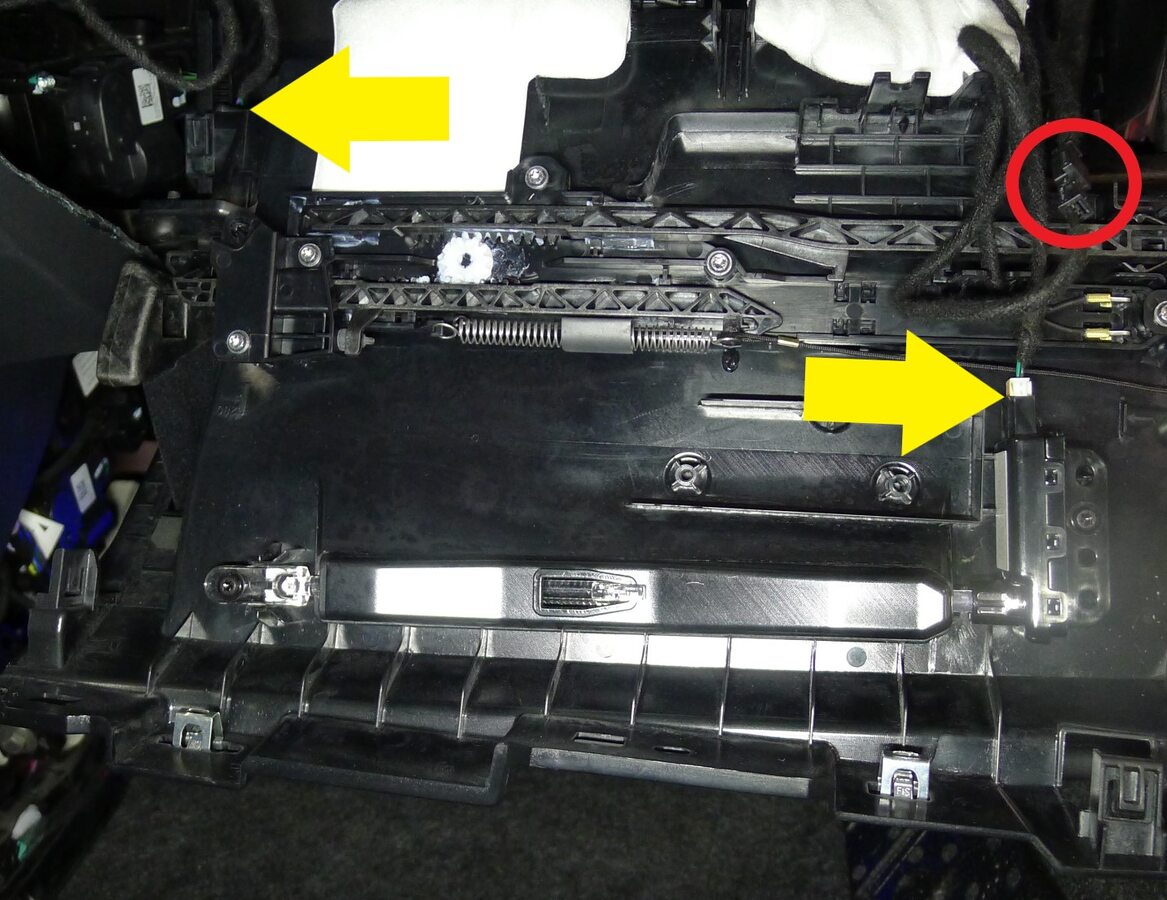

    8x clips





15. Disconnect LV battery connector and First Responder Loop
    Note

    2x connectors, Lift up and release green locking tab, Pull black connector lock outwards to release connection







16. Release phone dock
    Note

    4x clips, 2x datums, Pull up at bottom and swing out from under instrument panel





17. Remove phone dock

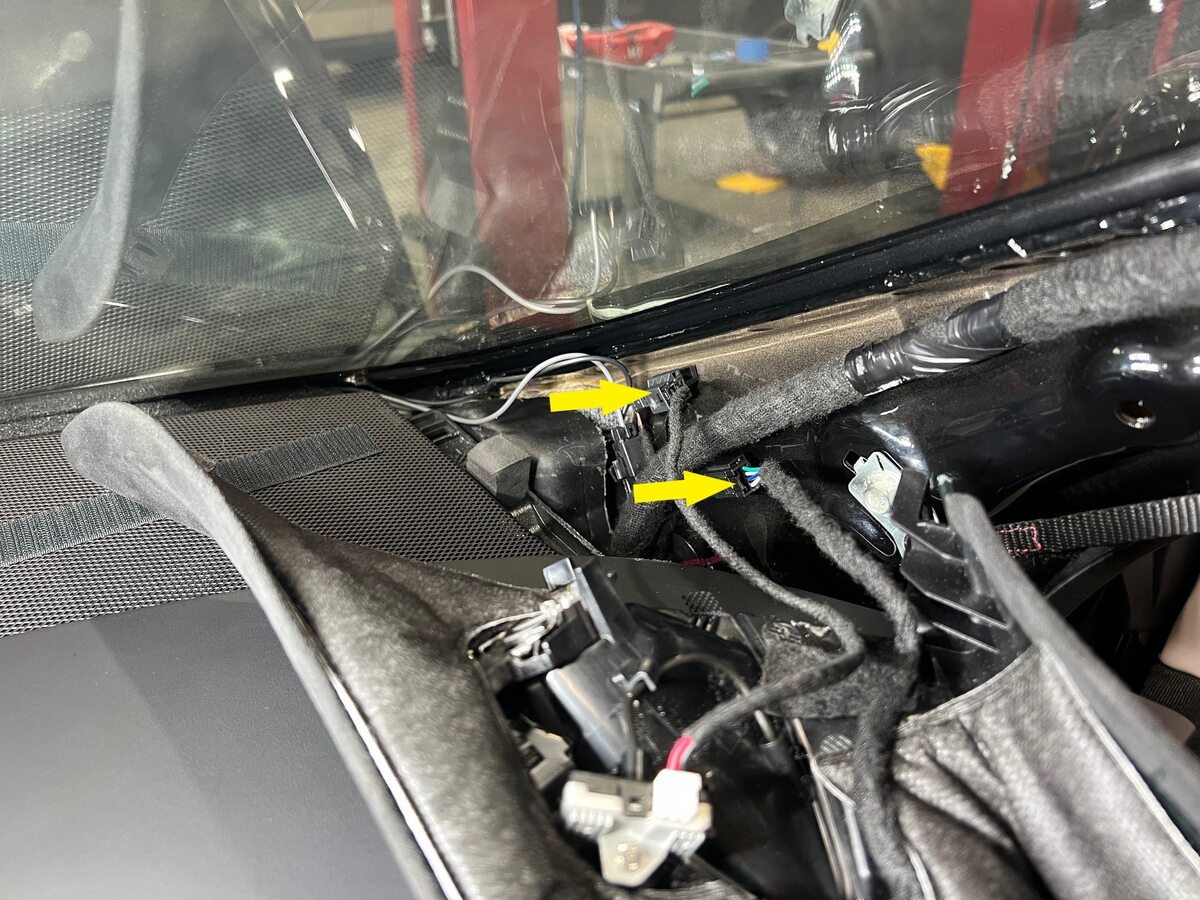

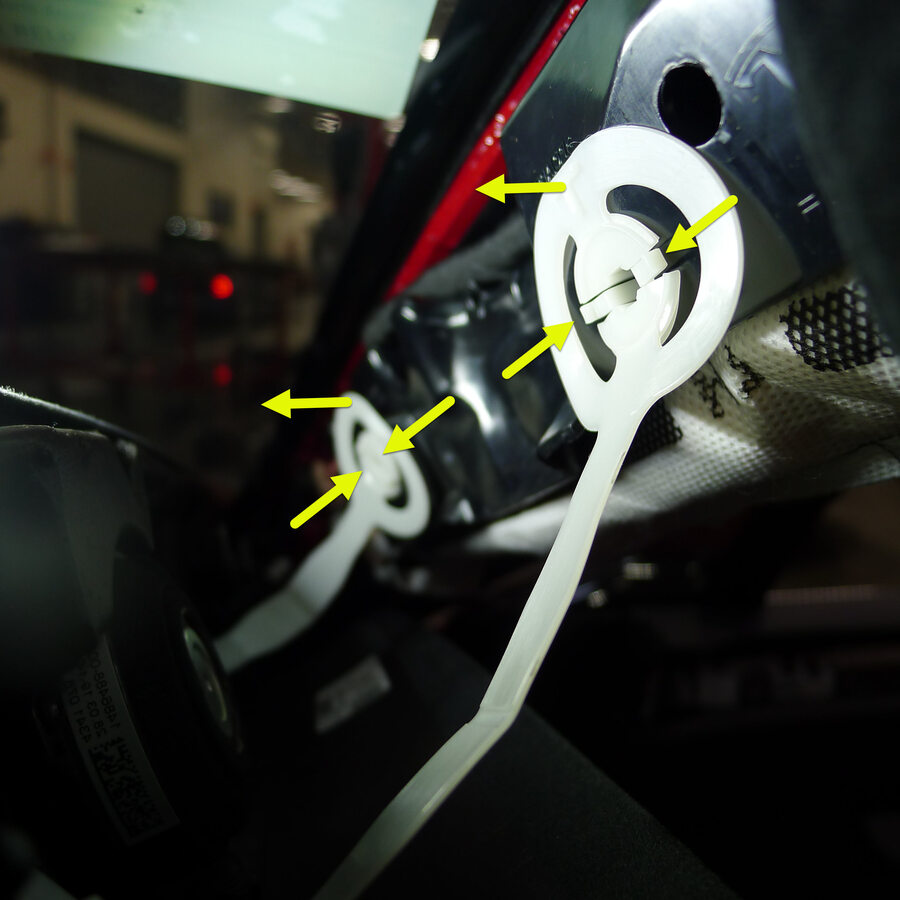

    Note

    3x connectors, 1x clip, Take caution to release connector locks before pulling straight out of each socket to avoid damage

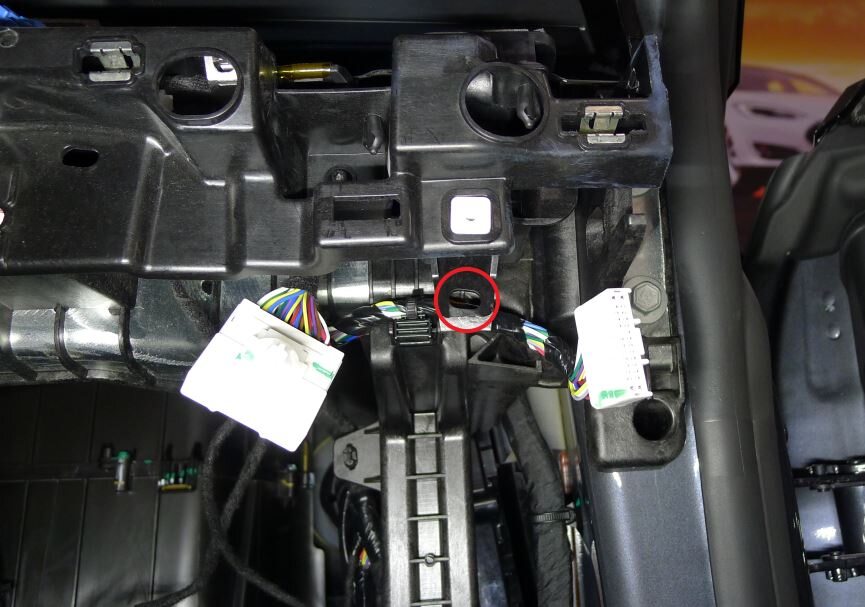

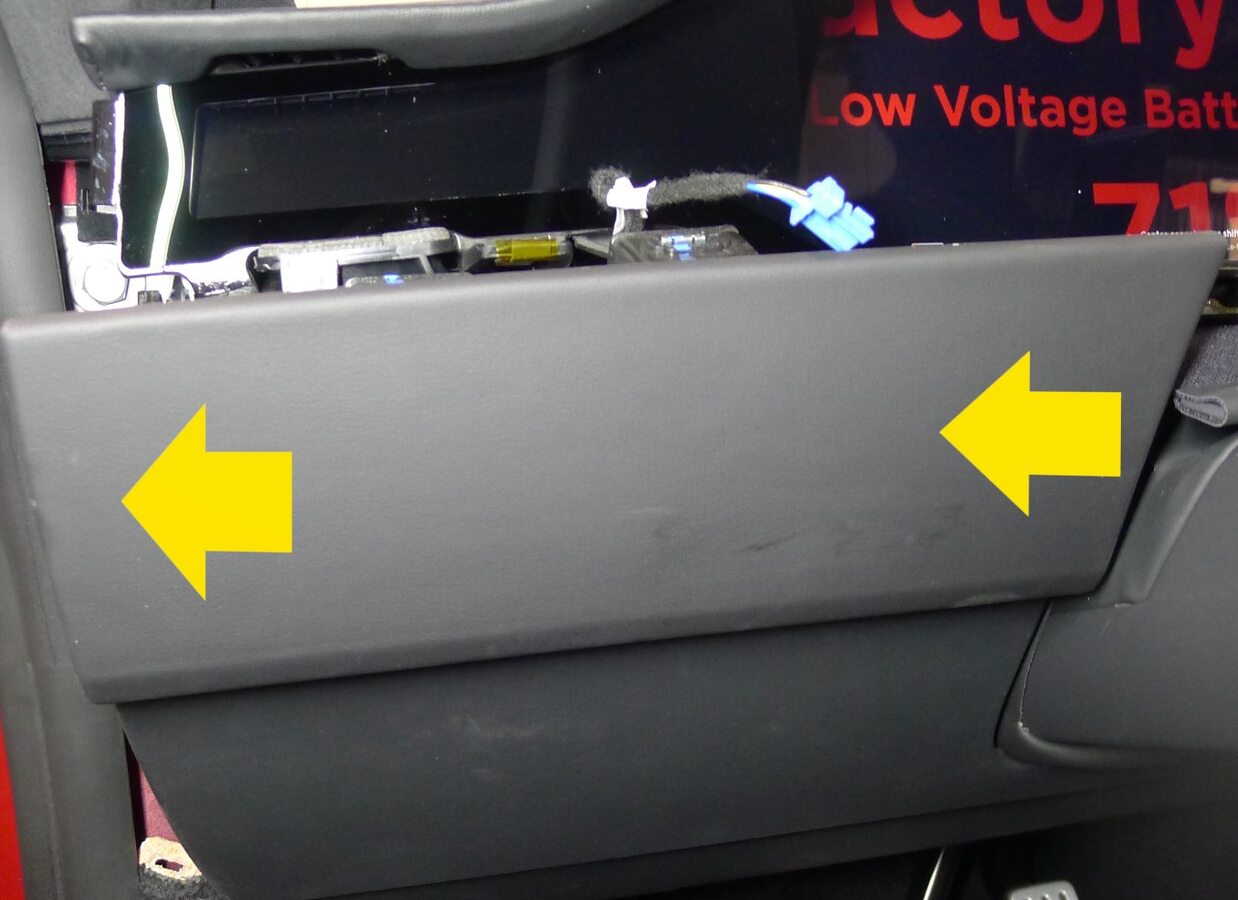

18. Release IP service panel

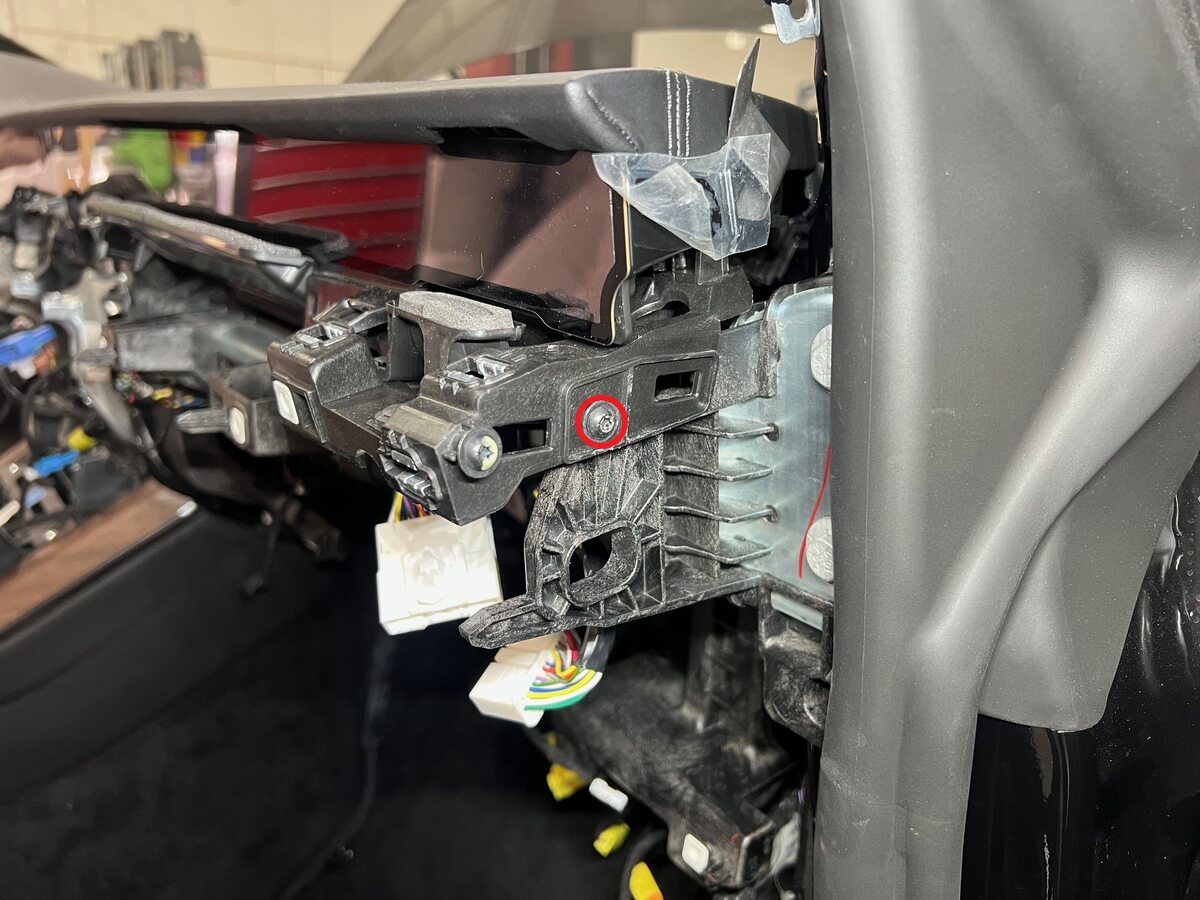

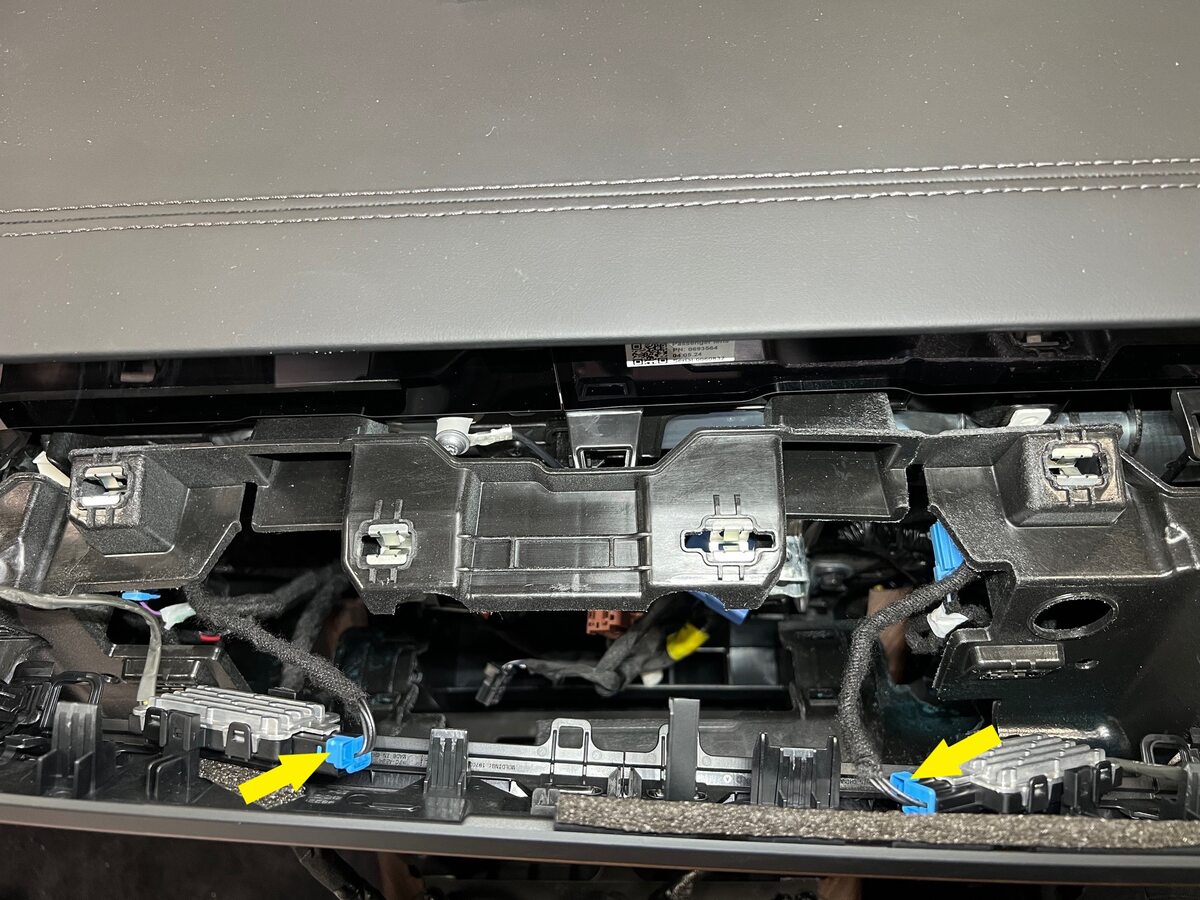

    Note

    2x tabs, 4x datums, Release top tabs and slide rearward

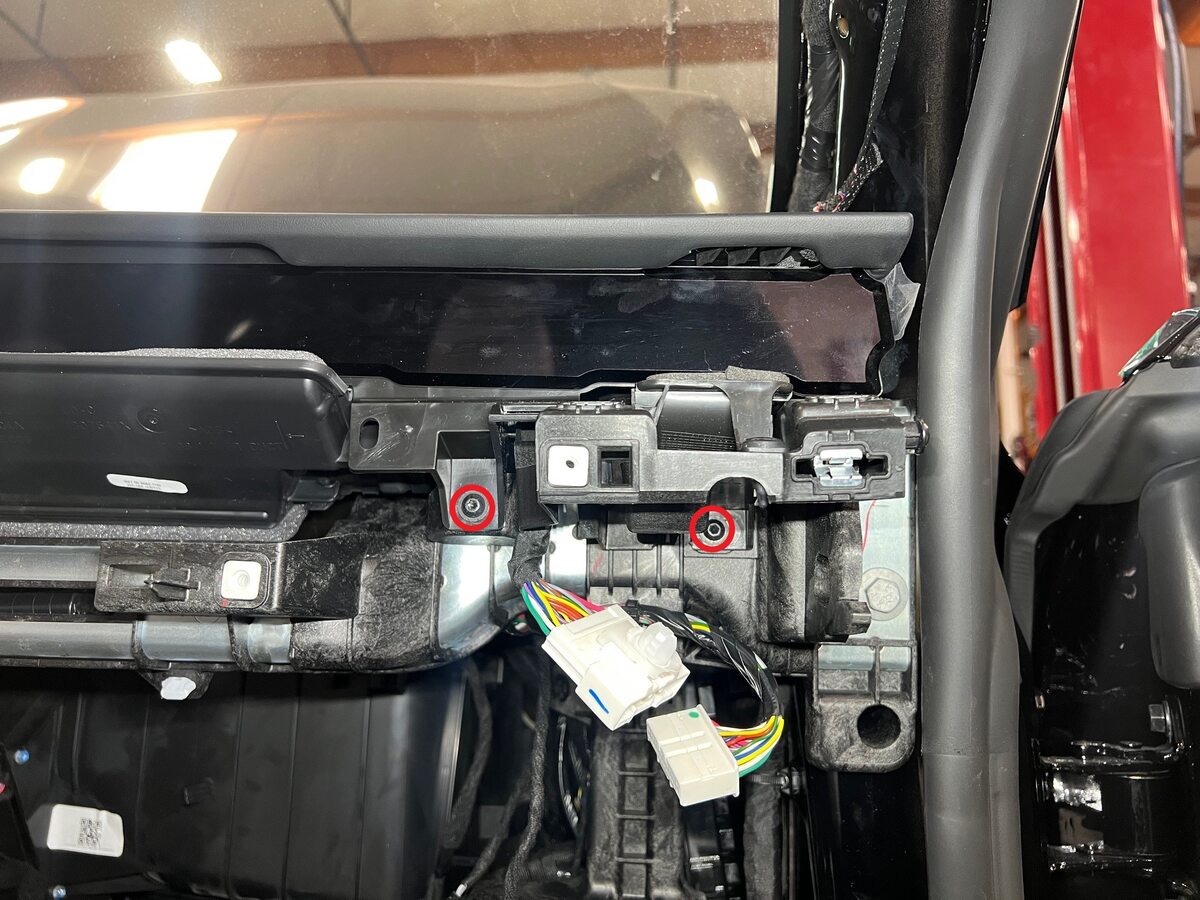

19. Release diagnostic and CAN harnesses from IP service panel

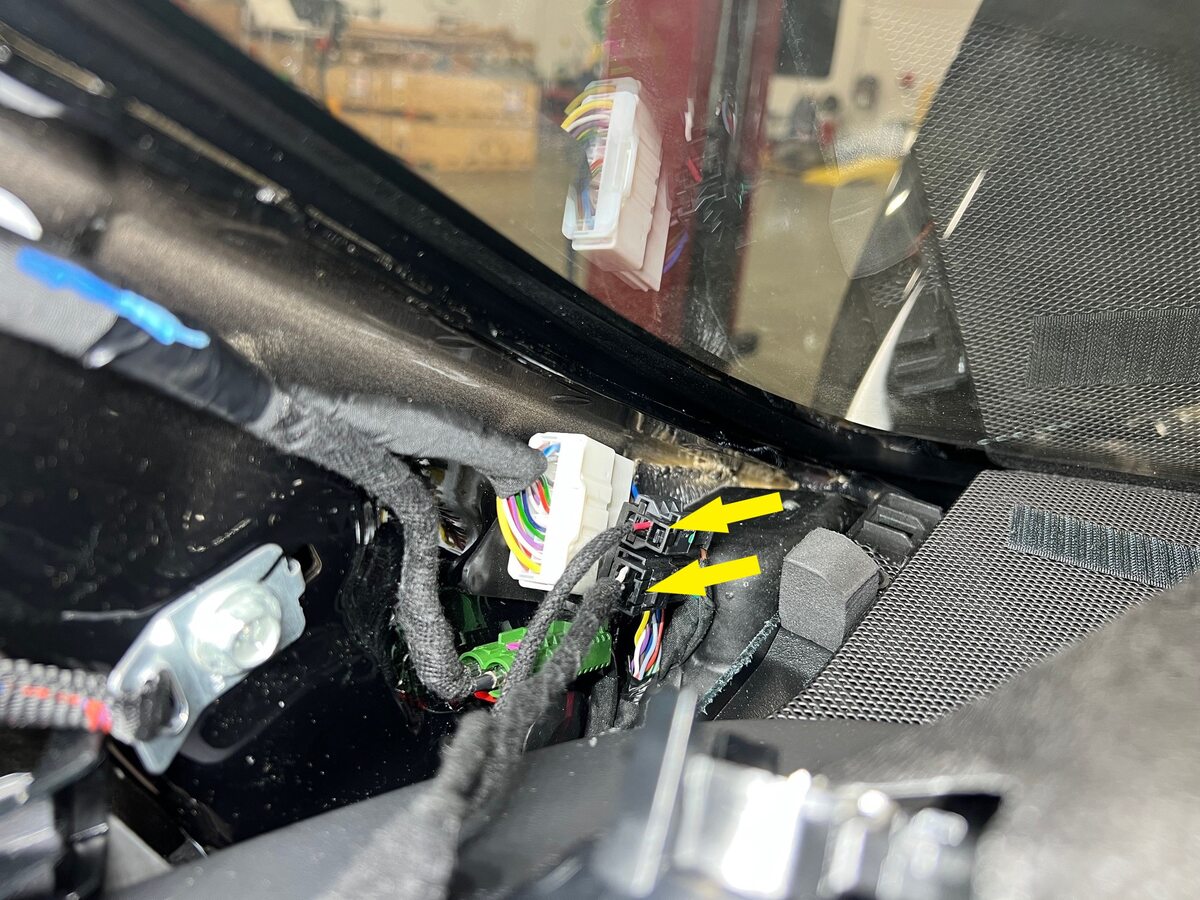

    Note

    2x clips





20. Remove IP service panel
    Note

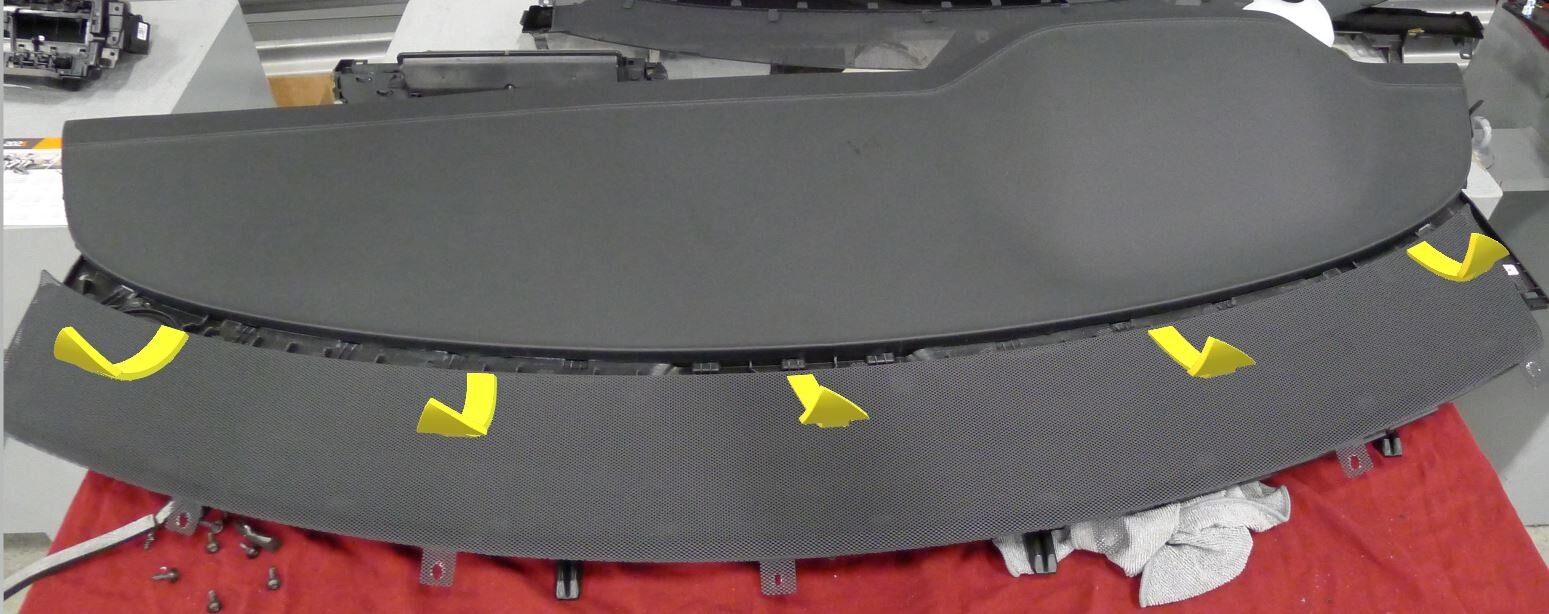

    1x connector

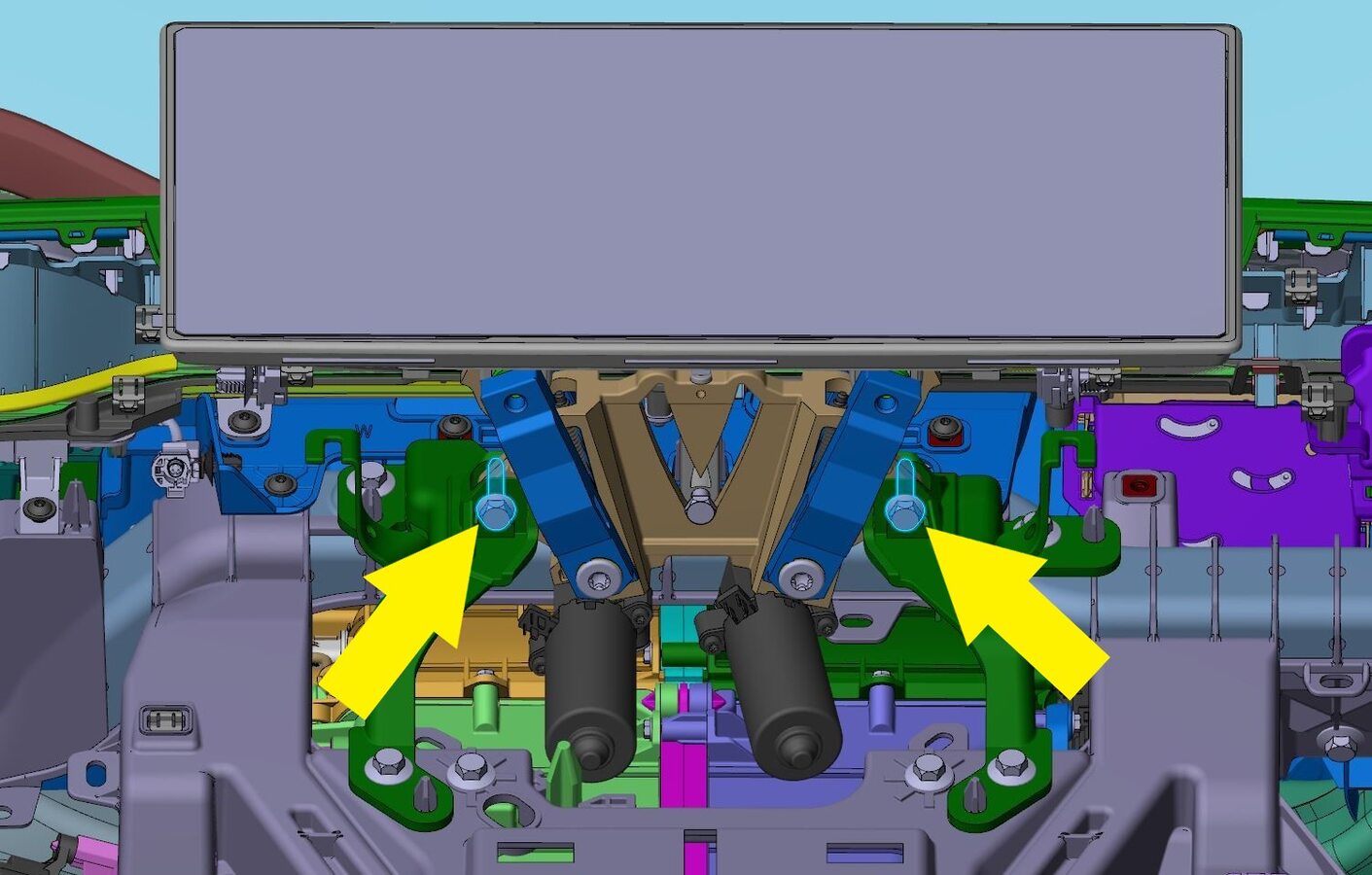

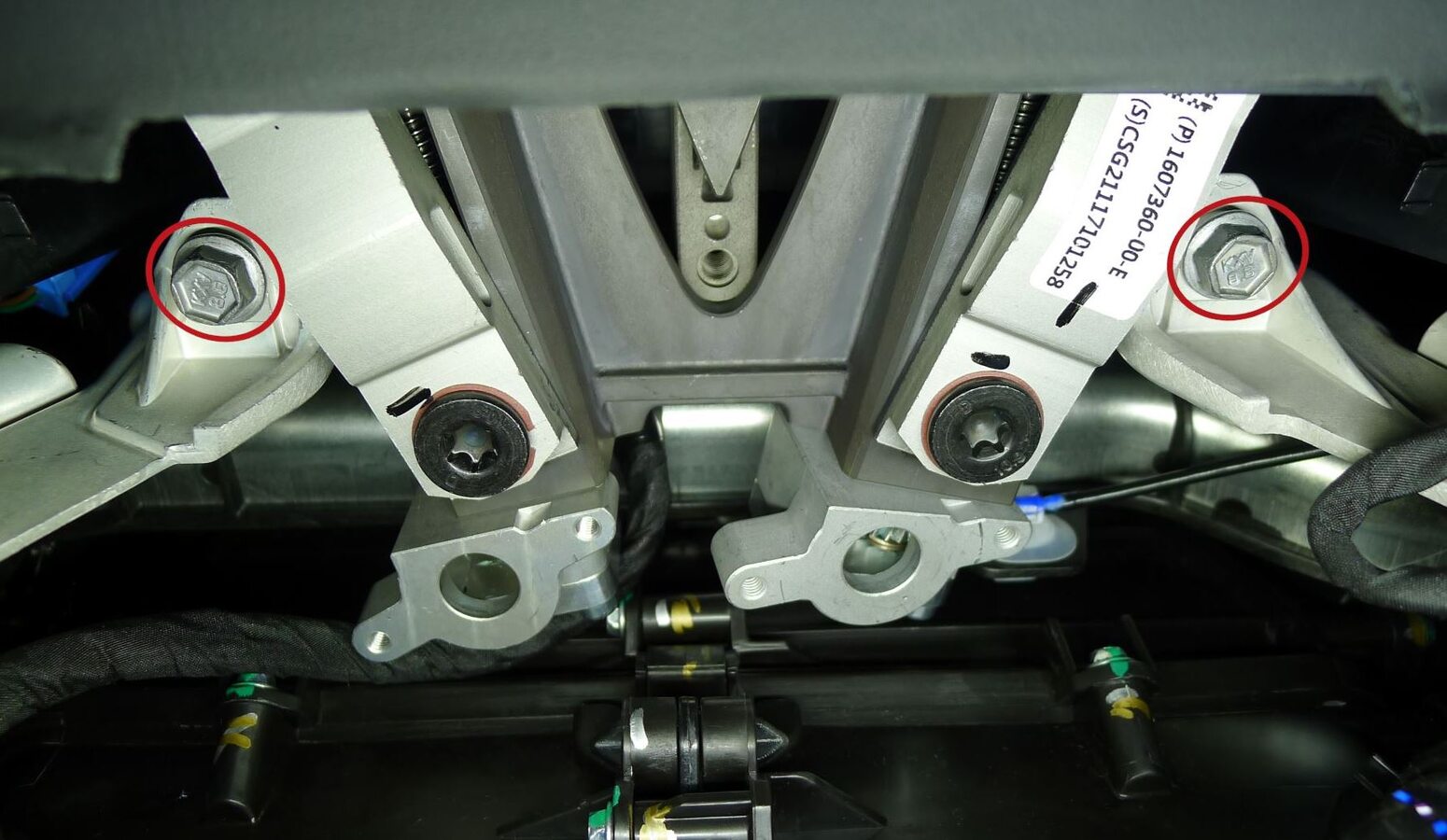

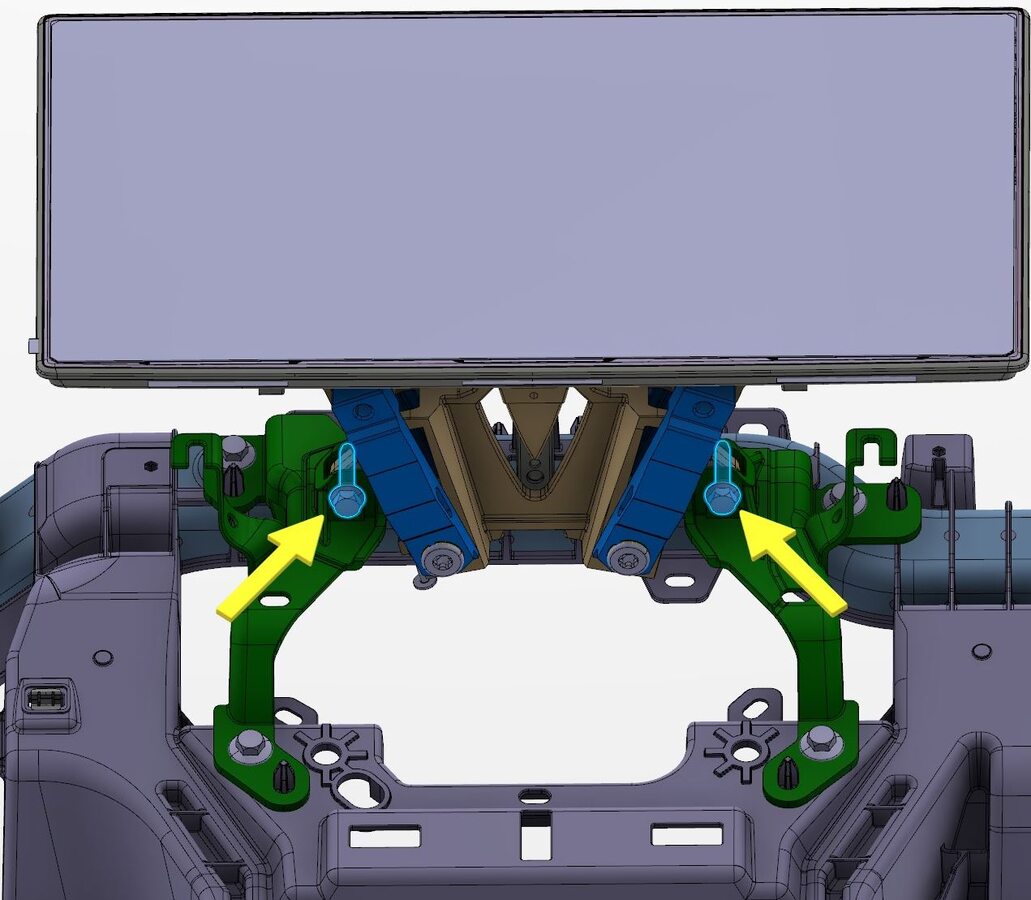

21. Remove center display bracket bolts

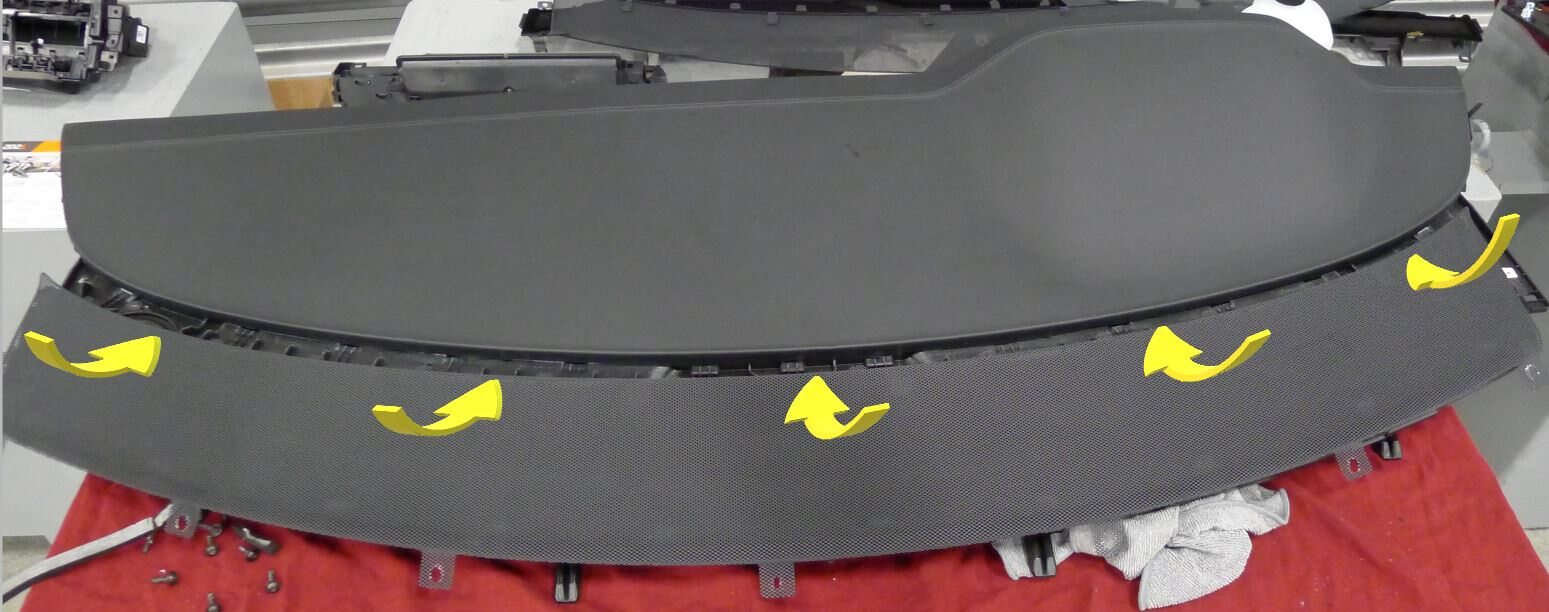

    Note

    2x bolts, 10mm, 11.5 Nm

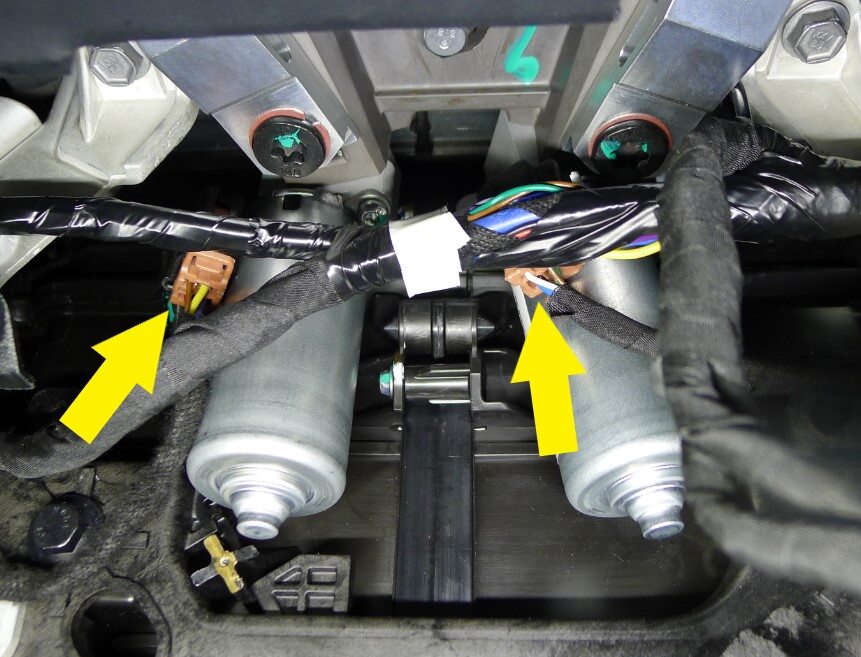

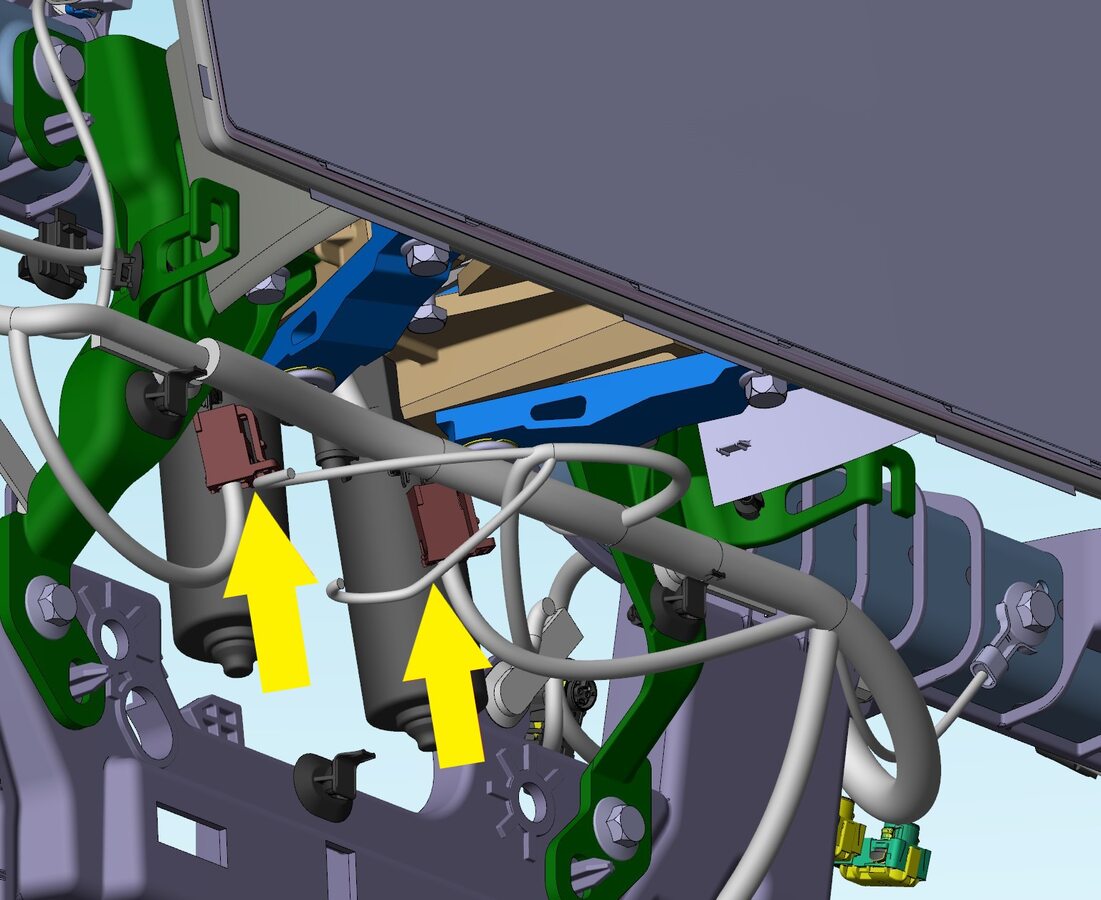

22. Release center display motor connectors
    Note

    2x connectors

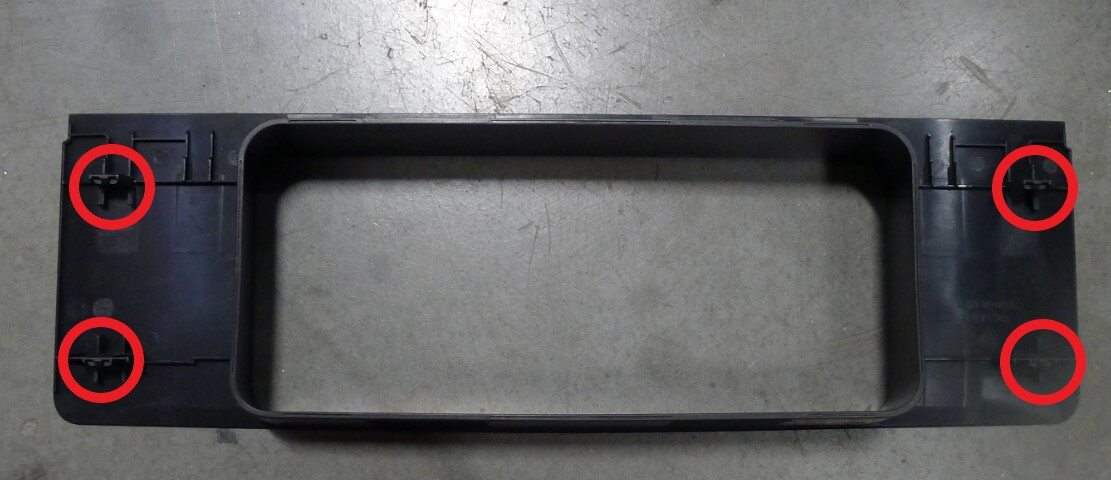

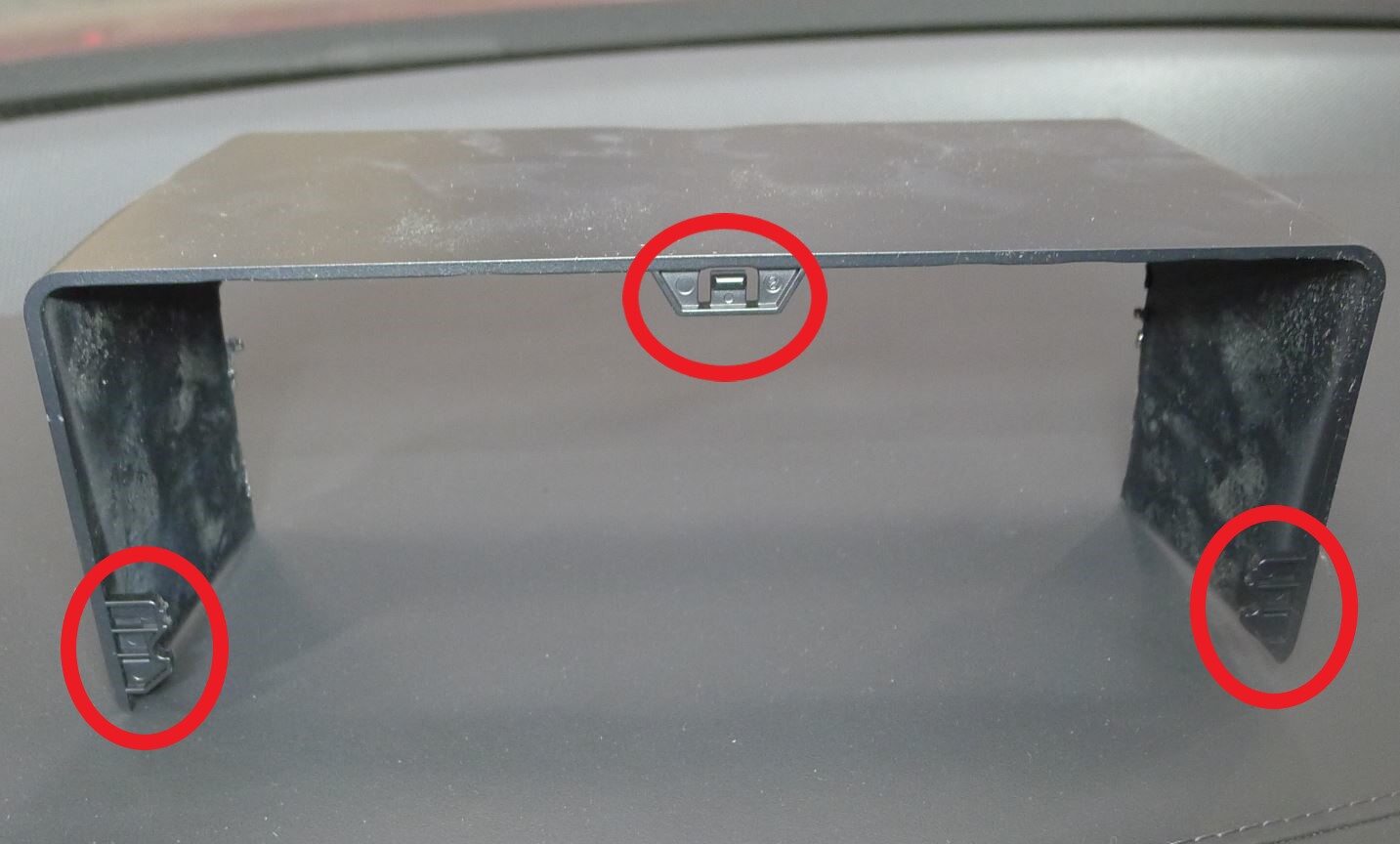

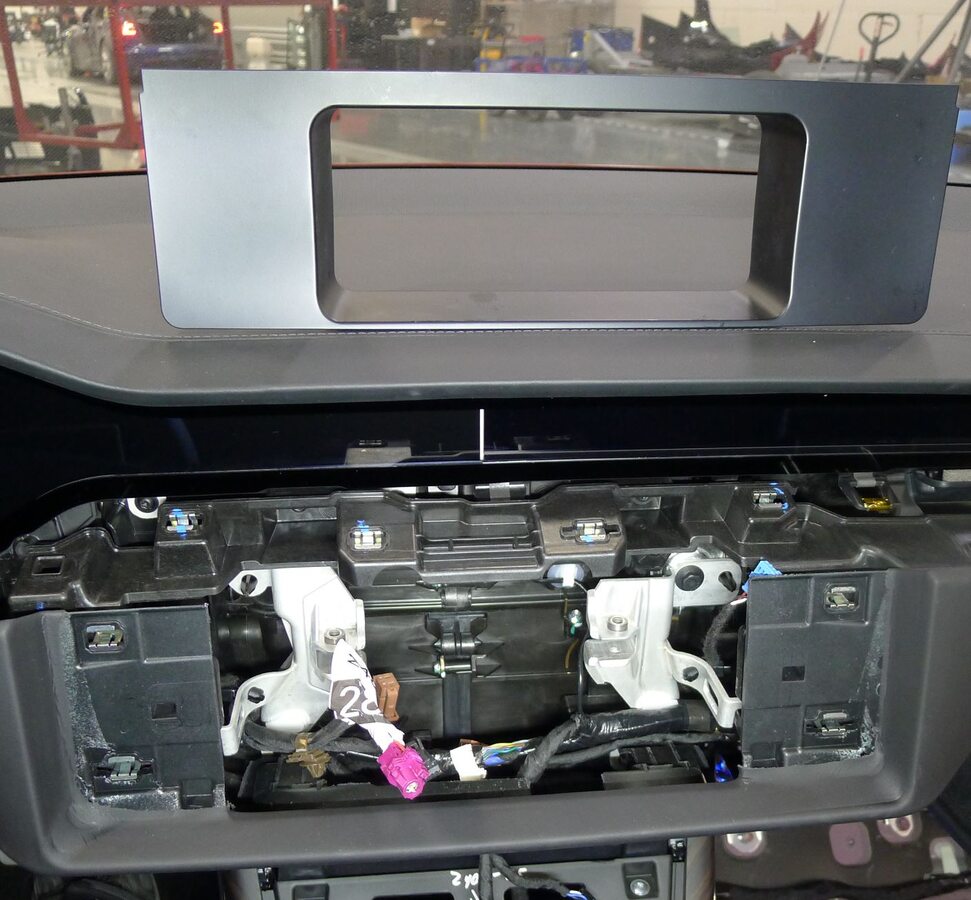

23. Remove center display shroud
    Note

    3x tabs, Slide display outwards until shroud fully clears IP and support, Release the bottom tabs and pull upward

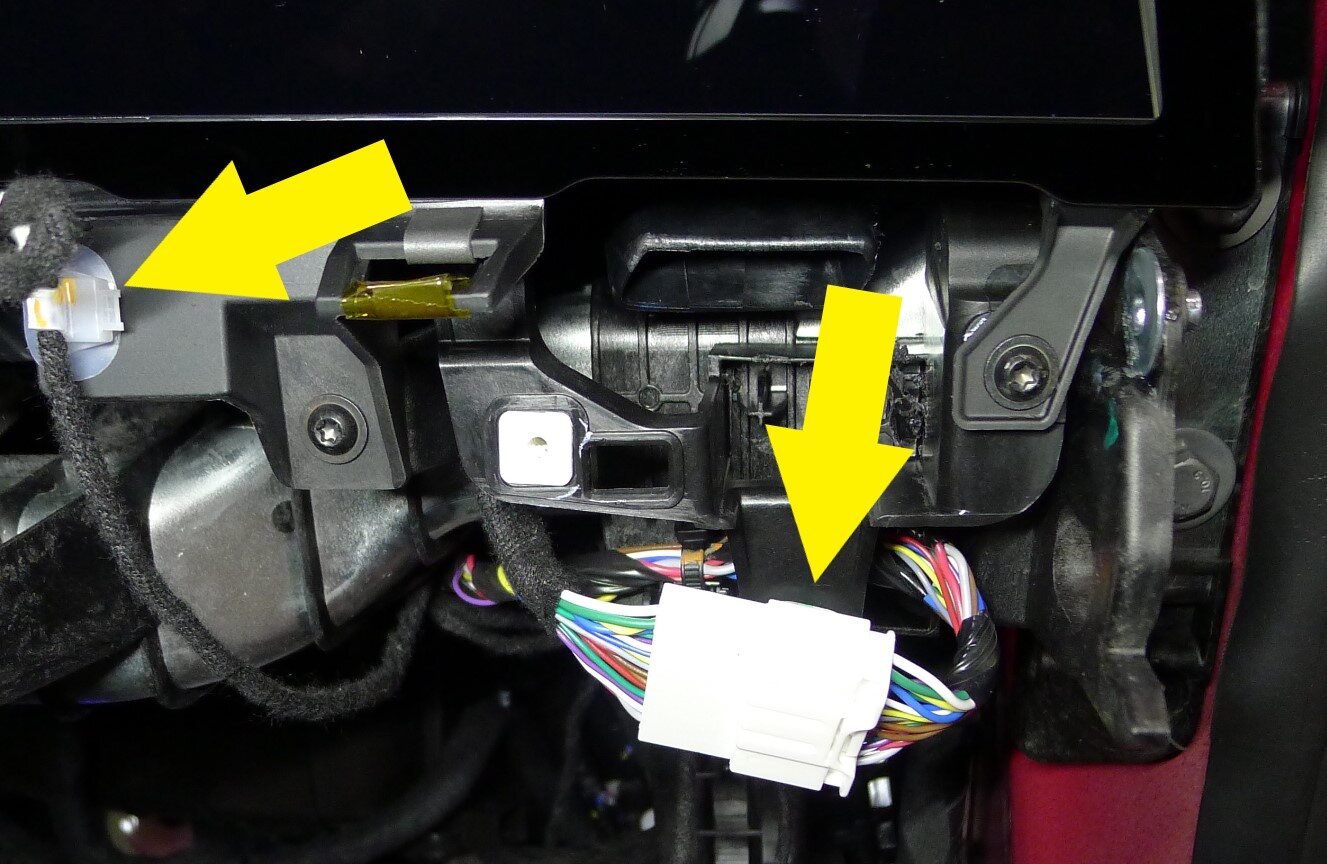

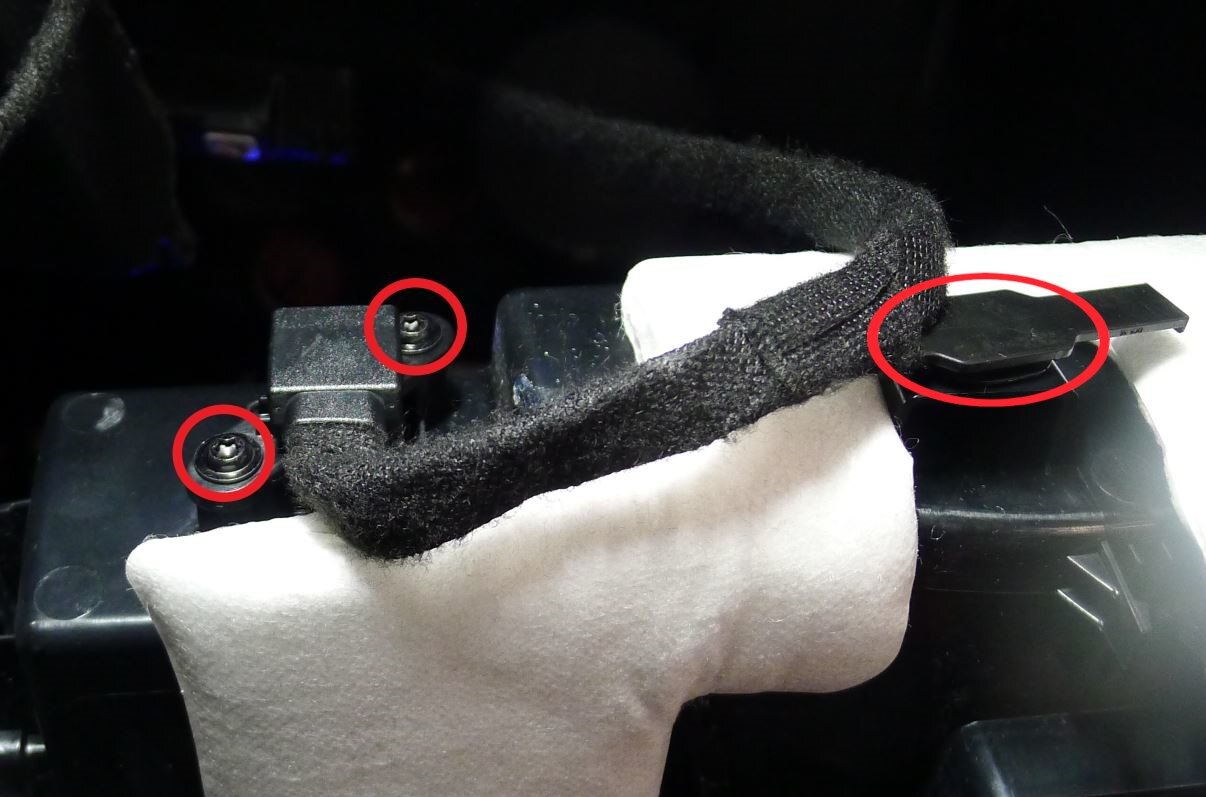

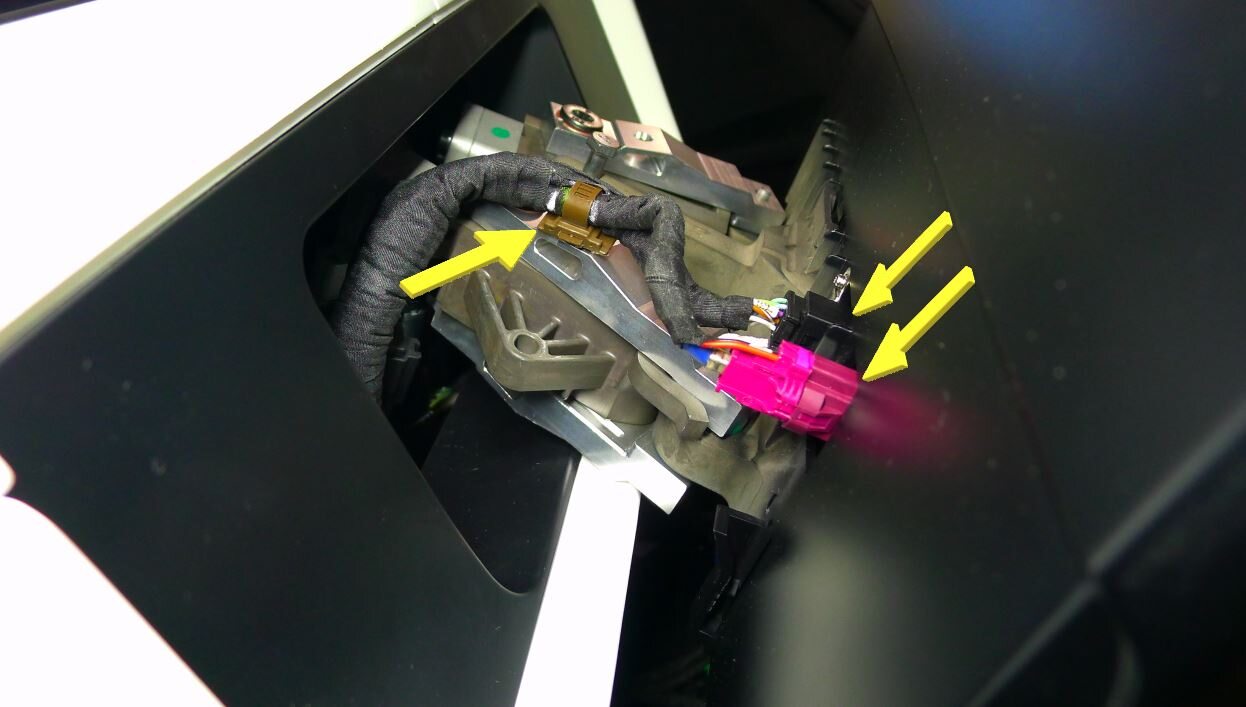

24. Release center display coax and power connectors
    Note

    2x connectors, 1x clip, Slide display rearward outwards from IP bracket and support during connector release

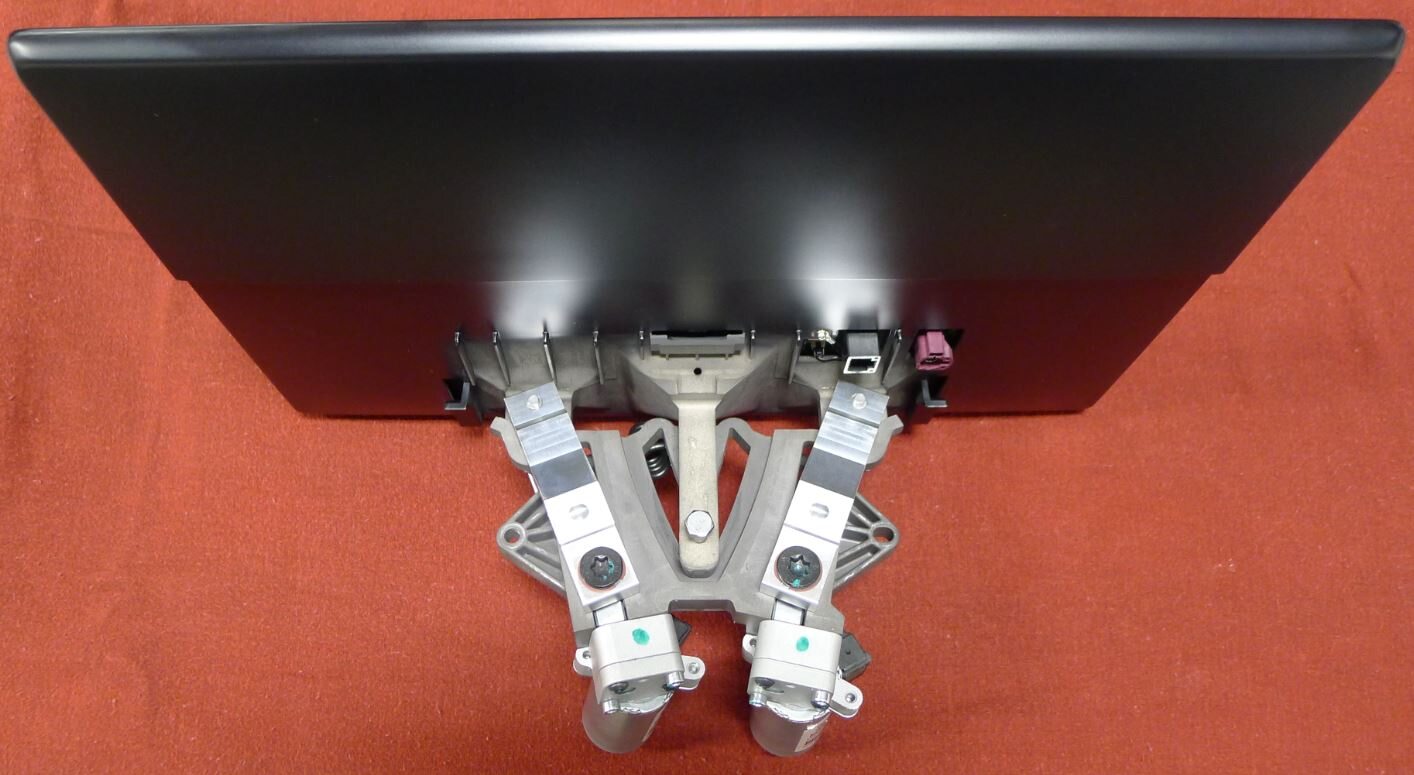

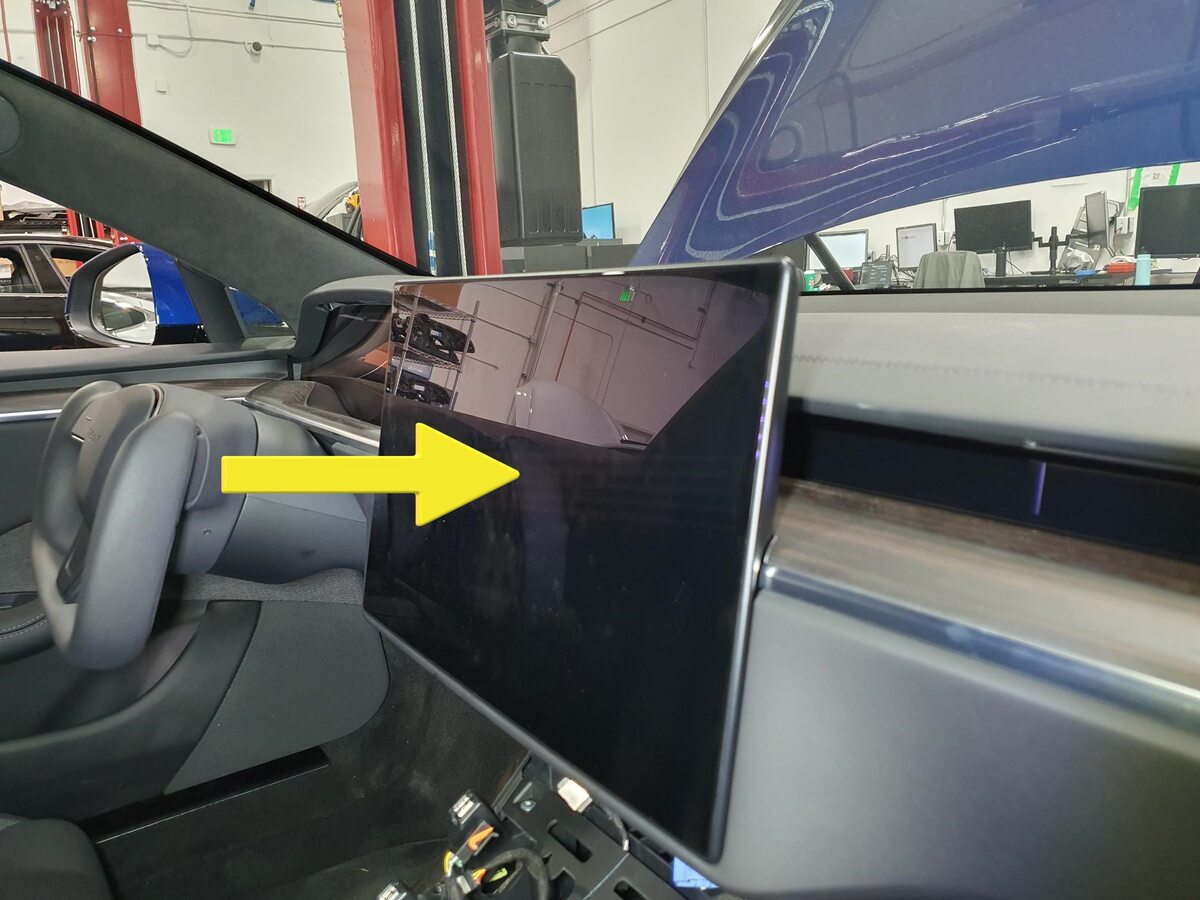

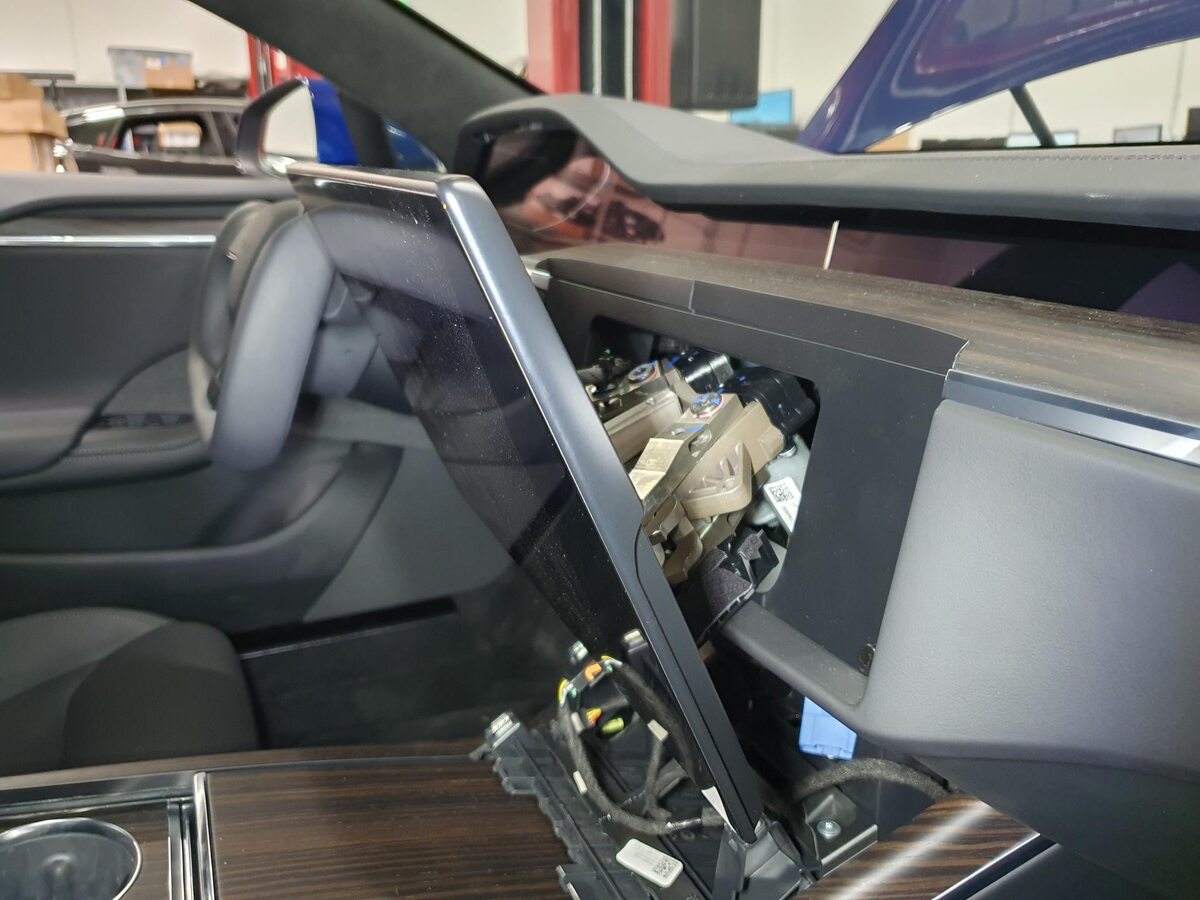

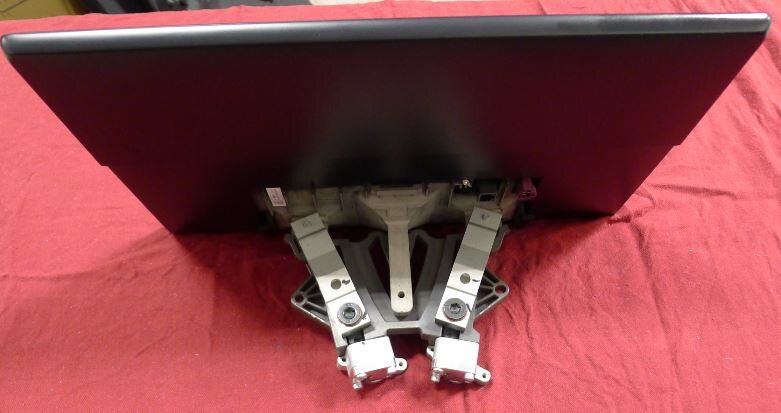

25. Remove center display
    Note

    Slide rearward, Place on soft clean surface

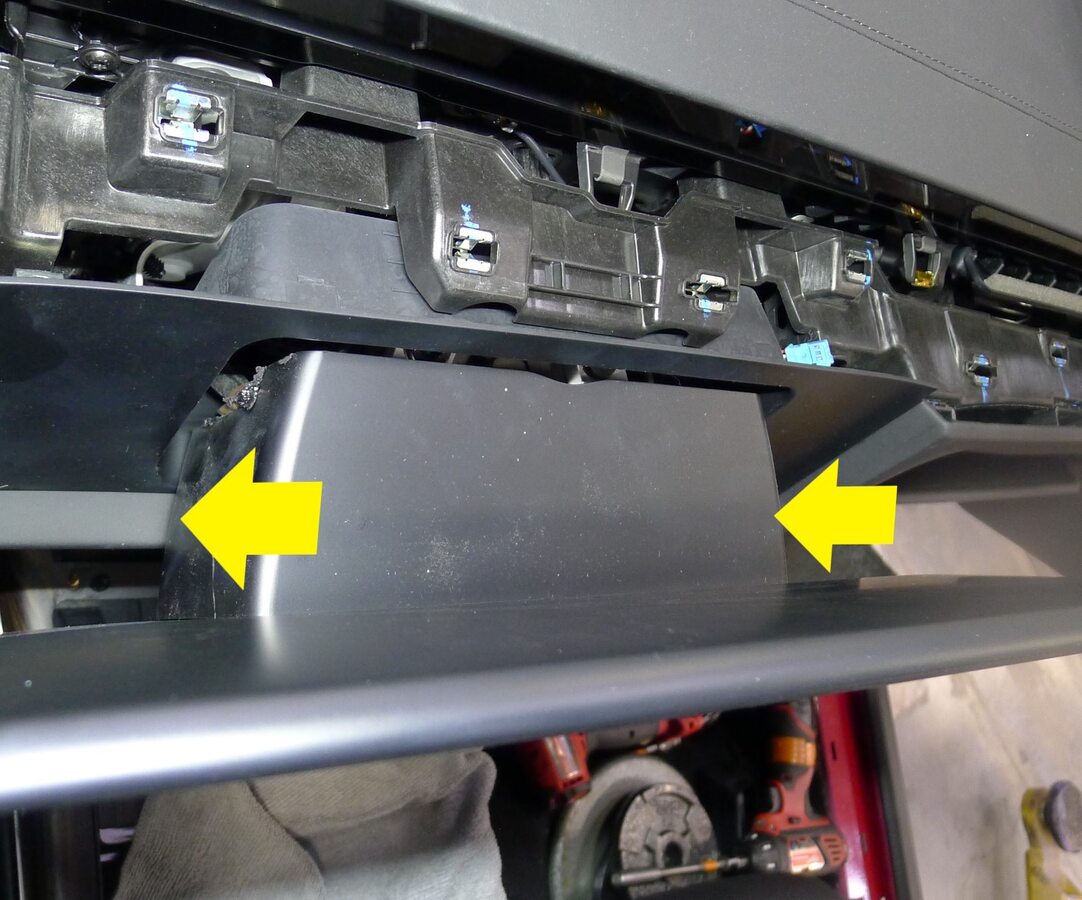

26. Remove IP closeout panel
    Note

    4x tabs

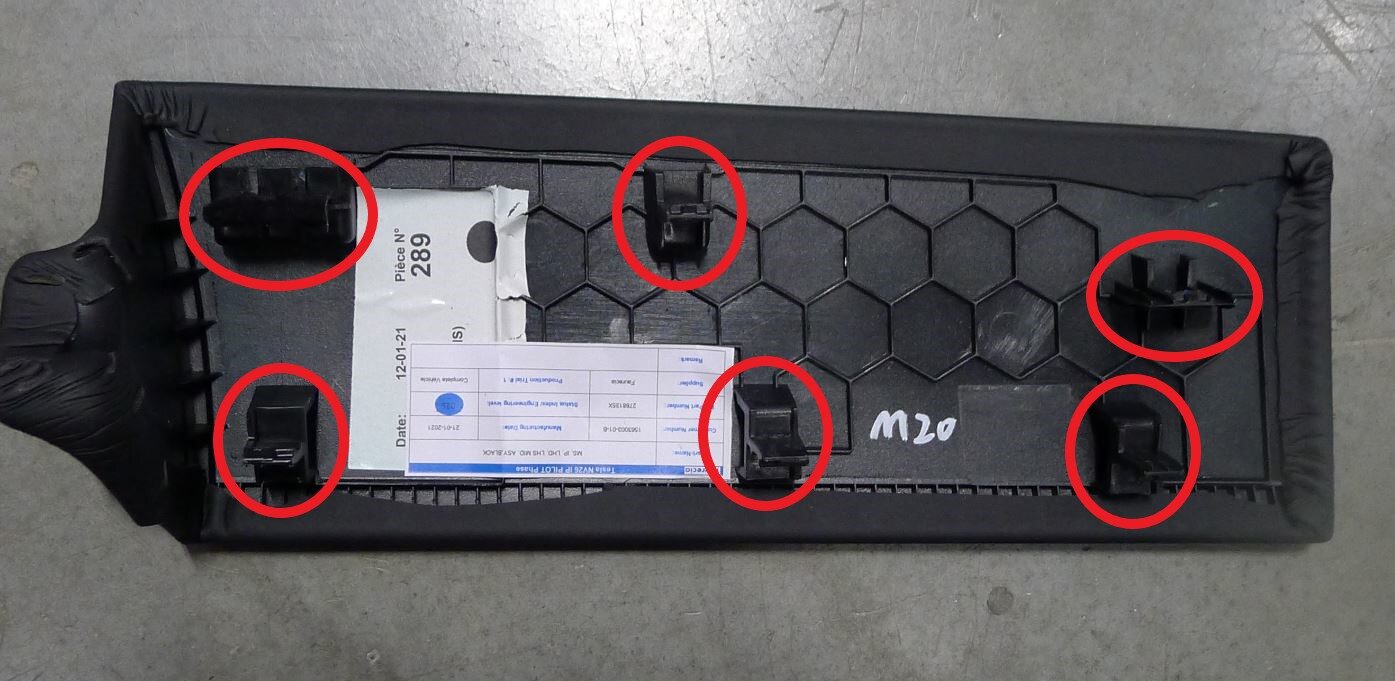

27. Remove IP LH mid panel
    Note

    6x tabs





28. Remove IP RH mid Panel
    Note

    14x tabs, 2 datums

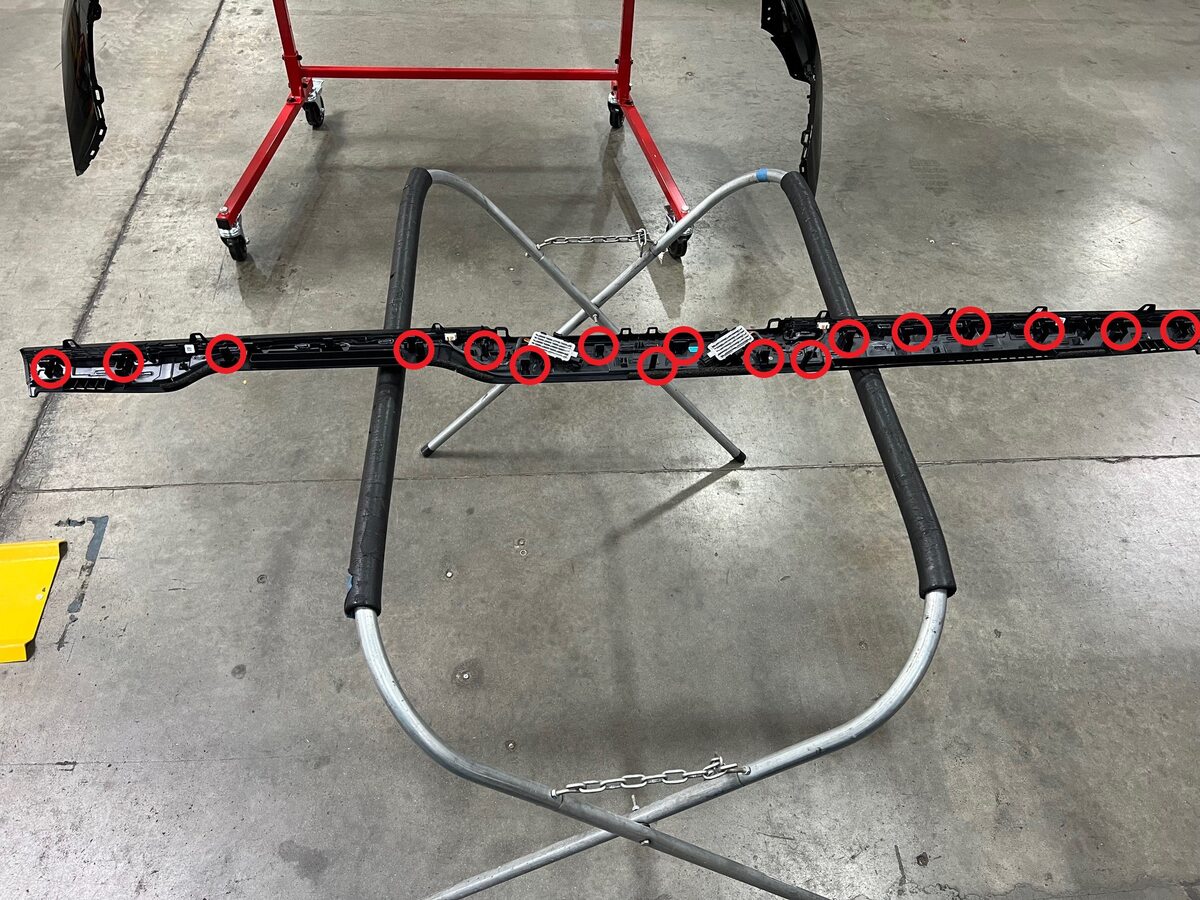

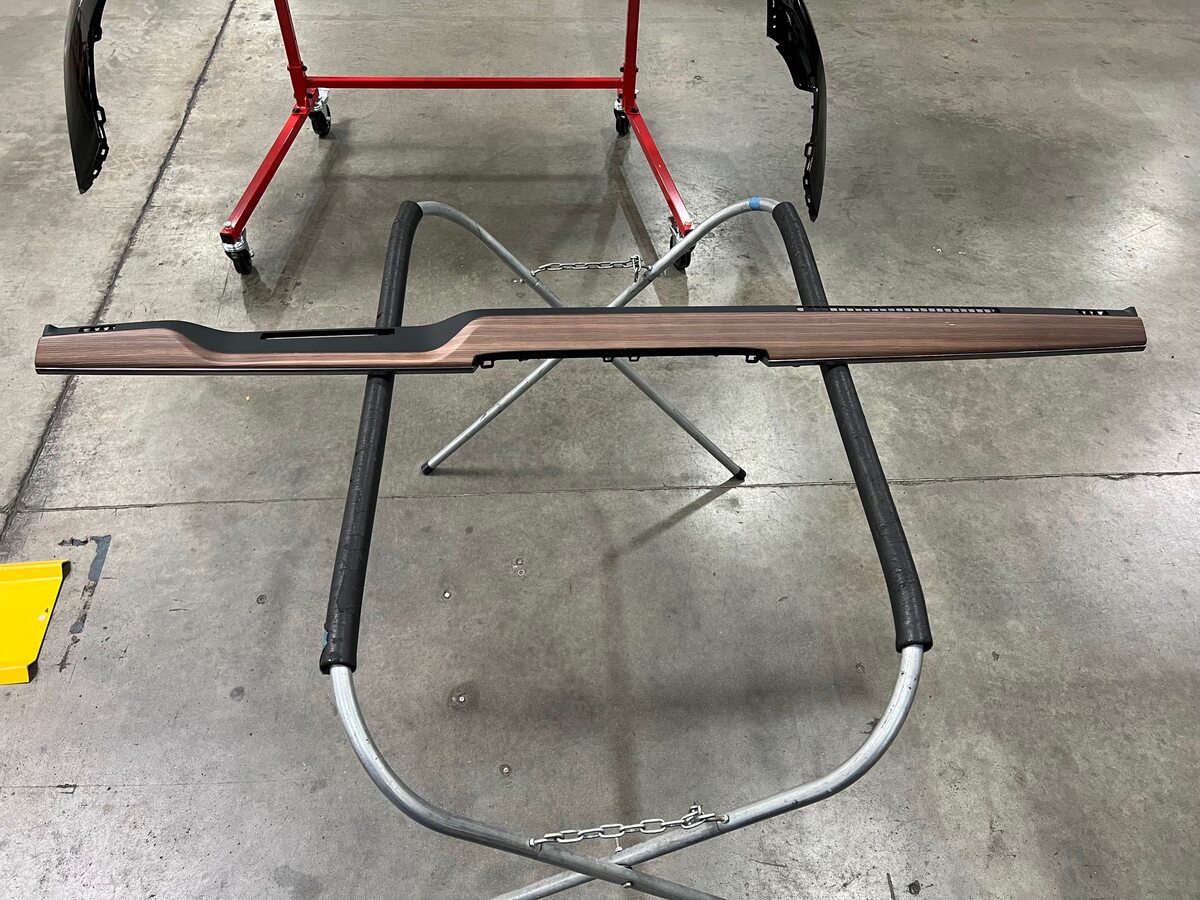

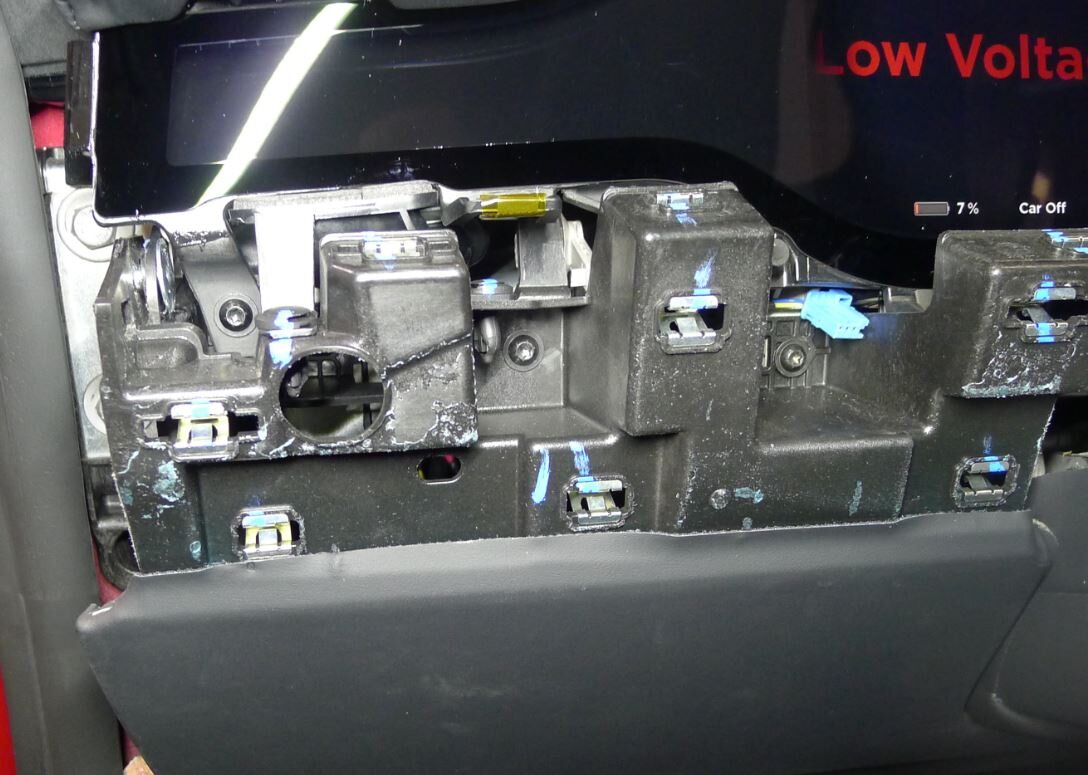

29. Remove IP Decor
    Note

    21x clips, 6x datums, 2x connectors, Release each IP decor connector clip from IP carrier then disconnect from IP harness

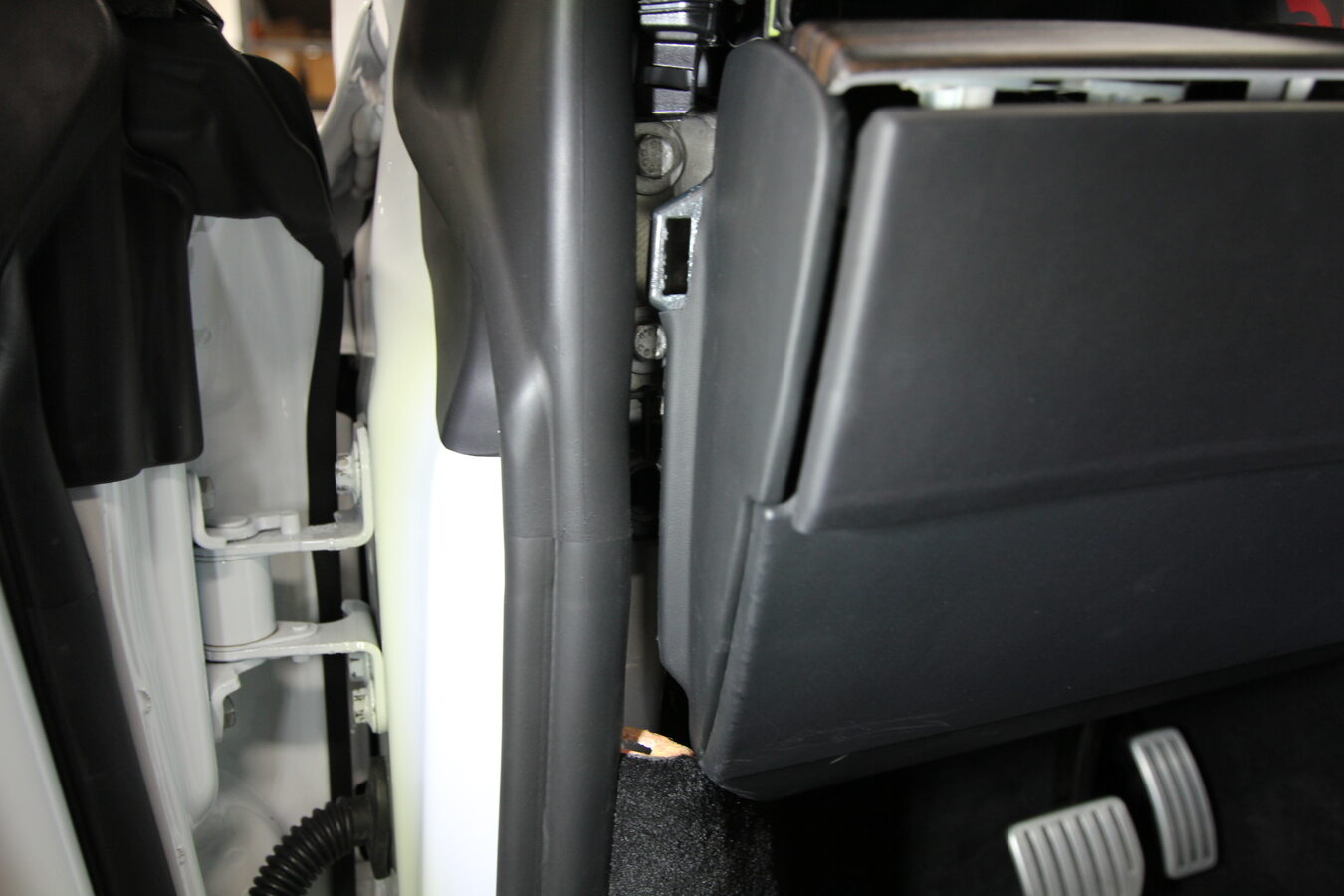

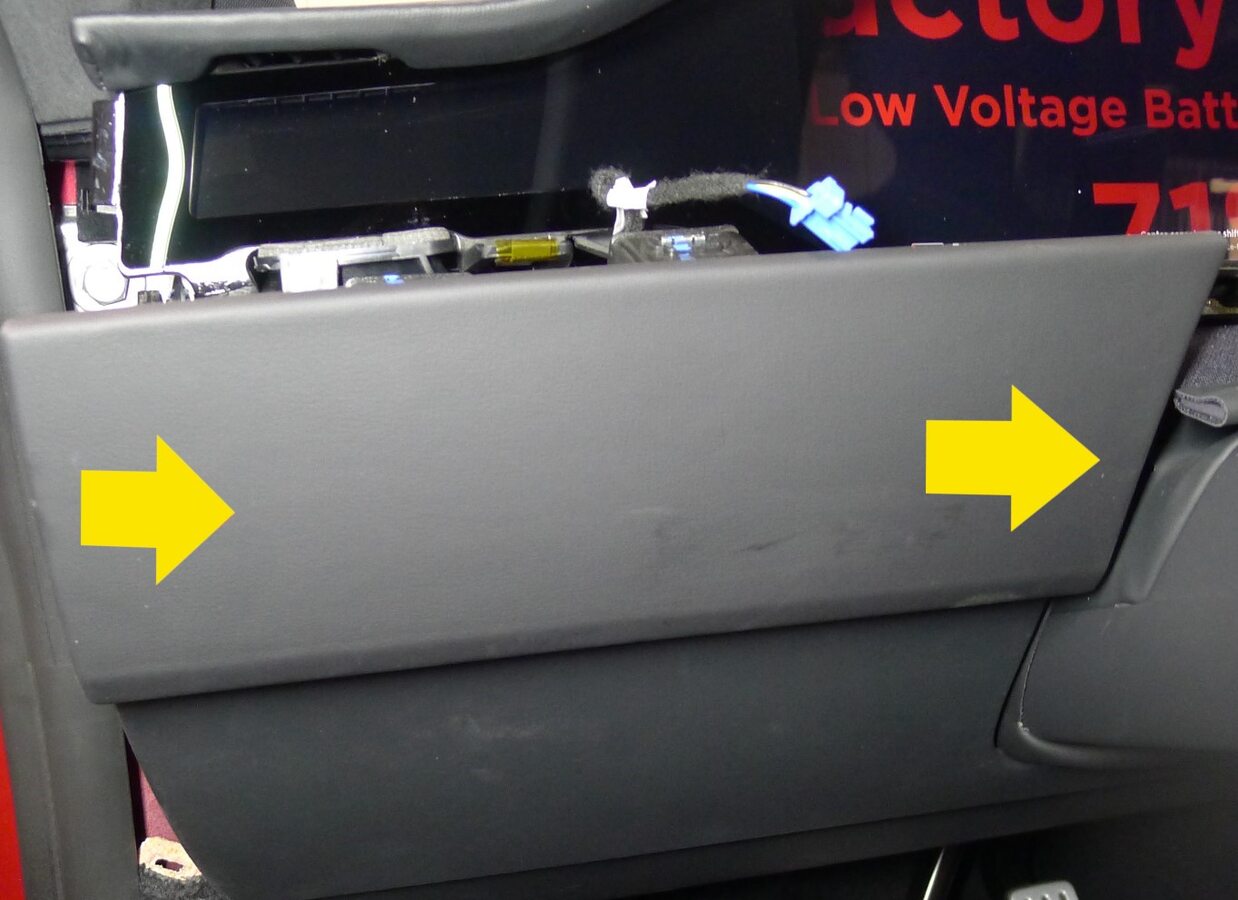

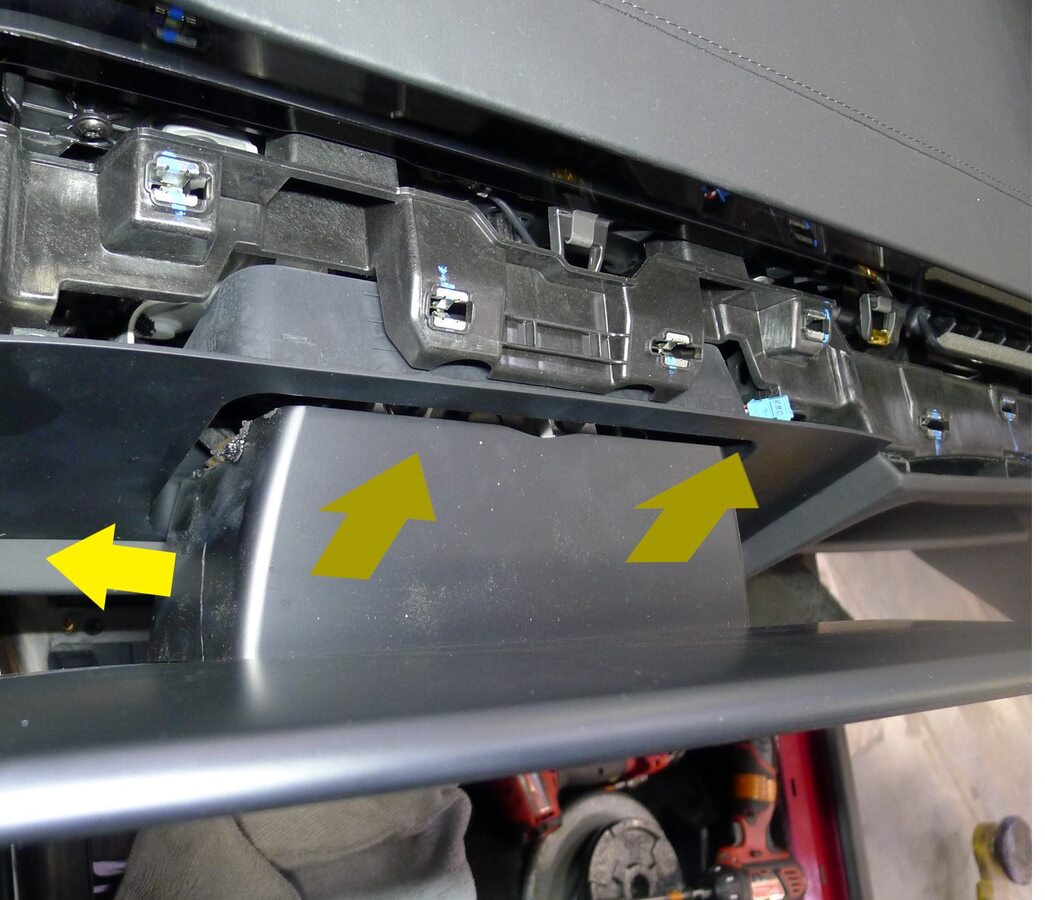

30. Remove RH footwell cover

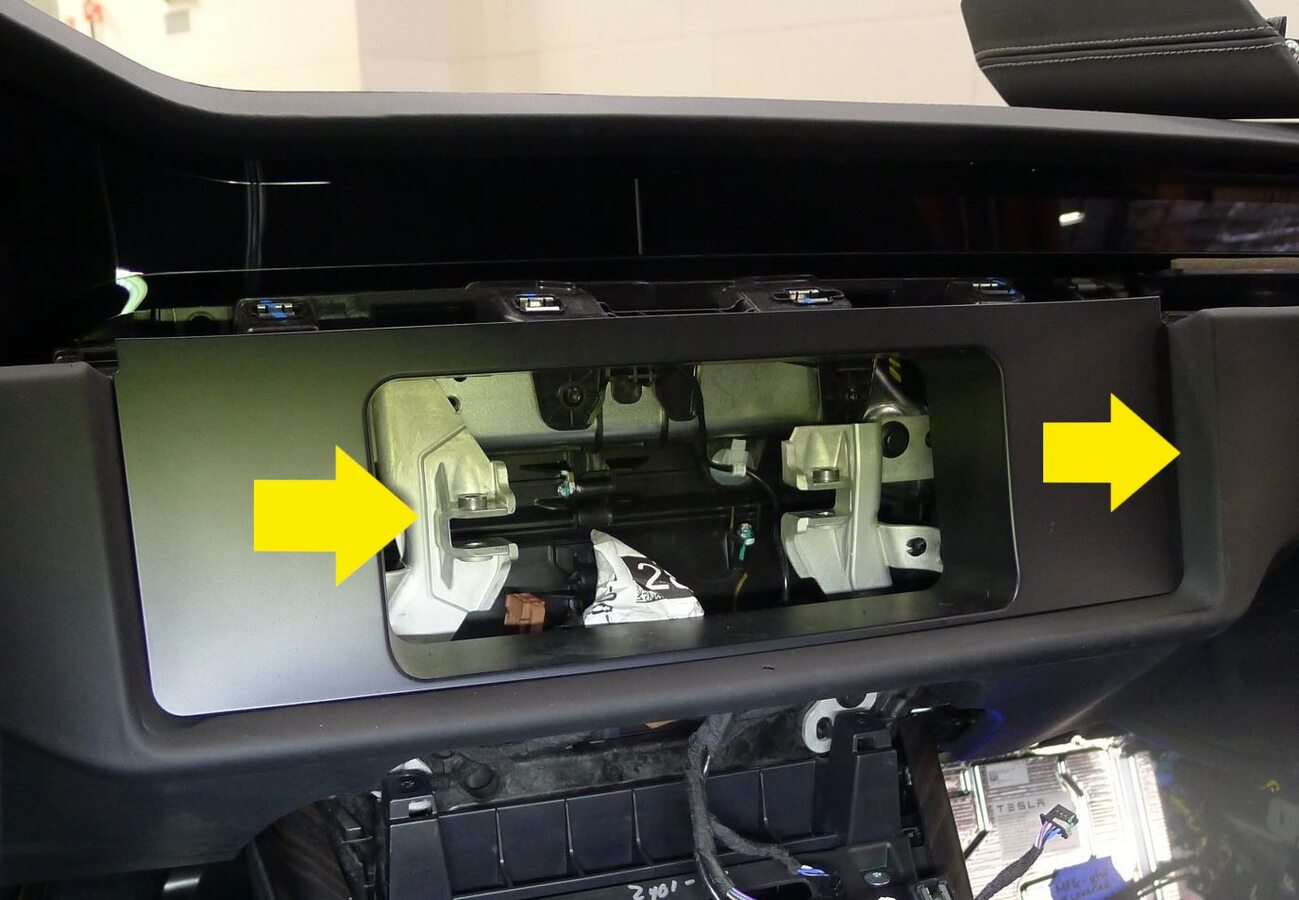

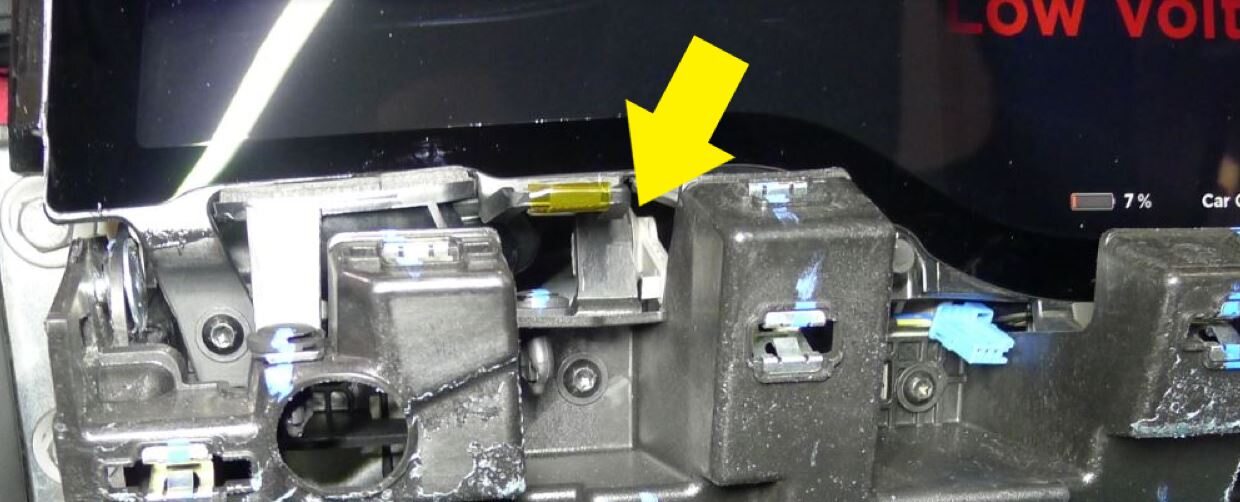

    Note

    3x magnets, 1x connector, 4x datums

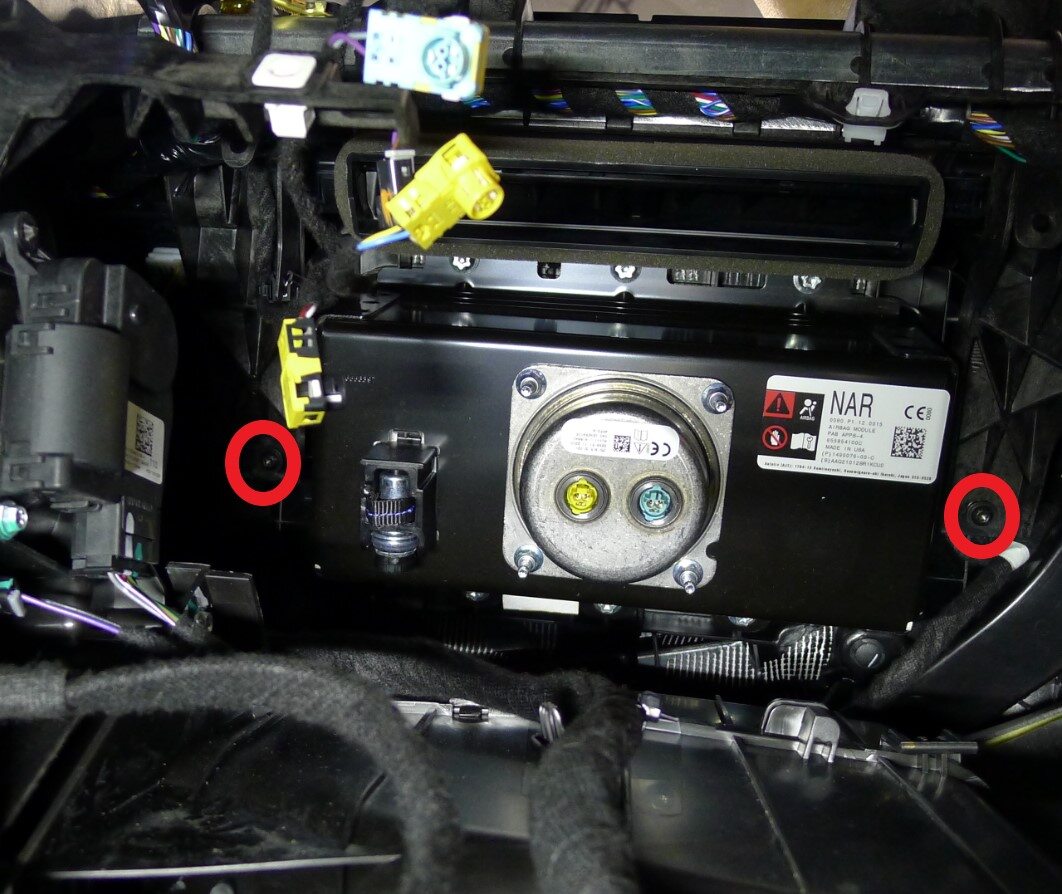

31. Remove fasteners securing RH knee air bag assembly to vehicle
    Note

    2x bolts, 10mm, 8 Nm, 1x clip, Discard after removal



32. Remove RH knee air bag assembly from vehicle
    Note

    2x connectors, 6x tabs, 1x clip, Release 2x locking tab on airbag connector

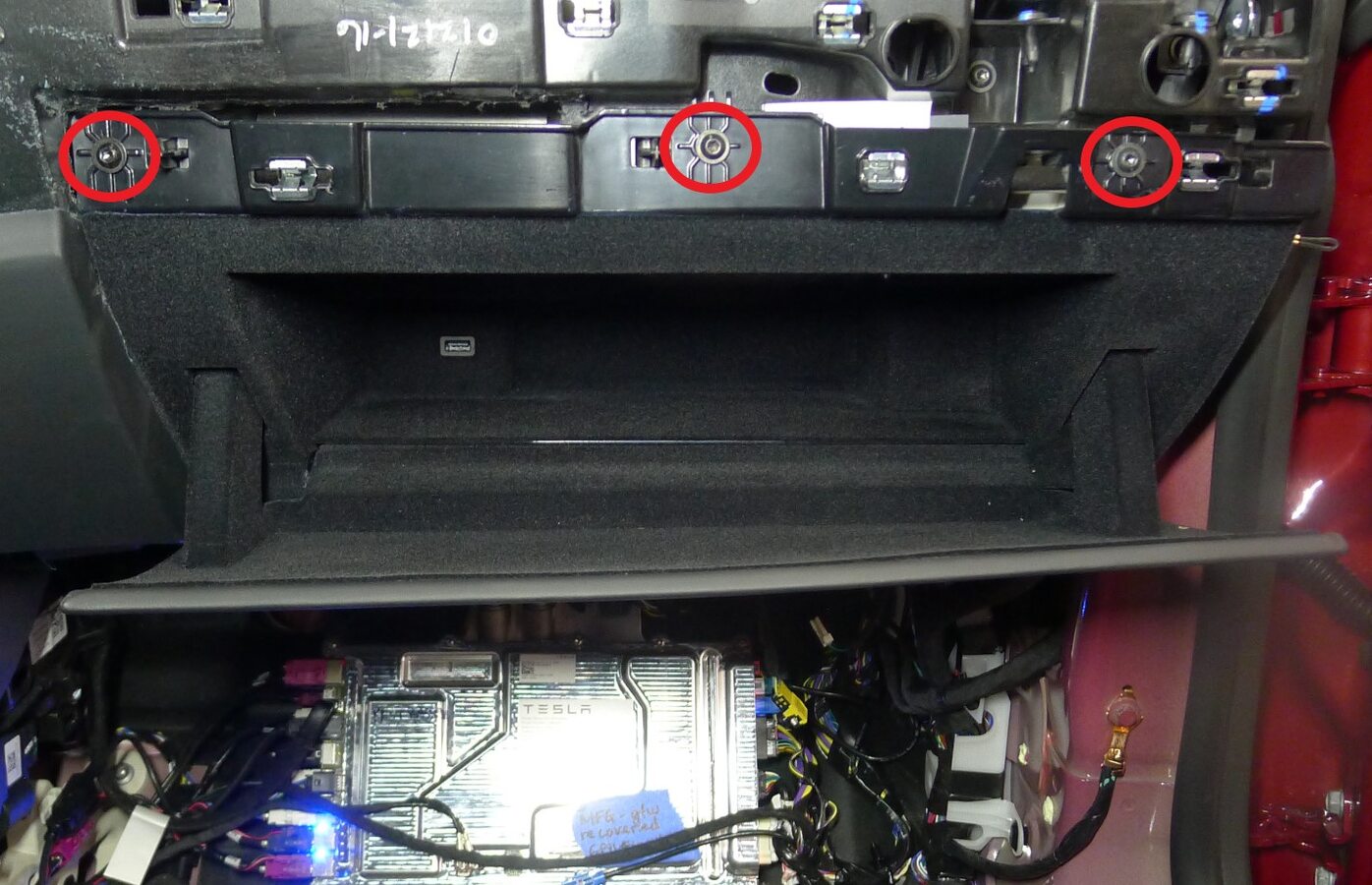

33. Release glove box
    Note

    5x screws, T20, 3 Nm





34. Release glove box connectors
    Note

    3x connectors



35. Remove USB outlet
    Note

    2x screws, T20, 3 Nm, 1x clip

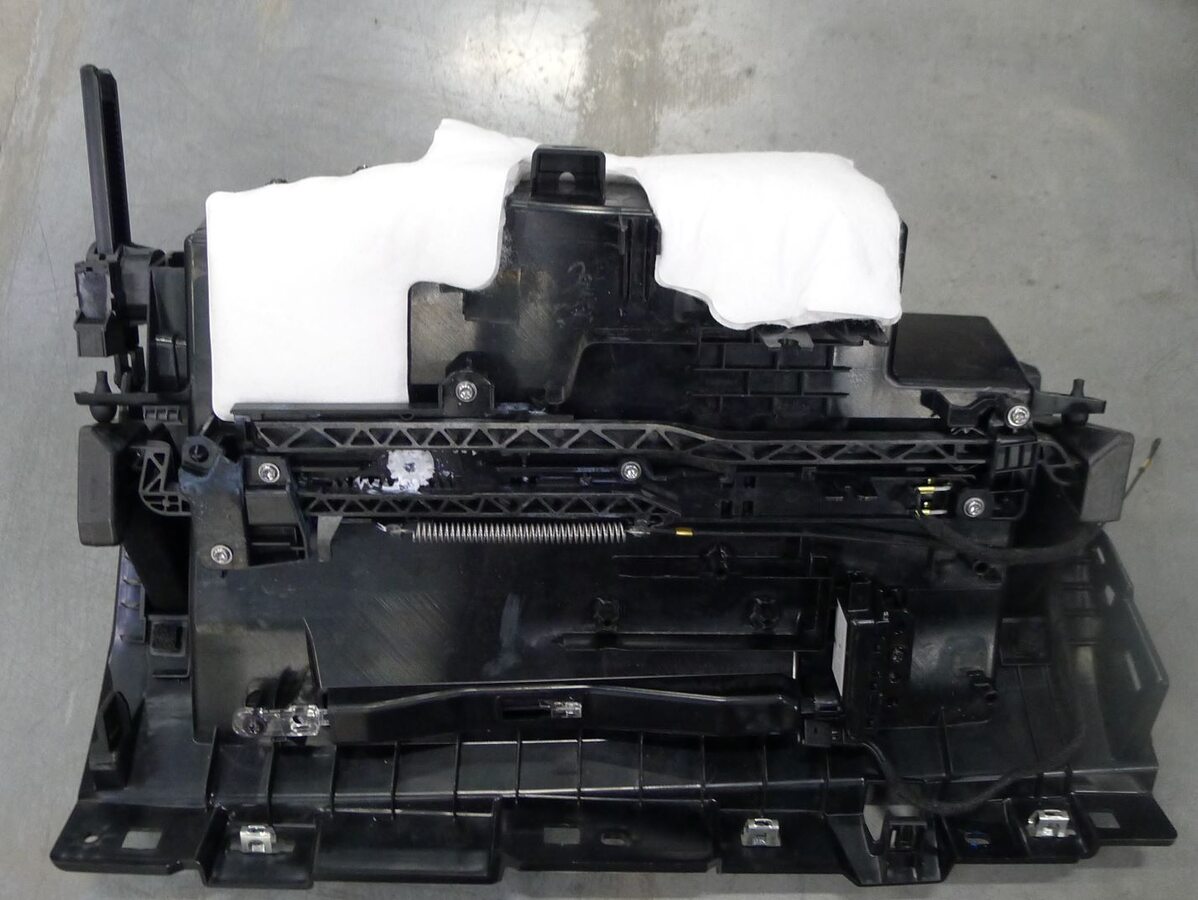

36. Remove glove box



37. Release passenger IP air duct temperature sensor connector
    Note

    1x connector, Carefully release connection and do not damage components

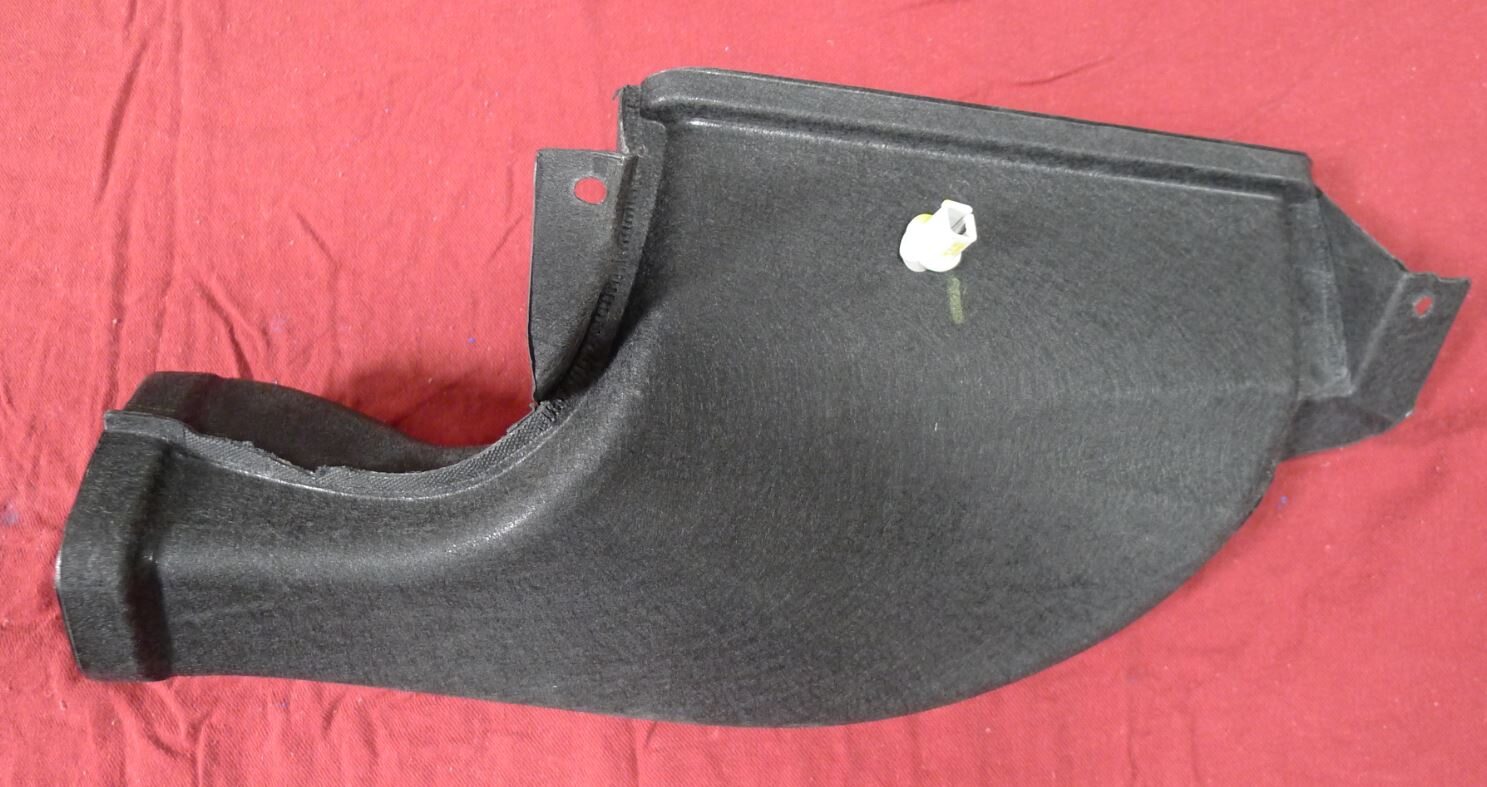

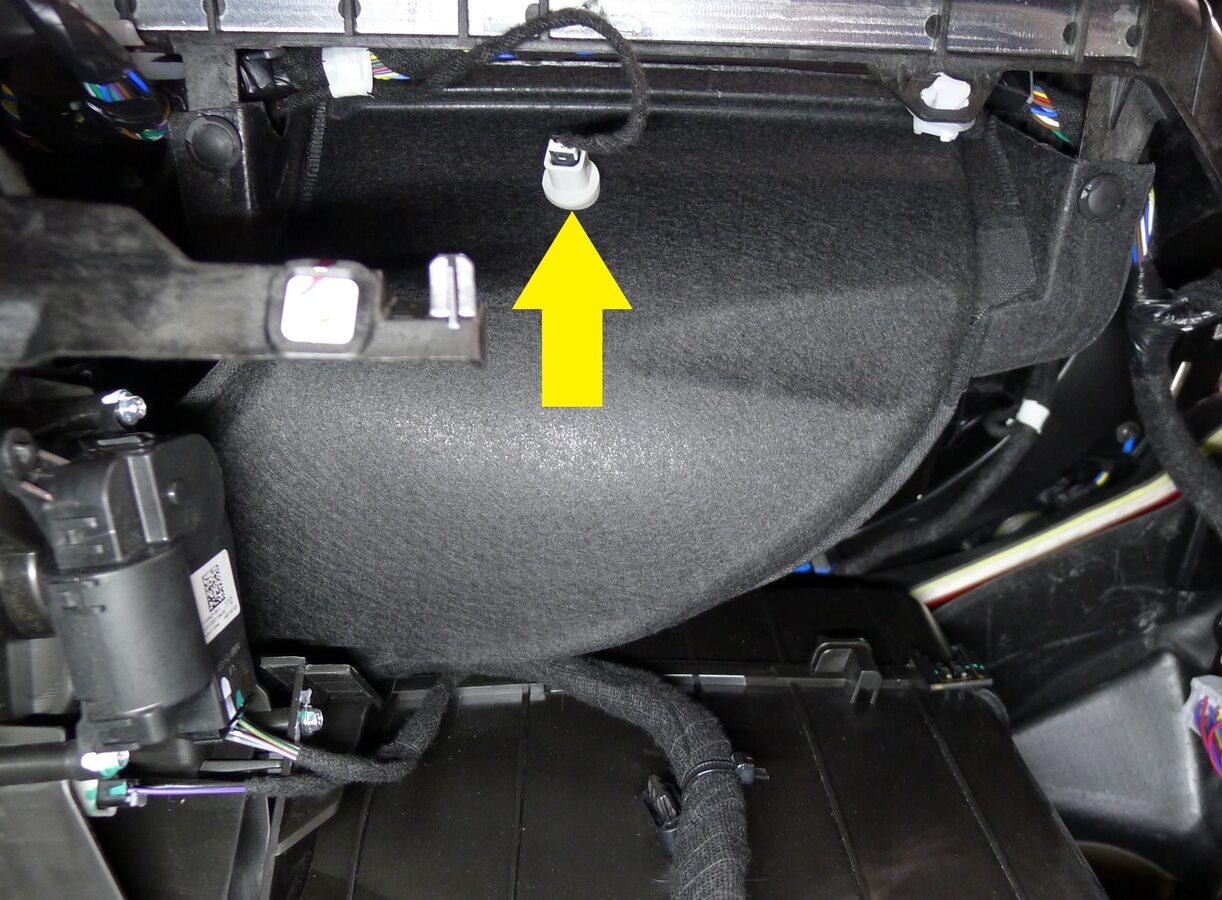

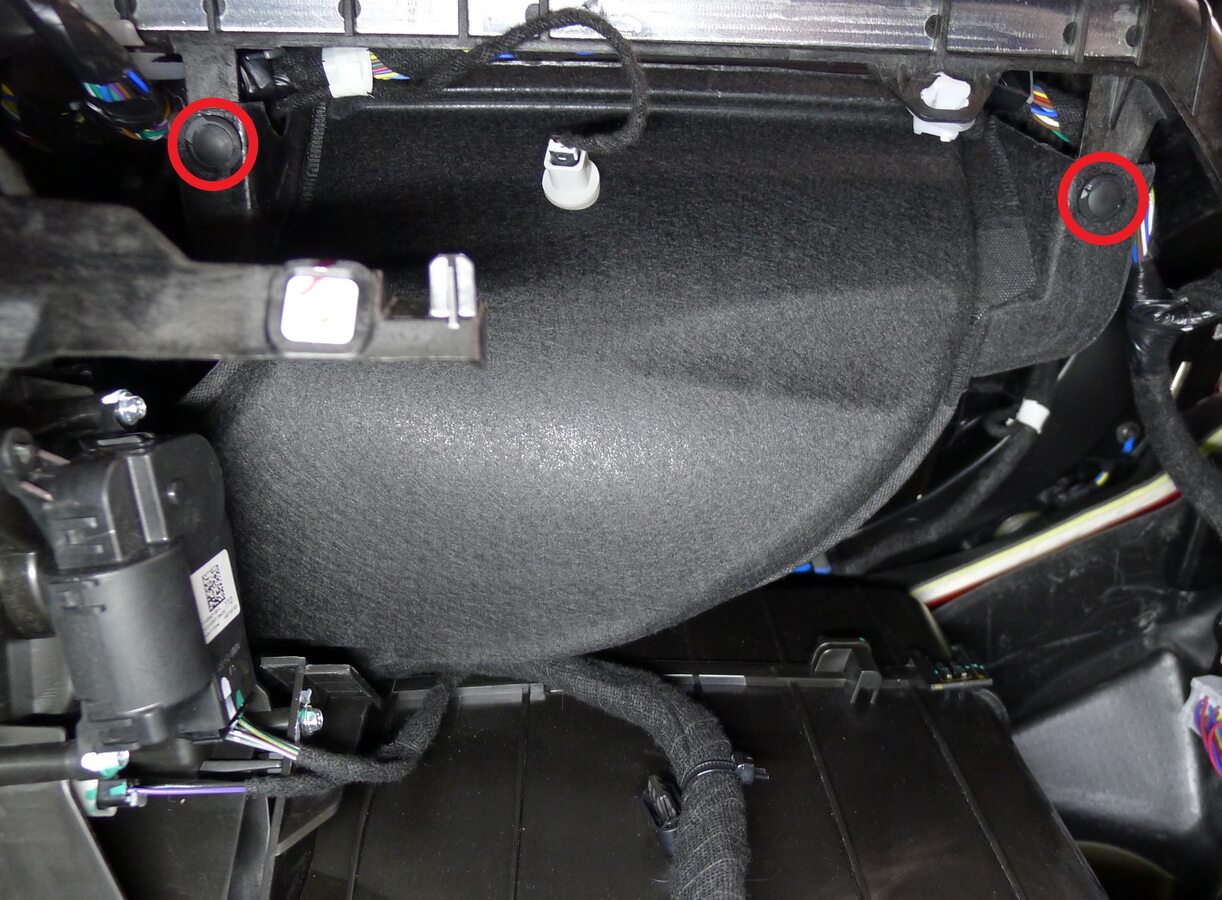

38. Remove passenger IP air duct
    Note

    2x push-pull rivets

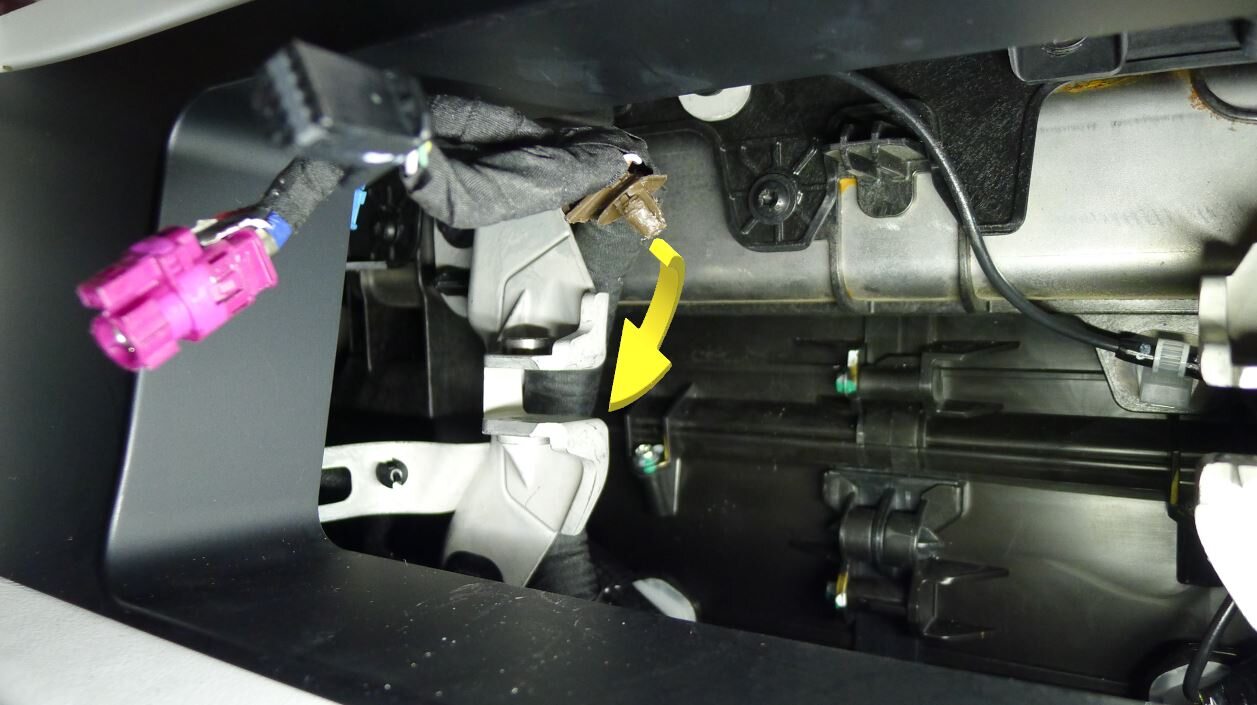

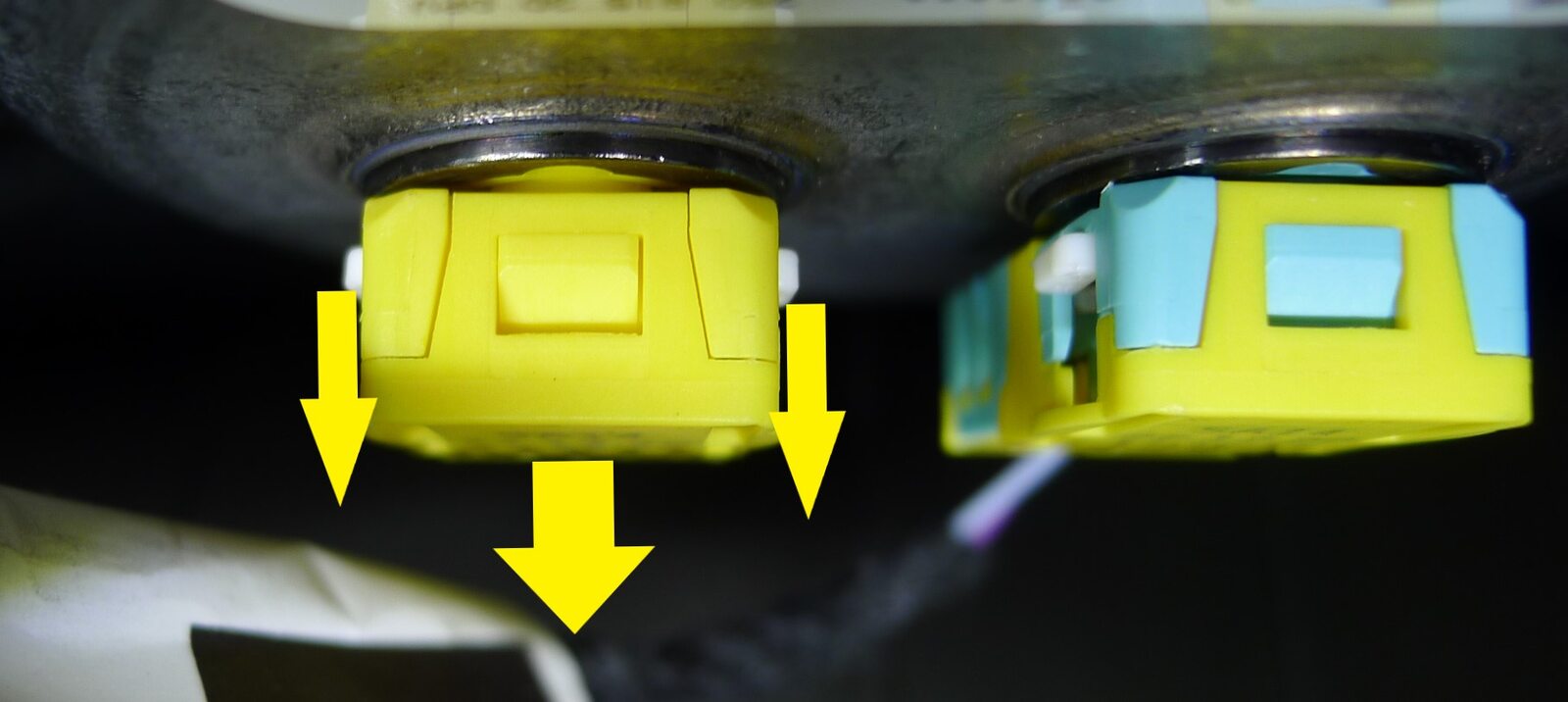

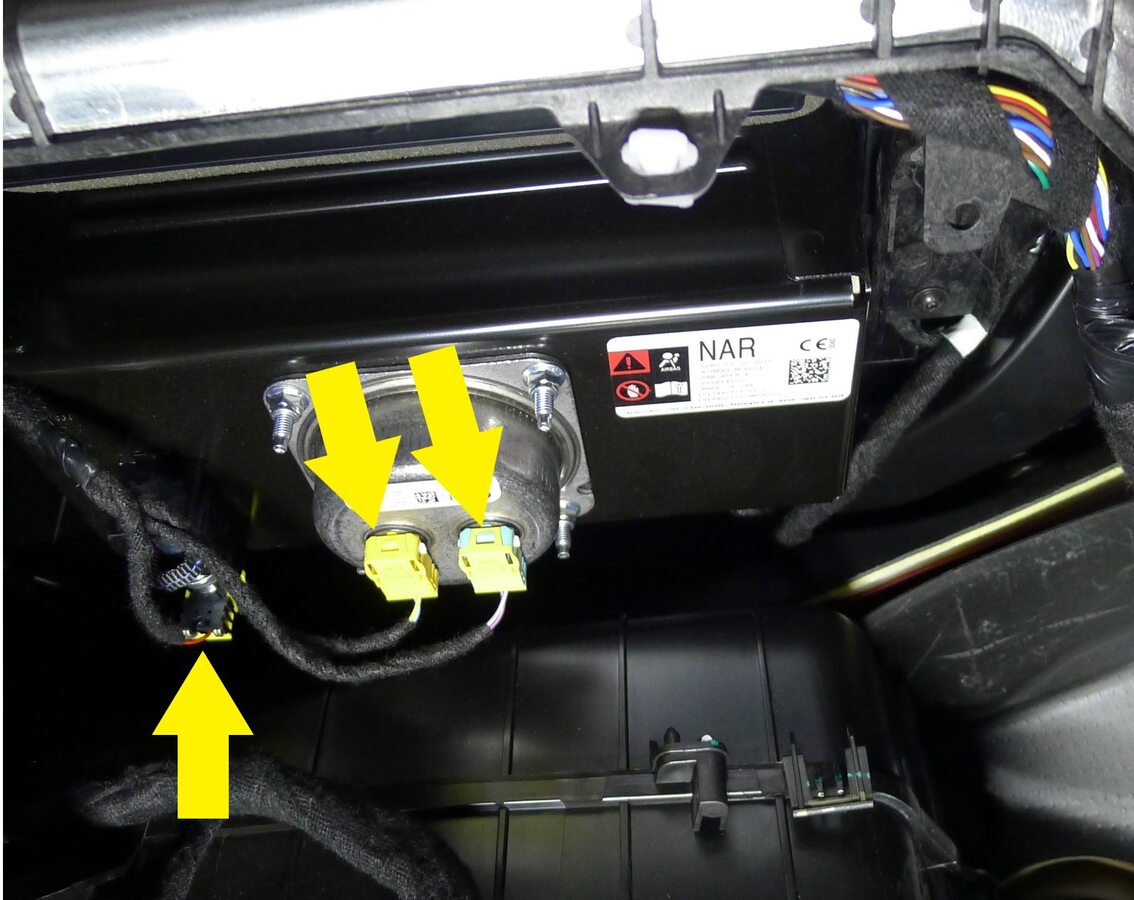

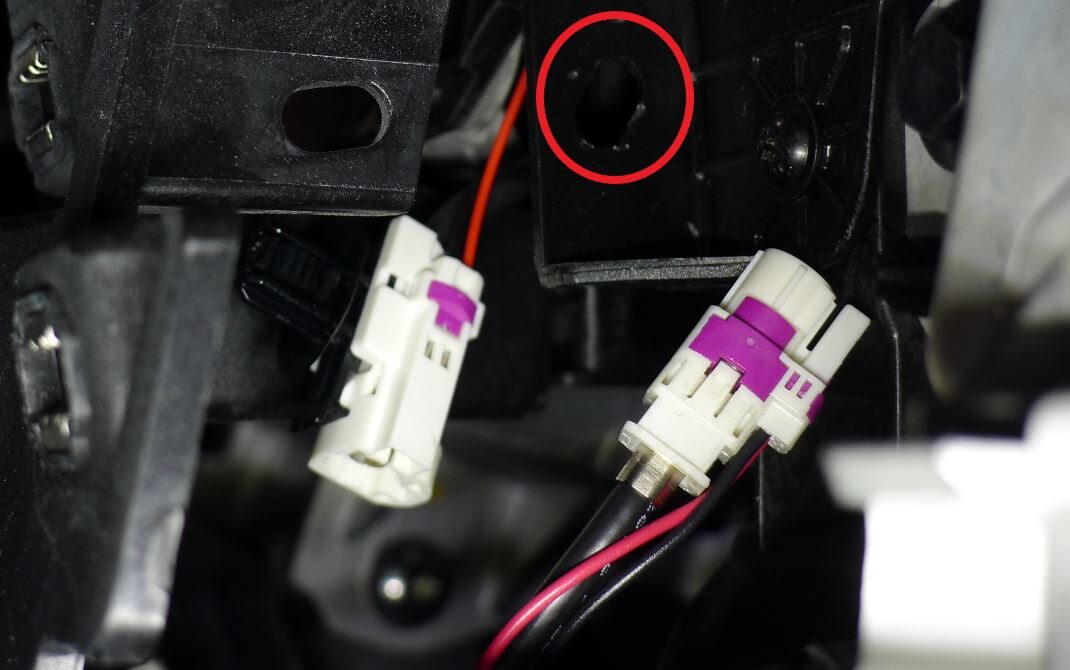

39. Release passenger IP airbag connectors
    Note

    3x connectors, Note RoW variant vehicles may be equipped with only 2x connectors, Pull down spring loaded locks simultaneously to release airbag connectors

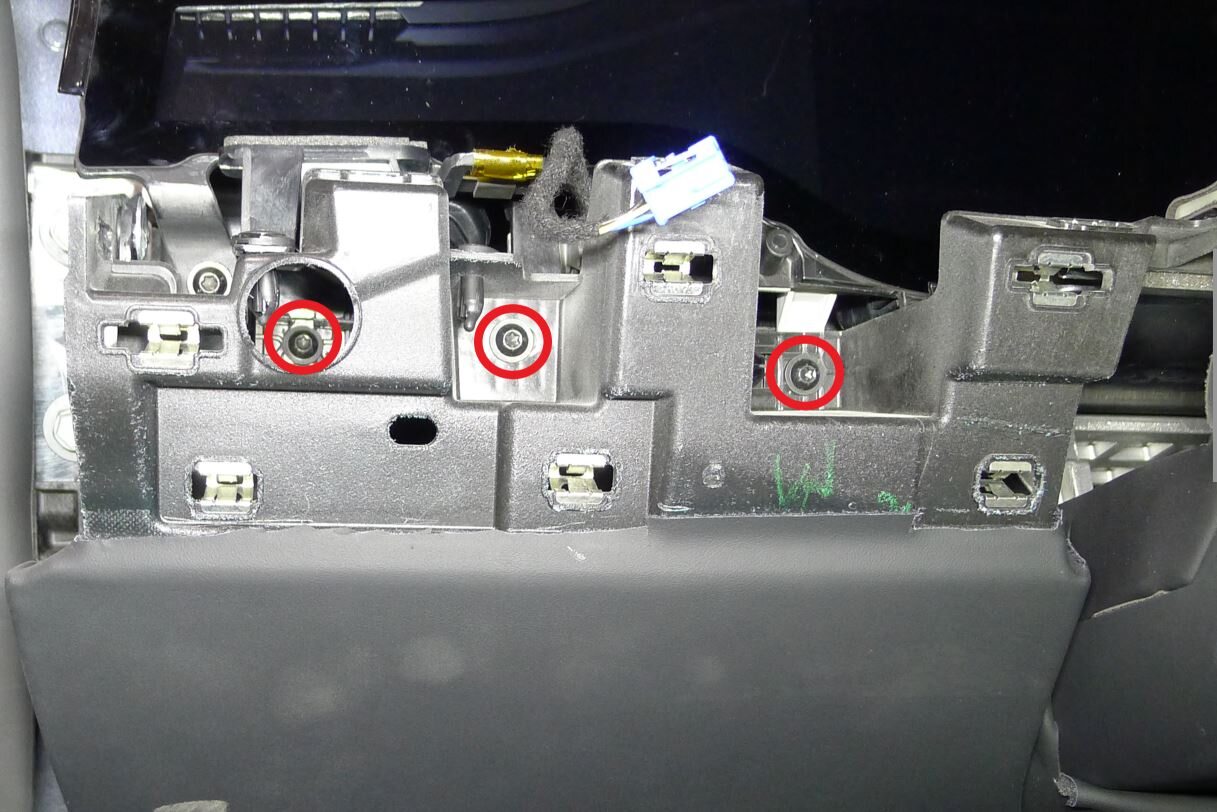

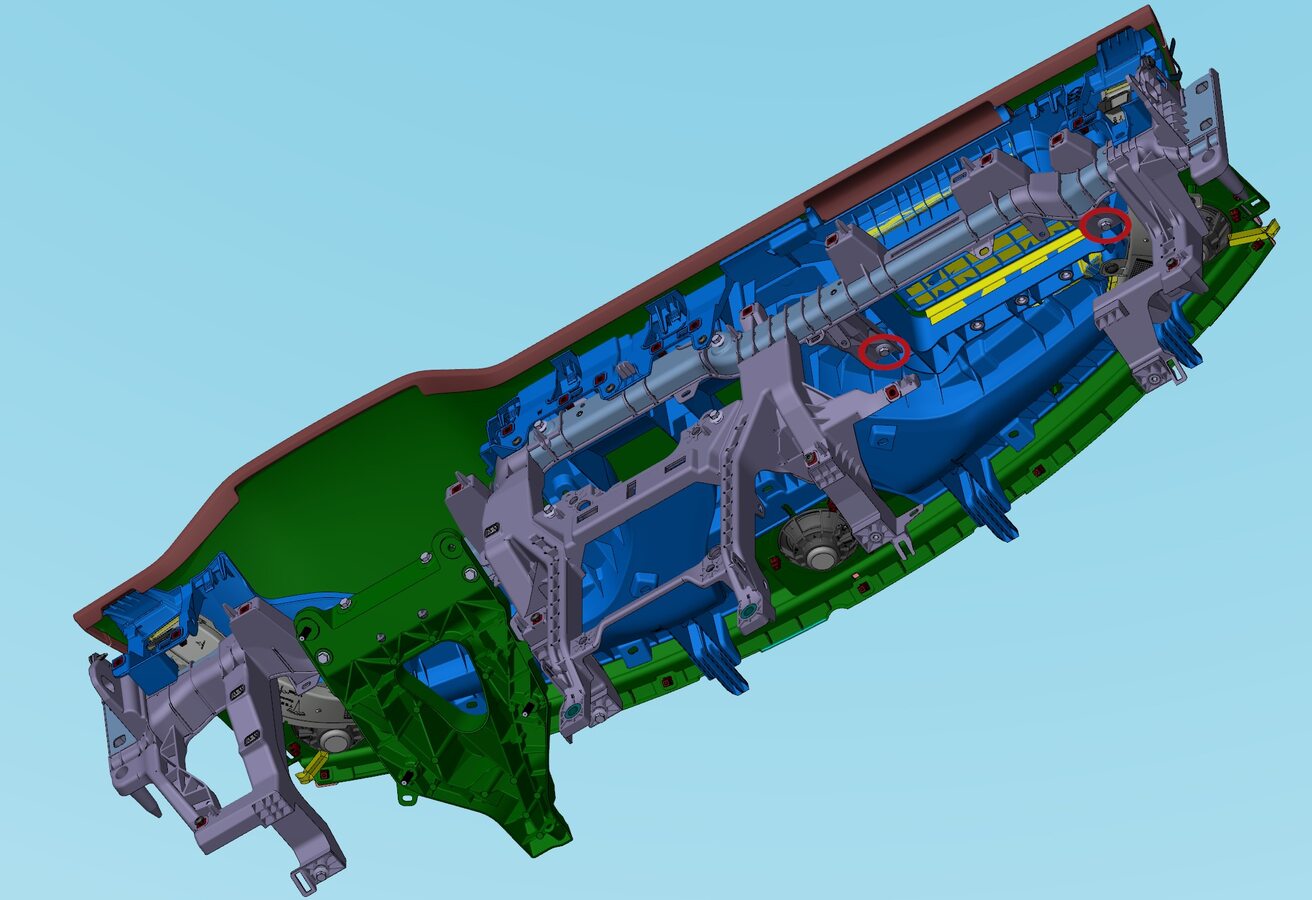

40. Remove IP carrier cross beam bolts
    Note

    2x bolts, 10mm, 6 Nm

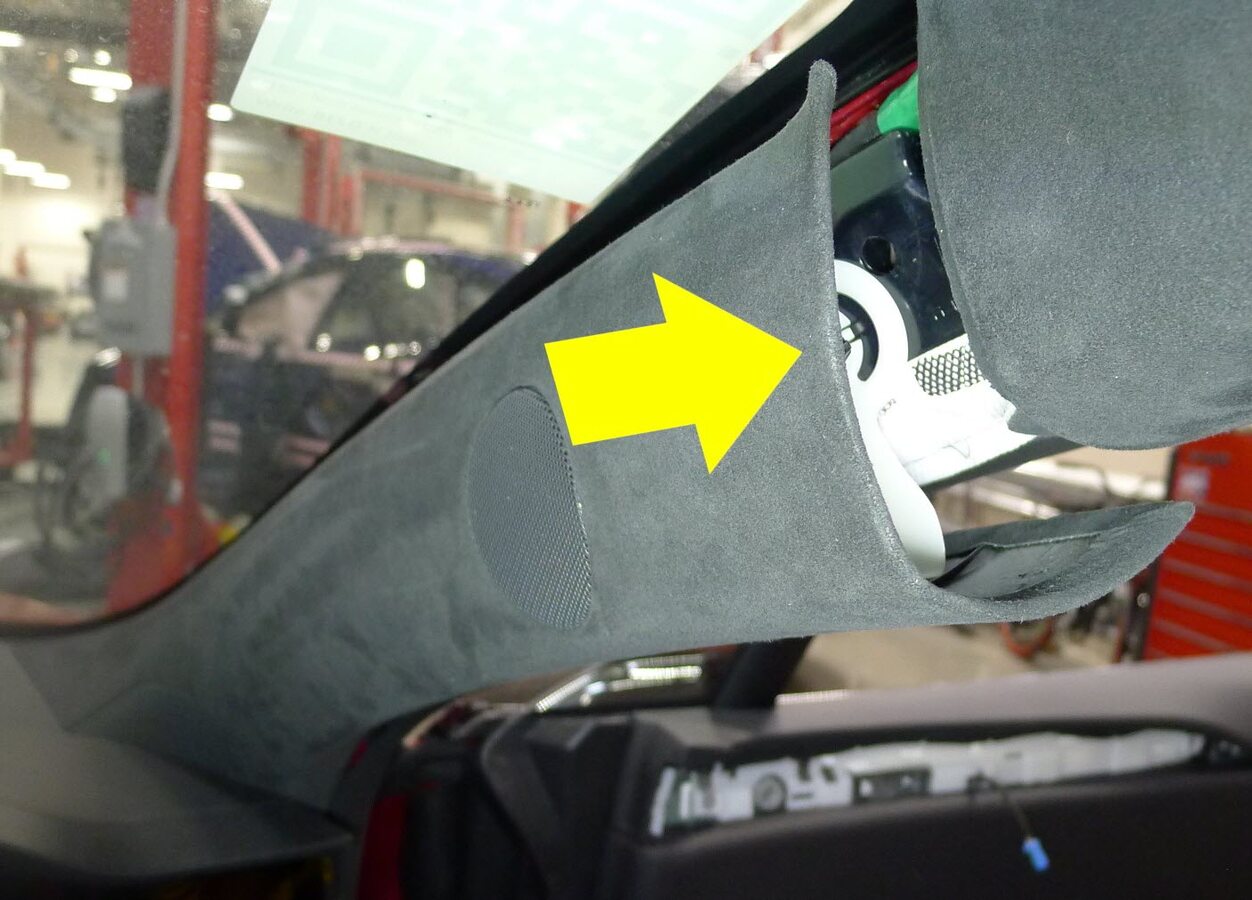

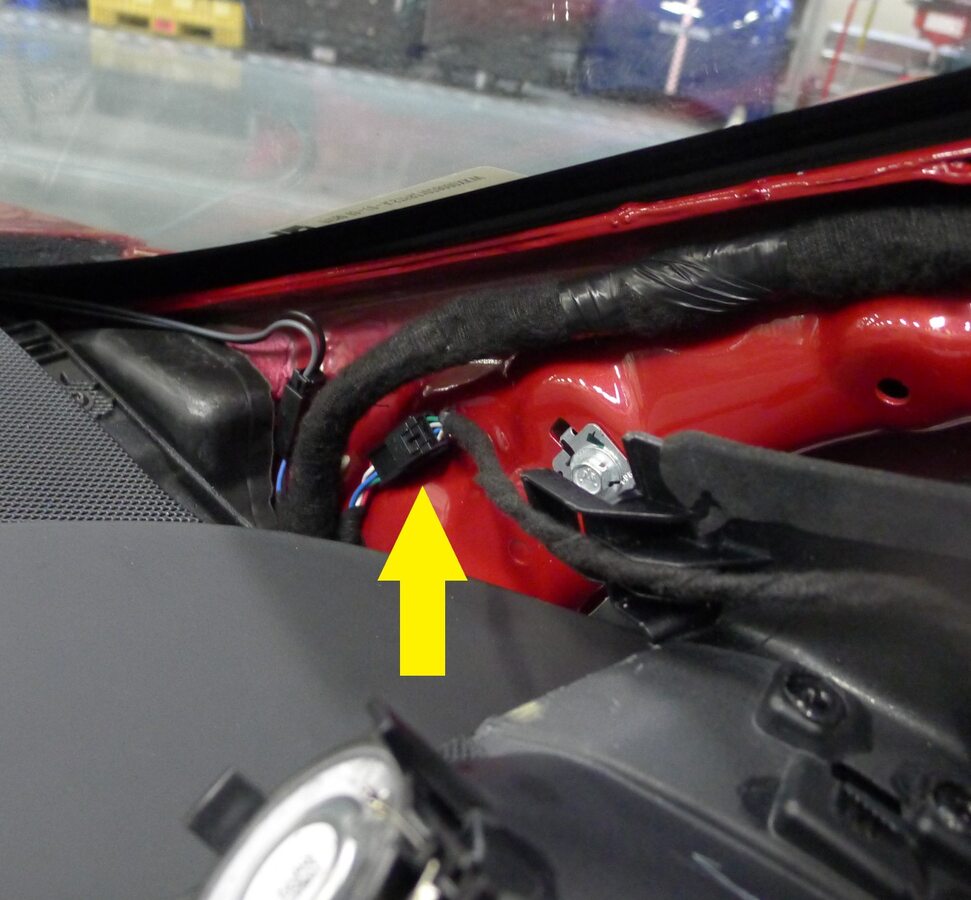

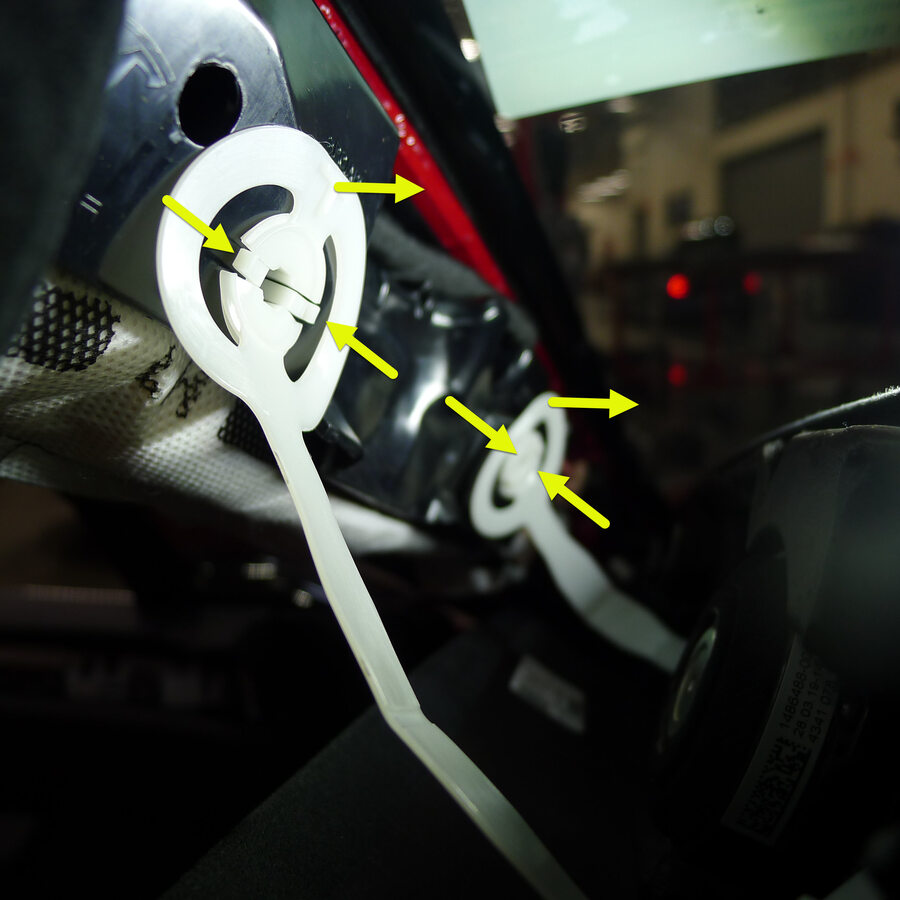

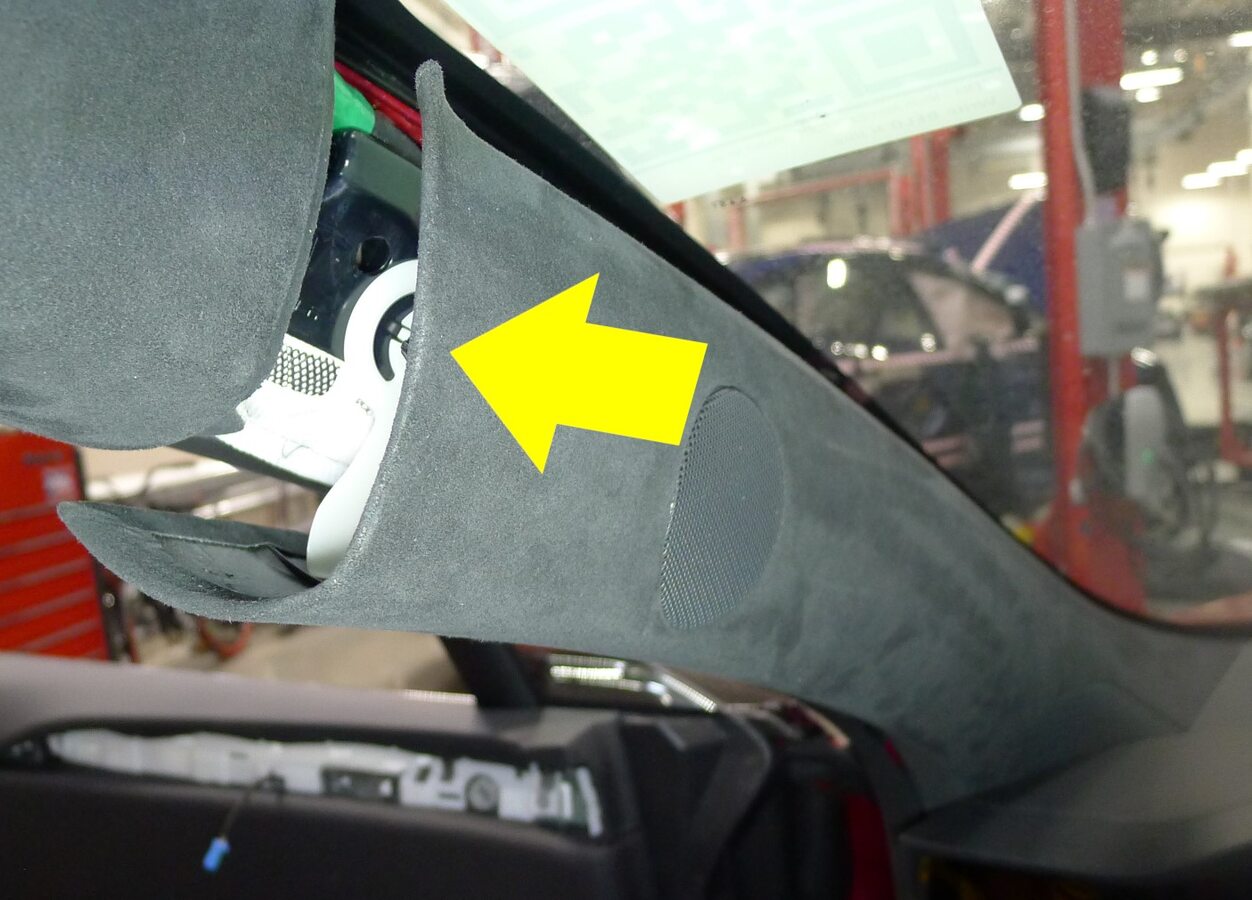

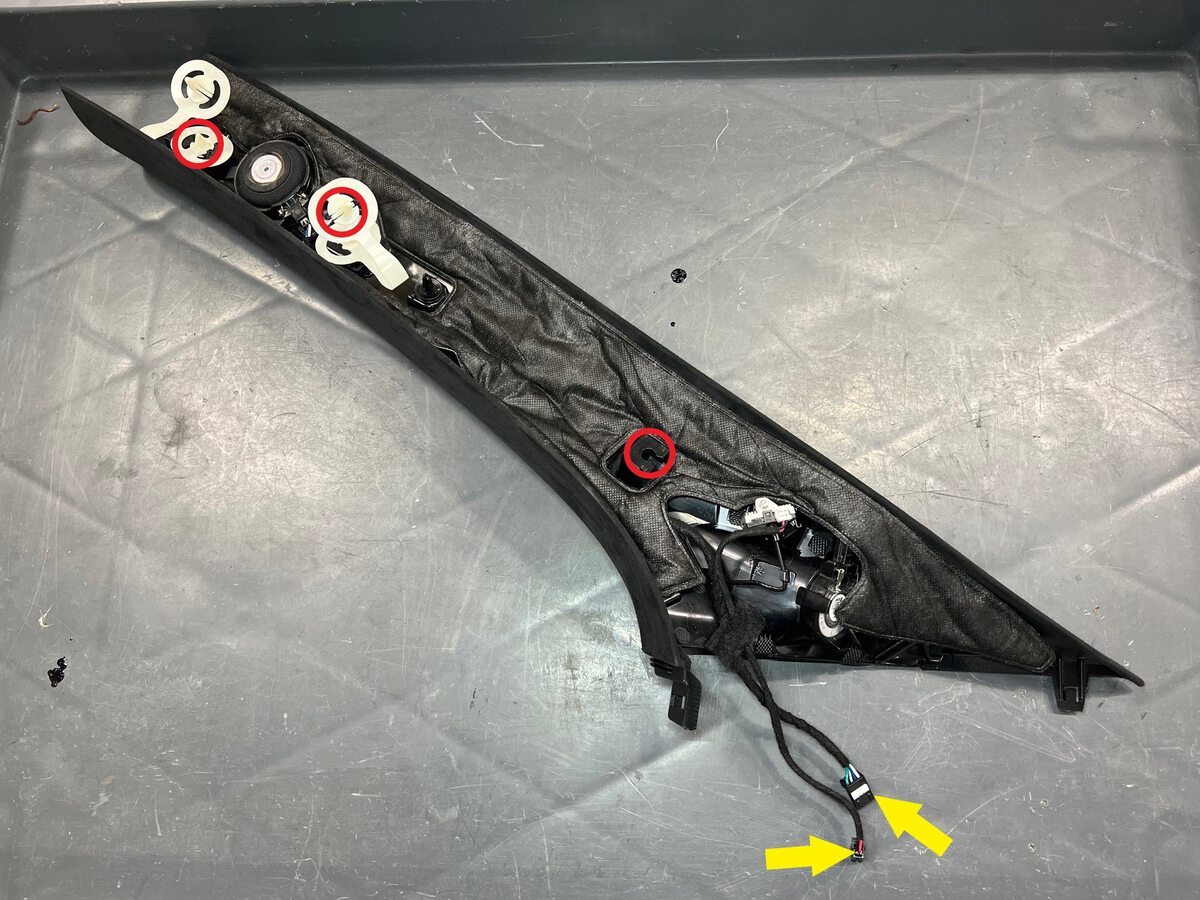

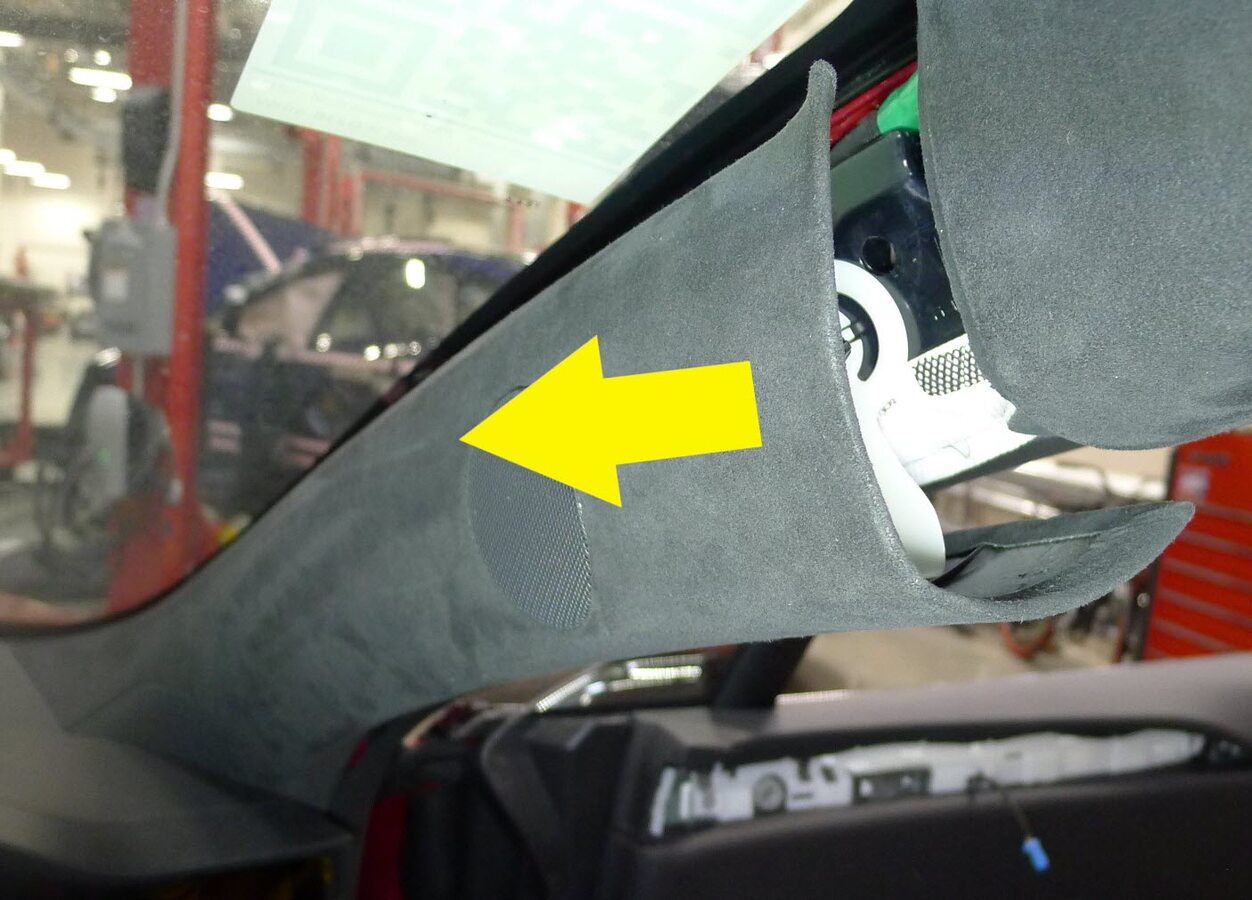

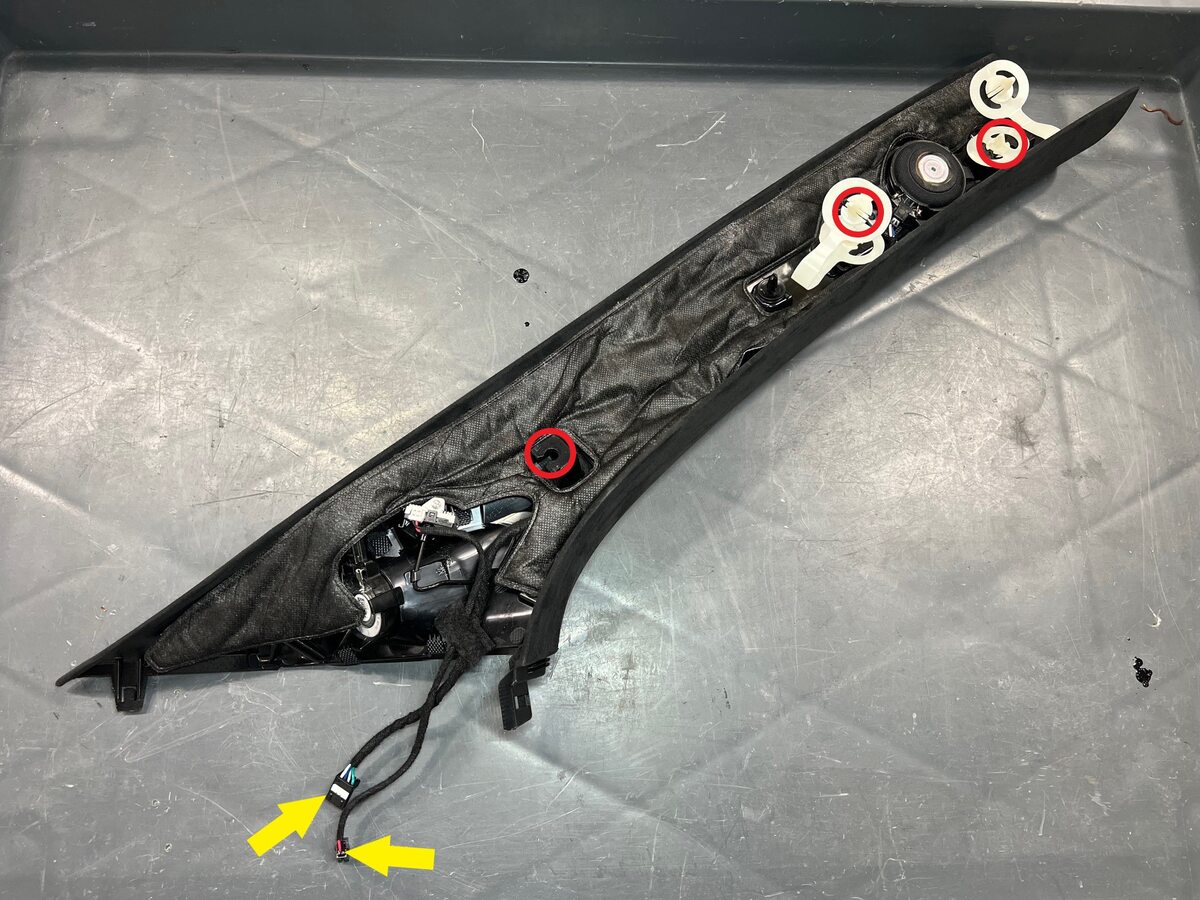

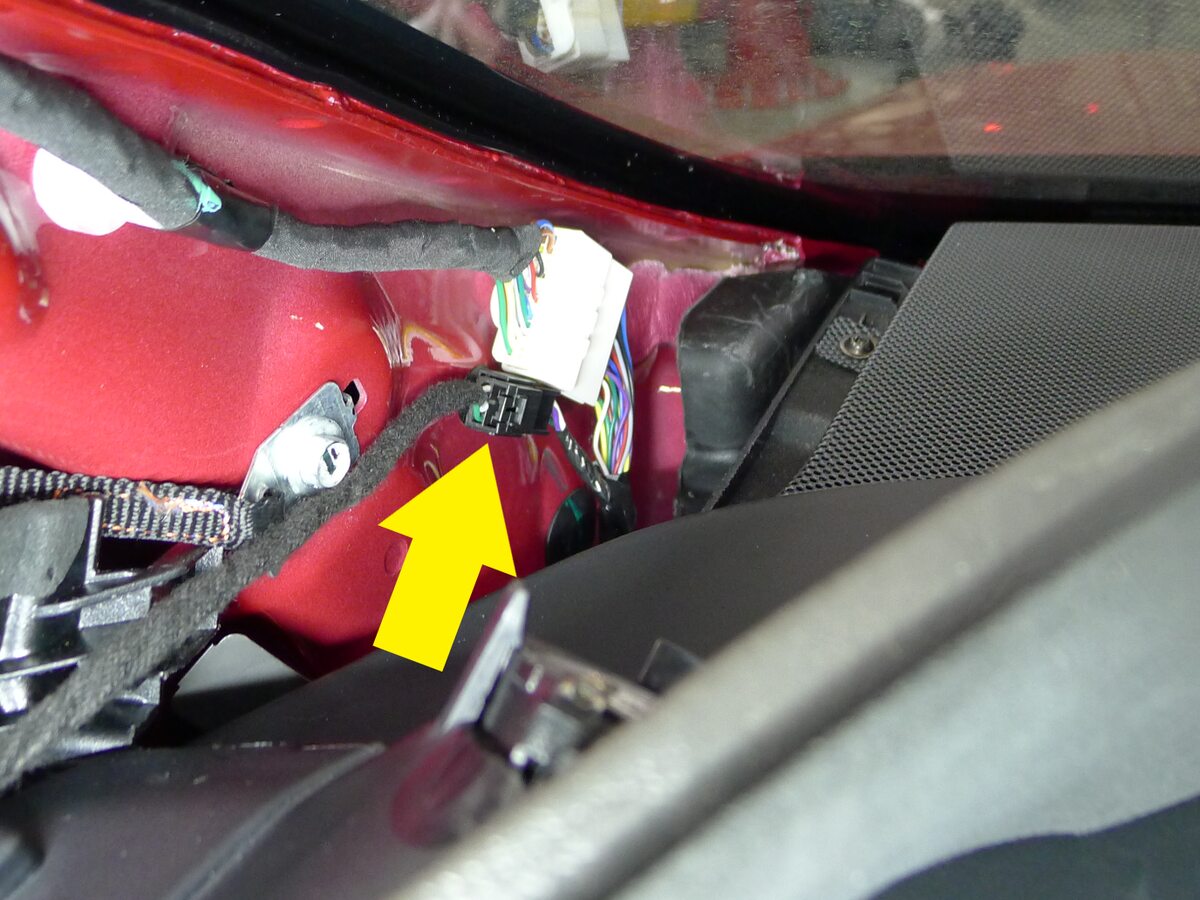

41. Remove RH upper A-pillar trim
    Note

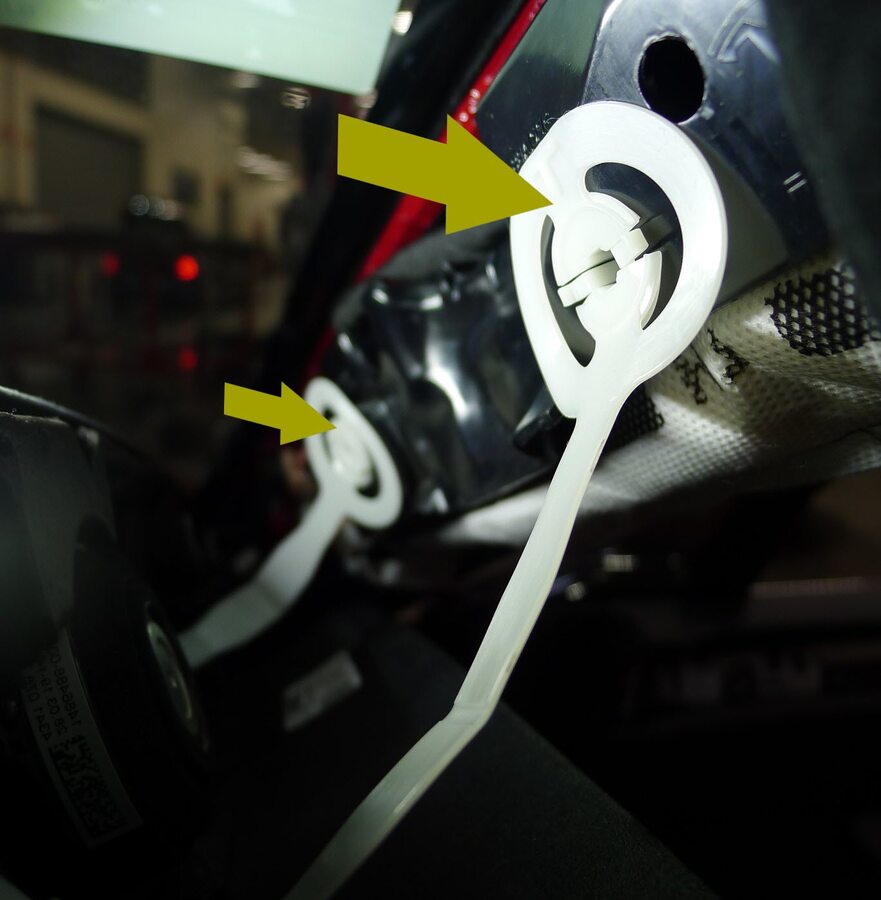

    2x tethered clips, 1x clip, 2x connector, Pull inside of the upper portion of upper A-pillar, Depress 2x tabs to remove each tether from body side, Disconnect tweeter, Then pull upper A-pillar upward to remove









42. Remove LH upper A-pillar trim
    Note

    2x tethered clips, 1x clip, 2x connector, Pull inside of the upper portion of upper A-pillar, Depress 2x tabs to remove each tether from body side, Disconnect tweeter, Then pull upper A-pillar upward to remove









43. Release IP Decor harness from LH IP sub-assembly
    Note

    1x clip

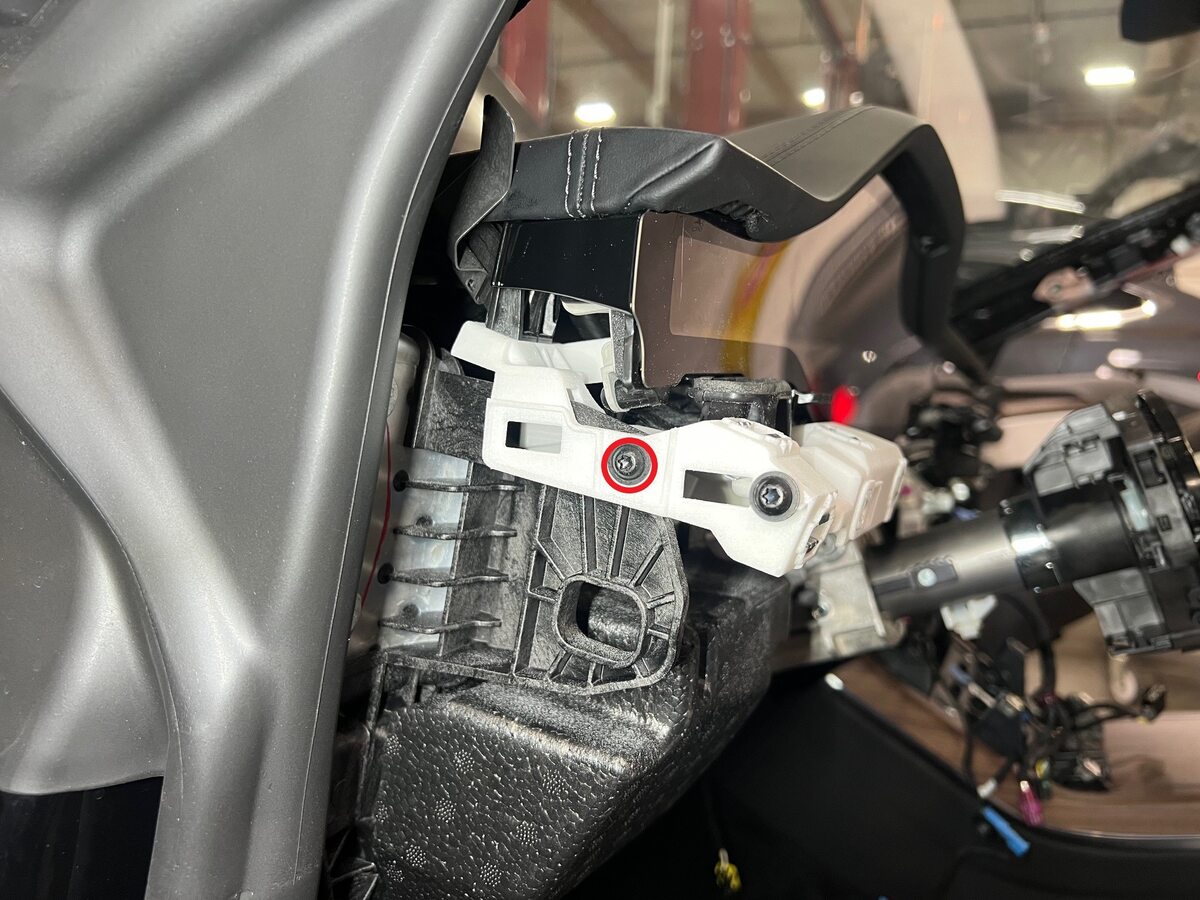

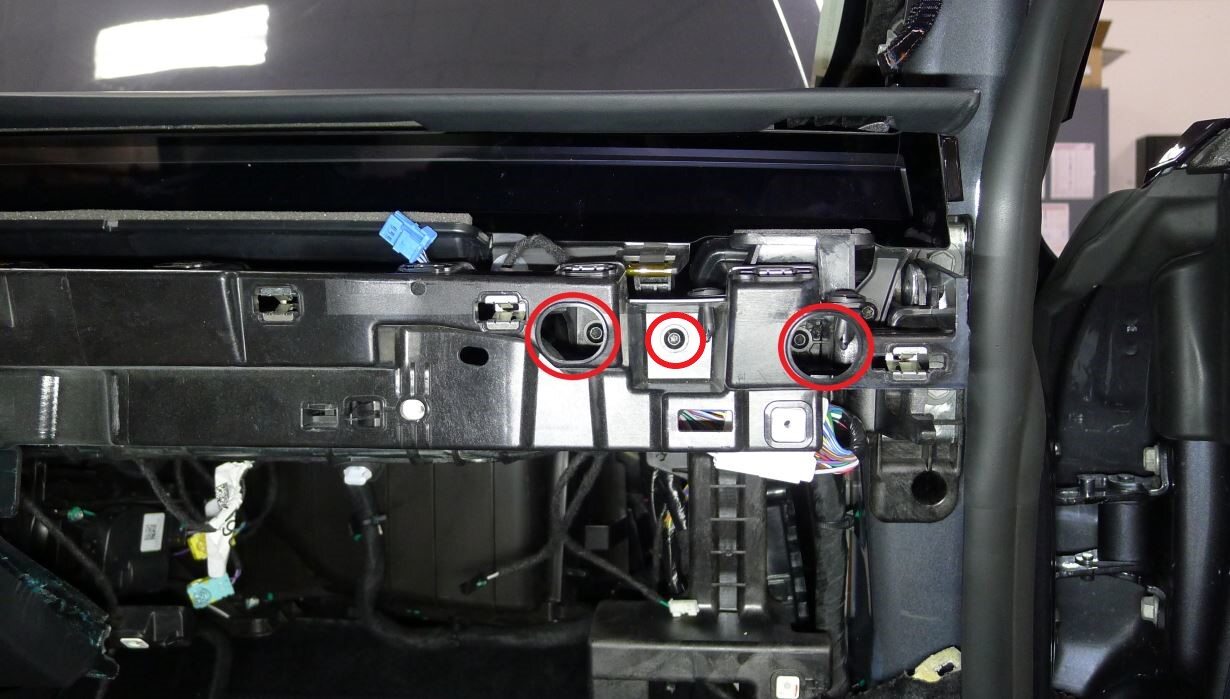

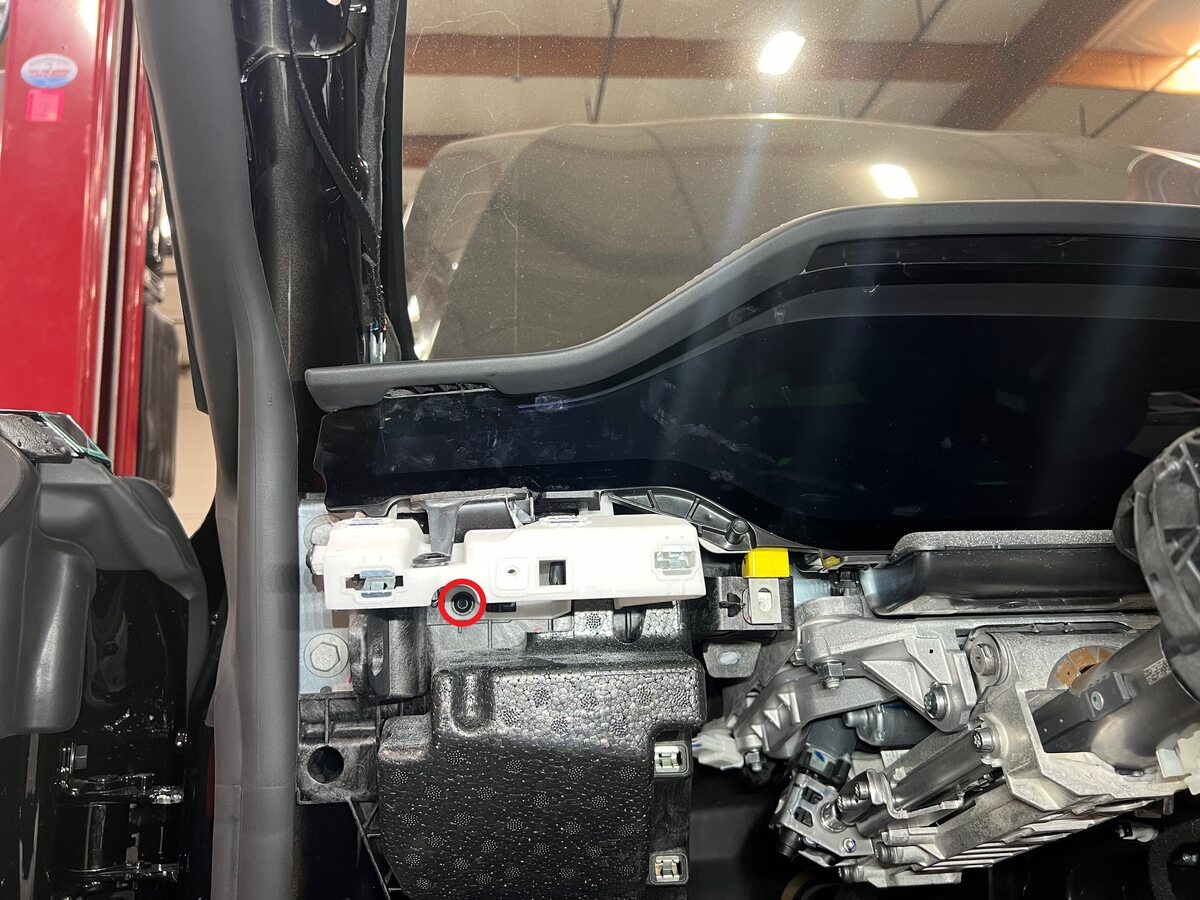

44. Release LH lower instrument panel
    Note

    3x screws, T20, 3 Nm

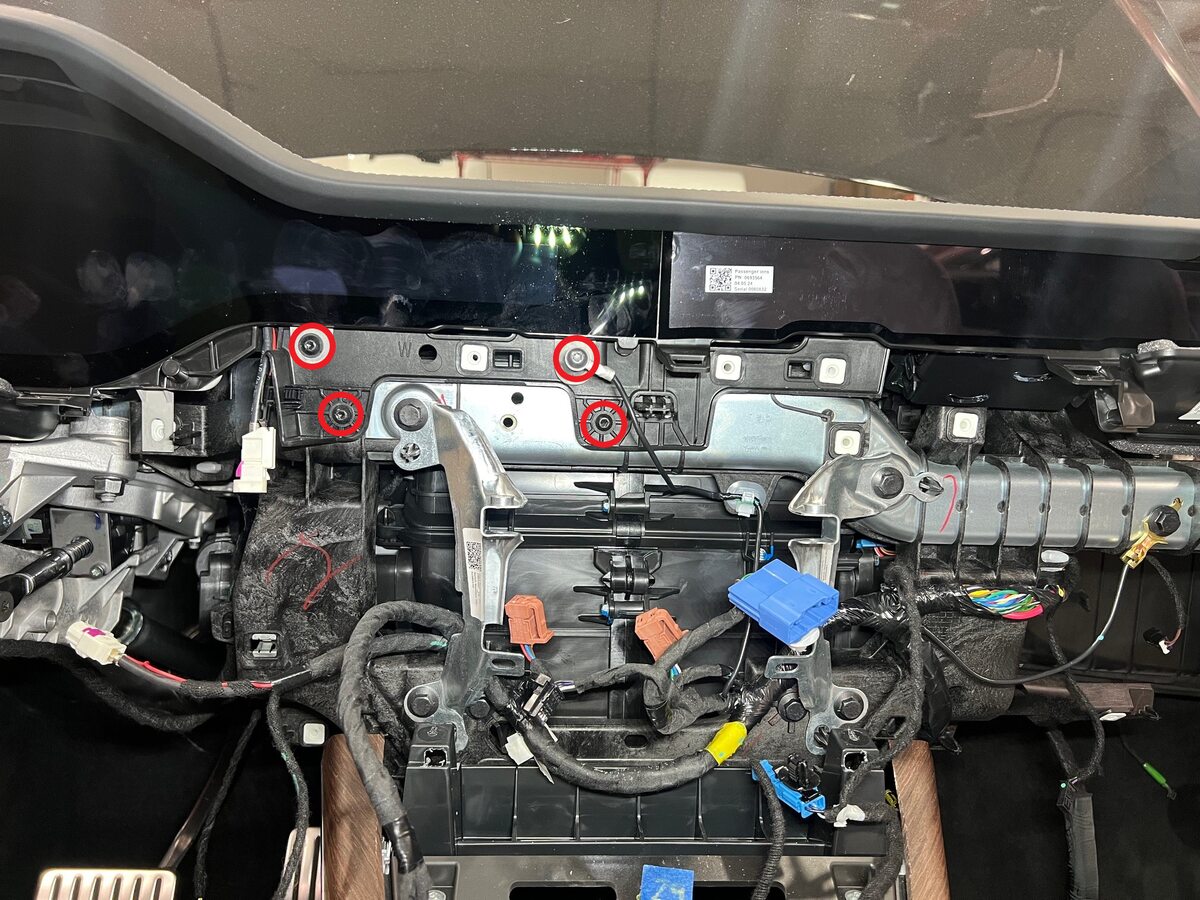

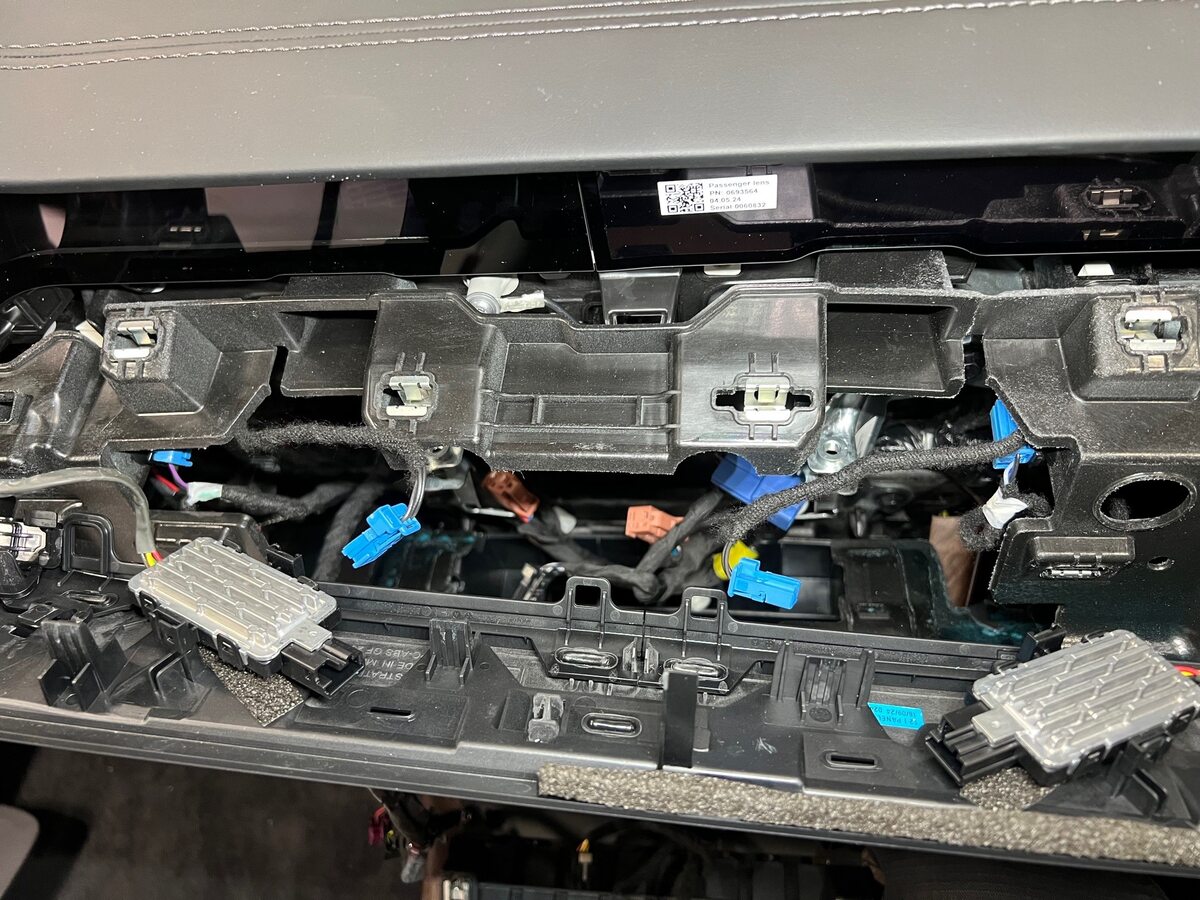

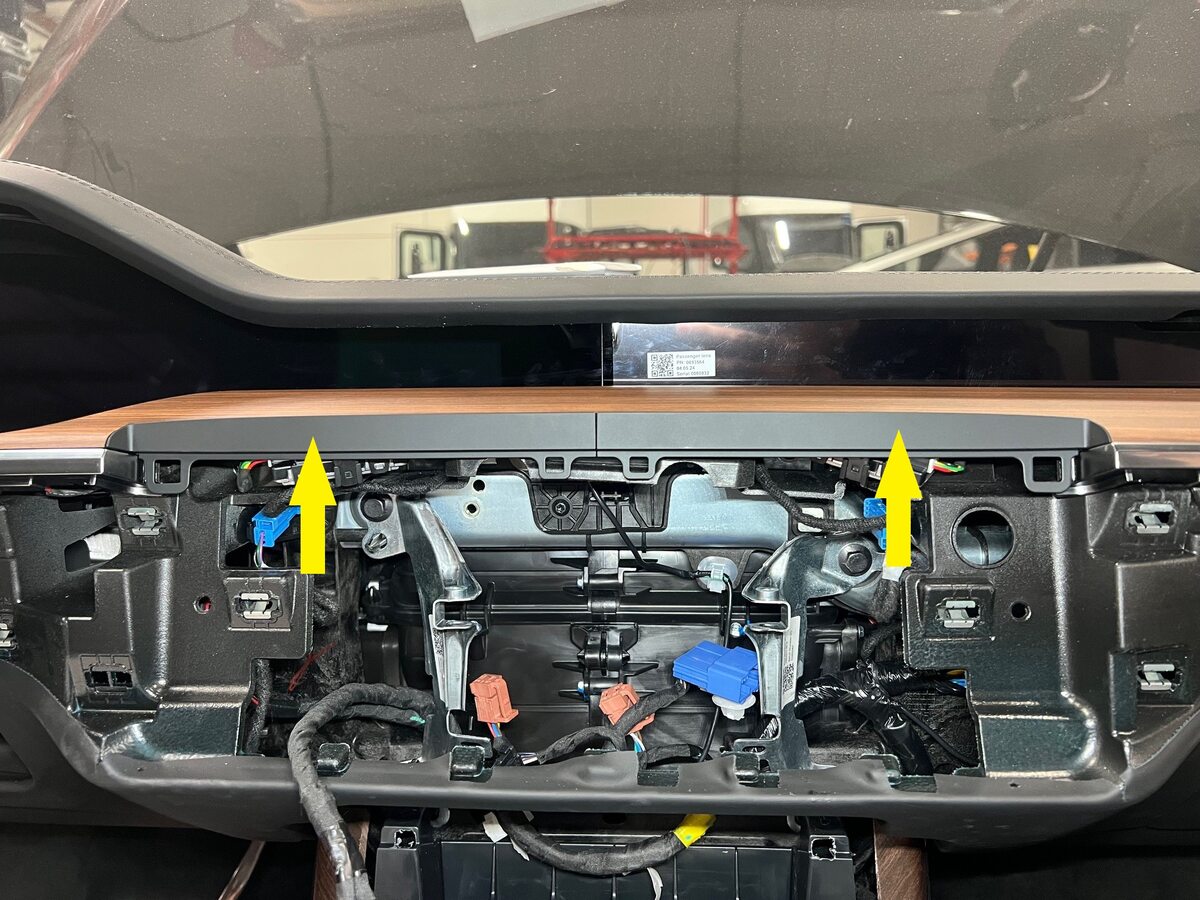

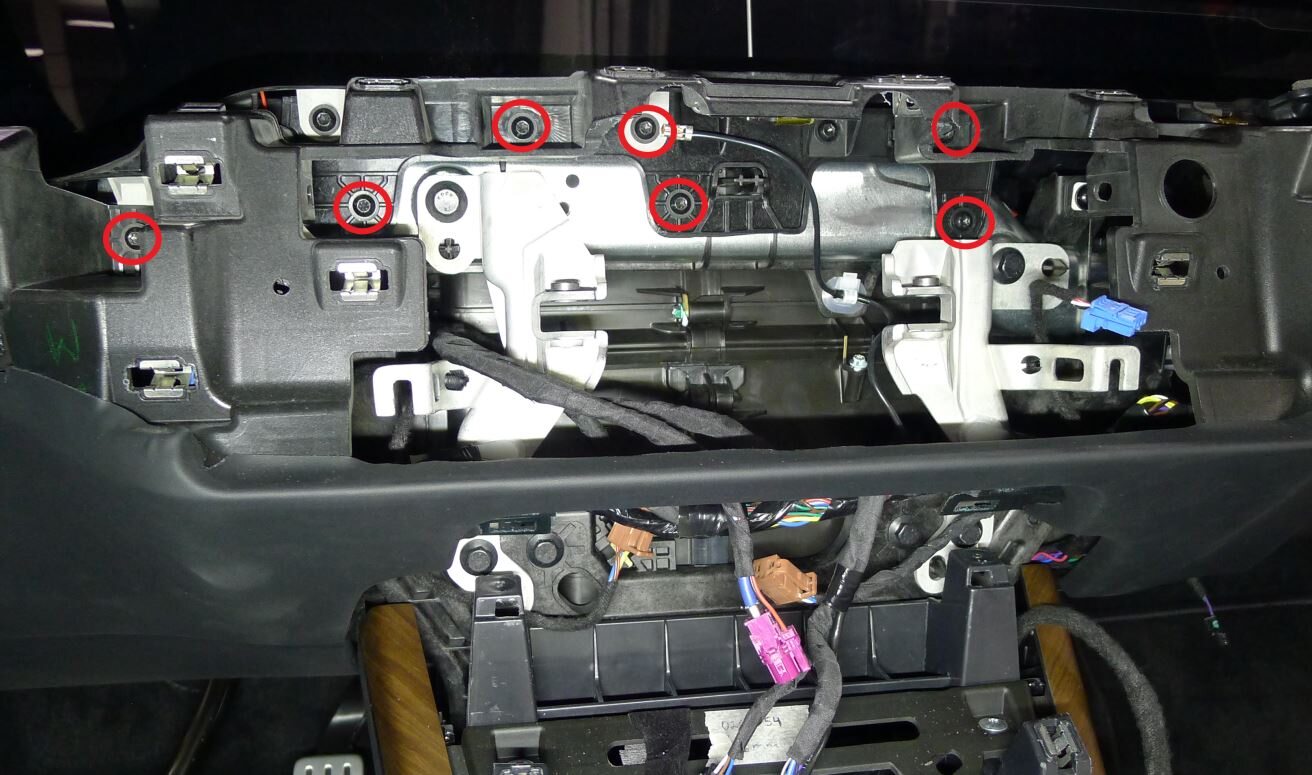

45. Release center lower instrument panel
    Note

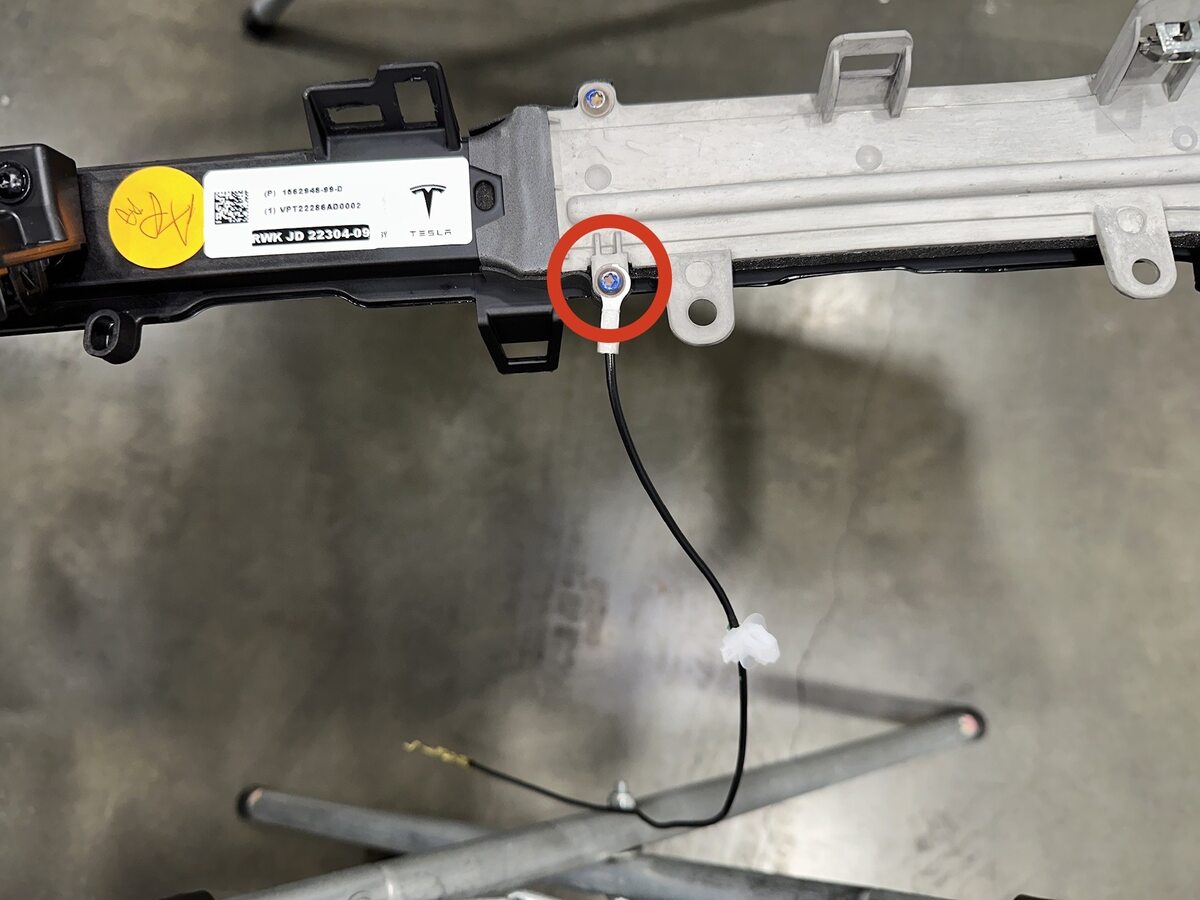

    7x screws, T20, 3 Nm, 1x harness, 1 screw connects instrument panel ground harness. If using part revision 1562948-70-D on a Non-AP4 vehicle, add ground strap 1679240-00-A to aero lens assembly



46. Release RH lower instrument panel
    Note

    3x screws, T20, 3 Nm



47. Release IP trim harness
    Note

    1x connector, 2x clips

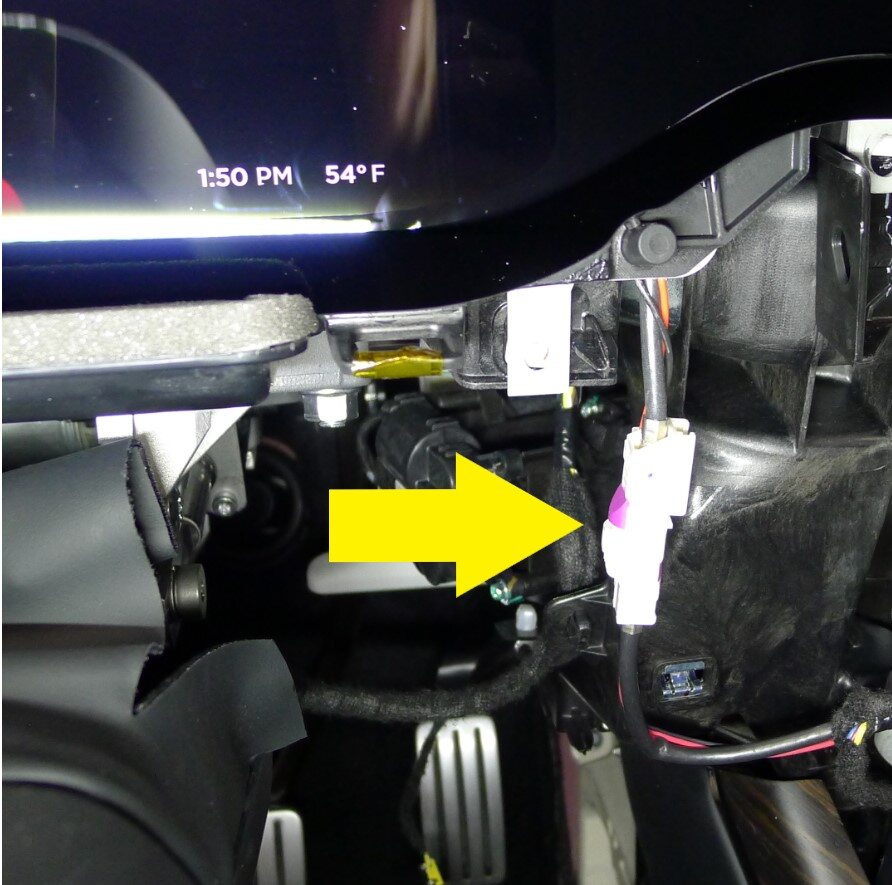

48. Release instrument cluster harness
    Note

    1x connector, 1x clip

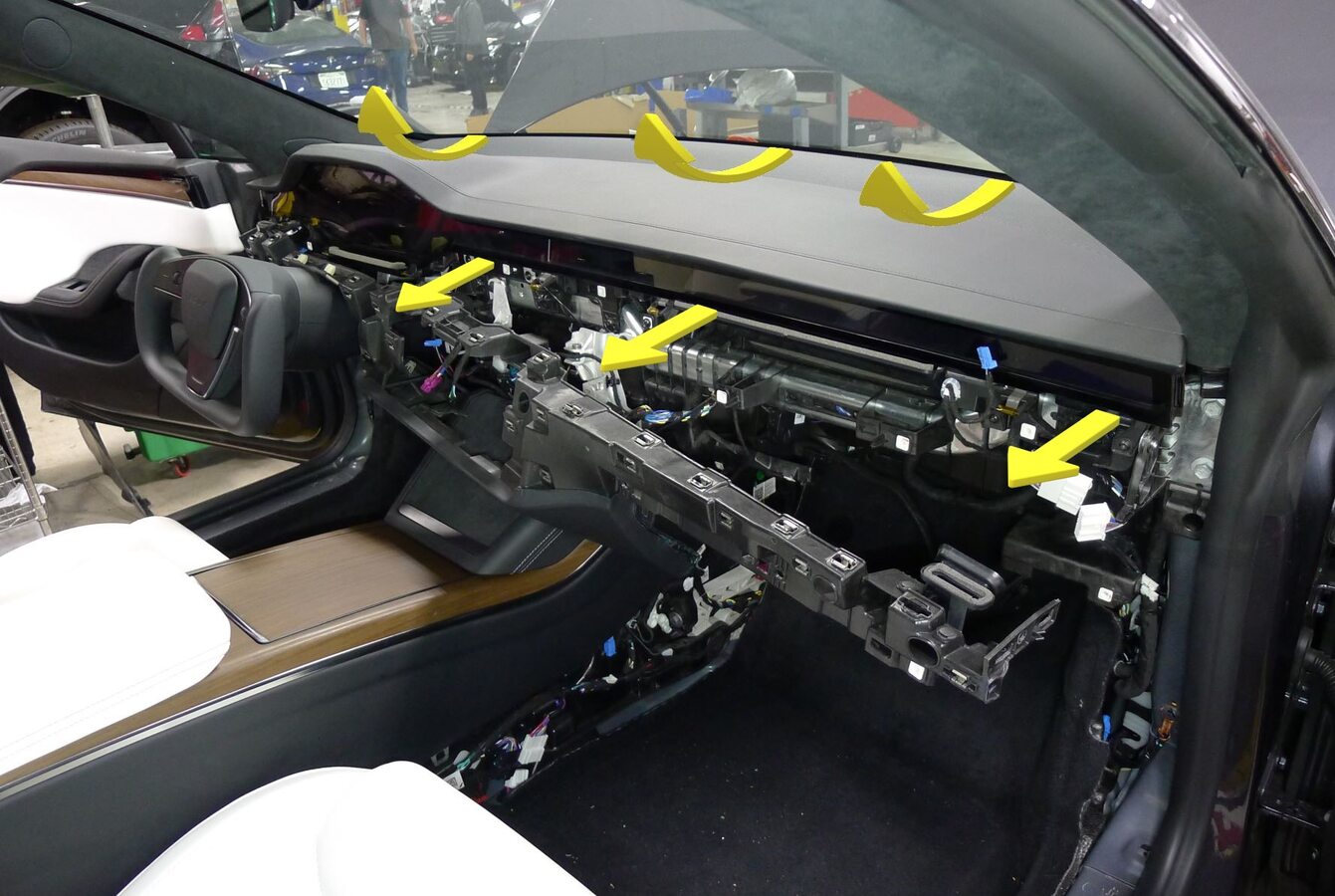

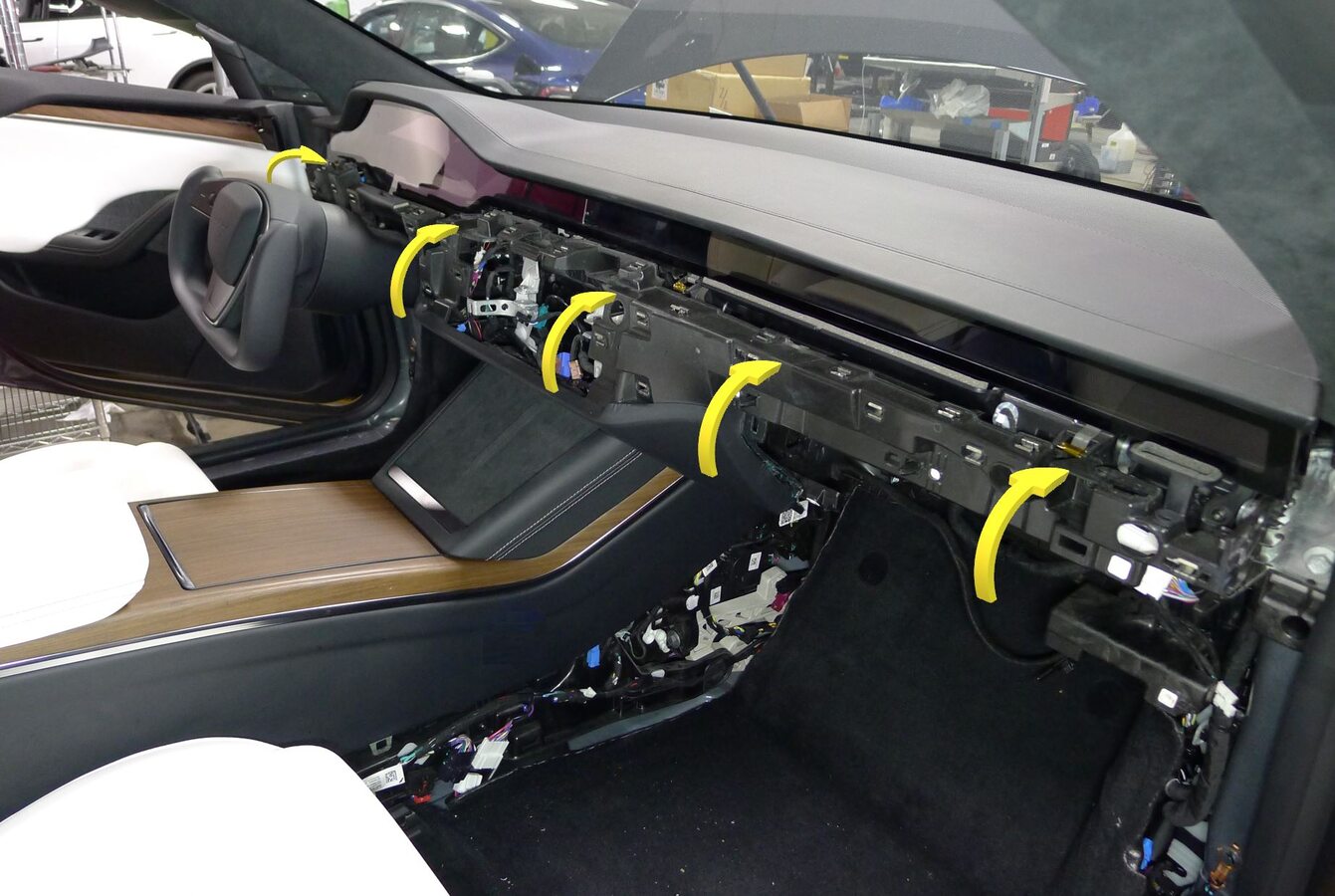

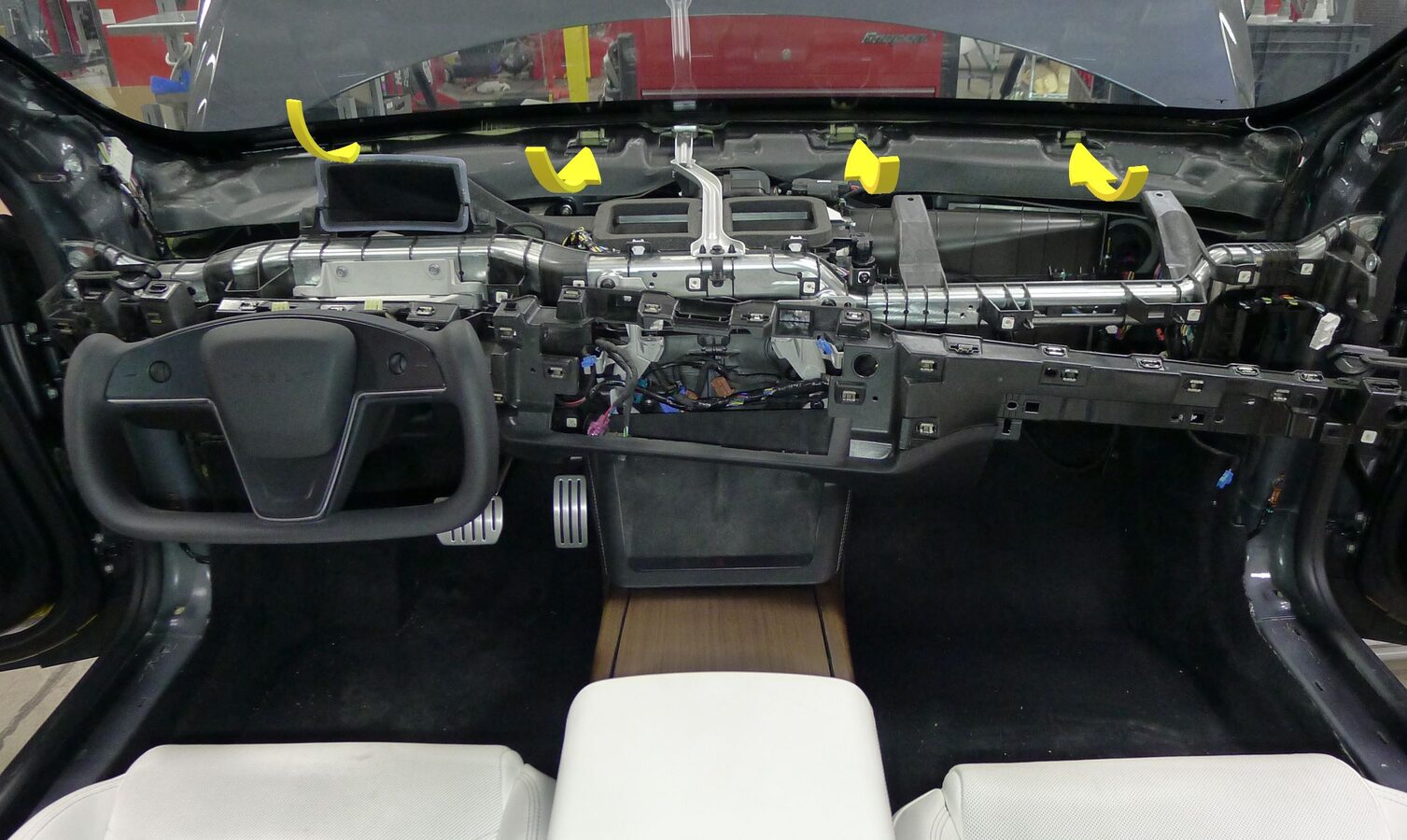

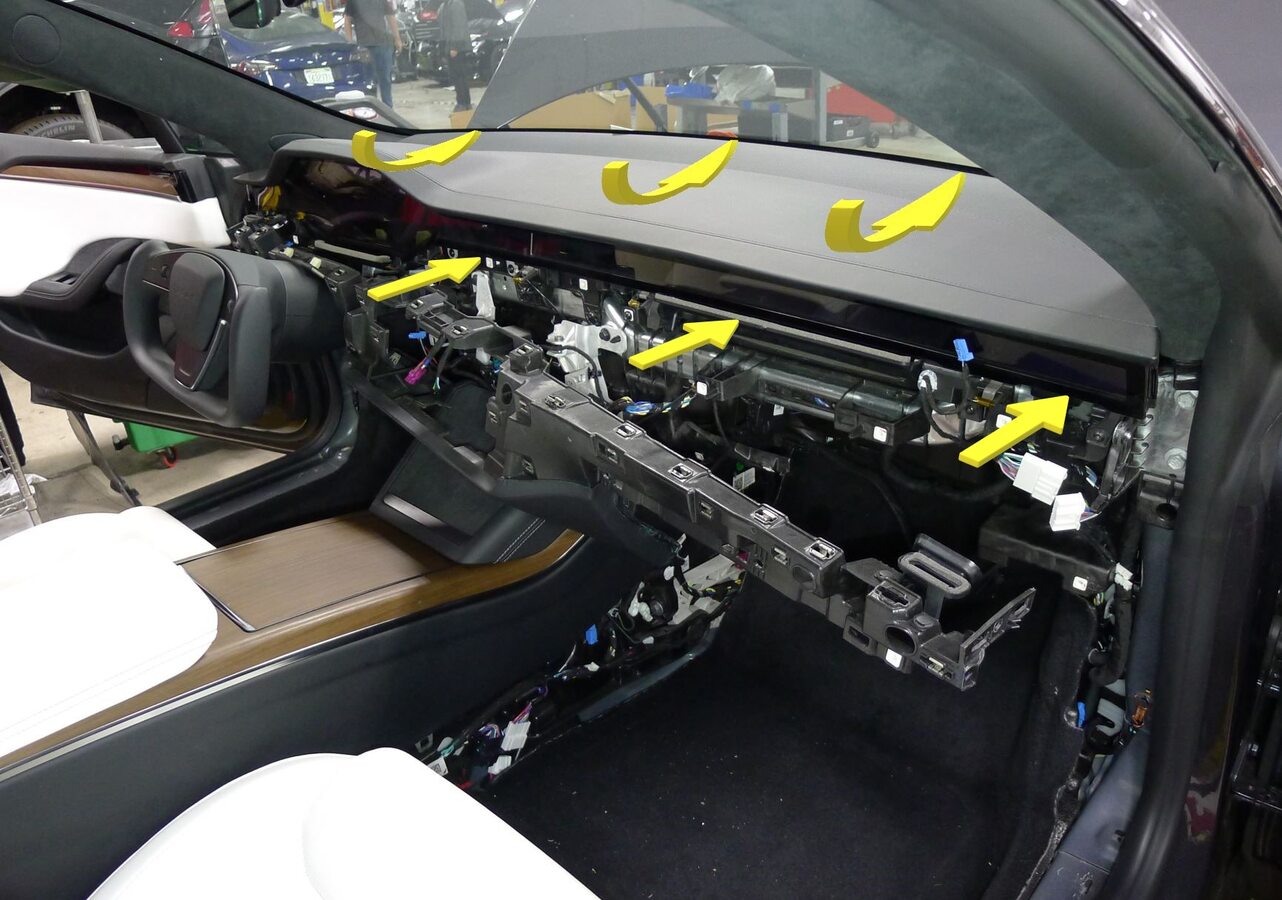

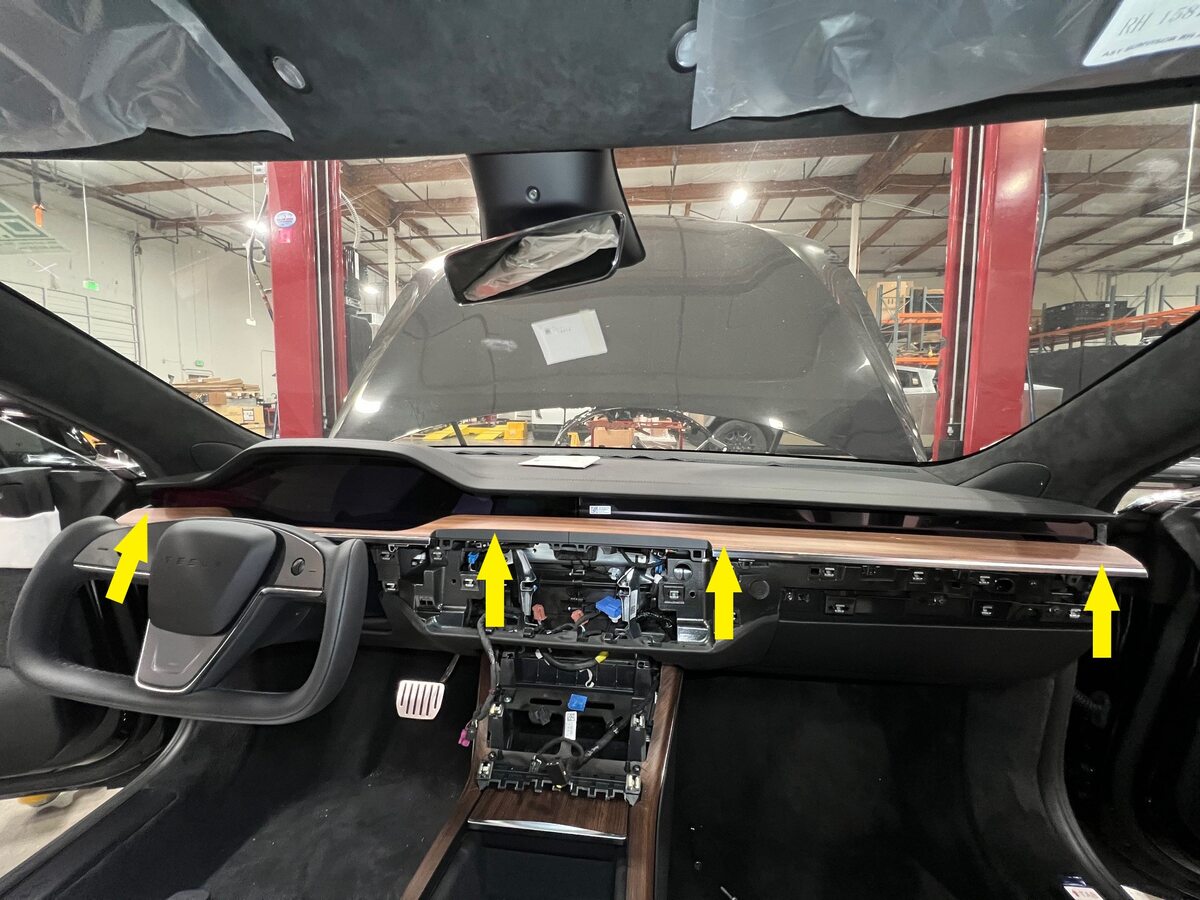

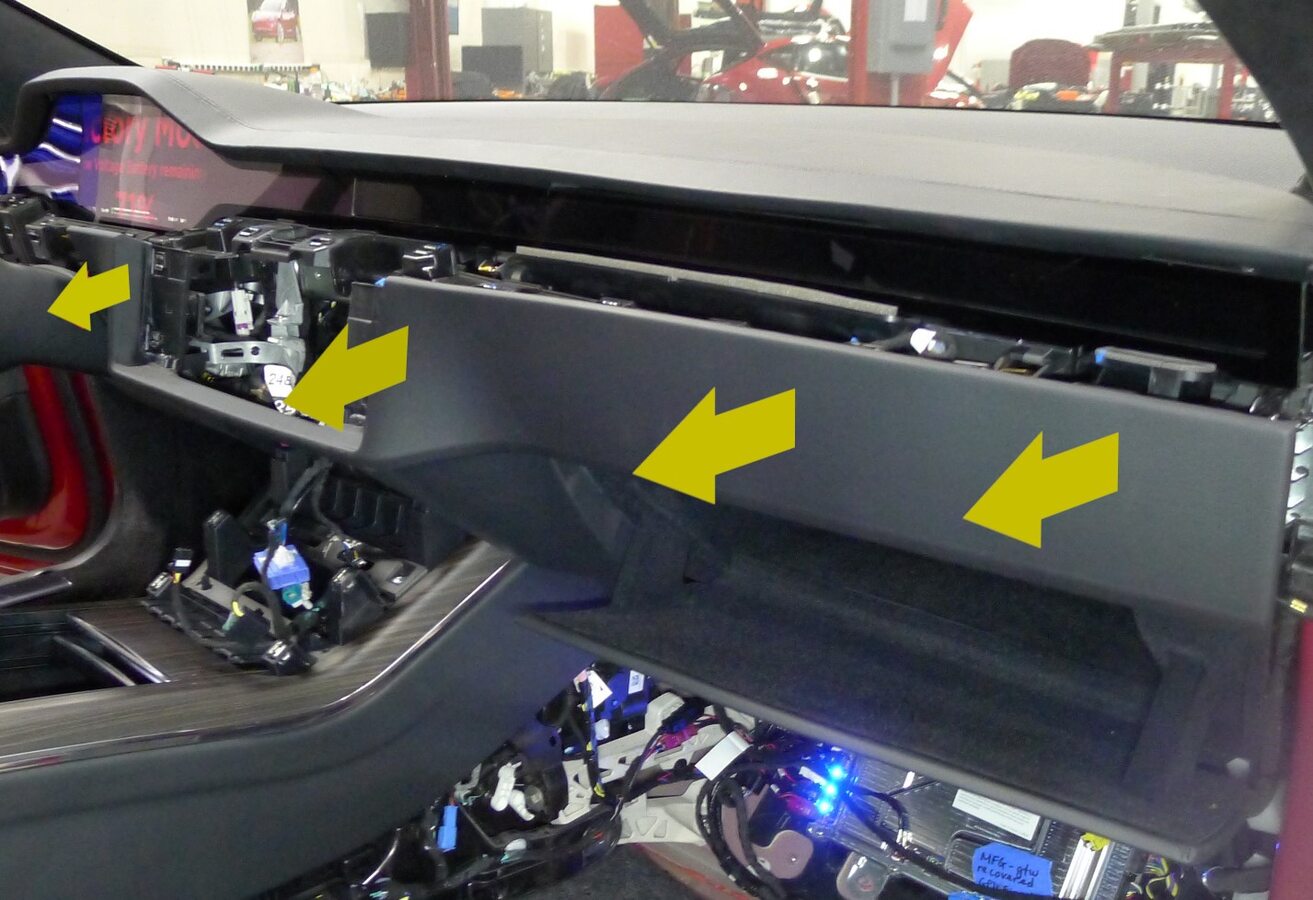

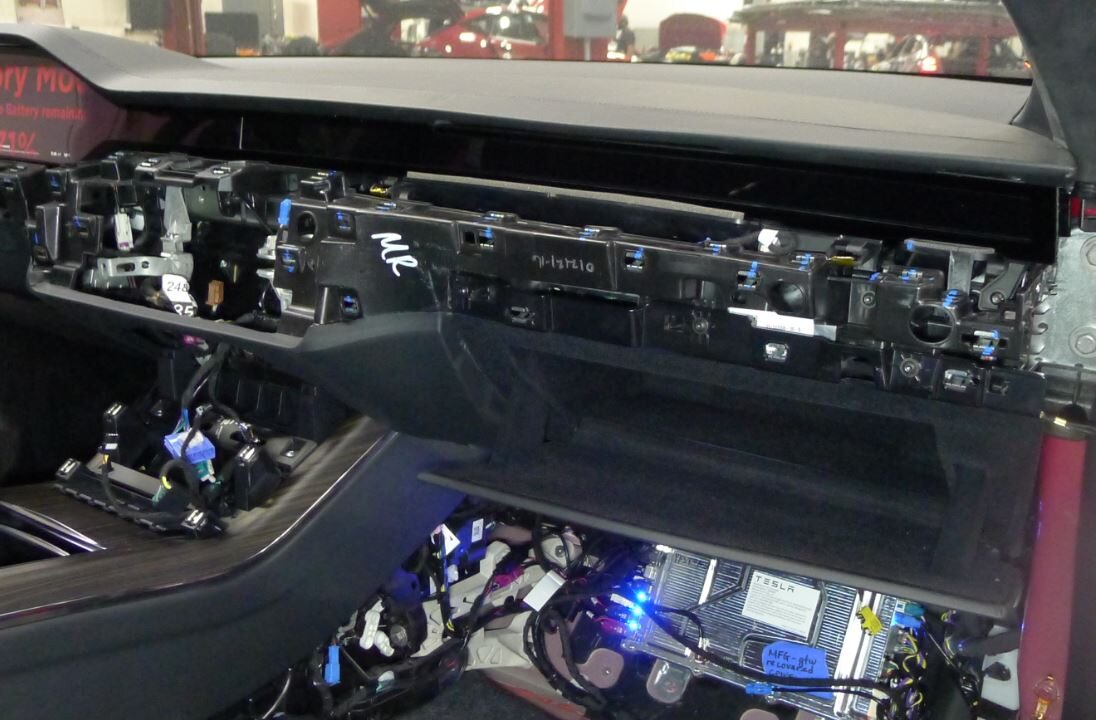

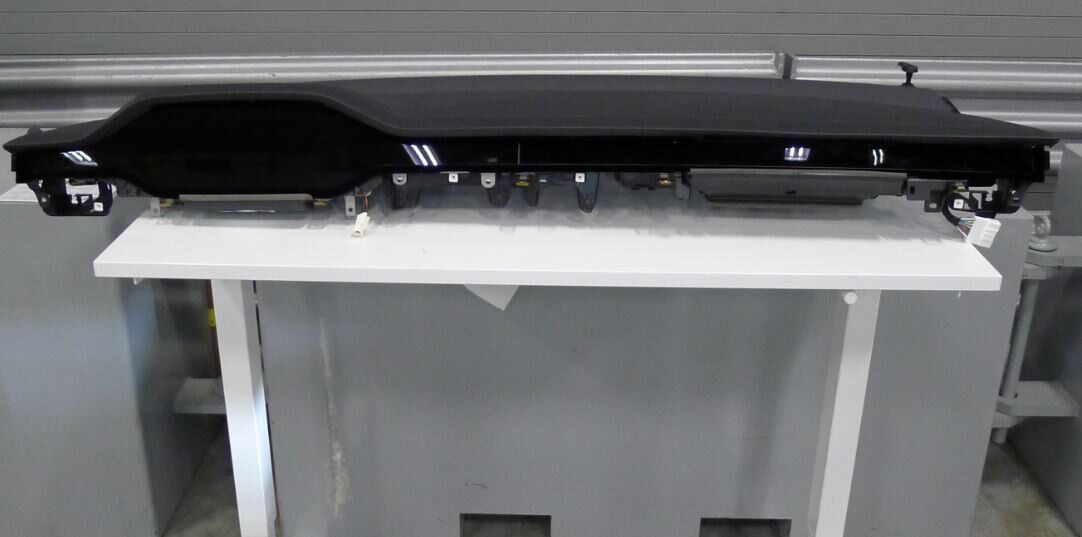

49. Remove IP sub-assembly
    Note

    9x screws, T20, 3 Nm, Slide IP sub-assembly rearward, Lift assembly up from IP carrier, Ensure airwave vents and passenger air bag are clear of lower IP assembly, Remove assembly out through RH front door, Recommend assistance as needed

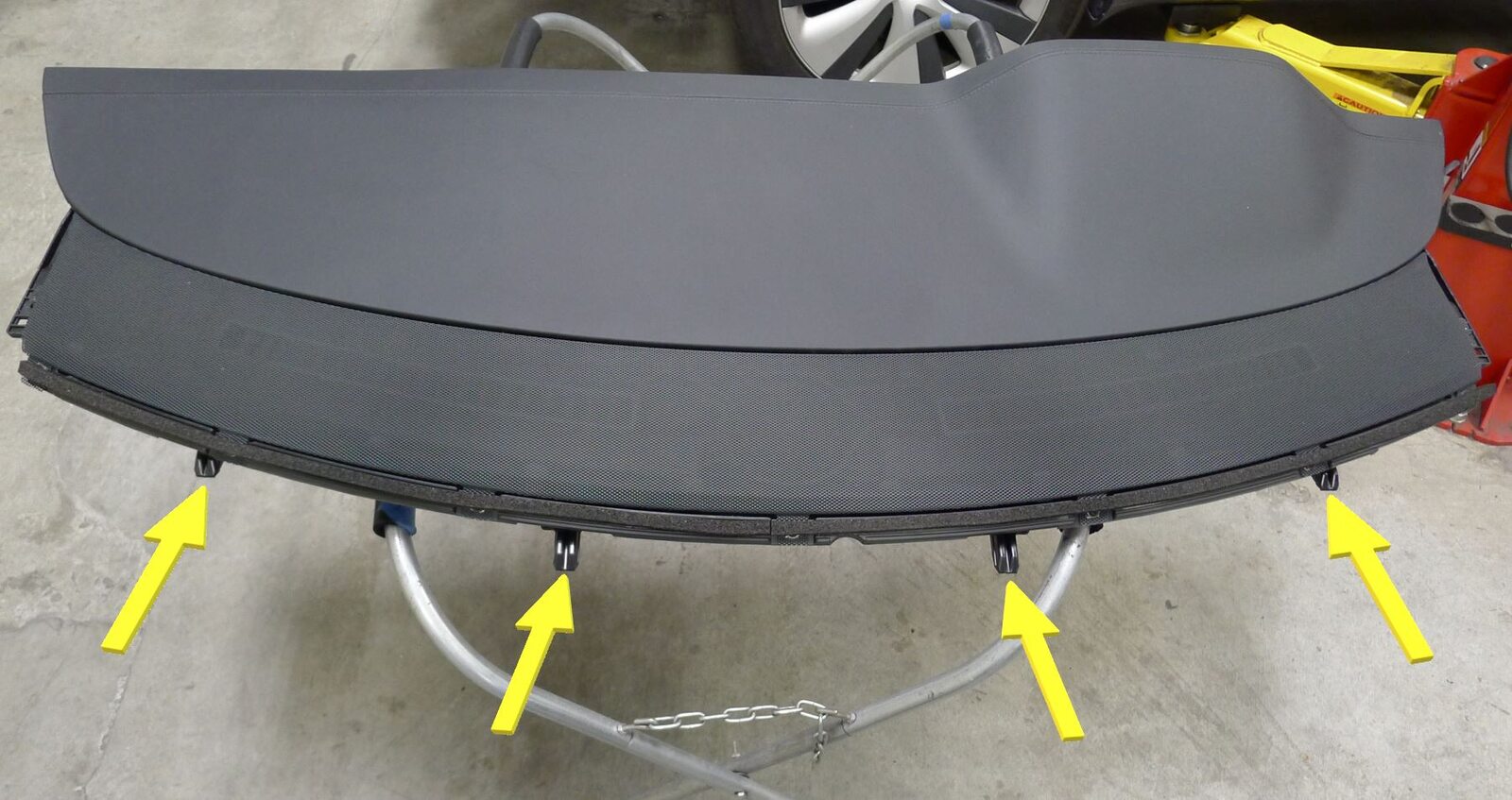

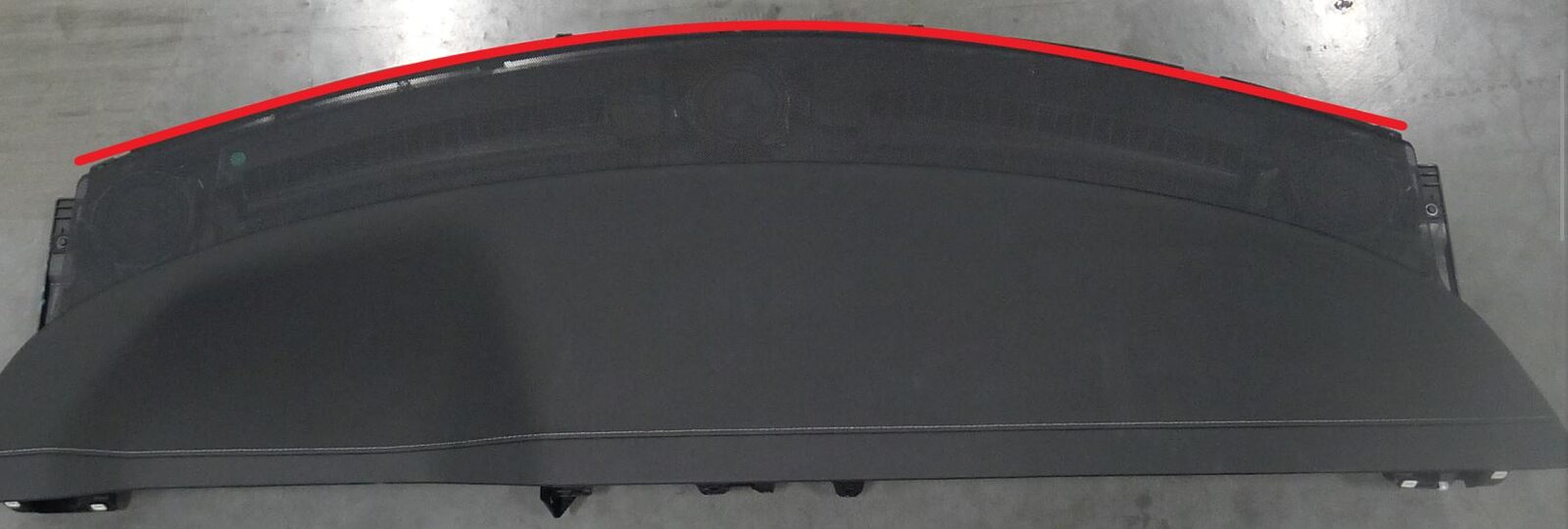

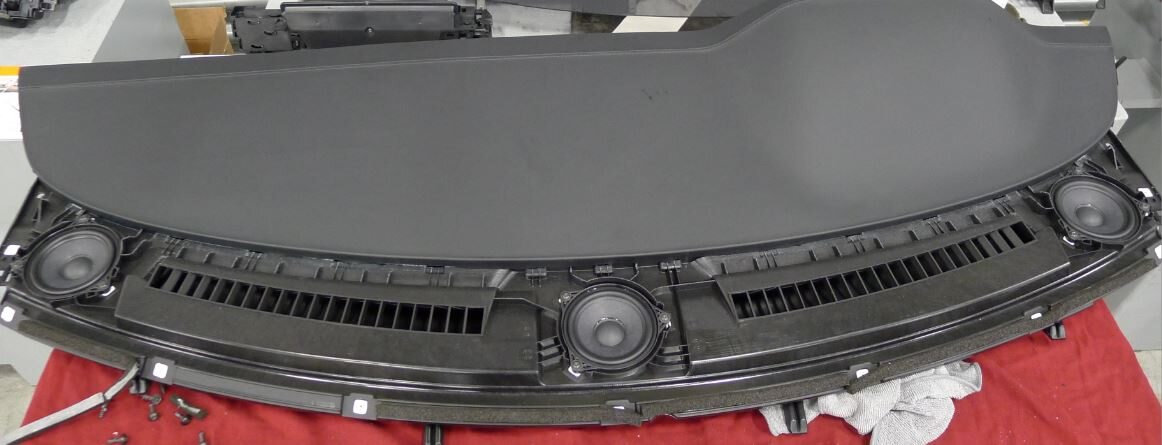

50. Remove IP windshield seal

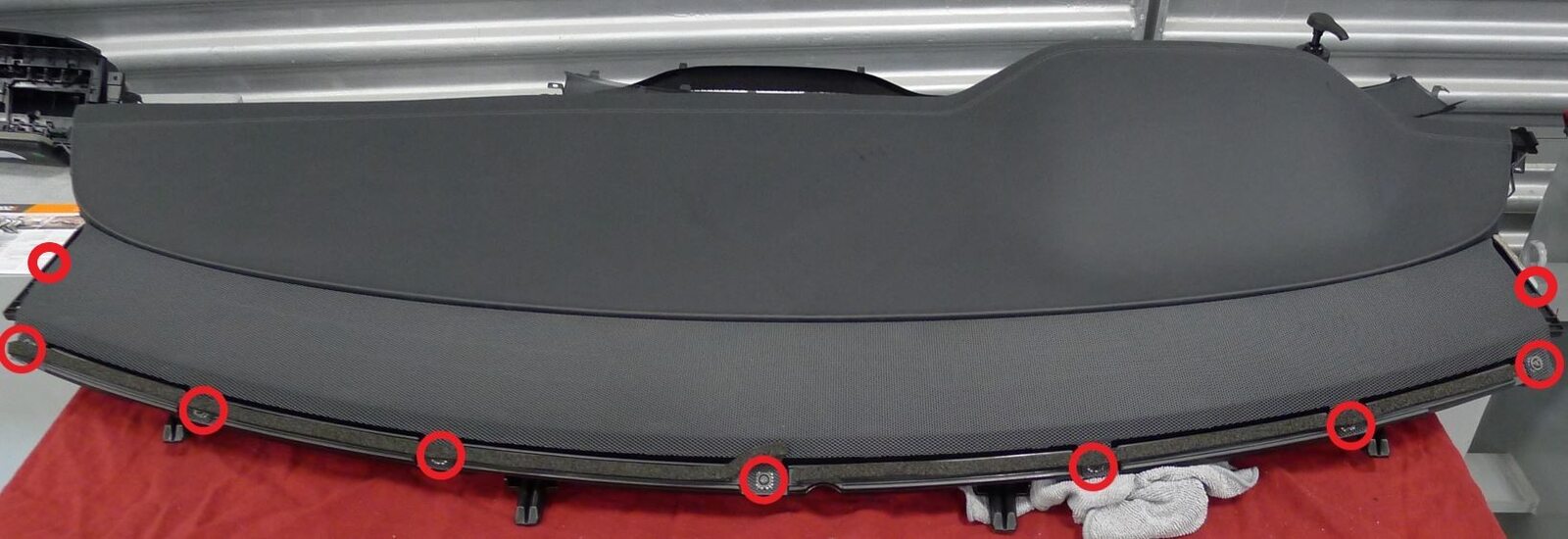

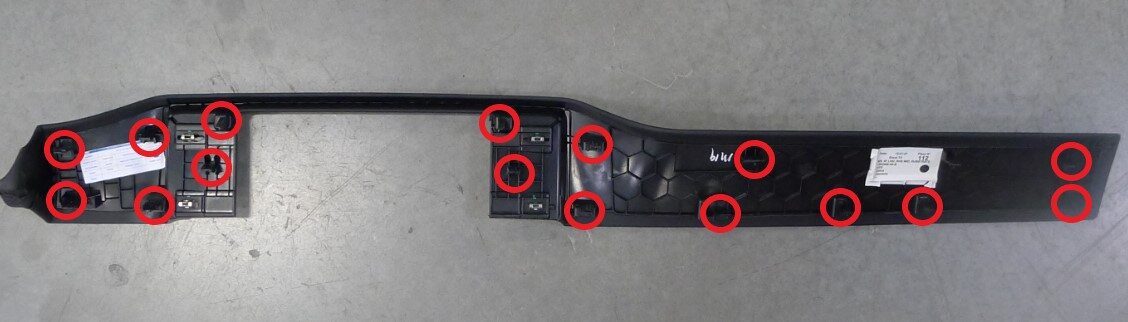

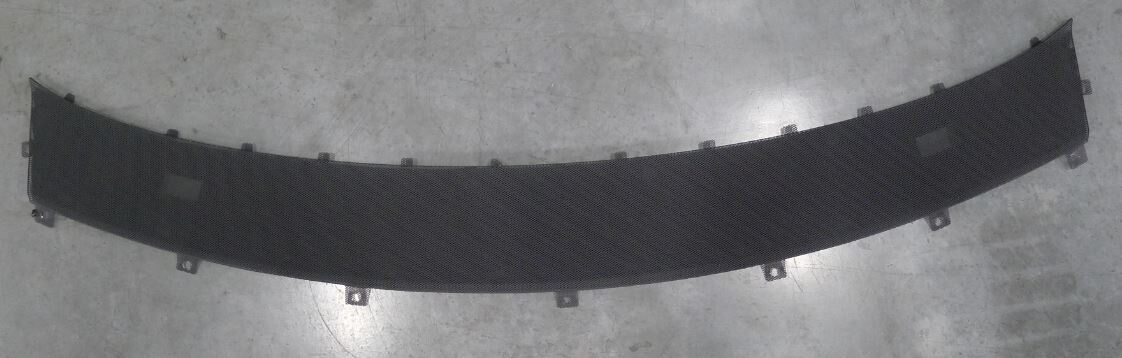

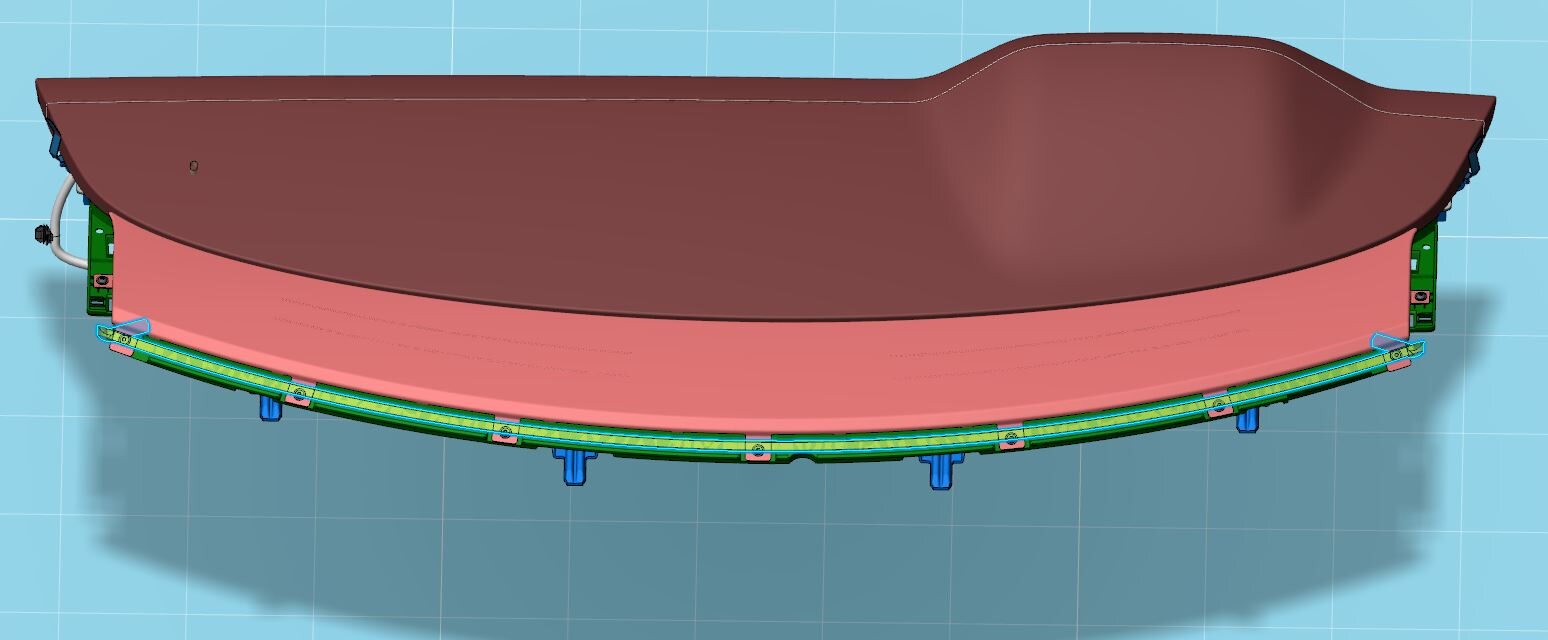

51. Release IP speaker mesh
    Note

    9x screws, T20, 3 Nm



52. Remove IP speaker mesh
    Note

    Lift and disengage from IP sub-assembly







53. Install IP speaker mesh
    Note

    Engage leading edge into IP sub-assembly and lower into place







54. Secure IP speaker mesh
    Note

    9x screws, T20, 3 Nm



55. Install IP windshield seal
    Note

    Clean with IPA, Allow 1 minute to dry

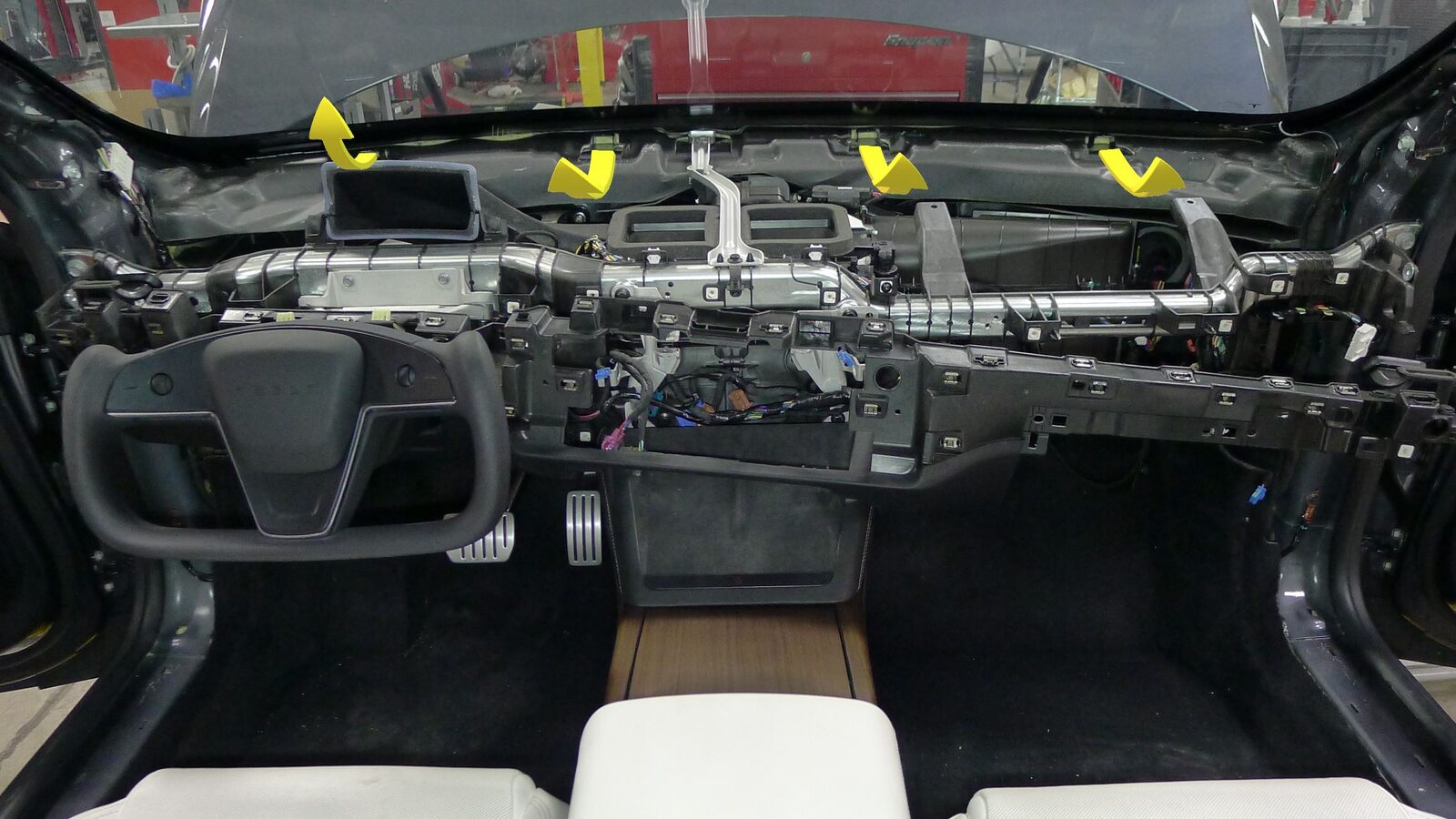

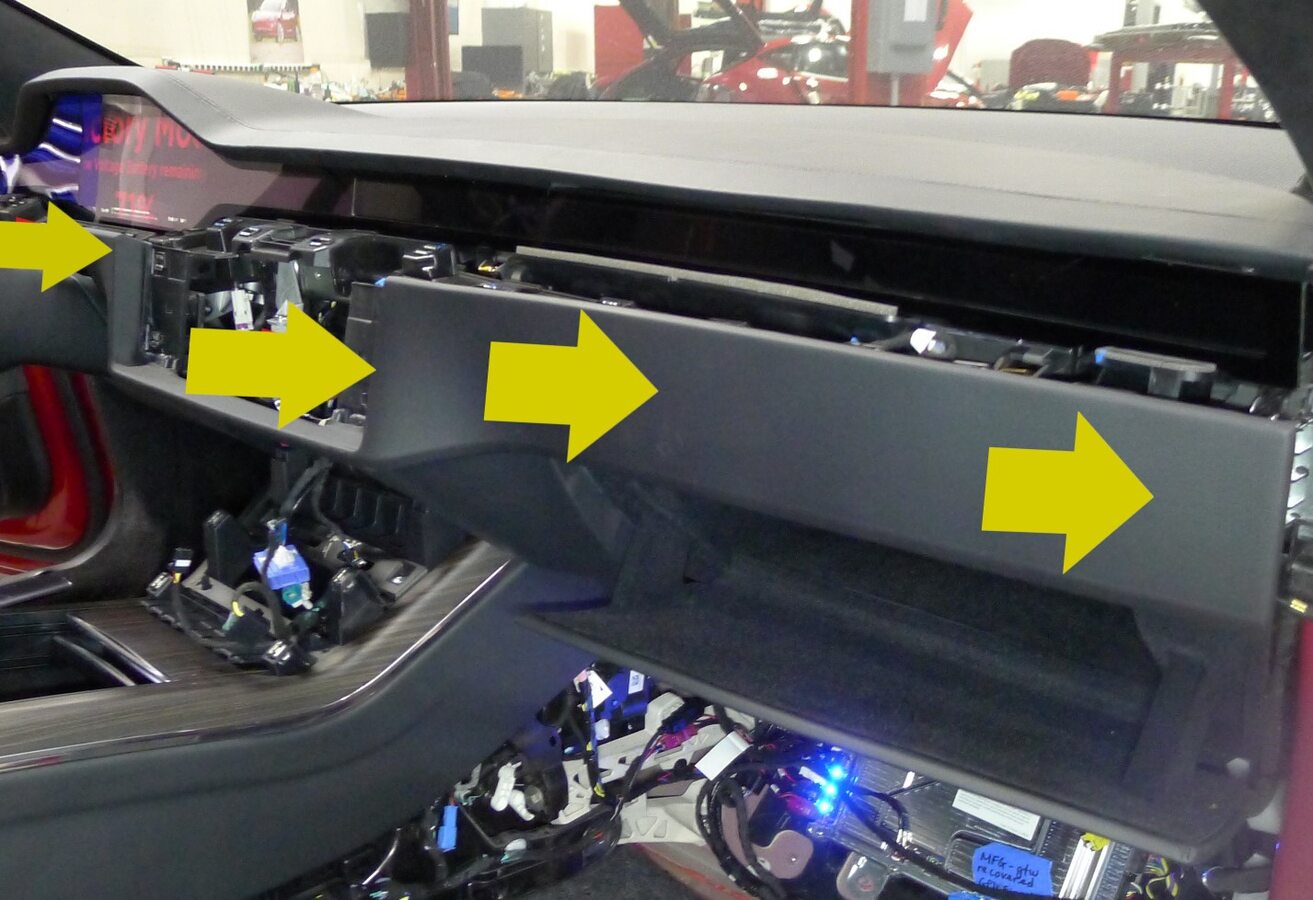

56. Install IP sub-assembly
    Note

    9x screws, T20, 3 Nm, 4x datums, Slide IP sub-assembly into vehicle, Ensure passenger air bag and driver vent assembly have clearance past lower IP assembly, Recommend assistance

















57. Secure IP trim harness
    Note

    1x connector, 1x clip



58. Secure instrument cluster harness
    Note

    1x connector



59. Secure IP Decor harness to LH IP sub-assembly
    Note

    1x clip



60. Position lower instrument panel assembly into IP sub-assembly



61. Secure LH lower instrument panel
    Note

    3x screws, T20, 3 Nm



62. Secure center lower instrument panel
    Note

    7x screws, T20, 3 Nm, 1x harness, 1 screw connects instrument panel ground harness. If using part revision 1562948-70-D on a Non-AP4 vehicle, add ground strap 1679240-00-A to aero lens assembly





63. Secure RH lower instrument panel
    Note

    3x screws, T20, 3 Nm

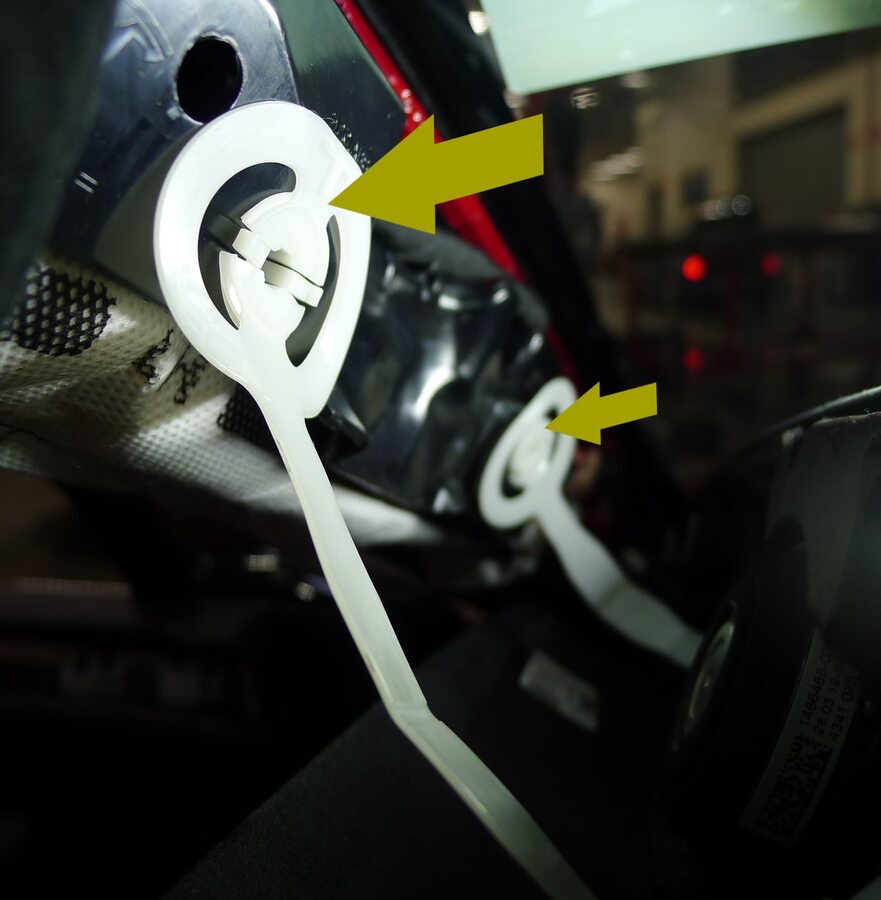

64. Install RH upper A-pillar trim
    Note

    2x tethered clips, 1x clip, 2x connector, Slide bottom of trim along IP and speaker grill, attach each tether to body side, Set clips starting at the bottom and work up, Pull seal over trim









65. Install LH upper A-pillar trim
    Note

    2x tethered clips, 1x clip, 2x connector, Slide bottom of trim along IP and speaker grill, attach each tether to body side, Set clips starting at the bottom and work up, Pull seal over trim









66. Install IP carrier cross beam bolts
    Note

    2x bolts, 10mm, 6 Nm





67. Secure passenger IP airbag connectors
    Note

    3x connectors, Note RoW variant vehicles may be equipped with only 2x connectors, Verify connectors are fully secured



68. Install passenger IP air duct
    Note

    2x push-pull rivets





69. Secure passenger IP air duct temperature sensor connector
    Note

    1x connector

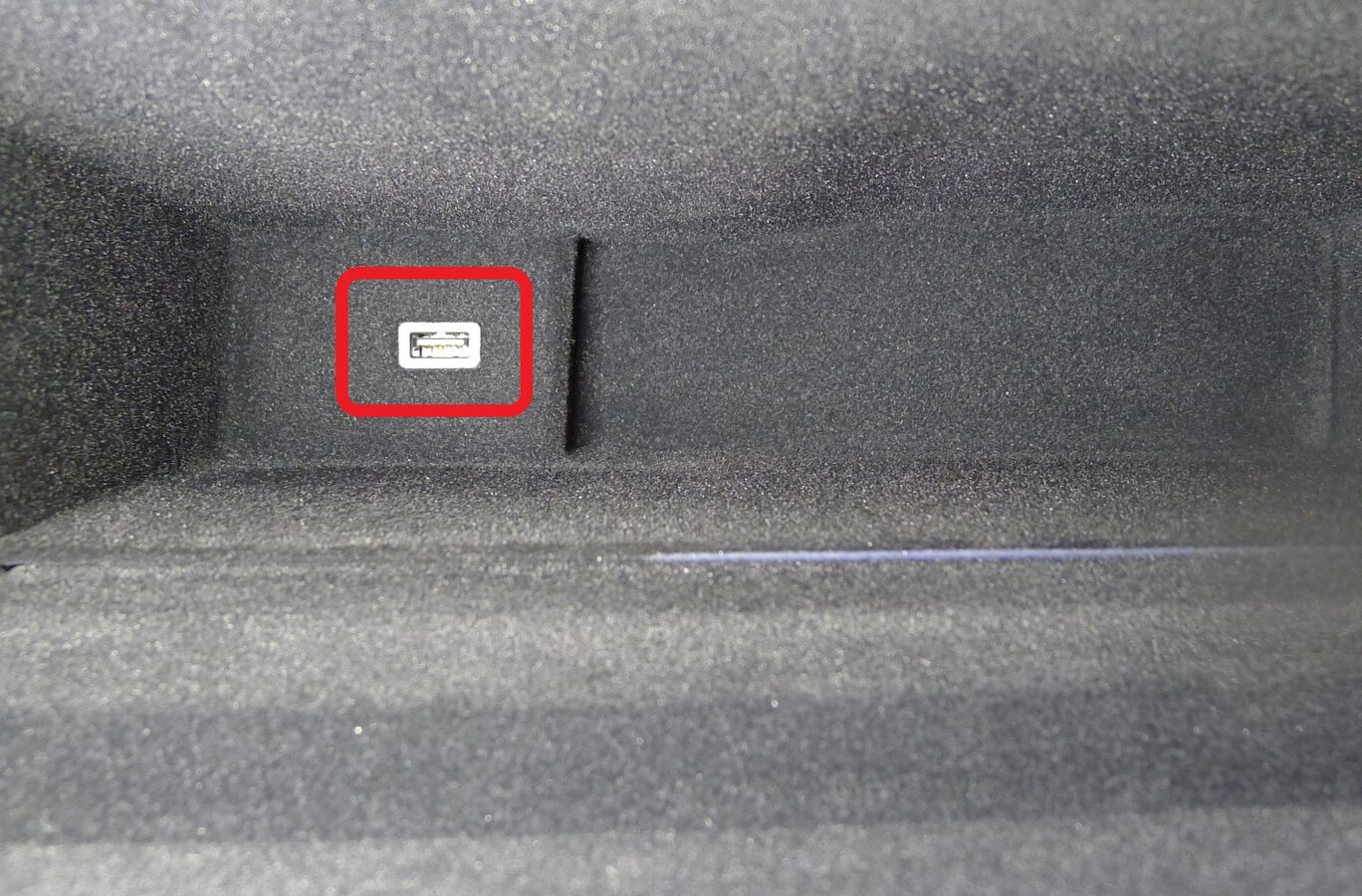

70. Secure USB outlet
    Note

    2x screws, T20, 3 Nm, 1x clip, Ensure USB socket flush in glove box





71. Secure glove box connectors
    Note

    3x connectors

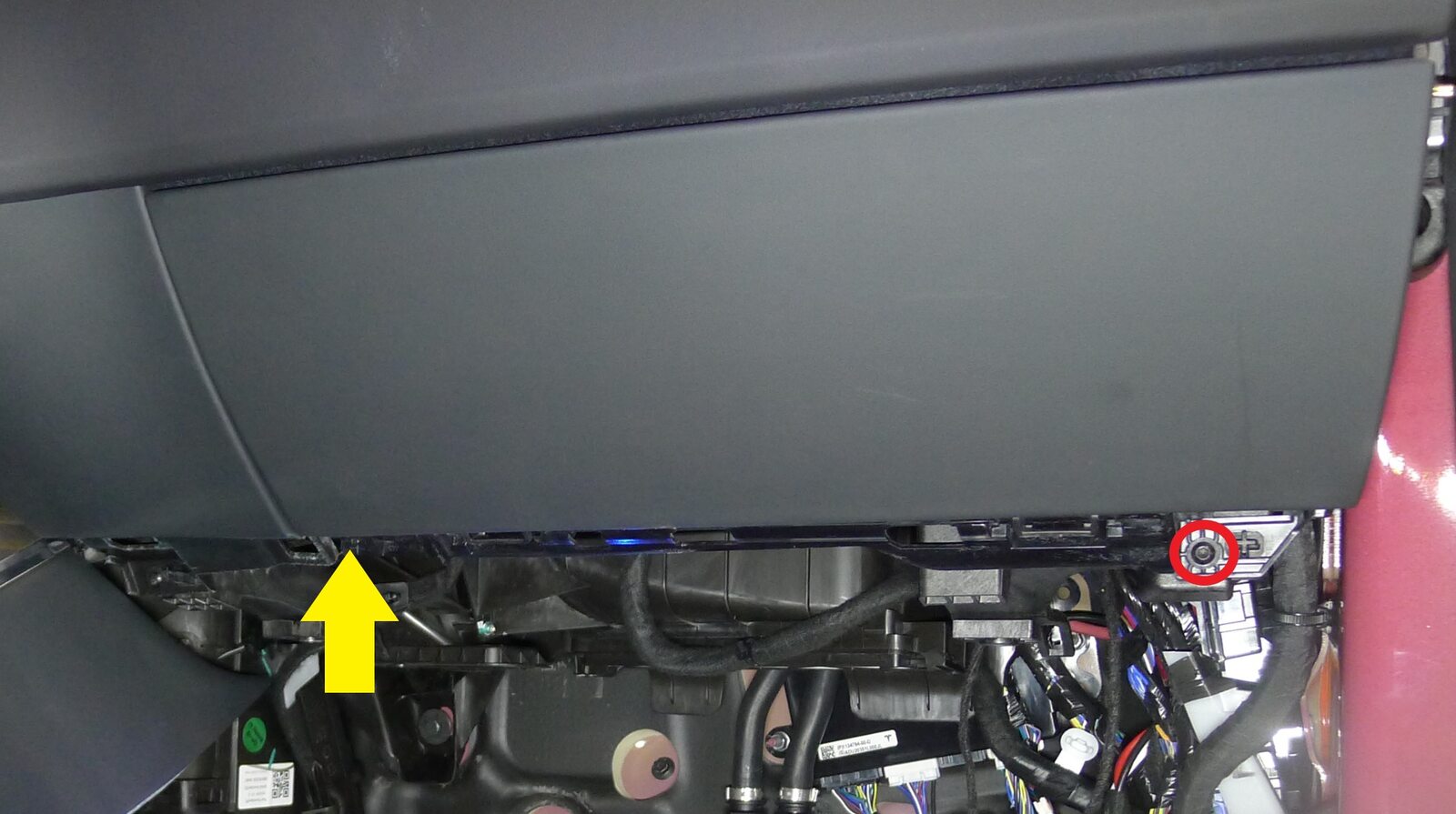

72. Install glove box
    Note

    5x screws, T20, 3 Nm, Install screws at top of box, close lid then install bottom screws. Use manual release to open box if needed





73. Install RH knee air bag assembly into vehicle
    Note

    2x connectors, 6x tabs, 1x clip, Hook tabs before fully seating, Use caution not to damage the connector/harness, Support the knee air bag while connecting the connector







74. Install fasteners securing RH knee air bag assembly to vehicle
    Note

    2x bolts, 10mm, 8 Nm, 1x clip, Install new fasteners



75. Install RH footwell cover
    Note

    3x magnets, 4x datums, 1x connector





76. Install IP RH mid Panel
    Note

    14x tabs, 2 datums







77. Install IP LH mid panel
    Note

    6x tabs







78. Install IP closeout panel
    Note

    4x tabs







79. Install IP Decor
    Note

    21x clips, 6x datums, 2x connectors, Connect ambient bright harness, Secure each IP decor connector clip to IP carrier, Secure IP decor to lower instrument panel











80. Route display harness behind LH display bracket



81. Position center display in IP





82. Secure center display coax and power connectors
    Note

    2x connectors, 1x clip, Ensure strain relief clip is secure to linkage arm, Replace clip if damaged



83. Install center display shroud
    Note

    3x tabs, Slide display downward until shroud tabs fully engages, Set center display back into IP







84. Secure center display motor connectors
    Note

    2x connectors, Slide center display assembly fully into IP brackets after securing connectors





85. Install center display bracket bolts
    Note

    2x bolts, 10mm, 7 Nm





86. Secure IP service panel connector
    Note

    1x connector





87. Secure diagnostic and CAN harnesses to IP service panel
    Note

    2x clips







88. Secure IP service panel
    Note

    2x tabs, 4 datums, Slide forward engaging datums then secure tabs upward into IP





89. Install phone dock connections
    Note

    3x connectors, 1x clip





90. Install phone dock
    Note

    2x datums, 4 tabs, Slide datums forward into IP and secure tabs down into center console





91. Connect First Responder Loop and LV battery connector
    Note

    2x connectors Secure FRL first, Seat LV battery connection and push black connector lock inwards to secure, Engage green locking tab when fully seated







92. Install rear underhood apron
    Note

    8x clips





93. Close hood
    Note

    Press firmly in green highlighted areas (see image), Damage may result from pressure elsewhere on hood
94. Adjust steering column back to original position
    Note

    Via UI>Controls>Steering, Use left steering wheel scroll wheel to adjust steering column
95. Install LH IP end cap
    Note

    4x clips

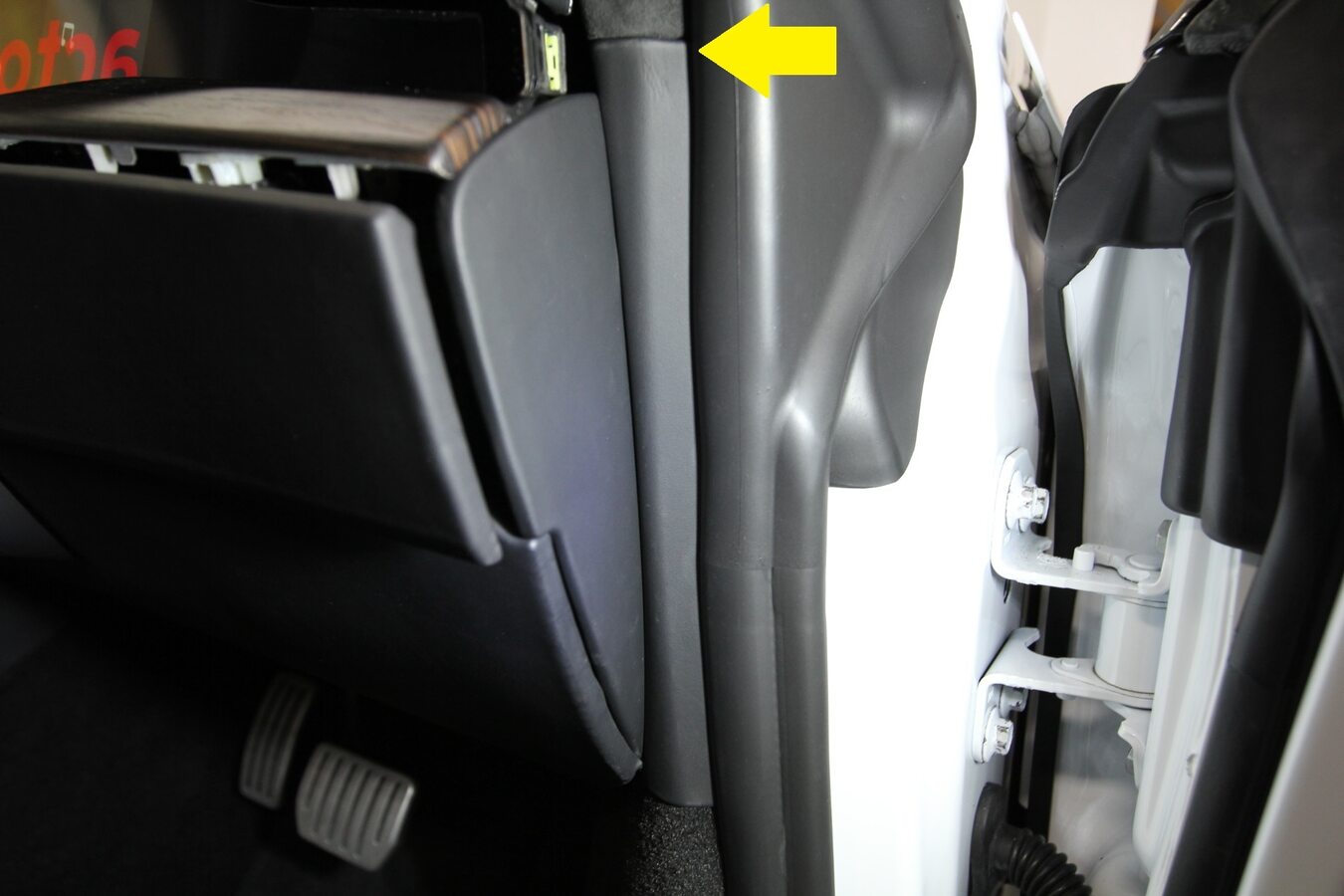

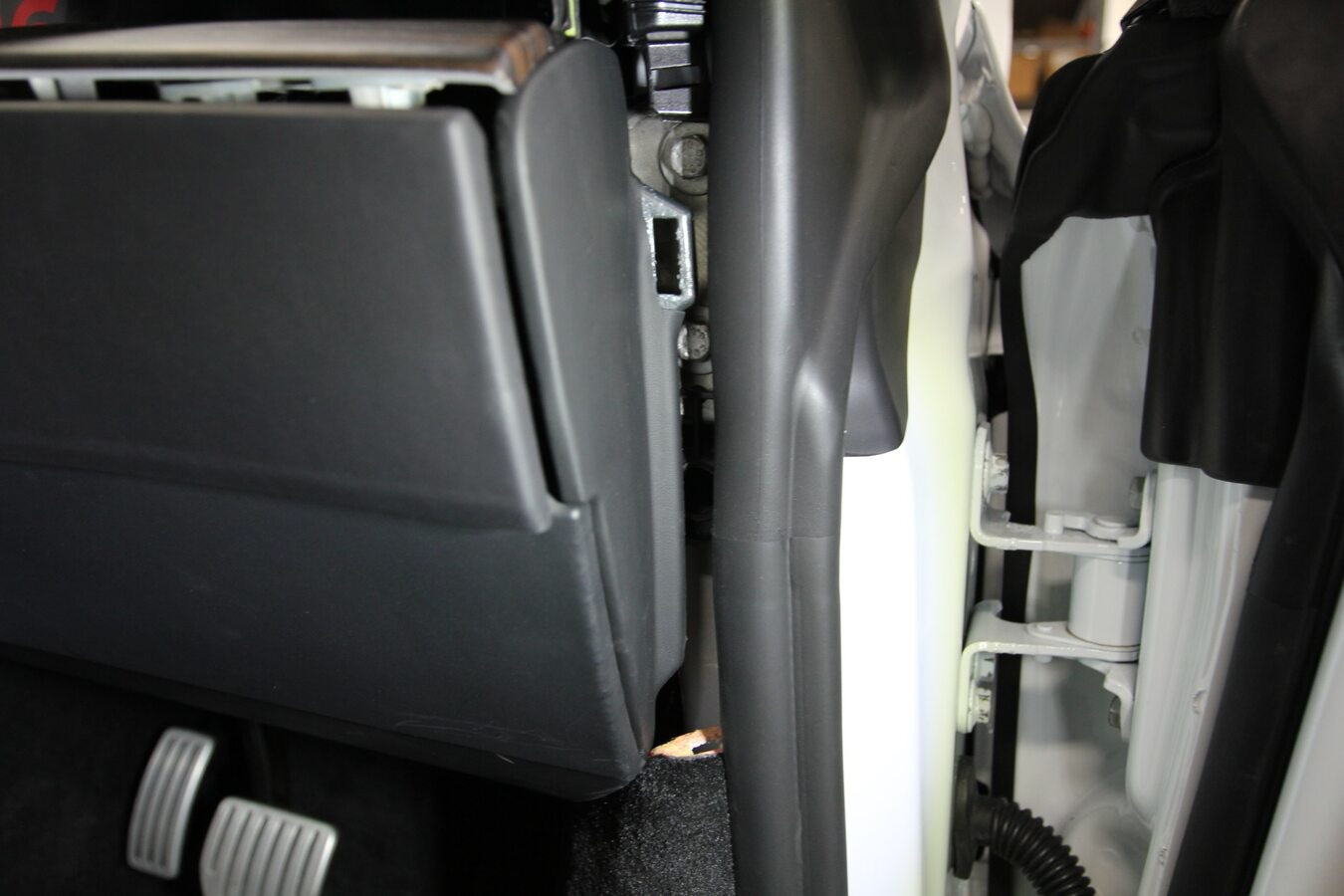

96. Install LH mid A-pillar trim
    Note

    1x clip, 2x tabs, Verify weather seal is seated properly





97. Move LH front seat to original position
98. Raise LH front window
99. Close LH front door
    Note

    Close doors
100. Install RH IP end cap
     Note

     4x clips





101. Install RH mid A-pillar trim
     Note

     1x clip, 2x tabs, Verify weather seal is seated properly





102. Move RH front seat to original position
103. Raise RH front window
104. Close RH front door
