1. Open LH rear door
2. Lower LH rear window

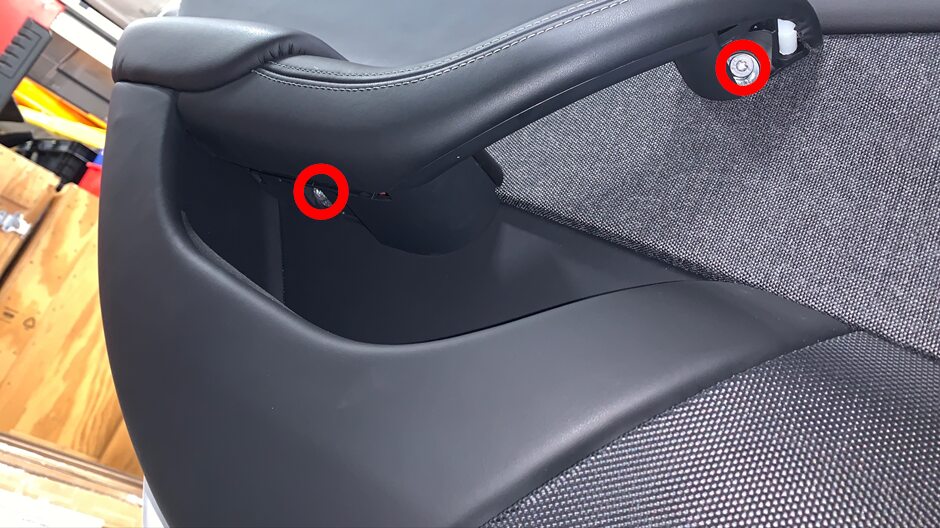

3. Remove fasteners securing LH rear door panel under armrest and door trim handle
   Note

   2x bolts, T30, 6 Nm

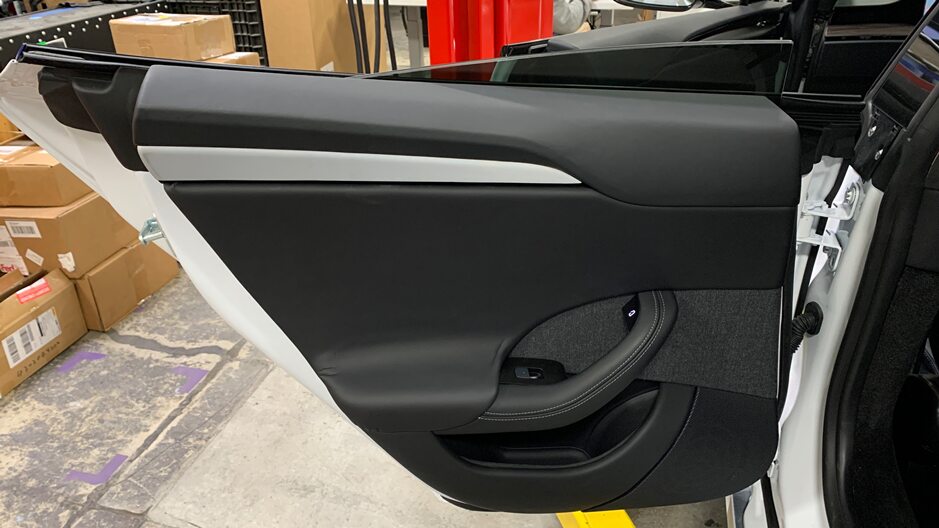

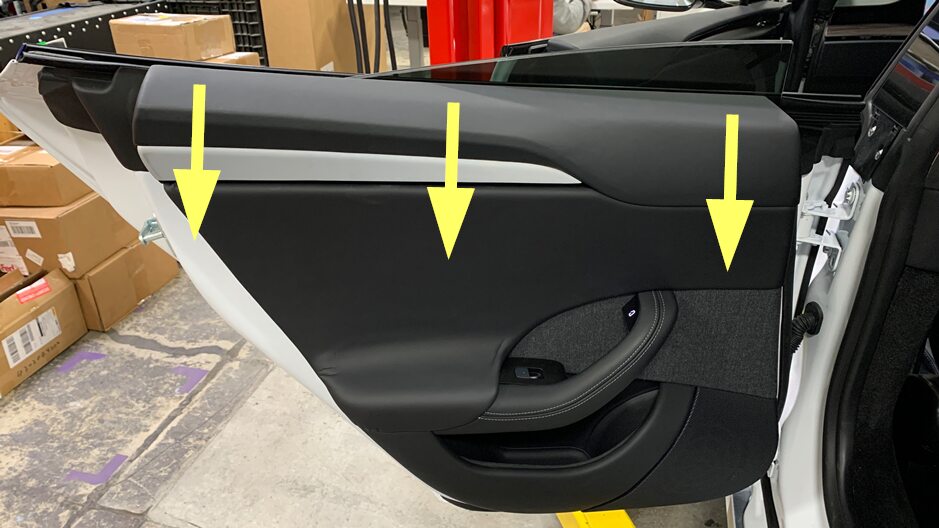

4. Remove LH rear door panel assembly
   Note

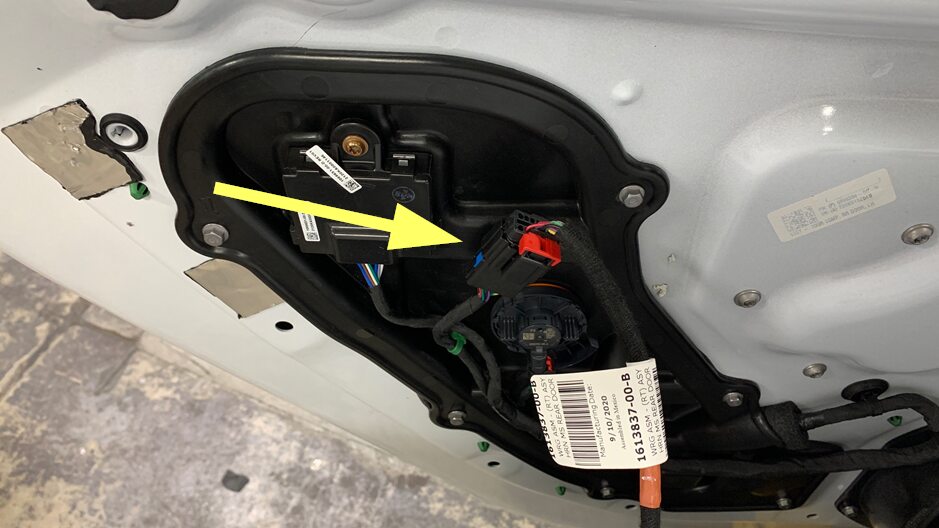

   7x clips, 1x connector, Pull bottom of door panel to release clips then lift panel up to disengage from inner belt seal, Pull red tab to disengage lock then disconnect door harness

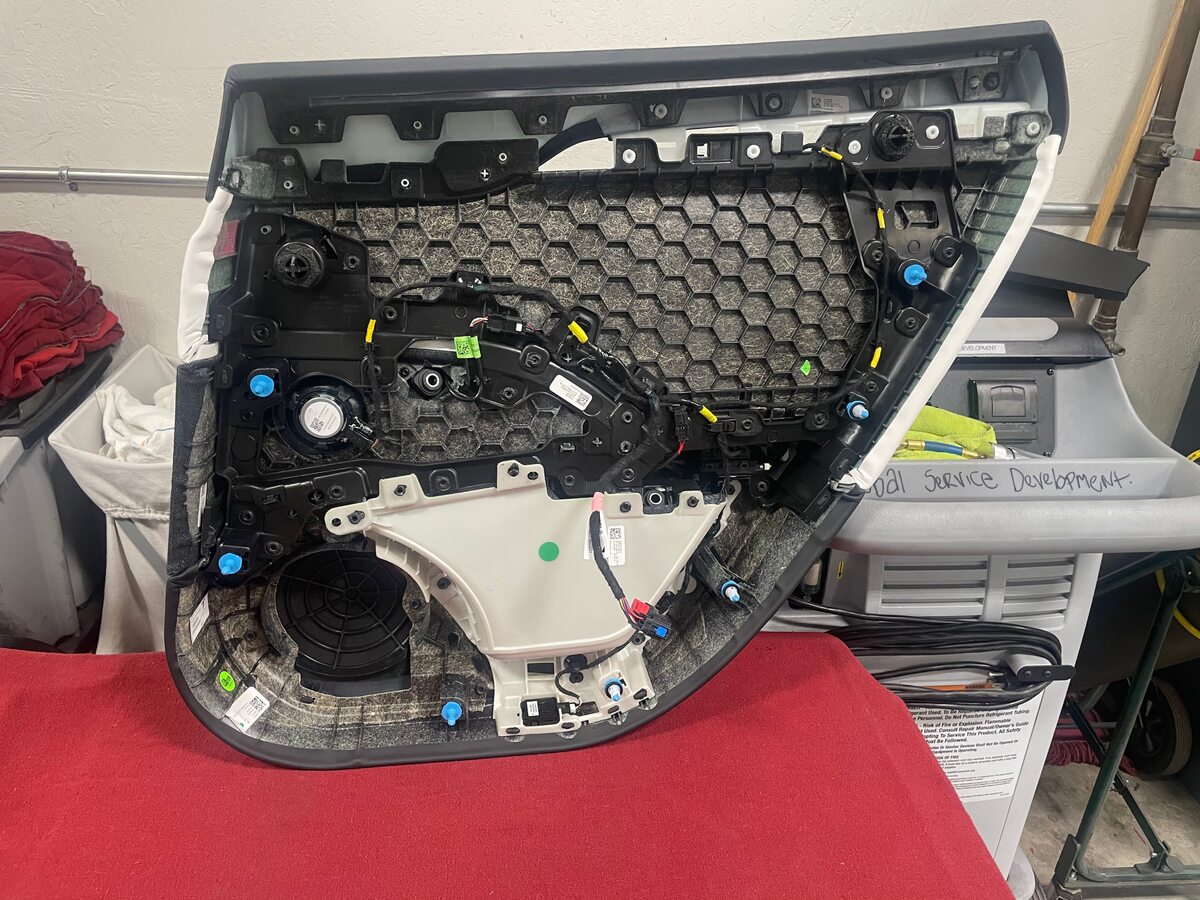

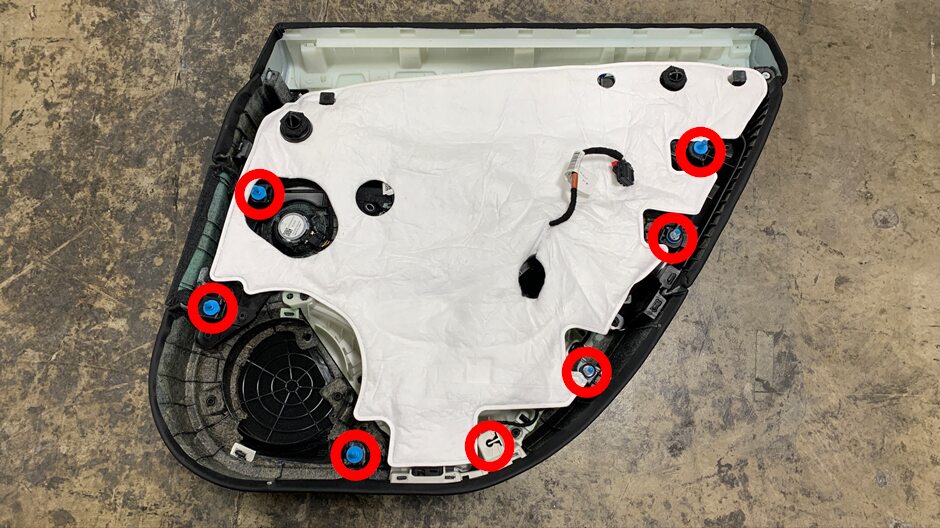

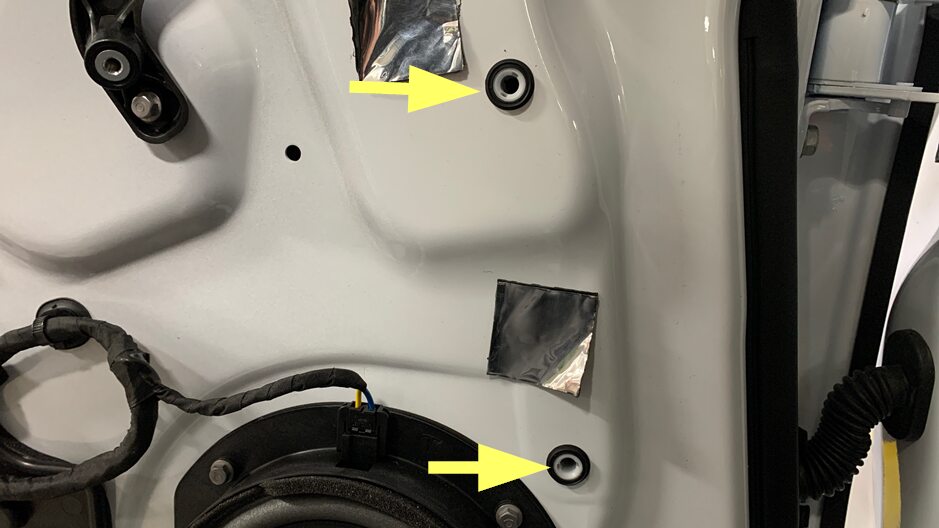

5. Remove left over clip retainers from rear door
   Note

   Number of retainers will vary with each removal

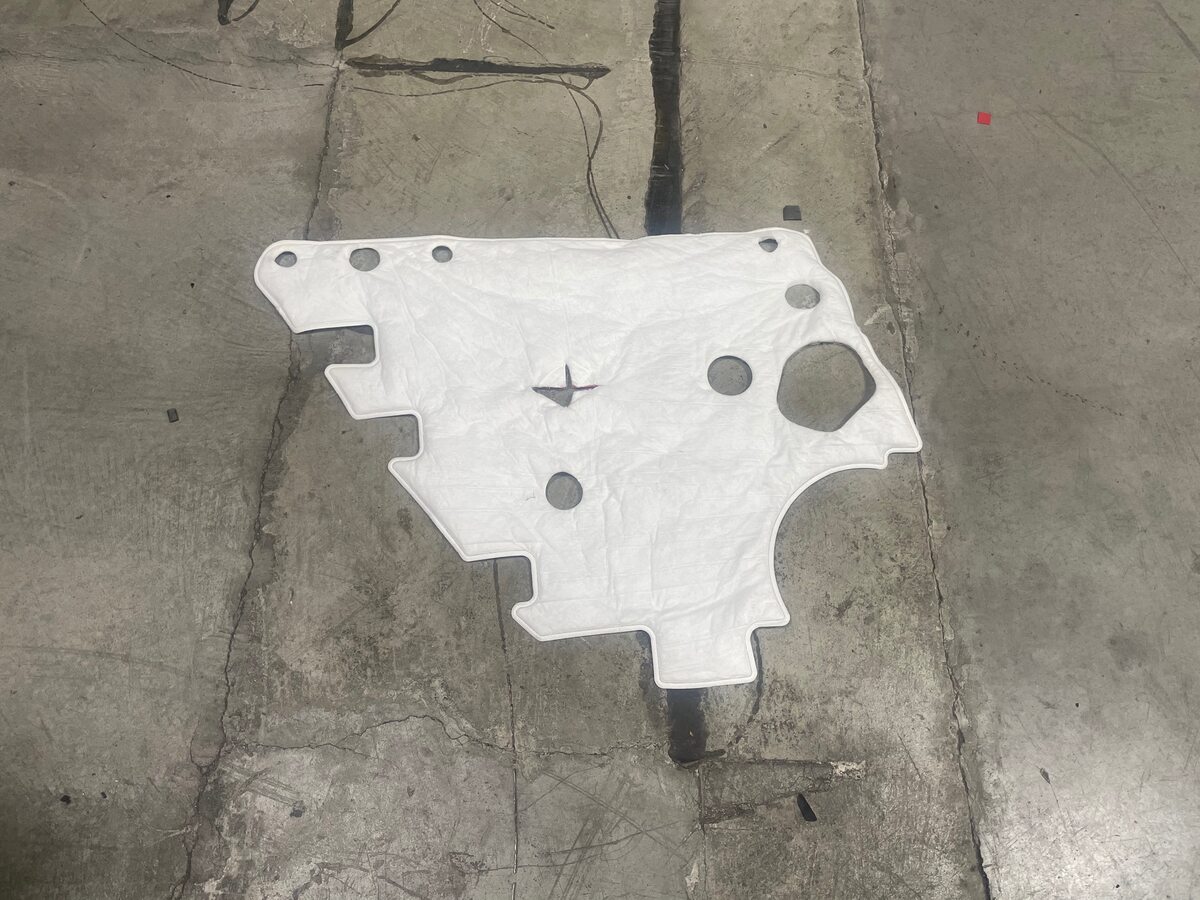

6. Remove LH rear door NVH pad
   Note

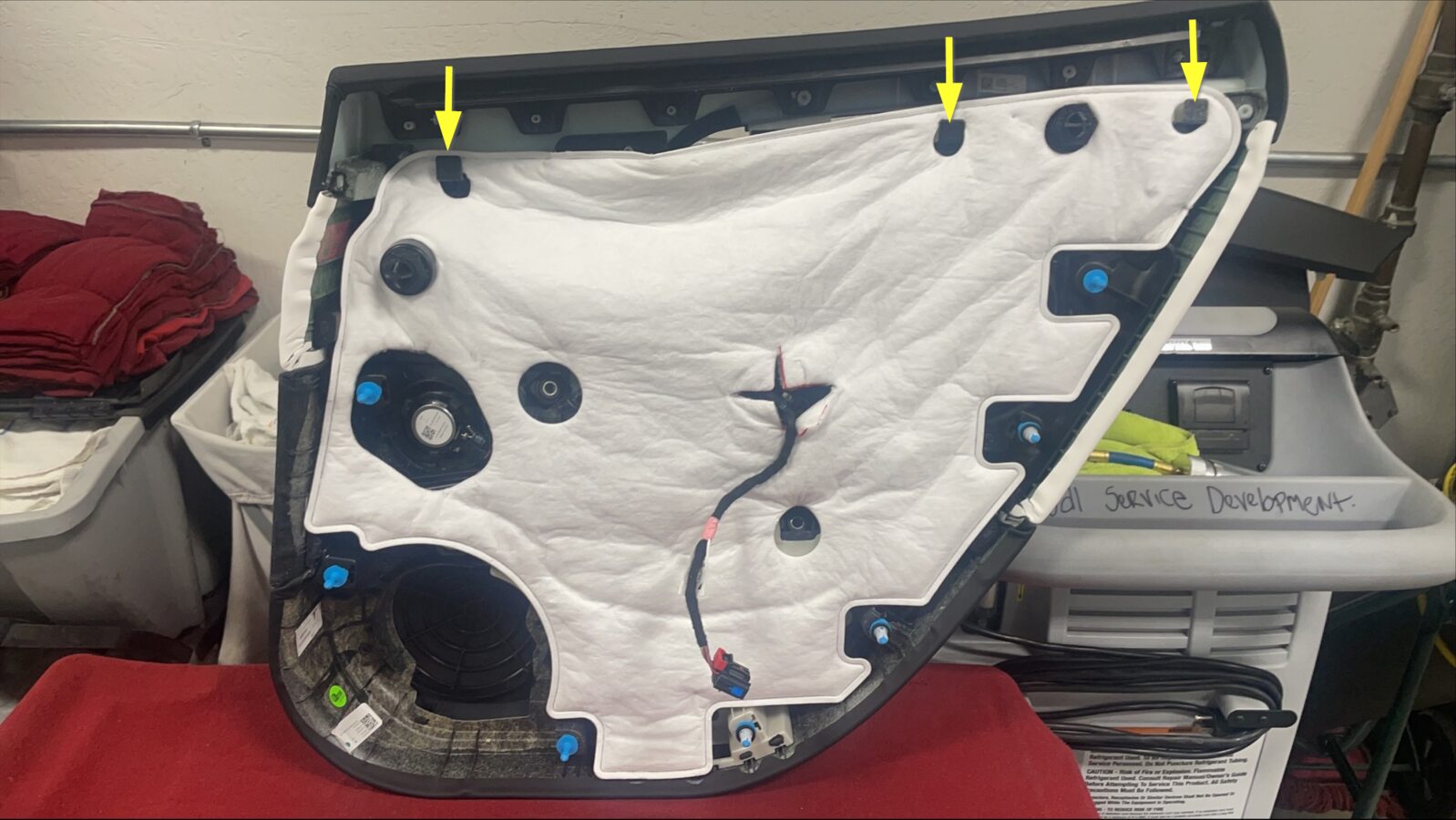

   Remove LH rear NVH pad from hooks

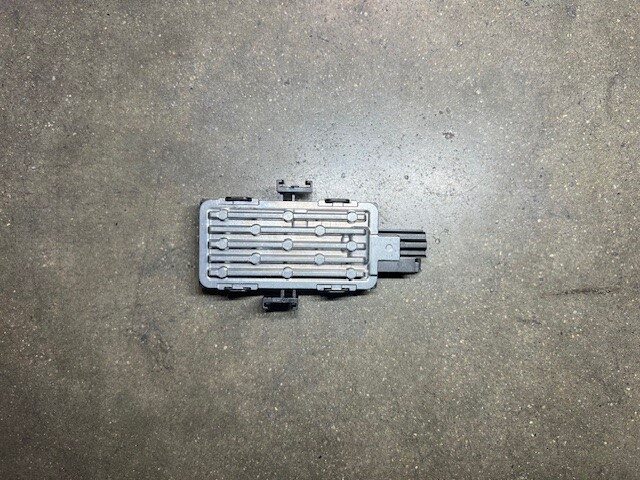

7. Remove rear LH ambient light LED module
   Note

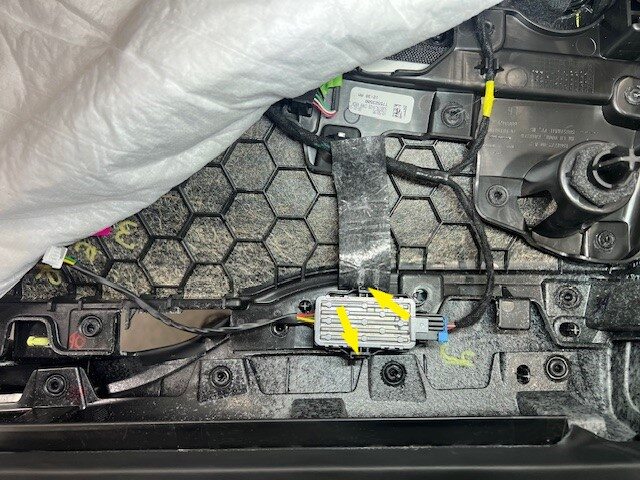

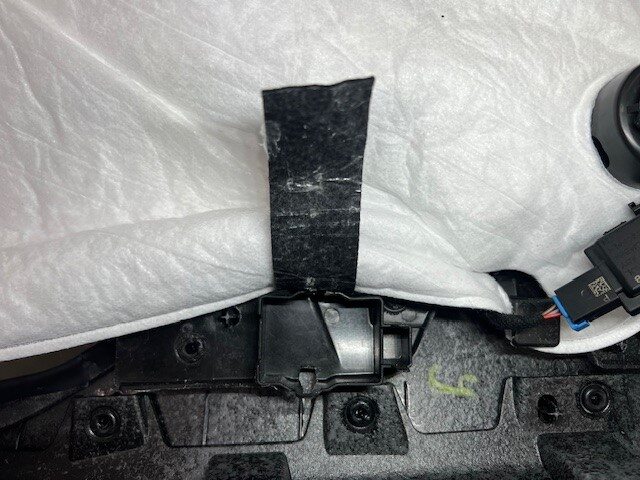

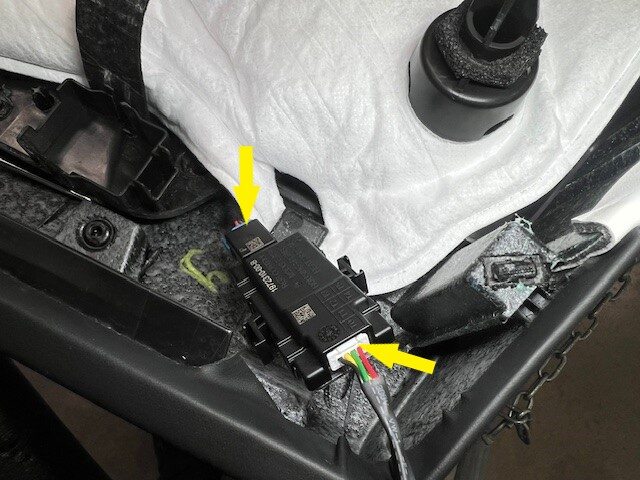

   2x tabs, 2x connectors, Remove felt tape then carefully release tabs then slide upwards











8. Install rear LH ambient light LED module
   Note

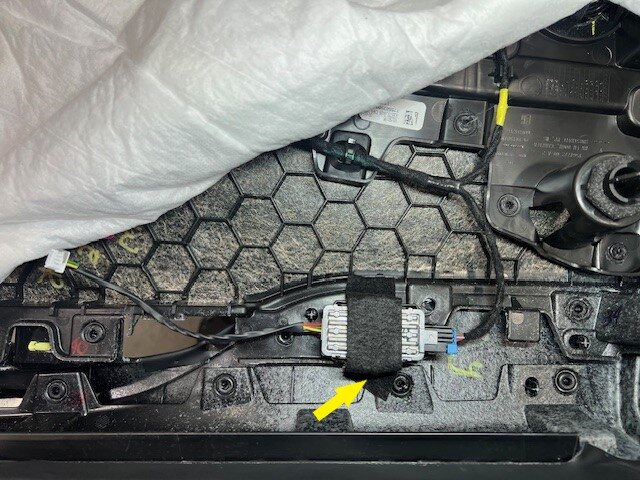

   2x tabs, 2x connectors, Verify module tabs are fully secured then reapply felt tape











9. Install LH rear door NVH pad
   Note

   Install LH rear NVH pad on hooks







10. Install LH rear door panel assembly
    Note

    7x clips, 1x connector, Connect door harness then engage locking tab, Slide top portion of panel into door seal first, then swing bottom into place, Ensure all clips and retainers are seated







11. Install fasteners securing door panel to rear door
    Note

    2x bolts, T30, 6 Nm



12. Raise LH rear window
13. Close LH rear door
