V Bar - Fascia - Front (2025+) (Remove and Replace)

Correction code TBD FRT 0.42 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Informational PurposesAn informational icon, calling your attention
Note
This procedure describes work that is specific to 2025+ Model S.

Remove

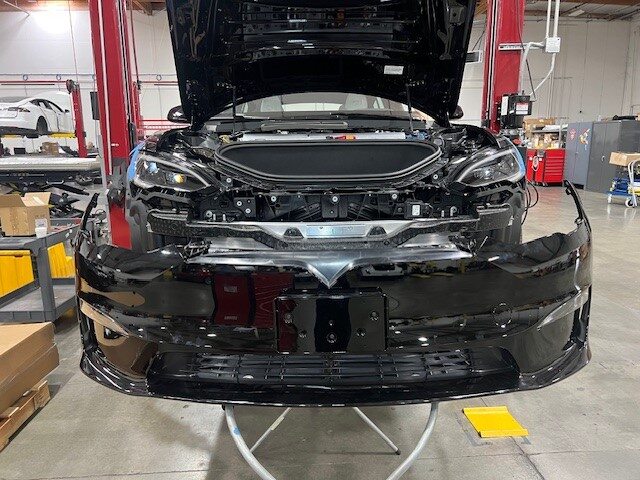

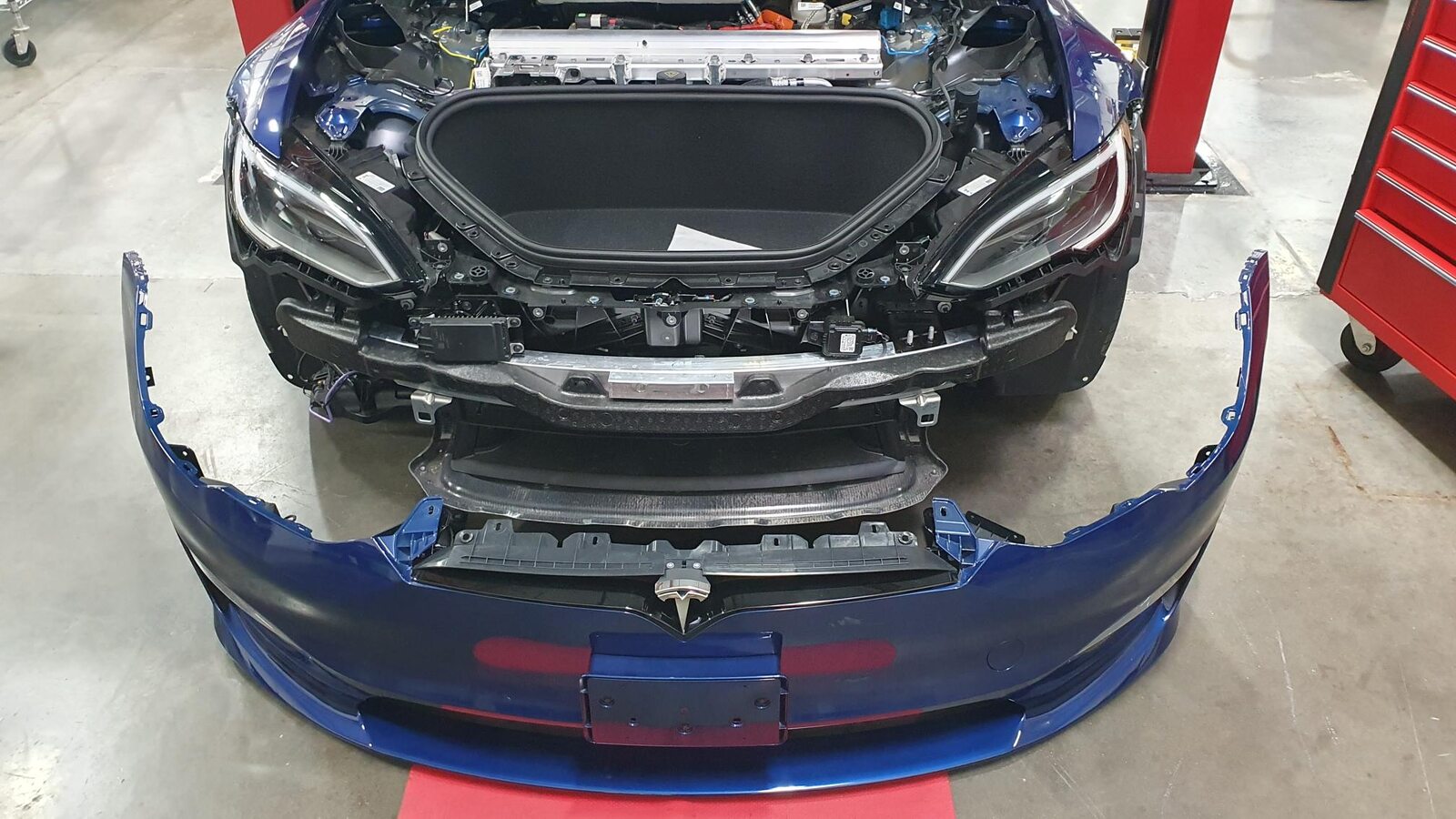

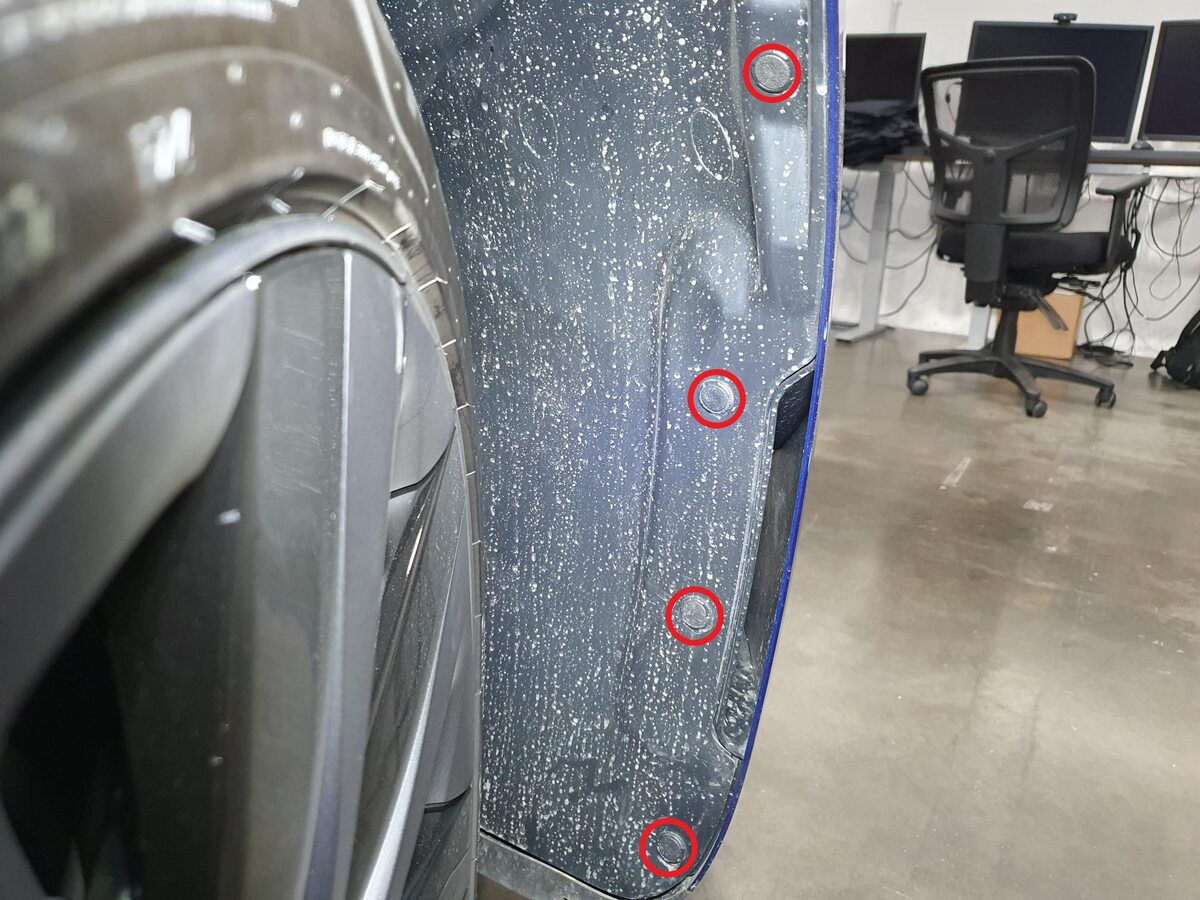

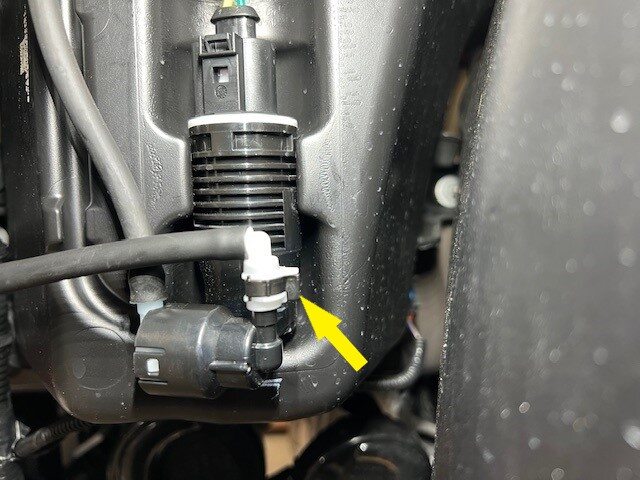

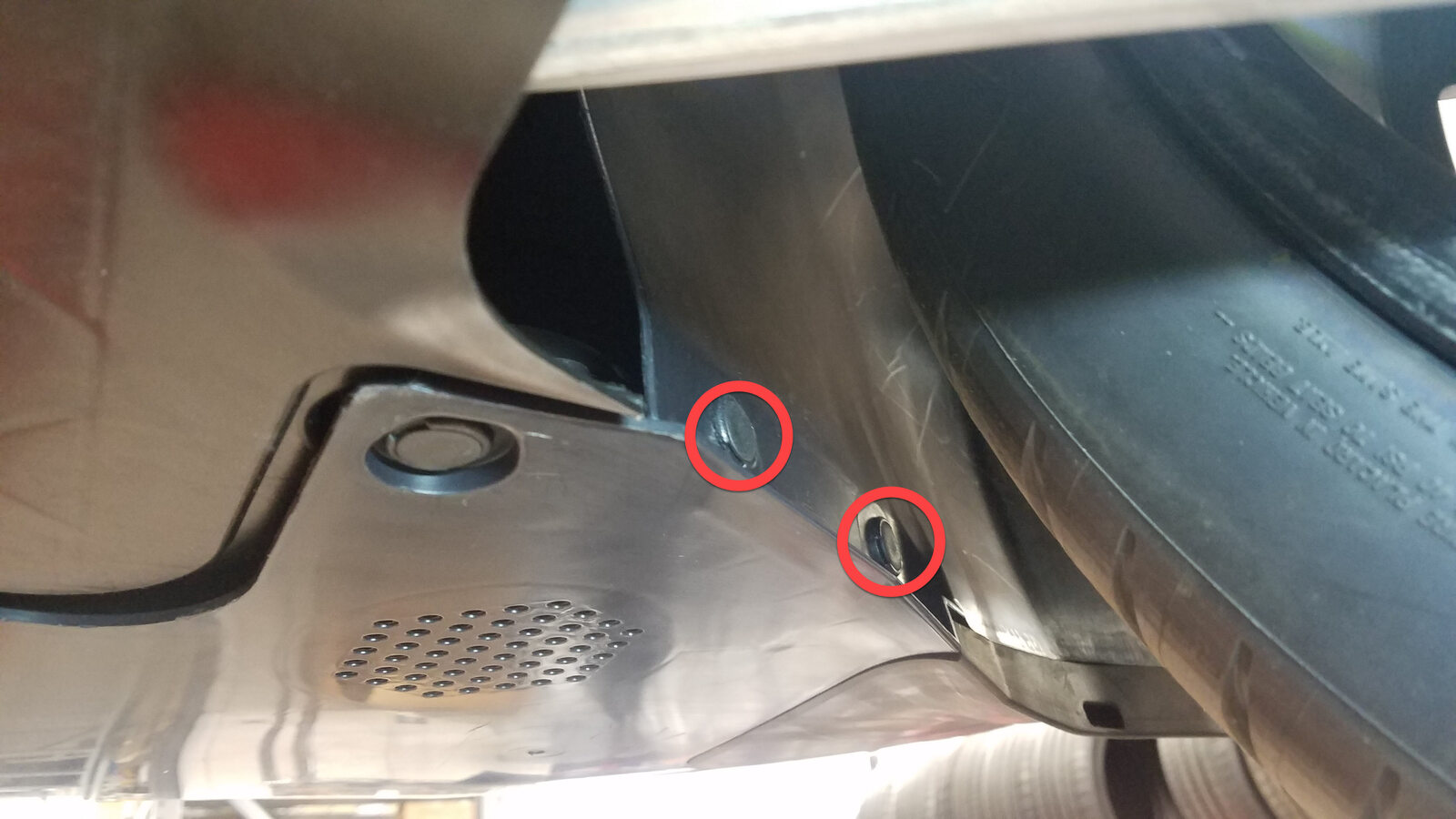

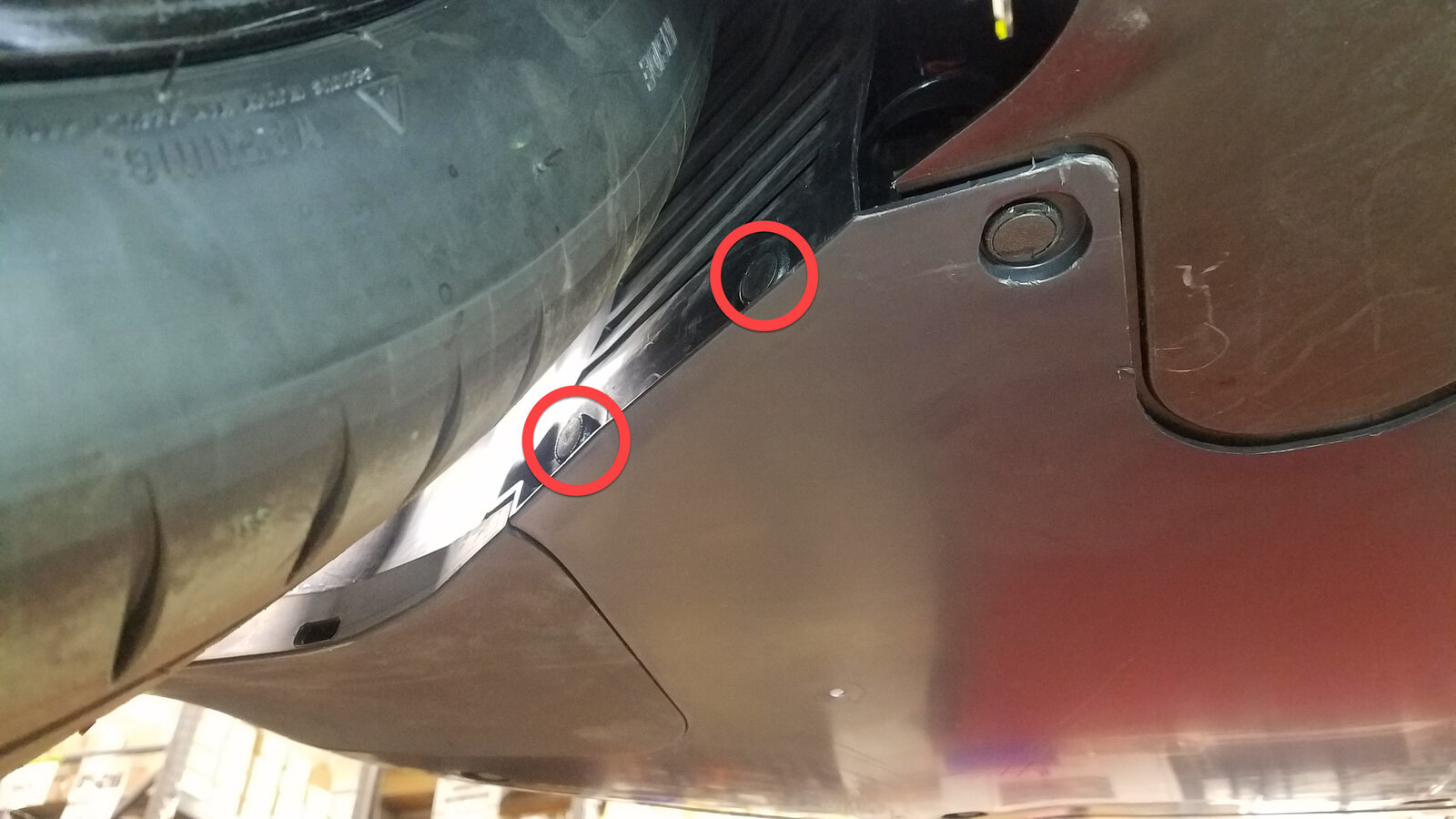

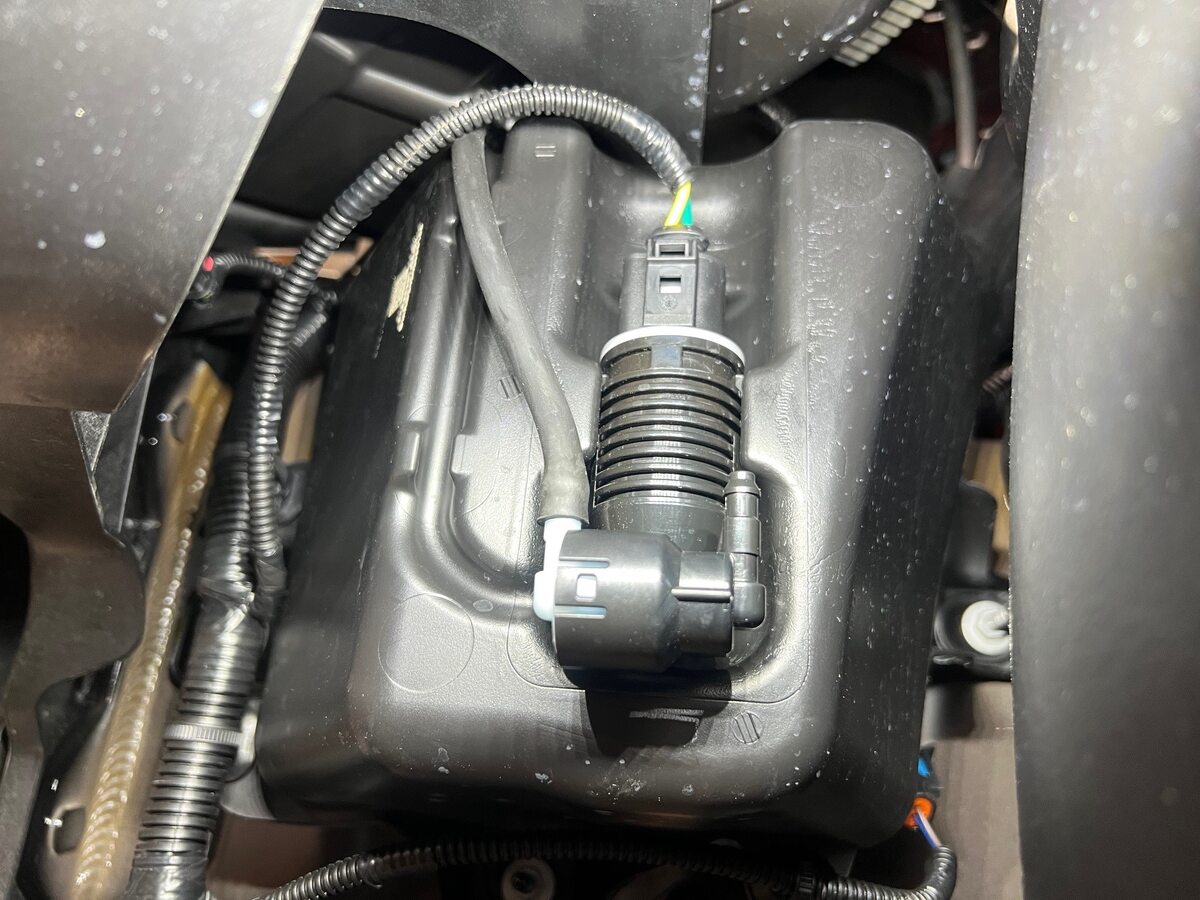

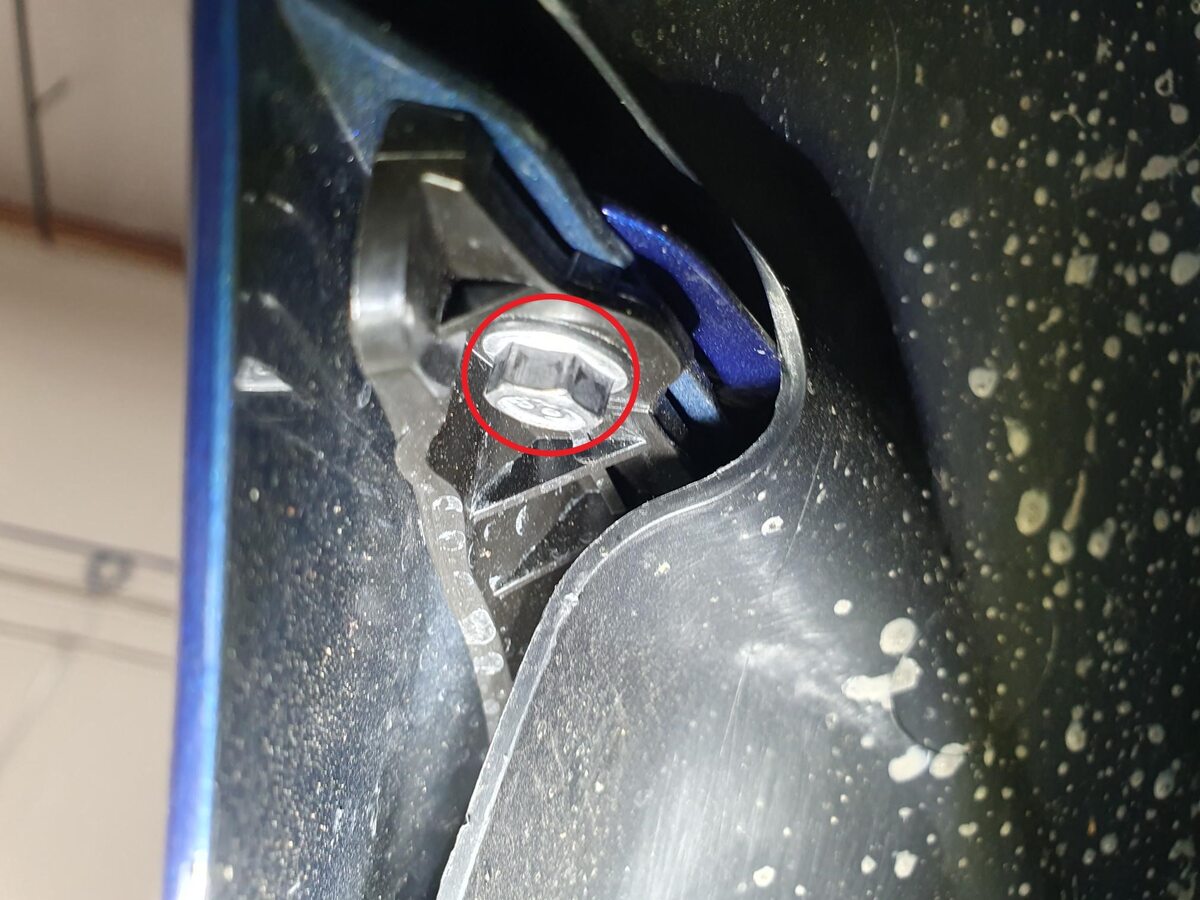

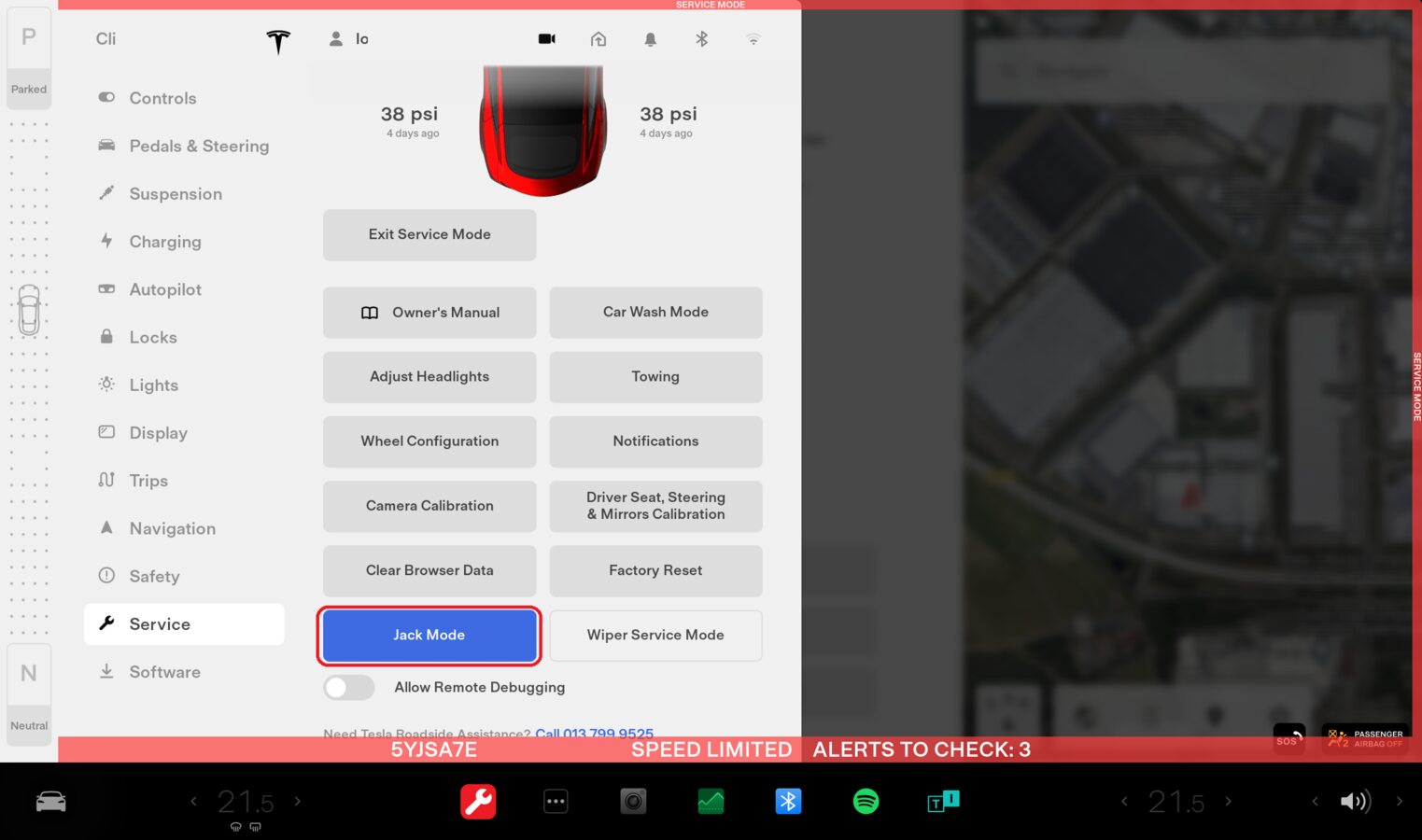

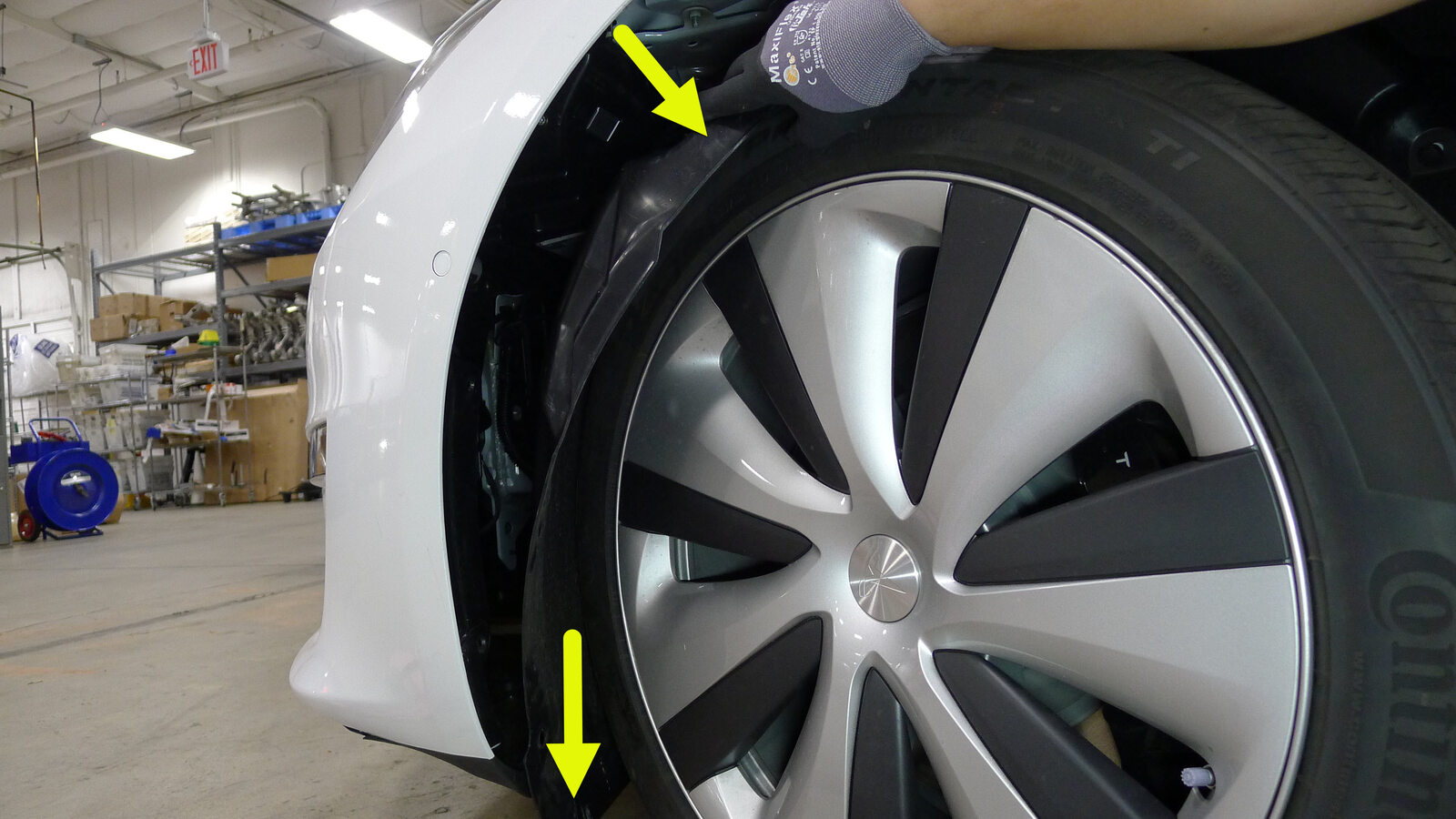

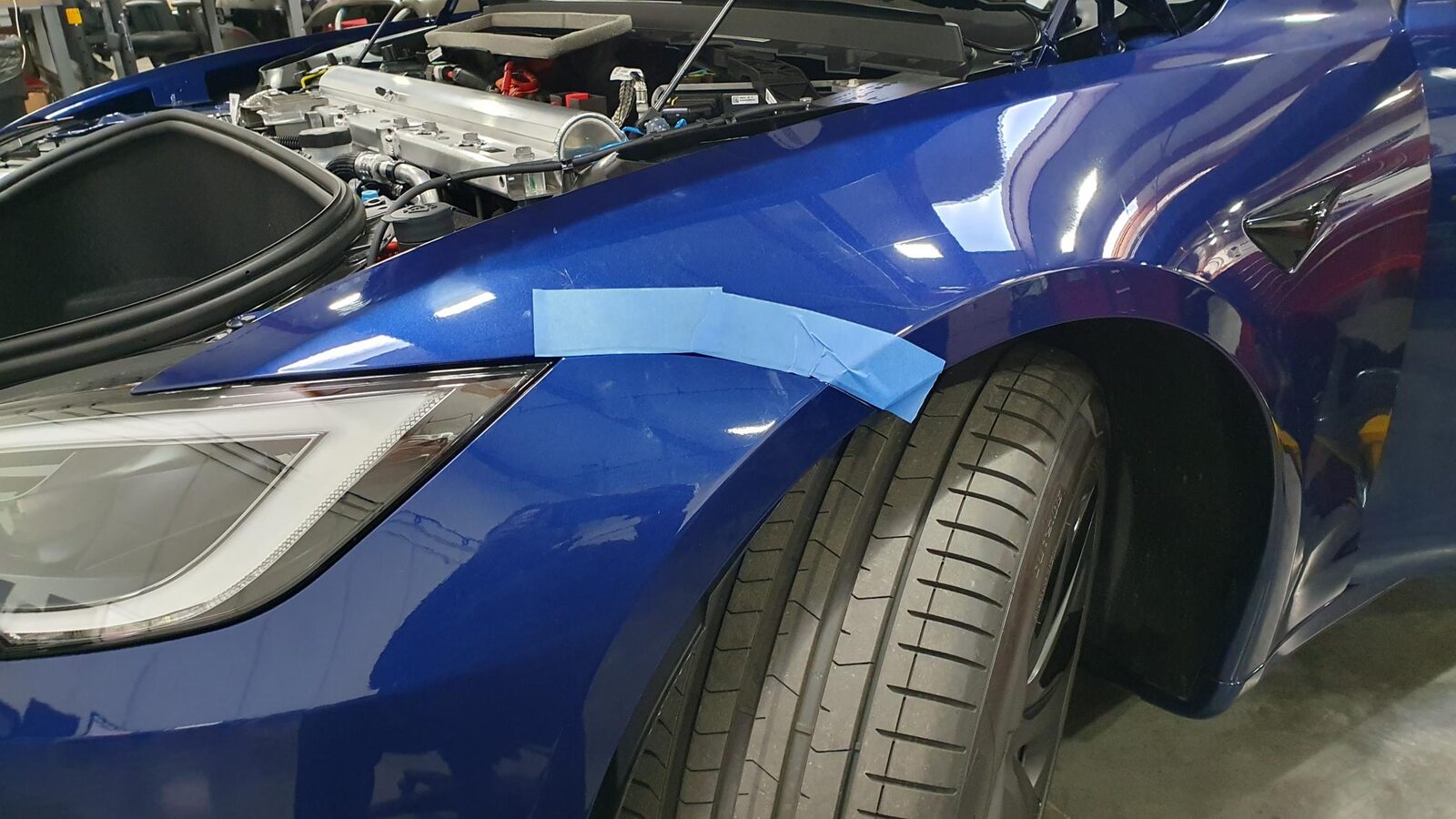

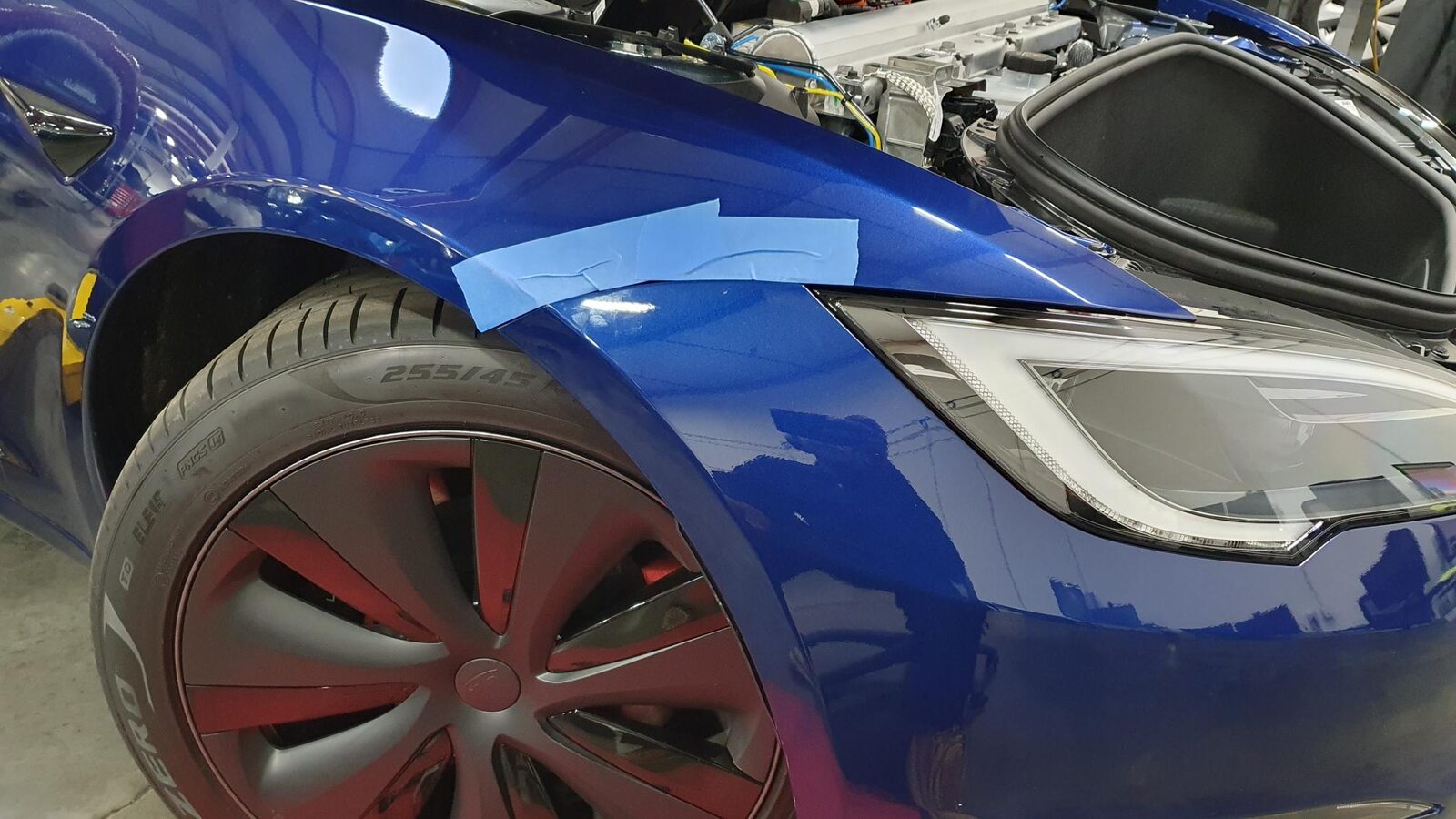

  1. Remove the front fascia assembly. See Fascia Assembly - Front (Remove and Install).

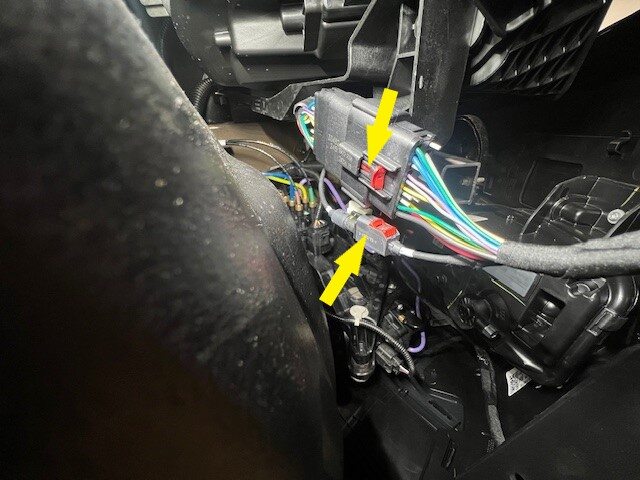

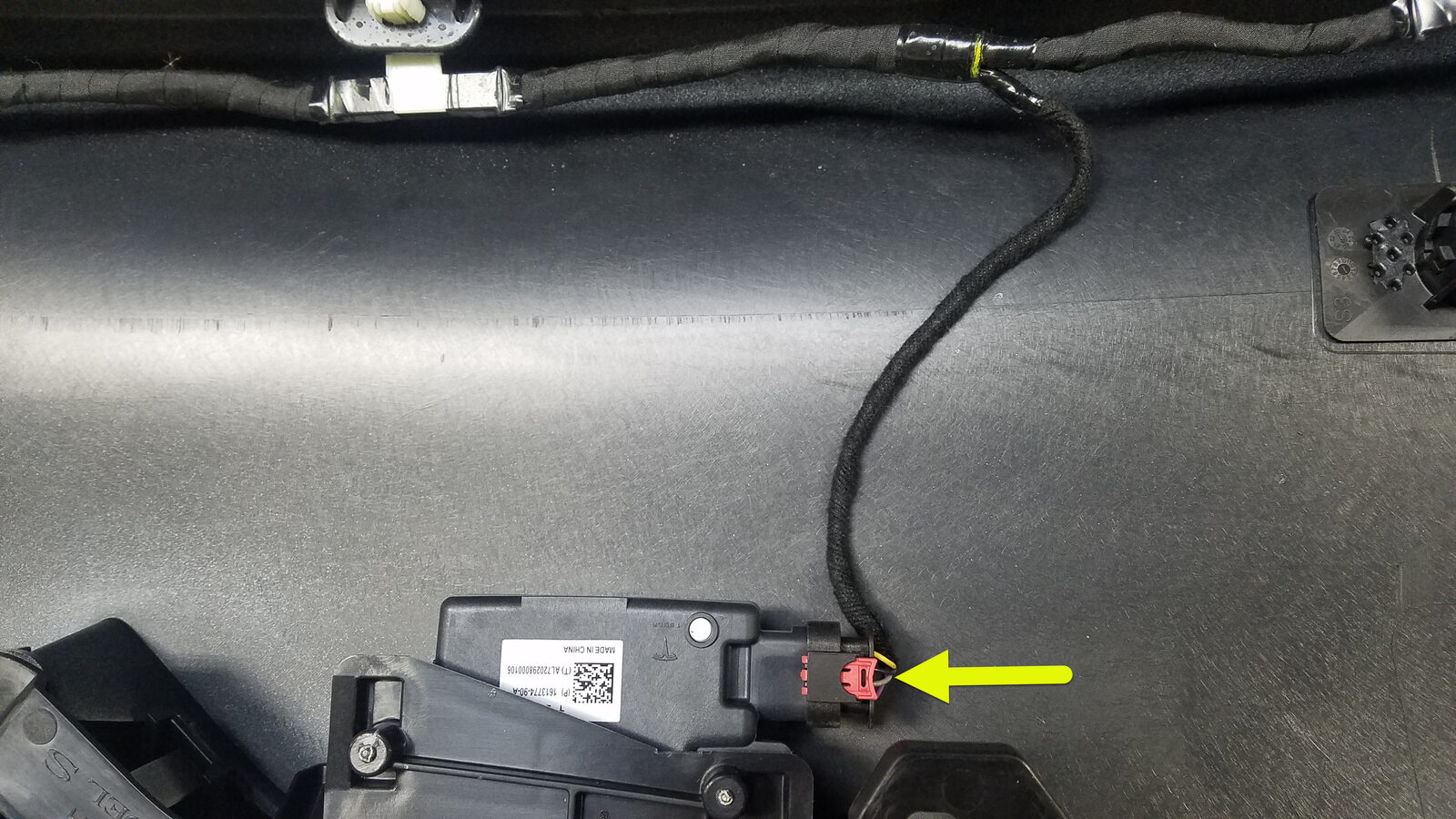

  2. Disconnect the front BLE assembly electrical connector.
    Informational PurposesAn informational icon, calling your attention
    Note
    DO NOT push down on the red locking tab. Pull the tab away from the connector until the connector is unlocked, and then continue pulling to release the connector.

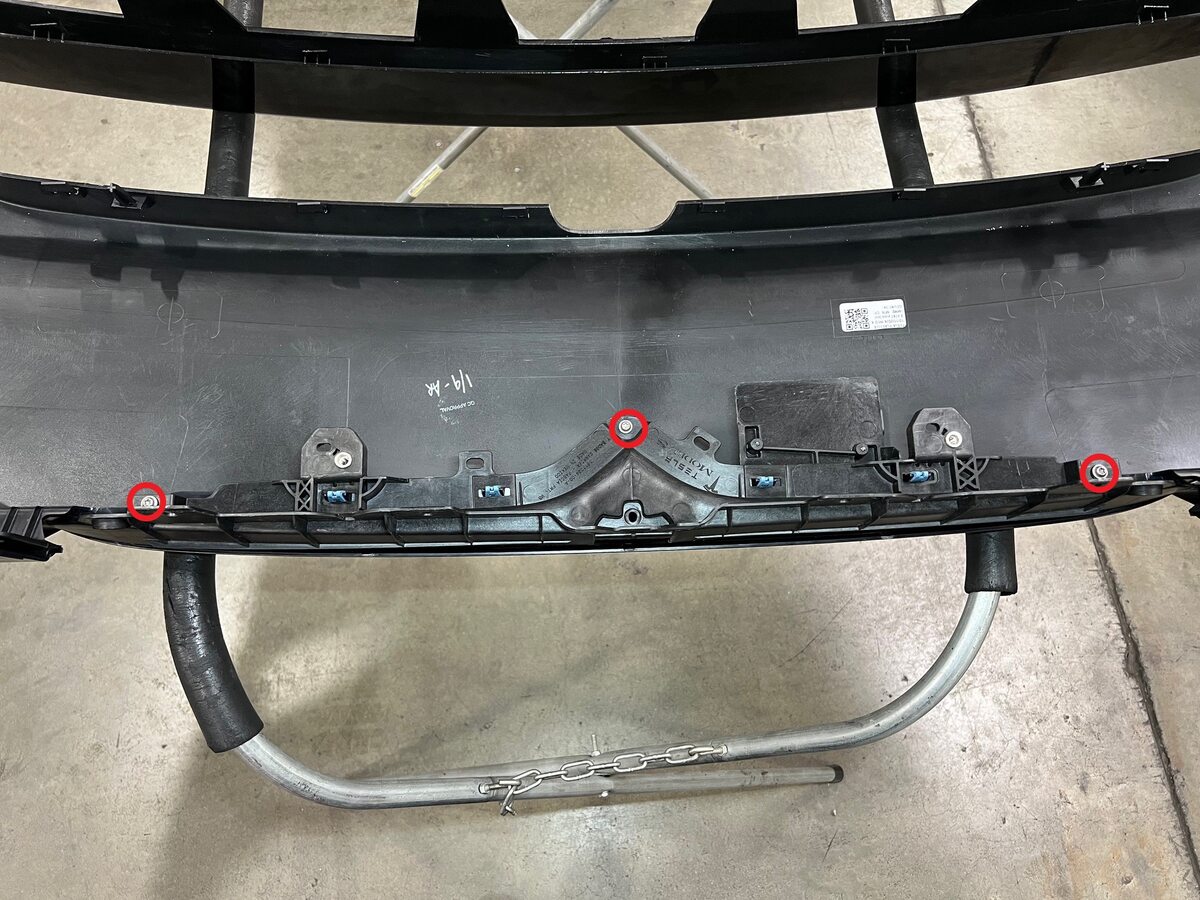

  3. Remove the screws (x3) that attach the T-badge support to the front fascia assembly.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • SKT, 1/4" DR, HEX BIT, T25 TORX

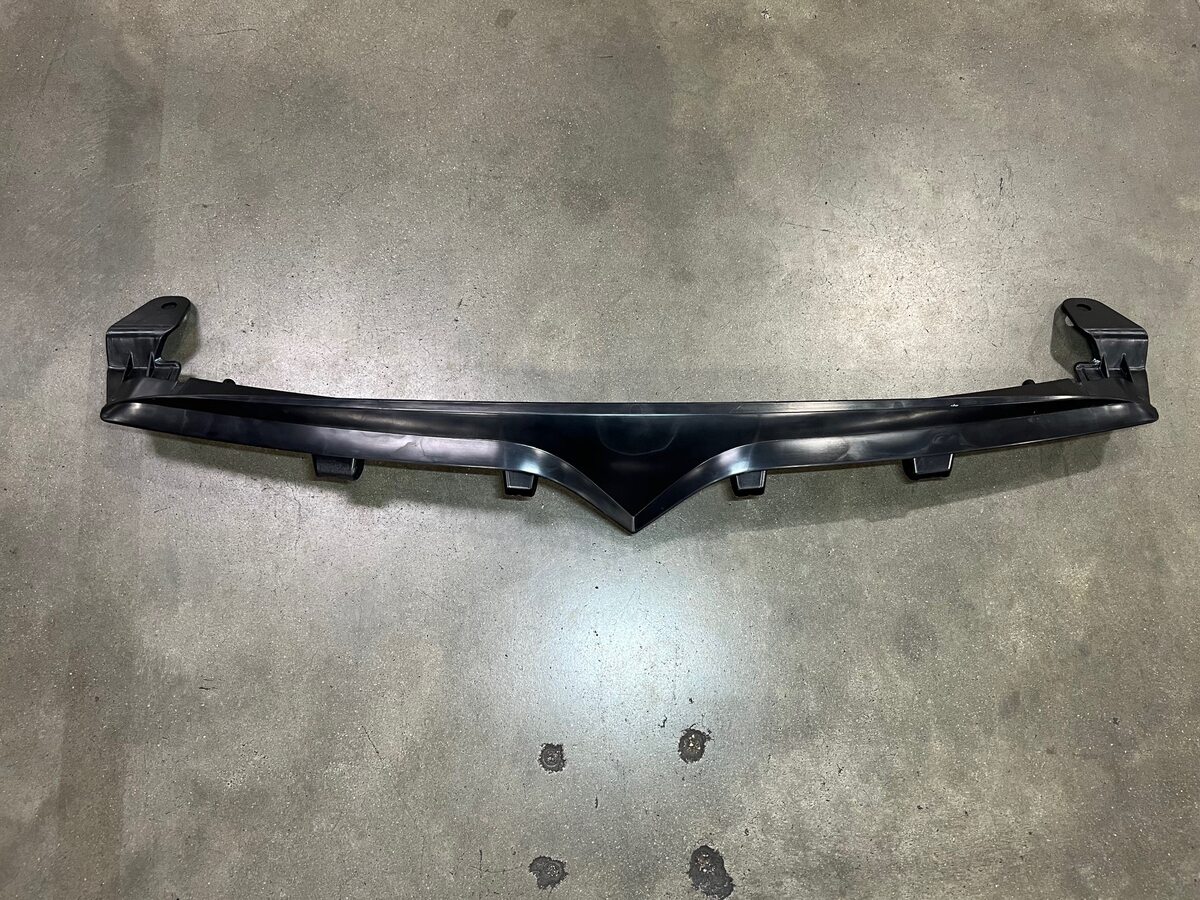

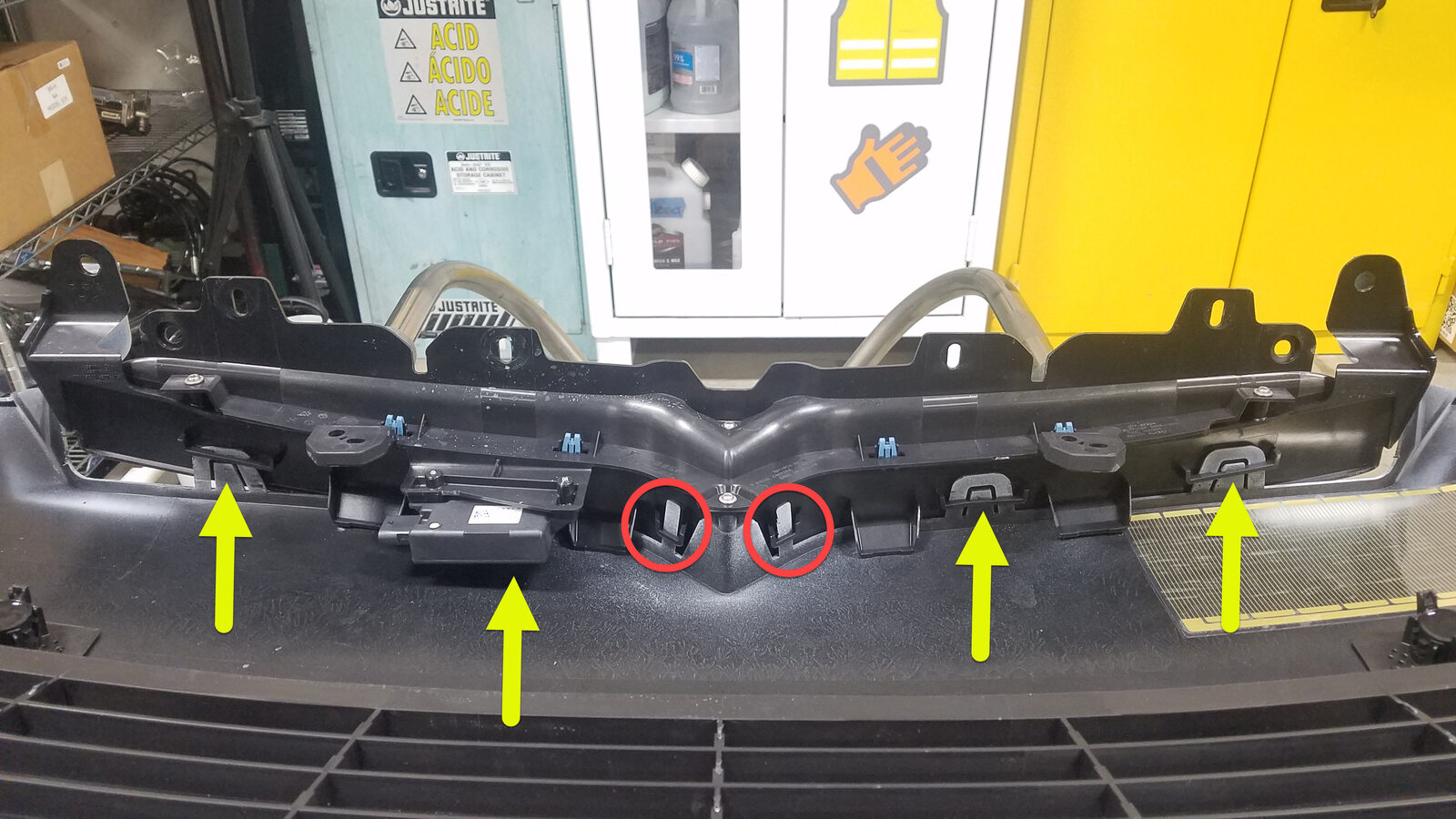

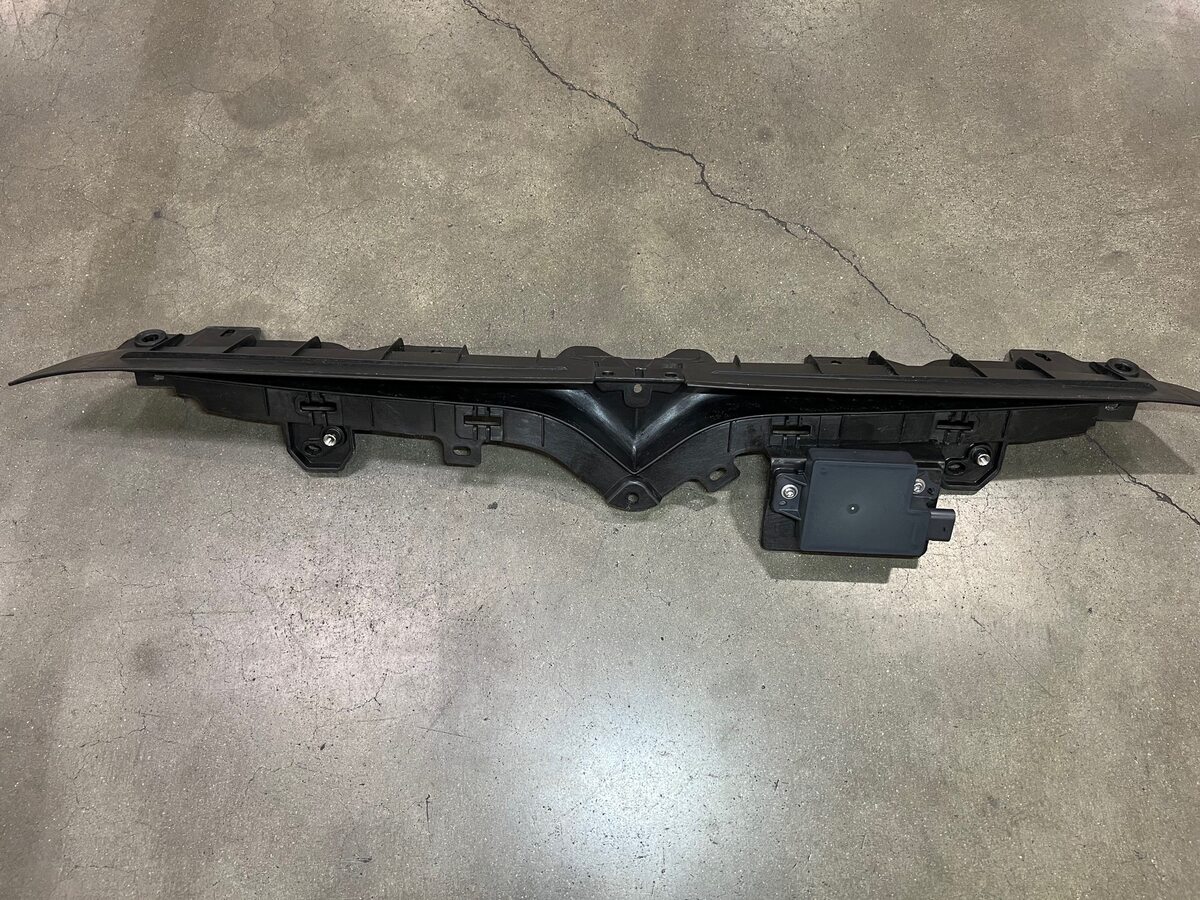

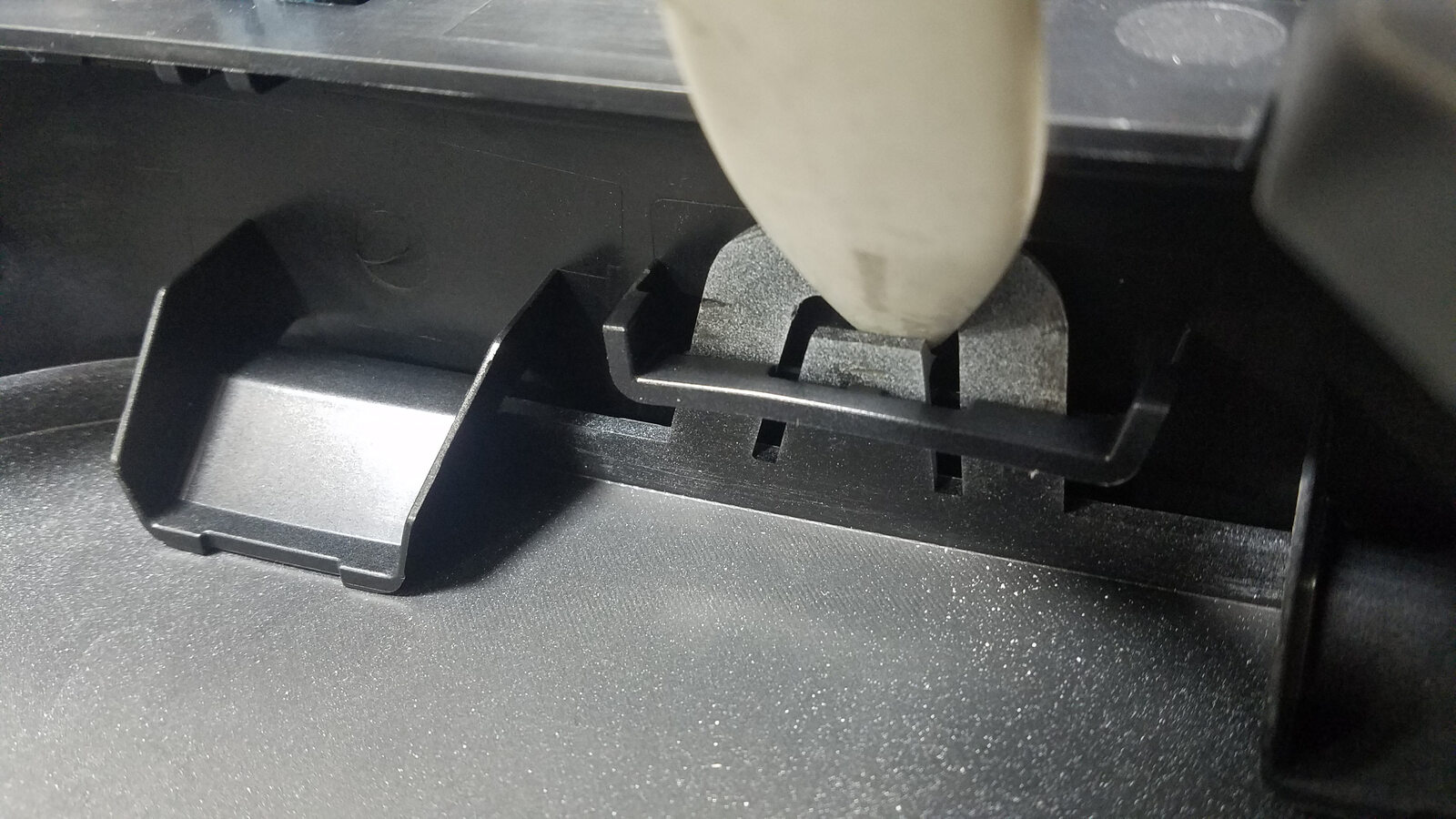

  4. Release the tabs (x4) that attach the T-badge support to the front fascia assembly, and then remove it from the assembly.

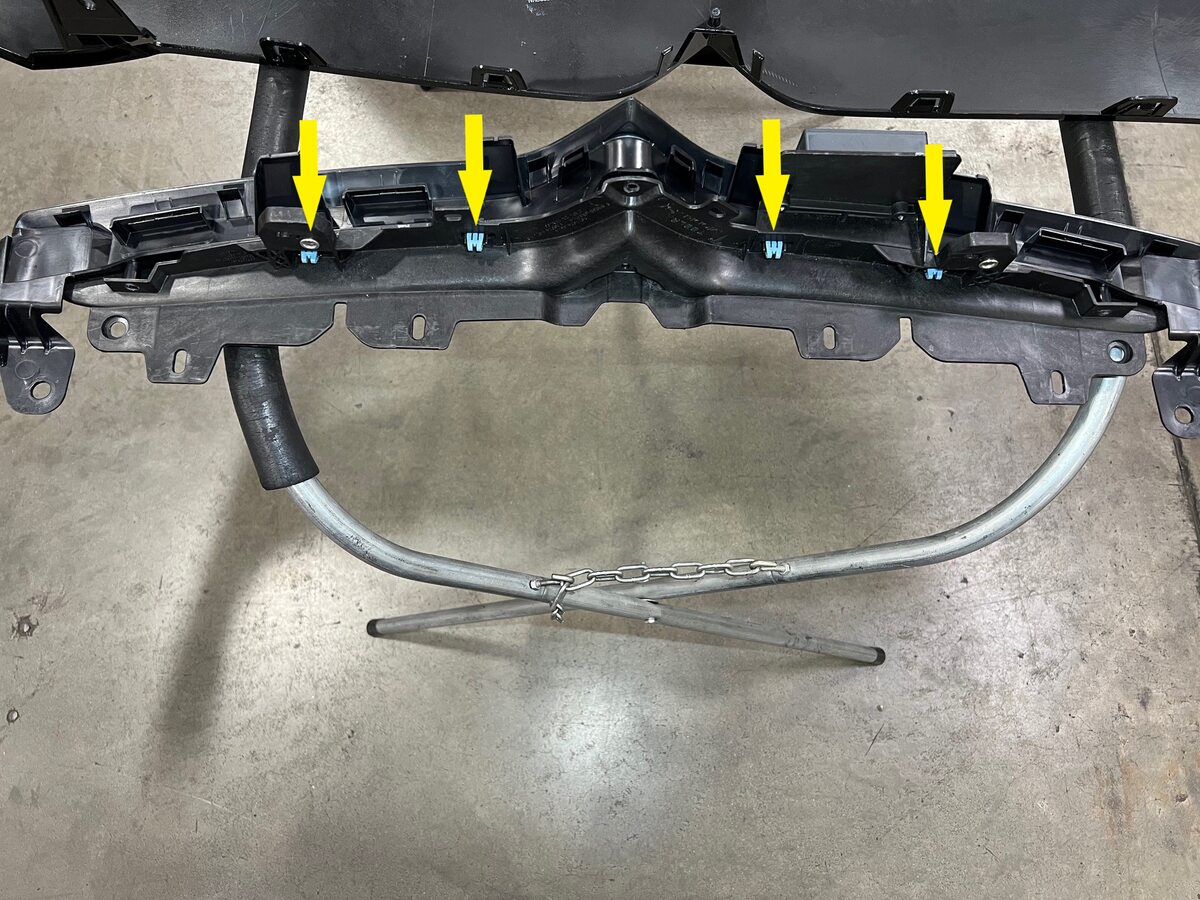

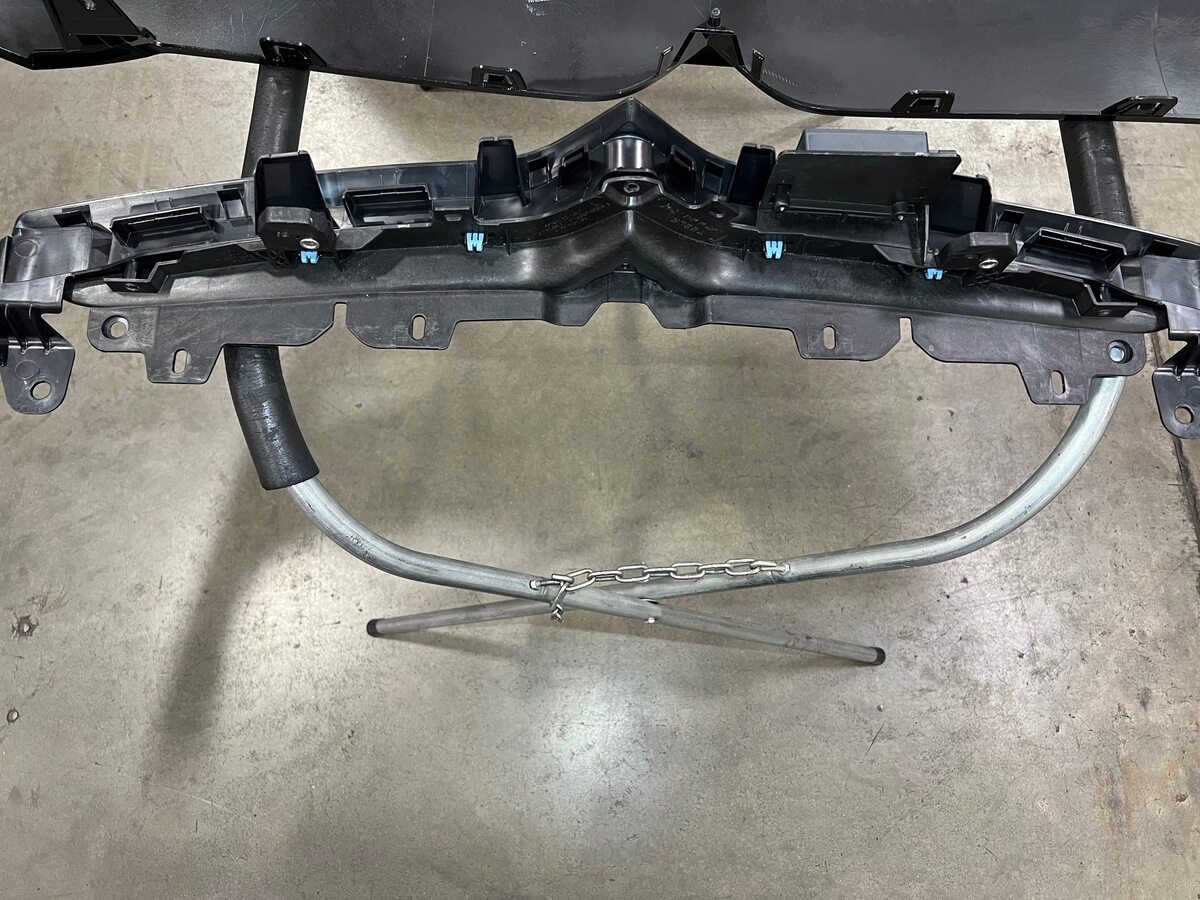

  5. Release the clips (x4) that attach the V-bar assembly to the T-badge support.

Install

  1. Secure the clips (x4) that attach the V-bar assembly to the T-badge support.
  2. Place the T-badge support on the front fascia assembly by aligning the datums (x2), then secure it by engaging the clips (x4).
  3. Connect the front BLE assembly electrical connector.
  4. Install the screws (x3) that attach the T-badge support to the front fascia assembly.
    3 Nm (2.2 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • SKT, 1/4" DR, HEX BIT, T25 TORX
  5. Install the front fascia assembly. See Fascia Assembly - Front (Remove and Install).
