Decor Trim - Rear Door - LH (2025+) (Remove and Replace)

Correction code New NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.

  • 2025-06-13: Released new procedure.
Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
This procedure is a DRAFT. Although it has been validated, Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near High Voltage systems and components. Provide corrections and feedback to ServiceDevelopment@teslamotors.com.
Informational PurposesAn informational icon, calling your attention
Note
This procedure describes work that is specific to 2025+ Model S.

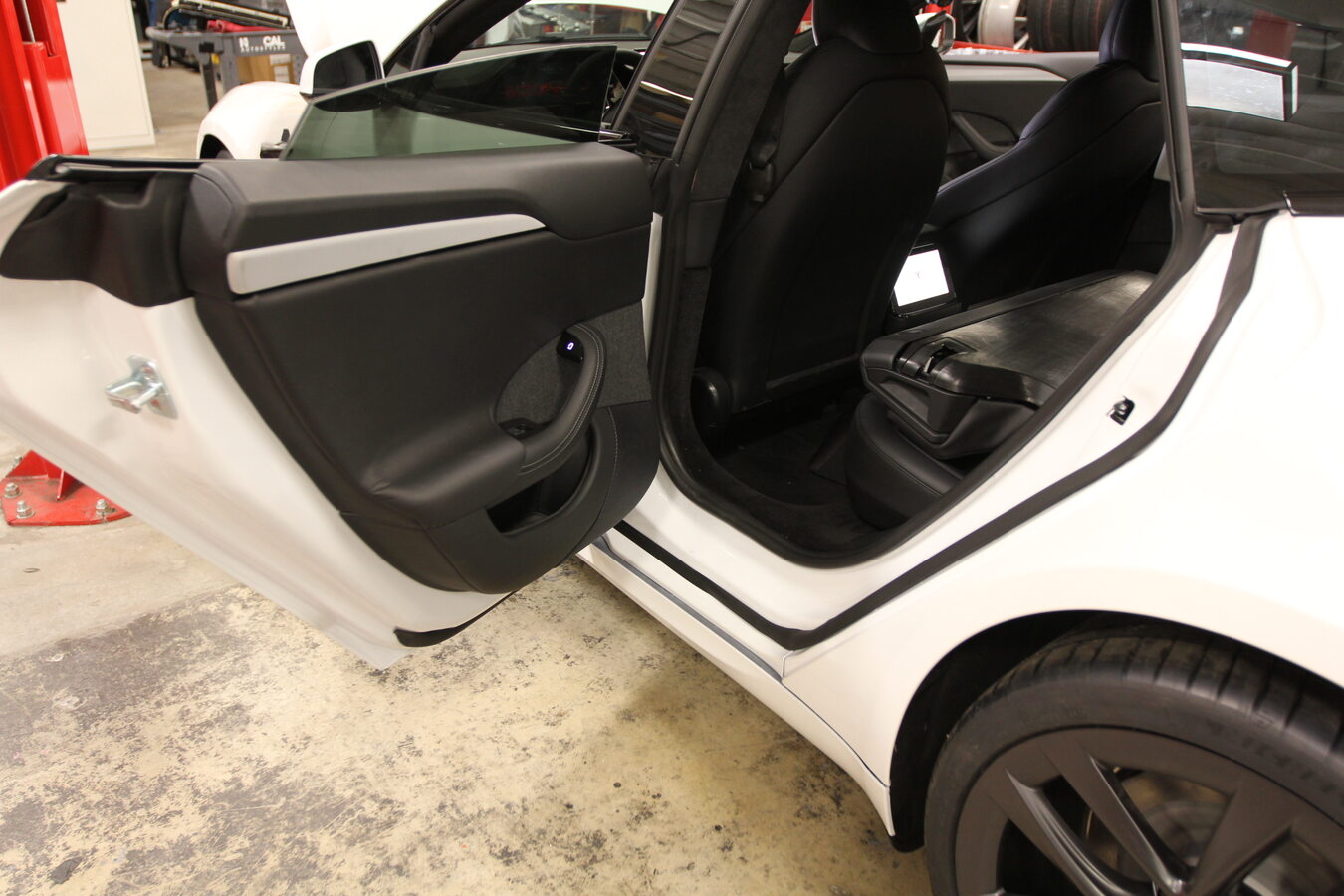

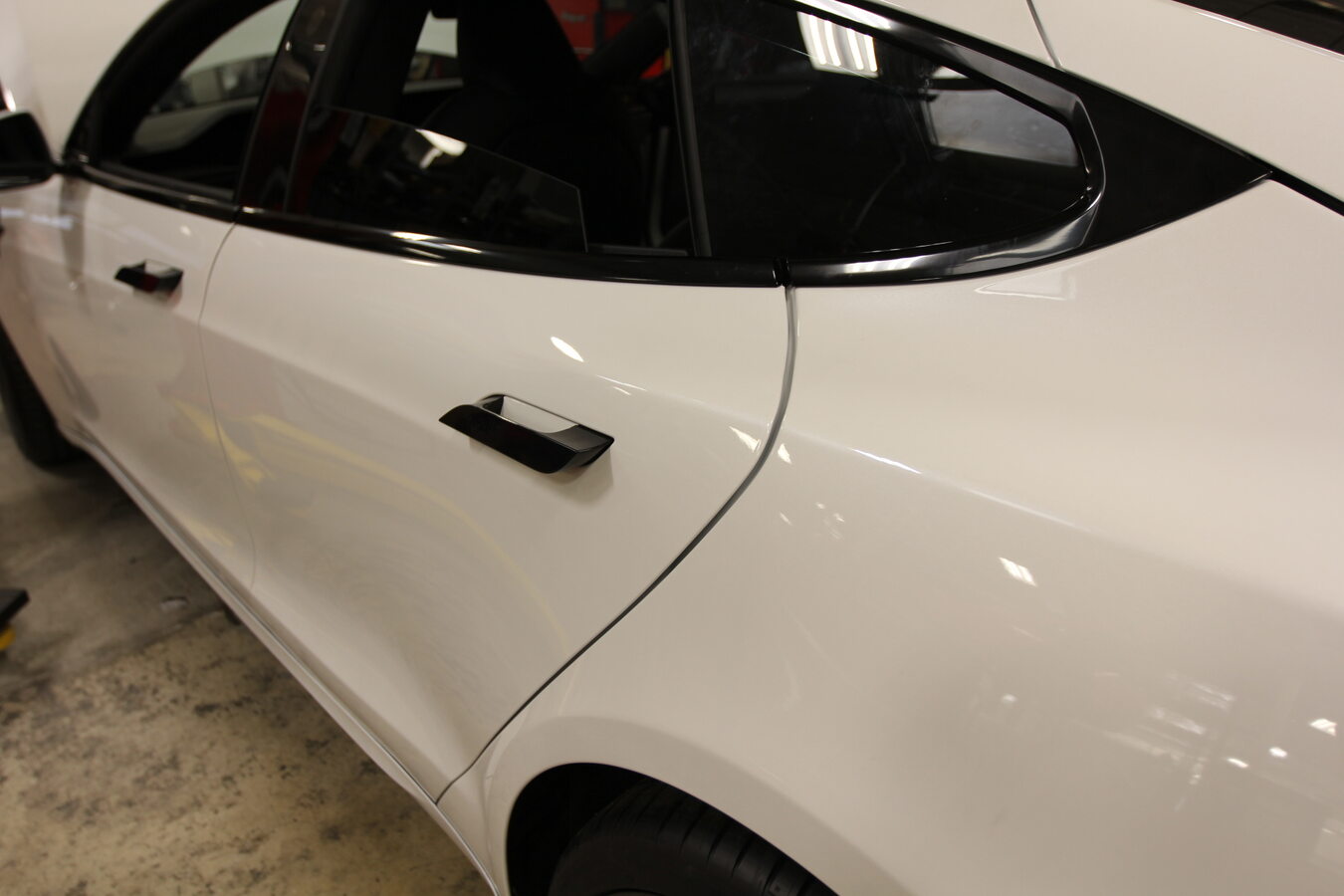

  1. Open LH rear door

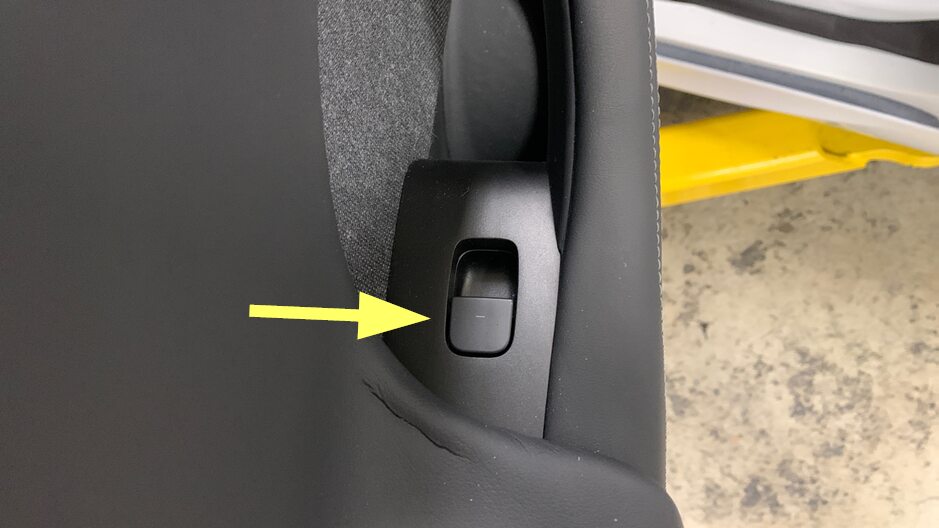

  2. Lower LH rear window

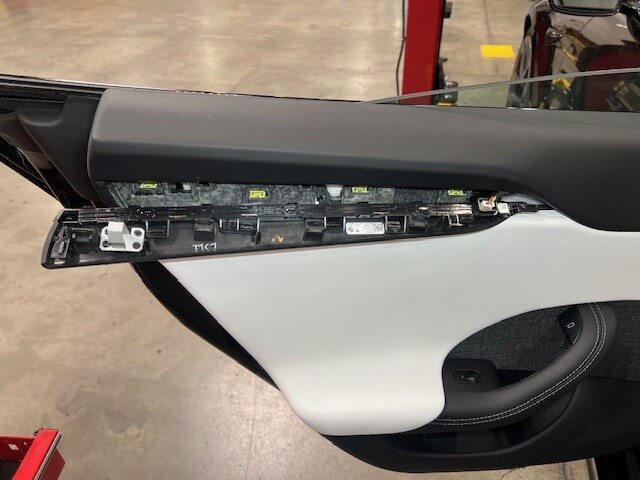

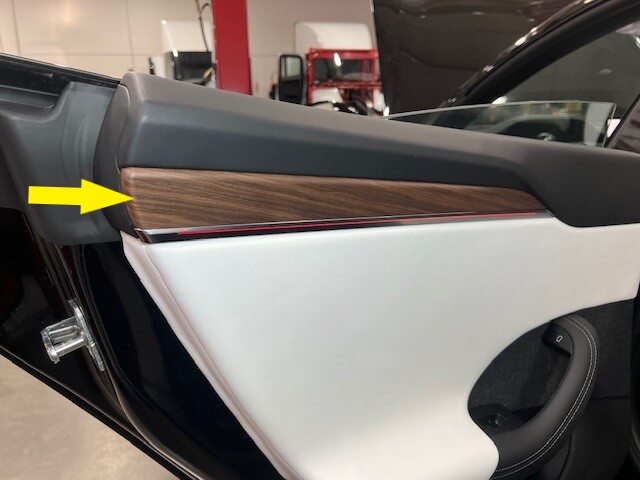

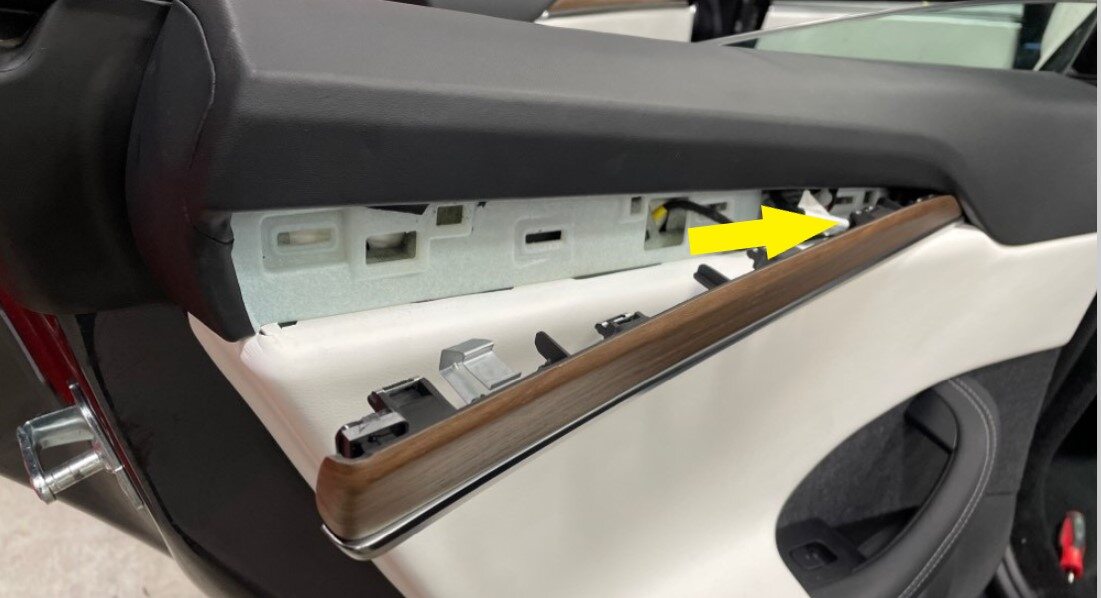

  3. Remove LH rear door decor
    Informational PurposesAn informational icon, calling your attention
    Note

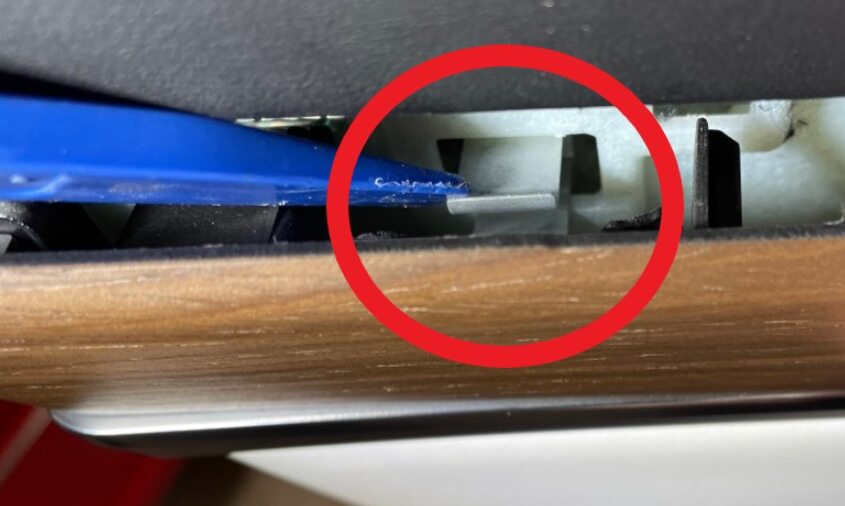

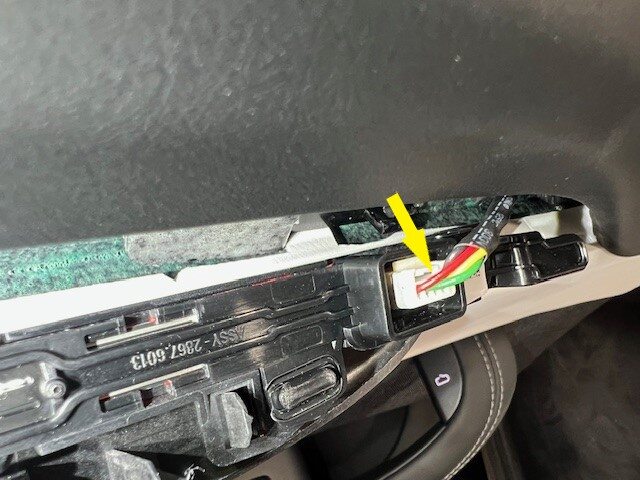

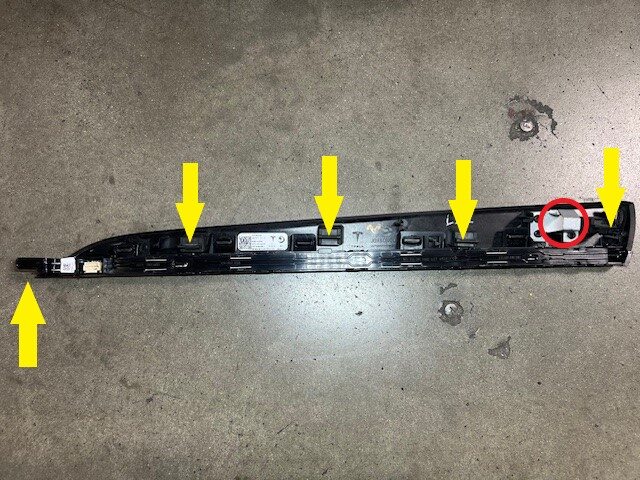

    4x u-clips, 1x crash hook, 1x connector, 1x plastic hook, Use a plastic trim tool to help release the metal crash hook, Separate connector from door panel and release, Check for any clips still attached to the door panel

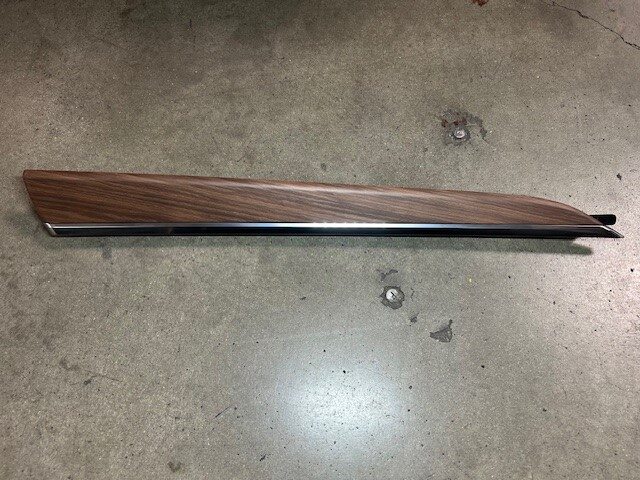

  4. Install LH rear door decor
    Informational PurposesAn informational icon, calling your attention
    Note
    4x u-clips, 1x crash hook, 1x connector, 1x plastic hook, Secure connection and clip onto door panel, Engage front hook and install decor, Be cautious not to pinch any wiring
  5. Run ODIN routine PROC_ICE_X_ENTER-SERVICE-MODE-PLUSvia Toolbox: (link)
  6. Run ODIN routine TEST-SELF_VCLEFT_RGBvia Toolbox: (link)
  7. Reinstall software via UI
    Informational PurposesAn informational icon, calling your attention
    Note
    Via Controls > Service Mode > Software Reinstall, Select Reinstall button at Software Reinstall dialogue box, Reinstall will begin immediately, Once firmware redeploy is complete, Verify release notes are present via UI
  8. Remove diagnostic cable from port to disconnect toolbox 3.0 from vehicle
  9. Run ODIN routine PROC_ICE_X_EXIT-SERVICE-MODEvia Toolbox: (link)
  10. Raise LH rear window
  11. Close LH rear door
