Mid Assembly - Instrument Panel (2025+) (Remove and Replace)

Correction code New NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.

Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
This procedure is a DRAFT. Although it has been validated, Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near High Voltage systems and components. Provide corrections and feedback to ServiceDevelopment@teslamotors.com.
Informational PurposesAn informational icon, calling your attention
Note

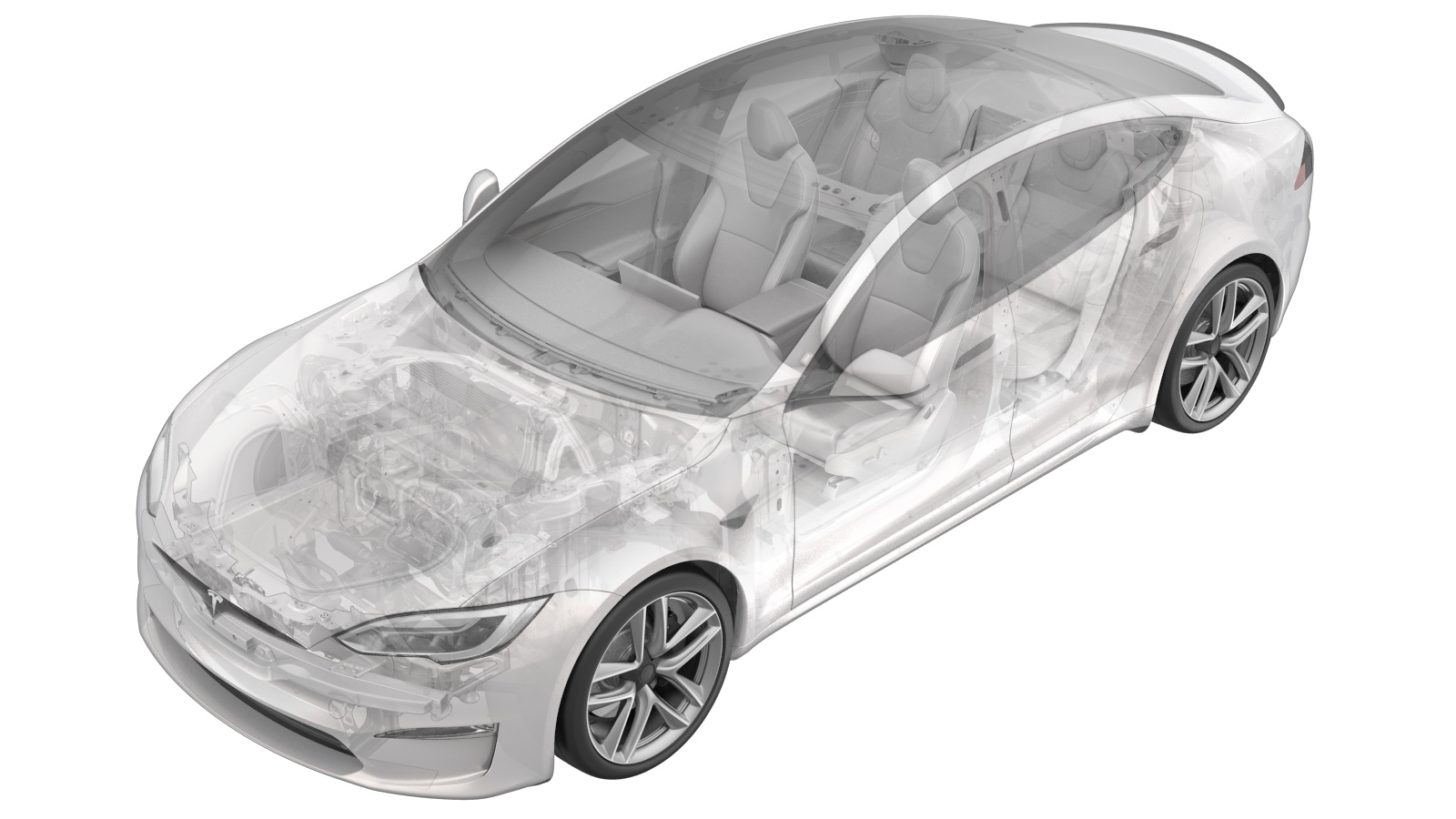

This procedure describes work that is specific to 2025+ Model S.
  1. Open LH front door
  2. Lower LH front window
  3. Remove LH mid A-pillar trim
    Informational PurposesAn informational icon, calling your attention
    Note
    1x clip, 2x tabs

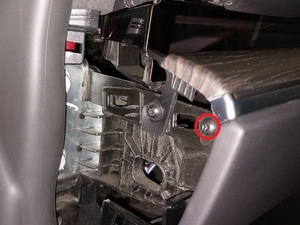

  4. Remove LH IP end cap
    Informational PurposesAn informational icon, calling your attention
    Note
    4x clips
  5. Remove IP LH mid panel
    Informational PurposesAn informational icon, calling your attention
    Note
    6x tabs
  6. Install IP LH mid panel
    Informational PurposesAn informational icon, calling your attention
    Note
    6x tabs
  7. Install LH IP end cap
    Informational PurposesAn informational icon, calling your attention
    Note
    4x clips
  8. Install LH mid A-pillar trim
    Informational PurposesAn informational icon, calling your attention
    Note
    1x clip, 2x tabs, Verify weather seal is seated properly
  9. Raise LH front window
  10. Close LH front door
    Informational PurposesAn informational icon, calling your attention
    Note
    Close doors
