Supermanifold (Remove and Replace)

Correction code 18400102 2.04 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email LaborTimeFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

  • 2023-04-13: Revised procedure.
Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
This procedure is a DRAFT, although it has been validated. Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near high voltage systems and components. Provide corrections and feedback to ServiceDevelopment@teslamotors.com.

Remove

  1. Raise and support vehicle
    Informational PurposesAn informational icon, calling your attention
    Note
    Prepare to raise vehicle, Set air suspension to "Jack Mode", Position lift arm pads on vehicle jack pads
  2. Open LH front door
  3. Lower LH front window
  4. Turn HVAC on, Turn AC OFF and set the Blower Speed to 10. Set the Temperature to HI and run for 10 minutes
    Informational PurposesAn informational icon, calling your attention
    Note
    This will clear most of the oil out of the cabin condenser
  5. Remove the underhood storage unit. See .
  6. Turn off the HVAC and let it sit for 1 minute
    Informational PurposesAn informational icon, calling your attention
    Note
    Make sure both compressor and blower are off, this allows refrigerant inside cabin condenser to return to the accumulator
  7. Turn the HVAC back on, Turn the AC on, set the Blower Speed to 10 and the Temperature to LO, run the HVAC for 10 minutes
    Informational PurposesAn informational icon, calling your attention
    Note
    This step will clear most of the oil out of the evaporator
  8. Connect A/C machine to power and switch on
    Informational PurposesAn informational icon, calling your attention
    Note
    Touch time only, Machine will run various background tasks, Wait until Main Menu comes up before continuing

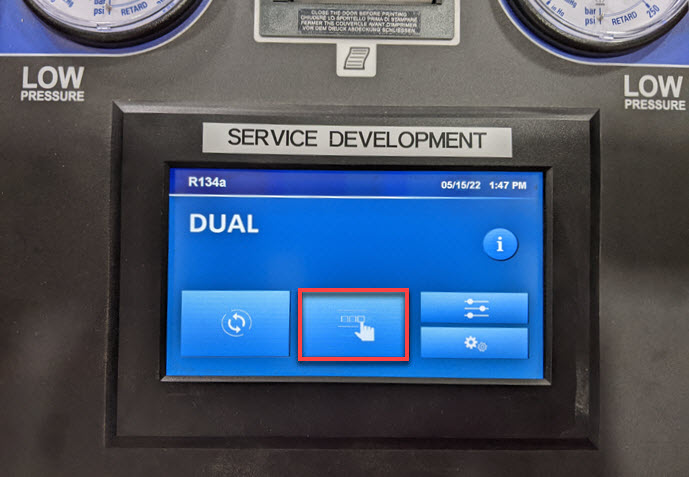

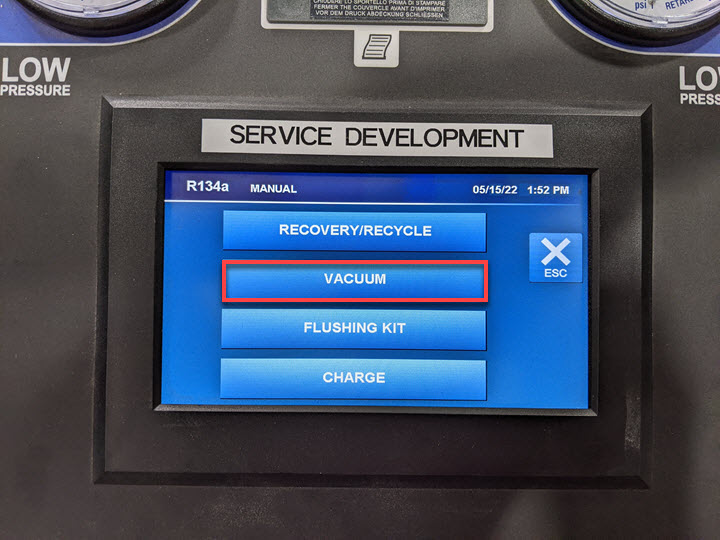

  9. Skip the following panels when prompted
    Informational PurposesAn informational icon, calling your attention
    Note
    Use selections indicated in pictures

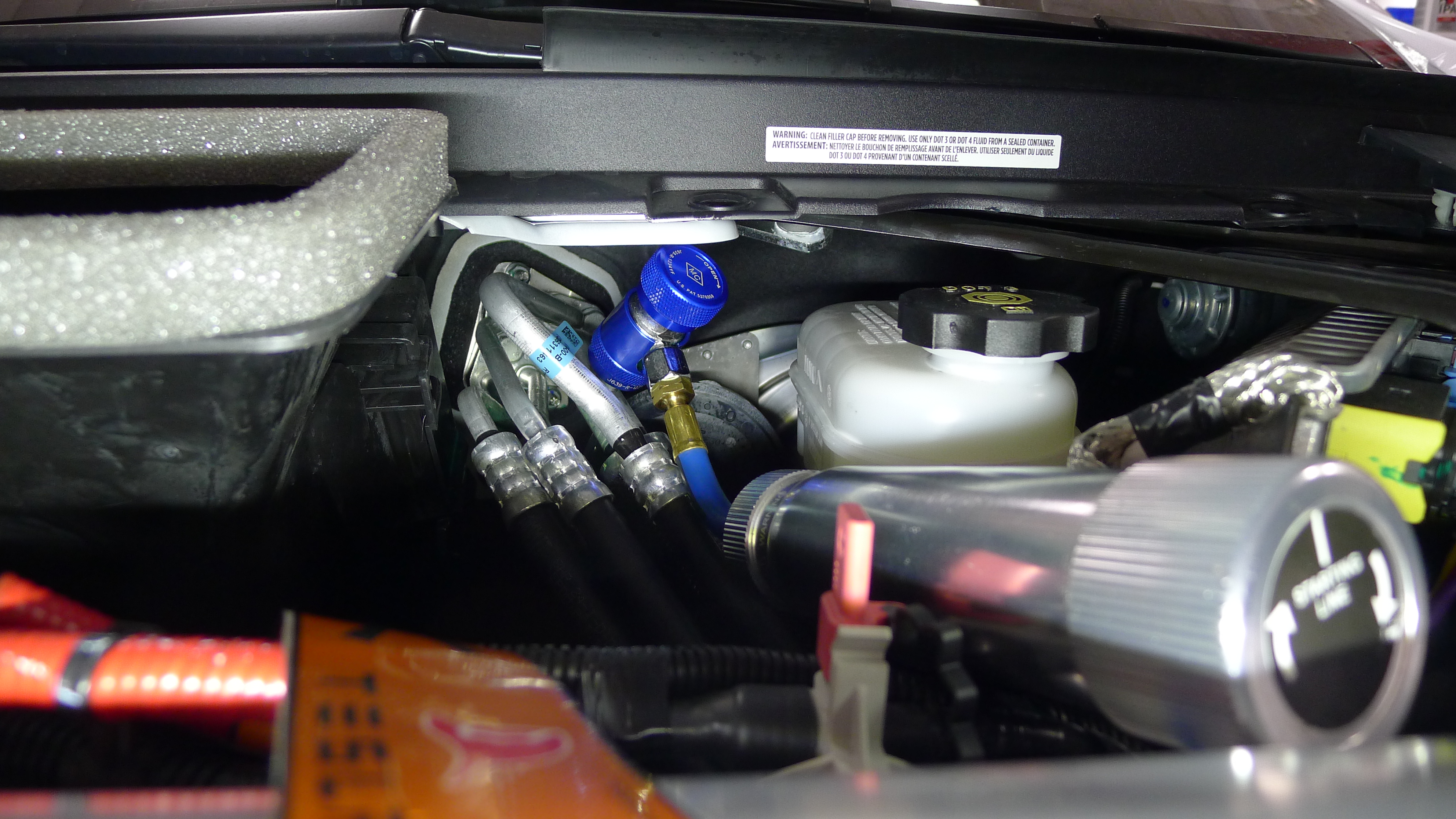

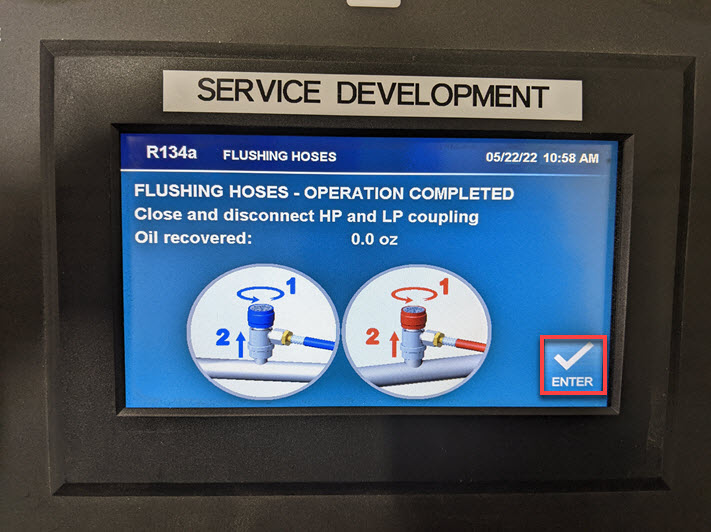

  10. Perform hose flush
    Informational PurposesAn informational icon, calling your attention
    Note
    Touch time only, Connect couplers to machine, Open couplers by turning clockwise, Using Main Menu > Next > Menu > Flush hoses > Verify hose connection, Machine will chime once process is complete
  11. Turn Off the AC and Blower motor
  12. Place vehicle in service mode with touchscreen
    Informational PurposesAn informational icon, calling your attention
    Note
    Select vehicle's badge icon in Controls > Software for four seconds and then type "service" into dialog box
  13. Access thermal system routines using the UI
    Informational PurposesAn informational icon, calling your attention
    Note
    Select quick controls > Service mode > Diagnostics > Thermal, Authorize routines by holding right turn signal, depressing brake pedal for 10 seconds with key on phone dock
  14. Select 'Start' button at 'Start Thermal Fill Drain (Coolant & Refrigerant)' using the UI and PROC_VCFRONT_X_START-THERMAL-FILL-DRAINSearch for routine in ToolboxStart Thermal Fluid Fill/DrainThermal / Refrigerant System - Start Thermal Fill/Drainhv / Front Drive Inverter Replacement - Start Fluid Fill/DrainThermal / Actions - Start Thermal Fill/Drain window will appear
    Informational PurposesAn informational icon, calling your attention
    Note
    Select ‘X’ at top left of window to close once complete, Verify indicator displays green for both Coolant and Refrigerant readiness, Thermal Fill Drain routine has a 5 hour time limit, After 5 hours EXV's will close and routine must be performed again
  15. Power off vehicle from center display
    Informational PurposesAn informational icon, calling your attention
    Note
    Via Controls > Safety & Security > Power Off
  16. Disconnect LV battery connector and First Responder Loop
    Informational PurposesAn informational icon, calling your attention
    Note
    2x connectors, Lift up and release green locking tab, Pull black connector lock outwards to release connection
  17. Verify operation of multimeter
    Informational PurposesAn informational icon, calling your attention
    Note
    Set multimeter to DC voltage, Confirm multimeter is properly measuring voltage by testing LV battery, Touch lightly and do not damage terminals
  18. Raise vehicle fully and lower lift onto locks
    Informational PurposesAn informational icon, calling your attention
    Note
    Set vehicle to comfortable working height, Make sure there's an audible click of the locks on both sides before lowering, otherwise vehicle may tilt to the side
  19. Remove clips securing mid aero shield
    Informational PurposesAn informational icon, calling your attention
    Note
    4x push clips
  20. Remove bolts securing mid aero shield and remove from vehicle
    Informational PurposesAn informational icon, calling your attention
    Note
    16x bolts, 10mm, 6 Nm
  21. Install amp clamp to LH RDU HV harness
    Informational PurposesAn informational icon, calling your attention
    Note
    Verify meter is zeroed out before performing measurement, Measure single cable. Verify ammeter is installed in correct direction._x000A__x000A_ If current > 0.5A do not proceed with disconnecting HV connector. In this case, start vehicle electrical isolation again to make sure that all was properly shut down. Escalate for assistance as required_x000A__x000A_If current < 0.5A, OK to disconnect and check voltage at HV plug on the battery side.
  22. Remove all items from pockets and ensure not wearing metal items
  23. Inspect HV insulating gloves
    Informational PurposesAn informational icon, calling your attention
    Note
    Check gloves for damage prior to use, Refer to service document TN-15-92-003, for information on inspecting HV gloves. https://service.teslamotors.com/documents?model=&keys=TN-15-92-003&vehicle_system=&sort_by=field_date_submitted&sort_order=DESC
  24. Put on HV insulating gloves and leather over gloves
  25. Release LH RDU HV harness from HV battery
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector, Hold down red locking tab and disengage the release lever, Do not force the release lever up
  26. Verify no high voltage at LH rear RDU HV header
    Informational PurposesAn informational icon, calling your attention
    Note
    Make sure to wear PPE (HV gloves, safety glasses) when working on high voltage component, Verify test equipment is rated CATIII or higher, Measure B+ to Ground, B- to Ground, B+ to B-, If voltage is greater than 10V, Pack contactors are not open or welded, Stop work and reach out to Service Engineering
  27. Secure LH RDU HV harness to battery pack
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector, Verify lever is in the upright and open position, Carefully seat connector and allow lever to engage, Fully secure lever and verify red tab is locked, Do not damage any pins
  28. Remove the leather glove protectors and HV insulating gloves
  29. Apply Loctite 222 onto mid aero shield bolts and install fasteners securing mid aero shield to vehicle
    Informational PurposesAn informational icon, calling your attention
    Note
    16x bolts, 10mm, 6 Nm
  30. Install clips securing mid aero shield
    Informational PurposesAn informational icon, calling your attention
    Note
    4x push clips
  31. Remove clips securing front aero shield
    Informational PurposesAn informational icon, calling your attention
    Note
    5x push clips
  32. Remove bolts securing front aero shield and remove from vehicle
    Informational PurposesAn informational icon, calling your attention
    Note
    9x bolts, 10mm, 6 Nm
  33. Place coolant catcher below RH front of vehicle
  34. Lower vehicle until tires are touching the ground
    Informational PurposesAn informational icon, calling your attention
    Note
    Raise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered
  35. Release clip securing the supermanifold to battery pump supply hose from LV battery
    Informational PurposesAn informational icon, calling your attention
    Note
    1x clip
  36. Remove fasteners securing the LV battery and move aside
    Informational PurposesAn informational icon, calling your attention
    Note
    3x bolts, 10mm, 9 Nm, 2x datums, Take note of datums and carefully move assembly aside
  37. Release air quality sensor connection
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector
  38. Remove HEPA filter assembly cover
    Informational PurposesAn informational icon, calling your attention
    Note
    2x tabs, 2x datums, 2x slots, , Be cautious and do not damage the mounting clips, Maneuver cover forward and up in front of V-brace cross member
  39. Remove LV battery from vehicle
  40. Remove caps from low side and high side AC ports
    Informational PurposesAn informational icon, calling your attention
    Note
    2x caps
  41. Connect hoses to vehicle and perform A/C recovery
    Informational PurposesAn informational icon, calling your attention
    Note
    Connect couplers to vehicle, Note the amount of refrigerant and oil recovered, mark oil drain bottle oil level (use a piece of tape marking the fluid level), Open couplers by turning clockwise, Using Main Menu > Recover > Verify hose connection, Machine will chime once process is complete, Vehicle may be left unattended, Note or print the amount of refrigerant and oil recovered, Refrigerant recovered should be ~2.24 lb (1.02 kg), Oil recovered should be ~0.3 oz (8.87 mL), If drained oil level increased more than 1.01 oz (30 mL) refer to drained oil loss chart https://toolbox.teslamotors.com/articles/353700
  42. Disconnect AC compressor logic connector
    Informational PurposesAn informational icon, calling your attention
    Note
    1x locking electrical connector, Do not push down on red tab, Pull to disengage lock, Pull again to release connector
  43. Remove retaining clip securing AC compressor logic harness to AC compressor HV harness bracket
    Informational PurposesAn informational icon, calling your attention
    Note
    1x fir tree clip
  44. Remove fastener securing AC compressor HV harness bracket to AC compressor
    Informational PurposesAn informational icon, calling your attention
    Note
    1x bolt, 13mm, 9 Nm
  45. Disconnect HV harness connector from AC compressor
    Informational PurposesAn informational icon, calling your attention
    Note
    1x locking electrical connector, Move black locking tab away form the AC compressor, Push down on locking connector to release and pull straight out of socket
  46. Remove AC compressor ground strap
    Informational PurposesAn informational icon, calling your attention
    Note
    1x bolt, T25, 7 Nm
  47. Release clip securing the coolant hose to the AC compressor bracket
    Informational PurposesAn informational icon, calling your attention
    Note
    1x fir tree clip
  48. Remove PT coolant pump from AC compressor bracket
    Informational PurposesAn informational icon, calling your attention
    Note
    Slide pump assembly away from compressor off lower bracket
  49. Remove AC hoses from vehicle
  50. Remove nut securing supermanifold to compressor suction line to compressor and remove line
    Informational PurposesAn informational icon, calling your attention
    Note
    1x nut, 13mm, 22 Nm
  51. Remove nut securing supermanifold to compressor discharge line to compressor and remove line
    Informational PurposesAn informational icon, calling your attention
    Note
    1x nut, 13mm, 22 Nm
  52. Install AC flush adapters onto AC manifold to compressor line
    Informational PurposesAn informational icon, calling your attention
    Note
    2x nuts, 13mm, 22 Nm, Install flush adapters onto suction and discharge lines on compressor side, Leave seal washers on AC manifold line, Inspect o-rings and replace if damaged, Use 13mm nuts from compressor to secure flush adapters
  53. Connect AC machine hoses to AC flush adapters and run System Flush procedure
    Informational PurposesAn informational icon, calling your attention
    Note
    Touch time only, System flush procedure runs for approximately 90 minutes, Must use Robinair 34988ni machine (R134a) to run system flush procedure, Minimum of 13lb of refrigerant needed in tank to run system flush procedure, On AC machine main menu click next, Click menu, Scroll down to system flush, Enter 30 min run time
  54. Remove AC compressor HV harness from the AC compressor and set aside
    Informational PurposesAn informational icon, calling your attention
    Note
    Move AC compressor HV harness bracket toward the front of the vehicle, Lift the bracket up to clear the upper bracket mount, Carefully set harness and bracket aside
  55. Remove the fasteners securing the AC compressor bracket to the multi-system beam and remove the AC compressor and AC compressor bracket assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    2x bolts, 15mm, 31 Nm, Recommend assistance, Support the AC compressor while removing the fasteners, Carefully remove the AC compressor and AC compressor bracket towards the front of the vehicle and under the multi-system beam, Be cautious around the coolant hose and supermanifold harness
  56. Remove the AC compressor bracket from the AC compressor
    Informational PurposesAn informational icon, calling your attention
    Note
    3x bolts, 10mm, 9 Nm
  57. Protect the LP and HP opening ports on the AC compressor
    Informational PurposesAn informational icon, calling your attention
    Note
    Need to be fully covered when cleaning the AC compressor in next step
  58. Remove NVH acoustic cover from AC compressor
    Informational PurposesAn informational icon, calling your attention
    Note
    NVH acoustic cover must be removed to properly weigh compressor
  59. Remove NVH cover material from compressor
    Informational PurposesAn informational icon, calling your attention
    Note
    Remove as much material of the NVH acoustic cover as possible, Excessive material left on AC compressor will cause an inaccurate weight measurement
  60. Weigh compressor and reset compressor oil amount
    Informational PurposesAn informational icon, calling your attention
    Note
    Weight measured in grams, Take note of the compressor weight, Add ND-11 oil through suction port of compressor until it weighs 7193 grams
  61. Install NVH acoustic onto AC compressor
    Informational PurposesAn informational icon, calling your attention
    Note
    Install new NVH blanket or re-use old one if new one is not available, and adhesive is in good working condition._x000A_Remove adhesive backing, Lay NVH acoustic cover down with adhesive side facing up, Align cut outs of NVH acoustic cover to suction port on AC compressor, Install NVH acoustic cover around suction port on AC compressor then continue to wrap NVH acoustic cover around compressor
  62. Install the AC compressor bracket to the AC compressor
    Informational PurposesAn informational icon, calling your attention
    Note
    3x bolts, 10mm, 9 Nm
  63. Disconnect AC machine hoses from AC flush adapters
  64. Remove AC flush adapters from supermanifold to compressor AC line assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    2x nuts, 13mm, 22 Nm
  65. Remove bolt on supermanifold to compressor AC line from supermanifold
    Informational PurposesAn informational icon, calling your attention
    Note
    1x bolt, 13mm, 22 Nm
  66. Remove AC manifold line from Supermanifold and remove AC manifold line assembly out of the vehicle
  67. Remove Penta HVAC line from HVAC assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    2x bolts, 13mm, 22 Nm
  68. Remove nut securing Penta HVAC line assembly to the Supermanifold plate
    Informational PurposesAn informational icon, calling your attention
    Note
    1x nut, 13mm, 27 Nm, Located under multi-system beam
  69. Remove Penta HVAC line from the Supermanifold plate
    Informational PurposesAn informational icon, calling your attention
    Note
    Located under multi-system beam, Move line rearward until Penta HVAC line stud clears Supermanifold plate, Place rag underneath line
  70. Remove Penta HVAC line from vehicle
    Informational PurposesAn informational icon, calling your attention
    Note
    Negotiate line around coolant reservoir
  71. Remove coolant bottle cap
  72. Disconnect the powertrain bypass hose from the Supermanifold
    Informational PurposesAn informational icon, calling your attention
    Note
    1x spring clip, This will drain the coolant reservoir
  73. Disconnect the radiator outlet hose from the Supermanifold
    Informational PurposesAn informational icon, calling your attention
    Note
    1x spring clip
  74. Disconnect the radiator inlet hose from the Supermanifold
    Informational PurposesAn informational icon, calling your attention
    Note
    1x spring clip
  75. Install 3 male plugs into the coolant ports at the front of the Supermanifold and 3 female plugs at the removed hoses
    Informational PurposesAn informational icon, calling your attention
    Note
    3x male plugs, 3x female plugs, This will avoid any cross contamination
  76. Disconnect the sensor for the powertrain supply hose
    Informational PurposesAn informational icon, calling your attention
    Note
    1x locking electrical connector, Do not push down on Red tab, Pull red tab to disengage lock, Pull again to release connector
  77. Disconnect powertrain supply hose from supermanifold
    Informational PurposesAn informational icon, calling your attention
    Note
    1x spring clip, Spring is accessible from the front of the supermanifold
  78. Disconnect the HV battery return hose from the Supermanifold
    Informational PurposesAn informational icon, calling your attention
    Note
    1x spring clip
  79. Disconnect chiller to battery hose from supermanifold
    Informational PurposesAn informational icon, calling your attention
    Note
    1x spring clip
  80. Install 3 male plugs into the coolant ports at the rear of the Supermanifold
    Informational PurposesAn informational icon, calling your attention
    Note
    3x plugs, This will avoid any cross contamination
  81. Disconnect the supermanifold harness from the front controller
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector
  82. Remove the bolts securing the supermanifold to the multi-system beam and remove the Supermanifold from the vehicle
    Informational PurposesAn informational icon, calling your attention
    Note
    2x bolts, 15 mm, 31 Nm, Recommend assistance, Rotate the Supermanifold counter clockwise under the multi-system beam, Support from underneath and at reservoir

Install

  1. Document old and new part numbers and serial numbers for Supermanifold
    Informational PurposesAn informational icon, calling your attention
    Note
    Label is located in front of accumulator, document part numbers and serial numbers into the repair order
  2. Install the Supermanifold into the vehicle and install the bolts securing the Supermanifold to the multi-system beam
    Informational PurposesAn informational icon, calling your attention
    Note
    2x bolts, 15 mm, 31 Nm, Recommend assistance, Rotate the Supermanifold clockwise under the multi-system beam, Support from underneath and at reservoir, Hand start bolts to Supermanifold
  3. Connect the supermanifold harness from the front controller
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector
  4. Connect chiller to battery hose from supermanifold
    Informational PurposesAn informational icon, calling your attention
    Note
    1x spring clip, Perform push-pull-push test to make sure hose is fully seated
  5. Connect the HV battery return hose from the Supermanifold
    Informational PurposesAn informational icon, calling your attention
    Note
    1x spring clip, Perform push-pull-push test to make sure hose is fully seated
  6. Connect powertrain supply hose from supermanifold
    Informational PurposesAn informational icon, calling your attention
    Note
    1x spring clip, Perform push-pull-push test to make sure hose is fully seated
  7. Connect the sensor for the powertrain supply hose
    Informational PurposesAn informational icon, calling your attention
    Note
    1x locking electrical connector, Engage locking tab
  8. Remove 3 female plugs at the inlet, outlet, & bypass hoses
    Informational PurposesAn informational icon, calling your attention
    Note
    3x female plugs
  9. Connect the radiator inlet hose from the Supermanifold
    Informational PurposesAn informational icon, calling your attention
    Note
    1x spring clip, Perform push-pull-push test to make sure hose is fully seated
  10. Connect the radiator outlet hose from the Supermanifold
    Informational PurposesAn informational icon, calling your attention
    Note
    1x spring clip, Perform push-pull-push test to make sure hose is fully seated
  11. Connect the powertrain bypass hose from the Supermanifold
    Informational PurposesAn informational icon, calling your attention
    Note
    1x spring clip, Perform push-pull-push test to make sure hose is fully seated
  12. Replace the seal washers to the Penta HVAC line on the AC manifold side
    Informational PurposesAn informational icon, calling your attention
    Note
    5x seal washers, Lube seal washers with ND-11 oil
  13. Replace the seal washers to the Penta HVAC line on the HVAC side
    Informational PurposesAn informational icon, calling your attention
    Note
    5x seal washers, Lube seal washers with ND-11 oil
  14. Position Penta HVAC line into vehicle
    Informational PurposesAn informational icon, calling your attention
    Note
    Negotiate around coolant reservoir
  15. Install Penta HVAC line from HVAC assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    2x bolts, 13mm, 22 Nm
  16. Install Penta HVAC line to the Supermanifold plate
    Informational PurposesAn informational icon, calling your attention
    Note
    Located under multi-system beam, Ensure Penta HVAC line stud clears Supermanifold plate before engaging pipes
  17. Install Penta HVAC line assembly nut to the Supermanifold plate
    Informational PurposesAn informational icon, calling your attention
    Note
    1x nut, 13mm, 27 Nm, Located under multi-system beam
  18. Position AC compressor bracket assembly into vehicle and secure AC compressor assembly to multi-system beam
    Informational PurposesAn informational icon, calling your attention
    Note
    2x bolts, 15mm, 31 Nm, Recommend assistance, Support the AC compressor while installing the fasteners, Carefully install the AC compressor and AC compressor bracket towards the rear of the vehicle and under the multi-system beam, Negotiate bracket around coolant hose and supermanifold harness, Hand start bolts
  19. Torque AC compressor bracket bolts to multi-system beam
    Informational PurposesAn informational icon, calling your attention
    Note
    2x bolts, 15mm, 31 Nm
  20. Position the AC compressor HV harness onto the AC compressor for installation
    Informational PurposesAn informational icon, calling your attention
    Note
    Ensure the HV harness bracket engages the upper bracket mount on the AC compressor
  21. Connect HV harness connector to AC compressor
    Informational PurposesAn informational icon, calling your attention
    Note
    1x locking electrical connector, 3 stage locking connector, After fully seating the connector onto the AC compressor engage the black locking tab by pushing toward the AC compressor, Perform push-pull-push test to ensure proper seating
  22. Install fastener securing AC compressor HV harness bracket to AC compressor
    Informational PurposesAn informational icon, calling your attention
    Note
    1x bolt, 13mm, 9 Nm
  23. Install AC compressor ground strap
    Informational PurposesAn informational icon, calling your attention
    Note
    1x bolt, T25, 7 Nm
  24. Secure PT coolant pump onto AC compressor bracket
    Informational PurposesAn informational icon, calling your attention
    Note
    Slide pump assembly onto compressor lower bracket
  25. Install clip securing the coolant hose to the AC compressor bracket
    Informational PurposesAn informational icon, calling your attention
    Note
    1x fir tree clip
  26. Replace seal washers for supermanifold to compressor AC line on supermanifold side
    Informational PurposesAn informational icon, calling your attention
    Note
    2x seal washers, Lube seal washers with ND-11 oil
  27. Install supermanifold to compressor AC line onto supermanifold
    Informational PurposesAn informational icon, calling your attention
    Note
    1x bolt, 13mm, 22 Nm, Hand start bolt to prevent stripped threads
  28. Replace seal washer on supermanifold to compressor AC line assembly on compressor discharge line
    Informational PurposesAn informational icon, calling your attention
    Note
    1x seal washer, Lube seal washers with ND-11 oil
  29. Replace seal washer on supermanifold to compressor AC line assembly on compressor suction line
    Informational PurposesAn informational icon, calling your attention
    Note
    1x seal washer, Lube seal washers with ND-11 oil
  30. Install supermanifold to compressor discharge line to compressor
    Informational PurposesAn informational icon, calling your attention
    Note
    1x nut, 13mm, 22 Nm
  31. Install supermanifold to compressor suction line to compressor
    Informational PurposesAn informational icon, calling your attention
    Note
    1x nut, 13mm, 22 Nm
  32. Remove coolant bottle cap
  33. Place empty coolant container into front storage area
  34. Fill container with at least 15L of coolant
  35. Place filled coolant container into front storage area
  36. Install vacuum refill cap onto coolant bottle assembly
  37. Setup coolant refill tool
    Informational PurposesAn informational icon, calling your attention
    Note
    Verify all valves on refill tool are in the closed position, See image for clarity
  38. Install vacuum refill hose into refill cap on coolant bottle
    Informational PurposesAn informational icon, calling your attention
    Note
    Perform push-pull-push test to verify hose is fully installed
  39. Place refill hose inside filled coolant container
    Informational PurposesAn informational icon, calling your attention
    Note
    Make sure hose end is fully submerged into coolant
  40. Position overflow hose into empty container
  41. Connect shop air supply to coolant refill tool
    Informational PurposesAn informational icon, calling your attention
    Note
    If not already done, Verify refill valve is set to off
  42. Open air inlet valve to draw a vacuum, Once gauge stabilizes, Fully close valve
    Informational PurposesAn informational icon, calling your attention
    Note
    Gauge stabilizes roughly (60-70 cmHg), Vacuum should not drop after the valves are closed
  43. Slowly open the refill valve to allow coolant to be drawn into the system
    Informational PurposesAn informational icon, calling your attention
    Note
    Make sure hose end of refill hose is fully submerged during entire process
  44. Once the gauge reads zero, close the coolant refill valve
  45. Remove coolant refill hose from coolant container
  46. Remove coolant overflow hose from coolant container
  47. Remove vacuum refill hose from refill cap on coolant bottle
  48. Remove vacuum refill tool cap
  49. Remove coolant refill tool from vehicle
  50. Remove both coolant containers from inside underhood area
  51. Reconnect AC hoses to vehicle
  52. Perform AC vacuum and run leak test
    Informational PurposesAn informational icon, calling your attention
    Note
    Set vacuum time to 15 minutes and leak test to ON, Machine will chime once process is complete, Vehicle may be left unattended, Verify leak test passed before continuing
  53. Select "refrigerant charge" on AC machine
    Informational PurposesAn informational icon, calling your attention
    Note
    Select the arrows under "refrigerant charge", Enter refrigerant amount of 1.02 kg (1020 g)
  54. Position LV battery into vehicle
    Informational PurposesAn informational icon, calling your attention
    Note
    Position LV battery to the left and allow space for HEPA cover to be installed
  55. Install HEPA filter assembly cover
    Informational PurposesAn informational icon, calling your attention
    Note
    2x tabs, 2x datums, 2x slots, Maneuver cover down and under V-brace cross member, Fully engage seal and locking tabs
  56. Secure air quality sensor connection
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector
  57. Install fasteners securing LV battery to multi-system beam
    Informational PurposesAn informational icon, calling your attention
    Note
    3x bolts, 10mm, 9 Nm, 2x datums, Shift into position and install fasteners
  58. Install clip securing the supermanifold to battery pump supply hose onto LV battery
    Informational PurposesAn informational icon, calling your attention
    Note
    1x clip
  59. Connect First Responder Loop and LV battery connector
    Informational PurposesAn informational icon, calling your attention
    Note
    2x connectors Secure FRL first, Seat LV battery connection and push black connector lock inwards to secure, Engage green locking tab when fully seated
  60. Access thermal system routines using the UI
    Informational PurposesAn informational icon, calling your attention
    Note
    Select quick controls > Service mode > Diagnostics > Thermal, Authorize routines by holding right turn signal, depressing brake pedal for 10 seconds with key on phone dock
  61. Select 'Start' button at 'Stop Thermal Fill Drain' using the UI and PROC_VCFRONT_X_STOP-THERMAL-FILL-DRAINSearch for routine in ToolboxStop Thermal Fluid Fill/DrainThermal / Refrigerant System - Stop Thermal Fill/DrainThermal / Coolant System - Stop Thermal Fill/Drainhv / Front Drive Inverter Replacement - Stop Fluid Fill/Drainhv / Rear Drive Inverter Replacement - Stop Fluid Fill/Drainhv / Rear Left Drive Inverter Replacement - Stop Fluid Fill/Drainhv / Rear Right Drive Inverter Replacement - Stop Fluid Fill/Drainhv / Front Drive Unit Replacement - Stop Coolant Fill/Drainhv / Rear Drive Unit Replacement - Stop Coolant Fill/DrainThermal / Actions - Stop Thermal Fill/Drain window will appear
    Informational PurposesAn informational icon, calling your attention
    Note
    Select ‘X’ at top left of window to close once complete
  62. Select 'Start' button at 'Start Coolant Air Purge' using the UI and ‘TEST_VCFRONT_X_THERMAL-COOLANT-AIR-PURGESearch for routine in ToolboxCoolant Air PurgeThermal / Coolant System - Coolant Purge Starthv / Front Drive Inverter Replacement - Coolant Air Purgehv / Rear Drive Inverter Replacement - Coolant Air Purgehv / Rear Left Drive Inverter Replacement - Coolant Air Purgehv / Rear Right Drive Inverter Replacement - Coolant Air Purgehv / Front Drive Unit Replacement - Coolant Air Purgehv / Rear Drive Unit Replacement - Coolant Air PurgeThermal / Actions - Coolant Purge Stop or Coolant Purge Start - SUCCESS' window will appear
    Informational PurposesAn informational icon, calling your attention
    Note
    Coolant pumps will be audible, Test lasts approximately 10 mins, Putting vehicle into drive state will stop this routine, Monitor levels as required, Select ‘X’ at top left of window to close once complete
  63. Inspect coolant level and top off as necessary
    Informational PurposesAn informational icon, calling your attention
    Note
    Ensure that the fluid level is at the Max line
  64. Install coolant bottle cap
  65. Release IP service panel
    Informational PurposesAn informational icon, calling your attention
    Note
    2x tabs, 4x datums, Release top tabs and slide rearward
  66. Using laptop connect to vehicle with ethernet diag kit and Toolbox 3
    Informational PurposesAn informational icon, calling your attention
    Note
    Open Toolbox 3 website and establish connection to the vehicle, https://toolbox.teslamotors.com, For local connection issues with Toolbox 3 refer to article #43695, Media converter box is powered by laptop USB or 12v power outlet, Ethernet connection will provide communication
  67. Select ‘Actions/Autodiag’ and search for ‘Redeploy’
  68. Select ‘SERVICE CAN REDEPLOY’, click ‘Run’, and allow routine to complete
    Informational PurposesAn informational icon, calling your attention
    Note
    Select ‘X’ at top right of window to close once complete, Routine will state pass but update will continue to run in the background, UI will indicate status of update
  69. Log into Tesla Garage
    Informational PurposesAn informational icon, calling your attention
    Note
    https://garage.vn.teslamotors.com/vehicles
  70. Enter vehicle VIN and select "Vitals" from drop down menu
  71. Check Firmware version
    Informational PurposesAn informational icon, calling your attention
    Note
    Firmware package installed must be 2021.36 or above for vehicle configuration update and Toolbox routine
  72. Navigate to "CFG" tab on "Vitals" page
  73. Check the coolant pump GTW configuration
    Informational PurposesAn informational icon, calling your attention
    Note
    If the config is DUAL or DUAL_SAN_P4, change the config to DUAL_MIX – This is critical, since the Coolant Pump Identification will apply to this new config, If gateway configuration is already DUAL_MIX no further action required
  74. Re-establish vehicle connection to Toolbox 3
    Informational PurposesAn informational icon, calling your attention
    Note
    Open Toolbox 3 website and establish connection to the vehicle. https://toolbox.teslamotors.com, Select connection status icon at top right corner, and select connect locally (icon will turn green when vehicle is connected)
  75. Select "Dashboards" tab, and select "Infotainment Dashboard"
  76. Select "Vehicle Configuration"
    Informational PurposesAn informational icon, calling your attention
    Note
    Configuration values should load automatically, if not select "Read Config" and "Run" to load
  77. Scroll down to "coolantPumpType" and change to "Two coolant pumps installed, mixed pole pair batches"
    Informational PurposesAn informational icon, calling your attention
    Note
    Click on current pump configuration, Select new pump configuration from drop down menu
  78. Select "Apply Changes" and select "Run" to save updated configuration
    Informational PurposesAn informational icon, calling your attention
    Note
    Center display will reboot, Toolbox connection will be lost, Select ‘X’ at top right of window to close once complete
  79. Re-establish vehicle connection to Toolbox 3
    Informational PurposesAn informational icon, calling your attention
    Note
    Open Toolbox 3 website and establish connection to the vehicle. https://toolbox.teslamotors.com, Select connection status icon at top right corner, and select connect locally (icon will turn green when vehicle is connected)
  80. Select ‘Actions/Autodiag’ and search for ‘Pump’
  81. Select TEST-SELF_VCFRONT_X_COOLANT-PUMPS-IDENTIFICATIONSearch for routine in ToolboxCoolant Pumps IdentificationThermal / Coolant System - Pump IdentificationThermal / Actions - Run Coolant Pumps Identification, click ‘Run’, and allow routine to complete
    Informational PurposesAn informational icon, calling your attention
    Note
    Select ‘X’ at top right of window to close once complete, Ensure VCFRONT_a490_coolantPumpsNotIdentified has cleared
  82. Select "Actions/Autodiag" and search for "Commissioning"
  83. Select TEST-SELF_VCFRONT_X_HEAT-PUMP-COMMISSIONINGSearch for routine in ToolboxHeat Pump Thermal System CommissioningThermal / Refrigerant System - Run Heat Pump Commissioninghv / Front Drive Inverter Replacement - Heatpump commissioning, click Run and allow routine to complete
    Informational PurposesAn informational icon, calling your attention
    Note
    If this routine is not run after entering Thermal Drain/Fill mode, the AC compressor operation will be blocked, Select ‘X’ at top right of window to close once complete
  84. Proceed with Hose Equalize steps to complete AC recharge process and follow instructions displayed on AC Machine
    Informational PurposesAn informational icon, calling your attention
    Note
    Disconnect high side coupler from vehicle, Turn AC on, Temp setting LO, Panel mode on, Fresh air mode on, Blower speed set to 10, Verify Hose Equalize settings, Verify discharge pressure does not exceed 26 bar and suction pressure is not below 1.15 bar,
  85. Proceed with Hose Equalize steps to complete AC recharge process and follow instructions displayed on AC Machine
    Informational PurposesAn informational icon, calling your attention
    Note
    Remove low side coupler from vehicle, Turn vehicle off, Verify Hose Equalize settings, Machine will chime once process is complete
  86. Install caps onto AC ports
    Informational PurposesAn informational icon, calling your attention
    Note
    2x caps
  87. Select ‘Actions/Autodiag’ and search for ‘Thermal’
  88. Select ‘TEST-SELF_VCFRONT_X_HEAT-PUMP-THERMAL-PERFORMANCESearch for routine in ToolboxHeat Pump Thermal System Performance Test’, click ‘Run’, and allow routine to complete
    Informational PurposesAn informational icon, calling your attention
    Note
    Select ‘X’ at top right of window to close once complete
  89. Disconnect Toolbox 3 from vehicle and remove laptop and ethernet diag kit
  90. Install IP service panel
    Informational PurposesAn informational icon, calling your attention
    Note
    2x tabs, 4 datums, Slide forward engaging datums then secure tabs upward into IP
  91. Exit Service Mode
    Informational PurposesAn informational icon, calling your attention
    Note
    Controls>Software select Exit Service Mode button
  92. Raise vehicle fully and lower lift onto locks
    Informational PurposesAn informational icon, calling your attention
    Note
    Set vehicle to comfortable working height, Make sure there's an audible click of the locks on both sides before lowering, otherwise vehicle may tilt to the side
  93. Blow off any residual coolant
  94. Remove coolant catcher from under vehicle
  95. Apply Loctite 222 onto front aero shield bolts and install fasteners securing front aero shield to vehicle
    Informational PurposesAn informational icon, calling your attention
    Note
    9x bolts, 10mm, 6 Nm
  96. Install clips securing front aero shield
    Informational PurposesAn informational icon, calling your attention
    Note
    5x push clips
  97. Lower vehicle until tires are touching the ground
    Informational PurposesAn informational icon, calling your attention
    Note
    Raise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered
  98. Install the underhood storage unit. See .
  99. Remove vehicle from lift
    Informational PurposesAn informational icon, calling your attention
    Note
    Lower rack arms fully and remove them from under vehicle, Remove air suspension from "Jack Mode"
  100. Raise LH front window
  101. Close LH front door
