Decor - C-Pillar - Mid - RH (2025+) (Remove and Replace)

Correction code new NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.

Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
This procedure is a DRAFT. Although it has been validated, Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near High Voltage systems and components. Provide corrections and feedback to ServiceDevelopment@teslamotors.com.
Informational PurposesAn informational icon, calling your attention
Note
This procedure describes work that is specific to 2025+ Model S.
  1. Open all four doors
  2. Lower LH front window

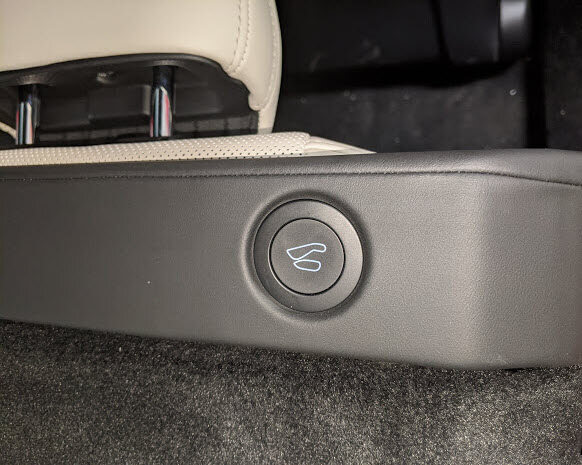

  3. Move LH front seat forward
  4. Move RH front seat forward

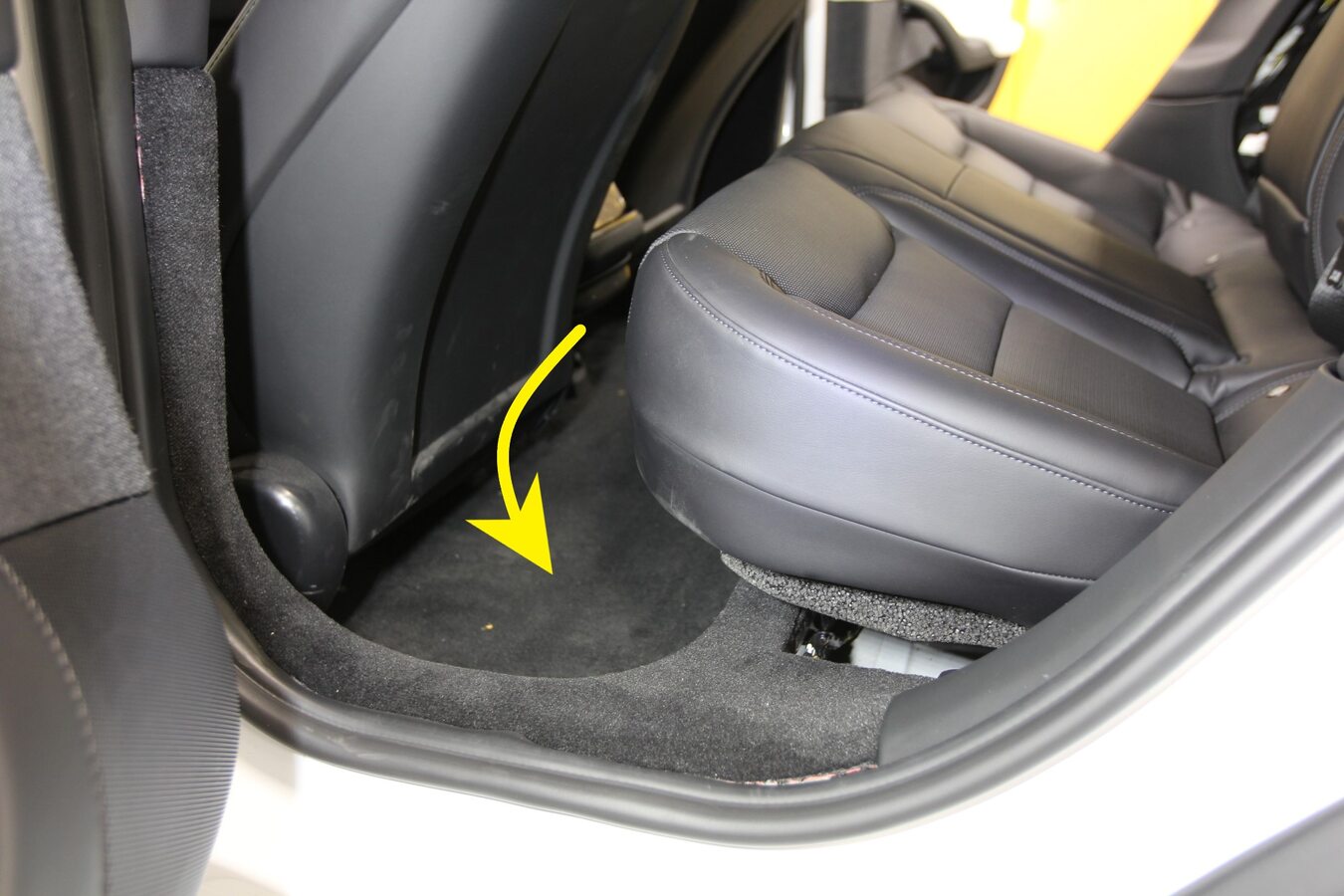

  5. Remove LH side bolster trim
    Informational PurposesAn informational icon, calling your attention
    Note
    1x clip, 1x tab, Start by releasing upper portion
  6. Remove RH side bolster trim
    Informational PurposesAn informational icon, calling your attention
    Note
    1x clip, 1x tab, Start by releasing upper portion

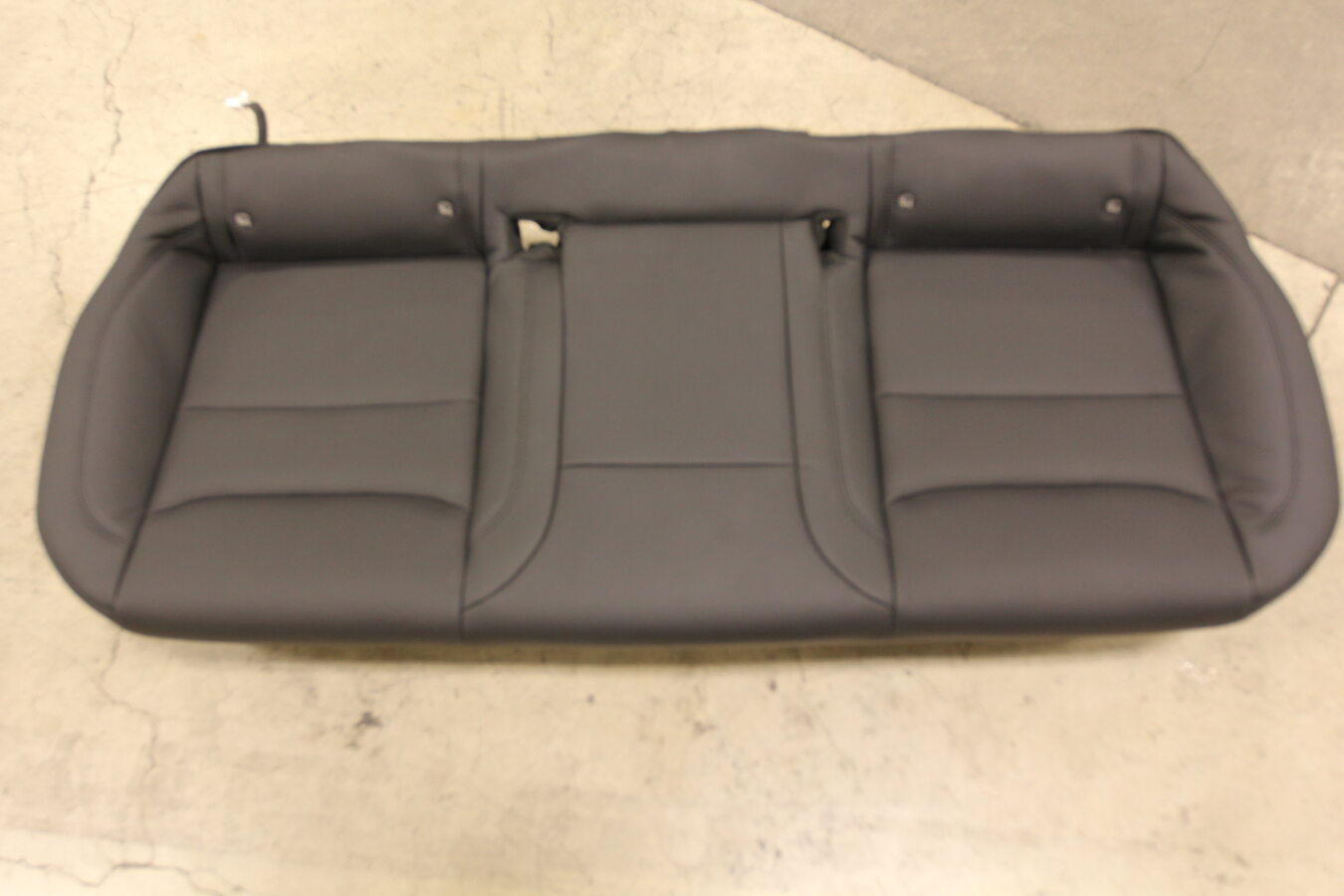

  7. Remove 2nd row seat cushion assembly
    Informational PurposesAn informational icon, calling your attention
    Note

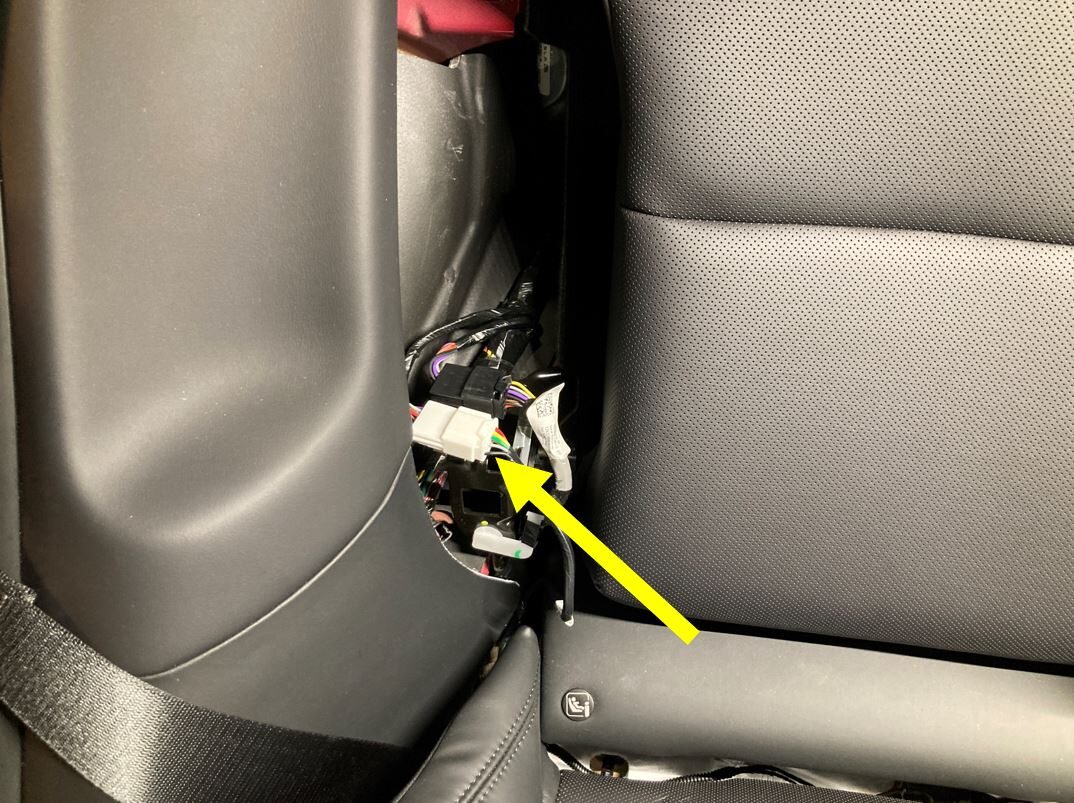

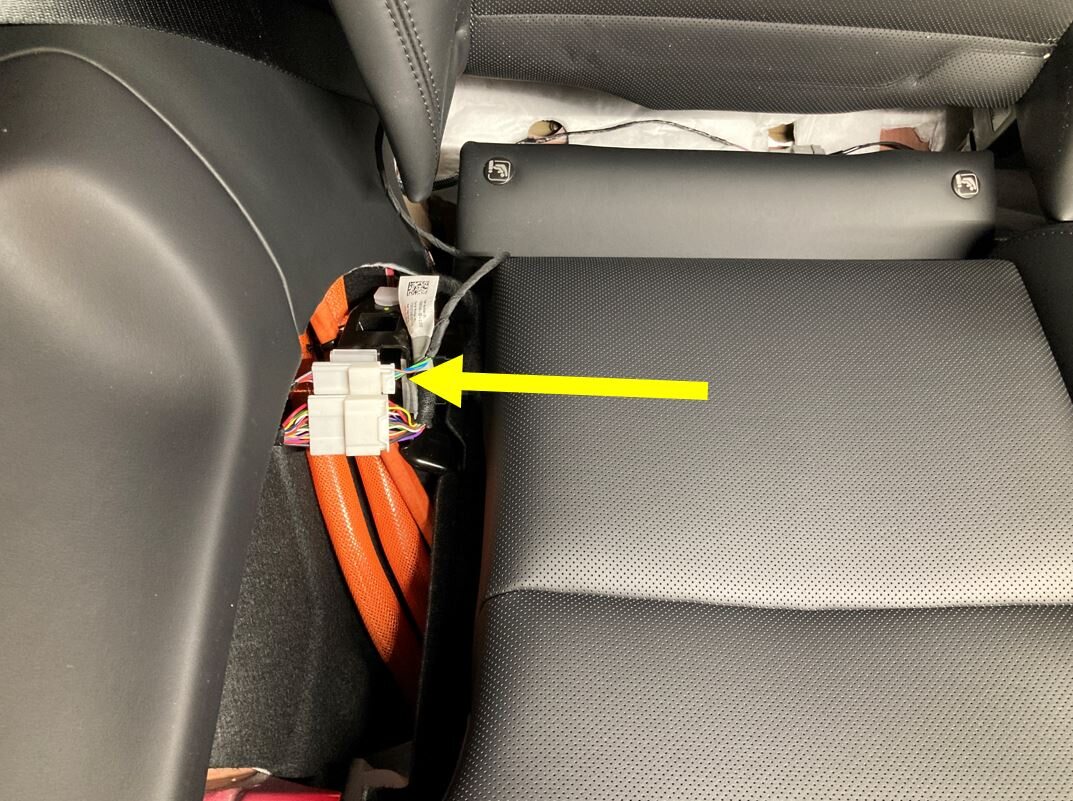

    2x clips, 2x connectors, Disengage locking clips and lift up on seat cushion, Release connections, If 2nd row seats are folded down then fold up for time being

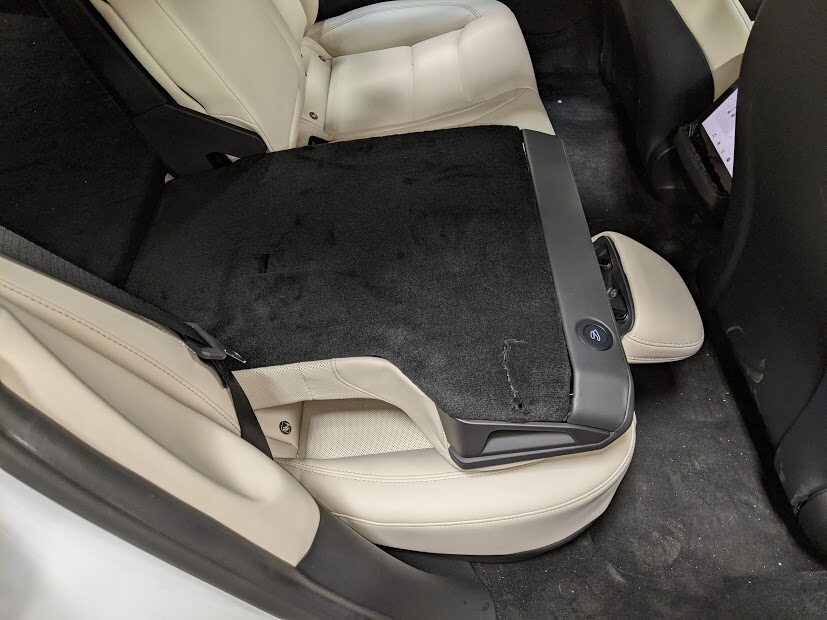

  8. Fold 40 seat into down position
    Informational PurposesAn informational icon, calling your attention
    Note
    If seat cushion is not present, protect the seat as required

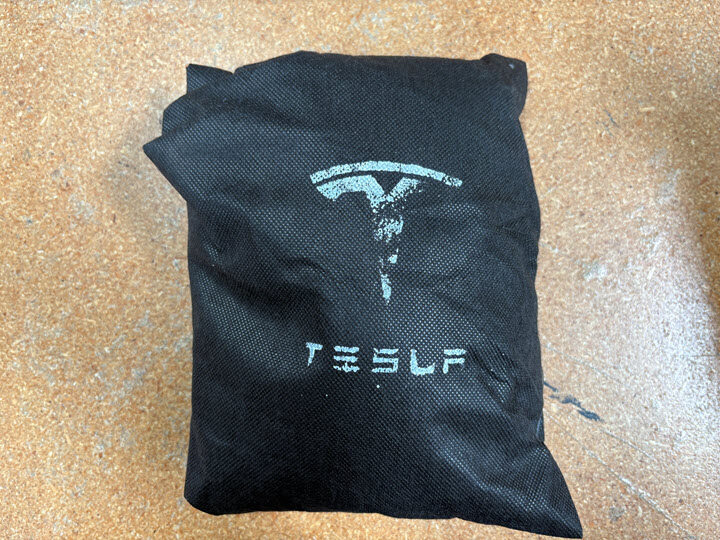

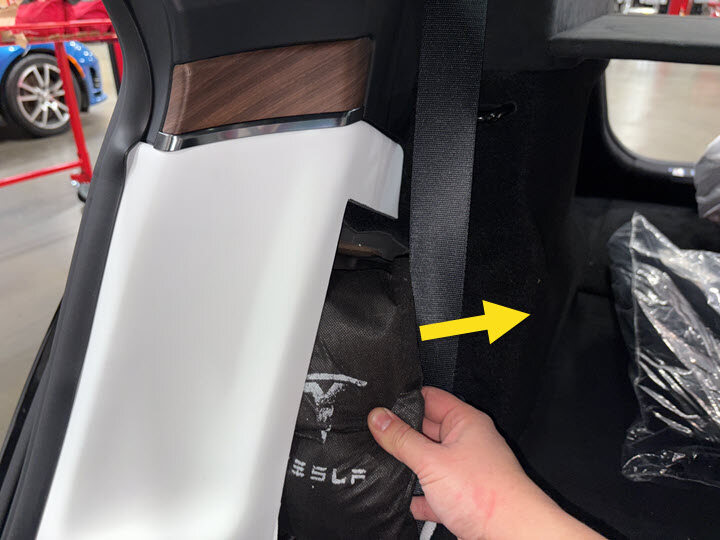

  9. Remove NVH foam bag from inside of Lower C-Pillar Trim
    Informational PurposesAn informational icon, calling your attention
    Note
    1x NVH bag

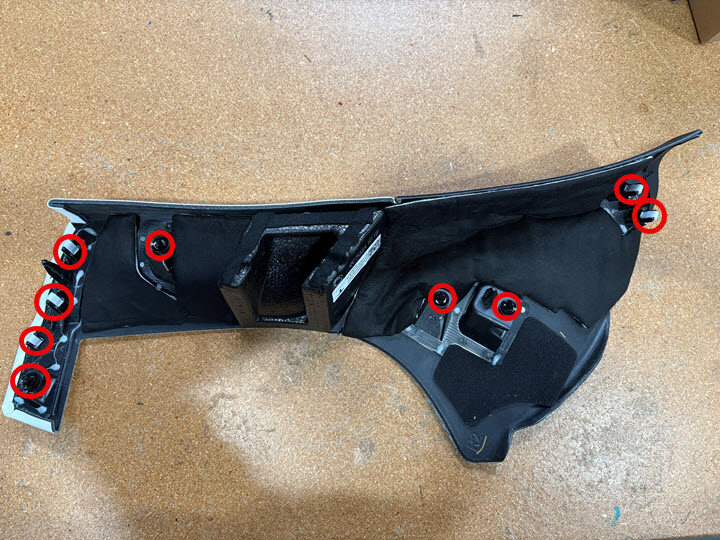

  10. Remove RH lower C-pillar trim
    Informational PurposesAn informational icon, calling your attention
    Note

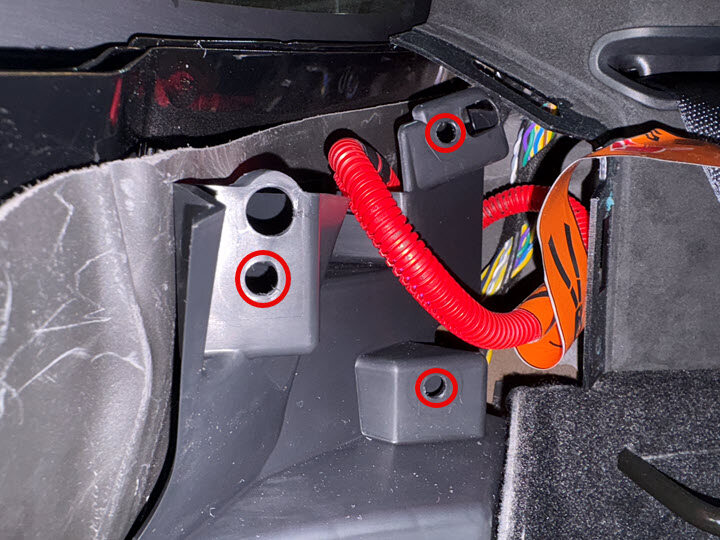

    9x clips, Use pry tool to carefully release clips from the inside of lower C-pillar trim

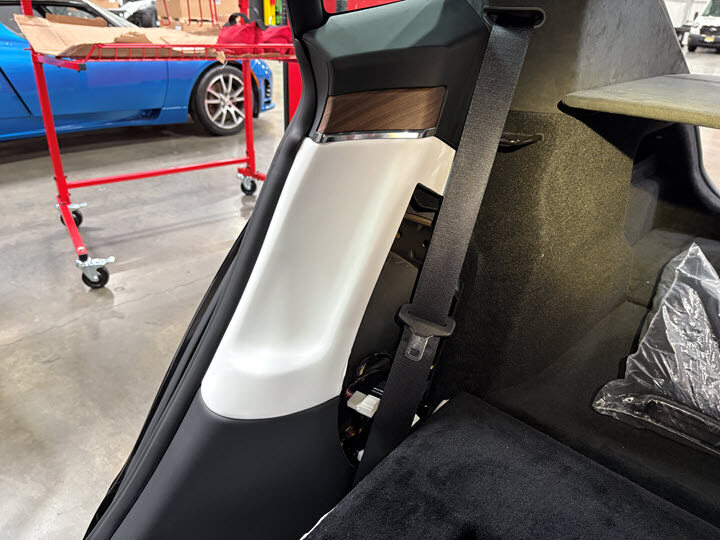

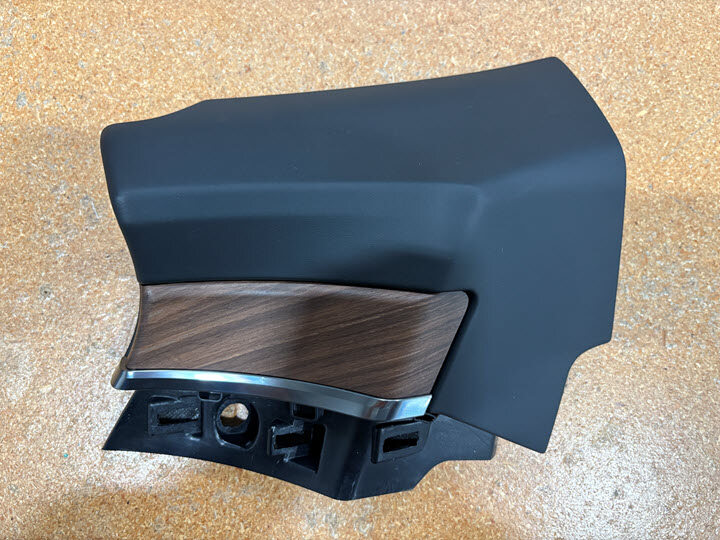

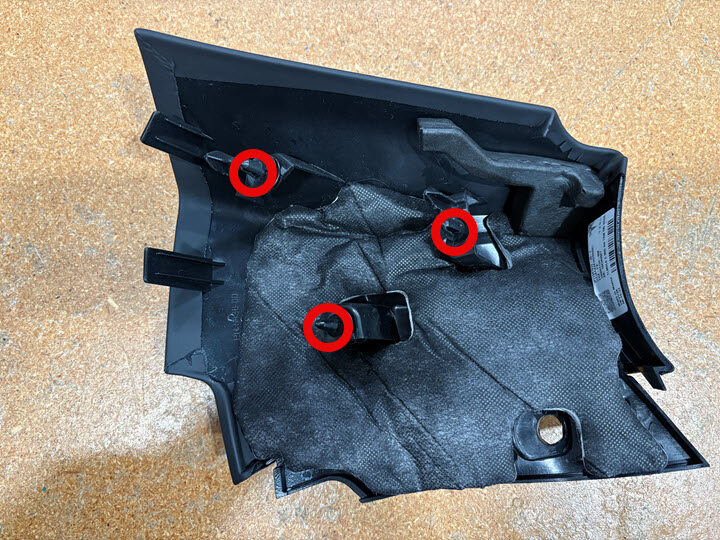

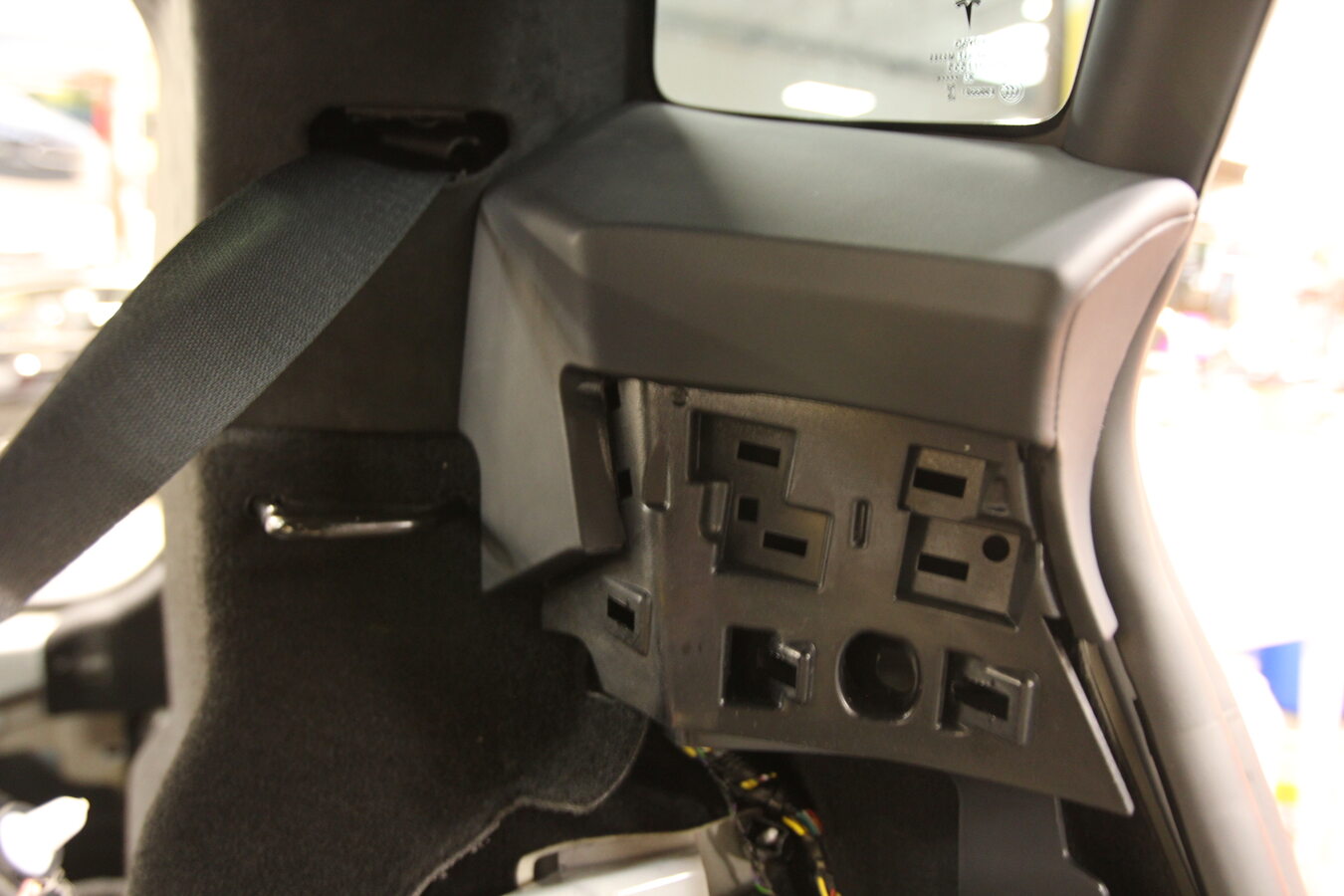

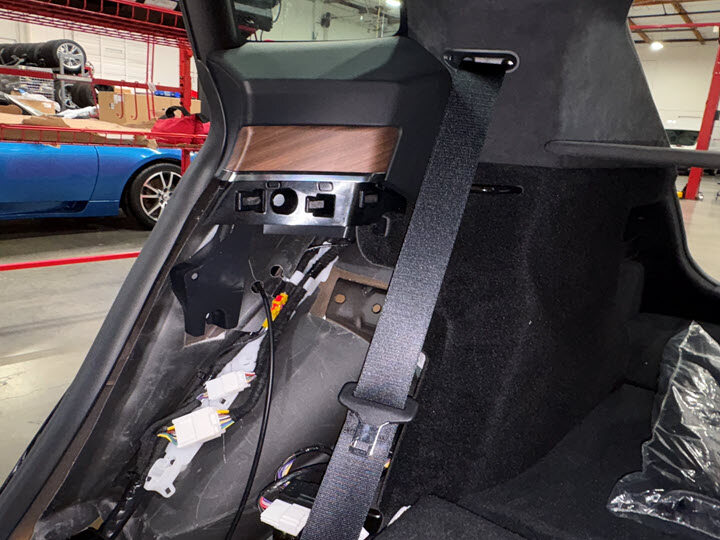

  11. Remove RH mid C-pillar trim
    Informational PurposesAn informational icon, calling your attention
    Note

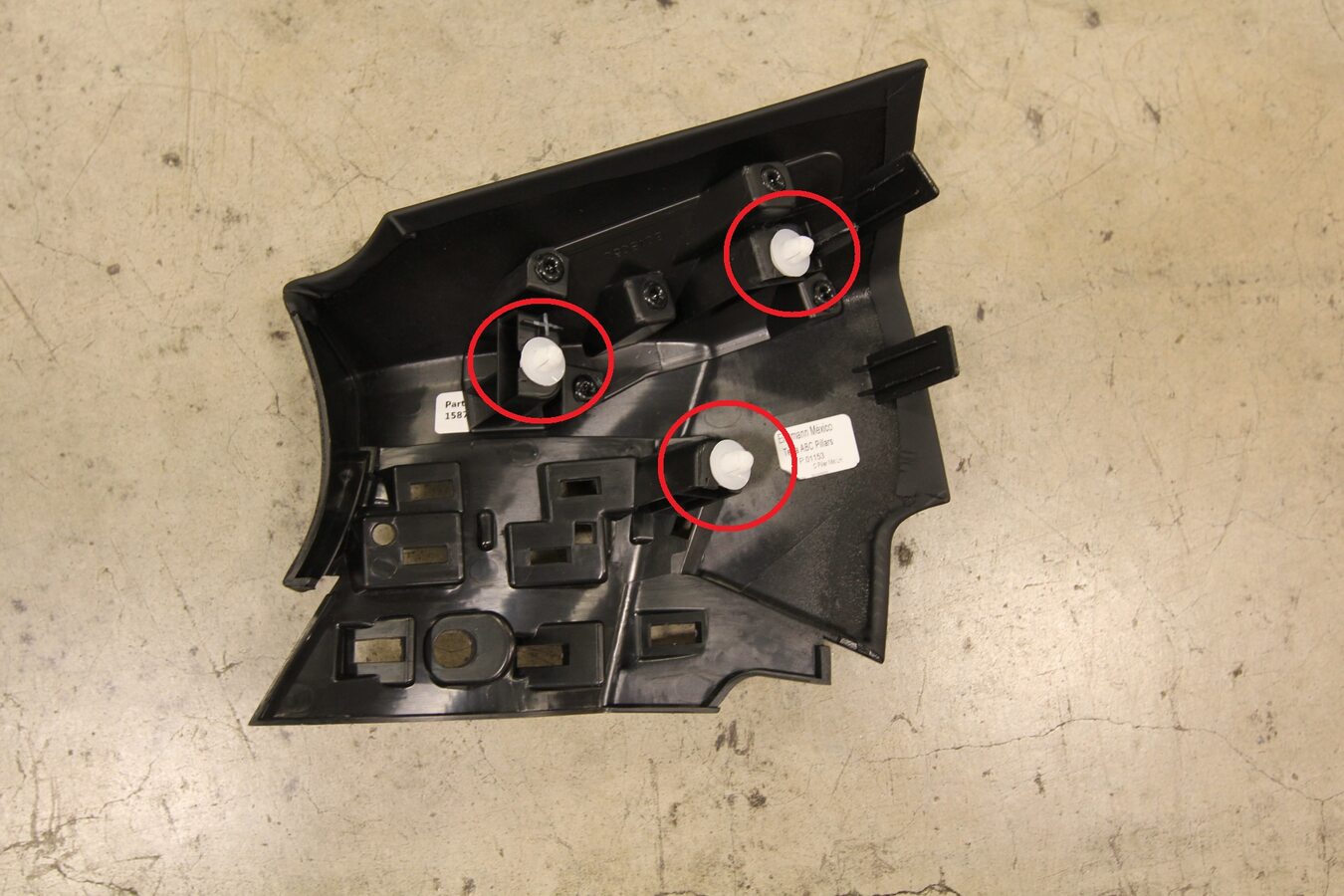

    3x clips
  12. Install RH mid C-pillar trim
    Informational PurposesAn informational icon, calling your attention
    Note
    3x clips, Replace any damaged clips
  13. Install RH lower C-pillar trim
    Informational PurposesAn informational icon, calling your attention
    Note
    9x clips, Properly seat door seal

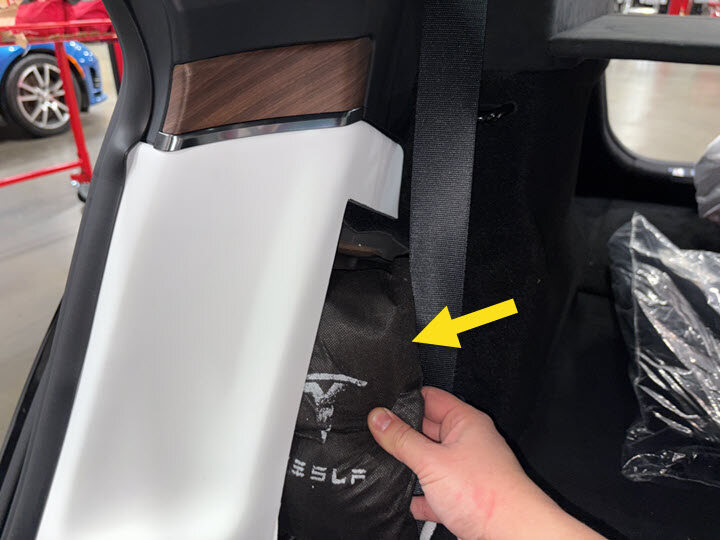

  14. Install NVH foam bag inside of Lower C-Pillar Trim
    Informational PurposesAn informational icon, calling your attention
    Note
    1x NVH bag

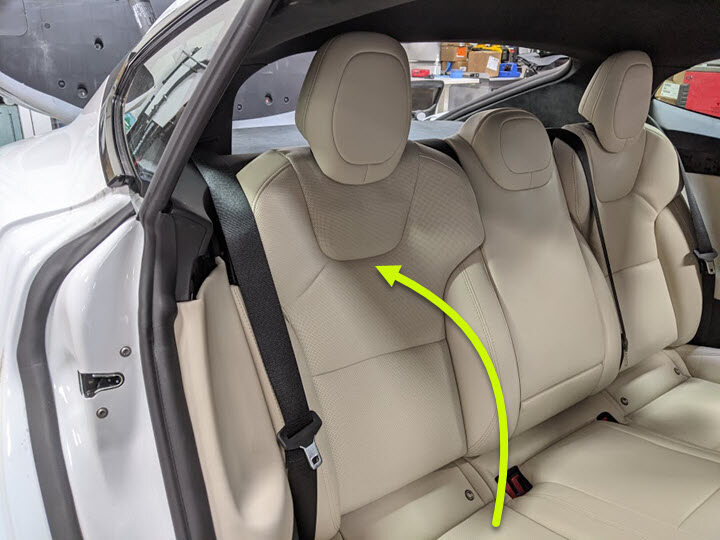

  15. Fold 40 seat into vertical position
    Informational PurposesAn informational icon, calling your attention
    Note
    Remove seat cushion protection
  16. Install 2nd row seat cushion assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    2x clips, 2x connectors, Secure connections and slide seat belt buckles through seat cushion, Engage clips
  17. Install RH side bolster trim
    Informational PurposesAn informational icon, calling your attention
    Note
    1x clip, 1x tab, Replace clip if damaged, Hook bottom portion and then secure the top
  18. Move LH front seat to original position
  19. Move RH front seat to original position
  20. Raise LH front window
  21. Close all four doors
