MXP3 Interior Trim - Door Trim - Front Door Trim Pad - Ambient Bright - LH (2025+) (RI)

Correction code 15130500201 15130500202 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.

Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
This procedure is a DRAFT. Although it has been validated, Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near High Voltage systems and components. Provide corrections and feedback to ServiceDevelopment@teslamotors.com.
  • 2025-06-02: Released new procedure.
  1. Open the LH front door.
  2. Lower the LH front window.

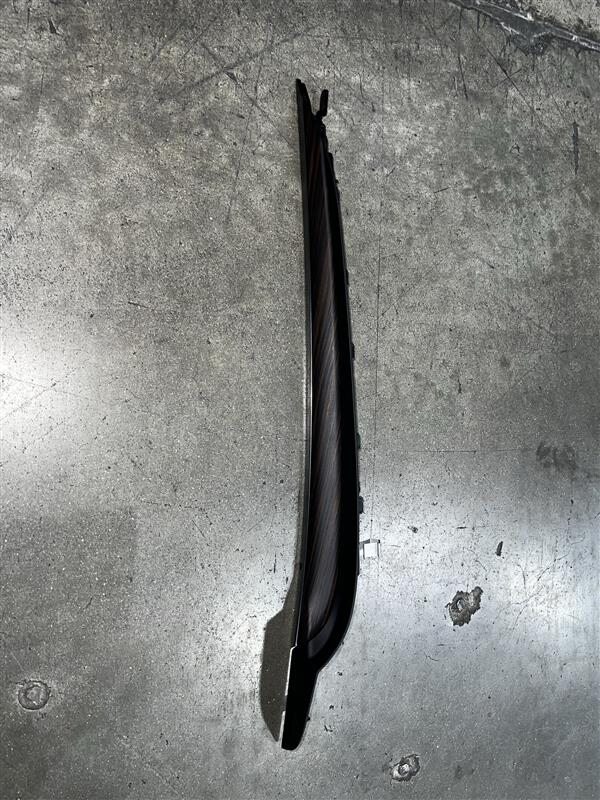

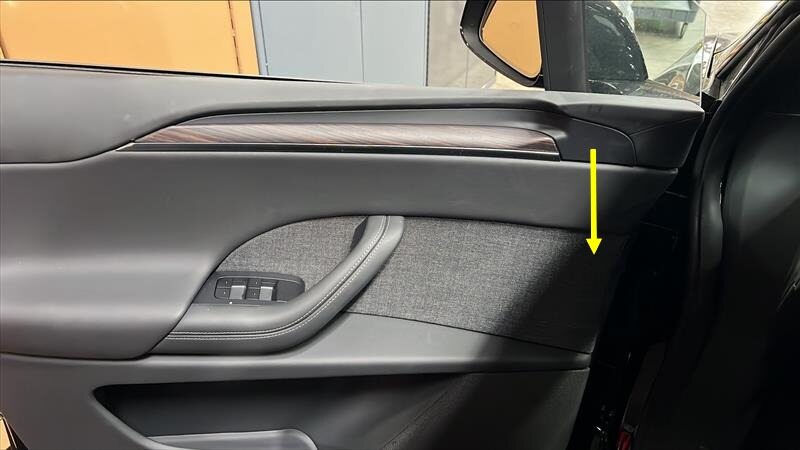

  3. Remove LH front door trim decor
    Informational PurposesAn informational icon, calling your attention
    Note

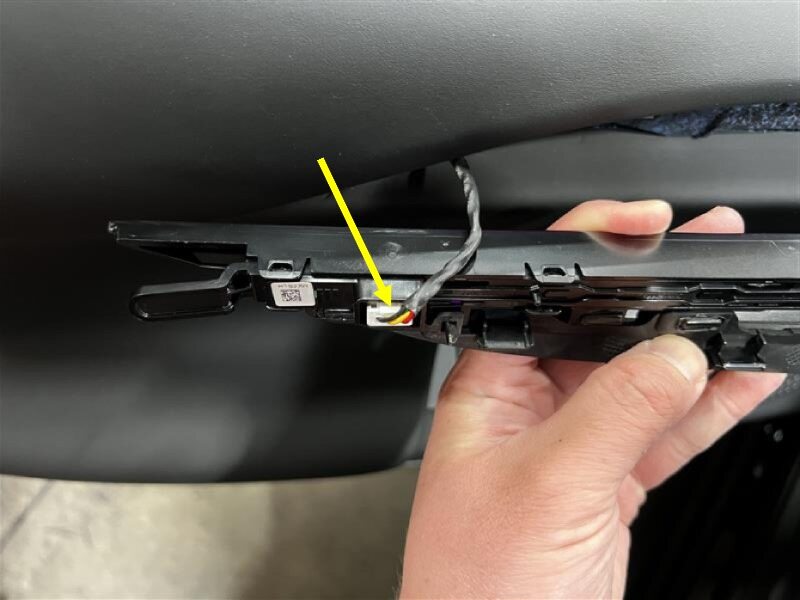

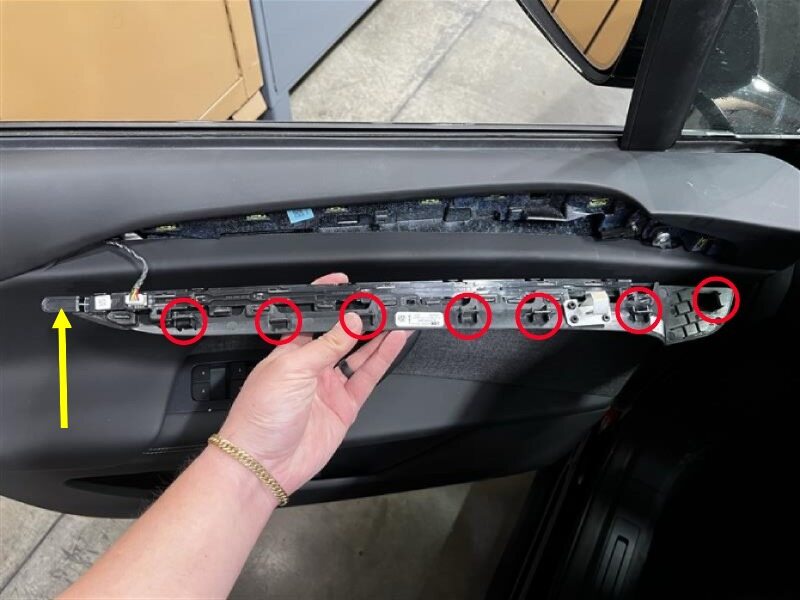

    1x connector, 1x hook, 7x clips, Release from front side, then move rearward, Clips will be retained with door trim panel

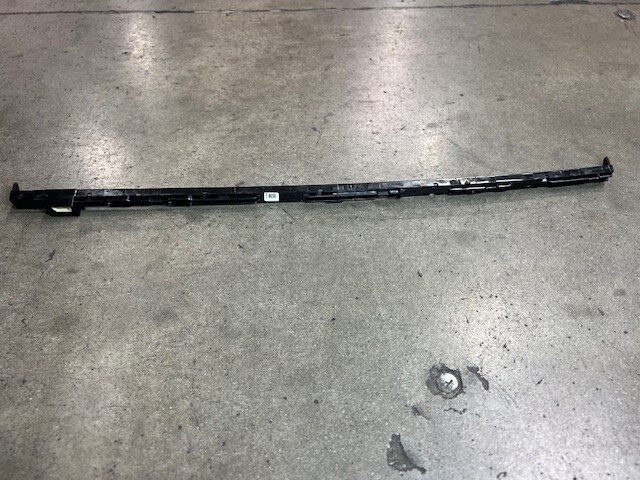

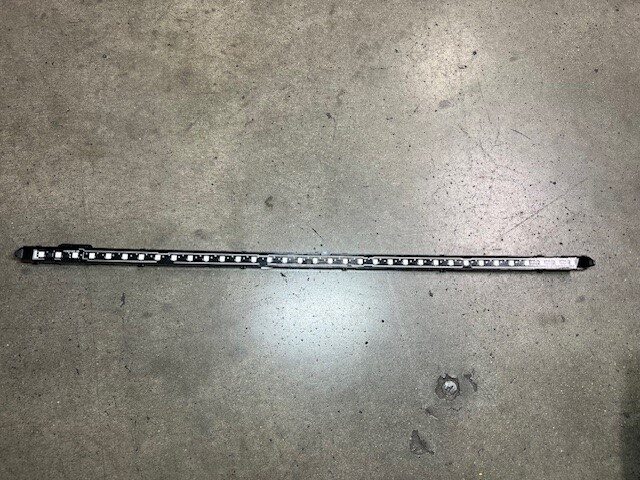

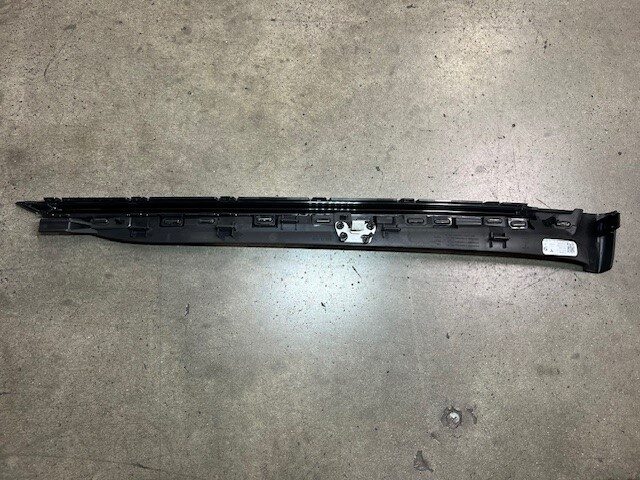

  4. Remove LH front door ambient bright
    Informational PurposesAn informational icon, calling your attention
    Note

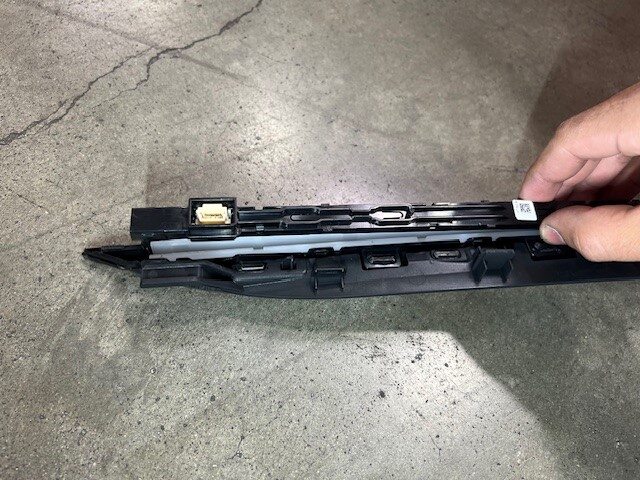

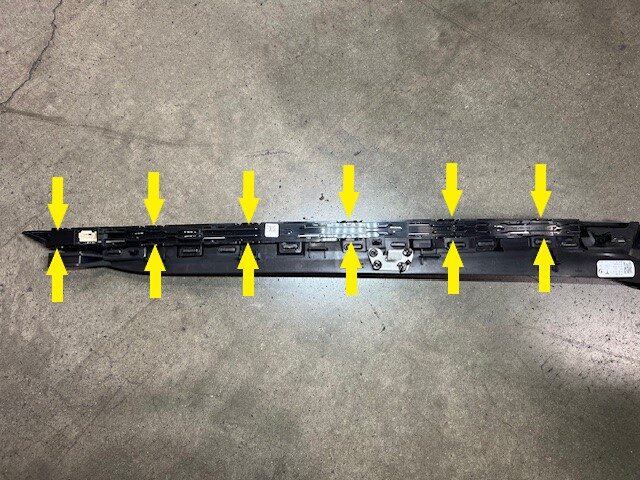

    12x tabs, Release 2x tabs at a time then slide upwards
  5. Install LH front door ambient bright
    Informational PurposesAn informational icon, calling your attention
    Note
    12x tabs, Verify ambient bright tabs are fully secured
  6. Install LH front door decor
    Informational PurposesAn informational icon, calling your attention
    Note

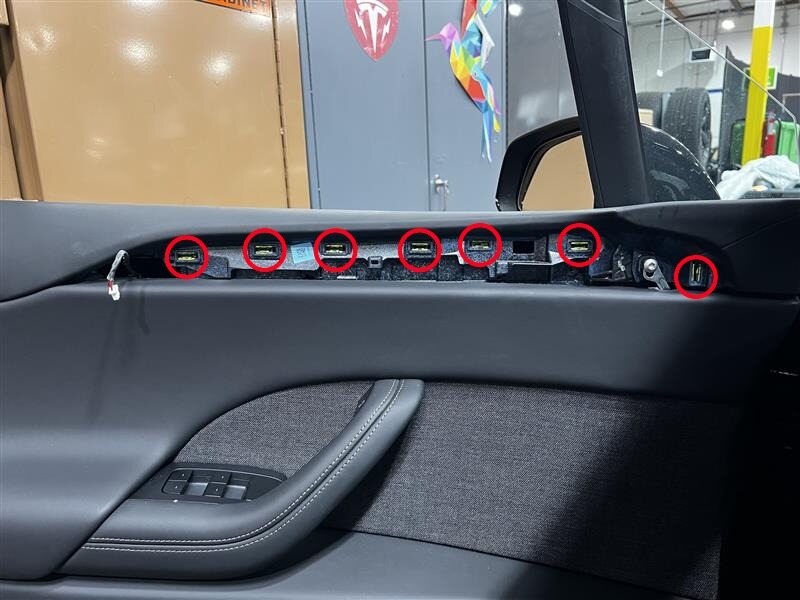

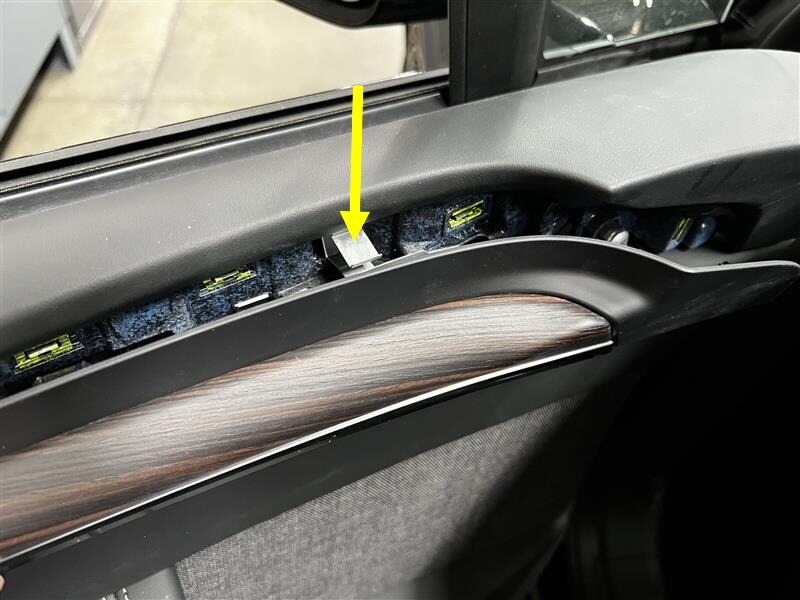

    1x connector, 1x hook, 7x clips, Slide hook into trim panel, then fully seat
  7. Raise the LH front window.
  8. Close the LH front door.
