MXP3 Interior Trim - Door Trim - Front Door Trim Pad - Ambient Light LED Module - LH (2025+) (RI)

Correction code New NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.

Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
This procedure is a DRAFT. Although it has been validated, Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near High Voltage systems and components. Provide corrections and feedback to ServiceDevelopment@teslamotors.com.
  • 2025-06-02: Released new procedure.
  1. Open the LH front door.
  2. Lower the LH front window.

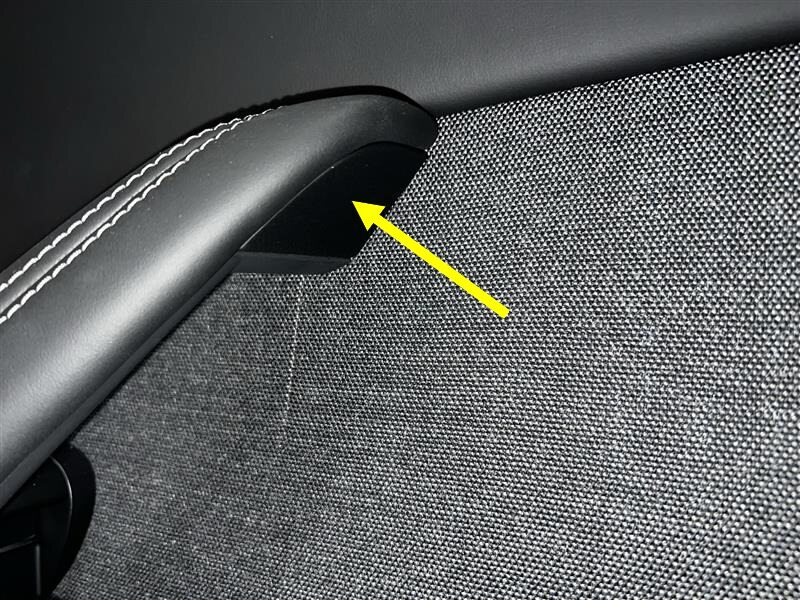

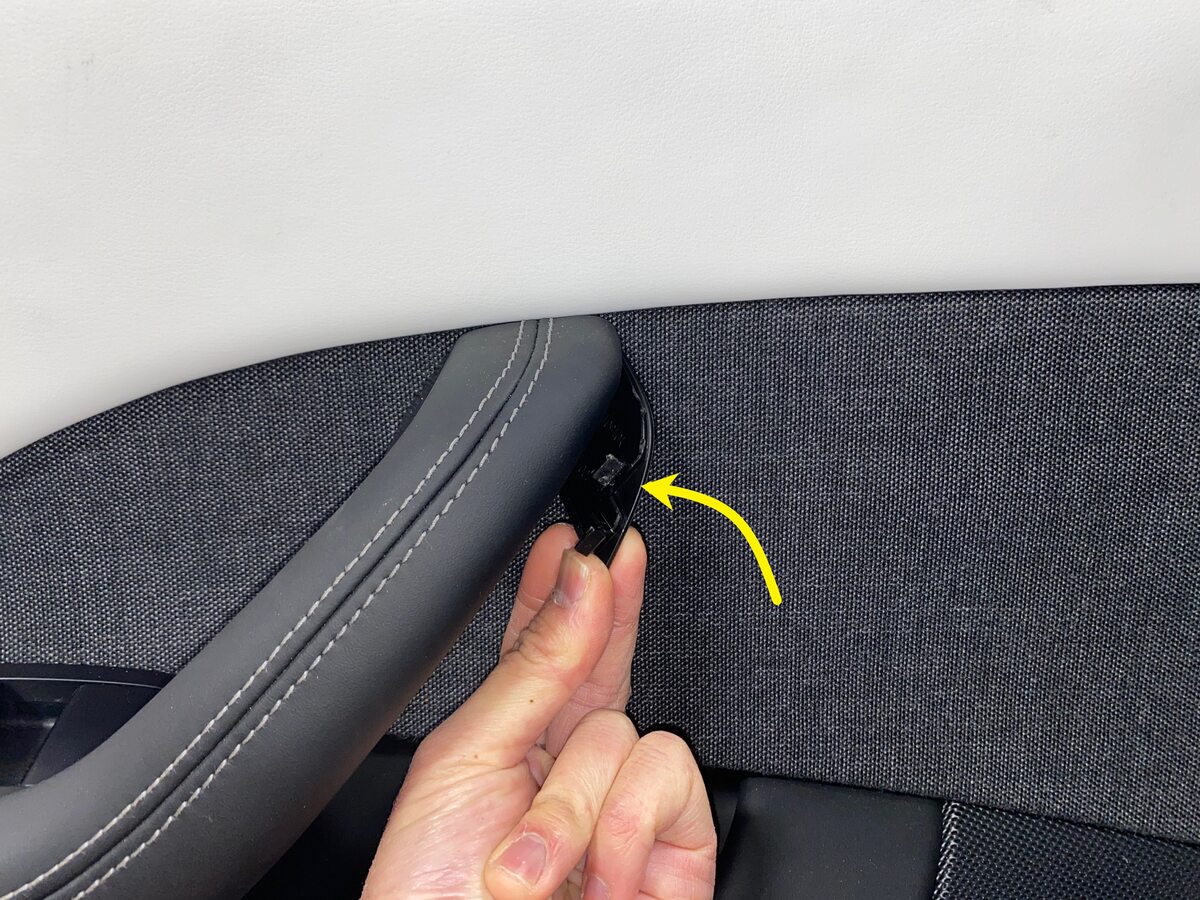

  3. Remove LH front door trim decor
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector, 1x hook, 7x clips, Release from front side, then move rearward, Clips will be retained with door trim panel

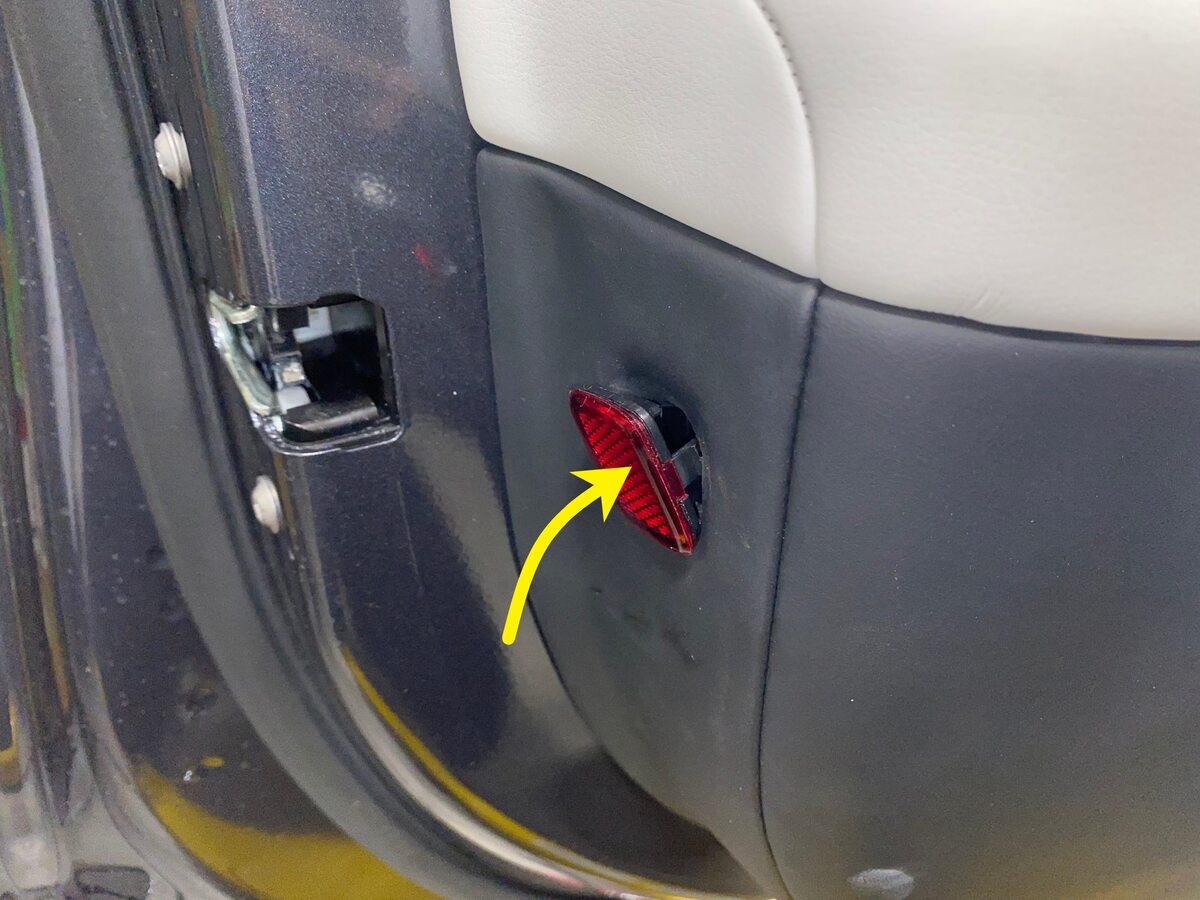

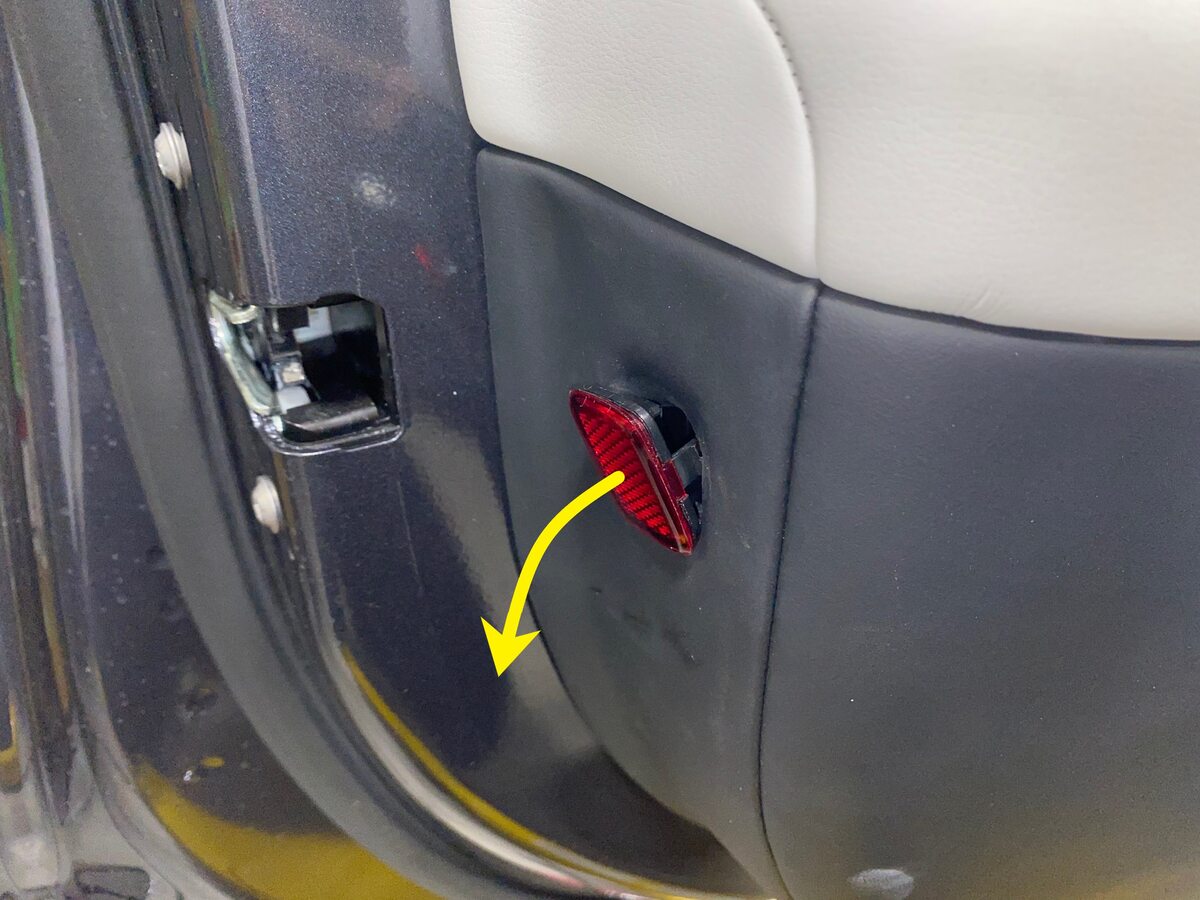

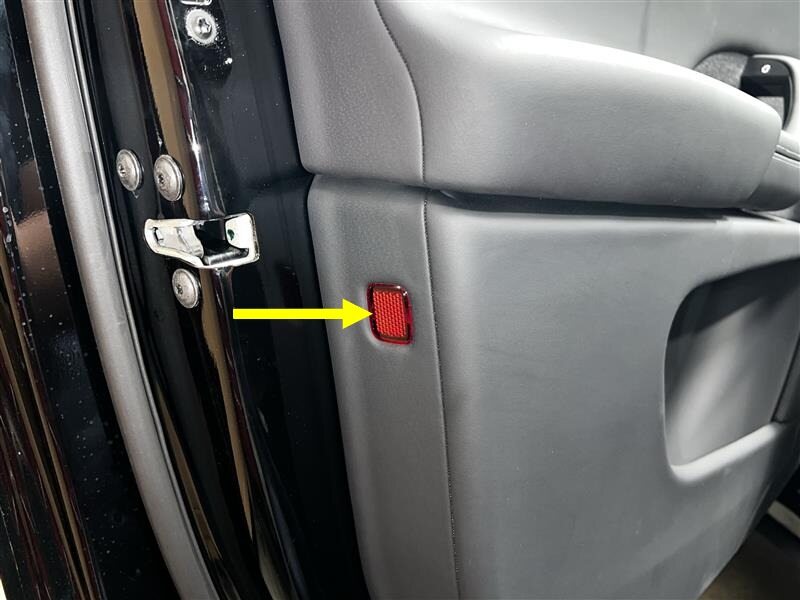

  4. Remove service covers and door reflector from LH front door panel
    Informational PurposesAn informational icon, calling your attention
    Note
    2x covers

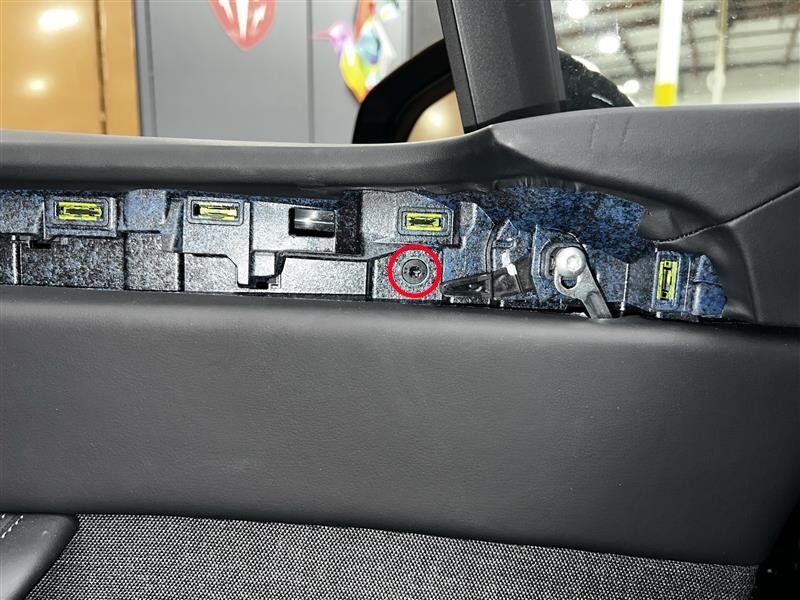

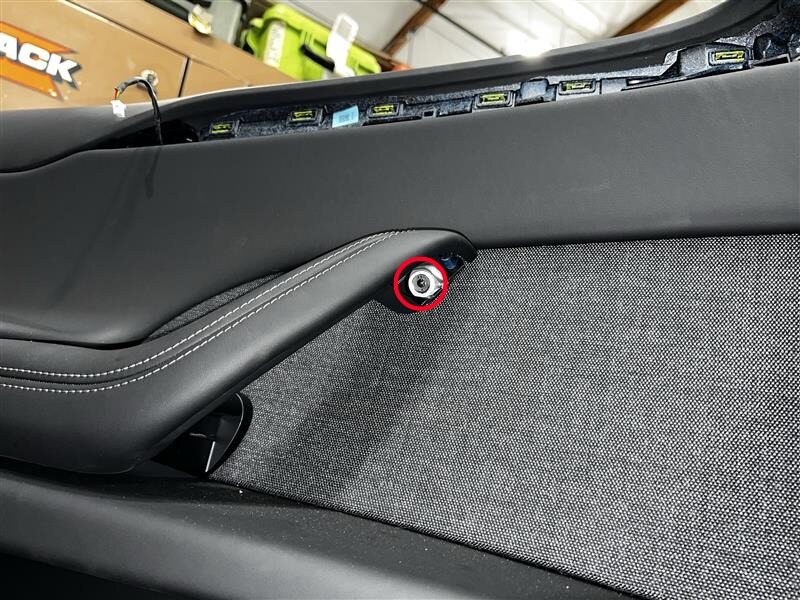

  5. Remove bolts securing LH front door panel to door
    Informational PurposesAn informational icon, calling your attention
    Note

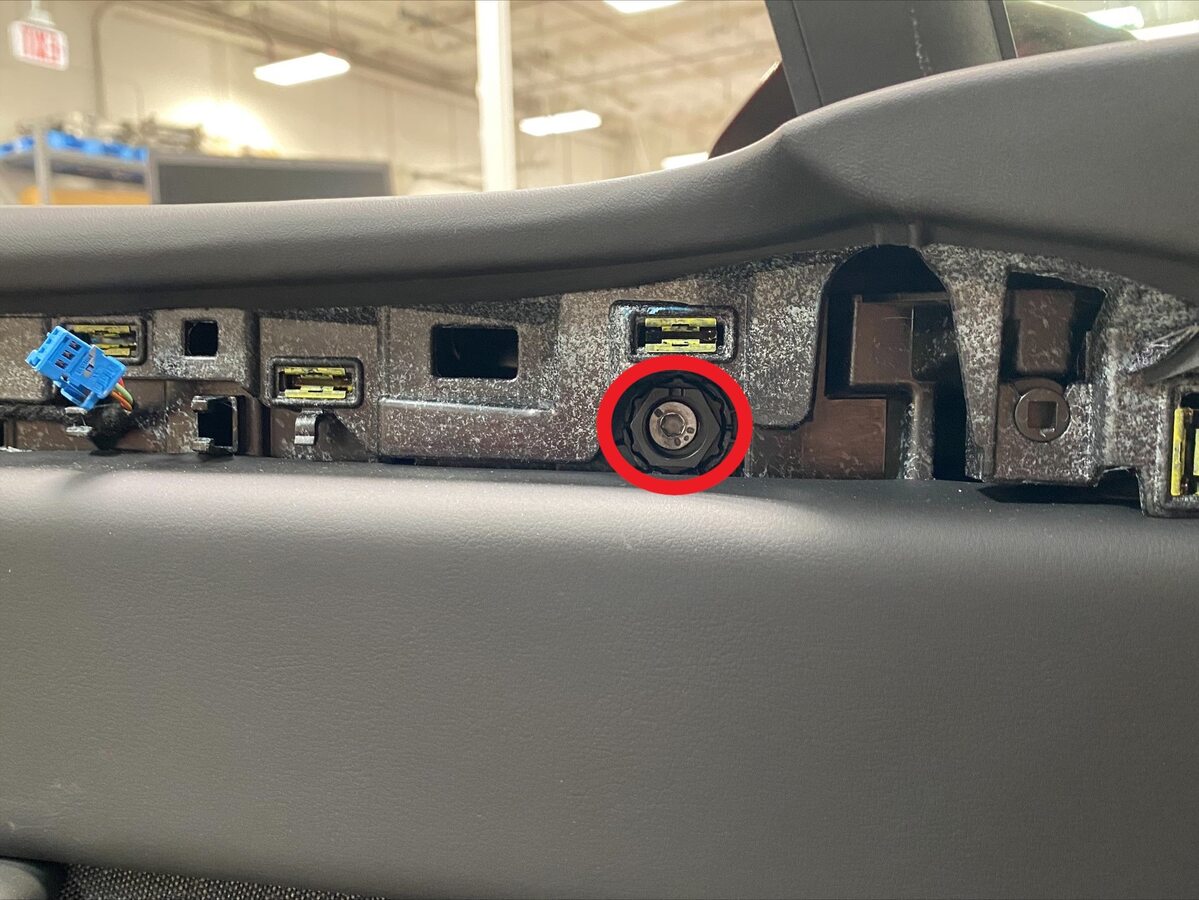

    4x bolts, T30, 6 Nm

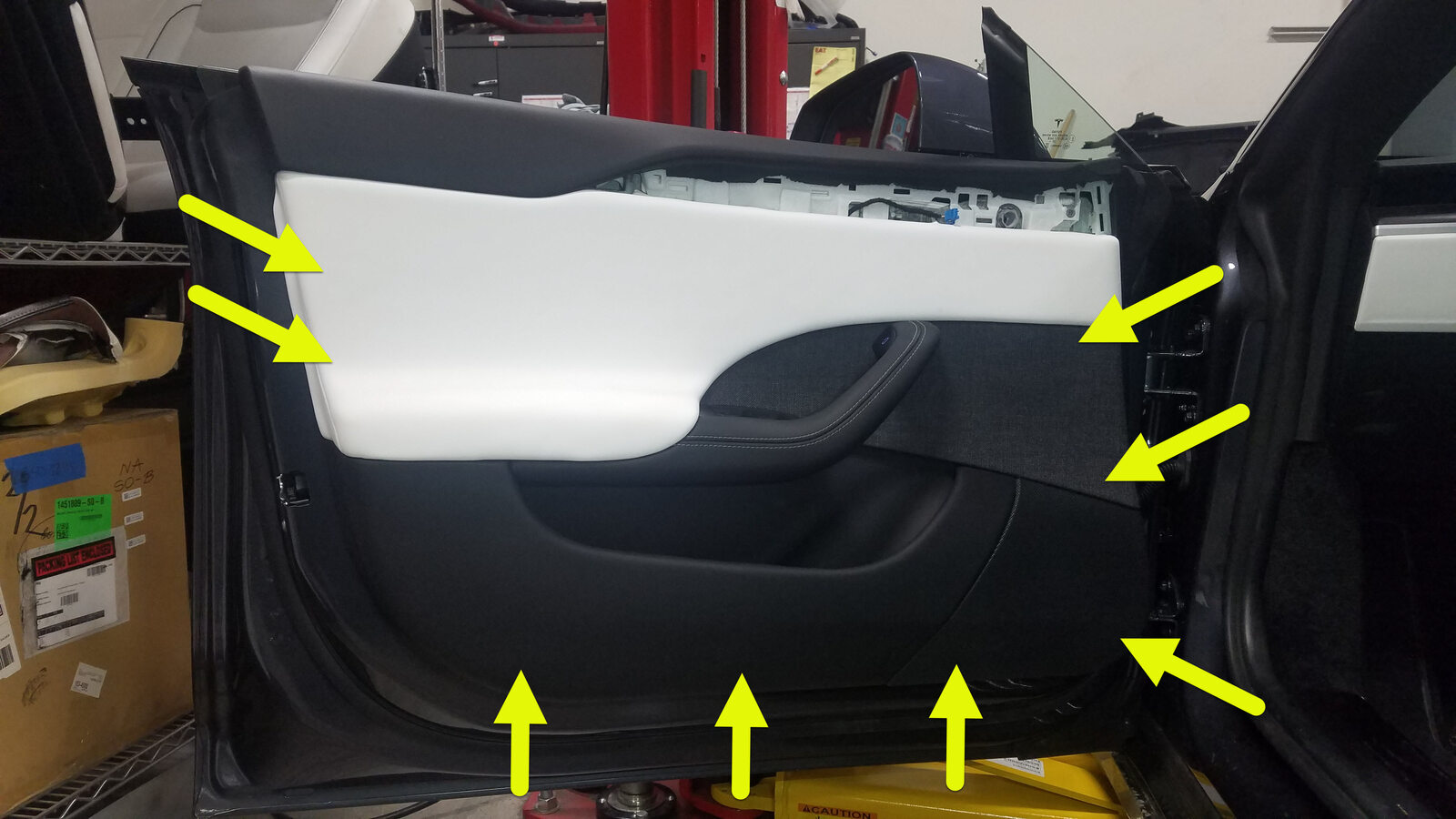

  6. Remove LH front door panel
    Informational PurposesAn informational icon, calling your attention
    Note

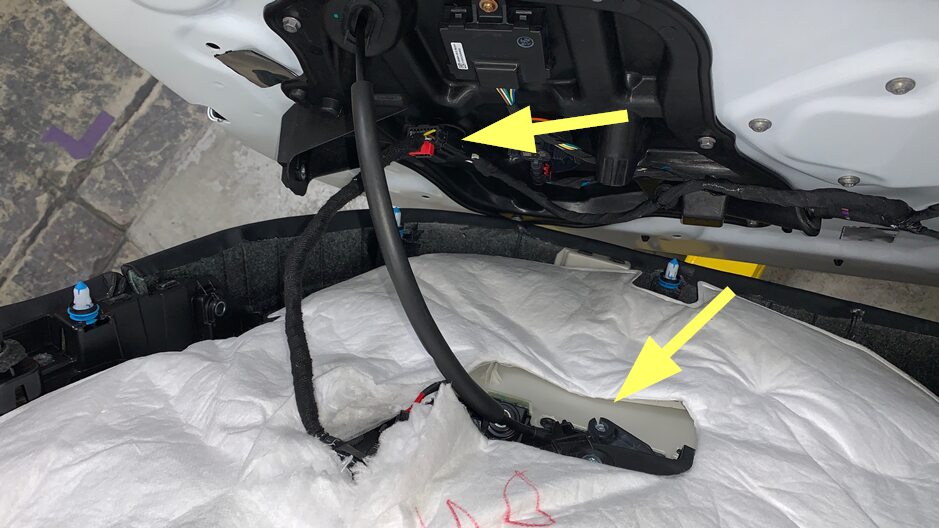

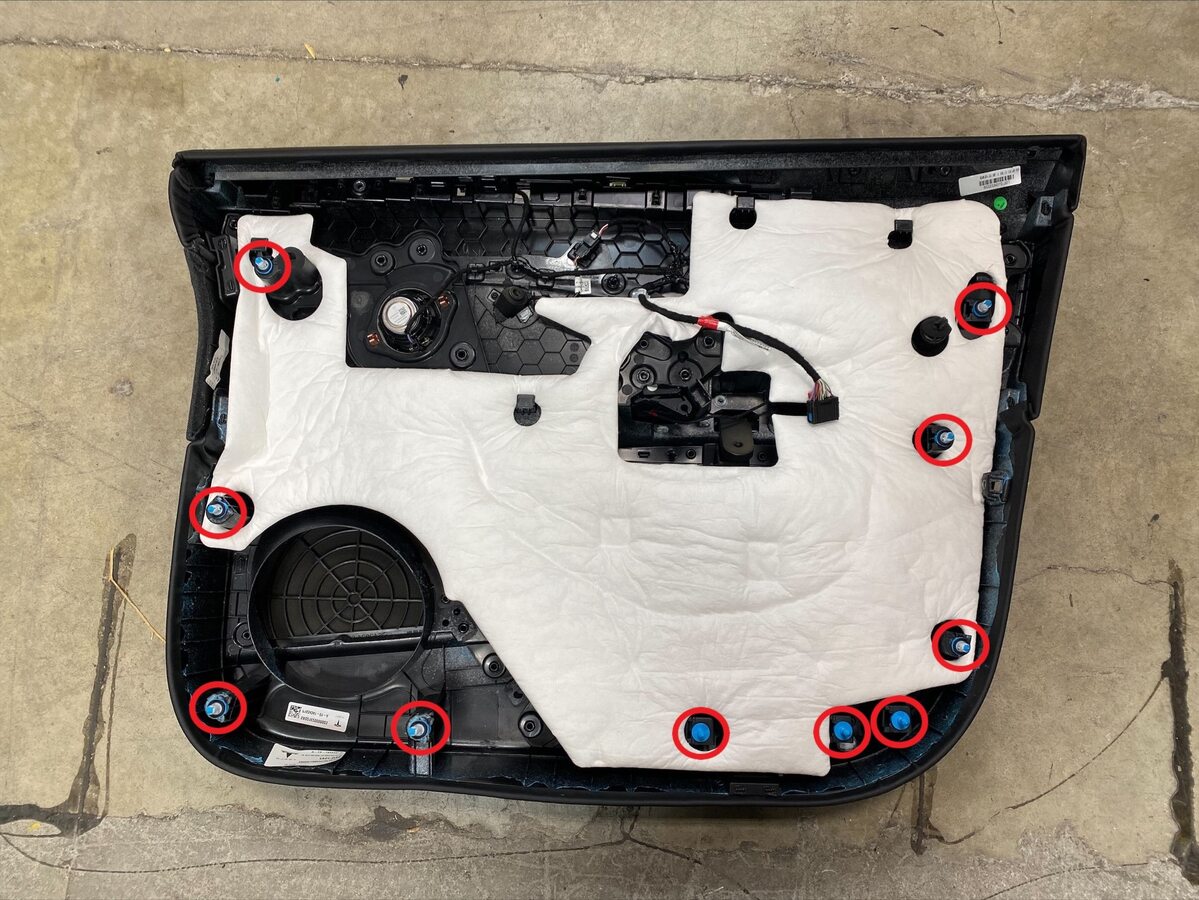

    1x handle cable, 1x connector, 10x clips, Carefully pry open the LH front door panel to access and remove connector and release cable before setting the door panel aside, Replace broken clips
  7. Remove NVH pad from LH front door panel
    Informational PurposesAn informational icon, calling your attention
    Note

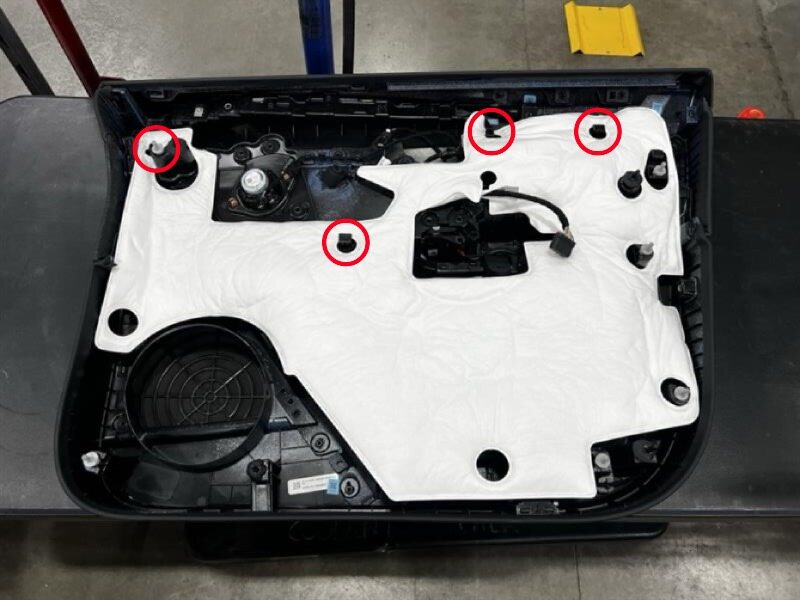

    4x tabs, Unhook NVH pad from locating tabs and remove from door panel

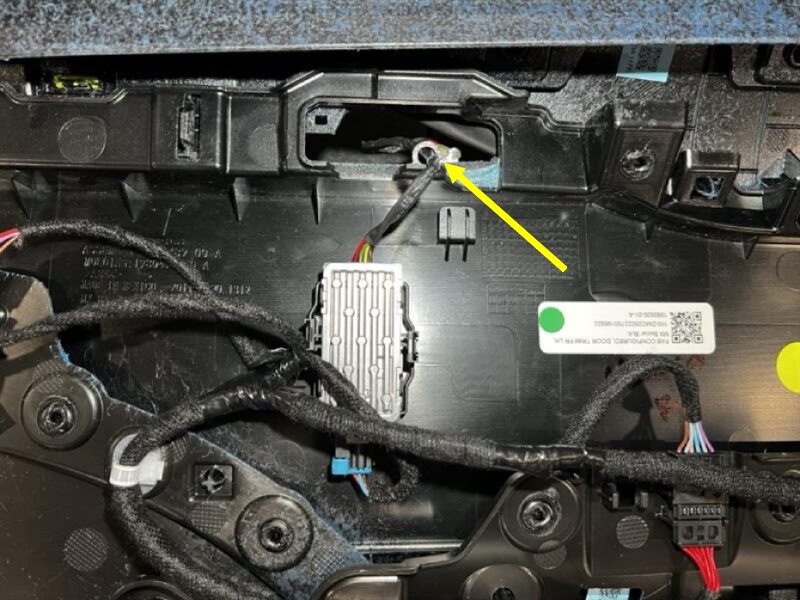

  8. Remove front LH ambient light LED module
    Informational PurposesAn informational icon, calling your attention
    Note

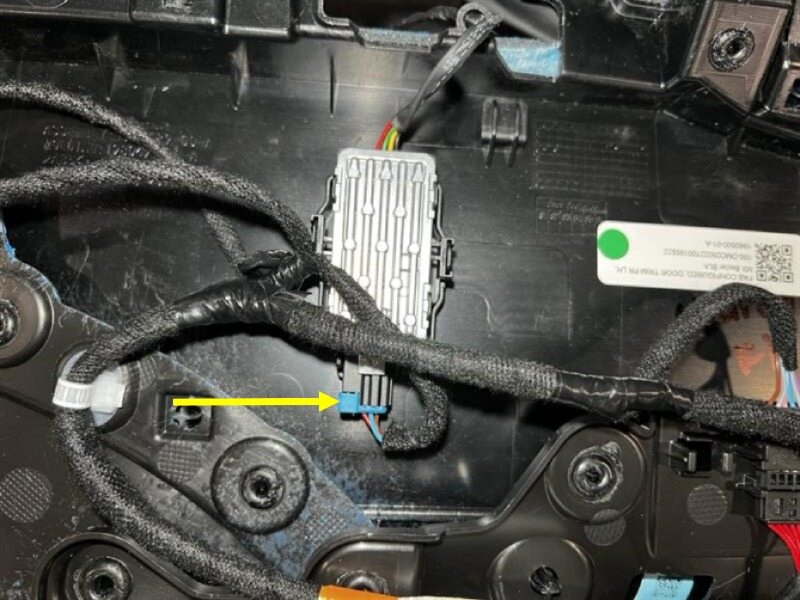

    2x tabs, 1x connector, 1x harness guide, Release harness from guide, Carefully release tabs then slide upwards
  9. Install front LH ambient light LED module
    Informational PurposesAn informational icon, calling your attention
    Note
    2x tabs, 1x connector, 1x harness guide, Secure harness onto guide, Verify module tabs are fully secured
  10. Install NVH pad onto LH front door panel
    Informational PurposesAn informational icon, calling your attention
    Note
    4x tabs, Align NVH pad with door panel and hook the pad into tabs
  11. Install LH front door panel
    Informational PurposesAn informational icon, calling your attention
    Note
    10x clips, 1x connector, Engage locking tab, 1x cable, Secure any retainers
  12. Install bolts securing LH front door panel to door
    Informational PurposesAn informational icon, calling your attention
    Note
    4x bolts, T30, 6 Nm
  13. Install service covers and door reflector onto LH front door
    Informational PurposesAn informational icon, calling your attention
    Note
    2x covers
  14. Install LH front door decor
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector, 1x hook, 7x clips, Slide hook into trim panel, then fully seat
  15. Raise the LH front window.
  16. Close the LH front door.
