Correction code New NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.

1. Open the LH front door.
2. Lower both front windows.
3. Move the LH front seat backward.
4. Remove LH IP end cap
   Note

   7x clips, 1x datum, Ensure clip at IP carrier is released fully before removal







5. Remove LH mid A-pillar trim
   Note

   2x clips, 3x datums, Release clips from upper A-pillar and IP sub assembly, Lift mid A-pillar trim out of lower A-pillar trim







6. Remove LH front door sill trim panel
   Note

   8x clips, 3x datums





7. Remove LH lower A-pillar trim
   Note

   1x bolt, T25, 5 Nm, 2x clips



8. Remove IP LH mid panel
   Note

   6x tabs







9. Adjust steering column fully out and fully down
   Note

   Via UI > Controls > Steering , Use left steering wheel scroll wheel to adjust steering column







10. Open the RH front door.
11. Move the RH front seat backward.
12. Open the hood.



13. Power off the vehicle using the touchscreen.



14. Remove the rear underhood apron.





15. Disconnect the LV battery connector and First Responder Loop.







16. Remove RH front floor mat



17. Remove RH footwell cover
    Note

    3x magnets, 1x connector, 4x datums





18. Remove RH console side carpet
    Note

    11x clips, 2x datums





19. Remove RH front door sill trim panel
    Note

    8x clips, 3x datums





20. Remove RH IP end cap
    Note

    3x clips



21. Remove RH mid A-pillar trim
    Note

    2x clips, 3x datums, Release clips from upper A-pillar and IP sub assembly, Lift mid A-pillar trim out of lower A-pillar trim







22. Remove RH lower A-pillar trim
    Note

    1x bolt, T25, 5 Nm, 2x clips, 1x datum







23. Release phone dock
    Note

    4x clips, 2x datums, Pull up at bottom and swing out from under instrument panel





24. Remove phone dock
    Note

    3x connectors, 1x clip, Take caution to release connector locks before pulling straight out of each socket to avoid damage





25. Release the IP service panel.







26. Release diagnostic and CAN harnesses from IP service panel
    Note

    2x clips





27. Remove IP service panel
    Note

    1x connector





28. Remove center display bracket bolts
    Note

    2x bolts, 10mm, 11.5 Nm





29. Release center display motor connectors
    Note

    2x connectors





30. Remove center display shroud
    Note

    3x tabs, Slide display outwards until shroud fully clears IP and support, Release the bottom tabs and pull upward





31. Release center display coax and power connectors
    Note

    2x connectors, 1x clip, Slide display rearward outwards from IP bracket and support during connector release



32. Remove center display
    Note

    Slide rearward, Place on soft clean surface



33. Remove IP closeout panel
    Note

    4x tabs







34. Remove IP RH mid Panel
    Note

    14x tabs, 2 datums





35. Remove fasteners securing RH knee air bag assembly to vehicle
    Note

    2x bolts, 10mm, 8 Nm, 1x clip, Discard fasteners after removal



36. Remove the RH knee air bag assembly from vehicle
    Note

    2x connectors, 1x clip, 6x tabs, Release 2x locking tab on air bag connector





37. Release glove box
    Note

    5x screws, T20, 3 Nm





38. Release glove box connectors
    Note

    3x connectors



39. Remove USB outlet
    Note

    2x screws, T20, 3 Nm, 1x clip



40. Remove glove box



41. Remove IP Decor
    Note

    21x clips, 6x datums, 4x connectors, Release each IP decor connector clip from IP carrier then disconnect from IP harness











42. Release driver air bag assembly away from steering wheel
    Note

    2x spring clips, 2x datums, Press the spring simultaneously from two access holes to release, Access holes located at 4 and 8 o’clock position, Do not insert tool too far as air bag connector could be damaged









43. Remove driver air bag assembly
    Note

    1x connector, 2x tabs

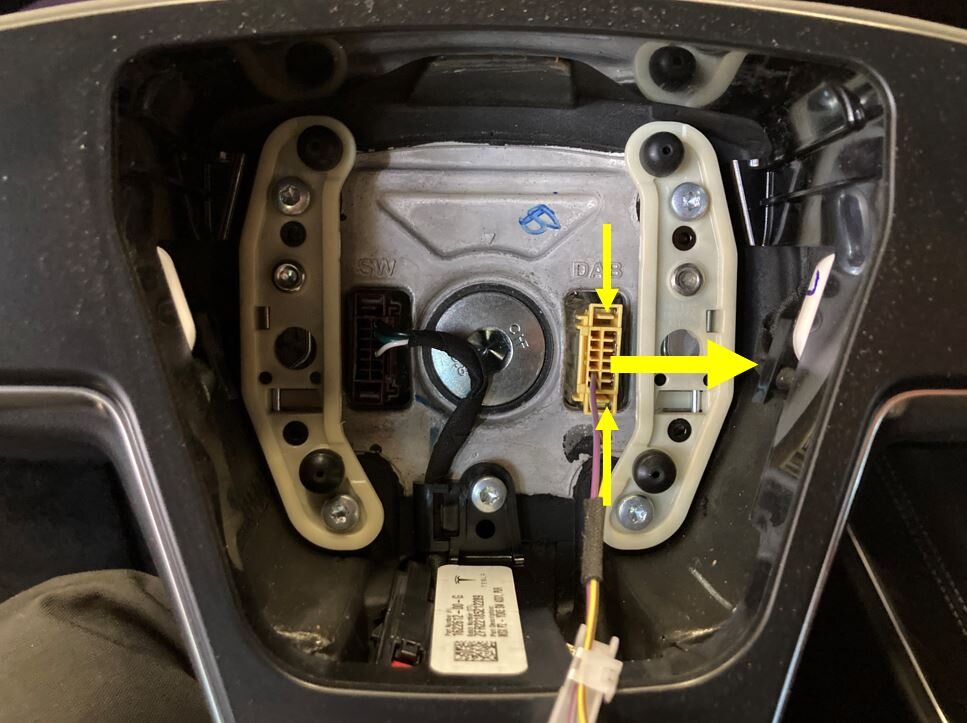

44. Disconnect steering wheel connector
    Note

    1x connector, 2x tabs



45. Release steering wheel
    Note

    1x patch bolt, 10mm allen, 80 Nm, Discard after removal





46. Remove steering wheel
    Note

    Note that the steering wheel is splined to the column









47. Remove LH front floor mat



48. Remove LH outboard footwell cover
    Note

    2x magnets, 2x datums





49. Remove LH inboard footwell cover
    Note

    1x cover, 1x clip, 1x datum, 1x screw, 8 mm, 1 Nm







50. Remove fasteners securing LH knee air bag assembly to vehicle
    Note

    2x patch bolts, E10, 8 Nm, Discard after removal



51. Remove the LH knee air bag assembly from vehicle
    Note

    3x connectors, 1x clip, 6x tabs, Release 2x locking tab on airbag connector

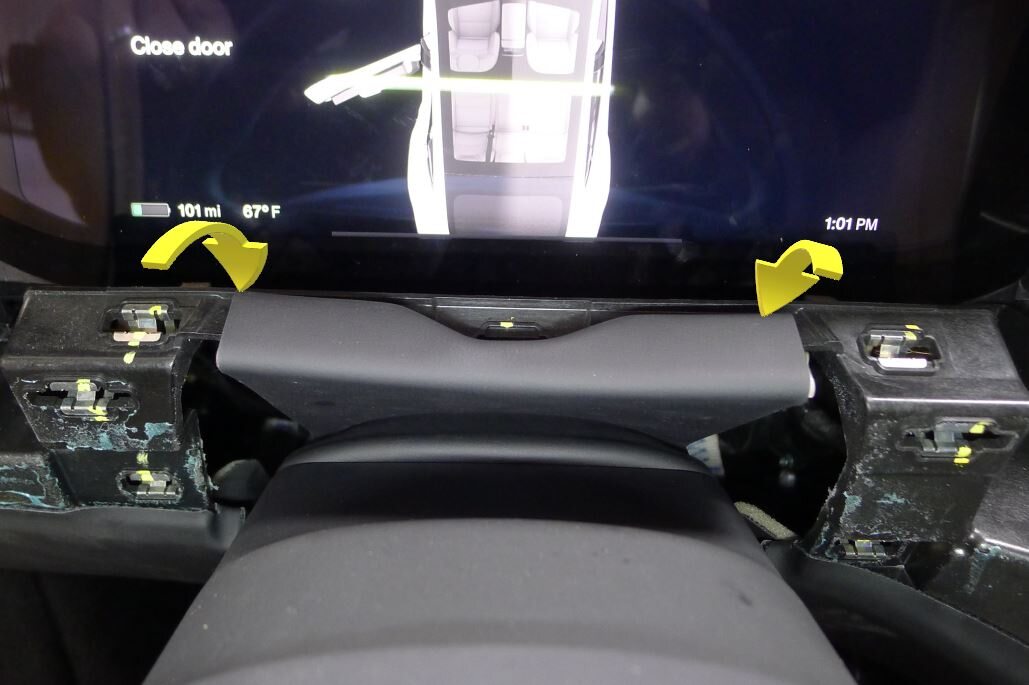

52. Release upper steering column shroud from lower instrument panel assembly
    Note

    2x clips

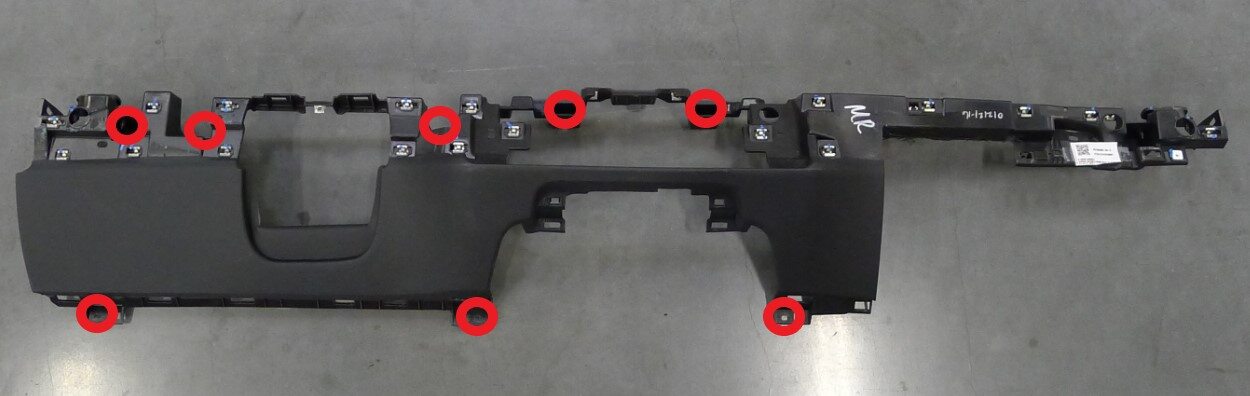

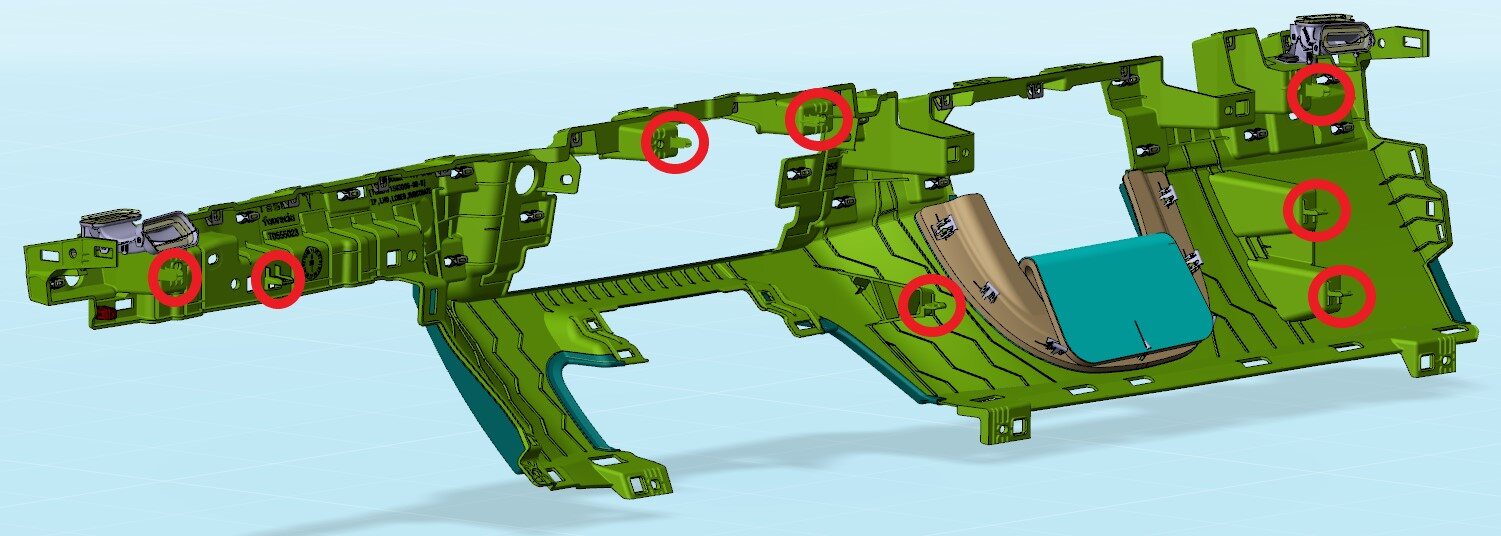

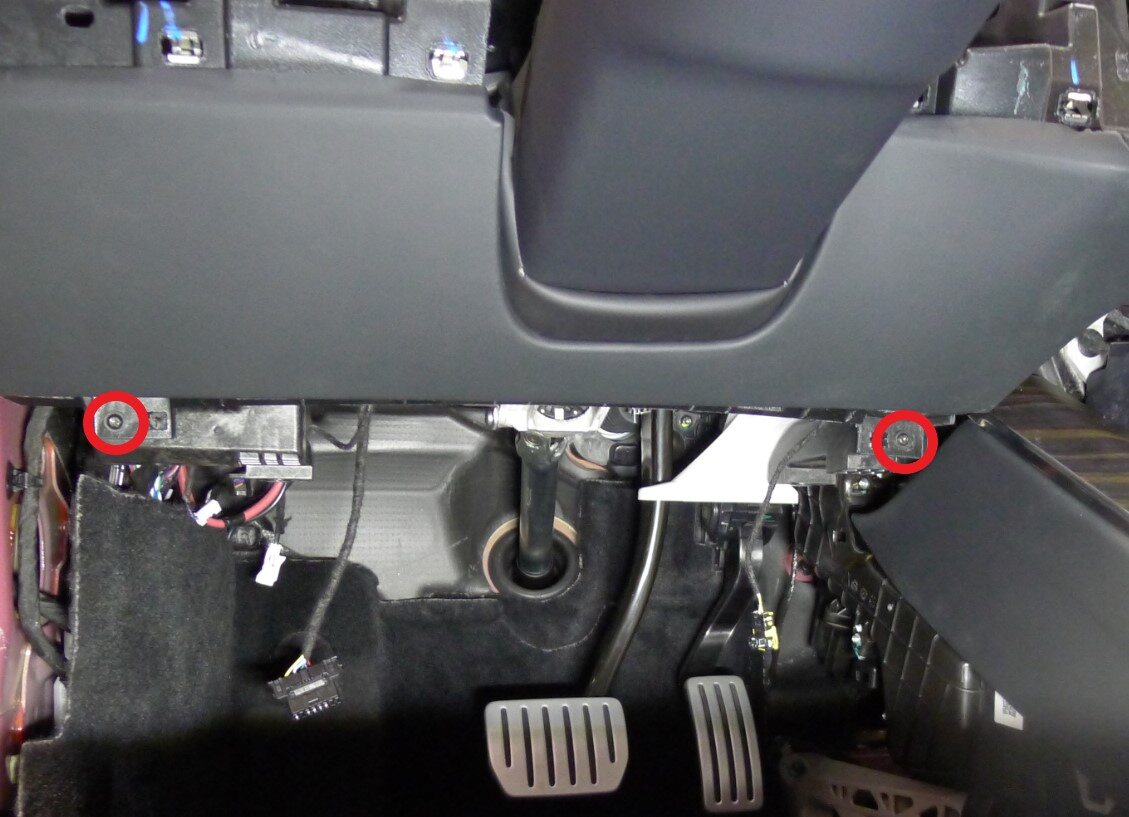

53. Remove lower instrument panel assembly
    Note

    8x screws, T20, 3 Nm, 8x tabs, Release assembly and carefully guide over upper steering column

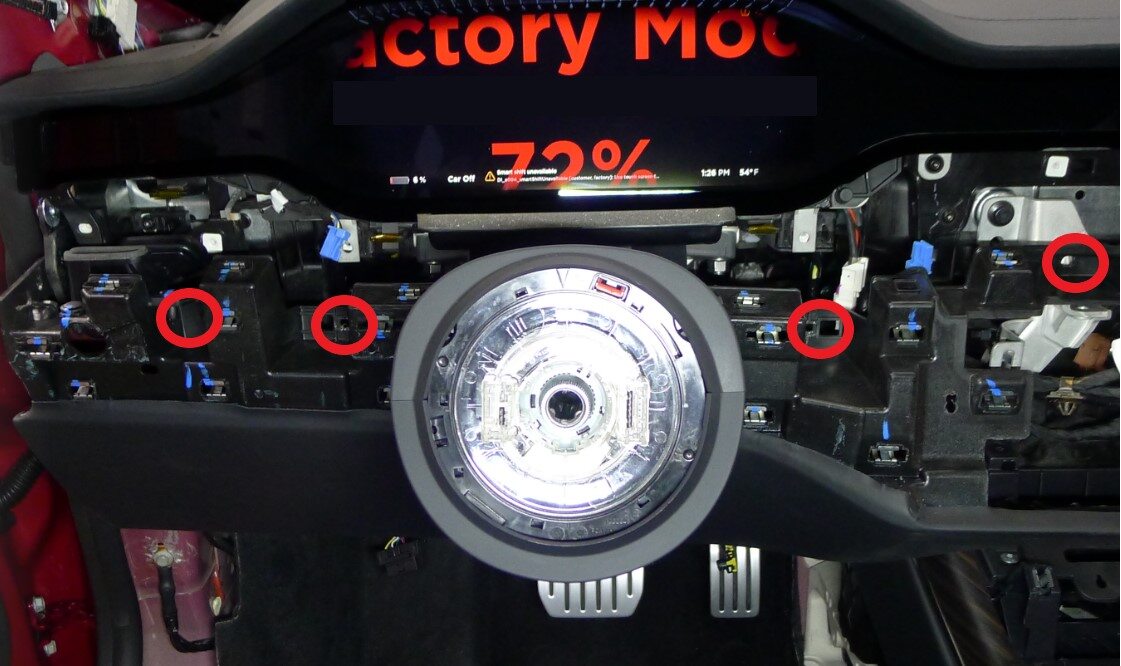

54. Install lower instrument panel assembly
    Note

    8x screws, T20, 3 Nm, 8x tabs, Guide over upper steering column, Engage all tabs before starting screws









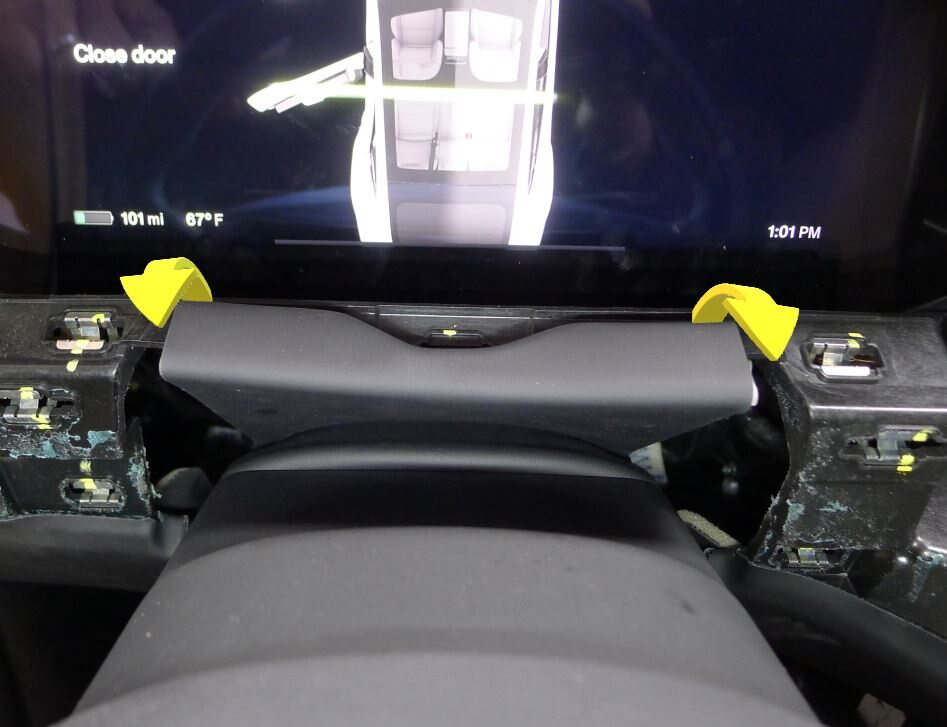

55. Secure upper steering column shroud to lower instrument panel assembly
    Note

    2x clips





56. Install the LH knee air bag assembly into vehicle
    Note

    1x clip, 3x connectors, 6x tabs, Hook tabs before fully seating, Use caution not to damage the connector/harness, Support the knee air bag while connecting the connectors





57. Install fasteners securing LH knee air bag assembly to vehicle
    Note

    2x patch bolts, E10, 8 Nm, Install new fasteners



58. Install LH console side carpet
    Note

    11x clips, 2x datums





59. Install LH inboard footwell cover
    Note

    1x cover, 1x clip, 1x datum, 1x screw, 8 mm, 1 Nm, Align datums and footwell vent before installing screw









60. Install LH outboard footwell cover
    Note

    2x magnets, 2x datums





61. Install LH front floor mat



62. Install steering wheel
    Note

    Note that the steering wheel is splined to the column and can only be installed in the correct position









63. Install bolt securing steering wheel to steering column
    Note

    1x patch bolt, 10mm allen, 80 Nm, Install new patch bolt



64. Secure steering wheel connector
    Note

    1x connector, 2x tabs



65. Secure driver air bag connector
    Note

    1x connector, 2x tabs





66. Install driver air bag assembly to yoke steering wheel
    Note

    2x datums, 2x spring clip, Position driver air bag onto yoke steering wheel, Align datums onto the clips, Press down on one side of the air bag until clip is fully seated, then repeat on other side, You should hear an audible click, Perform pull test on each side of driver air bag assembly, Confirm the gap and space between driver air bag assembly to yoke steering wheel is symmetrical







67. Install IP Decor
    Note

    21x clips, 6x datums, 4x connectors, Connect ambient bright harness, Secure each IP decor connector clip to IP carrier, Secure IP decor to lower instrument panel











68. Secure USB outlet
    Note

    2x screws, T20, 2 Nm, 1x clip, Ensure USB socket flush in glove box







69. Secure glove box connectors
    Note

    3x connectors, Route harness through glove box datums



70. Install glove box
    Note

    5x screws, T20, 3 Nm





71. Install RH knee air bag assembly onto vehicle
    Note

    2x connectors, 6x tabs, 1x clip, Hook tabs before fully seating, Use caution not to damage the connector/harness, Support the knee air bag while connecting the connector







72. Install fasteners securing RH knee air bag assembly to vehicle
    Note

    2x bolts, 10mm, 8 Nm, 1x clip



73. Install RH console side carpet
    Note

    11x clips, 2x datums





74. Install RH footwell cover
    Note

    3x magnets, 4x datums, 1x connector





75. Install RH lower A-pillar trim
    Note

    1x bolt, T25, 5 Nm, 2x clips, 1x datum





76. Install RH mid A-pillar trim
    Note

    2x clips, 3x datums, Verify weather seal is seated properly







77. Install RH IP end cap
    Note

    3x clips



78. Install RH front door sill trim panel
    Note

    8x clips, 3x datums





79. Install RH front floor mat



80. Install IP RH mid Panel
    Note

    14x tabs, 2 datums







81. Install IP closeout panel
    Note

    4x tabs







82. Route display harness behind LH display bracket



83. Secure center display coax and power connectors
    Note

    2x connectors, 1x clip, Ensure strain relief clip is secure to linkage arm, Replace clip if damaged



84. Install center display shroud
    Note

    3x tabs, Slide display downward until shroud tabs fully engages





85. Secure center display to IP carrier
    Note

    2x bolts, 10mm, 11.5 Nm, Slide center display into IP carrier, Start RH bolt first







86. Secure center display motor connectors
    Note

    2x connectors, Slide center display assembly fully into IP brackets after securing connectors





87. Secure IP service panel connector
    Note

    1x connector





88. Secure diagnostic and CAN harnesses to IP service panel
    Note

    2x clips







89. Install the IP service panel.





90. Install phone dock connections
    Note

    3x connectors, 1x clip





91. Install phone dock
    Note

    2x datums, 4 tabs, Slide datums forward into IP and secure tabs down into center console





92. Connect the First Responder Loop and LV battery connector.





93. Install the rear underhood apron.





94. Close the hood.
95. Move the RH front seat to its original position.
96. Calibrate the RH falcon wing door.



97. Close the RH front door.
98. Install IP LH mid panel
    Note

    6x tabs







99. Install LH lower A-pillar trim
    Note

    1x bolt, T25, 5 Nm, 2x clips



100. Install LH front door sill trim panel
     Note

     8x clips, 3x datums





101. Install LH mid A-pillar trim
     Note

     2x clips, 3x datums, Insert mid A-pillar trim into lower A-pillar trim, Secure clips into upper A-pillar and IP sub assembly, Verify weather seal is seated properly







102. Install LH IP end cap
     Note

     7x clips, 1x datum





103. Adjust steering column back to original position
     Note

     Via UI>Controls>Steering , Use left steering wheel scroll wheel to adjust steering column







104. Move the LH front seat to its original position.
105. Calibrate the LH falcon wing door.



106. Raise both front windows.
107. Close the LH front door.
