Correction code NEW NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.

1. Open all four doors



2. Lower the LH front window.
3. Move LH front seat forward



4. Move the RH front seat forward.
5. Release console back panel assembly
   Note

   6x clips, 7x datums, Disengage bottom clips last and pull rearward due to alignment





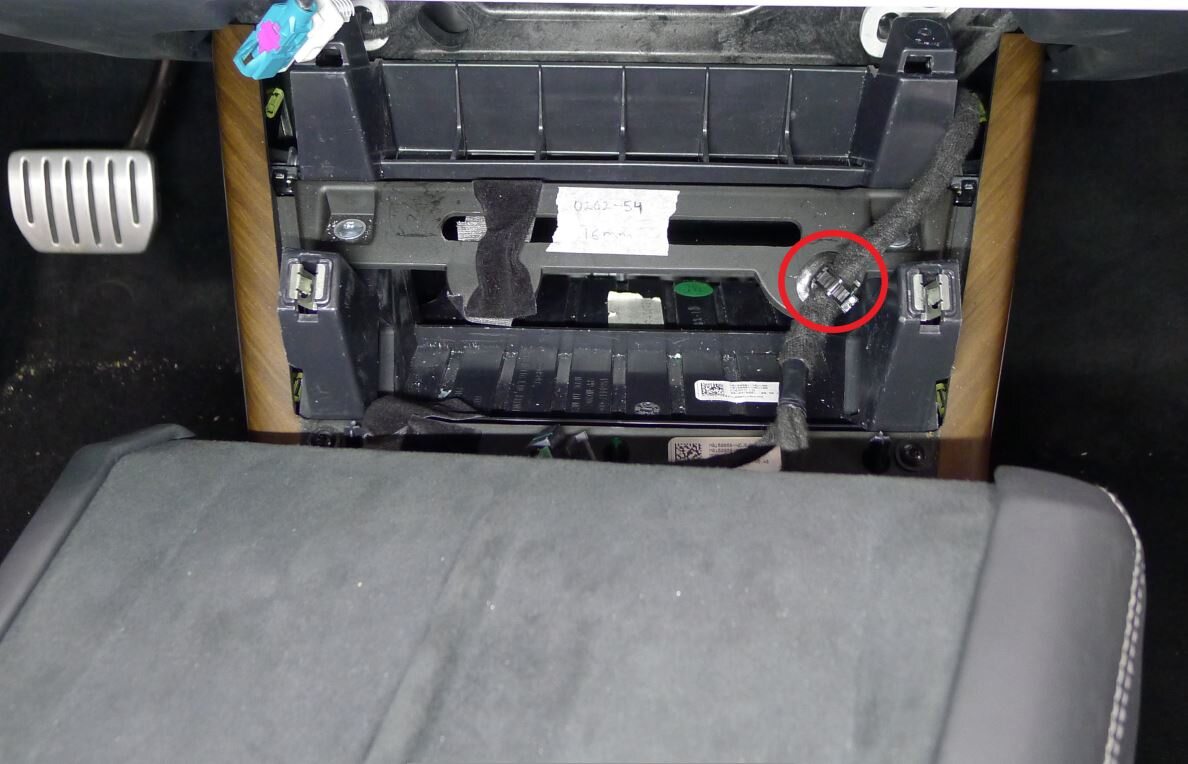

6. Remove console back panel assembly
   Note

   1x connector, Connector lock for lamp located underneath bracket

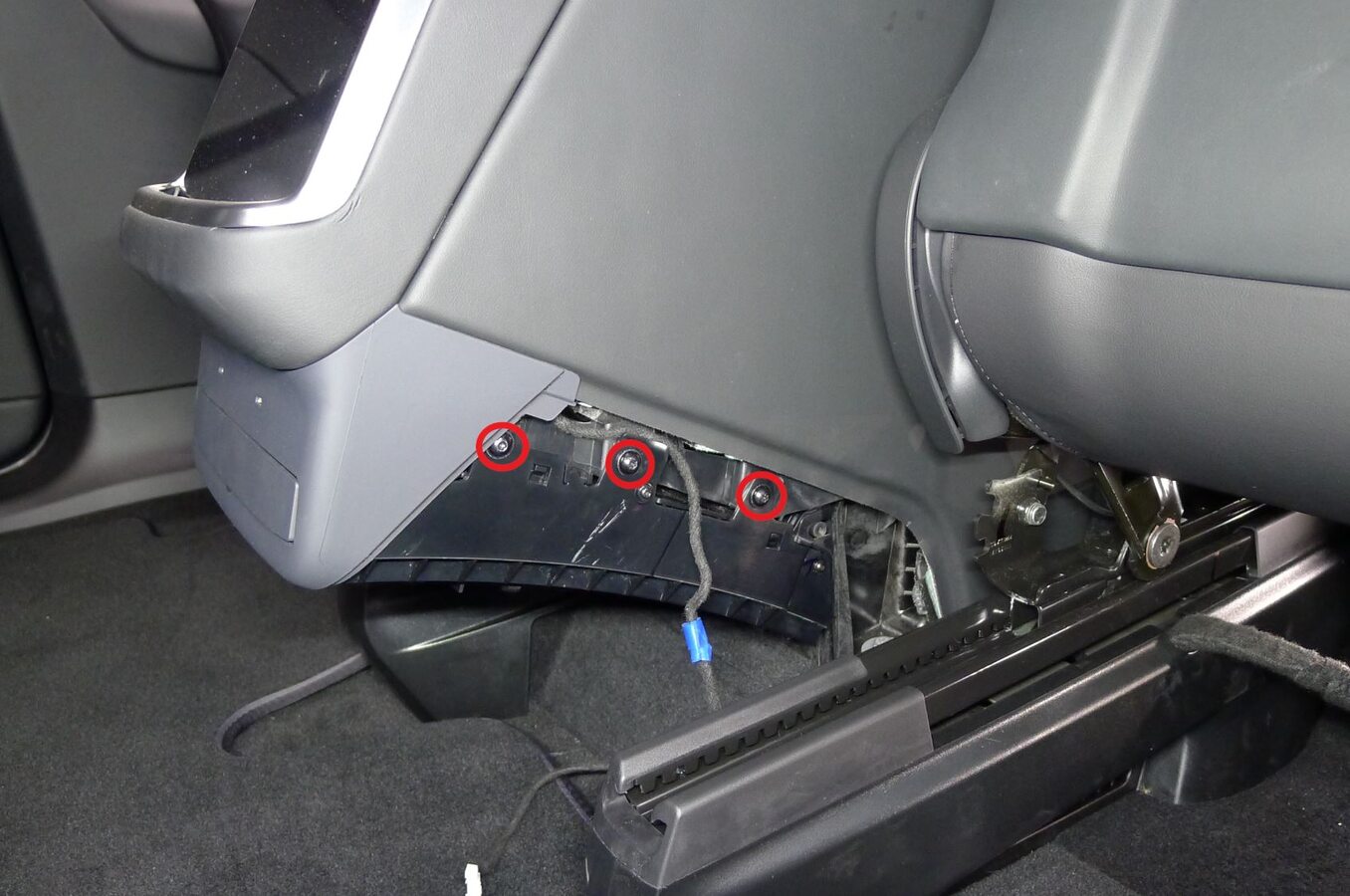

7. Release LH and RH rear console carrier
   Note

   2x bolts, 10mm, 12 Nm









8. Remove center console rear cupholder assembly screws
   Note

   6x screws, T20, 1 Nm

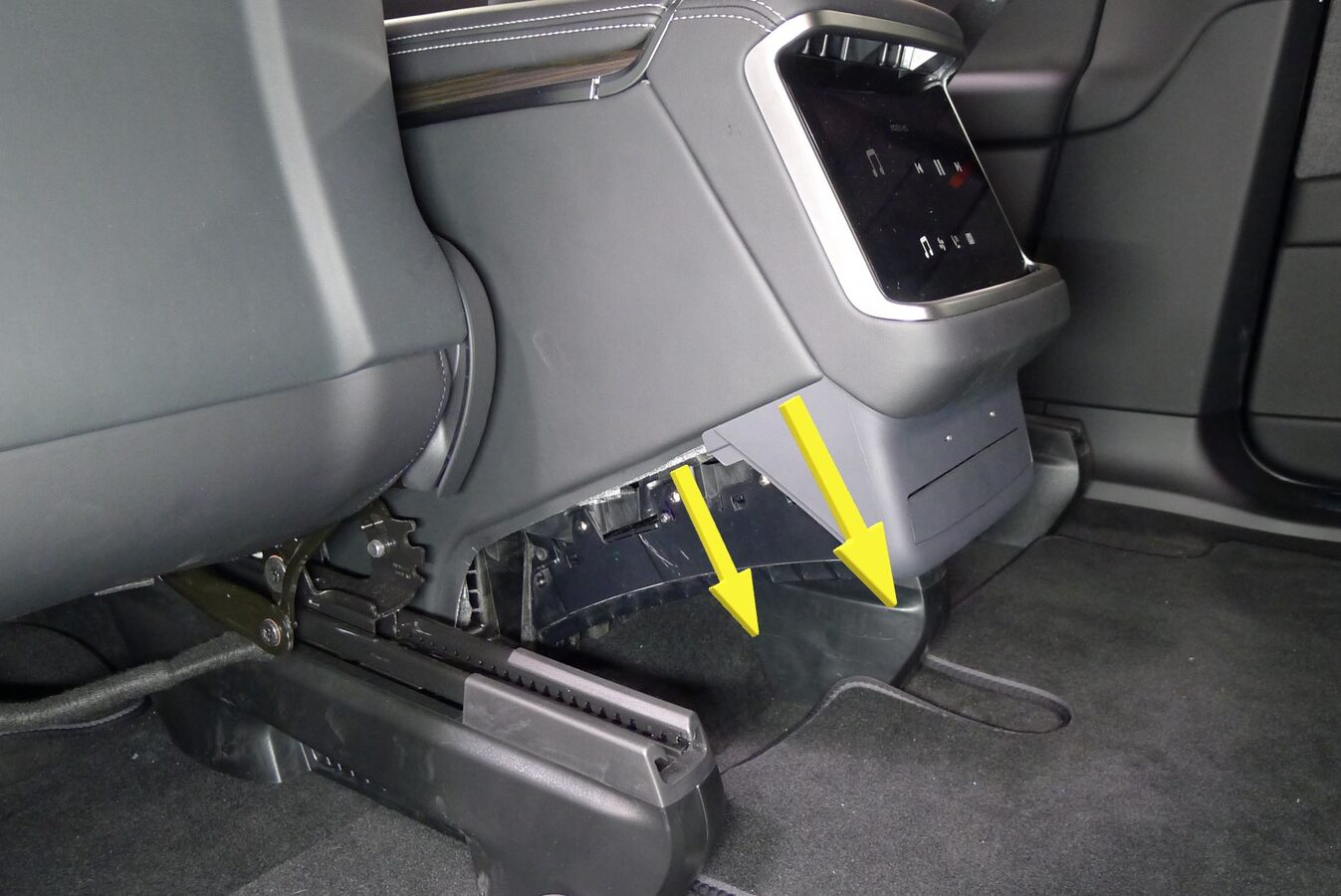

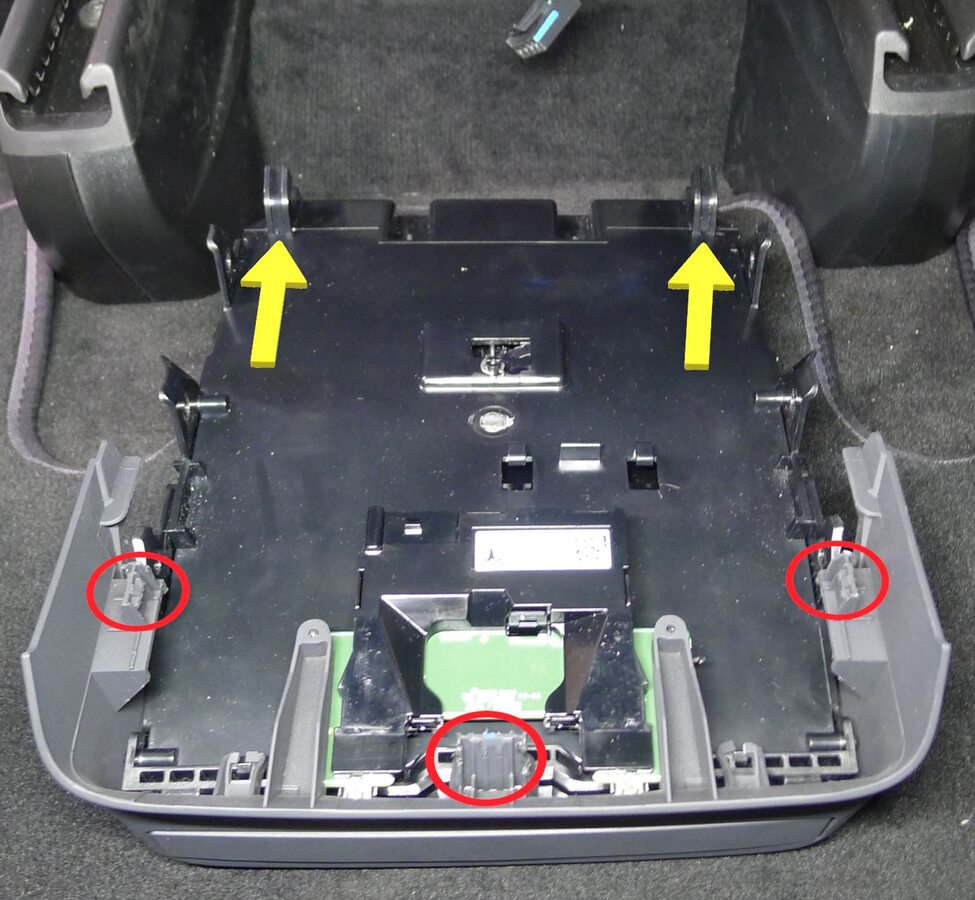

9. Release center console rear cupholder assembly
   Note

   3x clips, 2x datums, Pull straight down at rear of assembly and rotate datums out of center console lower frame

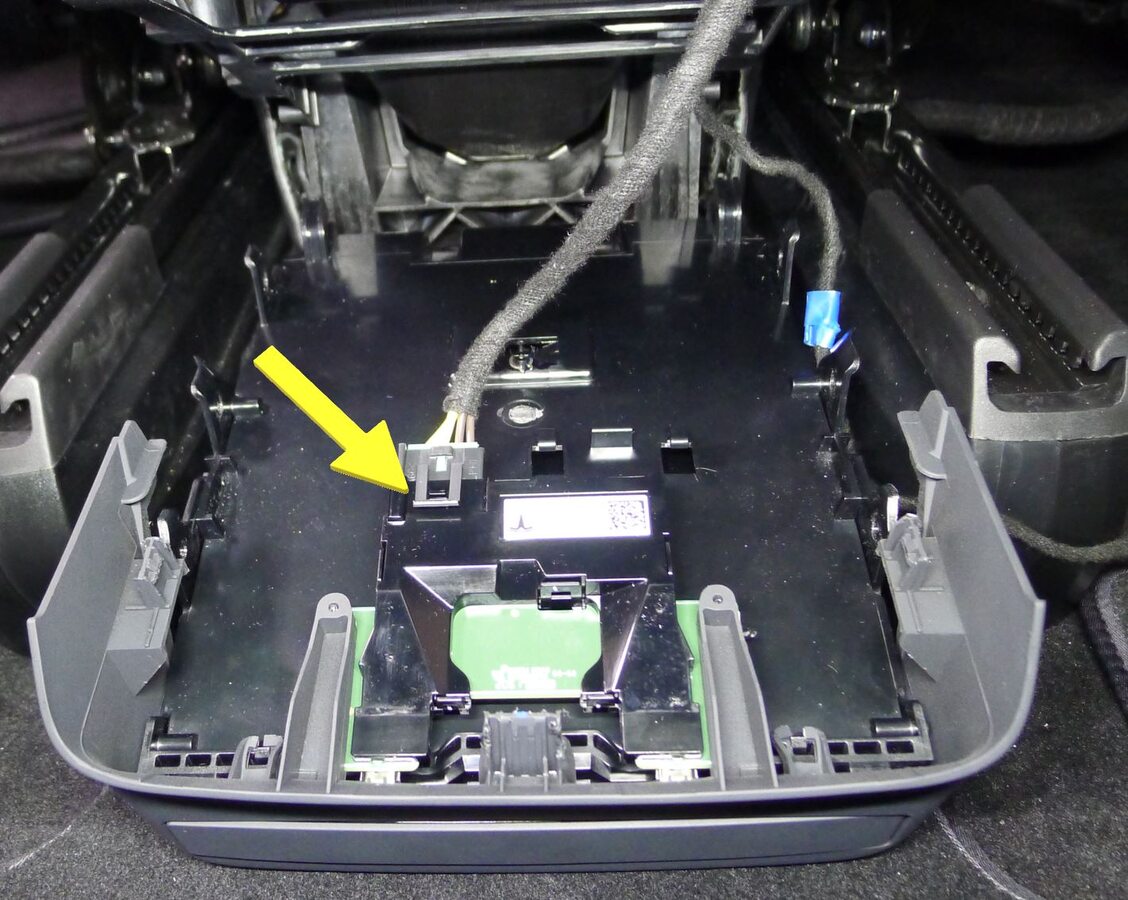

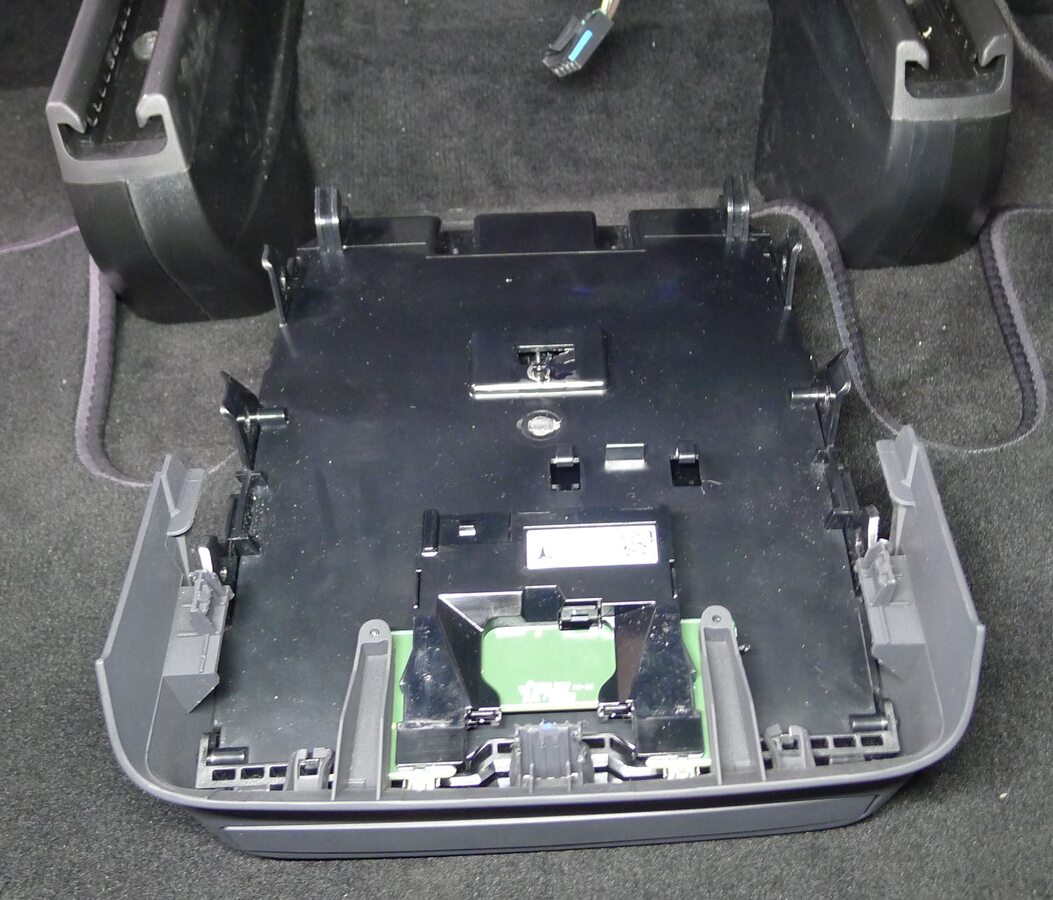

10. Remove center console rear cupholder assembly
    Note

    1x connector





11. Move the RH front seat backward.
12. Move the LH front seat backward.

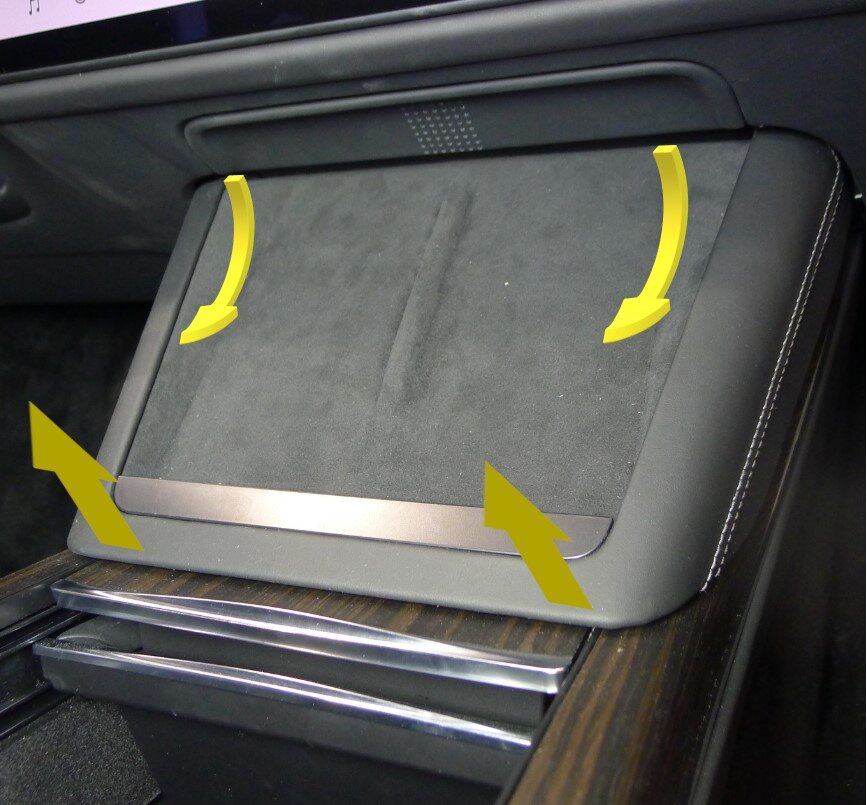

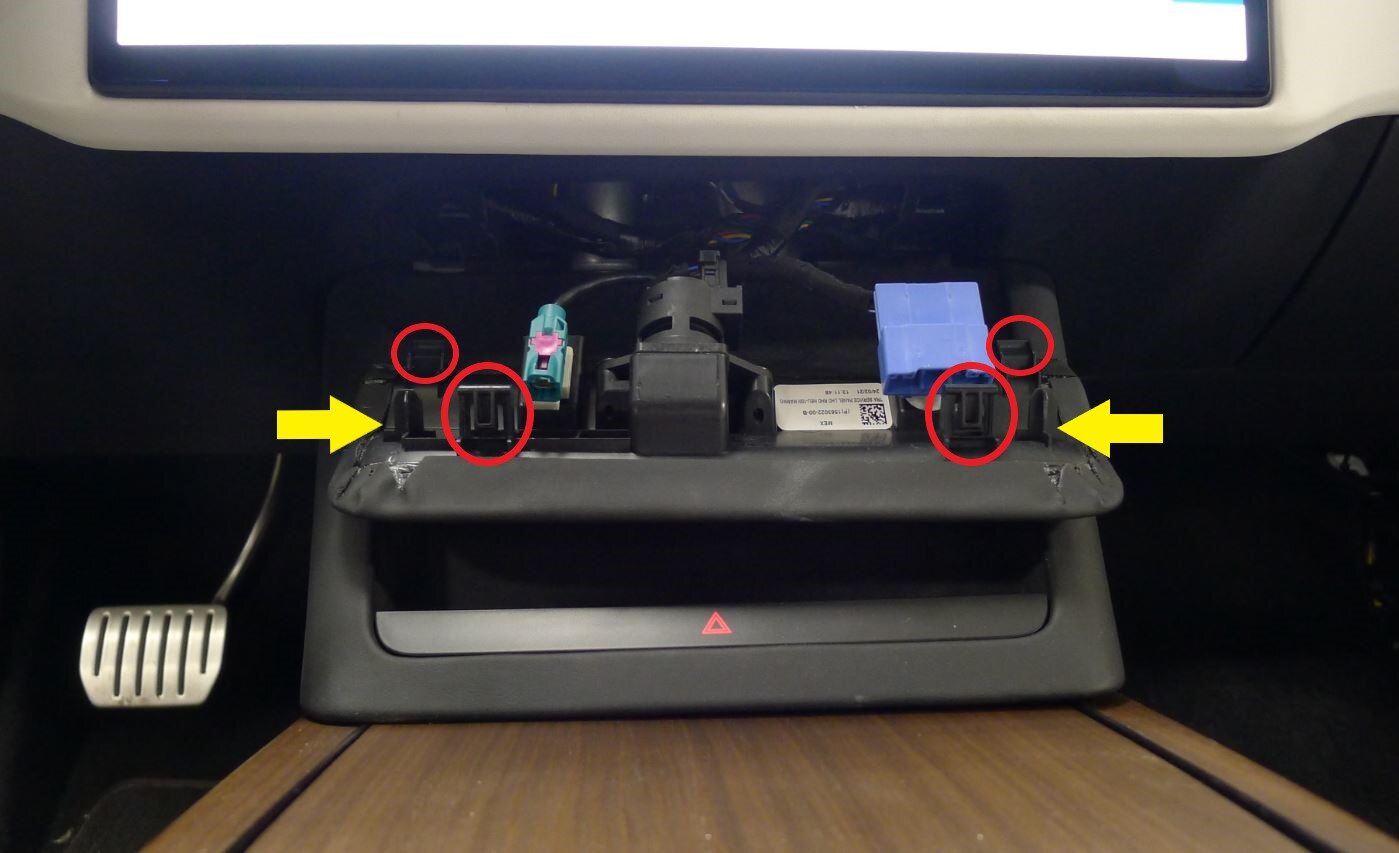

13. Release phone dock
    Note

    4x clips, 2x datums, Pull up at bottom and swing out from under instrument panel

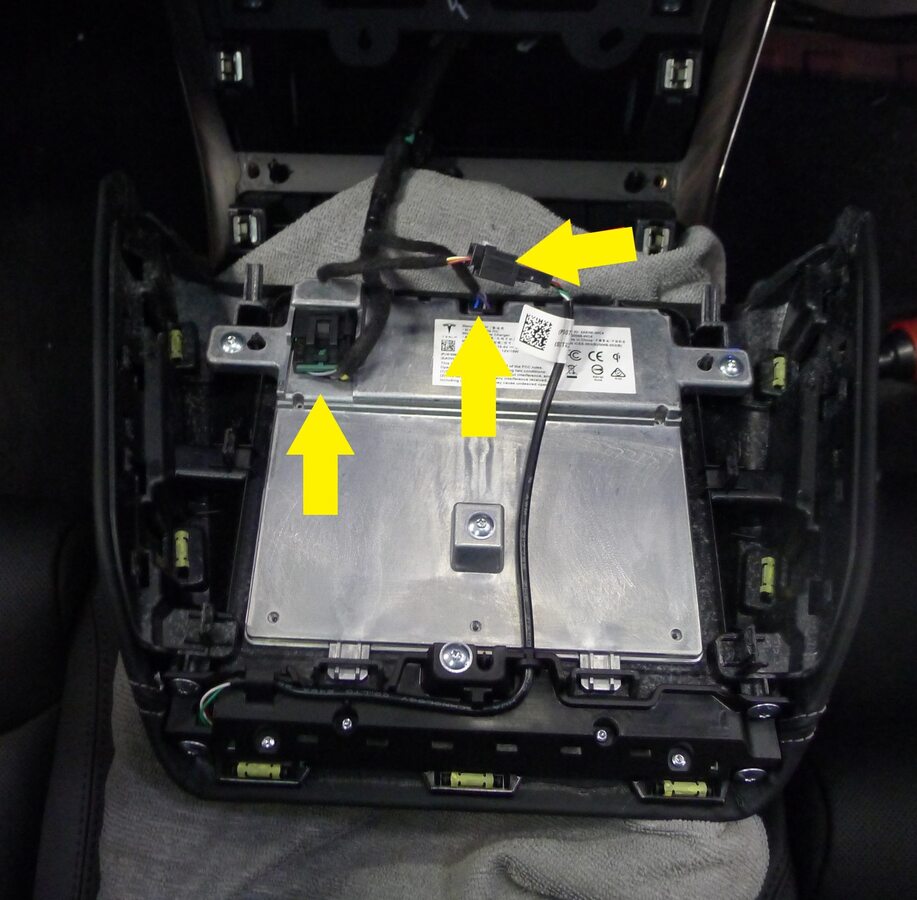

14. Remove phone dock
    Note

    3x connectors, 1x clip, Take caution to release connector locks before pulling straight out of each socket to avoid damage

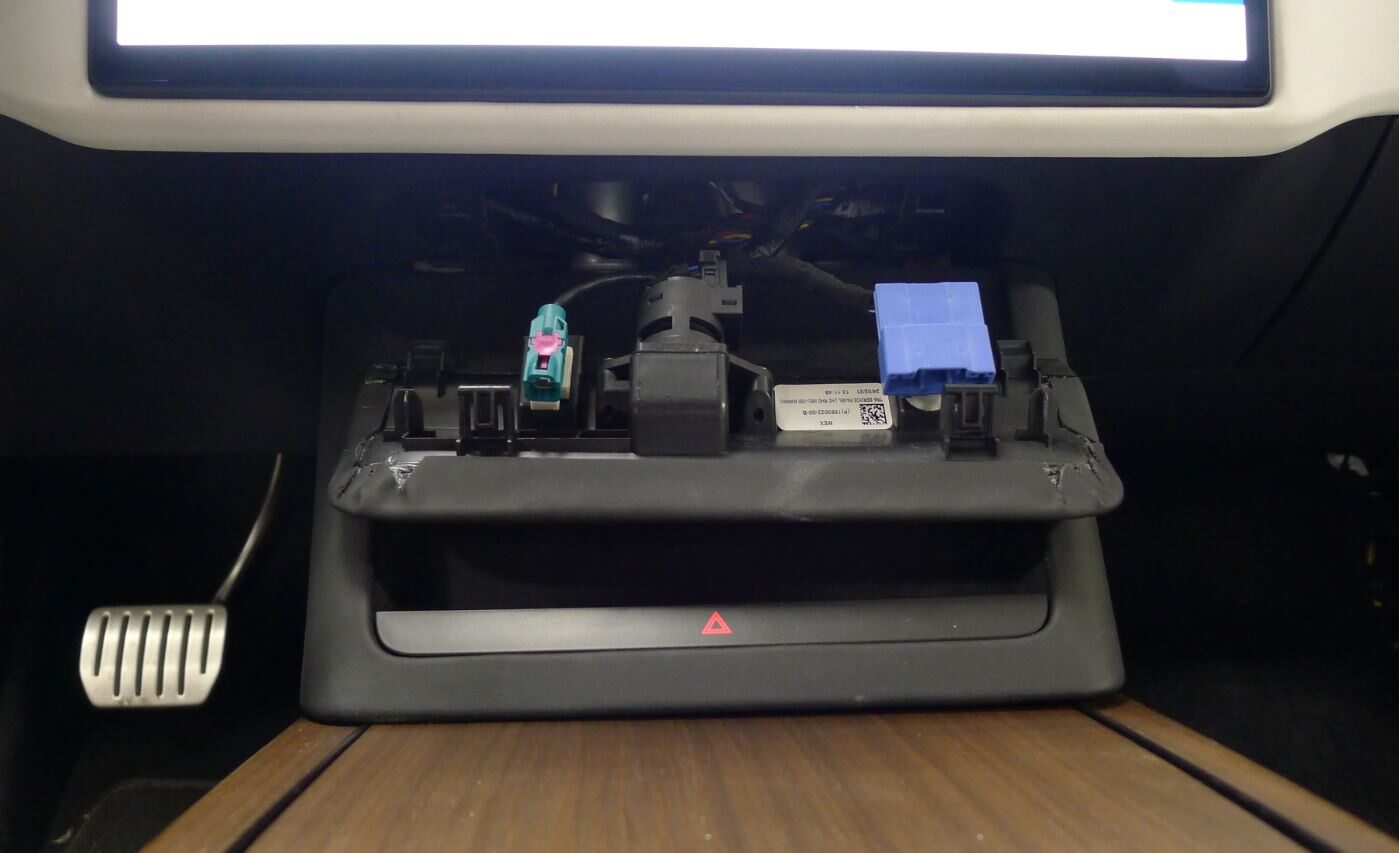

15. Release IP service panel
    Note

    4x tabs, 2x datums







16. Release diagnostic and CAN harnesses from IP service panel
    Note

    2x clips





17. Remove IP service panel
    Note

    1x connector





18. Remove LH front floor mat



19. Remove LH outboard footwell cover
    Note

    2x magnets, 2x datums





20. Remove LH inboard footwell cover
    Note

    1x cover, 1x clip, 1x datum, 1x screw, 8 mm, 1 Nm

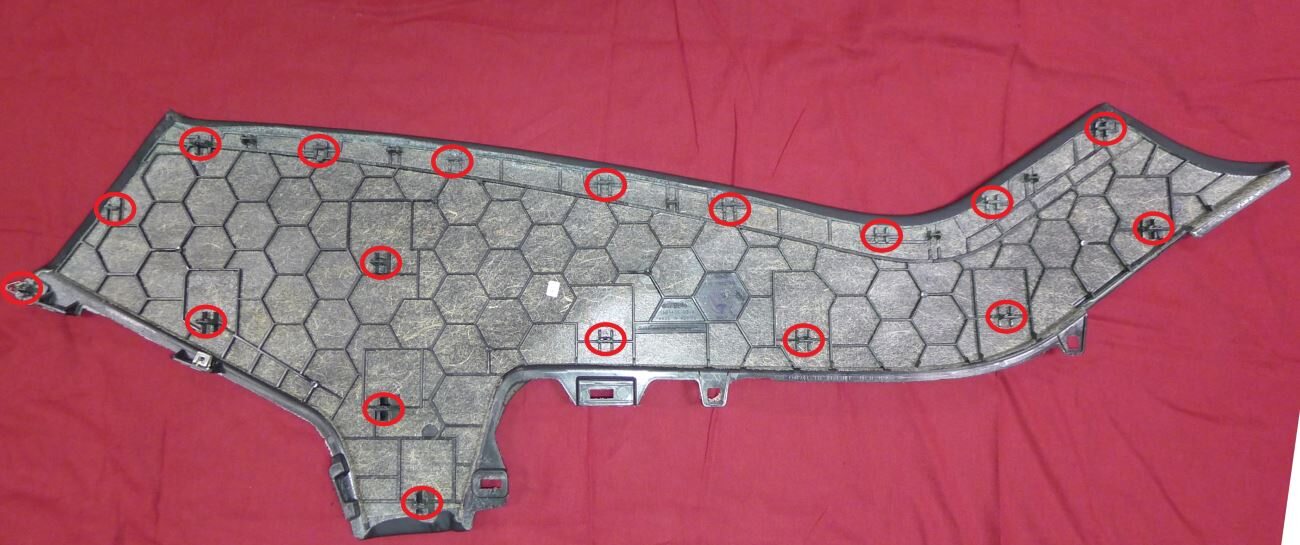

21. Remove LH console side carpet
    Note

    11x clips, 2x datums





22. Release LH center console lower bracket from IP carrier
    Note

    1x bolt, 10mm, 10 Nm



23. Remove RH front floor mat



24. Remove RH footwell cover
    Note

    3x magnets, 1x connector, 4x datums





25. Remove RH console side carpet
    Note

    11x clips, 2x datums





26. Release RH center console lower bracket from IP carrier
    Note

    1x bolt, 10mm, 10 Nm



27. Release center console connectors to body harness
    Note

    4x connectors





28. Release LH and RH console carrier center bracket
    Note

    2x bolts, 10mm, 12 Nm





29. Recline LH front seat backrest



30. Recline RH front seat backrest



31. Remove console assembly
    Note

    Lift at rear, rotate front from under IP and out passenger door, Take care not to scratch seats, IP or inner door panel, Recommend assistance if needed

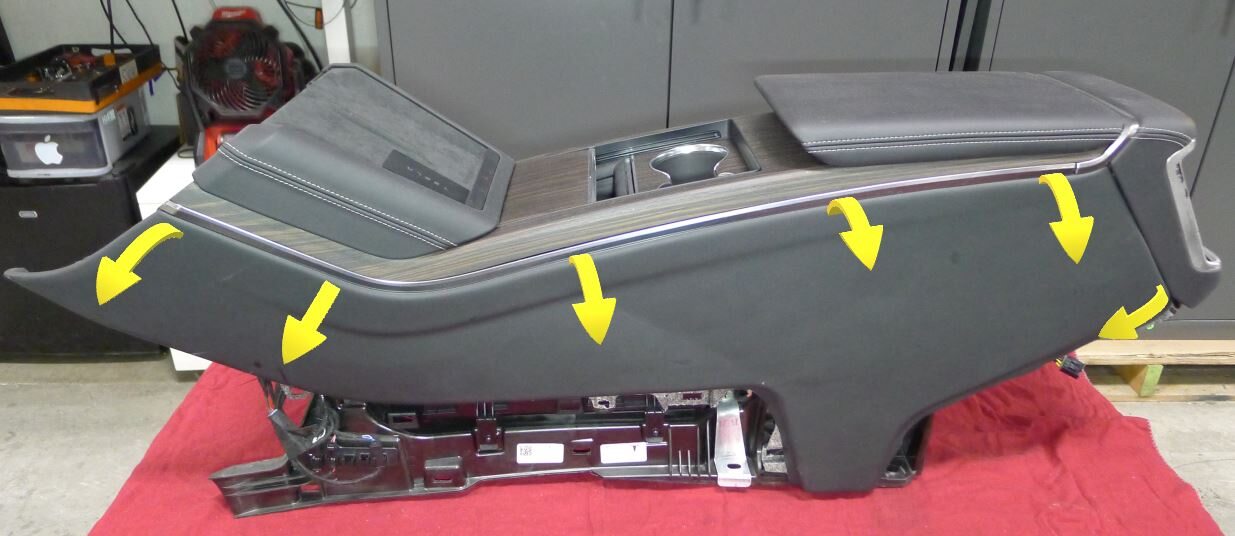

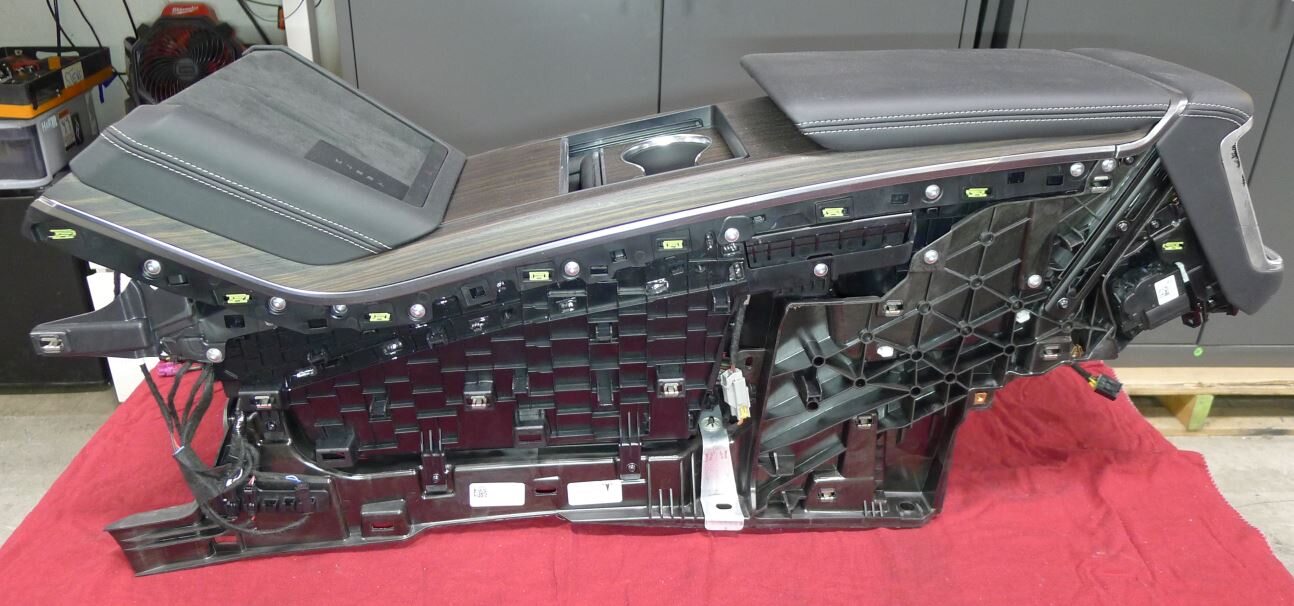

32. Remove LH console side panel
    Note

    17x clips





33. Install LH console side panel
    Note

    17x clips





34. Install console assembly
    Note

    3x datums, Carefully maneuver front of assembly under and into IP carrier and lower rear into place, Align datums into IP carrier and engage forward, Recommend assistance if needed









35. Secure LH center console lower bracket to IP carrier
    Note

    1x bolt, 10mm, 10 Nm



36. Secure RH center console lower bracket to IP carrier
    Note

    1x bolt, 10mm, 10 Nm



37. Secure center console connectors to body harness
    Note

    4x connectors, Ensure all connector locks engage



38. Secure LH and RH console carrier center bracket
    Note

    2x bolts, 10mm, 12 Nm





39. Install RH console side carpet
    Note

    11x clips, 2x datums





40. Install RH footwell cover
    Note

    3x magnets, 4x datums, 1x connector





41. Install RH front floor mat



42. Install LH console side carpet
    Note

    11x clips, 2x datums





43. Install LH inboard footwell cover
    Note

    1x cover, 1x clip, 1x datum, 1x screw, 8 mm, 1 Nm, Align datums and footwell vent before installing screw









44. Install LH outboard footwell cover
    Note

    2x magnets, 2x datums





45. Install LH front floor mat



46. Secure diagnostic and CAN harnesses to IP service panel
    Note

    2x clips







47. Install IP service panel
    Note

    4x tabs, 2 datums





48. Install phone dock connections
    Note

    3x connectors, 1x clip





49. Install phone dock
    Note

    2x datums, 4 tabs, Slide datums forward into IP and secure tabs down into center console





50. Move LH front seat forward



51. Raise LH front seat backrest



52. Move RH front seat forward



53. Raise RH front seat backrest



54. Install center console rear cupholder assembly
    Note

    1x connector



55. Secure center console rear cupholder assembly
    Note

    3x clips, 2x datums, Position datums and rotate assembly up into rear center console frame







56. Install center console rear cupholder assembly screws
    Note

    6x screws, T20, 1 Nm





57. Secure LH and RH rear console carrier
    Note

    2x bolts, 10mm, 12 Nm





58. Install console back panel assembly
    Note

    1x connector





59. Secure console back panel assembly
    Note

    6x clips, 7x datums, Engage bottom clips first due to forward facing alignment





60. Move the RH front seat to its original position.
61. Move the LH front seat to its original position.
62. Raise the LH front window.
63. Close all four doors
