MXP3 Interior Trim - Center Console - Center Console - Rear Bright Strip (2025+) (RI)
Correction code
NEW
NOTE: Unless
otherwise explicitly stated in the procedure, the above correction code and
FRT reflect all of the work required to perform this procedure, including
the linked procedures. Do
not stack correction codes unless explicitly told to do so.
NOTE: See Flat Rate Times to learn more about FRTs and how they are
created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com.
NOTE: See Personal Protection to make
sure wearing proper PPE when performing the below procedure.
Warning
This procedure is a DRAFT.
Although it has been validated, Warnings and Cautions might be missing. Follow safety
requirements and use extreme caution when working on or near High Voltage systems and
components. Provide corrections and feedback to ServiceDevelopment@teslamotors.com.
- 2025-06-02: Released new procedure.
-
Open all four doors
- Lower the LH front window.
-
Move LH front seat forward
- Move the RH front seat forward.
-
Release console back panel assembly
Note6x clips, 7x datums, Disengage bottom clips last and pull rearward due to alignment
-
Remove console back panel assembly
Note1x connector, Connector lock for lamp located underneath bracket
-

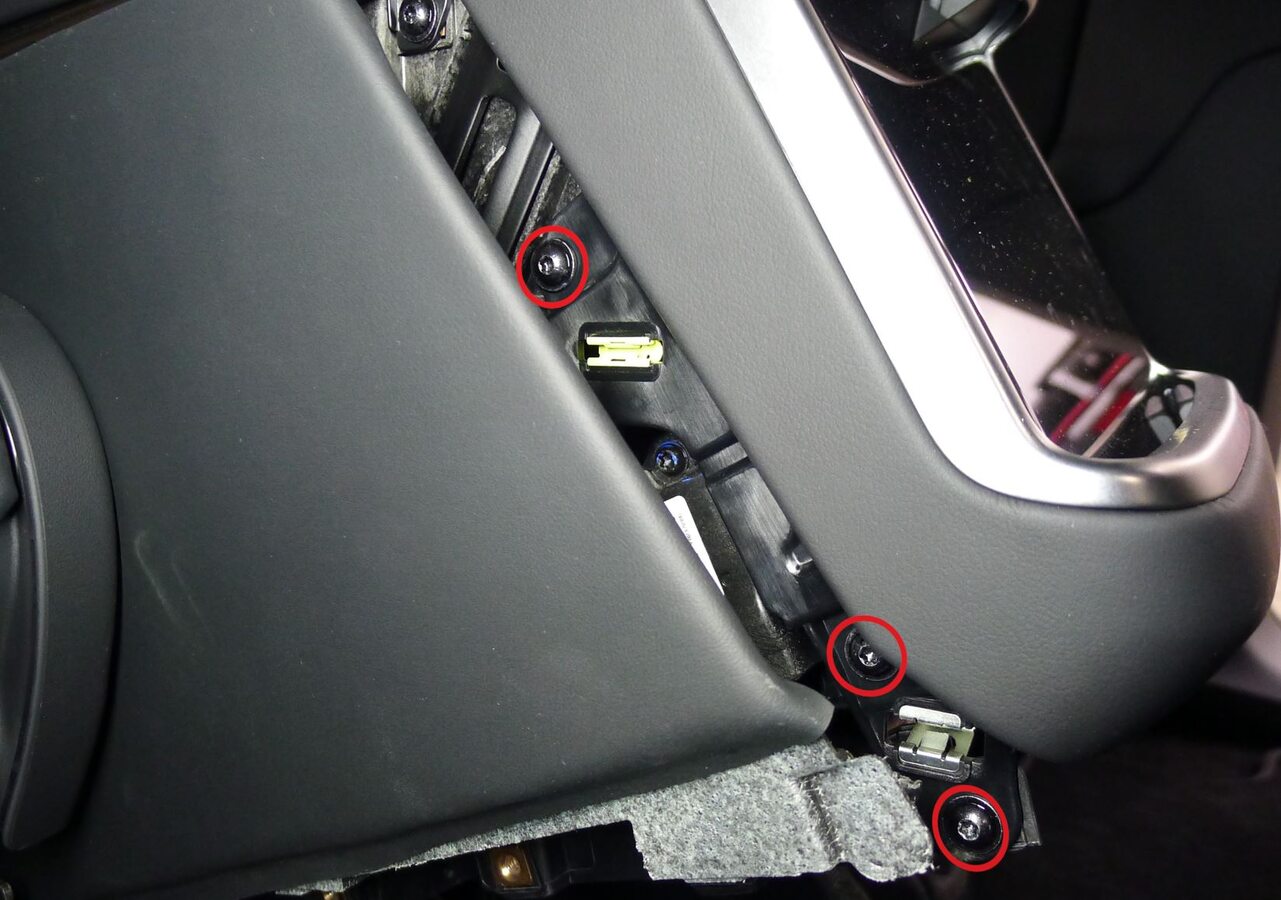

Remove center console rear cupholder assembly screws
Note6x screws, T20, 1 Nm
-
Release center console rear cupholder assembly
Note3x clips, 2x datums, Pull straight down at rear of assembly and rotate datums out of center console lower frame
-
Remove center console rear cupholder assembly
Note1x connector
-

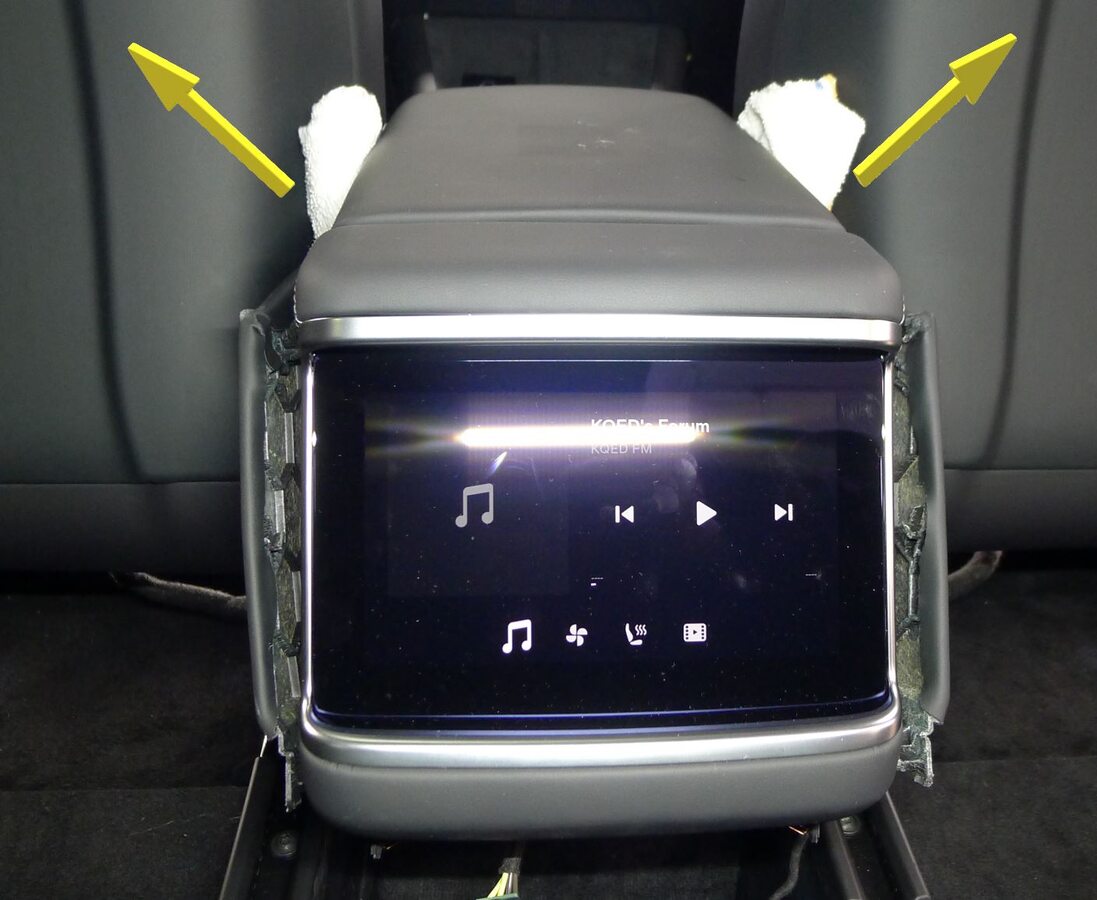

Release LH & RH console side panels at rear assembly
Note8x clips, Insert rolled-up rag to hold panels off console assembly during procedure
-

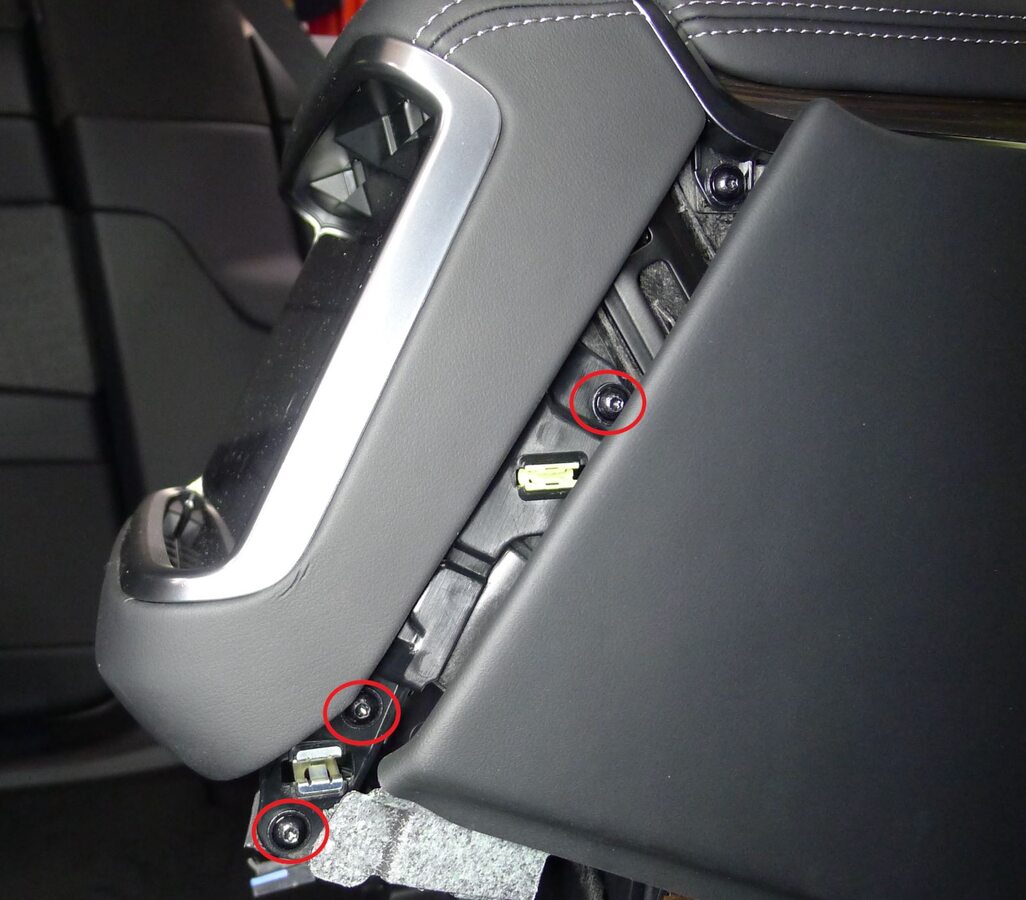

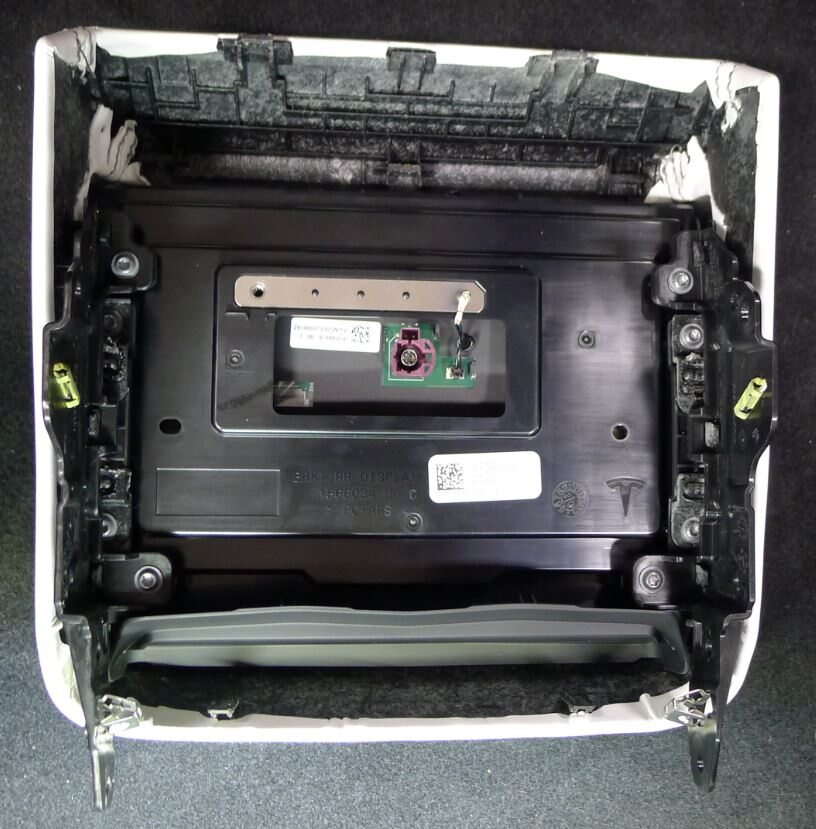

Release console airwave cap
Note6x screws, T20, 1 Nm, 1x connector, 3x tabs, Pull airwave cap straight back then to the right to access connector
-

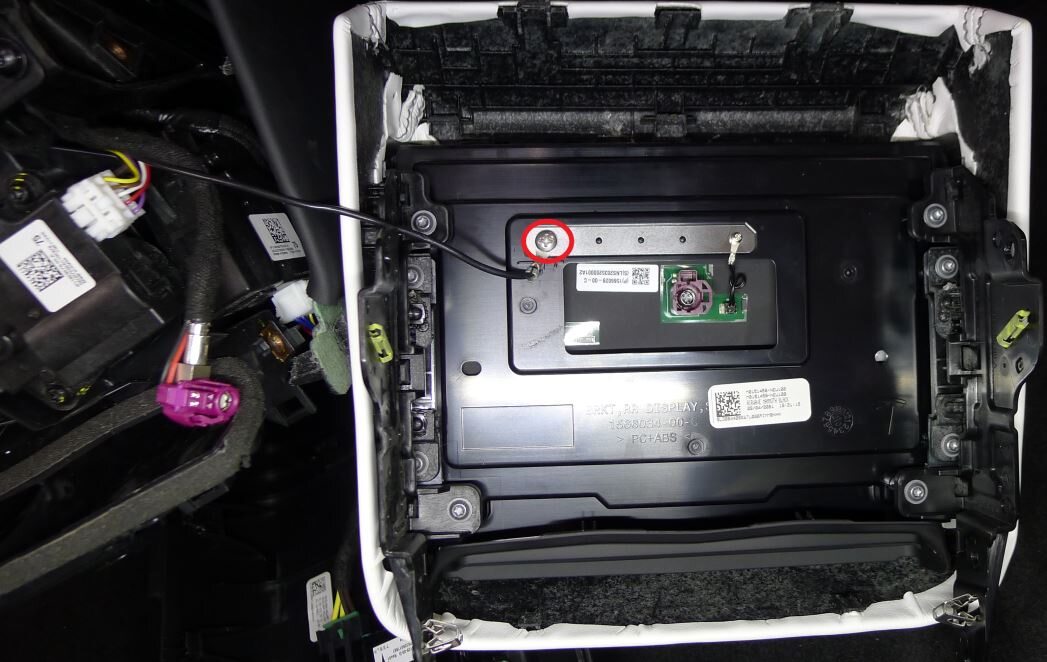

Remove airwave cap
Note1x screw, T20, 1 Nm, Release ground harness with screw
-

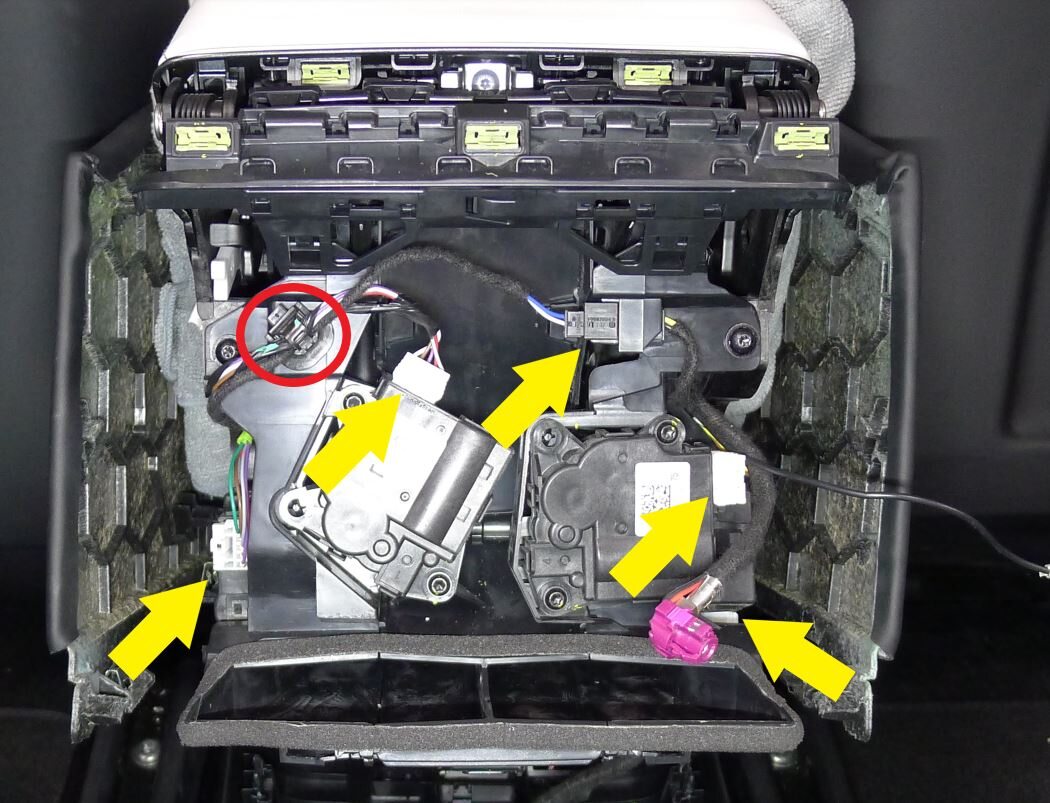

Release console harness from airwave assembly and actuators
Note5x connectors, 1x clip
-

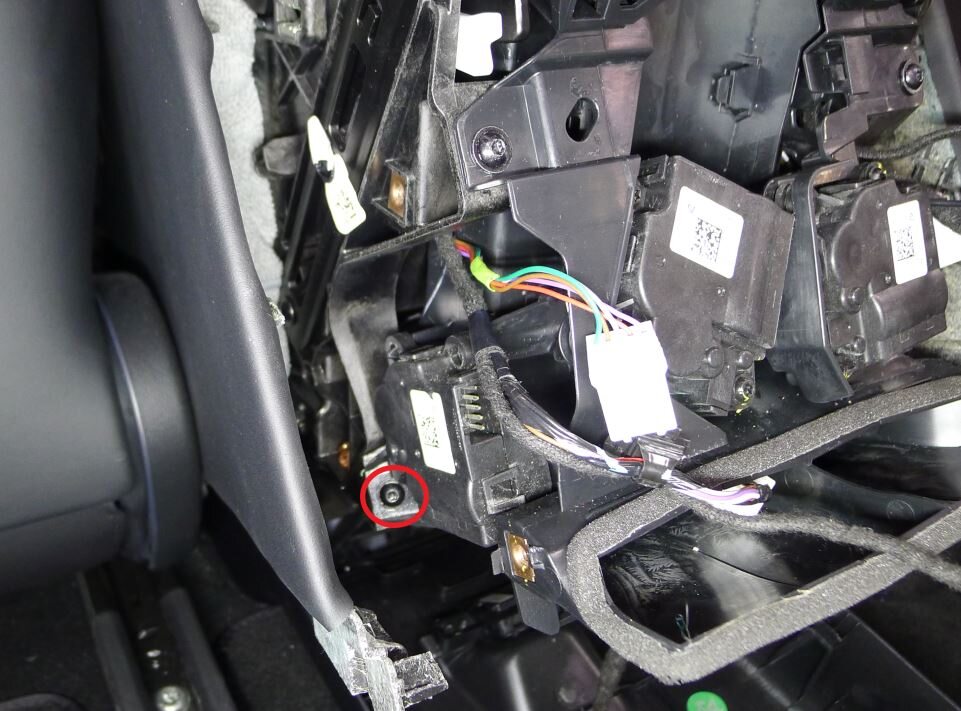

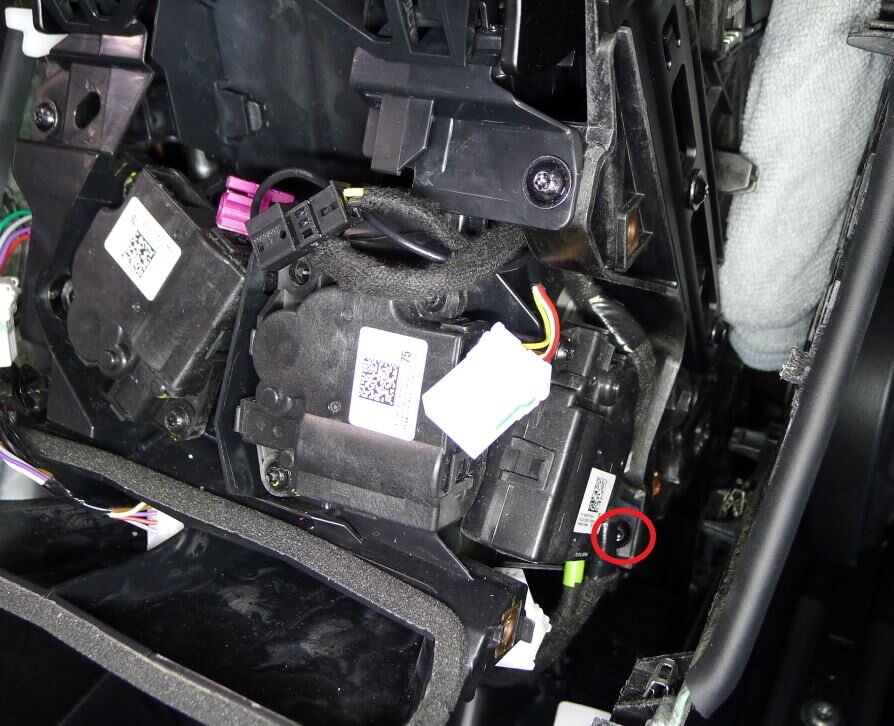

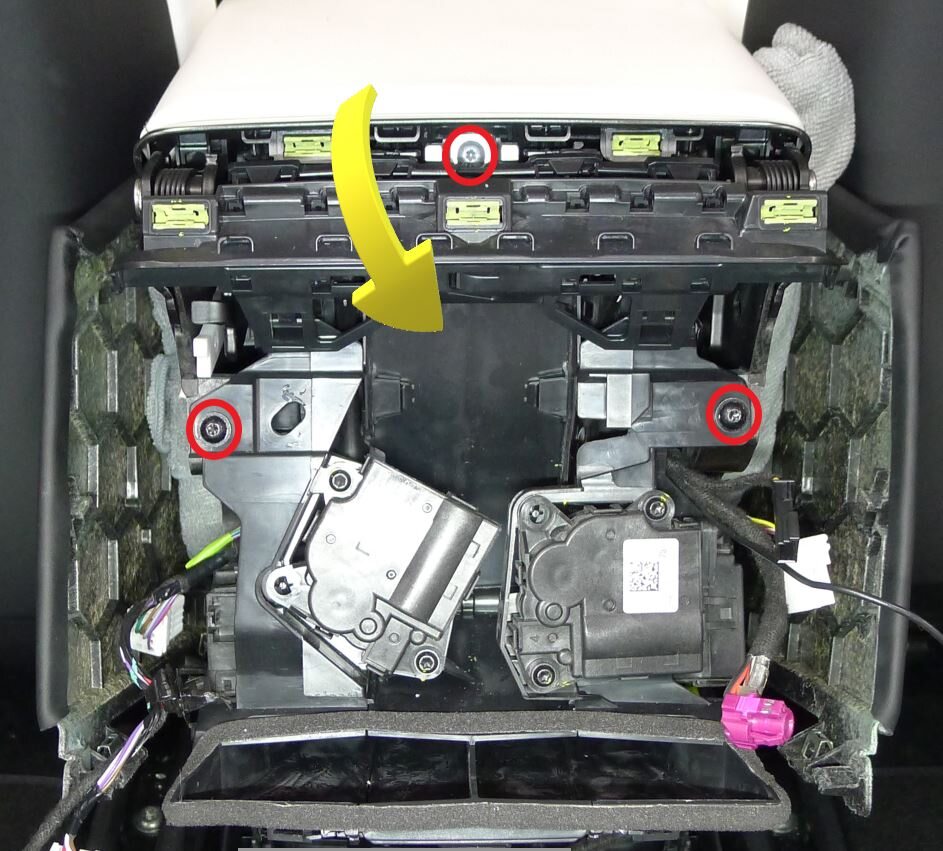

Release console airwave assembly
Note5x screws, T20, 1 Nm, Pull airwave assembly straight rearward and rotate to the left to access air duct temp sensor harness
-

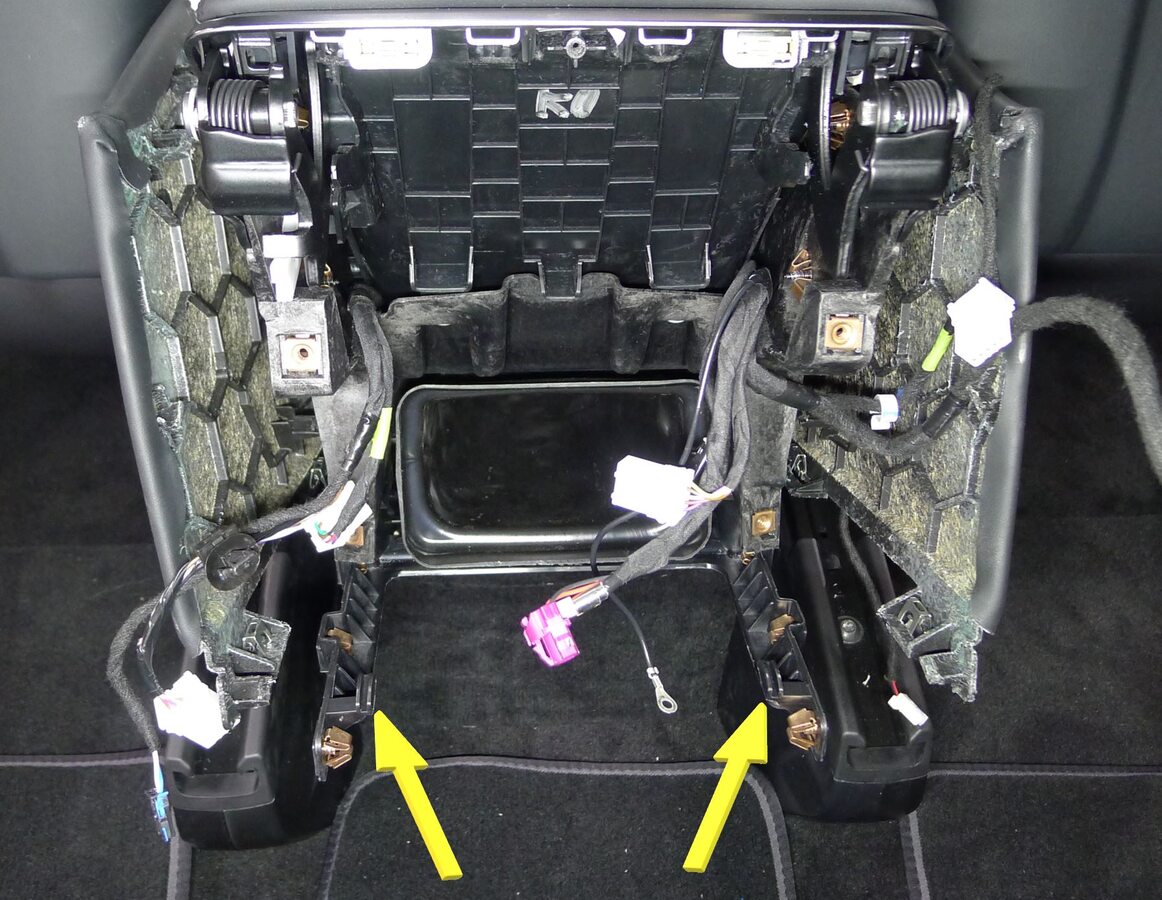

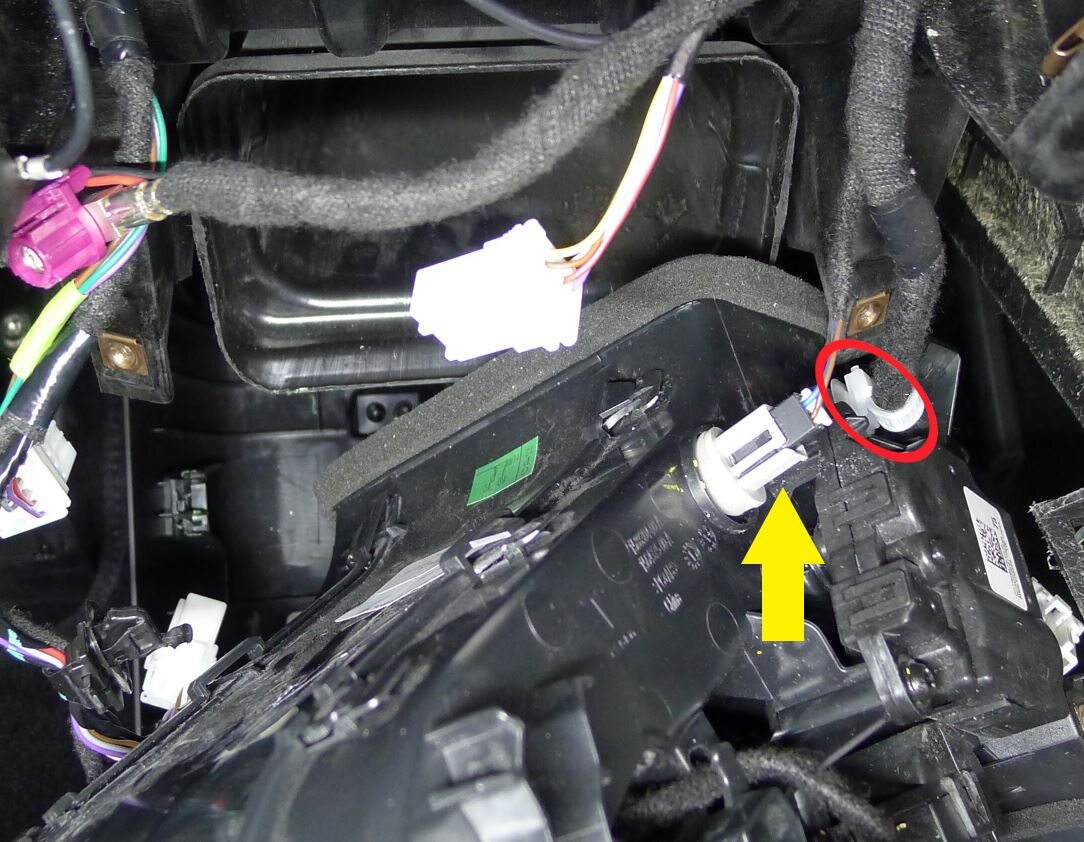

Remove console airwave assembly
Note1x connector, 1x clip, 2x datums, Pull airwave assembly rearward at the top then out of the datums in the lower center console frame
-

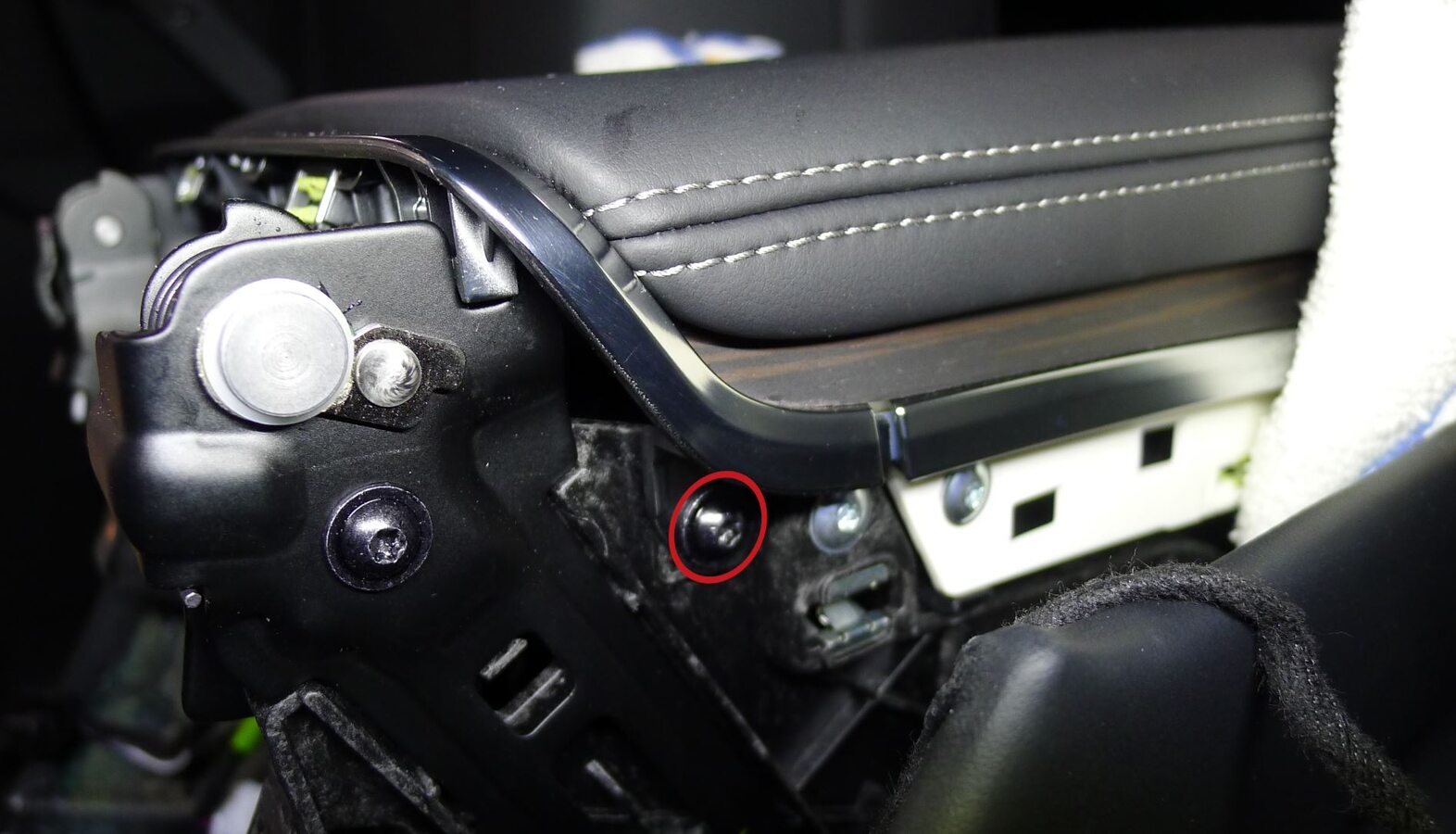

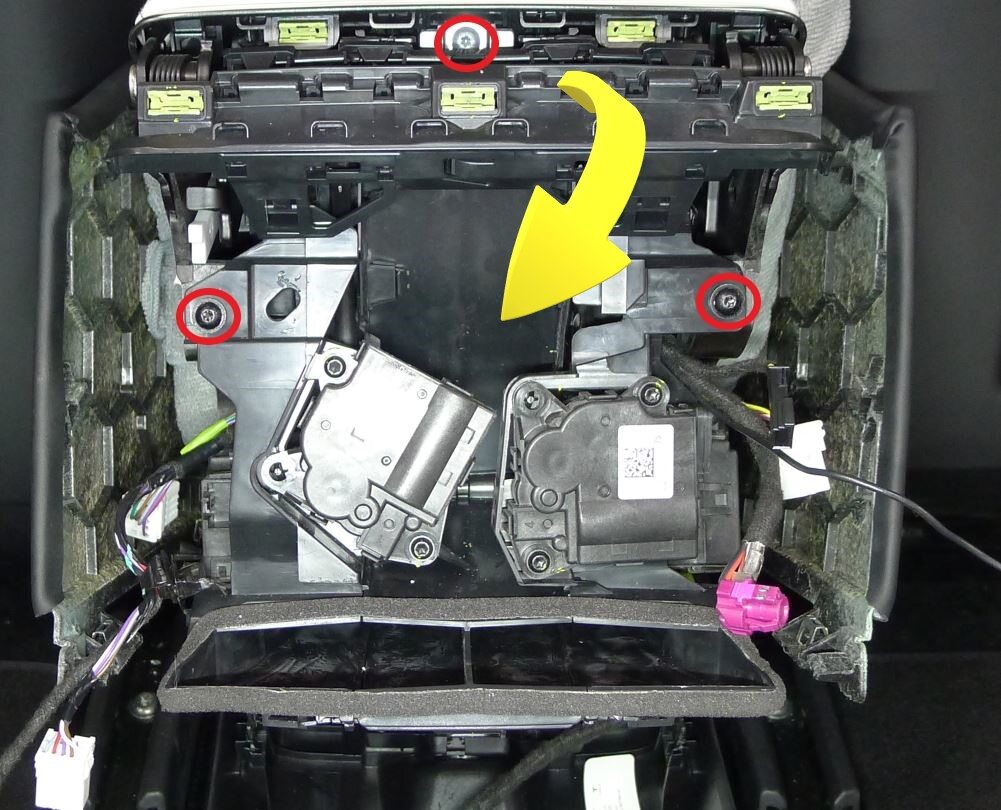

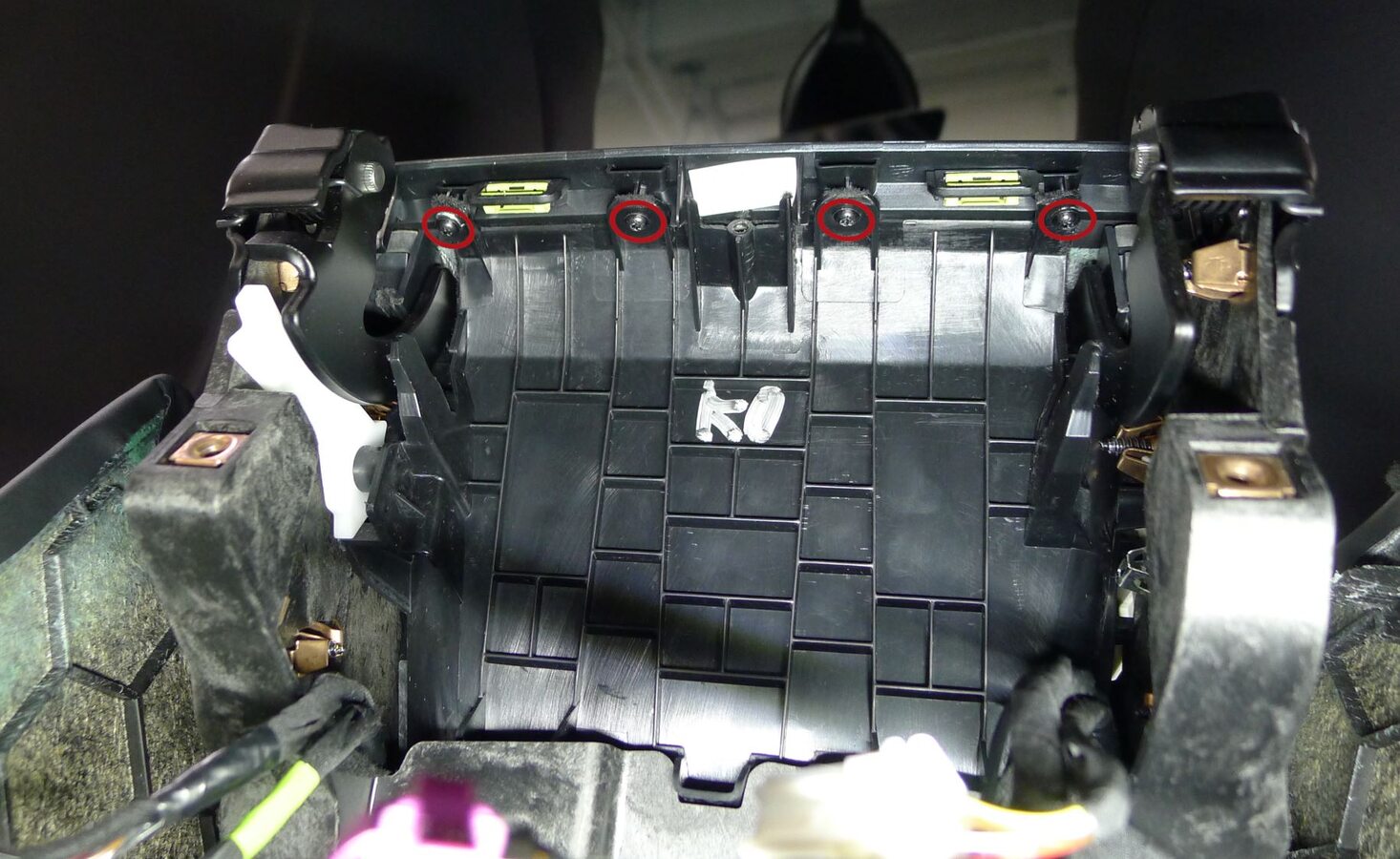

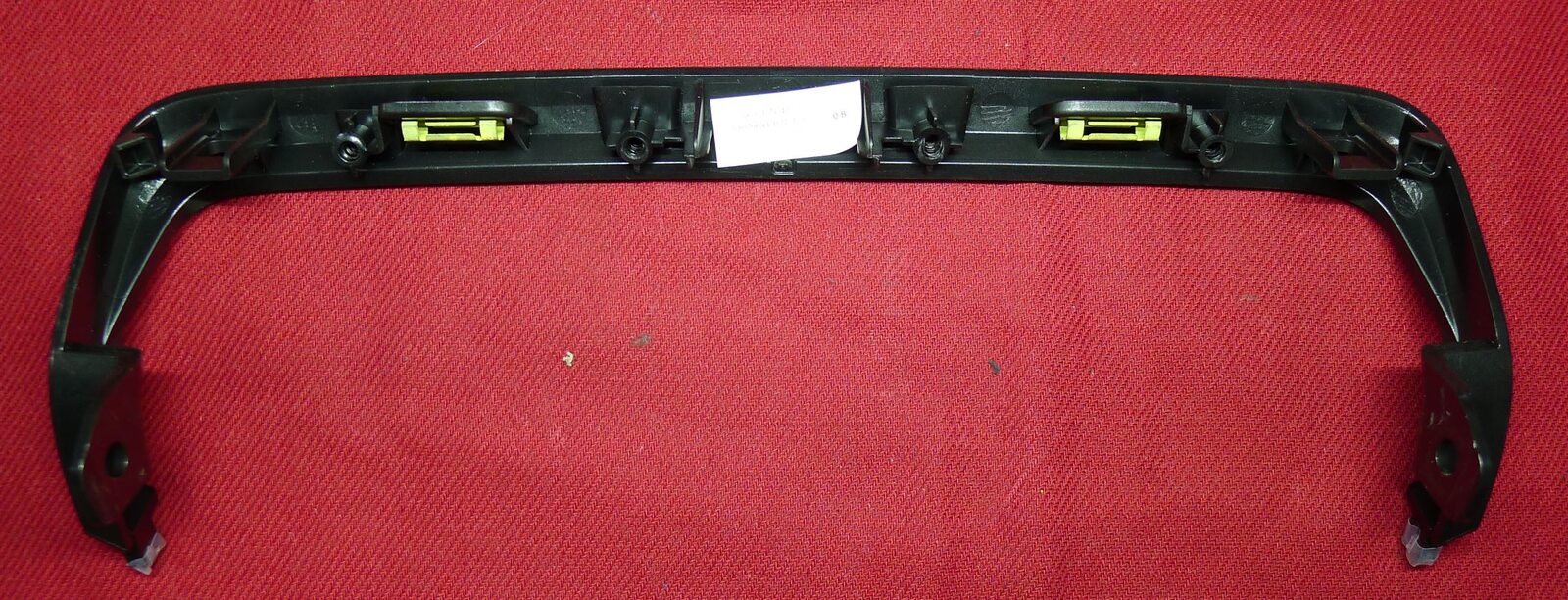

Remove rear console bright strip
Note4x screws, T10, 0.7 Nm, 2x screws, T20, 1 Nm, 2x datums, Release datums and rotate bright up and out of console assembly
-
Install rear console bright strip
Note4x screws, T10, 0.7 Nm, 2x screws, T20, 1 Nm, 2x datums, Rotate bright assembly down into console assembly and engage datums
-
Install console airwave assembly
Note1x connector, 1x clip, 2x datums, Connect airwave duct temp sensor and secure harness before install, Engage both datums at bottom of center console frame
-
Secure console airwave assembly
Note5x screws, T20, 1 Nm
-
Secure console harness to airwave assembly and actuators
Note5x connectors, 1x clip
-
Secure airwave cap
Note1x screw, T20, 1 Nm
-

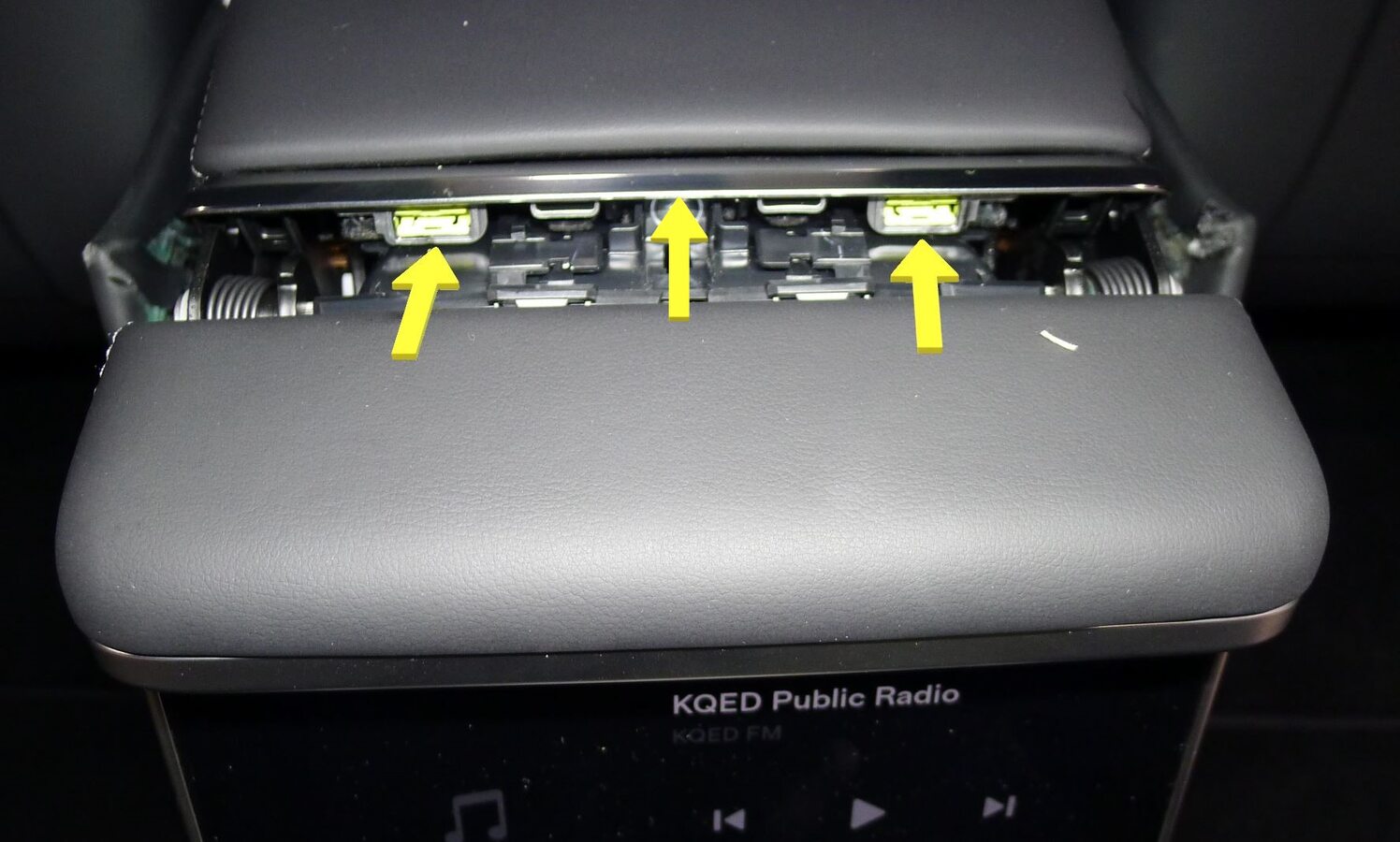

Install console airwave cap
Note4x screws, T20, 1 Nm, 1x connector, 3x tabs, Secure display connector, align airwave cap with console assembly and insert straight forward
-
Secure LH & RH console side panels at rear assembly
Note8x clips, Remove rolled-up rags
-
Install center console rear cupholder assembly
Note1x connector
-
Secure center console rear cupholder assembly
Note3x clips, 2x datums, Position datums and rotate assembly up into rear center console frame
-
Install center console rear cupholder assembly screws
Note6x screws, T20, 1 Nm
-
Install console back panel assembly
Note1x connector
-
Secure console back panel assembly
Note6x clips, 7x datums, Engage bottom clips first due to forward facing alignment
- Move the RH front seat to its original position.
- Move the LH front seat to its original position.
- Raise the LH front window.
-
Close all four doors
