Trim - Rear Door - LH (2025+) (Remove and Replace)

Correction code New NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.

Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
This procedure is a DRAFT. Although it has been validated, Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near High Voltage systems and components. Provide corrections and feedback to ServiceDevelopment@teslamotors.com.
Informational PurposesAn informational icon, calling your attention
Note
This procedure describes work that is specific to 2025+ Model X.
  1. Open the LH front door.
  2. Lower the LH front window.
  3. Open LH falcon wing door
  4. Remove LH falcon door lower garnish
    Informational PurposesAn informational icon, calling your attention
    Note
    9x V-clips, Replace any damaged or missing clips, Take care not to damage door trim panel during removal
  5. Remove LH rear decor trim panel
    Informational PurposesAn informational icon, calling your attention
    Note

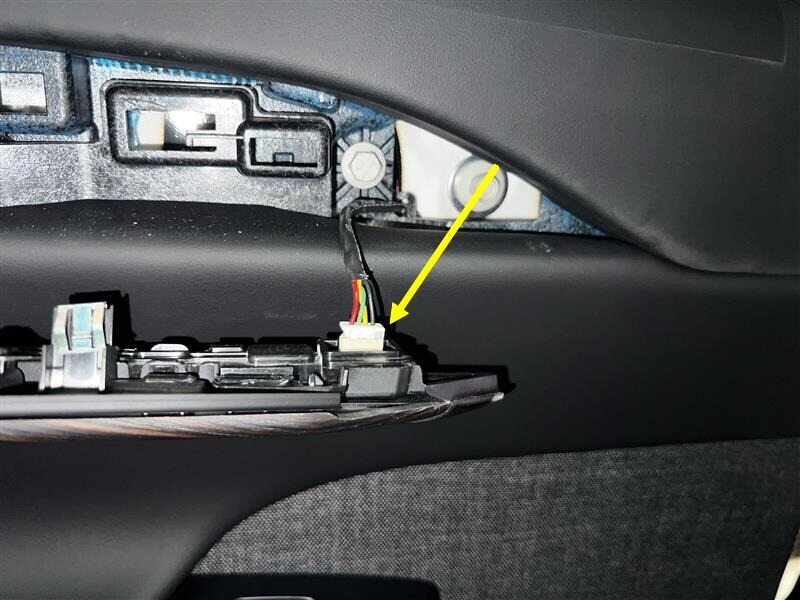

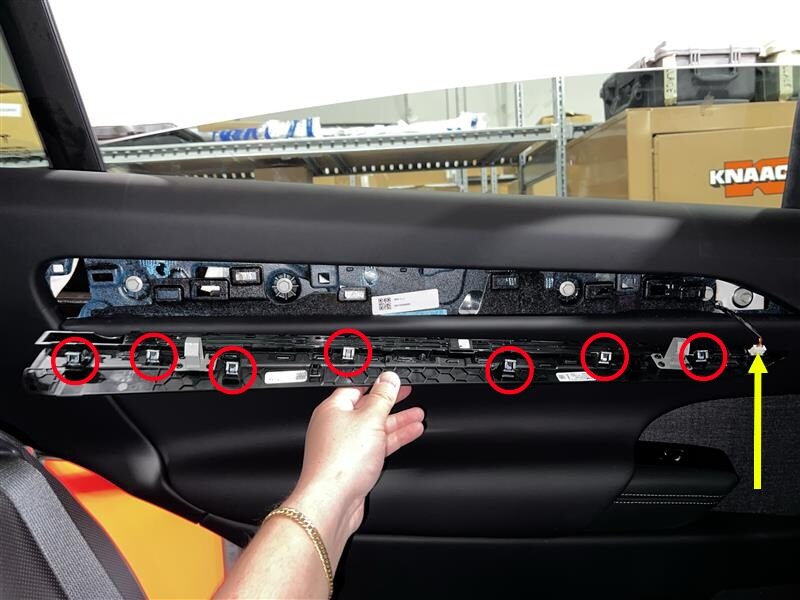

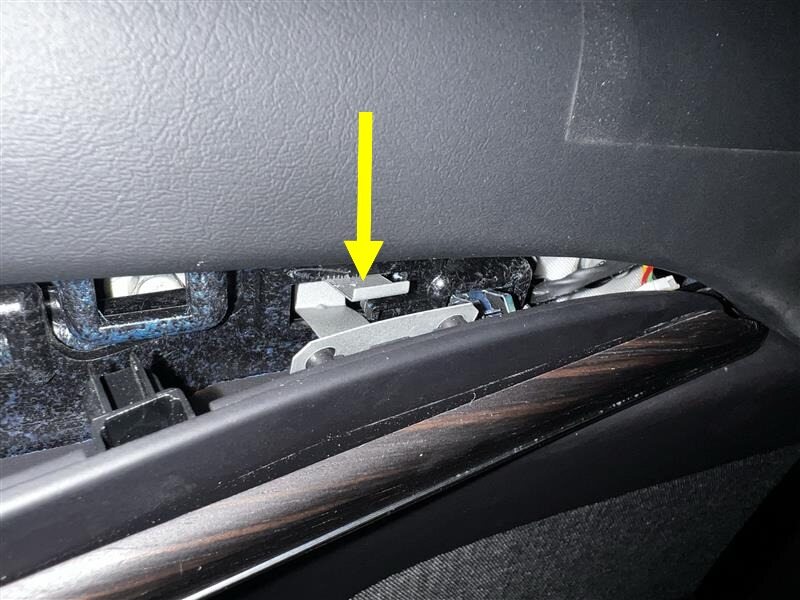

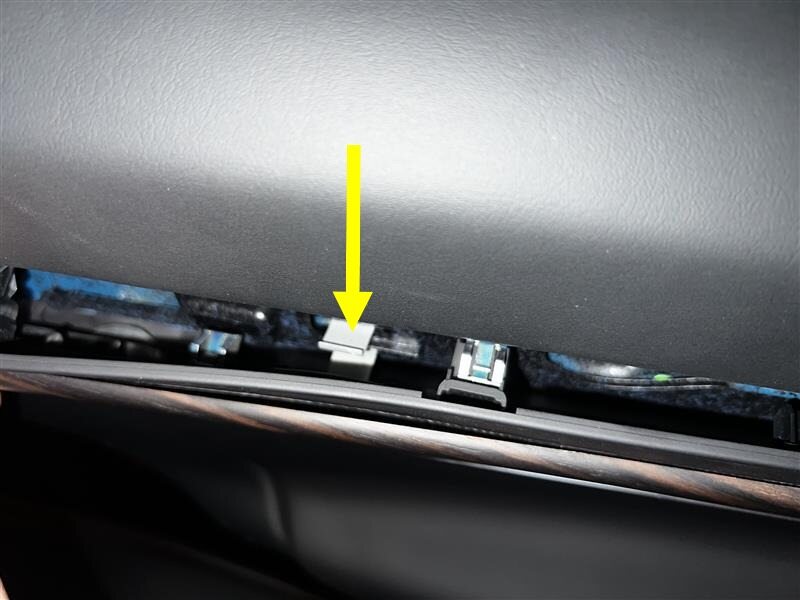

    7x clips, 1x connectors, 2x tabs, slide rearward, push down 2x metal tabs to release trim
  6. Remove bolts securing LH rear door panel to door
    Informational PurposesAn informational icon, calling your attention
    Note
    8x bolts, 10mm, 6 Nm
  7. Remove LH rear door trim panel
    Informational PurposesAn informational icon, calling your attention
    Note
    13x clips, 2x connectors
  8. Install LH rear door trim panel
    Informational PurposesAn informational icon, calling your attention
    Note
    2x connectors, 13x clips, Install door trim starting from top and make sure the door trim tab is fitted correctly on the inner belt seal
  9. Install LH rear door decor trim panel
    Informational PurposesAn informational icon, calling your attention
    Note
    7x clips, 2x connectors, Take care not to damage door trim panel
  10. Install bolts securing LH rear door panel to door
    Informational PurposesAn informational icon, calling your attention
    Note
    8x bolts, 10mm, 6 Nm
  11. Install LH rear door decor trim panel
    Informational PurposesAn informational icon, calling your attention
    Note

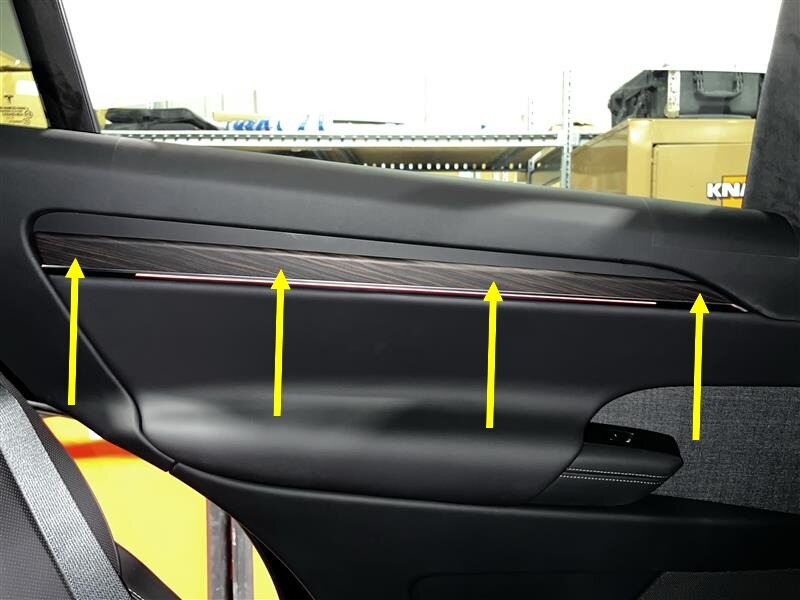

    7x clips, 1x connectors, Take care not to damage door trim panel, Secure 2x large metal clips then slide trim forward and secure remaining clips
  12. Install LH falcon door lower garnish
    Informational PurposesAn informational icon, calling your attention
    Note
    9x V-clips, 1x guide tab
  13. Close LH falcon door
  14. Reinstall firmware via UI
    Informational PurposesAn informational icon, calling your attention
    Note
    Via Controls > Service Mode > Software Reinstall, Select Reinstall button at Software Reinstall dialogue box, Reinstall will begin immediately, Once firmware redeploy is complete, Verify release notes are present via UI
  15. Once firmware redeploy is complete, Verify release notes are present via UI
    Informational PurposesAn informational icon, calling your attention
    Note
    If redeploy fails then error message will appear
  16. Run ODIN routine PROC_ICE_X_EXIT-SERVICE-MODEvia Toolbox: (link)
  17. Raise the LH front window.
  18. Close the LH front door.
