Glass - Rear Quarter - LH (2025+) (Remove and Replace)

Correction code NEW FRT 0.84 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Informational PurposesAn informational icon, calling your attention
Note
This procedure describes work that is specific to 2025+ Model X.
Warning IconA warning icon, calling your attention to a possibly risky situation
CAUTION
For Europe only: Only technicians who have been trained in working with diisocyanates and have completed all required certification courses are permitted to perform procedures using urethane and other products containing diisocyanates. Proper personal protective equipment (PPE) must be worn when working with products containing diisocyanates.
  • 2025-06-02: Released new procedure.

Remove

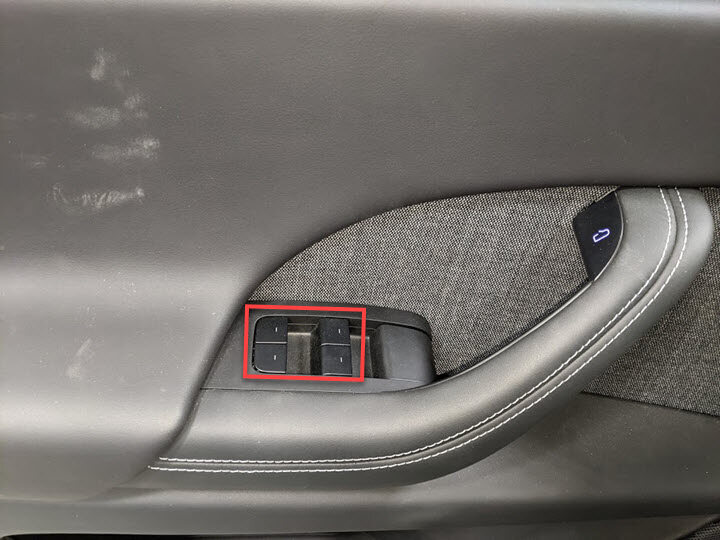

  1. Open the LH front door and lower all four windows.

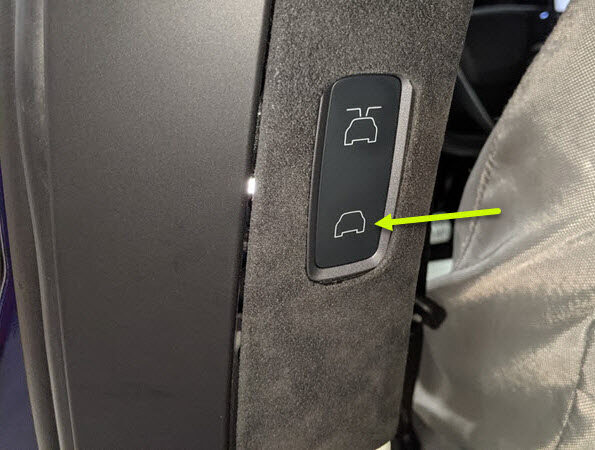

  2. Move the LH front seat forward.

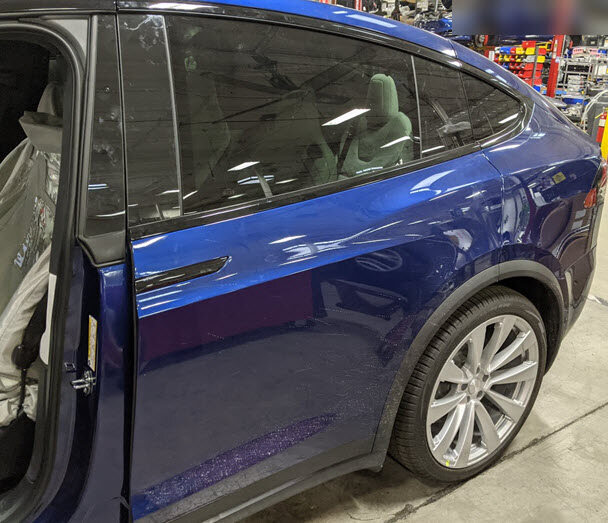

  3. Open the LH falcon door.
  4. Move the LH Monopost seat forward.
  5. Release the clips (x8), datum and tab that attach the LH rear sill assembly to the body.
  6. Open the liftgate.
  7. Release the clips (x17) that attach the LH lower C-pillar to the body.
  8. Release the clips (x6) and datum that attach the LH upper C-pillar trim.

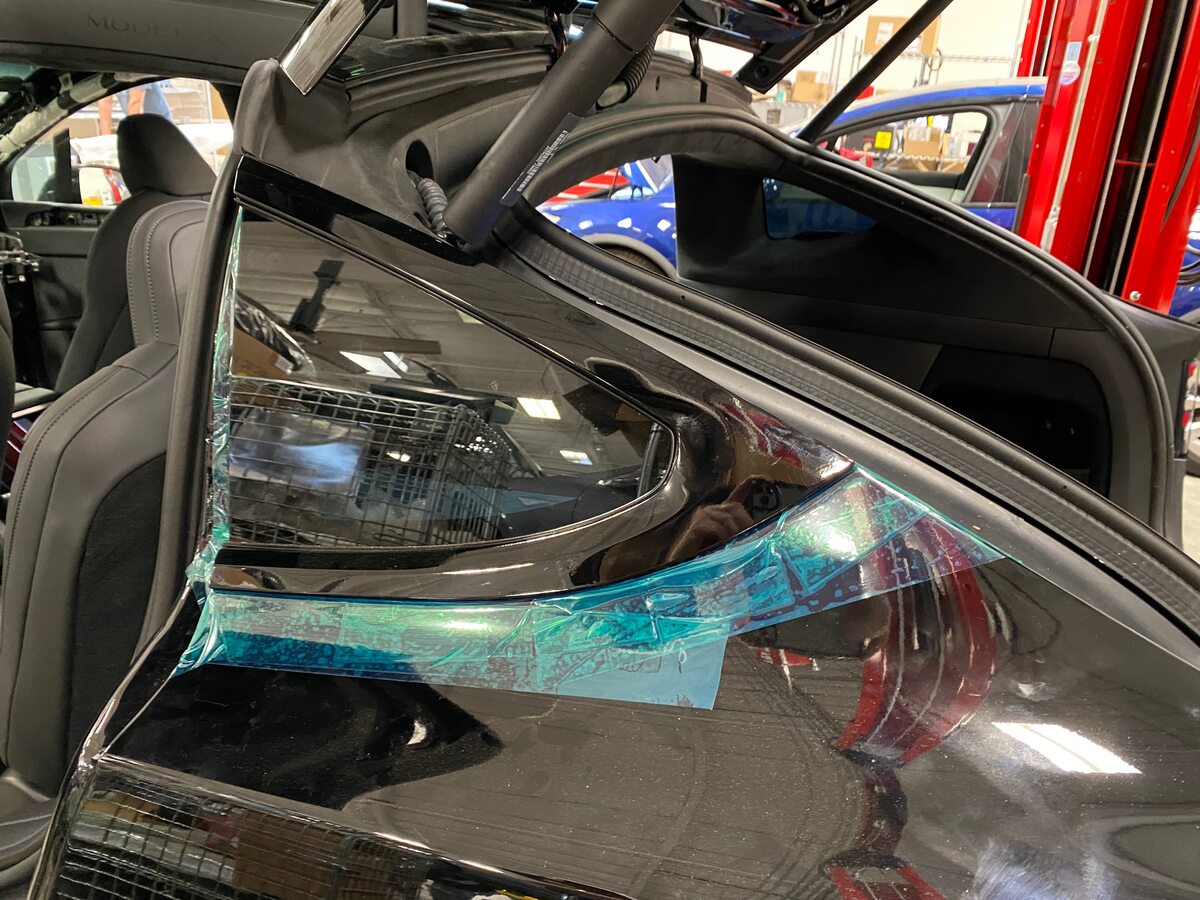

  9. Apply masking tape around the LH rear quarter glass to protect the paint on the vehicle.
  10. Set up a pair of T-handles with sufficient glazing wire.
  11. Wrap the glazing wire around the rear edge of the LH rear quarter glass between the body and the seal, and then use a sawing motion to cut through the urethane to remove the glass from the vehicle.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use a trim tool to help guide the wire between the molding and glass.
    Informational PurposesAn informational icon, calling your attention
    TIp

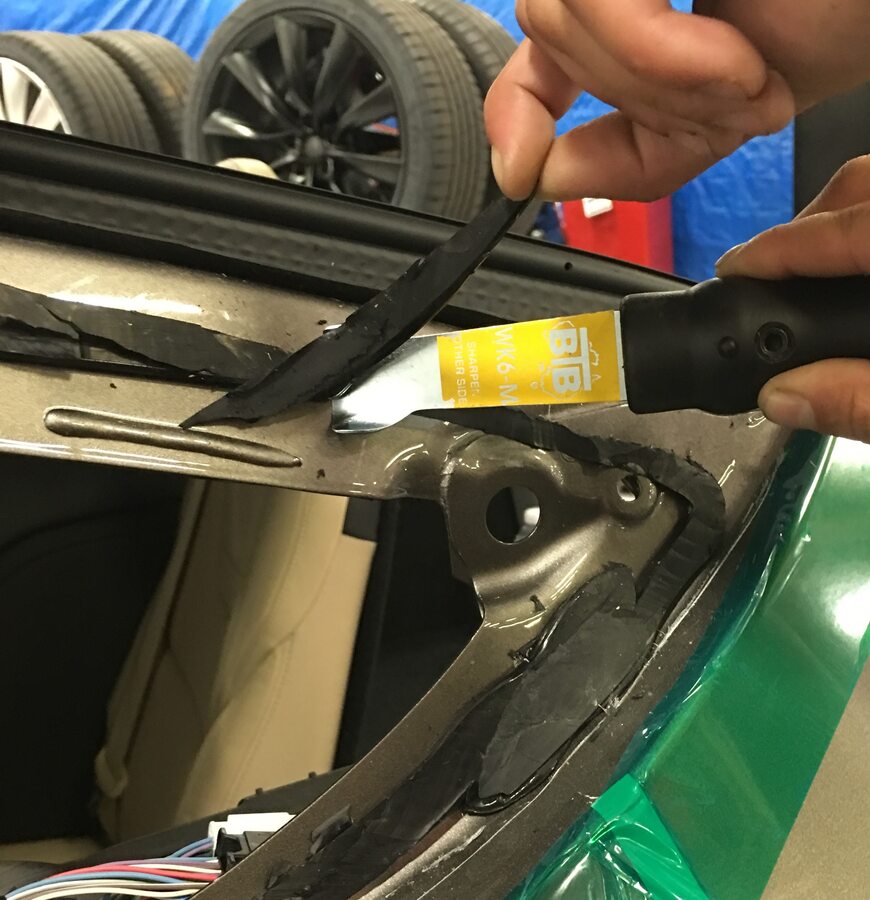

    Use an equalizer blade most of the way to help avoid damage to the quarter glass.
    Informational PurposesAn informational icon, calling your attention
    Note
    Use an equalizer blade to remove any remaining urethane still holding the glass in place.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    If the glass is being re-used, be extremely cautious while using the square wire, as the wire tends to get caught in the quarter glass seal causing damage.

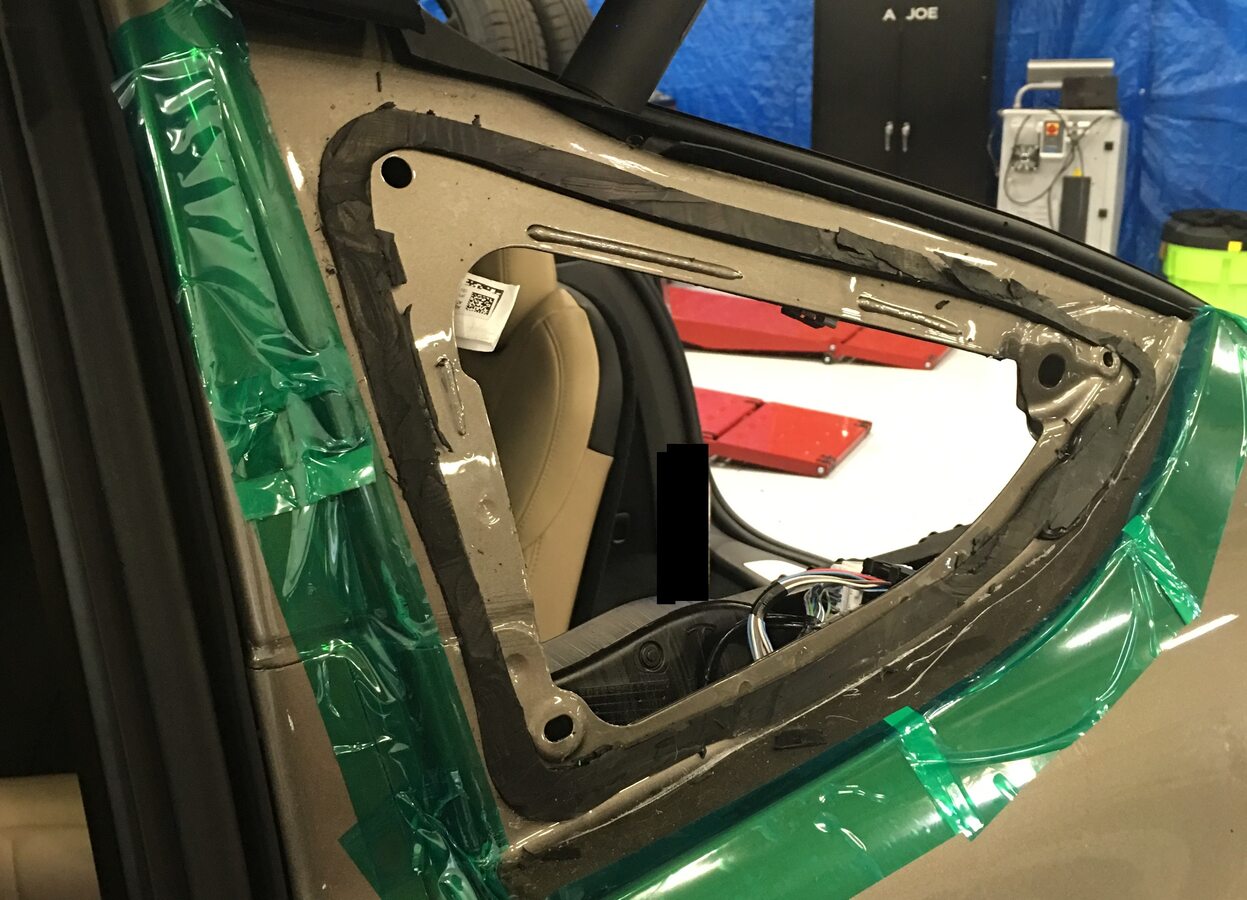

  12. Clean excess urethane and adhesive from the LH quarter panel.
    Informational PurposesAn informational icon, calling your attention
    Note
    Clean surface area with IPA wipes.

Install

  1. Apply primer to the urethane path and any areas where the paint was damaged during the removal of the LH rear quarter glass. Allow the primer to dry.
  2. Apply primer to the LH rear quarter glass.
    Informational PurposesAn informational icon, calling your attention
    Note
    Allow the primer to dry.

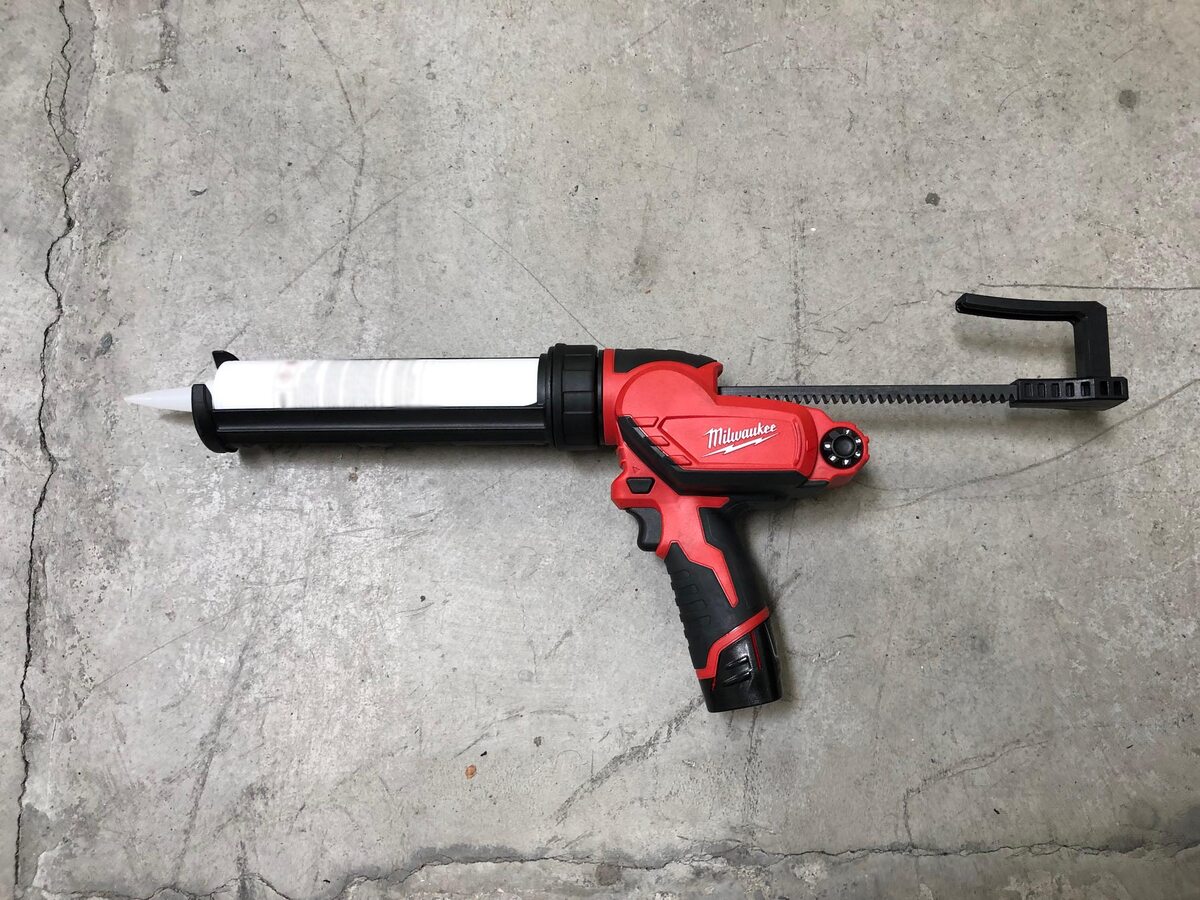

  3. Prepare the caulking gun and urethane.
  4. Apply urethane to the LH rear quarter glass, following the original path.
    Informational PurposesAn informational icon, calling your attention
    Note
    Betaseal Express has a drive away time of one hour
  5. Position the LH rear quarter glass onto the vehicle.
    Informational PurposesAn informational icon, calling your attention
    Note

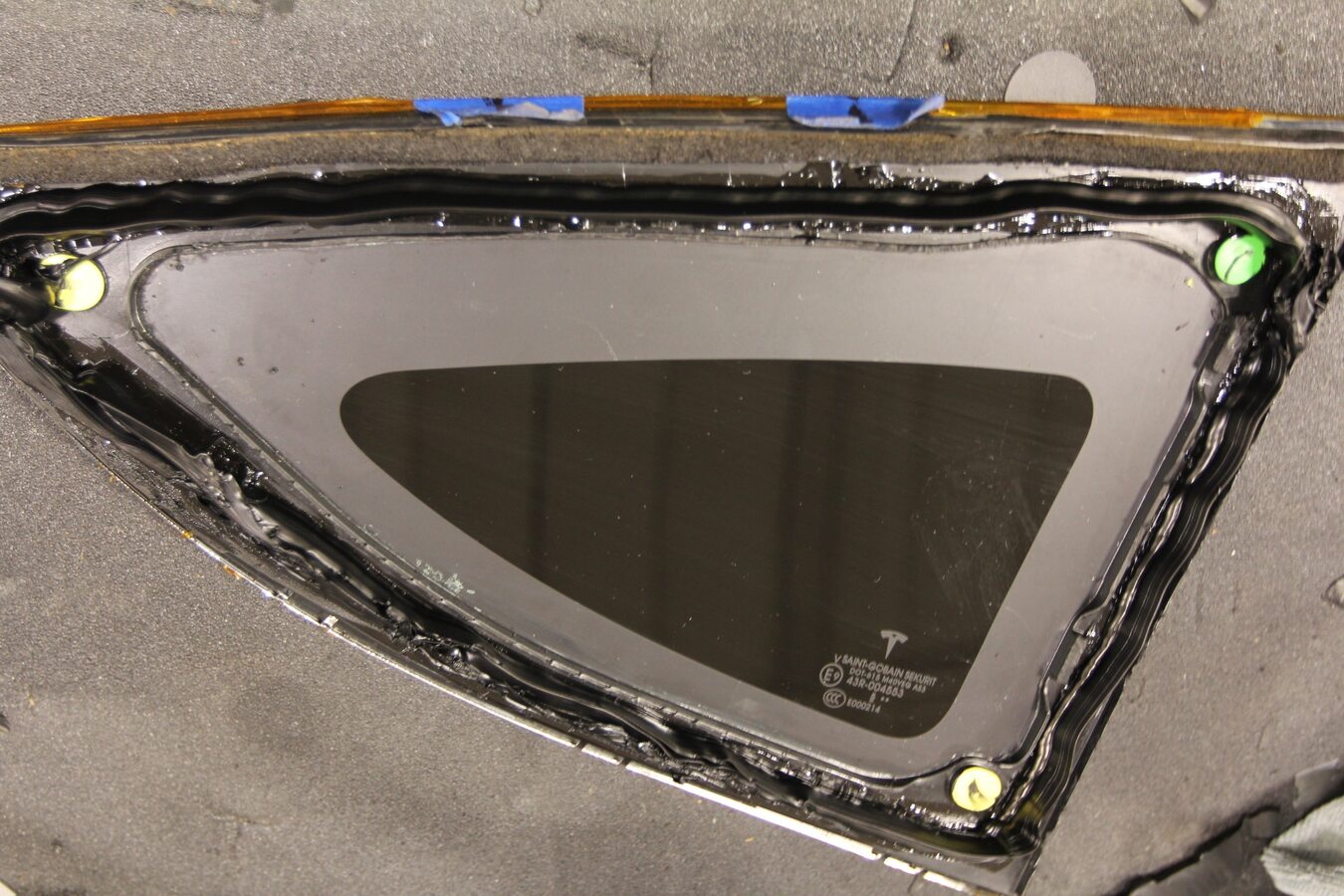

    3x datums
    Informational PurposesAn informational icon, calling your attention
    Note
    Start by positioning the datum into place. Apply pressure to the surrounding areas. Use tape to hold glass in place. Reference urethane being applied to confirm dry time.
  6. Install the clips (x11) that attach the LH upper C-pillar trim.
  7. Install the clips (x17) that attach the LH lower C-pillar.
  8. Close the liftgate.
  9. Move the LH Monopost seat back to its original position.
  10. Install the clips (x8), datum and tab that attach the LH rear sill assembly to the body.
  11. Close the LH falcon door.
  12. Move the LH front seat to its original position.
  13. Raise all four windows.
  14. Close the LH front door.
