Cover - Knee Air Bag - LH (2025+) (Remove and Replace)

Correction code New NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.

Informational PurposesAn informational icon, calling your attention
Note
This procedure describes work that is specific to 2025+ Model X.
Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
This procedure is a DRAFT. Although it has been validated, Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near High Voltage systems and components. Provide corrections and feedback to ServiceDevelopment@teslamotors.com.
  1. Open the LH front door.
  2. Lower both front windows.
  3. Move the LH front seat backward.
  4. Open the hood.
  5. Power off the vehicle using the touchscreen.
  6. Remove the rear underhood apron.
  7. Disconnect the LV battery connector and First Responder Loop.
  8. Remove LH front floor mat
  9. Remove LH outboard footwell cover
    Informational PurposesAn informational icon, calling your attention
    Note
    2x magnets, 2x datums
  10. Remove LH inboard footwell cover
    Informational PurposesAn informational icon, calling your attention
    Note
    1x cover, 1x clip, 1x datum, 1x screw, 8 mm, 1 Nm
  11. Remove fasteners securing LH knee air bag assembly to vehicle
    Informational PurposesAn informational icon, calling your attention
    Note
    2x patch bolts, E10, 8 Nm, Discard after removal
  12. Remove the LH knee air bag assembly from vehicle
    Informational PurposesAn informational icon, calling your attention
    Note
    3x connectors, 1x clip, 6x tabs, Release 2x locking tab on airbag connector

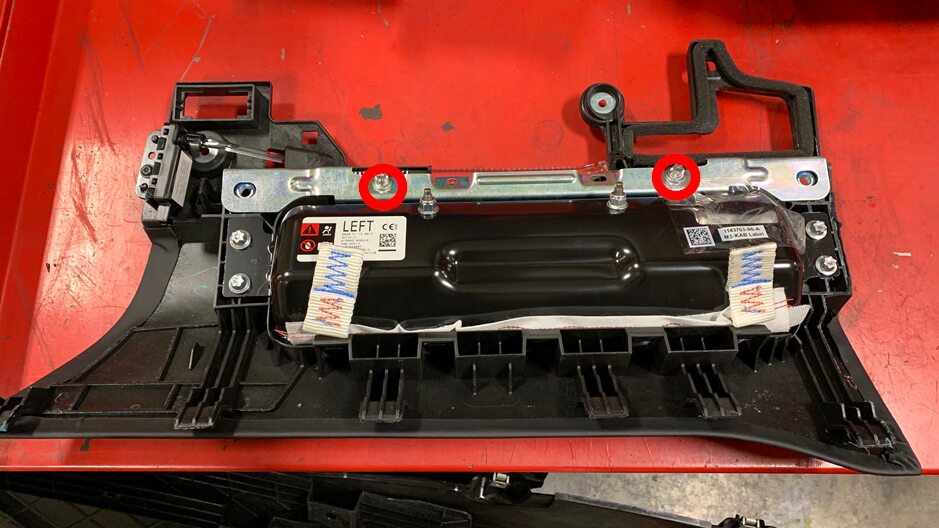

  13. Remove LH knee air bag cover brace
    Informational PurposesAn informational icon, calling your attention
    Note
    2x patch bolts, E10, 8 Nm, Discard after removal

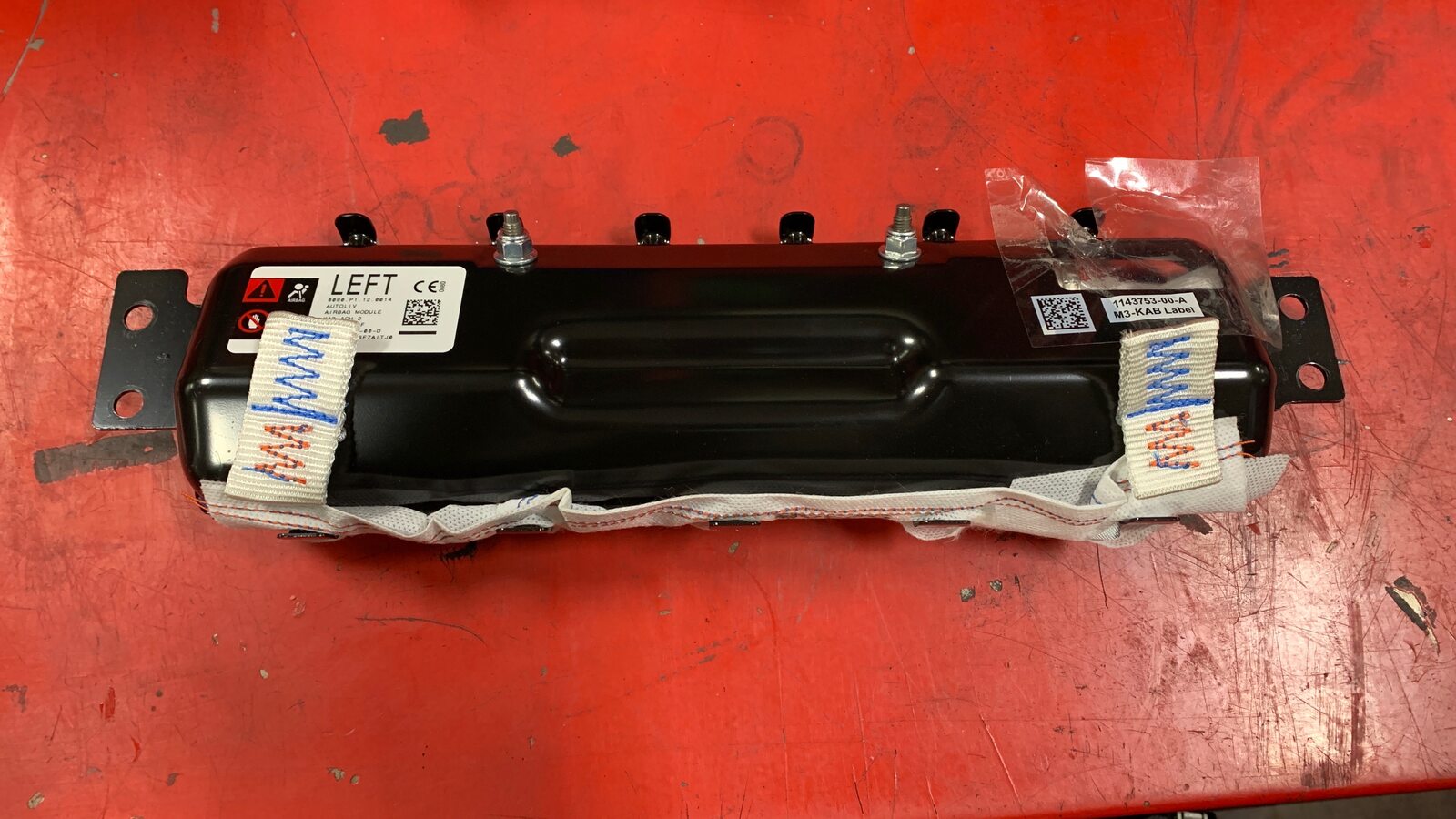

  14. Remove knee air bag from LH knee air bag cover
    Informational PurposesAn informational icon, calling your attention
    Note
    4x patch bolts, E10, 8 Nm, Discard after removal
  15. Secure knee airbag to LH knee air bag cover
    Informational PurposesAn informational icon, calling your attention
    Note
    4x patch bolts, E10, 8 Nm, Install new fasteners
  16. Install knee air bag cover brace
    Informational PurposesAn informational icon, calling your attention
    Note
    2x patch bolts, E10, 8 Nm, Install new fasteners
  17. Install the LH knee air bag assembly into vehicle
    Informational PurposesAn informational icon, calling your attention
    Note
    1x clip, 3x connectors, 6x tabs, Hook tabs before fully seating, Use caution not to damage the connector/harness, Support the knee air bag while connecting the connectors
  18. Install fasteners securing LH knee air bag assembly to vehicle
    Informational PurposesAn informational icon, calling your attention
    Note
    2x patch bolts, E10, 8 Nm, Install new fasteners
  19. Install LH console side carpet
    Informational PurposesAn informational icon, calling your attention
    Note
    11x clips, 2x datums
  20. Install LH inboard footwell cover
    Informational PurposesAn informational icon, calling your attention
    Note
    1x cover, 1x clip, 1x datum, 1x screw, 8 mm, 1 Nm, Align datums and footwell vent before installing screw
  21. Install LH outboard footwell cover
    Informational PurposesAn informational icon, calling your attention
    Note
    2x magnets, 2x datums
  22. Install LH front floor mat
  23. Connect the First Responder Loop and LV battery connector.
  24. Install the rear underhood apron.
  25. Close the hood.
  26. Calibrate the RH falcon wing door.
  27. Move the LH front seat to its original position.
  28. Calibrate the LH falcon wing door.
  29. Raise both front windows.
  30. Close the LH front door.
