Back Panel - Center Console (2025+) (Remove and Install)

Correction code New NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.

Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
This procedure is a DRAFT. Although it has been validated, Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near High Voltage systems and components. Provide corrections and feedback to ServiceDevelopment@teslamotors.com.
Informational PurposesAn informational icon, calling your attention
Note
This procedure describes work that is specific to 2025+ Model X.
  1. Open all four doors
  2. Lower the LH front window.
  3. Move LH front seat forward
  4. Move the RH front seat forward.
  5. Release console back panel assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    6x clips, 7x datums, Disengage bottom clips last and pull rearward due to alignment
  6. Remove console back panel assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector, Connector lock for lamp located underneath bracket

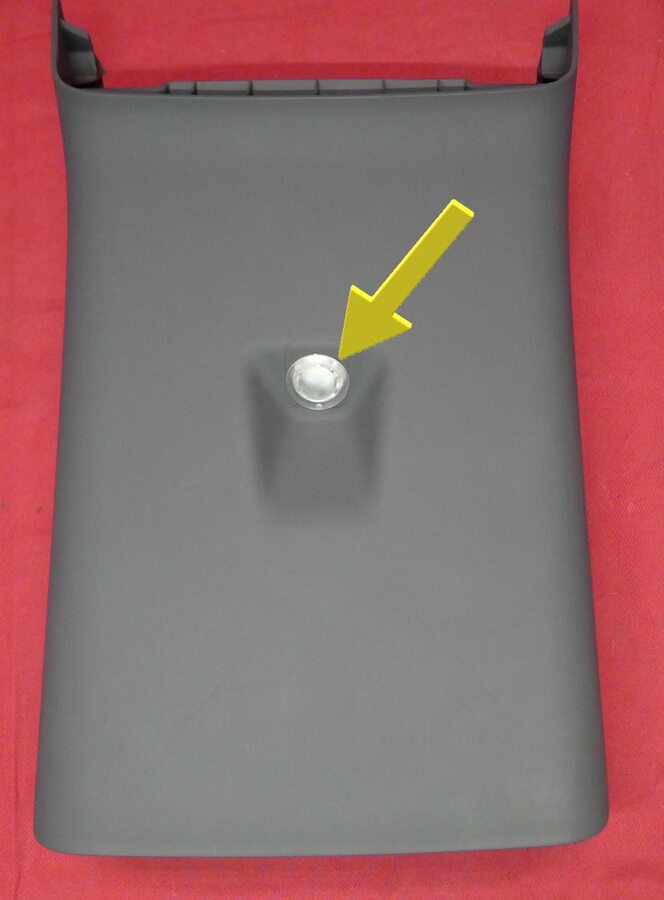

  7. Release center console footwell lamp lens
    Informational PurposesAn informational icon, calling your attention
    Note

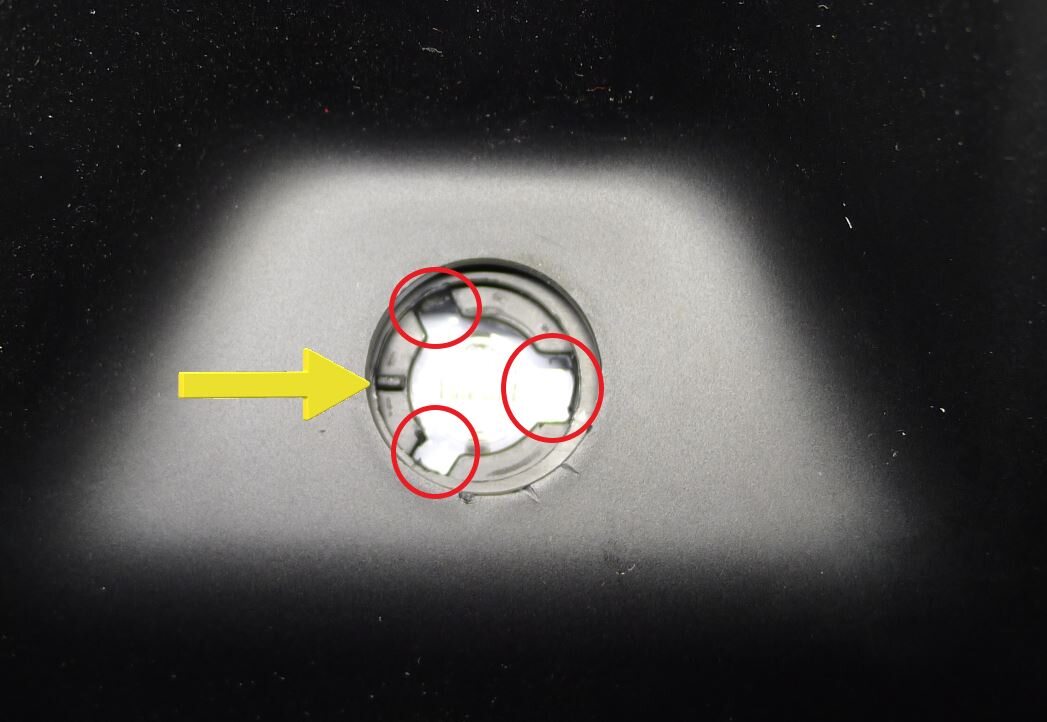

    3x tabs
  8. Secure center console footwell lamp lens
    Informational PurposesAn informational icon, calling your attention
    Note

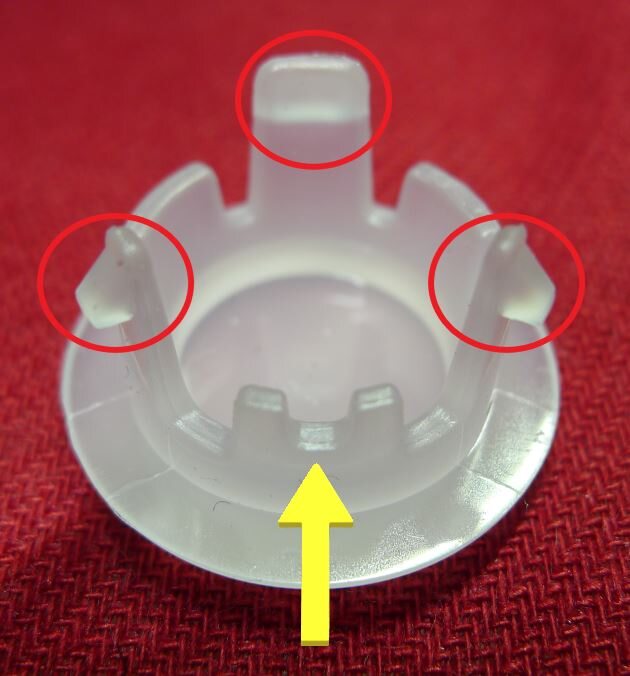

    3x tabs, 1x datum, Ensure lens is flush with panel
  9. Install console back panel assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector
  10. Secure console back panel assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    6x clips, 7x datums, Engage bottom clips first due to forward facing alignment
  11. Move the RH front seat to its original position.
  12. Move the LH front seat to its original position.
  13. Raise the LH front window.
  14. Close all four doors
