  1. Open the LH front door.
  2. Lower the LH front window.
  3. Raise and support the vehicle.
  4. Open the hood.
  5. Remove the rear underhood apron.
  6. Remove the LH underhood apron.
  7. Remove the RH underhood apron.
  8. Remove the front underhood apron.
  9. Remove the underhood storage unit access panel.
  10. Remove the underhood storage unit carpet.
  11. Remove the underhood storage unit from the vehicle.
  12. Disconnect washer tank hose from straight hose coupling at cowl
    Informational PurposesAn informational icon, calling your attention
    Note
    1x coupling
  13. Release washer bottle neck from body
    Informational PurposesAn informational icon, calling your attention
    Note
    1x clip
  14. Remove the LH front wheel center cap.
  15. Loosen LH front wheel
    Informational PurposesAn informational icon, calling your attention
    Note
    5x nuts, 21mm, 175 Nm
  16. Raise vehicle partially and lower onto locks
    Informational PurposesAn informational icon, calling your attention
    Note
    Set vehicle to comfortable working height, Make sure there's an audible click of the locks on both sides before lowering, otherwise vehicle may tilt to the side
  17. Remove the LH front wheel.
  18. Partially release rear edge of LH front fender garnish
    Informational PurposesAn informational icon, calling your attention
    Note
    4x clips
  19. Release clips securing front portion of the LH front wheel house liner
    Informational PurposesAn informational icon, calling your attention
    Note
    6x clips, 1x push nut, Move aside for access
  20. Release clips securing rear portion of the LH front wheel house liner and remove from vehicle
    Informational PurposesAn informational icon, calling your attention
    Note
    7x clips, 1x push nut
  21. Disconnect washer level sensor
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector
  22. Disconnect washer pump
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector
  23. Release frunk harness from washer bottle assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    3x clips
  24. Release washer hose from washer bottle
    Informational PurposesAn informational icon, calling your attention
    Note
    6x hooks
  25. Separate washer neck from washer tank
    Informational PurposesAn informational icon, calling your attention
    Note
    1x O-ring, Inspect O-ring and replace if damaged
  26. Remove washer level sensor from washer tank
    Informational PurposesAn informational icon, calling your attention
    Note
    Inspect for any damage to seal, If damaged replace seal , Allow washer fluid to drain

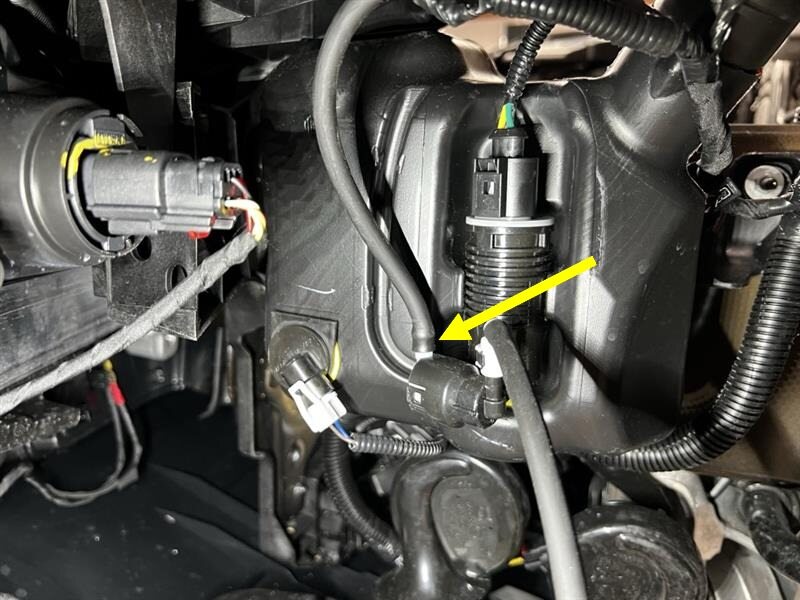

  27. Disconnect washer hose from washer pump
    Informational PurposesAn informational icon, calling your attention
    Note
    1x hose
  28. Disconnect fascia camera hose from washer pump
    Informational PurposesAn informational icon, calling your attention
    Note
    1x hose
  29. Remove washer pump from washer tank
    Informational PurposesAn informational icon, calling your attention
    Note
    Pull washer pump straight up to remove it from washer bottle
  30. Remove washer tank assembly from vehicle
    Informational PurposesAn informational icon, calling your attention
    Note
    3x nuts, 10mm, 5 Nm
  31. Install washer tank assembly to vehicle
    Informational PurposesAn informational icon, calling your attention
    Note
    3x nuts, 10mm, 5 Nm
  32. Install washer pump to washer tank
    Informational PurposesAn informational icon, calling your attention
    Note
    Fully seat pump to grommet and face hose coupling forward
  33. Connect washer hose to washer pump
    Informational PurposesAn informational icon, calling your attention
    Note
    1x hose
  34. Connect fascia camera hose to washer pump
    Informational PurposesAn informational icon, calling your attention
    Note
    1x hose
  35. Install washer level sensor to washer tank
    Informational PurposesAn informational icon, calling your attention
    Note
    Align square edge with mark on bottle housing
  36. Connect washer neck to washer tank
    Informational PurposesAn informational icon, calling your attention
    Note
    1x O-ring, Lubricate O-ring with washer fluid to prevent damage
  37. Secure washer hose to washer bottle
    Informational PurposesAn informational icon, calling your attention
    Note
    6x hooks
  38. Secure frunk harness to washer bottle assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    3x clips
  39. Connect washer pump
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector
  40. Connect washer level sensor
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector
  41. Install LH front wheel house liner and secure rear portion of the wheel house liner to the body
    Informational PurposesAn informational icon, calling your attention
    Note
    7x clips, 1x push nut
  42. Install clips securing front portion of the LH front wheel house liner
    Informational PurposesAn informational icon, calling your attention
    Note
    6x clips, 1x push nut
  43. Secure partially released LH front fender garnish
    Informational PurposesAn informational icon, calling your attention
    Note
    4x clips
  44. Install the LH front wheel.
  45. Lower vehicle until tires are touching ground
    Informational PurposesAn informational icon, calling your attention
    Note
    Raise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered
  46. Torque the LH front wheel lug nuts.
  47. Install the LH front wheel center cap.
  48. Secure washer bottle neck to body
    Informational PurposesAn informational icon, calling your attention
    Note
    1x clip
  49. Connect washer tank hose to straight hose coupling at cowl
    Informational PurposesAn informational icon, calling your attention
    Note
    1x coupling
  50. Install the underhood storage unit.
  51. Install the underhood storage unit carpet.
  52. Install the underhood storage unit access panel.
  53. Install the front underhood apron.
  54. Install the RH underhood apron.
  55. Install the LH underhood apron.
  56. Install the rear underhood apron.
  57. Fill washer fluid reservoir
    Informational PurposesAn informational icon, calling your attention
    Note
    Fill the reservoir until the fluid level is visible just below the filler neck
  58. Close the hood.
  59. Lower and remove the vehicle from the lift.
  60. Raise the LH front window.
  61. Close the LH front door.
