Washer Nozzle - Fascia Camera (2025+) (Remove and Replace)

Correction code NEW FRT 0.12 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Informational PurposesAn informational icon, calling your attention
Note
This procedure describes work that is specific to 2025+ Model X.

Remove

  1. Remove the screws (x2) that secure the front fascia camera cover.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T20 socket

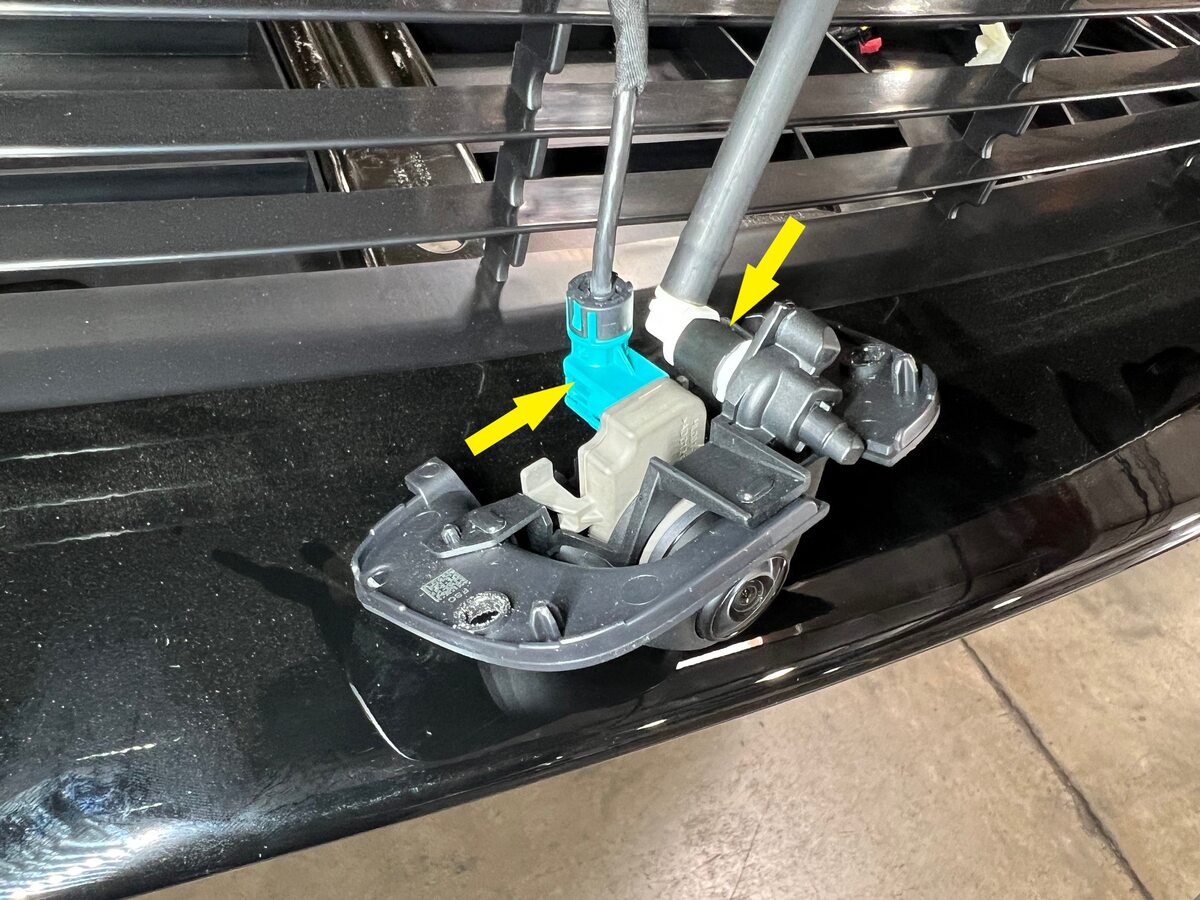

  2. Disconnect the front fascia camera connector and the nozzle.

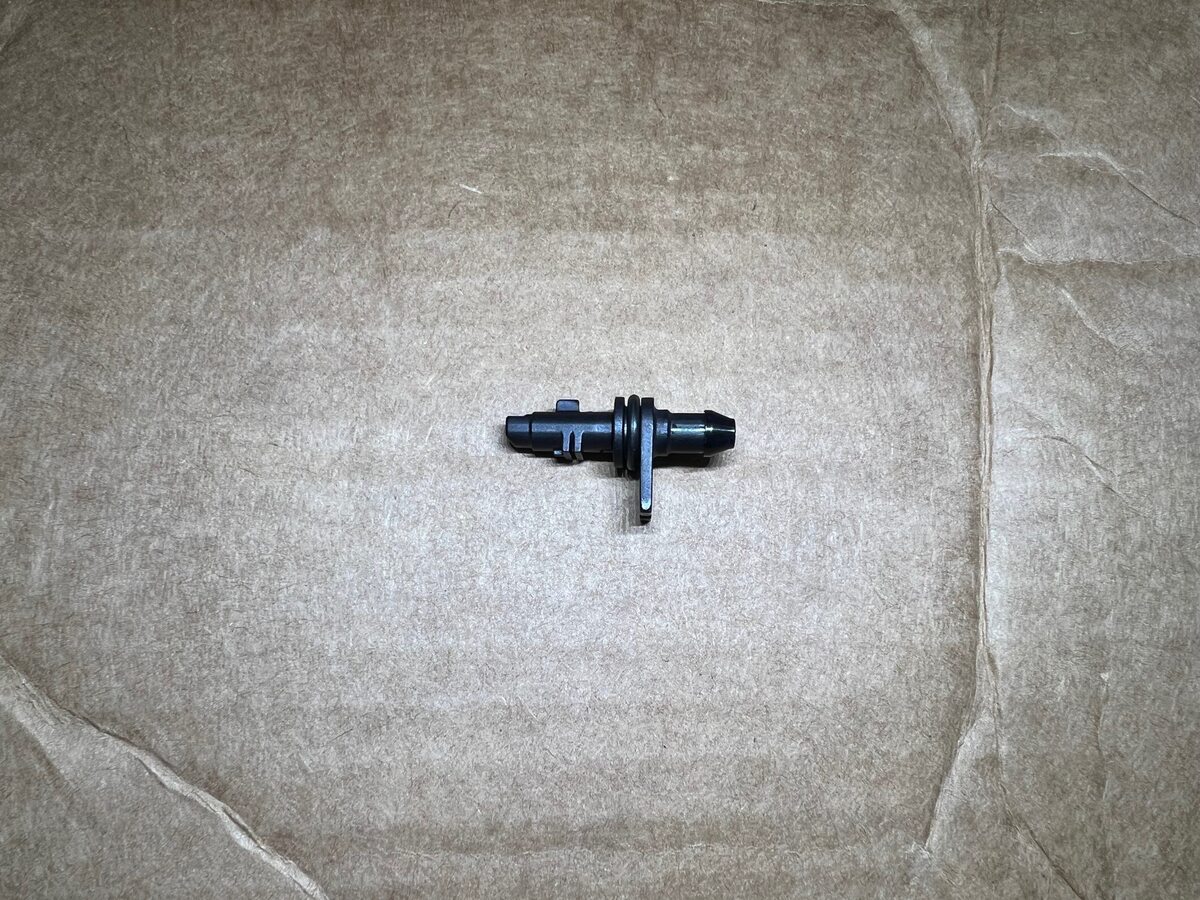

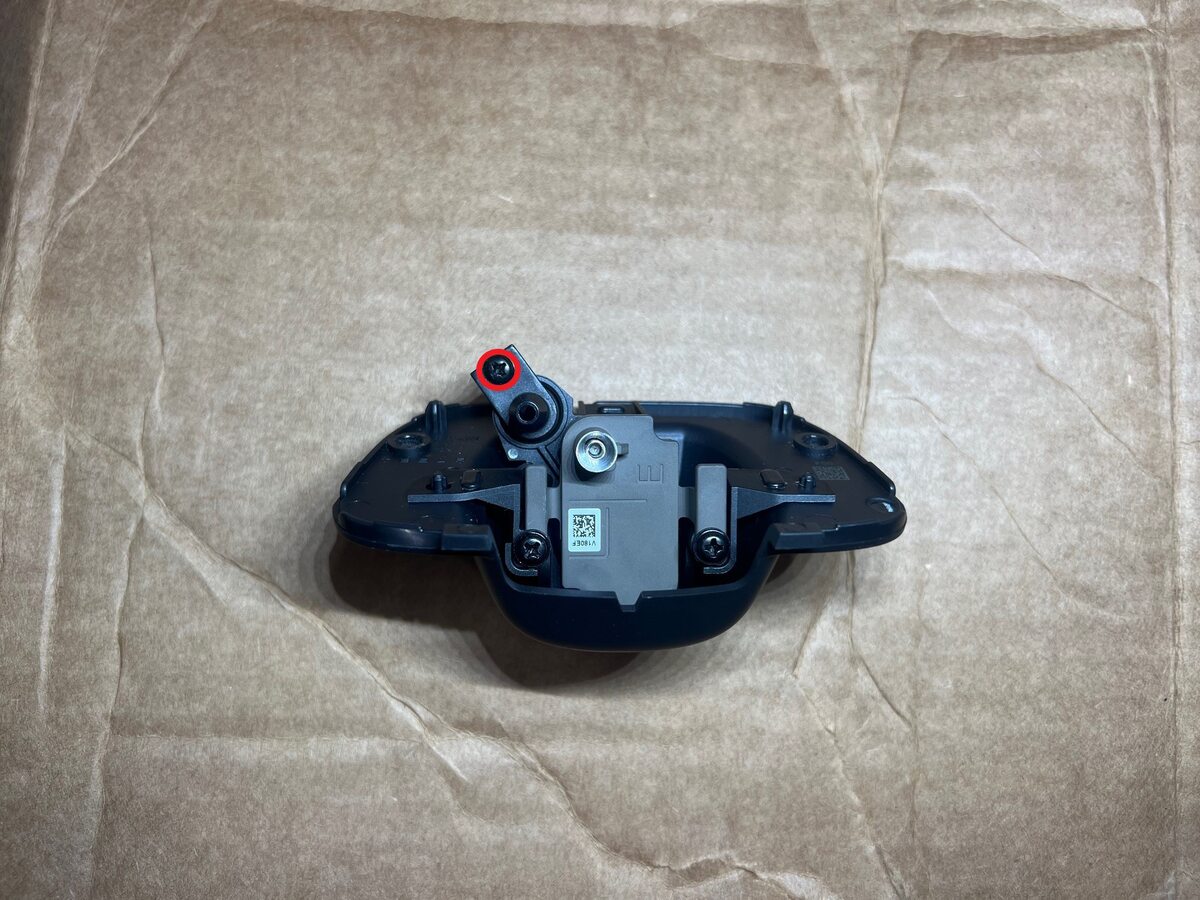

  3. Remove the screw that secures the fascia camera washer nozzle, and then remove the nozzle from the vehicle.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • PH1 STUBBY PHILLIPS SCREWDRIVER

Install

  1. Install the screw that secures the fascia camera washer nozzle.
    2 Nm (1.5 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • PH1 STUBBY PHILLIPS SCREWDRIVER
    • Wiha Torque Screwdriver 0.8-5 Nm screwdriver (installation only)
  2. Connect the front fascia camera connector and connect the nozzle.
  3. Install the screws (x2) that secure the front fascia camera cover.
    4 Nm (2.9 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T20 socket
