Trim - Front Door - LH (2025+) (Remove and Replace)

Correction code New NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.

Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
This procedure is a DRAFT. Although it has been validated, Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near High Voltage systems and components. Provide corrections and feedback to ServiceDevelopment@teslamotors.com.
Informational PurposesAn informational icon, calling your attention
Note
This procedure describes work that is specific to 2025+ Model X.
  1. Open the LH front door.
  2. Lower the LH front window.
  3. Remove LH front door trim decor
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector, 1x hook, 7x clips, Release from front side, then move rearward, Clips will be retained with door trim panel
  4. Remove service covers and door reflector from LH front door panel
    Informational PurposesAn informational icon, calling your attention
    Note
    2x covers
  5. Remove bolts securing LH front door panel to door
    Informational PurposesAn informational icon, calling your attention
    Note
    4x bolts, T30, 6 Nm
  6. Remove LH front door panel
    Informational PurposesAn informational icon, calling your attention
    Note
    1x handle cable, 1x connector, 10x clips, Carefully pry open the LH front door panel to access and remove connector and release cable before setting the door panel aside, Replace broken clips
  7. Install LH front door panel
    Informational PurposesAn informational icon, calling your attention
    Note
    10x clips, 1x connector, Engage locking tab, 1x cable, Secure any retainers
  8. Install bolts securing LH front door panel to door
    Informational PurposesAn informational icon, calling your attention
    Note
    4x bolts, T30, 6 Nm
  9. Install service covers and door reflector onto LH front door
    Informational PurposesAn informational icon, calling your attention
    Note
    2x covers
  10. Install LH front door decor
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector, 1x hook, 7x clips, Slide hook into trim panel, then fully seat
  11. Place vehicle in service mode with touchscreen
    Informational PurposesAn informational icon, calling your attention
    Note
    Select Controls > Software , Touch and hold "Model" for 2 seconds then release, Use the screen keyboard to type "service" into dialog box and select OK button, Select "X" at upper left corner to exit 'Service Settings' dialogue box
  12. Reinstall firmware via UI
    Informational PurposesAn informational icon, calling your attention
    Note
    Via Controls > Service Mode > Software Reinstall, Select Reinstall button at Software Reinstall dialogue box, Reinstall will begin immediately, Once firmware redeploy is complete, Verify release notes are present via UI
  13. Once firmware redeploy is complete, Verify release notes are present via UI
    Informational PurposesAn informational icon, calling your attention
    Note
    If redeploy fails then error message will appear
  14. Run ODIN routine PROC_ICE_X_EXIT-SERVICE-MODEvia Toolbox: (link)
  15. Close the LH front door.

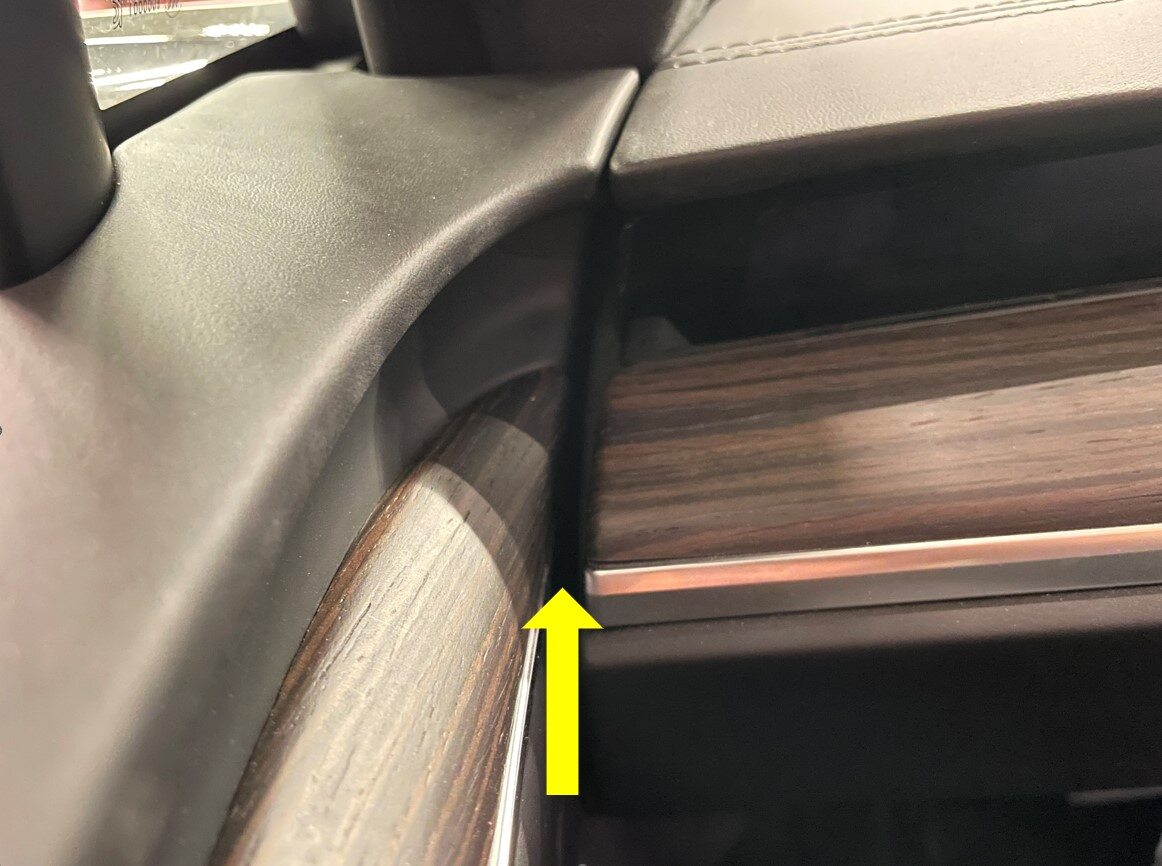

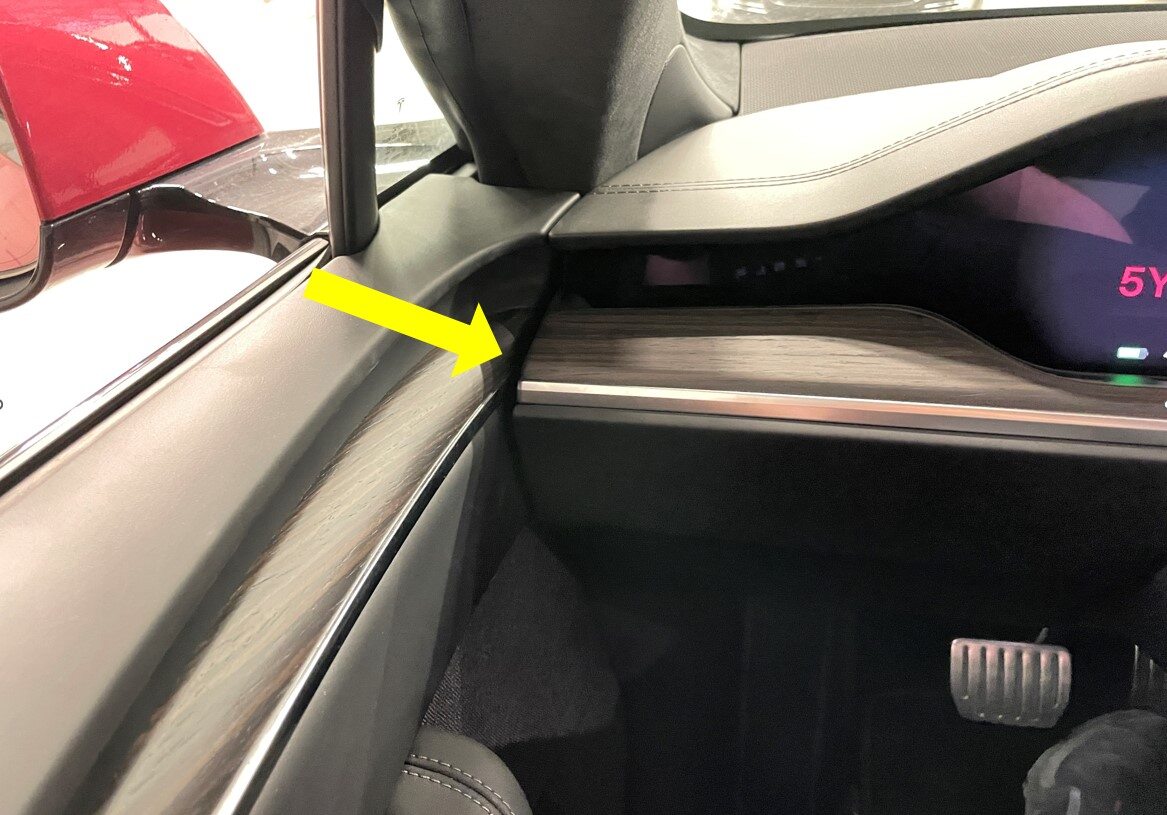

  16. Check gap fitment of LH front door decor to IP decor
    Informational PurposesAn informational icon, calling your attention
    Note
    Refer to CVIS for current spec and adjust if necessary
  17. Open LH front door
  18. Raise the LH front window.
  19. Close LH front door
