MXP3 Interior Trim - Center Console - Center Console - Rear Cup Holder (2025+) (RI)

Correction code NEW NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.

Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
This procedure is a DRAFT. Although it has been validated, Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near High Voltage systems and components. Provide corrections and feedback to ServiceDevelopment@teslamotors.com.
  • 2025-06-02: Released new procedure.
  1. Open all four doors
  2. Lower the LH front window.
  3. Move LH front seat forward
  4. Move the RH front seat forward.
  5. Release console back panel assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    6x clips, 7x datums, Disengage bottom clips last and pull rearward due to alignment
  6. Remove console back panel assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector, Connector lock for lamp located underneath bracket
  7. Remove center console rear cupholder assembly screws
    Informational PurposesAn informational icon, calling your attention
    Note
    6x screws, T20, 1 Nm
  8. Release center console rear cupholder assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    3x clips, 2x datums, Pull straight down at rear of assembly and rotate datums out of center console lower frame
  9. Remove center console rear cupholder assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector

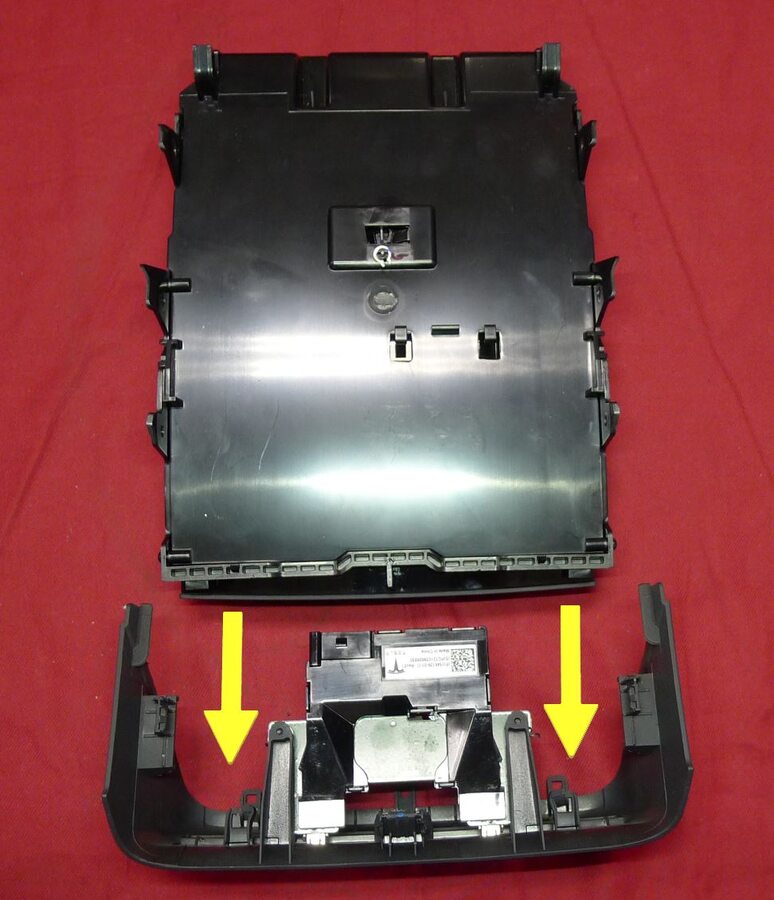

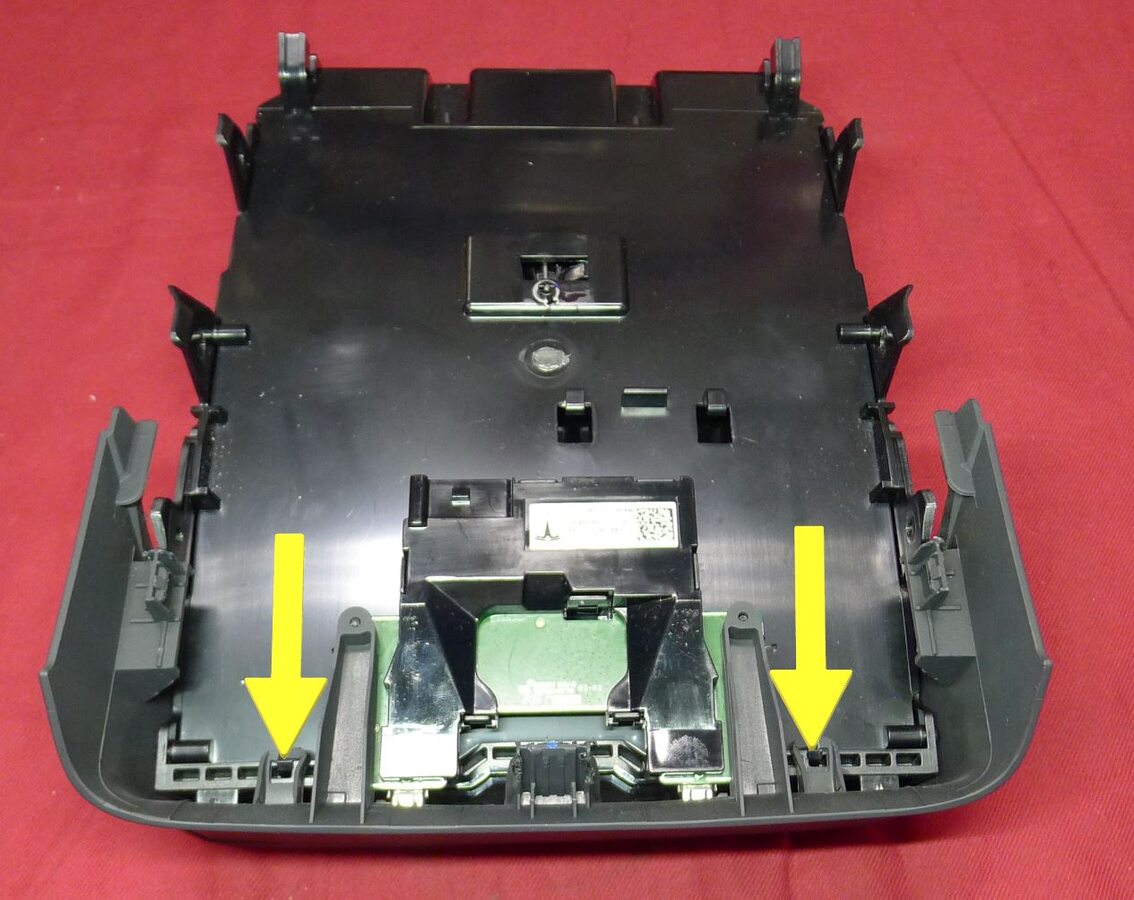

  10. Release center console rear USB panel
    Informational PurposesAn informational icon, calling your attention
    Note

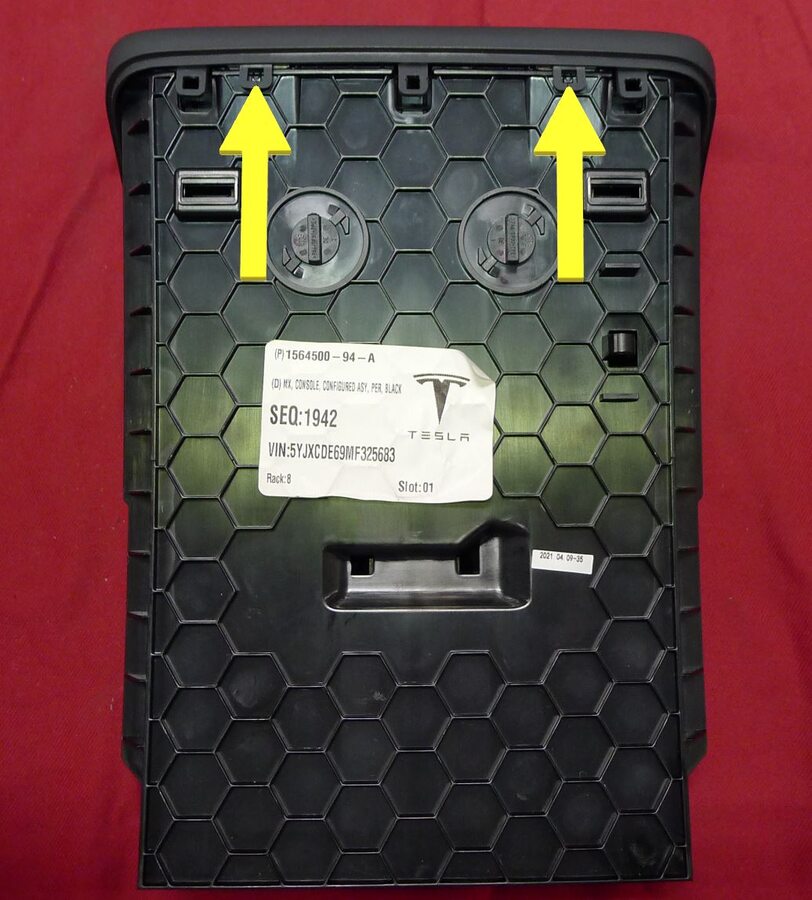

    4x tabs, Release 2 tabs at top and bottom of cupholder assembly and slide USB panel rearward

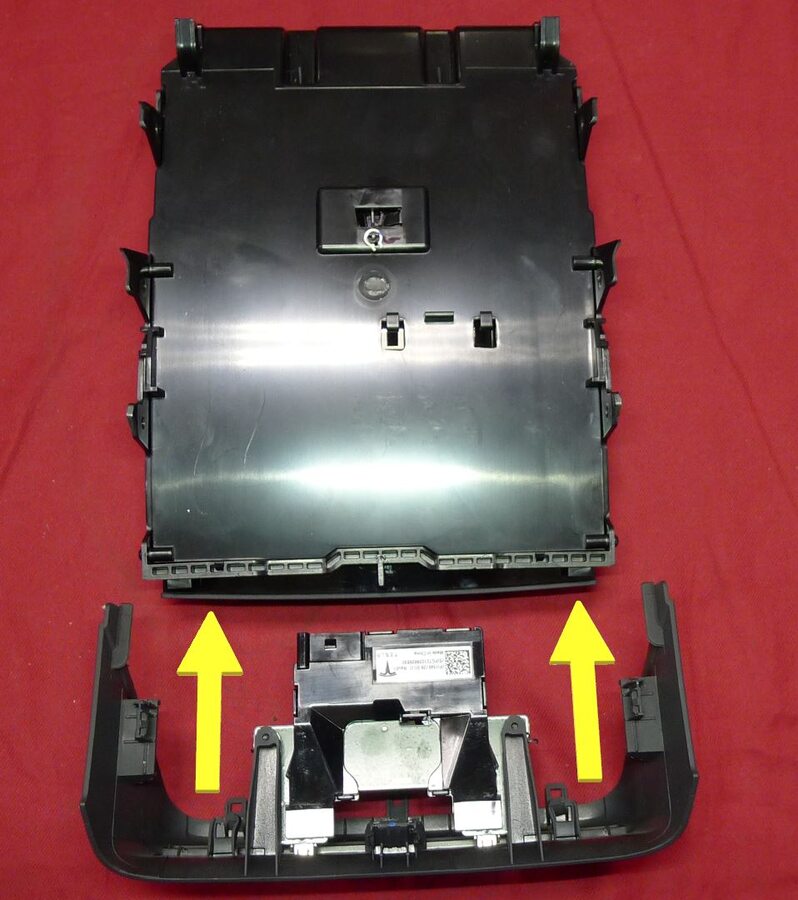

  11. Secure center console rear USB panel
    Informational PurposesAn informational icon, calling your attention
    Note
    4x tabs, Slide USB panel onto cupholder assembly, Secure 2 tabs at top and bottom of cupholder assembly
  12. Install center console rear cupholder assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector
  13. Secure center console rear cupholder assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    3x clips, 2x datums, Position datums and rotate assembly up into rear center console frame
  14. Install center console rear cupholder assembly screws
    Informational PurposesAn informational icon, calling your attention
    Note
    6x screws, T20, 1 Nm
  15. Install console back panel assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector
  16. Secure console back panel assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    6x clips, 7x datums, Engage bottom clips first due to forward facing alignment
  17. Move the RH front seat to its original position.
  18. Move the LH front seat to its original position.
  19. Raise the LH front window.
  20. Close all four doors
