MXP3 Interior Trim - Door Trim - Rear Door Trim Pad - Ambient Bright - LH (2025+) (RI)
Correction code
15131000401
15131000402
NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so.
NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com.
NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.
Warning
This procedure is a DRAFT.
Although it has been validated, Warnings and Cautions might be missing. Follow safety
requirements and use extreme caution when working on or near High Voltage systems and
components. Provide corrections and feedback to ServiceDevelopment@teslamotors.com.
- 2025-06-02: Released new procedure.
-
Open LH falcon door
-
Lower LH rear window
-

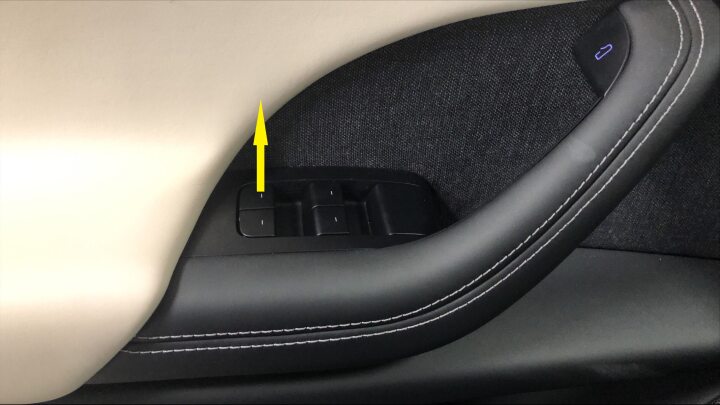

Remove LH rear decor trim panel
Note7x clips, 1x connectors, 2x tabs, slide rearward, push down 2x metal tabs to release trim
-

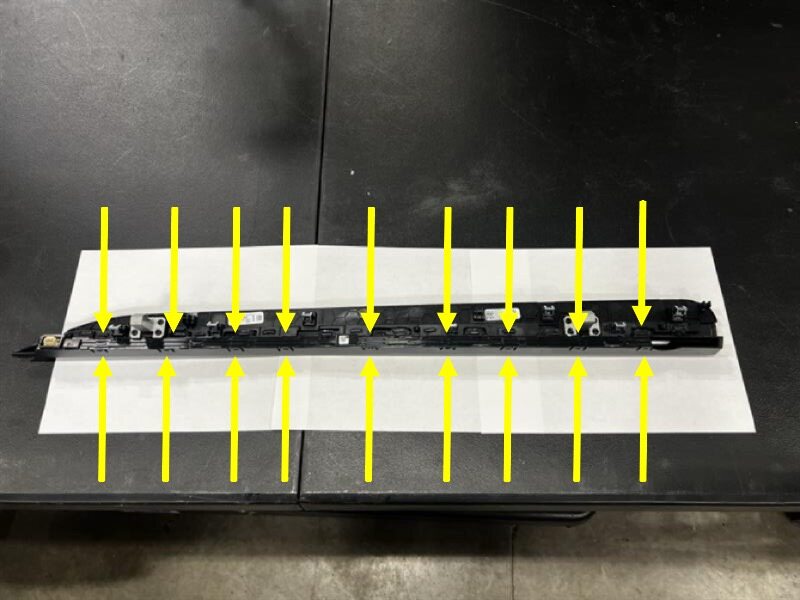

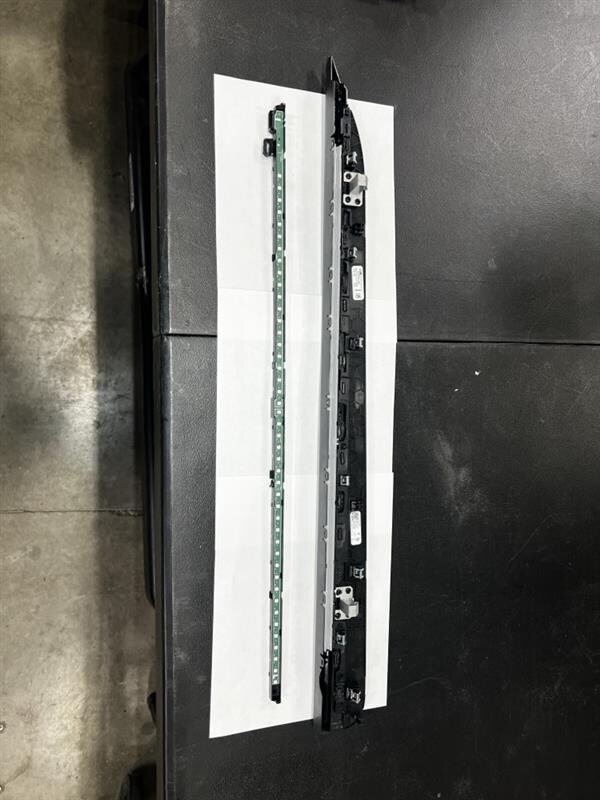

Remove rear LH ambient bright
Note18x tabs, Release 2x tabs at a time then slide upwards, Carefully release rear LH ambient bright from decor trim
-

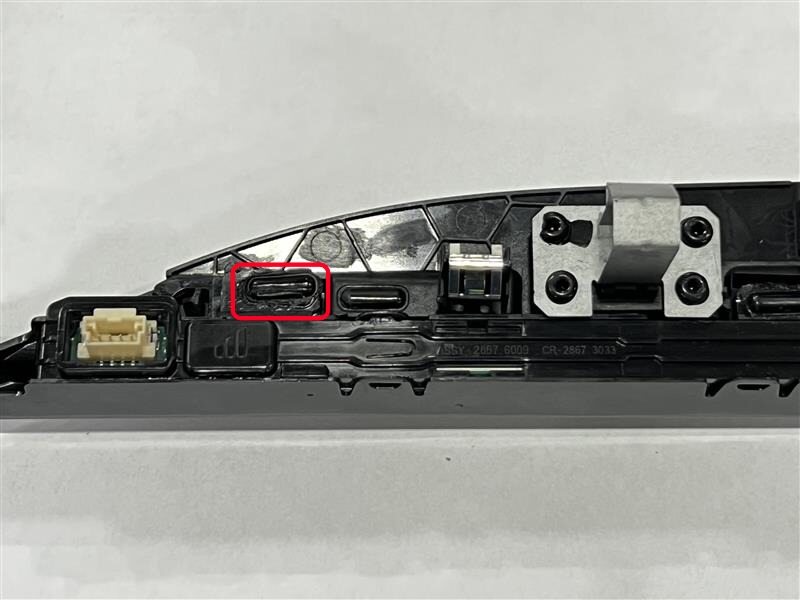

Install rear LH ambient bright
Note18x tabs, Verify ambient bright tabs are fully secured
-
Install LH rear door decor trim panel
Note7x clips, 1x connectors, Take care not to damage door trim panel, Secure 2x large metal clips then slide trim forward and secure remaining clips
-
Raise LH rear window
-
Close LH falcon door
