Cleaning - Universal Mobile Connector

Correction code 50010500005 FRT 0.06 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure. NOTE: See Ergonomic Precautions for safe and healthy working practices.

  • 2025-12-01: Released new procedure.
  • Isopropyl alcohol (minimum 70% concentration)

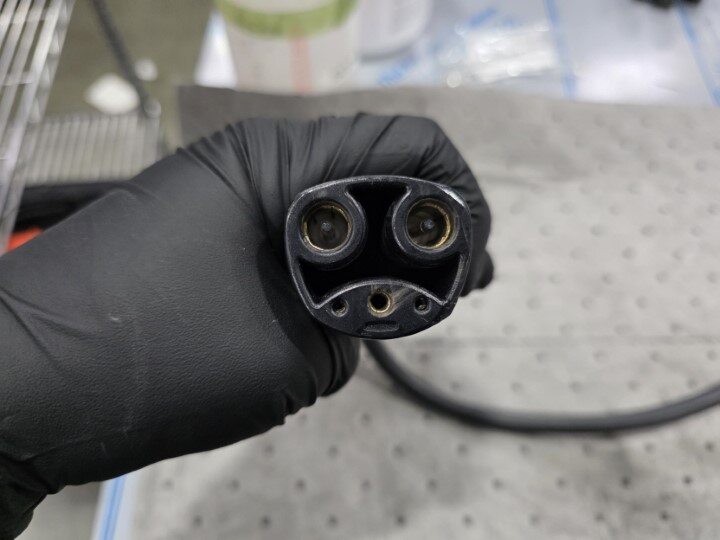

  1. Inspect the connector for any damage, pitting, or excessive corrosion.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    If any of these conditions are present, replace the charger. Do not use a damaged charger.

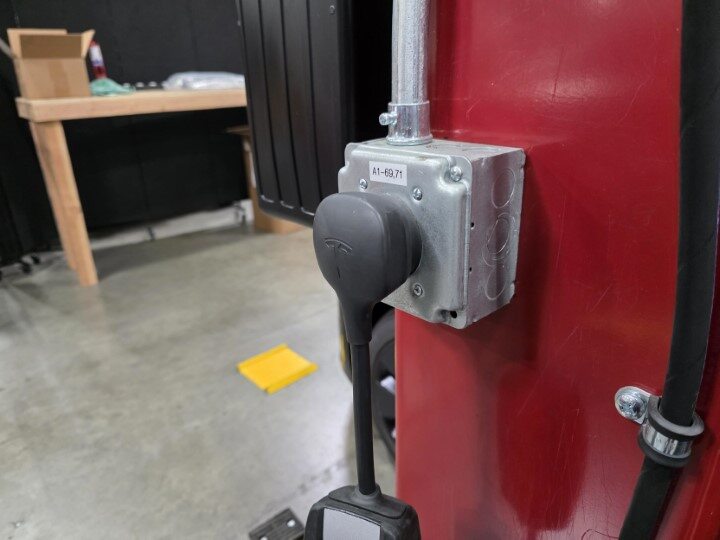

  2. Unplug the charger.

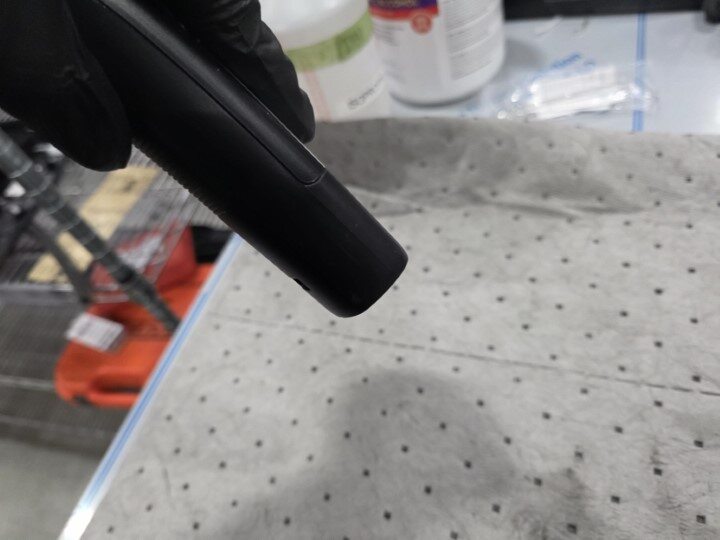

  3. Spray isopropyl alcohol into the connector cavity while the connector is pointed down.

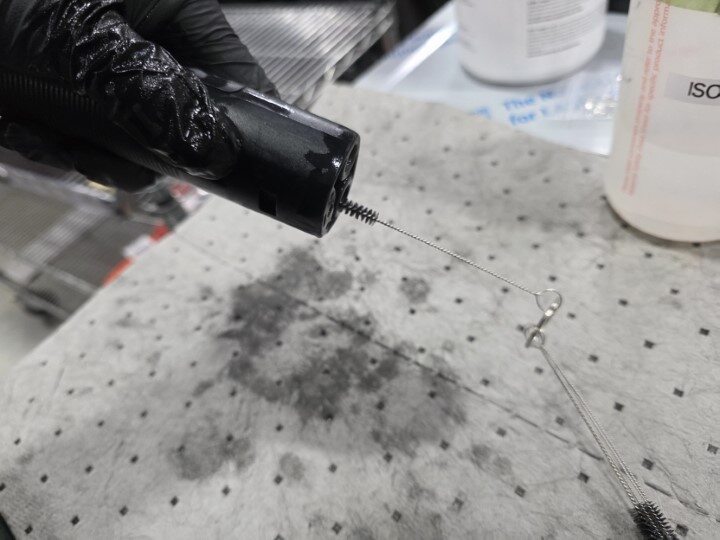

  4. Clean the connector cavity walls and pins with a non-metallic brush.
  5. Allow 1 minute for the isopropyl alcohol to dry. Inspect the connector and clean again as needed.
