Trim - A-Pillar - Upper - LH (2025+) (Remove and Replace)

Correction code TBD FRT 0.18 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Informational PurposesAn informational icon, calling your attention
Note
This procedure describes work that is specific to 2025+ Model X.

Remove

  1. Open the LH front door and lower the LH front window.
  2. Move the driver seat rearward.

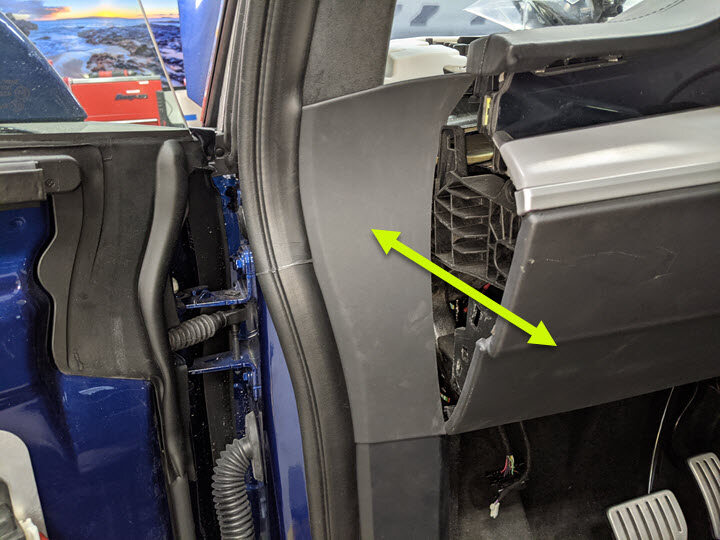

  3. Remove the LH instrument panel end cap. See End Cap - Instrument Panel - LH (2025+) (Remove and Replace).
  4. Remove the LH middle A-pillar trim. See Trim - A-Pillar - Middle - LH (Remove and Replace).
  5. Remove the LH sun visor bezel A-pillar trim. See Trim - A-Pillar - Sun Visor Bezel - LH (Remove and Replace).
  6. Remove the bolts (x2) that attach the LH upper A-pillar trim to the vehicle.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Socket 1/4in Dr. 6pt. Std. x 10mm
  7. Remove and discard the nut that attaches the LH upper A-pillar trim to the vehicle.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Socket 1/4in Dr. 6pt. Std. x 13mm

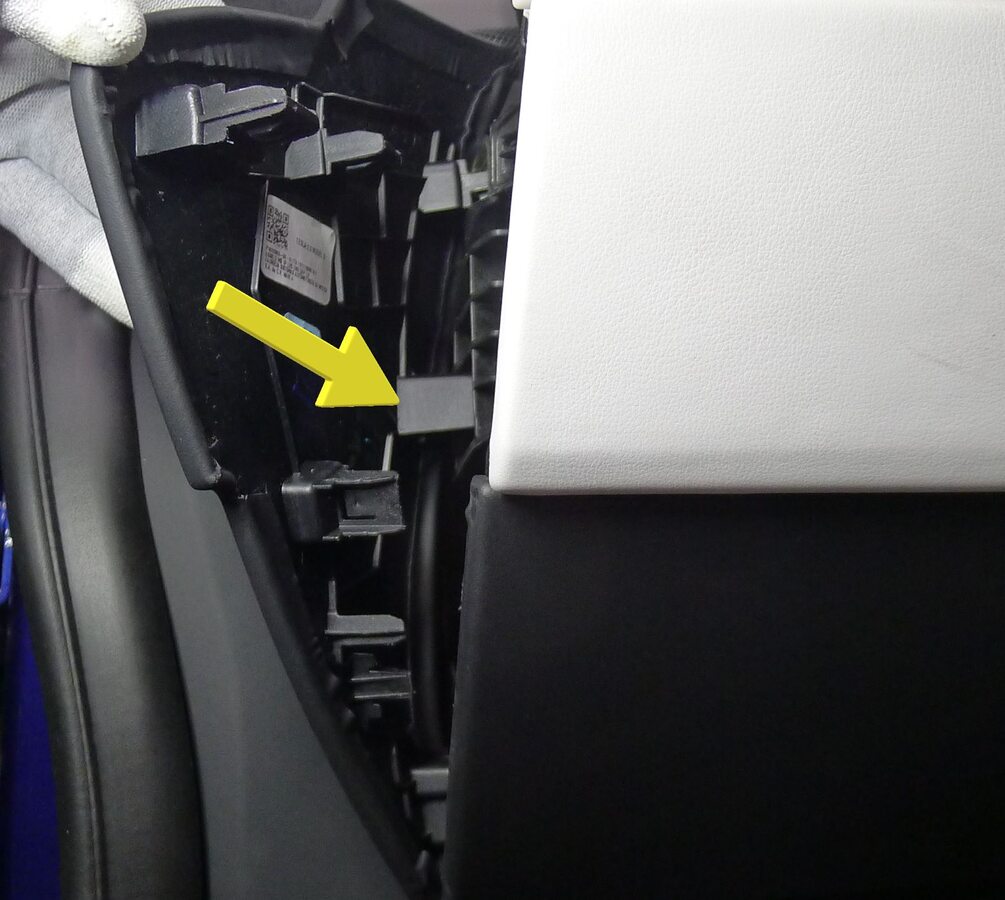

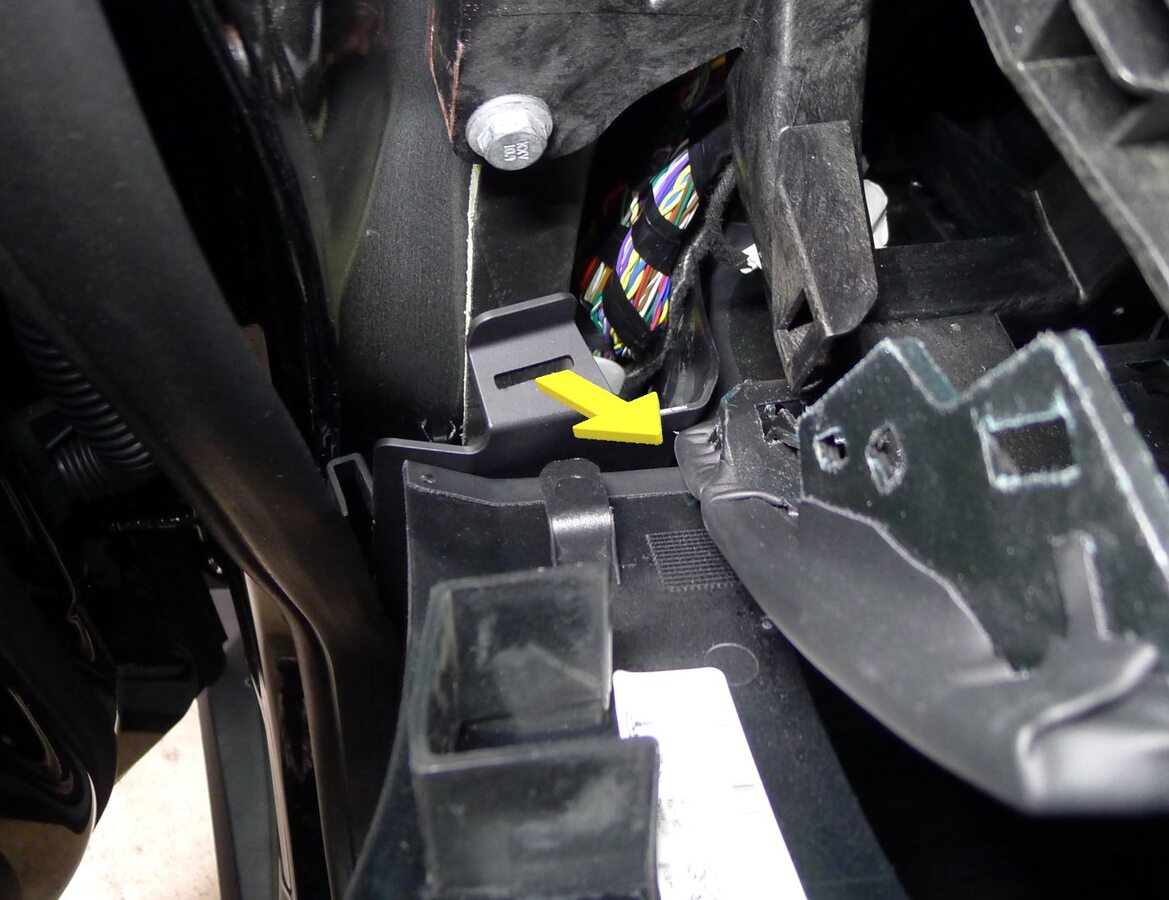

  8. Release the clips (x6) that attach the LH upper A-pillar trim to the vehicle, disconnect the electrical connector, and then remove the trim from the vehicle.
    Informational PurposesAn informational icon, calling your attention
    Note
    Release the clips, and then rotate the trim inboard to access the connector.
    Informational PurposesAn informational icon, calling your attention
    Note

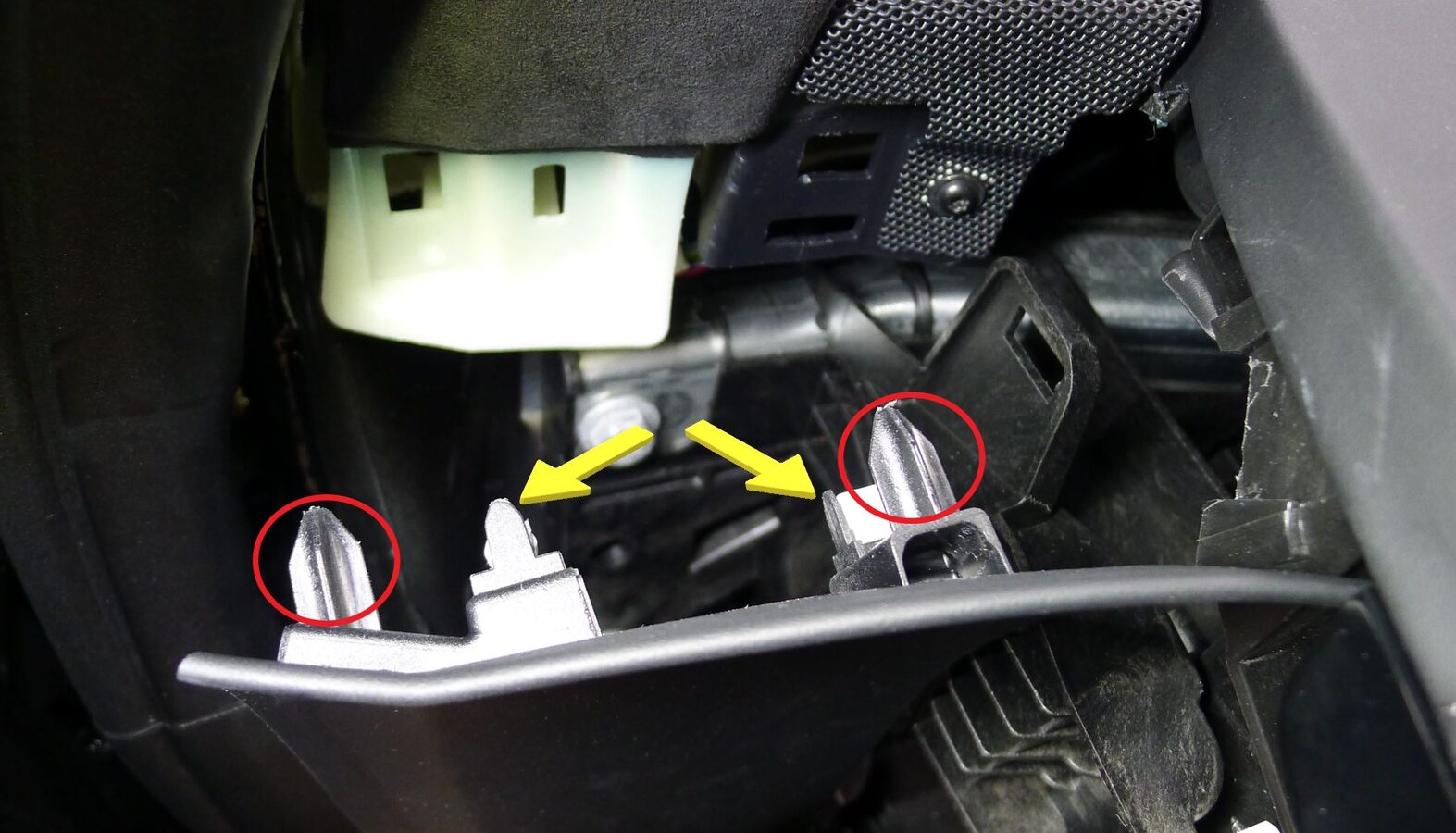

    Release the datums upward and out of the instrument panel sub assembly.

Install

  1. Position the LH upper A-pillar trim into the vehicle, connect the electrical connector and secure the harness, and then secure the clips (x6) that attach the trim to the vehicle.
    Informational PurposesAn informational icon, calling your attention
    Note
    Align the datums into the instrument panel sub assembly.
    Informational PurposesAn informational icon, calling your attention
    Note
    Rotate the trim into position to fully engage the clips.
  2. Install the bolts (x2) that attach the LH upper A-pillar trim to the vehicle.
    5 Nm (3.7 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Socket 1/4in Dr. 6pt. Std. x 10mm
  3. Install a new nut (1004400-00-A) that attaches the LH upper A-pillar trim to the vehicle.
    5 Nm (3.7 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Socket 1/4in Dr. 6pt. Std. x 13mm
  4. Install the LH sun visor bezel A-pillar trim. See Trim - A-Pillar - Sun Visor Bezel - LH (Remove and Replace).
  5. Install the LH middle A-pillar trim. See Trim - A-Pillar - Middle - LH (Remove and Replace).
  6. Install the LH instrument panel end cap. See End Cap - Instrument Panel - LH (2025+) (Remove and Replace)
  7. Move the driver seat to the original position.
  8. Raise the LH front window and close the LH front door.
