MXP3 Interior Trim - Door Trim - Rear Door Trim Pad - Ambient Light LED Module - LH (2025+) (RI)

Correction code New NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.

Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
This procedure is a DRAFT. Although it has been validated, Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near High Voltage systems and components. Provide corrections and feedback to ServiceDevelopment@teslamotors.com.
  • 2025-06-02: Released new procedure.
  1. Open the LH front door.
  2. Lower the LH front window.
  3. Open LH falcon door
  4. Remove LH falcon door lower garnish
    Informational PurposesAn informational icon, calling your attention
    Note
    9x V-clips, Replace any damaged or missing clips, Take care not to damage door trim panel during removal
  5. Remove LH rear decor trim panel
    Informational PurposesAn informational icon, calling your attention
    Note
    7x clips, 1x connectors, 2x tabs, slide rearward, push down 2x metal tabs to release trim
  6. Remove bolts securing LH rear door panel to door
    Informational PurposesAn informational icon, calling your attention
    Note
    8x bolts, 10mm, 6 Nm
  7. Remove LH rear door trim panel
    Informational PurposesAn informational icon, calling your attention
    Note
    13x clips, 2x connectors
  8. Remove LH rear door NVH pad
    Informational PurposesAn informational icon, calling your attention
    Note

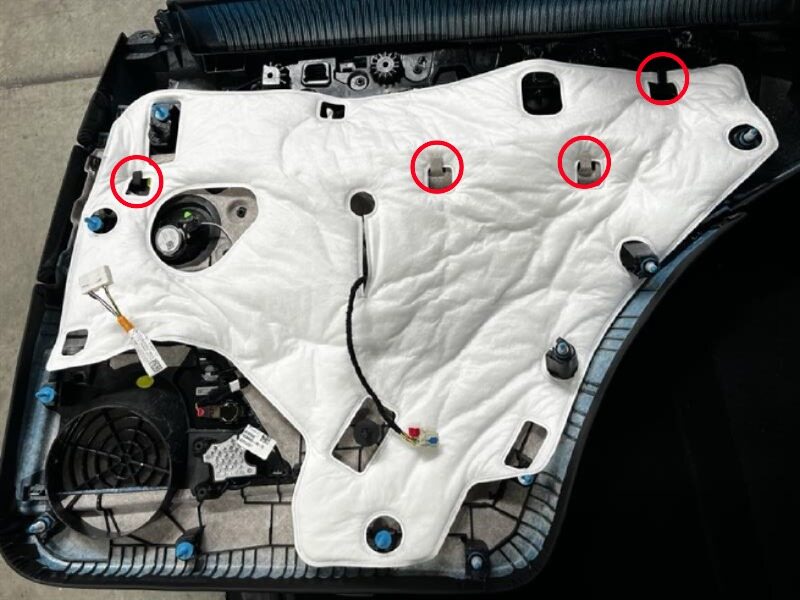

    4x hooks, Release LH rear NVH pad from hooks

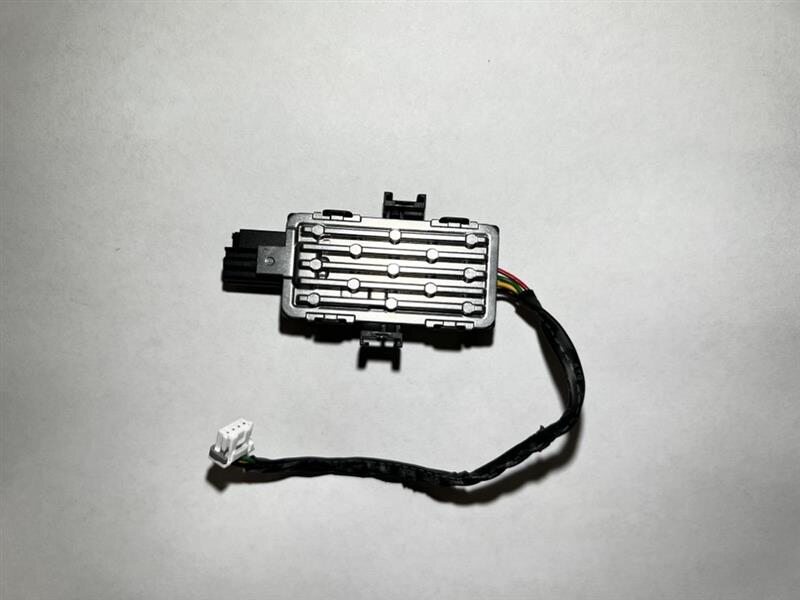

  9. Remove LH rear door ambient light LED module
    Informational PurposesAn informational icon, calling your attention
    Note

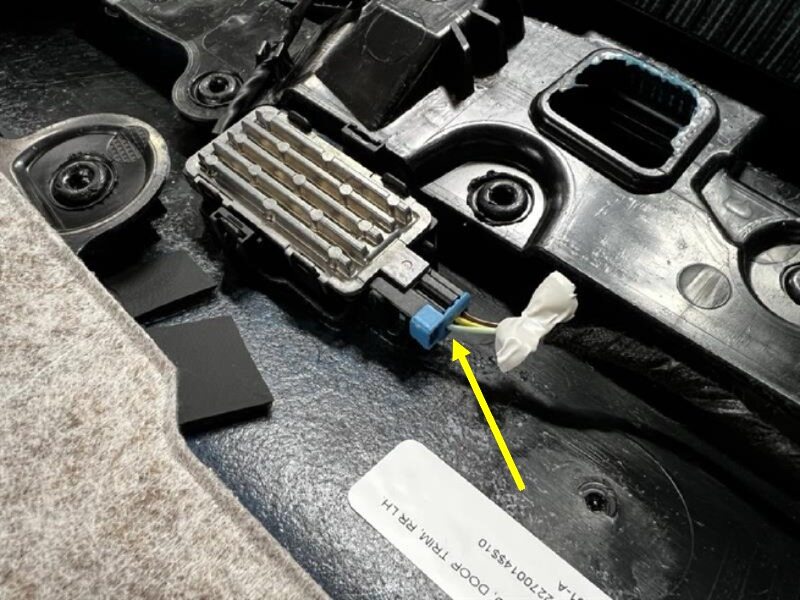

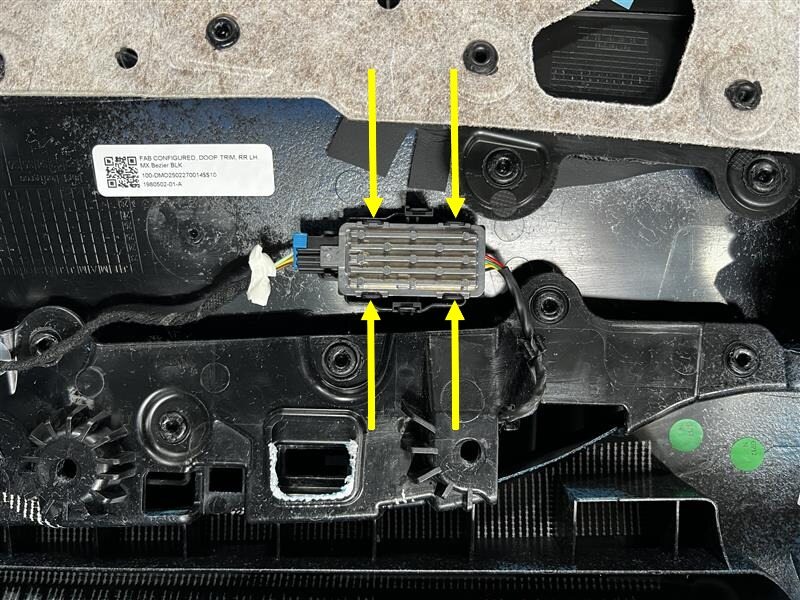

    2x tabs, 2x connectors, Remove felt tape then carefully release tabs then slide upwards
  10. Install LH rear door ambient light LED module
    Informational PurposesAn informational icon, calling your attention
    Note

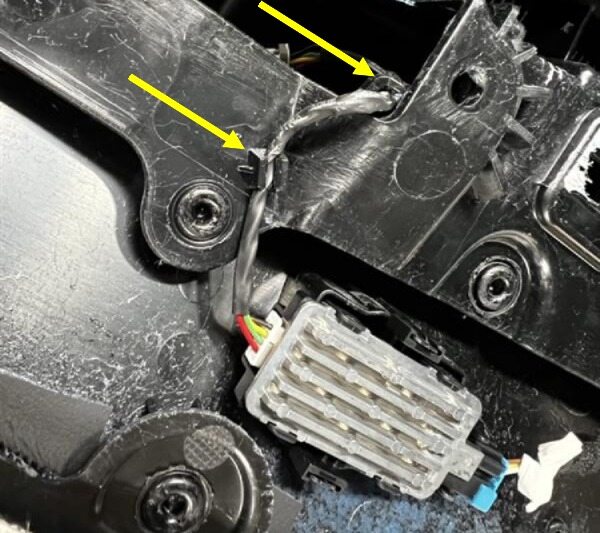

    2x tabs, 2x connectors, Verify module tabs are fully secured then reapply felt tape
  11. Install LH rear door NVH pad
    Informational PurposesAn informational icon, calling your attention
    Note
    4x hooks, Secure LH rear NVH pad on hooks
  12. Install LH rear door trim panel
    Informational PurposesAn informational icon, calling your attention
    Note
    2x connectors, 13x clips, Install door trim starting from top and make sure the door trim tab is fitted correctly on the inner belt seal
  13. Install LH rear door decor trim panel
    Informational PurposesAn informational icon, calling your attention
    Note
    7x clips, 2x connectors, Take care not to damage door trim panel
  14. Install bolts securing LH rear door panel to door
    Informational PurposesAn informational icon, calling your attention
    Note
    8x bolts, 10mm, 6 Nm
  15. Install LH rear door decor trim panel
    Informational PurposesAn informational icon, calling your attention
    Note
    7x clips, 1x connectors, Take care not to damage door trim panel, Secure 2x large metal clips then slide trim forward and secure remaining clips
  16. Install LH falcon door lower garnish
    Informational PurposesAn informational icon, calling your attention
    Note
    9x V-clips, 1x guide tab
  17. Close LH falcon door
  18. Raise the LH front window.
  19. Close the LH front door.
