Decor Trim - Front Door - LH (2025+) (Remove and Replace)

Correction code New NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.

Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
This procedure is a DRAFT. Although it has been validated, Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near High Voltage systems and components. Provide corrections and feedback to ServiceDevelopment@teslamotors.com.
Informational PurposesAn informational icon, calling your attention
Note
This procedure describes work that is specific to 2025+ Model X.
  1. Open the LH front door.
  2. Lower the LH front window.
  3. Remove LH front door trim decor
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector, 1x hook, 7x clips, Release from front side, then move rearward, Clips will be retained with door trim panel
  4. Install LH front door decor
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector, 1x hook, 7x clips, Slide hook into trim panel, then fully seat
  5. Connect to vehicle using Toolbox 3
    Informational PurposesAn informational icon, calling your attention
    Note
    Navigate to https://toolbox.teslamotors.com and establish connection to vehicle, Select connection status icon at top right corner then select connect locally, Icon will turn green when connected, Successful connection will automatically unlock vehicle gateway and place UI in Service Mode Plus, Media converter box powered by laptop USB or 12v power outlet, Ethernet connection will provide communication, If RJ45 ethernet connector present at service panel media converter box not required, Vehicles built 4/5/2024 onwards have OBDII connection integrated into drivers lower IP cover, Use OBDII connection if this applies, Some vehicles may have both RJ45 and OBDII, If vehicle has both RJ45 and OBD-II then connect via RJ45, For local connection issues with Toolbox 3 refer to https://toolbox.teslamotors.com/articles/43695
  6. Run ODIN routine TEST-SELF_VCLEFT_RGBvia Toolbox: (link)
  7. Reinstall firmware via UI
    Informational PurposesAn informational icon, calling your attention
    Note

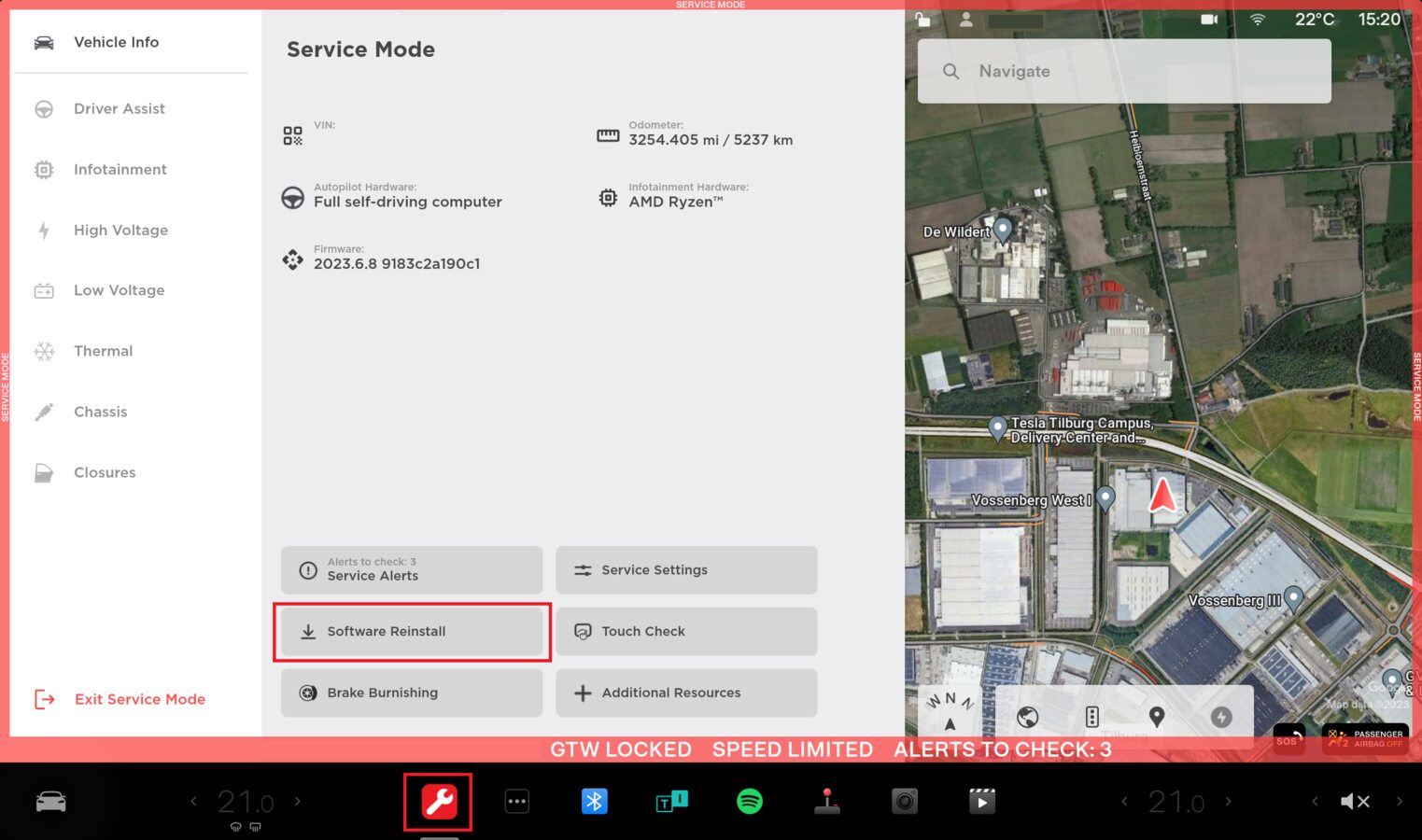

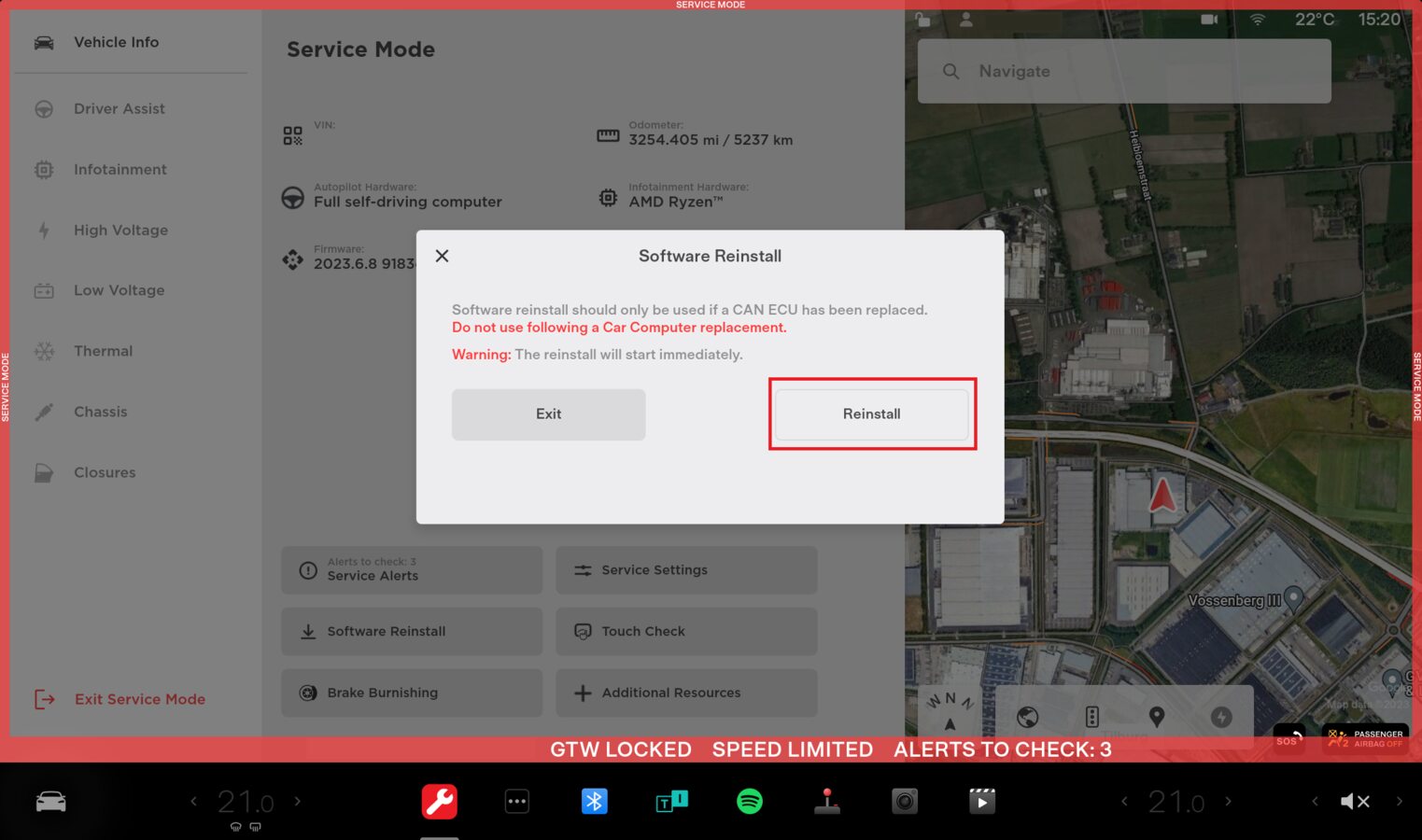

    Via Controls > Service Mode > Software Reinstall, Select Reinstall button at Software Reinstall dialogue box, Reinstall will begin immediately, Once firmware redeploy is complete, Verify release notes are present via UI
  8. Once firmware redeploy is complete, Verify release notes are present via UI
    Informational PurposesAn informational icon, calling your attention
    Note
    If redeploy fails then error message will appear
  9. Run ODIN routine PROC_ICE_X_EXIT-SERVICE-MODEvia Toolbox: (link)
  10. Raise the LH front window.
  11. Close the LH front door.
