MXP3 Interior Trim - Center Console - Center Console - Angled 12V Power Outlet (2025+) (RI)

Correction code NEW NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.

Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
This procedure is a DRAFT. Although it has been validated, Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near High Voltage systems and components. Provide corrections and feedback to ServiceDevelopment@teslamotors.com.
  • 2025-06-02: Released new procedure.
  1. Open the RH front door.
  2. Lower the RH front window.
  3. Move the RH front seat backward.

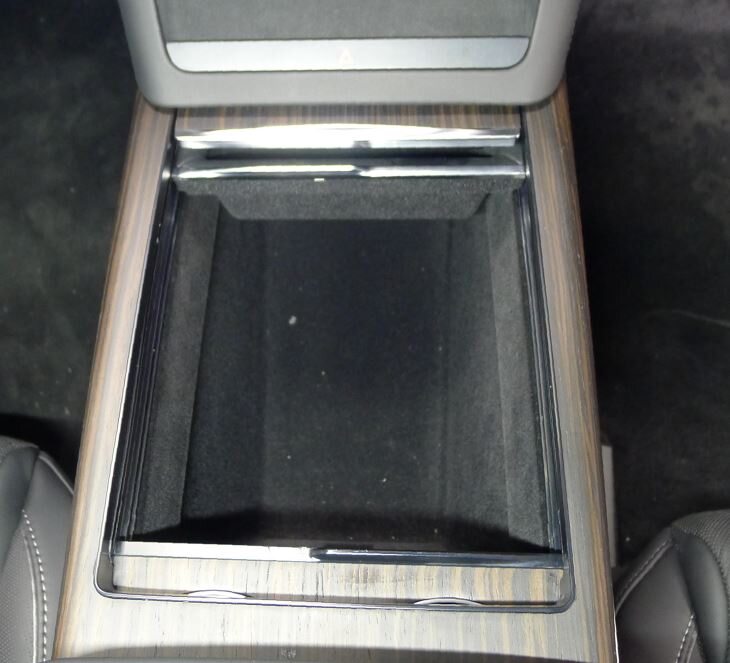

  4. Open front center console storage compartment
    Informational PurposesAn informational icon, calling your attention
    Note

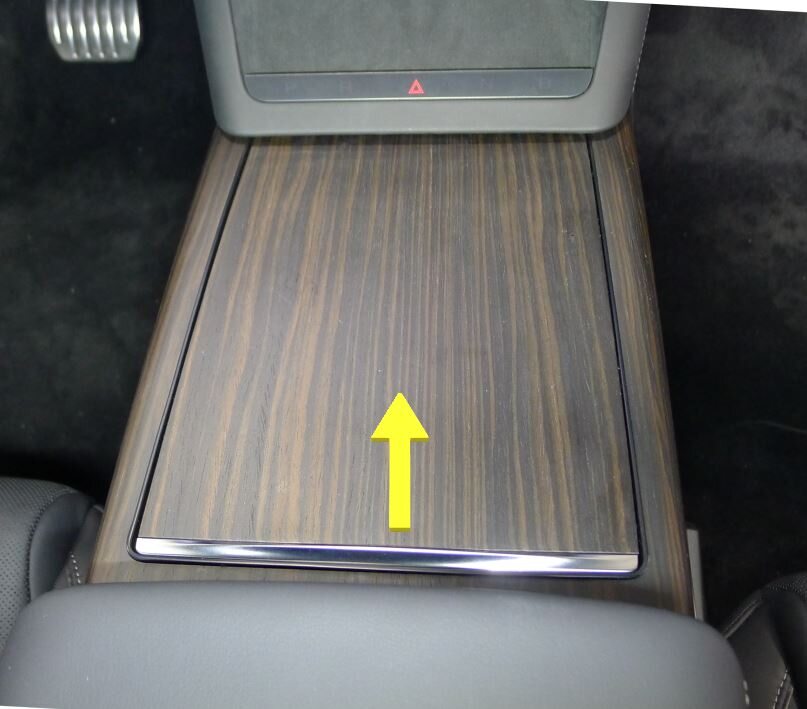

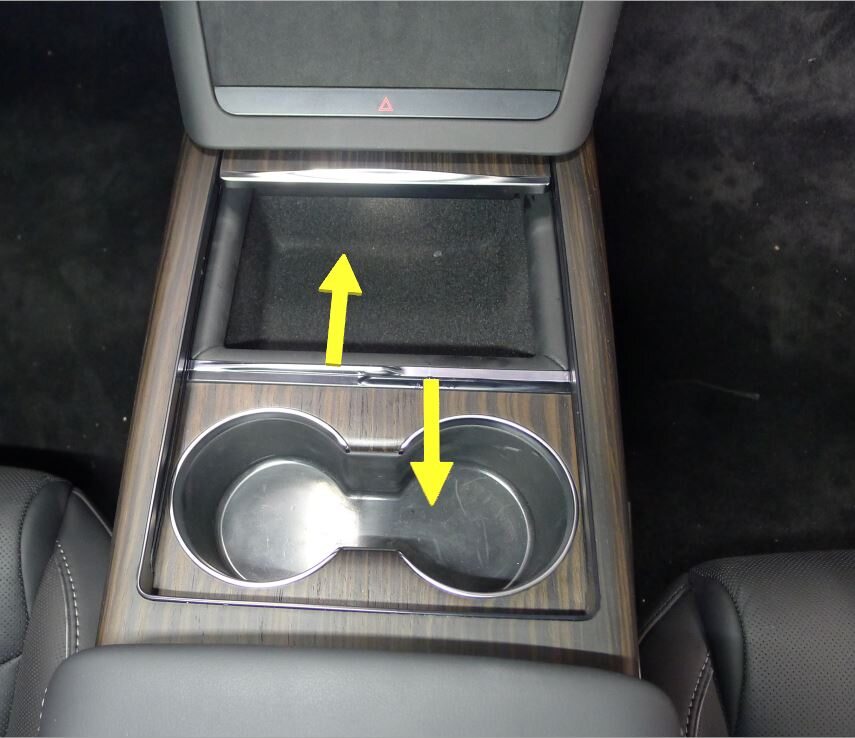

    Fully retract center console lid, cupholder, and sliding tray into locked position
  5. Release center console service panel
    Informational PurposesAn informational icon, calling your attention
    Note

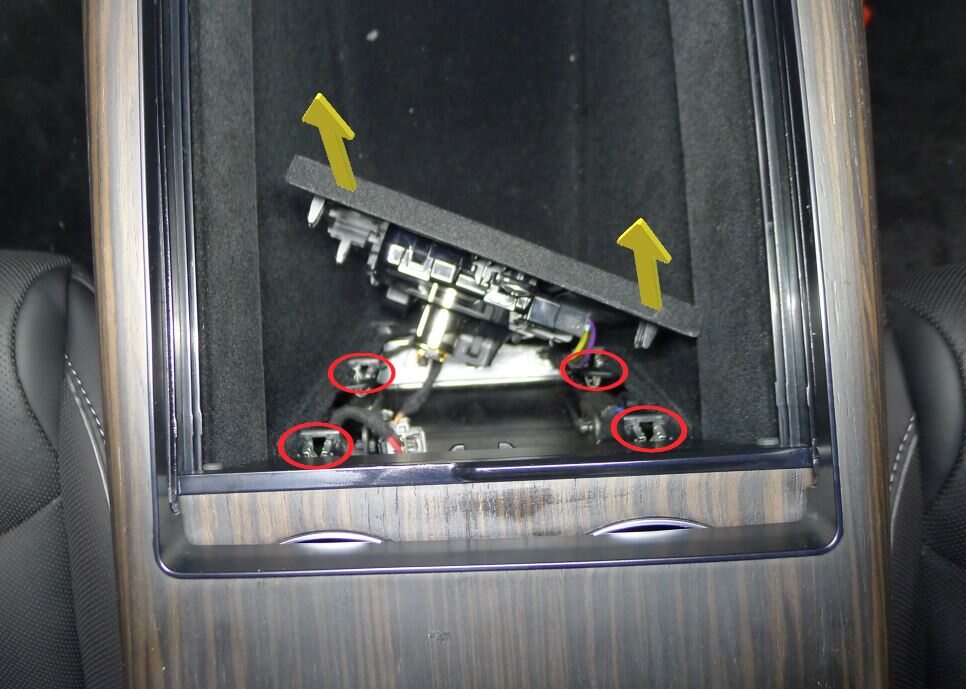

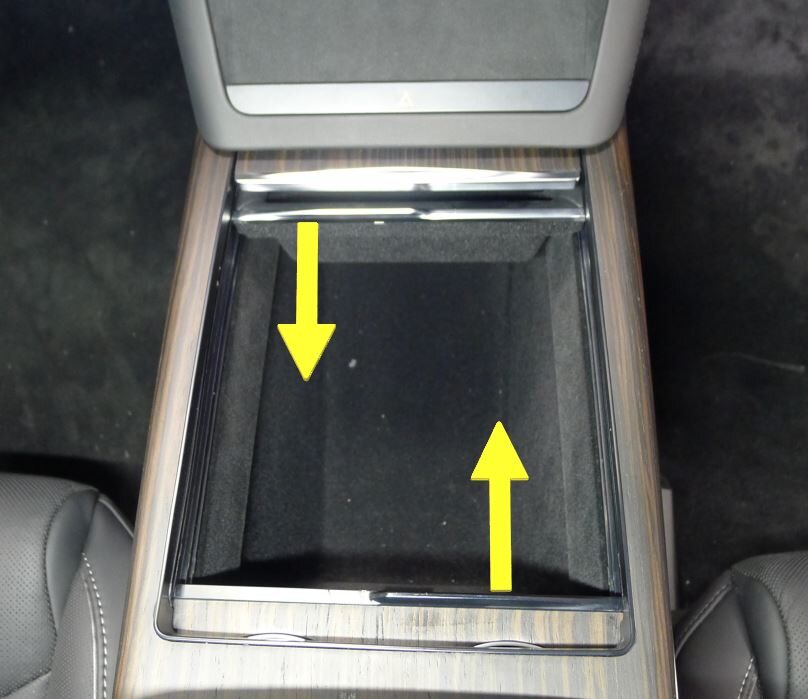

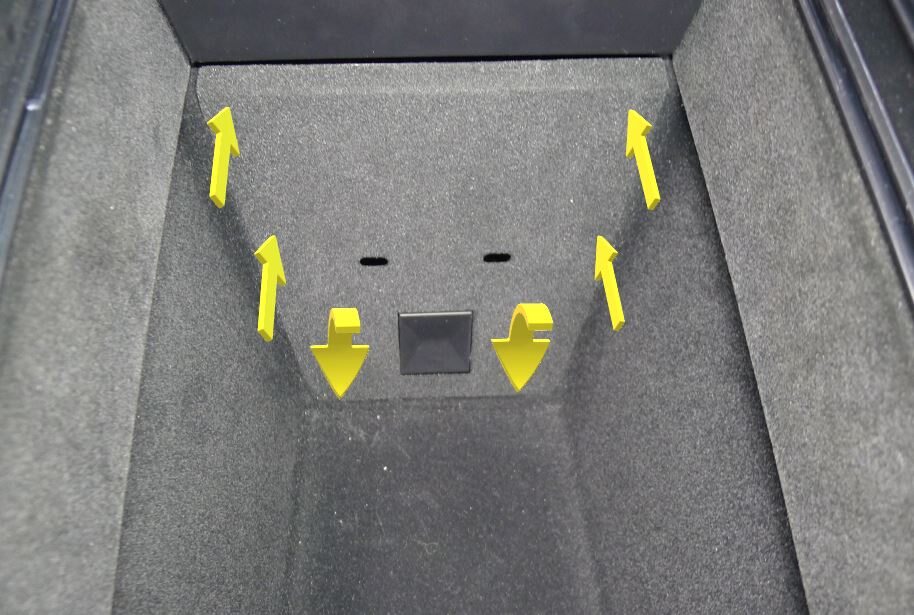

    4x clips,3x datums Release clips and pull panel up to access harness, Use 90 degree plastic trim tool
  6. Remove center console service panel
    Informational PurposesAn informational icon, calling your attention
    Note

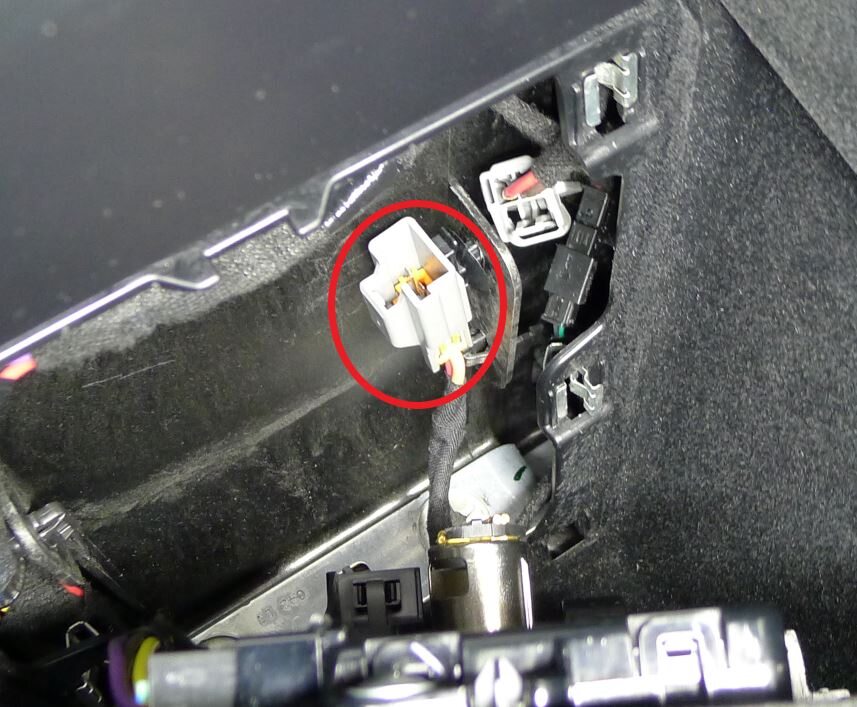

    3x connectors, 1x clip

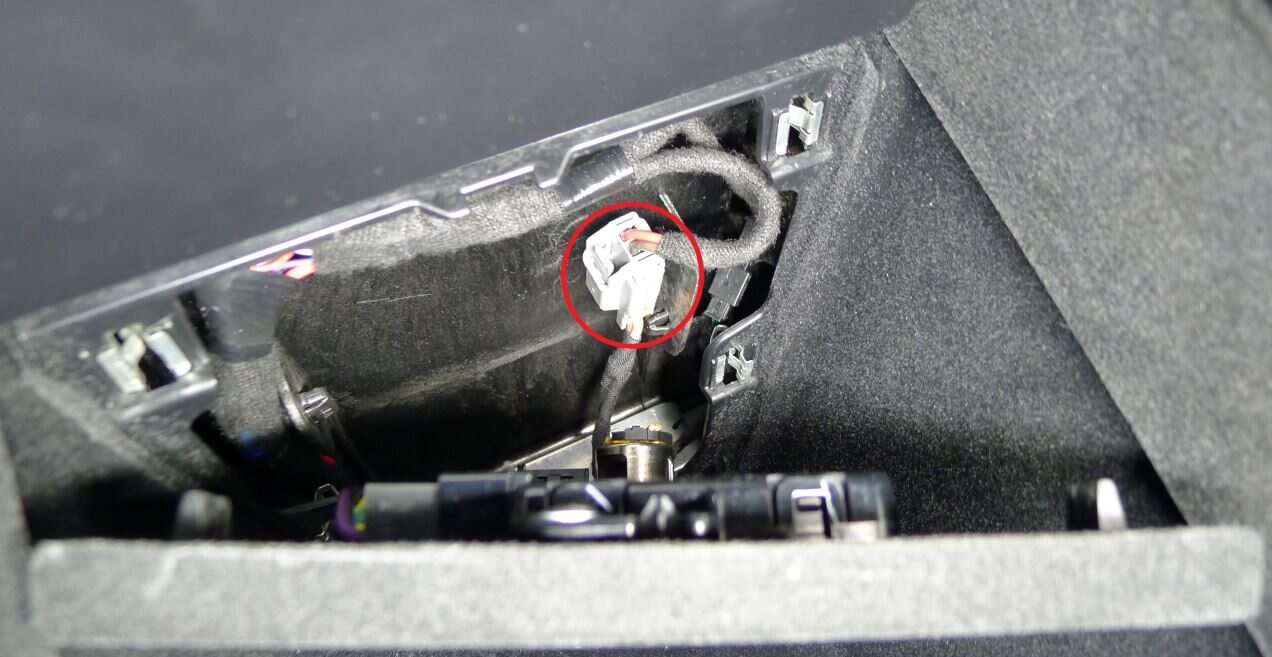

  7. Remove clip from 12V outlet connector
    Informational PurposesAn informational icon, calling your attention
    Note
    1x clip

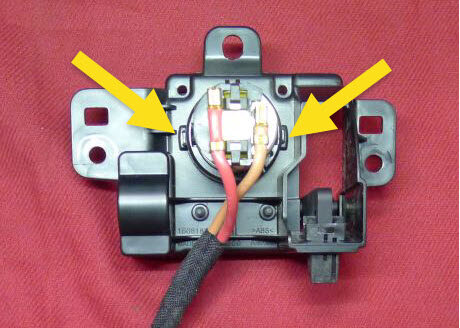

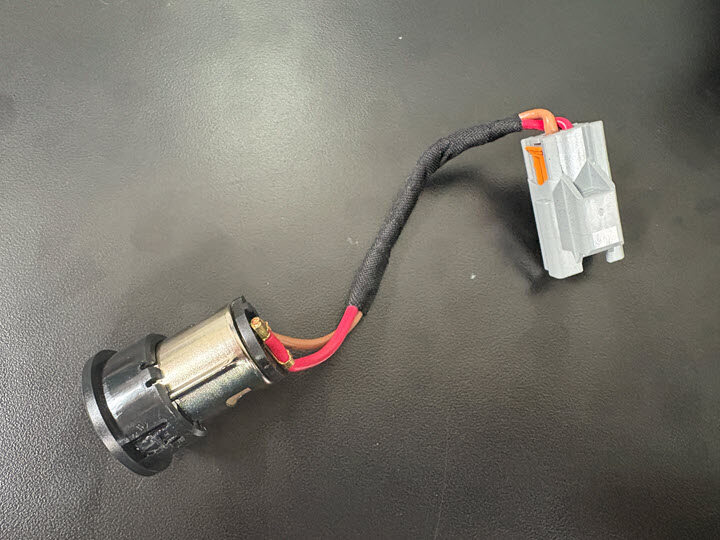

  8. Release 12V outlet from outlet bracket
    Informational PurposesAn informational icon, calling your attention
    Note

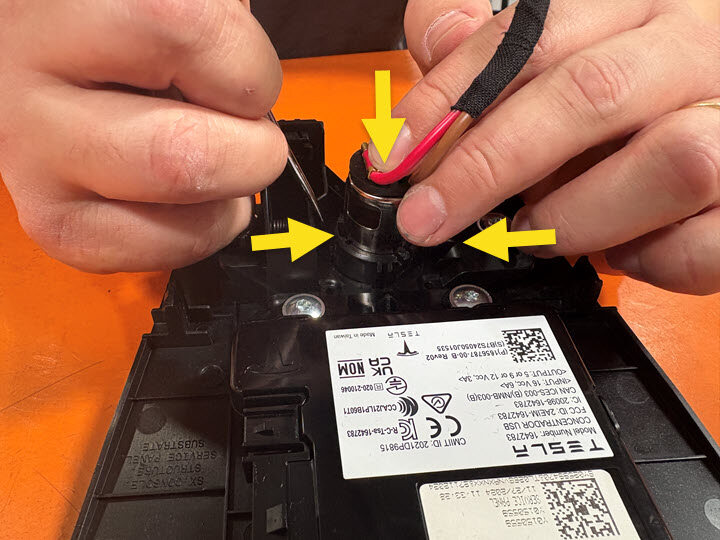

    2x tabs, Depress tabs one at a time while applying pressure to outlet, Make sure to preserve locking tab

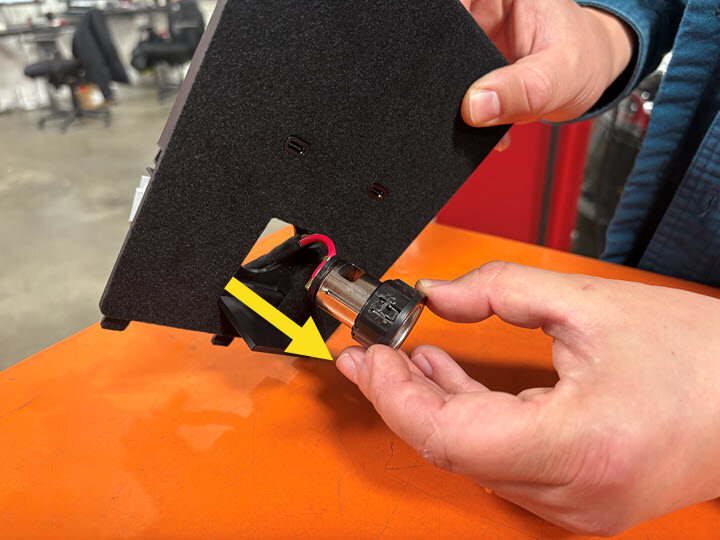

  9. Secure the 12V outlet to the outlet bracket
    Informational PurposesAn informational icon, calling your attention
    Note

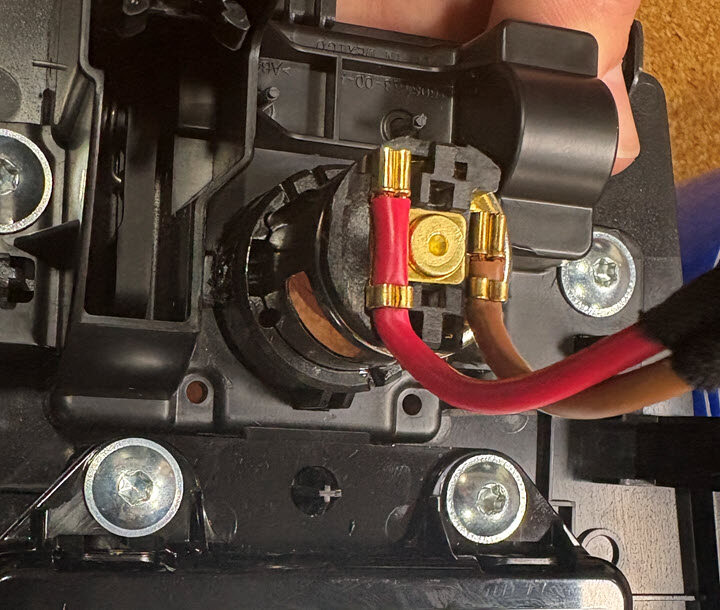

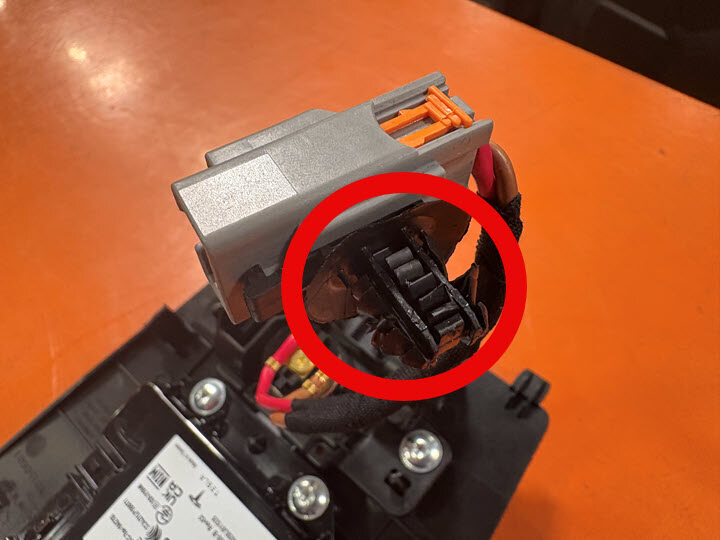

    2x tabs, remove clip from new outlet to maneuver harness through bracket, verify both clips are fully engaged
  10. Secure clip to 12V outlet connector
    Informational PurposesAn informational icon, calling your attention
    Note
    1x clip
  11. Position center console service panel, Secure center console service panel connectors
    Informational PurposesAn informational icon, calling your attention
    Note
    3x connectors, 1x clip
  12. Secure center console service panel
    Informational PurposesAn informational icon, calling your attention
    Note
    4x clips, 3x datums, Ensure connector X1131 and X881 is positioned to the right of the main harness for USB hub clearance, Engage datums at bottom of service panel then secure clips

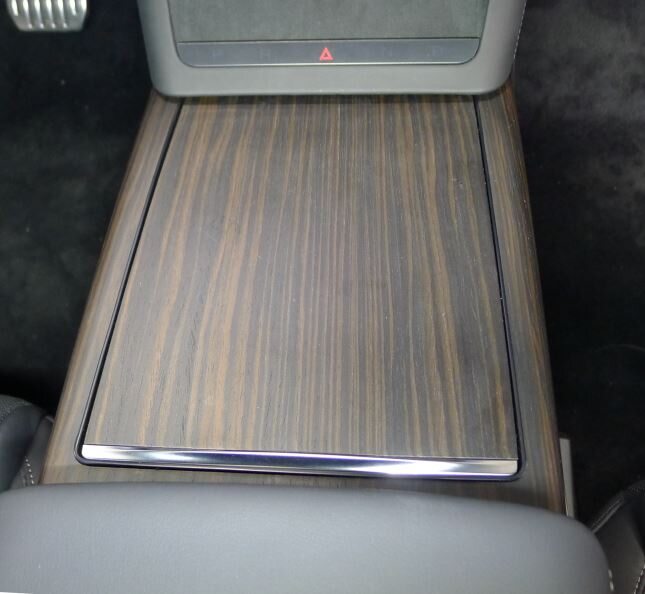

  13. Close center console
    Informational PurposesAn informational icon, calling your attention
    Note
    Fully engage center console lid, cupholder, and sliding tray into closed position
  14. Move the RH front seat to its original position.
  15. Raise the RH front window.
  16. Close the RH front door.
