Correction code 15302602 15302601 FRT 0.42 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure. NOTE: See Ergonomic Precautions for safe and healthy working practices.

1. Open all four doors
   Note

   If vehicle is being powered down, Latch rear doors to prevent accidental closure



2. Lower all four windows

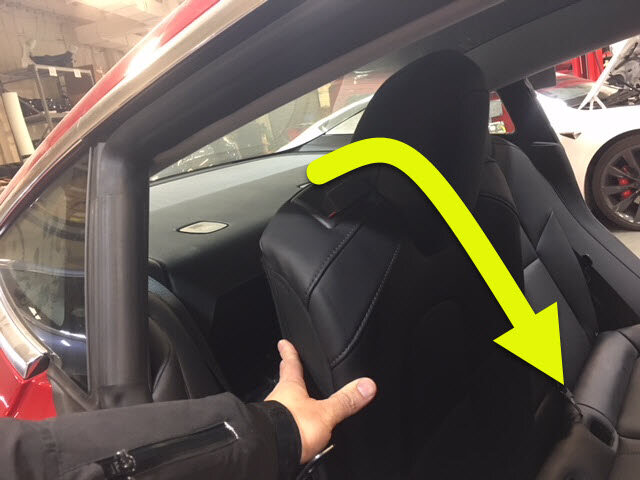

3. Move LH front seat forward



4. Move RH front seat forward



5. Remove 2nd row seat cushion
   Note

   2x tabs, 2x connectors, Slide locking tabs to left of vehicle while lifting up seat bench. Newer models have connectors on both sides of bench, Older models have 2x connectors on one side of bench

















6. Open liftgate from exterior switch

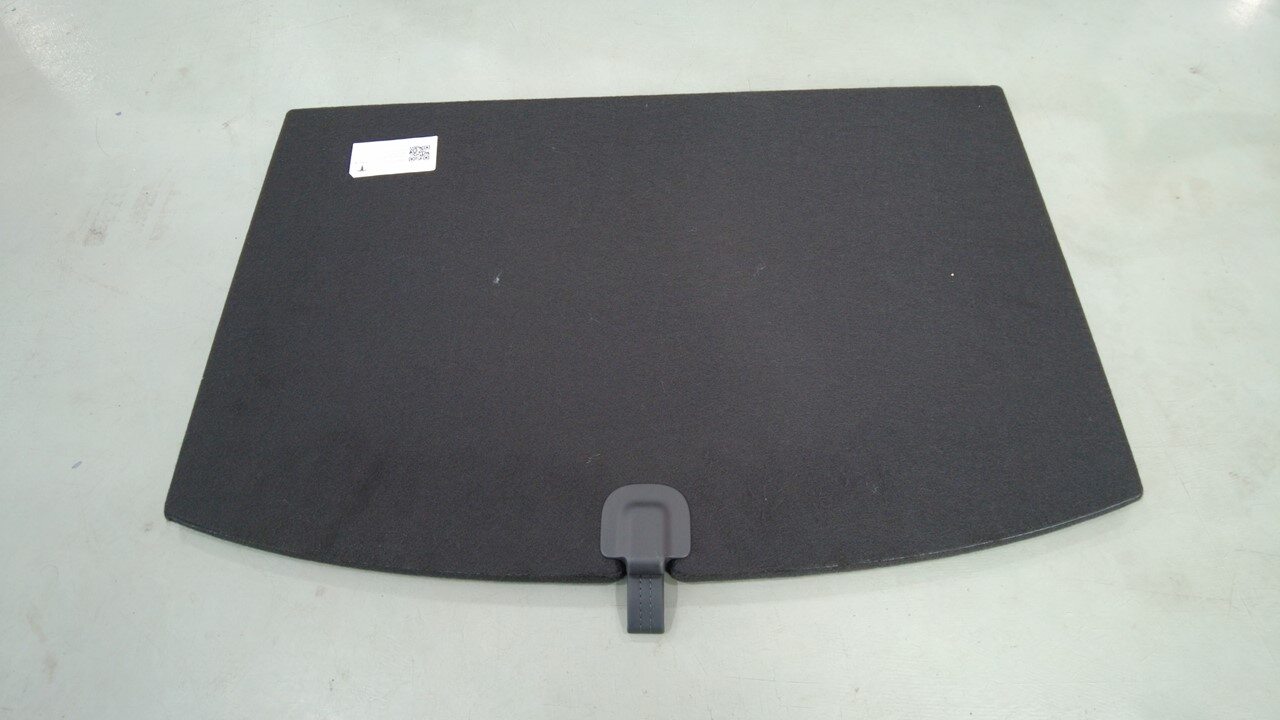

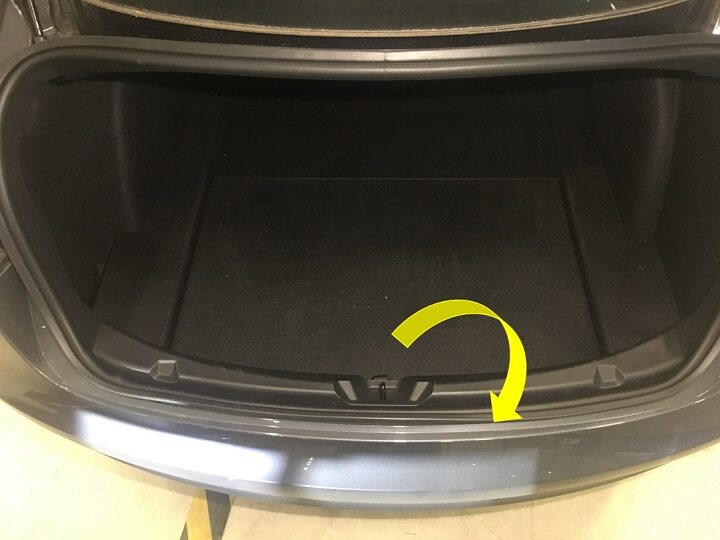

7. Remove load floor
   Note

   Use pull tab located at rear edge of panel

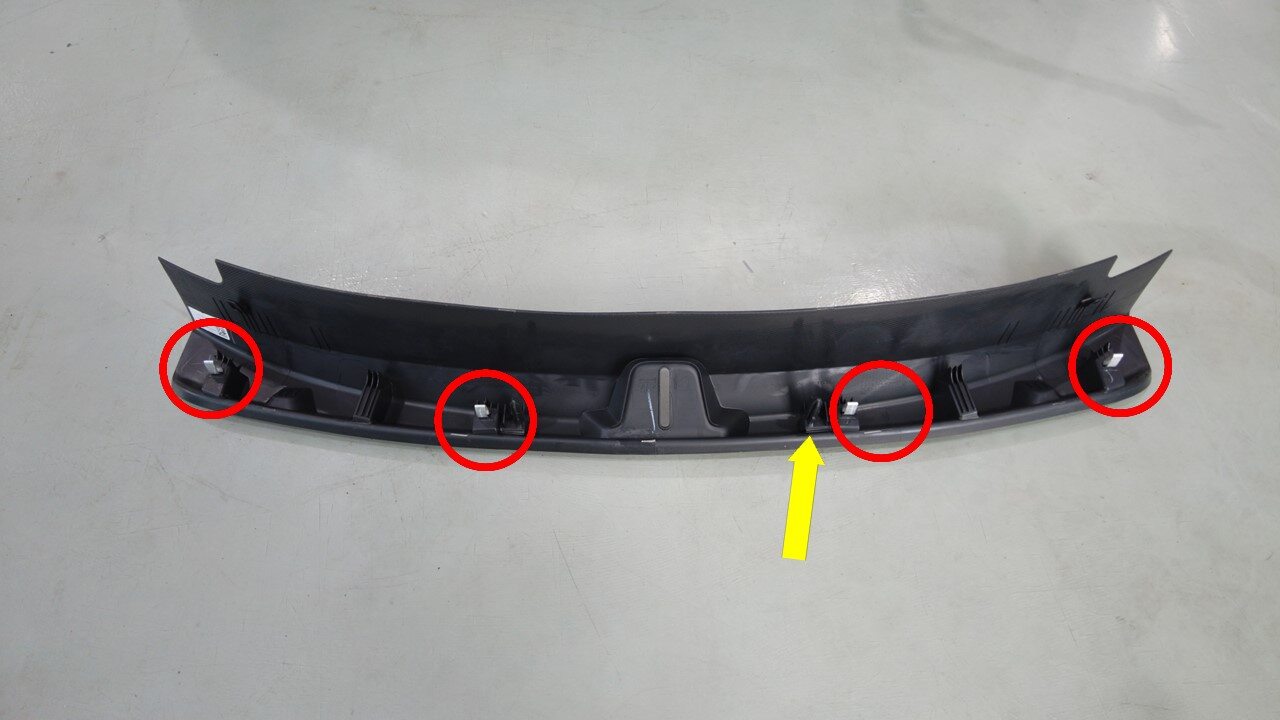

8. Remove trunk sill trim assembly
   Note

   4x clips, 1x location pin, Pull corner upward release clip on the end the away from body for remaining clips

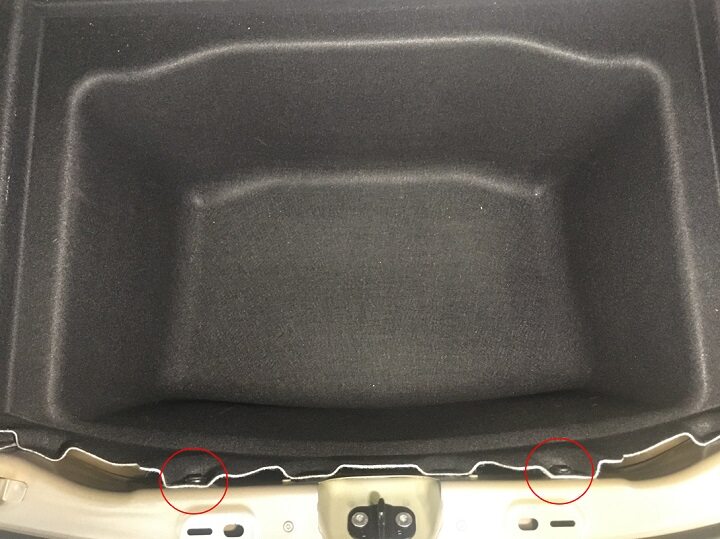

9. Remove clips securing rear trunk carpet
   Note

   2x push clips

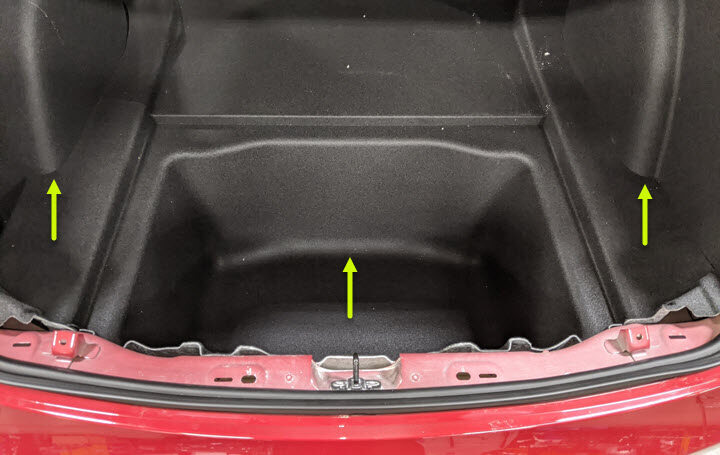

10. Remove rear trunk carpet from vehicle
    Note

    4x velcro strips

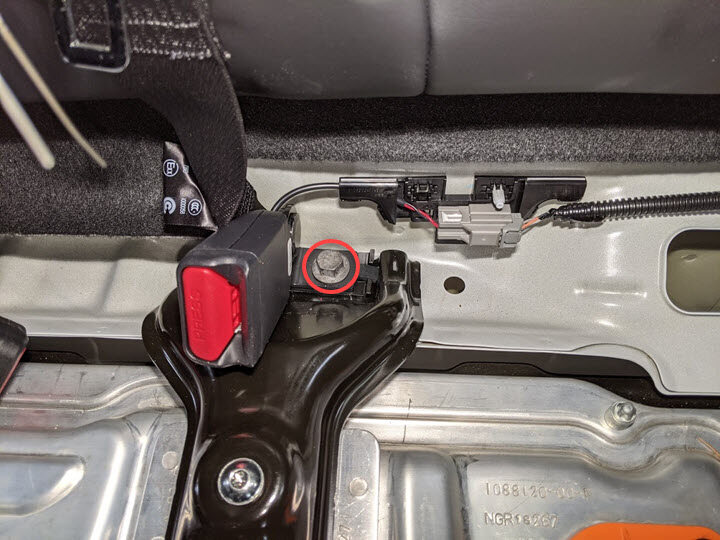

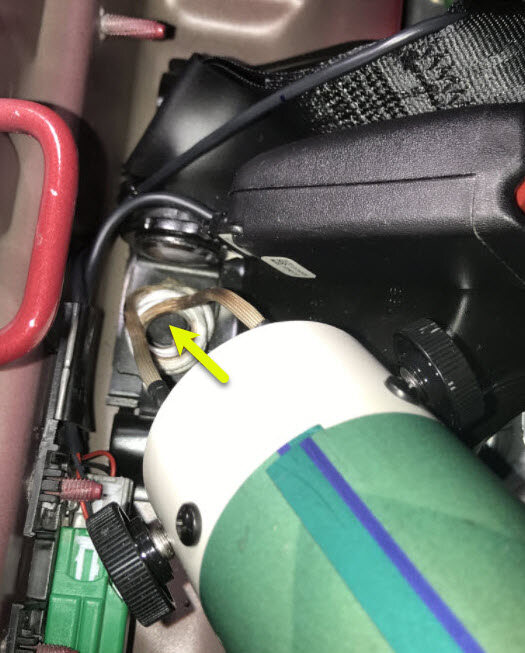

11. Remove LH rear seat belt buckle
    Note

    1x patch bolt, 15mm, 40 Nm, If the bolt is difficult to remove, Use an inductive heating tool to melt the adhesive patch material, Position the inductive heating tool coil around the bolt, then heat the bolt for 20 seconds, Allow the bolt to cool for 2 minutes, Discard after removal

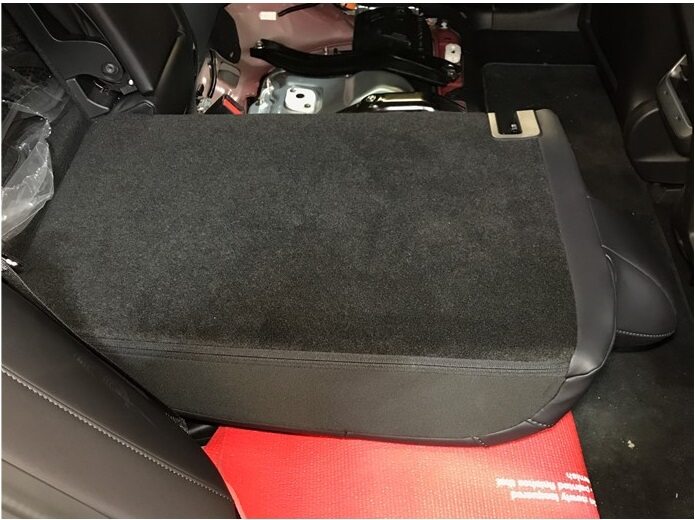

12. Fold 60 seat in down position
    Note

    Protect the seat cushion

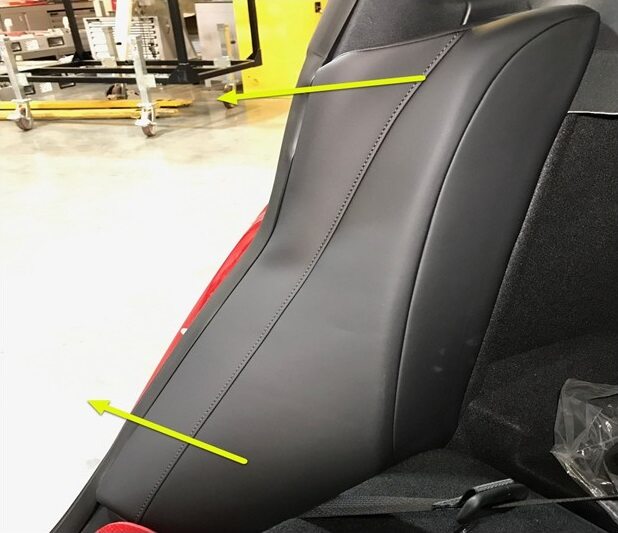

13. Remove LH side bolster
    Note

    1x clip, 2x location pins, Pull outward then slightly upward to remove

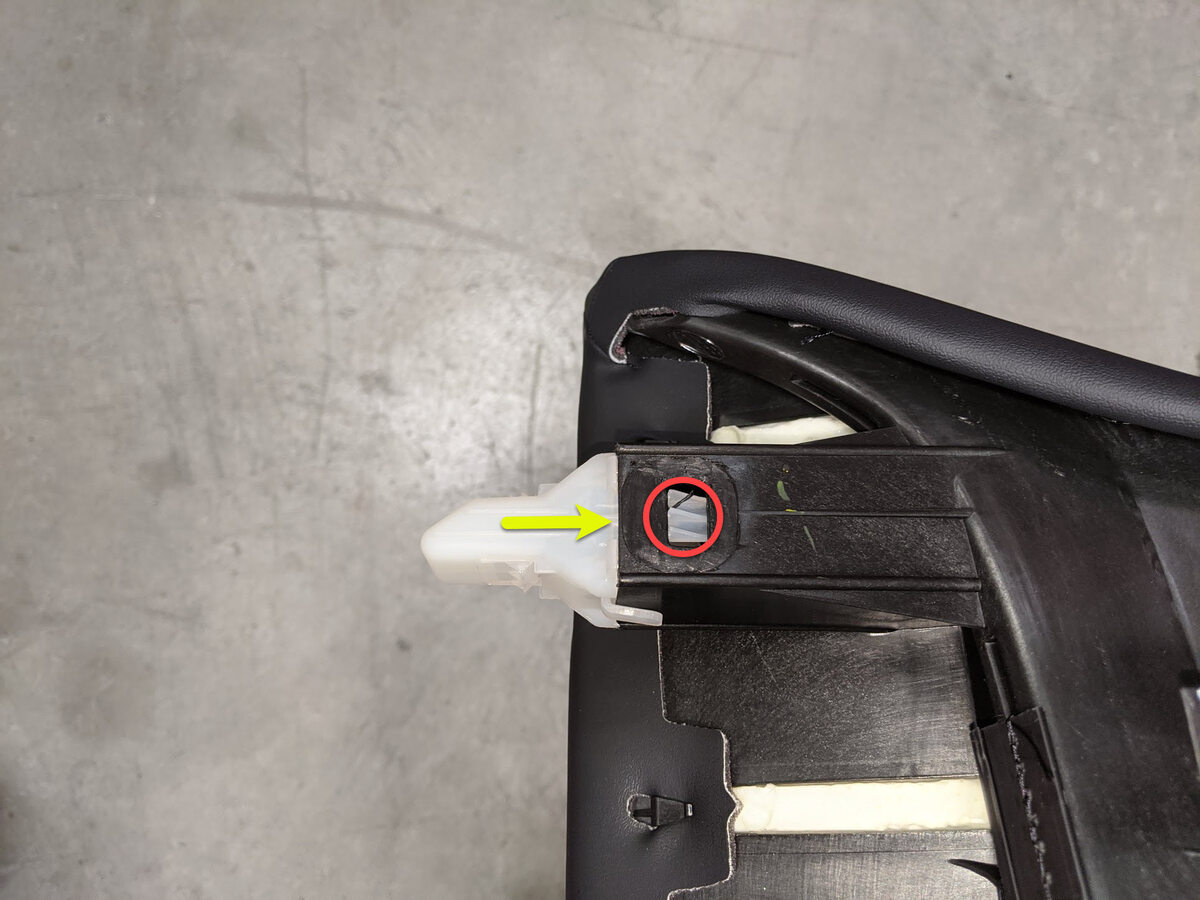

14. Remove and discard bolster plastic bracket from RH side
    Note

    2x clips, If necessary, depress the clips from behind, this bracket may come out with bolster. Discard after removal



15. Fold 60 seat into vertical position
    Note

    Remove seat protection

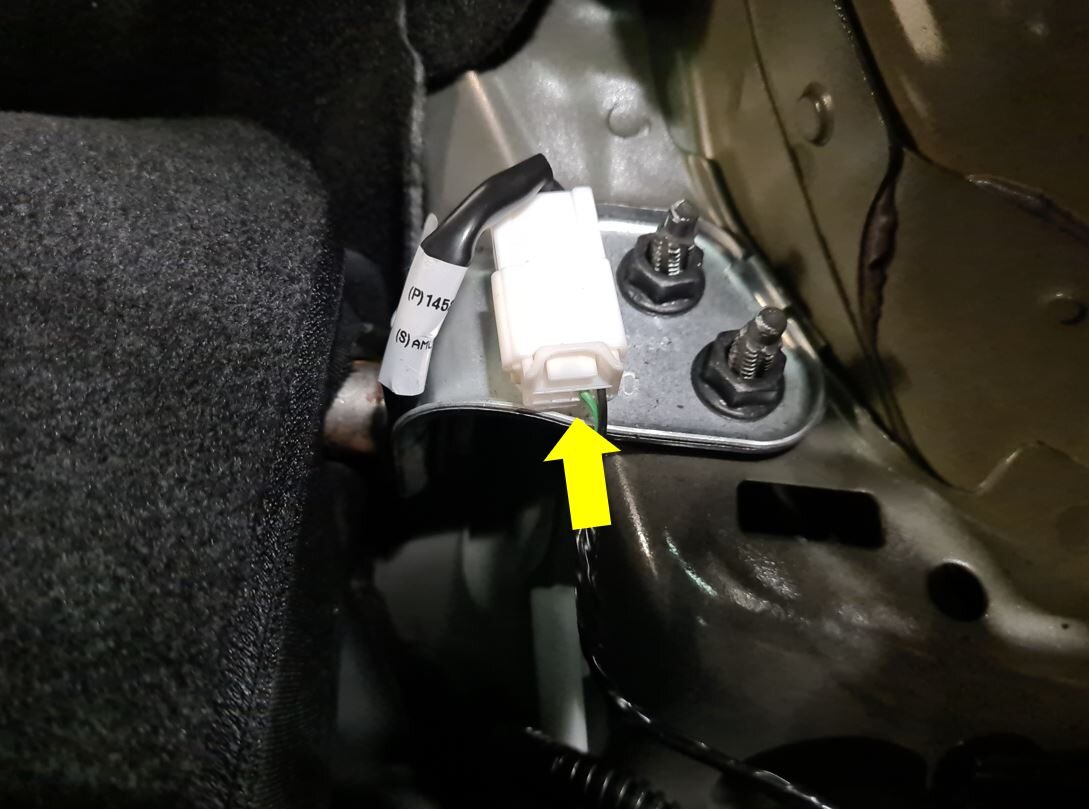

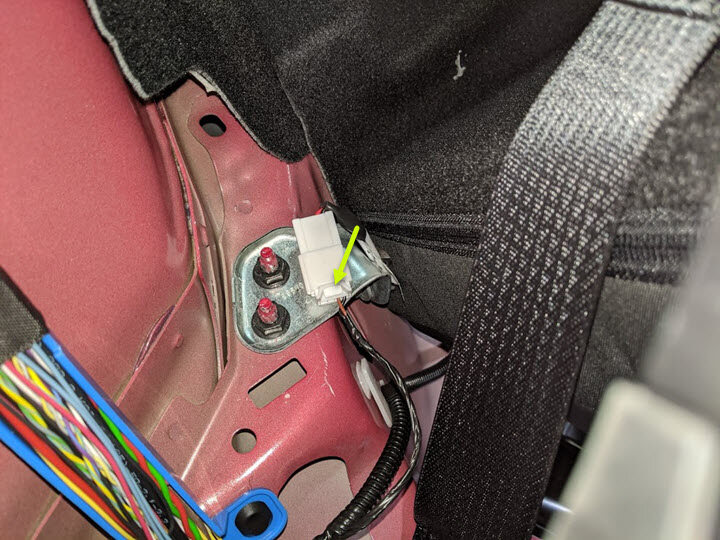

16. Disconnect 60 seat back seat heater harness
    Note

    1x connector

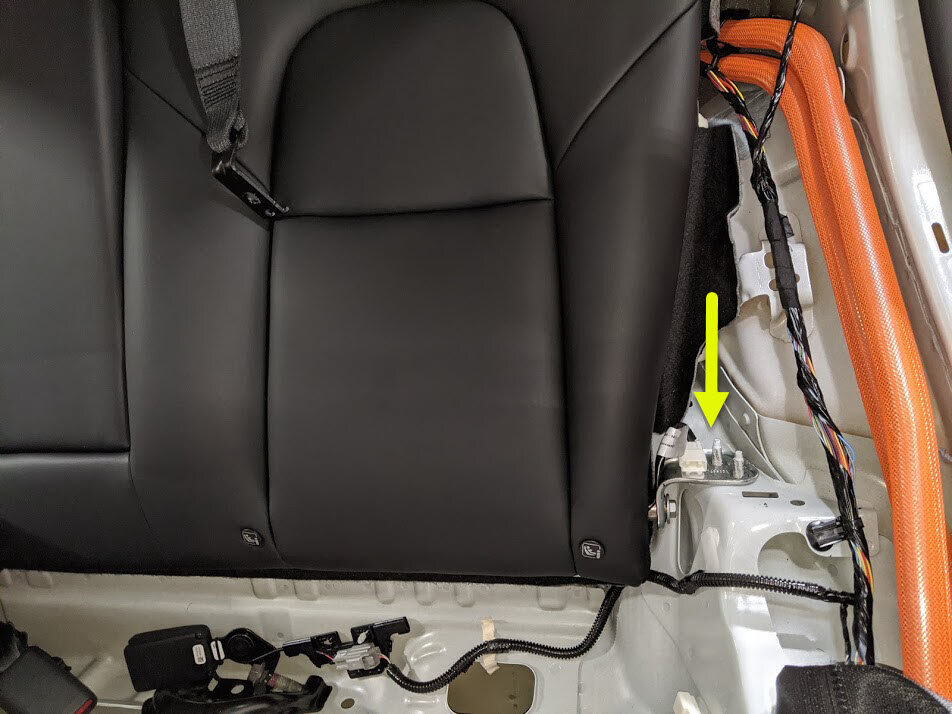

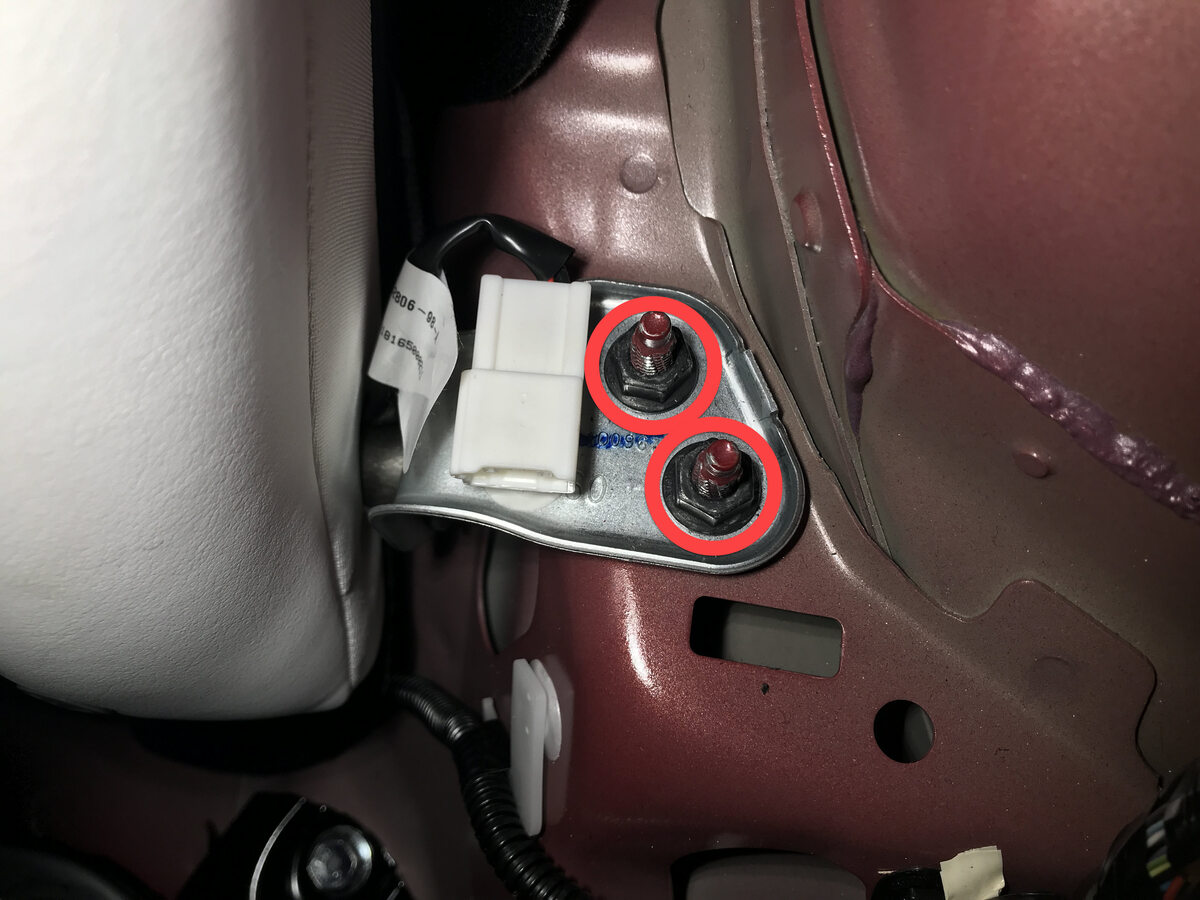

17. Remove nuts securing 60 seat back hinge bracket to body
    Note

    2x nuts, 13mm, 18 Nm



18. Remove 60 seat back by lifting up on LH side and pulling inner pivot out of 40 seat back and set onto padded work surface



19. Fold 40 seat in down position
    Note

    Protect the seat cushion



20. Remove RH side bolster
    Note

    1x clip, 1 tab, Pull outward then slightly upward to remove



21. Remove and discard bolster plastic bracket from LH side
    Note

    2x clips, If necessary, depress the clips from behind, This bracket may come out with bolster, Discard after removal



22. Disconnect 40 seat back seat heater harness
    Note

    1x connector

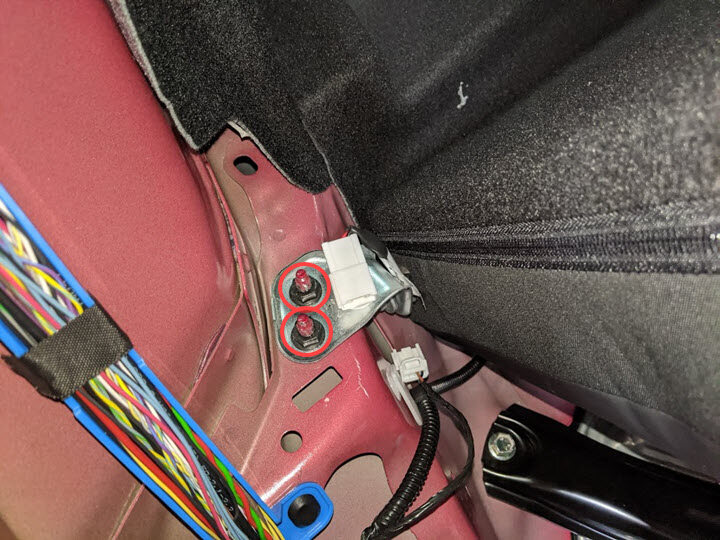

23. Remove nuts securing 40 seat back hinge bracket to body
    Note

    2x nuts, 13mm, 18 Nm



24. Remove 40 seat back from vehicle
    Note

    Lift bracket from studs and slide outward

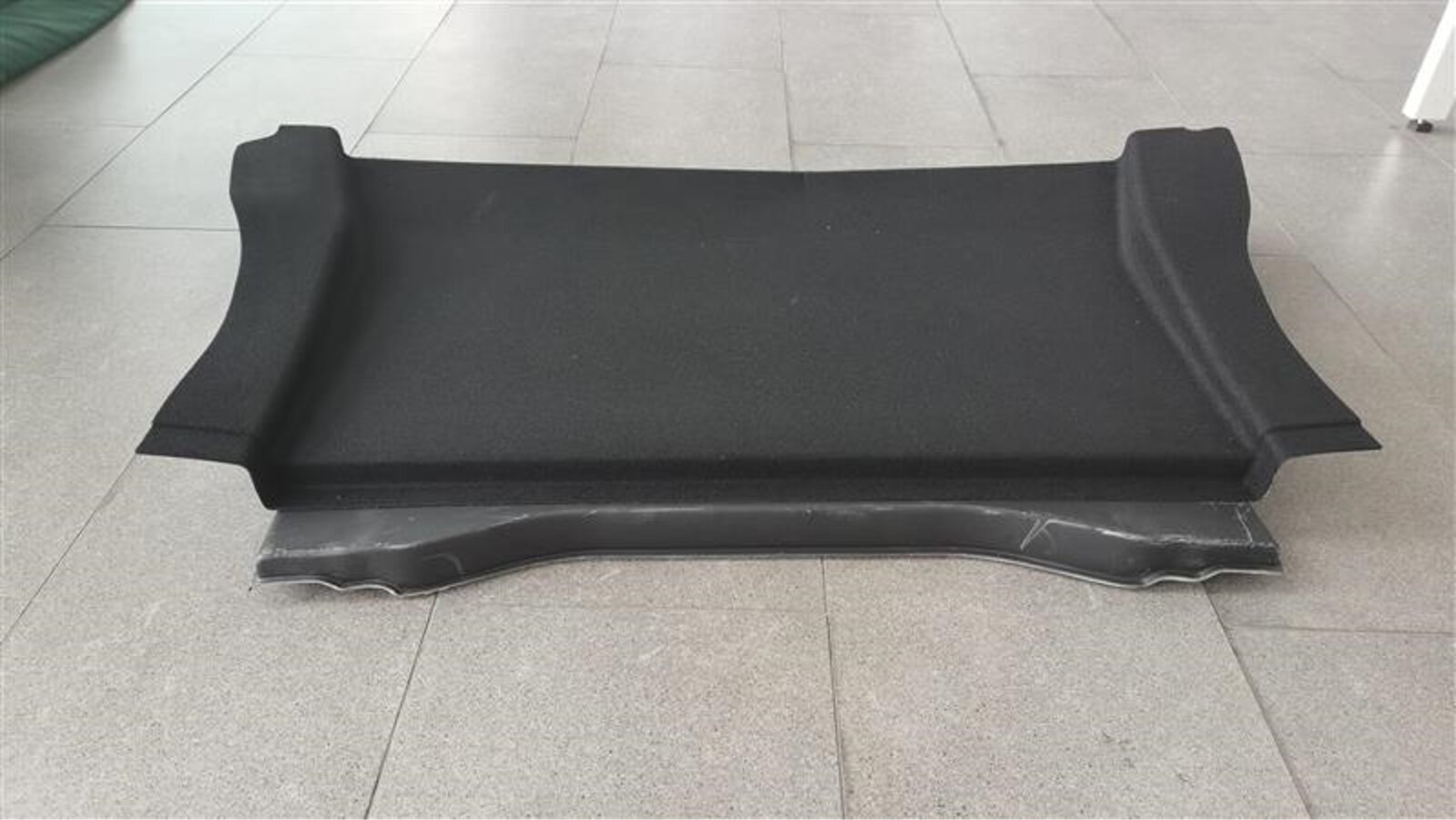

25. Remove front trunk carpet from vehicle
    Note

    2x clips, Lift trunk carpet off of isofix bars





26. Install front trunk carpet into vehicle
    Note

    2x clips, Align the trunk carpet to isofix bars





27. Install 60 seat back to vehicle
    Note

    Align center and outer pivot locations



28. Install nuts securing 60 seat back hinge bracket to body
    Note

    2x nuts, 13mm, 18 Nm



29. Connect 60 seat back seat heater harness
    Note

    1x connector

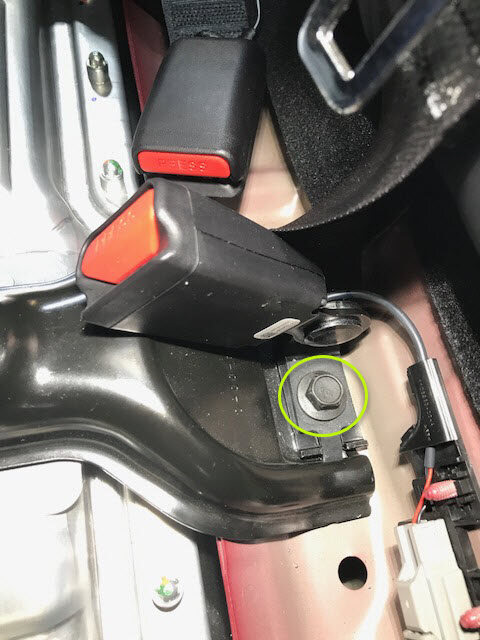

30. Install bolt securing LH seat belt catch and center seat belt to vehicle
    Note

    1x patch bolt, 15mm, 40 Nm, Install new patch bolt, Position center seat belt under buckle, Make sure the guide pin is aligned



31. Fold 60 seat in down position
    Note

    Protect the seat cushion if necessary



32. Install bolster plastic bracket to LH side bolster
    Note

    2x tabs, Install new bolster bracket



33. Install LH side bolster
    Note

    1x clip, 2x location pins, Align the bottom tab then push inward to install





34. Fold 60 seat into vertical position
    Note

    Remove seat cushion protection, Be careful not to pinch the seat belt



35. Install 40 seat back to vehicle
    Note

    Align center and outer pivot locations



36. Install nuts securing 40 seat back hinge bracket to body
    Note

    2x nuts, 13mm, 18 Nm



37. Connect 40 seat back seat heater harness
    Note

    1x connector



38. Fold the 40 seat in down position
    Note

    Protect the seat cushion if necessary



39. Install bolster plastic bracket to RH side bolster
    Note

    2x tabs, Install new bolster bracket



40. Install RH side bolster
    Note

    1x clip, 1x tab, Align the bottom tab then push inward to install



41. Fold seat into vertical position
    Note

    Remove seat cushion protection

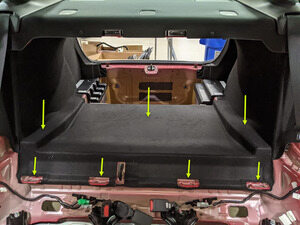

42. Install rear trunk carpet into vehicle
    Note

    4x velcro strips, Fully seat carpet at velcro strips





43. Install clips securing trunk carpet
    Note

    2x push clips



44. Install trunk sill trim assembly
    Note

    4x clips, 1x location pin, Align the latch with center slot then 2 locator to their slot and then press to secure the clips, Adjust the seal to overlap the trim









45. Install load floor





46. Close trunk





47. Connect 2nd row seat cushion harness and install 2nd row seat cushion
    Note

    2x connectors, 2x clips, Insert the seat belt buckles through the holes, Slide rear cushion inward then align front guide tabs to locking tabs, Make sure cushion is fully seated with push pull test near clips

















48. Move RH front seat to original position



49. Move LH front seat to original position



50. Raise all four windows



51. Close all four doors
