Mount and Bushings Set - Rear Drive Unit (3DU) (Remove and Replace)

Correction code 40012802 3.60 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so.NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email LaborTimeFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.

  • 1137785-00-A Kit, Drive Unit Bushing R&R, Model 3

Remove

  1. Remove the rear drive unit. See Drive Unit - Rear (3DU) (Remove and Install).

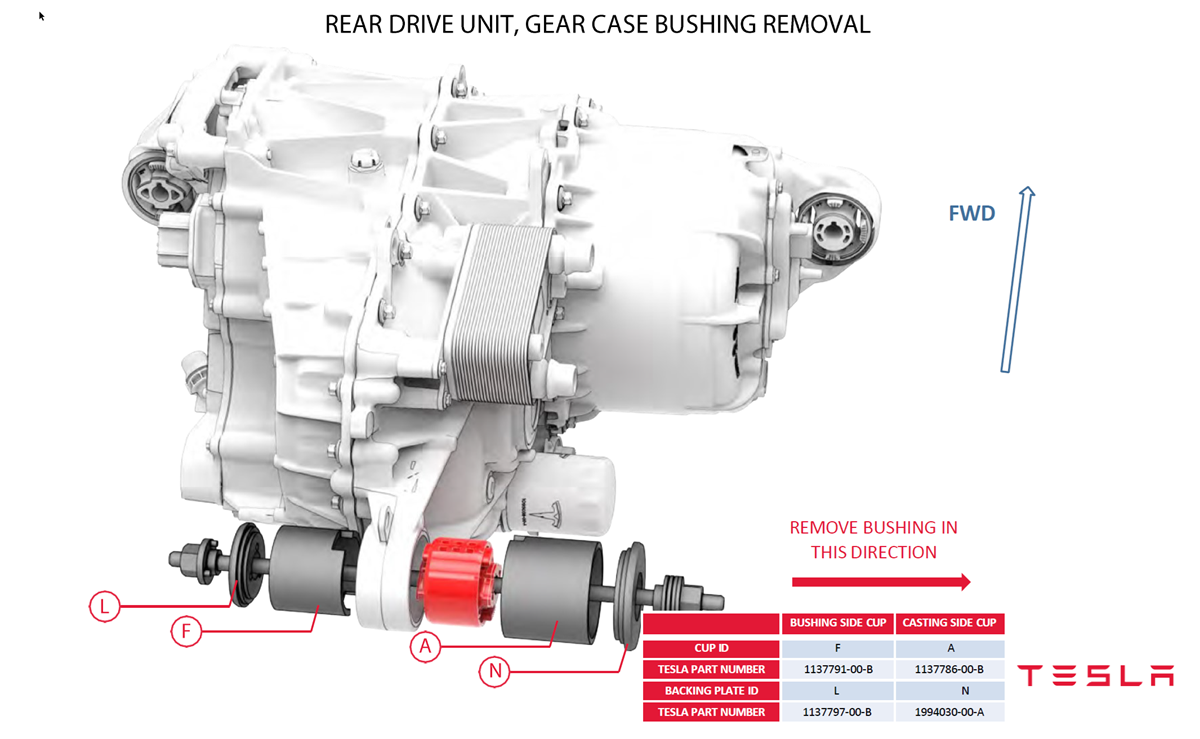

  2. Install the drive unit bushing tool onto the rear bushing.
    Informational PurposesAn informational icon, calling your attention
    Note
    Mark the position of the old bushing on the rear drive unit body before removal, so that the exact position of the new bushing is known upon installation.
  3. Turn the nut on the thrust washer to remove the bushing from the drive unit.
  4. Separate the bushing tool, and then remove it from the drive unit.
  5. Install the bushing removal tool on the RH bushing.
    Informational PurposesAn informational icon, calling your attention
    Note
    Use cups "A", "C", and "D" when assembling the special tool, as shown.
  6. Turn the bearing-side bushing removal tool nut with a wrench while holding the other nut in place.
  7. When the bushing has been pushed out of the drive unit, separate the bushing removal tool, and then remove it from the drive unit.
  8. Remove the bolts that attach the LH mount to the rear drive unit, and remove the mount from the rear drive unit.

Install

  1. Install the bolts that attach the LH mount to the rear drive unit (torque 35 Nm +55 deg).
  2. Install the bushing removal tool on the RH bushing.
    Informational PurposesAn informational icon, calling your attention
    Note
    Use cups "A", "C", and "D" when assembling the special tool, as shown.
  3. Turn the bearing-side bushing installation tool nut with a wrench while holding the other nut in place.
  4. Set up the bushing tool to press in the new bushing.
  5. Turn the nut on the thrust washer to press the new bushing into the drive unit.
  6. Separate the bushing tool, and then remove it from the drive unit.
  7. Install the rear drive unit. See Drive Unit - Rear (3DU) (Remove and Install).
  8. Refer to the Alignment Requirement tables to determine whether an EPAS alignment check (EC) or four wheel alignment check (AC) is necessary. If performed, add the alignment check/adjust as a separate activity. See Alignment Requirement - Suspension.
