Cover - Front - Seat Track - 1st Row Seat (Remove and Replace)
Correction code
13011812
0.06
NOTE: Unless otherwise explicitly
stated in the procedure, the above correction code and FRT reflect all of the work
required to perform this procedure, including the linked procedures. Do not stack correction codes unless
explicitly told to do so.
NOTE: See Flat Rate
Times to learn more about FRTs and how they are created. To provide feedback on
FRT values, email ServiceManualFeedback@tesla.com.
NOTE: See Personal Protection to make sure wearing proper PPE when
performing the below procedure. See Ergonomic Precautions for safe and healthy working practices.
Remove
- Move the seat fully rearward.
-

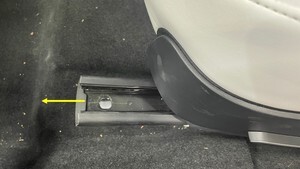

Release the clips at the
rear of the seat track front cover that attach the cover to the seat track,
and then slide the cover forward off the track.
Install
-
Slide the seat track front
cover rearward over the seat track, and then fasten the clips that attach
the cover to the seat track.
- Return the seat to the original position.
