Correction code 14051502 1.68 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.

1. Open both front doors
2. Lower both front windows
3. Move LH front seat backward
4. Move RH front seat backward
5. Clear DAS Calibration through UI
   Note

   Controls > Service > Camera Calibration, Select Clear Calibration, Verify calibration was cleared successfully, Wait for prompt to disappear automatically before continuing, Calibration in Progress message and progress icon will appear during the next drive cycle
6. Open hood
   Note

   Press "Open" button on the touchscreen to release the latch, Lift the lid manually
7. Remove rear apron
   Note

   12x clips, Only store rear apron visible face upwards







8. Remove cabin intake upper duct assembly
   Note

   4x clips, Heat pump vehicles have 3x clips





9. Remove closeout panel from frunk assembly
   Note

   4x clips, 1x connector, Frunk safety switch, 3x guide tabs, Grab closeout panel from bottom then pull it upward to release clips, Disconnect the switch





10. Remove frunk assembly carpet



11. Remove bolts securing frunk assembly
    Note

    7x bolts, 10mm, 5 Nm, Lift up RBN covers to access upper fasteners, Newer vehicles may not be equipped with covers



12. Remove frunk assembly from vehicle
    Note

    12x clips, Replace any clips if broken or missing, Number of clips may vary on older vehicles







13. Remove LH wiper arm nut cover
    Note

    1x cover



14. Disconnect washer hose from LH wiper arm to Y-tube fitting and release washer hose clips
    Note

    2x clips, 1x hose





15. Remove the nut securing the LH wiper arm to wiper module
    Note

    1x nut, 15mm, 25 Nm



16. Remove LH wiper arm and hose assembly from vehicle



17. Remove RH wiper arm nut cover
    Note

    1x cover



18. Disconnect washer hose from RH wiper arm to Y-tube fitting and release washer hose clips
    Note

    2x clips, 1x hose





19. Remove the nut securing the RH wiper arm to wiper module
    Note

    1x nut, 15mm, 25 Nm



20. Remove RH wiper arm and hose assembly from vehicle



21. Remove the LH shock tower cover
    Note

    2x push clips



22. Remove the RH shock tower cover
    Note

    2x push clips

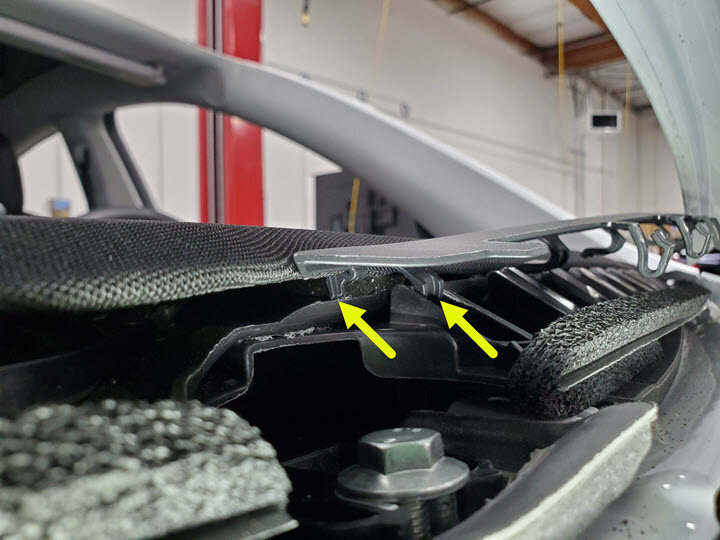

23. Release cowl screen from windshield and remove from vehicle
    Note

    2x push clips, 6x clips

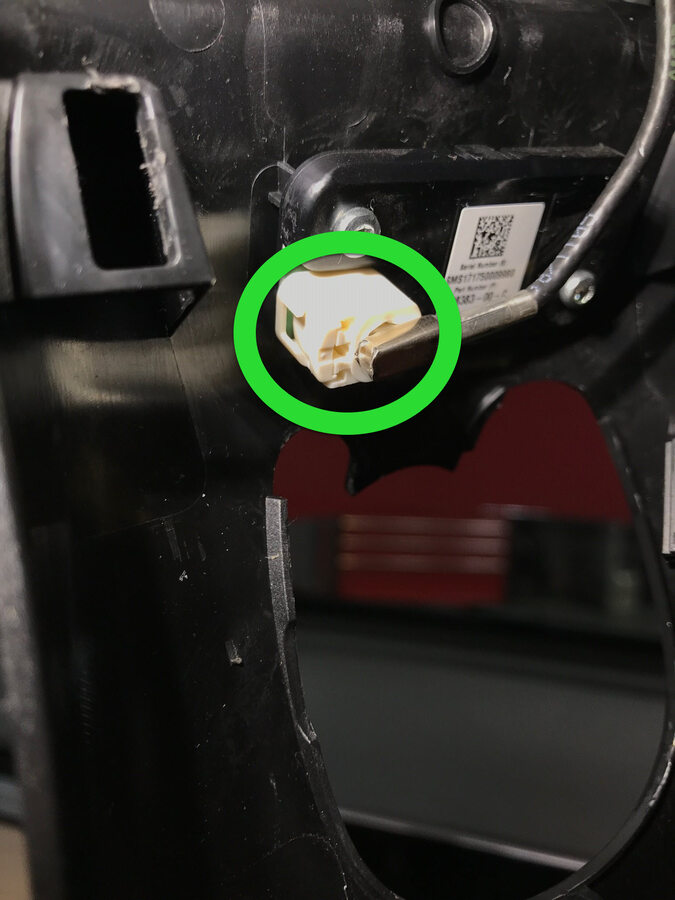

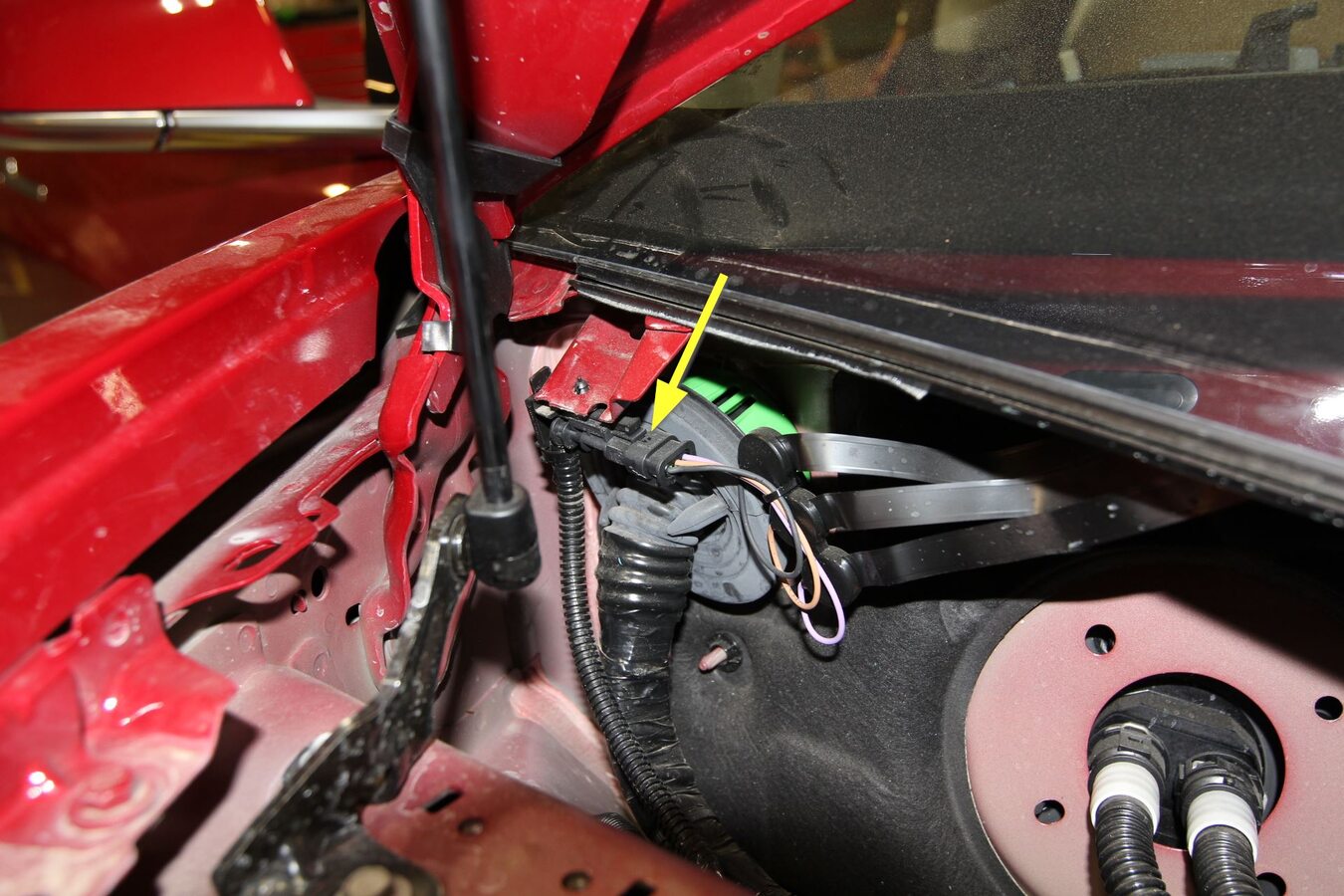

24. Disconnect windshield heater connector
    Note

    1x connector

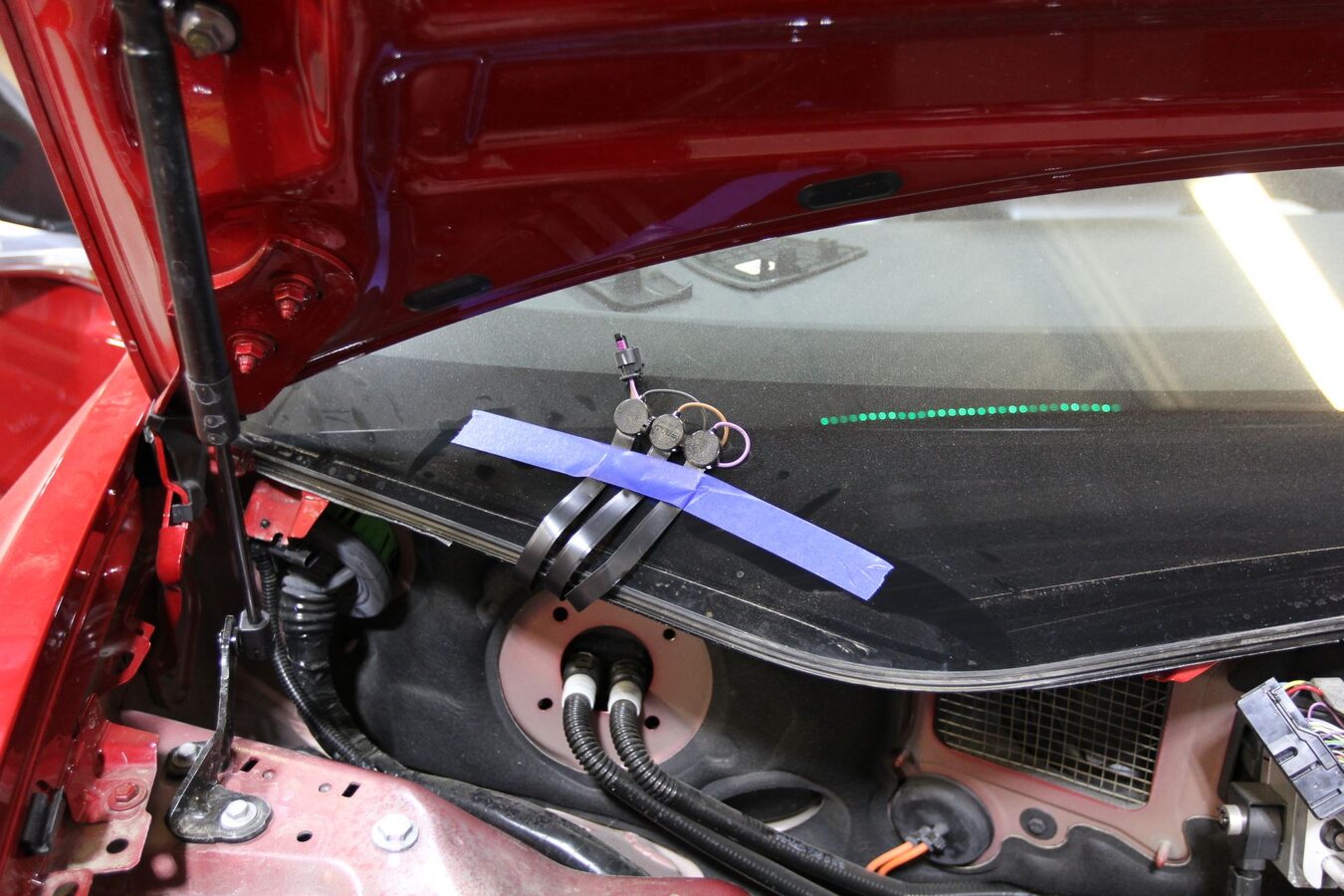

25. Secure heater harness onto windshield

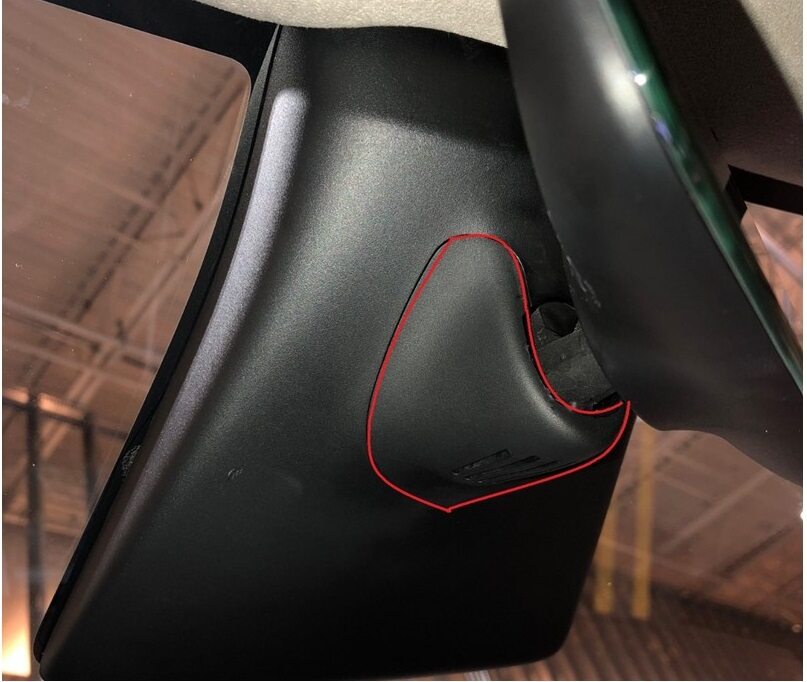

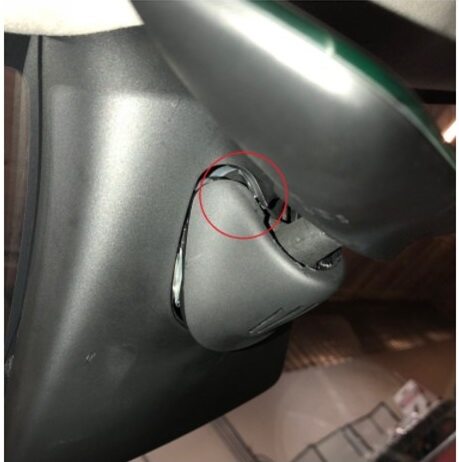

26. Remove lower quad camera cover
    Note

    4x tabs, Press on the side of the cover with a trim tool to release some of the tabs



27. Remove tether from lower quad camera cover
    Note

    2x tabs, Depress tabs to remove tether

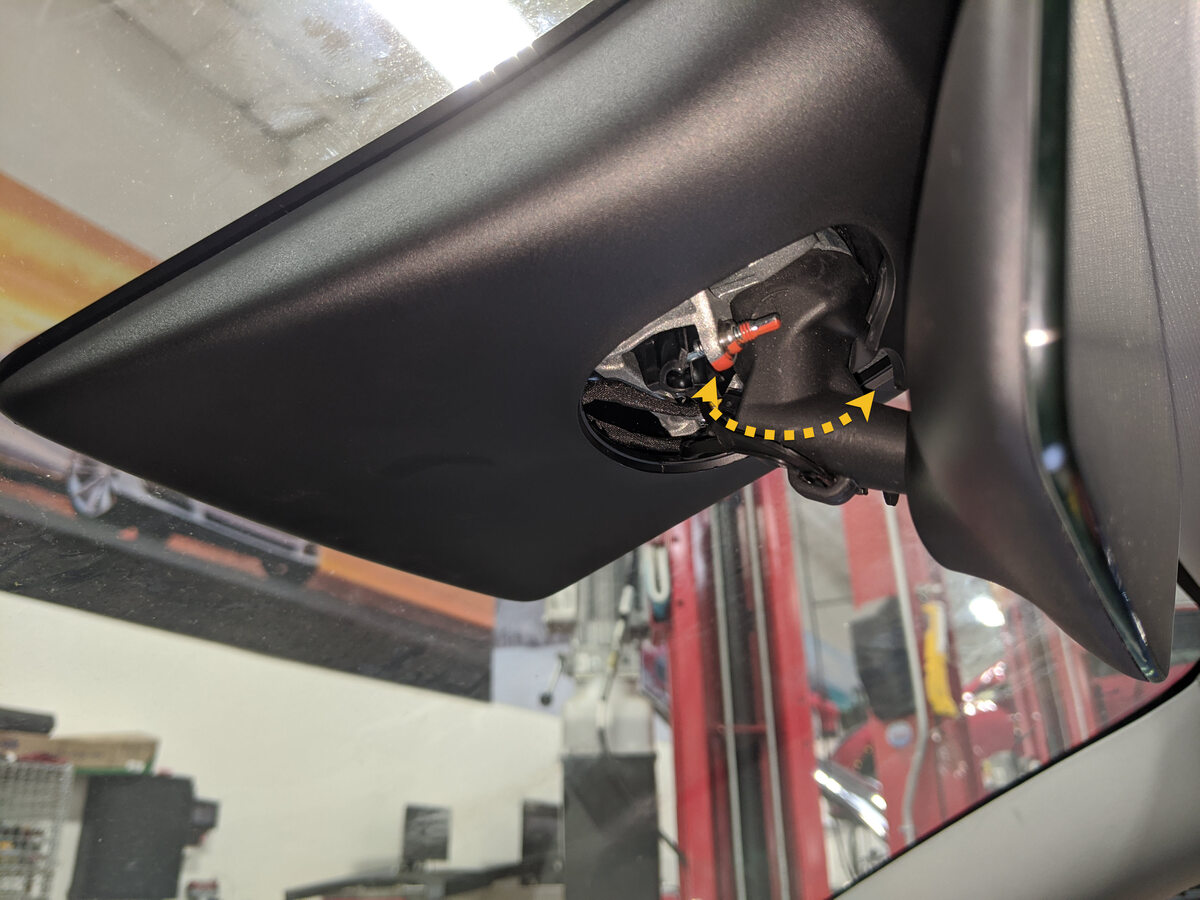

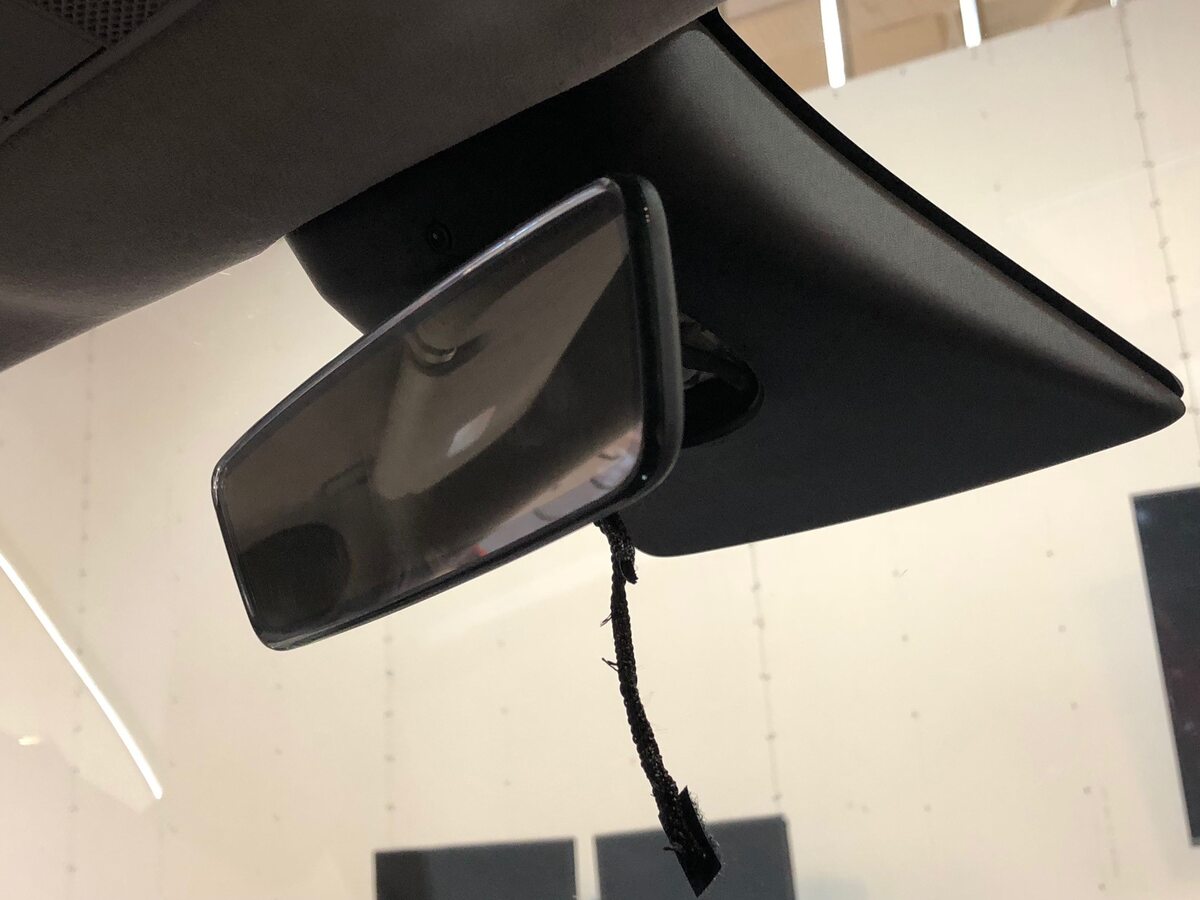

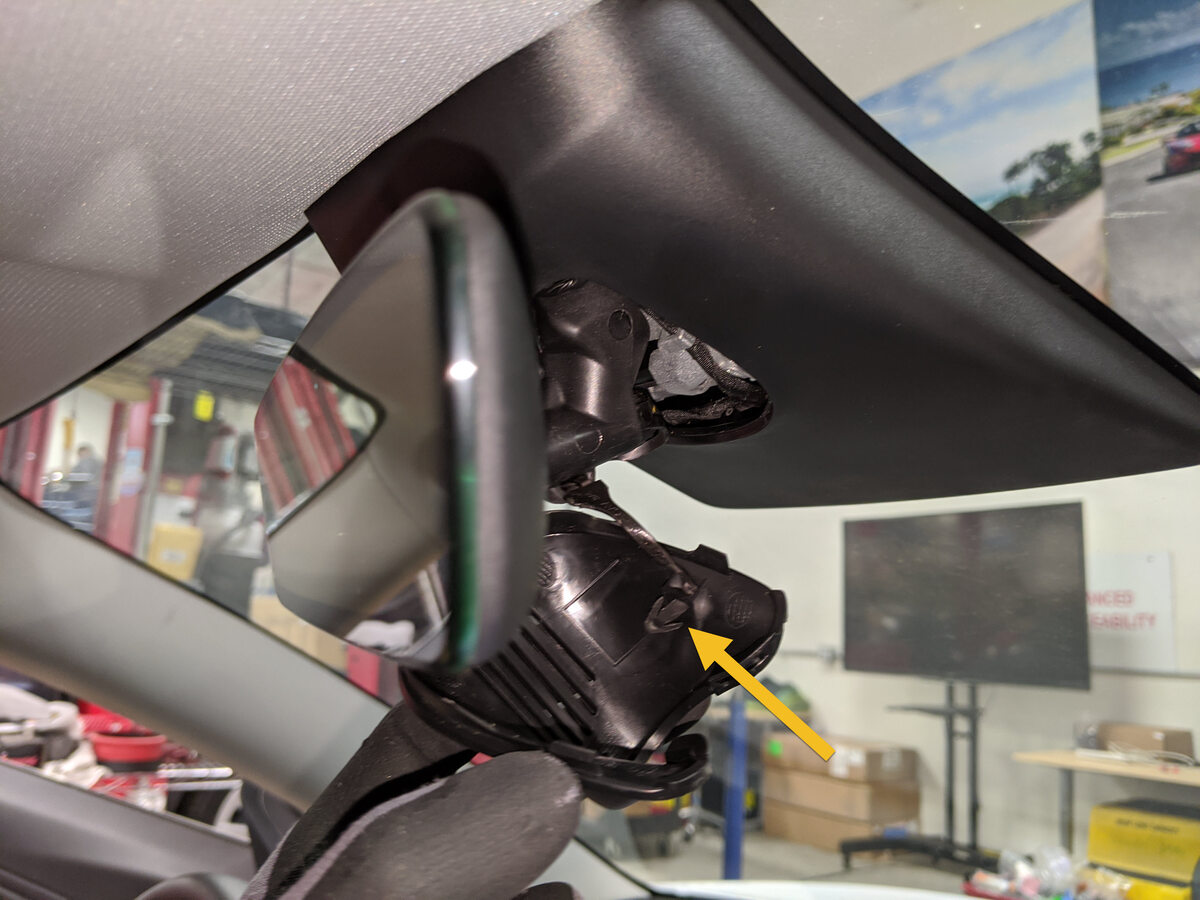

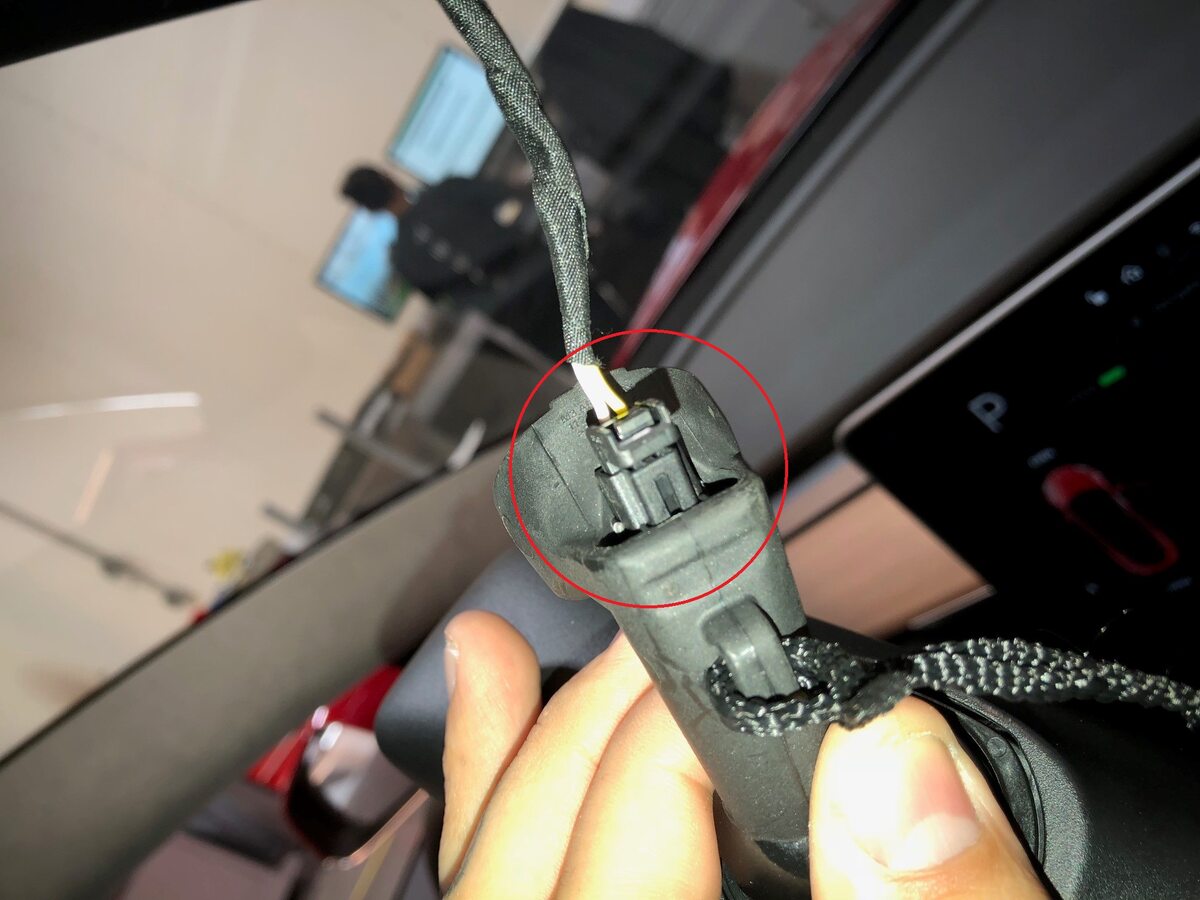

28. Remove rear view mirror
    Note

    Turn mirror counterclockwise to remove, do not twist by holding the mirror itself, it will separate from the stalk, twist from the stalk connecting the mirror to the mount





29. Disconnect rear view mirror connector
    Note

    1x connector

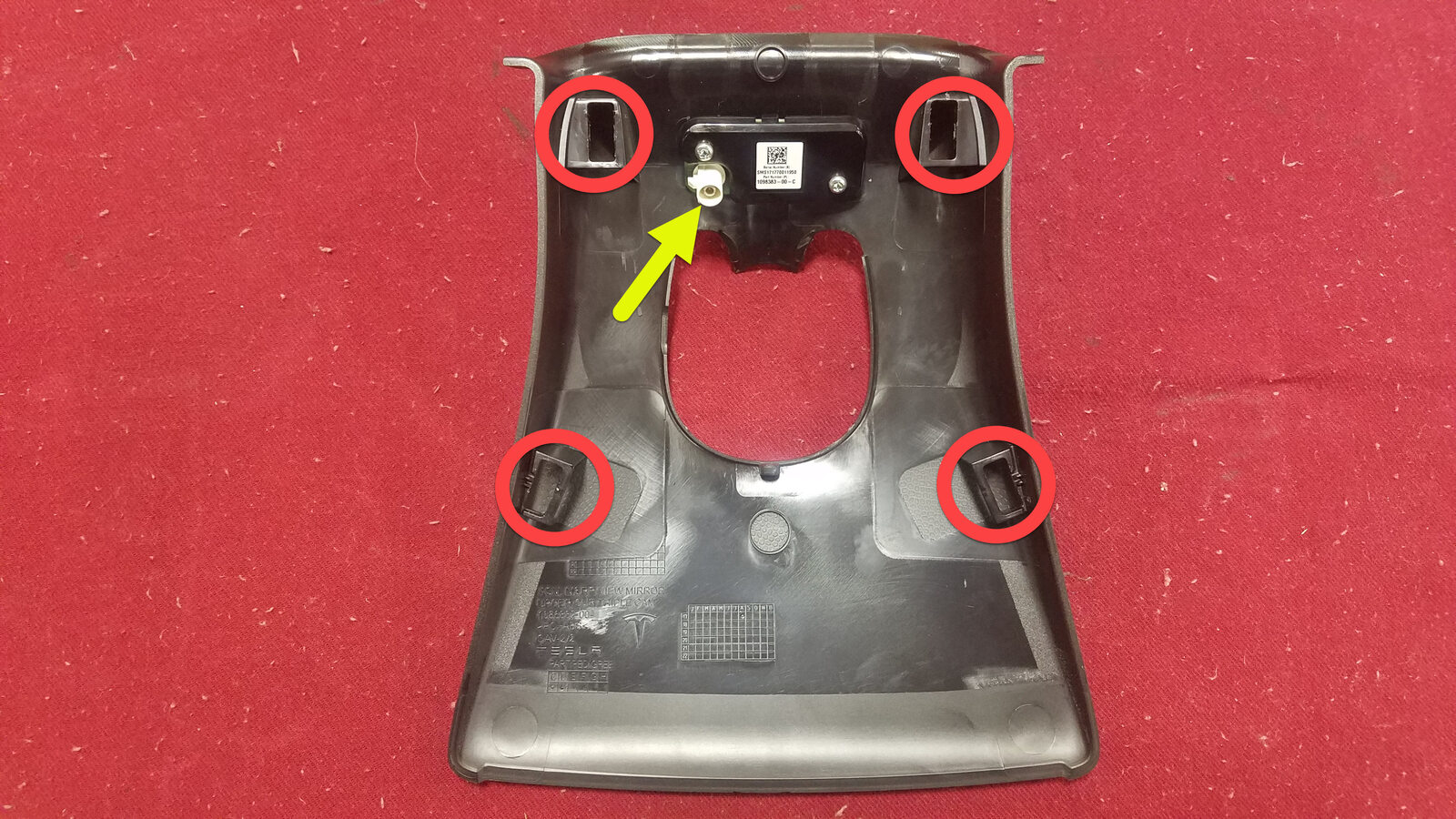

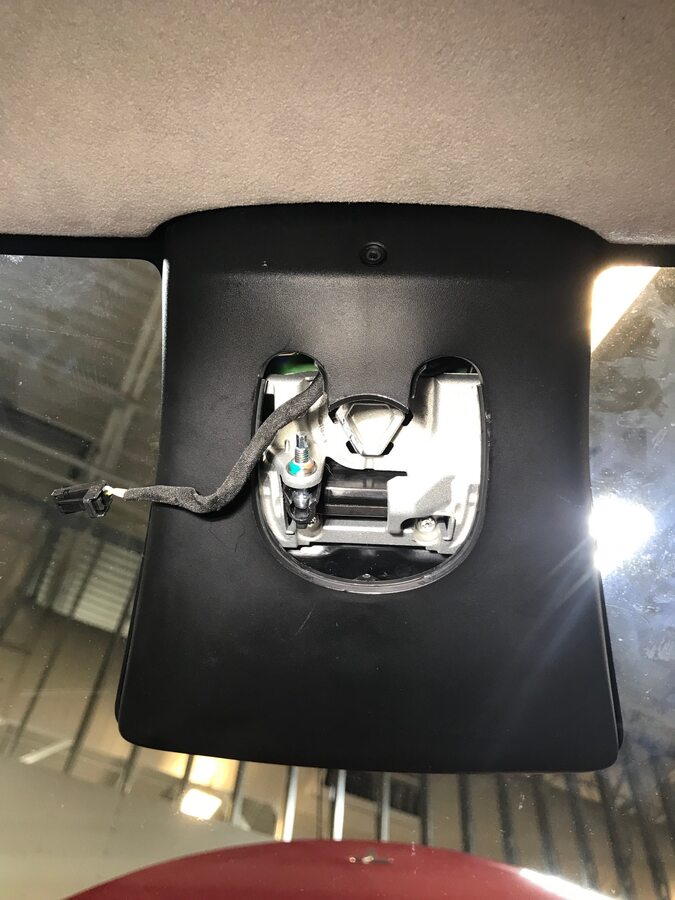

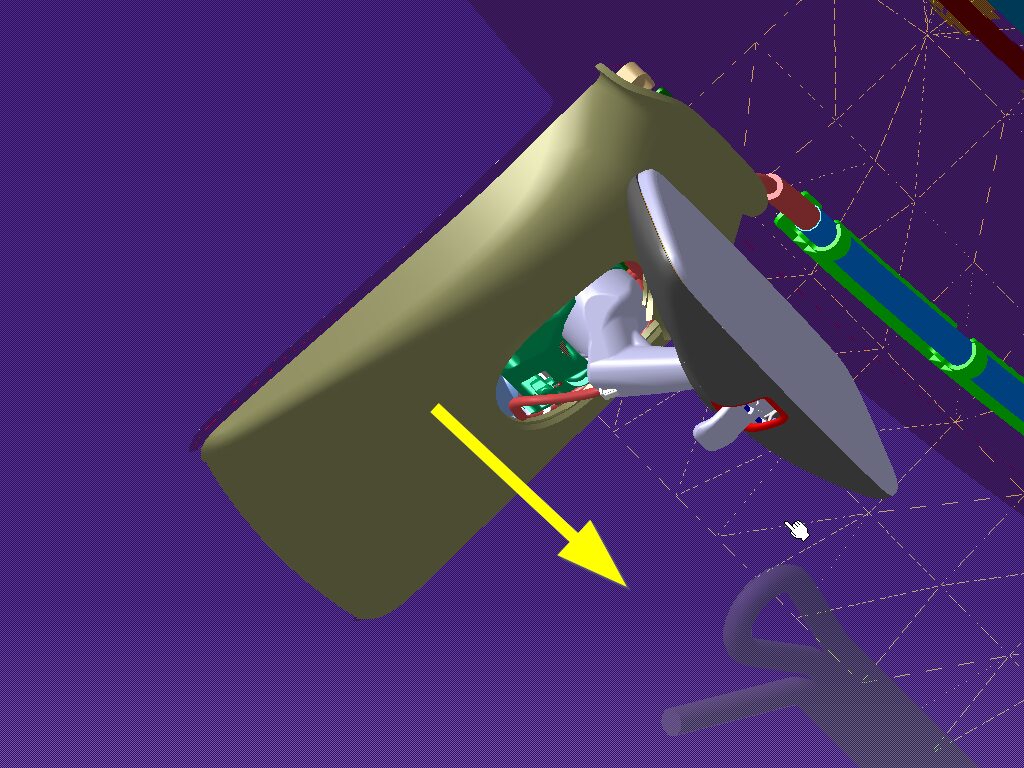

30. Remove quad camera upper cover
    Note

    4x clips, 1x connector, Pull the cover down to remove and then disconnect interior camera

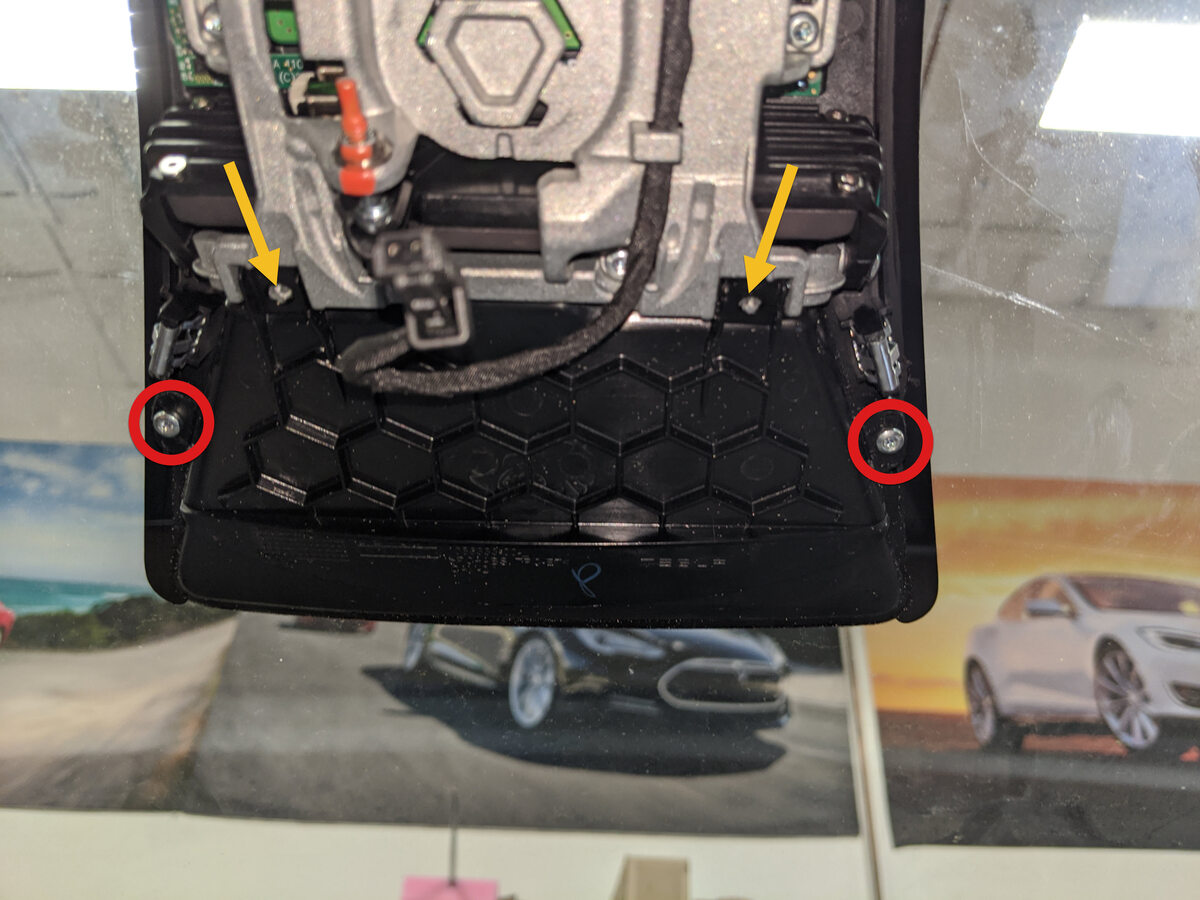

31. Remove triple camera hood
    Note

    2x patch screws, T10, 1 Nm, 2x alignment pins, Discard fasteners after removal

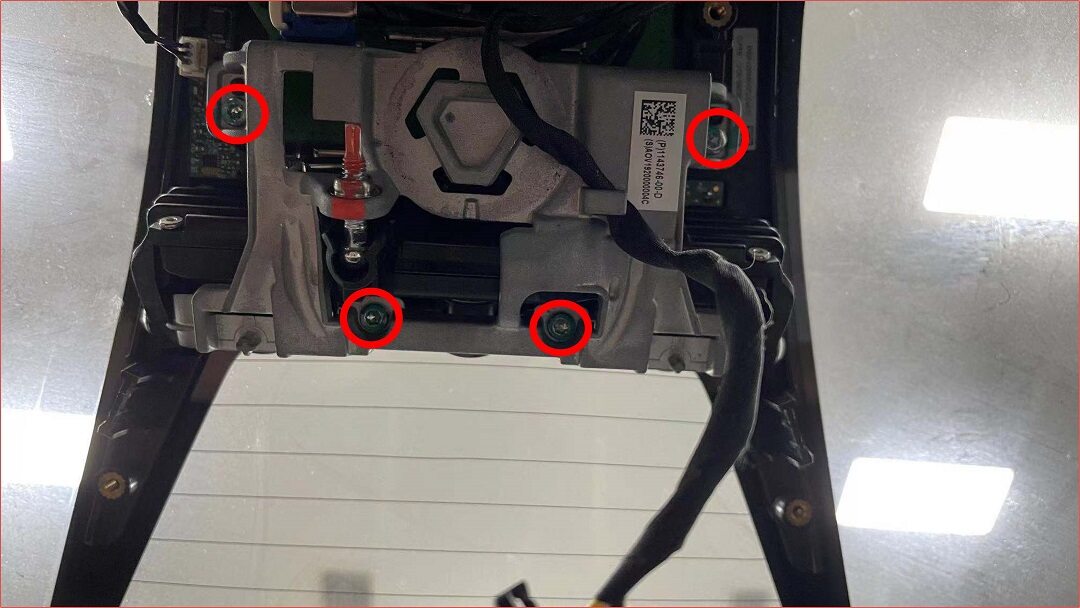

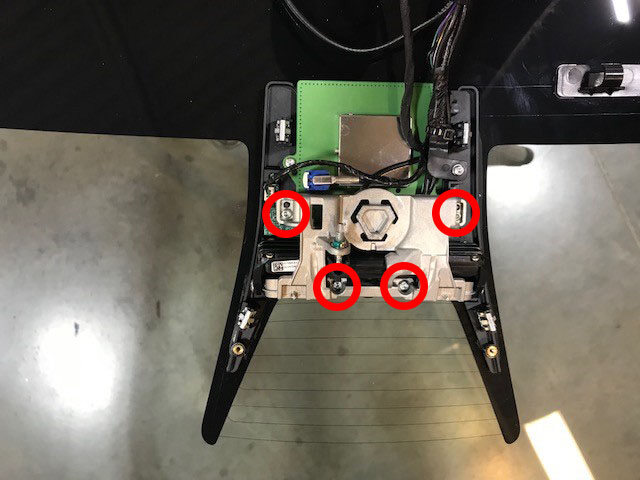

32. Remove triple camera assembly
    Note

    4x screws, T10, 1 Nm

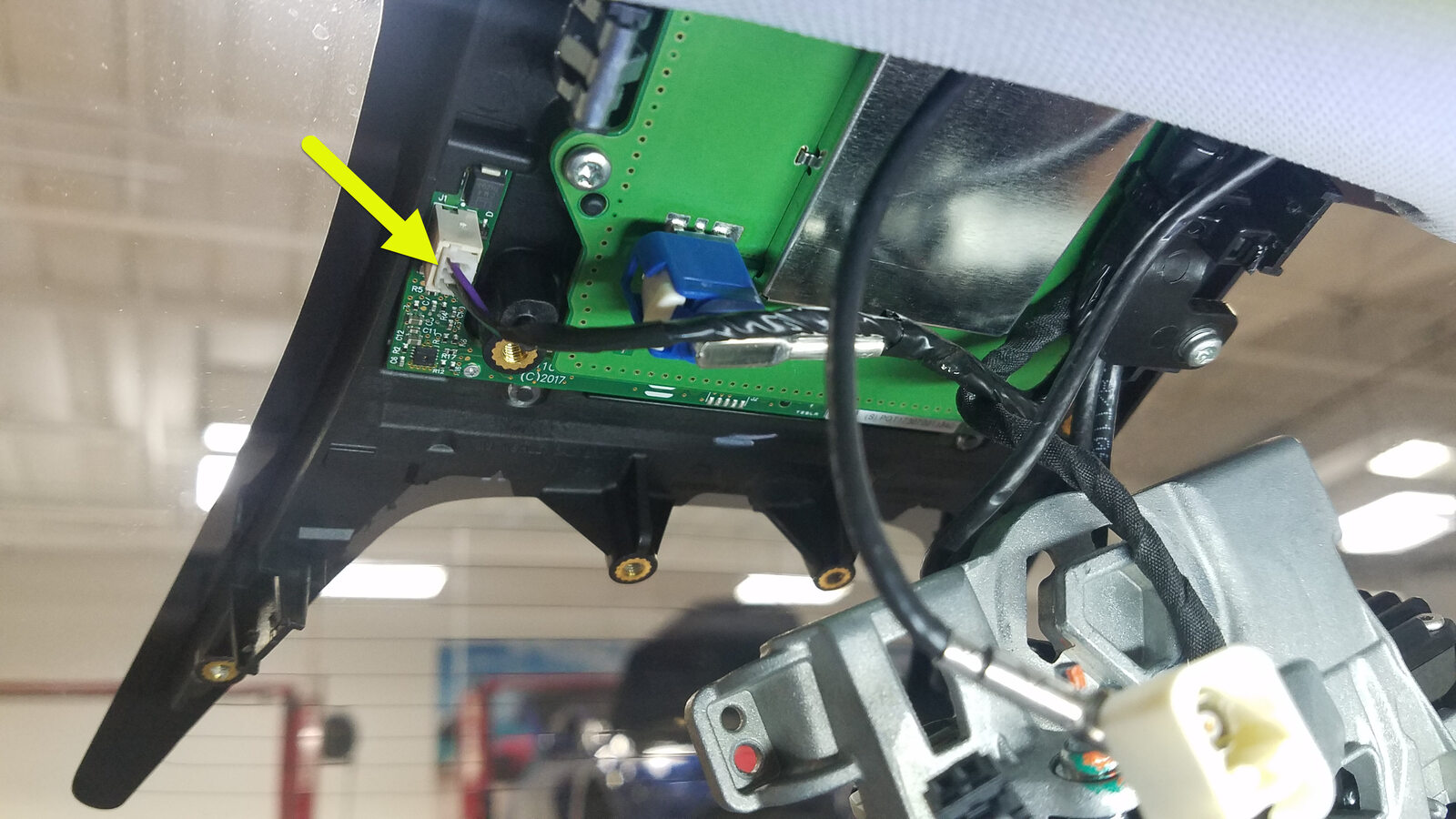

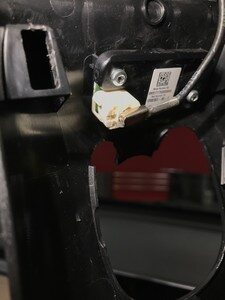

33. Disconnect humidity and temperature sensor harness connector
    Note

    1x connector

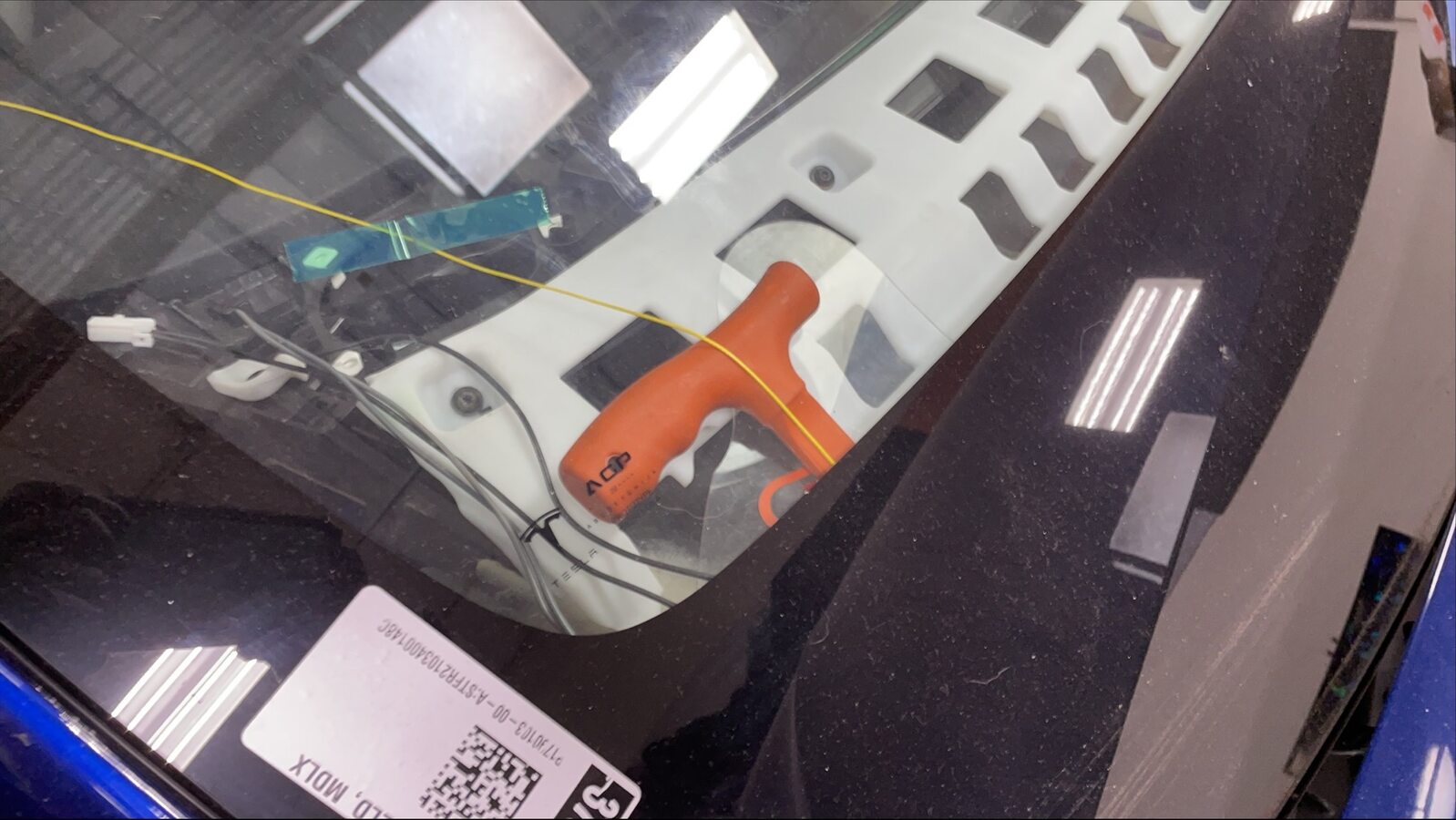

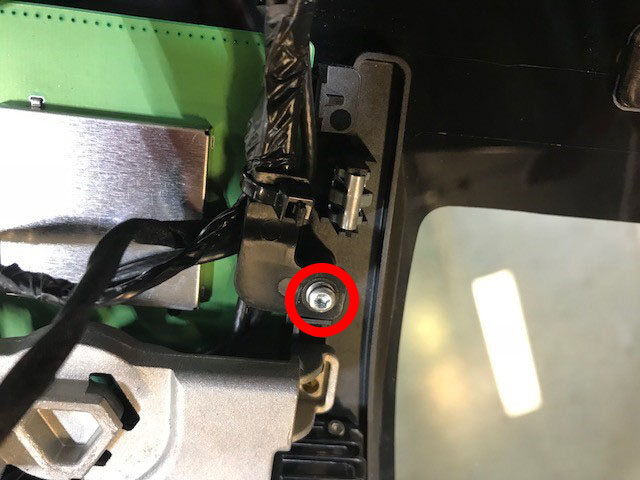

34. Remove screw securing windshield harness to windshield bracket and move harness aside
    Note

    1x screw, T10, 1 Nm

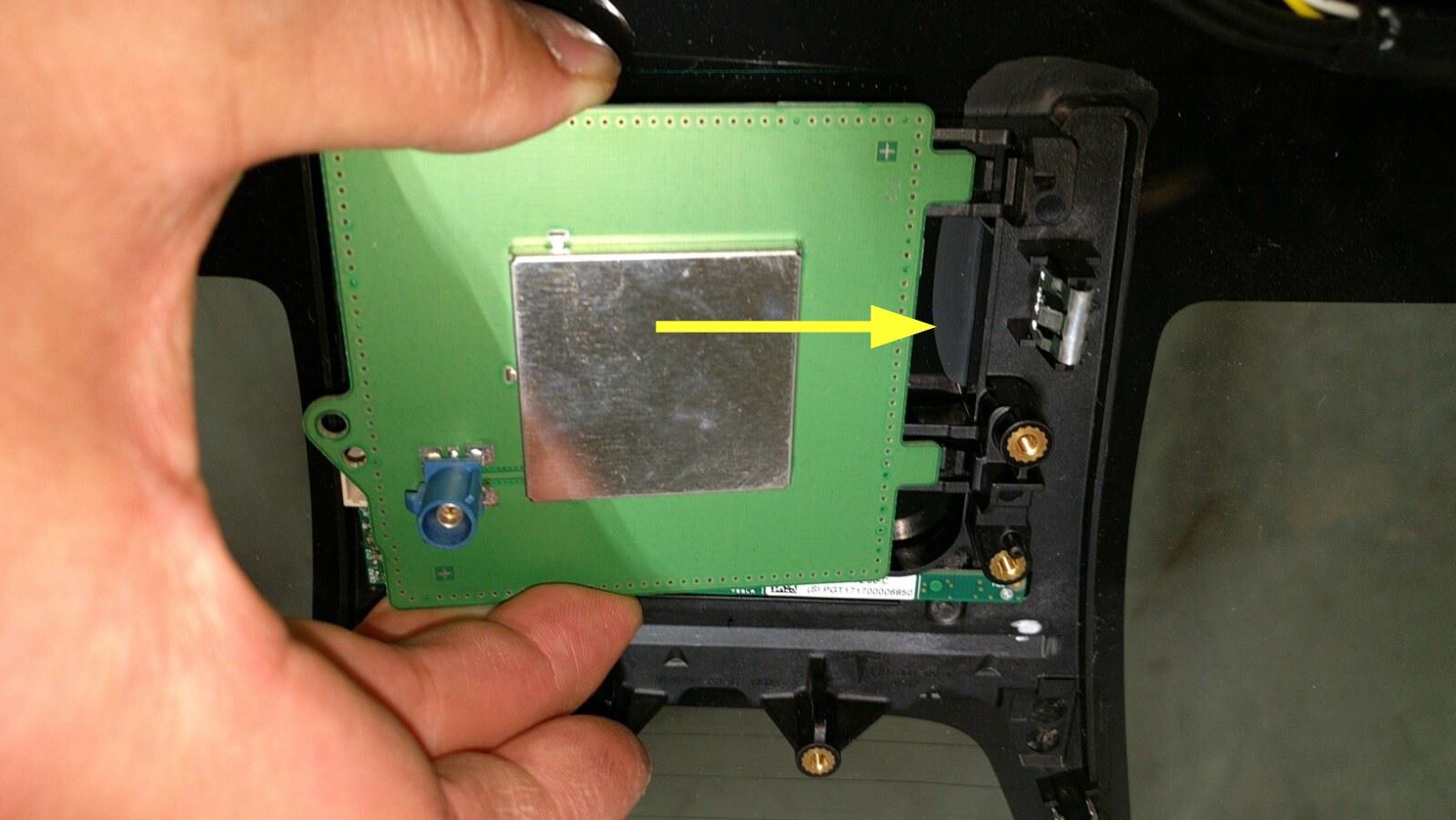

35. Remove GPS/GNSS antenna from bracket
    Note

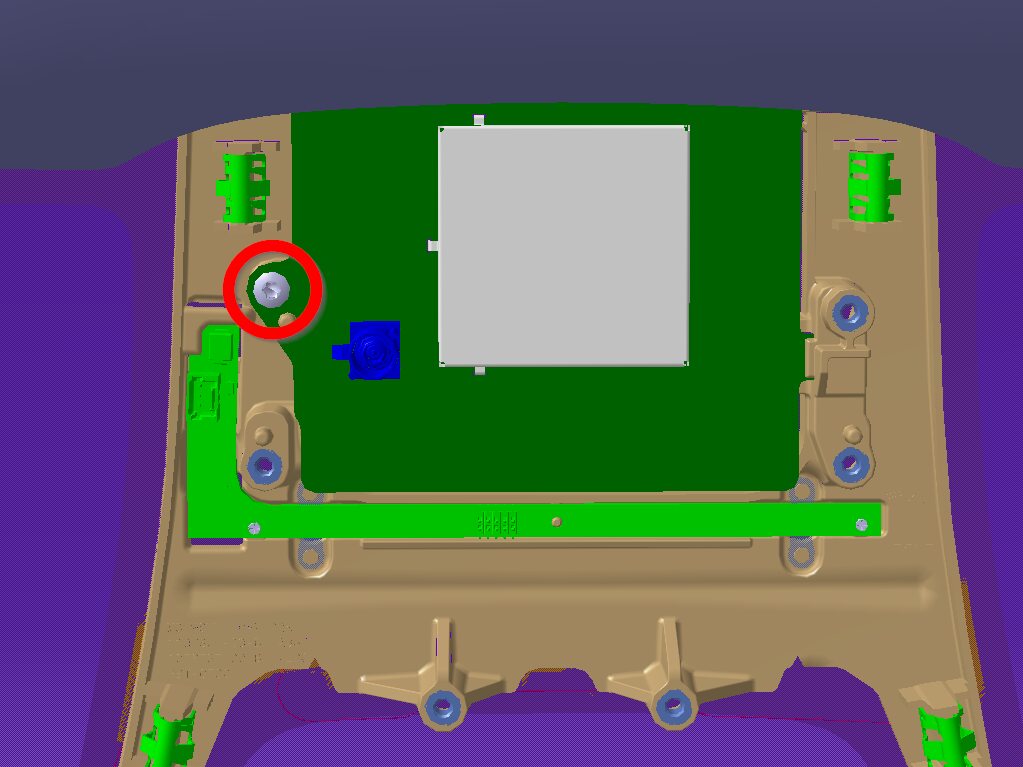

    1x screw, T10, 1 Nm, 2x tabs, Slide antenna to LH side to release from bracket

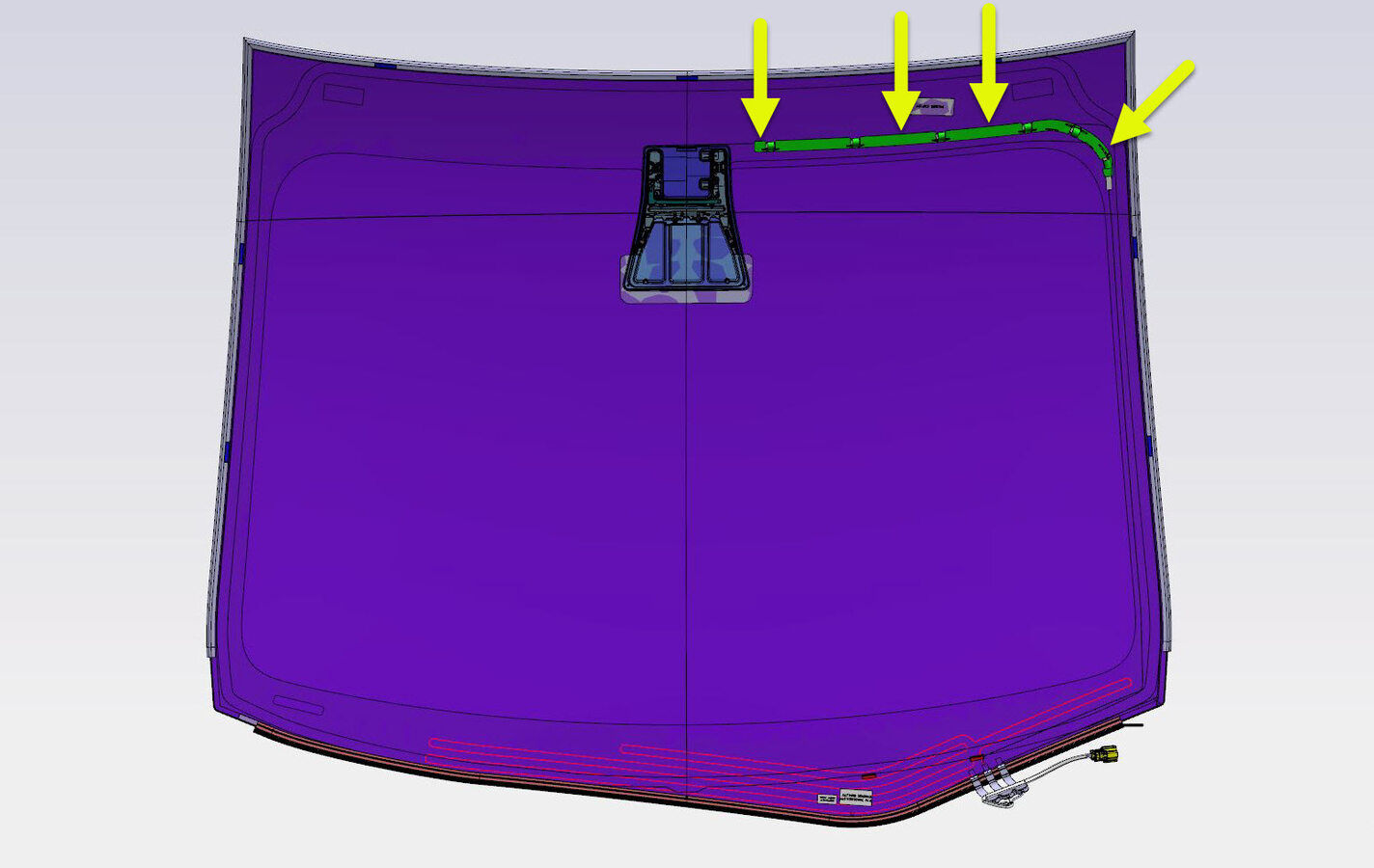

36. Separate harness track from windshield
    Note

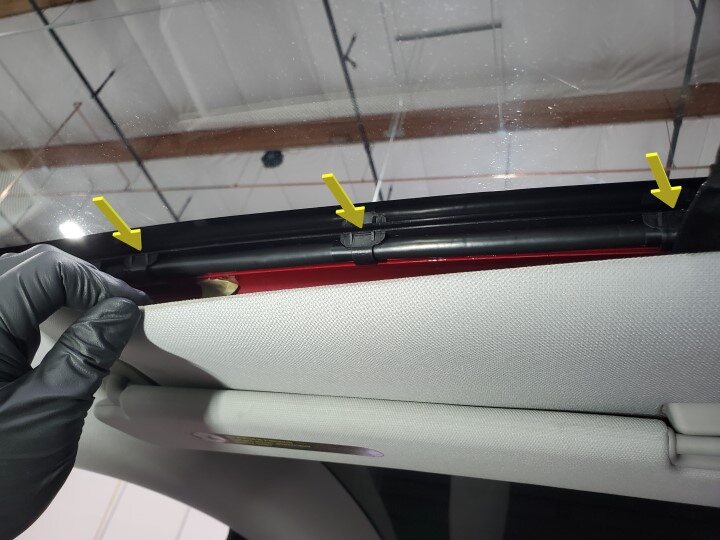

    Located above RH visor under headliner, Slide equalizer up against track and carefully tap equalizer to separate from windshield

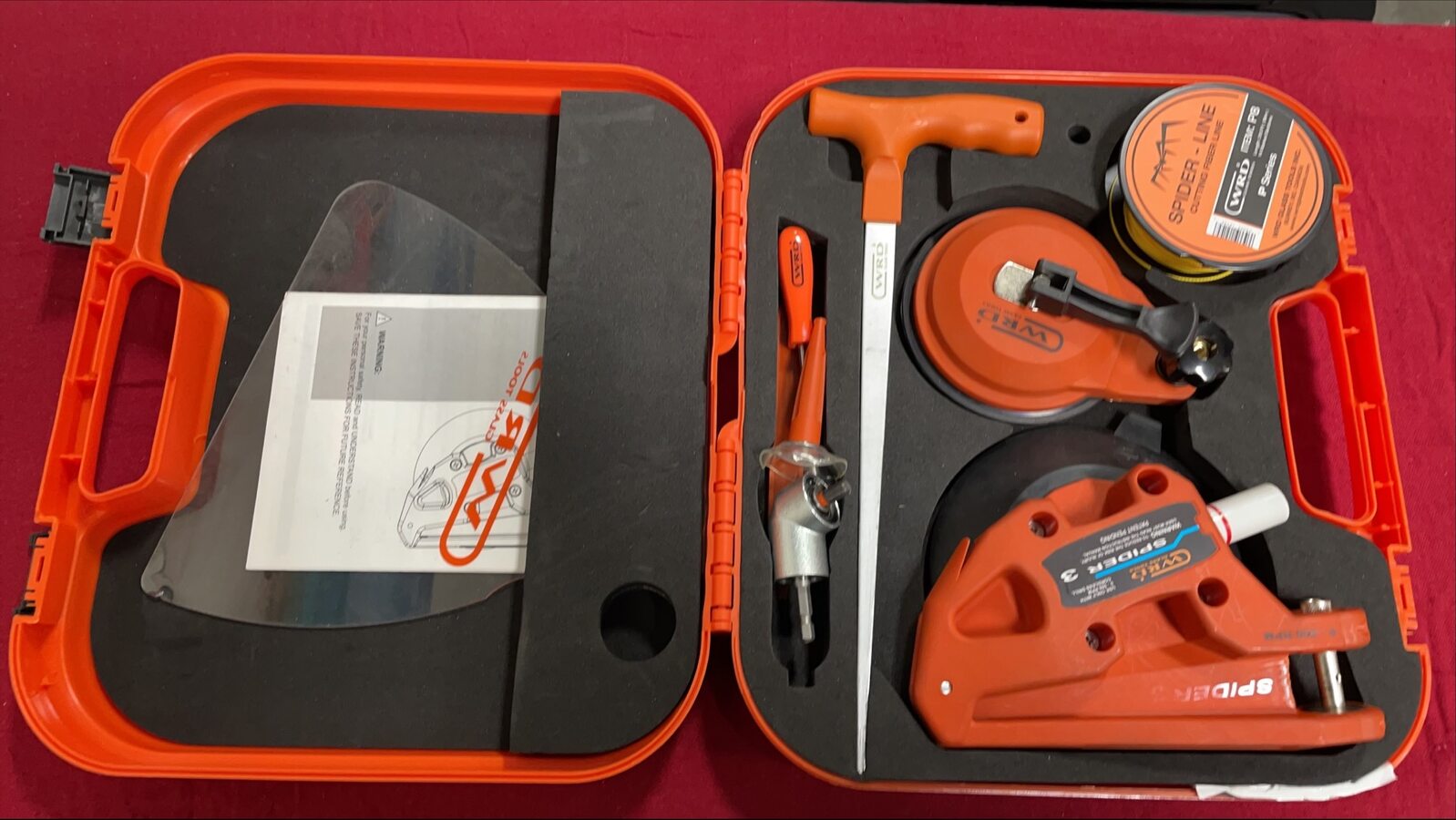

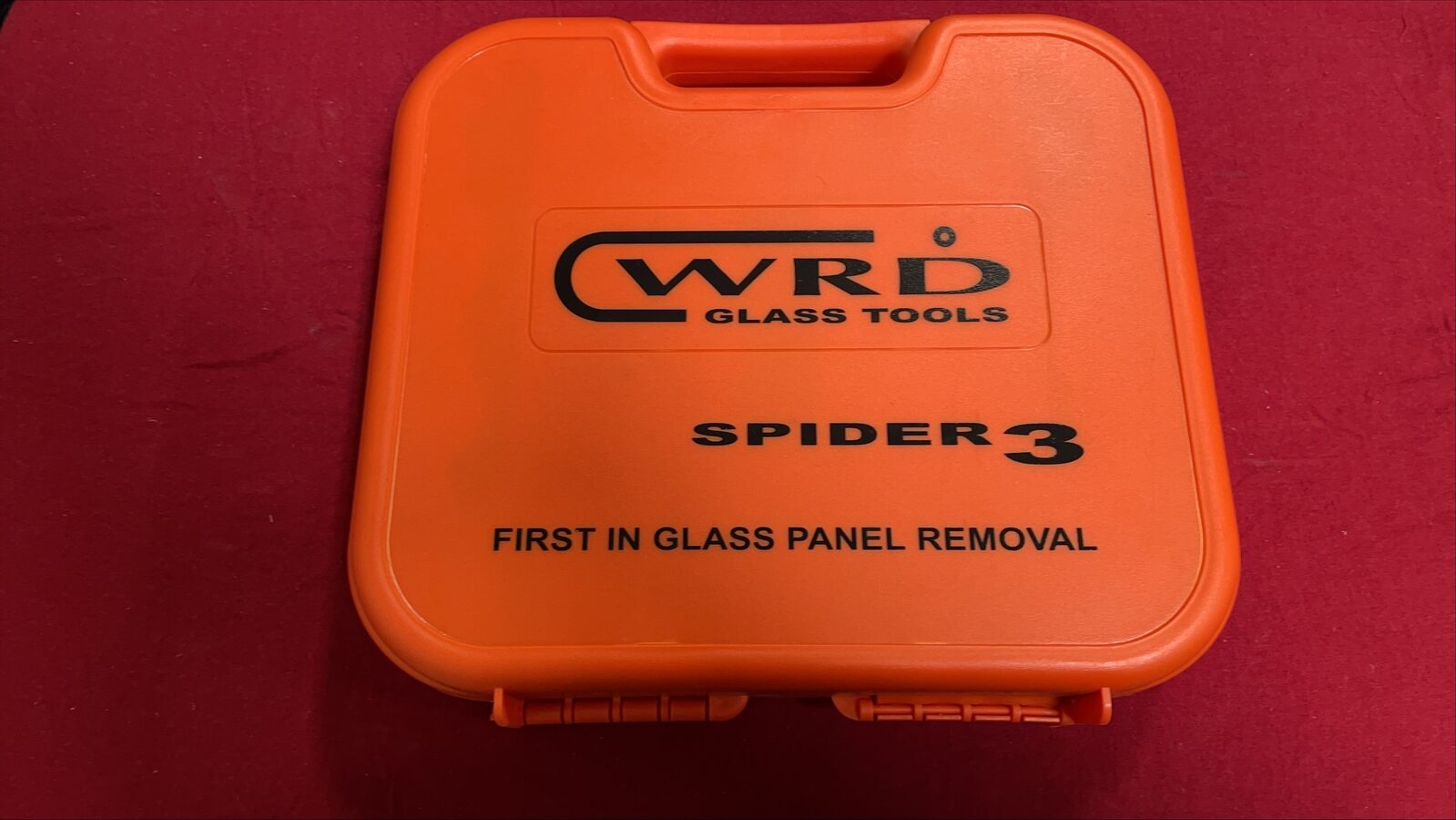

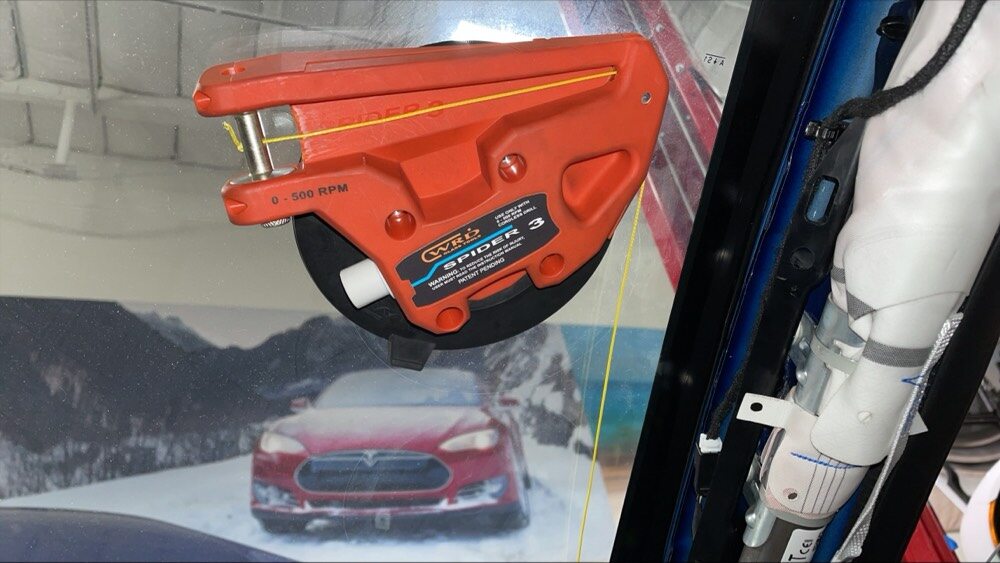

37. Prepare WRD Spider 3 glass removal kit

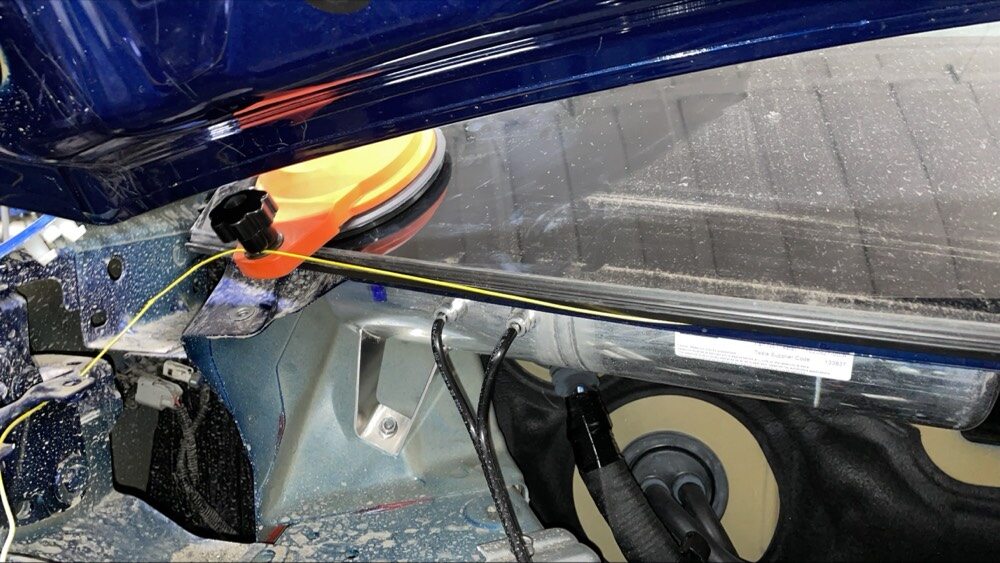

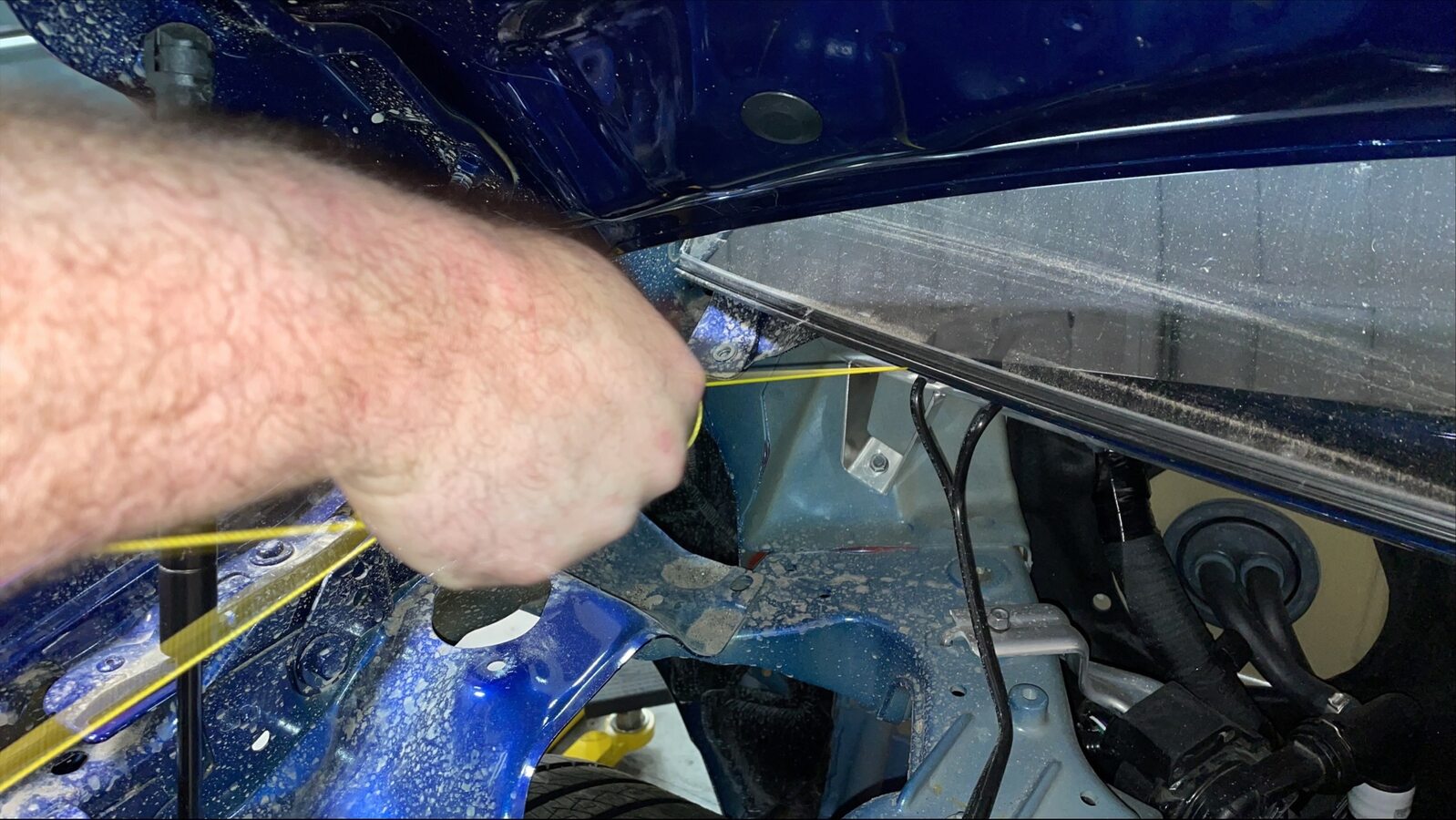

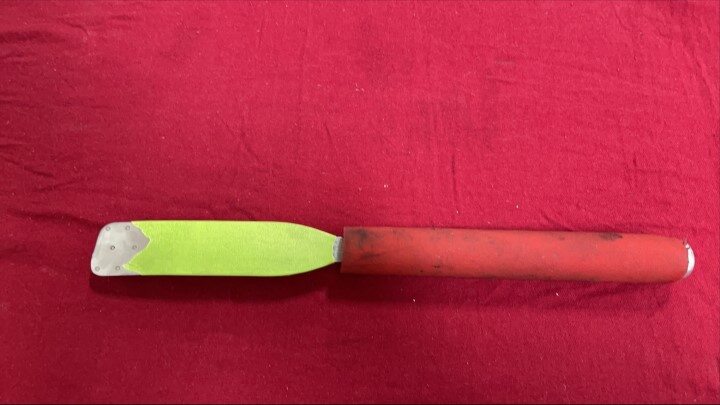

38. Secure line to starter tool and push tool through urethane at lower RH side of winshield
    Note

    Use the guard to prevent damage to dash pad while using starter tool

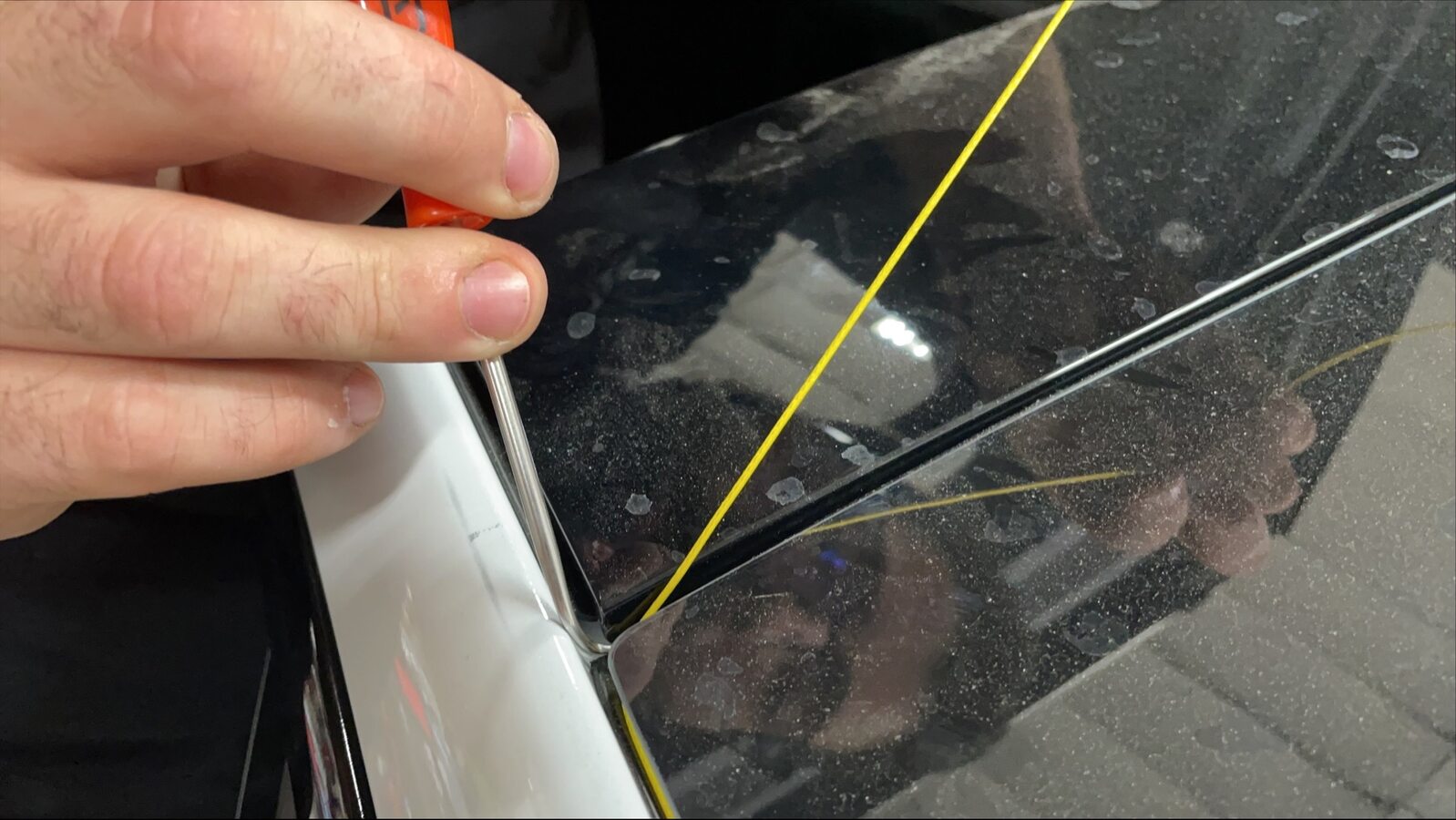

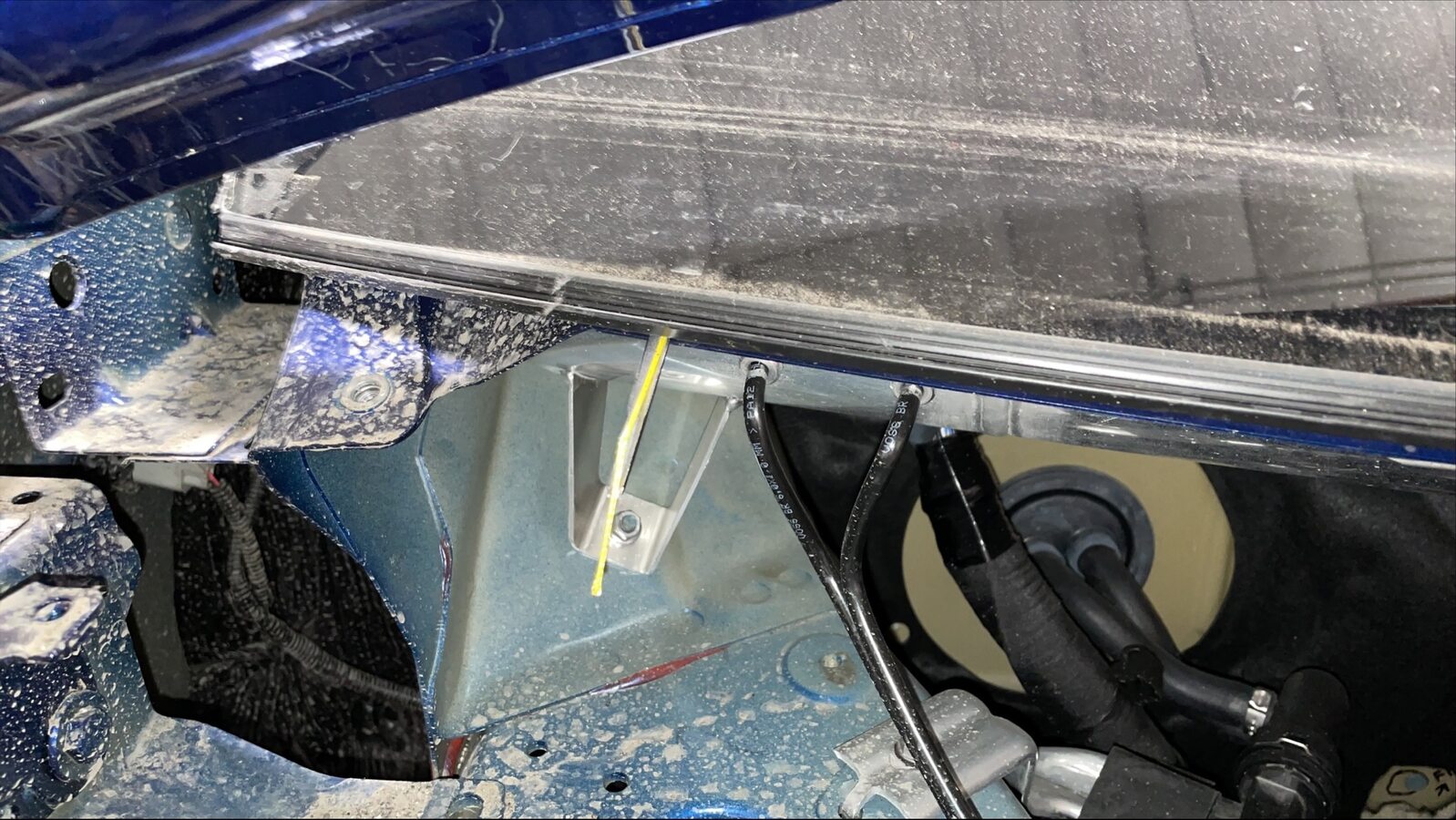

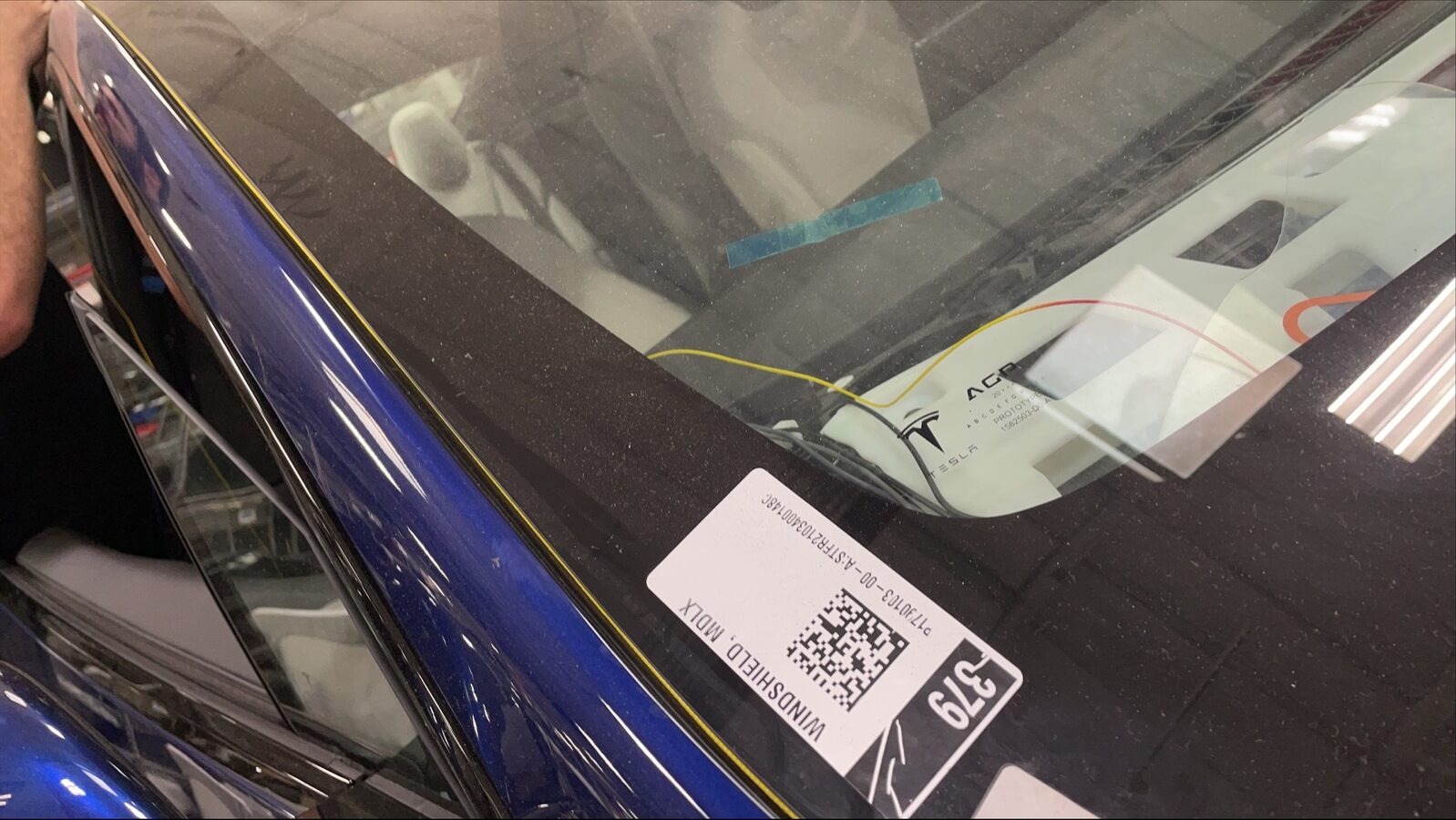

39. Release line from starter tool and wrap line around exterior of windshield
    Note

    Pull line away from starter tool, Ensure enough length is pulled through, Wrap spider line up and around the exterior of windshield, Verify the line sits underneath the glass







40. Attach anchor point to exterior of windshield and secure line
    Note

    Attach line to anchor once fully wrapped around windshield, Place anchor near starting point of the handle tool

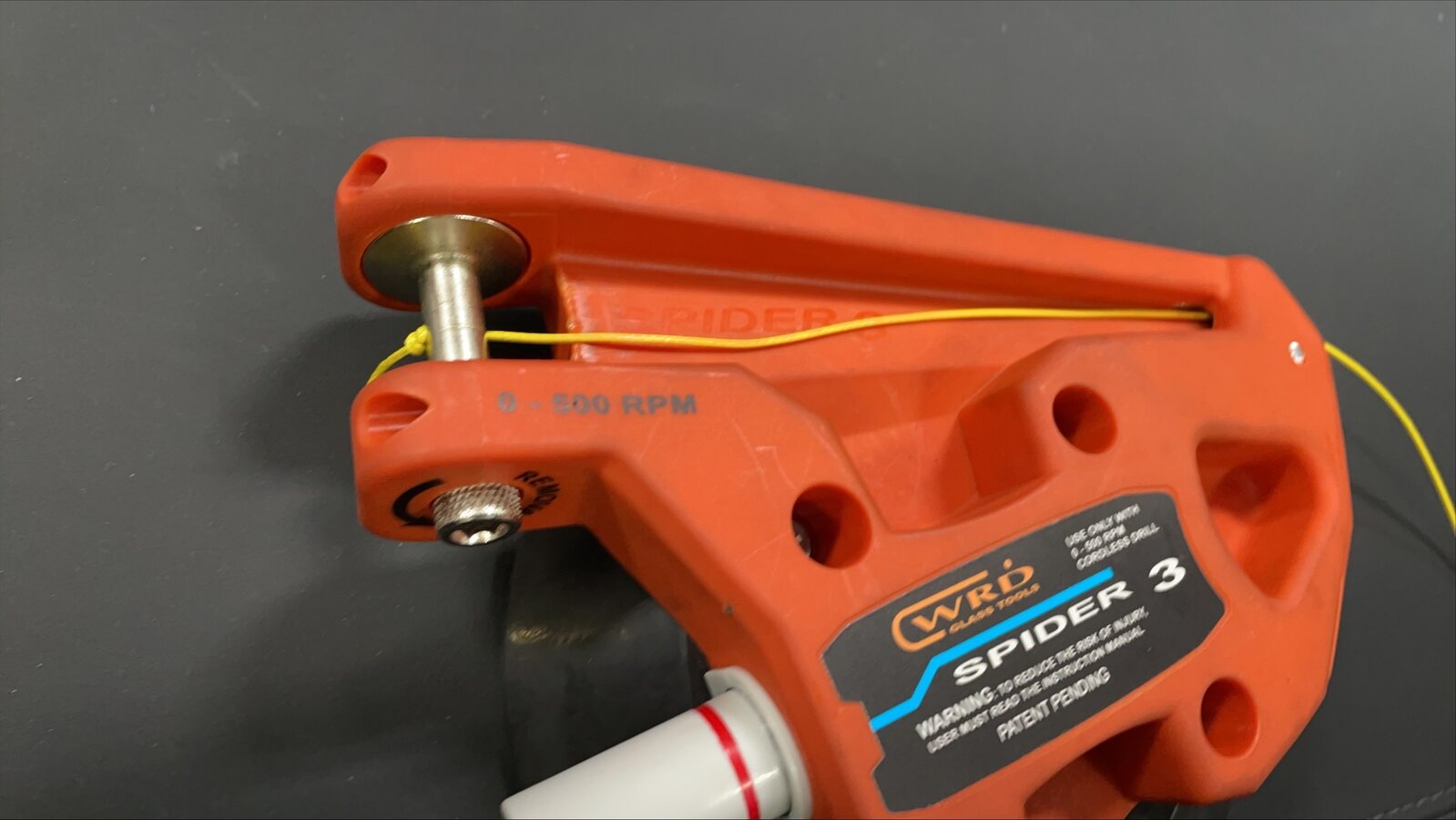

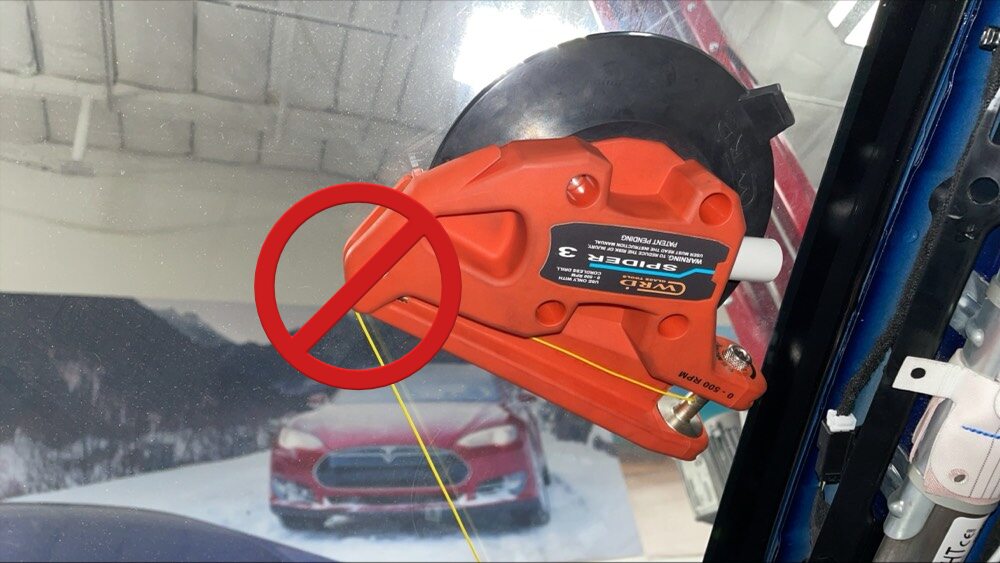

41. Secure interior side of line to the spider cutting tool
    Note

    Follow instructions on spider tool, Feed line through opening of the cutting tool and tie a knot to secure in place, If spindle is not turned the proper direction the cutting tool will be damaged





42. Secure spider cutting tool to interior side of windshield
    Note

    Note orientation of the cutting line, Make sure line warps over large pully and holds at a 90 degree angle

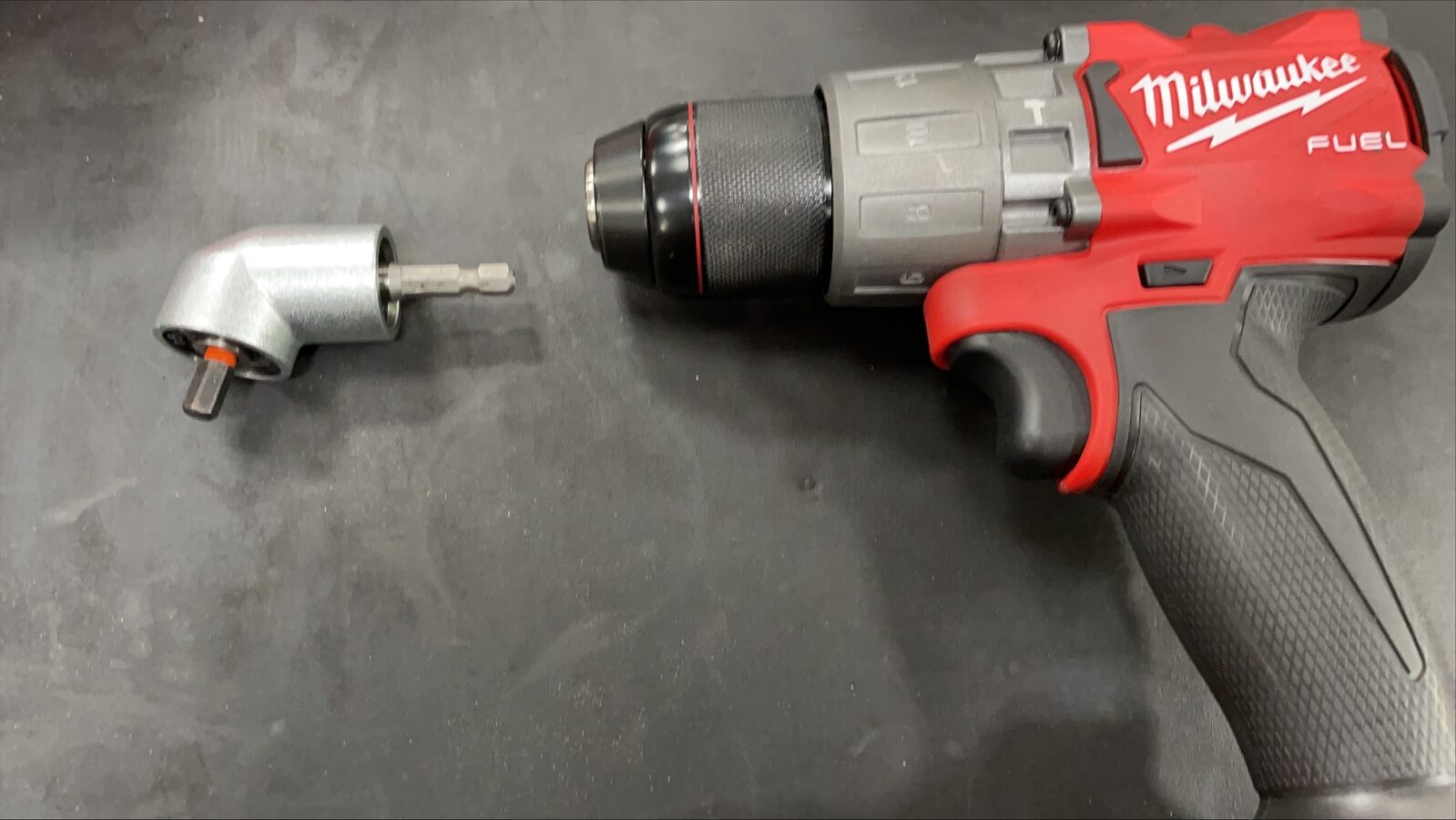

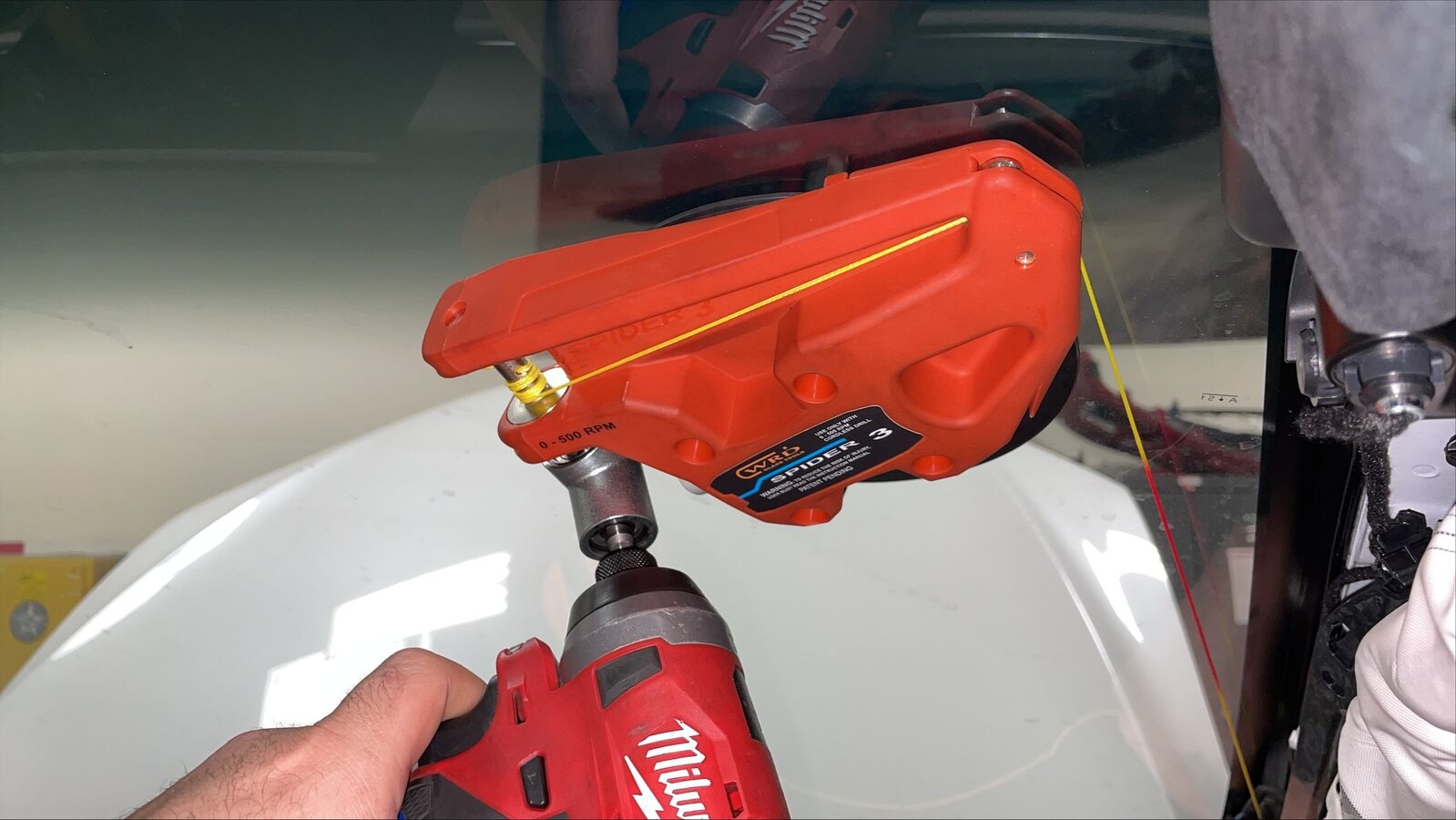

43. Secure angle driver to electric drill





44. Turn the spindle on the cutting tool with the drill to start removing the windshield
    Note

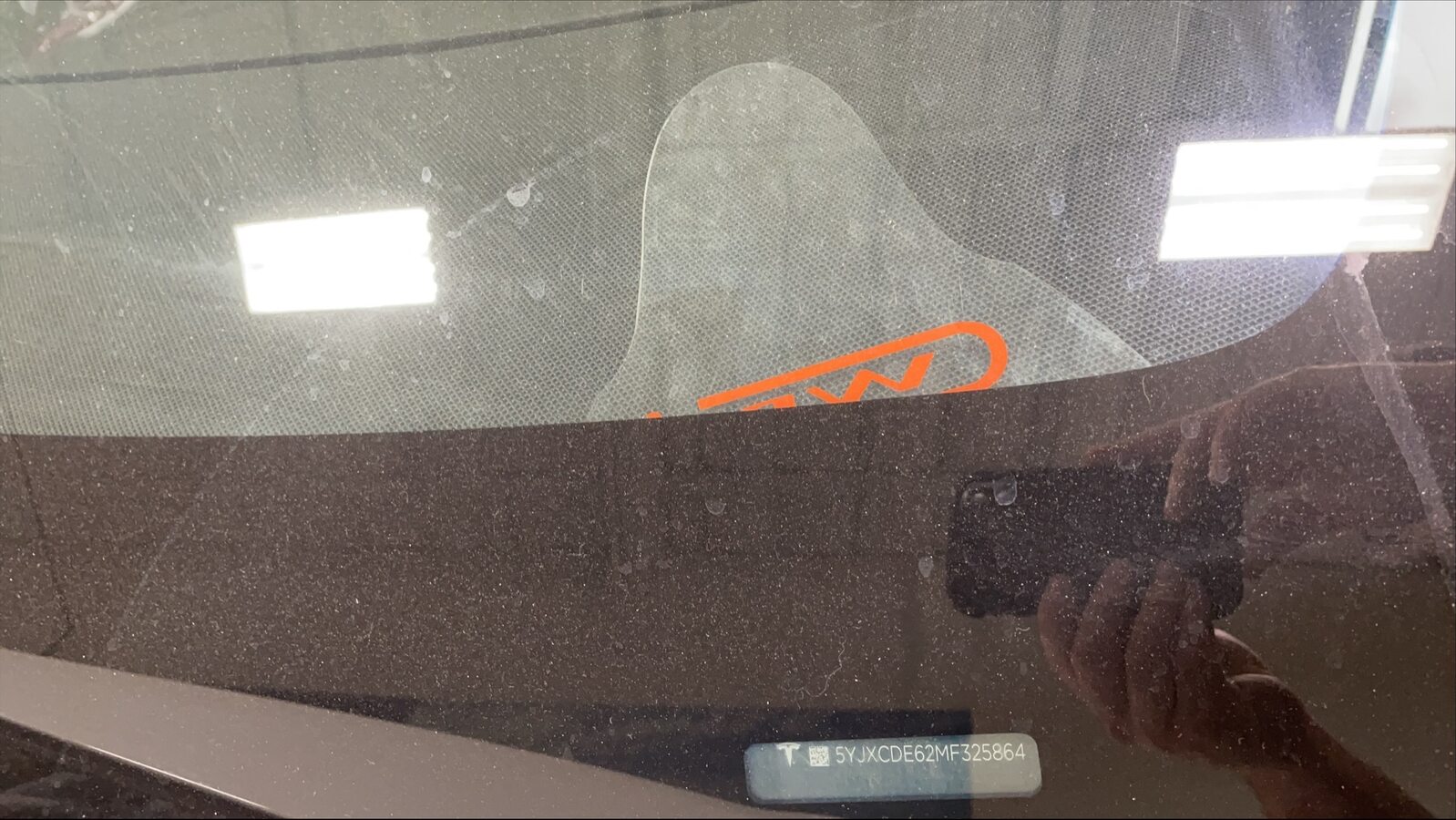

    Move the cutting tool as needed keeping the line close to a 90 degree angle, When passing vin plate use guard to guide line over vin to prevent damage

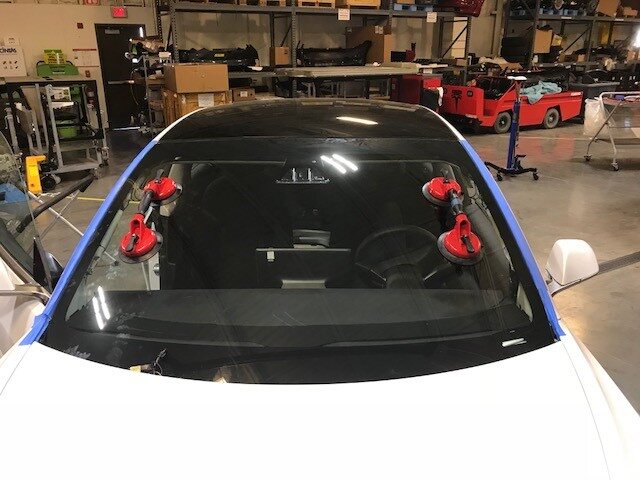

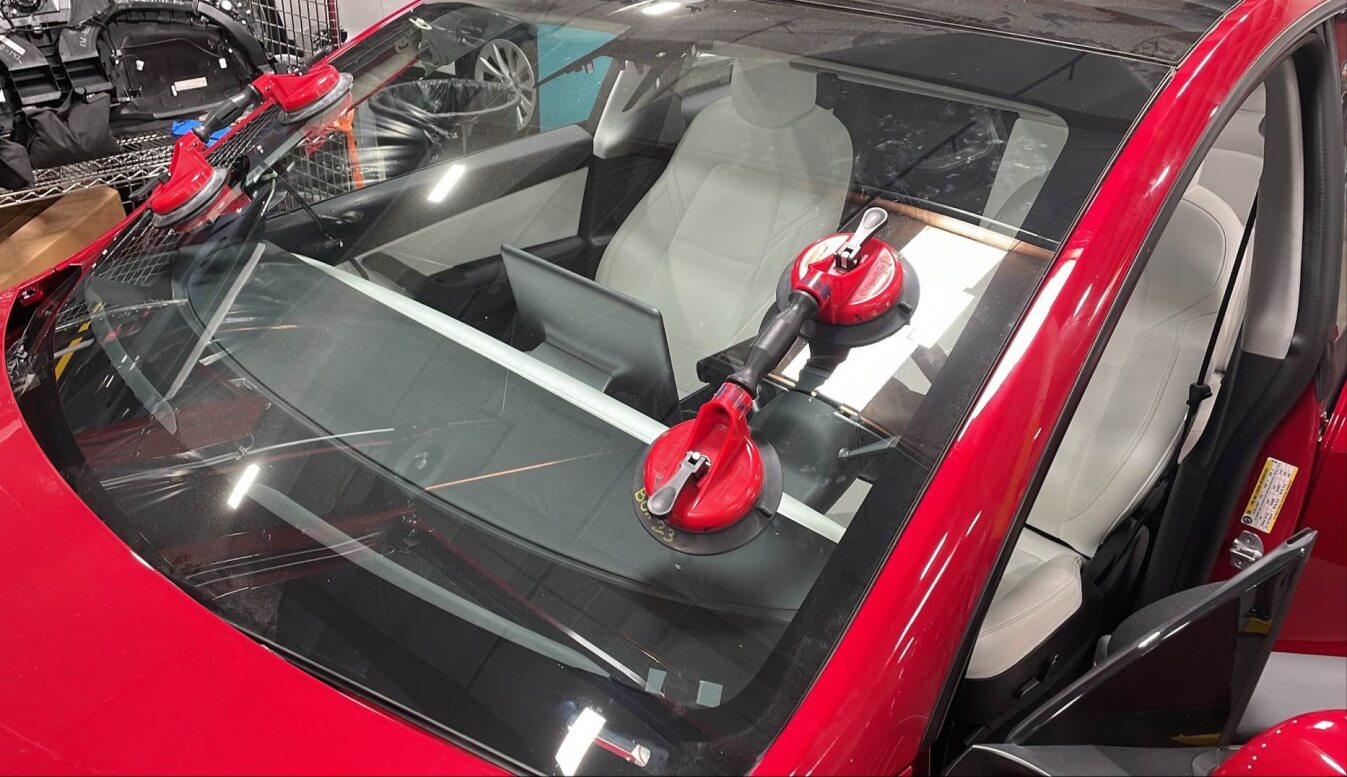

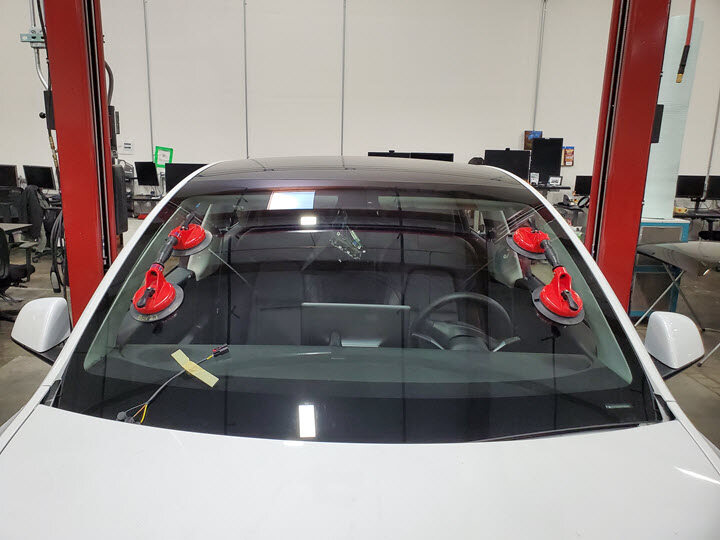

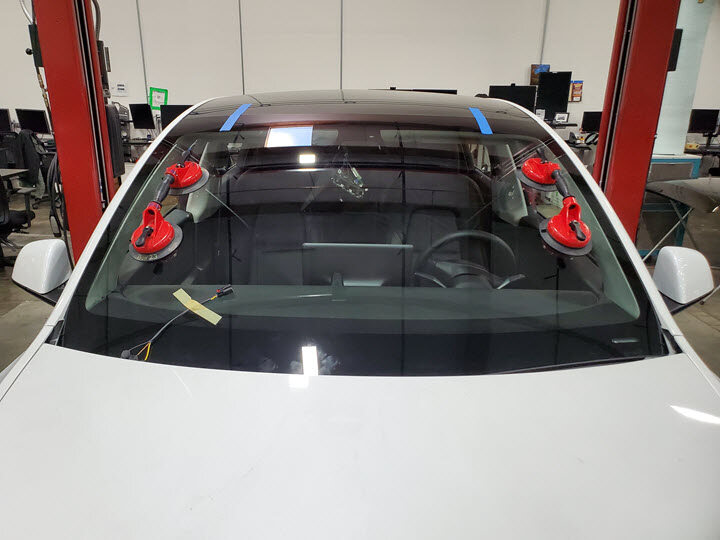

45. Attach suction cups to windshield on both sides

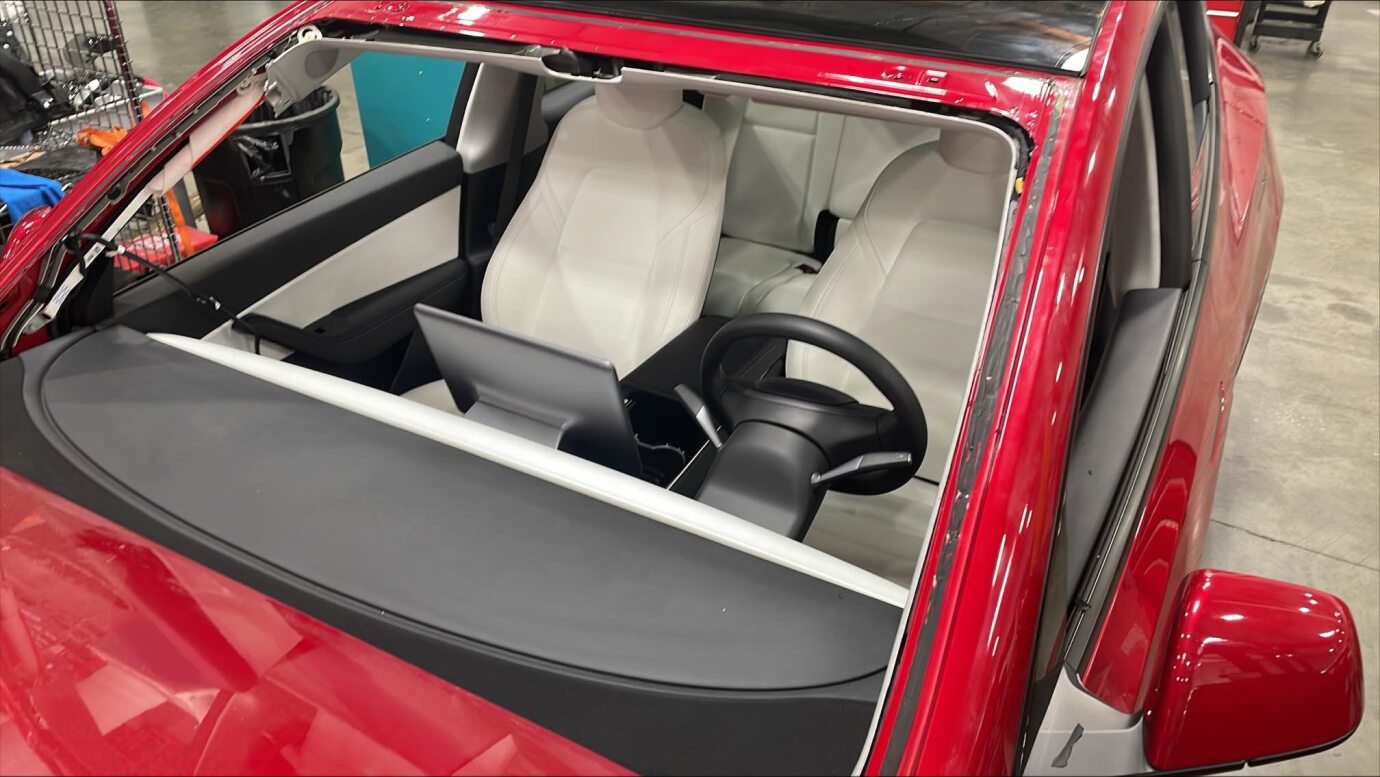

46. Lift up to remove windshield from vehicle
    Note

    Recommend assistance, use caution with windshield harness, Partially close hood for clearance

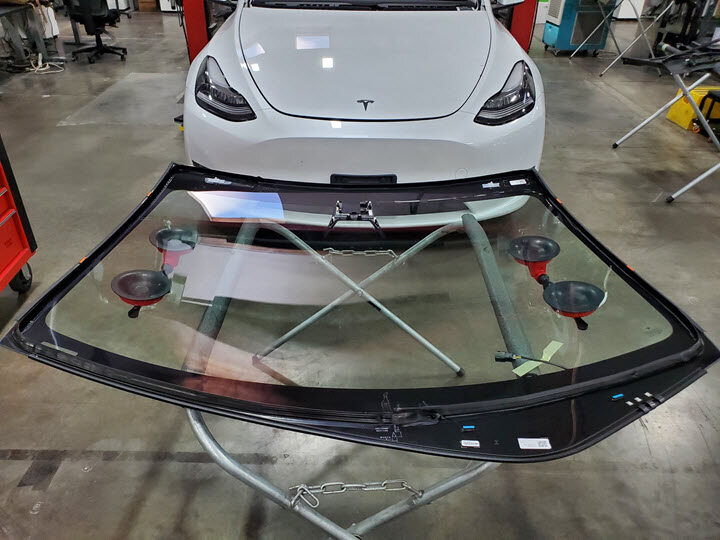

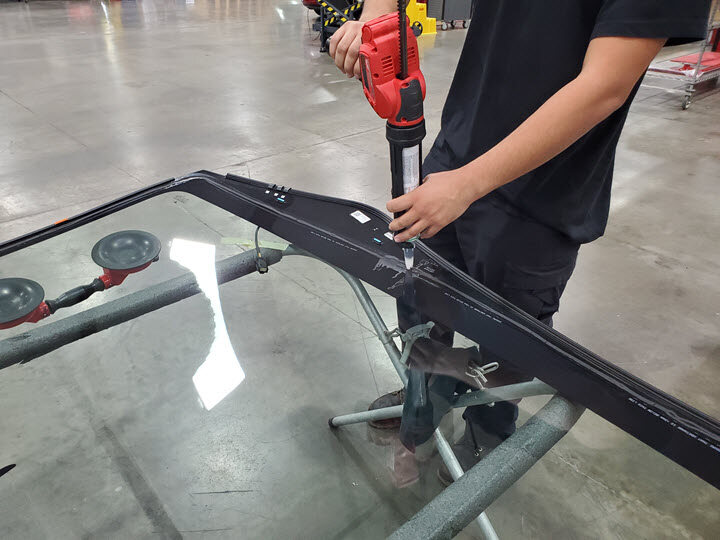

47. Place windshield on support stand
    Note

    Recommend assistance

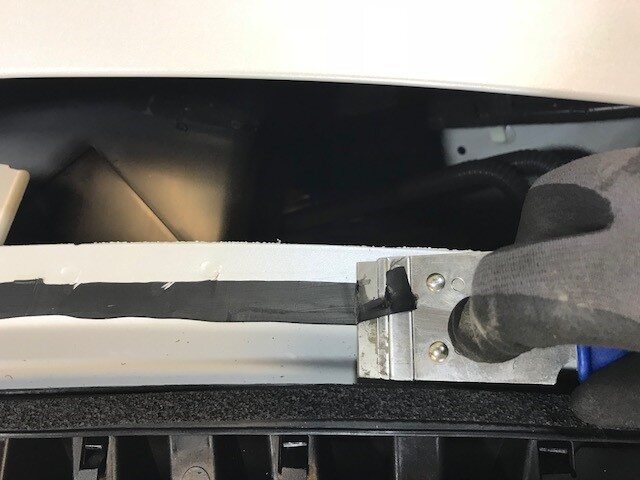

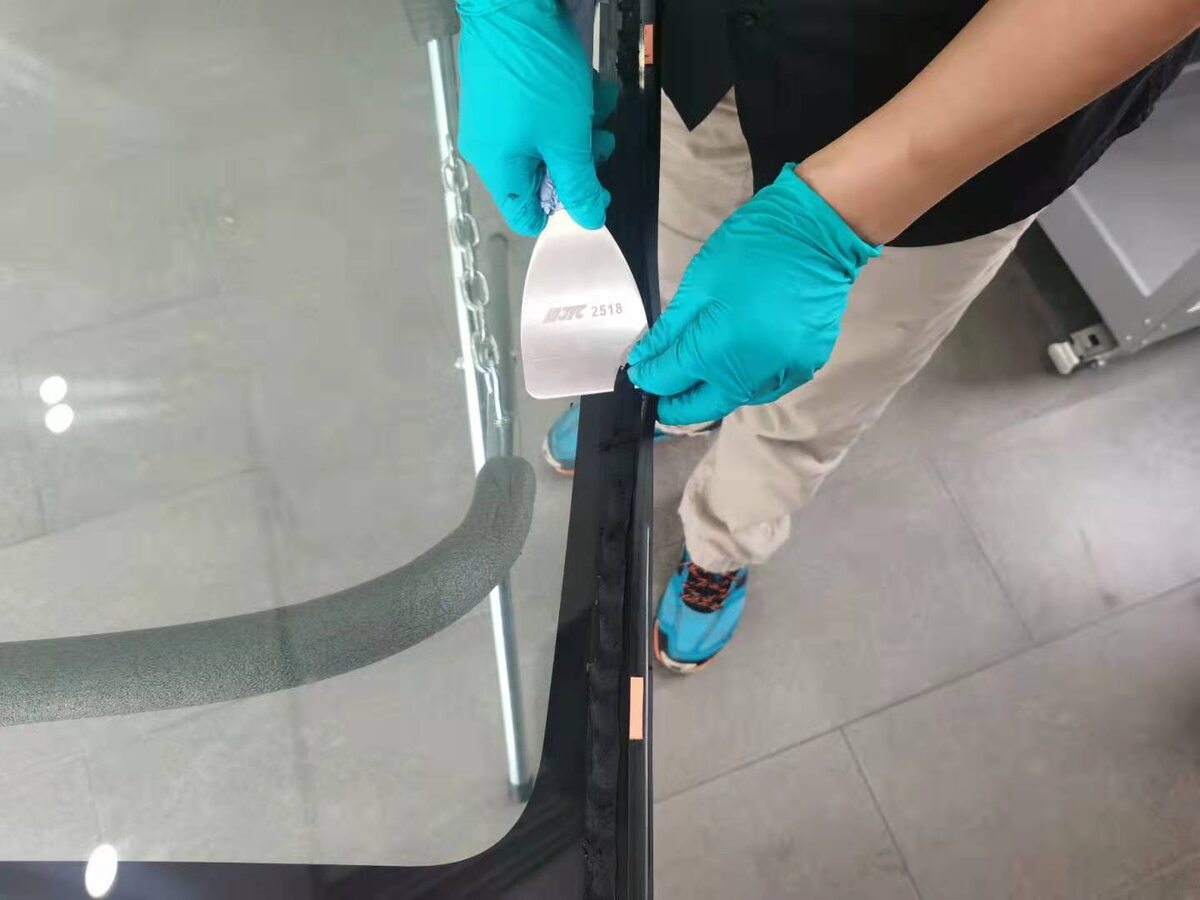

48. Remove old urethane from windshield

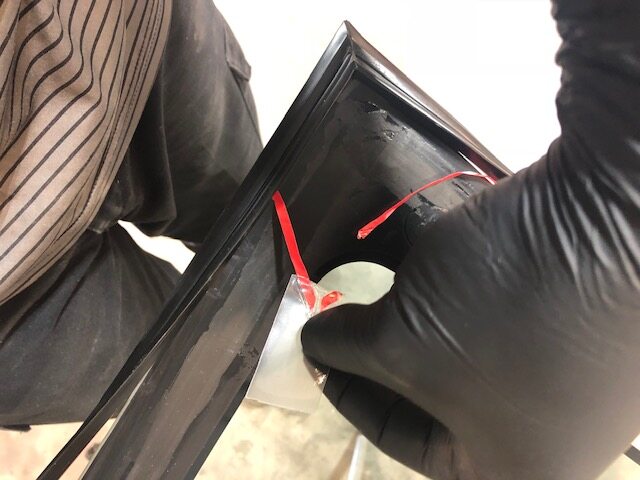

49. Remove sealing strip from windshield

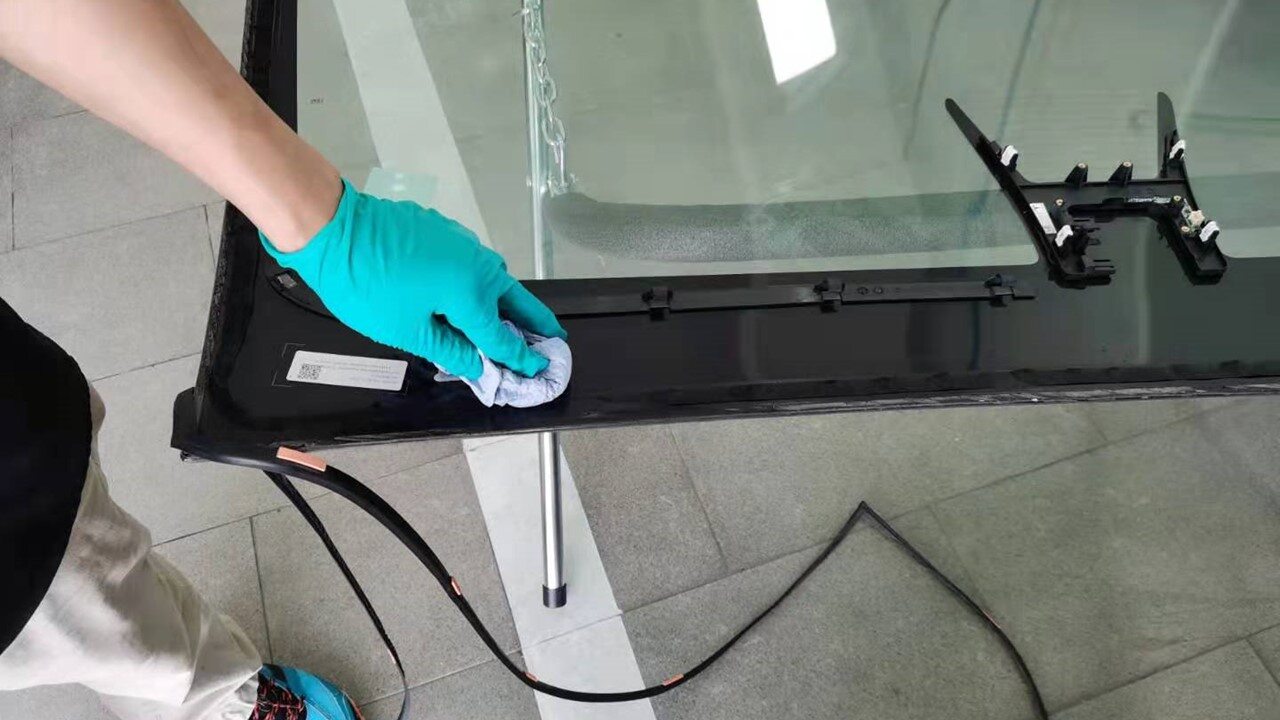

50. Clean urethane residue from windshield
    Note

    Allow 1 minute dry time

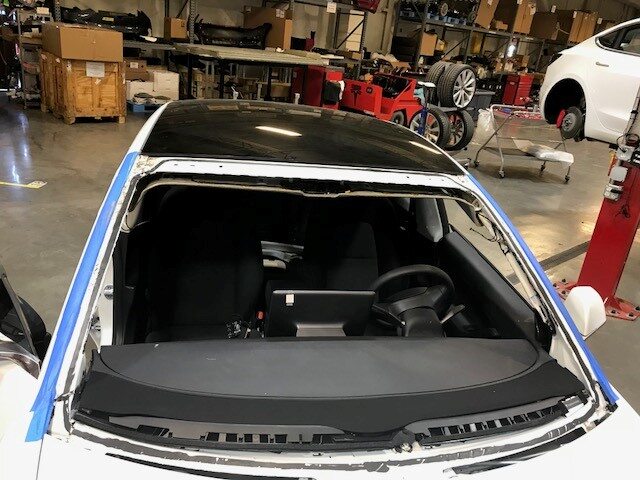

51. Remove old urethane from vehicle





52. Remove IP cowl foam

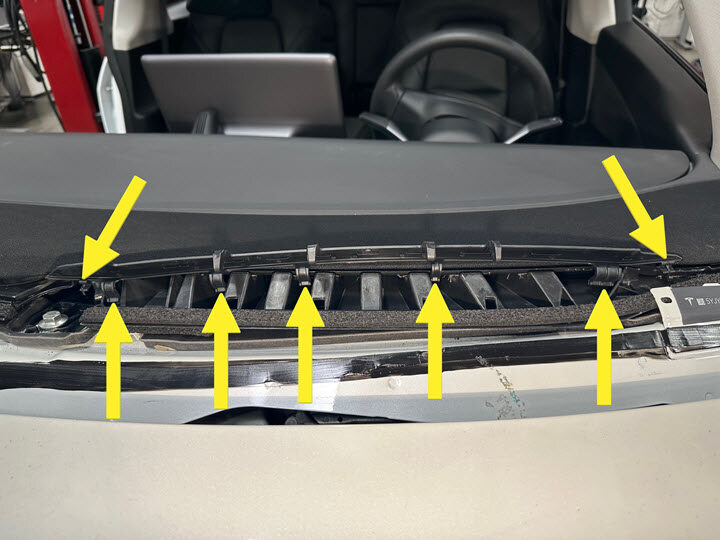

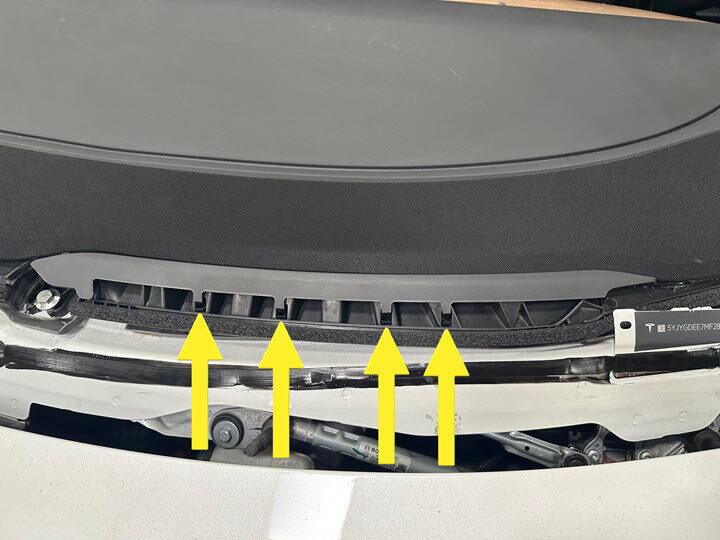

53. Remove LH defrost cover
    Note

    11x tabs

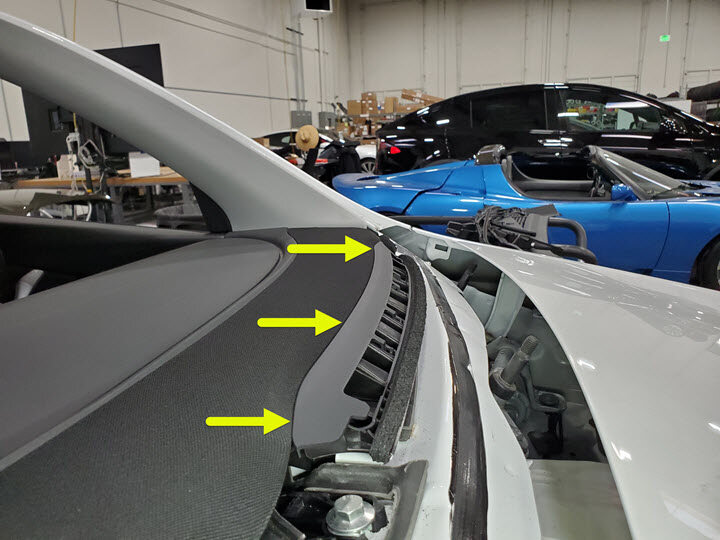

54. Install LH defrost cover
    Note

    11x tabs, Secure 2x middle tabs first then secure tabs from middle to LH side of IP, Make sure cover is flush with speaker grill

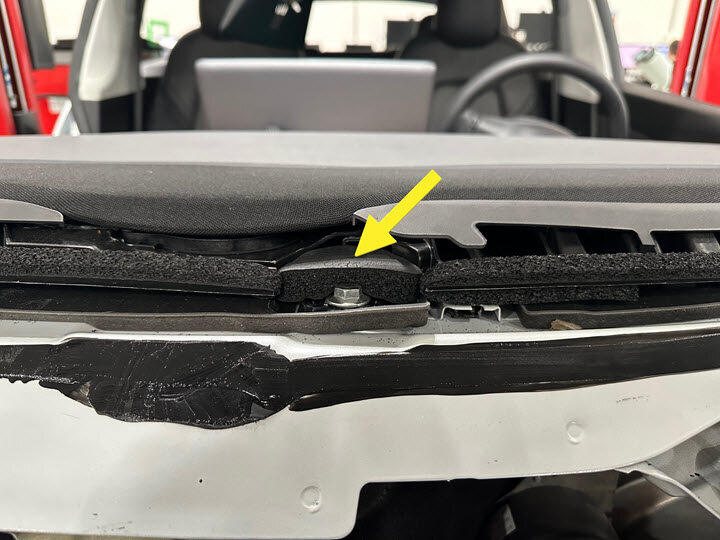

55. Install IP cowl foam

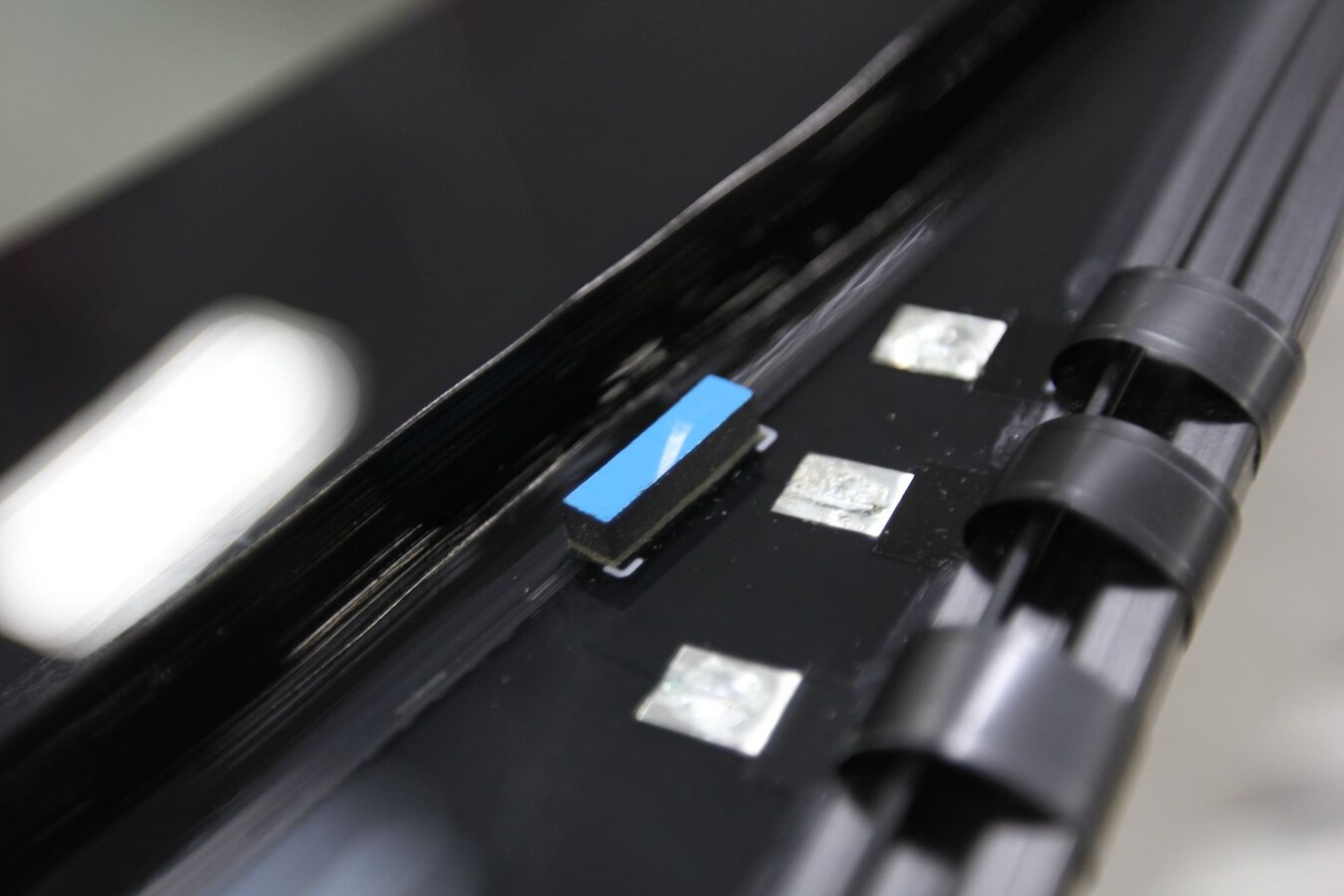

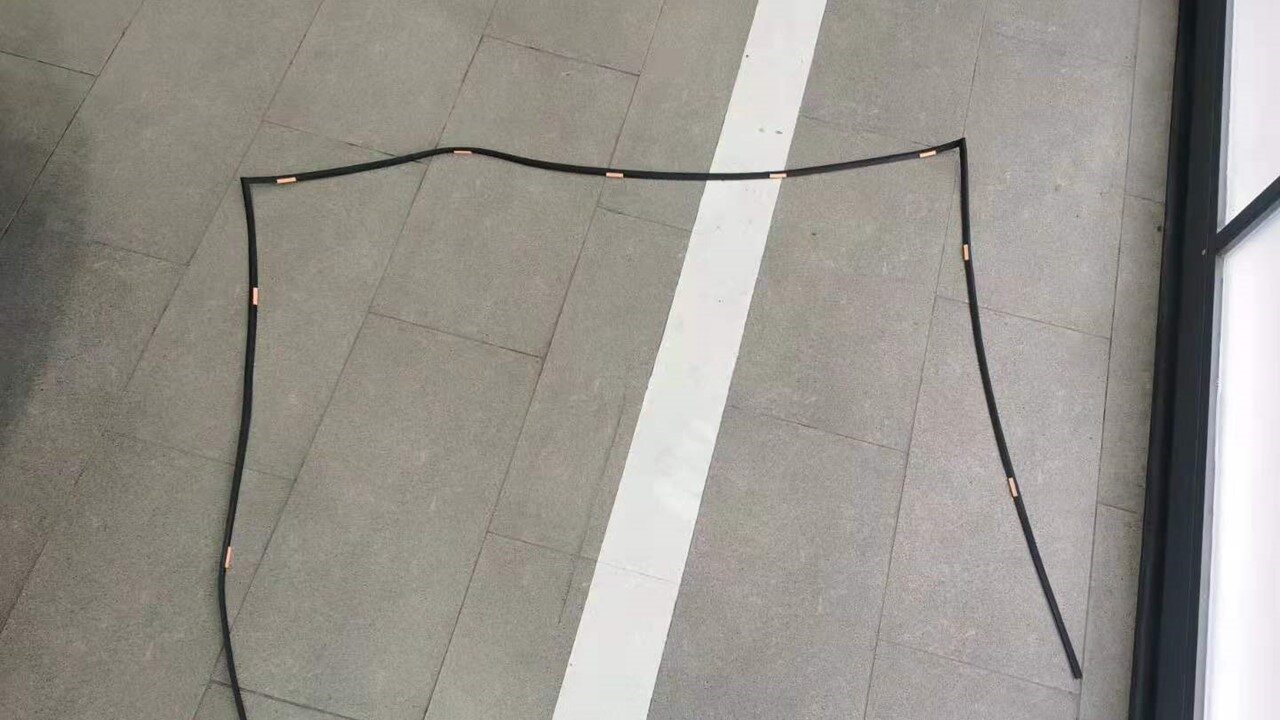

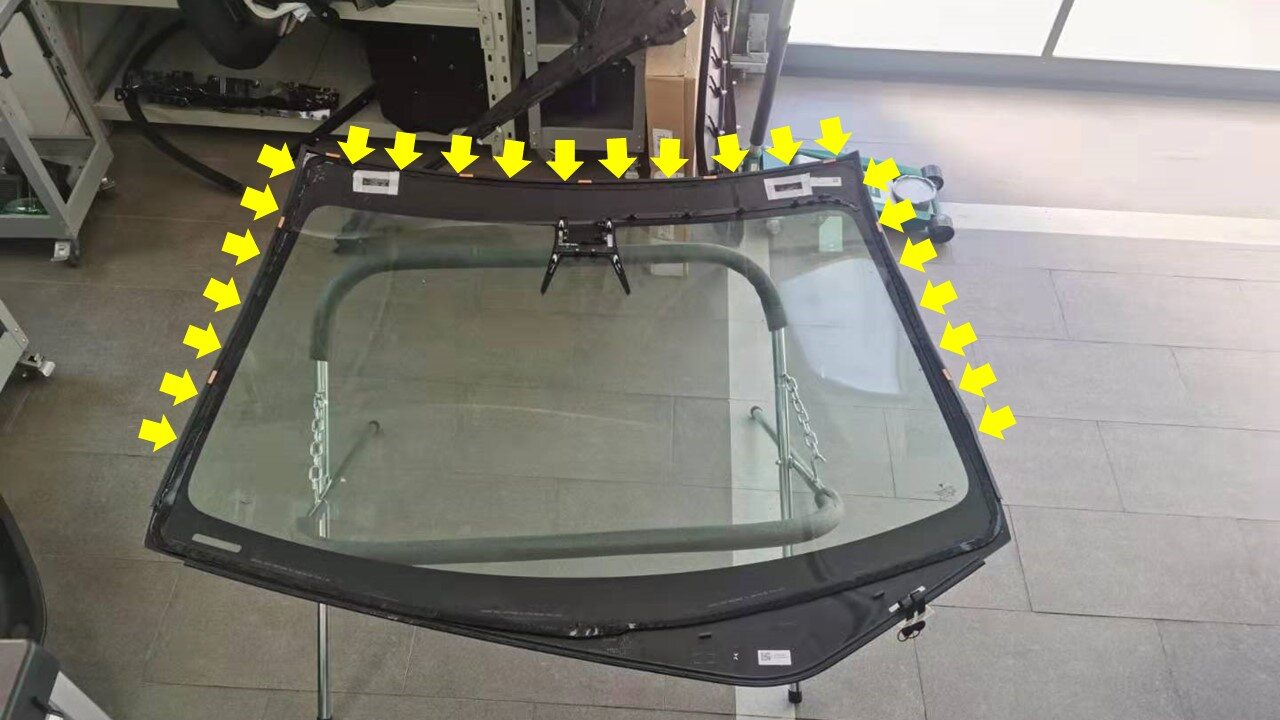

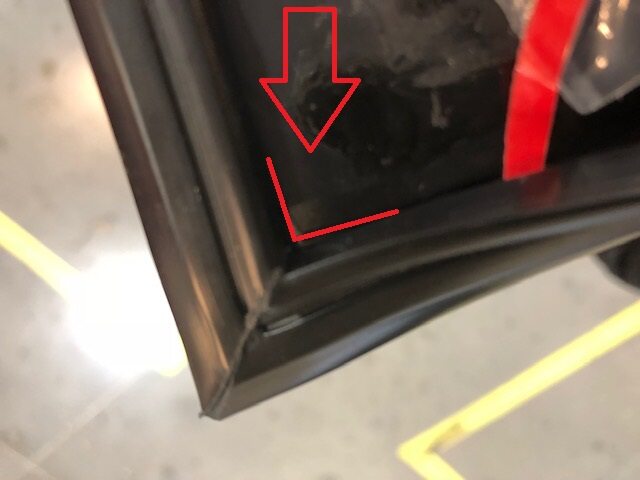

56. Install sealing strip onto windshield
    Note

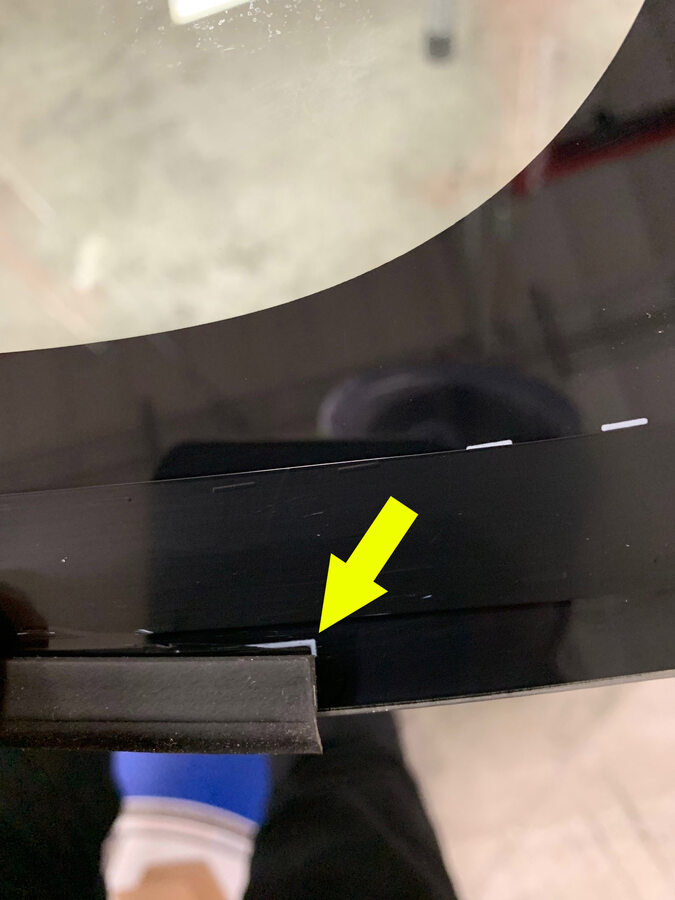

    Follow windshield alignment marks at upper corners of glass, Start from one corner and peel tape as you apply inch by inch to ensure proper fitment

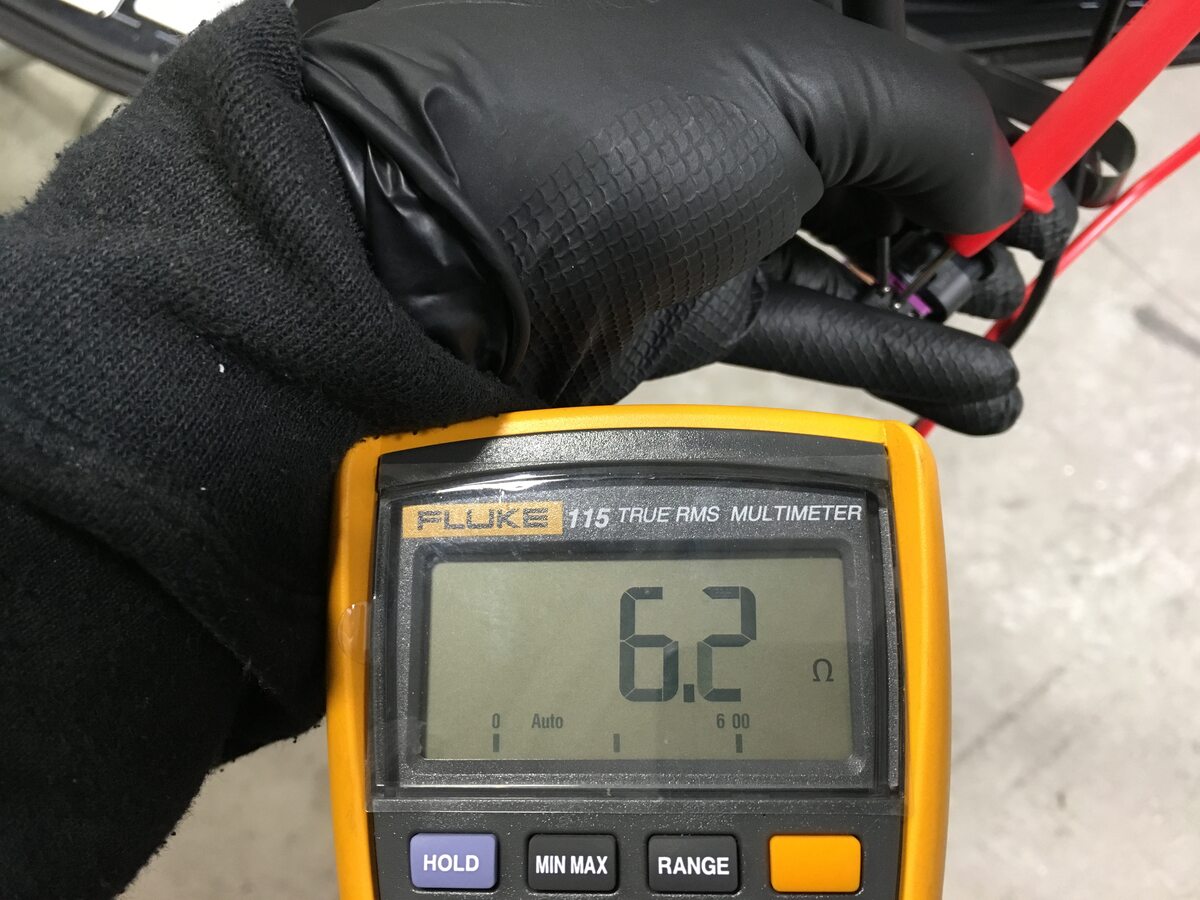

57. Measure resistance of heater grid to check continuity
    Note

    Measured at ambient temperature, Tolerance 5.6Ω+/-10%, Check from pin 1 to pin 2 on X304, If resistance is outside tolerance then replace windshield



58. Perform windshield dry fit
    Note

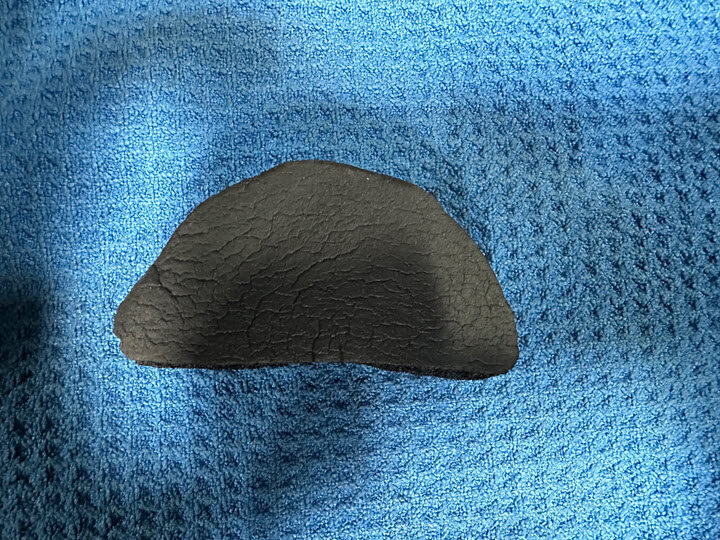

    Note any locations where net pads need to be adjusted



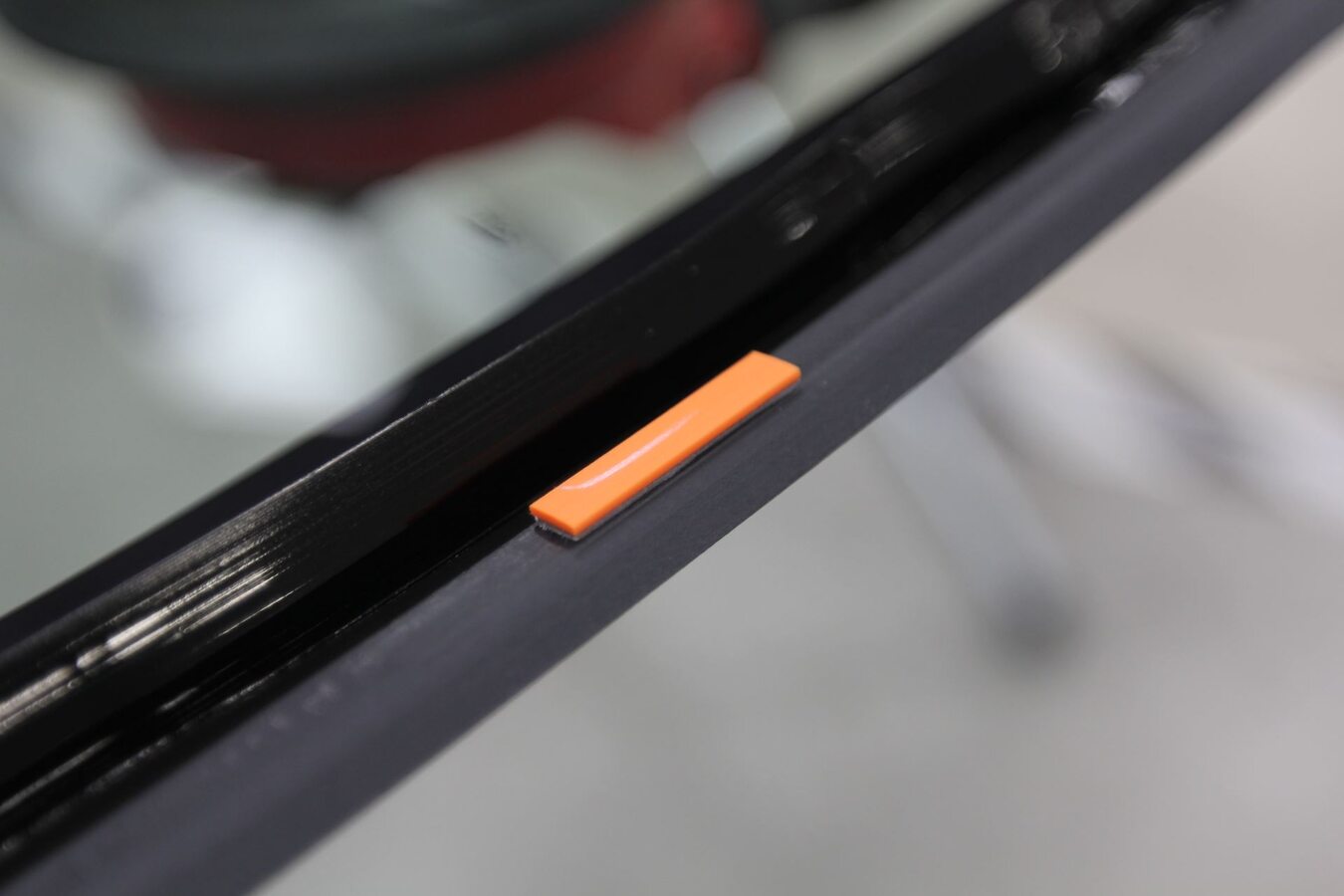

59. Perform any net pad adjustments for windshield
    Note

    Add or remove to adjust flush condition if necessary, No time recorded as it was not necessary during validation

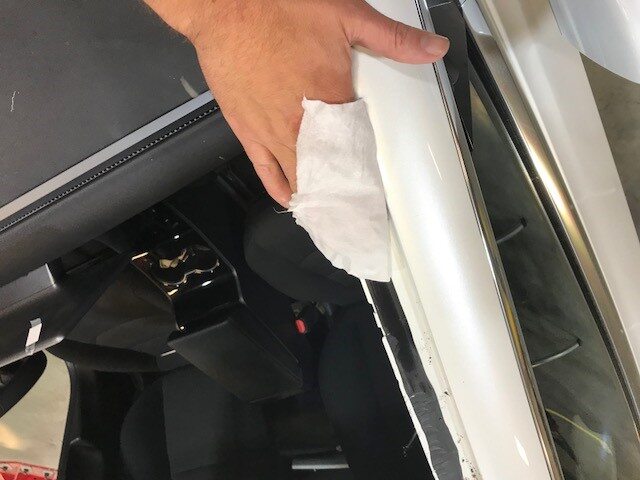

60. Wipe urethane path on vehicle
    Note

    Allow 1 minute dry time



61. Apply urethane primer to windshield and vehicle body along old urethane path
    Note

    Make sure to add primer over any areas that were scratched during windshield removal, Allow primer to dry for 2 minutes before applying urethane

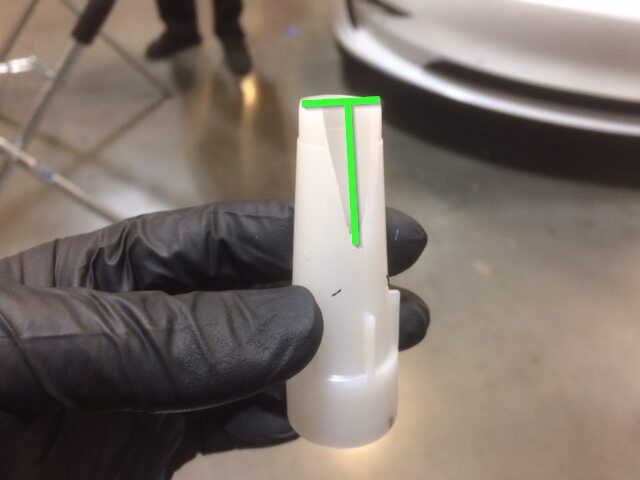

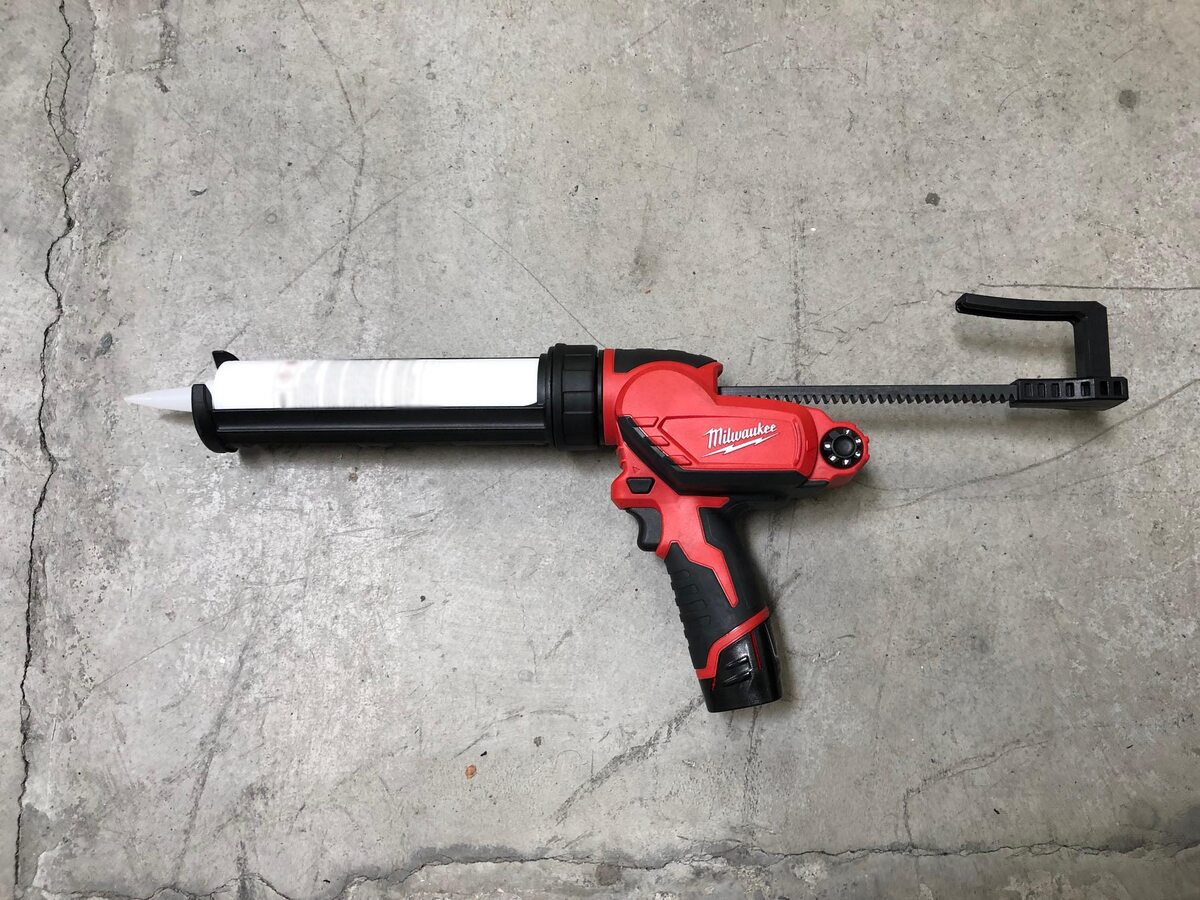

62. Prepare caulking gun and urethane
    Note

    Opening must be 8mm wide and 13mm tall





63. Apply urethane to windshield following primer path





64. Install windshield onto vehicle
    Note

    Recommend assistance

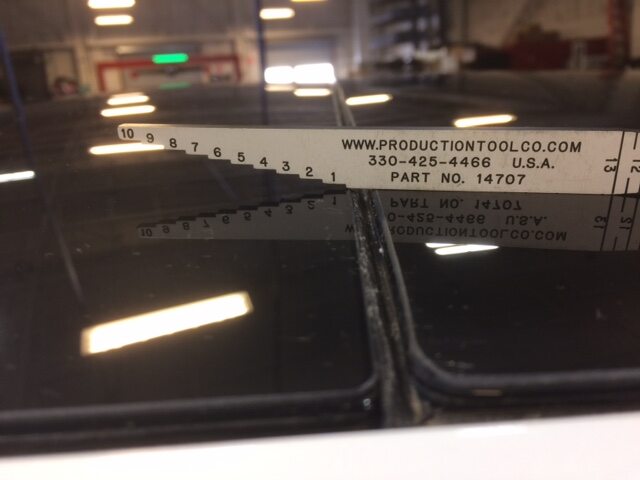

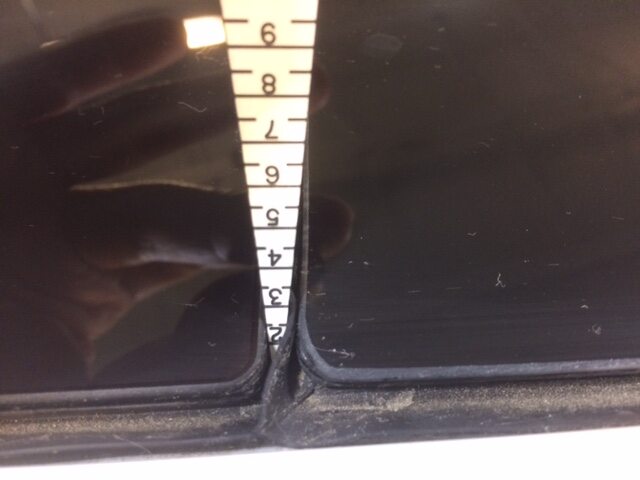

65. Check gaps and flushness to vehicle before fully seating windshield
    Note

    Adjust glass as needed

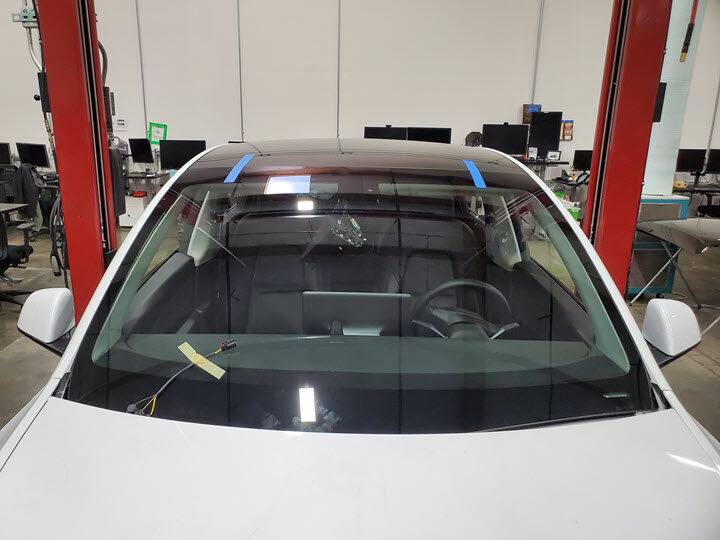

66. Apply tape to secure windshield to body while urethane cures



67. Remove suction cups from windshield



68. Install GPS/GNSS antenna onto bracket
    Note

    1x screw, T10, 1 Nm, 2x tabs, Slide antenna towards RH side to secure tabs





69. Install screw securing windshield harness to windshield bracket
    Note

    1x screw, T10, 1 Nm, Make sure harness is routed inside of bracket



70. Connect humidity and temperature sensor harness connector
    Note

    1x connector



71. Secure trilobe and triple camera assembly onto windshield bracket
    Note

    4x screws, T10, 1 Nm



72. Install triple camera hood
    Note

    2x patch screws, T10, 1 Nm, 2x alignment pins, Install new fasteners



73. Install quad camera upper cover
    Note

    4x clips, 1x connector, Connect interior camera then push the cover up to secure







74. Connect rear view mirror connector
    Note

    1x connector



75. Install rear view mirror
    Note

    Turn mirror clockwise to install, do not twist by holding the mirror itself, it will separate from the stalk, twist from the stalk connecting the mirror to the mount



76. Install tether onto lower quad camera cover
    Note

    2x tabs



77. Install quad camera lower cover
    Note

    4x tabs, Install the tabs closest to the rearview mirror assembly and push the cover up to secure



78. Move RH front seat to original position



79. Move LH front seat to original position



80. Release heater harness from windshield



81. Connect windshield heater connector
    Note

    1x connector



82. Install cowl screen assembly
    Note

    2x push clips, 6x clips











83. Install the RH shock tower cover
    Note

    2x push clips



84. Install the LH shock tower cover
    Note

    2x push clips



85. Install the RH wiper arm and hose assembly onto vehicle



86. Install the nut securing the RH wiper arm to wiper module
    Note

    1x nut, 15mm, 25 Nm, Make sure the wiper tip is aligned between the two indicators at corner of windshield



87. Connect washer hose from RH wiper arm to Y-tube fitting and secure washer hose clips
    Note

    2x clips, 1x hose



88. Install RH wiper arm nut cover
    Note

    1x cover



89. Install LH wiper arm and hose assembly onto vehicle
    Note

    The washer hose shall be routed over the arm pivot joint, not under





90. Install the nut securing the LH wiper arm to wiper module
    Note

    1x nut, 15mm, 25 Nm, Make sure the wiper tip is aligned between the two indicators at windshield



91. Connect washer hose from LH wiper arm to Y-tube fitting and secure washer hose clips
    Note

    2x clips, 1x hose



92. Install LH wiper arm nut cover
    Note

    1x cover



93. Install frunk assembly to vehicle
    Note

    12x clips, Make sure frunk assembly is fully seated onto clips, Number of clips may vary on older vehicles





94. Install bolts securing frunk assembly
    Note

    7x bolts, 10mm, 5 Nm, Lower RBN covers after installing upper fasteners, Newer vehicles may not be equipped with covers



95. Install frunk assembly carpet



96. Install frunk close out panel
    Note

    4x clips, 1x connector, Frunk safety switch, 3x guide tabs, Align 3x tabs then push downward to secure clips



97. Install cabin intake upper duct assembly
    Note

    4x clips, Heat pump vehicles have 3x clips





98. Install rear apron
    Note

    12x clips





99. Close hood
100. Raise both front windows
101. Close both front doors
102. Vehicle will need to be driven by customer to complete the calibration procedure. During this time DAS functions will be completely unavailable
     Note

     No time was recorded as this will be completed by the customer
