Harness - HVAC Assembly (Remove and Replace)

Correction code 17104102 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure. See Ergonomic Precautions for safe and healthy working practices.

Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
This procedure is a DRAFT. Although it has been validated, Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near High Voltage systems and components. Provide corrections and feedback to ServiceDevelopment@teslamotors.com.
  • 2025-08-21: Released new procedure.
  1. This procedure requires refrigerant evacuation and recharge, please add specific evacuation and recharge correction code as needed
    Informational PurposesAn informational icon, calling your attention
    Note
    18200102,18033302,18033305,18200122**Always use this Step ID**

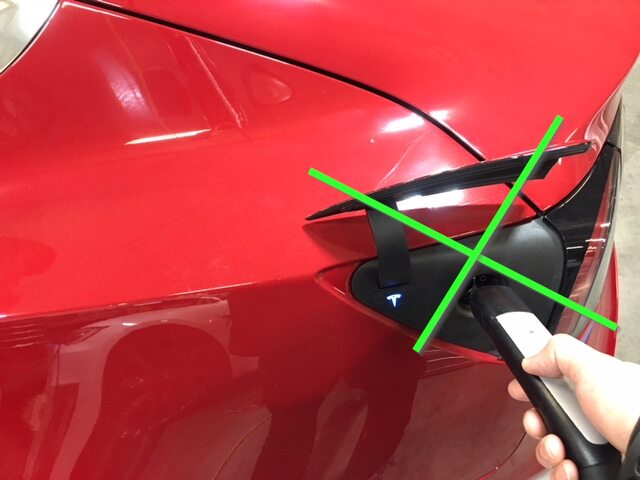

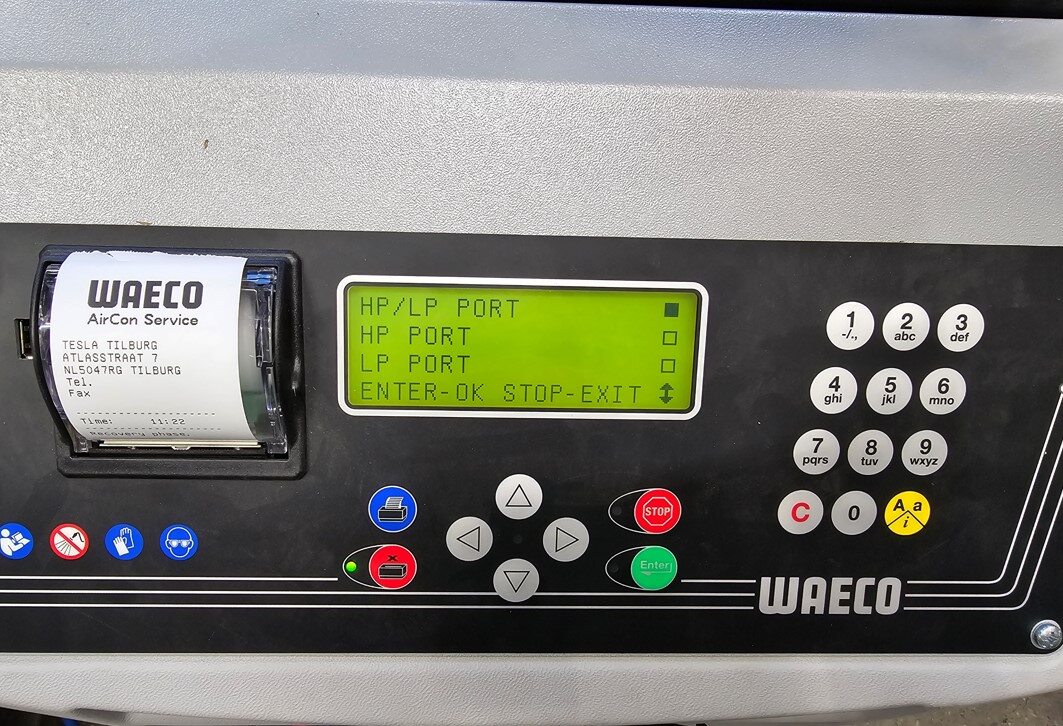

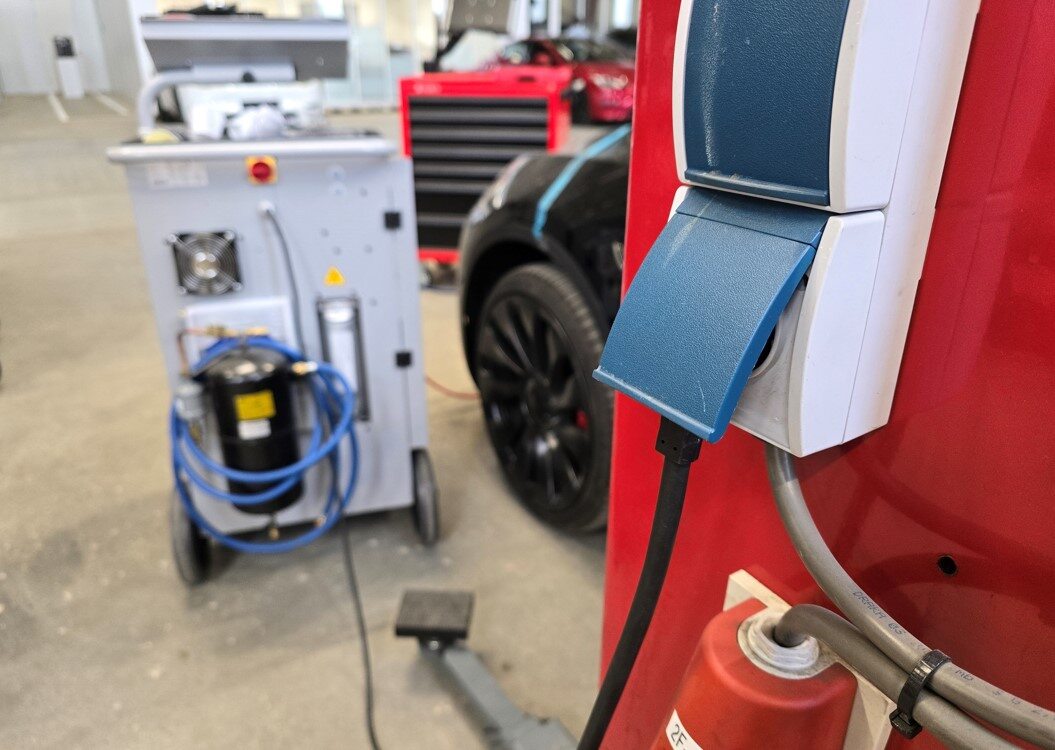

  2. Set up AC machine
    Informational PurposesAn informational icon, calling your attention
    Note

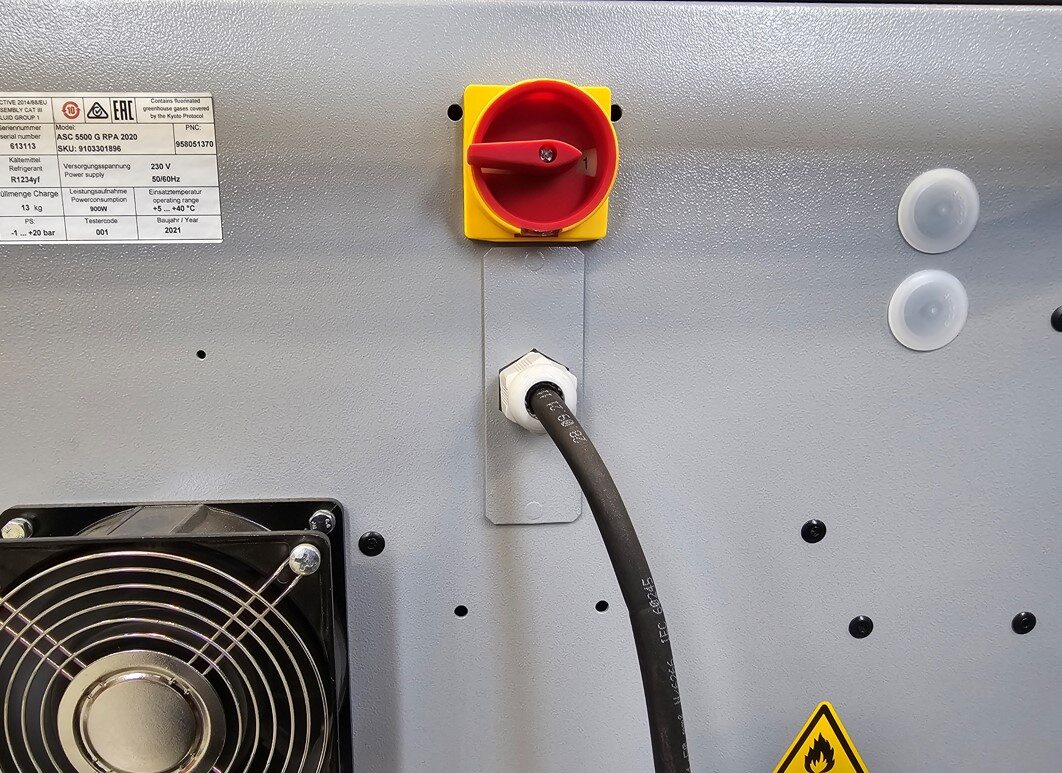

    Touch time only, Connect to power, Turn power switch on
  3. Open LH front door
  4. Lower LH front window
  5. Run ODIN routine PROC_ICE_X_ENTER-SERVICE-MODEvia Toolbox: (link)
  6. Run ODIN routine PROC_ICE_X_ENTER-SERVICE-MODEvia Toolbox: (link)

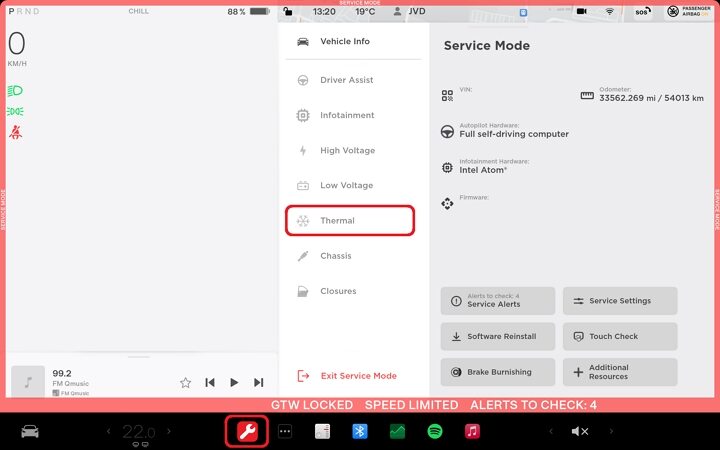

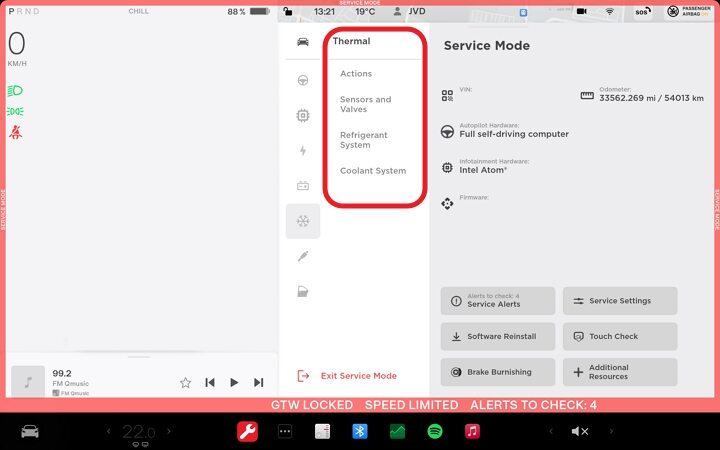

  7. Access Thermal System routines using UI
    Informational PurposesAn informational icon, calling your attention
    Note
    Select Service mode > Thermal
  8. Run ODIN routine PROC_VCFRONT_X_START-THERMAL-FILL-DRAIN-REFRIGERANTvia Toolbox: (link)

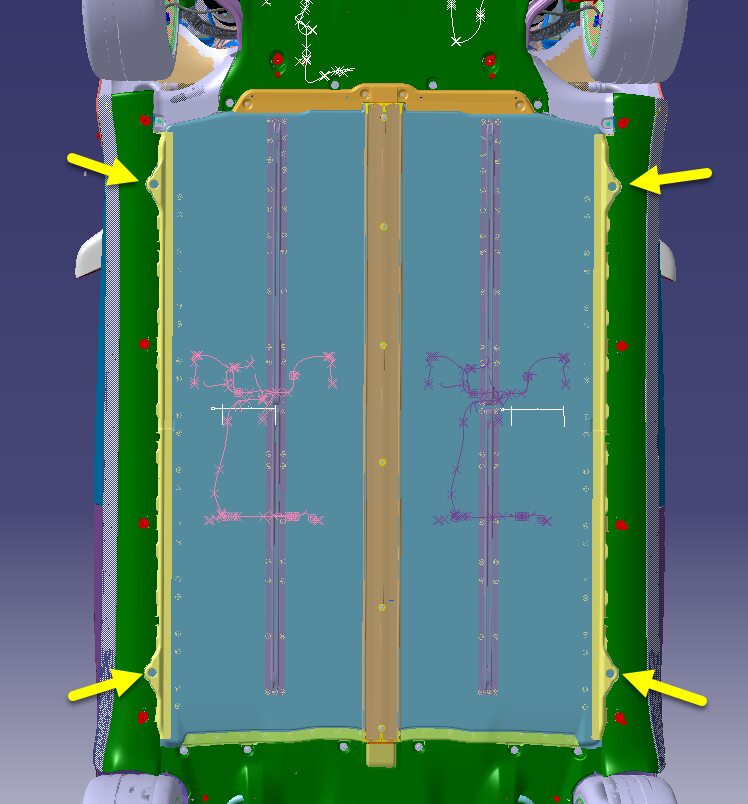

  9. Raise and support vehicle
  10. Open hood
    Informational PurposesAn informational icon, calling your attention
    Note
    Press "Open" button on touchscreen to release latch, Lift lid manually
  11. Remove rear apron
    Informational PurposesAn informational icon, calling your attention
    Note
    12x clips, Only store rear apron visible face upwards

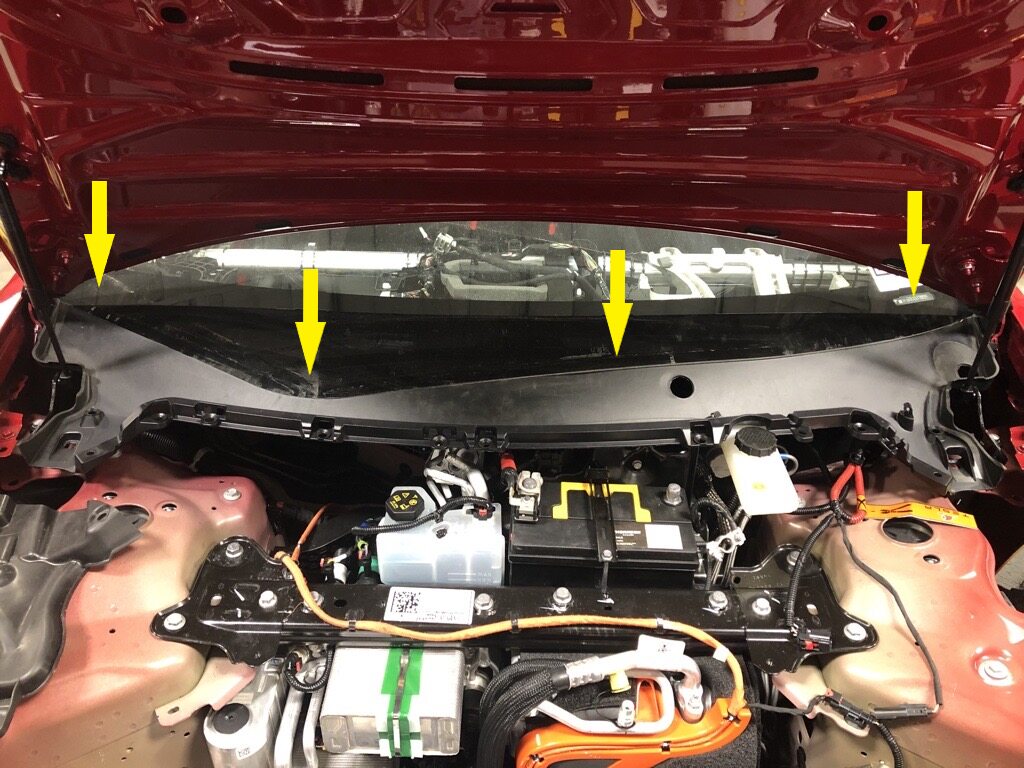

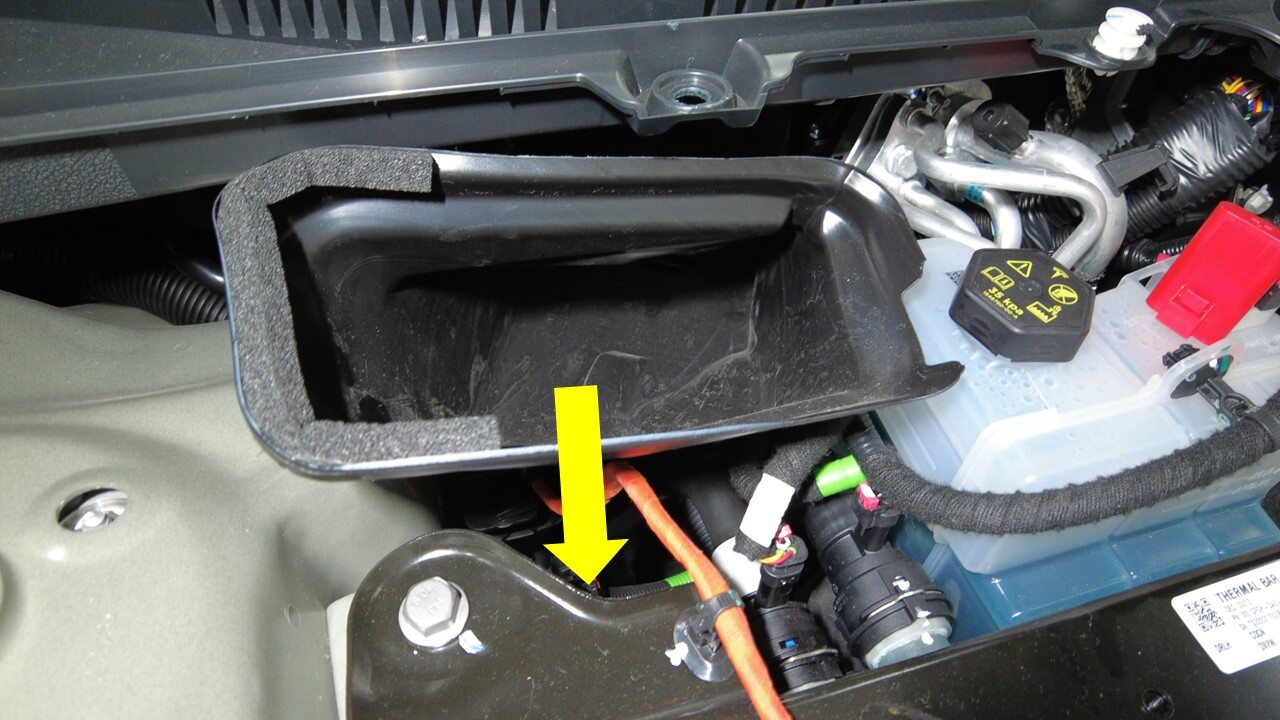

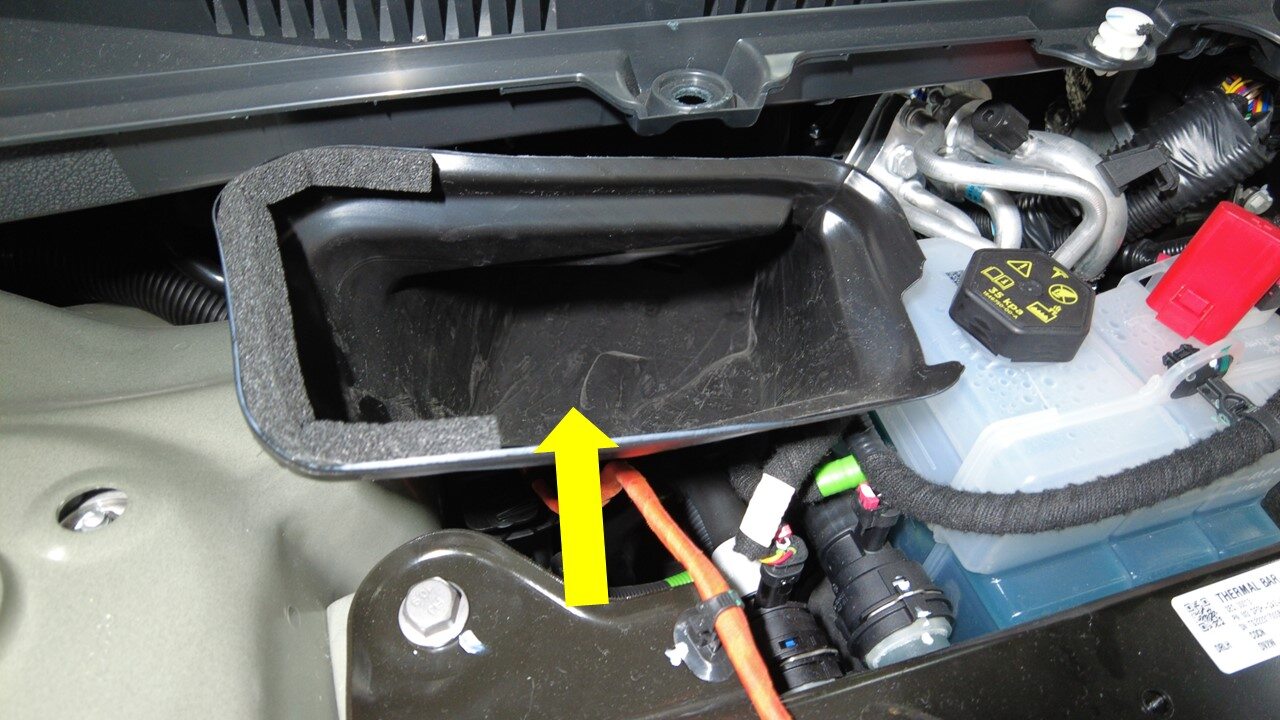

  12. Remove cabin intake upper duct assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    3x clips, Some configurations may come with 4x clips

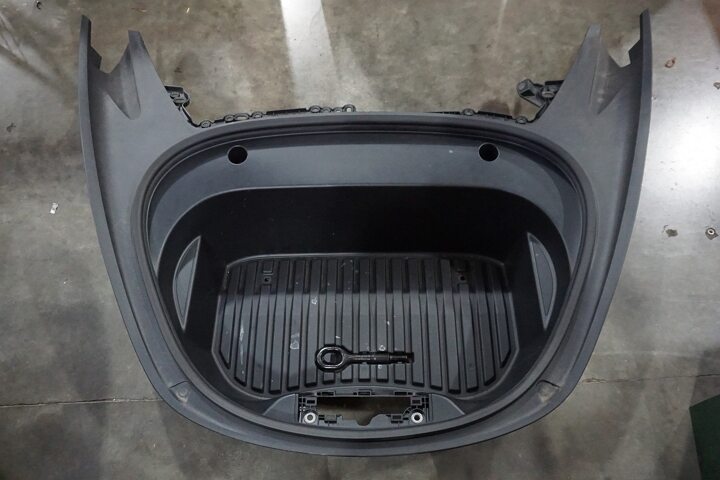

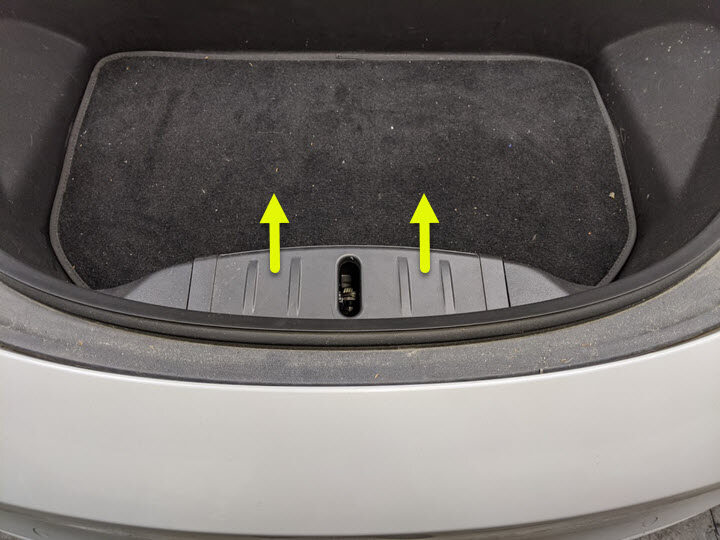

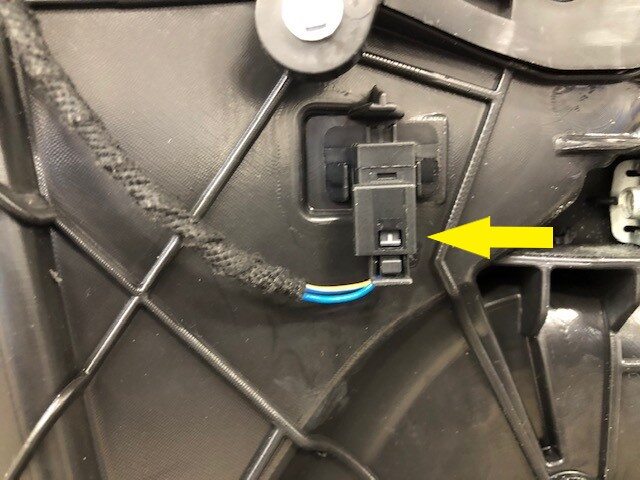

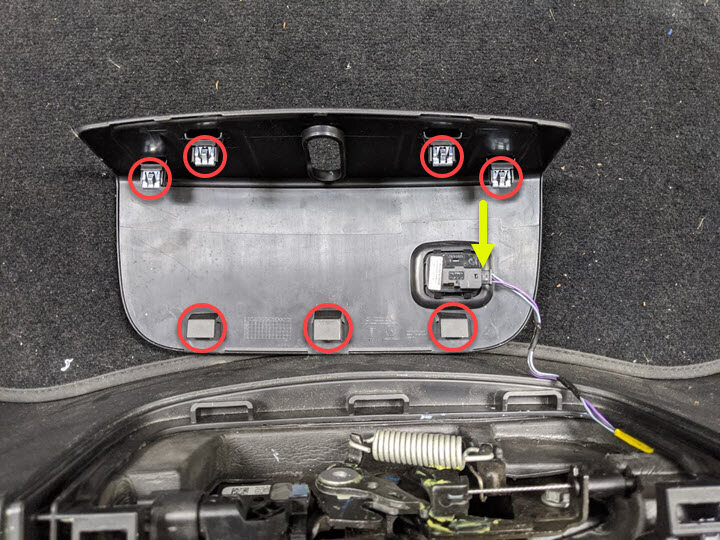

  13. Remove closeout panel from frunk assembly
    Informational PurposesAn informational icon, calling your attention
    Note

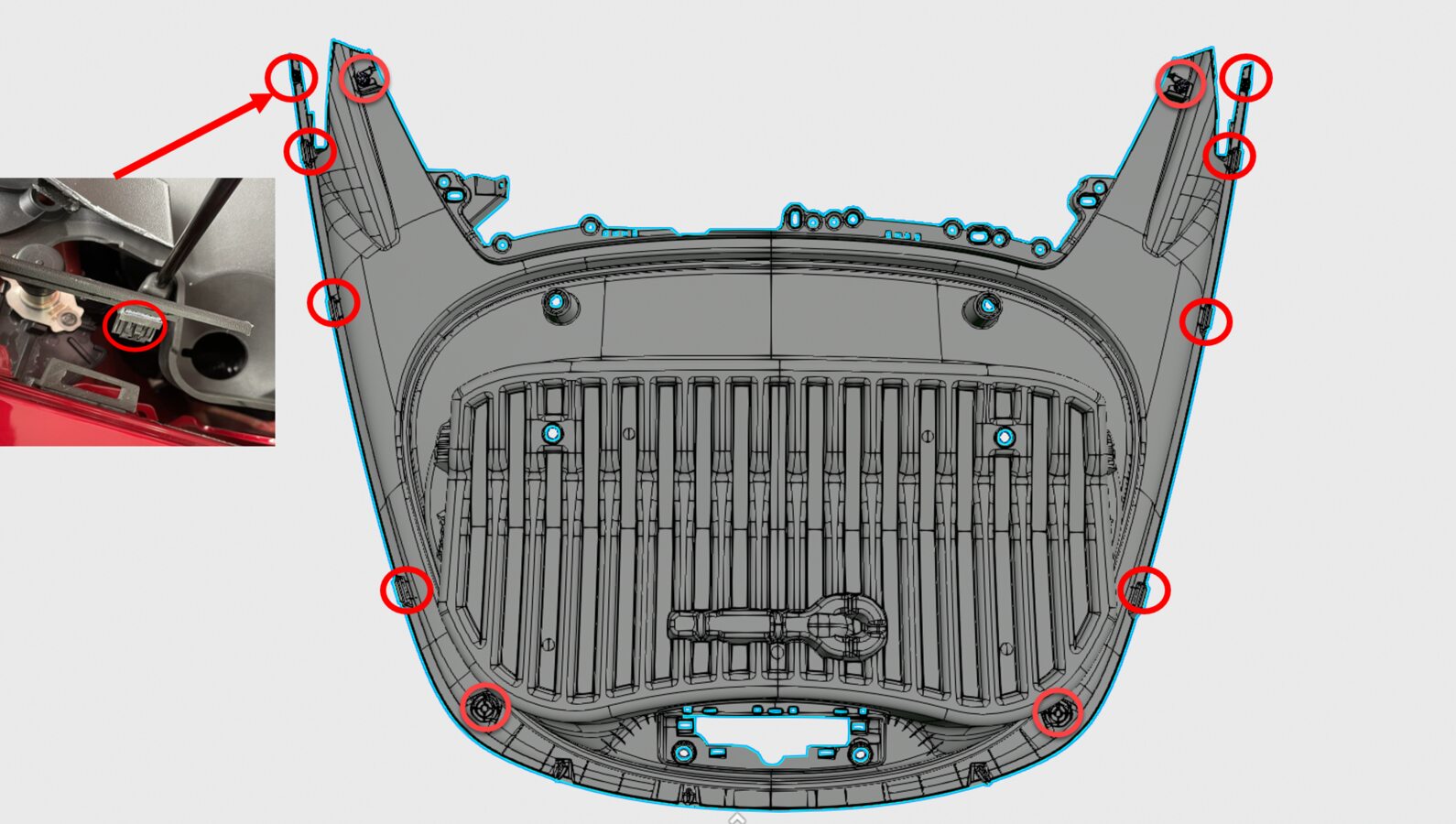

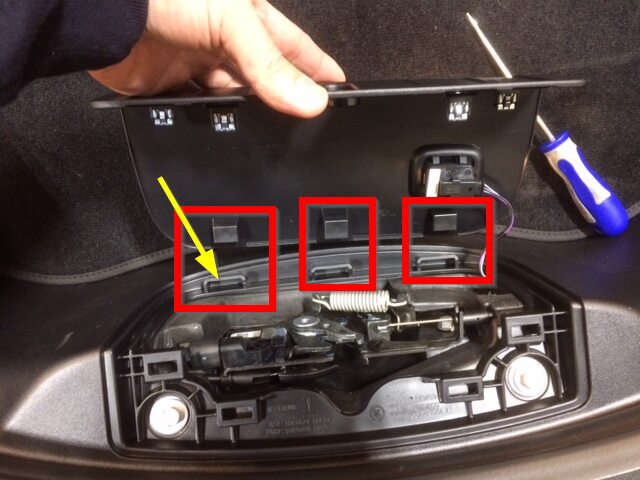

    4x clips, 1x connector, Frunk safety switch, 3x guide tabs, Grab closeout panel from bottom then pull it upward to release clips, Disconnect switch

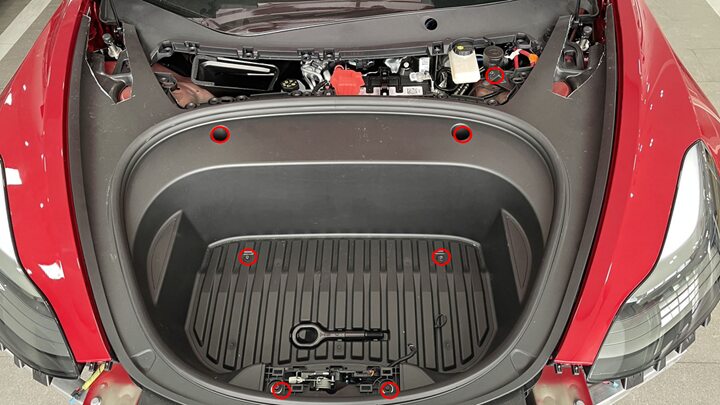

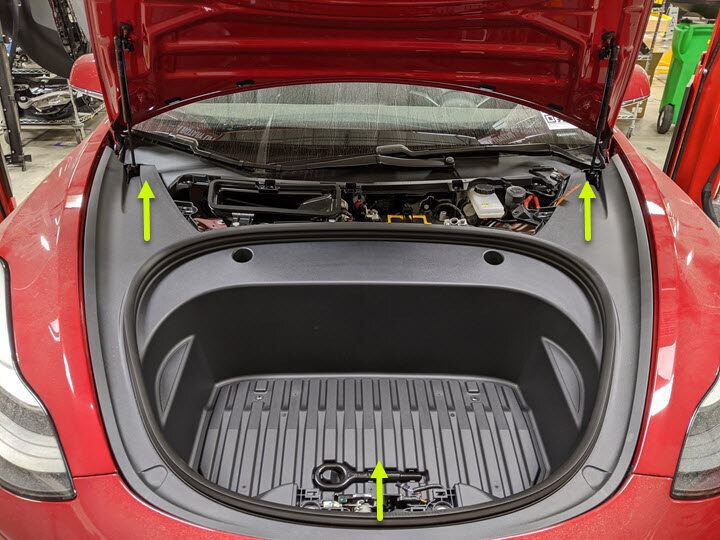

  14. Remove bolts securing frunk assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    7x bolts, 10mm, 5 Nm

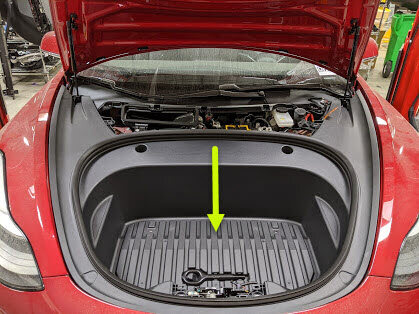

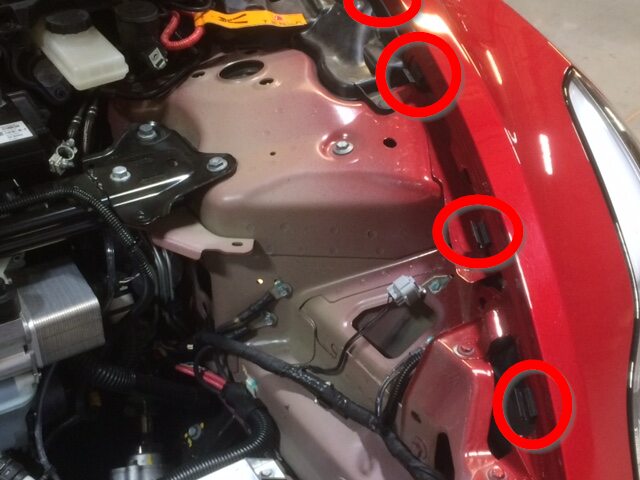

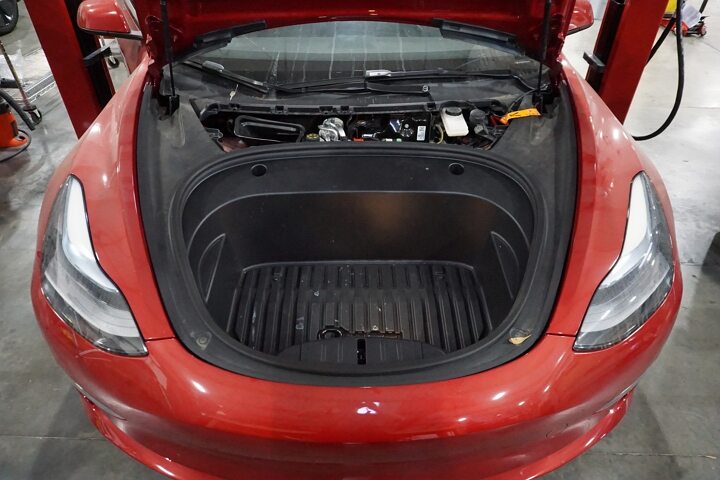

  15. Remove frunk assembly from vehicle
    Informational PurposesAn informational icon, calling your attention
    Note
    12x clips, Replace any clips if broken or missing, Number of clips may vary on older vehicles

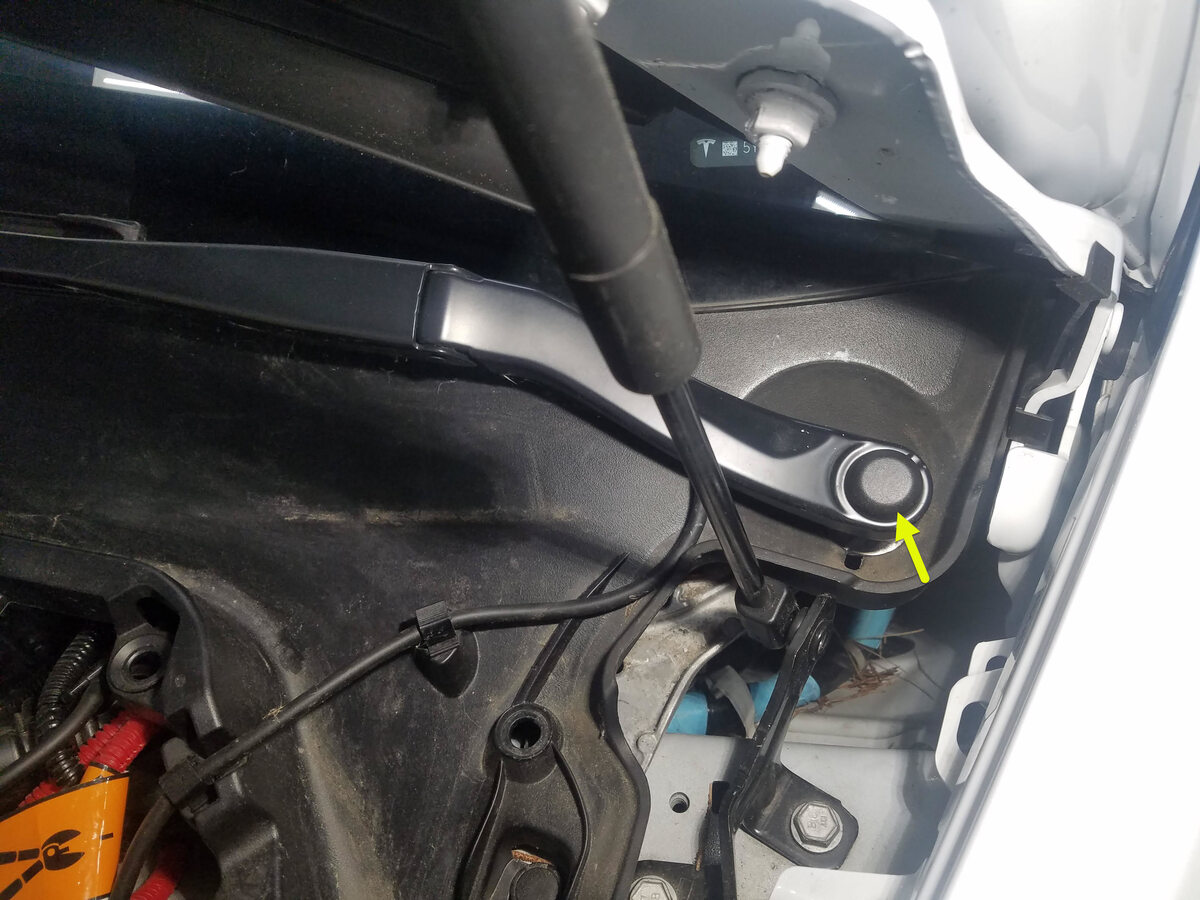

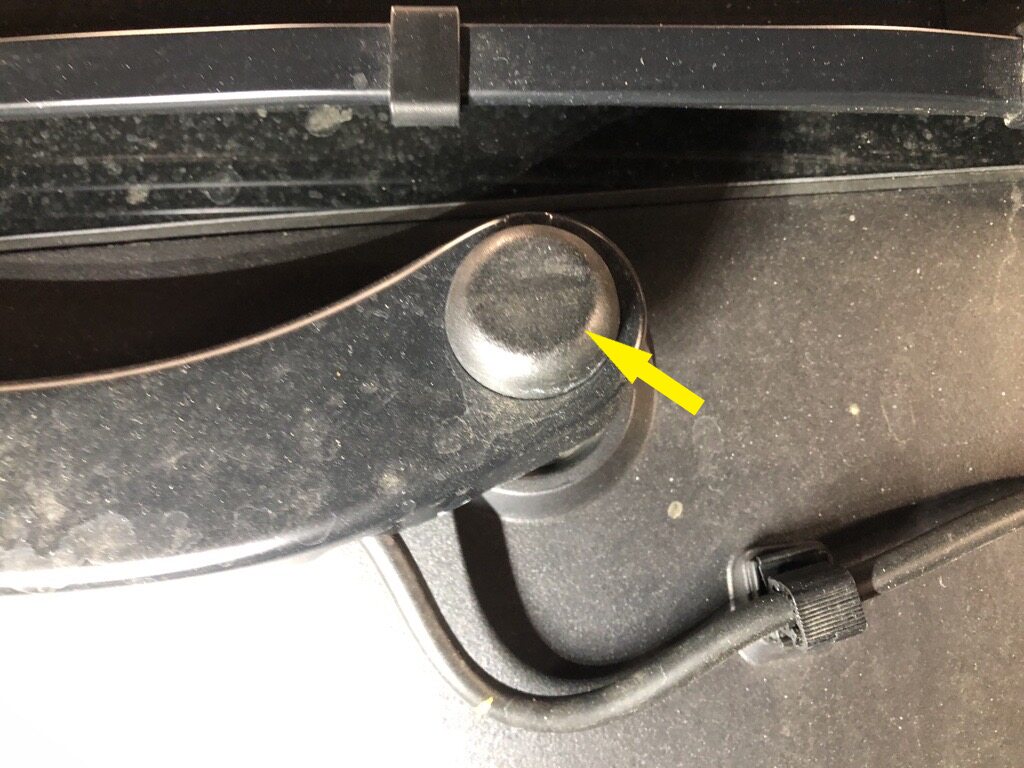

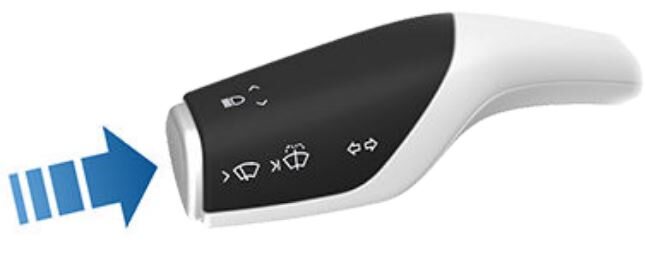

  16. Remove RH wiper arm nut cover
    Informational PurposesAn informational icon, calling your attention
    Note
    1x cover

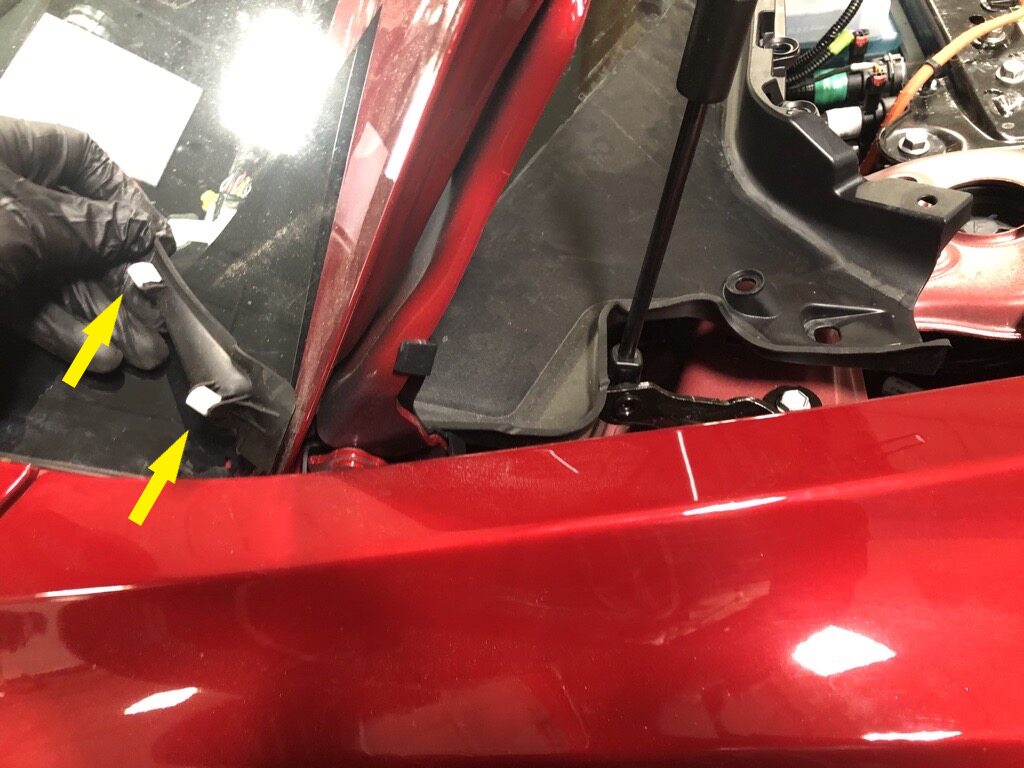

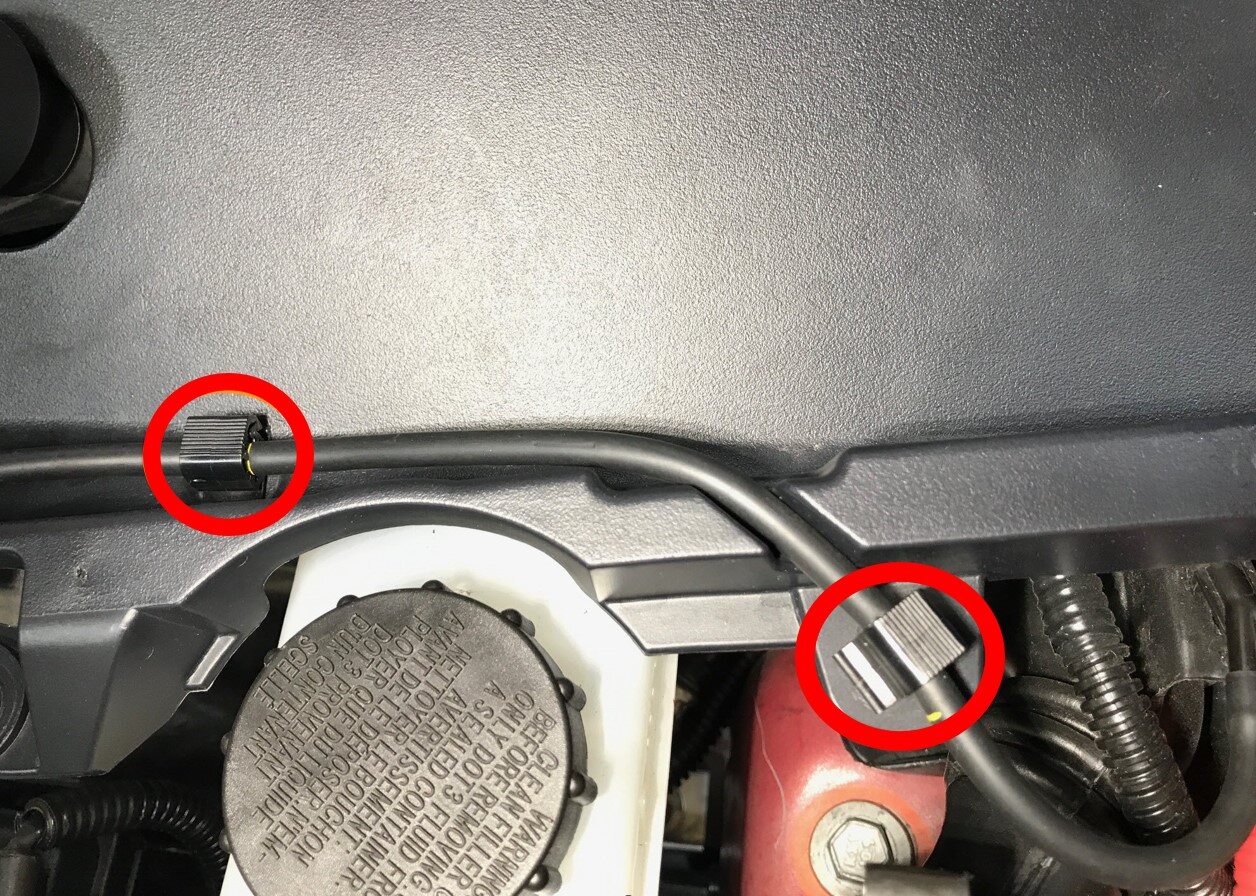

  17. Disconnect washer hose from RH wiper arm
    Informational PurposesAn informational icon, calling your attention
    Note
    2x clips, 1x hose, Disconnect Y-tube fitting and release washer hose clips

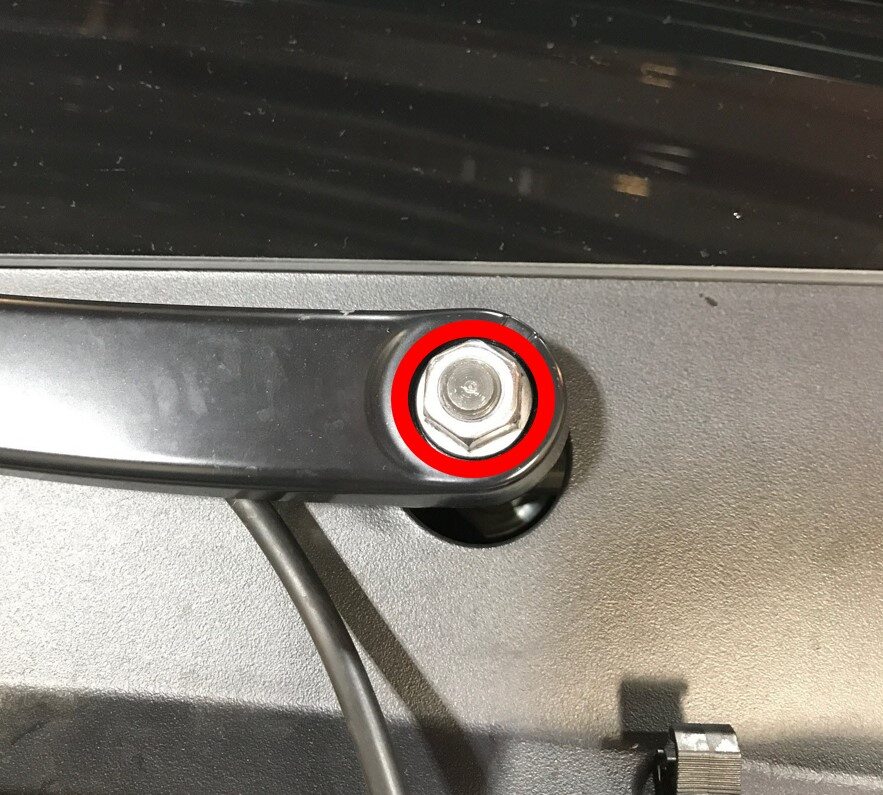

  18. Remove nut securing RH wiper arm to wiper module
    Informational PurposesAn informational icon, calling your attention
    Note

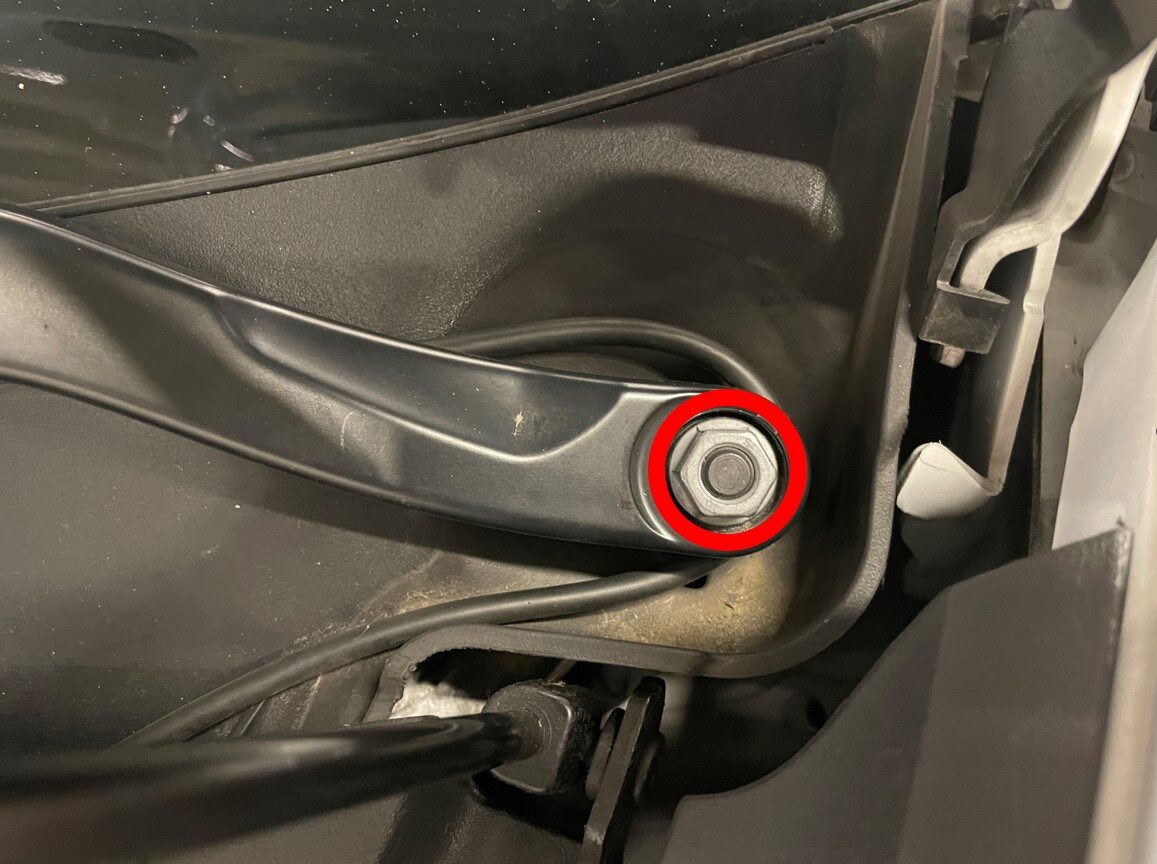

    1x nut, 15mm, 25 Nm

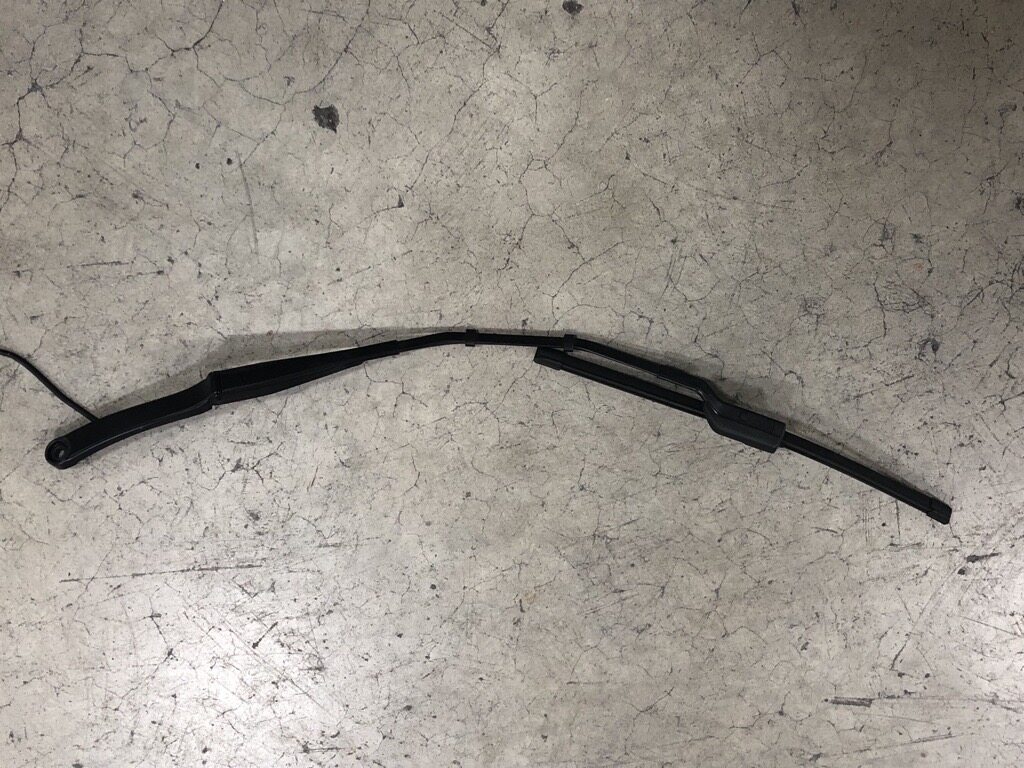

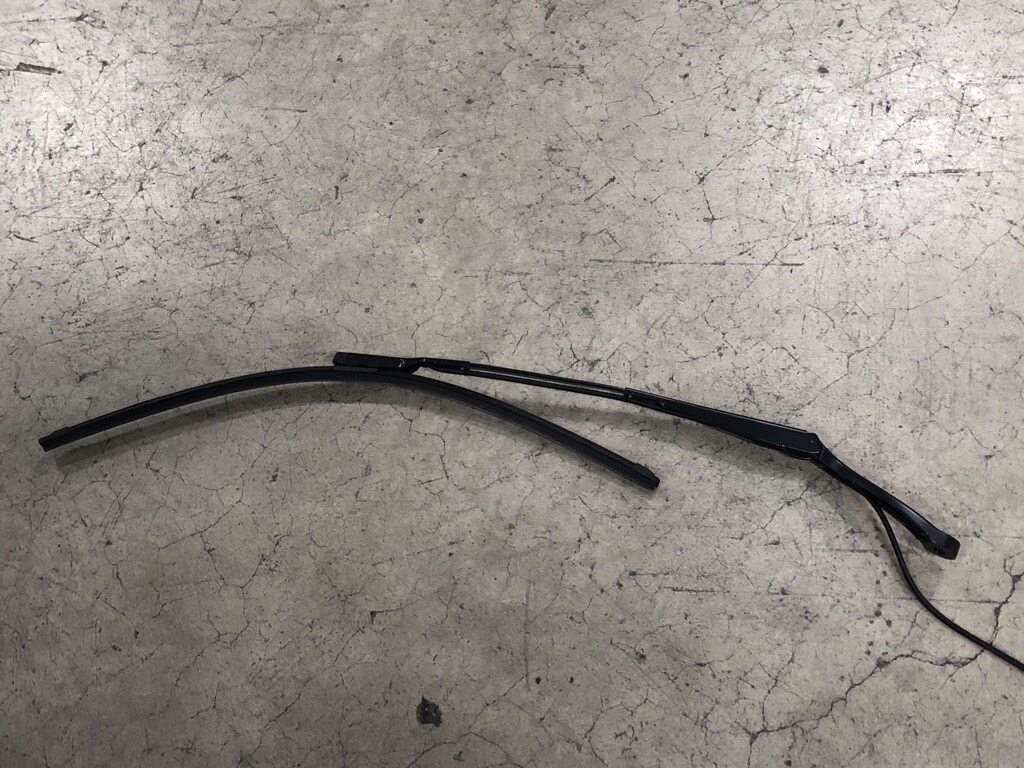

  19. Remove RH wiper arm and hose assembly from vehicle
  20. Remove LH wiper arm nut cover
    Informational PurposesAn informational icon, calling your attention
    Note
    1x cover
  21. Disconnect washer hose from LH wiper arm
    Informational PurposesAn informational icon, calling your attention
    Note
    2x clips, 1x hose, Disconnect Y-tube fitting and release washer hose clips
  22. Remove nut securing LH wiper arm to wiper module
    Informational PurposesAn informational icon, calling your attention
    Note
    1x nut, 15mm, 25 Nm
  23. Remove LH wiper arm and hose assembly from vehicle

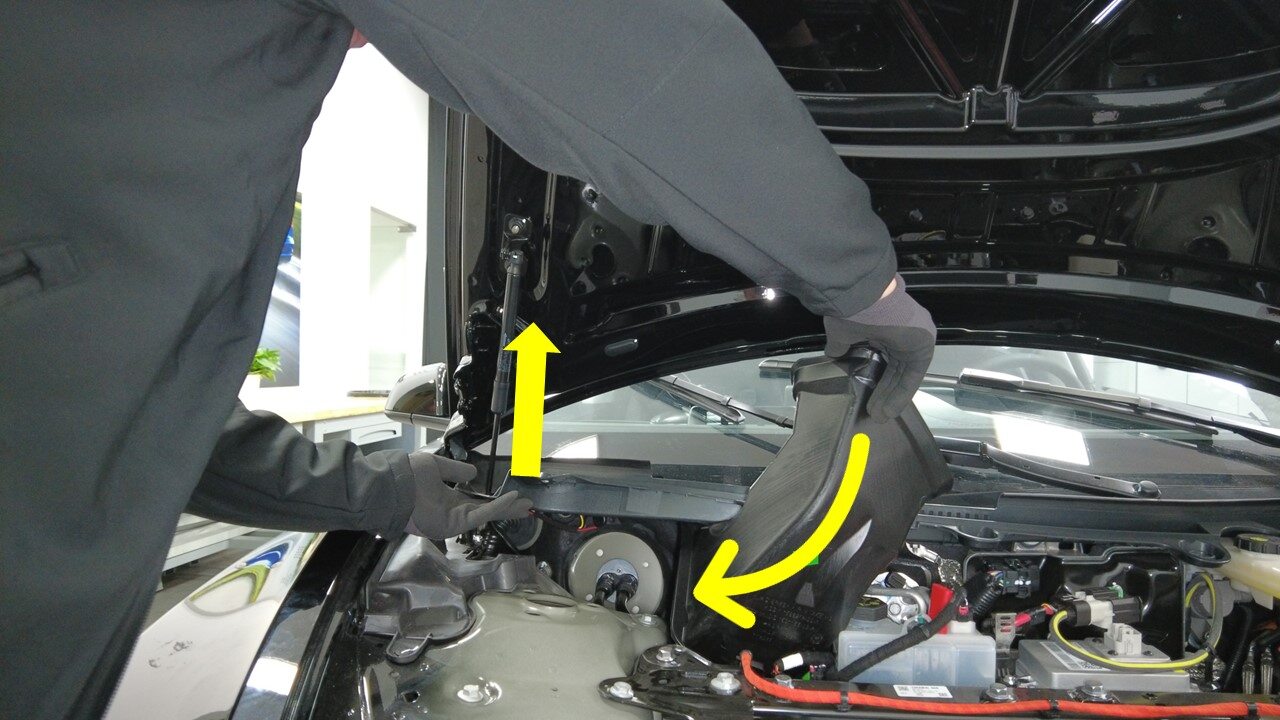

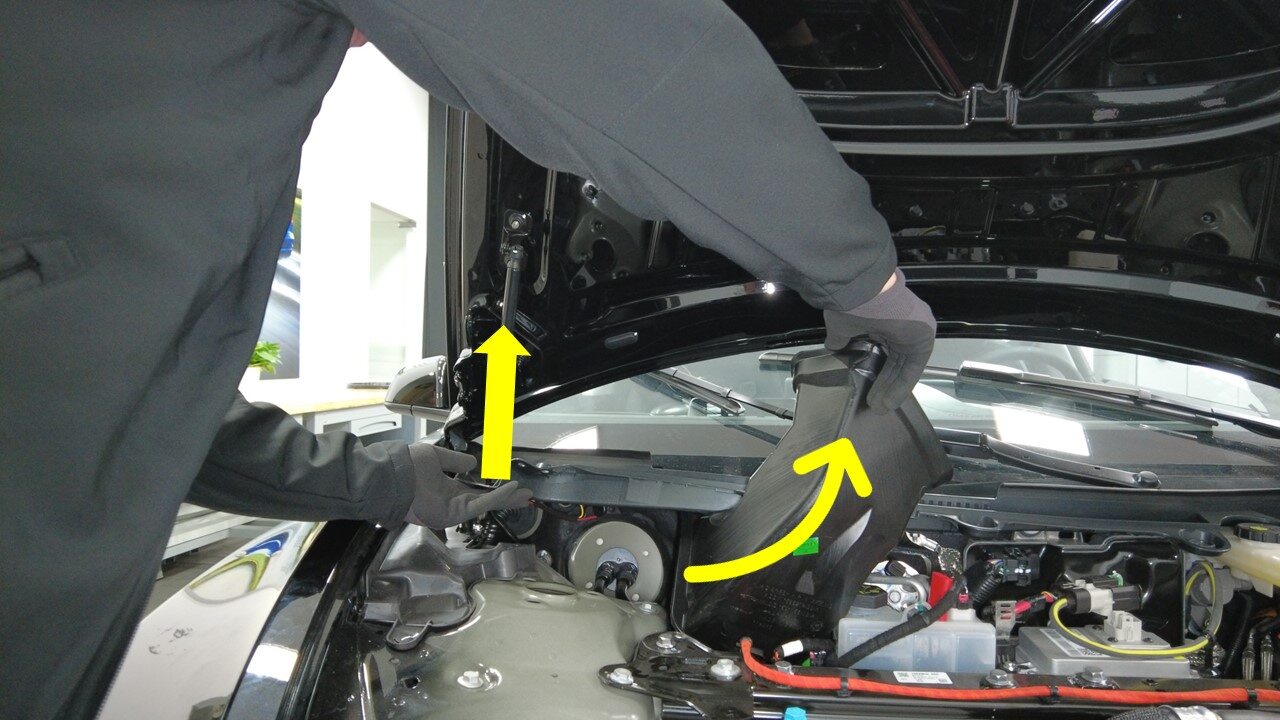

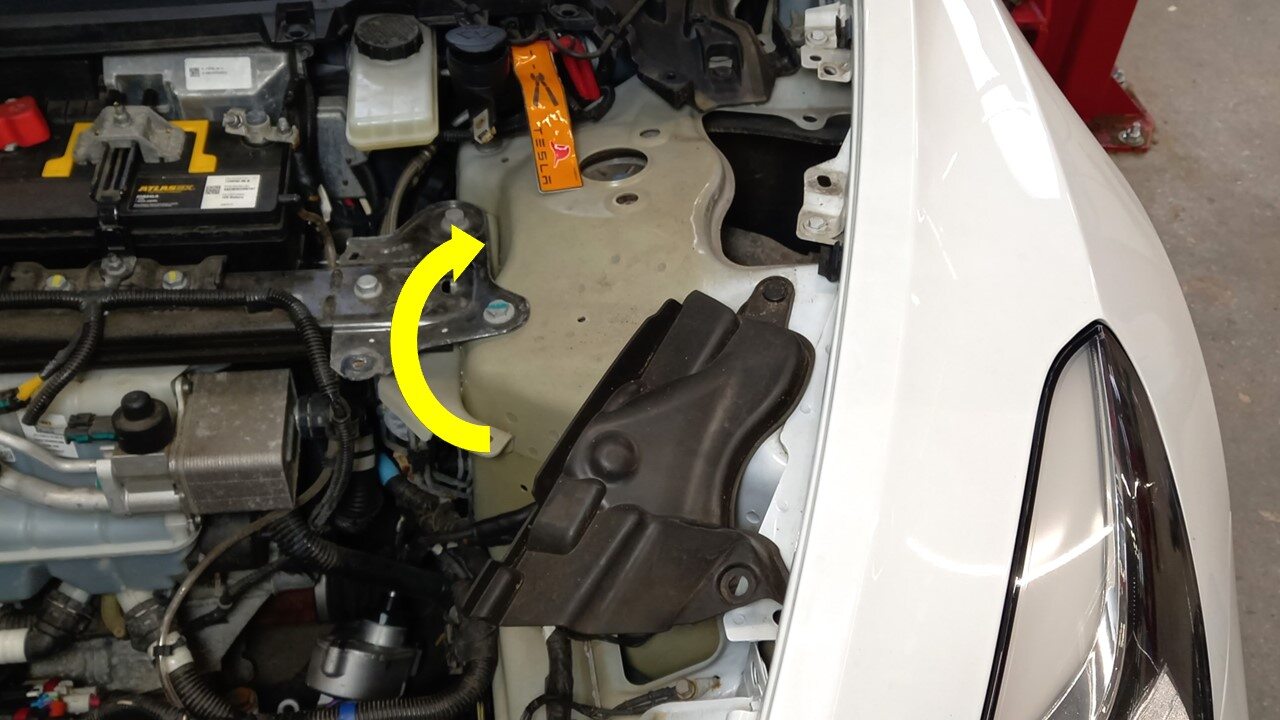

  24. Flip LH shock tower cover
    Informational PurposesAn informational icon, calling your attention
    Note
    1x push clip, Remove the clip and flip the cover following the arrow.

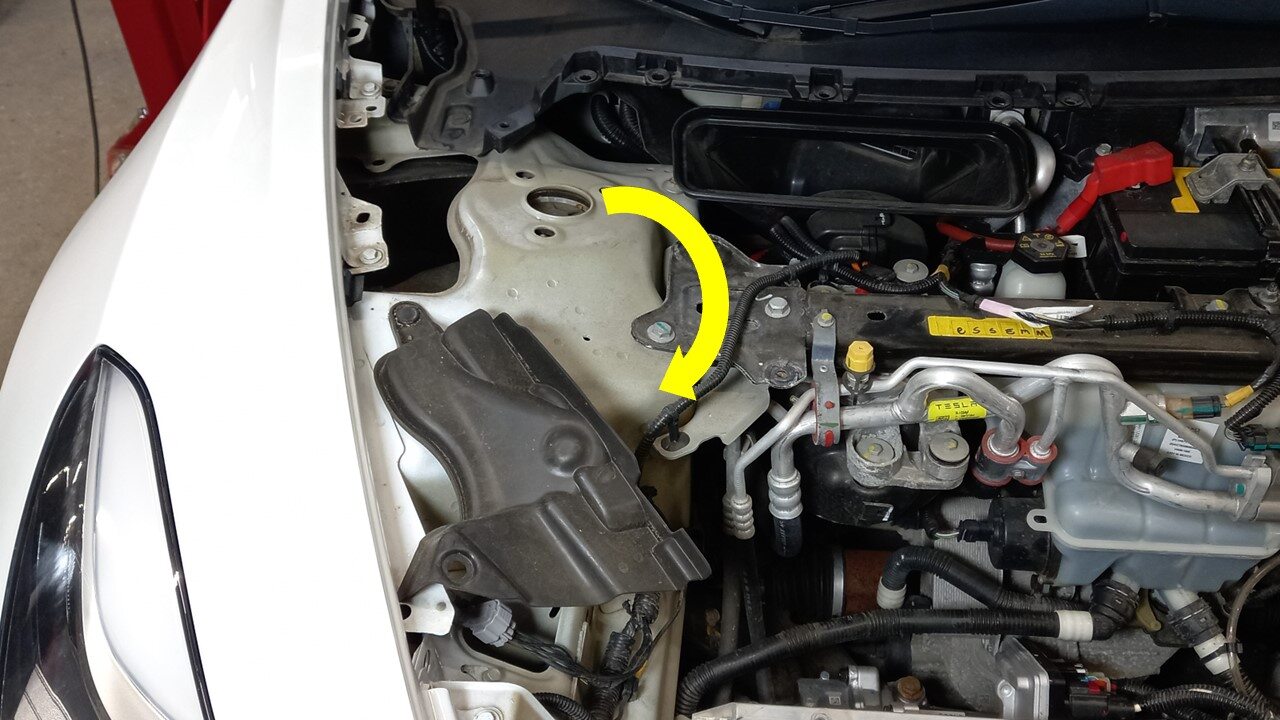

  25. Flip RH shock tower cover
    Informational PurposesAn informational icon, calling your attention
    Note
    1x push clip , Remove the clip and flip the cover following the arrow.

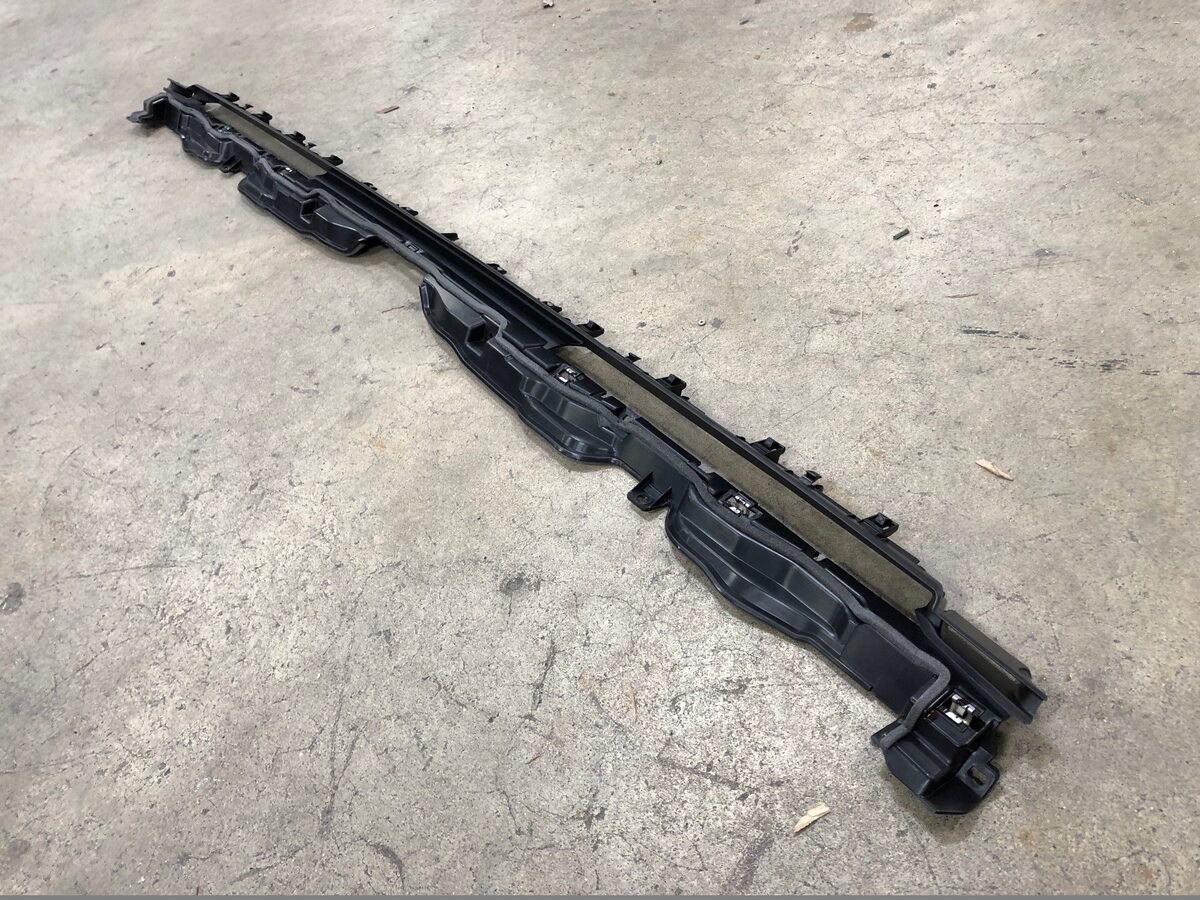

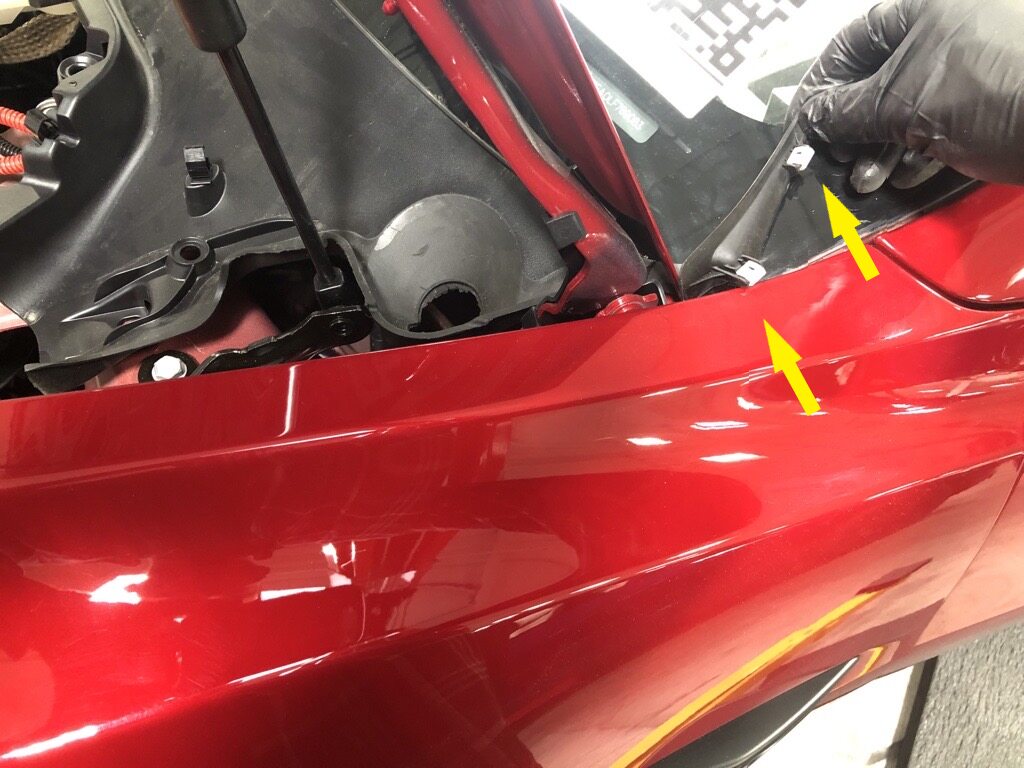

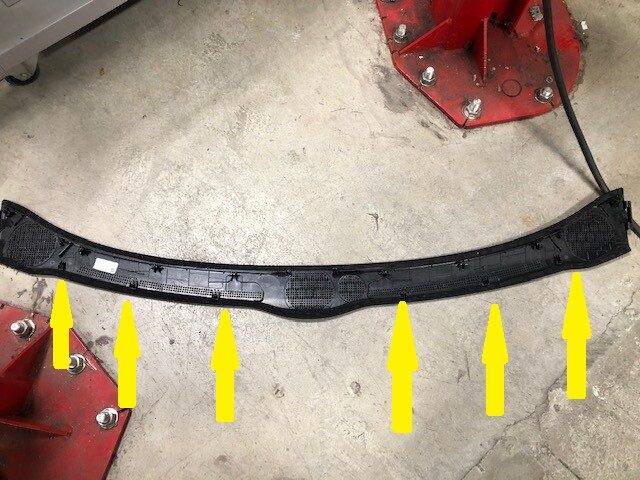

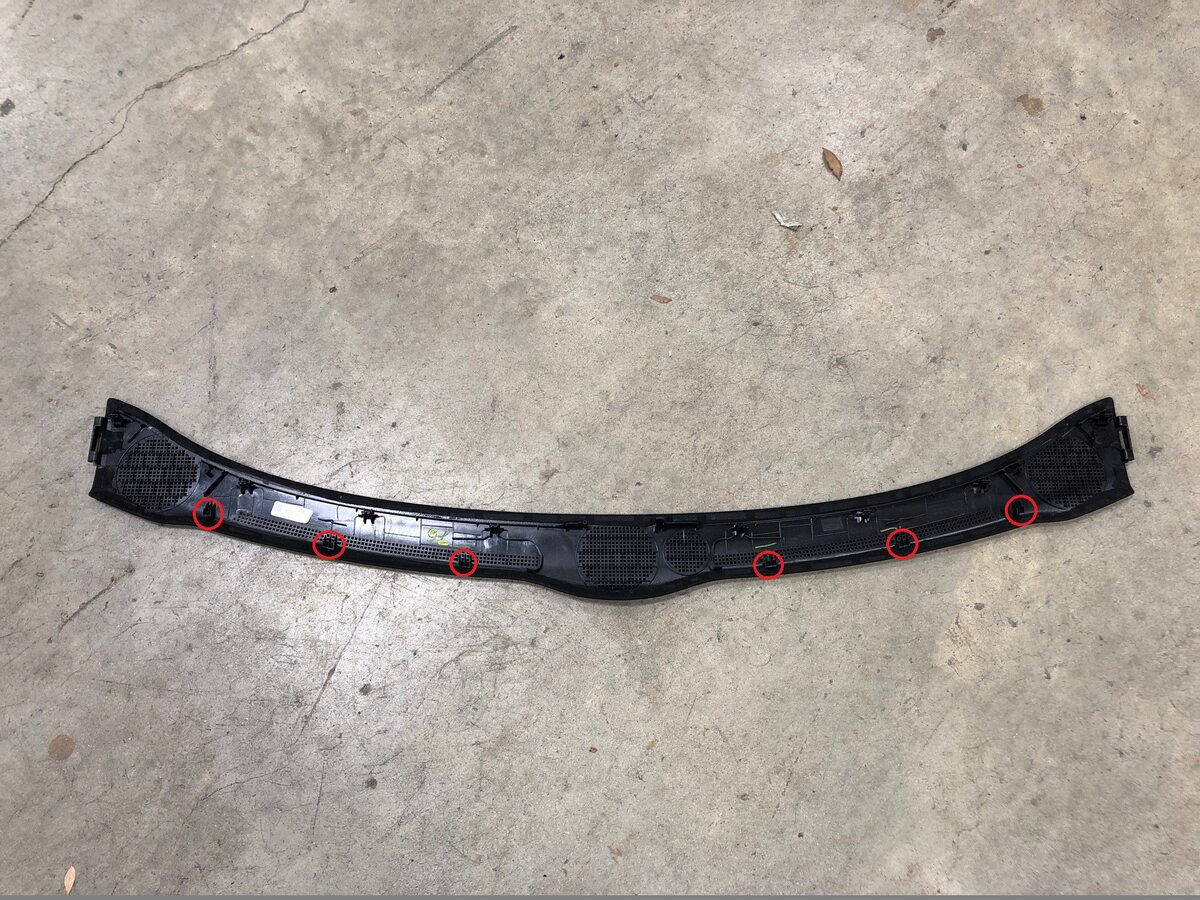

  26. Release cowl screen from windshield and remove from vehicle
    Informational PurposesAn informational icon, calling your attention
    Note
    2x push clips, 6x clips

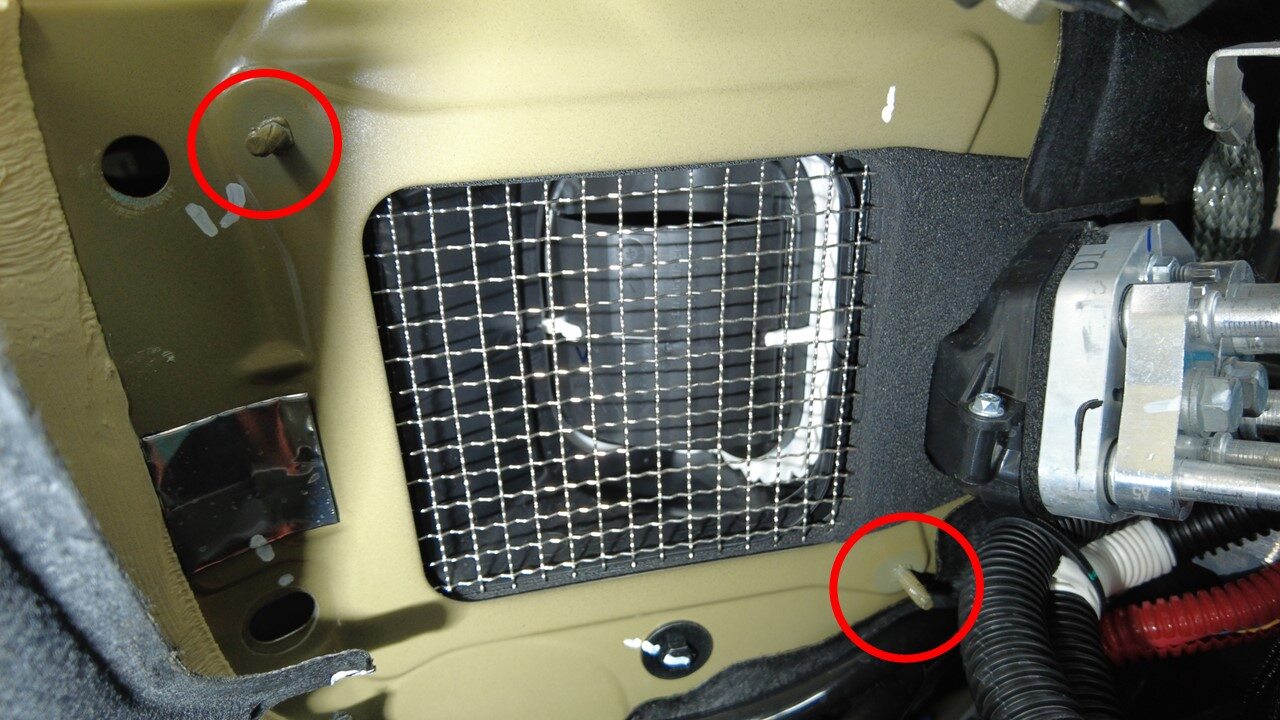

  27. Remove fresh air intake assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    2x studs, Lift cowl as needed

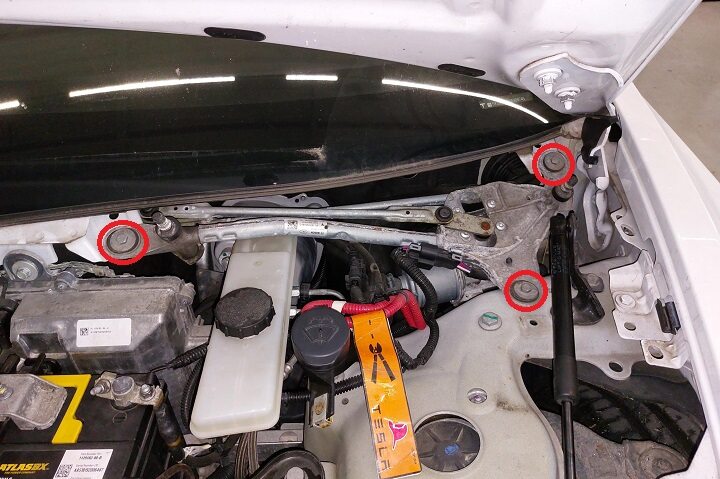

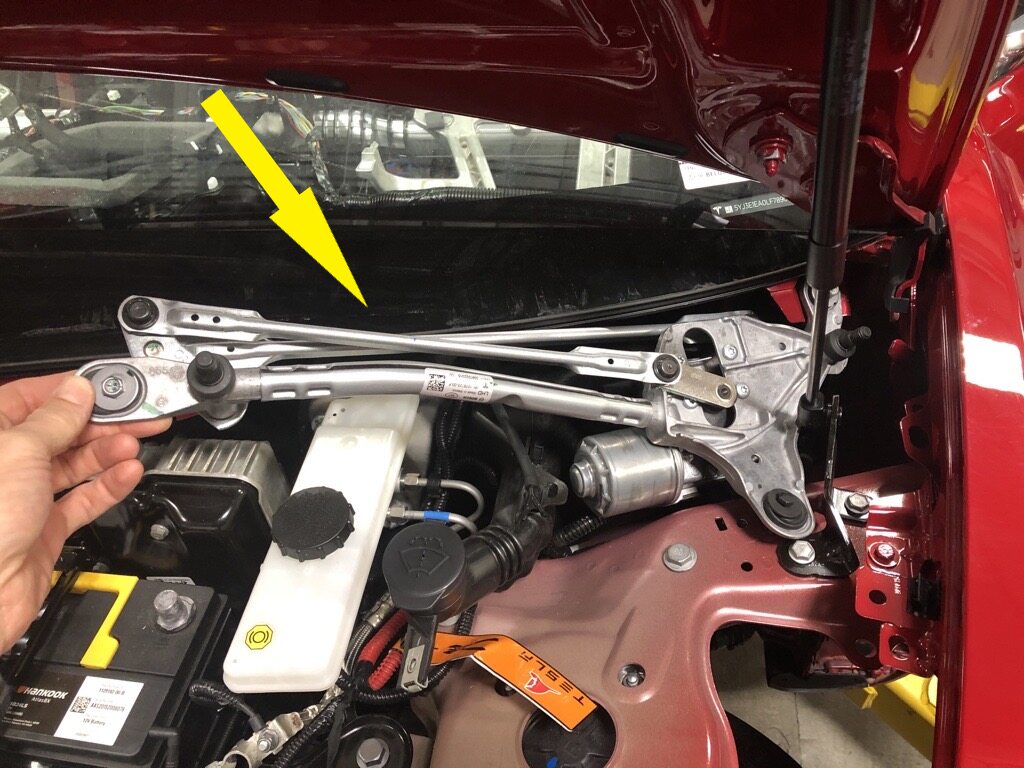

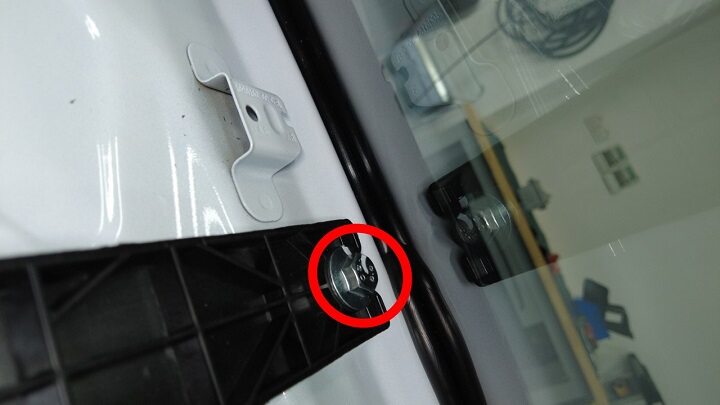

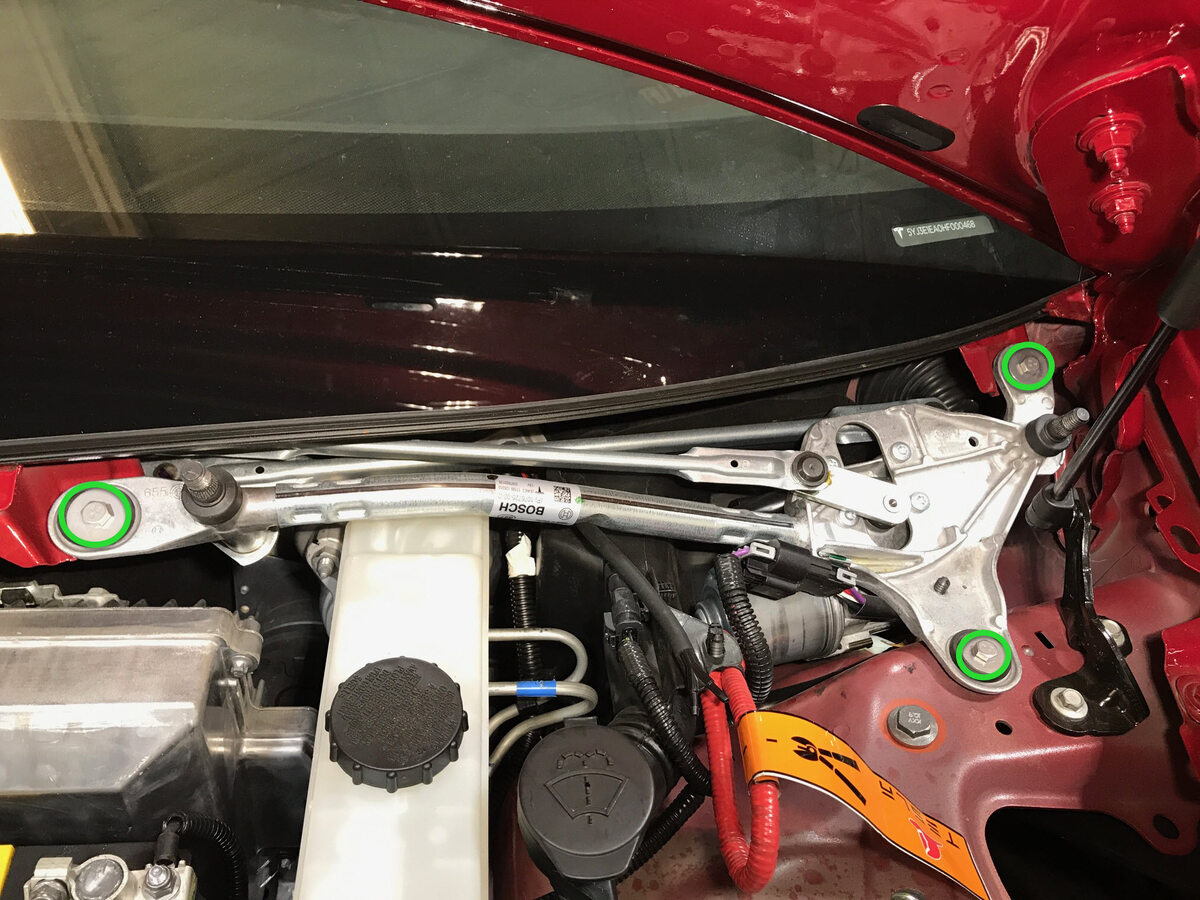

  28. Remove bolts securing wiper module
    Informational PurposesAn informational icon, calling your attention
    Note
    3x bolts, 10mm, 7 Nm

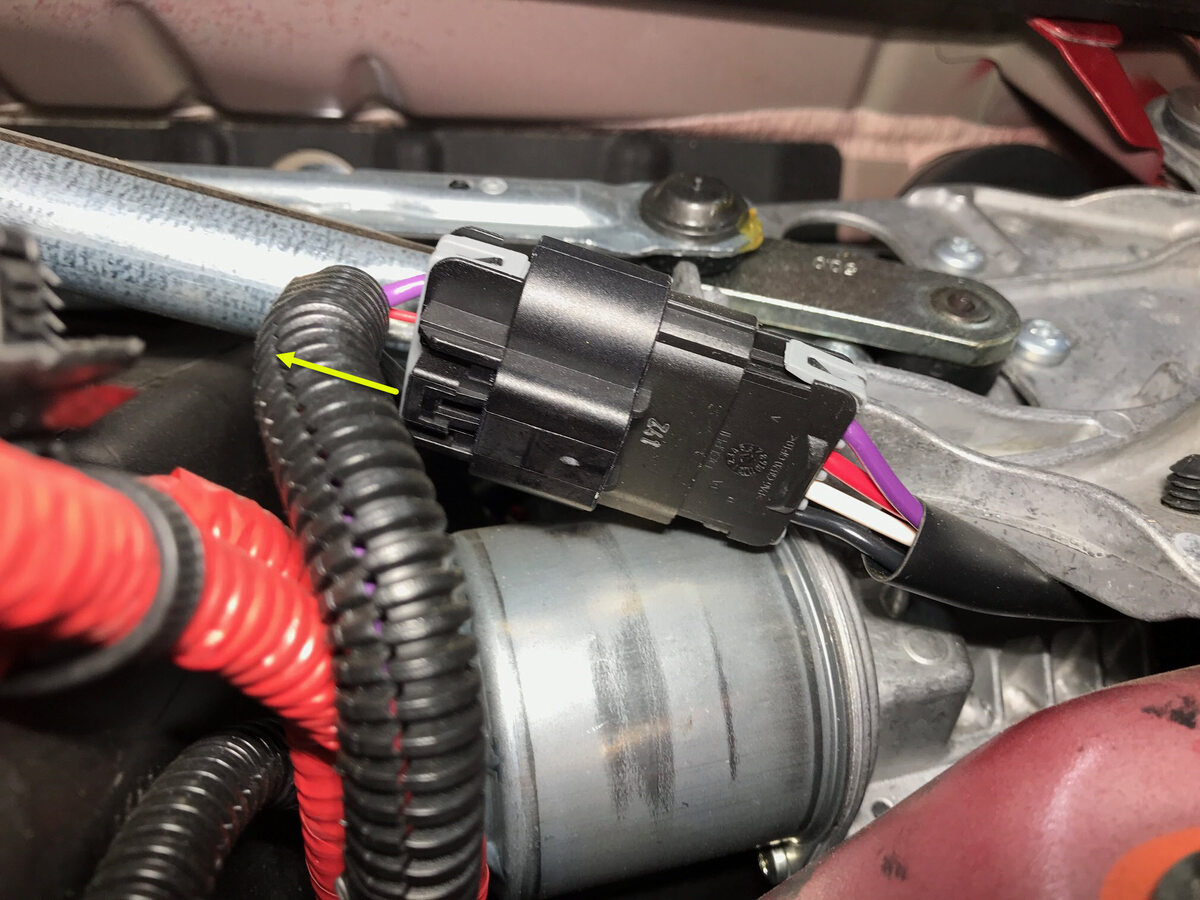

  29. Disconnect wiper module harness
    Informational PurposesAn informational icon, calling your attention
    Note

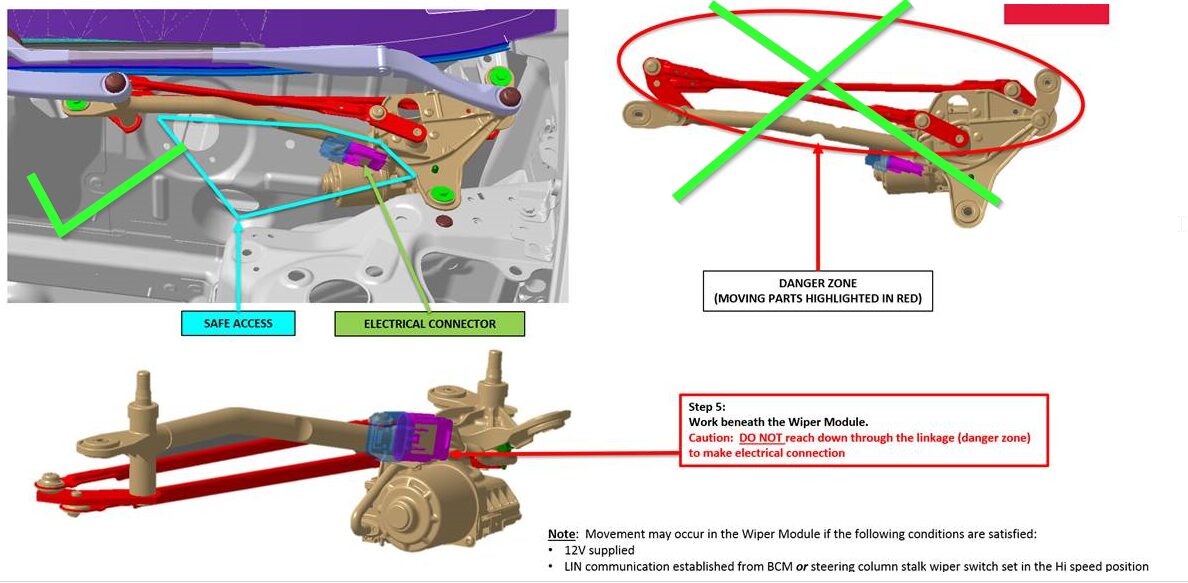

    1x connector, Do NOT place limbs within the linkage movement area as wiper arms will automatically transition to parking mode

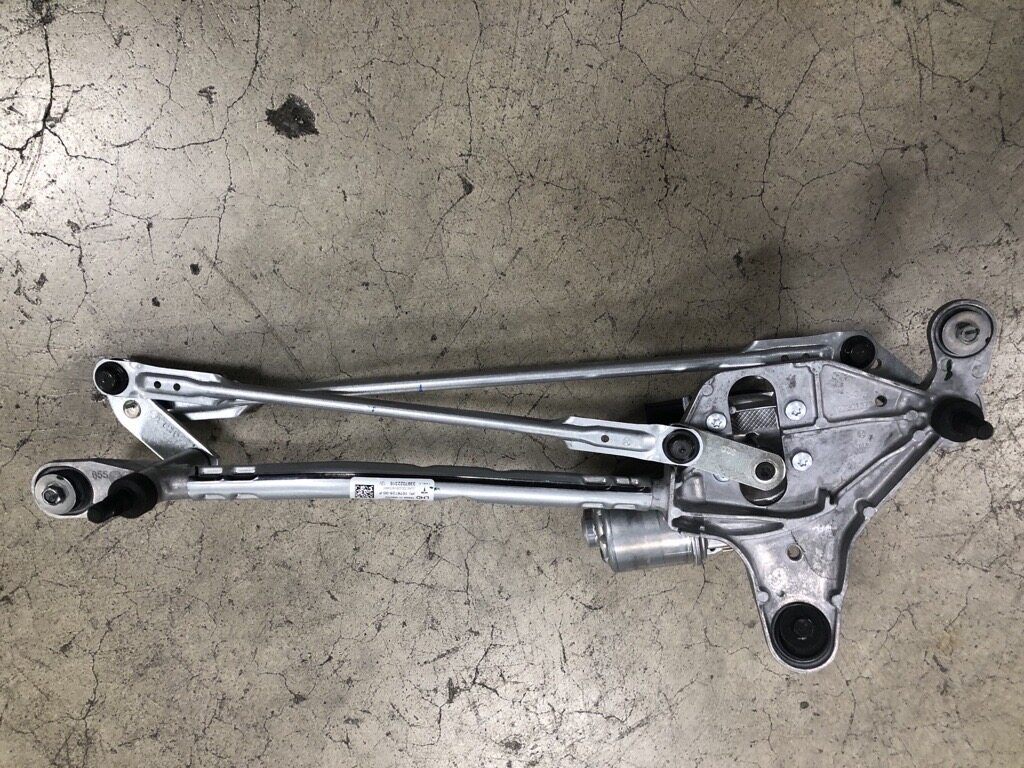

  30. Remove wiper module from vehicle

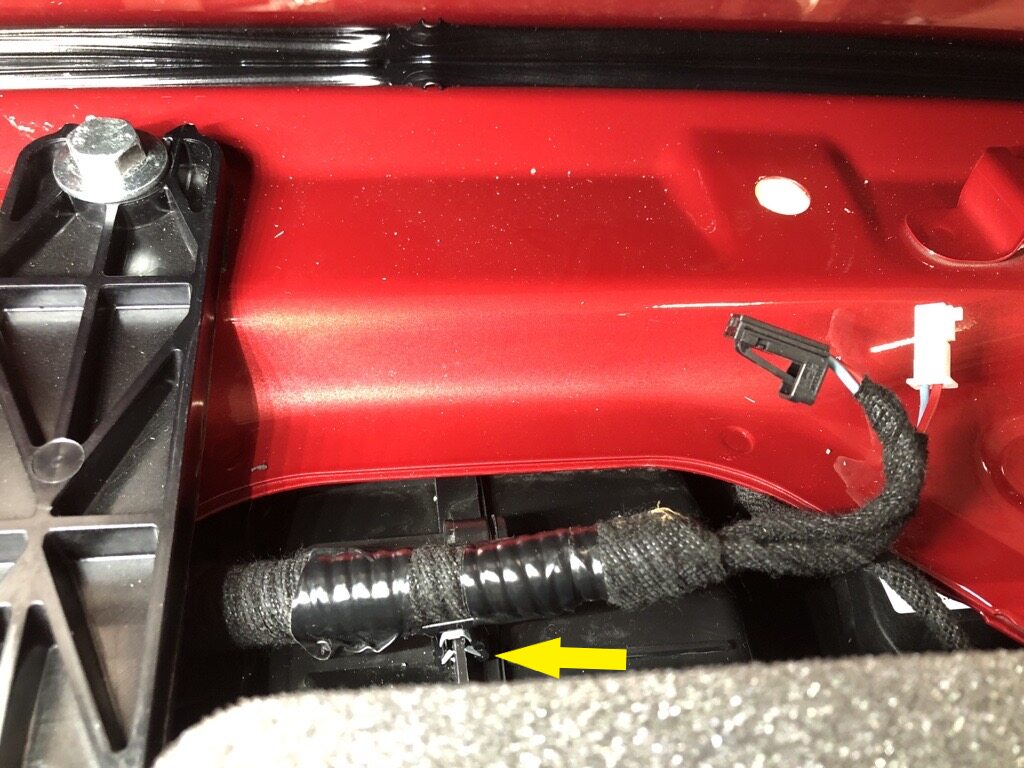

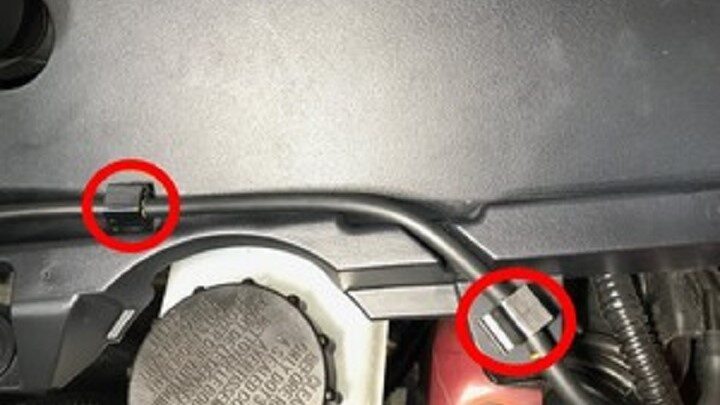

  31. Release harness clip from LH side of washer tank inlet
    Informational PurposesAn informational icon, calling your attention
    Note
    1x clip

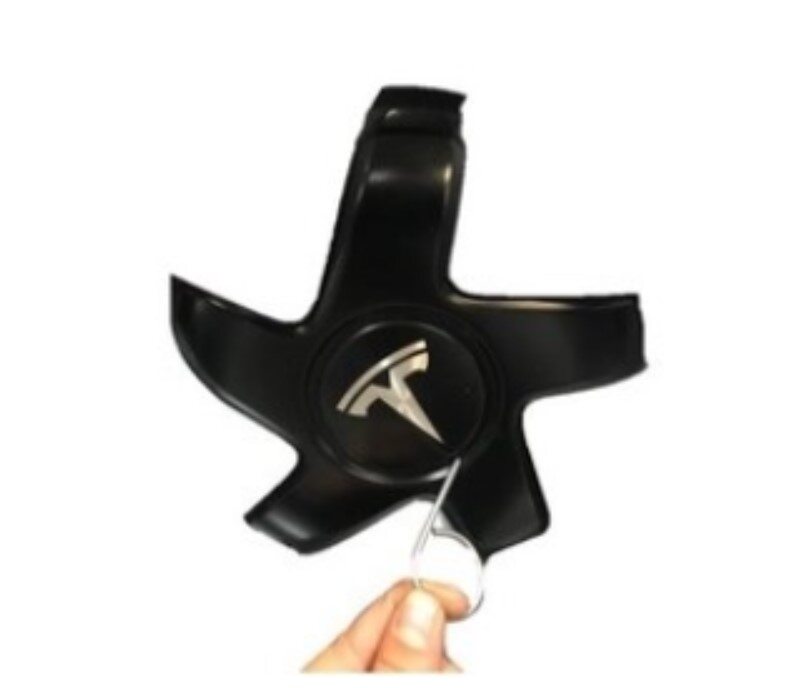

  32. Remove LH front wheel center cap
    Informational PurposesAn informational icon, calling your attention
    Note
    1x cap

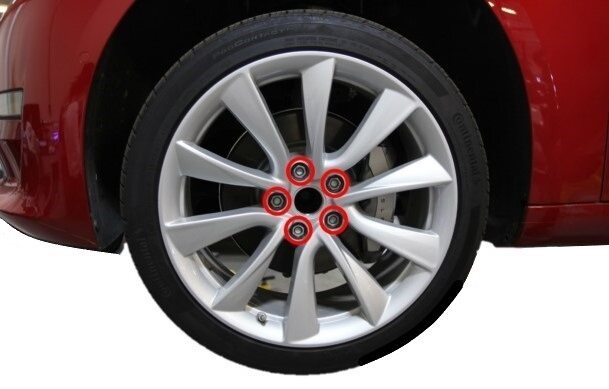

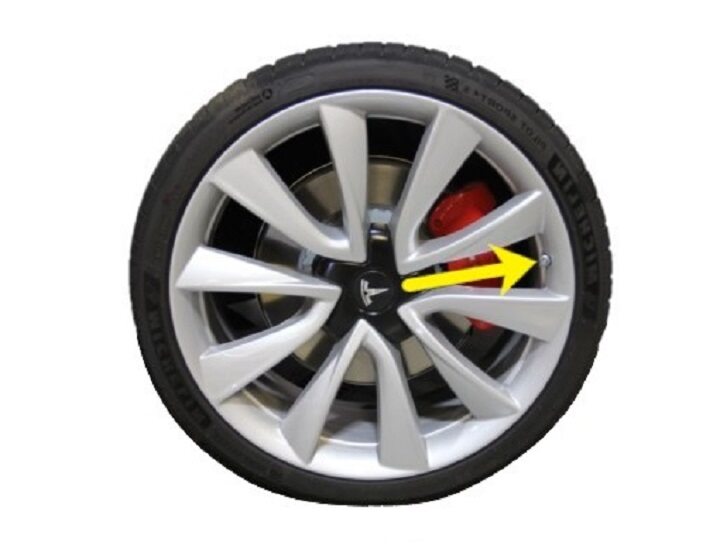

  33. Loosen LH front wheel
    Informational PurposesAn informational icon, calling your attention
    Note

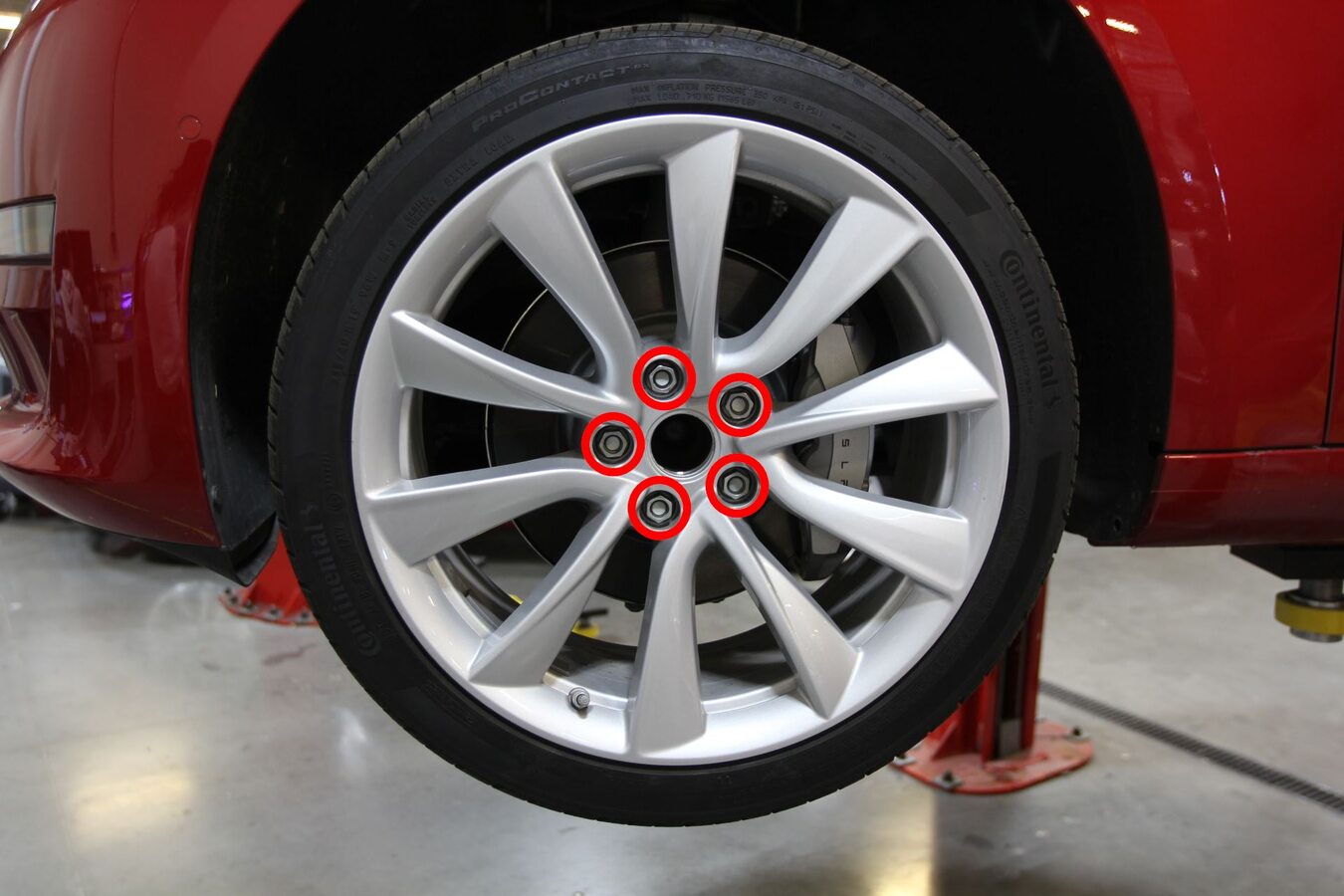

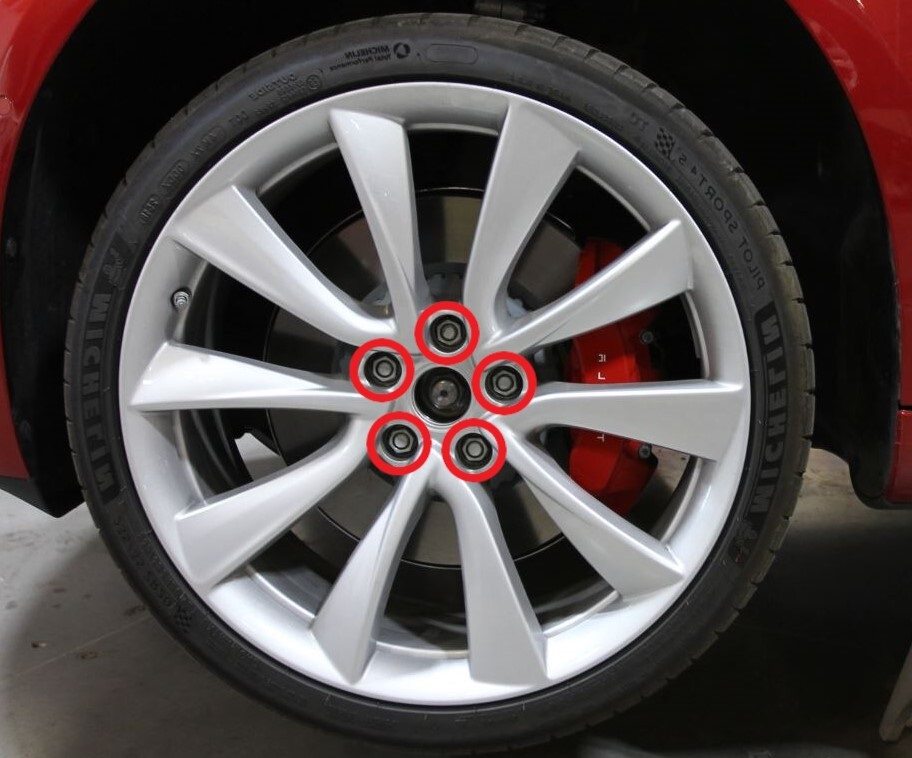

    5x nuts, 21mm, 175 Nm
  34. Raise vehicle partially and lower lift onto locks
    Informational PurposesAn informational icon, calling your attention
    Note
    Set vehicle to comfortable working height, Make sure there's an audible click of the locks on both sides before lowering, Otherwise vehicle may tilt to the side
  35. Remove LH front wheel
    Informational PurposesAn informational icon, calling your attention
    Note
    5x nuts, 21mm, 175 Nm

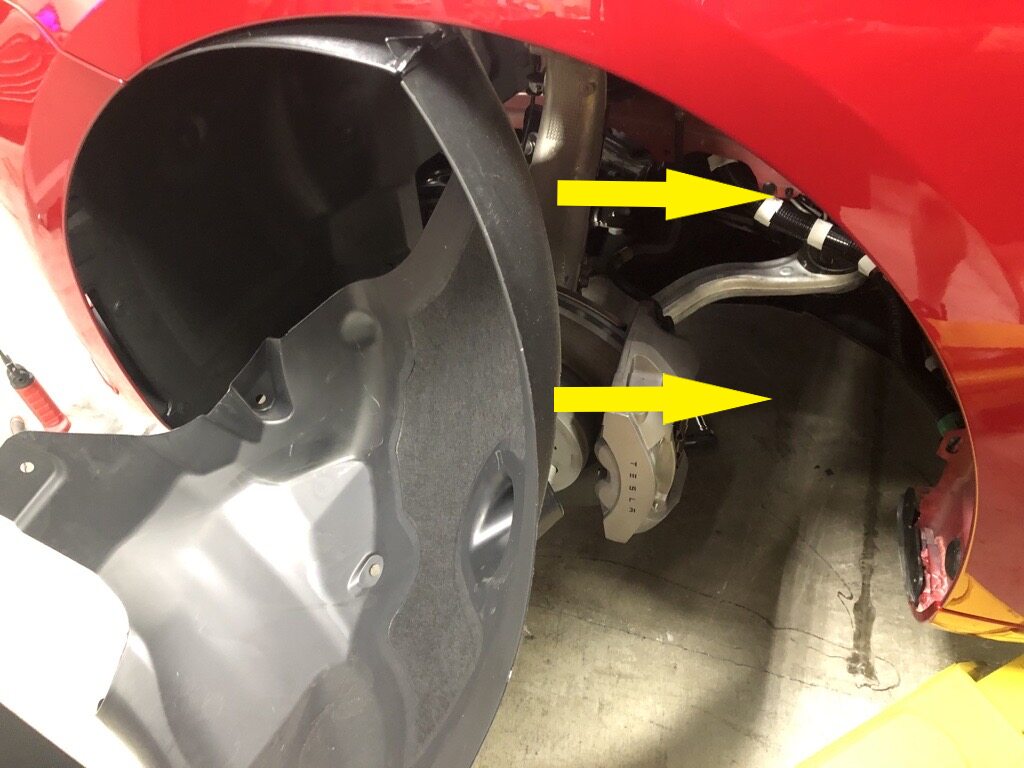

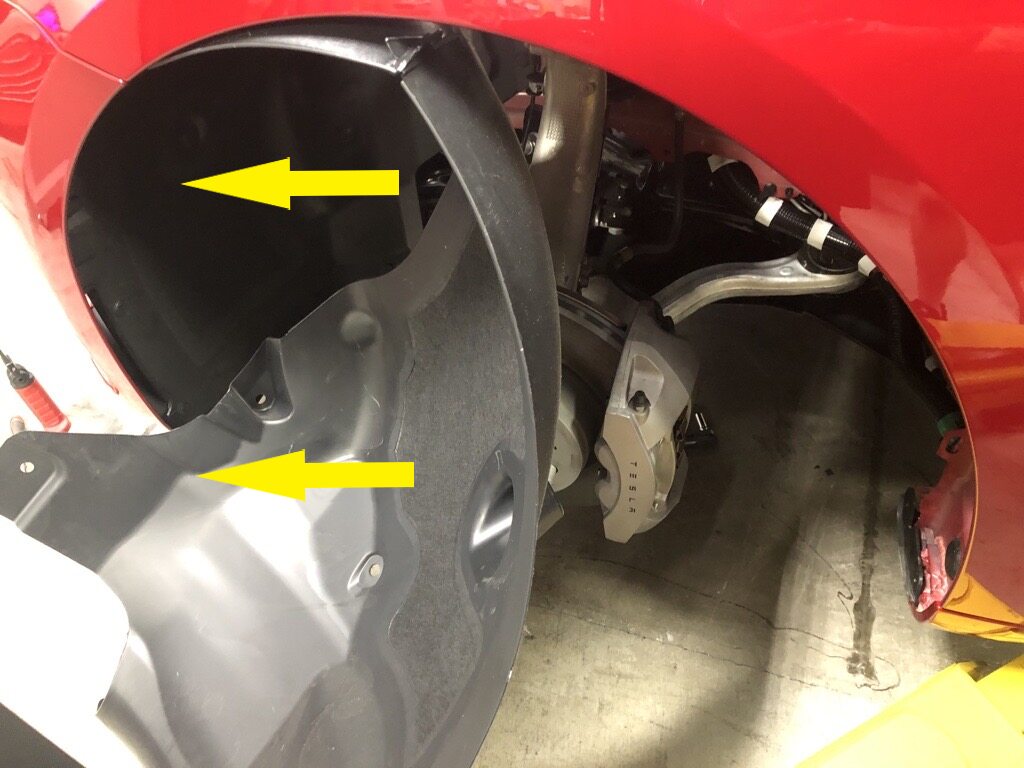

  36. Partially remove LH front wheel liner
    Informational PurposesAn informational icon, calling your attention
    Note
    6x clips, 1x bolt, 10mm, 5 Nm, Newer vehicles may be equipped with 2x push clips securing lower portion of liner to body

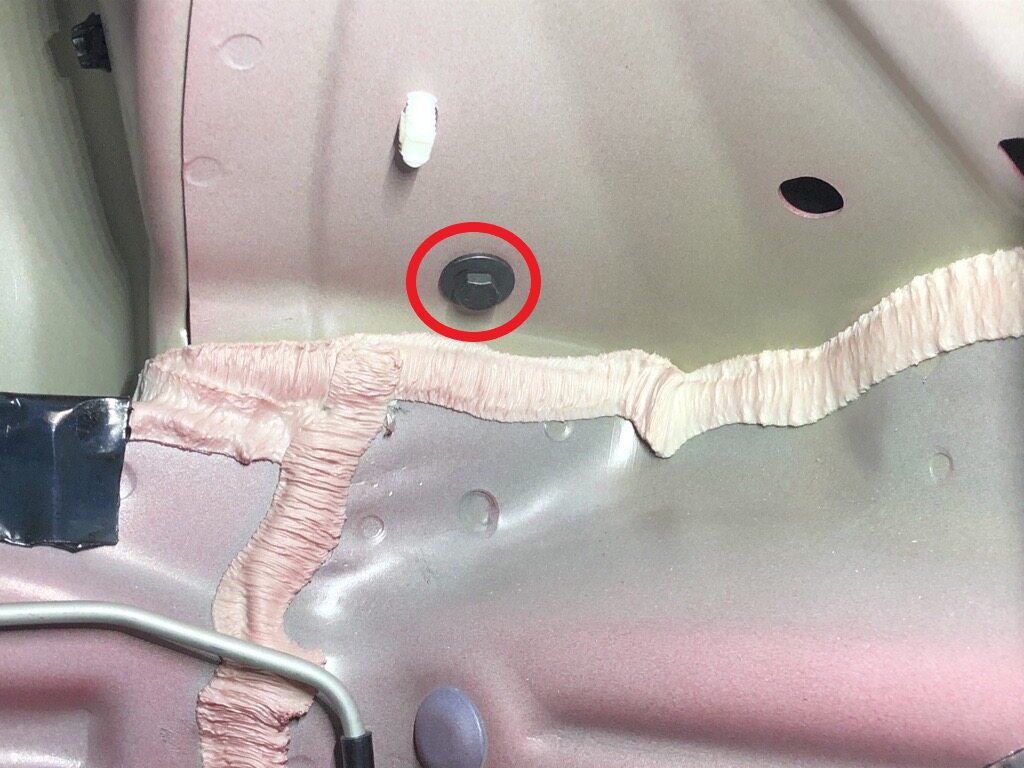

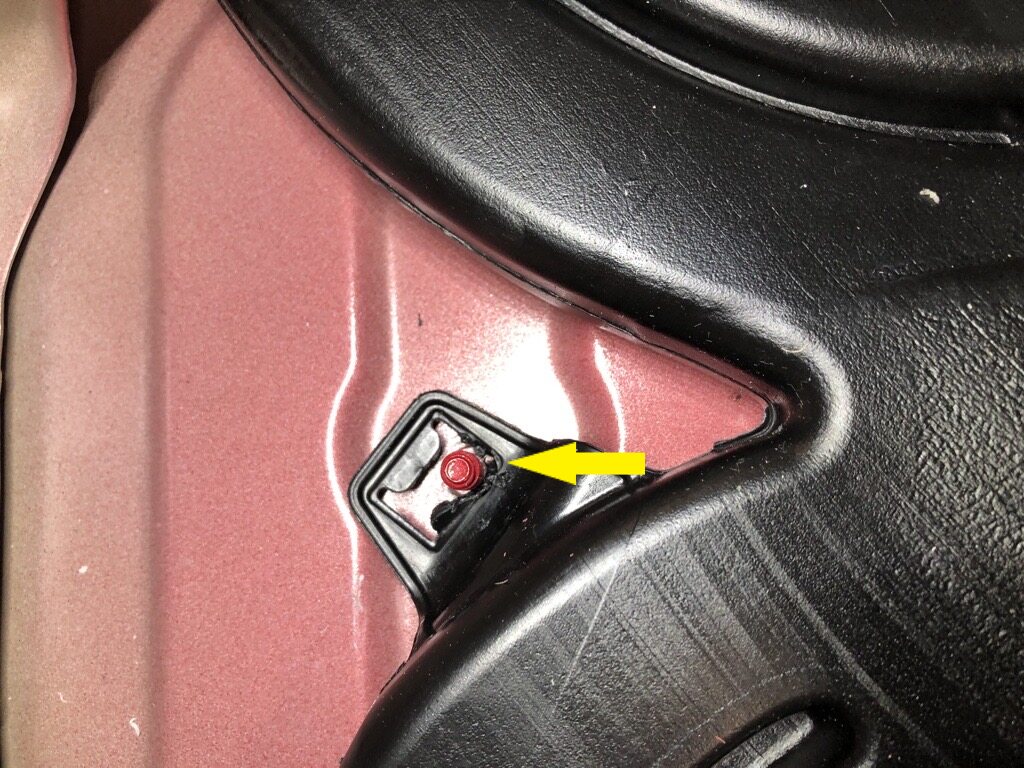

  37. Remove lower bolt securing washer tank to vehicle
    Informational PurposesAn informational icon, calling your attention
    Note
    1x bolt, 10mm, 3 Nm

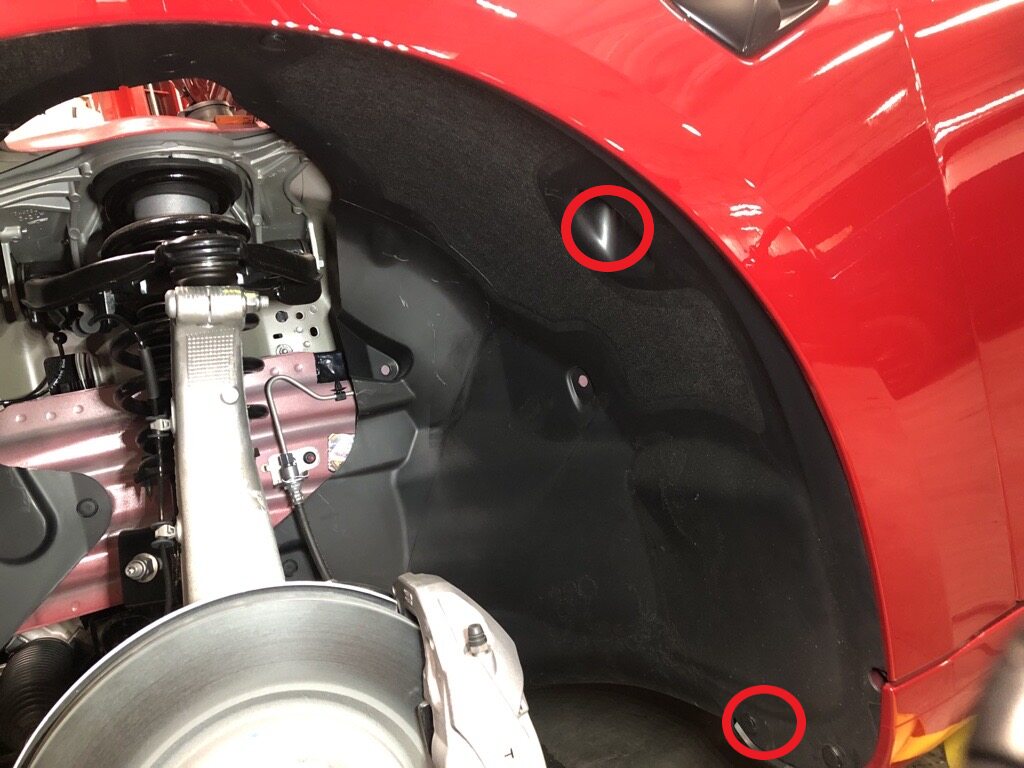

  38. Partially install LH front wheel liner
    Informational PurposesAn informational icon, calling your attention
    Note
    2x clips, Partially install LH front wheel liner, Wheel liner will be removed again later, Install 2 clips to secure LH front wheel liner
  39. Install LH front wheel
    Informational PurposesAn informational icon, calling your attention
    Note
    5x nuts, 21mm, 175 Nm, Start lug nuts by hand before using power tool, Torque at later step
  40. Lower vehicle until tires are touching ground
    Informational PurposesAn informational icon, calling your attention
    Note
    Raise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered

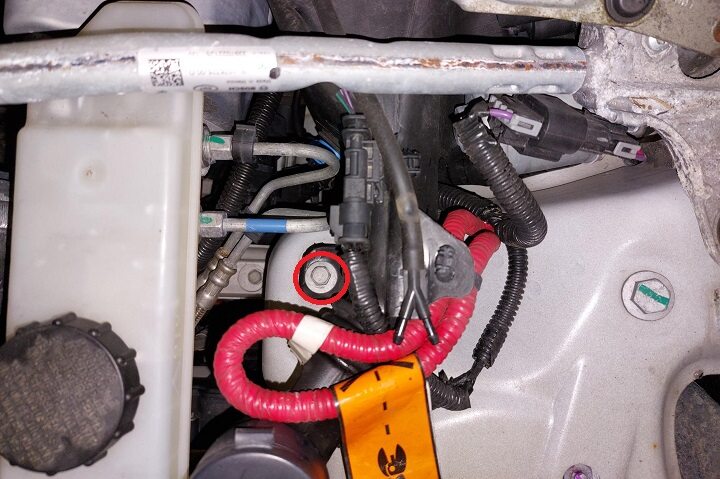

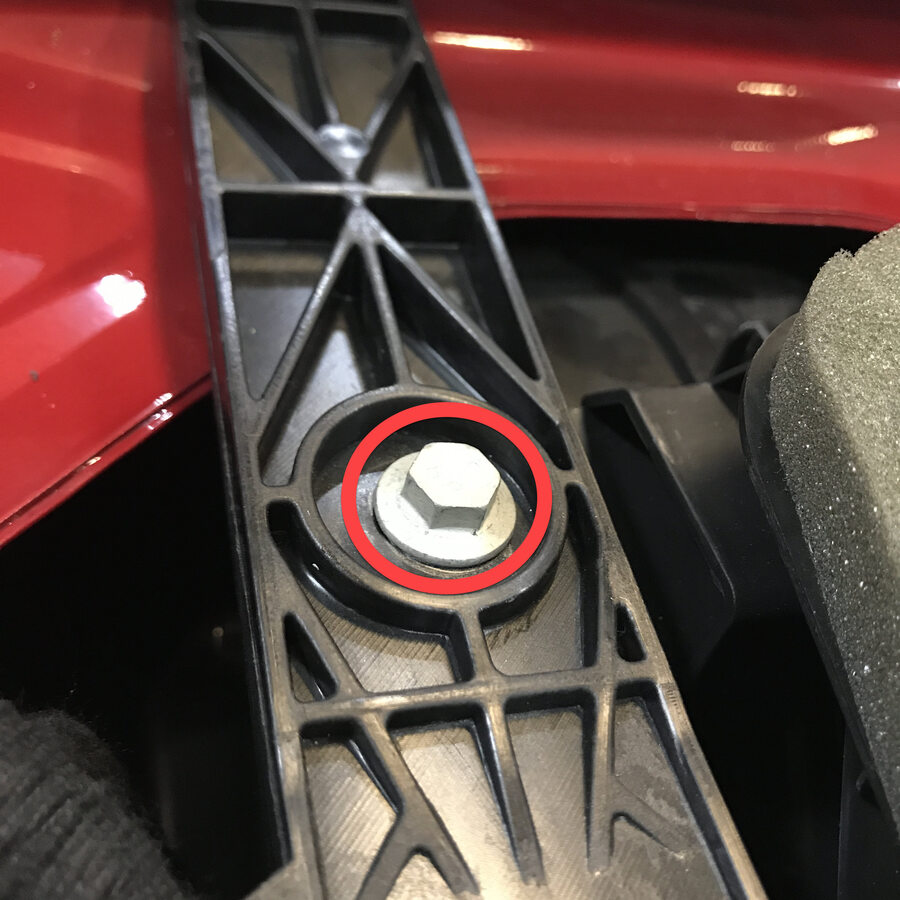

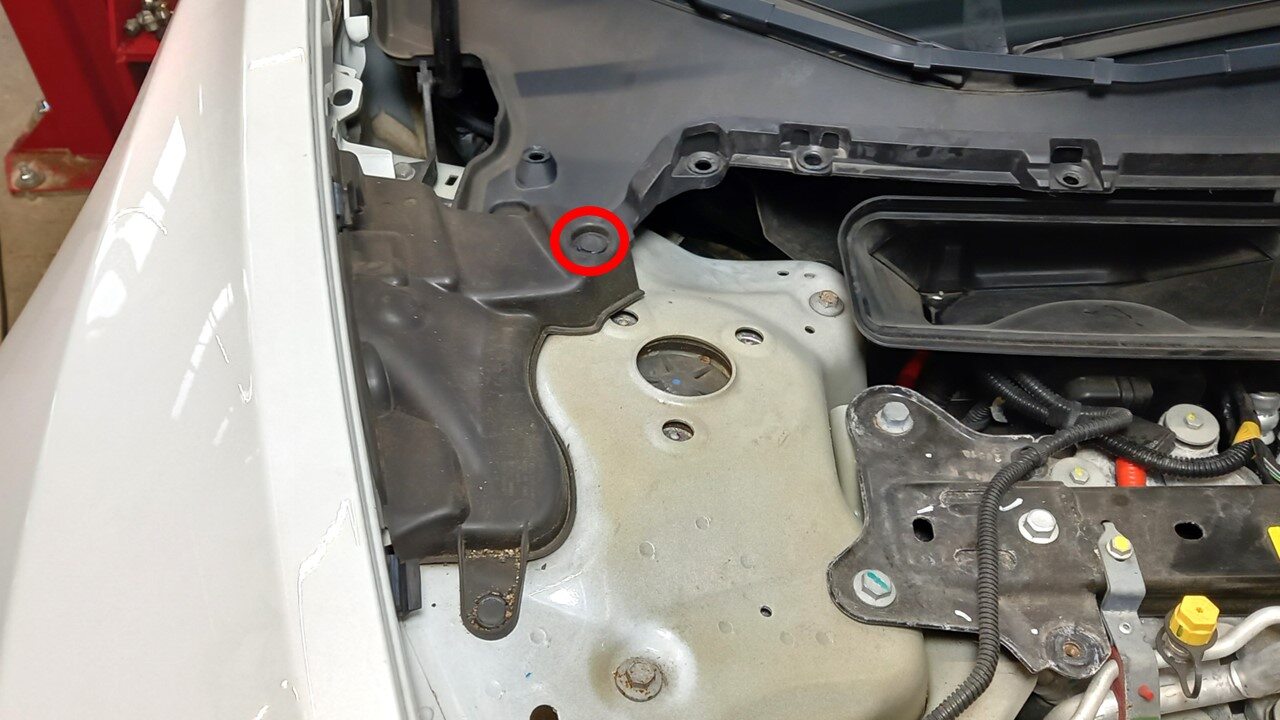

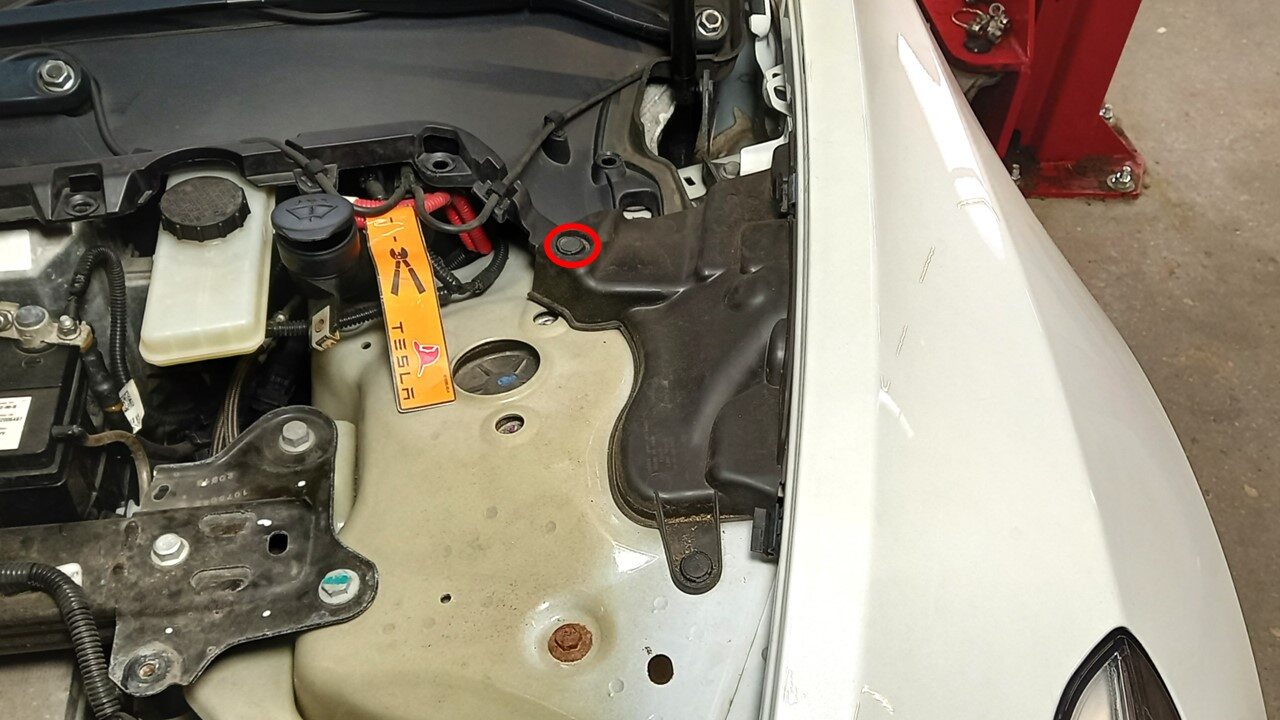

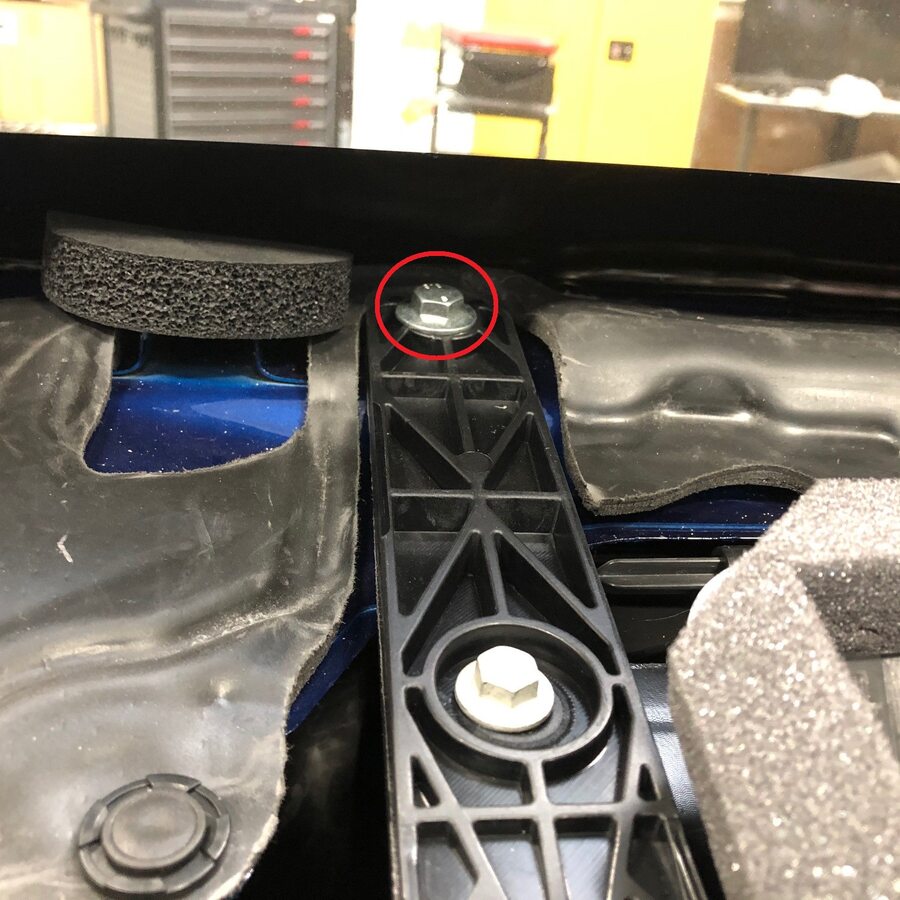

  41. Remove upper bolt securing washer tank to vehicle
    Informational PurposesAn informational icon, calling your attention
    Note
    1x bolt, 10mm, 3 Nm

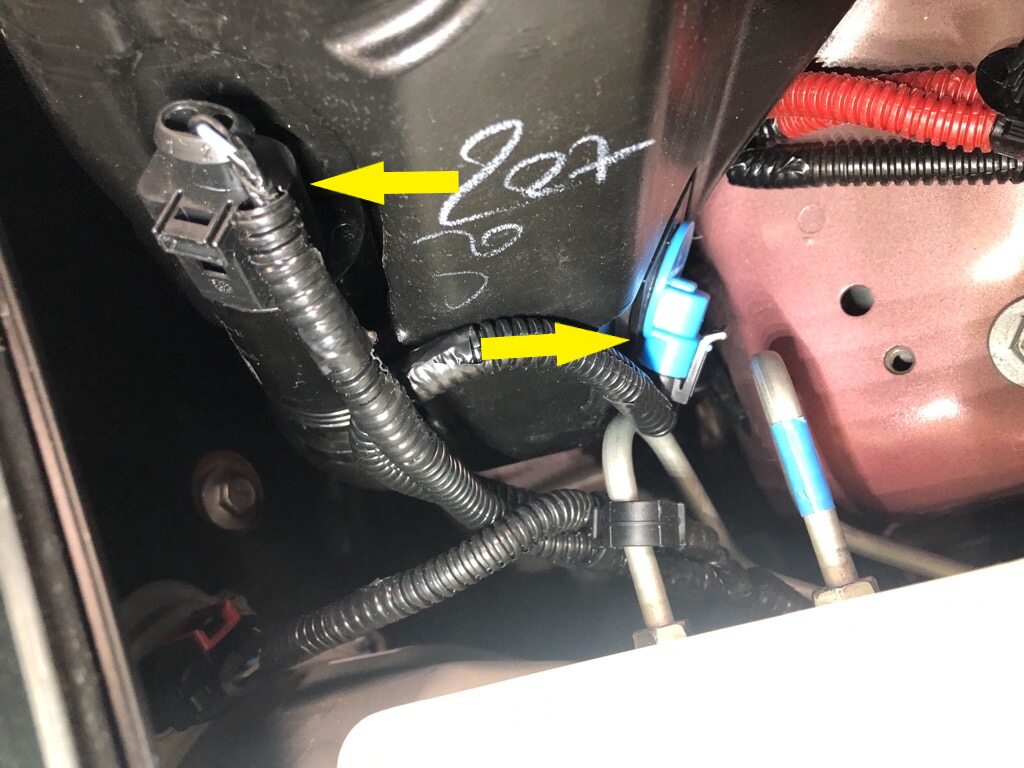

  42. Disconnect washer pump and level sensor connectors
    Informational PurposesAn informational icon, calling your attention
    Note
    2x connectors

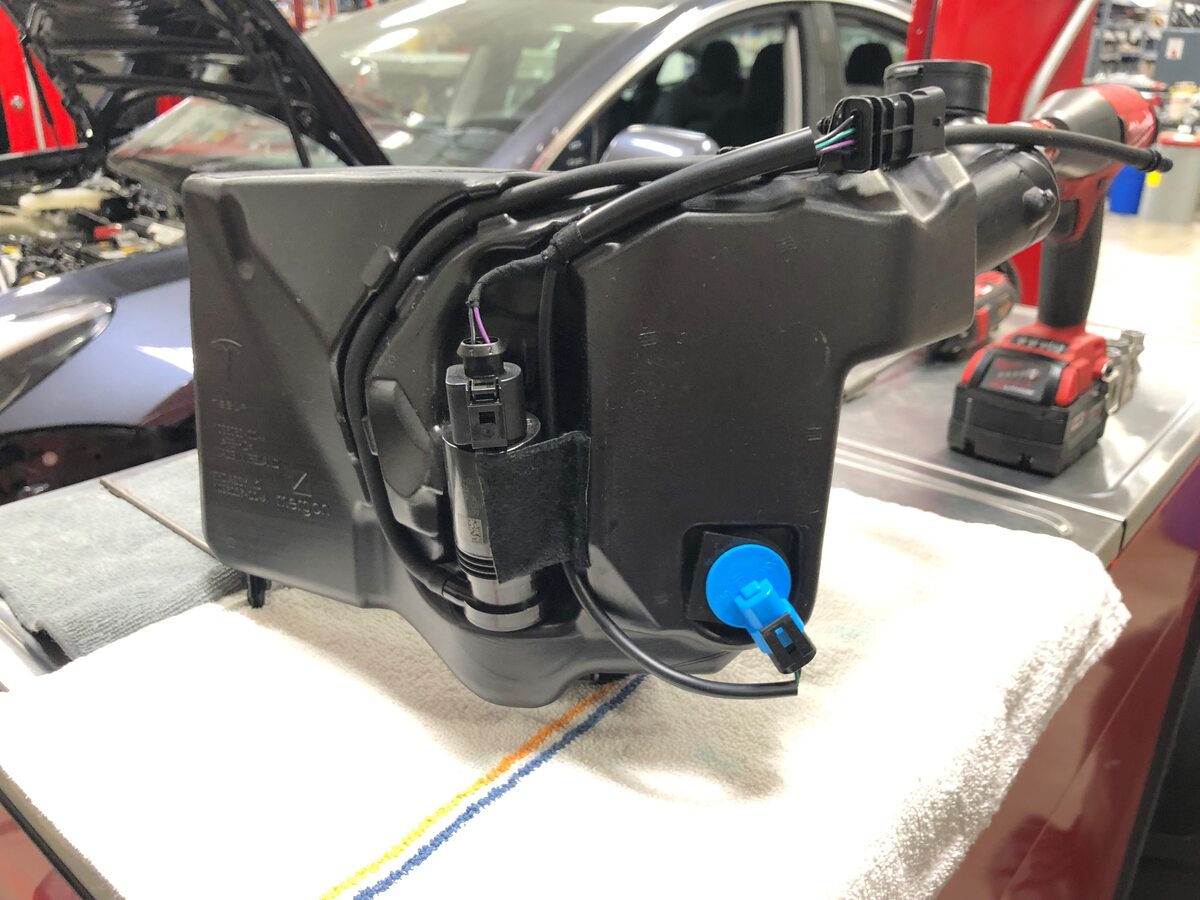

  43. Remove washer tank from vehicle
    Informational PurposesAn informational icon, calling your attention
    Note
    2x connectors,Keep washer tank upright to keep contents from spilling
  44. Remove vehicle from lift
    Informational PurposesAn informational icon, calling your attention
    Note
    Recommend assistance to push the vehicle backward, Note this vehicle can only be safely pushed for a very short distance and at very slow speed

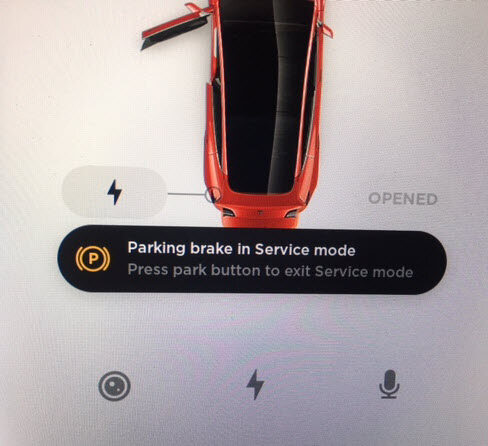

  45. Run ODIN routine PROC_EPB_X_SERVICE-MODE-STARTvia Toolbox: (link)
  46. Push vehicle away from lift
    Informational PurposesAn informational icon, calling your attention
    Note
    Recommend assistance, Place wheel chocks to keep vehicle from moving, Note this vehicle can only be safely pushed for a very short distance and at very slow speed
  47. Open all four doors
    Informational PurposesAn informational icon, calling your attention
    Note
    If vehicle is being powered down, Latch rear doors to prevent accidental closure

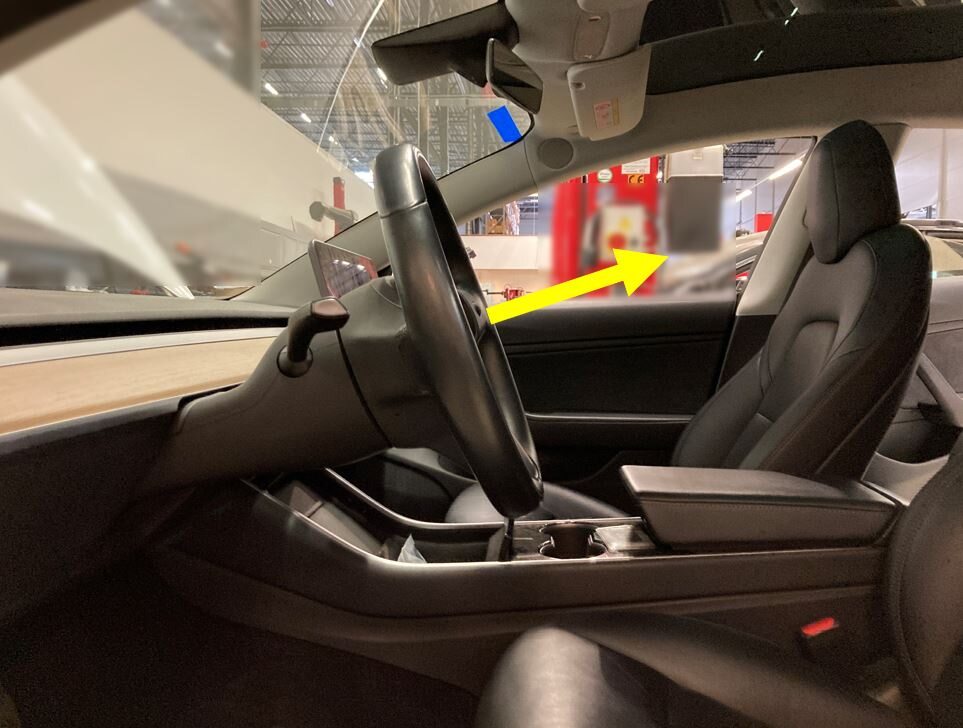

  48. Lower all four windows

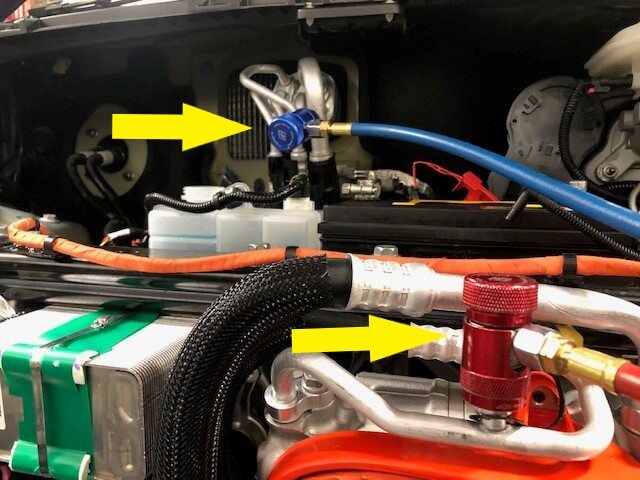

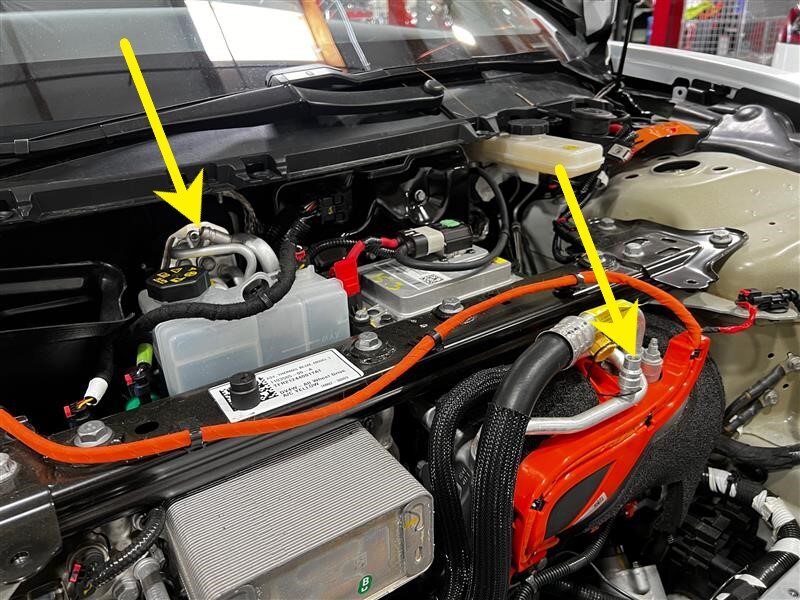

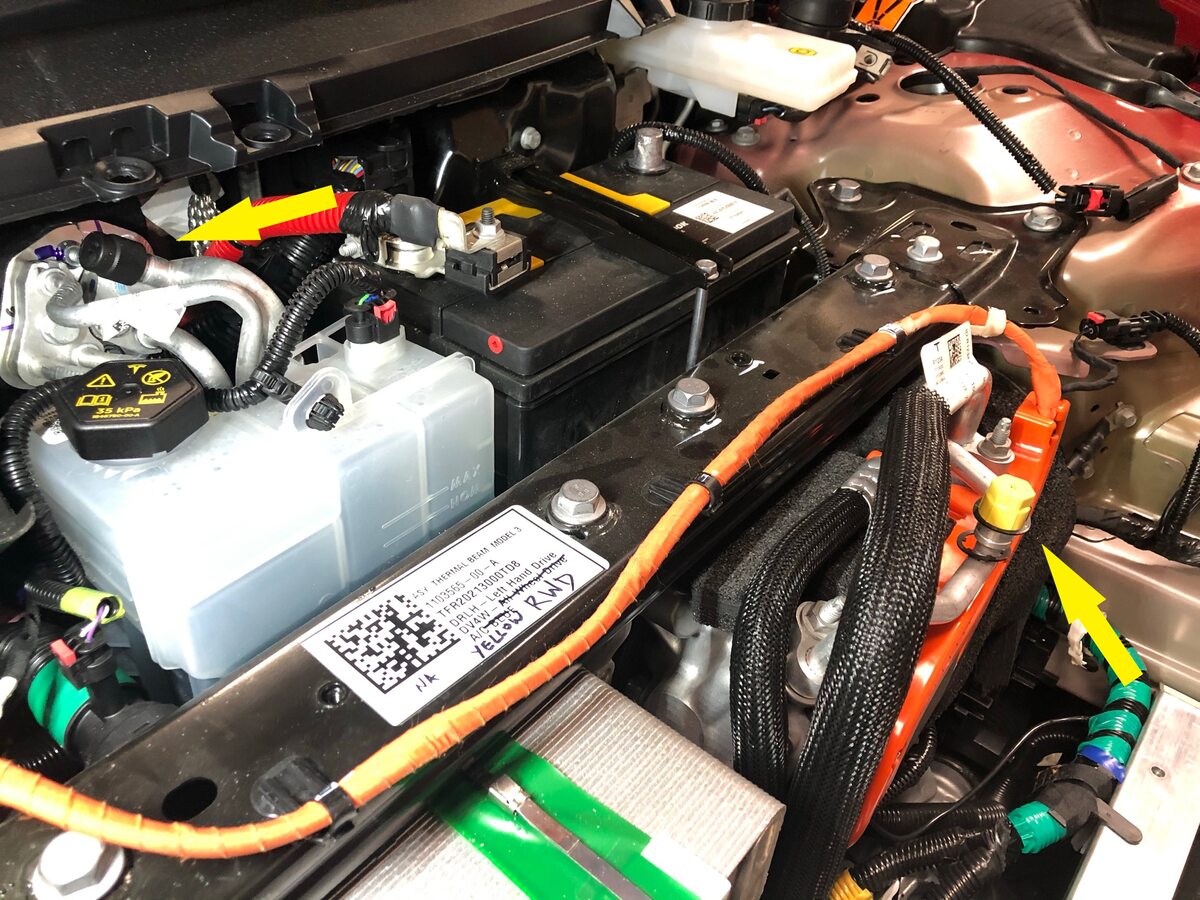

  49. Remove caps from low side and high side A/C ports
    Informational PurposesAn informational icon, calling your attention
    Note
    2x caps
  50. Connect AC hoses to vehicle

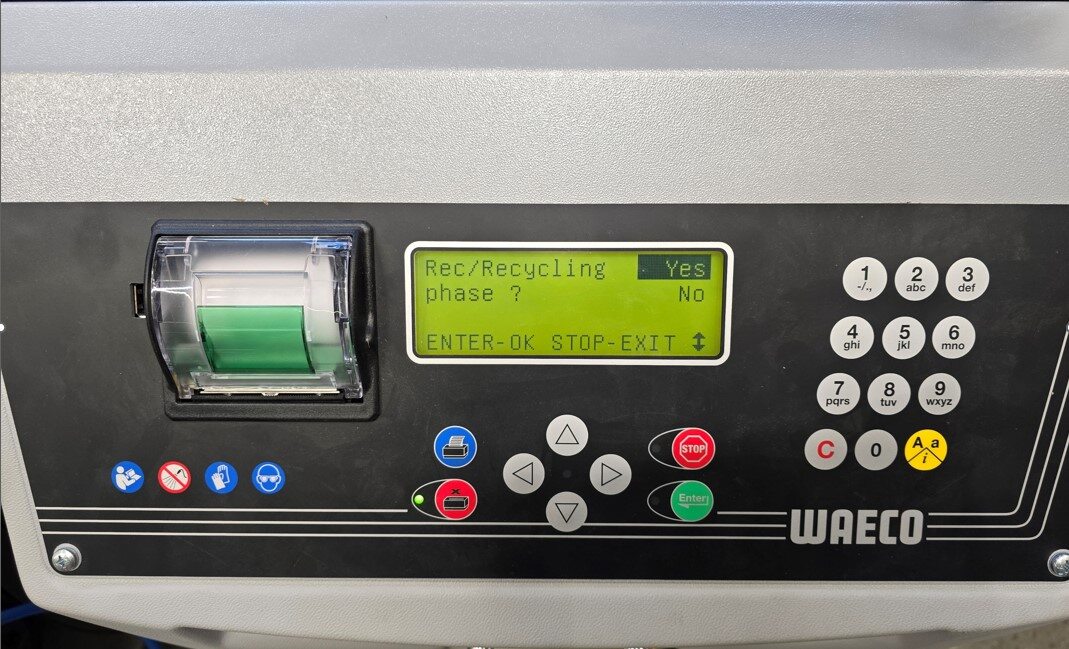

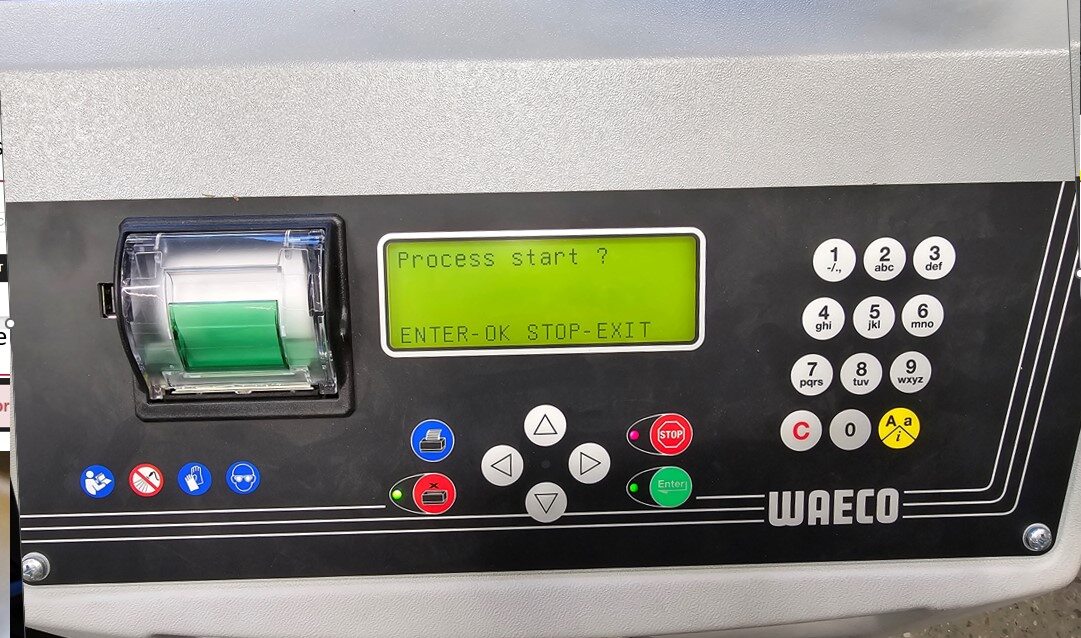

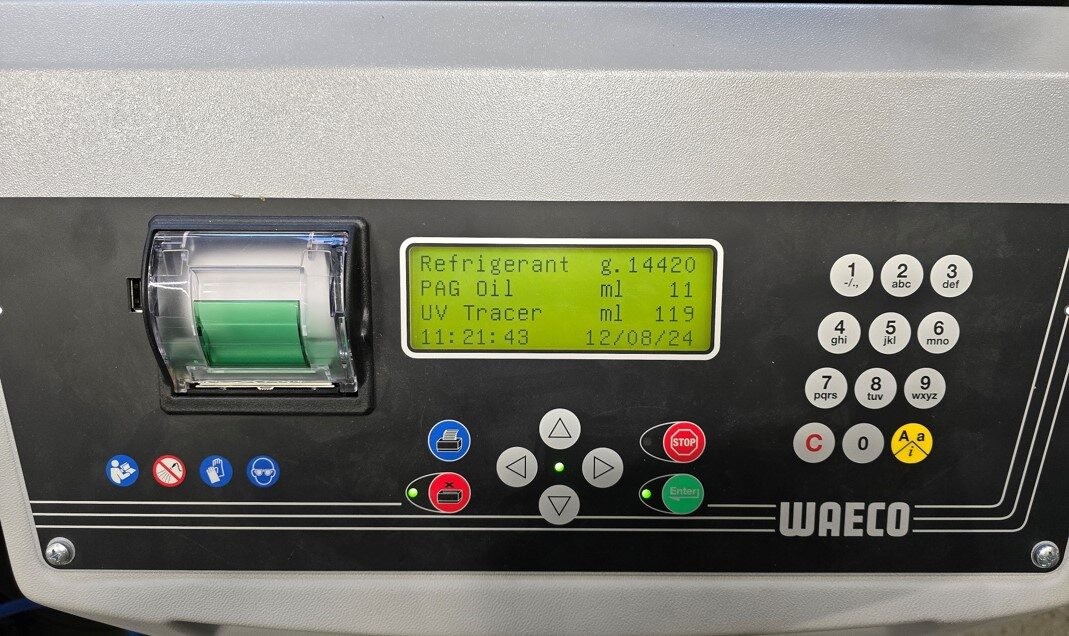

  51. Perform refrigerant system recovery
    Informational PurposesAn informational icon, calling your attention
    Note

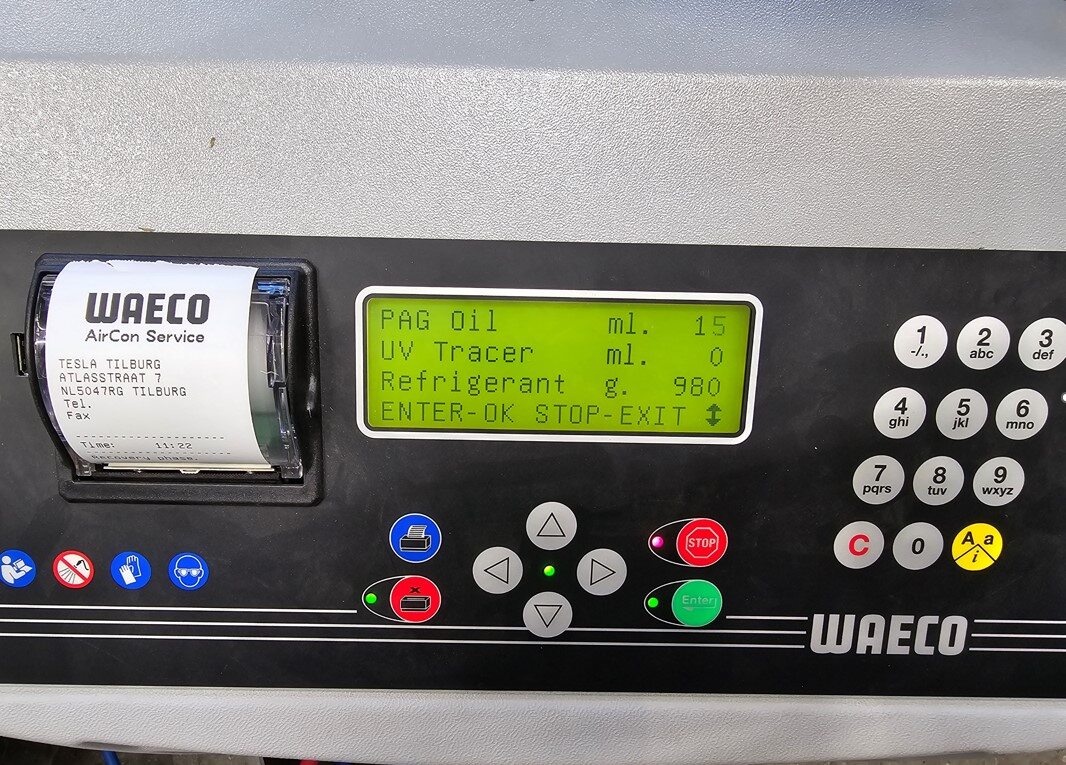

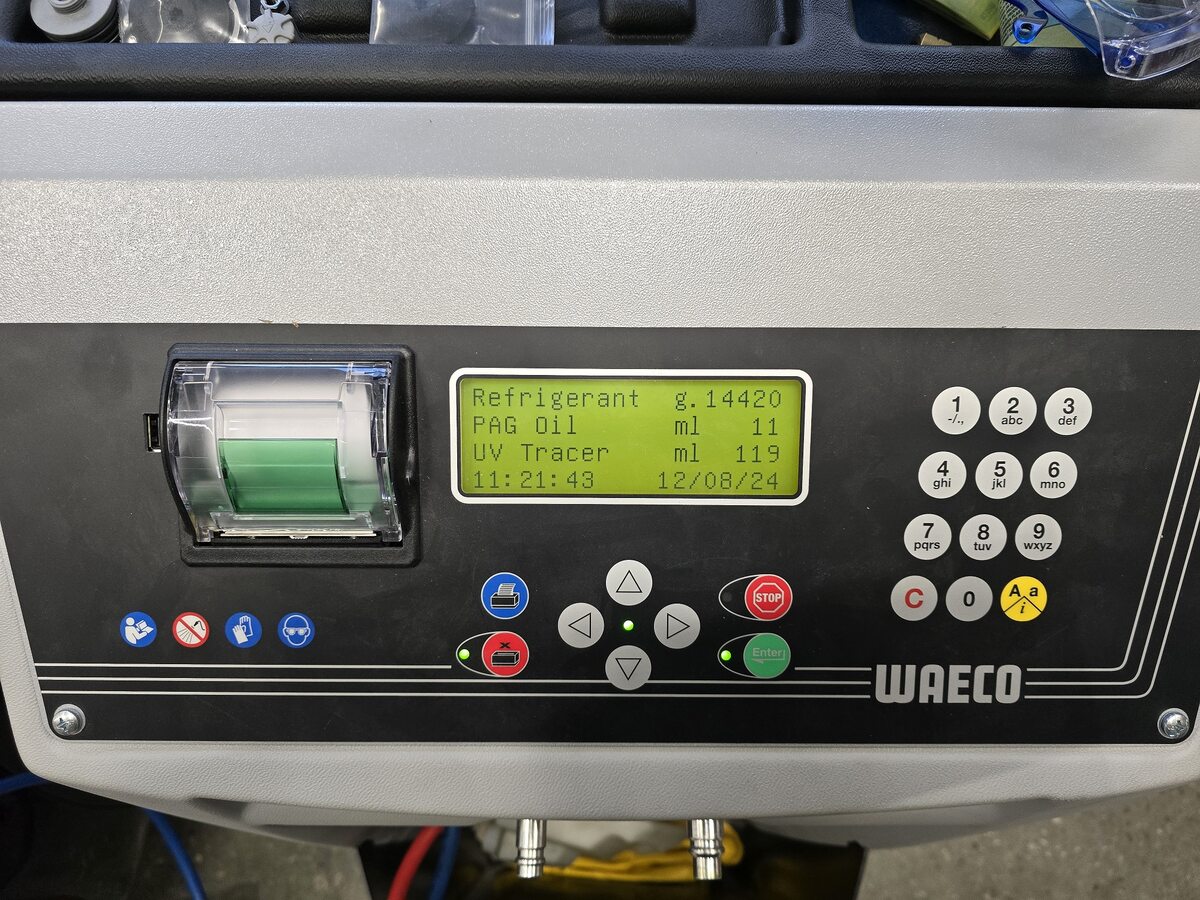

    Note or print the amount of refrigerant and oil recovered, If drained oil level increased more than 1.01 oz (30 mL) refer to drained oil loss chart https://toolbox.teslamotors.com/articles/353700
  52. Move LH front seat forward

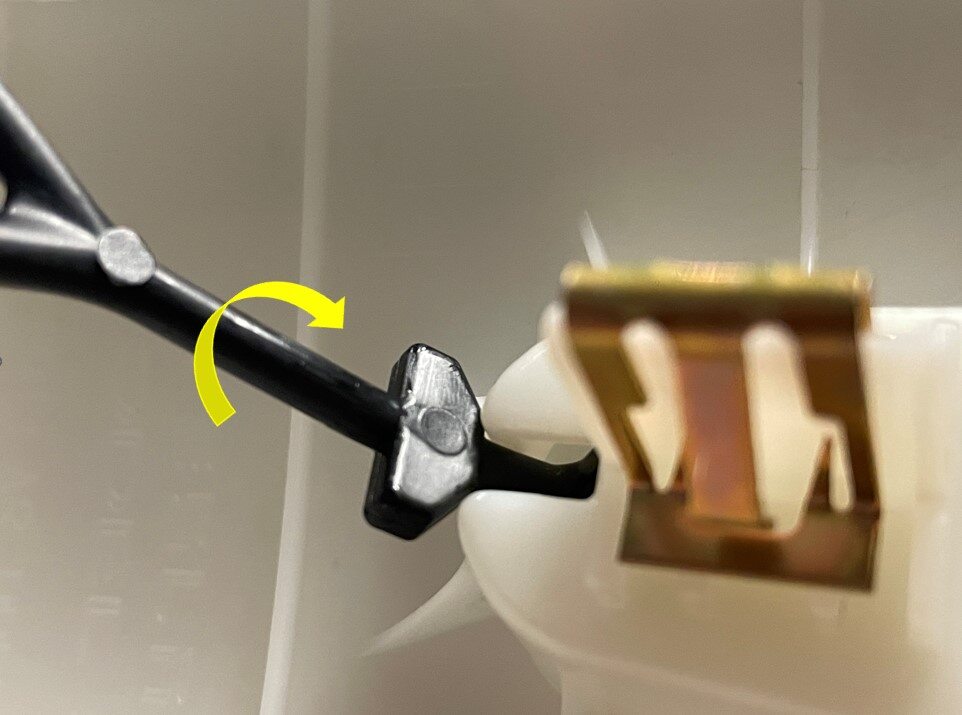

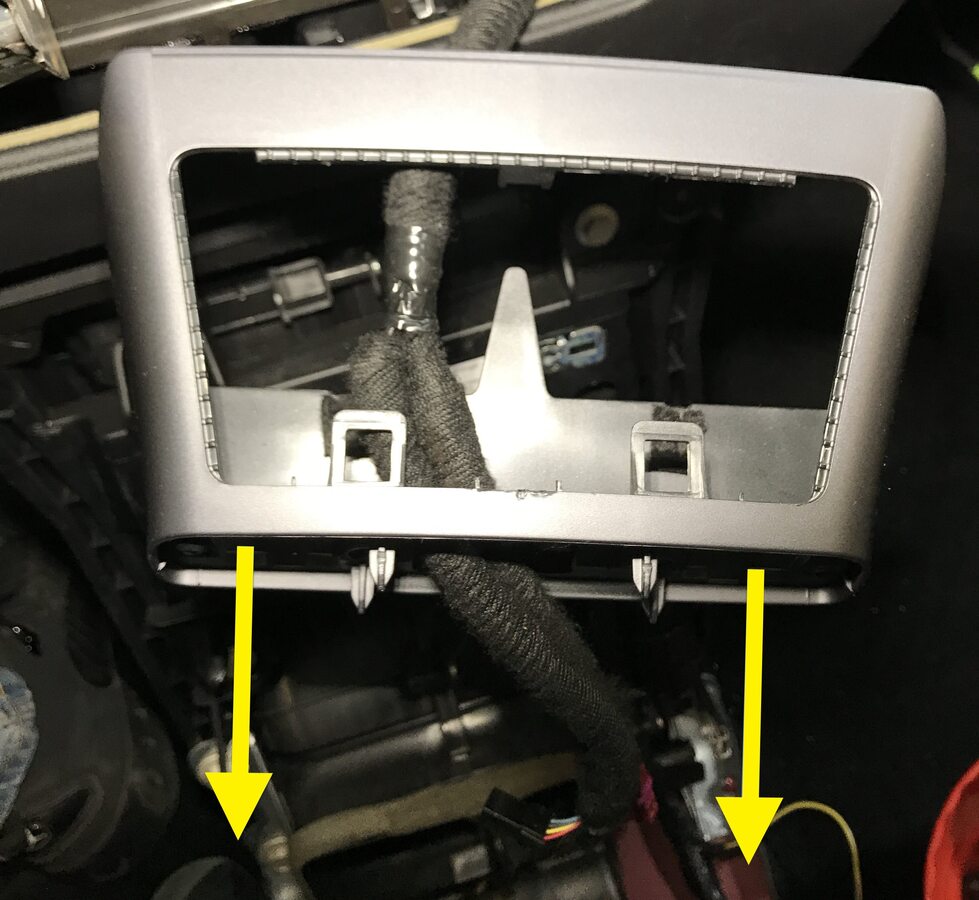

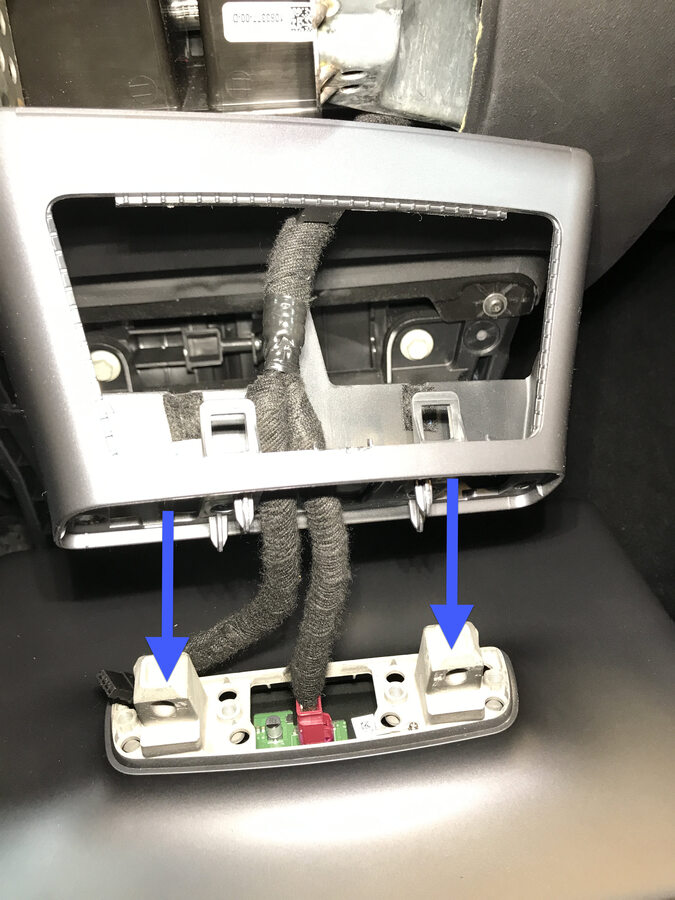

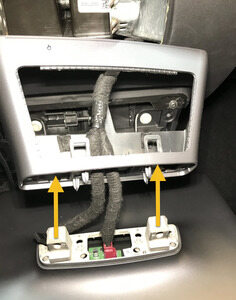

  53. Remove console lower rear panel
    Informational PurposesAn informational icon, calling your attention
    Note
    5x clips, Insert the plastic trim tool with a 90 degree bend at the bottom of the cover and pull straight out to release

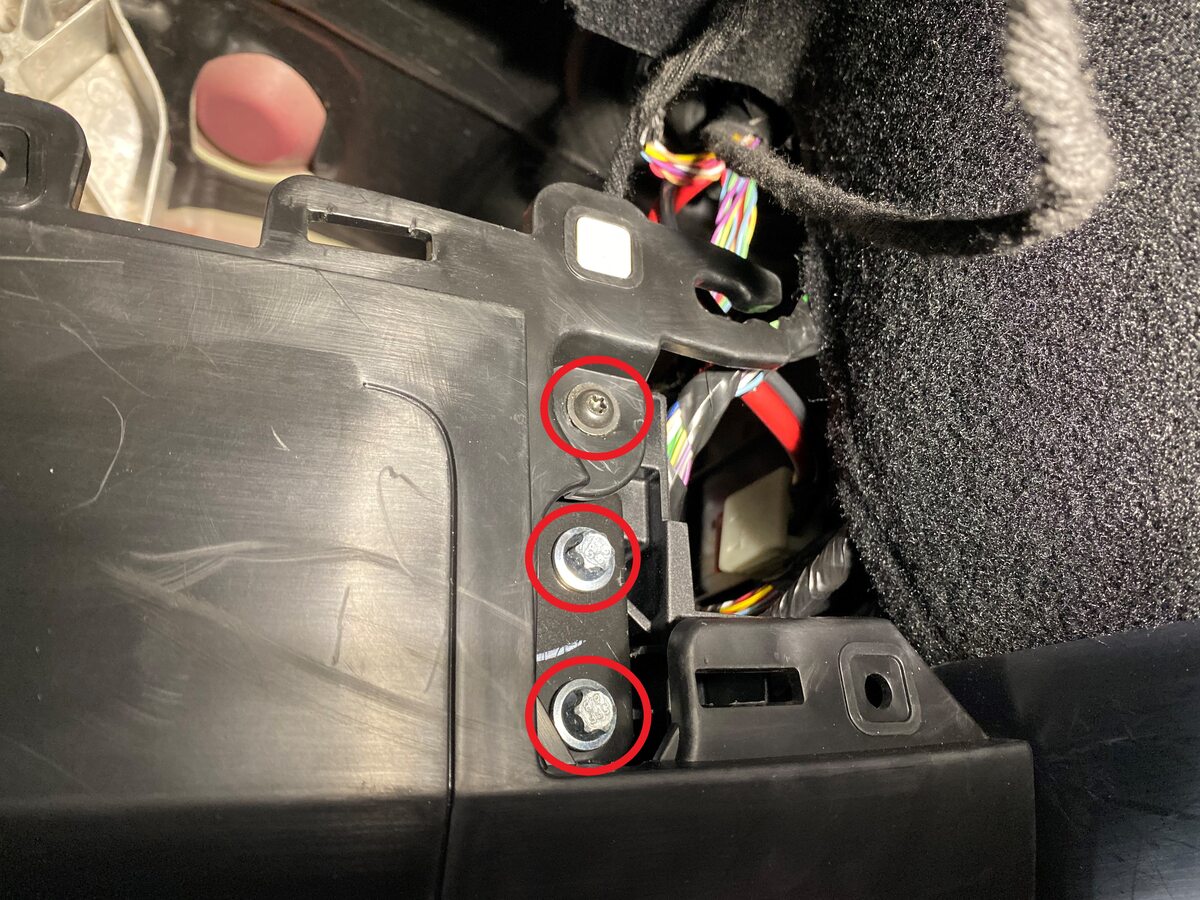

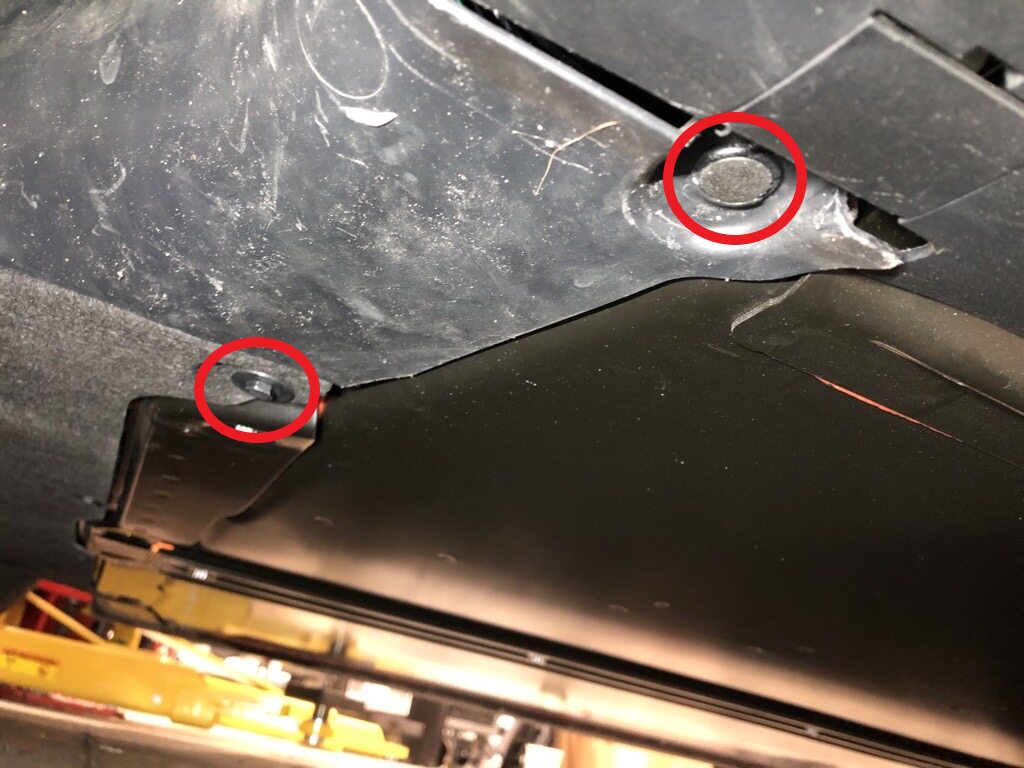

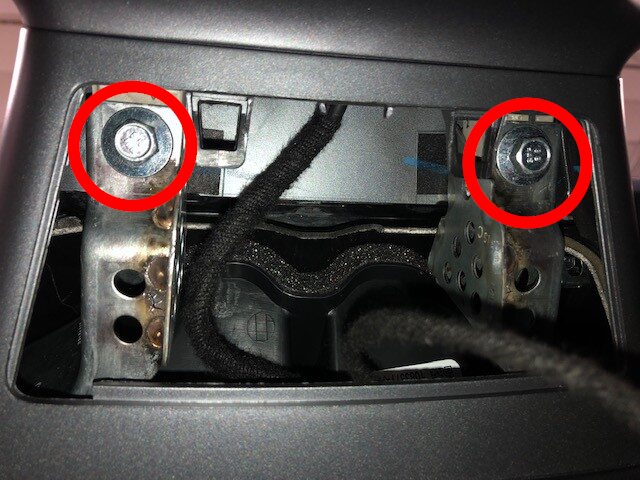

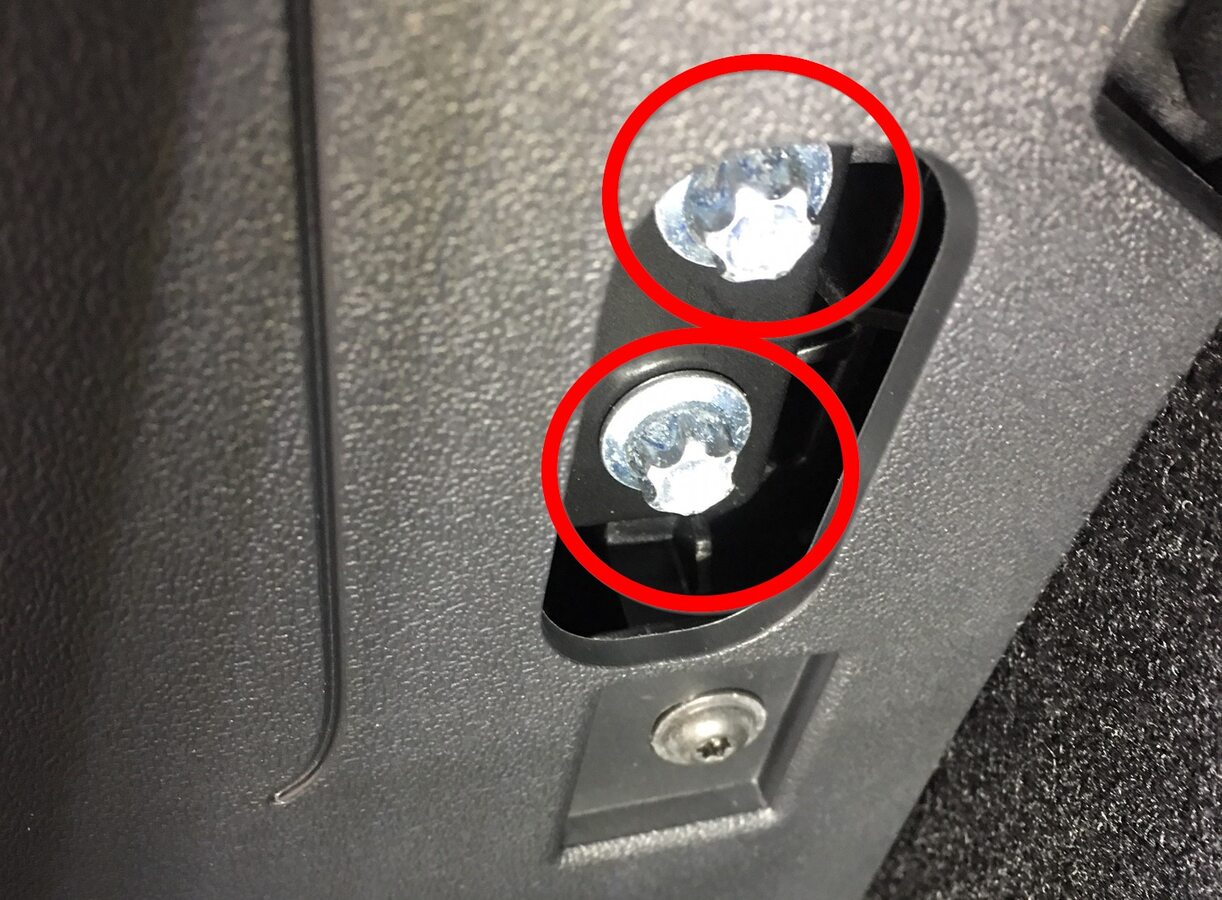

  54. Remove rear bolts securing center console to vehicle
    Informational PurposesAn informational icon, calling your attention
    Note
    2x bolts, 10mm, 7 Nm
  55. Move LH front seat backward

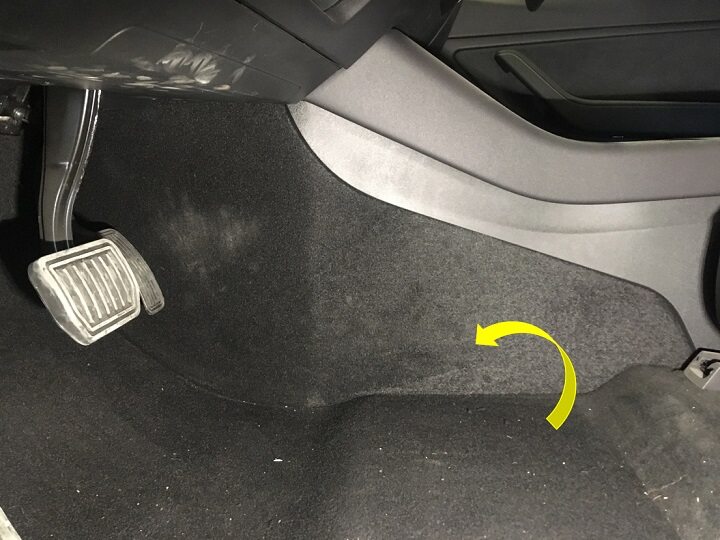

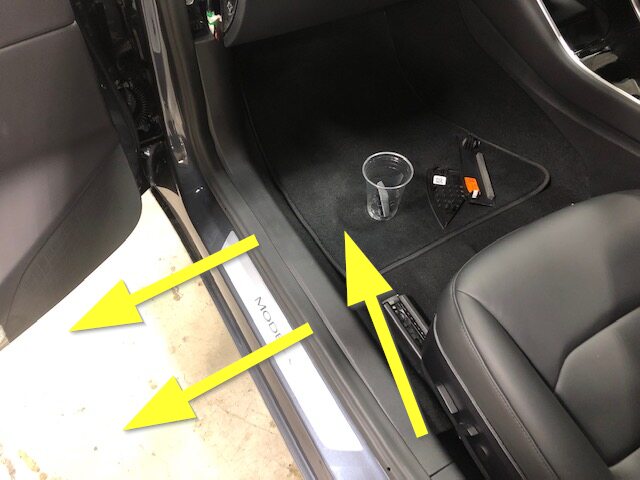

  56. Remove LH front floor mat

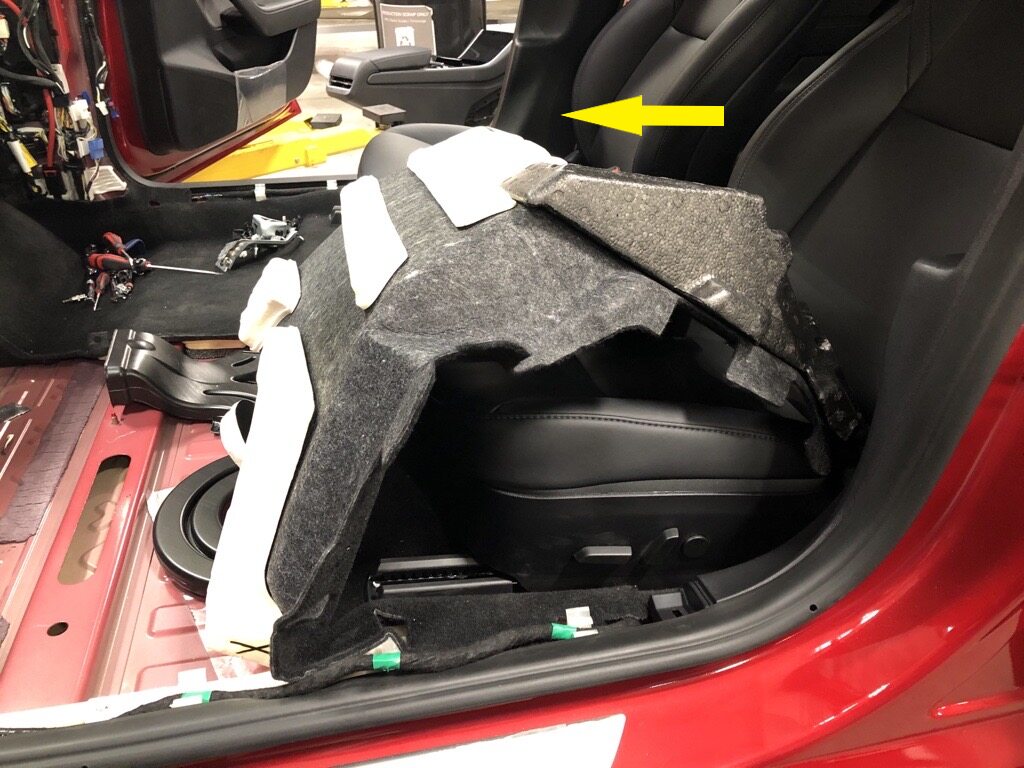

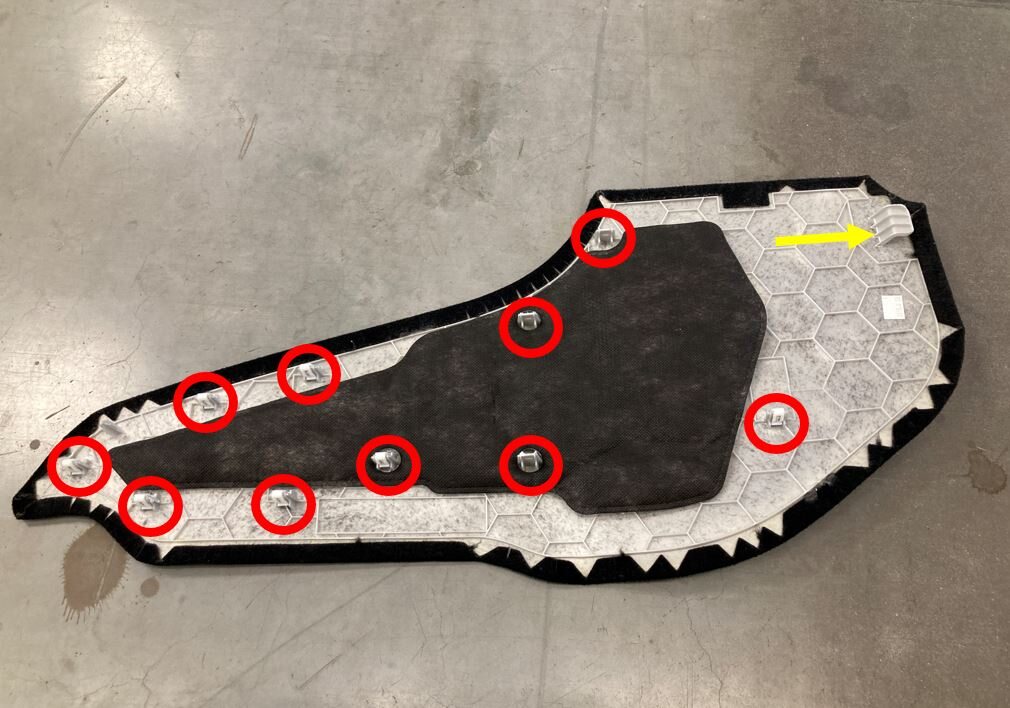

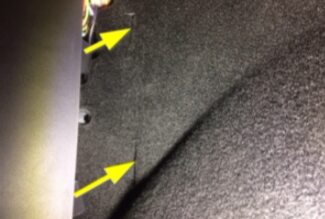

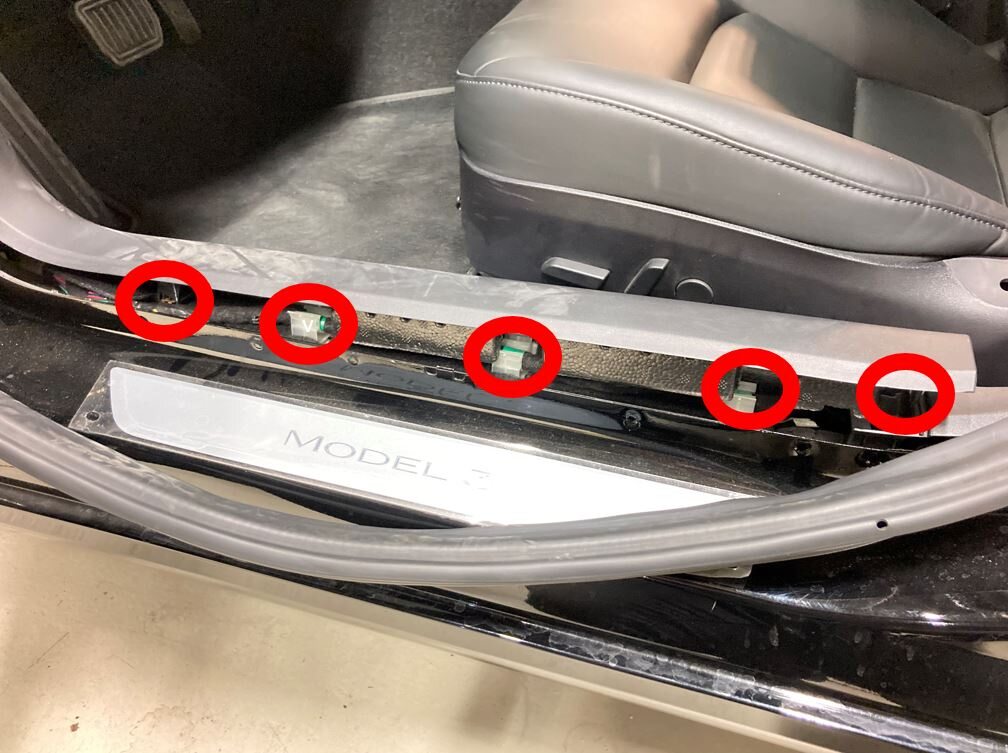

  57. Remove LH console side panel carpet
    Informational PurposesAn informational icon, calling your attention
    Note

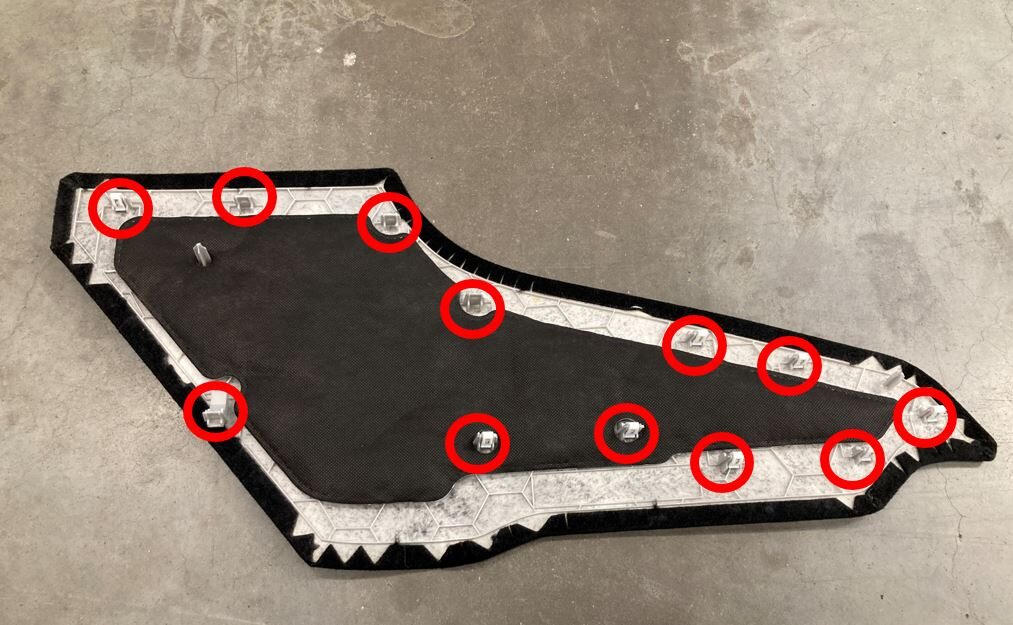

    10x clips, 1x tab, Use trim tool starting at rear edge to release upper clips, then pull bottom to release remaining clips, replace any damaged clips

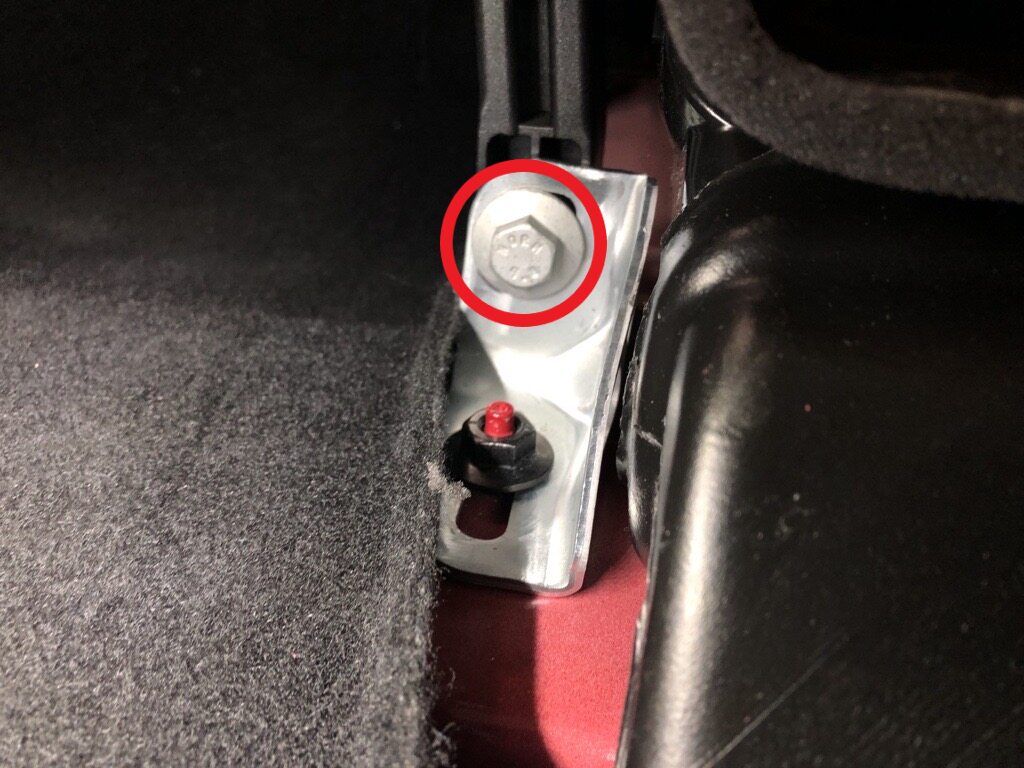

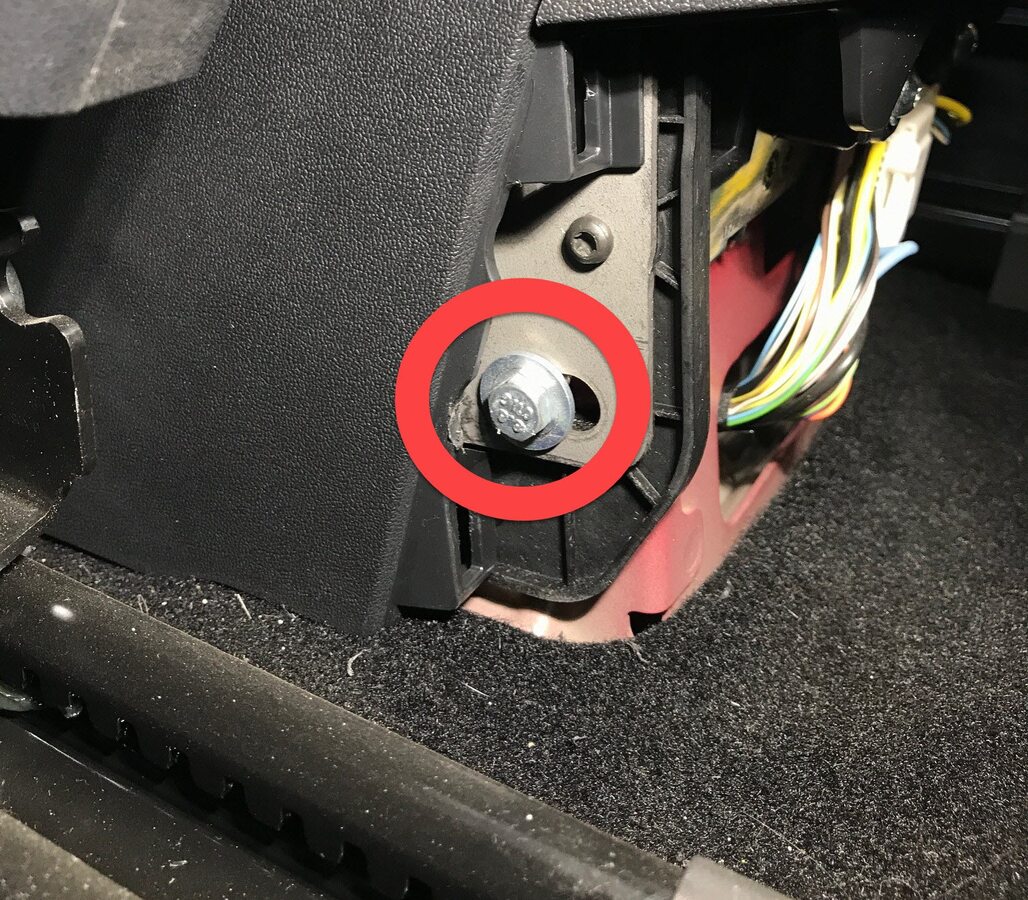

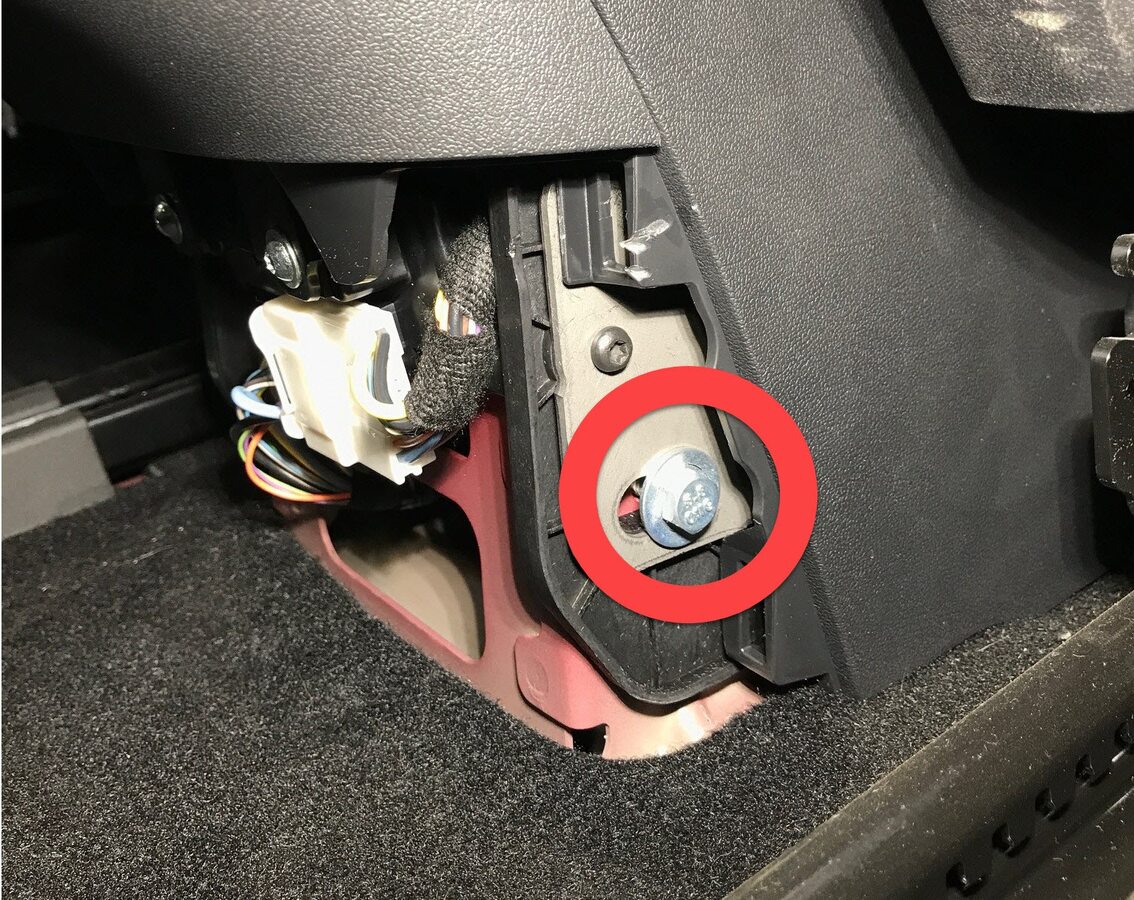

  58. Remove LH front exterior bolts from center console
    Informational PurposesAn informational icon, calling your attention
    Note
    2x bolts, 10mm, 7 Nm
  59. Move RH front seat forward
  60. Remove RH rear exterior bolt from center console
    Informational PurposesAn informational icon, calling your attention
    Note
    Delete step
  61. Move RH front seat backward and seat back downward
  62. Remove RH front floor mat
  63. Remove RH console side panel carpet
    Informational PurposesAn informational icon, calling your attention
    Note
    12x clips, Use trim tool starting at rear edge to release upper clips, Pull bottom to release remaining clips, replace any damaged clips
  64. Remove RH front exterior bolts from center console
    Informational PurposesAn informational icon, calling your attention
    Note
    2x bolts, 10mm, 7 Nm

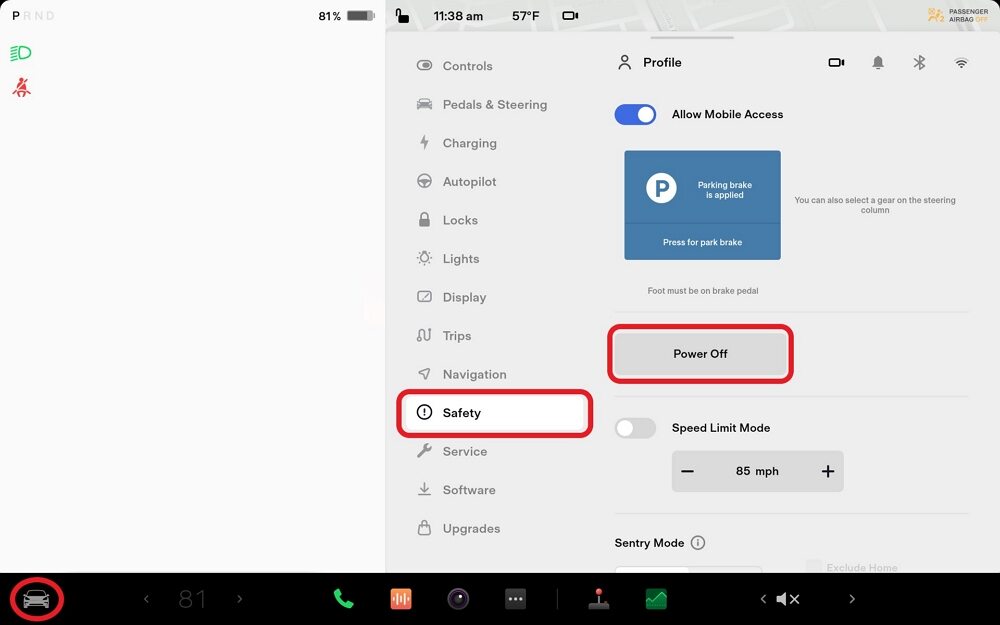

  65. Power off vehicle from center display
    Informational PurposesAn informational icon, calling your attention
    Note
    Via Controls > Safety > Power Off, Select Power Off button at warning dialogue box
  66. Disconnect 12V negative terminal
    Informational PurposesAn informational icon, calling your attention
    Note
    1x nut, 10mm, 6 Nm, Ensure vehicle is in park, Climate control system is off, and vehicle is not charging before disconnecting 12V

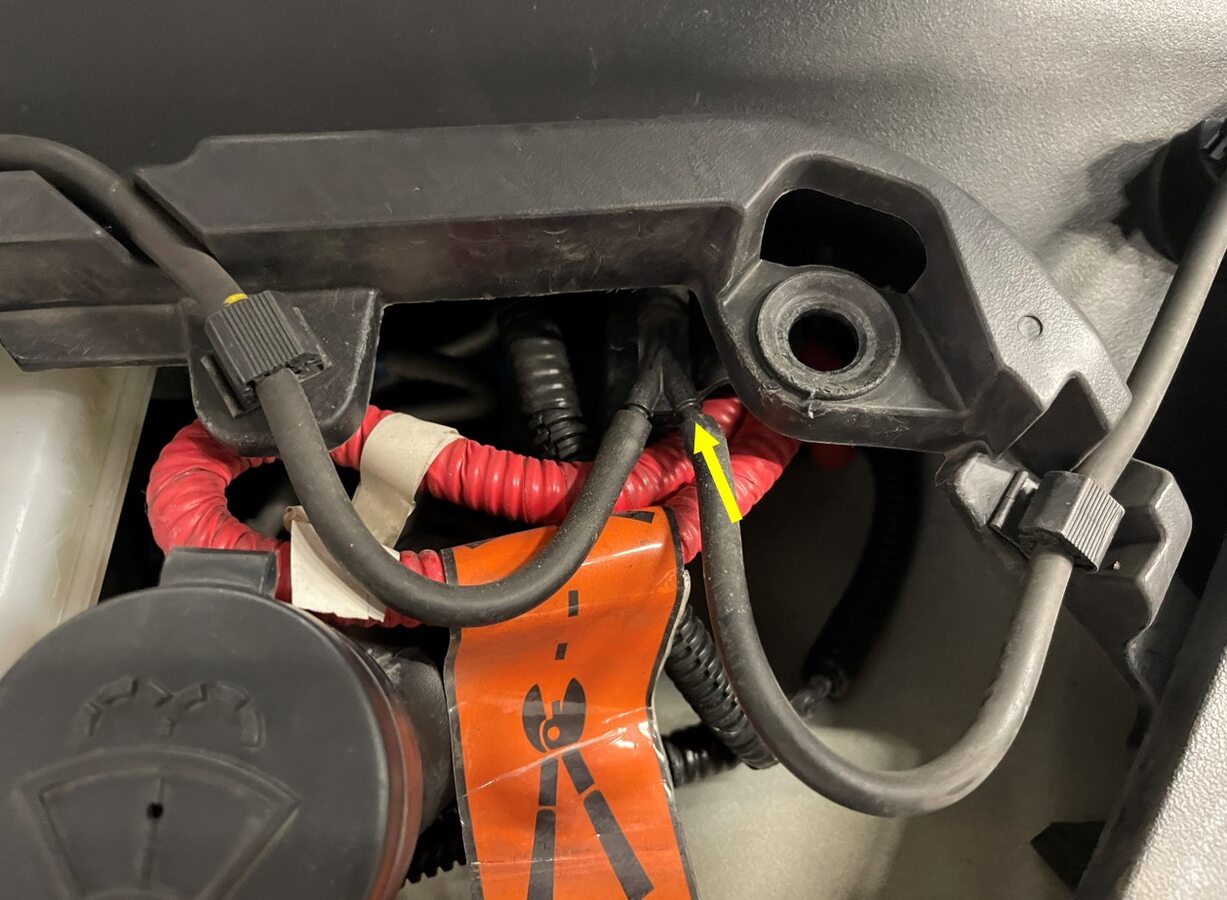

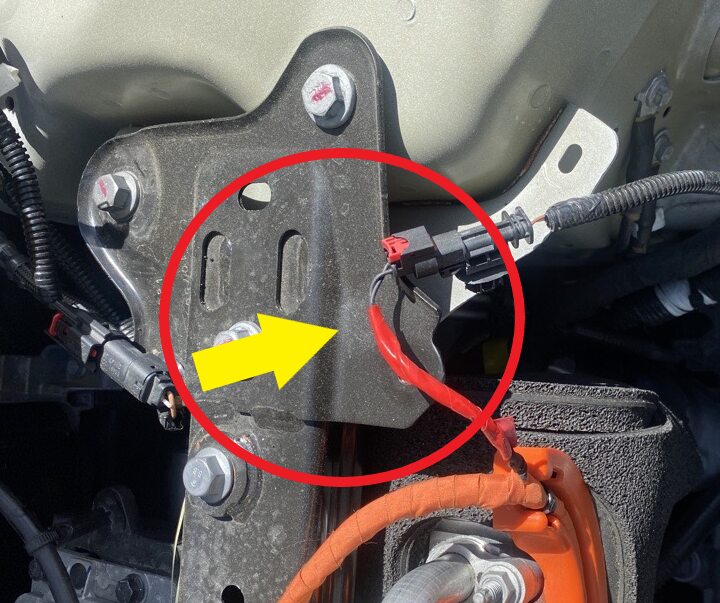

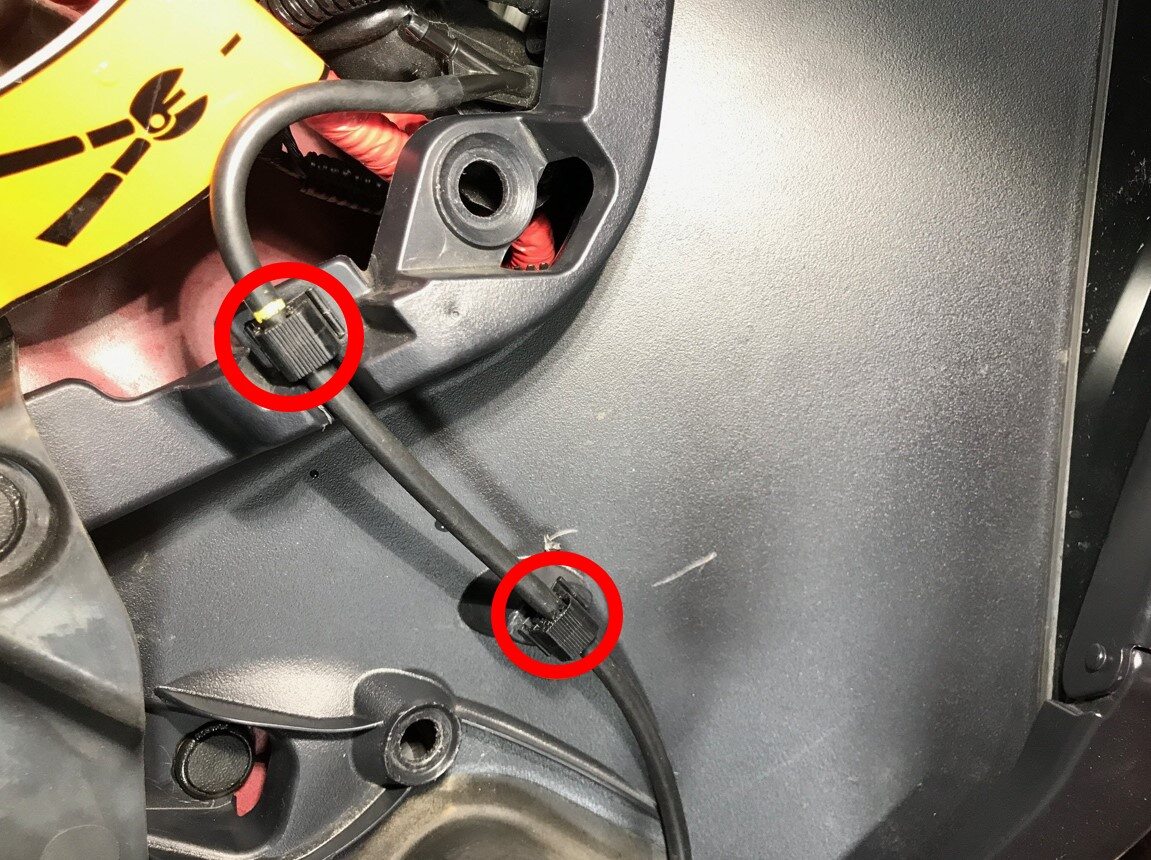

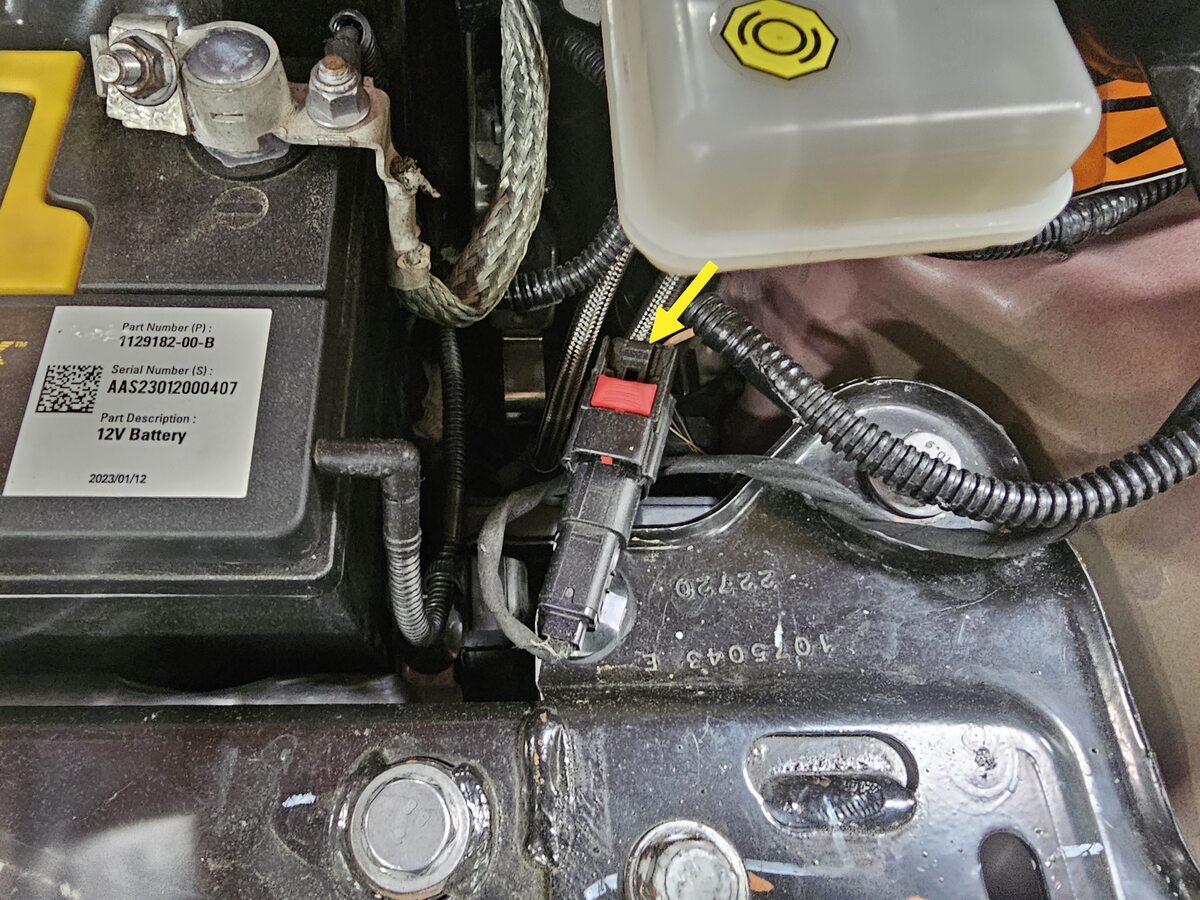

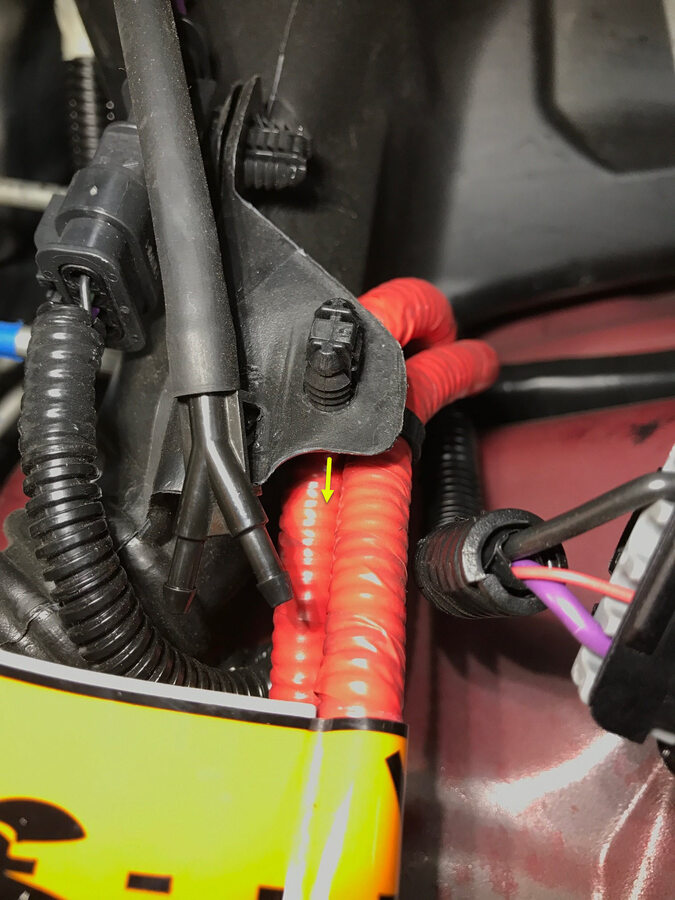

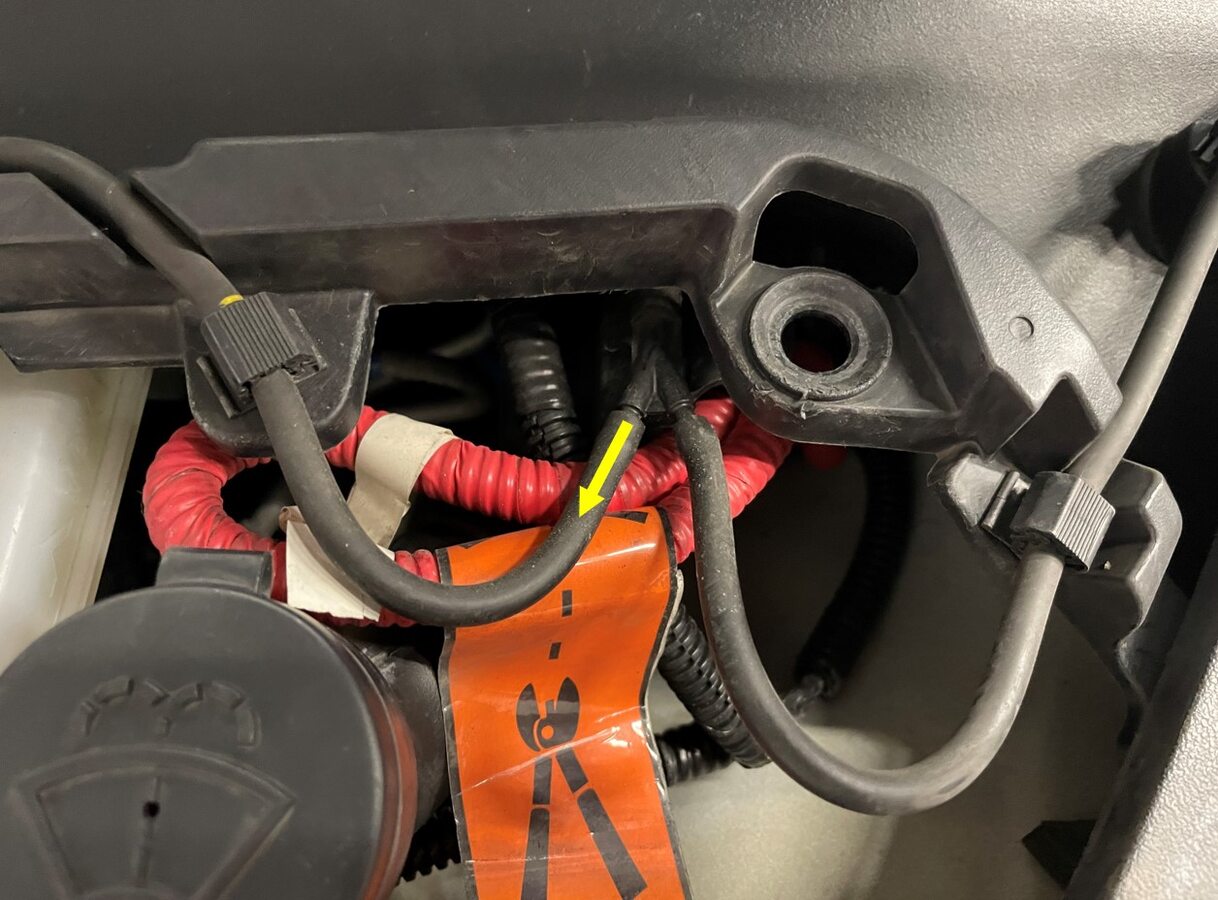

  67. Disconnect first responder loop
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector, Release locking tab
  68. Remove AC hoses from vehicle
  69. Release vacuum from AC lines
    Informational PurposesAn informational icon, calling your attention
    Note
    2x Schrader valves, Carefully depress the schrader valves to release vacuum from AC lines

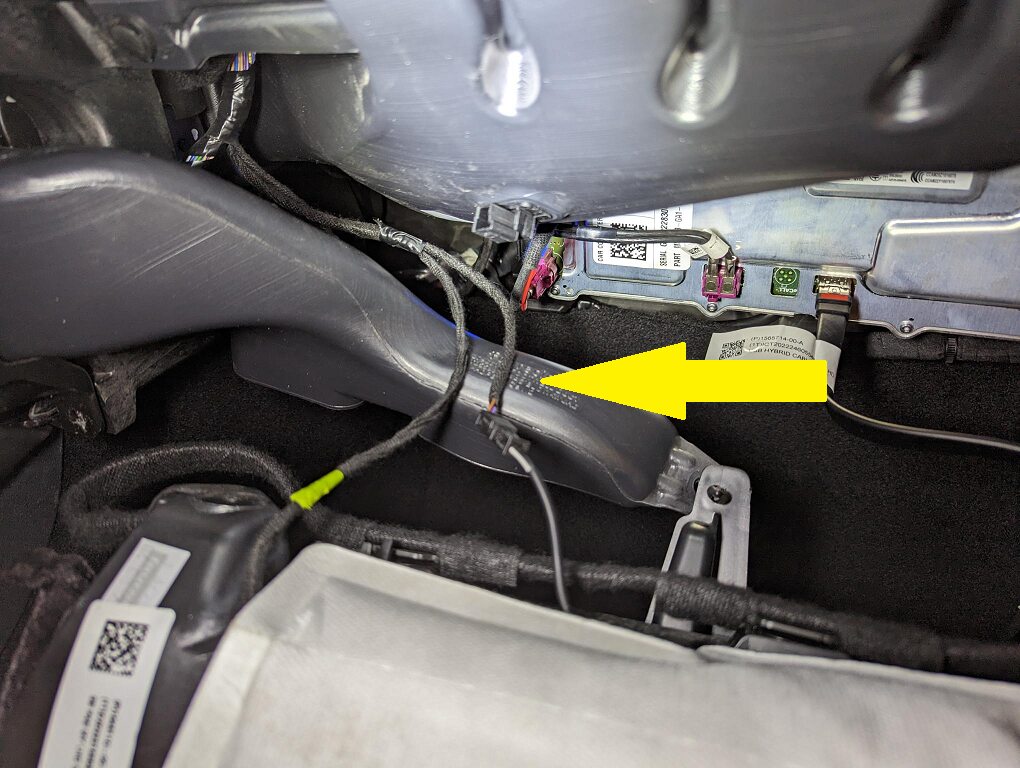

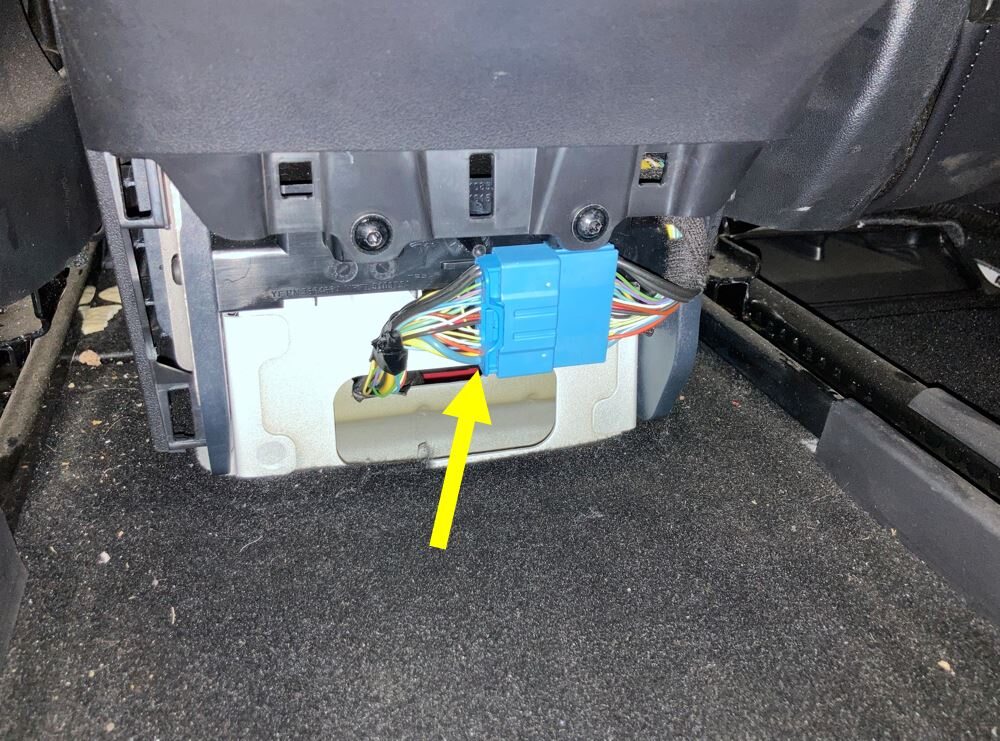

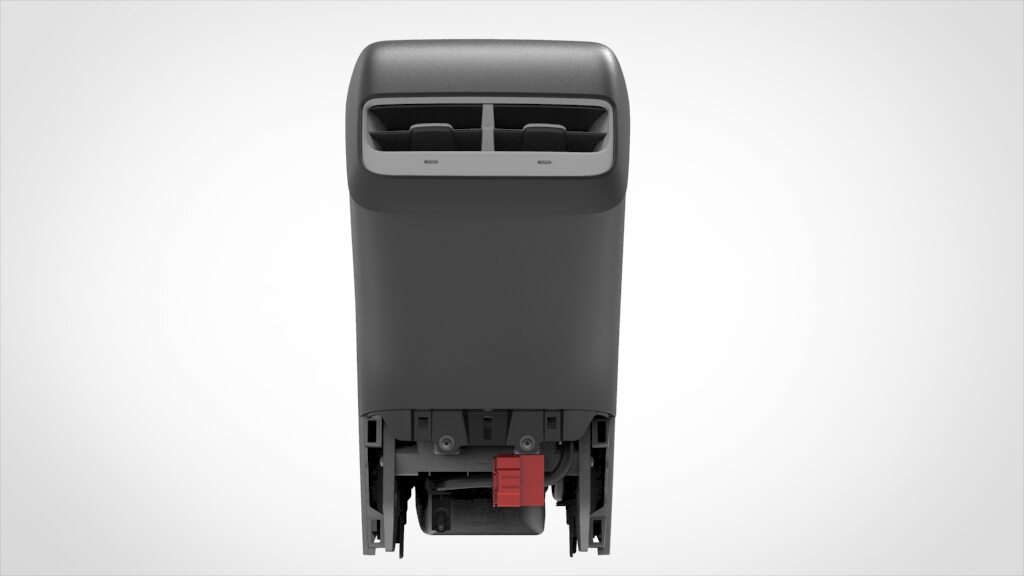

  70. Disconnect harness from rear of center console

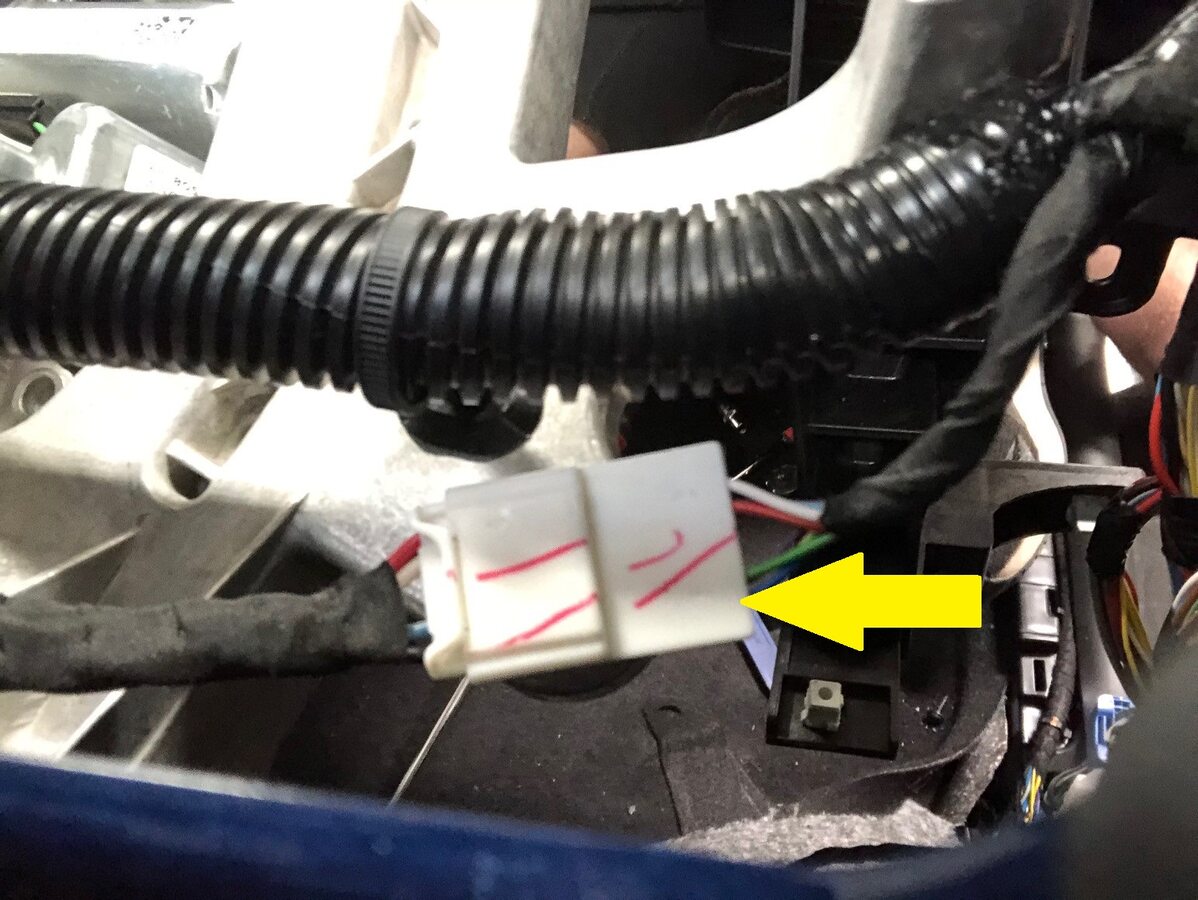

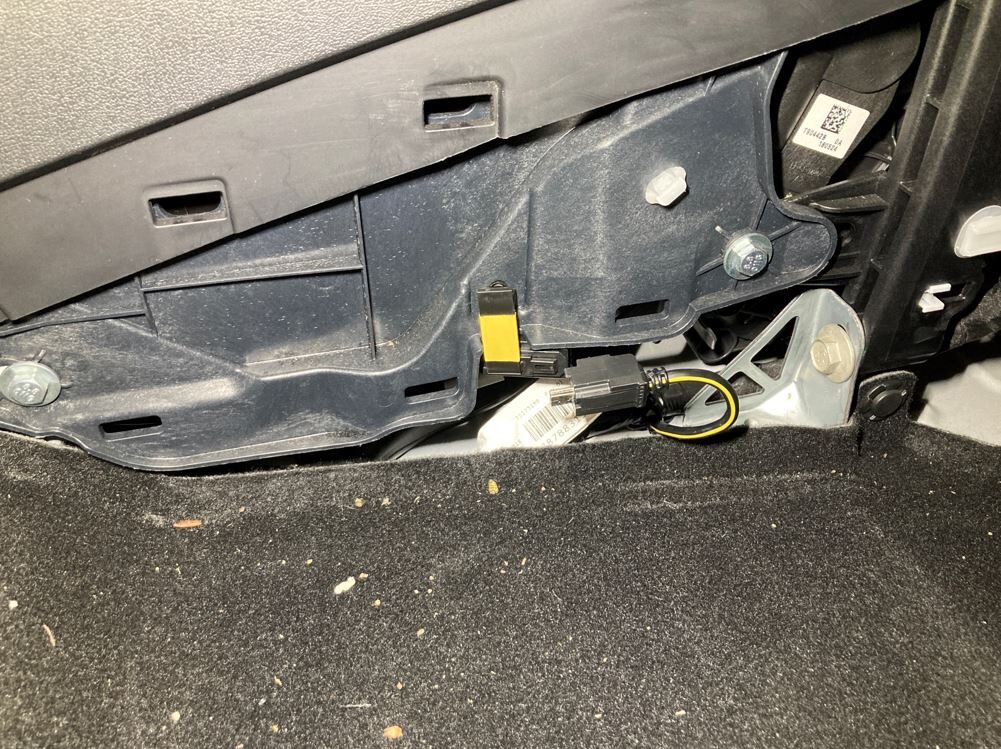

    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector
  71. Disconnect USB harness at RH of center console
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector
  72. Remove center console from vehicle
    Informational PurposesAn informational icon, calling your attention
    Note
    Recommend assistance, Tilt rear of console upward, pull assembly towards rear of vehicle, then tilt front of console upward and remove through passenger side

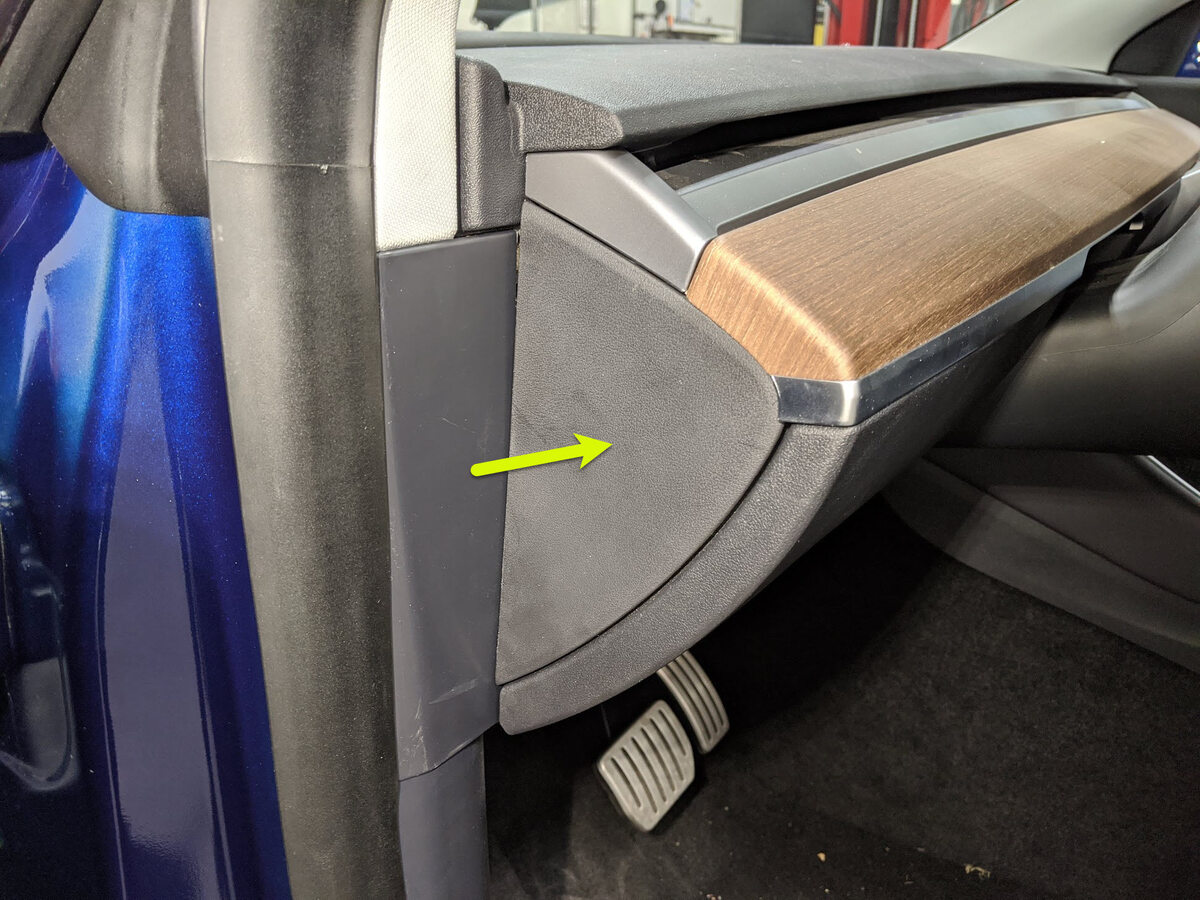

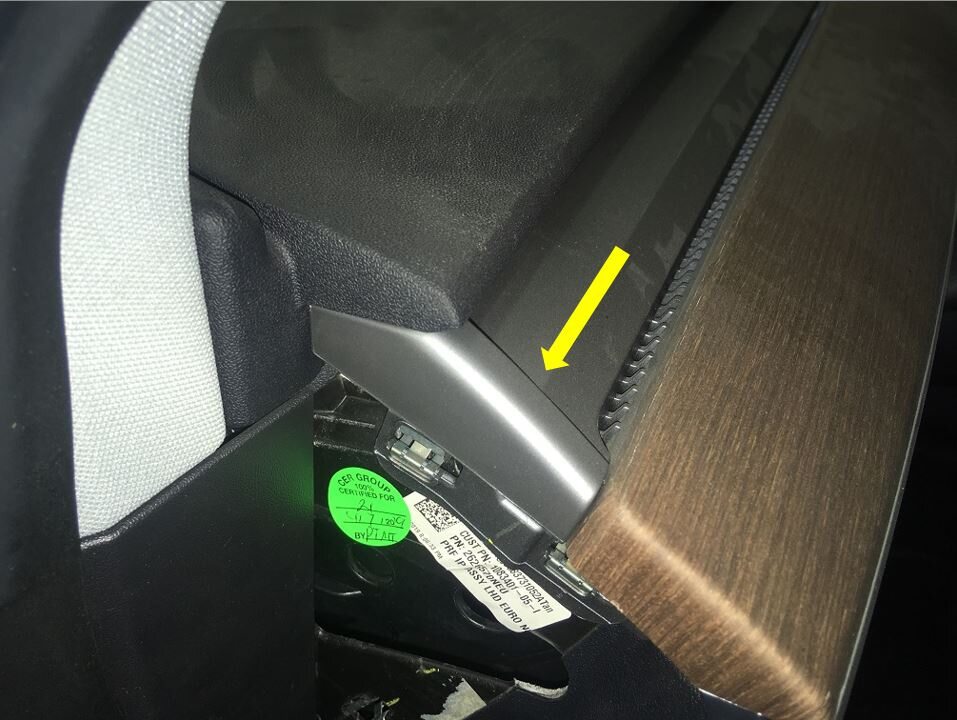

  73. Remove LH IP end cap
    Informational PurposesAn informational icon, calling your attention
    Note
    3x clips

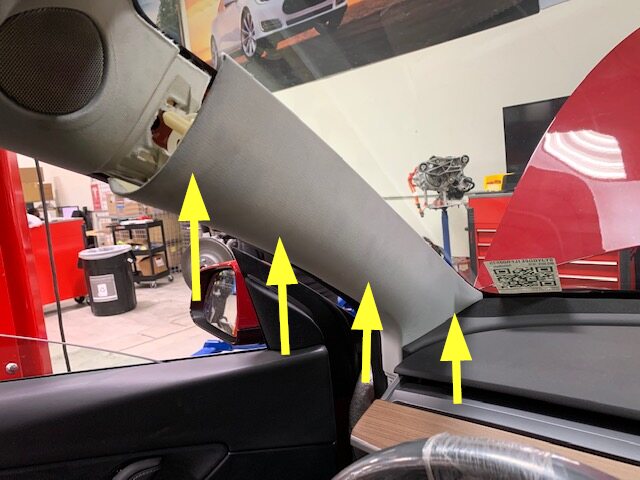

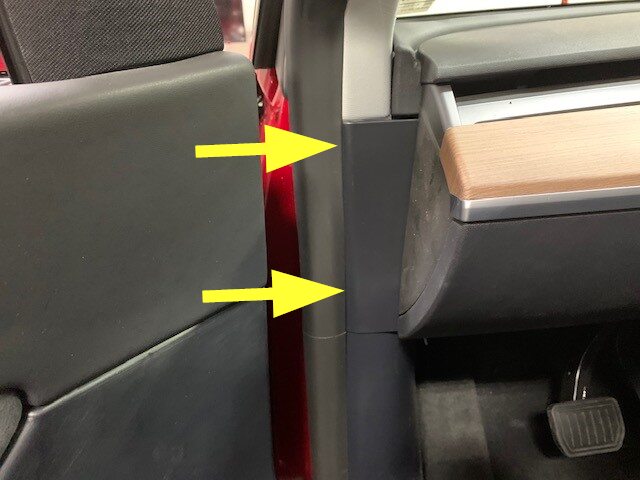

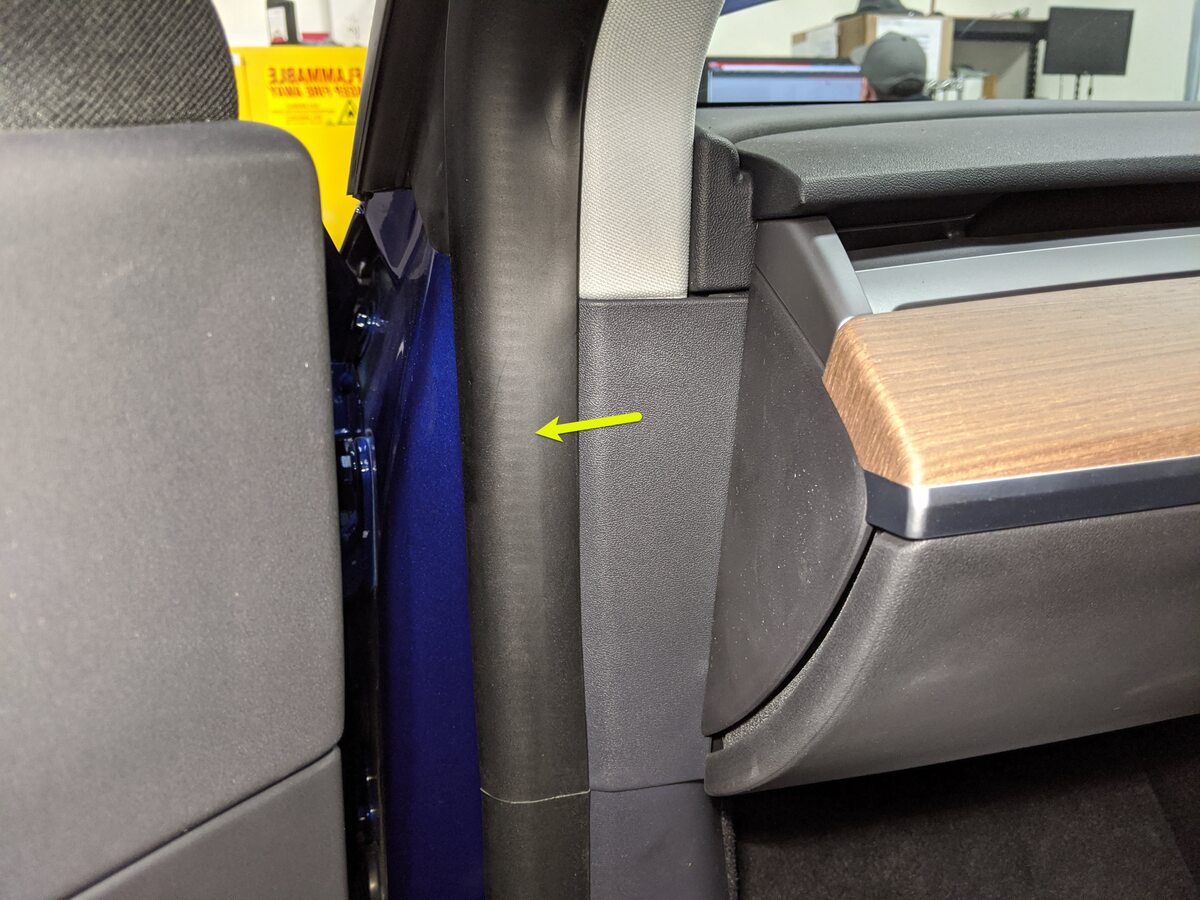

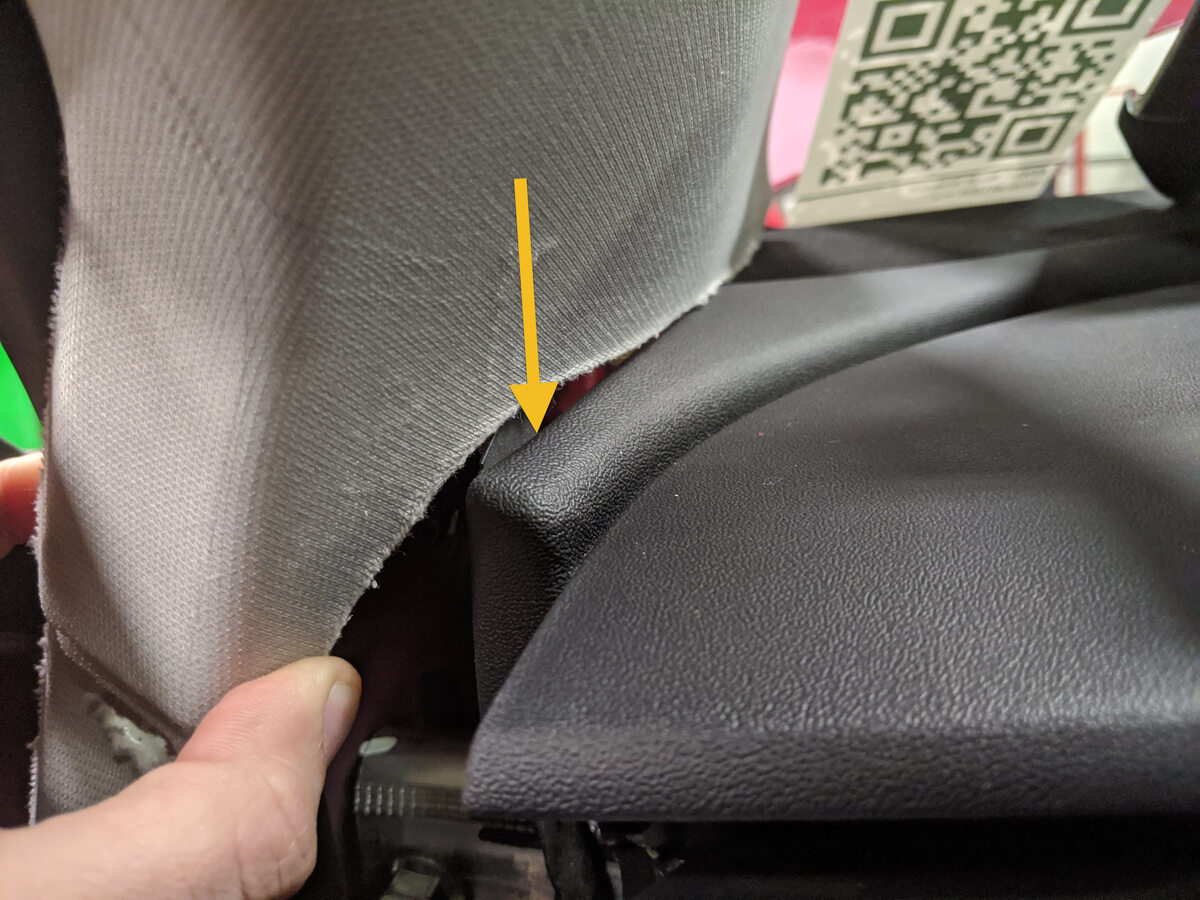

  74. Remove LH mid A-pillar assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    1x clip, 1x tab, Release the upper clip then pull mid A-pillar upward to remove
  75. Remove LH air wave bezel cap from main decor assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    2x clips, Newer vehicles are equipped with solid bezel.

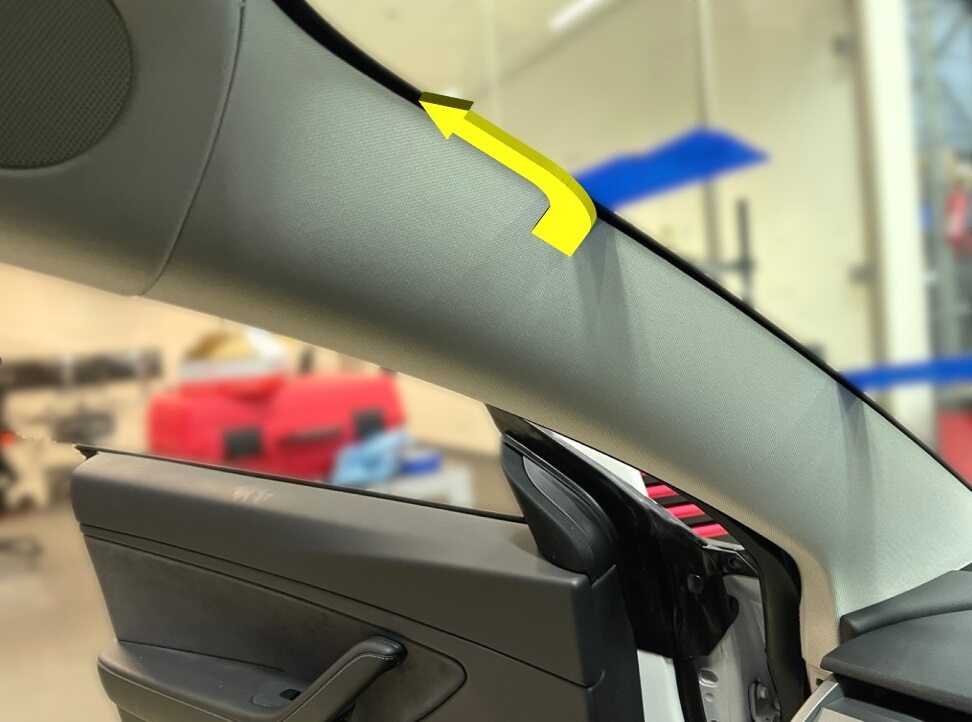

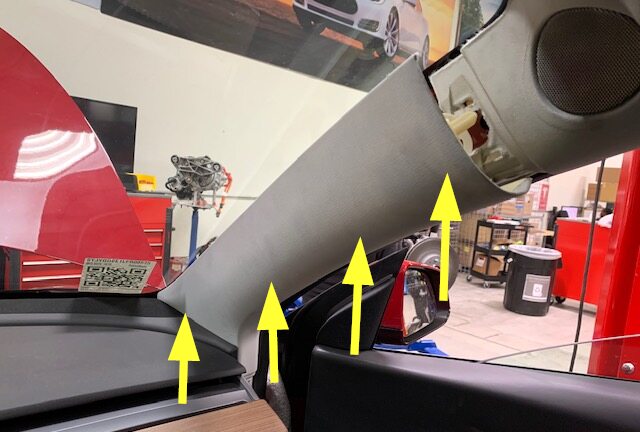

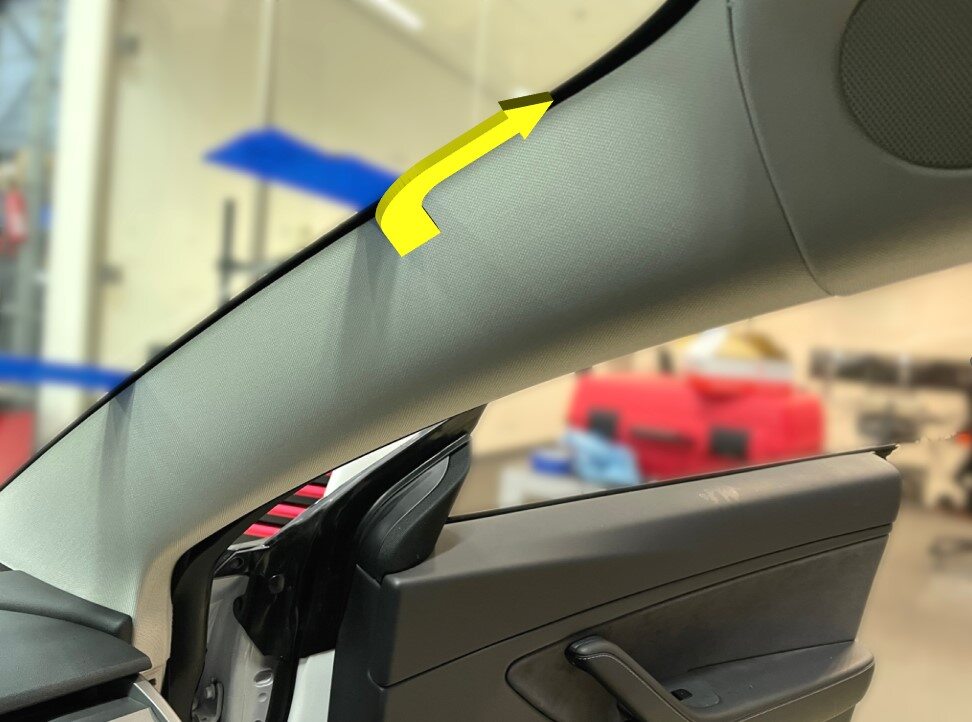

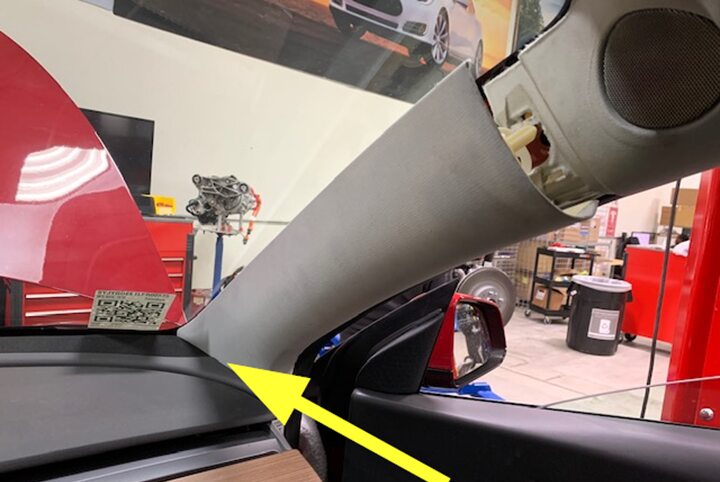

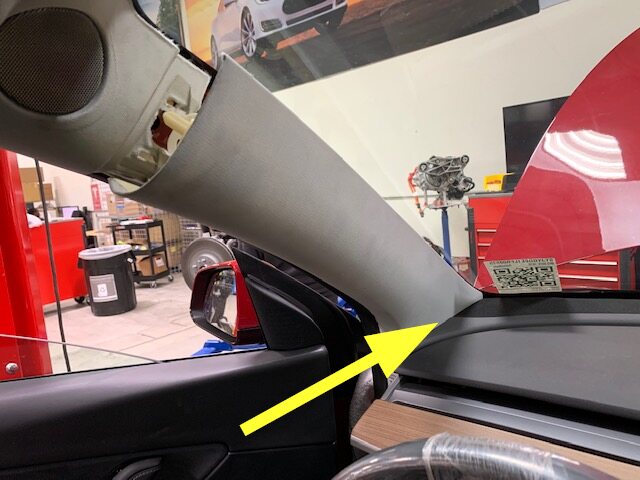

  76. Remove LH upper A-pillar trim
    Informational PurposesAn informational icon, calling your attention
    Note
    3x clips, Pull inside of the upper portion of upper A-pillar, Remove 3x tether hooks by twisting and pulling away from housing, Then pull upper A-pillar upward to remove

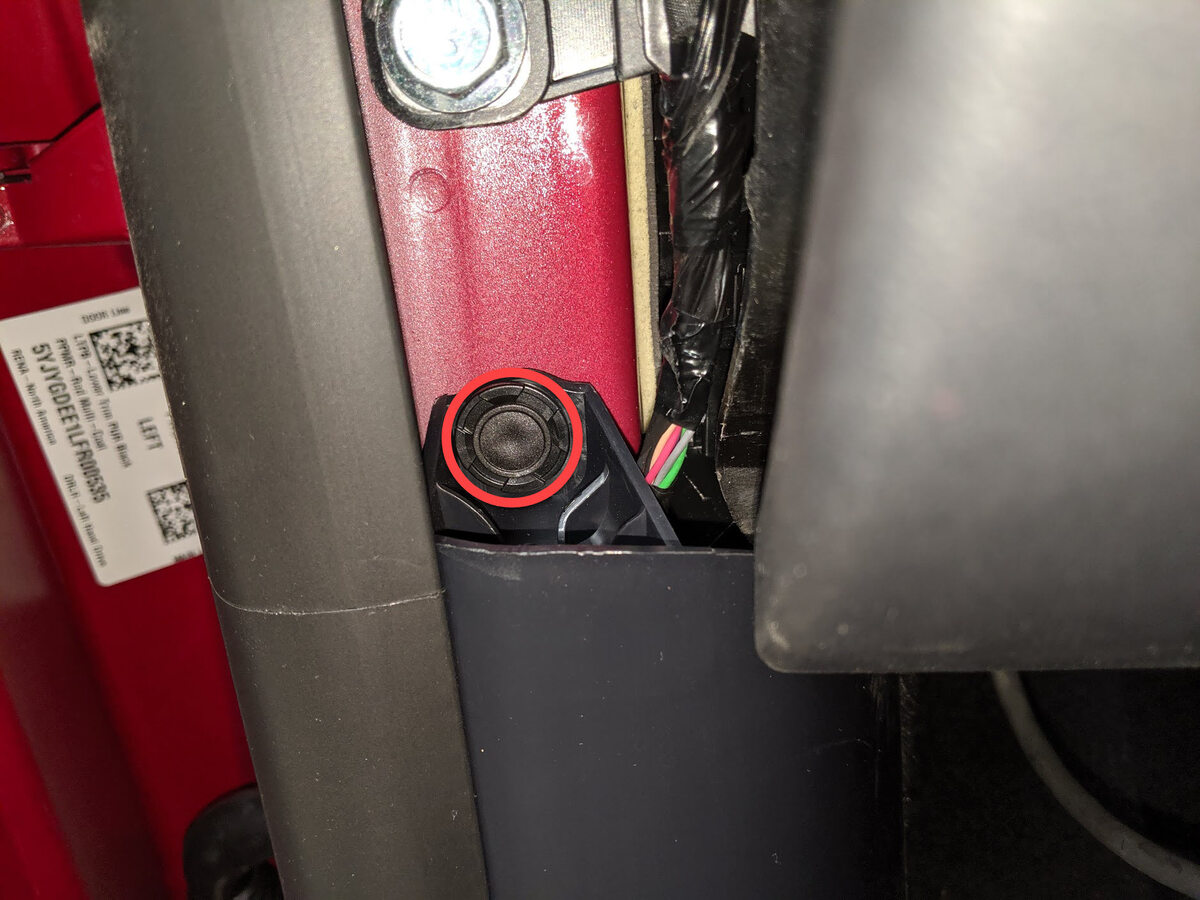

  77. Remove clip for LH lower A-pillar trim
    Informational PurposesAn informational icon, calling your attention
    Note
    1x push clip

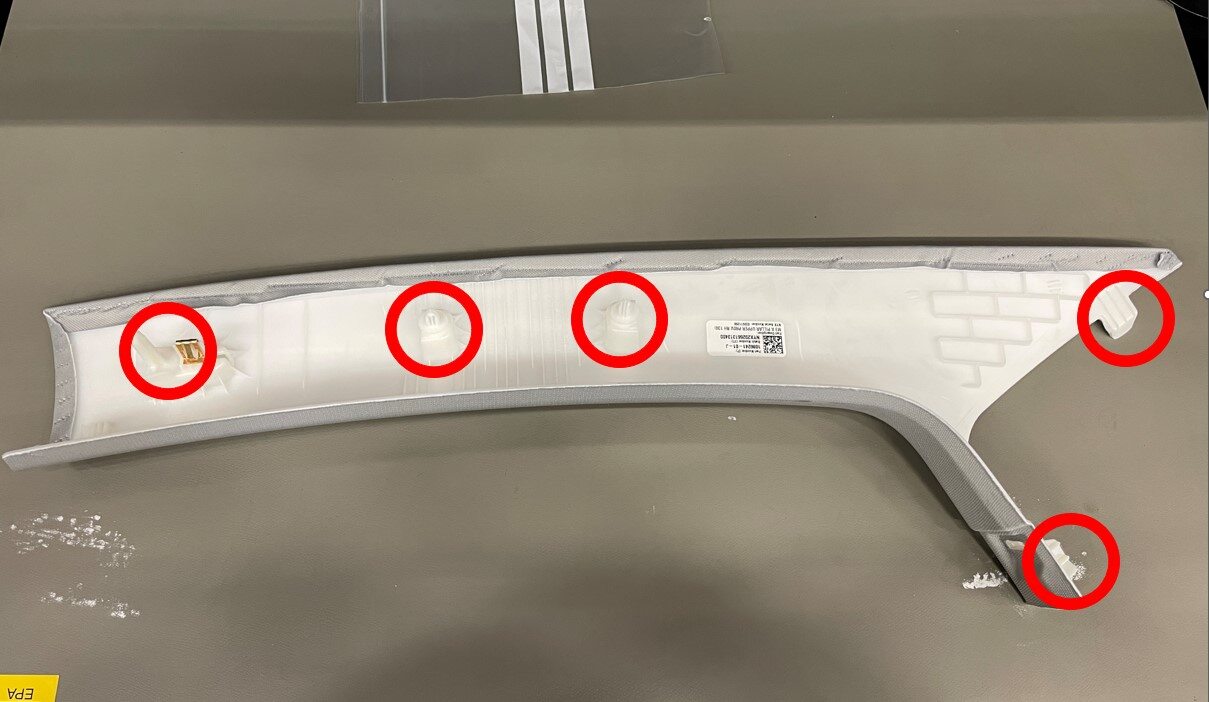

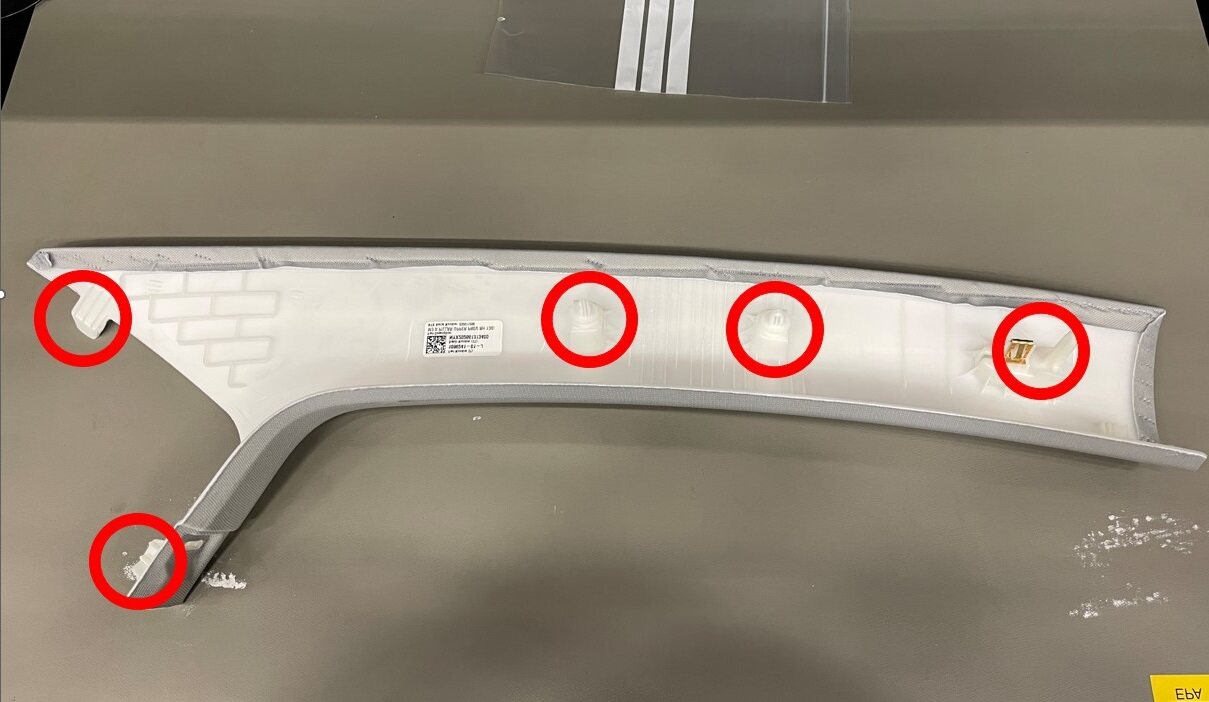

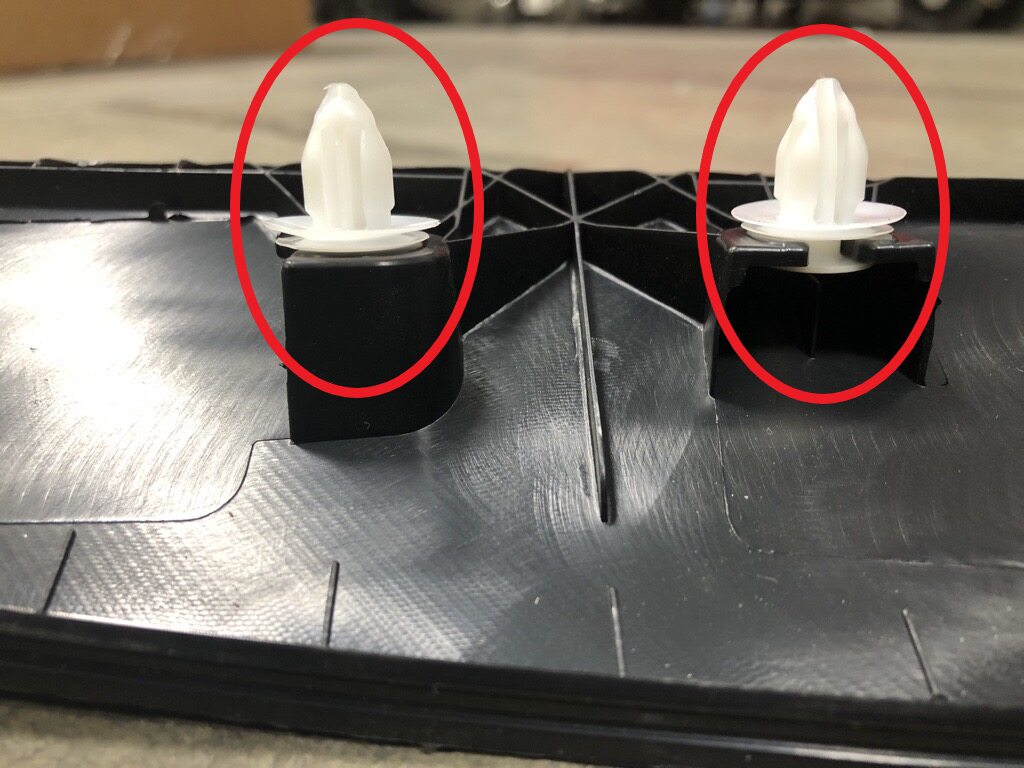

  78. Remove LH lower A-pillar trim
    Informational PurposesAn informational icon, calling your attention
    Note
    2x clips, 3 guide tabs, Pull rear of lower A-pillar upward to release clip then pull outward to release front tabs from carpet

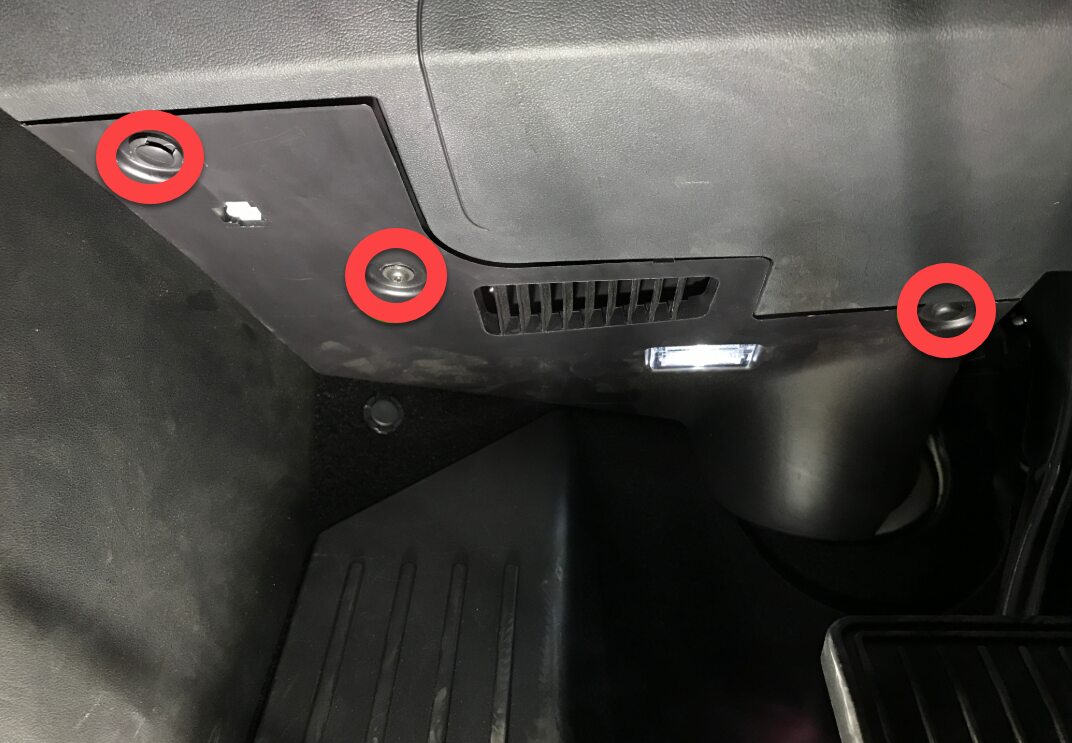

  79. Release LH footwell cover
    Informational PurposesAn informational icon, calling your attention
    Note
    2x push clips, 1x screw, T20, 2.5 Nm

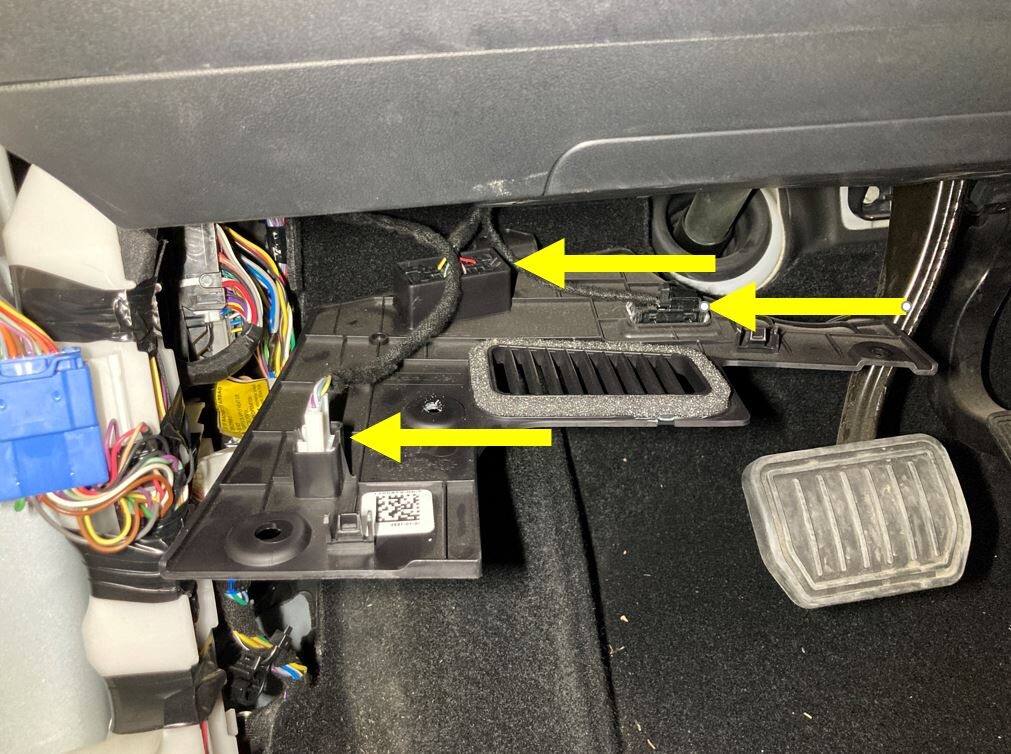

  80. Remove LH footwell cover
    Informational PurposesAn informational icon, calling your attention
    Note
    3x tabs, 1x Ethernet connector, 1x puddle light connector, APAC specific vehicles have an additional OBDII connector that will have to be disconnected

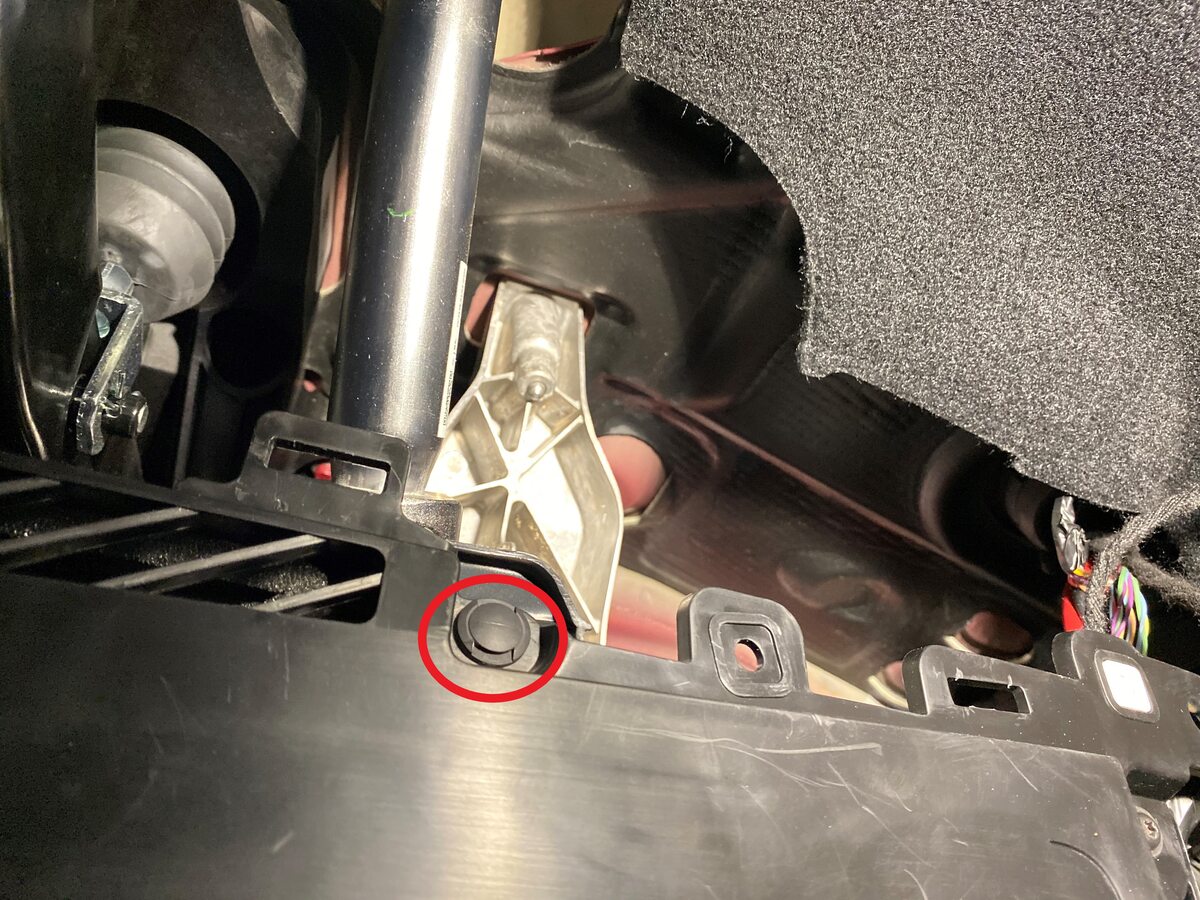

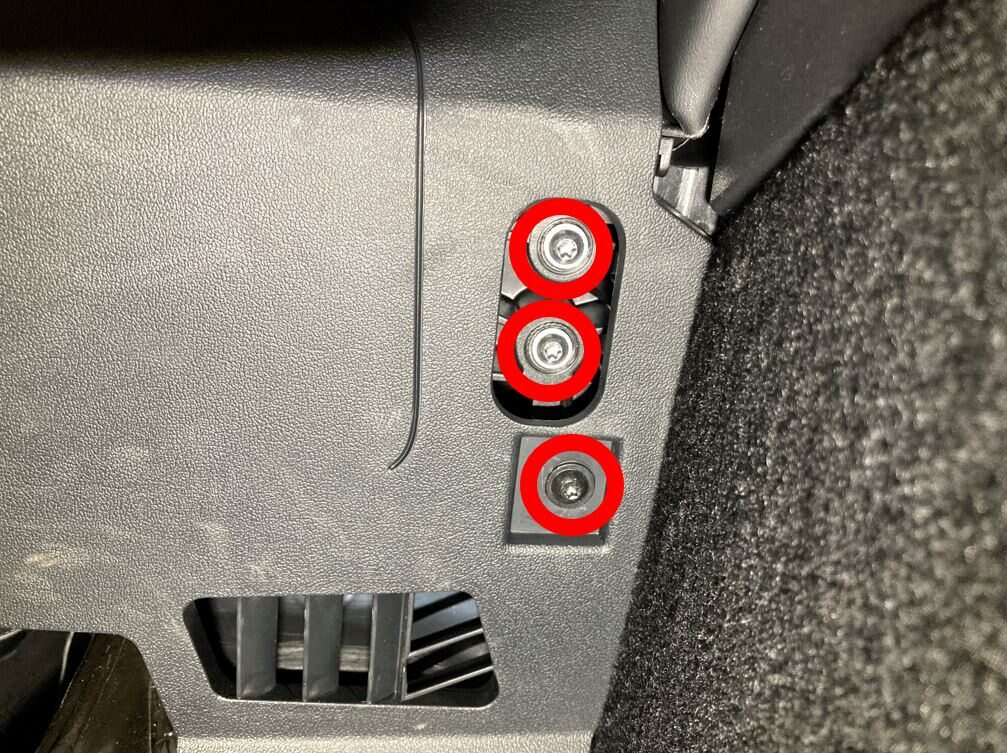

  81. Release driver knee air bag from vehicle
    Informational PurposesAn informational icon, calling your attention
    Note
    1x push clip, 2x screws, T20, 2 Nm, 4x patch bolts, T30, 8 Nm, Newer vehicles have 4x patch bolts, E10, Discard after removal, Support the knee air bag while lowering, The connector / harness length is very short

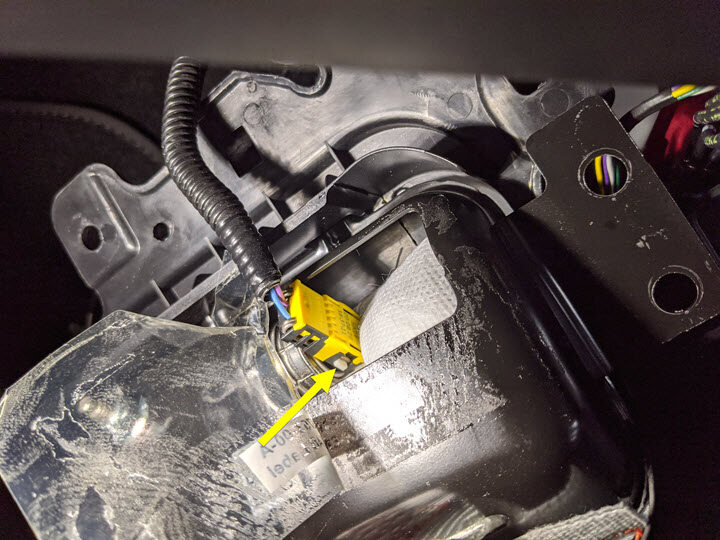

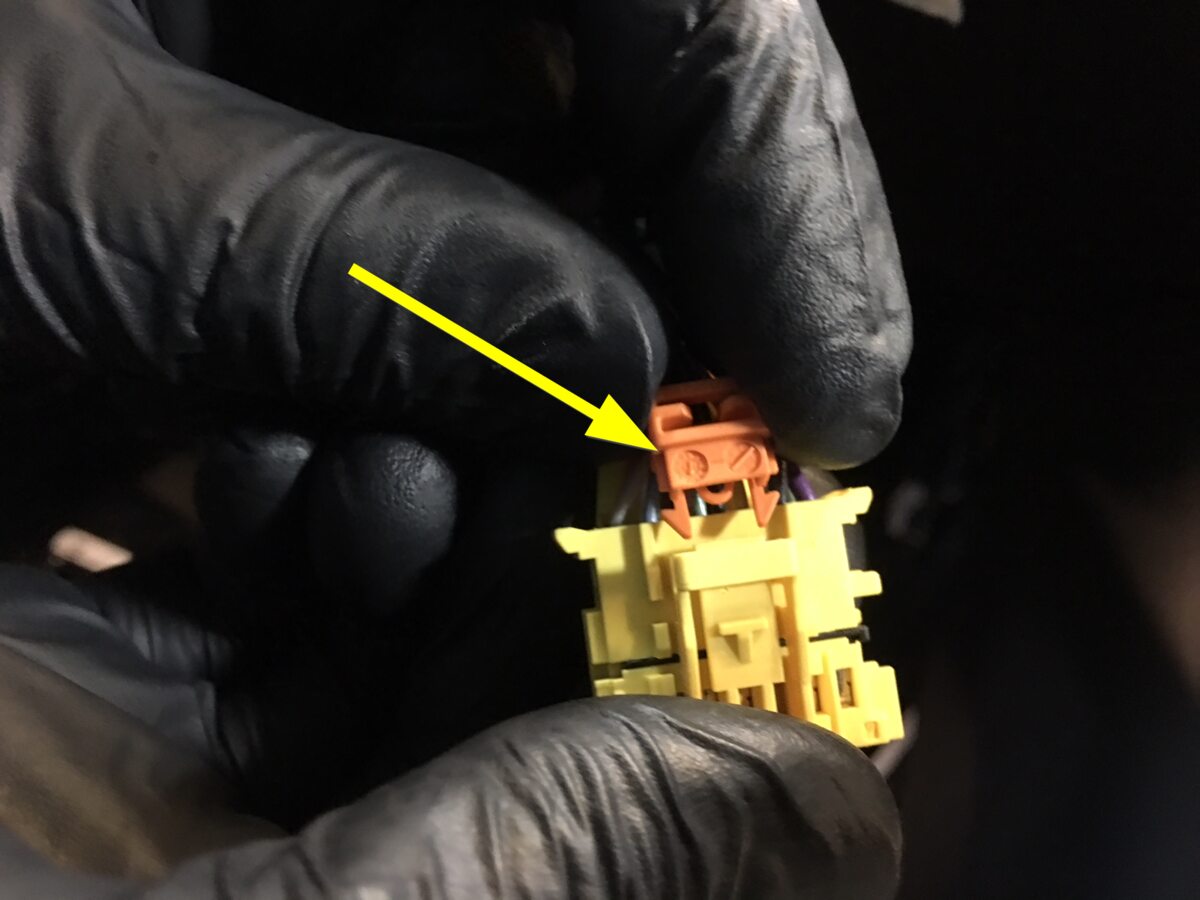

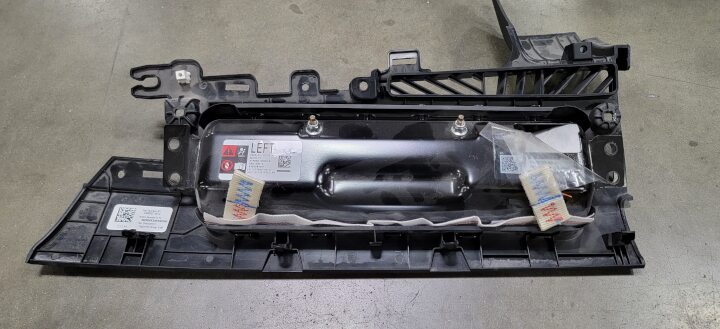

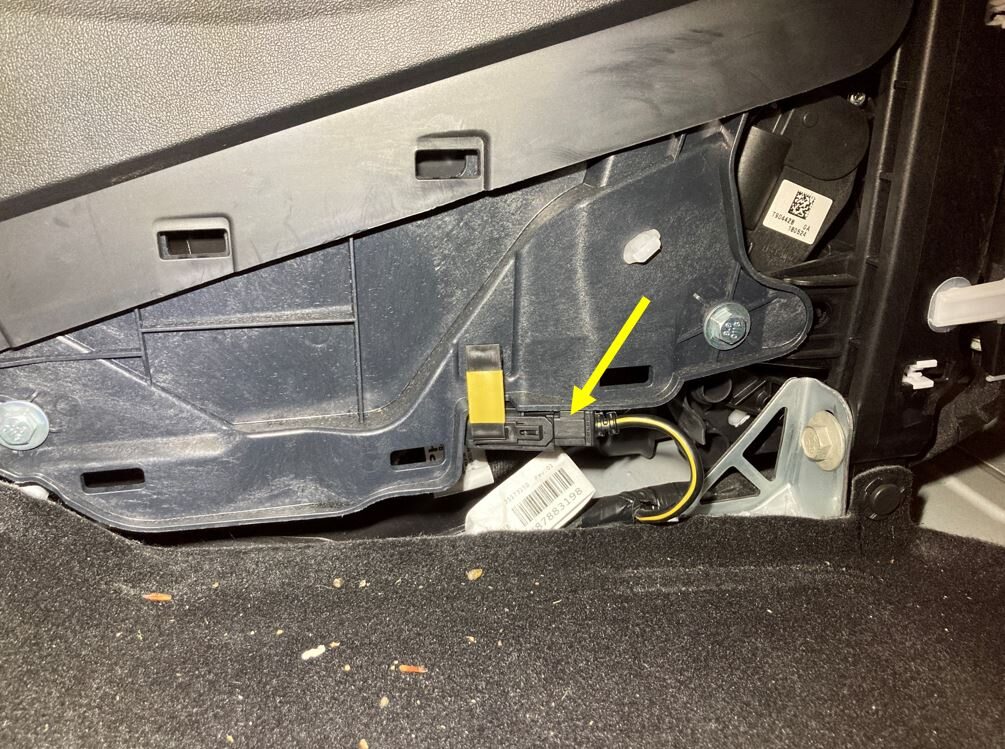

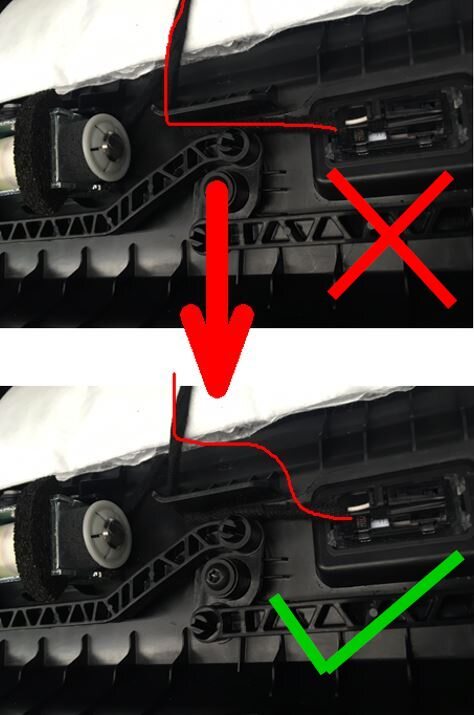

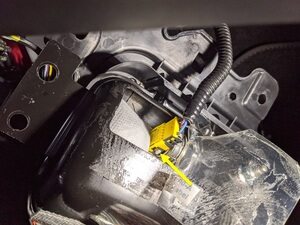

  82. Remove driver knee air bag from vehicle
    Informational PurposesAn informational icon, calling your attention
    Note

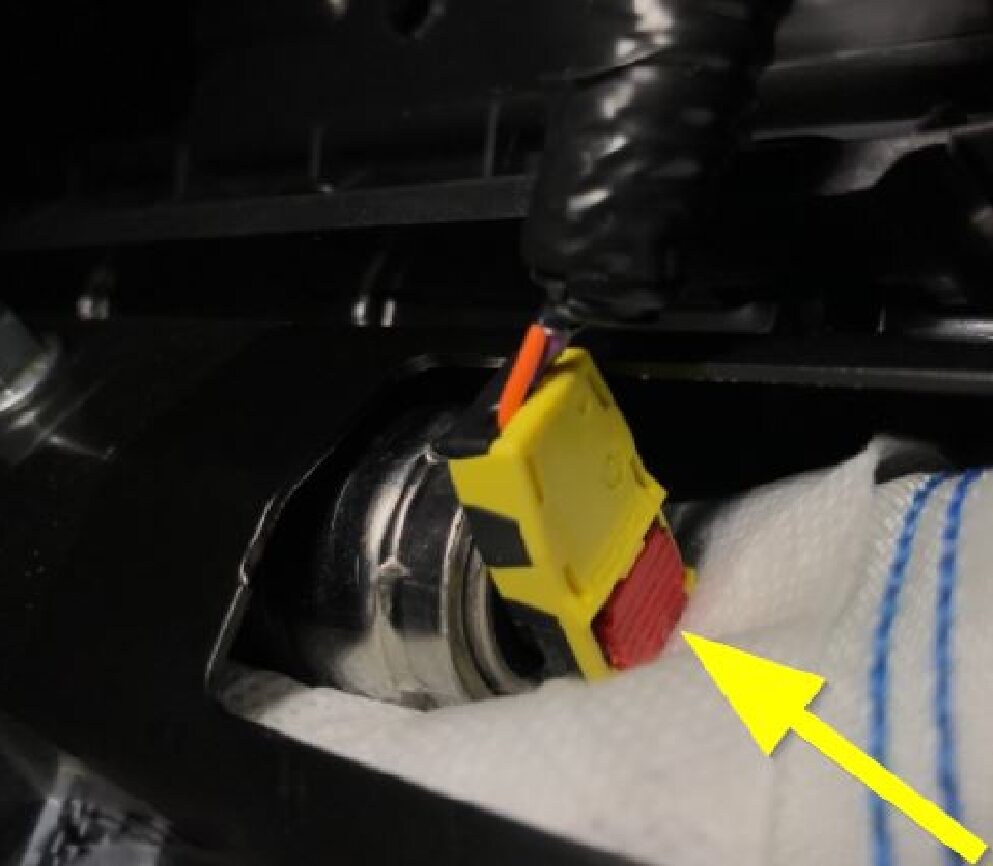

    1x connector, Release locking tabs, Then release squib from air bag, Support air bag while disconnecting, Connector release may vary

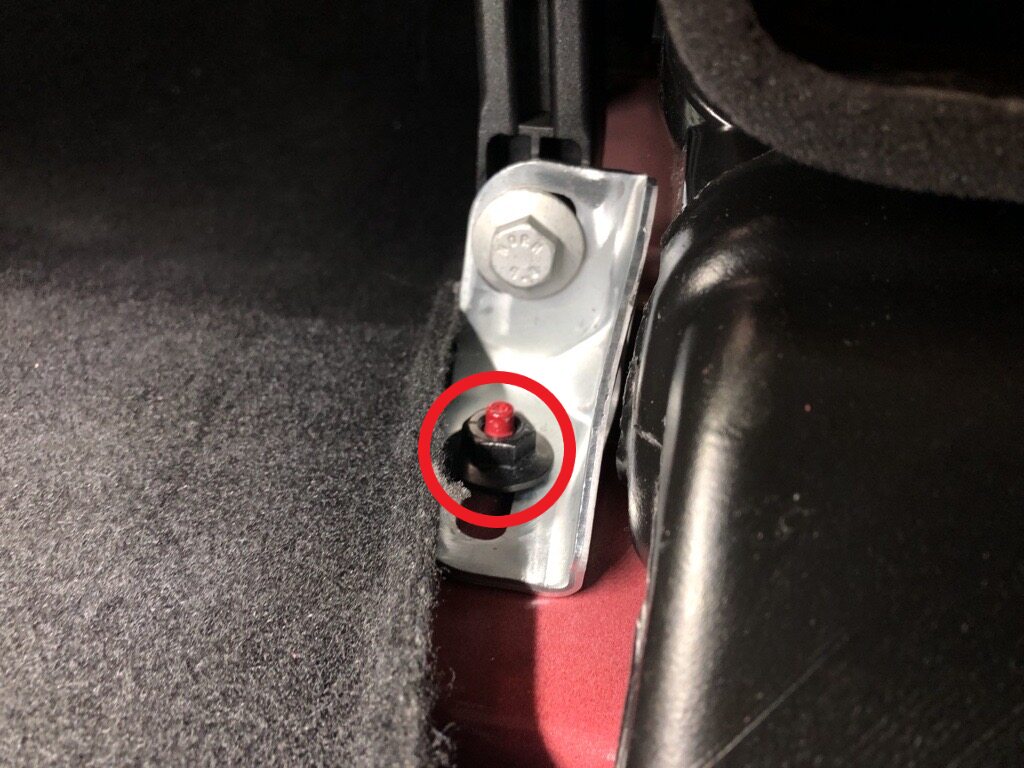

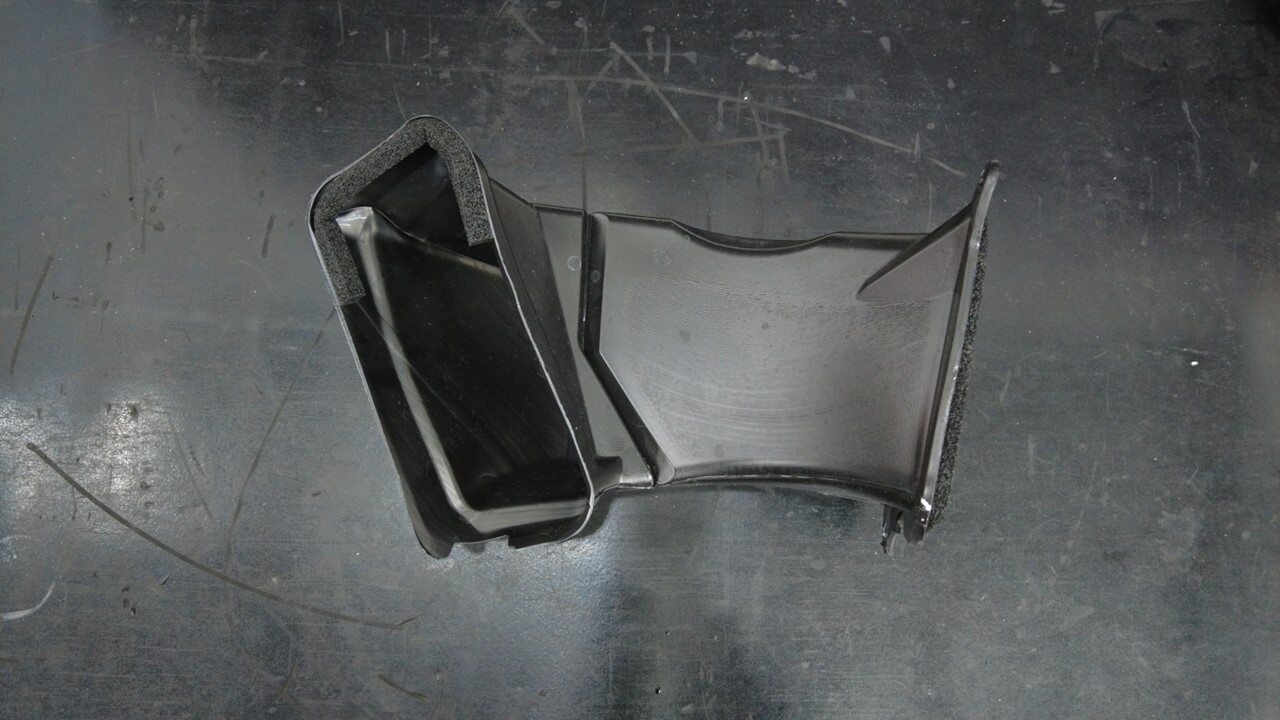

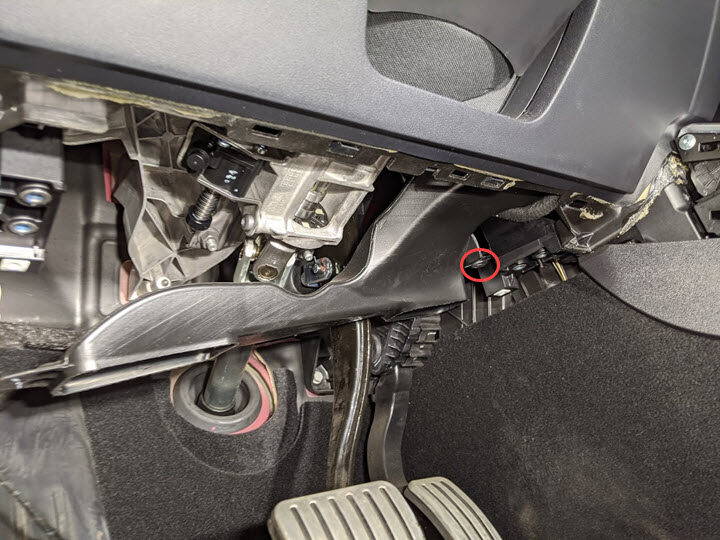

  83. Remove LH footwell duct from HVAC module
    Informational PurposesAn informational icon, calling your attention
    Note
    1x push clip

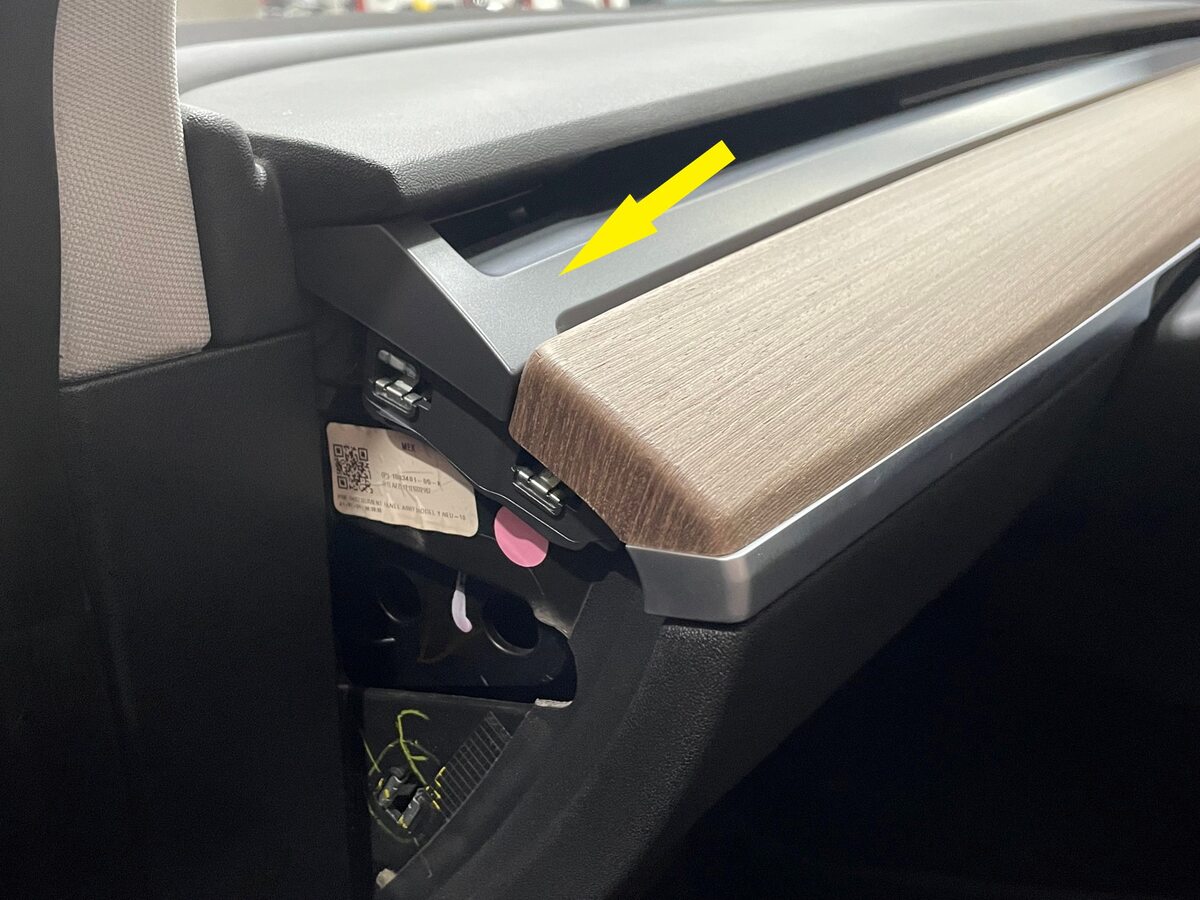

  84. Remove RH IP end cap
    Informational PurposesAn informational icon, calling your attention
    Note
    3x clips
  85. Remove RH mid A-pillar assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    1x clip, 1x tab, Release upper clip then pull mid A-pillar upward to remove from vehicle

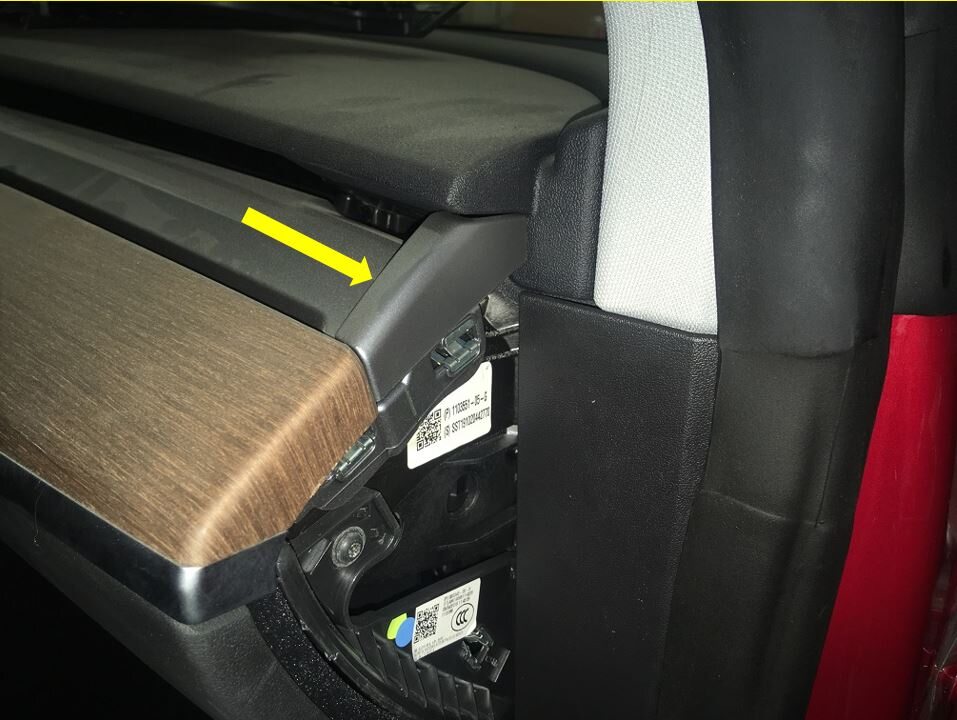

  86. Remove RH air wave bezel cap from main decor assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    2x clips, Newer vehicles are equipped with solid bezel.
  87. Remove RH upper A-pillar trim
    Informational PurposesAn informational icon, calling your attention
    Note
    3x clips, Pull inside of the upper portion of upper A-pillar, Remove 3x tether hooks by twisting and pulling away from housing, Then pull upper A-pillar upward to remove
  88. Remove clip from RH lower A-pillar trim
    Informational PurposesAn informational icon, calling your attention
    Note
    1x push clip
  89. Remove RH lower A-pillar trim
    Informational PurposesAn informational icon, calling your attention
    Note
    1x clip, 2 guide tabs, Pull rear of lower A-pillar upward to release clip then pull backward to release front tabs from carpet

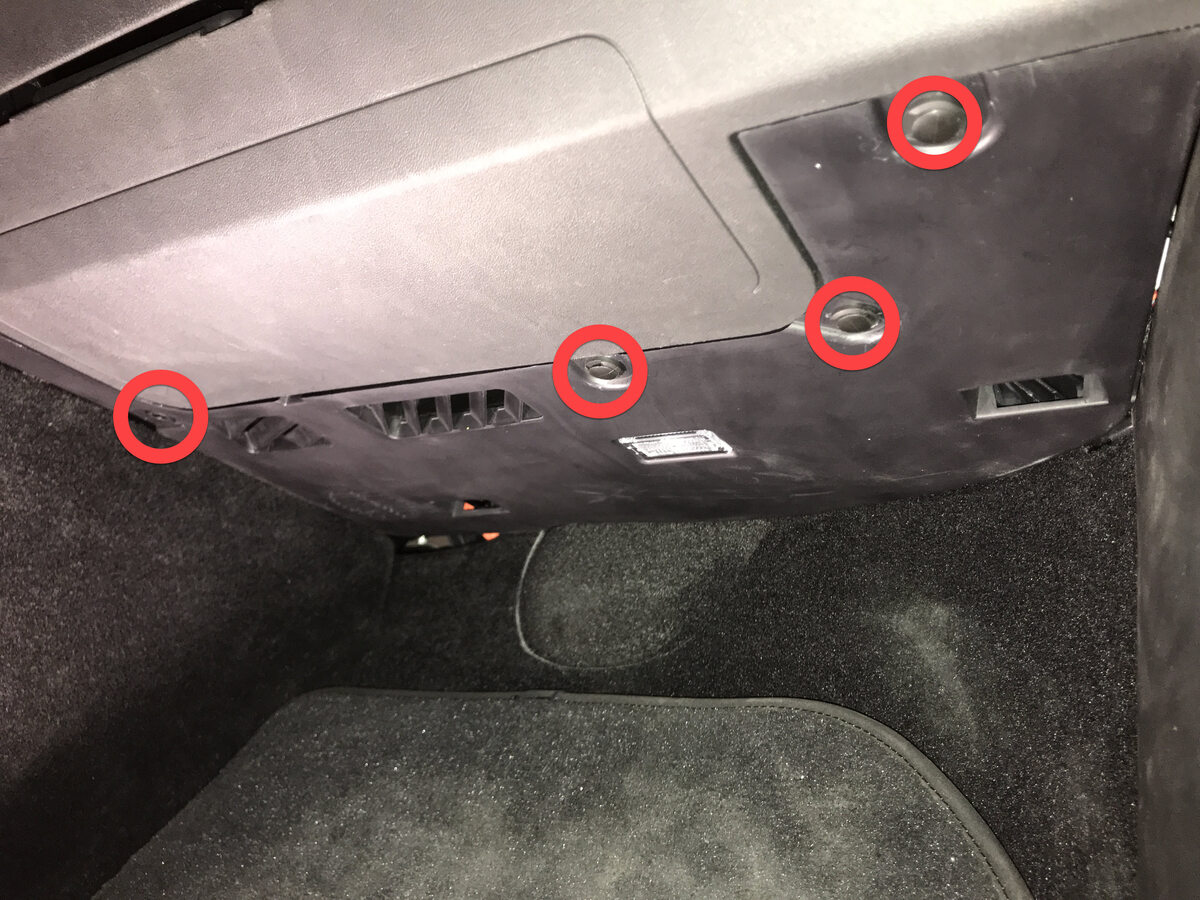

  90. Release RH footwell assembly from IP
    Informational PurposesAn informational icon, calling your attention
    Note
    4x push clips
  91. Remove RH footwell assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    2x connectors

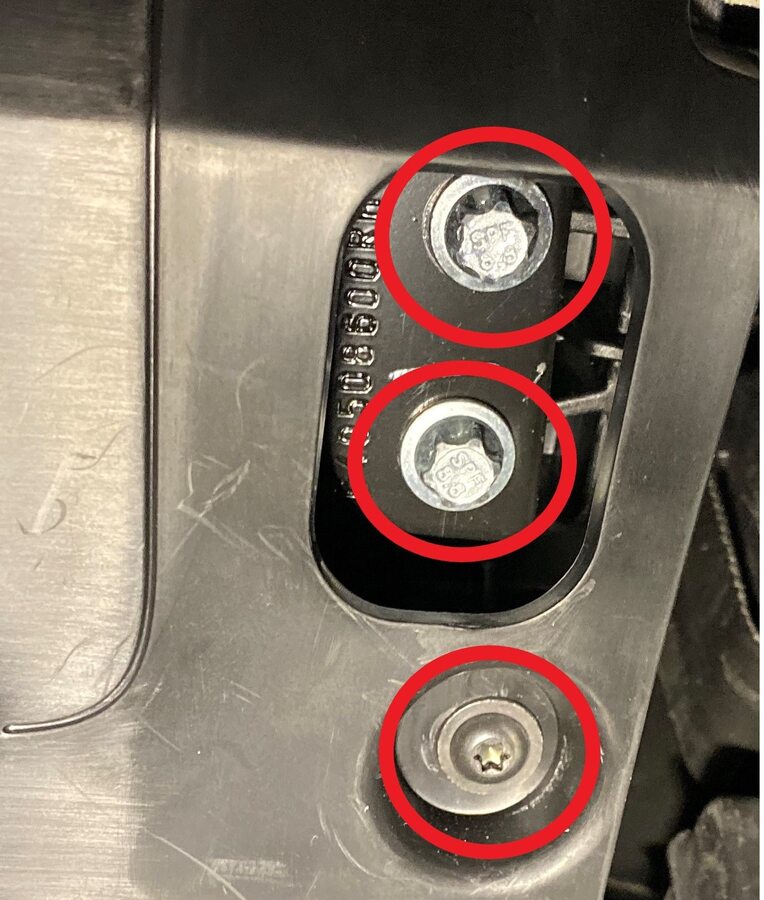

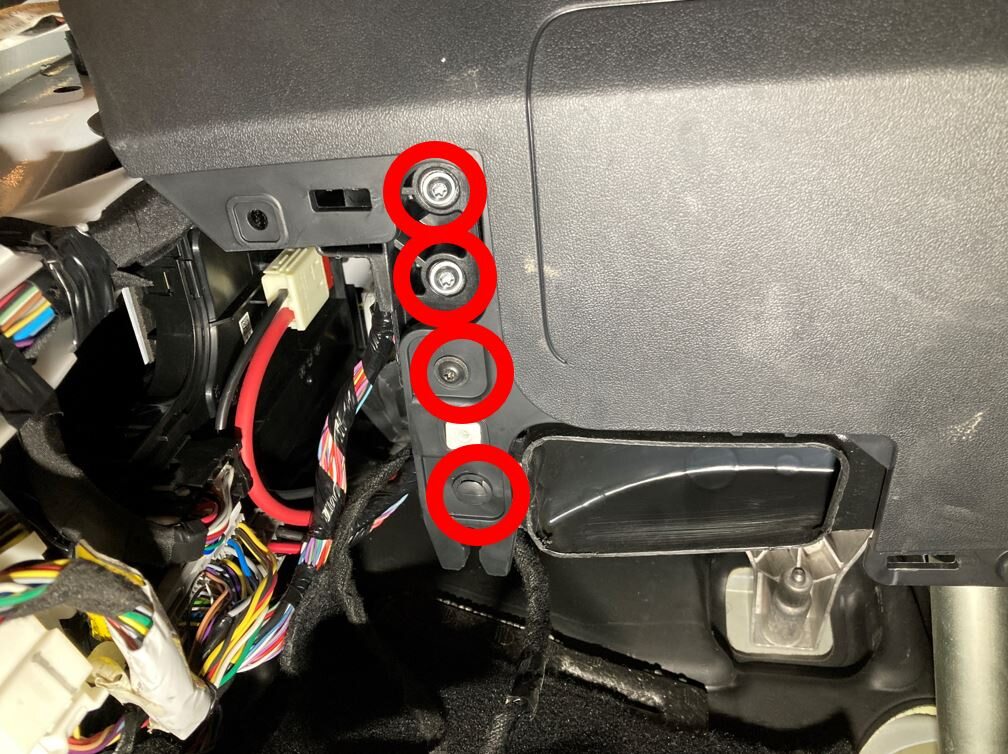

  92. Remove bolts securing passenger knee air bag onto vehicle
    Informational PurposesAn informational icon, calling your attention
    Note

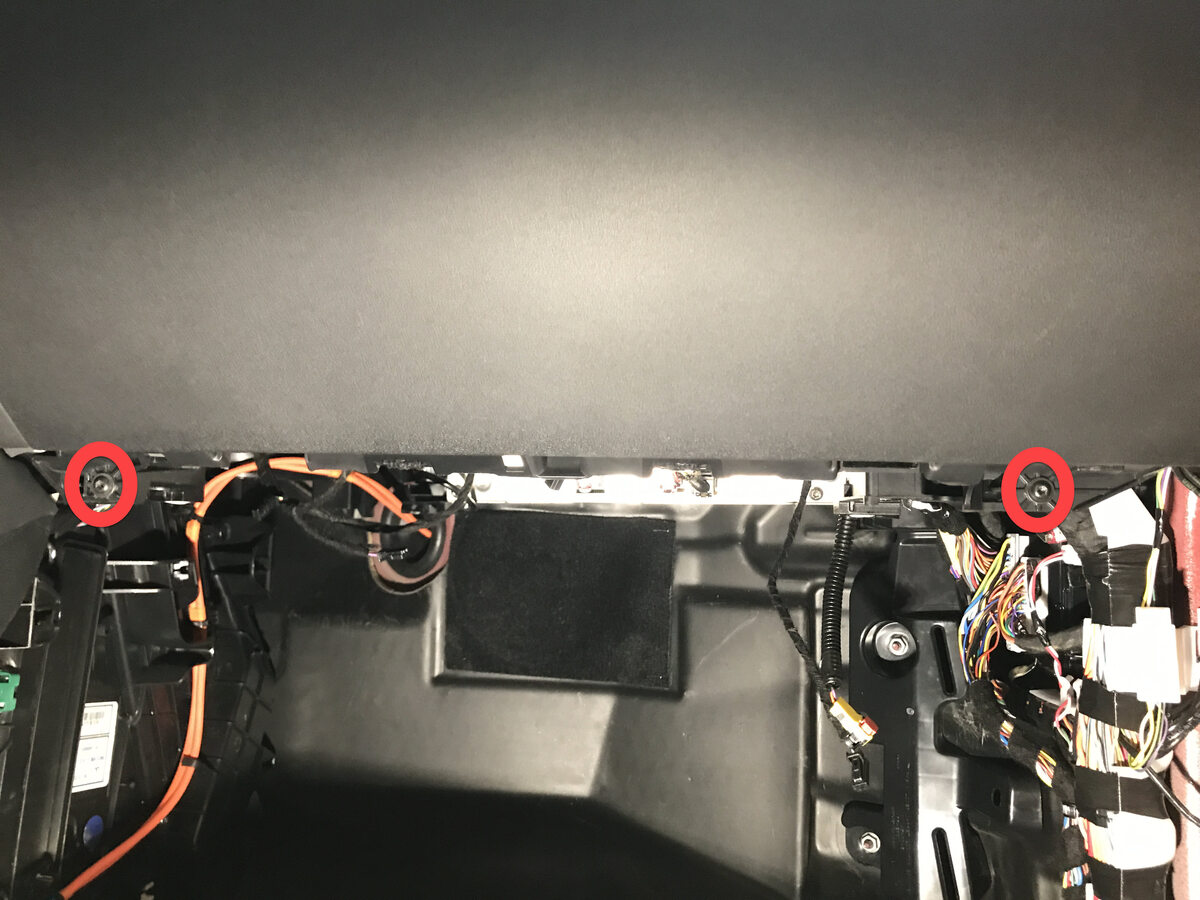

    4x patch bolts, T30, 8 Nm, Discard after removal, 2x screws, T20, 2 Nm, 1x push clip, Newer vehicles have 4x E10 patch bolts

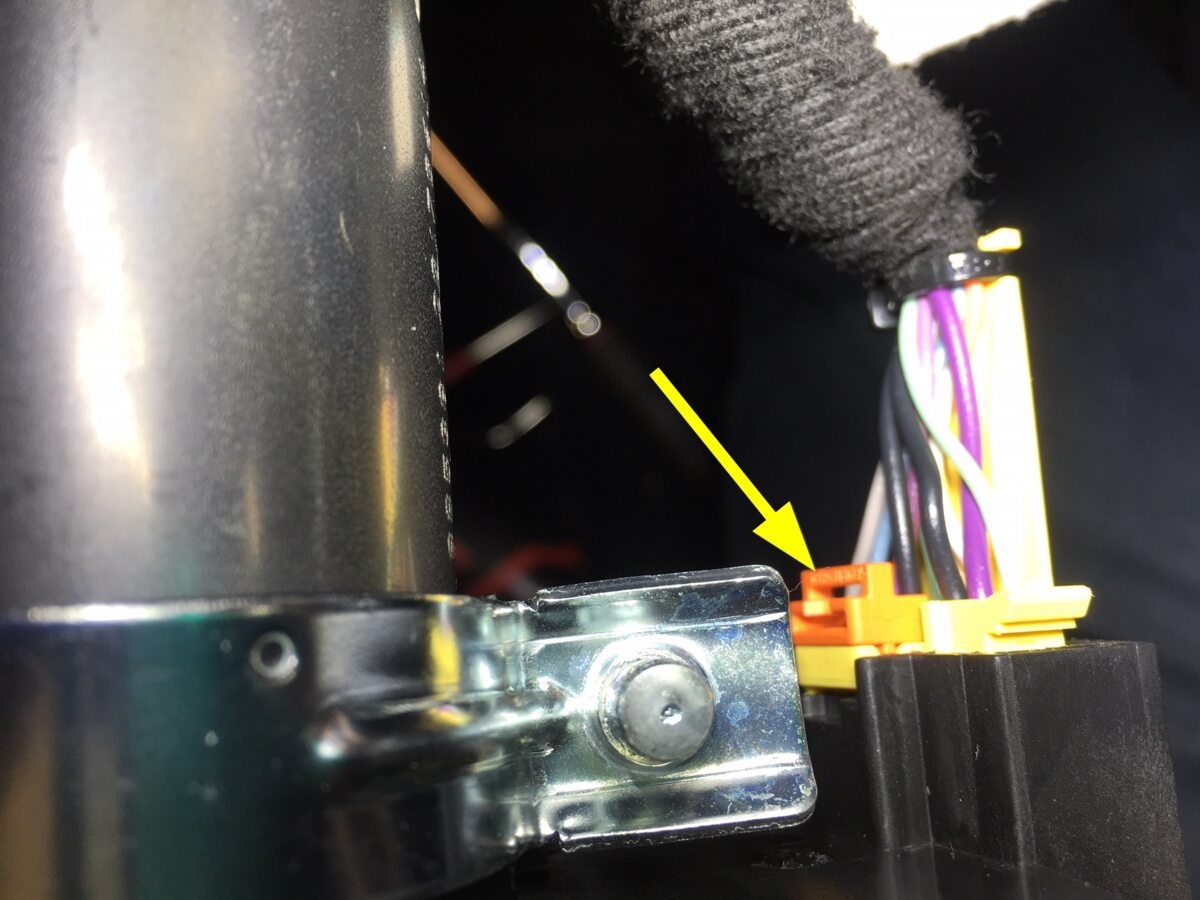

  93. Remove passenger knee air bag from vehicle
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector, Release locking tab, Connector release may vary

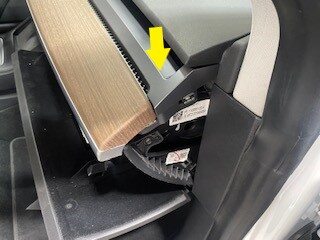

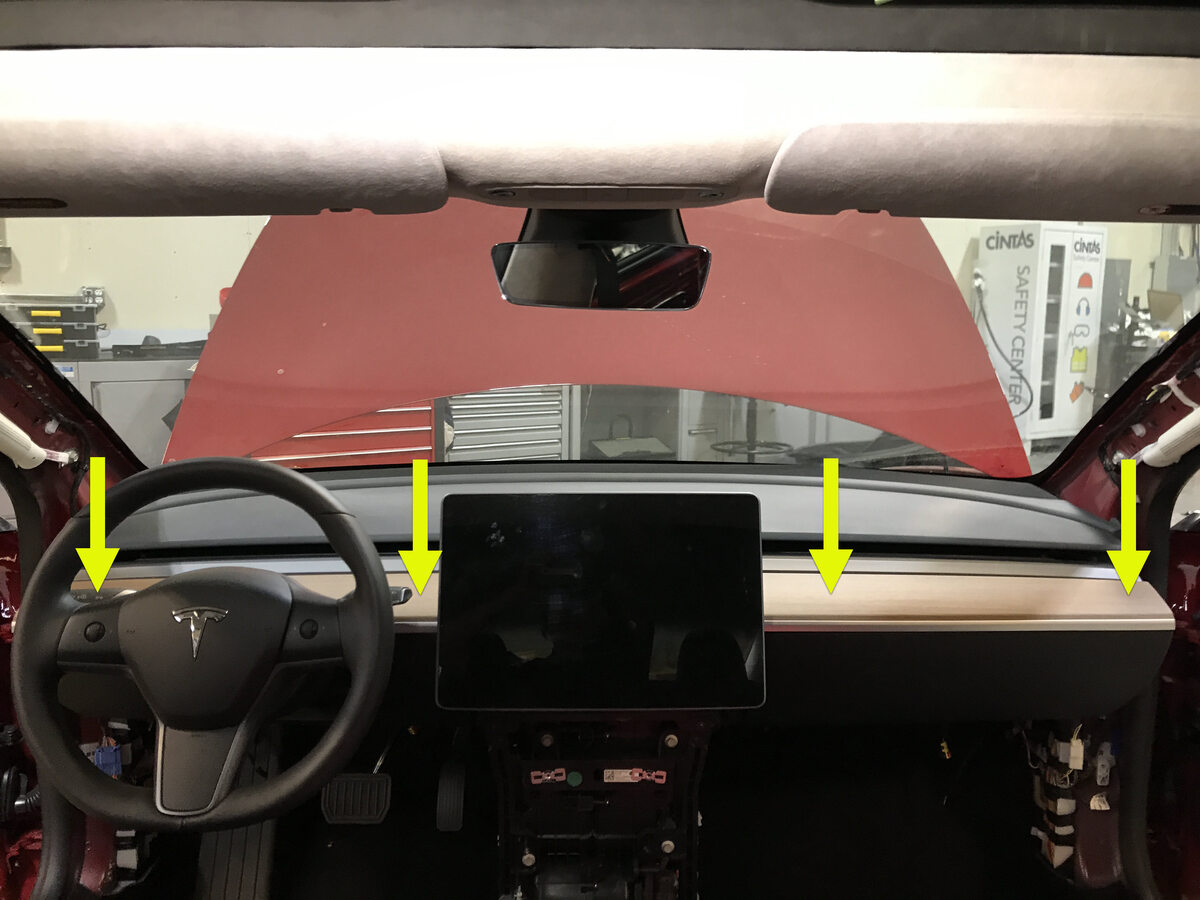

  94. Remove main decor assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    15x clips, Entire decor does not need to come off for glove box removal, If you lift RH side of decor then you will have access to 3x torx screws securing top of glove box, Replace securing clips as needed
  95. Disconnect glove box USB cable from car computer
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector, Depress latch on top of USB cable to release internal latches, Then release from car computer

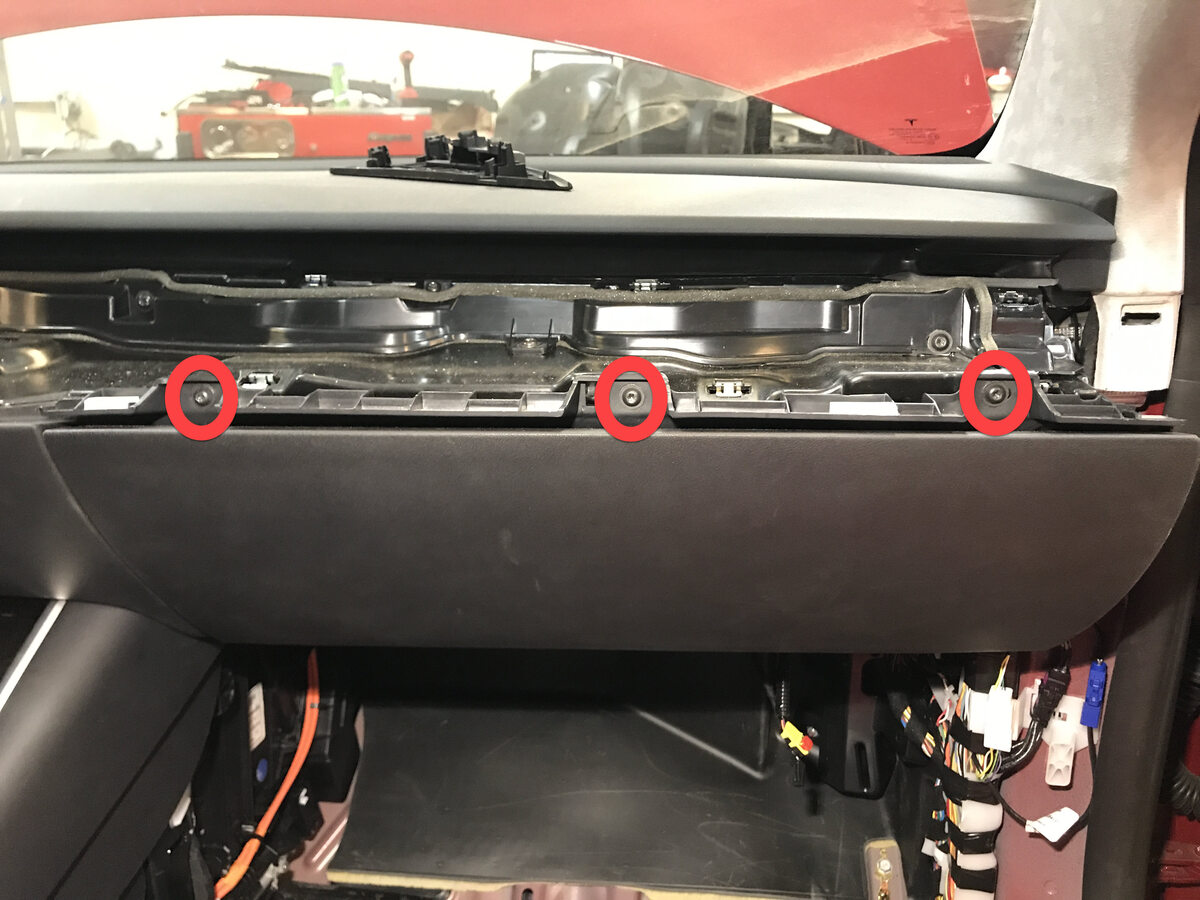

  96. Remove screws securing glove box assembly to IP carrier
    Informational PurposesAn informational icon, calling your attention
    Note
    6x screws, T20, 2.3 Nm

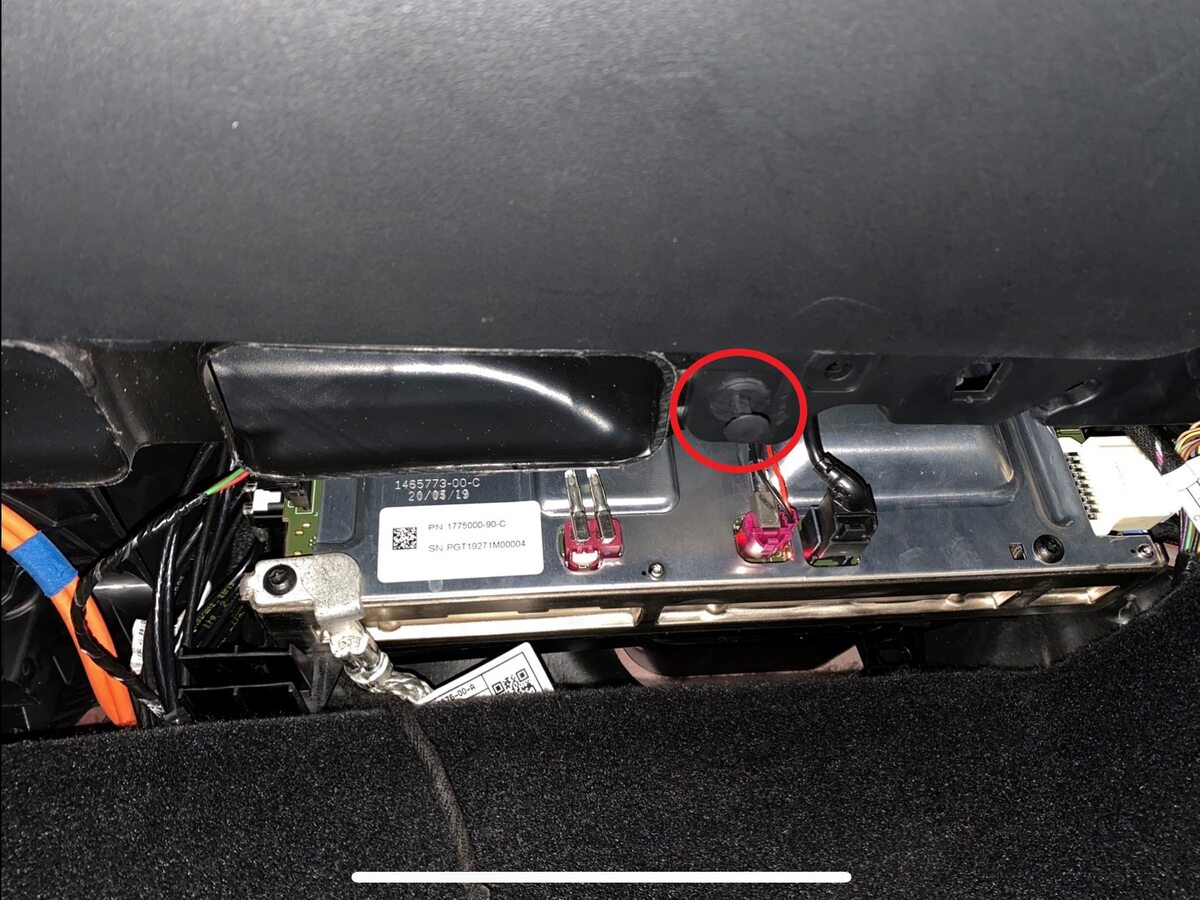

  97. Remove glove box from IP carrier
    Informational PurposesAn informational icon, calling your attention
    Note

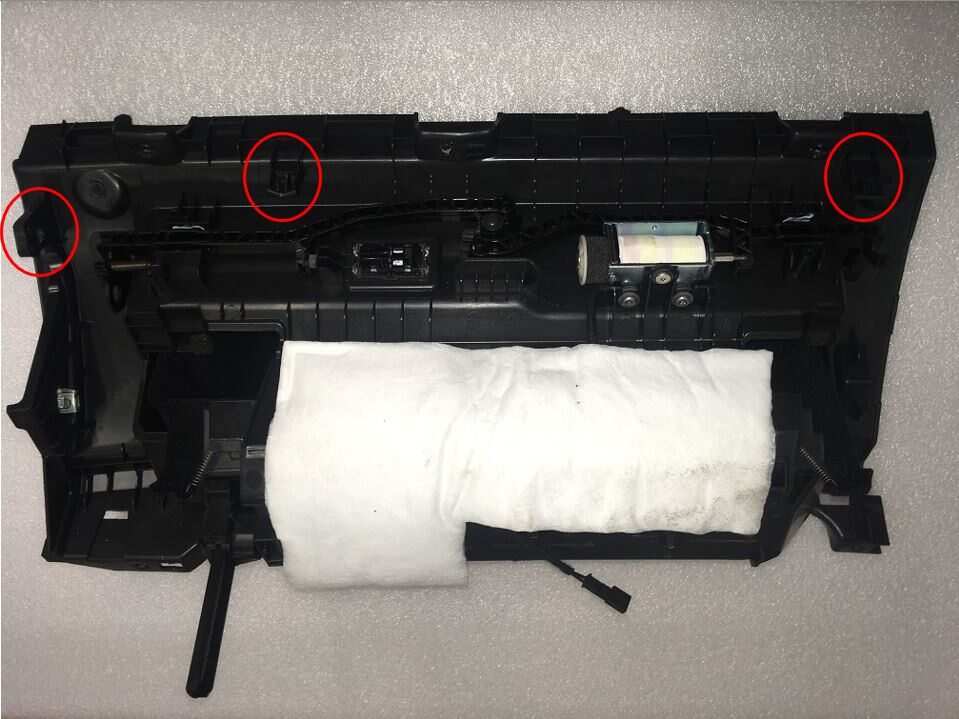

    3x clips

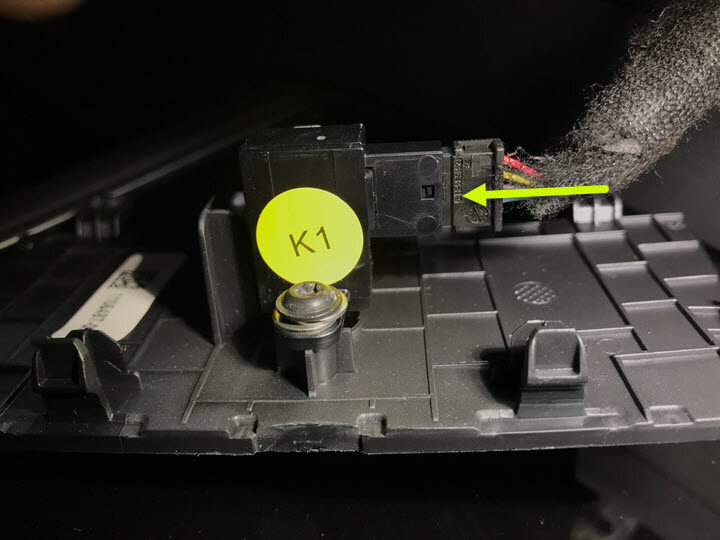

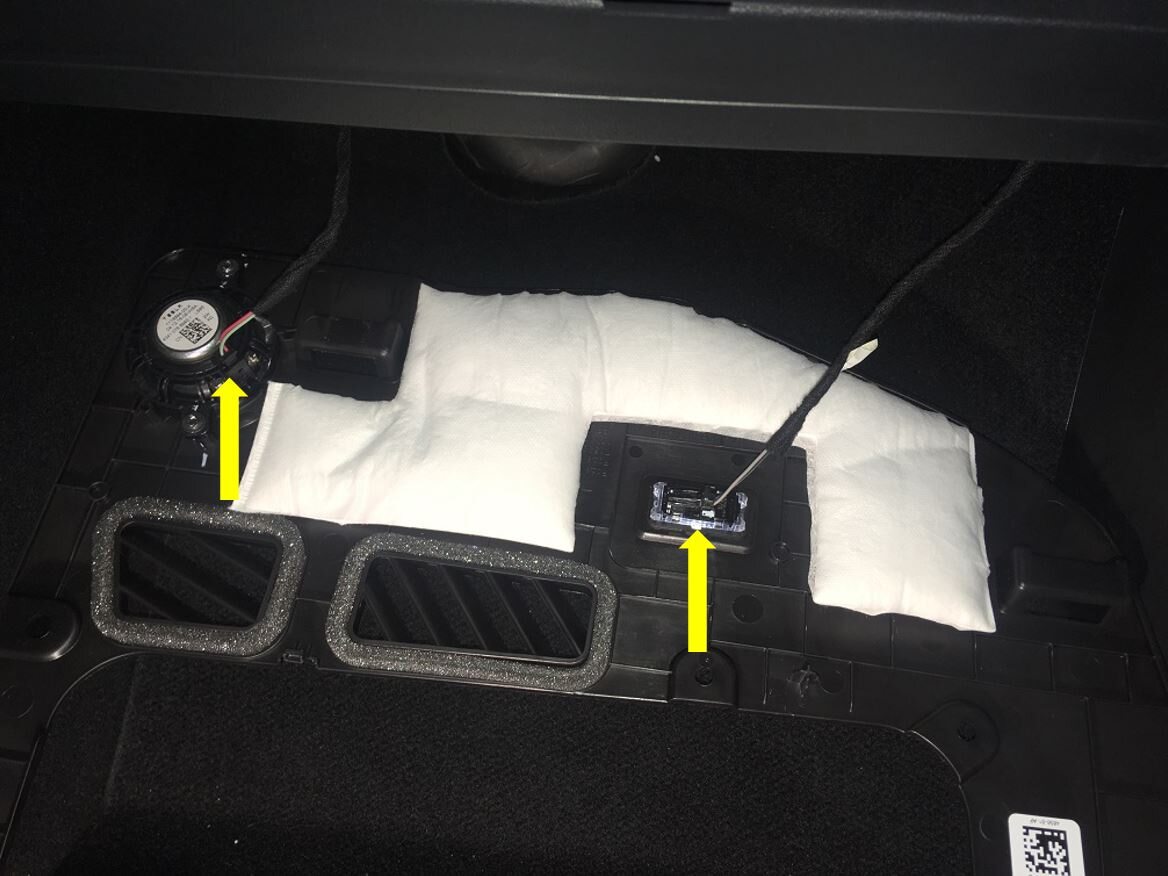

  98. Disconnect glove box assembly connectors
    Informational PurposesAn informational icon, calling your attention
    Note
    3x electrical connectors

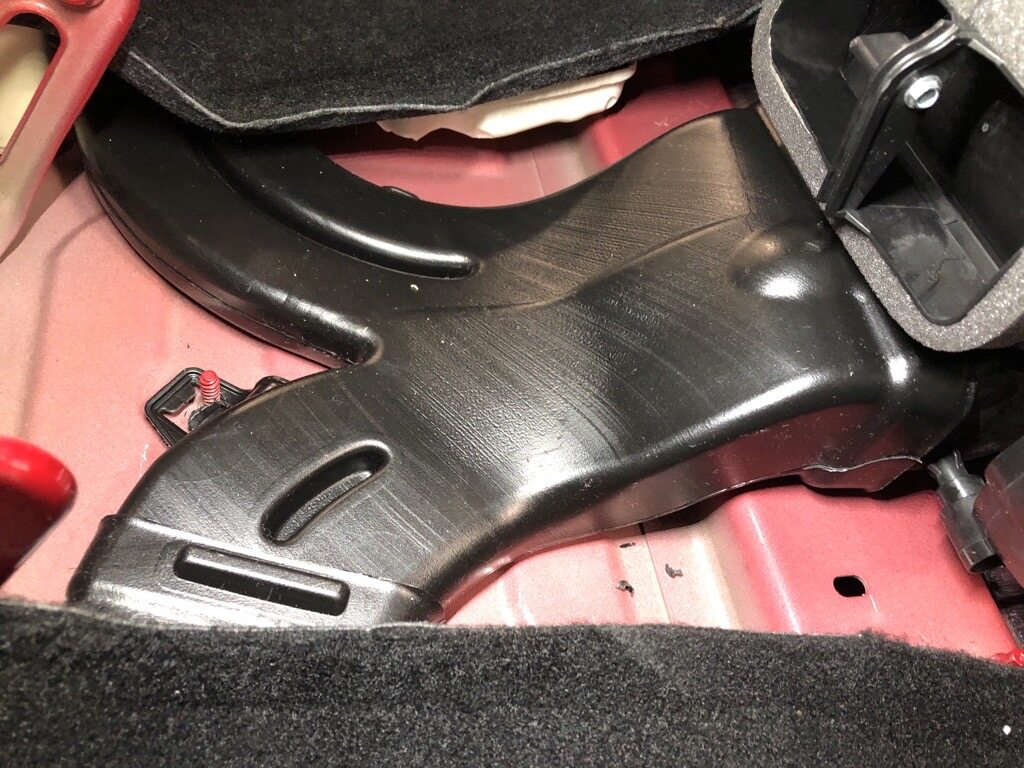

  99. Remove passenger footwell air duct
    Informational PurposesAn informational icon, calling your attention
    Note
    1x push clip

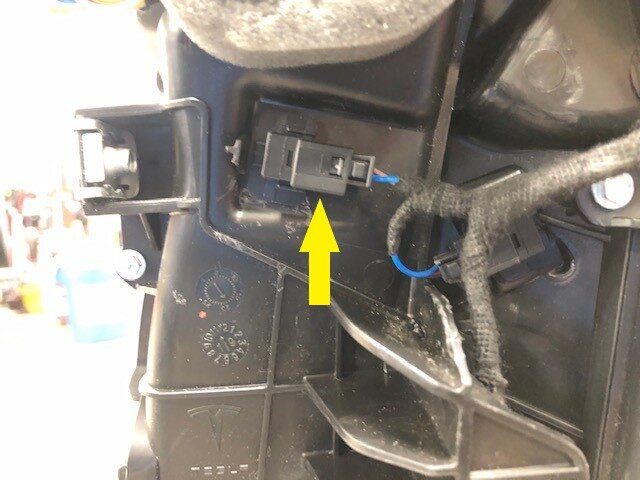

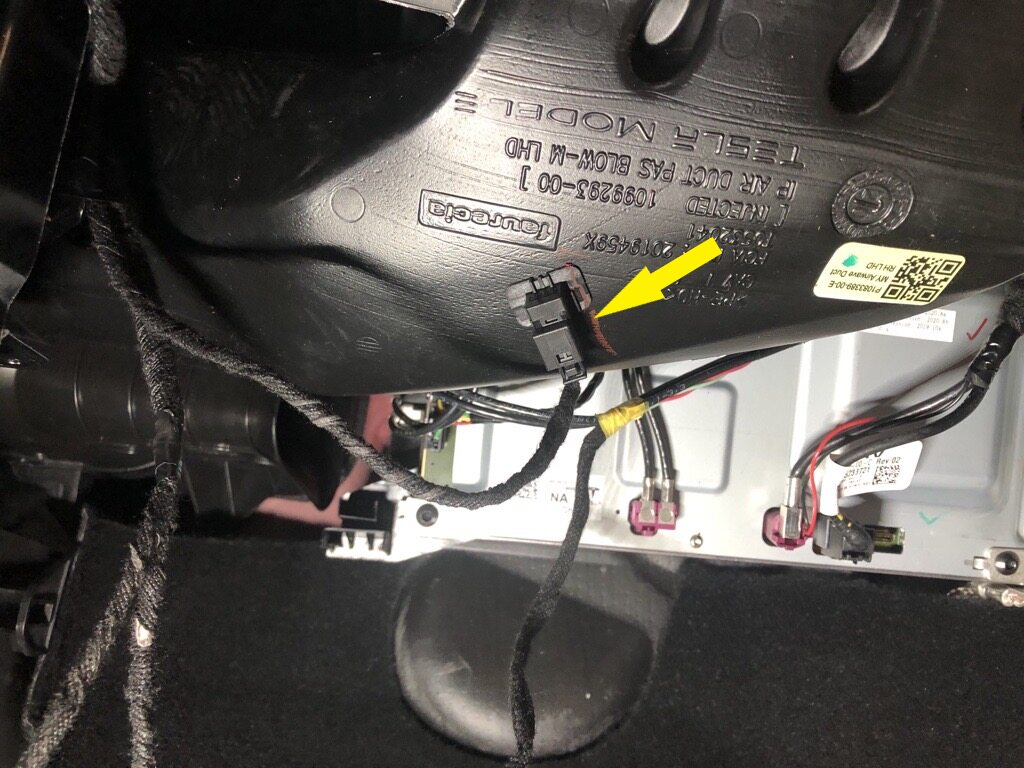

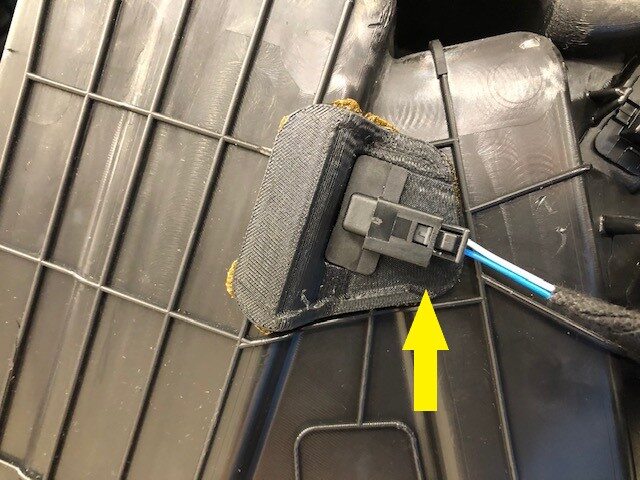

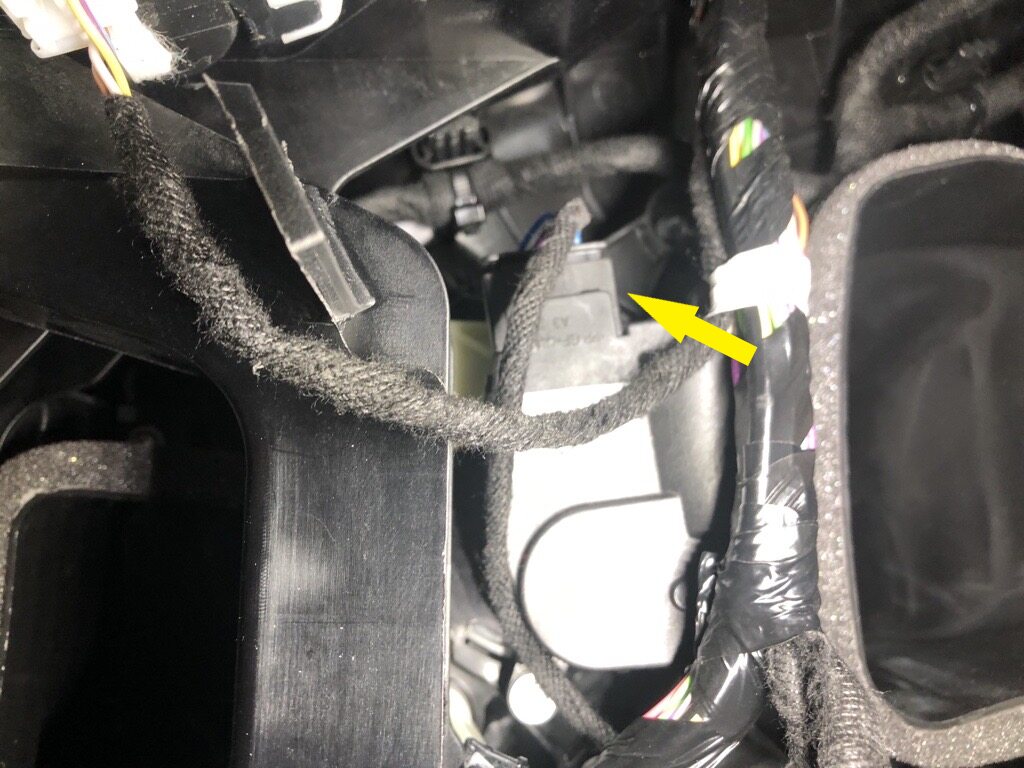

  100. Disconnect RH upper duct thermistor from RH IP air wave duct
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector
  101. Remove RH IP air wave duct
    Informational PurposesAn informational icon, calling your attention
    Note
    2x push clips

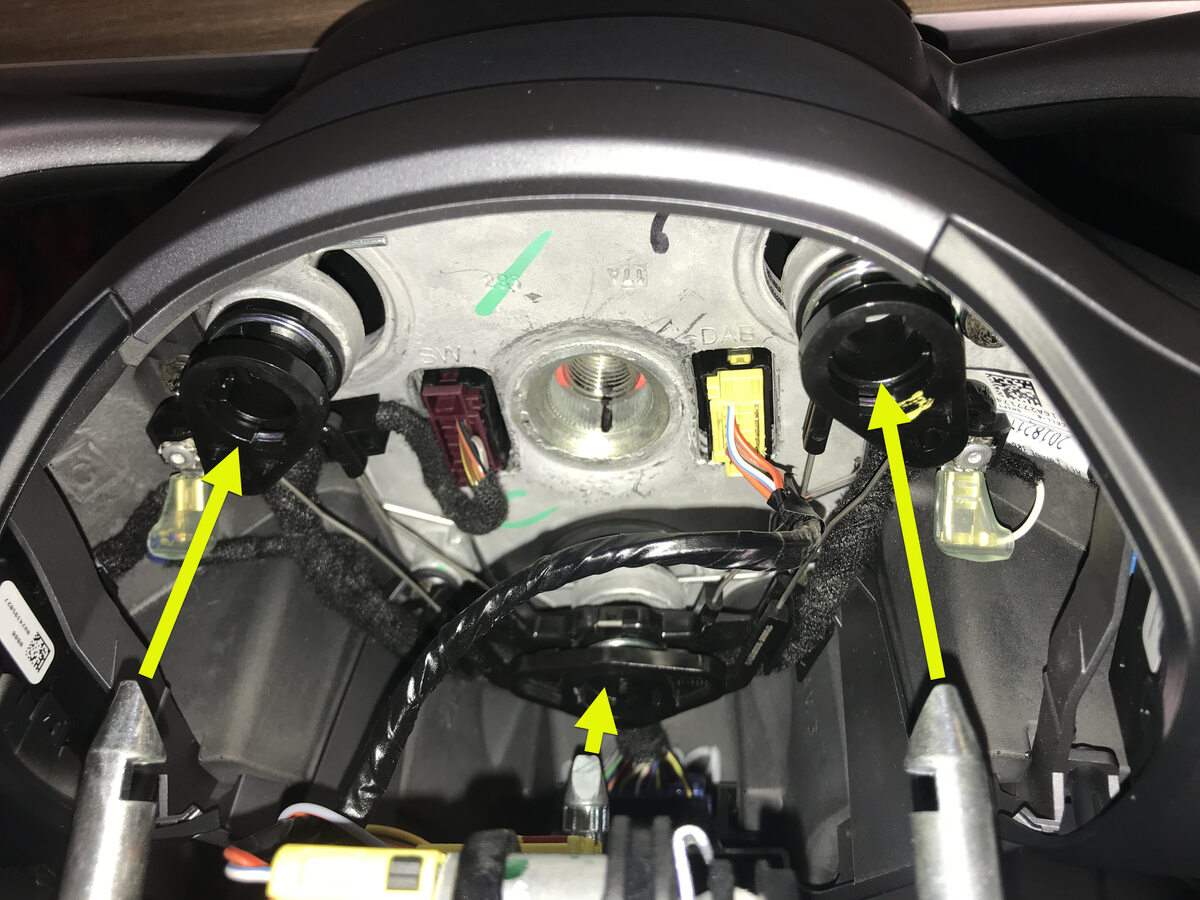

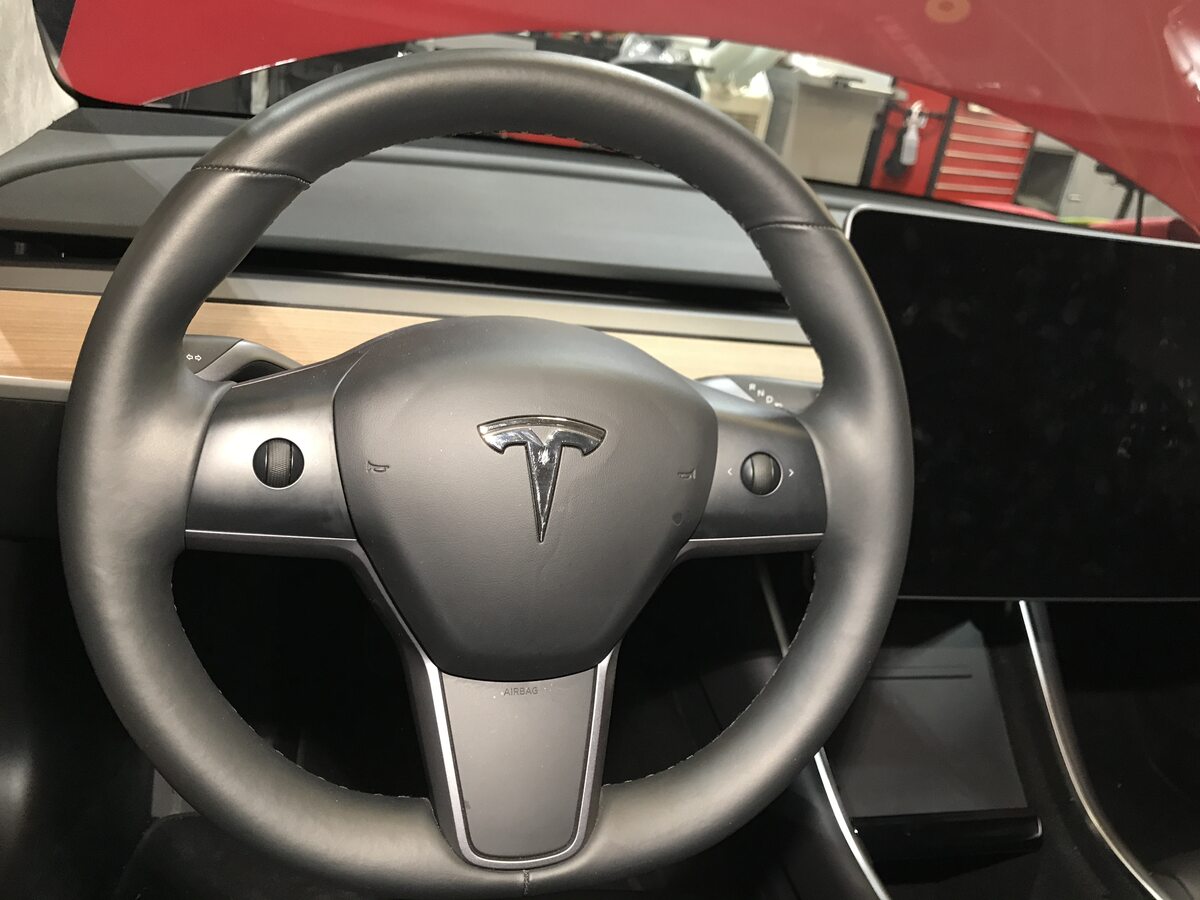

  102. Release driver air bag assembly away from steering wheel
    Informational PurposesAn informational icon, calling your attention
    Note
    2x spring clips, 3x datums, Press the spring simultaneously from two access holes to release, Access holes located at 4 and 8 o’clock position, Do not insert tool too far as air bag connector could be damaged

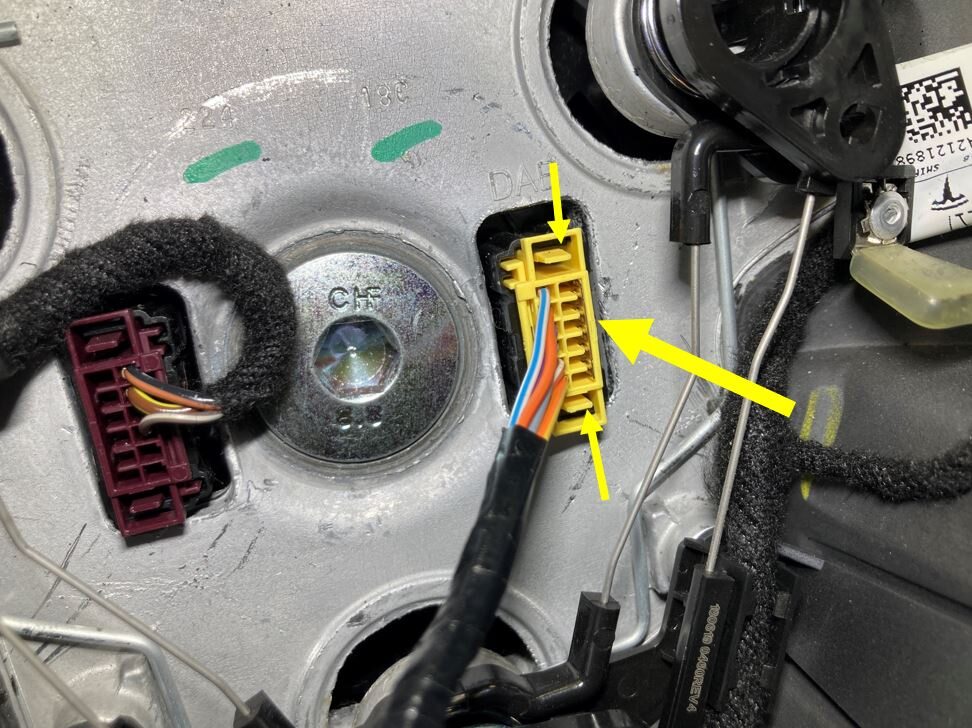

  103. Remove driver air bag assembly
    Informational PurposesAn informational icon, calling your attention
    Note

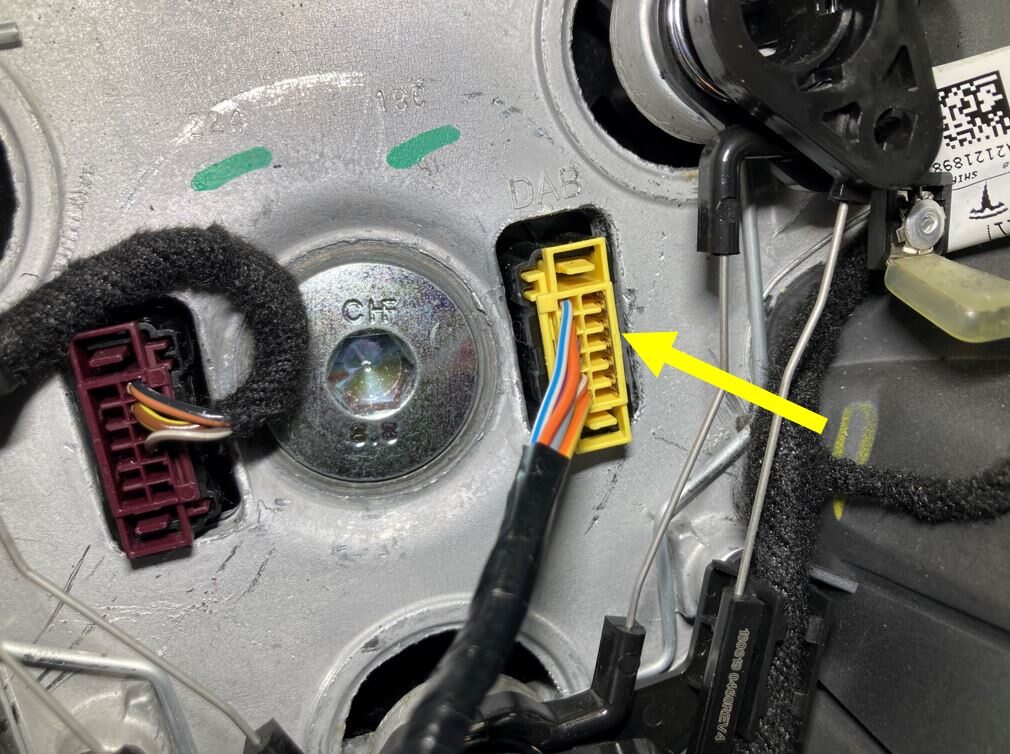

    1x connector

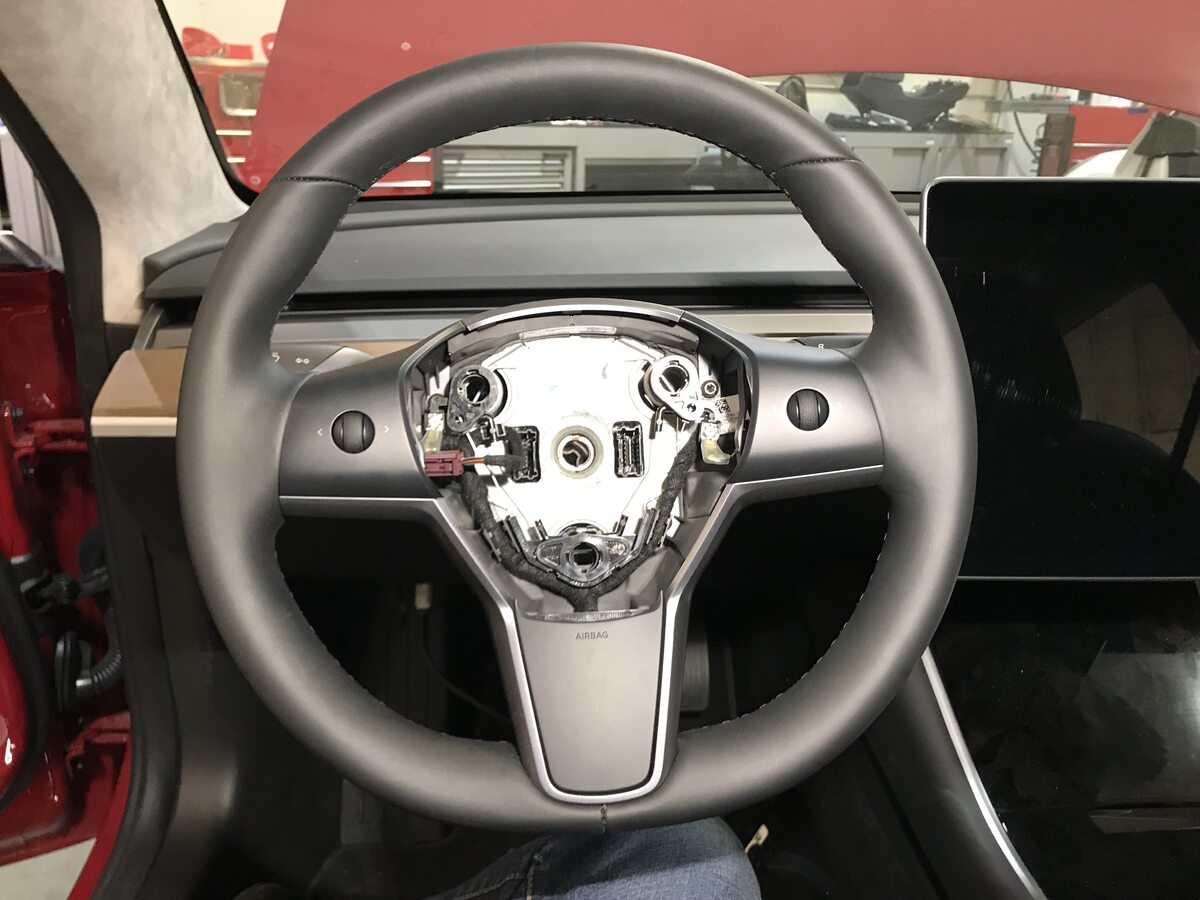

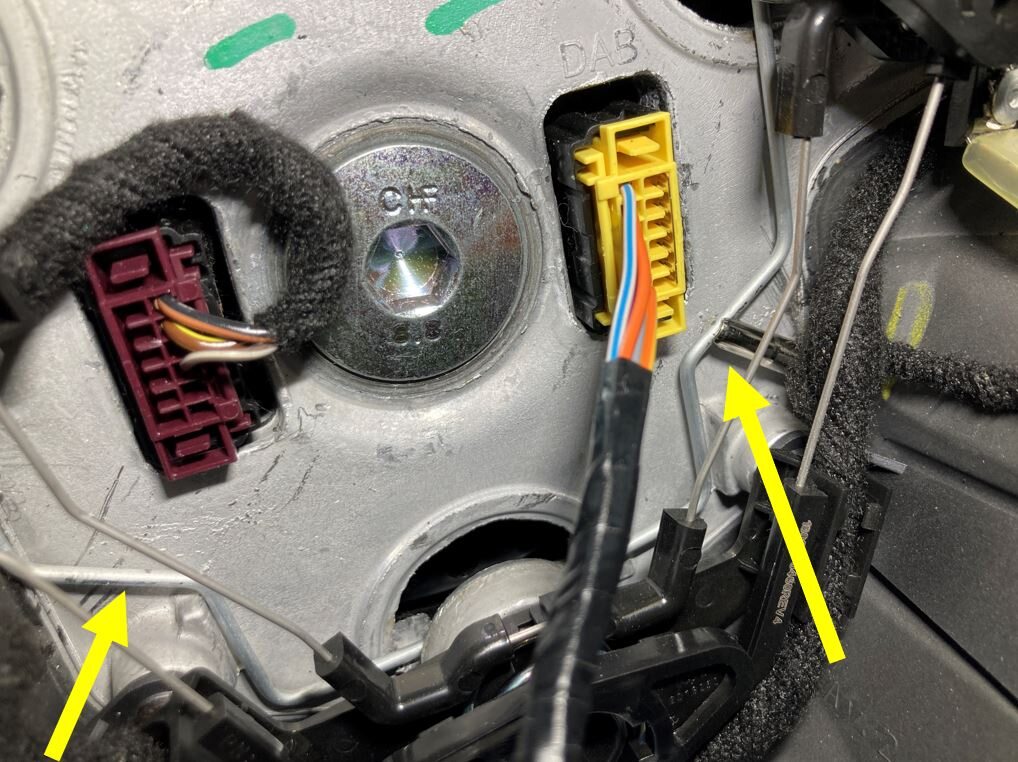

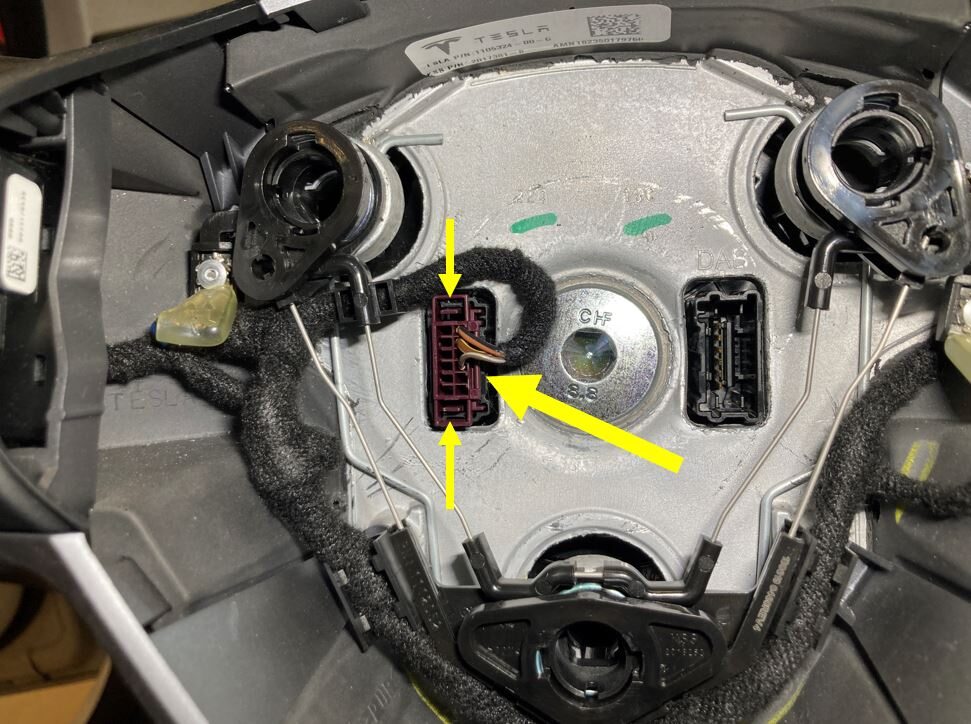

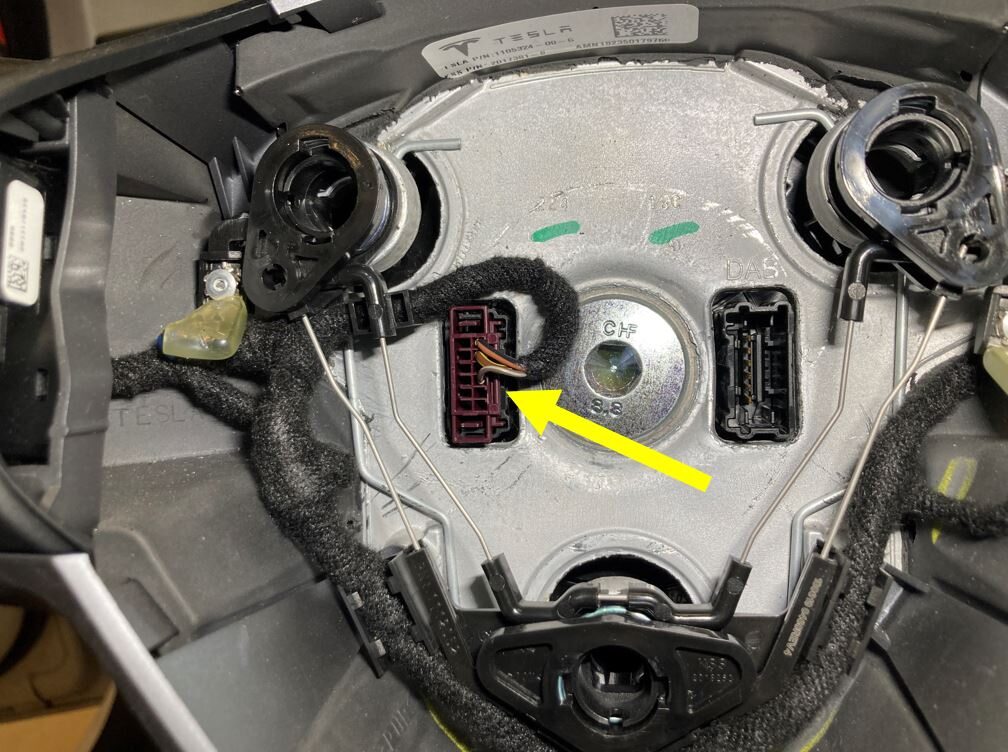

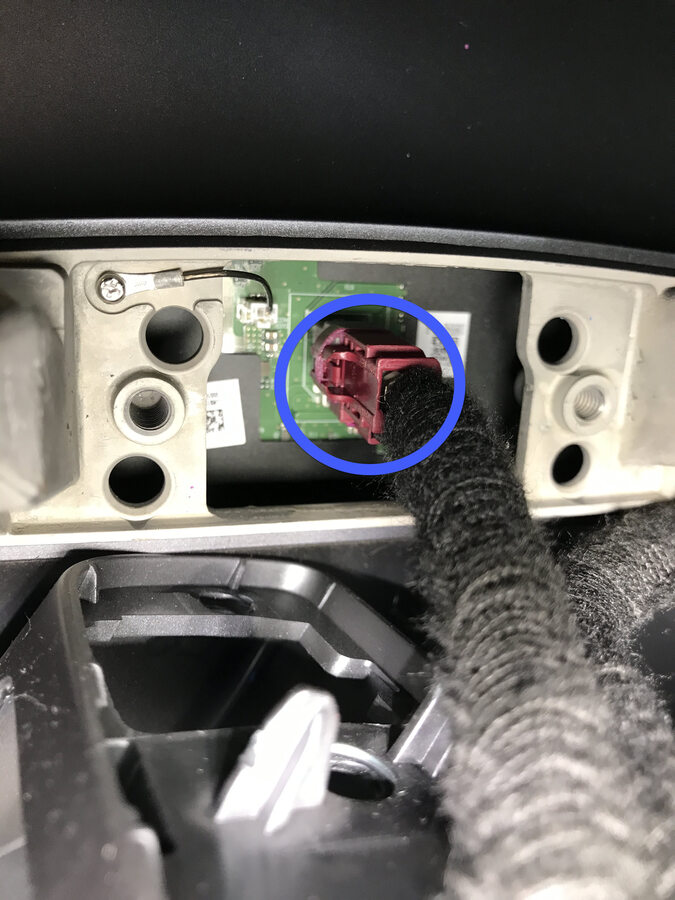

  104. Disconnect steering wheel
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector

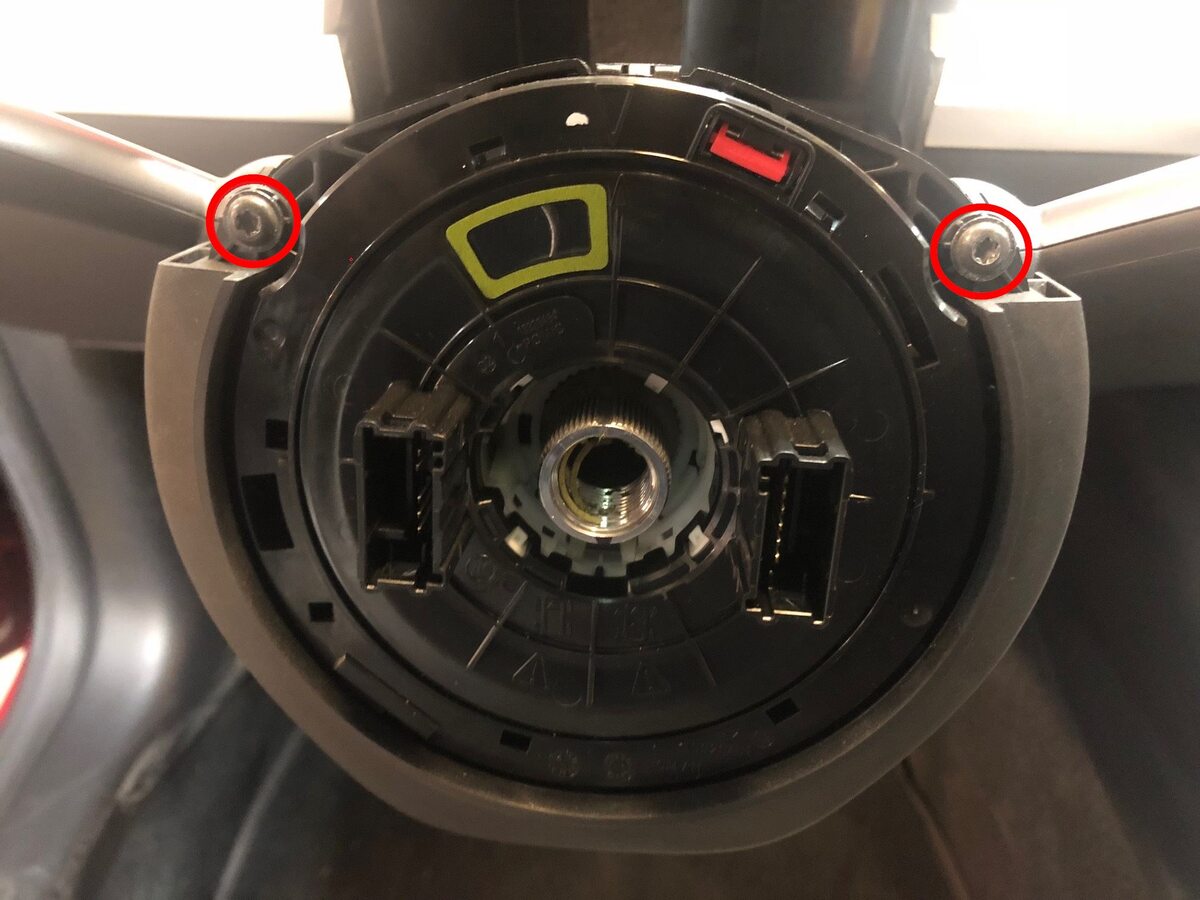

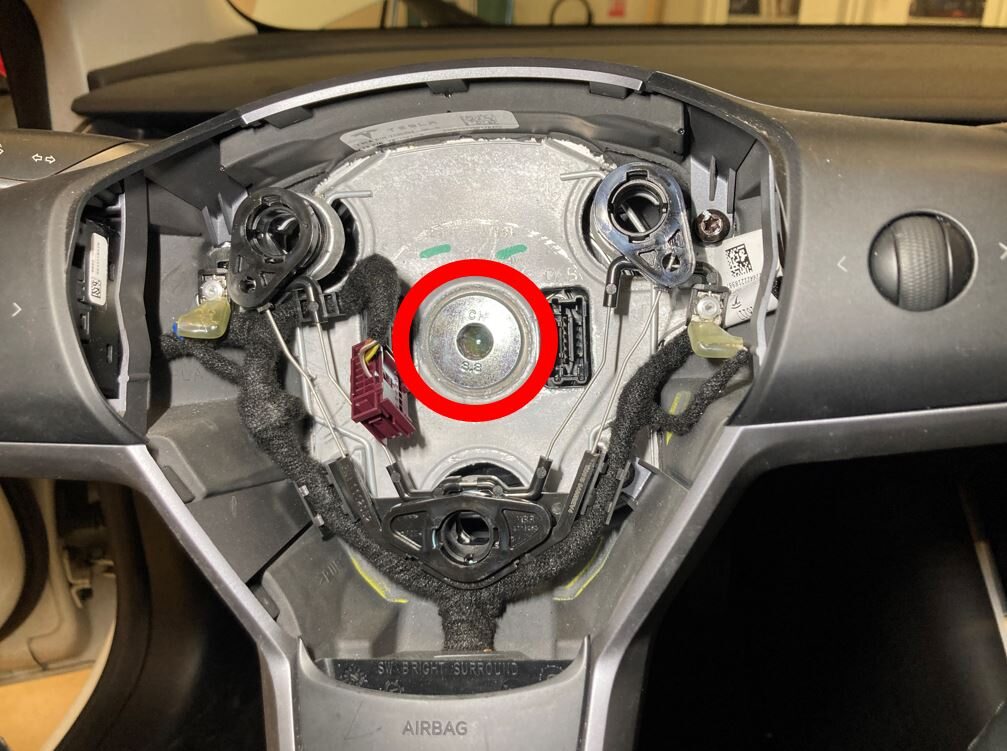

  105. Release steering wheel from steering column
    Informational PurposesAn informational icon, calling your attention
    Note
    1x patch bolt, 10mm hex, 80 Nm, Discard after removal, Counter hold the steering wheel when breaking bolt loose

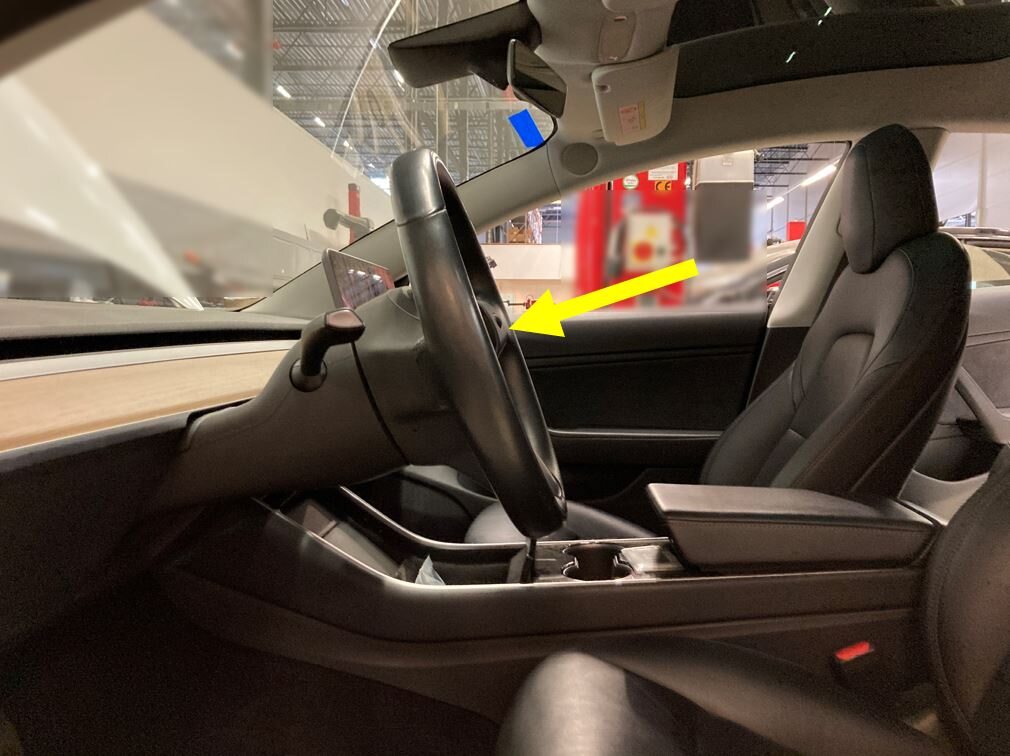

  106. Remove steering wheel from steering column
    Informational PurposesAn informational icon, calling your attention
    Note
    Mark position of steering wheel

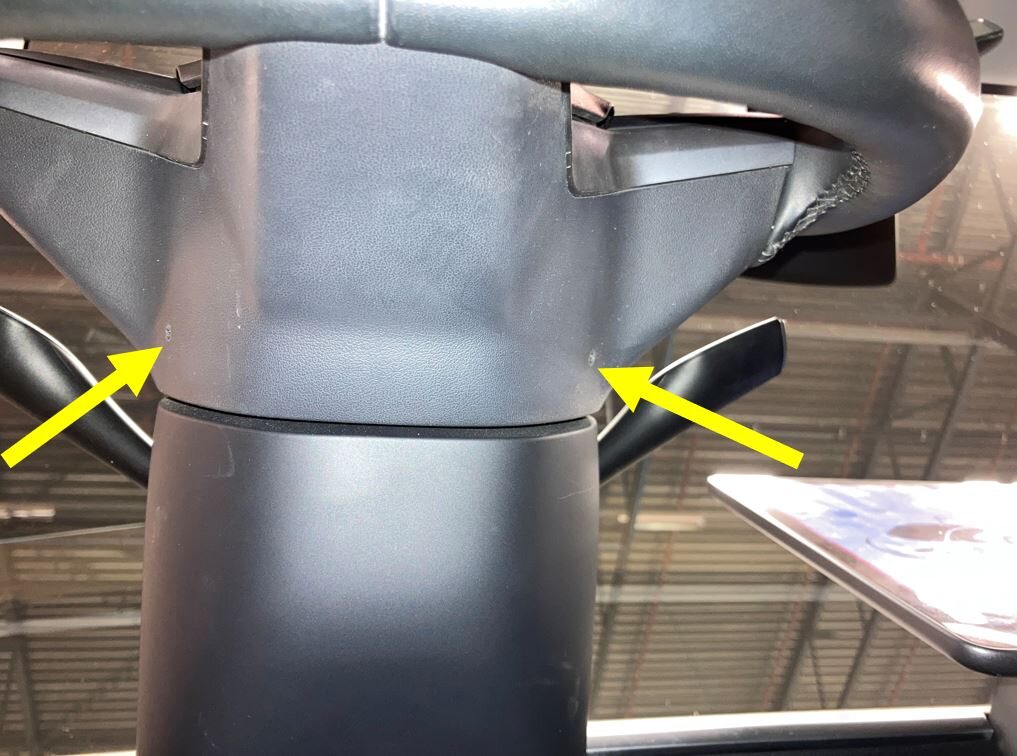

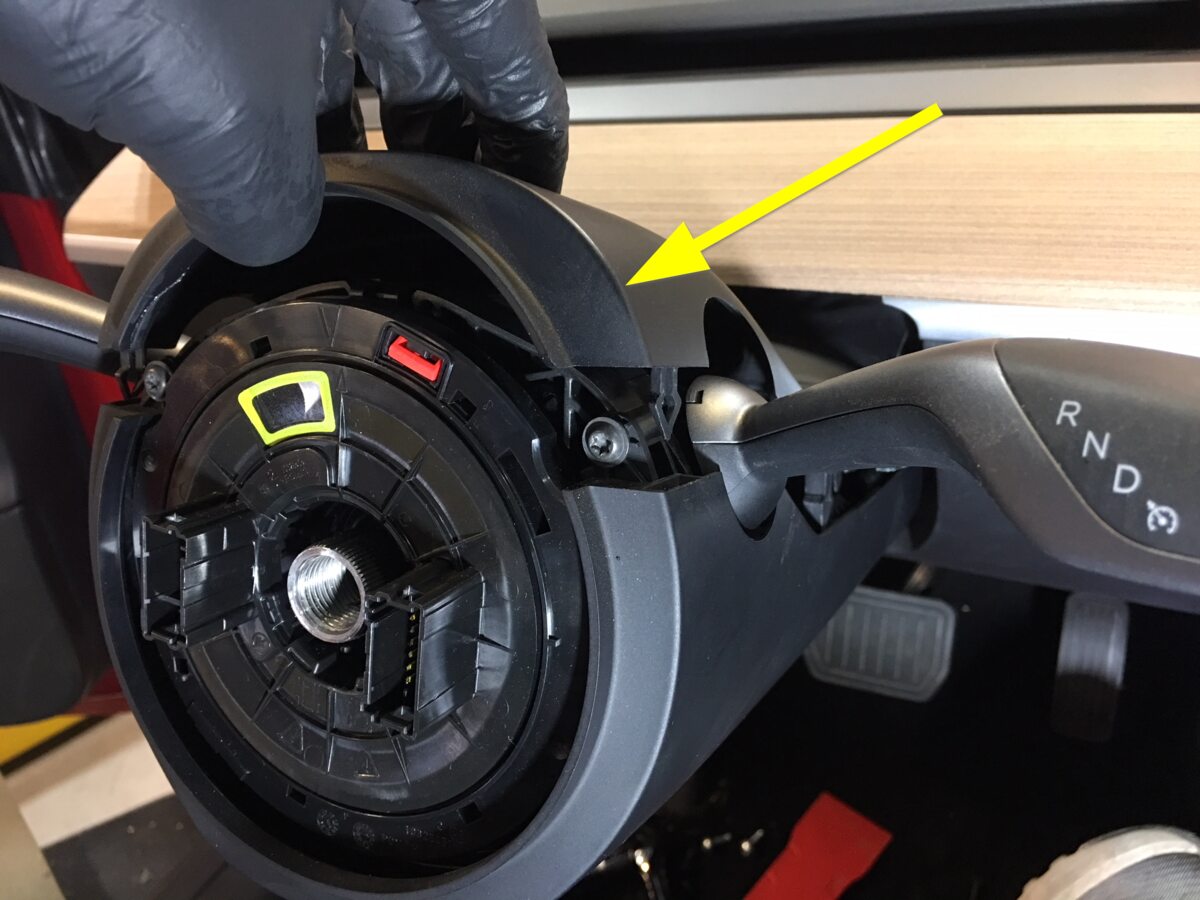

  107. Release steering column upper shroud from lower shroud
    Informational PurposesAn informational icon, calling your attention
    Note
    4x clips, Pull upward to release steering column upper shroud from lower shroud

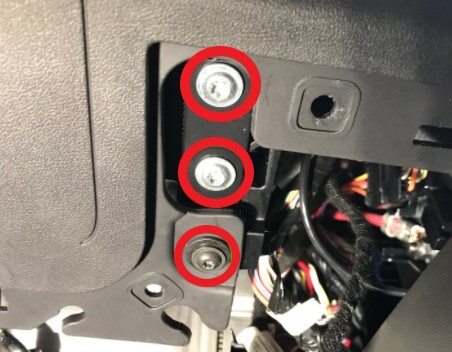

  108. Release lower shroud from steering column
    Informational PurposesAn informational icon, calling your attention
    Note
    3x screws, T20, 1.5 Nm
  109. Remove lower screw securing lower shroud to steering column
    Informational PurposesAn informational icon, calling your attention
    Note
    1x screw, T20, 1.5 Nm

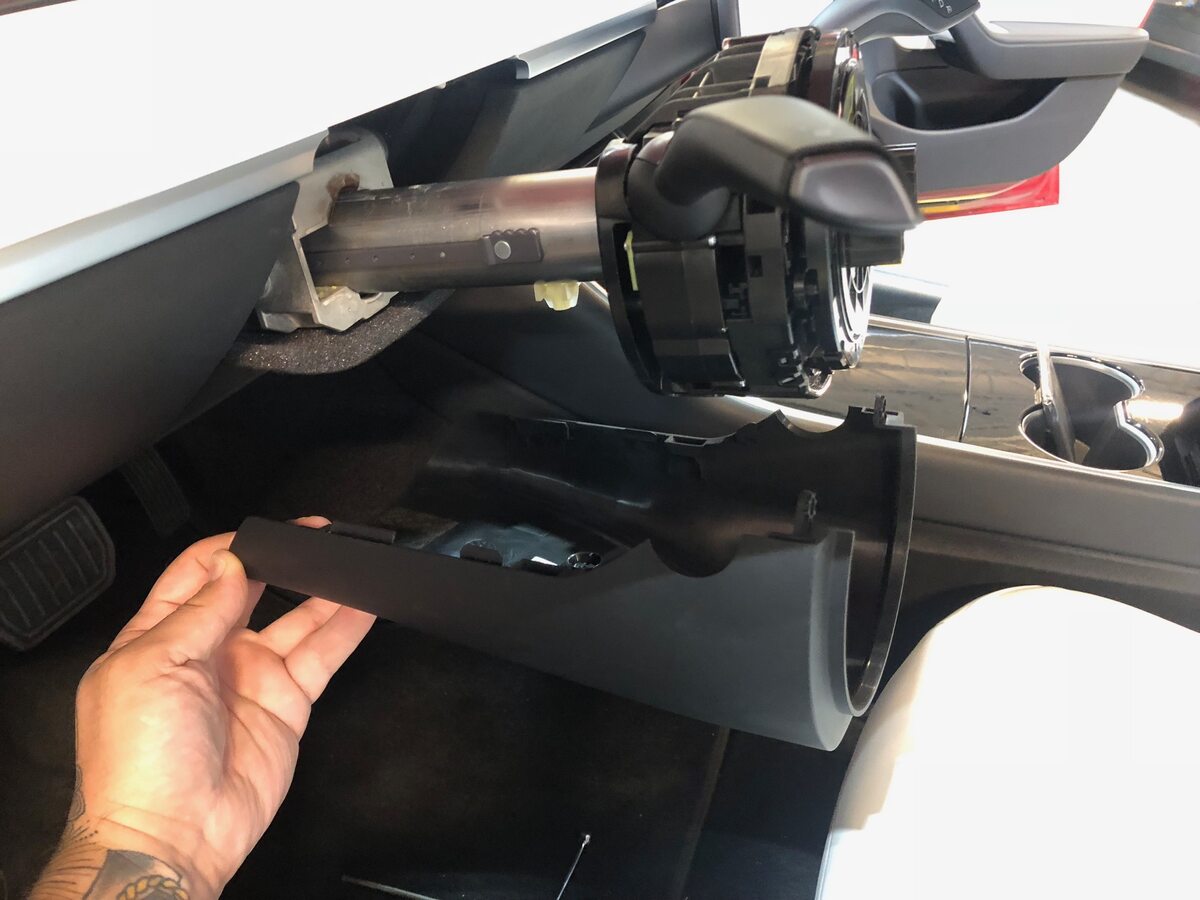

  110. Remove lower shroud from steering column

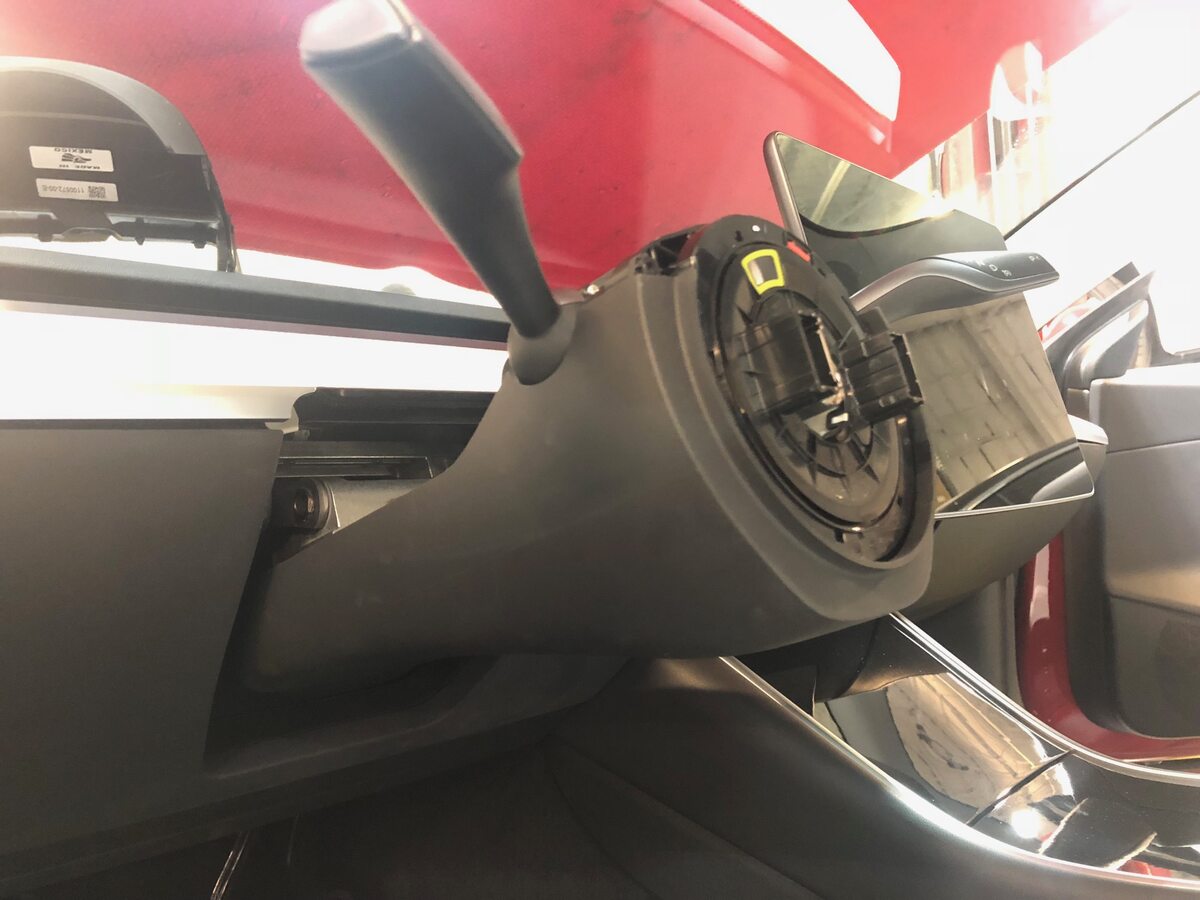

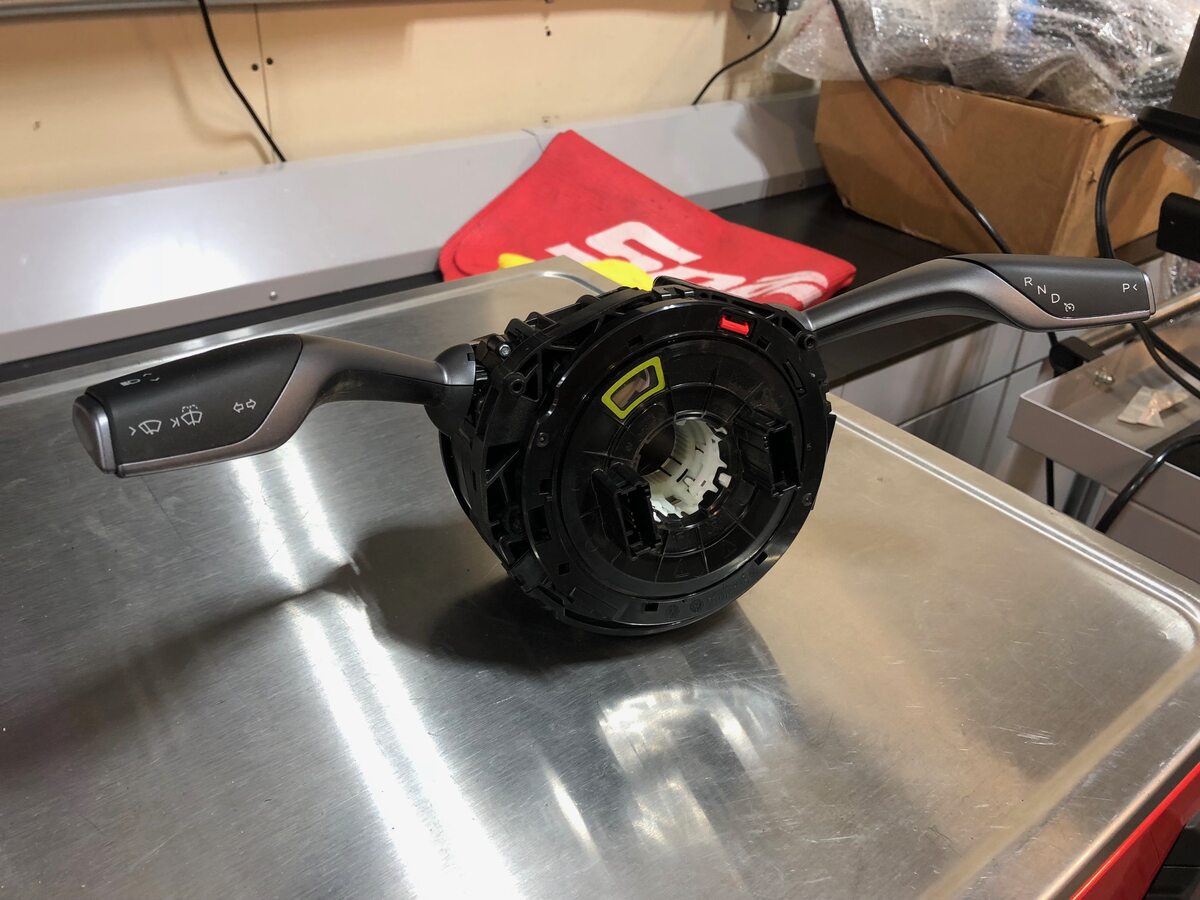

  111. Remove SCCM from steering column
    Informational PurposesAn informational icon, calling your attention
    Note

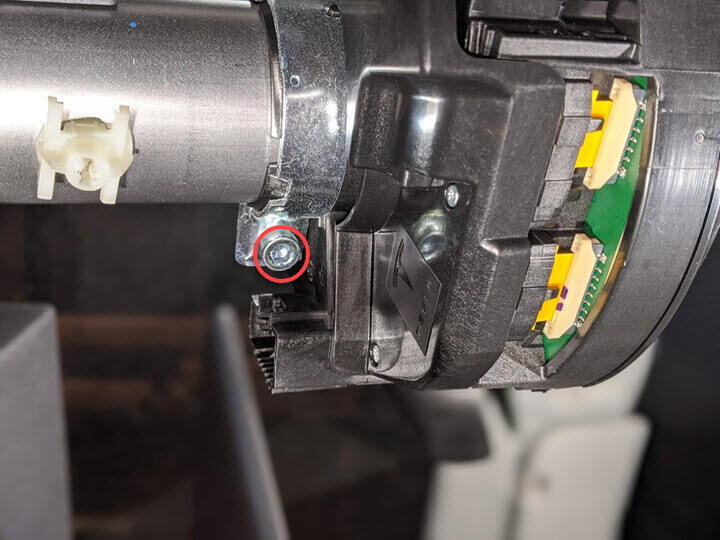

    1x bolt, 5mm allen, 9 Nm

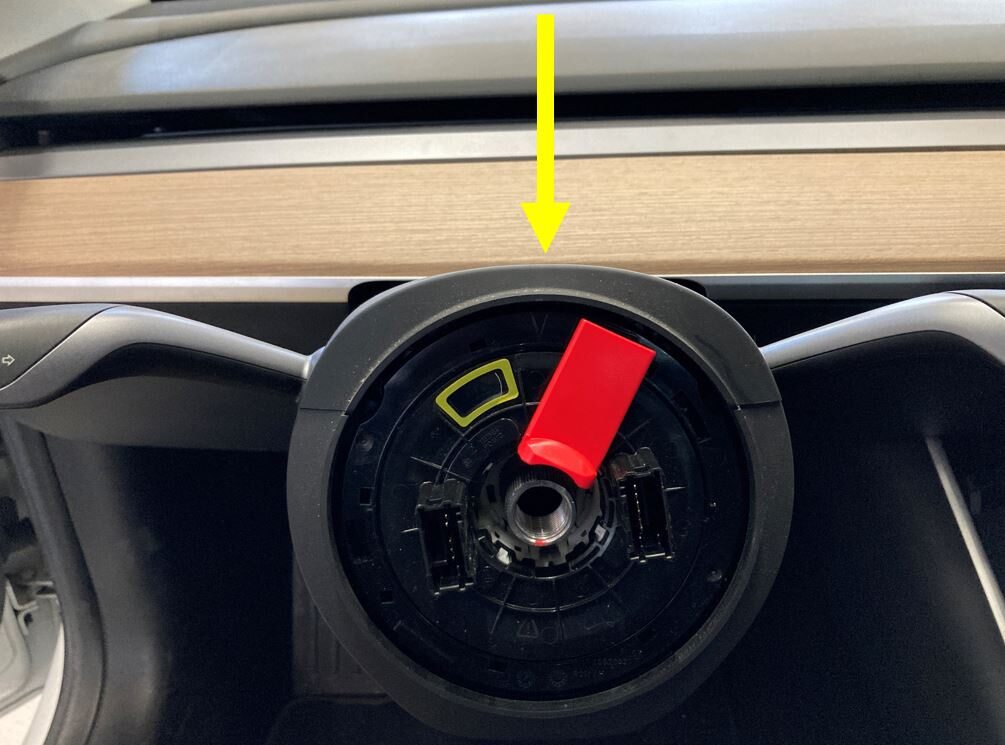

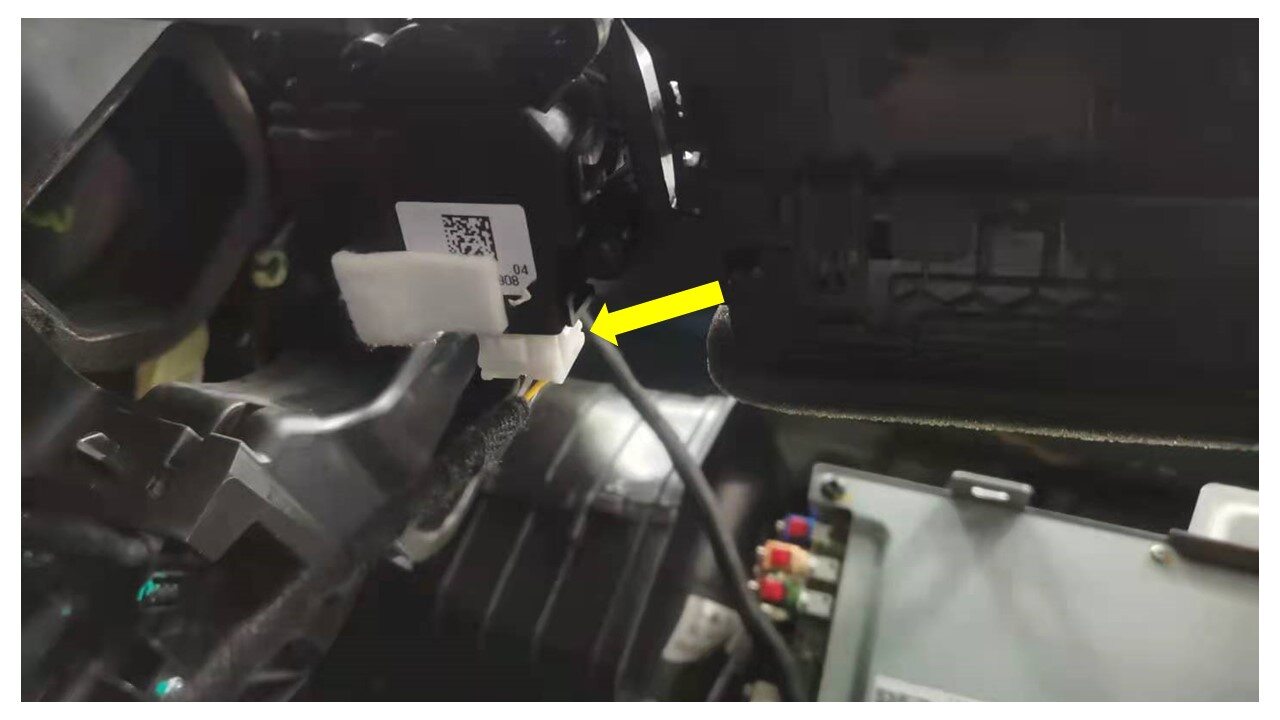

  112. Disconnect SCCM assembly connector
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector, Remove retaining clip on the connector, release connector, then remove the remaining broken clip from connector, Discard retaining clip after removal, Originally installed clip is black, Replacement clip is orange
  113. Remove SCCM from steering column
    Informational PurposesAn informational icon, calling your attention
    Note
    1x bolt, 5mm allen, 9 Nm

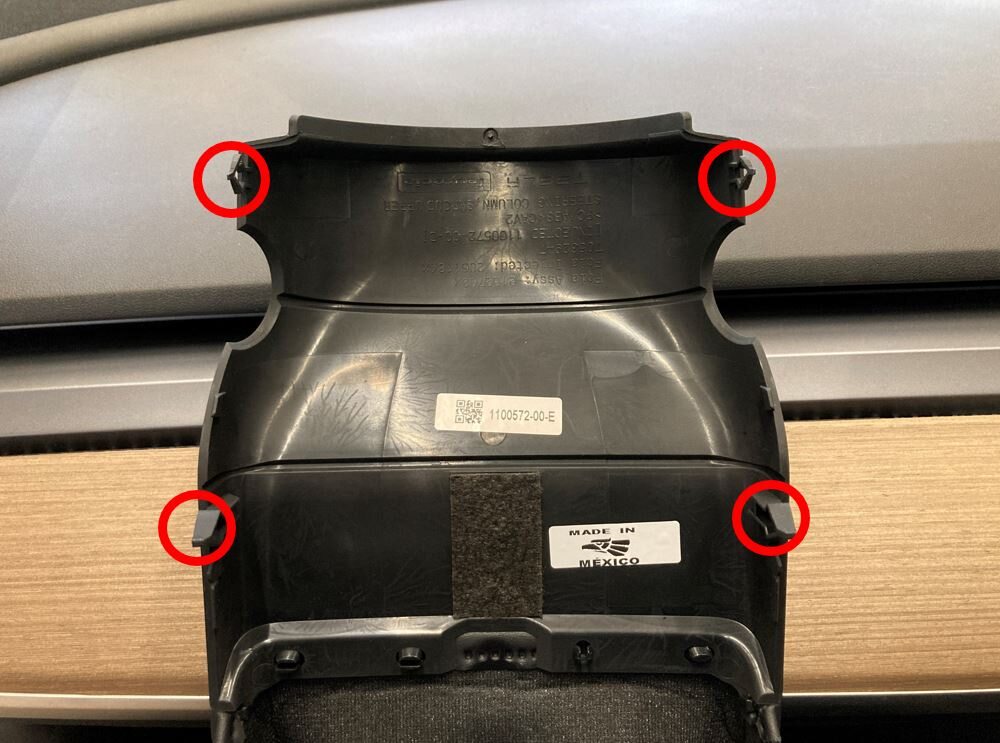

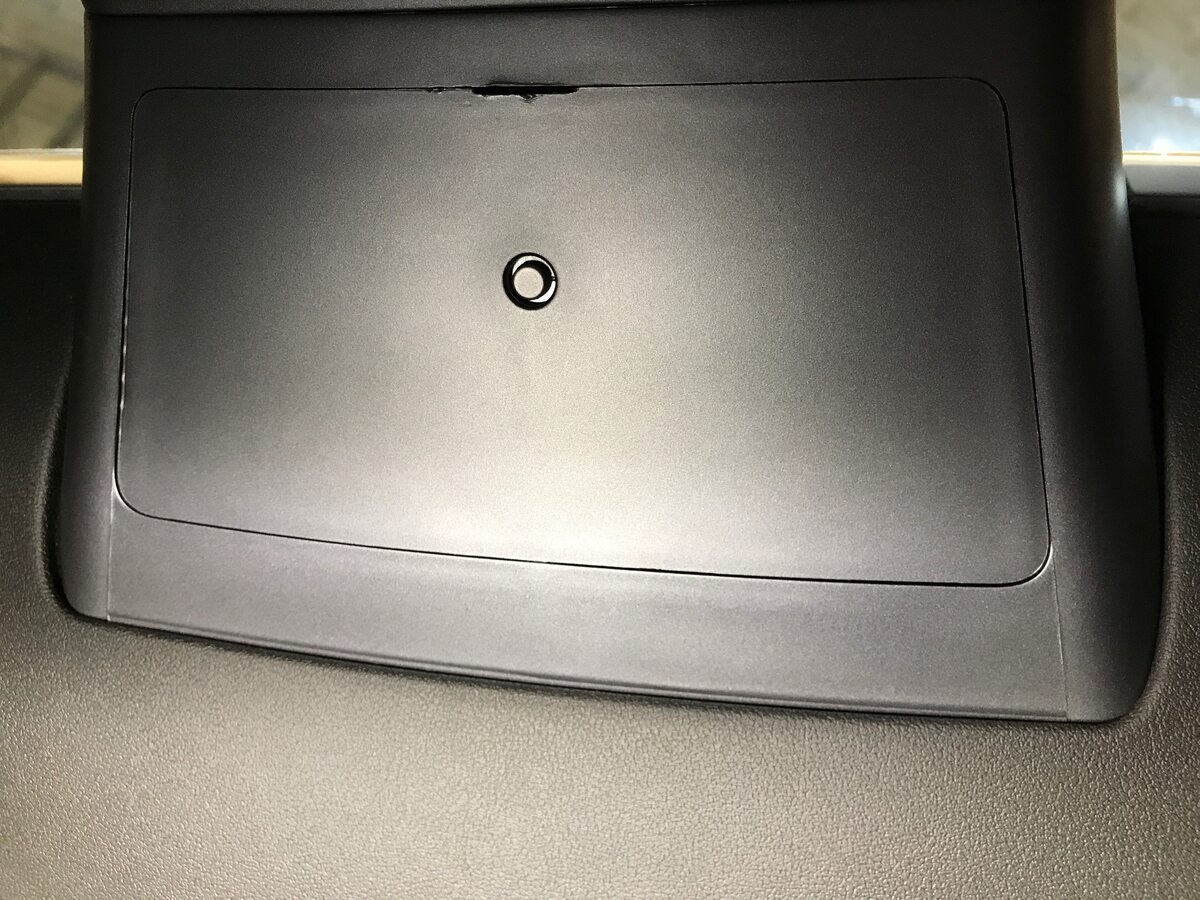

  114. Release IP service panel from IP and disconnect temperature sensor connector
    Informational PurposesAn informational icon, calling your attention
    Note
    4x clips, 4x tabs, 1x connector
  115. Remove bolts securing center display to IP carrier
    Informational PurposesAn informational icon, calling your attention
    Note
    Vehicle may be equipped with either: 2x patch bolts, T30, 12 Nm or 2x patch bolts, 10mm, 16 Nm, Discard after removal, Slide towards rear of vehicle to remove

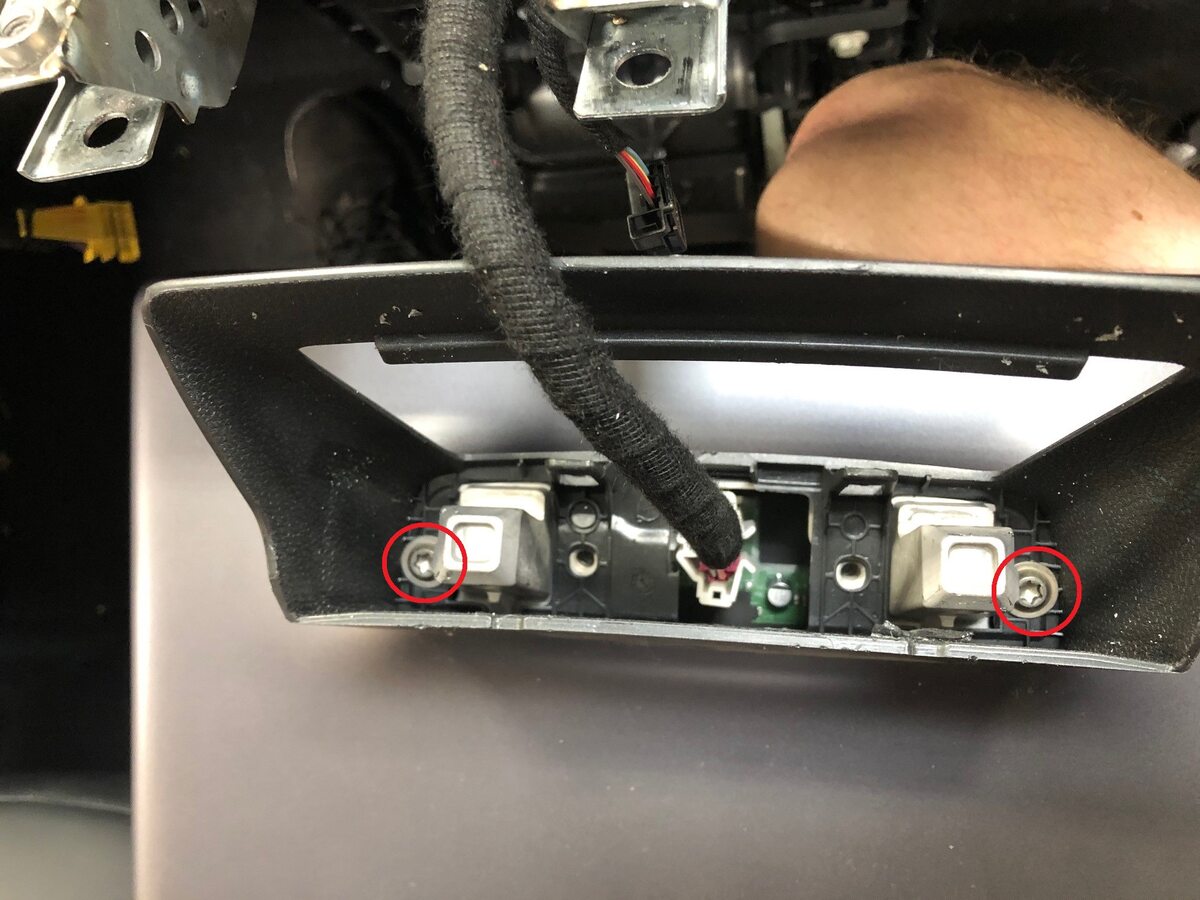

  116. Remove bolts securing housing neck to center display and slide away from display
    Informational PurposesAn informational icon, calling your attention
    Note
    2x bolts, T30, 3 Nm, Number of fasteners on older vehicles may vary

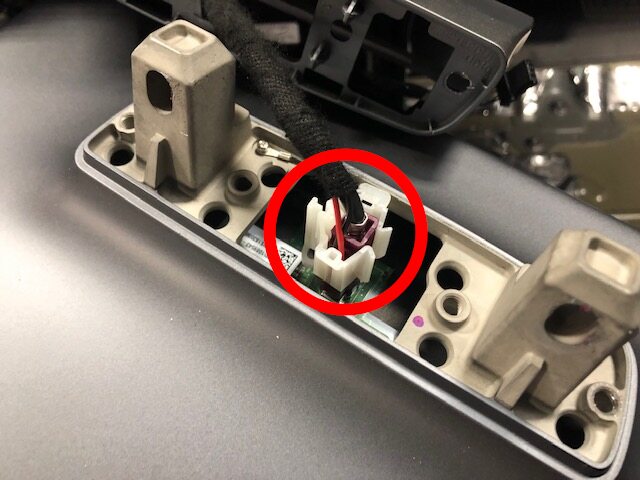

  117. Remove retaining clip from display connector
    Informational PurposesAn informational icon, calling your attention
    Note
    1x clip

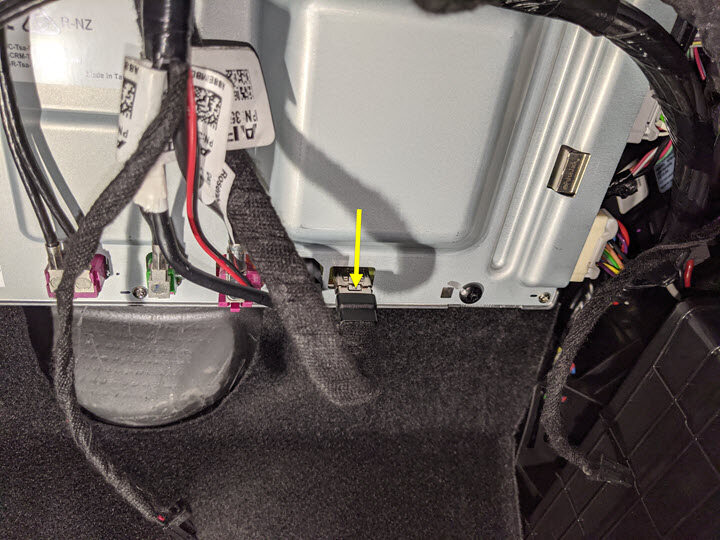

  118. Disconnect harness connector from center display
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector
  119. Remove center display from vehicle
  120. Remove center display neck housing from vehicle

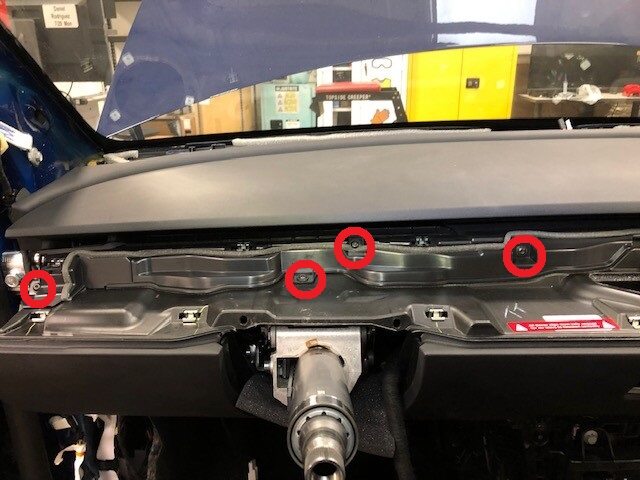

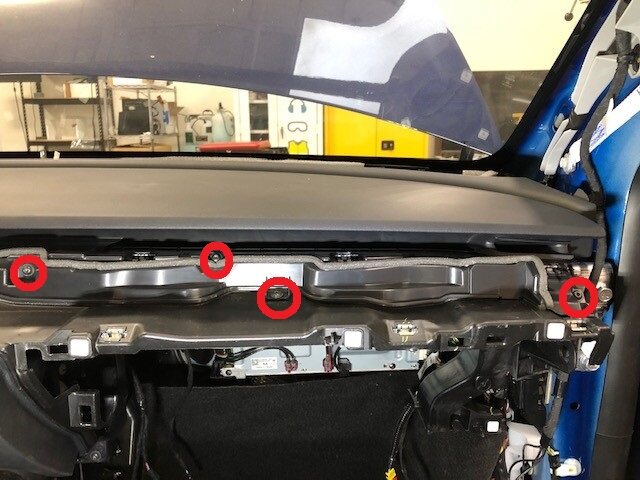

  121. Remove screws securing LH side of IP brow finisher
    Informational PurposesAn informational icon, calling your attention
    Note
    4x screws, T20, 2.3 Nm, Fastener count may vary, Older production vehicles may have 5x screws
  122. Remove screws securing RH side of IP brow finisher
    Informational PurposesAn informational icon, calling your attention
    Note
    4x screws, T20, 2.3 Nm, Fastener count may vary, Older production vehicles may have 5x screws

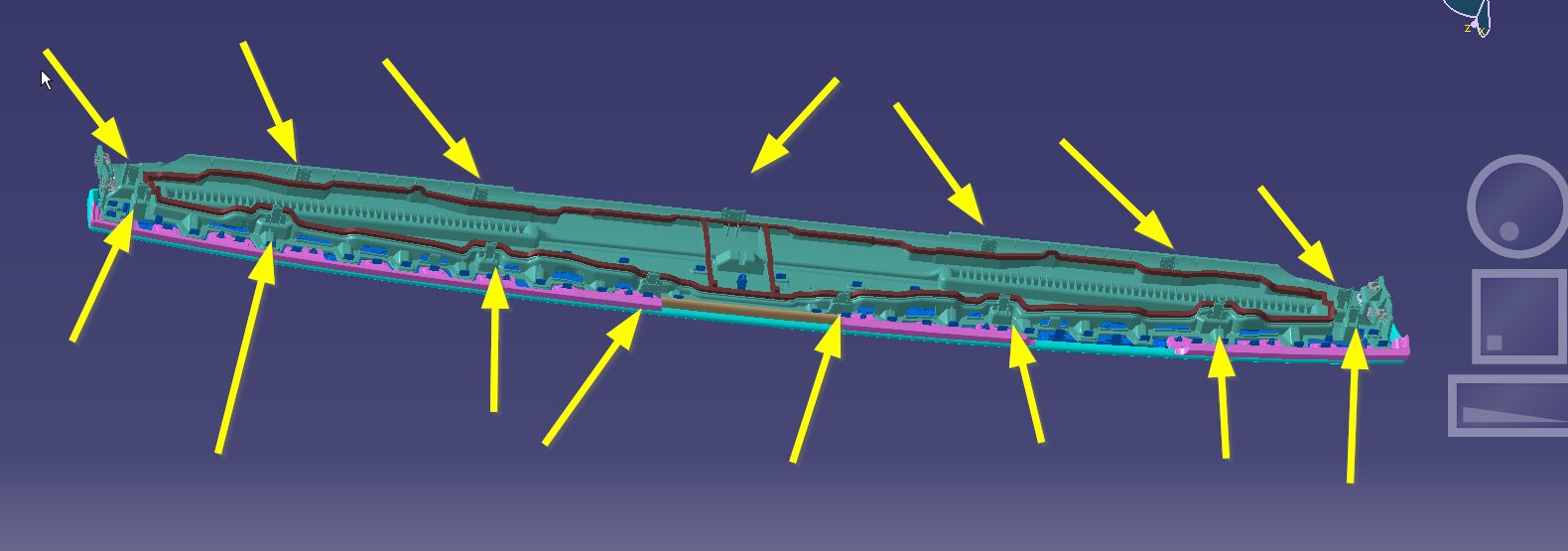

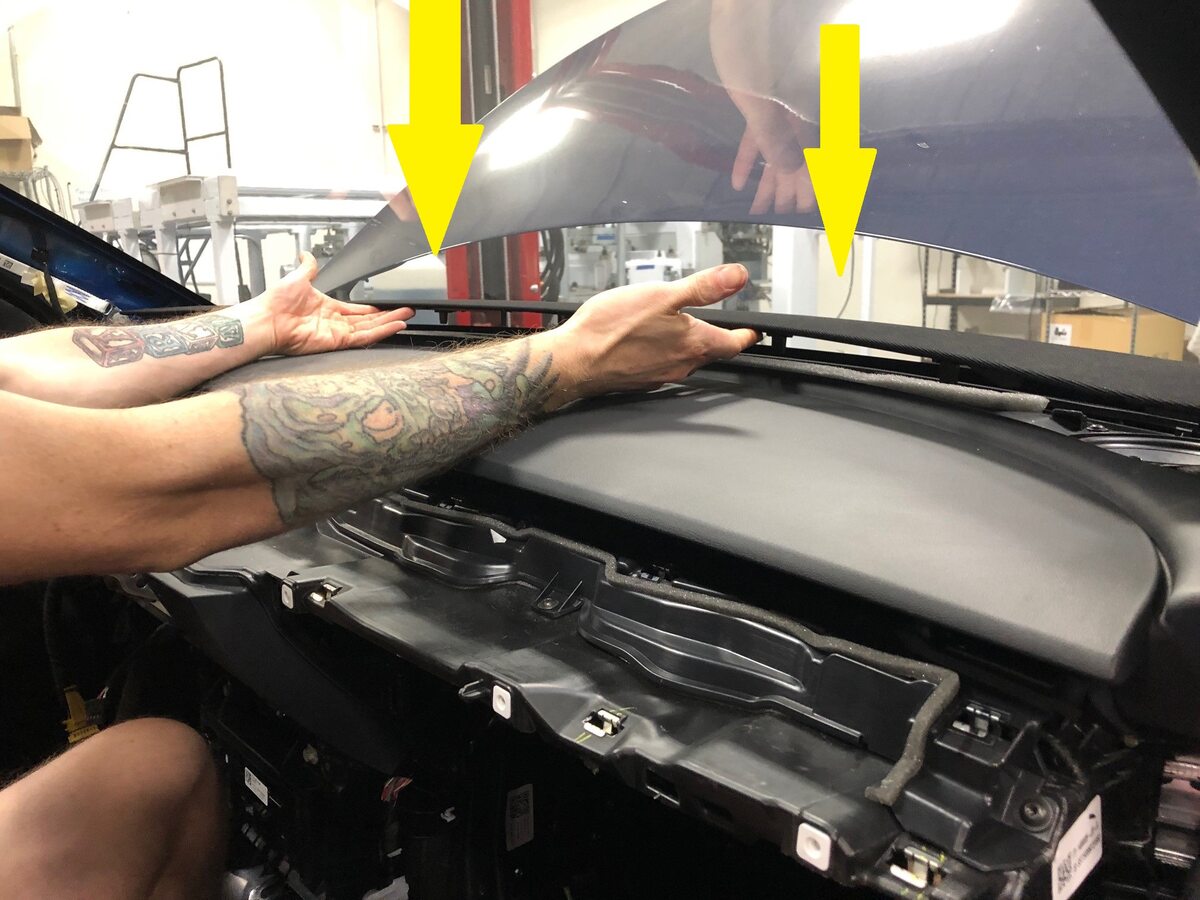

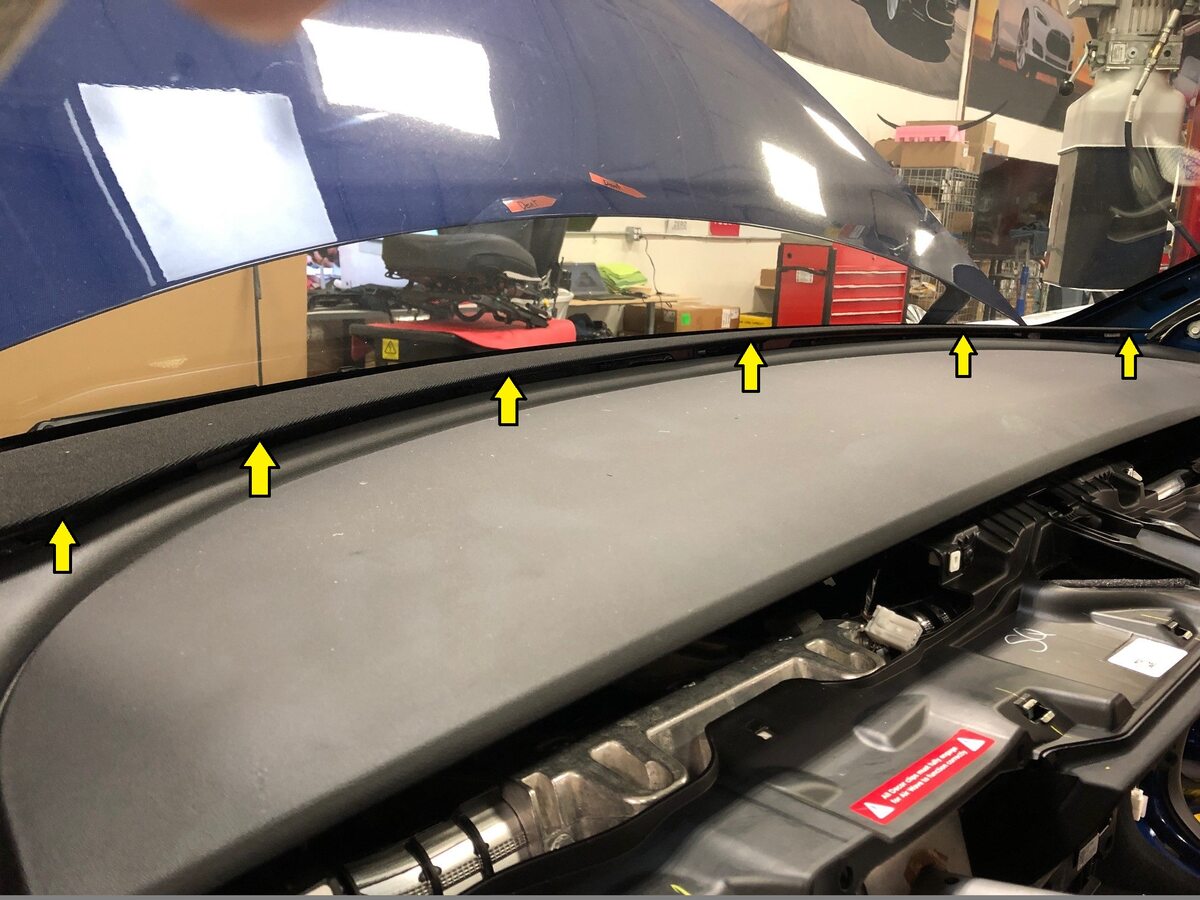

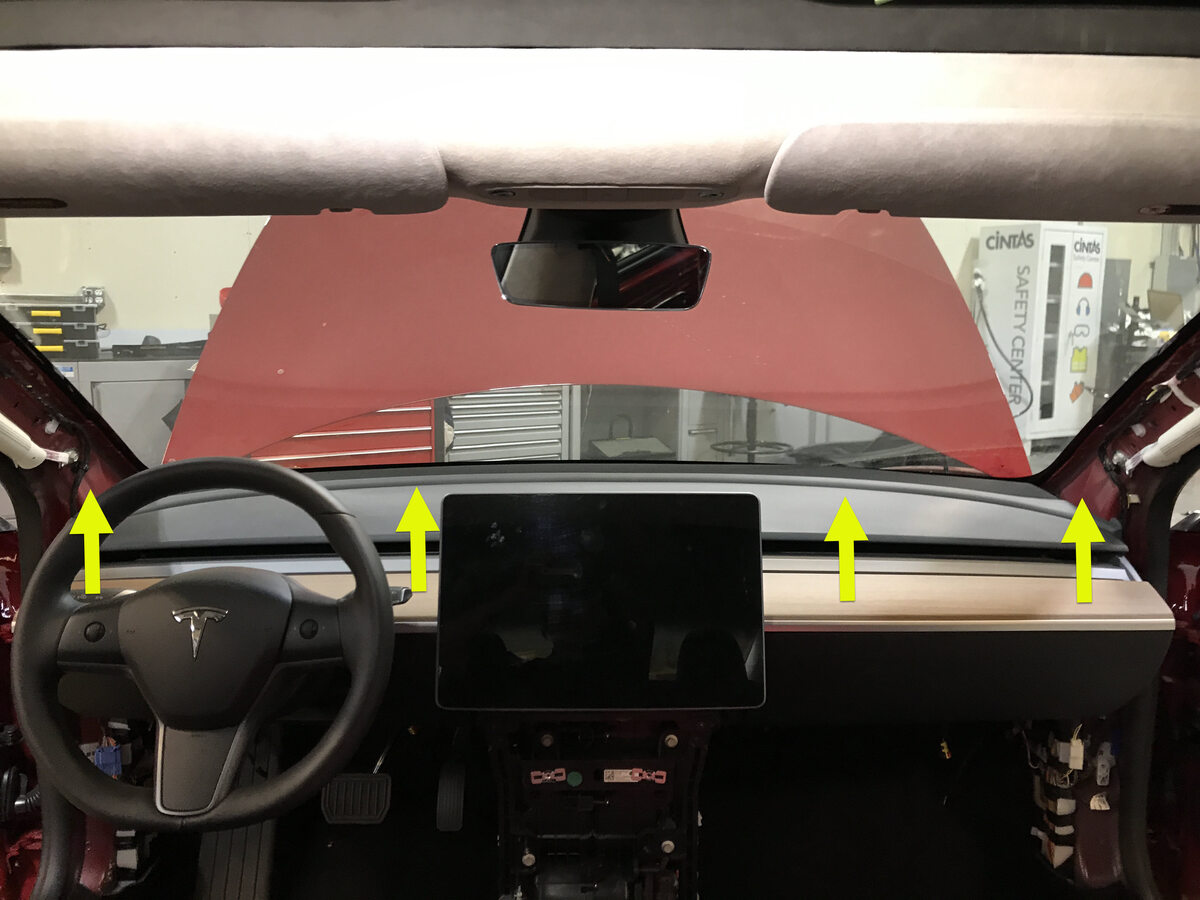

  123. Remove IP brow finisher from vehicle
    Informational PurposesAn informational icon, calling your attention
    Note

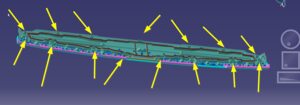

    16x clips, Need to lift top pad up slightly to insert trim tool and release clips, Then slide IP brow finisher towards rear of vehicle
  124. Pull RH side of RH air duct out and release from IP
    Informational PurposesAn informational icon, calling your attention
    Note
    1x screw, T20, 2.3 Nm

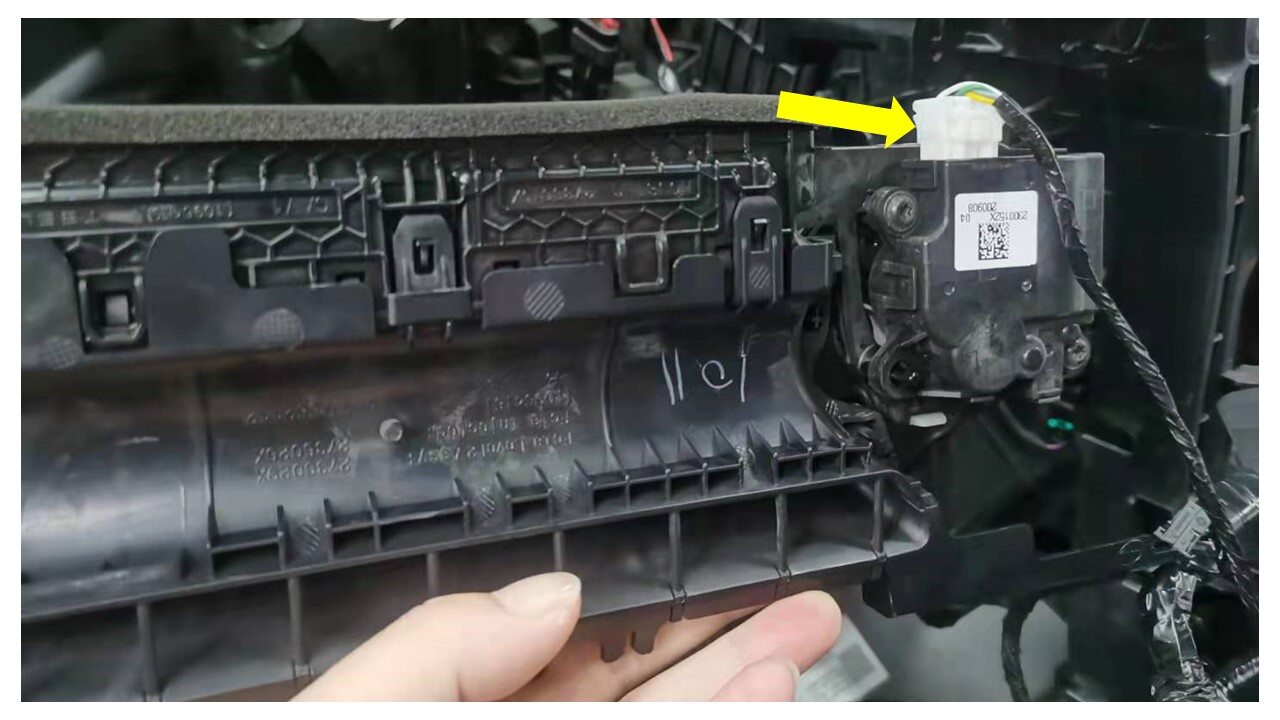

  125. Disconnect harness connector from RH air duct and remove duct
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector
  126. Pull LH side of LH air duct out and release from IP
    Informational PurposesAn informational icon, calling your attention
    Note
    1x screw, T20, 2.3 Nm
  127. Disconnect harness connector from LH air duct and remove duct
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector

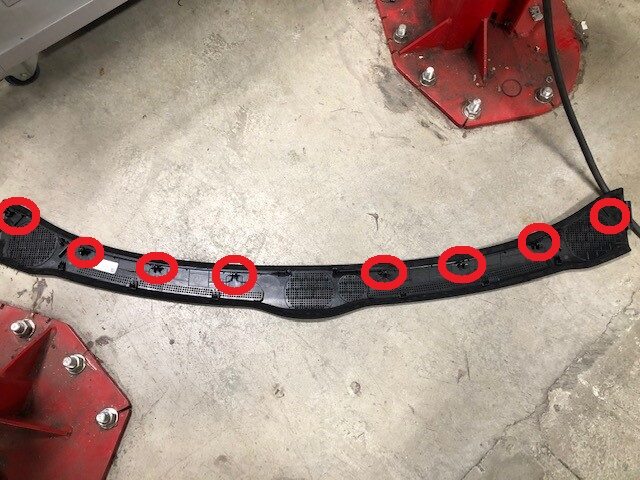

  128. Release clips securing defroster grill
    Informational PurposesAn informational icon, calling your attention
    Note
    8x clips, Replace any damaged clips
  129. Pivot rear edge of defroster grill up and release tabs from IP
    Informational PurposesAn informational icon, calling your attention
    Note
    6x tabs

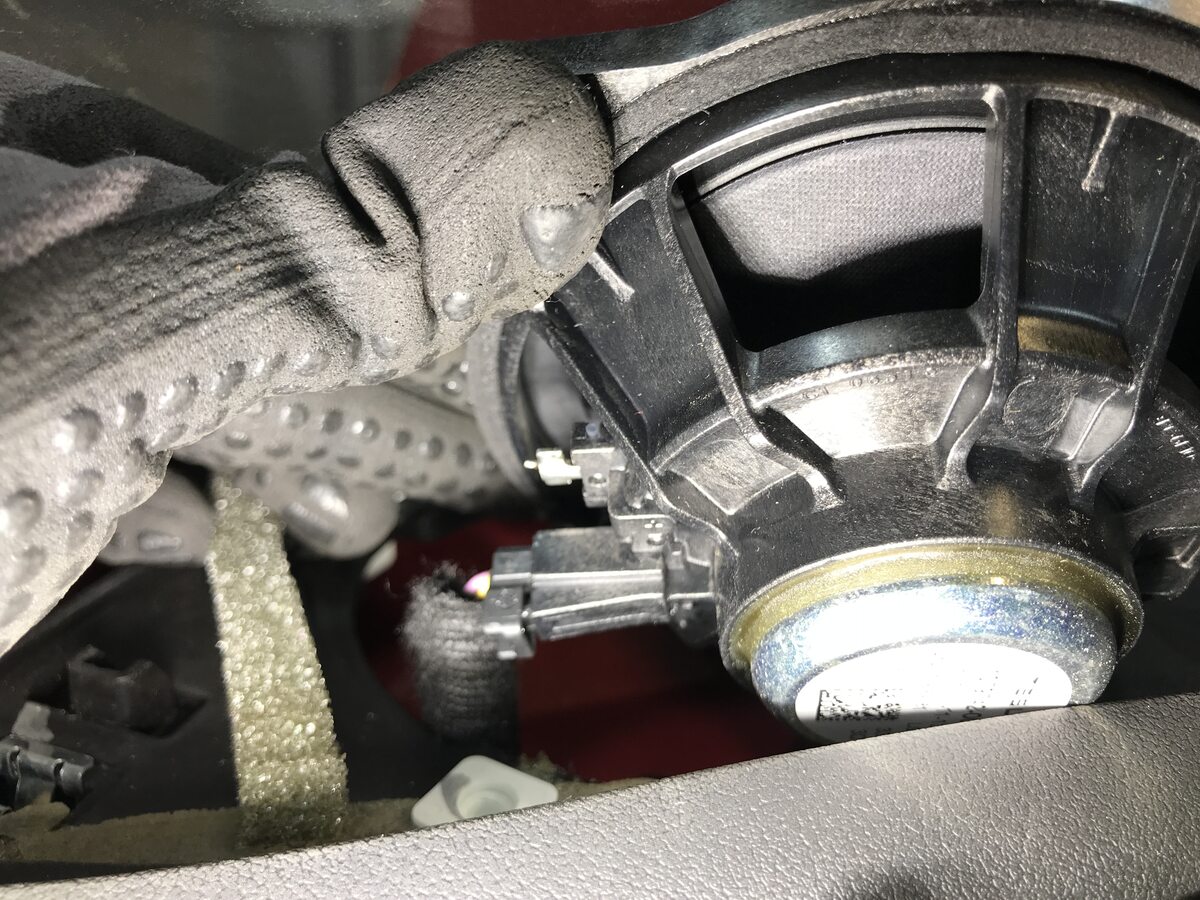

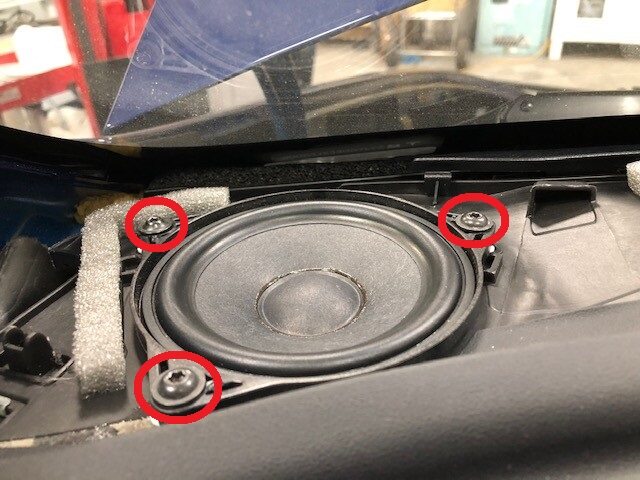

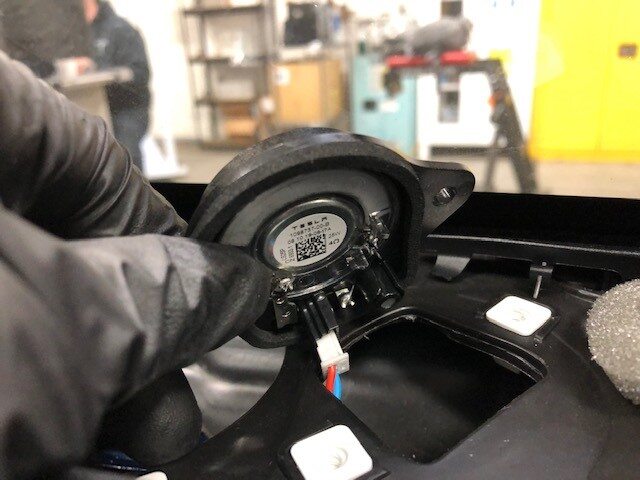

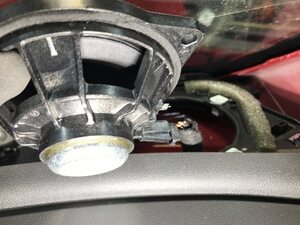

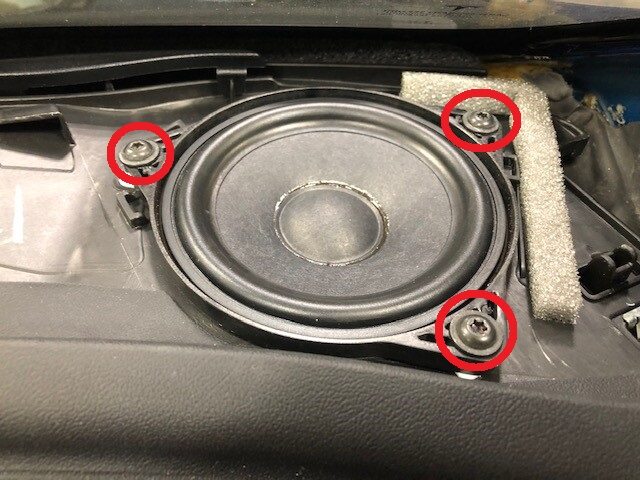

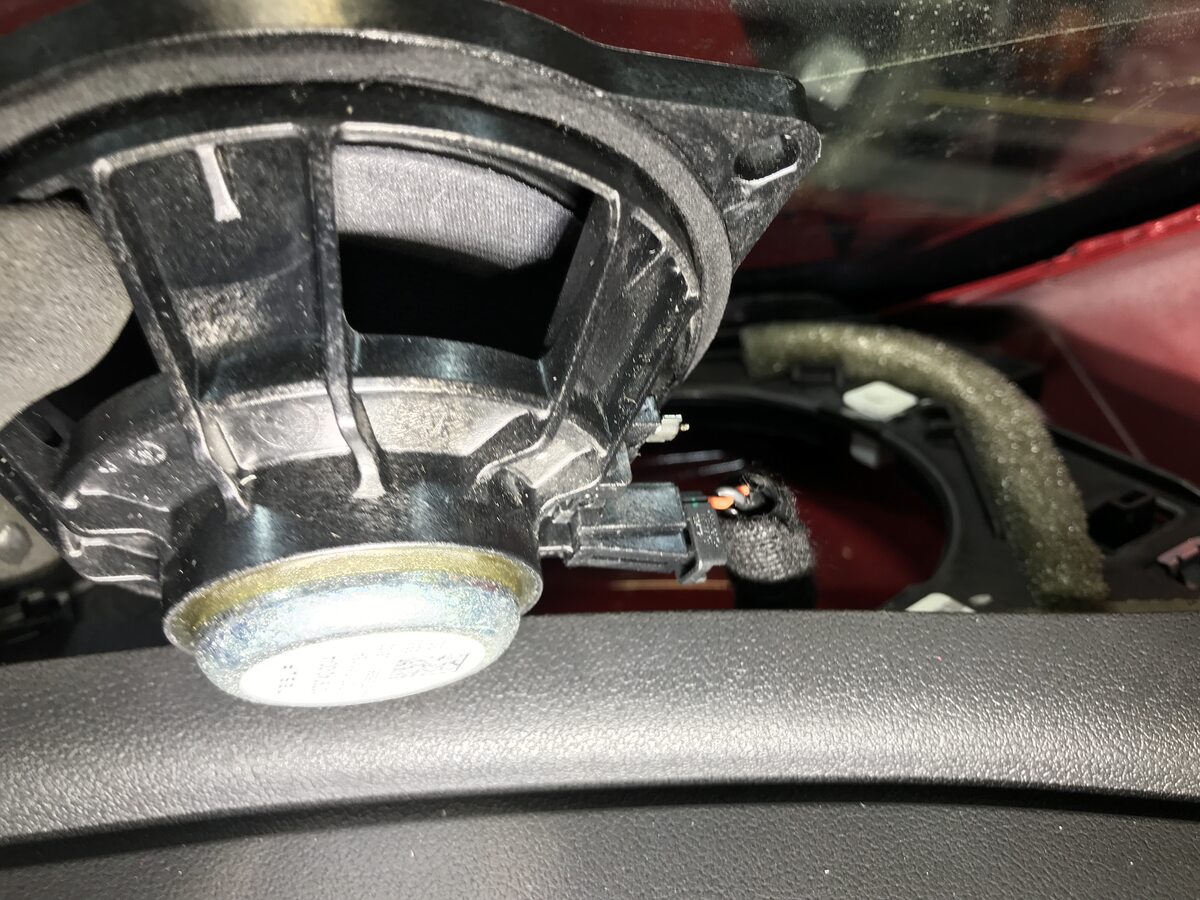

  130. Remove screws securing LH speaker to IP and remove speaker
    Informational PurposesAn informational icon, calling your attention
    Note
    3x screws, T20, 2.3 Nm, 1x connector
  131. Remove screws securing center speaker to IP and remove speaker
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector, 3x screws, T20, 2.3 Nm

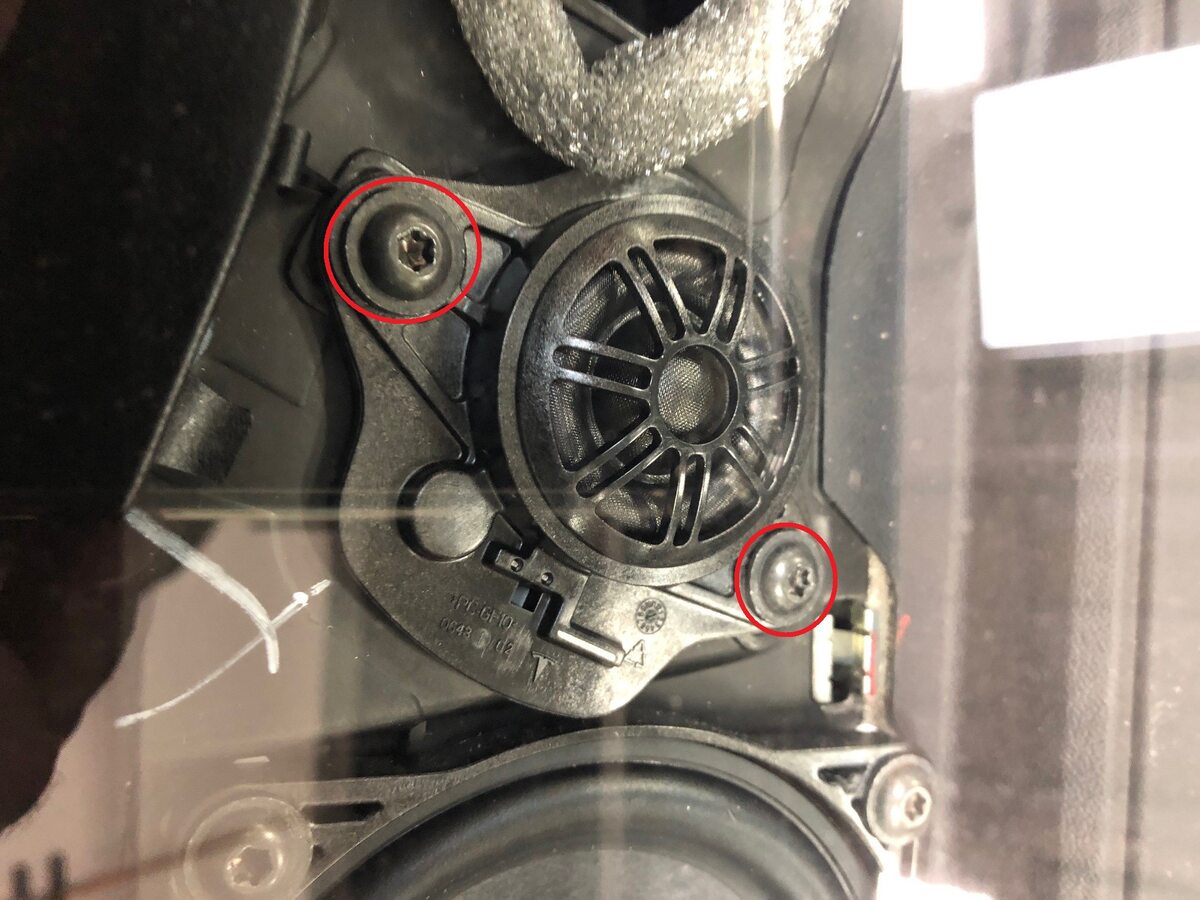

  132. Remove screws securing center tweeter to IP and remove speaker
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector, 2x screws, T20, 2.3 Nm, Discard tweeter and screws after removal

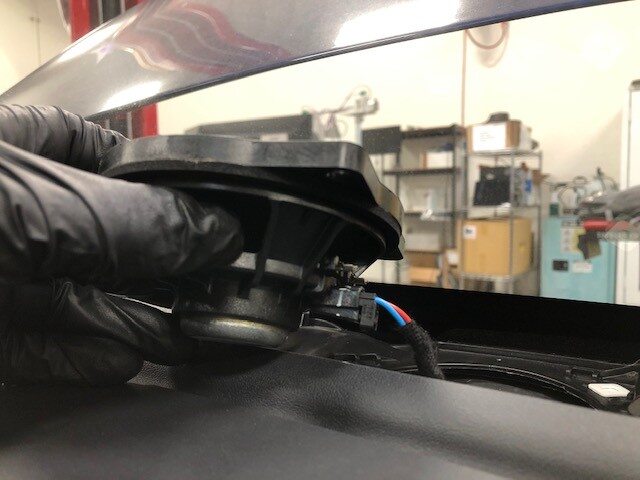

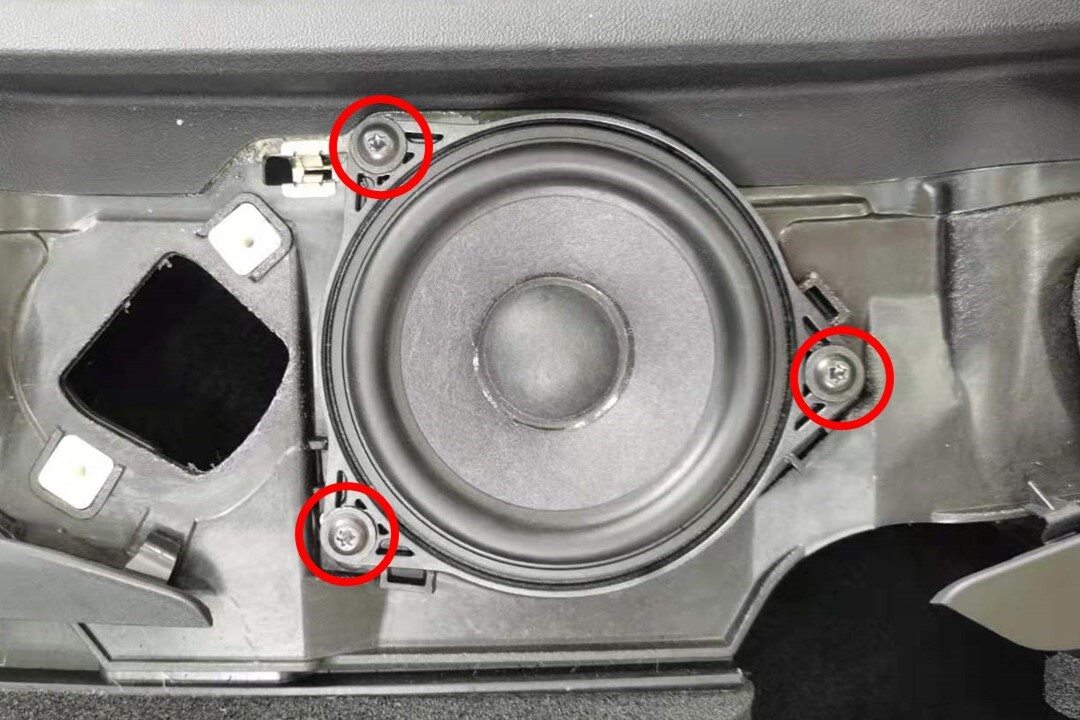

  133. Remove screws securing RH speaker to IP and remove speaker
    Informational PurposesAn informational icon, calling your attention
    Note
    3x screws, T20, 2.3 Nm, 1x connector

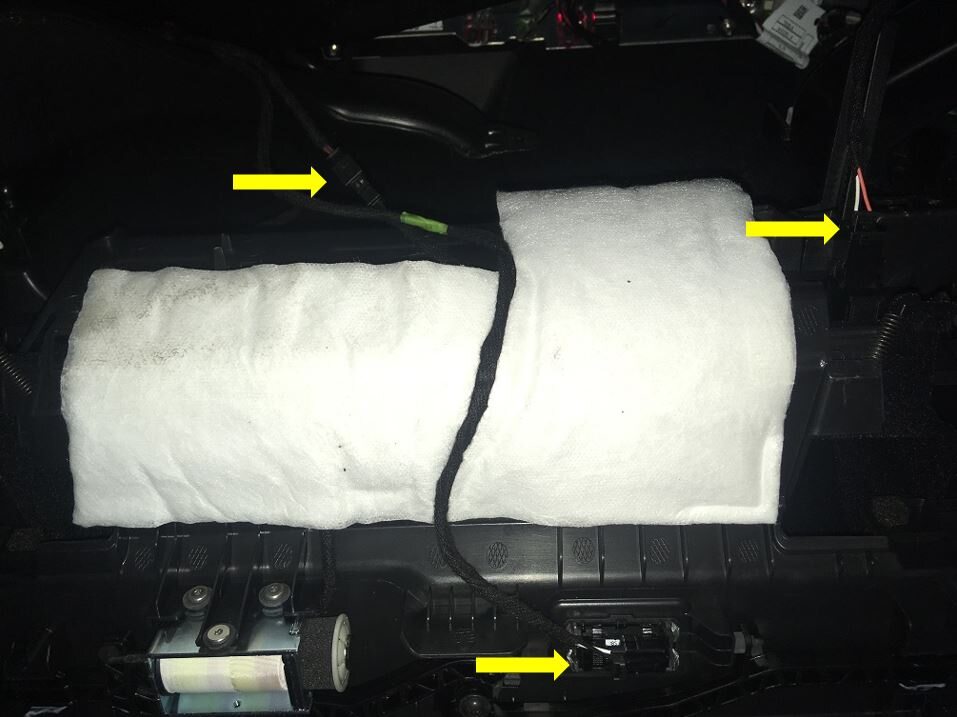

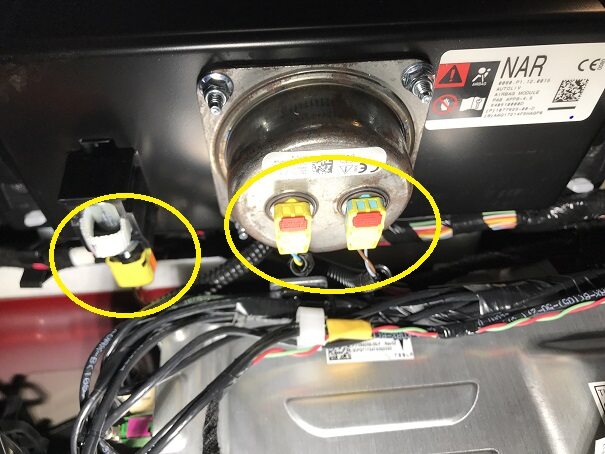

  134. Disconnect connectors for passenger air bag assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    3x connectors, 2x connectors for regions other than North America, Connector release may vary

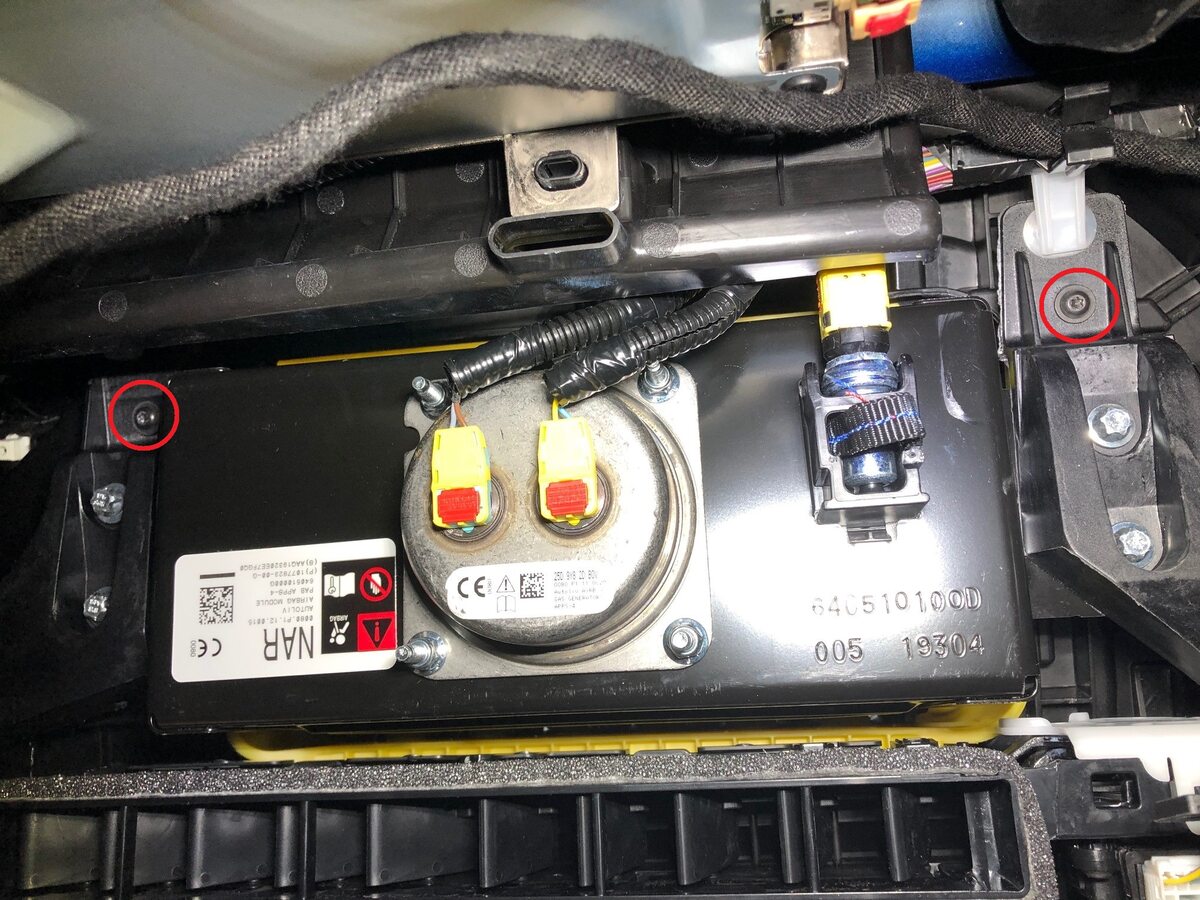

  135. Remove bolts securing passenger air bag assembly to cross car beam
    Informational PurposesAn informational icon, calling your attention
    Note
    4x patch bolts, T30, 8 Nm, Newer vehicles have 4x E10 patch bolts, Discard after removal

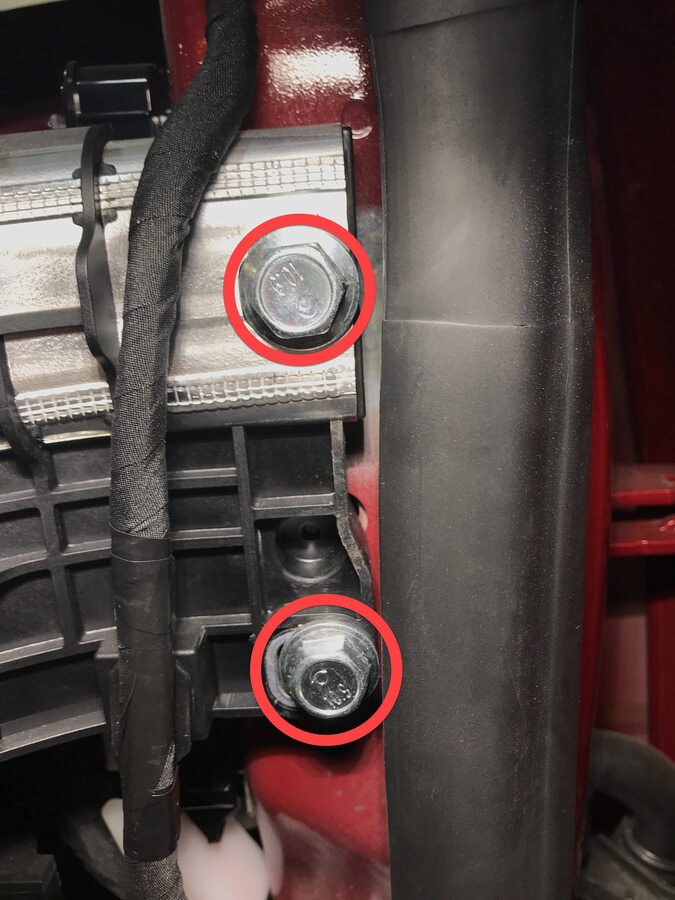

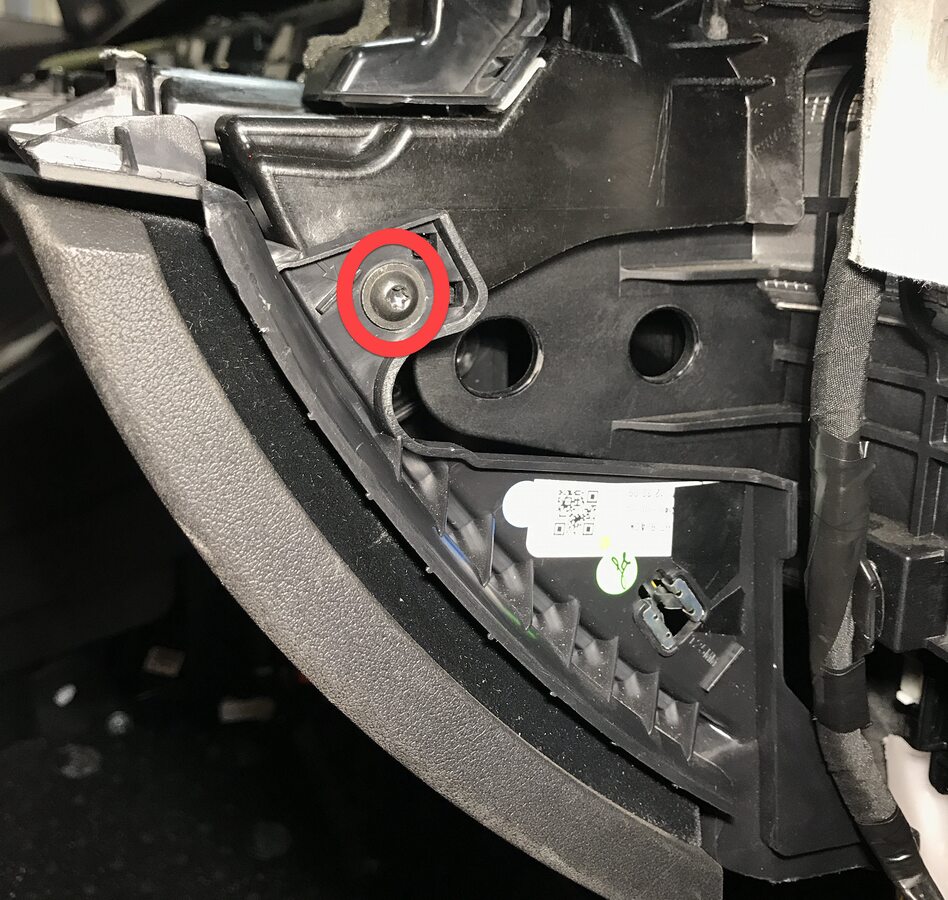

  136. Remove screws securing IP carrier to cross car beam near passenger air bag
    Informational PurposesAn informational icon, calling your attention
    Note
    2x screws, T20, 2.3 Nm

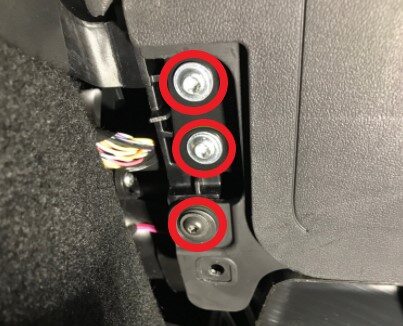

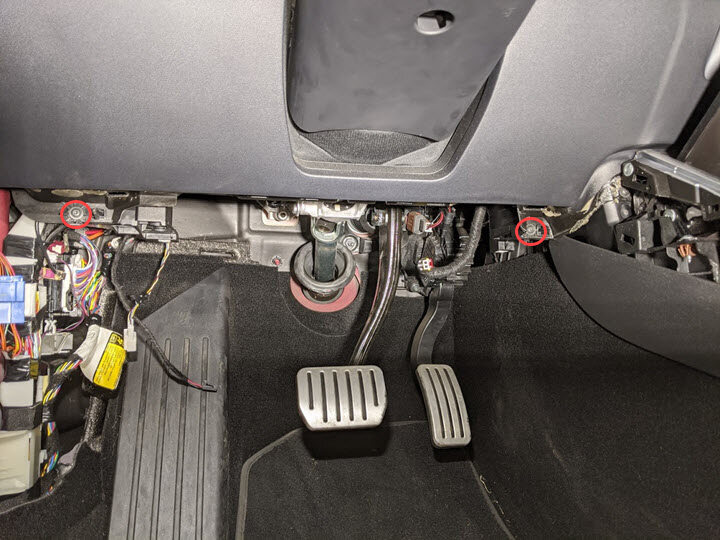

  137. Remove screws securing IP carrier to cross car beam on lower LH side
    Informational PurposesAn informational icon, calling your attention
    Note
    2x screws, T20, 2.3 Nm

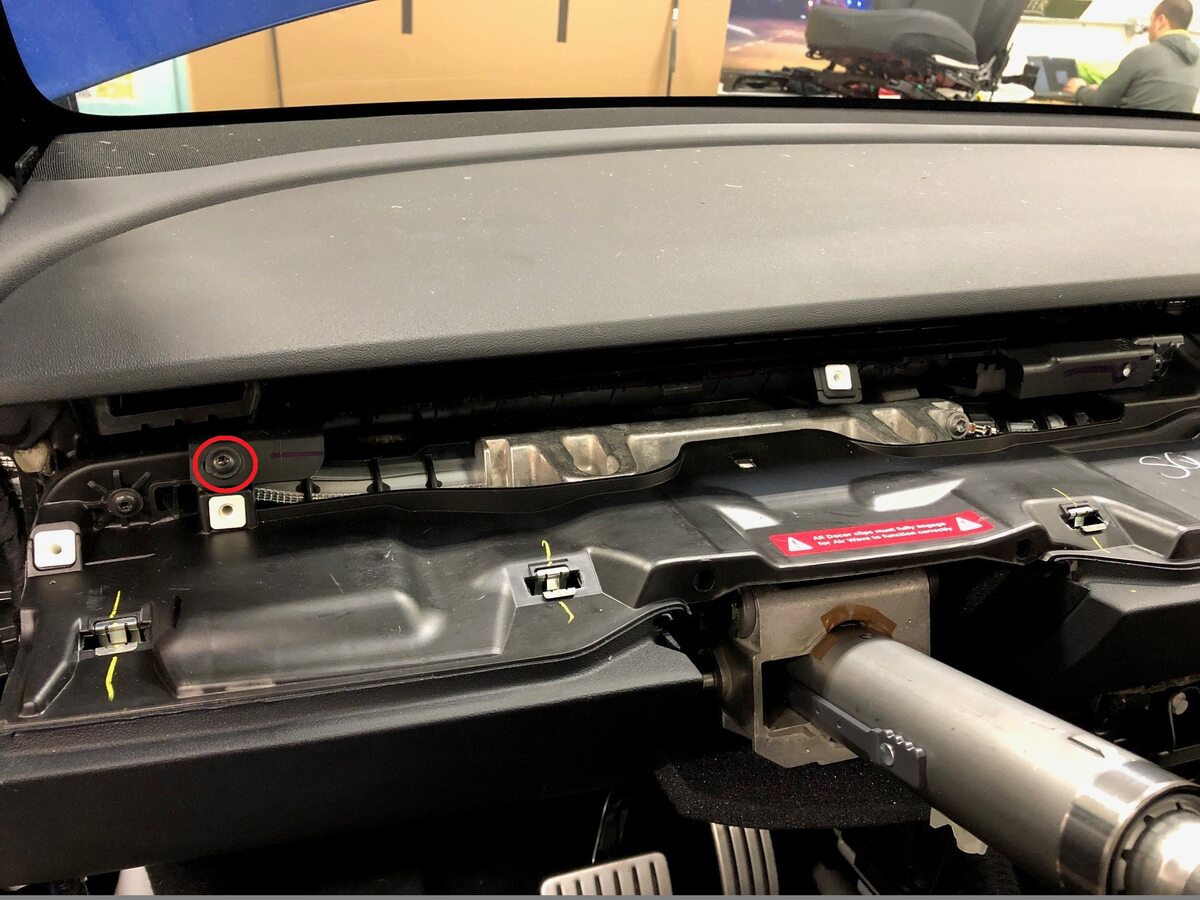

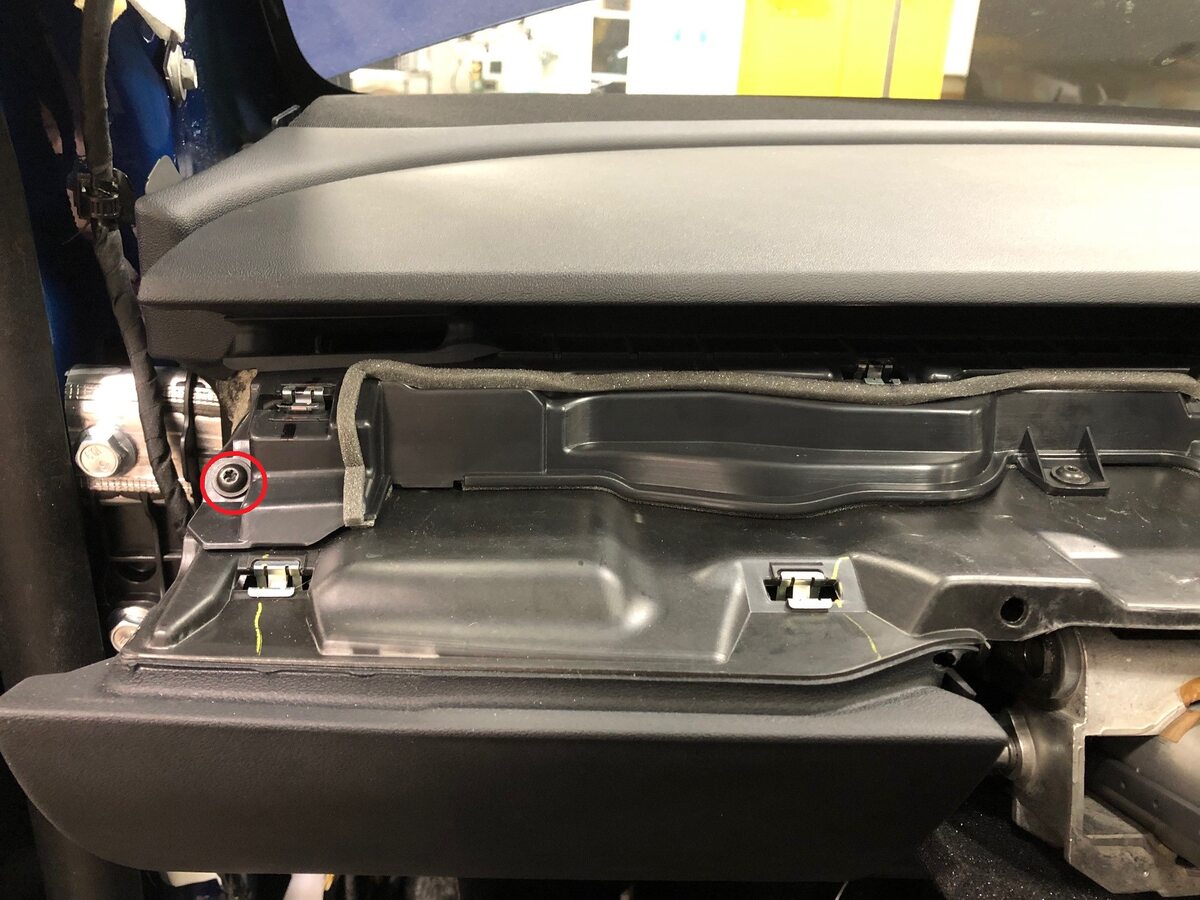

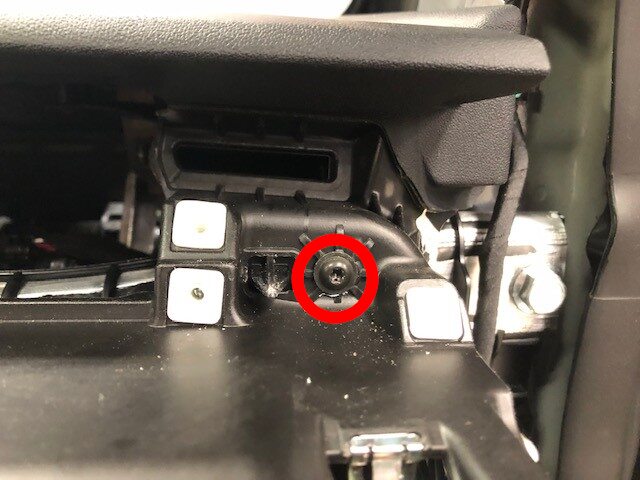

  138. Remove screw securing IP carrier to cross car beam on upper LH side
    Informational PurposesAn informational icon, calling your attention
    Note
    1x screw, T20, 2.3 Nm

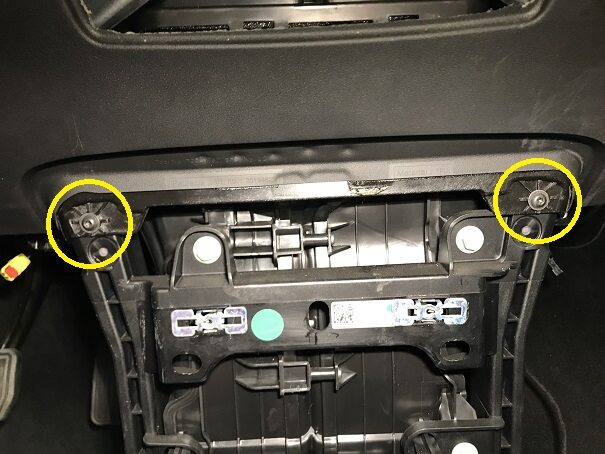

  139. Remove screws securing IP carrier to cross car beam at lower center
    Informational PurposesAn informational icon, calling your attention
    Note
    2x screws, T20, 2.3 Nm

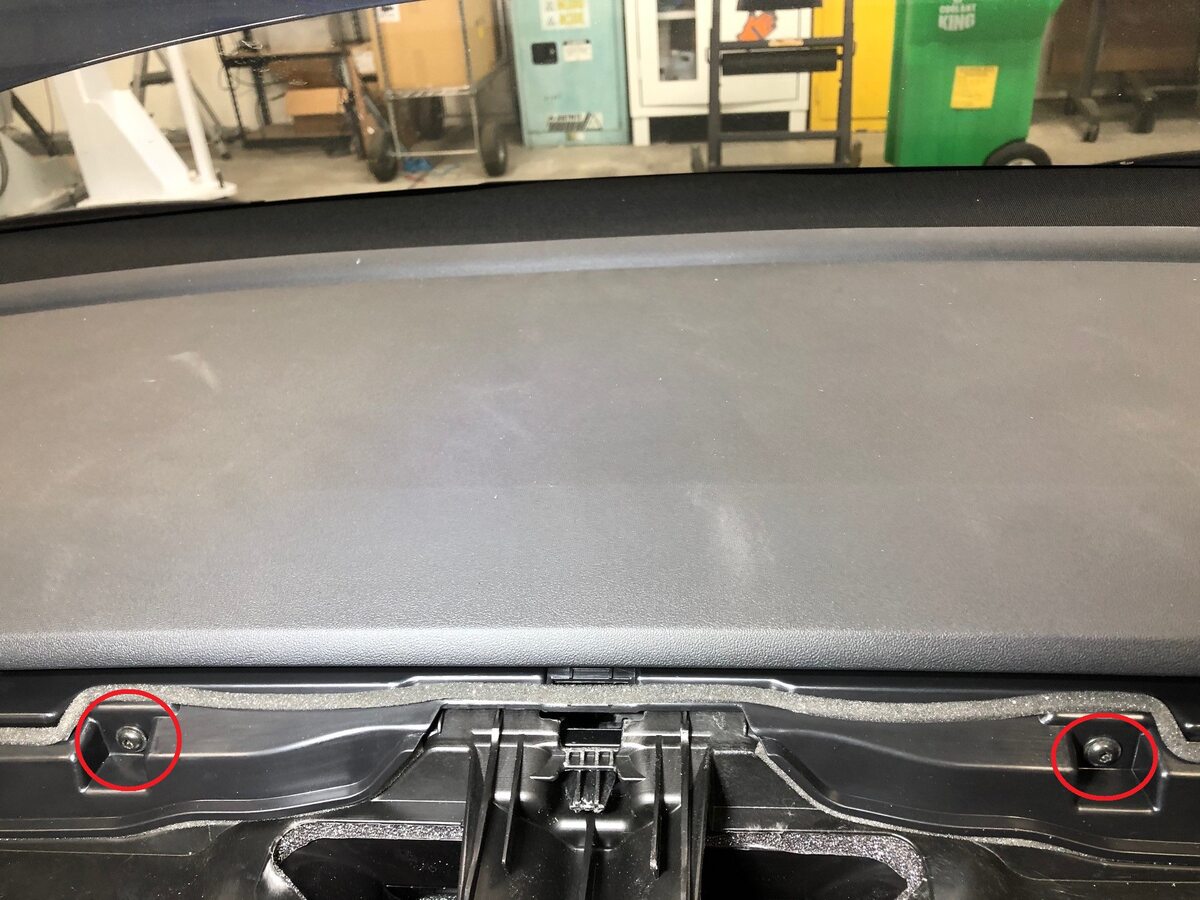

  140. Remove screws securing IP carrier to cross car beam at upper center
    Informational PurposesAn informational icon, calling your attention
    Note
    2x screws, T20, 2.3 Nm

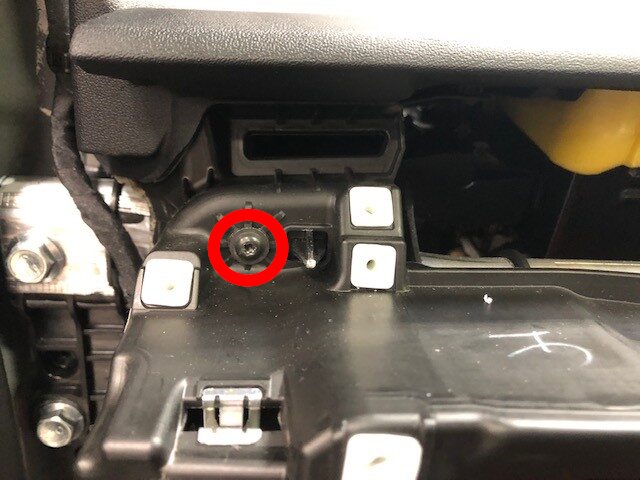

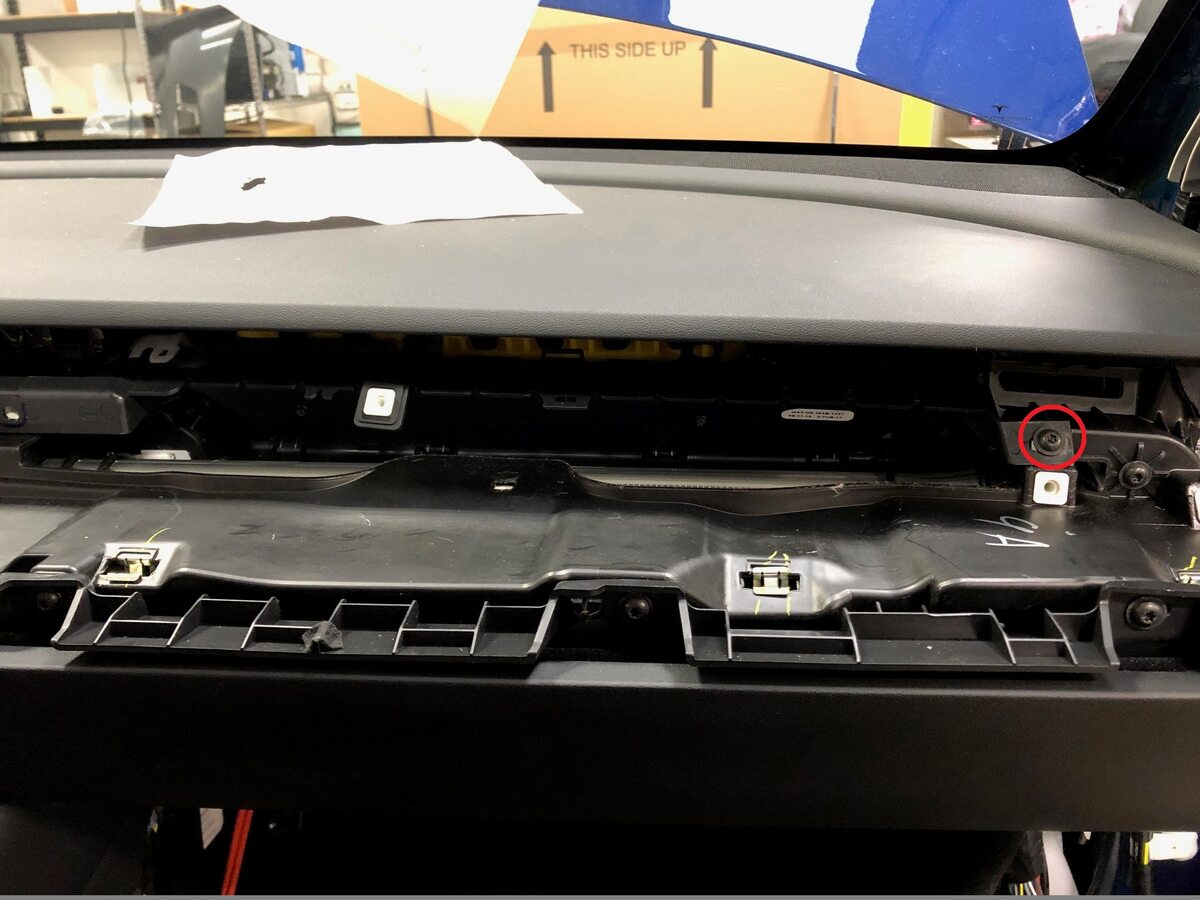

  141. Remove screw securing IP carrier to cross car beam on upper RH side
    Informational PurposesAn informational icon, calling your attention
    Note
    1x screw, T20, 2.3 Nm

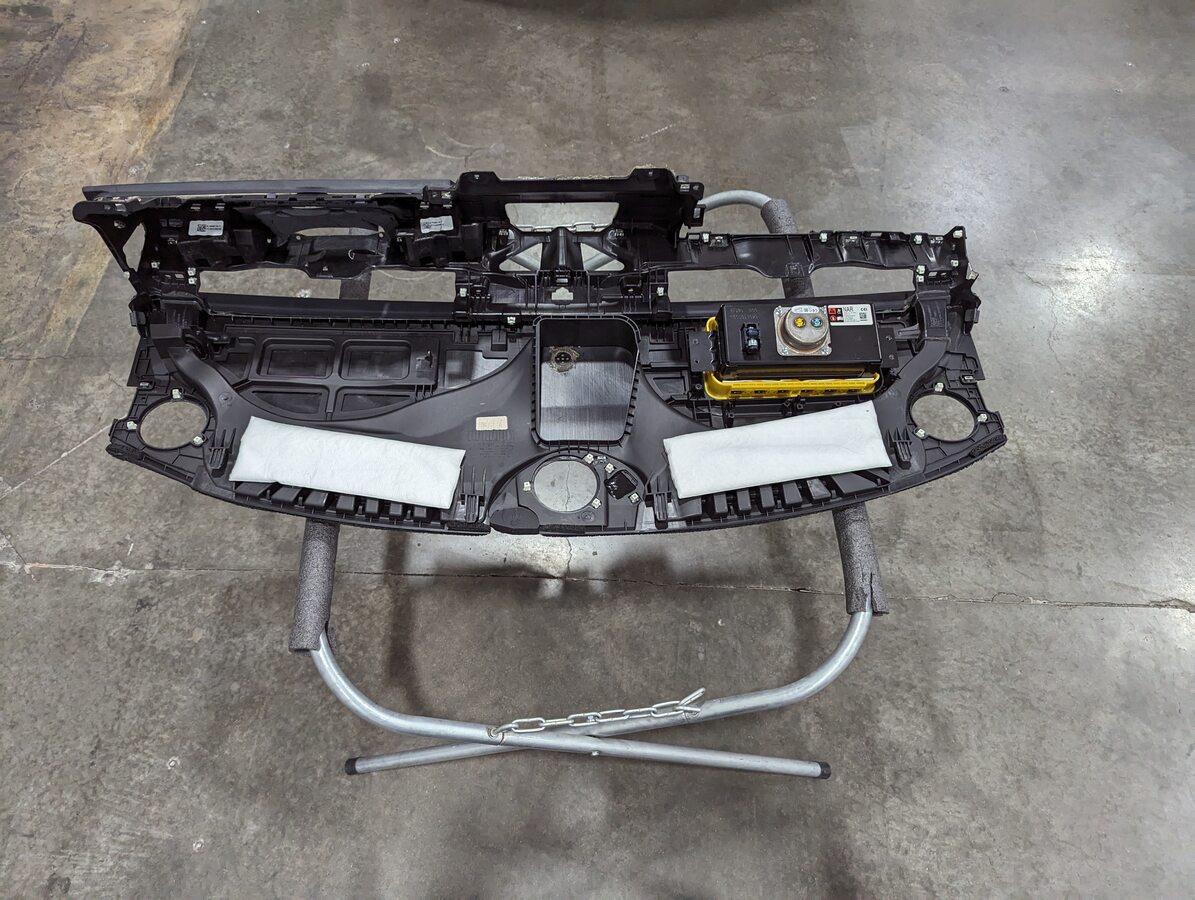

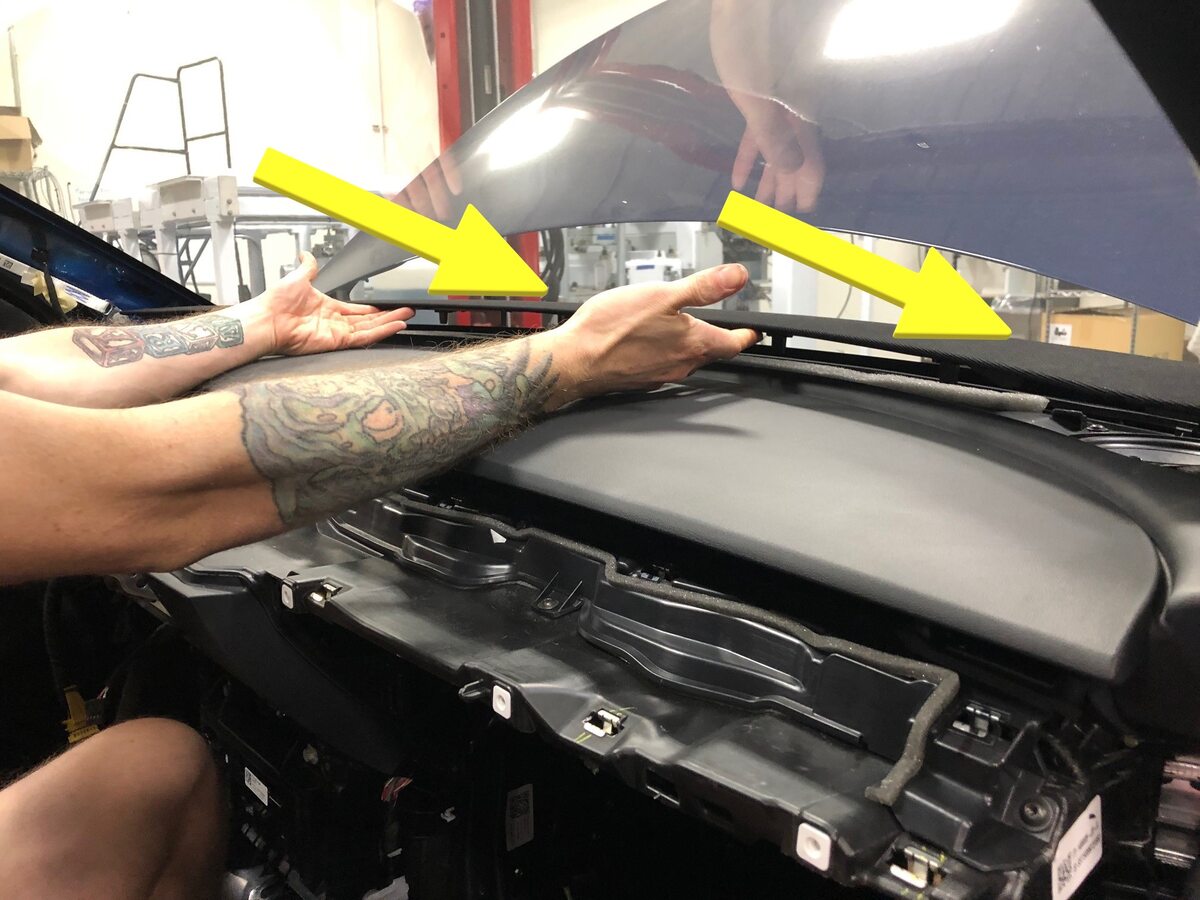

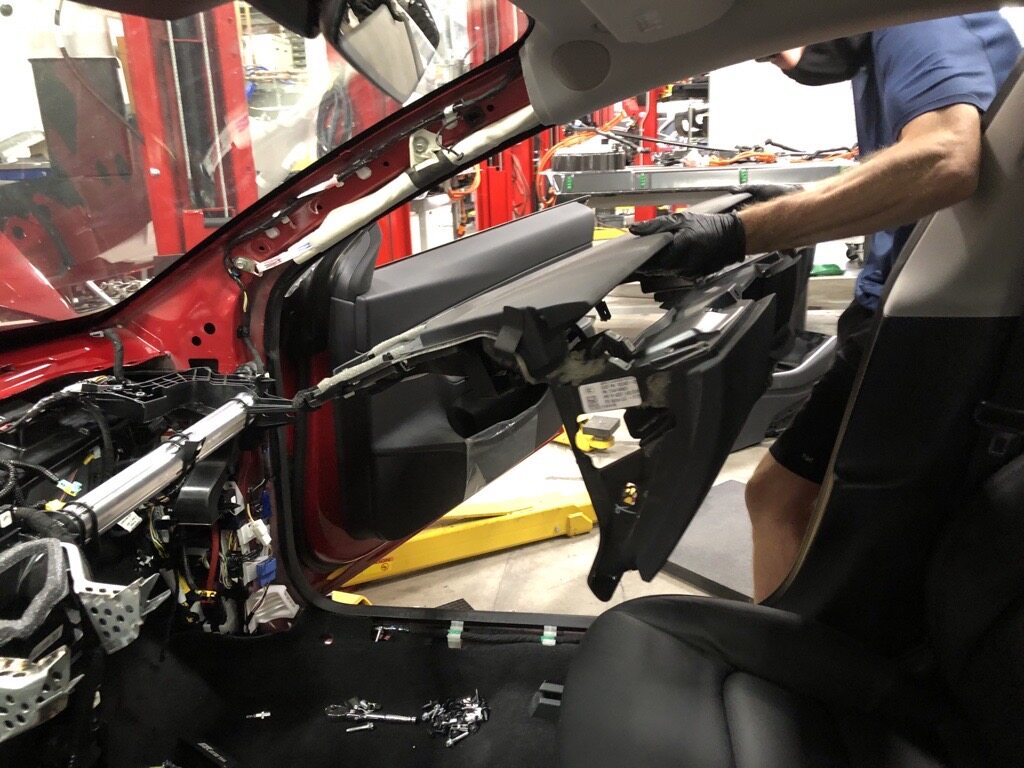

  142. Remove IP carrier from cross car beam
    Informational PurposesAn informational icon, calling your attention
    Note
    Recommend assistance. Be cautious to clear the harness clipped at top center of HVAC assembly, This will also ease removal, Remove IP carrier through passenger front door

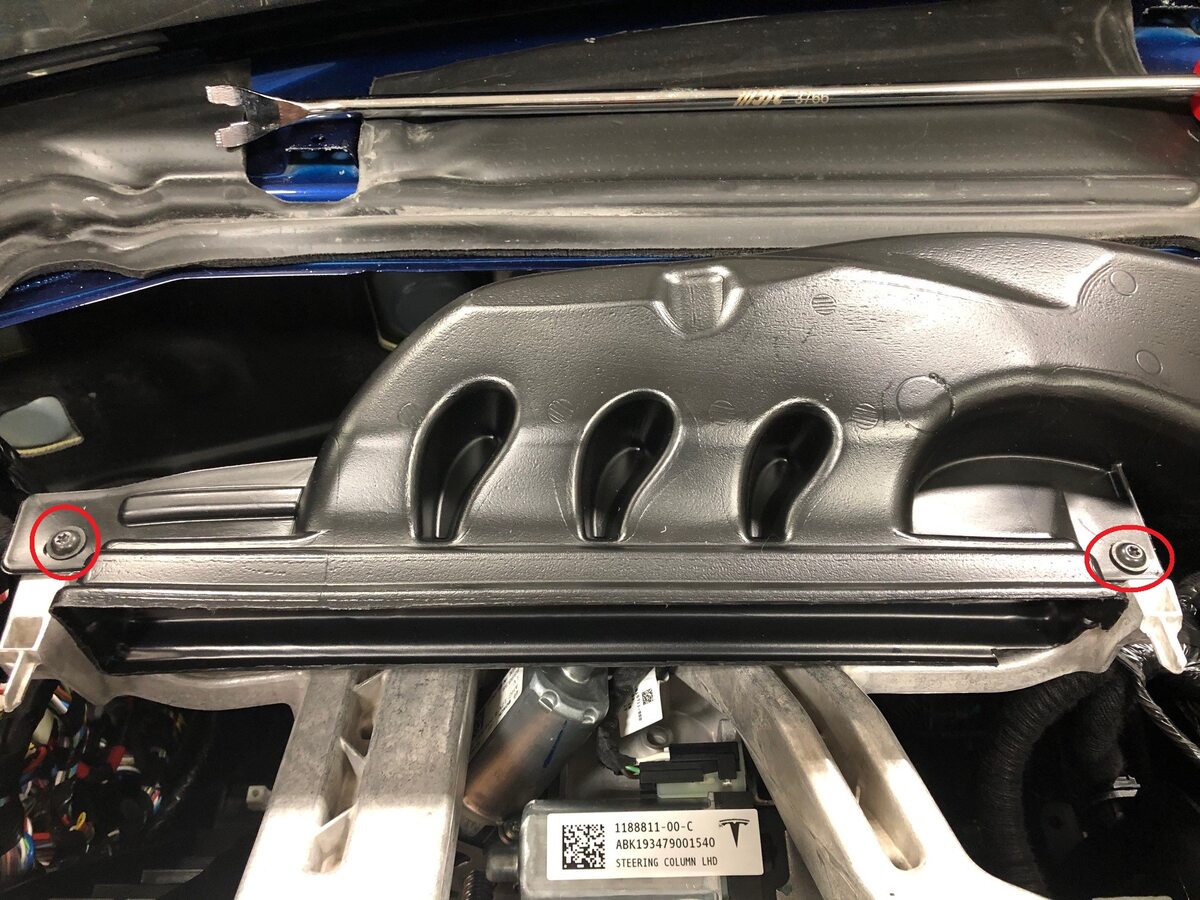

  143. Remove screws securing driver air wave duct to cross car beam
    Informational PurposesAn informational icon, calling your attention
    Note
    2x scews, T20, 2.3 Nm

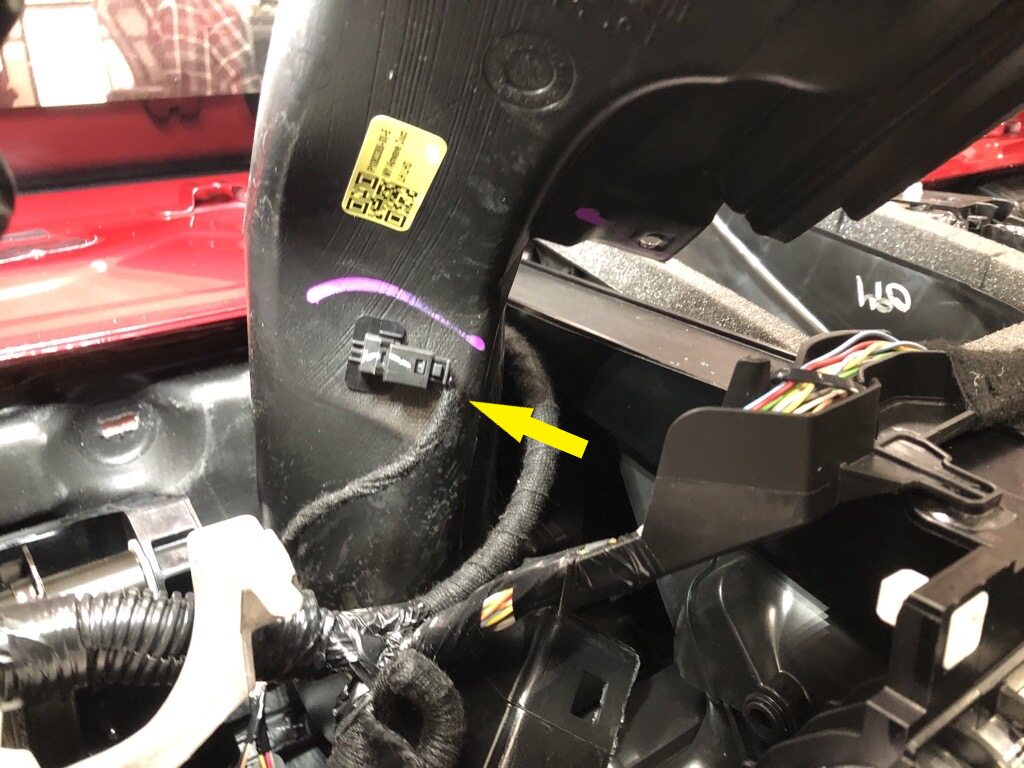

  144. Disconnect LH upper duct thermistor from drivers air wave duct
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector

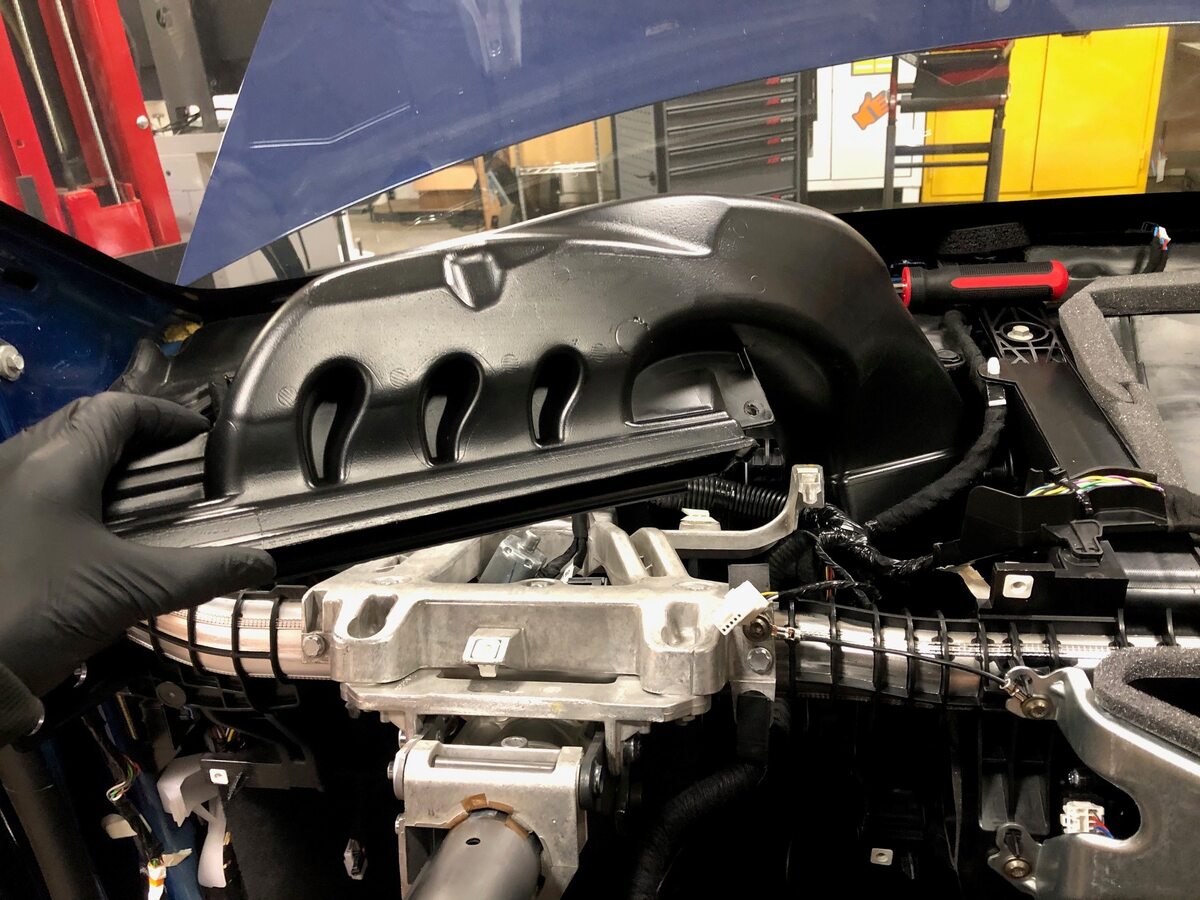

  145. Remove driver air wave duct from HVAC assembly

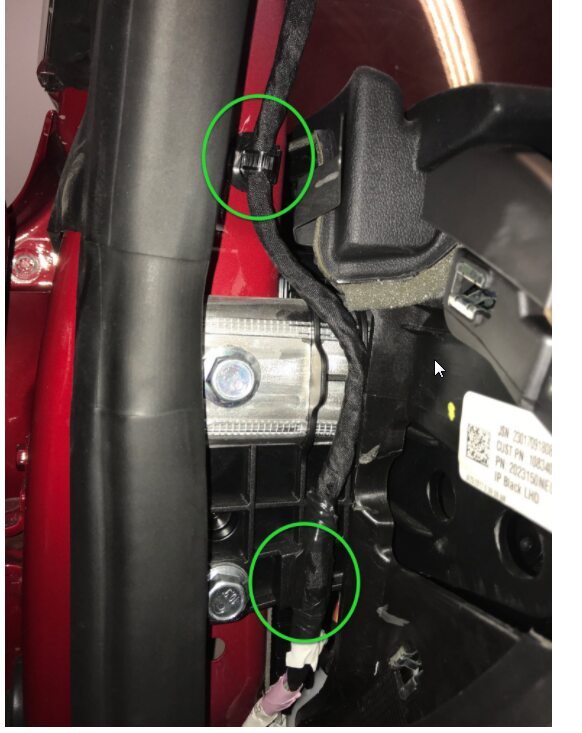

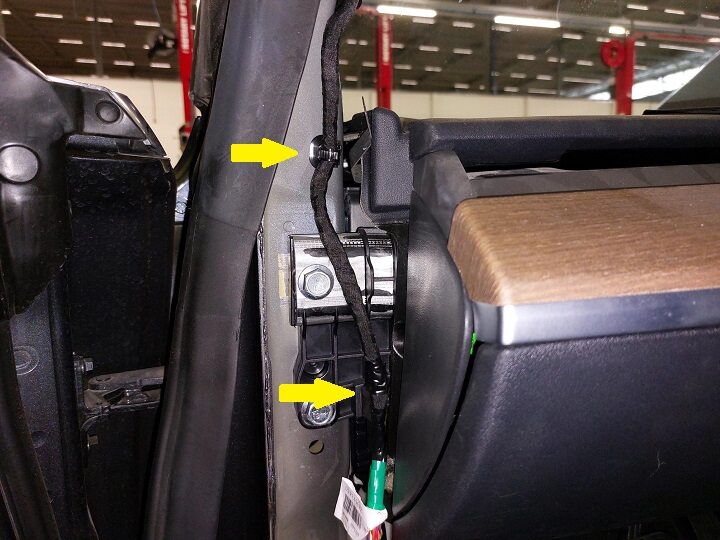

  146. Remove headliner harness clips on LH lower a-pillar
    Informational PurposesAn informational icon, calling your attention
    Note
    2x clips

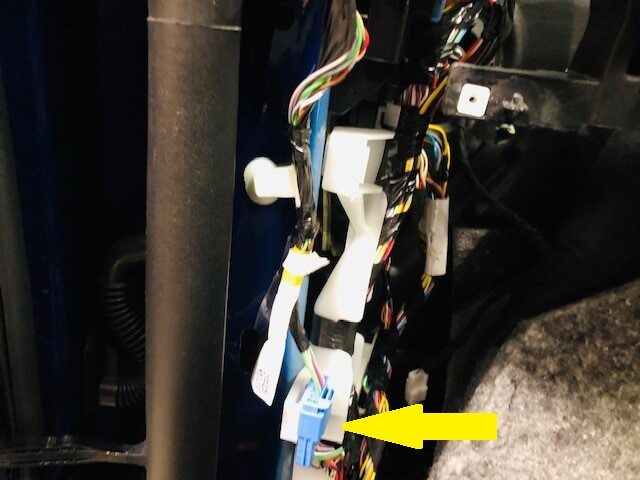

  147. Disconnect headliner harness connector from LH lower a-pillar
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector

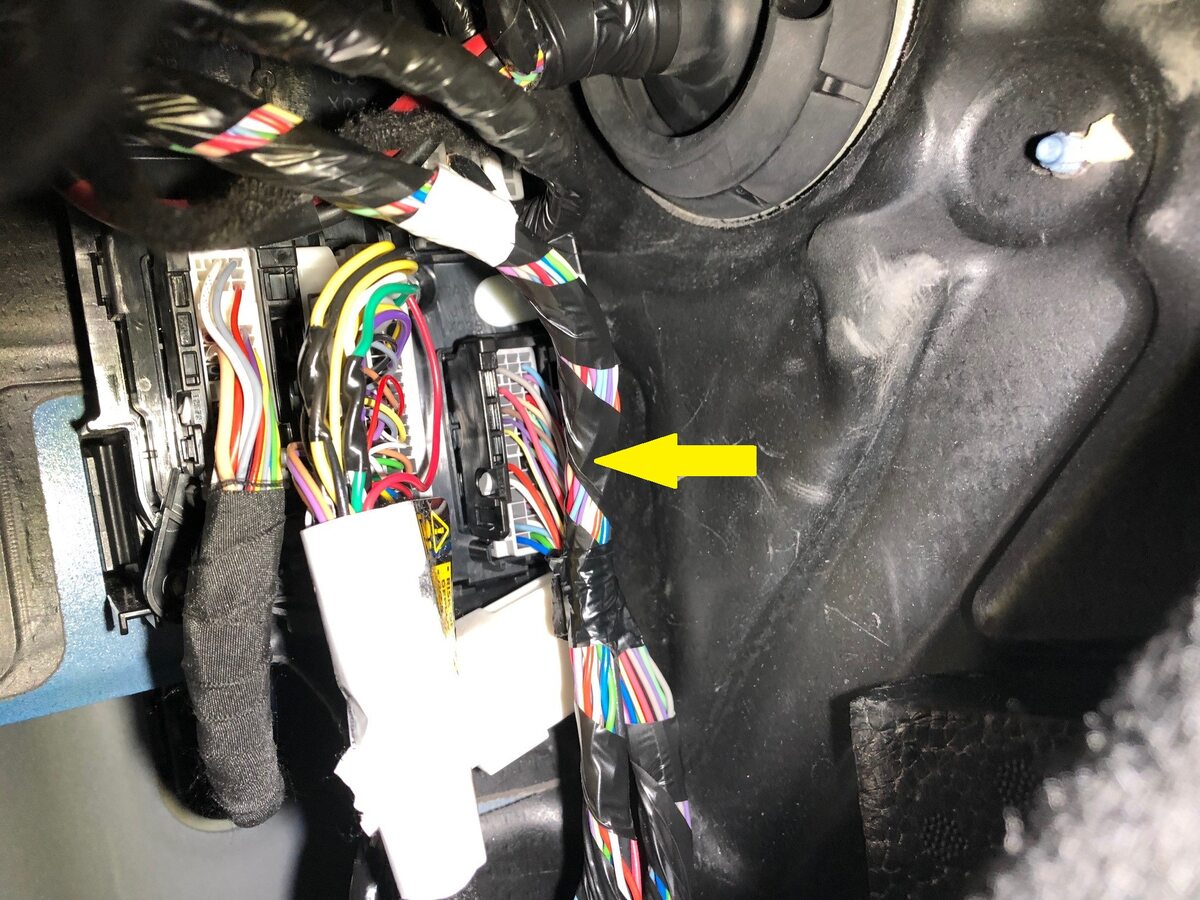

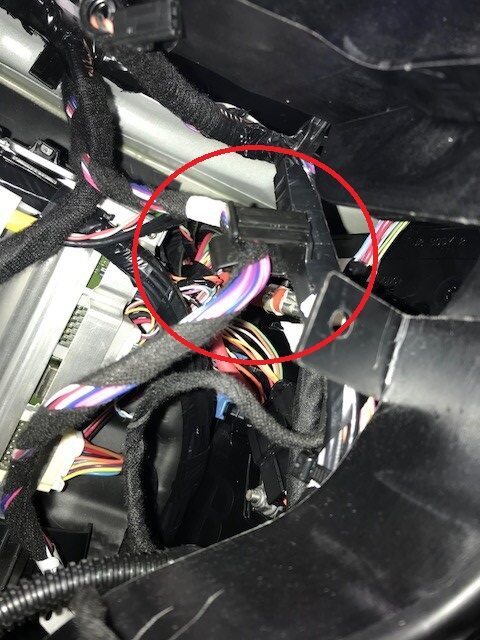

  148. Disconnect the dash connector from the left body controller

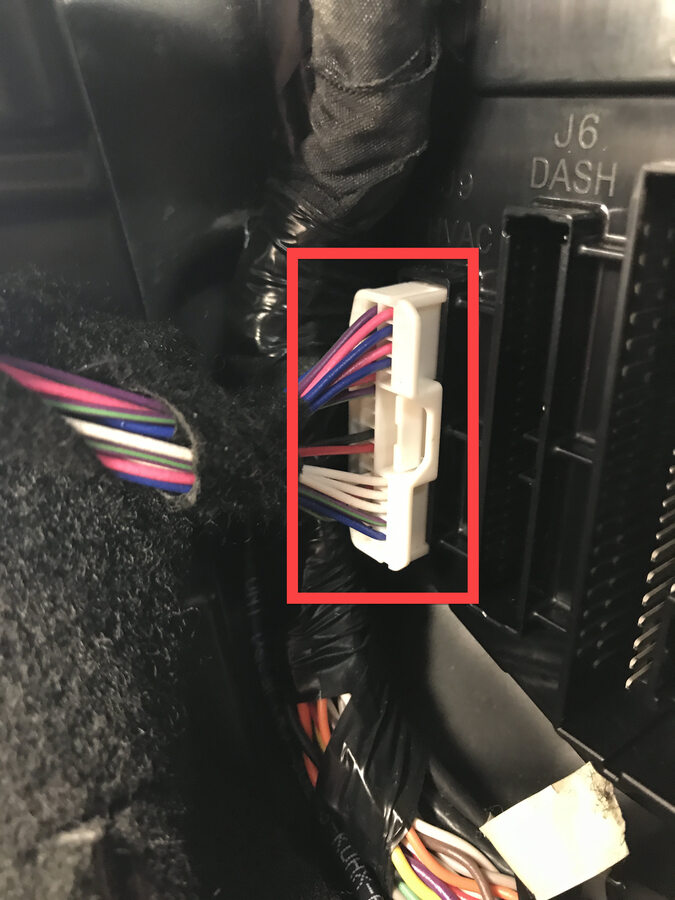

    Informational PurposesAn informational icon, calling your attention
    Note

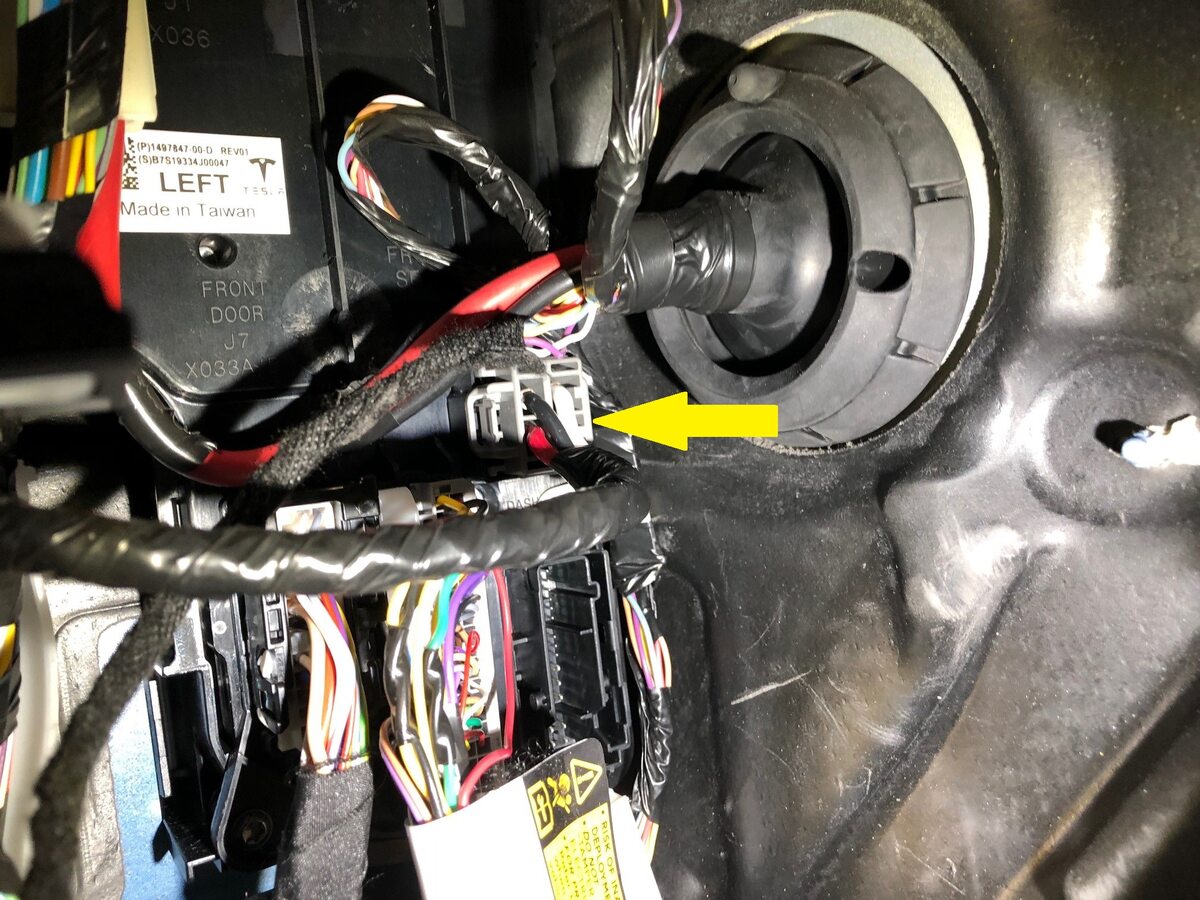

    1x connector, Release locking tab and gently pull down to release connector
  149. Disconnect HVAC connector from left body controller
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector

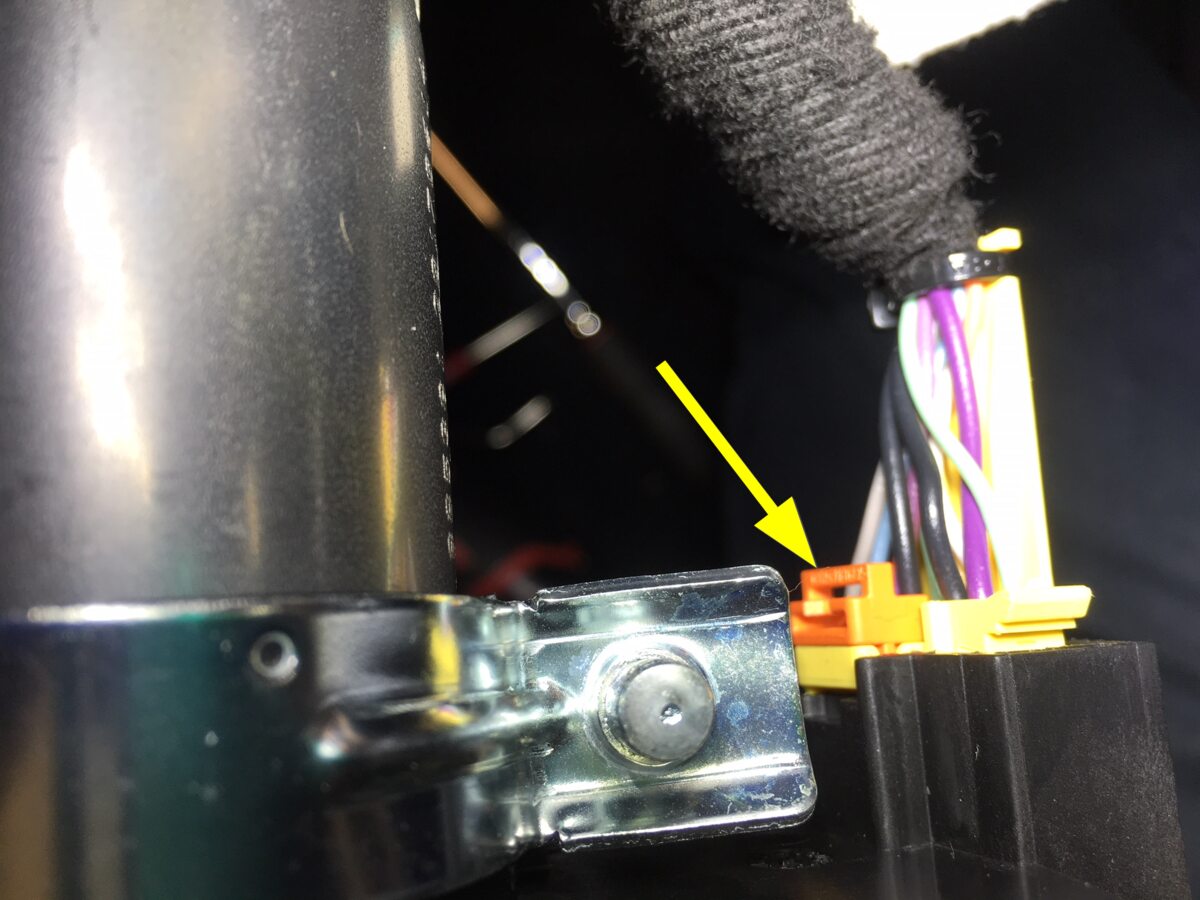

  150. Disconnect IP harness connector from electronic steering column
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector

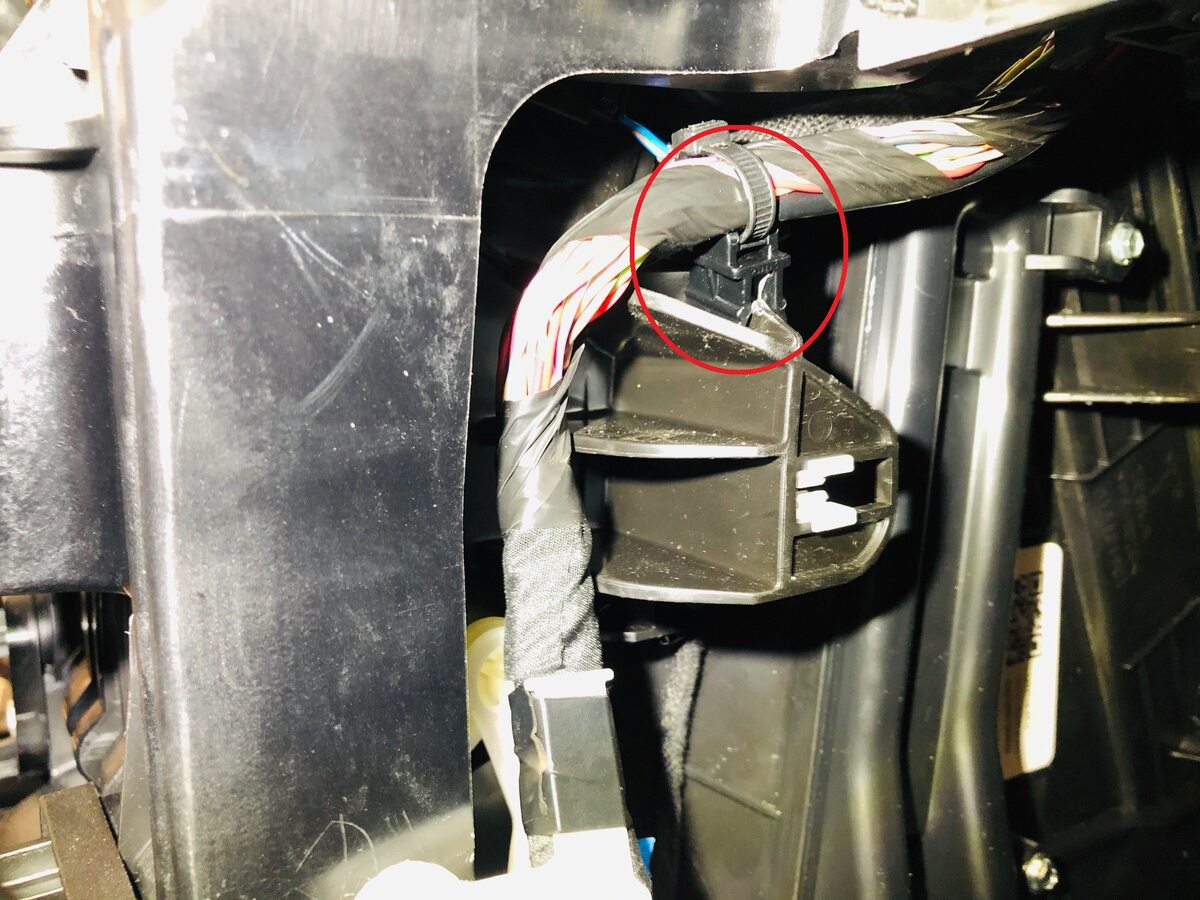

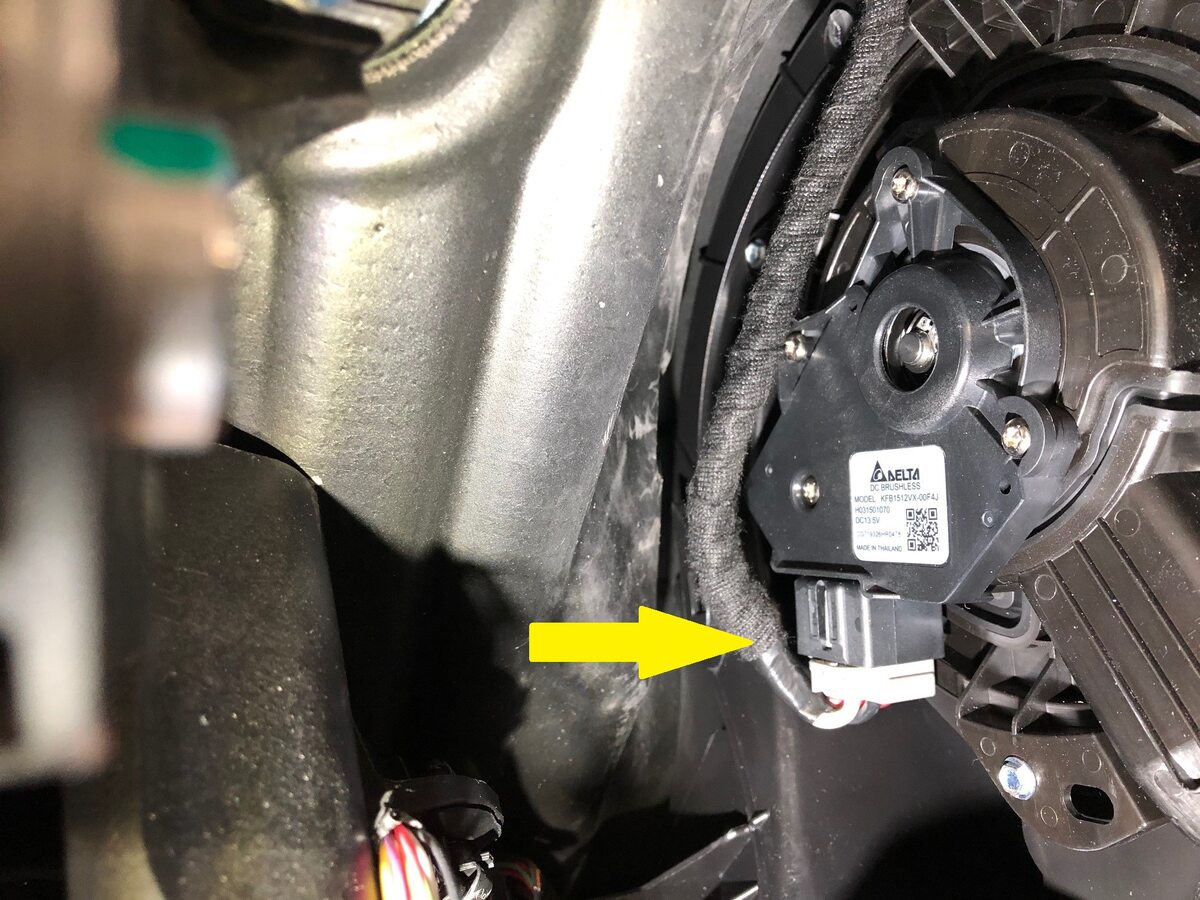

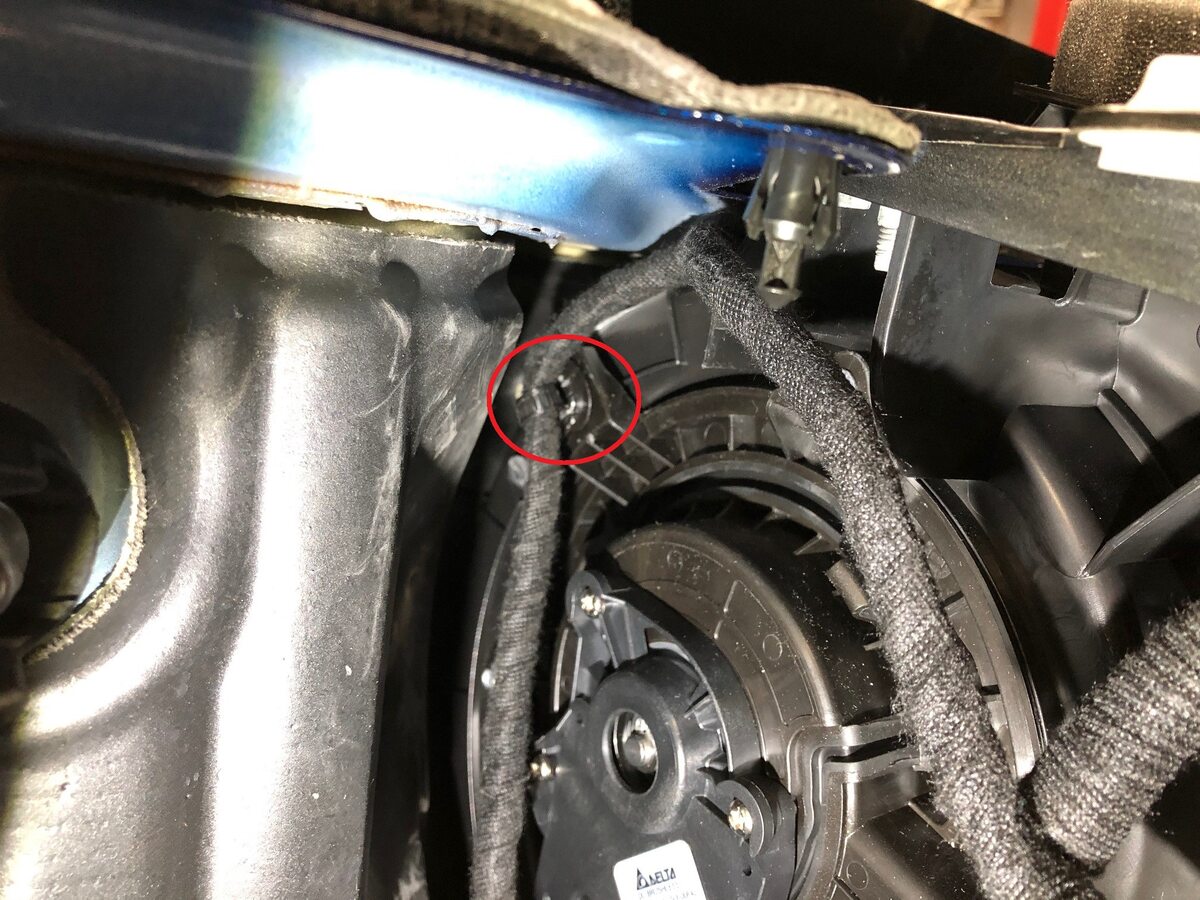

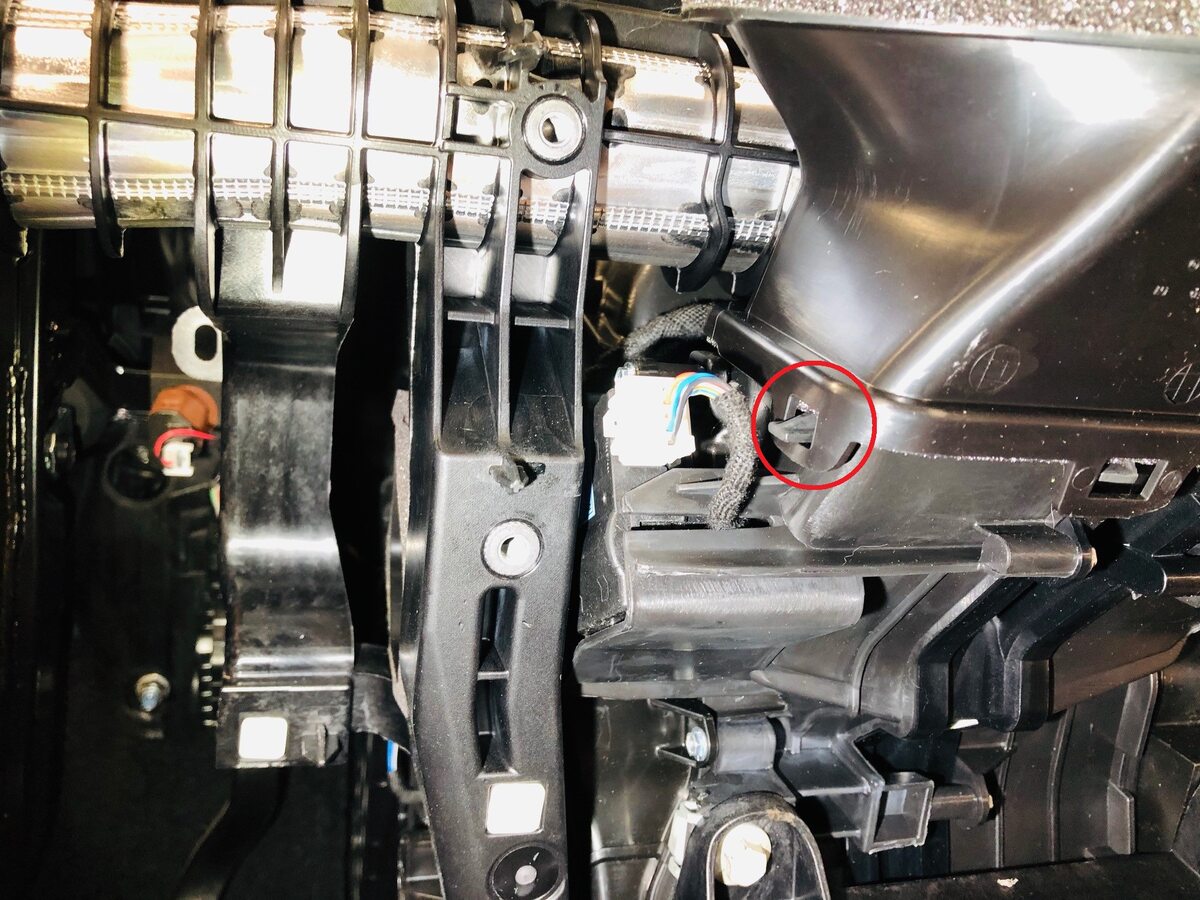

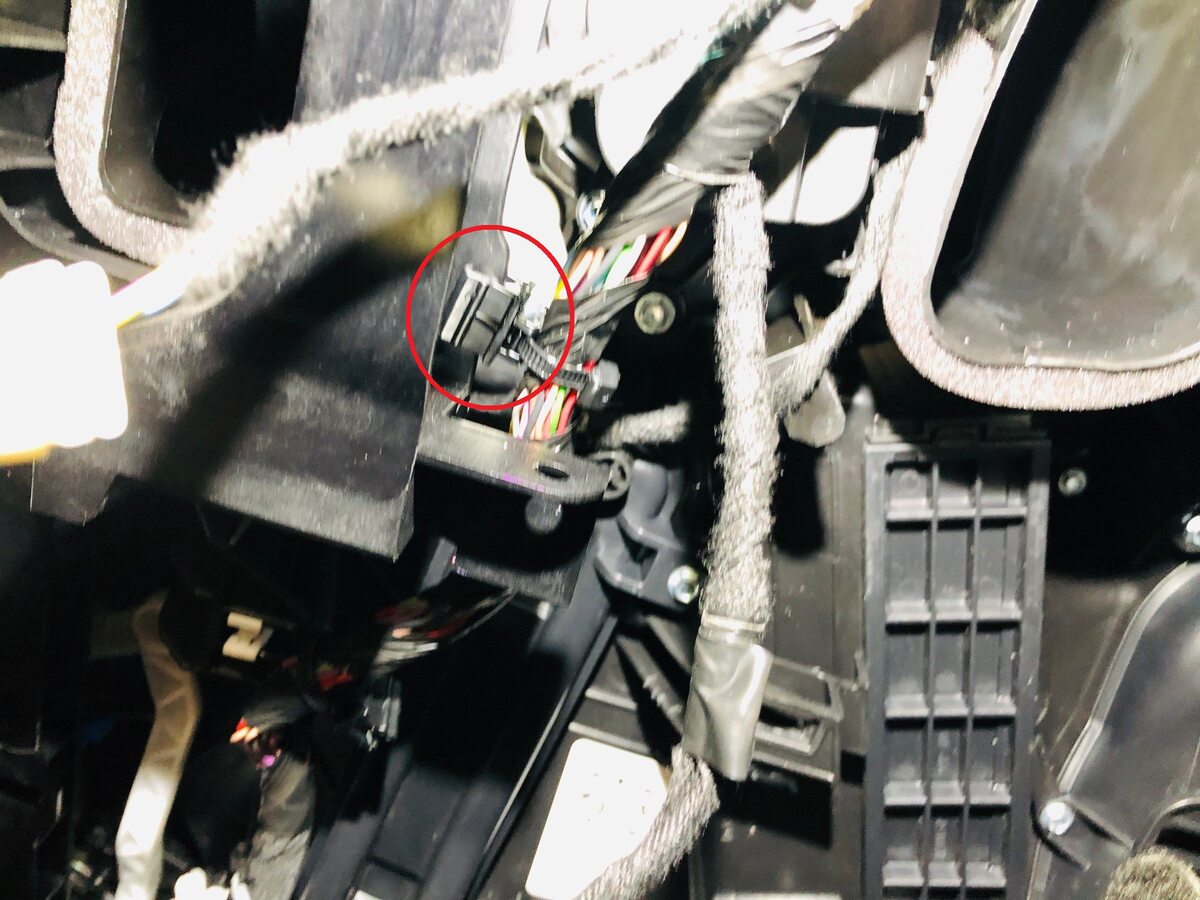

  151. Release IP harness clip located on blower motor assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    1x harness clip
  152. Disconnect blower motor connector
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector
  153. Release clip securing center speaker harness to HVAC assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    1x clip

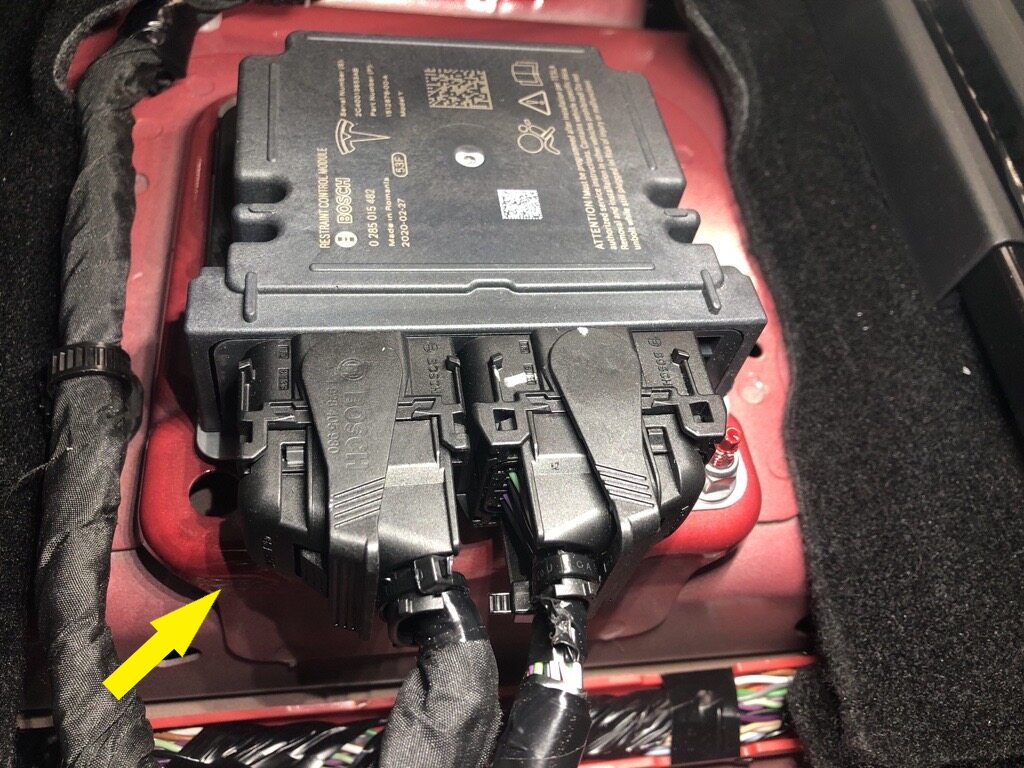

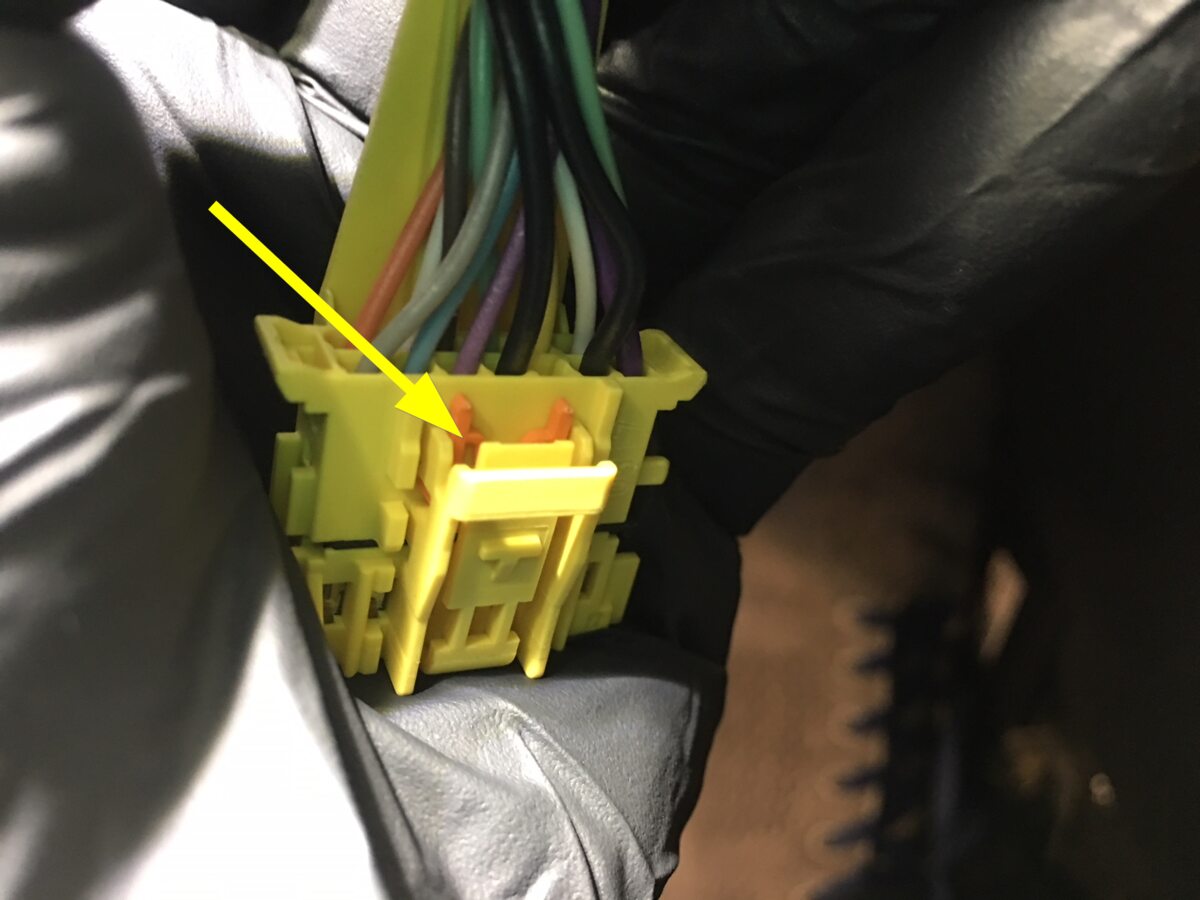

  154. Disconnect connector from restraint control module
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector, Disengage locking tab to release lever

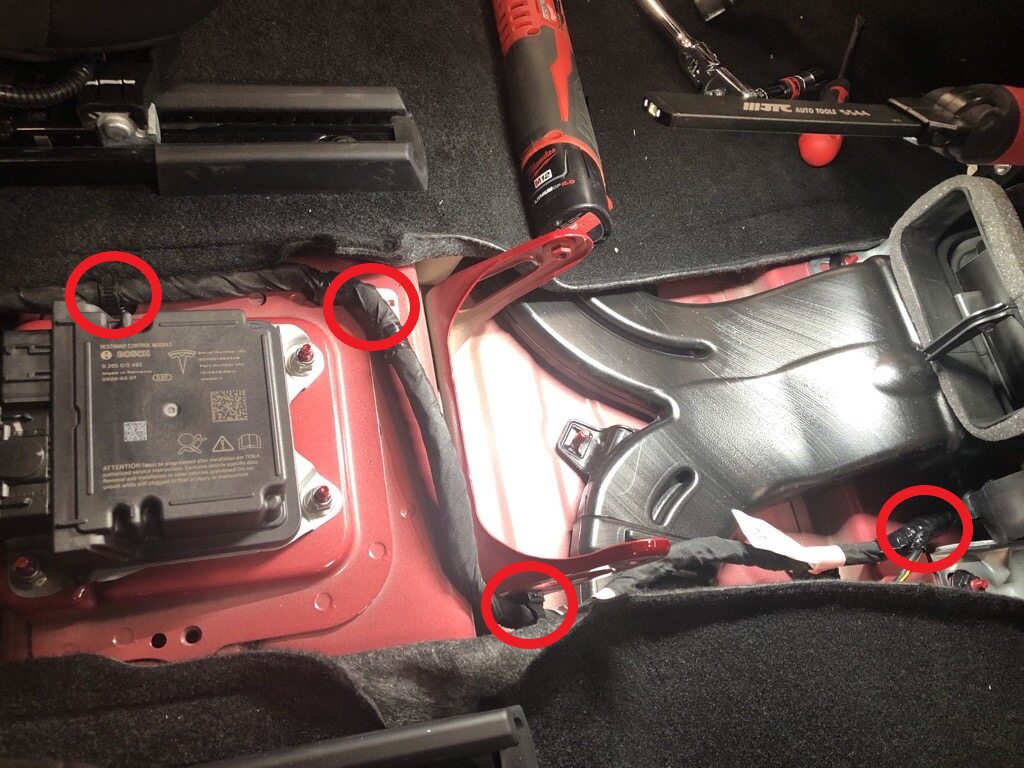

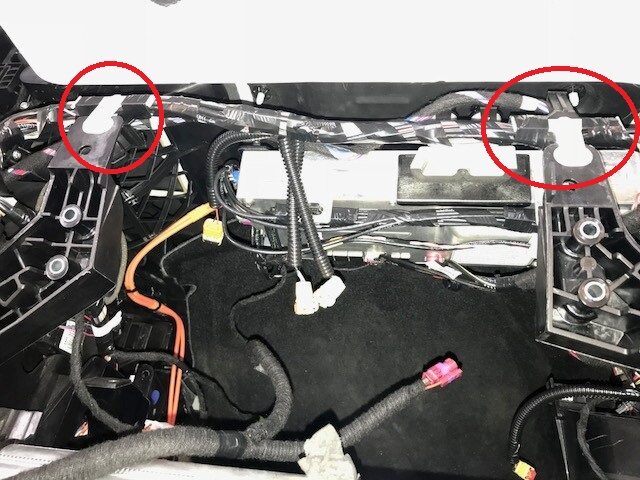

  155. Remove IP harness clips from body
    Informational PurposesAn informational icon, calling your attention
    Note
    4x clips
  156. Release IP harness clip next to RH duct thermistor
    Informational PurposesAn informational icon, calling your attention
    Note
    1x harness clip

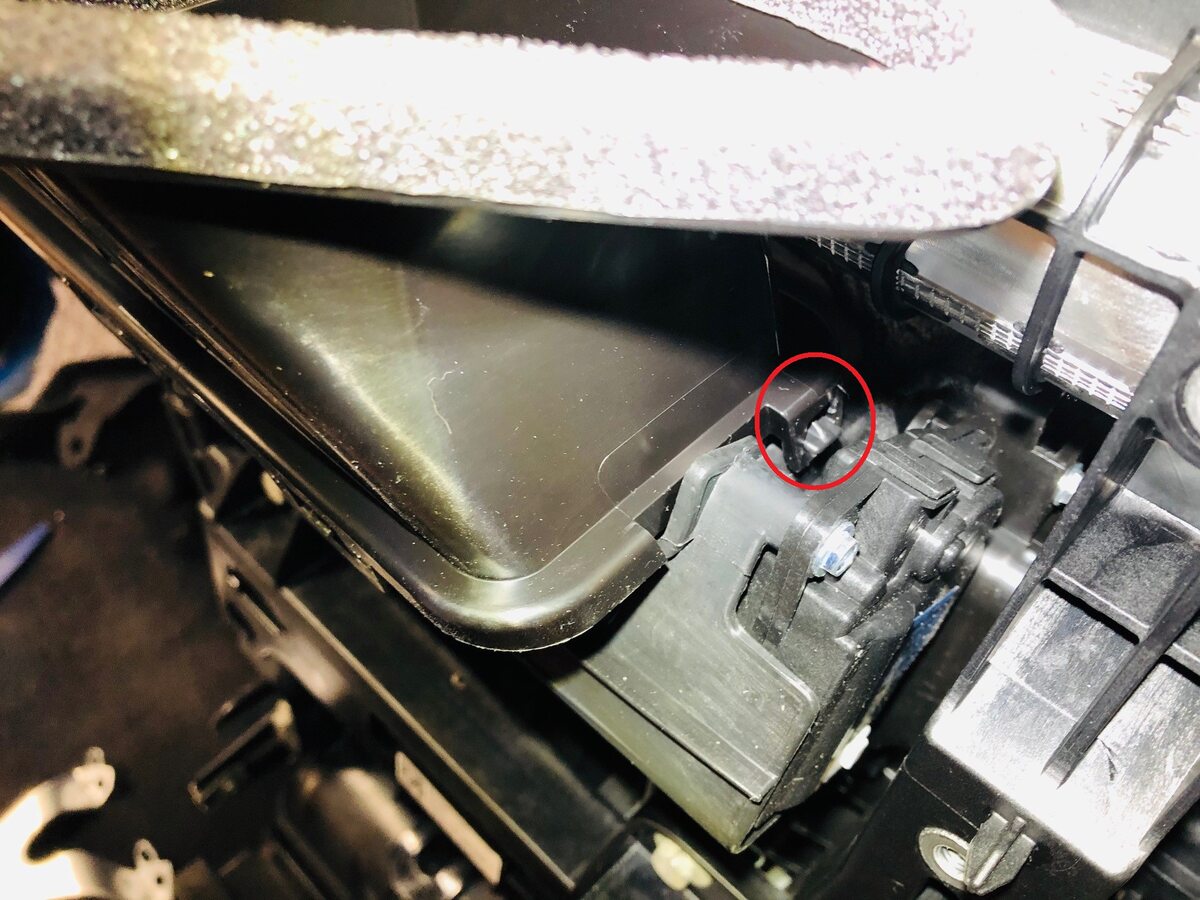

  157. Release IP harness clip next to RH upper mode actuator
    Informational PurposesAn informational icon, calling your attention
    Note
    1x harness clip
  158. Release HVAC harness from IP harness holding mount on RH side of IP harness.
    Informational PurposesAn informational icon, calling your attention
    Note
    3x harness holding mounts

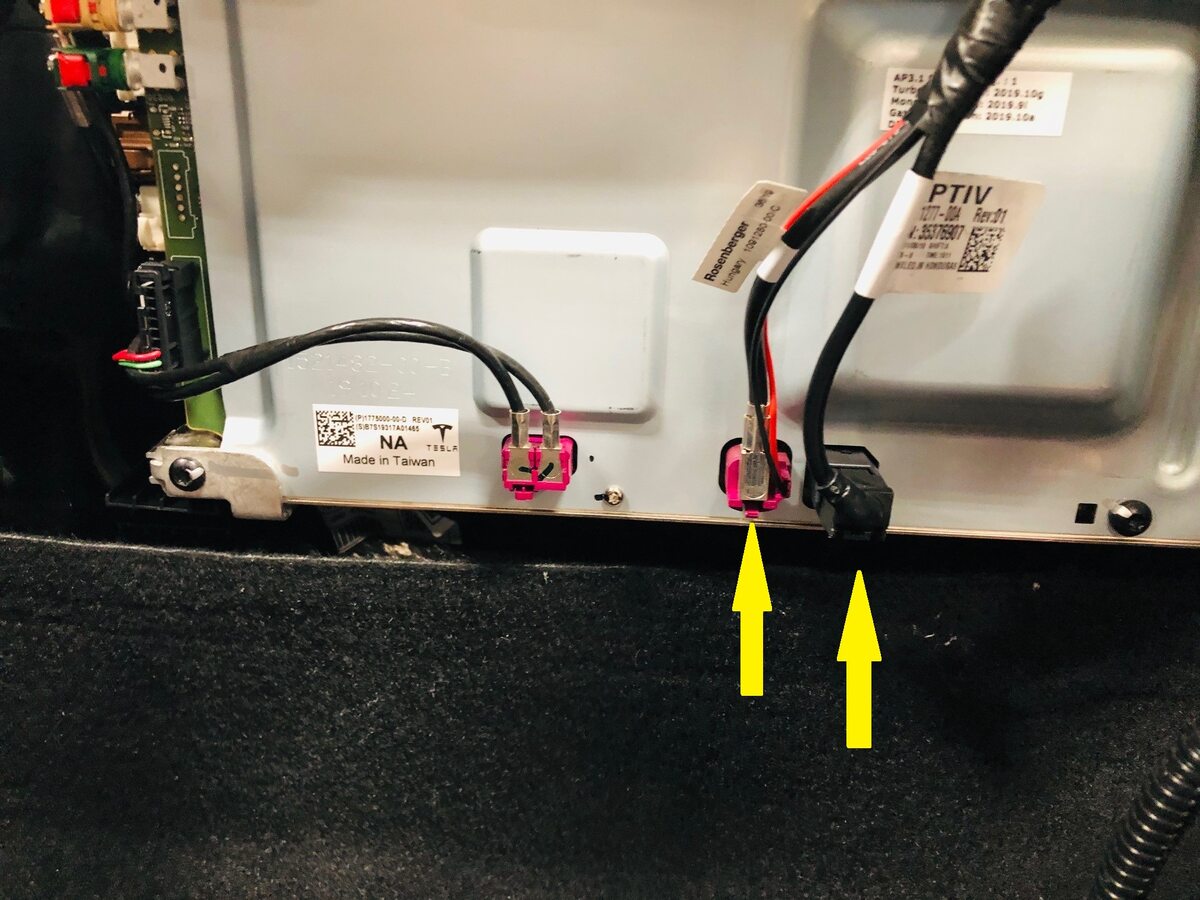

  159. Disconnect IP harness connectors from car computer
    Informational PurposesAn informational icon, calling your attention
    Note
    2x connectors, Non EU vehicles have 3x connectors

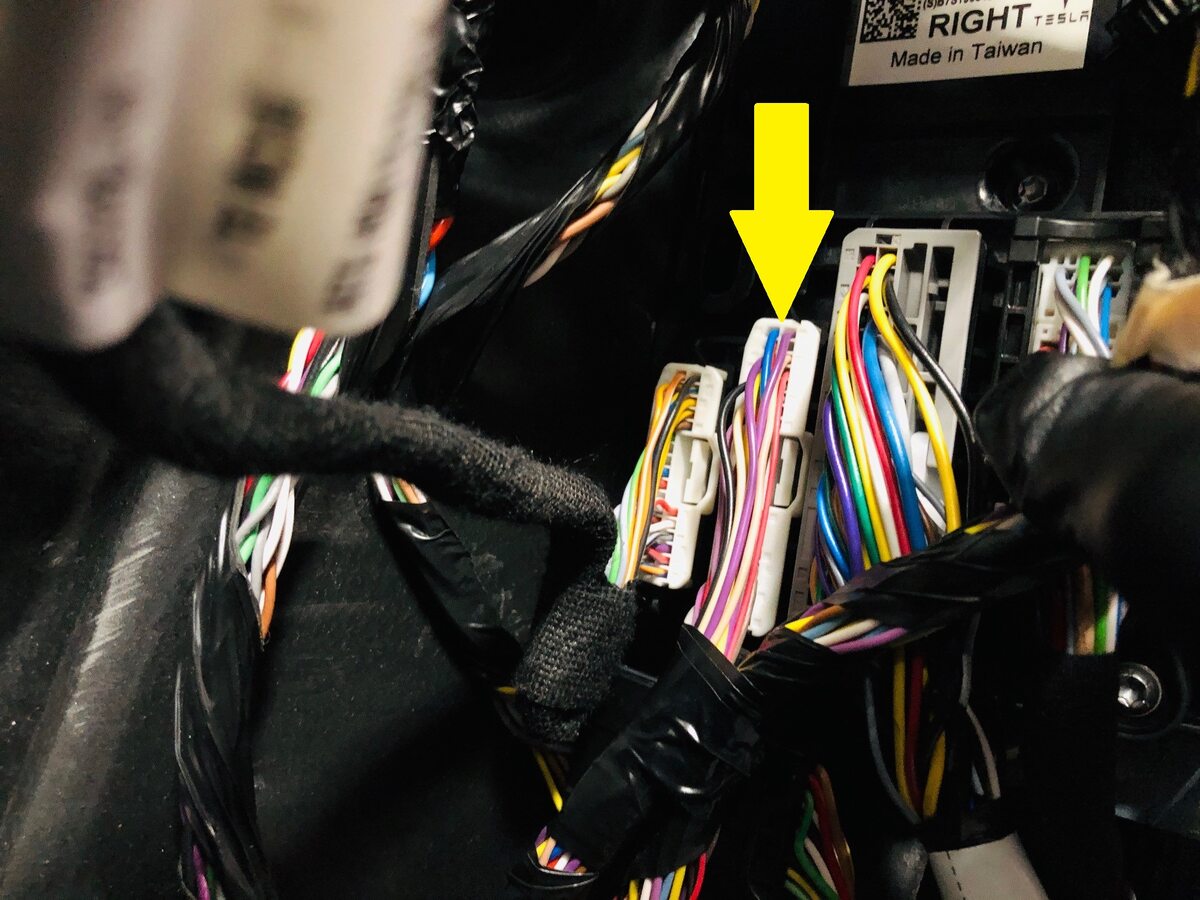

  160. Disconnect dash harness connector from right body controller
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector

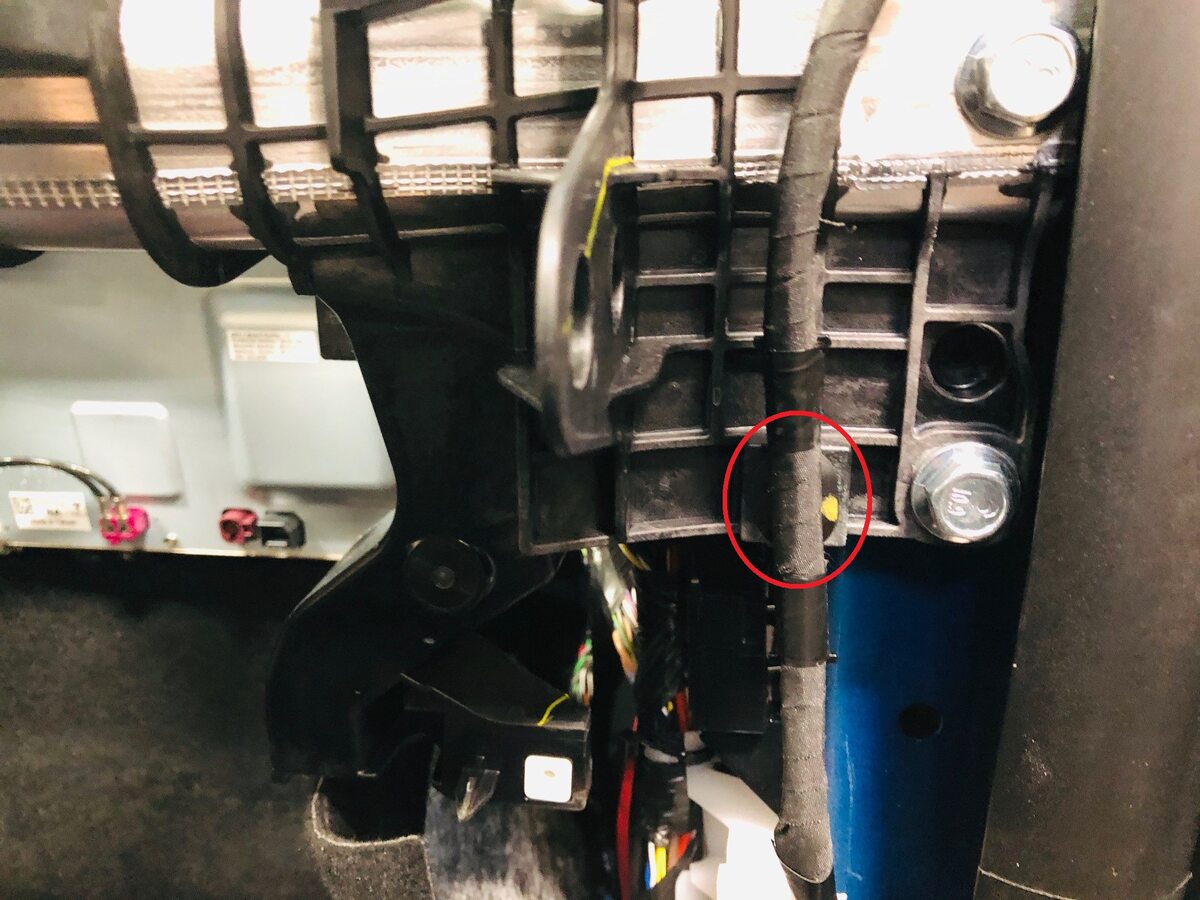

  161. Release clip from RH side of cross car beam
    Informational PurposesAn informational icon, calling your attention
    Note
    1x harness clip

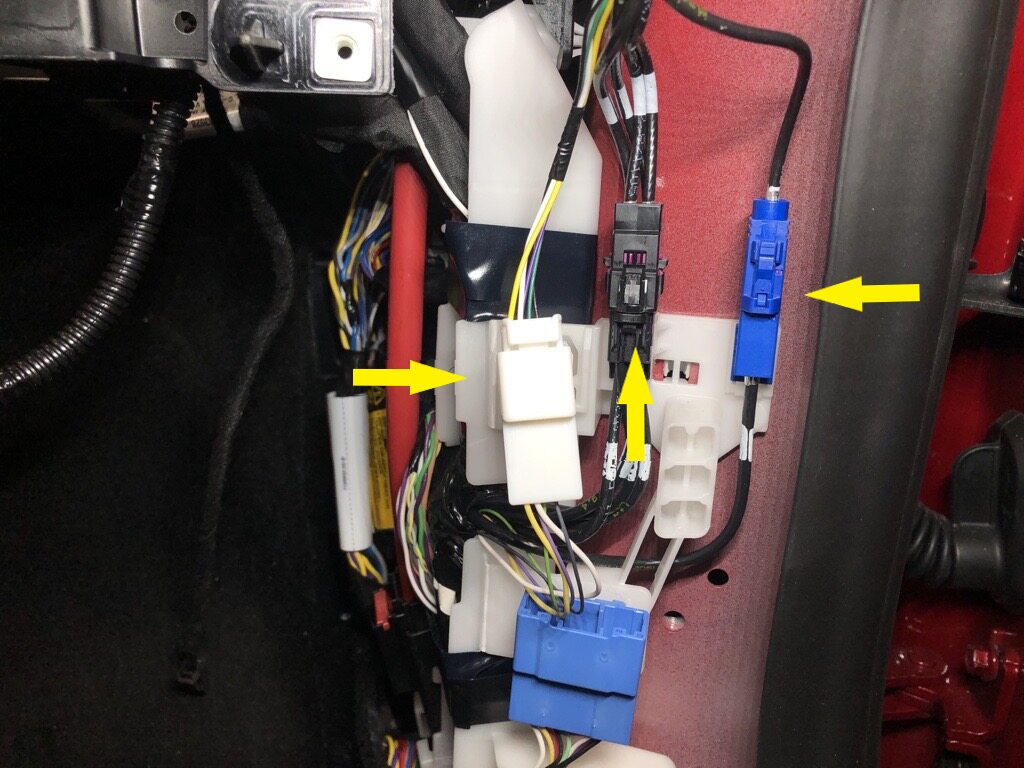

  162. Disconnect IP harness connectors from RH controller area
    Informational PurposesAn informational icon, calling your attention
    Note
    3x connectors

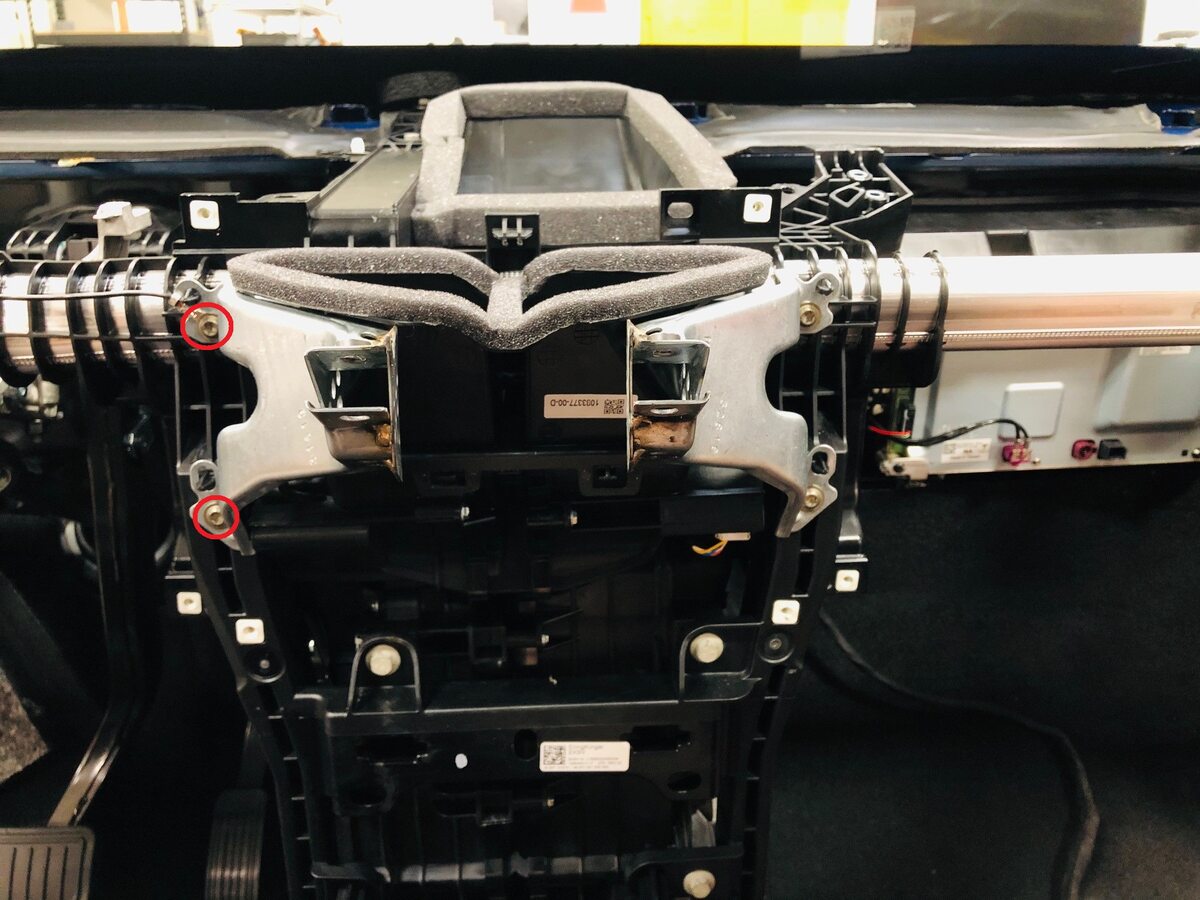

  163. Remove LH center display bracket
    Informational PurposesAn informational icon, calling your attention
    Note
    2x bolts, T30, 12 Nm
  164. Remove RH center display bracket
    Informational PurposesAn informational icon, calling your attention
    Note
    2x bolts, T30, 12 Nm

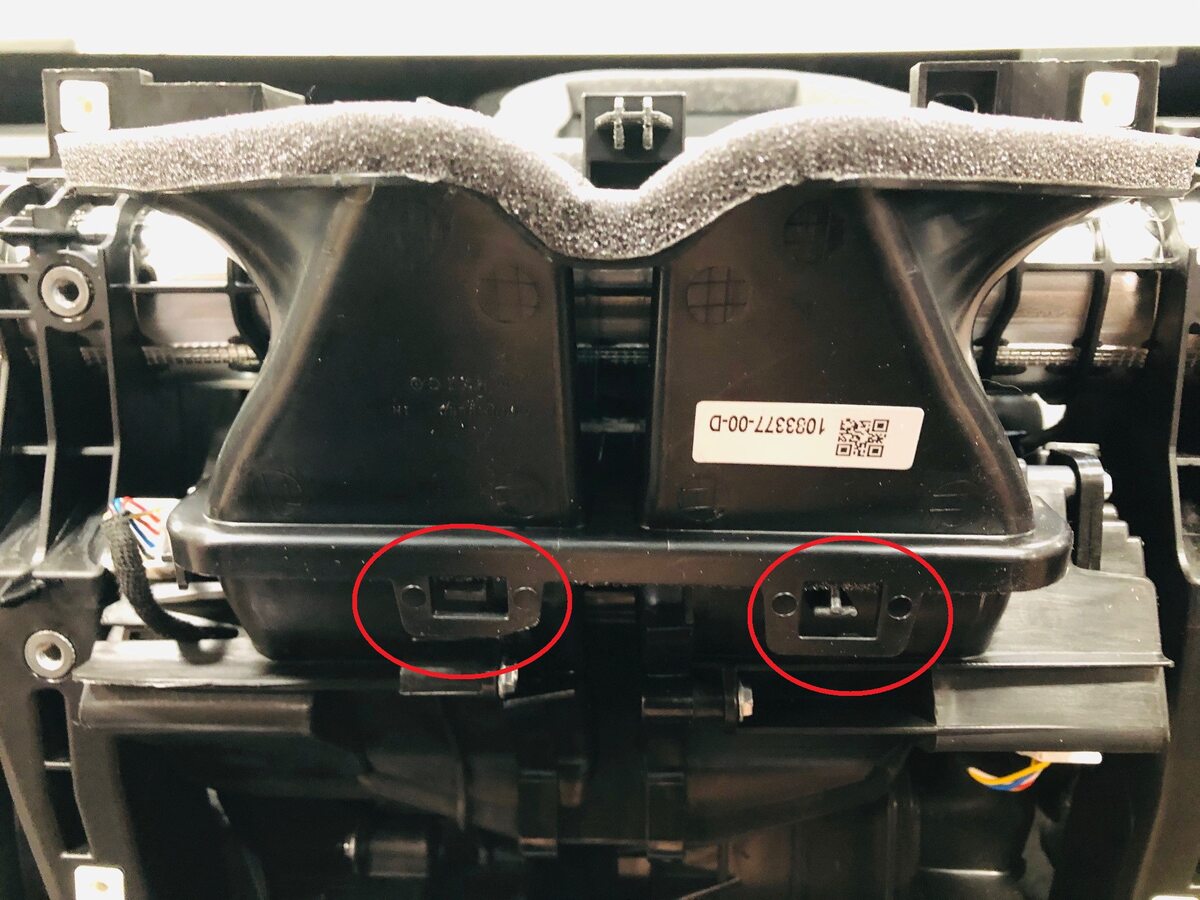

  165. Remove bleeder duct adapter from HVAC assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    4x clips

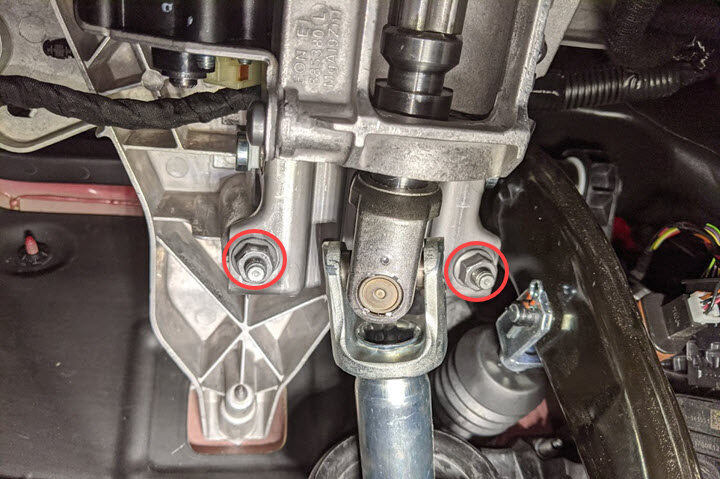

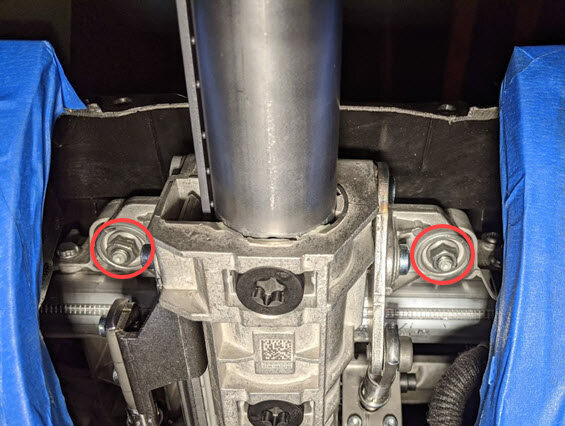

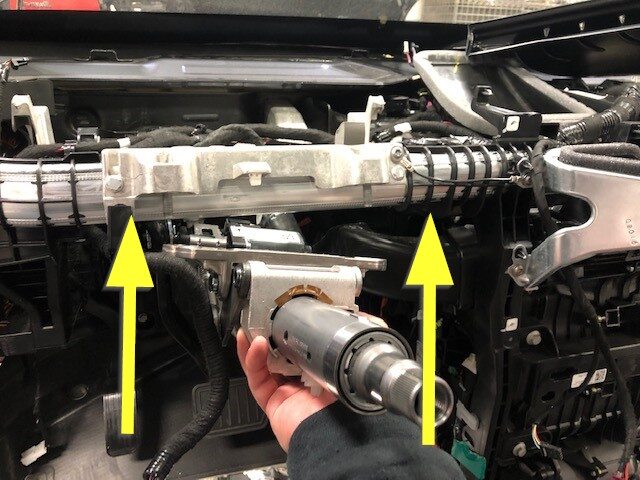

  166. Remove nuts securing steering column to cross car beam and carefully lower steering column
    Informational PurposesAn informational icon, calling your attention
    Note
    4x nuts, 13mm, 15 Nm
  167. Remove bolts securing cross car beam to LH side of bulkhead
    Informational PurposesAn informational icon, calling your attention
    Note
    2x bolts, 13mm, 25 Nm

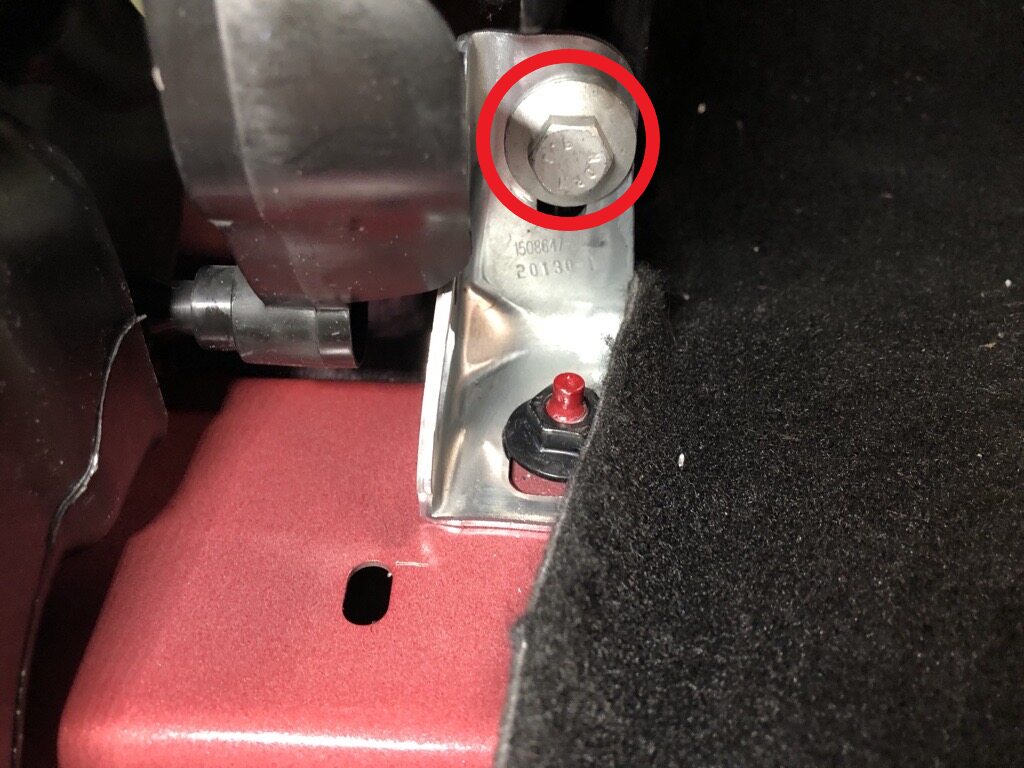

  168. Remove bolt securing LH cross car beam bracket to cross beam
    Informational PurposesAn informational icon, calling your attention
    Note
    1x bolt, 13mm, 25 Nm
  169. Remove nut securing LH cross car beam bracket to body
    Informational PurposesAn informational icon, calling your attention
    Note
    1x nut, 13mm, 25 Nm
  170. Remove LH cross car beam bracket from vehicle

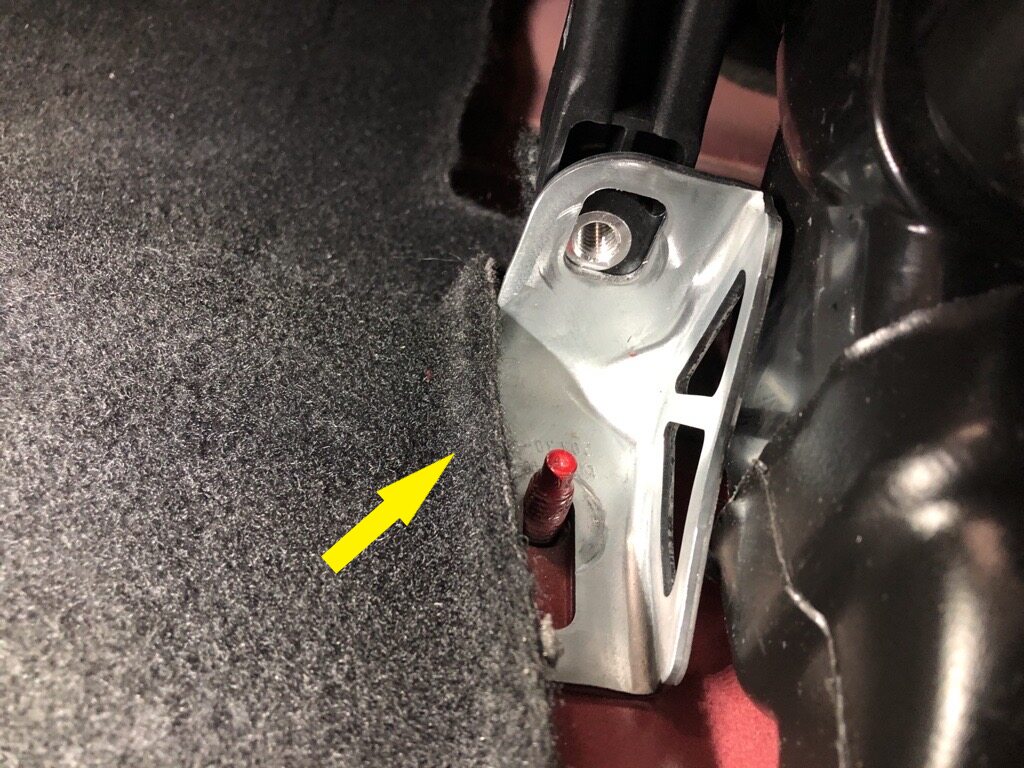

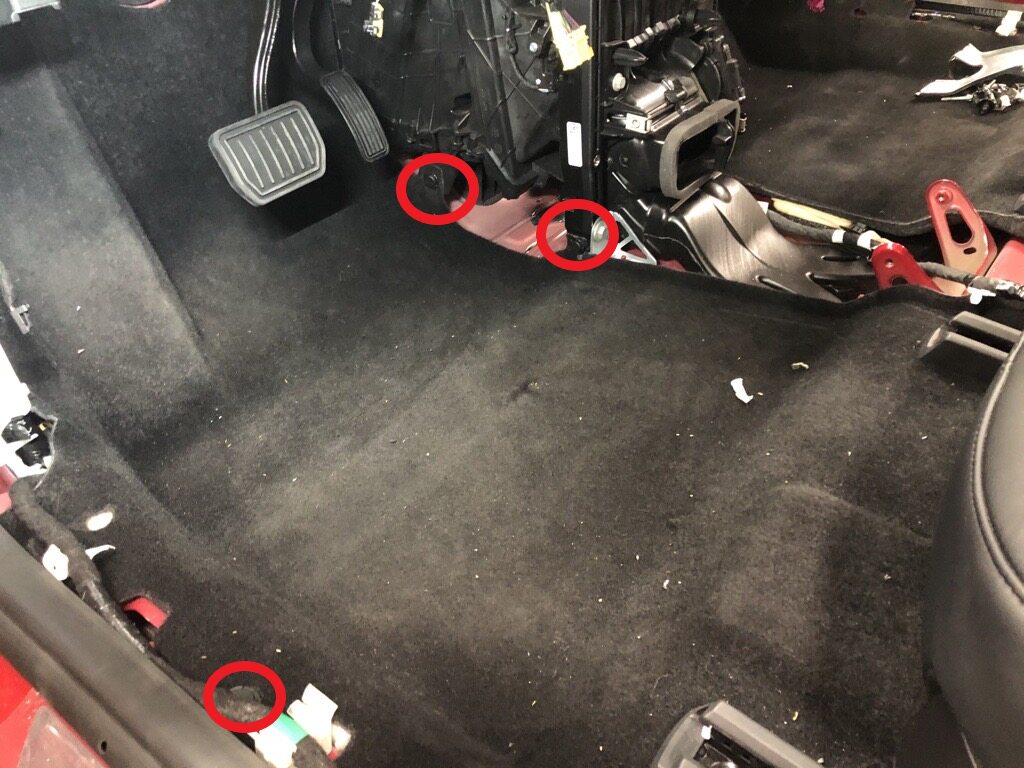

  171. Remove clips securing LH front main carpet to vehicle
    Informational PurposesAn informational icon, calling your attention
    Note
    3x clips, Number of clips on new vehicles may vary
  172. Remove bolt securing RH cross car beam bracket to cross beam
    Informational PurposesAn informational icon, calling your attention
    Note
    1x bolt, 13mm, 25 Nm
  173. Remove nut securing RH cross car beam bracket to body
    Informational PurposesAn informational icon, calling your attention
    Note
    1x nut, 13mm, 25 Nm
  174. Remove RH cross car beam bracket from vehicle

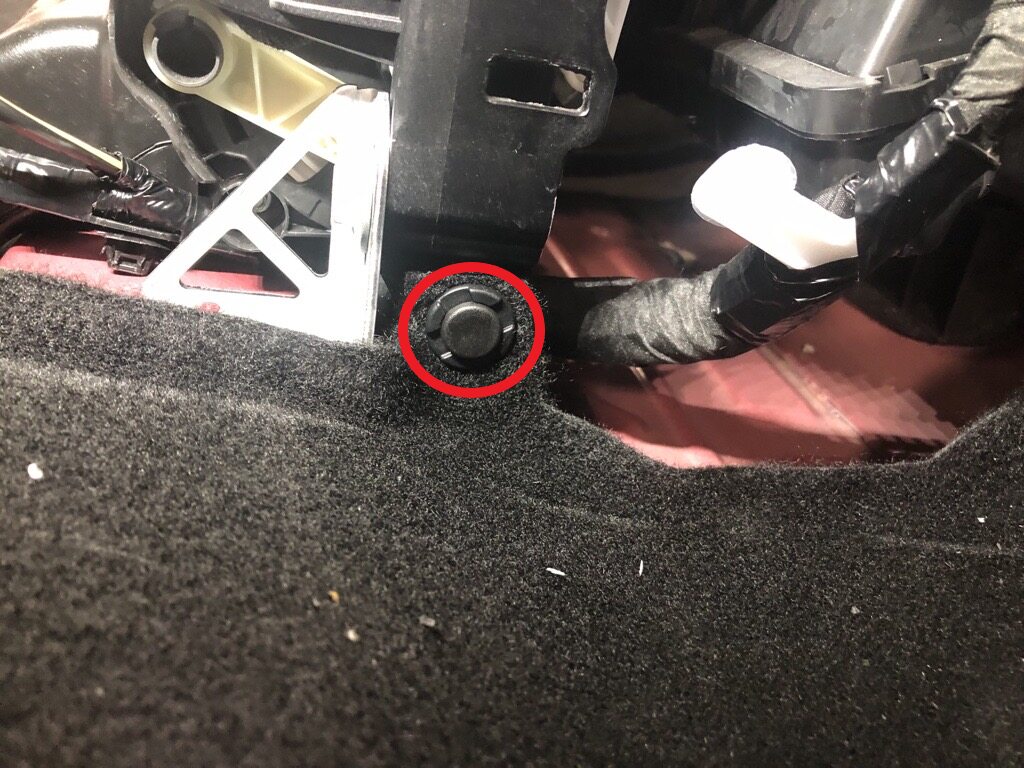

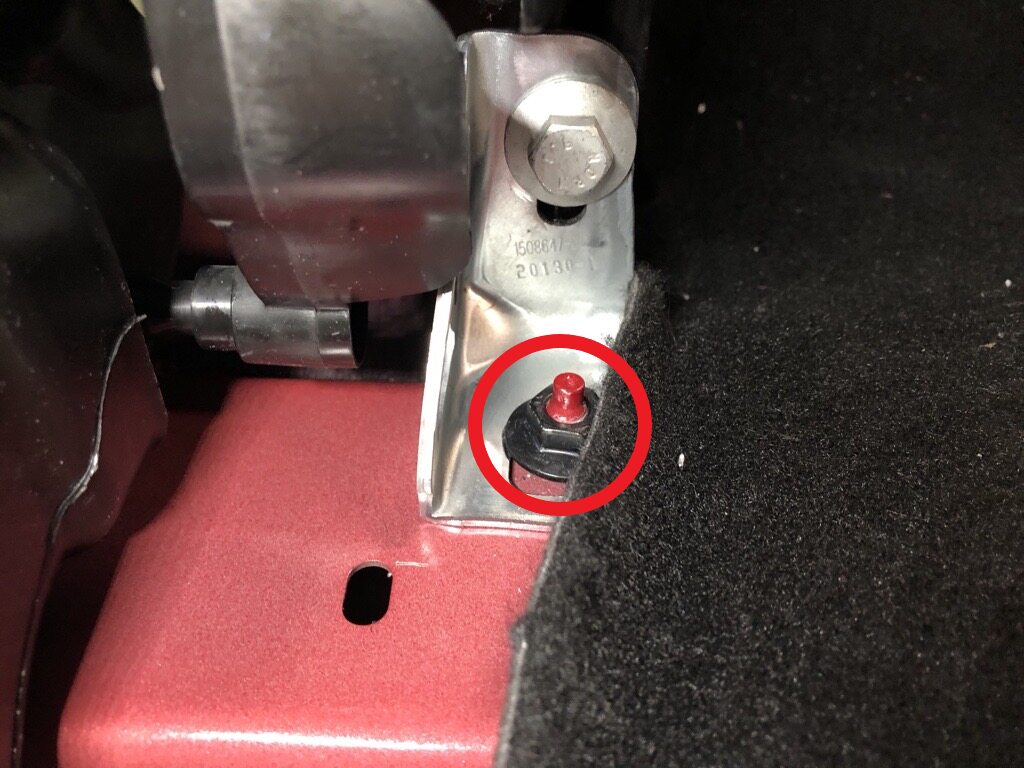

  175. Remove clip securing RH front main carpet to cross car beam
    Informational PurposesAn informational icon, calling your attention
    Note
    1 clip

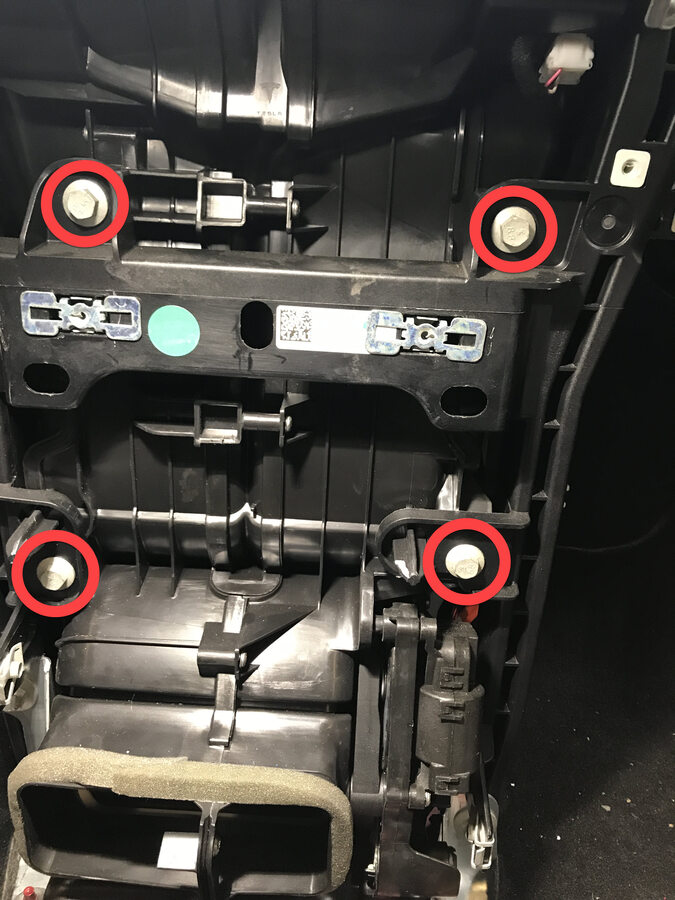

  176. Remove bolts securing cross car beam to HVAC assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    4x bolts, 10mm, 5.5 Nm
  177. Remove bolt securing cross car beam to HVAC assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    1x bolt, 10mm, 5.5 Nm

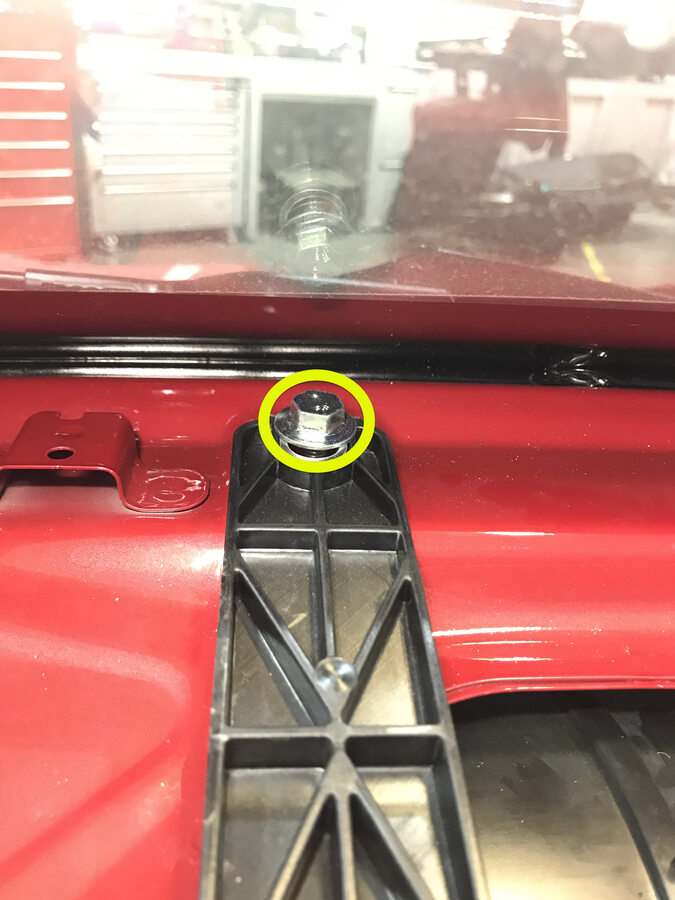

  178. Loosen bolt securing cross car beam to upper cowl
    Informational PurposesAn informational icon, calling your attention
    Note
    1x bolt, 13mm, 25 Nm

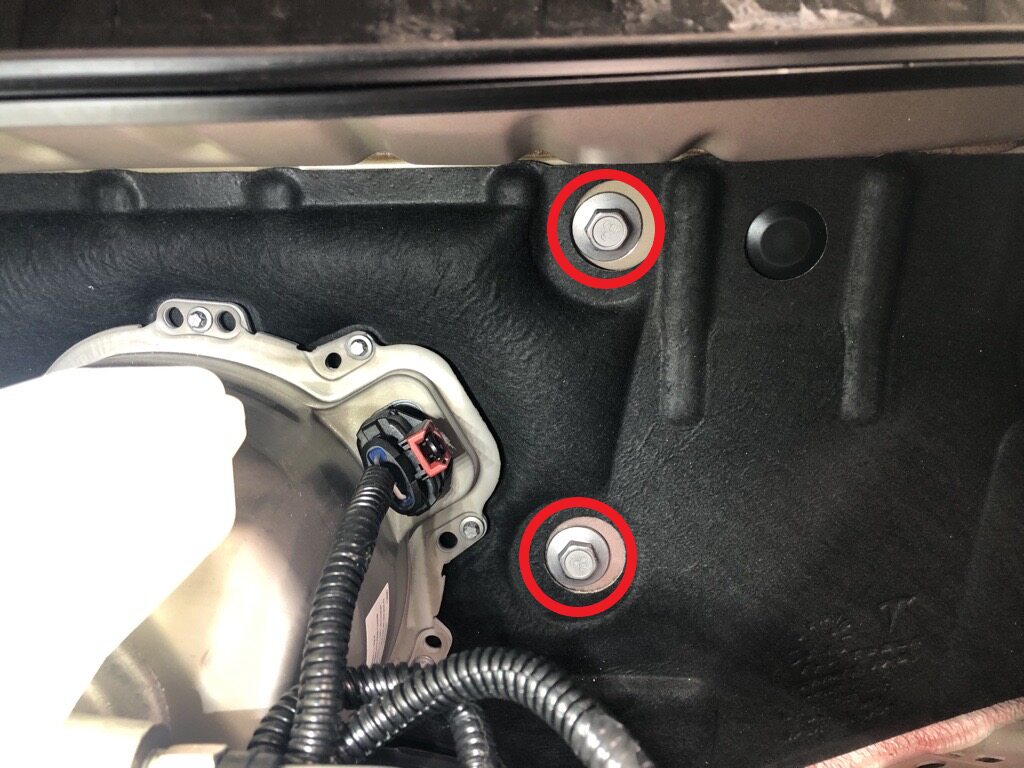

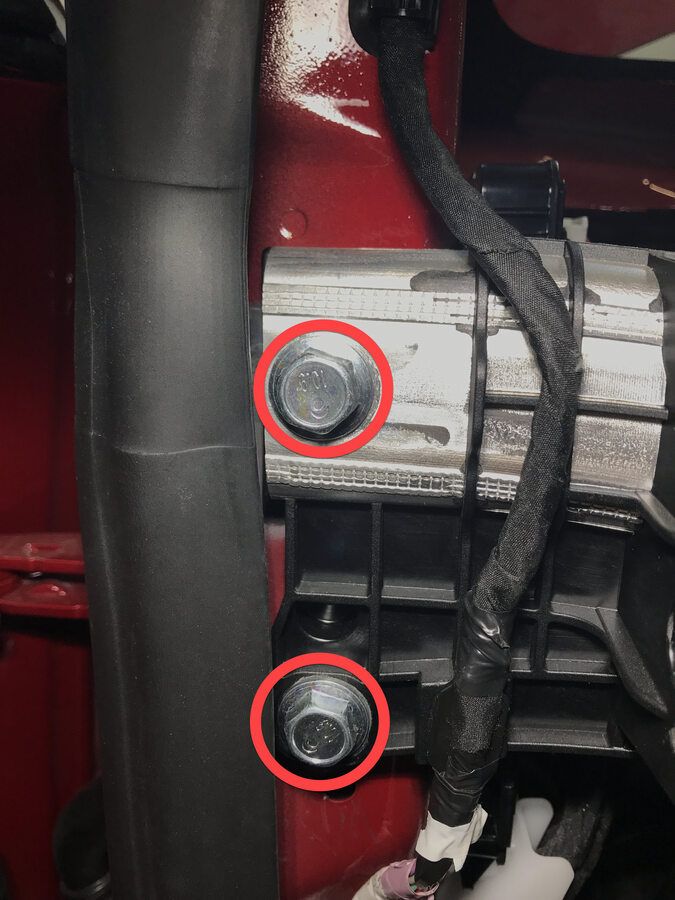

  179. Remove bolts securing LH cross car beam to body
    Informational PurposesAn informational icon, calling your attention
    Note
    2x bolts, 15mm, 29 Nm
  180. Remove the bolts securing the RH cross car beam to body
    Informational PurposesAn informational icon, calling your attention
    Note
    2x bolts, 15mm, 29 Nm

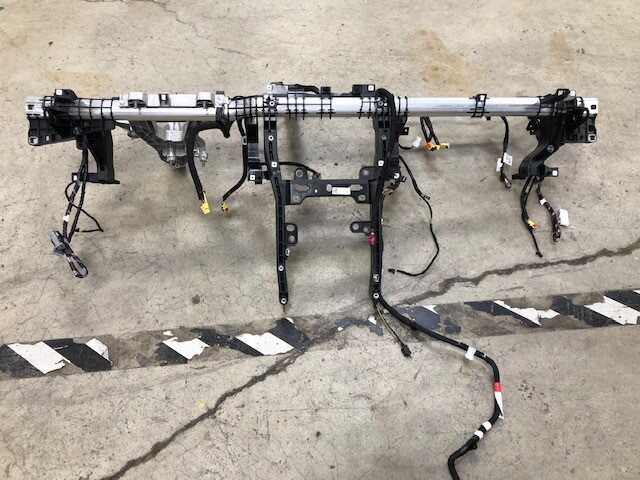

  181. Remove cross car beam from vehicle
    Informational PurposesAn informational icon, calling your attention
    Note
    Recommend assistance, Use caution not to damage the interior

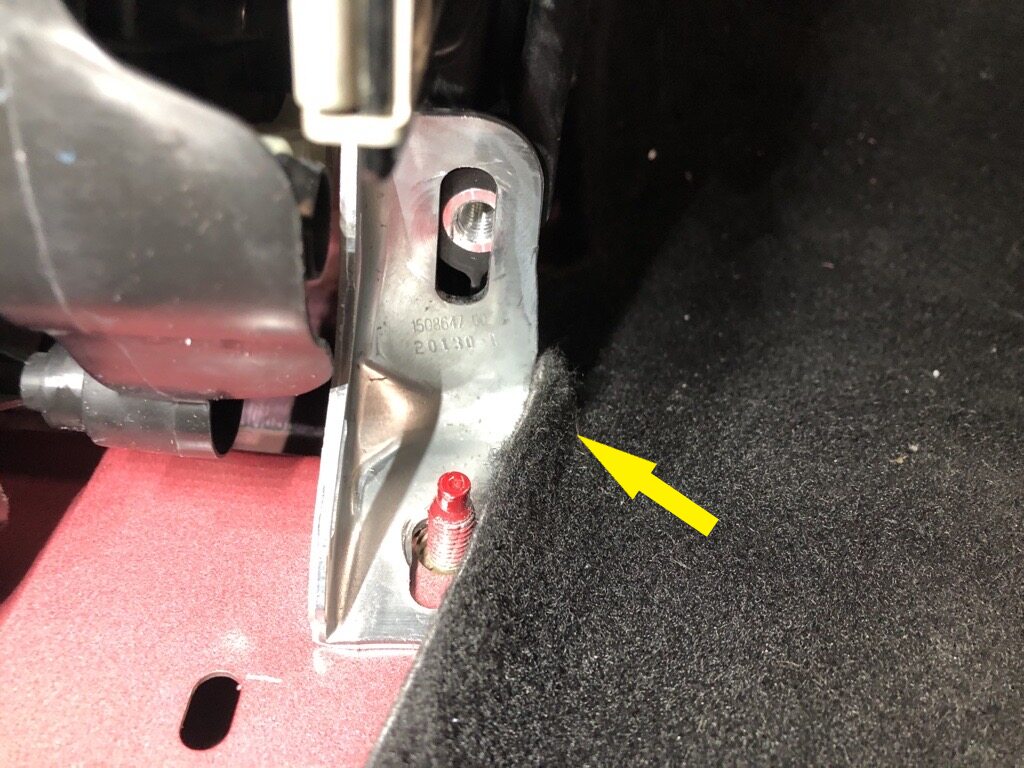

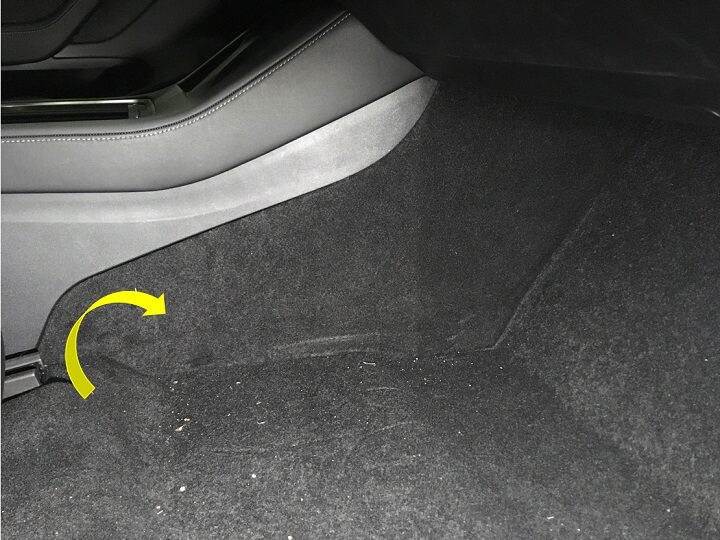

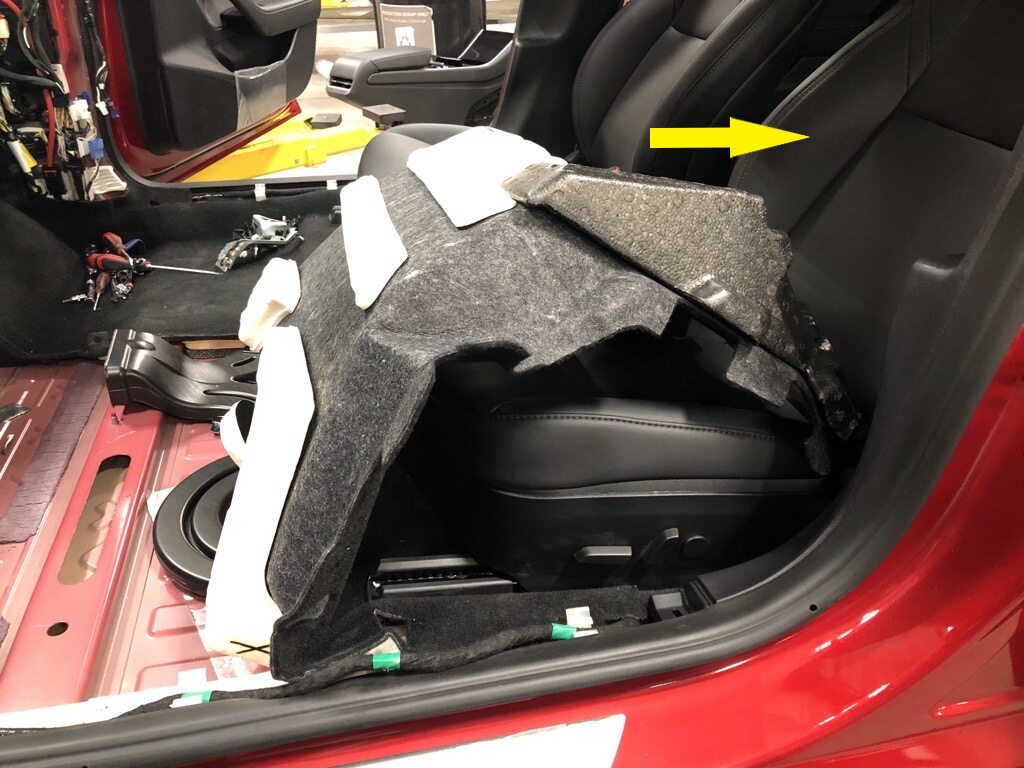

  182. Lift LH front main carpet towards LH front seat
  183. Disconnect HVAC harness connector from right body controller
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector

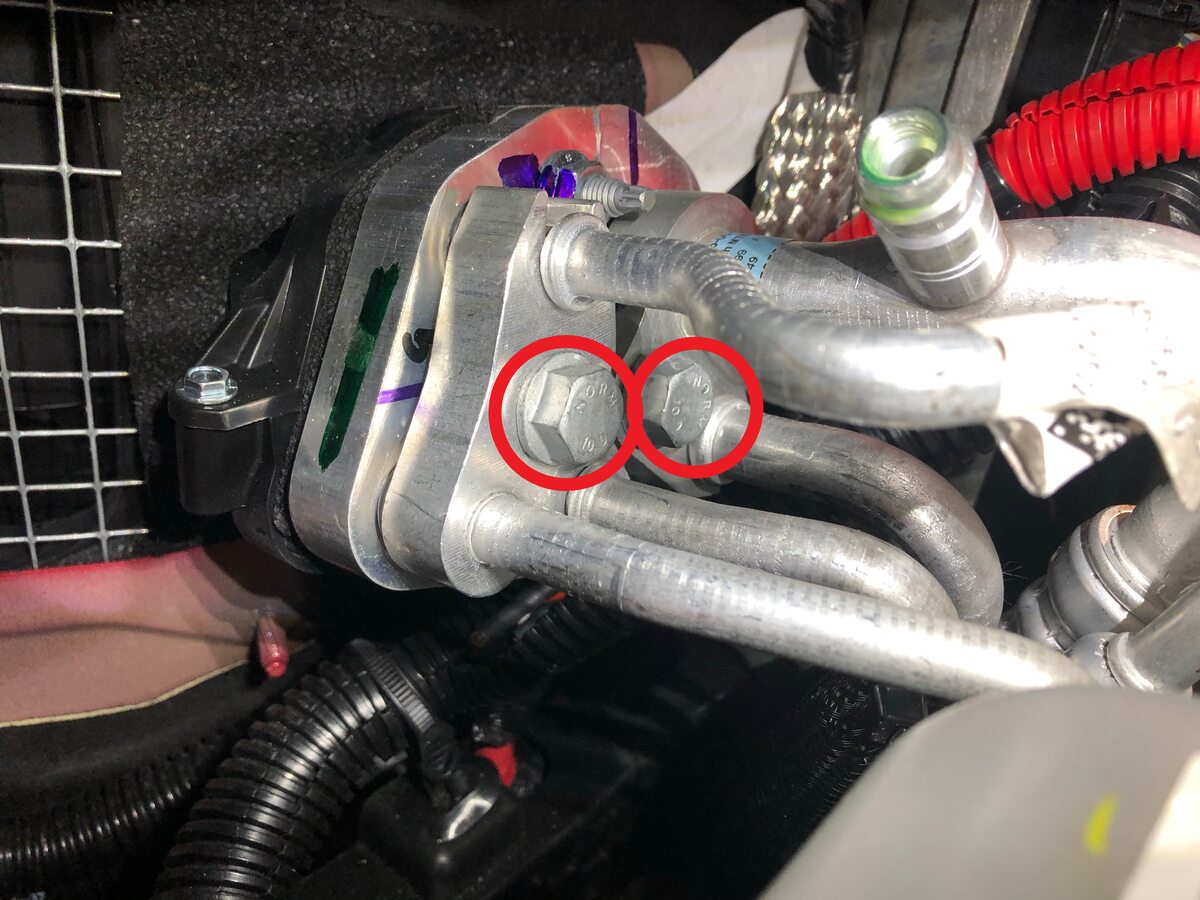

  184. Remove AC manifold to HVAC line from HVAC assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    2x bolts, 13mm, 22 Nm

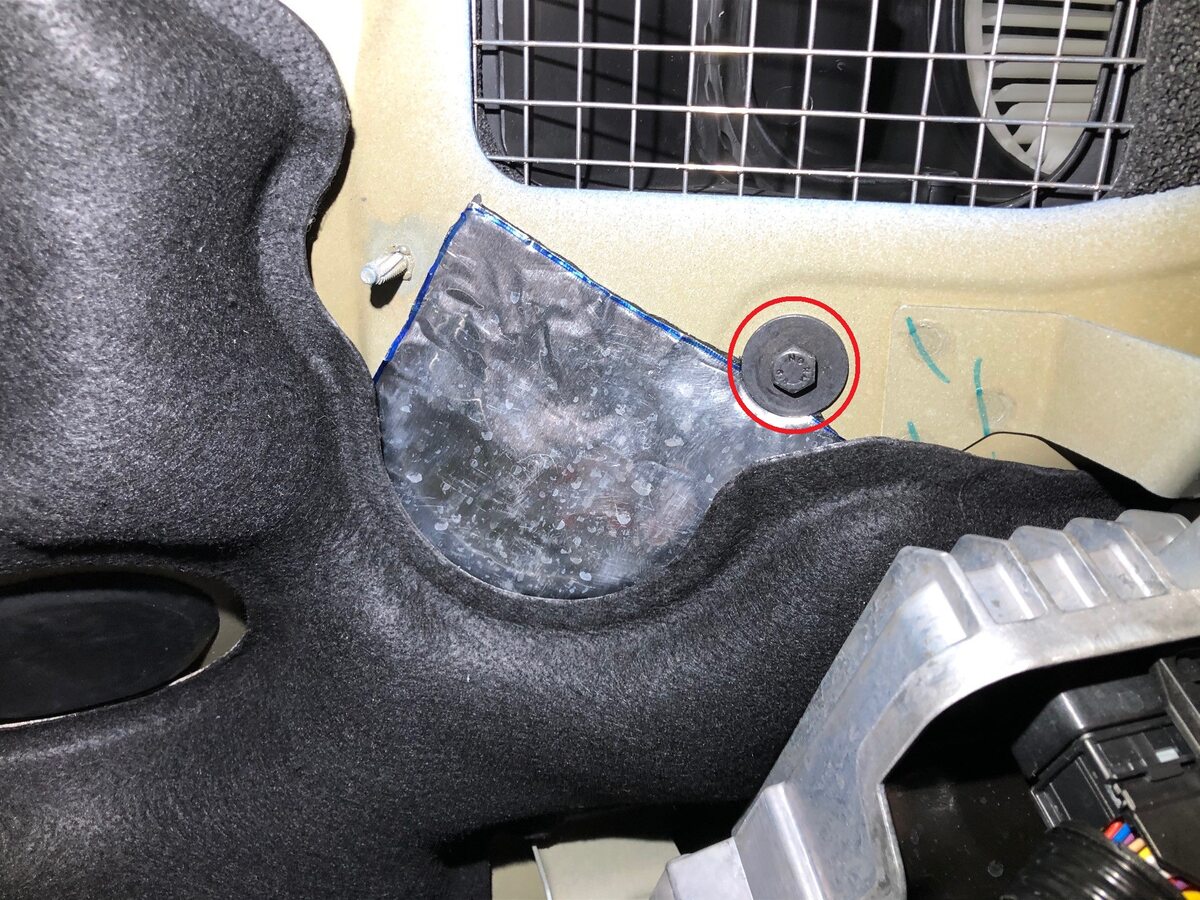

  185. Remove bolt securing HVAC assembly to RH side of bulkhead
    Informational PurposesAn informational icon, calling your attention
    Note
    1x bolt, 10mm, 5.5 Nm, Recommend assistance to support HVAC assembly during removal

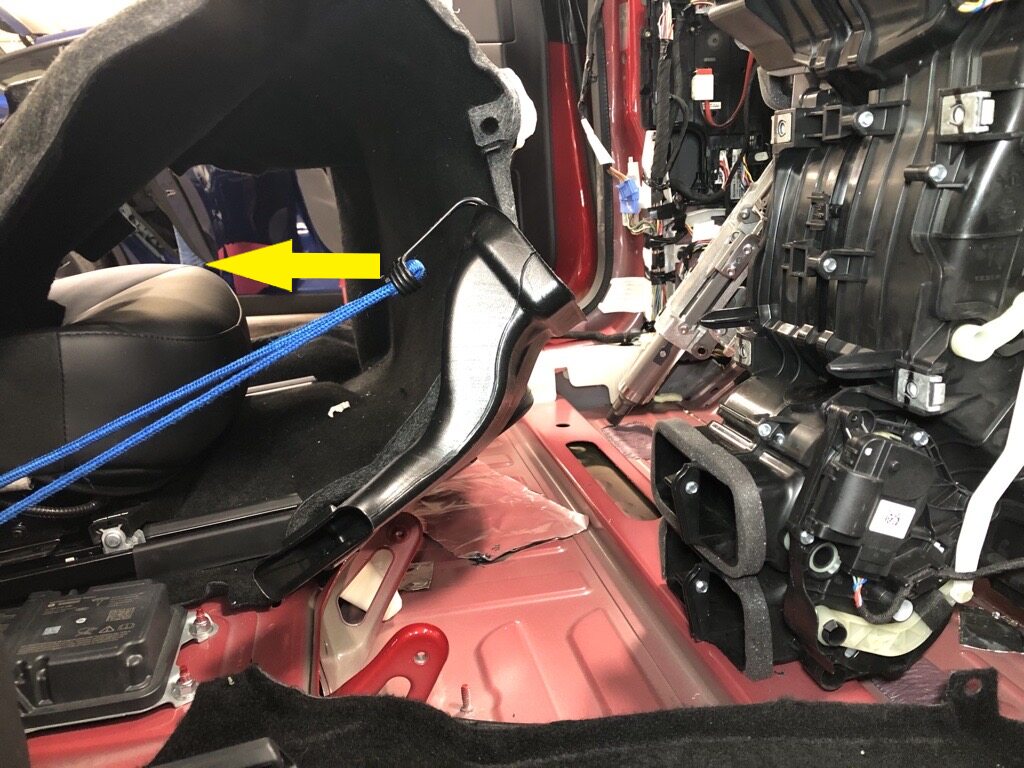

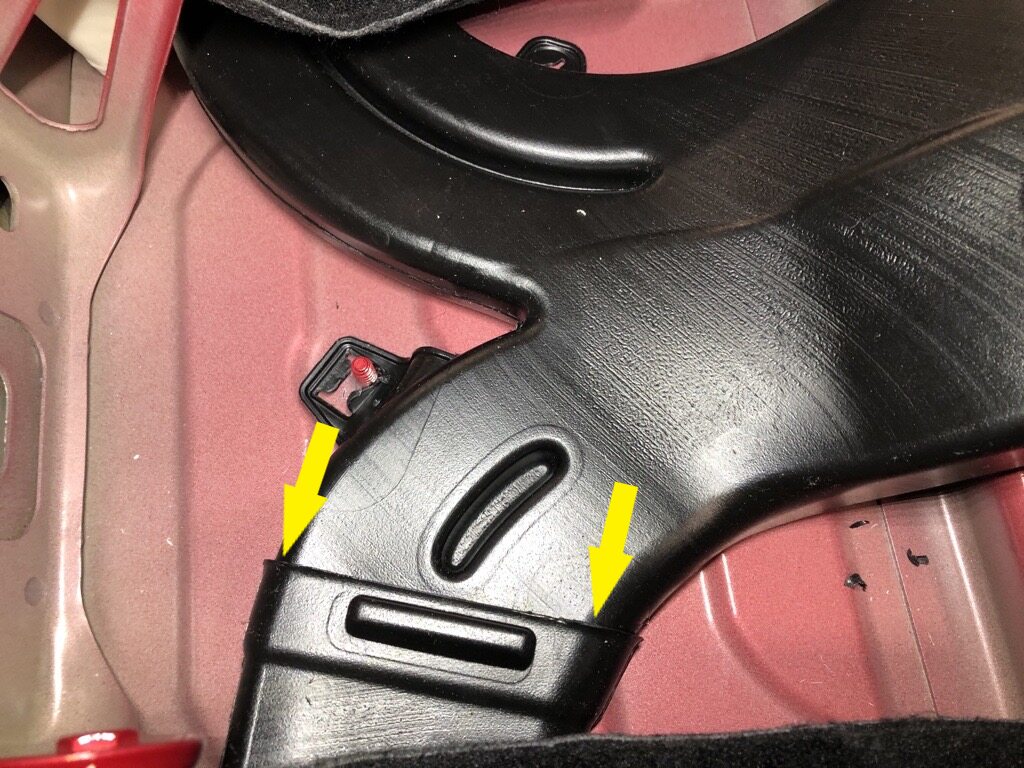

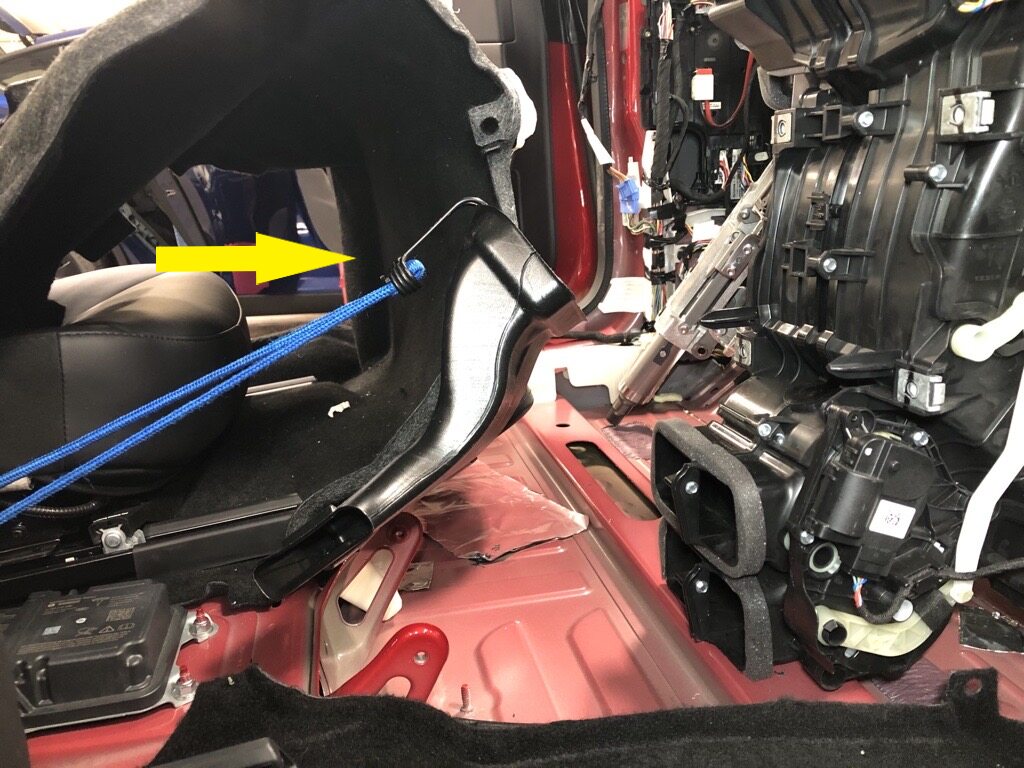

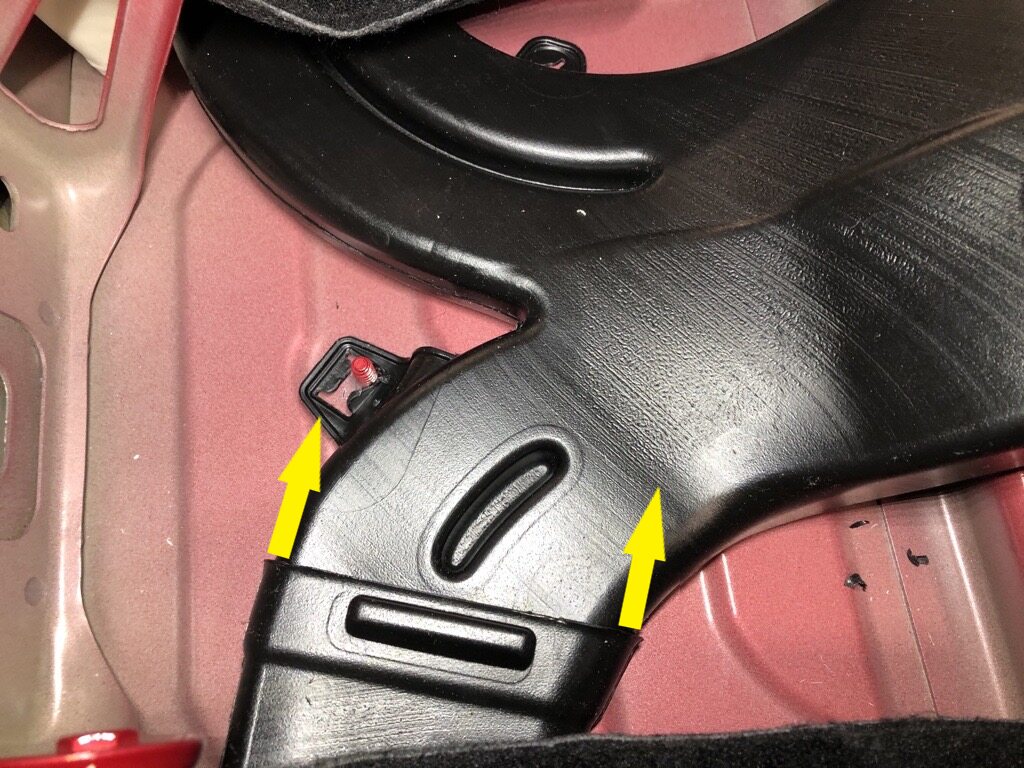

  186. Remove main floor duct from HVAC assembly and set aside
    Informational PurposesAn informational icon, calling your attention
    Note
    Use a bungee cord as needed to secure floor duct

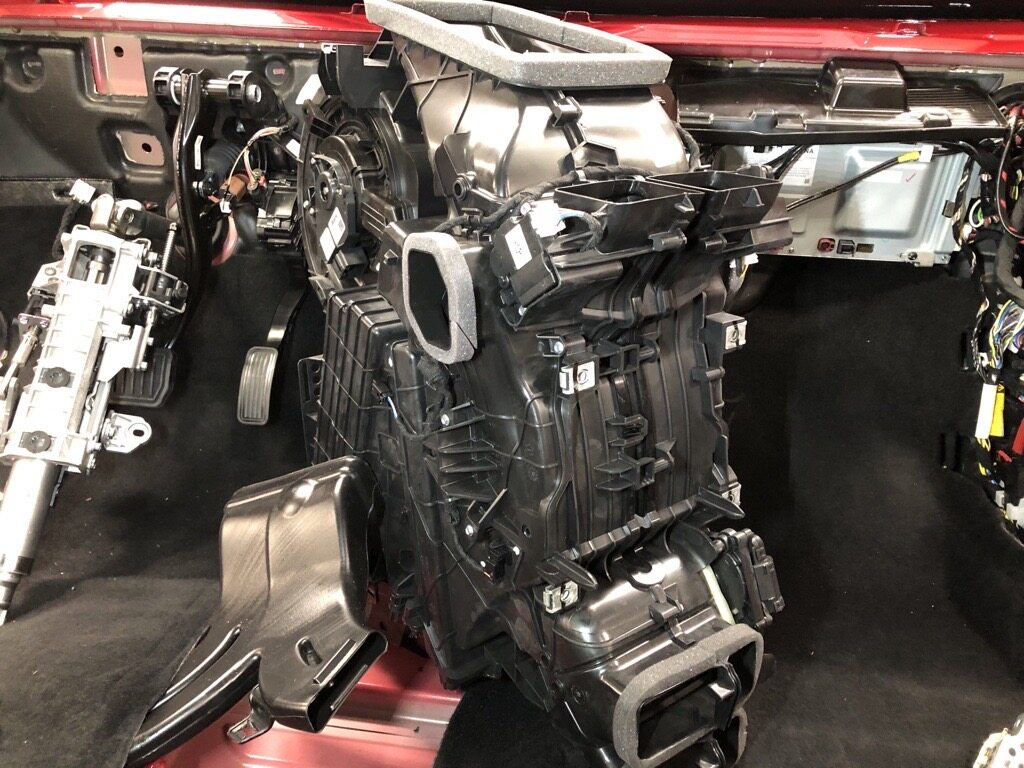

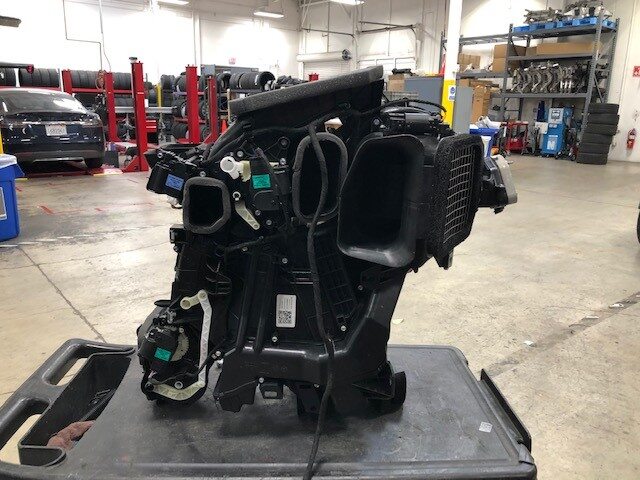

  187. Remove HVAC assembly from vehicle
    Informational PurposesAn informational icon, calling your attention
    Note
    Recommend assistance, Rotate HVAC assembly counter clockwise and remove out of RH front door

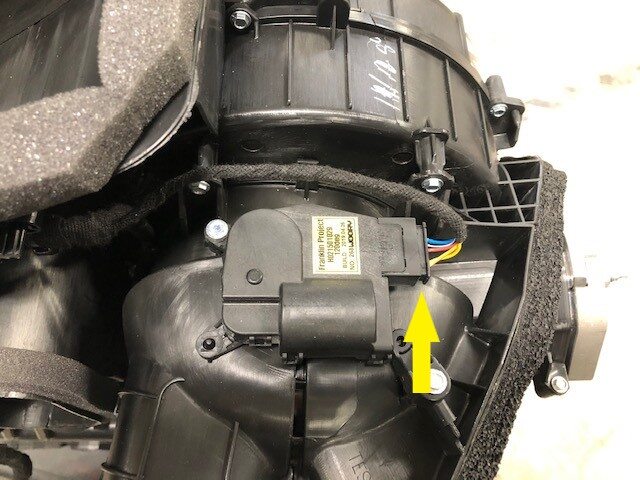

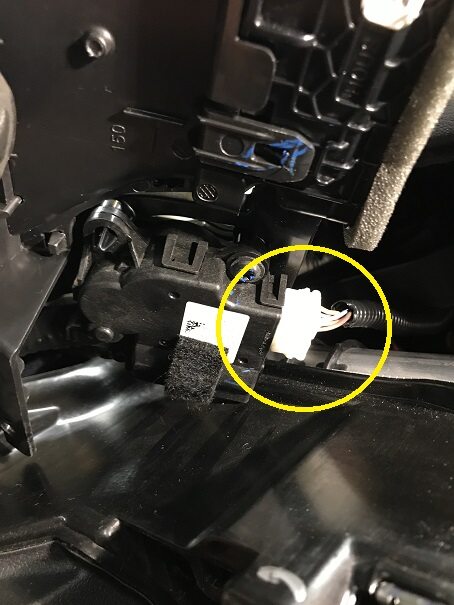

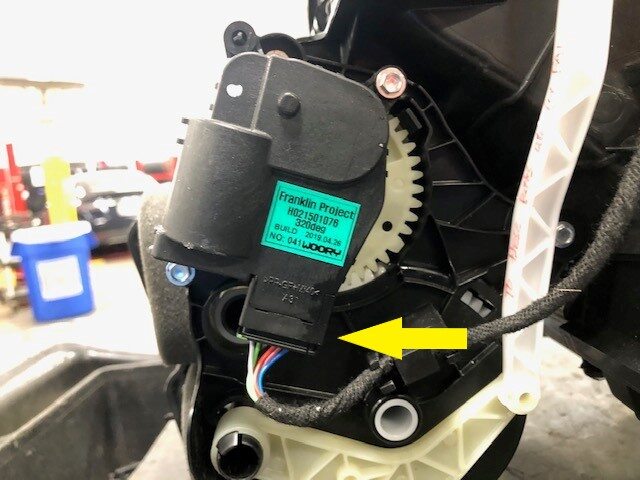

  188. Disconnect intake actuator connector
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector

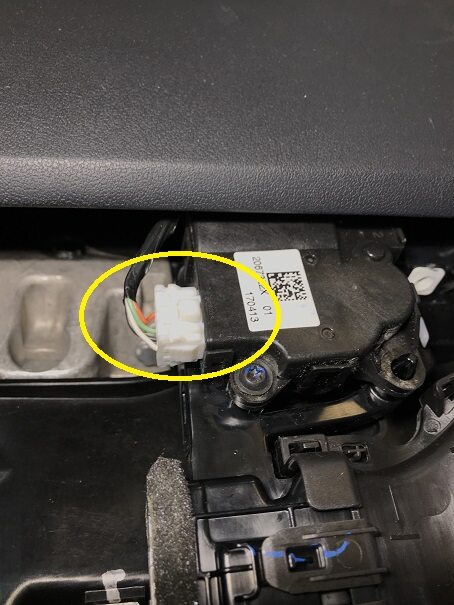

  189. Disconnect upper mode actuator connector
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector
  190. Disconnect RH lower duct thermistor connector
    Informational PurposesAn informational icon, calling your attention
    Note

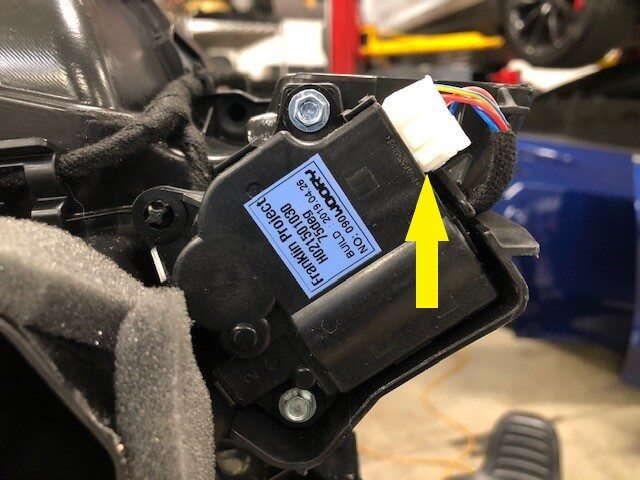

    1x connector
  191. Disconnect lower mode actuator connector
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector

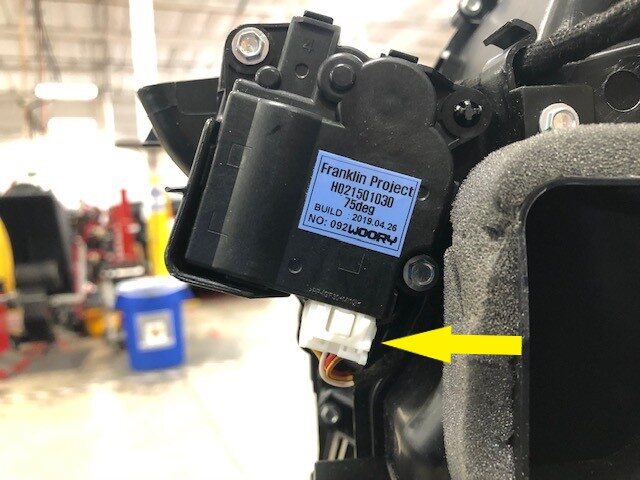

  192. Disconnect RH bleed actuator connector
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector
  193. Disconnect LH bleed actuator connector
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector

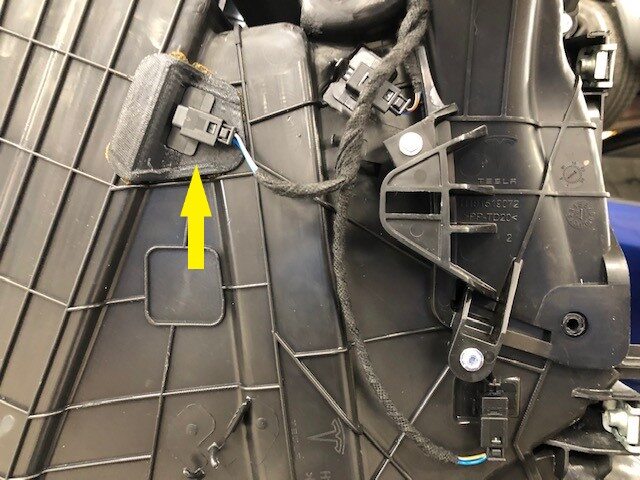

  194. Disconnect LH evaporator thermistor connector
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector

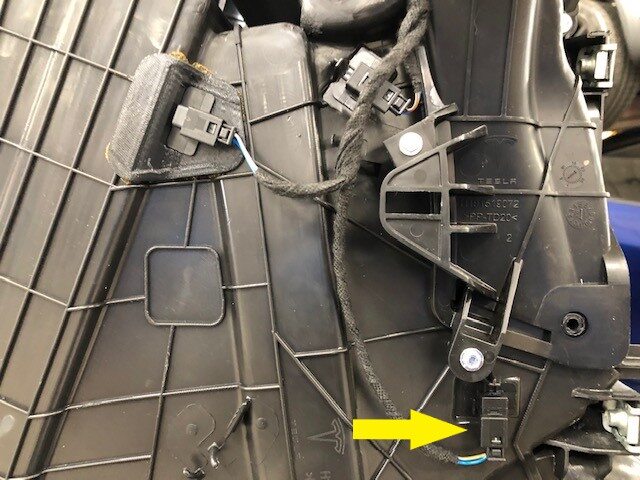

  195. Disconnect LH lower duct thermistor connector
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector

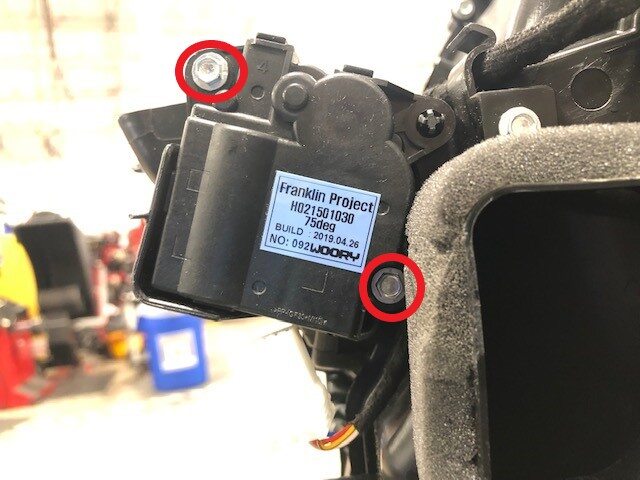

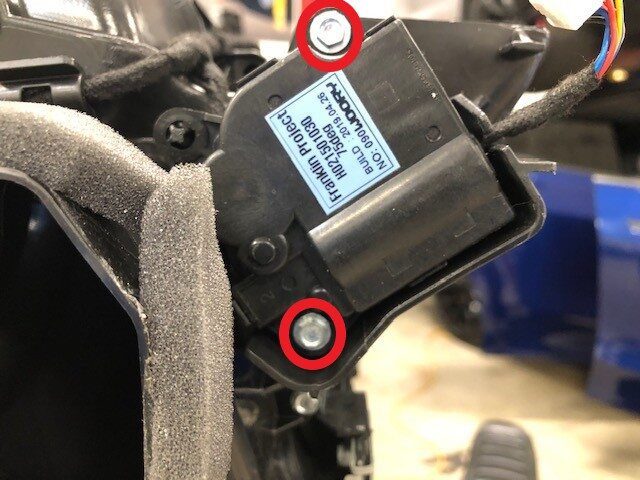

  196. Remove bolts securing LH bleed actuator to HVAC assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    2x bolts, 6mm, 2.3 Nm
  197. Remove bolts securing RH bleed actuator to HVAC assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    2x bolts, 6mm, 2.3 Nm

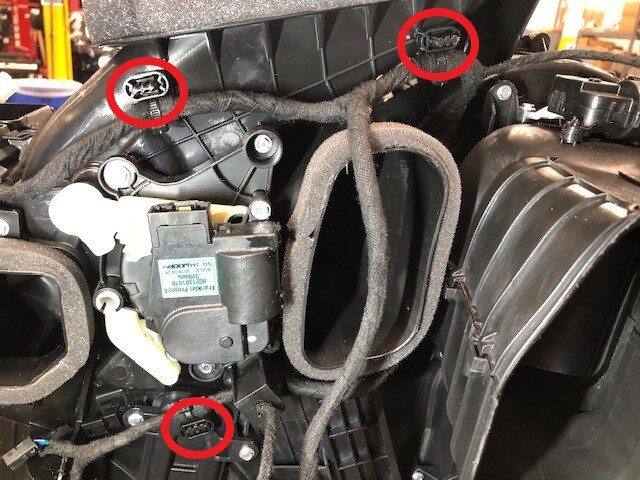

  198. Release clips on RH side of HVAC assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    3x clips

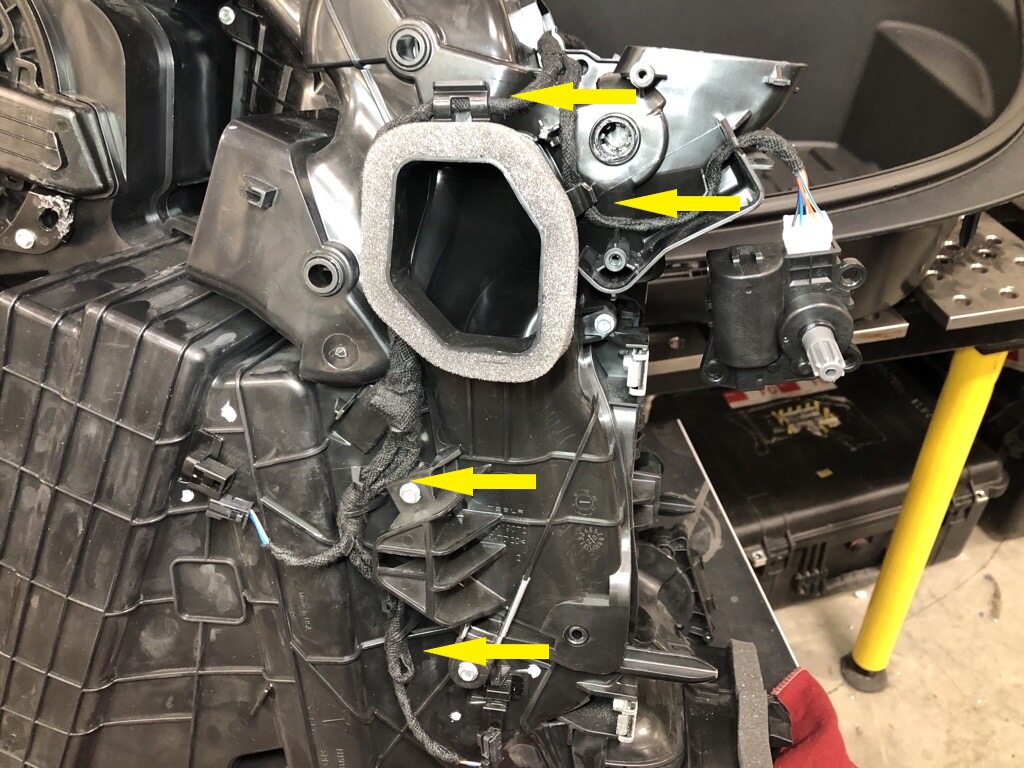

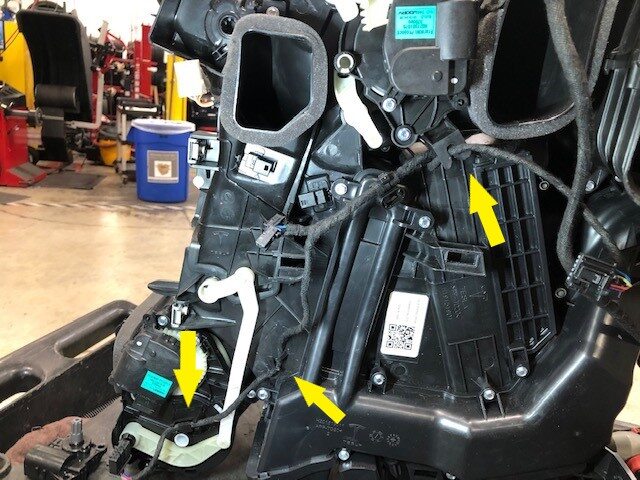

  199. Release HVAC harness from RH holding tabs
    Informational PurposesAn informational icon, calling your attention
    Note
    3x holding tabs

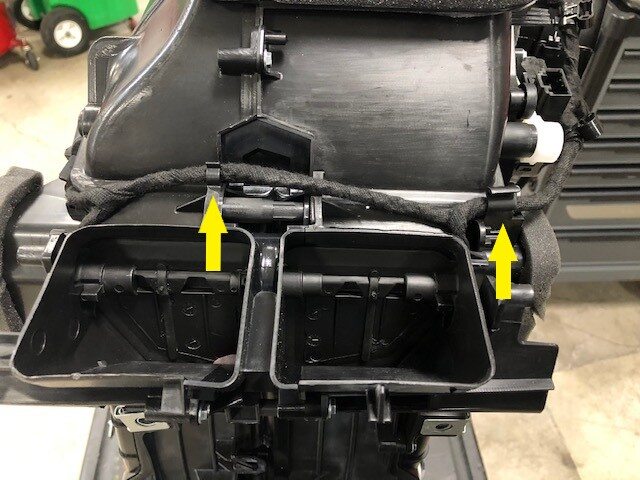

  200. Release HVAC harness from upper holding tabs
    Informational PurposesAn informational icon, calling your attention
    Note
    2x holding tabs

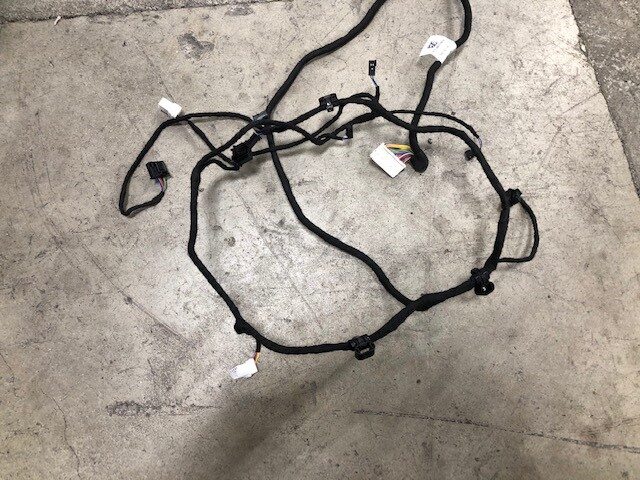

  201. Release HVAC harness from LH holding tabs and remove HVAC harness from HVAC assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    4x holding tabs
  202. Position HVAC harness onto HVAC assembly and connect LH evaporator thermistor
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector
  203. Connect LH lower duct thermistor connector
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector
  204. Install HVAC harness into LH holding tabs
    Informational PurposesAn informational icon, calling your attention
    Note
    4x holding tabs
  205. Install HVAC harness into upper holding tabs
    Informational PurposesAn informational icon, calling your attention
    Note
    2x holding tabs
  206. Install clips on RH side of HVAC assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    3x clips
  207. Install HVAC harness into RH holding tabs
    Informational PurposesAn informational icon, calling your attention
    Note
    3x holding tabs
  208. Connect lower mode actuator connector
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector
  209. Connect upper mode actuator connector
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector
  210. Connect intake actuator connector
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector
  211. Connect RH lower duct thermistor connector
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector
  212. Install bolts securing LH bleed actuator to HVAC assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    2x bolts, 6mm, 2.3 Nm
  213. Install bolts securing RH bleed actuator to HVAC assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    2x bolts, 6mm, 2.3 Nm
  214. Connect RH bleed actuator connector
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector
  215. Connect LH bleed actuator connector
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector
  216. Position HVAC assembly into vehicle for installation
    Informational PurposesAn informational icon, calling your attention
    Note
    Recommend assistance, Install HVAC assembly through RH front door, Rotate HVAC assembly clockwise for installation
  217. Install bolt securing HVAC assembly to RH side of bulkhead
    Informational PurposesAn informational icon, calling your attention
    Note
    1x bolt, 10mm, 5.5 Nm
  218. Install main floor duct to HVAC assembly
  219. Replace seal washers on supermanifold to HVAC AC line assembly on HVAC side
    Informational PurposesAn informational icon, calling your attention
    Note
    5x seal washers, Install new seal washers, Lube seal washers with ND-11 oil
  220. Install supermanifold to HVAC AC line assembly to HVAC assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    2x bolts, 13 mm, 22 Nm
  221. Reconnect AC hoses to vehicle

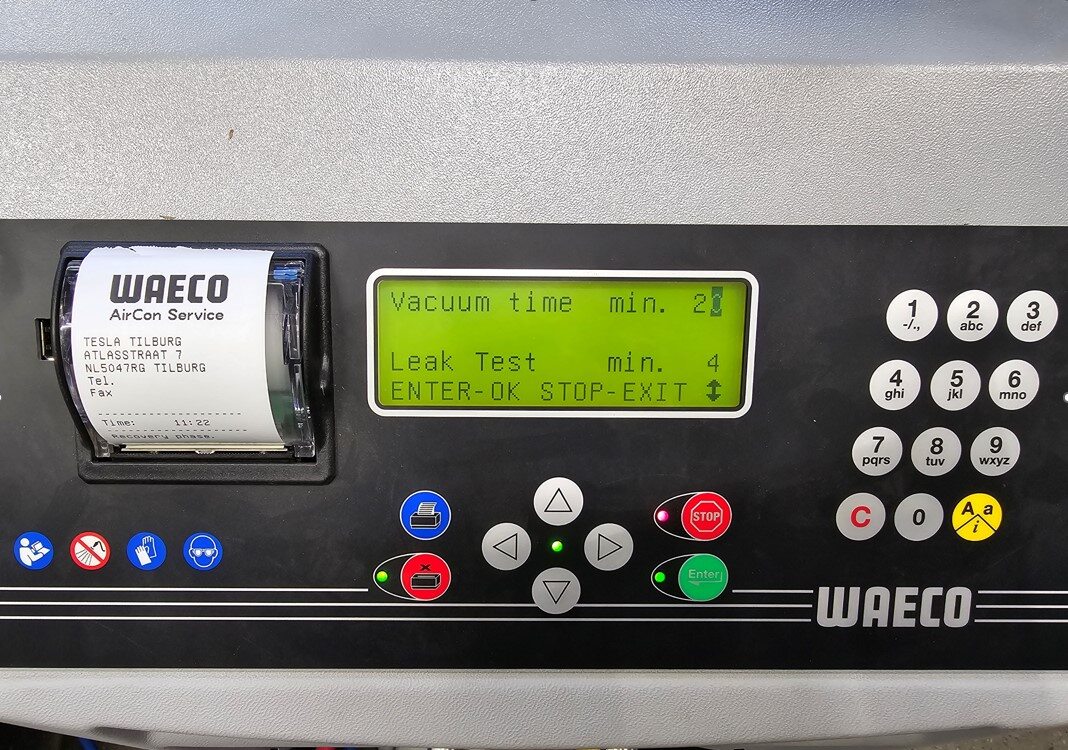

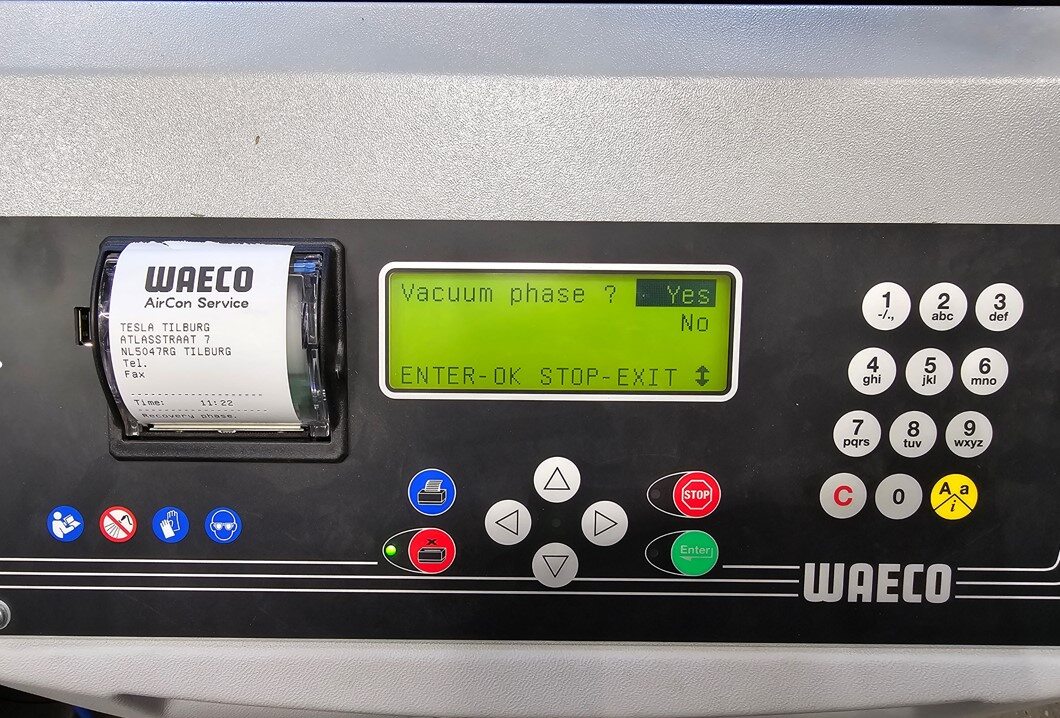

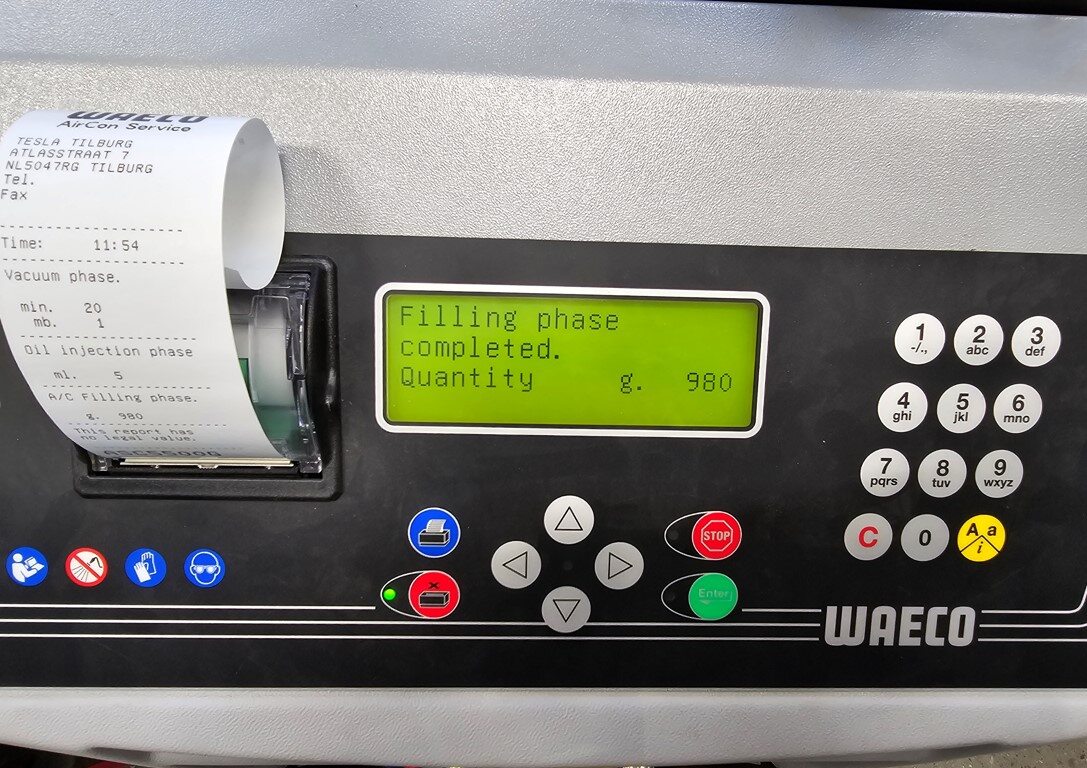

  222. Perform system vacuum and refrigerant refill
    Informational PurposesAn informational icon, calling your attention
    Note
    Select 20 mins of Vacuum, Recharge refrigerant to car's specs, select both HP and LP for charging, add oil quantity as needed, If drained oil level increased more than 1.01 oz (30 mL) refer to drained oil loss chart article 353700
  223. Connect HVAC harness connector to right body controller
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector
  224. Install LH front main carpet into position for installation
  225. Position cross car beam to vehicle for installation
    Informational PurposesAn informational icon, calling your attention
    Note
    Recommend assistance, Use caution not to damage the interior
  226. Loosely install bolts securing RH cross car beam to body
    Informational PurposesAn informational icon, calling your attention
    Note
    2x bolts, 15mm, 29 Nm, Torque at later step
  227. Loosely install bolts securing LH cross car beam to body
    Informational PurposesAn informational icon, calling your attention
    Note
    2x bolts, 15mm, 29 Nm, Torque at later step
  228. Loosely install bolt securing cross car beam to upper cowl
    Informational PurposesAn informational icon, calling your attention
    Note
    1x bolt, 13mm, 25 Nm
  229. Loosely install bolt securing cross car beam to HVAC assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    1x bolt, 10mm, 5.5 Nm, Torque at later step
  230. Loosely install bolts securing cross car beam to HVAC assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    4x bolts, 10mm, 5.5 Nm, Torque at later step
  231. Position RH cross car beam bracket to vehicle for installation
  232. Loosely install nut securing RH cross car beam bracket to body
    Informational PurposesAn informational icon, calling your attention
    Note
    1x nut, 13mm, 25 Nm, Torque at later step
  233. Loosely install bolt securing RH cross car beam bracket to cross car beam
    Informational PurposesAn informational icon, calling your attention
    Note
    1x bolt, 13mm, 25 Nm, Torque at later step
  234. Position LH cross car beam bracket to vehicle for installation
  235. Loosely Install nut securing LH cross car beam bracket to body
    Informational PurposesAn informational icon, calling your attention
    Note
    1x nut, 13mm, 25 Nm, Torque at later step
  236. Loosely install bolt securing cross car beam to LH cross car beam bracket
    Informational PurposesAn informational icon, calling your attention
    Note
    1x bolt, 13mm, 25 Nm, Torque at later step
  237. Install bolts securing cross car beam to LH side of bulkhead
    Informational PurposesAn informational icon, calling your attention
    Note
    2x bolts, 13mm, 25 Nm
  238. Torque bolt securing cross car beam to upper cowl
    Informational PurposesAn informational icon, calling your attention
    Note
    1x bolts, 13mm, 25 Nm
  239. Torque bolt securing cross car beam to HVAC assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    1x bolts, 10mm, 5.5 Nm
  240. Torque bolts securing cross car beam to HVAC module
    Informational PurposesAn informational icon, calling your attention
    Note
    4x bolts, 10mm, 5.5 Nm
  241. Torque bolts securing the LH cross car beam to body
    Informational PurposesAn informational icon, calling your attention
    Note
    2x bolts, 15mm, 29 Nm
  242. Torque bolts securing RH cross car beam to body
    Informational PurposesAn informational icon, calling your attention
    Note
    2x bolts, 15mm, 29 Nm
  243. Torque the nut securing the RH cross car beam bracket to body
    Informational PurposesAn informational icon, calling your attention
    Note
    1x nut, 13mm, 25 Nm
  244. Torque bolt securing RH cross car beam bracket to cross car beam
    Informational PurposesAn informational icon, calling your attention
    Note
    1x bolt, 13mm, 25 Nm
  245. Install clip securing RH front main carpet to cross car beam
    Informational PurposesAn informational icon, calling your attention
    Note
    1x clip
  246. Torque nut securing LH cross car beam bracket to vehicle
    Informational PurposesAn informational icon, calling your attention
    Note
    1x nut, 13mm, 25 Nm
  247. Torque bolt securing LH cross car beam bracket to cross car beam
    Informational PurposesAn informational icon, calling your attention
    Note
    1x bolt, 13mm, 25 Nm
  248. Install clips securing LH front main cabin carpet to vehicle
    Informational PurposesAn informational icon, calling your attention
    Note
    3x push clips, Number of clips on newer vehicles may vary
  249. Position steering column for installation
  250. Install nuts securing steering column to cross car beam
    Informational PurposesAn informational icon, calling your attention
    Note
    4x nuts, 13mm, 15 Nm
  251. Install bleeder duct adapter to HVAC
    Informational PurposesAn informational icon, calling your attention
    Note
    4x clips
  252. Install RH center display bracket
    Informational PurposesAn informational icon, calling your attention
    Note
    2x bolts, T30, 12 Nm
  253. Install LH center display bracket
    Informational PurposesAn informational icon, calling your attention
    Note
    2x bolts, T30, 12 Nm
  254. Install clip located on RH side of cross car beam
  255. Connect IP harness connectors to RH controller area
    Informational PurposesAn informational icon, calling your attention
    Note
    3x connector
  256. Install dash harness connector to right body controller
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector
  257. Connect IP harness connectors to car computer
    Informational PurposesAn informational icon, calling your attention
    Note
    2x connectors
  258. Secure HVAC harness to IP harness
    Informational PurposesAn informational icon, calling your attention
    Note
    3x harness holders
  259. Install IP harness clip to HVAC assembly next to RH upper mode actuator
    Informational PurposesAn informational icon, calling your attention
    Note
    1x clip
  260. Install IP harness clip to HVAC assembly next to RH lower duct thermistor
    Informational PurposesAn informational icon, calling your attention
    Note
    1x clip
  261. Install IP harness clips to body
    Informational PurposesAn informational icon, calling your attention
    Note
    4x harness clips
  262. Connect IP harness connector to restrain control module
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector, Engage locking tab
  263. Install clip securing center speaker harness to HVAC assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    1x clip
  264. Connect blower motor connector
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector
  265. Install blower motor harness clip to HVAC assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    1x clip

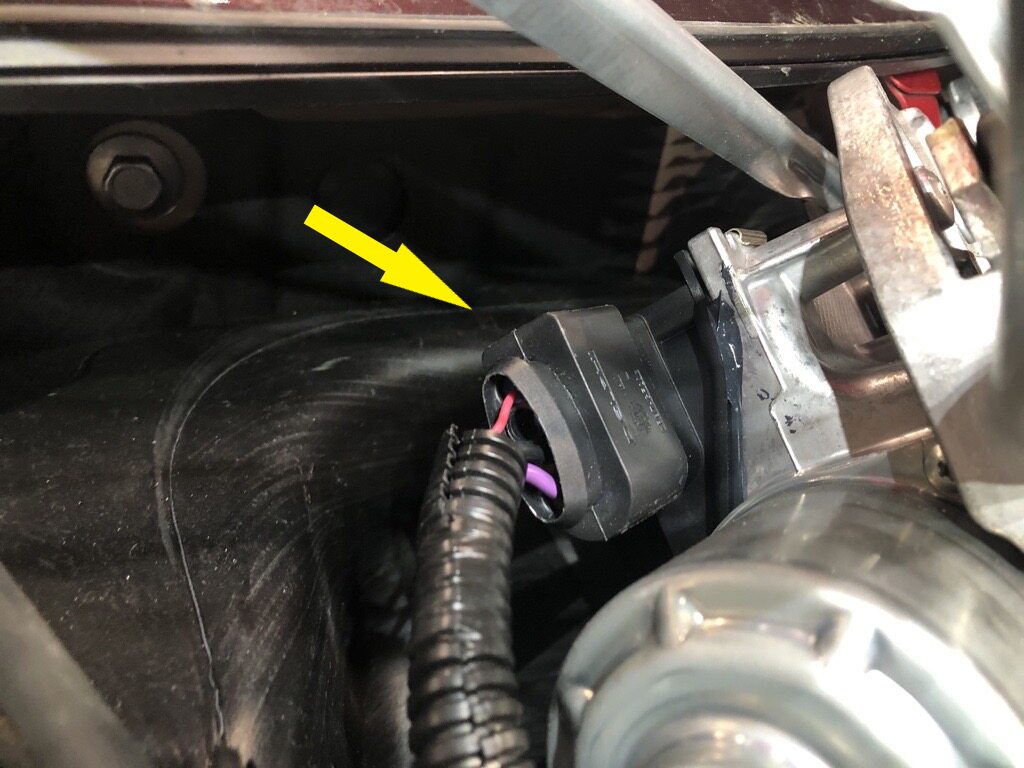

  266. Connect IP harness connector to electronic steering column
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector
  267. Connect HVAC connector to left body controller
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector
  268. Connect dash connector to left body controller
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector, Fully seat connector and pull release tab into locking position
  269. Install headliner harness clips to lower a-pillar
    Informational PurposesAn informational icon, calling your attention
    Note
    2x clips
  270. Connect headliner harness connector
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector
  271. Install driver air wave duct into HVAC assembly
  272. Connect LH upper duct thermistor to driver air wave duct
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector
  273. Install screws securing driver air wave duct to cross car beam
    Informational PurposesAn informational icon, calling your attention
    Note
    2x screws, T20, 2.3 Nm
  274. Install IP carrier onto cross car beam
    Informational PurposesAn informational icon, calling your attention
    Note
    4x mounting tabs, Recommend assistance, Slide mounting tabs on IP carrier into brackets on vehicle, Be cautious to clear the harness clipped at top center of HVAC assembly, This will also ease installation
  275. Install screw securing IP carrier to cross car beam on upper RH side
    Informational PurposesAn informational icon, calling your attention
    Note
    1x screw, T20, 2.3 Nm
  276. Install screws securing IP carrier to cross car beam at upper center
    Informational PurposesAn informational icon, calling your attention
    Note
    2x screws, T20, 2.3 Nm
  277. Install screws securing IP carrier to cross car beam at lower center
    Informational PurposesAn informational icon, calling your attention
    Note
    2x screws, T20, 2.3 Nm
  278. Install screw securing IP carrier to cross car beam on upper LH side
    Informational PurposesAn informational icon, calling your attention
    Note
    1x screw, T20, 2.3 Nm
  279. Install screws securing IP carrier to cross car beam on lower LH side
    Informational PurposesAn informational icon, calling your attention
    Note
    2x screws, T20, 2.3 Nm
  280. Install screws securing IP carrier to cross car beam near passenger air bag
    Informational PurposesAn informational icon, calling your attention
    Note
    2x screws, T20, 2.3 Nm
  281. Install bolts securing passenger air bag assembly to cross car beam
    Informational PurposesAn informational icon, calling your attention
    Note
    4x patch bolts, E10, 8 Nm, Install new patch bolts
  282. Install connectors for passenger air bag
    Informational PurposesAn informational icon, calling your attention
    Note
    3x connectors, 2x connectors for regions other than North America
  283. Install RH speaker to IP carrier
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector, 3x screws, T20, 2.3 Nm
  284. Install center tweeter to IP carrier
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector, 2x screws, T20, 2.3 Nm
  285. Install center speaker to IP
    Informational PurposesAn informational icon, calling your attention
    Note
    3x screws, T20, 2.3 Nm, 1x connector
  286. Install LH speaker to IP carrier
    Informational PurposesAn informational icon, calling your attention
    Note
    3x screws, T20, 2.3 Nm, 1x connector
  287. Position defroster grill and lower tabs into position on IP
    Informational PurposesAn informational icon, calling your attention
    Note
    6x tabs
  288. Secure clips securing defroster grill
    Informational PurposesAn informational icon, calling your attention
    Note
    8x clips
  289. Position LH air duct into IP and connect harness connector
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector
  290. Install LH air duct into IP
    Informational PurposesAn informational icon, calling your attention
    Note
    1x screw, T20, 2.3 Nm
  291. Position RH air duct into IP and connect harness connector
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector
  292. Install RH air duct into IP
    Informational PurposesAn informational icon, calling your attention
    Note
    1x screw, T20, 2.3 Nm
  293. Install IP brow finisher into vehicle
    Informational PurposesAn informational icon, calling your attention
    Note
    16x clips, Need to lift top pad up slightly to slide IP brow finisher into position
  294. Install screws securing RH side of IP brow finisher
    Informational PurposesAn informational icon, calling your attention
    Note
    4x screws, T20, 2.3 Nm, Fastener count may vary, Older production vehicles may have 5x screws
  295. Install screws securing LH side of IP brow finisher
    Informational PurposesAn informational icon, calling your attention
    Note
    4x screws, T20, 2.3 Nm, Fastener count may vary, Older production vehicles may have 5x screws
  296. Install RH IP air wave duct
    Informational PurposesAn informational icon, calling your attention
    Note
    2x push clips
  297. Connect RH upper duct thermistor to RH IP air wave duct
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector
  298. Install passenger footwell air duct
    Informational PurposesAn informational icon, calling your attention
    Note
    1x push clip
  299. Connect glove box assembly connectors
    Informational PurposesAn informational icon, calling your attention
    Note
    3x connectors, New puddle lamp harness routing prevent blocking movement of pawls, Make sure harness is routed properly above passenger footwell air duct before connecting
  300. Install glove box into IP carrier
    Informational PurposesAn informational icon, calling your attention
    Note
    3x clips
  301. Install screws securing glove box assembly to IP carrier
    Informational PurposesAn informational icon, calling your attention
    Note
    6x screws, T20, 2.3 Nm
  302. Connect glove box USB cable to car computer
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector
  303. Install passenger knee air bag onto vehicle
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector, Use caution not to damage connector and harness, Support knee air bag while connecting connector
  304. Install bolts securing passenger knee air bag to vehicle
    Informational PurposesAn informational icon, calling your attention
    Note
    4x patch bolts, E10, 8 Nm, Install new patch bolts, 2x screws, T20, 2 Nm, 1x push clip, If vehicle equipped with T30 bolts update to E10
  305. Install RH footwell assembly onto IP
    Informational PurposesAn informational icon, calling your attention
    Note
    4x push clips
  306. Position center display neck housing into vehicle
  307. Position center display into vehicle
  308. Connect center display
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector
  309. Install retaining clip to center display connector
    Informational PurposesAn informational icon, calling your attention
    Note
    1x clip
  310. Slide down neck housing and install bolts securing neck housing to center display
    Informational PurposesAn informational icon, calling your attention
    Note
    2x bolts, T30, 3 Nm, Number of fasteners on older vehicles may vary
  311. Install center display to IP carrier
    Informational PurposesAn informational icon, calling your attention
    Note
    2x patch bolts, 10mm, 16 Nm, Install new 10mm patch bolts, Slide towards front of vehicle
  312. Connect temperature sensor connector and install IP service panel into IP
    Informational PurposesAn informational icon, calling your attention
    Note
    4x clips, 4x tabs, 1x connector
  313. Install SCCM onto steering column
    Informational PurposesAn informational icon, calling your attention
    Note
    1x bolt, 5mm allen, 9 Nm
  314. Install SCCM onto steering column
    Informational PurposesAn informational icon, calling your attention
    Note
    1x bolt, 5mm allen, 9 Nm
  315. Connect SCCM assembly connector
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector, Install new orange retaining clip to connector then install SCCM connector, Perform push-pull-push to make sure connector is seated properly
  316. Position lower shroud onto steering column
  317. Install lower screw securing lower shroud to steering column
    Informational PurposesAn informational icon, calling your attention
    Note
    1x screw, T20, 1.5 Nm
  318. Install lower shroud to steering column
    Informational PurposesAn informational icon, calling your attention
    Note
    3x screws, T20, 1.5 Nm
  319. Install upper shroud onto lower shroud
    Informational PurposesAn informational icon, calling your attention
    Note
    4x clips
  320. Position steering wheel to column
    Informational PurposesAn informational icon, calling your attention
    Note
    Align the marking and keyed part of steering wheel and column
  321. Secure steering wheel
    Informational PurposesAn informational icon, calling your attention
    Note
    1x patch bolt, 10mm hex, 80 Nm, Install new patch bolt
  322. Connect steering wheel
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector
  323. Position driver air bag assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector
  324. Install driver air bag assembly to steering wheel
    Informational PurposesAn informational icon, calling your attention
    Note
    3x datums, 2x spring clips, Inspect to make sure lower horn bracket is properly secured to steering wheel before installing driver air bag, make sure that the driver air bag harness doesn’t get caught between the driver air bag and the horn mechanism, verify air bag is fully engaged
  325. Install main decor assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    15x clips, 1x center clip
  326. Install LH footwell duct into HVAC module
    Informational PurposesAn informational icon, calling your attention
    Note
    1x push clip
  327. Position driver knee airbag
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector, Use caution not to damage the connector/harness, Support the knee air bag while connecting the connector
  328. Install driver knee air bag to vehicle
    Informational PurposesAn informational icon, calling your attention
    Note
    4x patch bolts, E10, 8 Nm, Install new patch bolts, 2x screws, T20, 2 Nm, 1x push clip, If vehicle equipped with T30 bolts, update to E10
  329. Position LH footwell cover
    Informational PurposesAn informational icon, calling your attention
    Note
    3x tabs, 1x Ethernet connector, 1x puddle light connector, APAC specific vehicles have an additional OBDII connector
  330. Install LH footwell cover
    Informational PurposesAn informational icon, calling your attention
    Note
    1x screw, T20, 2.5 Nm, 2x push clips
  331. Install RH upper A-pillar trim
    Informational PurposesAn informational icon, calling your attention
    Note
    3x clips, 1x tether, Slide bottom of trim along IP and speaker grill, attach tether to body side, Set clips starting at the bottom and work up, Pull seal over trim
  332. Install RH lower A-pillar trim
    Informational PurposesAn informational icon, calling your attention
    Note
    1x clip, 2 guide tabs, Align 2 front tabs then align slot with harness bracket and then push rear clip to secure to lower B-pillar
  333. Install clip for RH lower A-pillar trim
    Informational PurposesAn informational icon, calling your attention
    Note
    1x clip
  334. Install RH mid A-pillar assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    1x clip, 1x tab, Align bottom tab then push on top clip to fully seat mid A-pillar, Make sure seal seat on top of trim
  335. Install RH air wave bezel cap to main decor assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    2x clips, Newer vehicles are equipped with solid bezel.
  336. Install RH IP end cap
    Informational PurposesAn informational icon, calling your attention
    Note
    3x clips
  337. Install LH upper A-pillar trim
    Informational PurposesAn informational icon, calling your attention
    Note
    3x clips, 1x tether, Slide bottom of trim along IP and speaker grill, attach tether to body side, Set clips starting at the bottom and work up, Pull seal over trim
  338. Install LH lower A-pillar trim
    Informational PurposesAn informational icon, calling your attention
    Note
    2x clips, 3 guide tabs, Align the 2 front tabs then align the slot with harness bracket and then push rear clip to secure to lower B-pillar, fully seat seal along trim
  339. Install clip for LH lower A-pillar trim
    Informational PurposesAn informational icon, calling your attention
    Note
    1x push clip
  340. Install LH mid A pillar assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    1x clip, 1x tab, Align the bottom tab then push the top clip to fully seat mid A pillar, Pull seal over trim
  341. Install LH air wave bezel cap to main decor assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    2x clips, Newer vehicles are equipped with solid bezel.
  342. Install LH IP end cap
    Informational PurposesAn informational icon, calling your attention
    Note
    3x clips
  343. Install center console into vehicle
    Informational PurposesAn informational icon, calling your attention
    Note
    Recommend assistance, Tilt front of console downward, Slide assembly towards front of vehicle and tilt rear of console down into place
  344. Connect USB harness at RH of center console
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector
  345. Connect harness from rear of center console
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector
  346. Install RH front exterior bolts to center console
    Informational PurposesAn informational icon, calling your attention
    Note
    2x bolts, 10mm, 7 Nm
  347. Install RH console side panel carpet
    Informational PurposesAn informational icon, calling your attention
    Note
    1 tab, 12x clips, Position side panel and align the front tab. Push the console panel from the front towards the rear
  348. Install RH front floor mat
  349. Install LH front exterior bolts to center console
    Informational PurposesAn informational icon, calling your attention
    Note
    2x bolts, 10mm, 7 Nm
  350. Install LH console side panel carpet
    Informational PurposesAn informational icon, calling your attention
    Note
    1 tab, 12x clips, Position side panel and align the front tab. Push the console panel from the front towards the rear
  351. Install LH front floor mat
  352. Connect first responder loop
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector, Engage locking tab, Connect FRL before connecting 12V to avoid damage to car computer
  353. Connect 12V negative terminal
    Informational PurposesAn informational icon, calling your attention
    Note
    1x nut, 10mm, 6 Nm
  354. Remove AC hoses from vehicle
  355. Install caps onto A/C ports
    Informational PurposesAn informational icon, calling your attention
    Note
    2x caps
  356. Run ODIN routine PROC_VCFRONT_X_STOP-THERMAL-FILL-DRAINvia Toolbox: (link)via Service Mode:
    • Thermal ➜ Actions ➜ Stop Thermal Fill/Drain
    • Thermal ➜ Coolant System ➜ Stop Coolant Fill/Drain
    • Thermal ➜ Refrigerant System ➜ Stop Refrigerant Fill/Drain
    via Service Mode Plus:
    • Drive Inverter ➜ Front Drive Inverter Replacement ➜ Stop Fluid Fill/Drain
    • Drive Inverter ➜ Rear Drive Inverter Replacement ➜ Stop Fluid Fill/Drain
    • Drive Inverter ➜ Rear Left Drive Inverter Replacement ➜ Stop Fluid Fill/Drain
    • Drive Inverter ➜ Rear Right Drive Inverter Replacement ➜ Stop Fluid Fill/Drain
    • Drive Unit ➜ Front Drive Unit Replacement ➜ Stop Coolant Fill/Drain
    • Drive Unit ➜ Rear Drive Unit Replacement ➜ Stop Coolant Fill/Drain
  357. Run ODIN routine TEST-SELF_VCFRONT_X_HEAT-PUMP-COMMISSIONINGvia Toolbox: (link)via Service Mode: Thermal ➜ Refrigerant System ➜ Run Heat Pump Commissioningvia Service Mode Plus: Drive Inverter ➜ Front Drive Inverter Replacement ➜ Heatpump commissioning
  358. Run ODIN routine TEST-SELF_VCFRONT_X_THERMAL-PERFORMANCEvia Toolbox: (link)via Service Mode: Thermal ➜ Actions ➜ Test Thermal Performancevia Service Mode Plus:
    • Drive Inverter ➜ Front Drive Inverter Replacement ➜ Thermal System Test
    • Drive Inverter ➜ Rear Drive Inverter Replacement ➜ Thermal System Test
    • Drive Inverter ➜ Rear Left Drive Inverter Replacement ➜ Thermal System Test
    • Drive Inverter ➜ Rear Right Drive Inverter Replacement ➜ Thermal System Test
    • Drive Unit ➜ Front Drive Unit Replacement ➜ Thermal System Test
    • Drive Unit ➜ Rear Drive Unit Replacement ➜ Thermal System Test
  359. Run ODIN routine TEST-SELF_VCRIGHT_X_HVAC-PERFORMANCEvia Toolbox: (link)via Service Mode:
    • Thermal ➜ Actions ➜ Test HVAC Performance
    • Thermal ➜ HVAC ➜ HVAC Performance Test
    • Thermal ➜ Actions ➜ Test HVAC Performance
  360. Move RH front seat forward
  361. Install rear exterior bolts to center console
    Informational PurposesAn informational icon, calling your attention
    Note
    2x bolts, 10mm, 7 Nm
  362. Move RH front seat to original position
  363. Move LH front seat forward
  364. Install LH rear exterior bolt to center console
    Informational PurposesAn informational icon, calling your attention
    Note
    Delete step
  365. Install console lower rear panel
    Informational PurposesAn informational icon, calling your attention
    Note
    5x clips
  366. Move LH front seat to original position
  367. Push vehicle onto lift
    Informational PurposesAn informational icon, calling your attention
    Note
    Recommend assistance, Note this vehicle can only be safely pushed for a very short distance and at very slow speed
  368. Press and hold park button to release EPB service mode
    Informational PurposesAn informational icon, calling your attention
    Note
    Remove wheel chocks if necessary
  369. Raise and support vehicle
    Informational PurposesAn informational icon, calling your attention
    Note
    Ensure vehicle is not charging, Remove charging cable if it's plugged in
  370. Install washer tank into position
  371. Connect washer pump and level sensor connectors
    Informational PurposesAn informational icon, calling your attention
    Note
    2x connectors
  372. Install upper bolt securing washer tank to vehicle
    Informational PurposesAn informational icon, calling your attention
    Note
    1x bolt, 10mm, 3 Nm
  373. Secure harness clip onto LH side of washer tank inlet
    Informational PurposesAn informational icon, calling your attention
    Note
    1x clip
  374. Raise vehicle partially and lower lift onto locks
    Informational PurposesAn informational icon, calling your attention
    Note
    Set vehicle to comfortable working height, Make sure there's an audible click of the locks on both sides before lowering, otherwise vehicle may tilt to the side
  375. Remove LH front wheel
    Informational PurposesAn informational icon, calling your attention
    Note
    5x nuts, 21mm, 175 Nm
  376. Partially release LH front wheel liner
    Informational PurposesAn informational icon, calling your attention
    Note
    2x push clips
  377. Install lower bolt securing washer tank to vehicle
    Informational PurposesAn informational icon, calling your attention
    Note
    1x bolt, 10mm, 3 Nm
  378. Install LH front wheel liner to vehicle
    Informational PurposesAn informational icon, calling your attention
    Note
    6x clips, 1x bolt, 10mm, 5 Nm, Newer vehicles may be equipped with 2x push clips securing lower portion of liner to body
  379. Install LH front wheel
    Informational PurposesAn informational icon, calling your attention
    Note
    5x nuts, 21mm, 175 Nm, Start lug nuts by hand before using power tool
  380. Lower vehicle until tires are touching ground
    Informational PurposesAn informational icon, calling your attention
    Note
    Raise lift off locks, Then hold lock release lever to keep locks free while vehicle is lowered
  381. Torque LH front wheel
    Informational PurposesAn informational icon, calling your attention
    Note
    5x nuts, 21mm, 175 Nm
  382. Install LH front wheel center cap
    Informational PurposesAn informational icon, calling your attention
    Note
    1x cap, Verify emblem is aligned with valve stem
  383. Install wiper module to vehicle
  384. Connect wiper module connector
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector, Do NOT place limbs within the linkage movement area as wiper arms will automatically transition to parking mode
  385. Install bolts securing wiper module
    Informational PurposesAn informational icon, calling your attention
    Note
    3x bolts, 10mm, 7 Nm
  386. Install fresh air intake assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    2x studs, Lift cowl as needed
  387. Install cowl screen assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    2x push clips, 6x clips
  388. Install RH shock tower cover
    Informational PurposesAn informational icon, calling your attention
    Note
    1x push clip, Flip back the shock tower cover then install clip.
  389. Install LH shock tower cover
    Informational PurposesAn informational icon, calling your attention
    Note
    1x push clip, Flip back the shock tower cover then install clip.
  390. Install LH wiper arm and hose assembly onto vehicle
    Informational PurposesAn informational icon, calling your attention
    Note
    Washer hose shall be routed over the arm pivot joint not under
  391. Install nut securing LH wiper arm to wiper module
    Informational PurposesAn informational icon, calling your attention
    Note
    1x nut, 15mm, 25 Nm, Make sure wiper tip is aligned between two indicators at windshield
  392. Connect washer hose from LH wiper arm to Y-tube fitting and secure washer hose clips
    Informational PurposesAn informational icon, calling your attention
    Note
    2x clips, 1x hose
  393. Install LH wiper arm nut cover
    Informational PurposesAn informational icon, calling your attention
    Note
    1x cover
  394. Install RH wiper arm and hose assembly onto vehicle
  395. Install nut securing RH wiper arm to wiper module
    Informational PurposesAn informational icon, calling your attention
    Note
    1x nut, 15mm, 25 Nm, Make sure wiper tip is aligned between two indicators at corner of windshield
  396. Connect washer hose from RH wiper arm
    Informational PurposesAn informational icon, calling your attention
    Note
    2x clips, 1x hose, Connect to Y-tube fitting and secure washer hose clips
  397. Install RH wiper arm nut cover
    Informational PurposesAn informational icon, calling your attention
    Note
    1x cover
  398. Install frunk assembly to vehicle
    Informational PurposesAn informational icon, calling your attention
    Note
    12x clips, Make sure frunk assembly is fully seated onto clips, Number of clips may vary on older vehicles, Ensure A/C compressor HVIL harness is not pinched between frunk assembly and thermal beam, replace any damaged clips
  399. Install bolts securing frunk assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    7x bolts, 10mm, 5 Nm
  400. Install frunk close out panel
    Informational PurposesAn informational icon, calling your attention
    Note
    4x clips, 1x connector, Frunk safety switch, 3x guide tabs, Align 3x tabs then push downward to secure clips
  401. Install cabin intake upper duct assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    3x clips, Some configurations may come with 4x clips
  402. Install rear apron
    Informational PurposesAn informational icon, calling your attention
    Note
    12x clips
  403. Close hood
  404. Verify operation of windshield washers and wipers
  405. Run ODIN routine PROC_ICE_X_EXIT-SERVICE-MODEvia Toolbox: (link)
  406. Remove vehicle from lift
    Informational PurposesAn informational icon, calling your attention
    Note
    Lower rack arms fully and remove from under vehicle
  407. Raise all windows
  408. Close all four doors
    Informational PurposesAn informational icon, calling your attention
    Note
    Unlatch rear doors before closing
  409. This procedure requires refrigerant evacuation and recharge, please add specific evacuation and recharge correction code as needed
    Informational PurposesAn informational icon, calling your attention
    Note
    18200102,18033302,18033305,18200122**Always use this Step ID**
