Taillight - LH (Remove and Install)

Correction code 17402001 0.18 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so.NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email LaborTimeFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.

  • 1460222-00-B SKT, BUMP STOP, MDL 3

Remove

  1. Open the trunk, and then use the bump stop removal tool to remove the LH trunk stop.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Do not use other tools to pry at the trunk stop as this could damage the taillight or trunk stop.
  2. Remove the trunk garnish. See Garnish - Trunk (Remove and Replace).
  3. Carefully pull back the trunk trim carpet to expose the taillight, and then disconnect the electrical harness from the taillight connector.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    If the connector has a red locking tab: DO NOT push down on the red locking tab. Pull the tab away from the connector until the connector is unlocked, and then continue pulling to release the connector.
  4. Remove the nuts (x2) that attach the taillight to the body.
    Tip: Use of the following tool(s) is recommended:
    • 8 mm 12-point deep socket
    • ¼ in std ratchet
    • ¼ in torque wrench (installation only)
  5. Remove the LH taillight assembly from the vehicle.
    Tip: Lift the trunk seal for better clearance.
  6. Remove and discard the grommets (x2) from the body.

Install

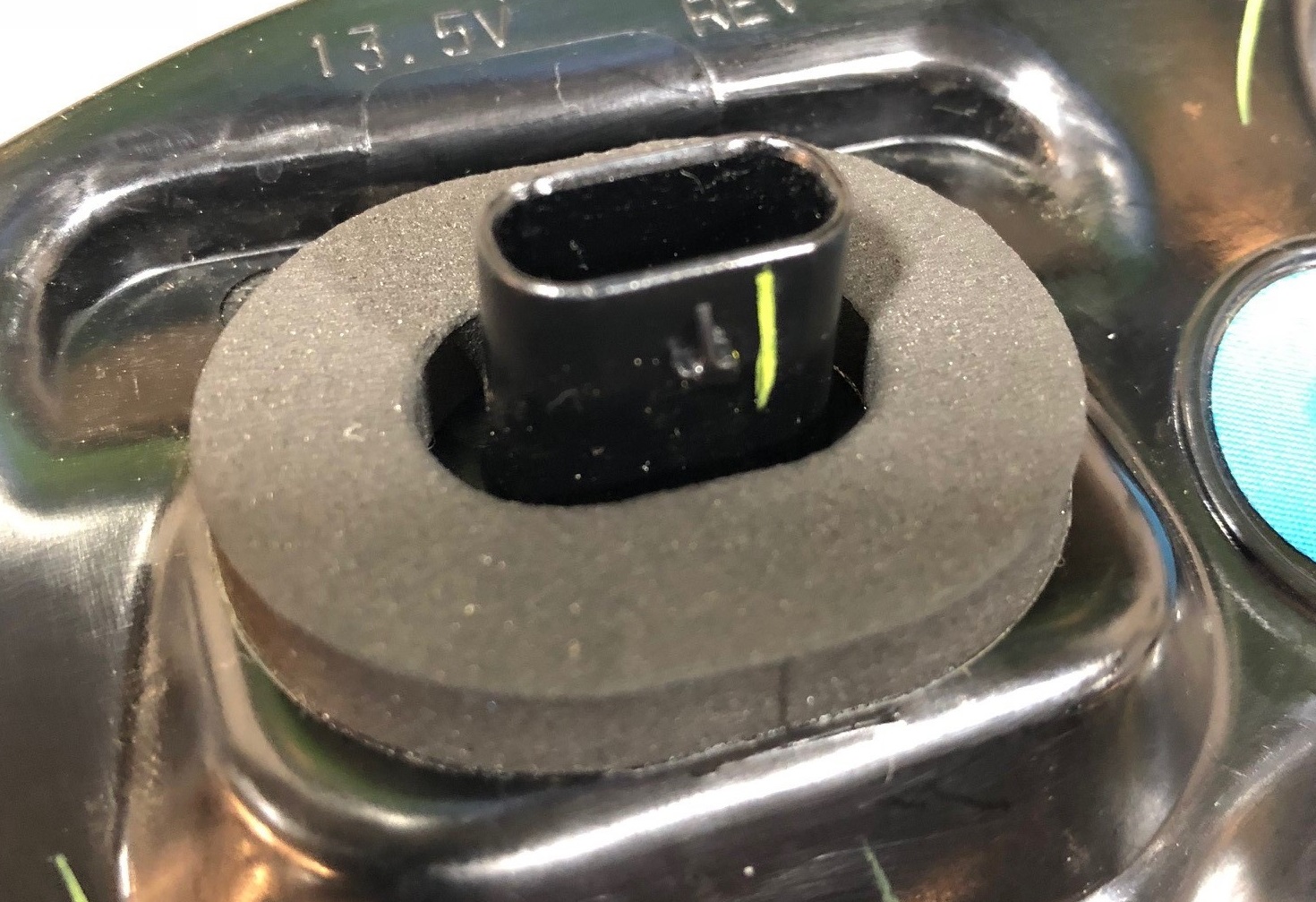

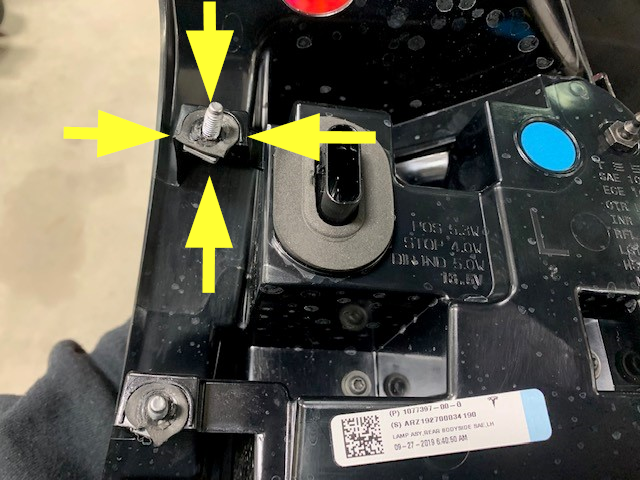

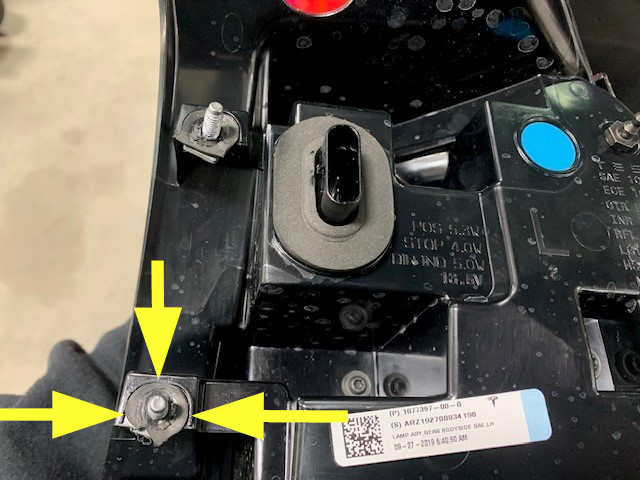

  1. If the same taillight is to be reinstalled, replace the gaskets from around each taillight mounting bolt (x2) and the taillight electrical connector (x1).
  2. Install new grommets (x2) into the body.
  3. Position the LH taillight studs into the grommets, and then install the taillight onto the body.
    Informational PurposesAn informational icon, calling your attention
    Note
    Reseat the trunk seal over the LH taillight.
  4. Install the nuts (x2) that attach the taillight to the vehicle.
    3.2 Nm (2.4 lbs-ft)
    Tip: Use of the following tool(s) is recommended:
    • 8 mm 12-point deep socket
    • ¼ in std ratchet
    • ¼ in torque wrench (installation only)
  5. Connect the electrical harness to the taillight connector.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    If the connector has a red locking tab: Push the red locking tab into the connector to engage the connector lock.
  6. Tuck the trunk trim carpet back into position.
  7. Install the LH bump stop using the bump stop removal tool.
  8. Close the trunk.
