LV Battery - Recover (Heat Pump)

Correction code 17010008 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so.NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email LaborTimeFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.

Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
This procedure is a DRAFT, although it has been validated. Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near high voltage systems and components. Provide corrections and feedback to ServiceDevelopment@teslamotors.com.
  1. Remove the rear underhood apron. See Underhood Apron - Rear (Remove and Replace).
  2. Disconnect LV battery connector and keep FRL connected
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector, Release LV battery but keep FRL connected, Lift up and release green locking tab, Pull black connector lock outwards to release connection
  3. Connect LV maintainer
    Informational PurposesAn informational icon, calling your attention
    Note

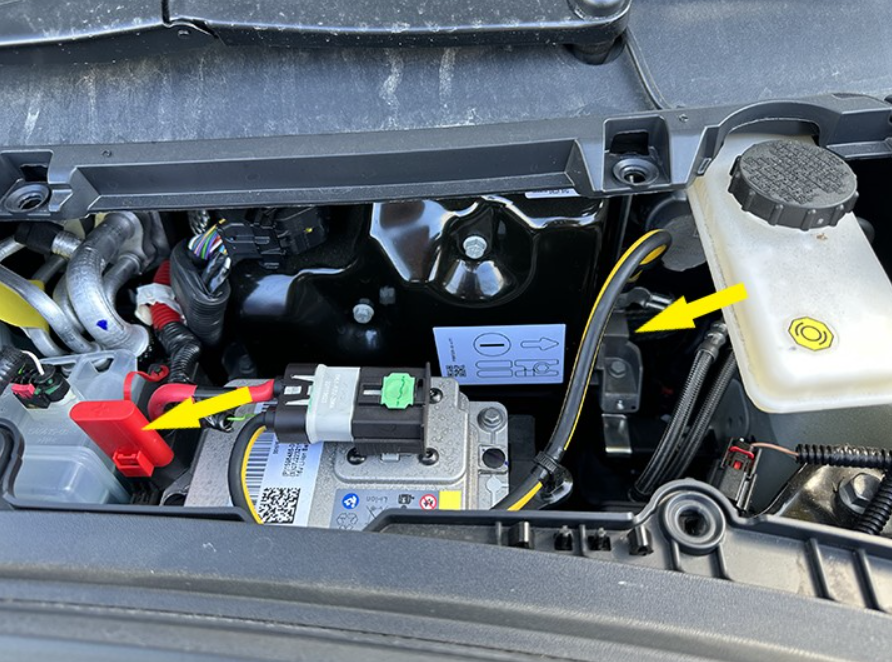

    Release positive terminal cover, Secure positive terminal to jump post, Secure negative terminal to bolt located between brake fluid reservoir and front trunk, Connect maintainer to power supply, To avoid damaging the vehicle DO NOT allow positive cable to make contact with other metal components
    Figure 1. Frunk does not need to be removed
  4. Connect LV battery connector
    Informational PurposesAn informational icon, calling your attention
    Note
    Push connector down while pushing slide lock in, Seat e-CPA after lock is fully secured
  5. Open LH front door
  6. Lower LH front window
  7. Place vehicle in service mode
    Informational PurposesAn informational icon, calling your attention
    Note
    Via UI > Controls > Software, Touch and hold "Model 3" for 4 seconds then release, Use screen keyboard to type "service" into dialog box then select OK
  8. Disconnect LV maintainer
  9. Verify the status of the LV battery.
    Informational PurposesAn informational icon, calling your attention
    Note

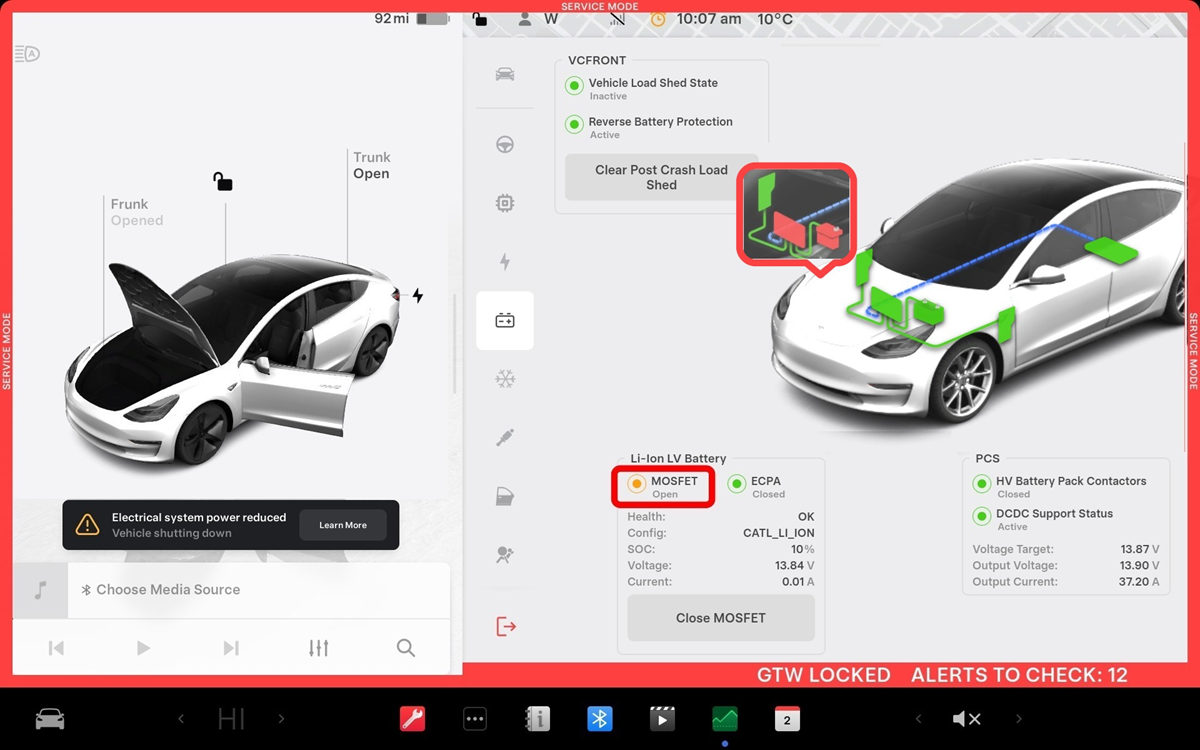

    If after 2 minutes of PCS support, alerts VCLEFT_a478_LVBMS_MOSFET_Open or VCBATT_a478_LVBMS_MOSFET_Open are present, the LV battery has not auto-recovered. Auto-recovery can be manually attempted via touchscreen or Toolbox:
    • Touchscreen:Service Mode > Low Voltage > Power Distribution > Close MOSFET
    • Toolbox: Run the ActionPROC_VCFRONT_X_RECONNECT-LV-BATTERYSearch for routine in ToolboxLVBMS Reconnect LV BatteryLow Voltage / Power Distribution - Close MOSFET
    Informational PurposesAn informational icon, calling your attention
    Note
    If the steps above do not succeed in auto-recovering the LV battery, recover the battery using the Tesla Li-Ion battery charger (STILL IN DEVELOPMENT).

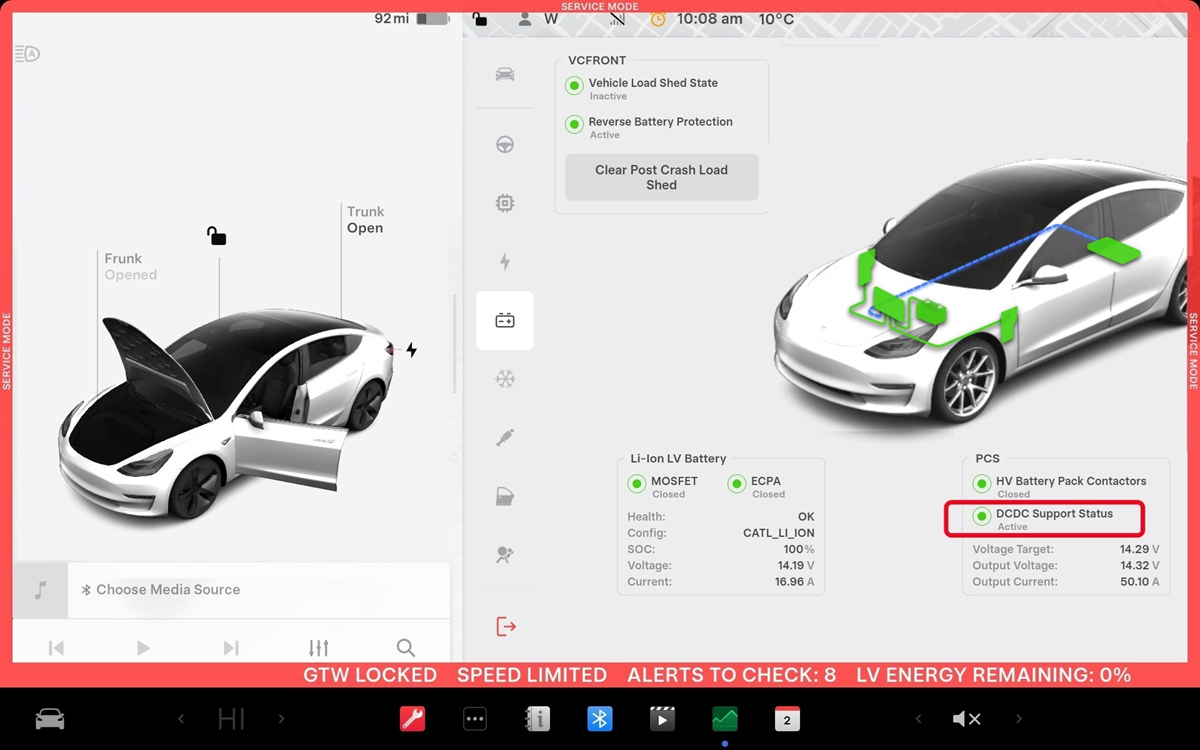

    • Verify that the battery is not discharging at high current and is not self-protecting.
    • Go to Service Mode > Low Voltage > Power Distribution > LV Battery and confirm that LV battery SoC is increasing.

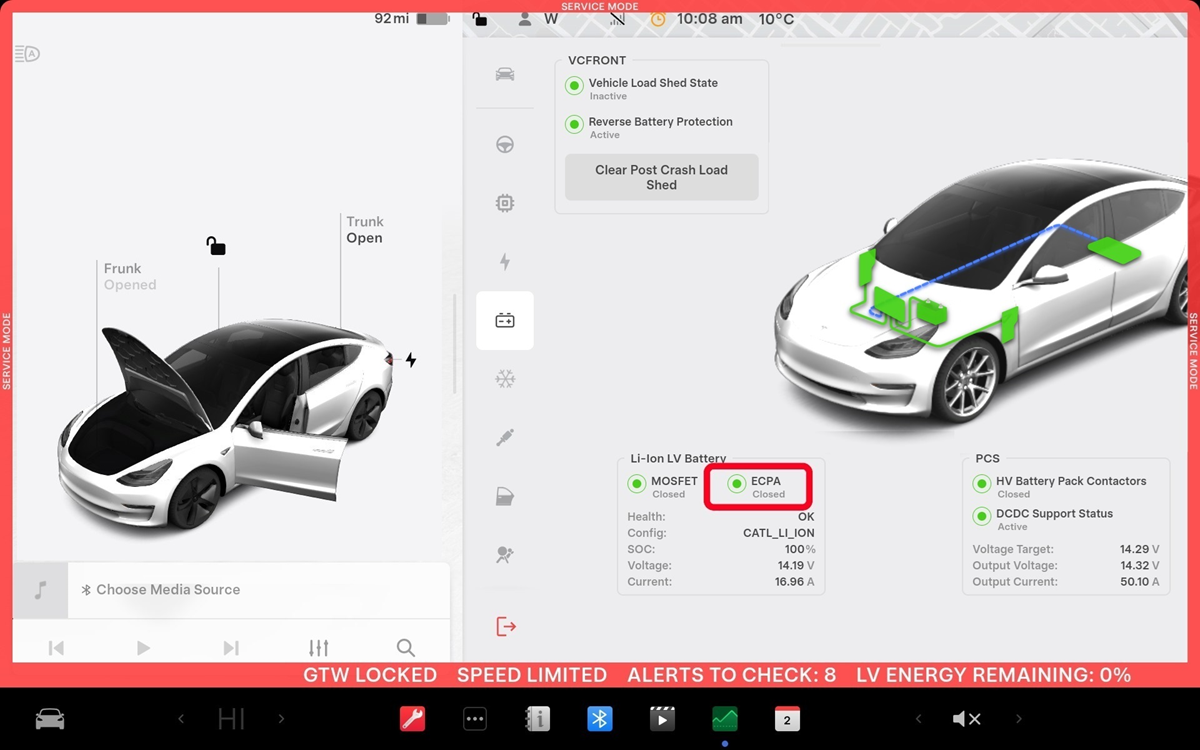

    • Verify that the LV Battery MOSFET status is Closed.
  10. Exit Service Mode
    Informational PurposesAn informational icon, calling your attention
    Note
    Controls > Service Mode > Exit Service Mode, Press and hold for 2 seconds
  11. Install the rear underhood apron. See Underhood Apron - Rear (Remove and Replace).
