Brake Pad Kit - Front (Sport Brakes) (Remove and Replace)

Correction code 33010712 0.96 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so.NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email LaborTimeFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.

  • 2023-03-28: Updated grease in installation section.

Remove

Informational PurposesAn informational icon, calling your attention
Note
For detailed brake specifications, see Brakes.
  1. Raise and support the vehicle. See Raise Vehicle - 2 Post Lift.
  2. Remove the LH front wheel. See Wheel Assembly (Remove and Install).
  3. Remove the bolt that attaches the LH front brake hose bracket to the LH front knuckle.
  4. Remove and discard the bolts that attach the LH front brake caliper to the LH front knuckle.
  5. Use a brake caliper S-hook to hang the LH front caliper on the body.
  6. Use a caliper spreader kit or similar tool to gently spread the brake pads apart.
  7. Gently use a plastic trim tool to remove the brake pads from the LH front brake caliper.
  8. Repeat step 2 through step 7 to remove the RH front brake pads.

Install

  1. Apply a thin layer of Silaramic grease to the left and right side edges of the LH front brake pads.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Do not apply any grease to the back side of the brake pad.

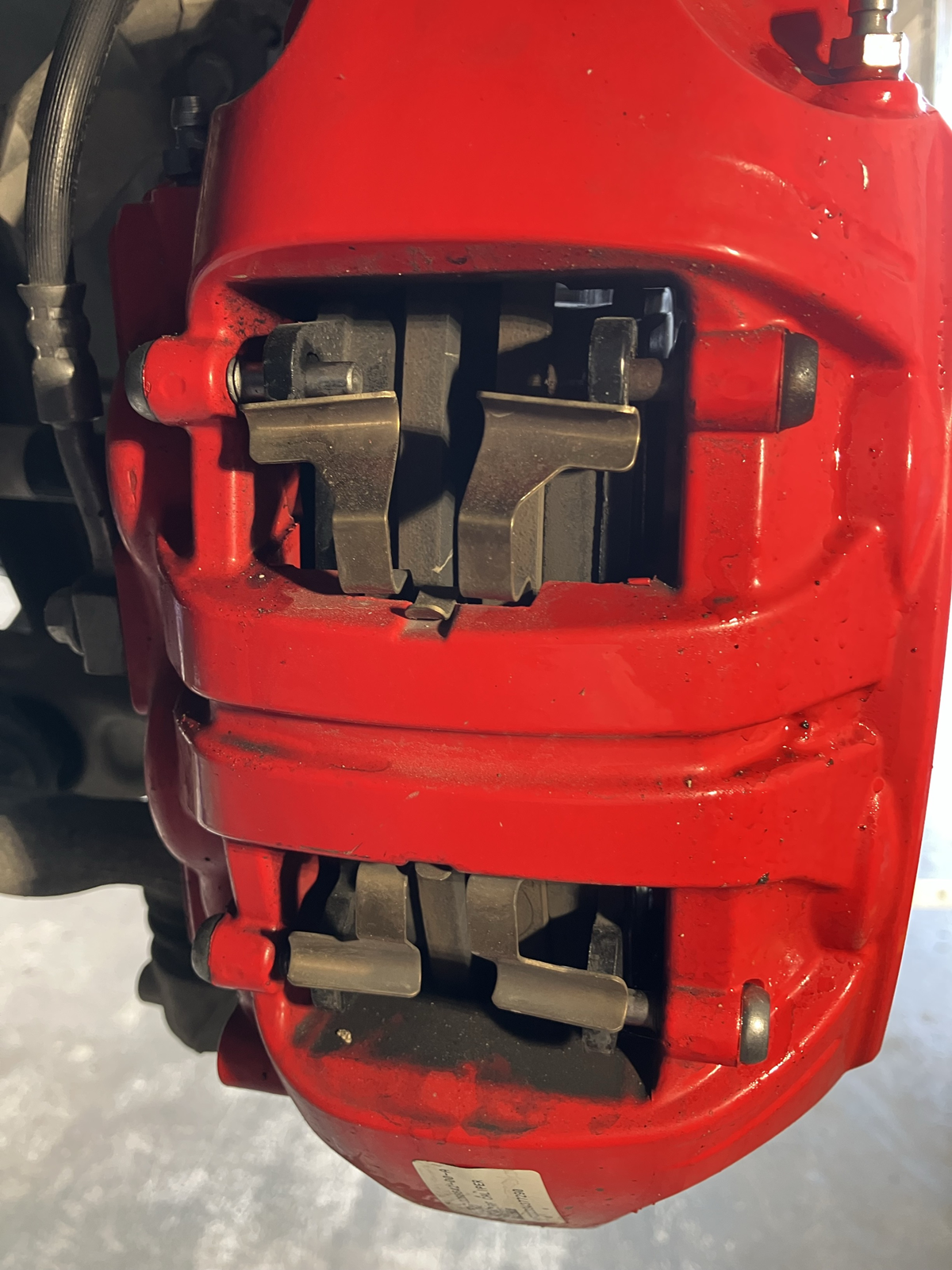

  2. Brush the LH front brake caliper and anti rattle springs with soapy water.
  3. Install the LH front brake pads on the LH front brake caliper.
    Tip: Push the pads toward the anti rattle springs, and then slide the pads onto the fixed pins.
  4. Position the LH front brake caliper on the LH front knuckle, and then install new bolts that attach the caliper to the knuckle.
    94 Nm (69.3 lbs-ft)
  5. Install the bolt that attaches the LH front brake hose bracket to the LH front knuckle.
    5 Nm (3.7 lbs-ft)
  6. Install the LH front wheel. See Wheel Assembly (Remove and Install).
  7. Repeat step 2 through step 6 to install the RH front brake pads.
  8. Lower the vehicle.
  9. Pump the brake pedal 3-5 times to seat the pads against the brake rotor until the brake pedal feels firm.
  10. Perform vehicle road test using a series of ABS-active stops and make sure proper brake pedal feel and performance is achieved.

Torque Specifications

Table 1. Torque Specifications: Brake Pad Kit - Front (Sport Brakes) (Remove and Replace)
Description Torque Value Recommended Tools Reuse/Replace Notes
Bolts that attach the LH front brake caliper to the LH front knuckle
94 Nm (69.3 lbs-ft)
  • External Torx E18
  • Cordless Ratchet/Impact Driver
Replace
Bolt that attaches the LH front brake hose bracket to the LH front knuckle
5 Nm (3.7 lbs-ft)
  • 10 mm socket
  • 4 in extension
Reuse
