Reflex Lens - Rear - RH (Remove and Replace)

Correction code 17404502 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure. See Ergonomic Precautions for safe and healthy working practices.

  • 2026-01-26: Added photo and tips for safer removal.
  • 2025-07-24: Added caution and image for reflex lens lower lip.

Remove

Informational PurposesAn informational icon, calling your attention
Note
This procedure applies only to the RH side. The LH rear reflex lens is part of the charge port.
  1. Apply masking around the RH rear reflex lens.
  2. Use a plastic trim tool to pry and release the clips that attach the RH rear reflex lens to the body, and then remove the RH rear reflex lens from the vehicle.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Pry gently to avoid breaking the clips.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Partially release the upper right clip first, then release the rest of the clips.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use your other hand to support the lens and prevent it from coming out too far before all clips have been released.

Install

  1. Position the bottom of the RH rear reflex lens into the vehicle, and then fasten the clips that attach the lens to the body.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Make sure to insert the bottom of the lens into position first. The lower lip may break if forced when not in position.
    Informational PurposesAn informational icon, calling your attention
    Note
    Carefully and firmly press the RH rear reflex lens to fully seat the clips once the lower portion is in position.

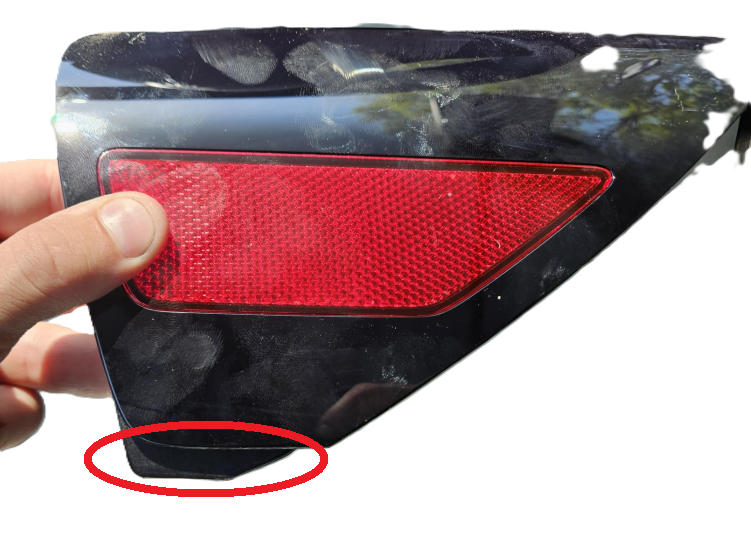

    Figure 1. Lower lip
  2. Remove the masking tape from the body.
  3. Make sure that the RH rear reflex lens to body gap and flush are within specifications.
