Steering Column - Inspect for Lateral Play

Correction code 32051900 0.18 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so.NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email LaborTimeFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.

  • 2025-02-06: Released new procedure.
This procedure is to determine whether the lateral play in the steering column is within specification.

Inspection

  1. Move the steering column to the highest and most inward position.
    Informational PurposesAn informational icon, calling your attention
    Note
    On the touchscreen, select Controls > Steering, and then use the left scroll wheel on the steering wheel to adjust the steering column.
  2. Set the steering wheel in straight ahead position.
  3. Perform a pull/wiggle test on the steering wheel: gently pull and push the steering wheel away from and towards the steering column and note any unusual movement.
    • If any unusual movement is observed, remove the steering wheel, install a new steering wheel bolt and torque it to specification before continuing to the next step. See Steering Wheel (Remove and Install). Make sure there is no more unusual movement of the steering wheel, and then continue to step 4.
      Informational PurposesAn informational icon, calling your attention
      Note
      Add correction code 32051801 as a separate activity to the Service Visit.
    • If no unusual movement is observed, continue to the next step.

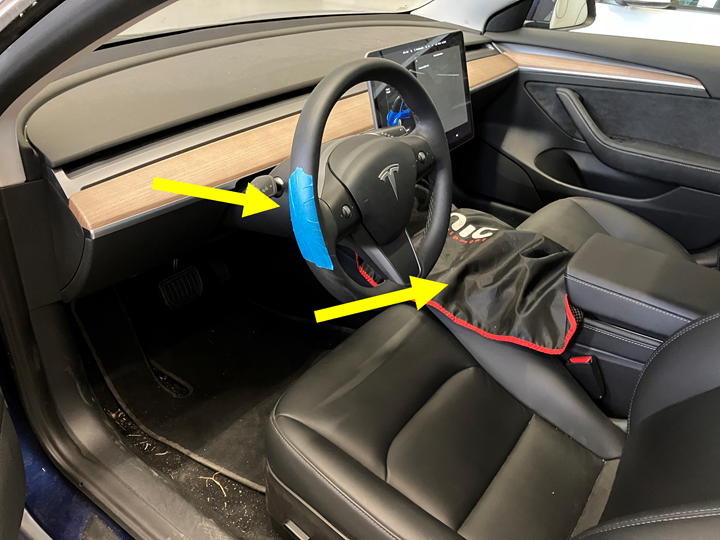

  4. Apply tape onto steering wheel at the 3 o'clock position and put protective material onto the center console.

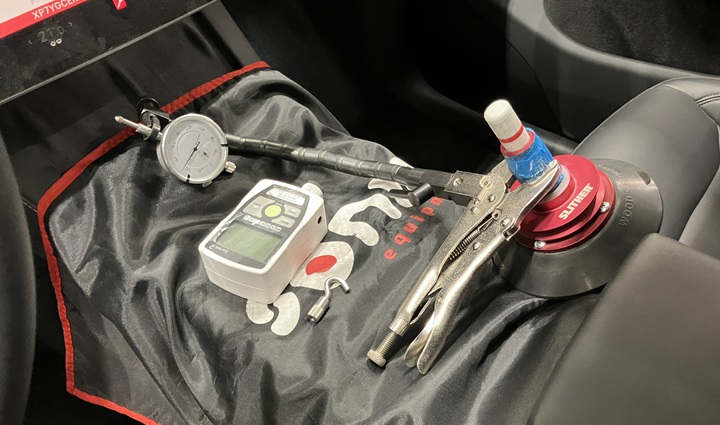

  5. Set the touchscreen to Screen Cleaning Mode, and then install the brake rotor run-out tool onto the center display and steering wheel.
    Informational PurposesAn informational icon, calling your attention
    Note
    Install the suction cup onto the center display. Apply masking tape onto the suction cup for protection, then install the brake run-out tool onto the suction cup. Align the tool horizontally with the tape on the steering wheel and at the 3 o'clock position.
    Informational PurposesAn informational icon, calling your attention
    Note
    Make sure that the indicator rod is properly depressed and allows travel in both directions without bottoming out. Set dial to zero.
  6. Inspect the steering column for lateral play.

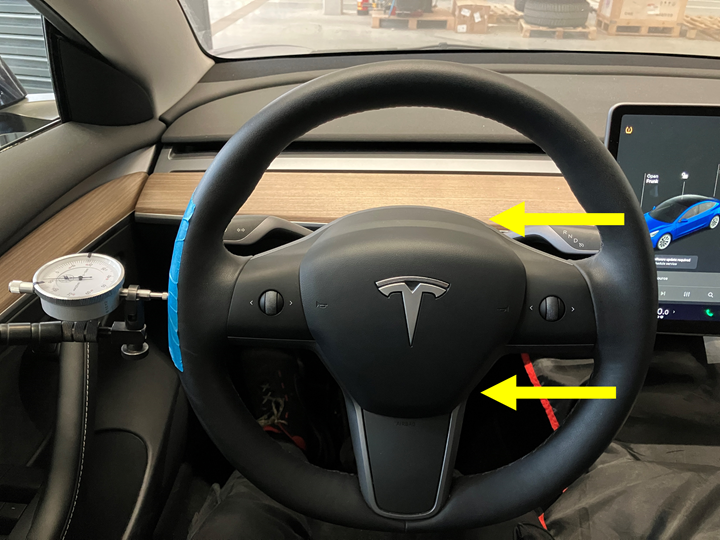

    1. Apply significant force on the steering wheel in one lateral direction, and then release the force.
    2. Record the value at which the dial indicator stabilizes.

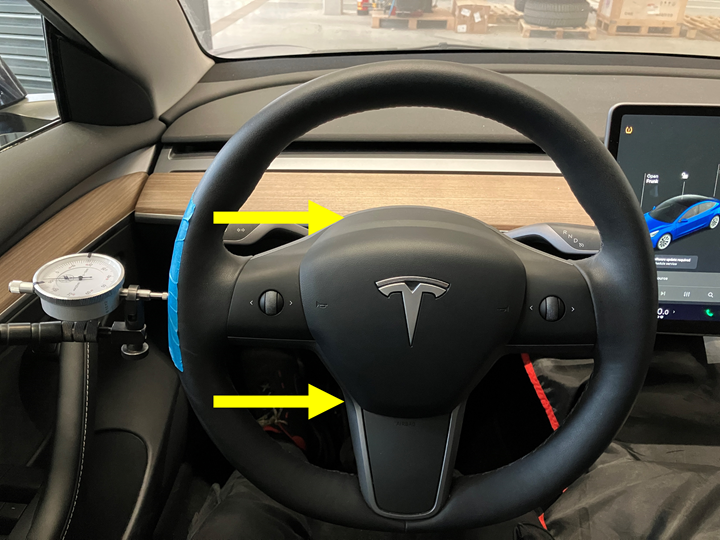

    3. Apply significant force on the steering wheel in the opposite lateral direction, and then release the force.
    4. Record the value at which the dial indicator stabilizes.
    5. Calculate the difference between the two recorded values. If the difference is 1 mm or less, then the steering column is within the specified tolerance.
  7. Remove the brake rotor run-out tool from the center display.
  8. Remove protective materials from the steering wheel and center console.
  9. Clean the center display, and then exit Screen Cleaning Mode.
