Closeout Panel - Door - Front - LH (Remove and Install)

Correction code 11701001 0.35 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so.NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email LaborTimeFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.

  • 1054712-00-A Rivnut Install Kit, for NA (Optional special tool if the thread for the closeout panel becomes stripped)
  • 1054712-01-A Rivnut Install Kit, for EMEA (Optional special tool if the thread for the closeout panel becomes stripped)
  • 1004296-00-A Service Rivnut (Optional special tool if the thread for the closeout panel becomes stripped)
  • 1015888-00-C Service bolt (Optional special tool if the thread for the closeout panel becomes stripped)

Torque Specifications

Table 1. Torque Specifications: Closeout Panel - Door - Front - LH (Remove and Install)
Description Torque Value Recommended Tools Reuse/Replace Notes
Bolts that attach the window motor to the closeout panel
3 Nm (2.2 lbs-ft)
  • 8 mm socket
  • 2 in extension
Reuse
Bolts that attach the closeout panel to the door
4 Nm (2.9 lbs-ft)
  • 8 mm socket
  • 2 in extension
Reuse

Remove

  1. Remove the LH front door trim panel. See Panel - Door Trim - Front - LH (Remove and Install).
  2. Remove the front LH front door speaker. See Speaker - Front Door - LH (Remove and Replace).
  3. Remove the bolts that attach the window motor to the closeout panel.
    3 Nm (2.2 lbs-ft)
    Tip: Use of the following tool(s) is recommended:
    • 8 mm socket
    • 2 in extension
  4. Disconnect the electrical wiring harness from the LH front door pressure sensor connector.
  5. Disconnect the electrical wiring harness from the LH door mirror connectors.
  6. Release the clips that attach the electrical wiring harness to the closeout panel.
  7. Remove the bolts that attach the closeout panel to the door.
    4 Nm (2.9 lbs-ft)
    Tip: Use of the following tool(s) is recommended:
    • 8 mm socket
    • 2 in extension
  8. Release the clips (3x) that attach the closeout panel to the door and window regulator, and then remove the closeout panel from the vehicle.

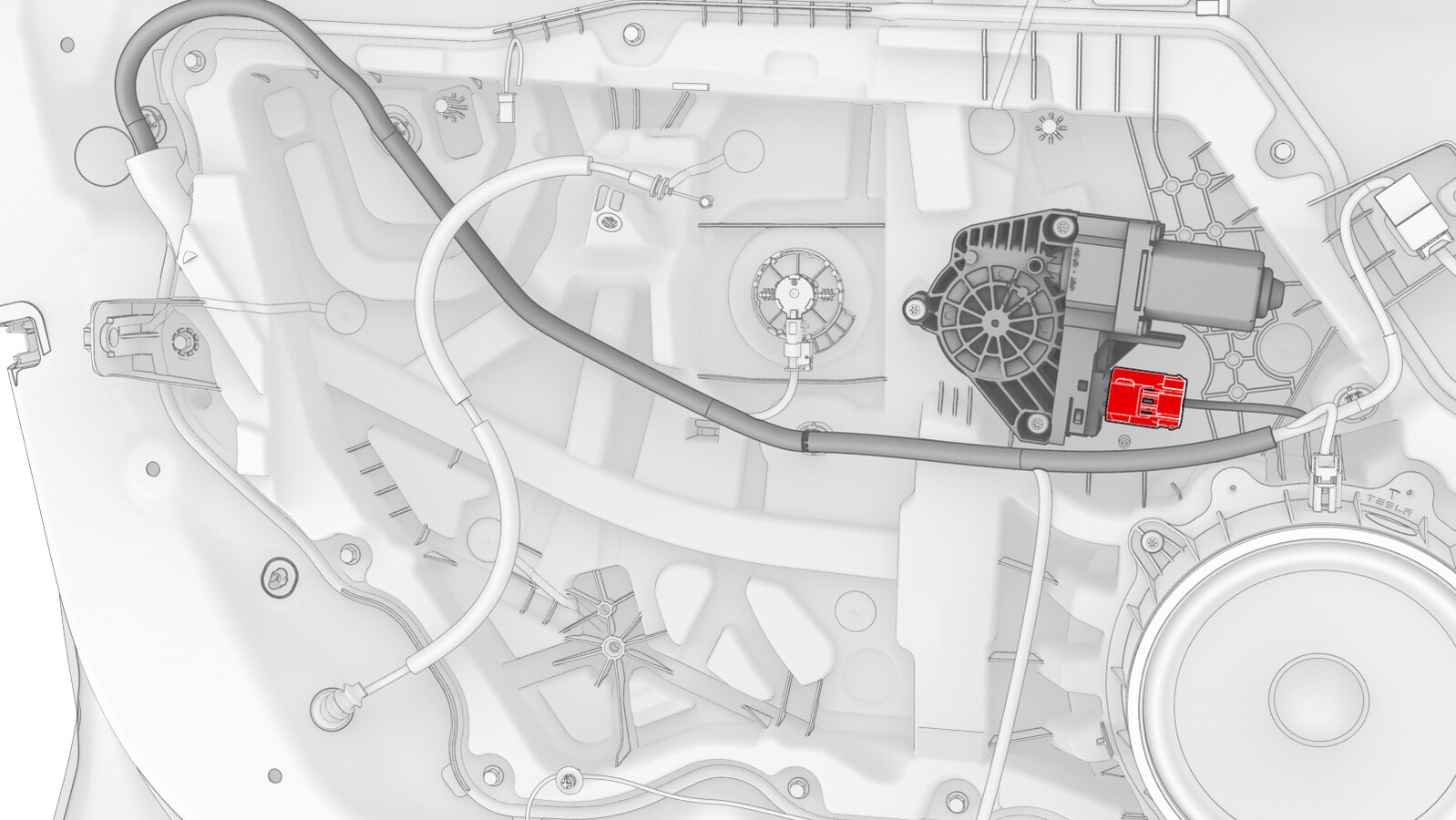

    Figure 1. Closeout panel and window regulator shown, other assemblies hidden for clarity
    Informational PurposesAn informational icon, calling your attention
    Note
    Pass the electrical wiring harness through the hole in the closeout panel, as the closeout panel is being removed.

Install

Installation procedure is the reverse of removal, except for the following:

Warning IconA warning icon, calling your attention to a possibly risky situation
CAUTION
Repeated installations might strip the door mounting holes for the closeout panel. On installation, hand-start the screws so as to reduce the risk of stripping the threads.
  • Install rivnuts where any of the mounting holes for the closeout panel are stripped. Use a 7.5mm drill to prepare the hole for rivnut installation.
