Stabilizer Bar - Front (Remove and Replace)

Correction code 31012202 0.60 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so.NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email LaborTimeFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.

  • 2024-06-03: Added a torque specification table with replaced bolt part numbers.

Torque Specifications

Table 1. Torque Specifications: Stabilizer Bar - Front (Remove and Replace)
Description Torque Value Recommended Tools Reuse/Replace Notes
Nuts that attach the front stabilizer bar to the LH and RH front stabilizer bar links
98 Nm (72.3 lbs-ft)
  • Torx T40 bit
  • 18 mm combination wrench
 Replace 1111543-00-A
Nuts that attach the front stabilizer bar to the front subframe
35 Nm (25.8 lbs-ft)
  • 15 mm deep socket
  • 3 in extension
Replace 1111145-00-A

Remove

  1. Remove the front fascia valance. See Valance - Front Fascia (Remove and Replace).
  2. Remove and discard the nuts that attach the front stabilizer bar to the LH and RH front stabilizer bar links, and then move the front stabilizer bar links aside.
    98 Nm (72.3 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    Note
    Use a T40 bit to hold the stabilizer bar link ball joint in position.
    Tip: Use of the following tool(s) is recommended:
    • Torx T40 bit
    • 18 mm combination wrench

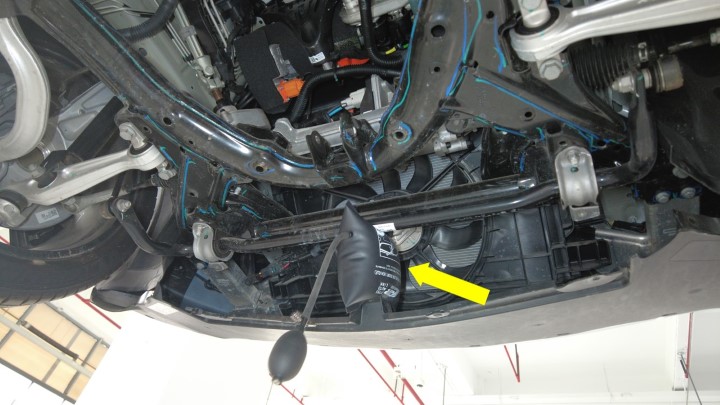

    Figure 1. LH side shown, RH similar
  3. Remove and discard the nuts that attach the front stabilizer bar to the front subframe, and then remove the stabilizer bar from the vehicle.
    35 Nm (25.8 lbs-ft)
    Tip: Use of the following tool(s) is recommended:
    • 15 mm deep socket
    • 3 in extension

Install

  1. Install the front stabilizer bar to the front subframe, install new nuts to attach the stabilizer bar to the subframe, and then mark the nuts with a paint pen after they are torqued.
    35 Nm (25.8 lbs-ft)
    Tip: Use of the following tool(s) is recommended:
    • 15 mm deep socket
    • 3 in extension
  2. Install the LH and RH front stabilizer bar links to the front stabilizer bar, install new nuts to attach the links to the stabilizer bar, and then mark the nuts with a paint pen after they are torqued.
    98 Nm (72.3 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    Note
    Use a T40 bit to hold the stabilizer bar link ball joint in position.
    Tip: Use of the following tool(s) is recommended:
    • Torx T40 bit
    • 18 mm combination wrench
    Figure 2. LH side shown, RH similar
  3. Install the front fascia valance. See Valance - Front Fascia (Remove and Replace).
  4. Refer to the Alignment Requirement tables to determine whether an EPAS alignment check (EC) or four wheel alignment check (AC) is necessary. If performed, add the alignment check/adjust as a separate activity. See Alignment Requirement - Suspension.
